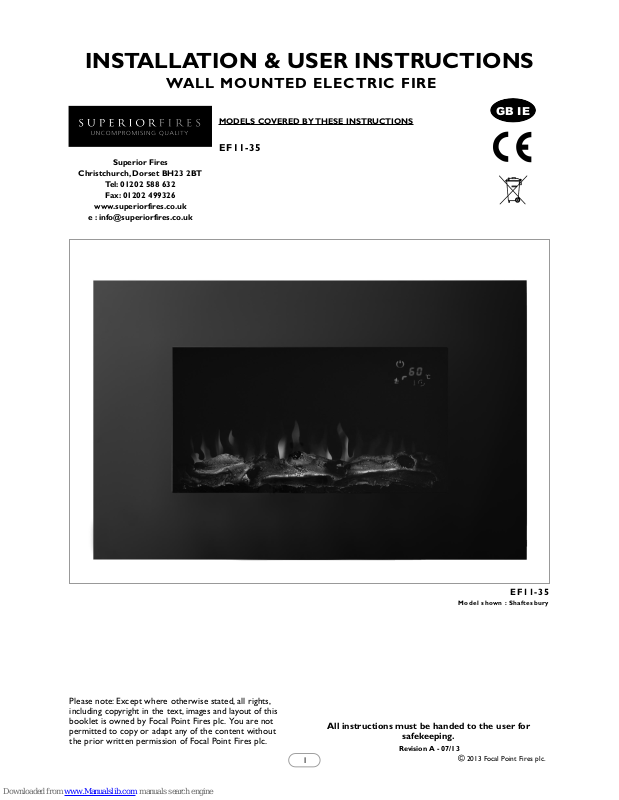

superior fires EF11-35 Installation & User's Instructions

© 2013 Focal Point Fires plc.

INSTALLATION & USER INSTRUCTIONS

All instructions must be handed to the user for

safekeeping.

MODELS COVERED BY THESE INSTRUCTIONS

E

F1 1-35

WALL MOUNTED ELECTRIC FIRE

Please note: Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not
permitted to copy or adapt any of the content without
the prior written permission of Focal Point Fires plc.

1

Revision A - 07/13

EF 11 -3 5

Mo del shown : Sha fte sbu ry

GB IE

Superior Fires

Christchurch, Dorset BH23 2BT

Tel: [phone]
Fax: [phone]

www.superiorfires.co.uk

e : [e-mail]

IMPORTANT - THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE.

When using this electrical appliance, basic precautions should be followed to reduce the risk of fire, electric shock and injury to person, including the
following:

• This heater must be used on an AC supply only and the voltage marked on the heater’s rating label must correspond to the supply voltage.

• Do not switch the appliance on until it is properly installed as described in this manual.

• The heater must not be located immediately above a socket outlet.

• Keep furniture, curtains and other fabric material away from the appliance.

• Do not leave the appliance unattended during use.

• This appliance is intended for household use and should not be used for industrial purposes.

• From time to time, check the cord for damage. Never use the appliance if the cord or any part of the appliance shows signs of damage. A damaged
cord must only be replaced by a qualified person.

• Do not operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.

• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.

• Do not run the mains cable under carpets, rugs etc.

• Do not cover or obstruct the heater in any way. Overheating will result if it is accidentally covered.

• Never immerse the product in water or any other liquids.

• Do not use this heater where it may come into contact with water e.g. in bathrooms, shower rooms etc.

• Do not use the appliance outdoors.

• Before cleaning the appliance, ensure it is unplugged from the power and that it is completely cool.

• Do not clean the appliance with abrasive chemicals.

• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the appliance.

• There are no other replacement parts. All other servicing should be referred to a qualified engineer.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not lift the appliance by the front panel.

•

CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut out, this appliance must not be supplied through an

external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility.

•

CAUTION! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and

vunerable people are present.

• Do not insert or allow foreign objects to enter the inlet or outlet vents as this may result in electric shock, fire or damage to the appliance.

• Do not install the fire using an extension cord.

• Unplug from the mains supply if the appliance is not to be used for long periods.

•

WARNING! This heater is equipped with a device to control the room temperature. Do not use this heater in small rooms when they are

occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

WARNING! Children of less than 3 years should be kept away unless continuously supervised. Children aged 3 years and less than 8 years shall

only switch on/off the applaince provided that it has been placed or installed in its intended normal operating position and they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards involed. Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the applaince or perform user maintenance.
This appliance is designed to be wall hung, using the wall fixtures/fixings provided. DO NOT recess any part of appliance into the wall.

The appliance is supplied with a pre-wired three pin plug (13 Amp fuse rated) and 1.8 metres of electrical cable. It is therefore necessary for a
suitable electrical socket to be located within this distance and be easily accessible.

Supply Voltage: 220~240V AC, 50Hz Fuse Rating: 13 Amp
Heating Elements: 1800W Lighting: LED

This fire is fitted with LED’s (Light Emitting Diode) in place of conventional bulbs. LED’s generate the same light levels as conventional bulbs,
but use a fraction of the energy consumed. LED’s are maintenance free and will not require replacing during the life of the product.

Read all the instructions before continuing to unpack or install this appliance. Carefully remove the appliance from its packaging and lay on
the floor with it’s back surface downward. Note: DO NOT stand the appliance on its frame as this may cause distortion. Check that the
remaining packaging contents correlate with the component checklist below. Please dispose of all packaging at your local recycling centre.

© 2013 Focal Point Fires plc.

I N S TA L L AT I O N & U S E R I N S T R U C T I O N S

2

GB IE

2.0 INSTALLATION REQUIREMENTS

4.0 UNPACKING THE APPLIANCE

3.0 APPLIANCE DATA

Section Contents Page No.

1.0 Important Notes 2

2.0 Installation Requirements 2

3.0 Appliance Data 2

4.0 Unpacking the Appliance 2

5.0 Component Checklist 3

Section Contents Page No.

6.0 Site Requirements 3

7.0 Clearances to Combustibles 3

8.0 Installing the Appliance 3

9.0 Operating the Appliance 4

10.0 Cleaning and Maintenance 4

11.0 Guarantee - Terms and Conditions 5

1.0 IMPORTANT NOTES
