DIRECT VENT GAS FIREPLACES
DRL4543
Our name is our promise.
The DRL4543 direct vent gas fireplace is a versatile linear design for a dramatic
appearance. The large viewing area provides an uninterrupted display of the active flame
pattern. Available in indoor or indoor/outdoor see through configurations, the DRL4543
provides endless possibilities for any modern living area.
2
Page 2
FE ATUR ED DRL4543 shown with Amber Glass Media, and See Through Conversion
EXCLUSIVE FEATURES
43” front open linear configuration
See through conversion kits available to transform the fireplace into a see through model
or indoor/outdoor see through model
Gas controls are conveniently hidden in the fireplace floor
Electronic ignition with battery backup to operate in the event of a power outage
Active, dancing flames help to accentuate the ambiance in any room
Seven flame settings for precise heat control
Clean-face design features ceramic glass for optimum heat transfer and
a protective screen*
Three-piece black porcelain interior liners
Mood enhancing fireplace interior lighting, with six distinctive illumination settings
Optional decorative face trim in three designer options
Deluxe remote control (Flame, lighting, IPI/CPI)
Now uses IHP SV4.5 vent pipe
20 year limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
Remote included
Page 3
FE ATUR ED DRL4543 shown with Amber Glass Media
GLASS MEDIA (Required)
Choose from Blue, Amber, Green, or Speckled Orange to complement your décor (Clear Glass Media comes standard).
Clear (standard)
DECORATIVE FACE TRIM (Optional)
Choose from three decorative face trims to customize your décor.
Aged Silver
Aged Copper
GreenAmberBlue
Black
Speckled Orange
Page 4

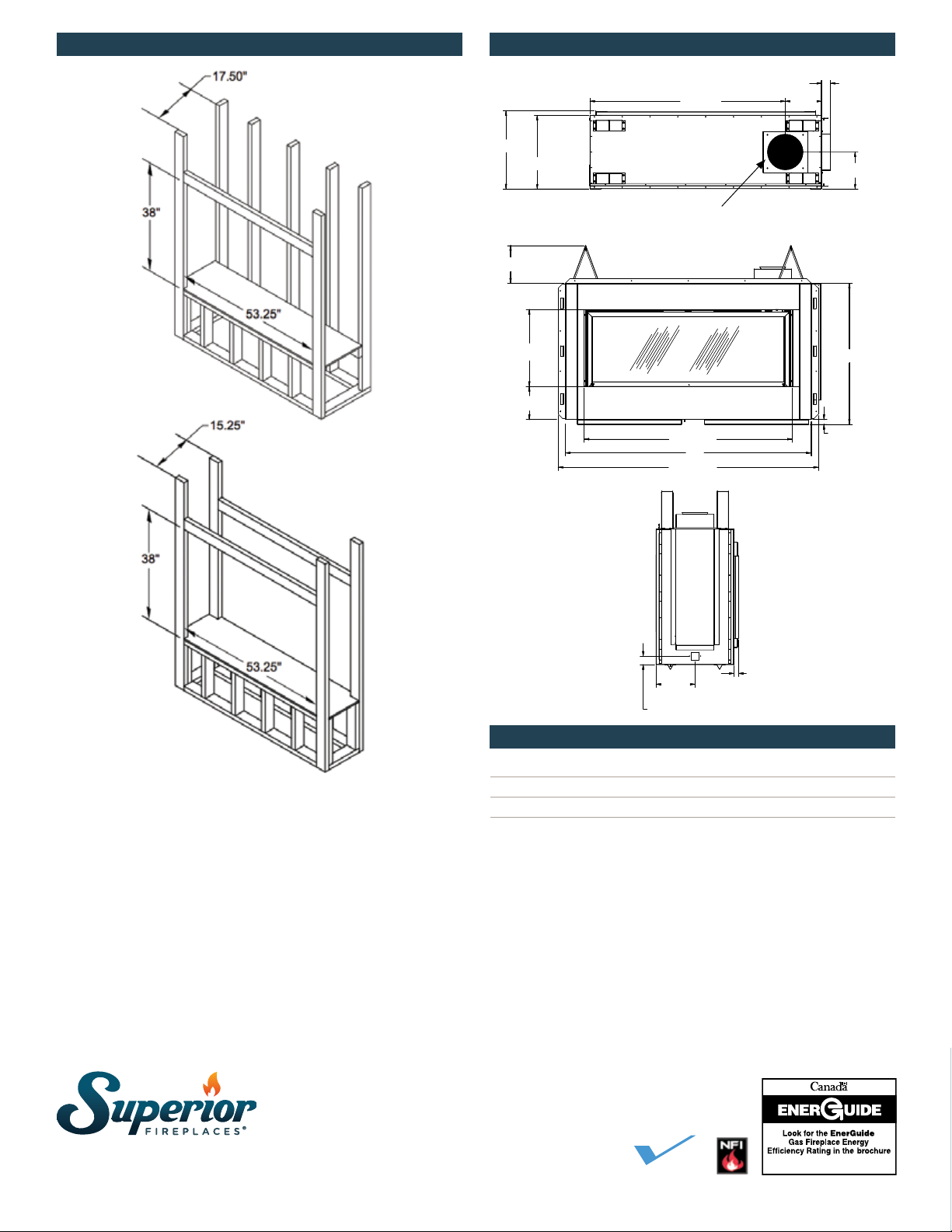

APPLIANCE SPECIFICATIONS FLAT WALL FRAMING SPECIFICATIONS
2 1/32”
8 1/8”
43 7/8”
16 1/2”
8 1/4”
13/16”
8 1/4”
1 13/16”
1”
PFS
USC
ONE SID ED
APPLICATION
SEE-THROUGH
APPLICATION
17 1/2”
8 1/4”
16 9/32”
7 1/32”
16 1/2”
43 7/8”
Uses IHP Secure Vent 4.5
components (4.5"ID/ 7.5"OD)
44 1/16”
52”
55 1/16”
2 1/32”
8 1/8”
8 1/4”
29
1”
On the cover: DRL4543 shown with Black Reflective Porcelain Liner
and Amber Glass Media
IMPORTANT NOTES:
As with any replace, this appliance is extremely hot during operation. Read and understand all operating
instructions before using this appliance. For further information, consult your dealer.
Local conditions, such as elevation, wind, vent configuration and choice of fuel will affect overall appearance
of the fire and heating performance. Performance can also vary with home design and insulation, climate,
condition and type of fuel used, appliance location, burn rate, accessories chosen, chimney installation and
how the appliance is operated.
Diagr ams, illu strati ons and pho tograph s are not t o scale— consult installa tion ins tructio ns. Prod uct desig ns,
mate rials, dimen sions, speci fication s, c olors and prices are subjec t to chan ge o r dis continua nce without
notice.
8 1/4”
1”
1 13/16”
FIREPLACE EFFICIENCIES —
MODEL
DRL4543 NG 22,000-35,000 45.91%
DRL4543 LP 24,000-33,000 42.15%
* Annual Fuel Utilization Efficiency (AFUE) is the recognized U.S. rating system for the total efficiency of
heating products.
FUEL BTU/HR AFUE*
Listed to ANSI Z21.50 as a decorative gas appliance.
© 2019 Innovative Hearth Products
785625M 10/19
Visit us online
SuperiorFireplaces.us.com
Report #F11-026
®
Based on CSA P.4.1-2015
