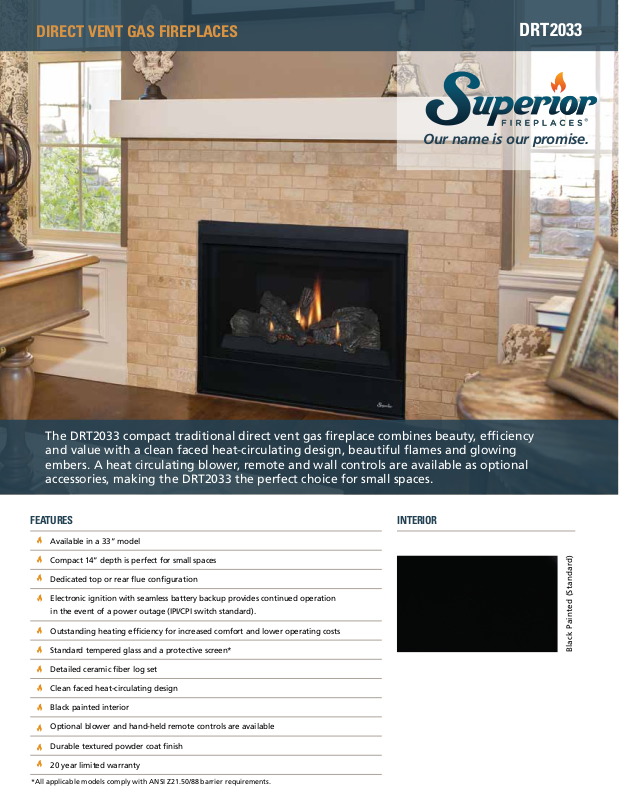

Page 1
DIRECT VENT GAS FIREPLACES
DRT2033
Our name is our promise.
The DRT2033 compact traditional direct vent gas fireplace combines beauty, efficiency
and value with a clean faced heat-circulating design, beautiful flames and glowing
embers. A heat circulating blower, remote and wall controls are available as optional
accessories, making the DRT2033 the perfect choice for small spaces.
FEATURES
Available in a 33” model
Compact 14” depth is perfect for small spaces
Dedicated top or rear flue configuration
Electronic ignition with seamless battery backup provides continued operation
in the event of a power outage (IPI/CPI switch standard).
Outstanding heating efficiency for increased comfort and lower operating costs
Standard tempered glass and a protective screen*
Detailed ceramic fiber log set
Clean faced heat-circulating design
Black painted interior
Optional blower and hand-held remote controls are available
INTERIOR
Black Painted (Standard)
Durable textured powder coat finish
20 year limited warranty
*All applicable models comply with ANSI Z21.50/88 barrier requirements.
Page 2
APPLIANCE SPECIFICATIONS
PFS
USC
F
G
Uses IHP SV
4-1/2"x71/2" direct
vent pipe
J
Blower
Access
Gas Line
Entry
E
I
C
A
D
H
B
Junction
Box
Gas
Access
Entry
DRT 2033 Shown with black painted interior.
ADDITIONAL ACCESSORIES
Remote or Wall Mounted controls
•
Blower with multiple control options
•
DRT2033
A 30-1/8"
B 26-1/4"
C 18-5/16"
D 30-1/2"
E 33-5/8"
F 21-7/8"
G 10-15/16"
H 31"
I 14"
J 5-3/4"
FRAMING SPECIFICATIONS
DRT2033
WIDTH 33-7/8"
HEIGHT 34-1/4"*
DEPTH 14-1/2"
* Includes 4" for fold-up standoffs
On the cover: DRT2033 shown with Black Painted Interior
Thermostatic
Remote
(Optional)
Hand-Held
On/Off
Remote
(Optional)
FIREPLACE EFFICIENCIES
MODEL
DRT2033 NG 12,000 64% 60.4%/64.8%
DRT2033 LP 10,000 64% 60.4%/64.8%
*Intermittent ignition systems. Millivolt/Electronic.
** Annual Fuel Utilization Efficiency (AFUE) is the recognized U.S. rating
system for the total efficiency of heating products.
IMPORTANT NOTES:
As with any fireplace, this appliance is extremely hot during operation. Read and understand
all operating instructions before using this appliance. For further information, consult your
dealer.
Local conditions, such as elevation, wind, vent configuration and choice of fuel will affect overall
appearance of the fire and heating performance. Performance can also vary with home design
and insulation, climate, condition and type of fuel used, appliance location, burn rate, accessories
chosen, chimney installation and how the appliance is operated.
Diagram s, illus tration s and photograph s are not to scale— cons ult inst allation instru ctions.
Product desi gns, materials , dimens ions, specifications , color s and price s are subject to change or
discontinuance without notice.
FUEL BTU/HR AFUE** P4/ENERGUIDE*
© 2020 Innovative Hearth Products
785713M 05/20
Visit us online
SuperiorFireplaces.us.com
Report #F13-094
®
Based on CSA P.4.1-2015
