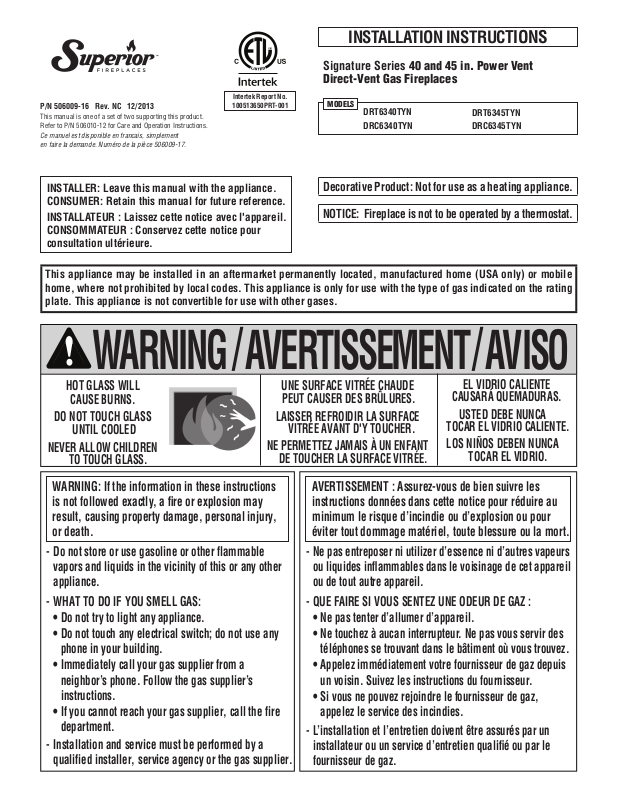

Superior Fireplaces Signature DRT6340TYN, Signature DRT6345TYN, DRC6345TYNDRC6340TYN, Signature DRC6340TYN, Signature DRC6345TYN Installation Instructions Manual

P/N 506009-16 Rev. NC 12/2013

AVERTISSEMENT : Assurez-vous de bien suivre les
instructions données dans cette notice pour réduire au
minimum le risque d’incindie ou d’explosion ou pour
éviter tout dommage matériel, toute blessure ou la mort.

WARNING: If the information in these instructions
is not followed exactly, a fire or explosion may
result, causing property damage, personal injury,
or death.

WARNING /AVERTISSEMENT/AVISO

HOT GLASS WILL

CAUSE BURNS.

DO NOT TOUCH GLASS

UNTIL COOLED

NEVER ALLOW CHILDREN

TO TOUCH GLASS.

UNE SURFACE VITRÉE CHAUDE

PEUT CAUSER DES BRÛLURES.

LAISSER REFROIDIR LA SURFACE

VITRÉE AVANT D'Y TOUCHER.

NE PERMETTEZ JAMAIS À UN ENFANT

DE TOUCHER LA SURFACE VITRÉE.

EL VIDRIO CALIENTE

CAUSARÁ QUEMADURAS.

USTED DEBE NUNCA

TOCAR EL VIDRIO CALIENTE.

LOS NIÑOS DEBEN NUNCA

TOCAR EL VIDRIO.

- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s
instructions.

• If you cannot reach your gas supplier, call the fire

department.

- Installation and service must be performed by a
qualified installer, service agency or the gas supplier.

- Ne pas entreposer ni utilizer d’essence ni d’autres vapeurs
ou liquides inflammables dans le voisinage de cet appareil
ou de tout autre appareil.

- QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil.

• Ne touchez à aucan interrupteur. Ne pas vous servir des

téléphones se trouvant dans le bâtiment où vous trouvez.

• Appelez immédiatement votre fournisseur de gaz depuis

un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz,

appelez le service des incindies.

- L’installation et l’entretien doivent être assurés par un
installateur ou un service d’entretien qualifié ou par le
fournisseur de gaz.

This manual is one of a set of two supporting this product.
Refer to P/N

Ce manuel est disponible en francais, simplement
en faire la demande. Numéro de la pièce 506009-17.

506010-12

for Care and Operation Instructions.

Intertek Report No.
100513650PRT-001

INSTALLATION INSTRUCTIONS

Signature Series 40 and 45 in. Power Vent

Direct-Vent Gas Fireplaces

MODELS

DRT6340TYN
DRC6340TYN

DRT6345TYN
DRC6345TYN

INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.

INSTALLATEUR : Laissez cette notice avec l'appareil.
CONSOMMATEUR : Conservez cette notice pour
consultation ultérieure.

This appliance may be installed in an aftermarket permanently located, manufactured home (USA only) or mobile
home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating
plate. This appliance is not convertible for use with other gases.

Decorative Product: Not for use as a heating appliance.

NOTICE: Fireplace is not to be operated by a thermostat.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

TABLE OF CONTENTS

Packaging .........................................Page 2

Introduction ......................................Page 2

General Information ..........................Page 2

Massachusetts Requirements ...........Page 4

Cold Climate Insulation .....................Page 5

Manufactured Home Requirements ..Page 5

Location ............................................Page 5

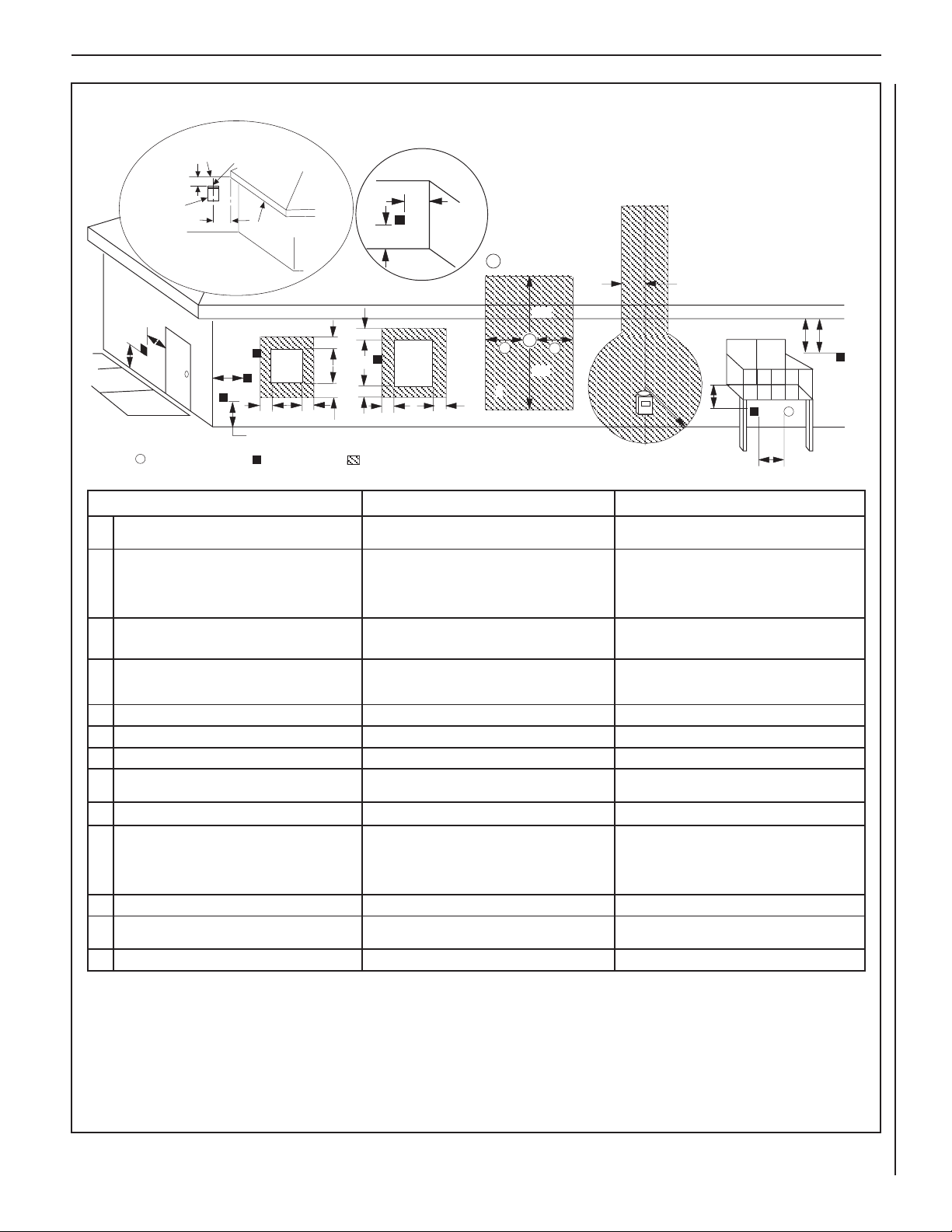

Vent Termination Clearances ............Page 6

Minimum Clearances to Combustibles Page 8

Pre-Installation Steps ........................Page 9

Typical Installation Sequence ...........Page 9

Detailed Installation Steps .................Page 9

Step 1. Framing ...............................Page 9

Fireplace and Framing Specications Page 10

Step 2. Routing Gas Line ................Page 11

Proper Sizing of Gas Line ..................Page 11

Step 3. Install the Vent System .......Page 12

General Vent Information ..................Page 12

Power Vent Components...................Page 12

Vent Section Length Chart ................Page 13

Offset Installation ..............................Page 13

Horizontal Termination System .........Page 16

Installing Power Vent Termination ....Page 16

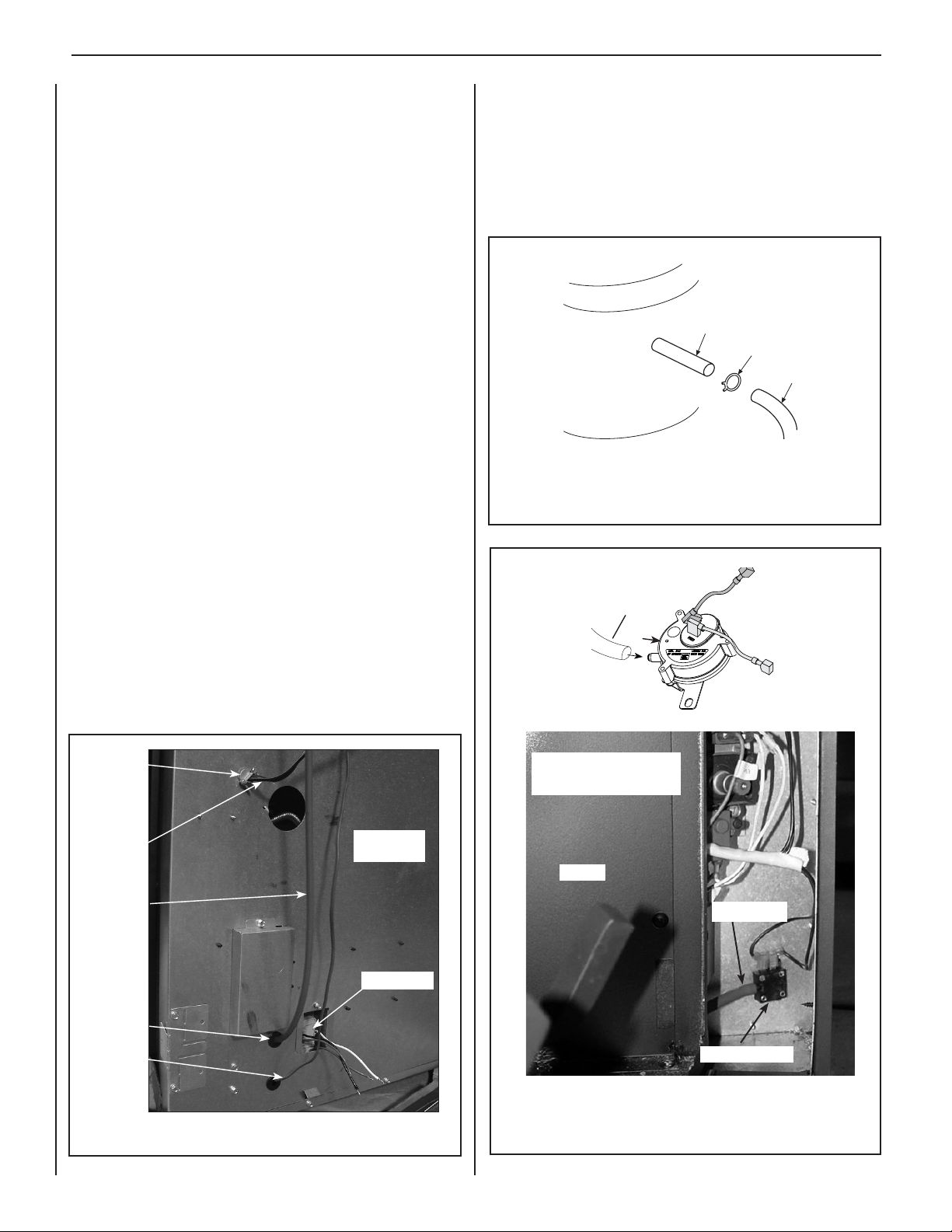

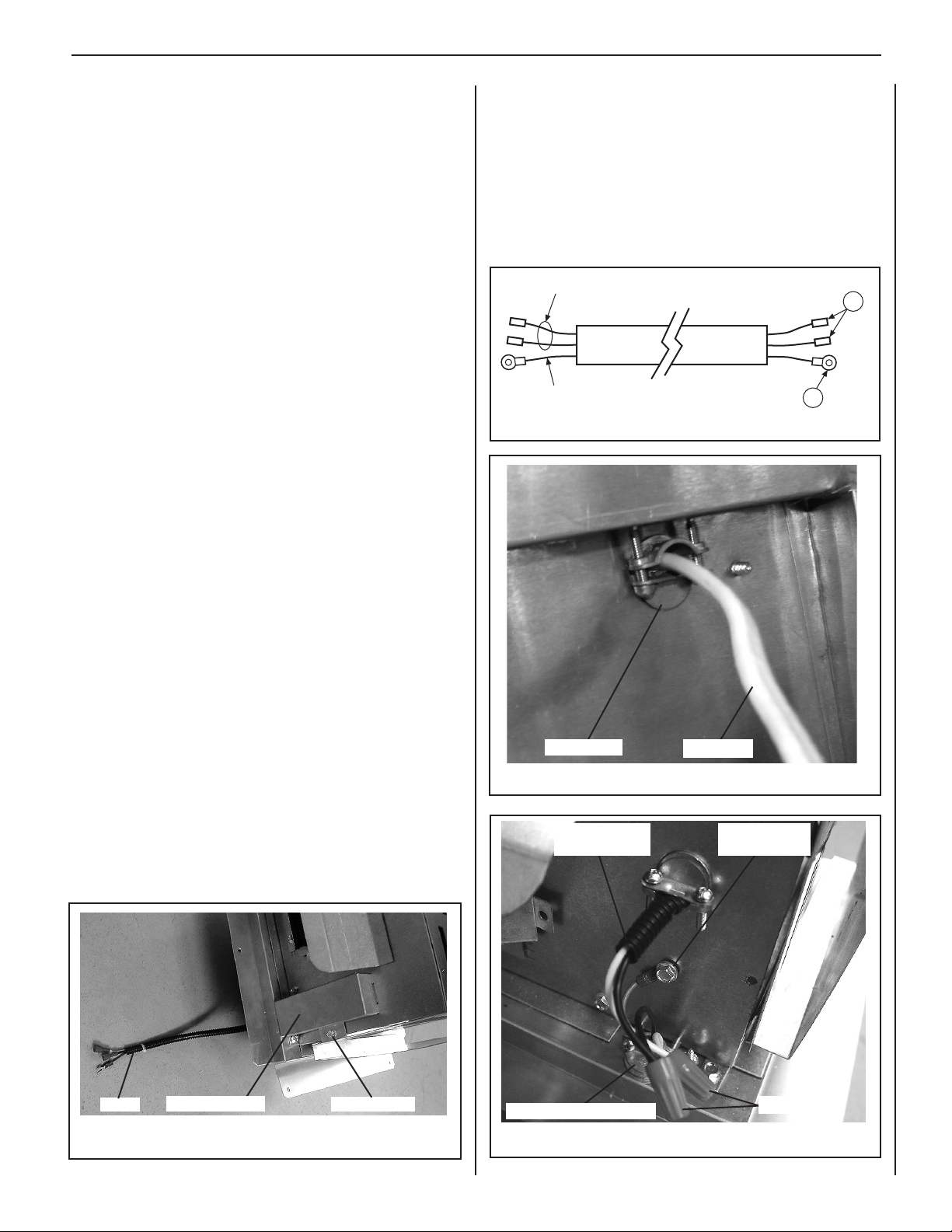

Step 4. Field Wiring .........................Page 18

Step 5. Removing Glass Door Frame Assem-

bly Page ....................................20

Step 6. Connecting Gas Line ...........Page 21

Step 7 Install Firebox Liner ............Page 21

Step 8. Verifying Appliance

Operation ..........................................Page 21

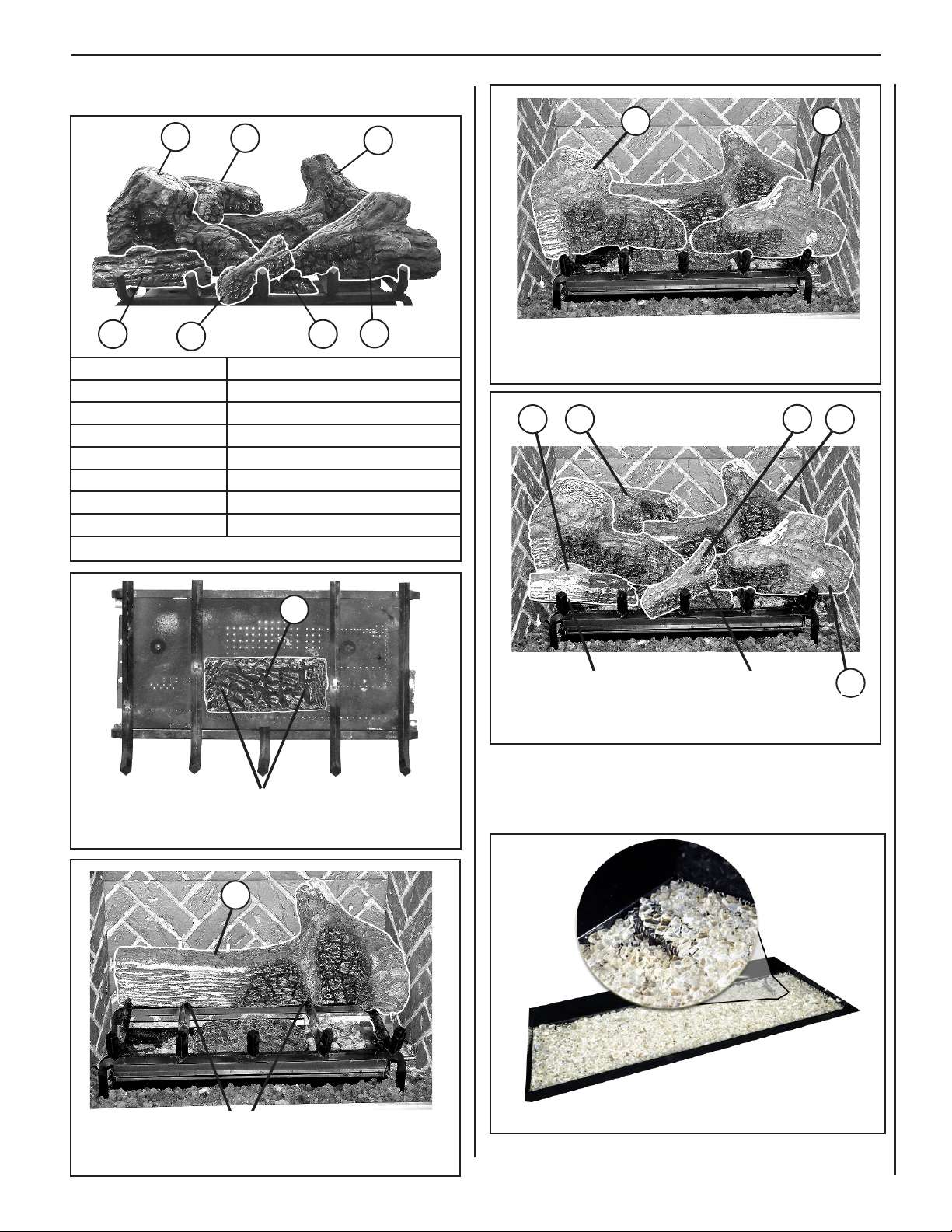

Step 9. Installing Logs ...................Page 22

Step 10. Install/Remove Glass

Door Assembly .................................Page 24

Step 11. Burner Adjustments ............ Page 24

Finishing Requirements ....................Page 26

Step 12. Attaching Safety-in-

Operation Warnings ...................

Installation Accessories ....................Page 28

Please read and understand these instruc­tions before beginning your installation.

PACKAGING

The assembled vented gas fireplace is packaged with:

BOX 1 - Fireplace:

• Literature Kit (plastic bag shipped inside
rebox),

• Pull Screen

• Door Modesty Shield

• Adaptor with Probe Assembly

• (1) Remote Control Kit and Receiver Kit

Page 27

BOX 2 - Power Vent Components:

• (1) Power Vent Termination

• (1) Termination Adaptor

• (1) Horizontal Firestop Assembly

• (1) Vacuum Hose

• (1) 11/32" Hose Clamp

• (1) Strain Relief

• (1) Bushing

• (4) Insulated 1/4" Male Terminals

• (2) #10 Ring Terminals

Traditional Fireplaces

• Log set

• Ceramic Firebox Liner Kit

• One (1) bag Glowing Embers

• One (1) bag Platinum Embers

• One (1) bag Volcanic Stone

• Log Grate

Contemporary Fireplaces

• Porcelain Firebox Liner Kit

• One (1) bag Glass Media

INTRODUCTION

These Electronic appliances are designed to
operate on natural gas and have an electronic

intermittent pilot ignition system. External 120

Volt AC electrical power is required to operate
these units.

These vented gas replaces are sealed combus­tion gas replaces designed for residential,
manufactured home, and commercial ap-

plications.
Use Only These Approved Vent Components

These replaces are designed, tested and
listed for operation and installation with, the
following (4-1/2" inner and 7-1/2" outer) vent

components only:

• Secure Vent

nents manufactured by Security Chimneys
International.

These approved vent system components are

labeled for identication. Do NOT use any other

manufacturer’s vent components with these
appliances.

®

Direct-vent system compo-

GENERAL INFORMATION

WARNING

Young children should be care­fully supervised when they are
in the same room as the appli­ance. Toddlers, young children
and others may be susceptible
to accidental contact burns. A
physical barrier is recommended
if there are at risk individuals in
the house. To restrict access to
a fireplace or stove, install an
adjustable safety gate to keep
toddlers, young children and
other at risk individuals out of
the room and away from hot
surfaces.

AVERTISSEMENT

Les jeunes enfants devraient être
surveillés étroitement lorsqu’ils
se trouvent dans la même pièce
que l’appareil. Les tout petits,
les jeunes enfants ou les adultes
peuvent subir des brûlures s’ils
viennent en contact avec la sur­face chaude. Il est recommandé
d’installer une barrière physique
si des personnes à risques habi­tent la maison. Pour empêcher
l’accès à un foyer ou à un poêle,
installez une barrière de sécu­rité; cette mesure empêchera les
tout petits, les jeunes enfants et
toute autre personne à risque
d’avoir accès à la pièce et aux
surfaces chaudes.

Children and adults should be alerted to the haz­ards of high surface temperature and should stay
away to avoid burns or clothing ignition.

Les enfants et les adultes devraient être
infor-més des dangers que posent les tem­pératures de surface élevées et se tenir à
distance afin d’éviter des brûlures ou que
leurs vêtements ne s’enflamment.

DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE
OR ITS COMPONENTS. ANY MODIFICATION
OR ALTERATION MAY VOID THE WARRANTY,
CERTIFICATION AND LISTINGS OF THIS UNIT.

2

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

WARNING

Improper installation, adjust­ment, alteration, service or
maintenance can cause injury
or property damage. Refer to
this manual. For assistance or
additional information consult
a qualified installer, service
agency or the gas supplier.

WARNING

Failure to comply with these
installation instructions will
result in an improperly installed
and operating appliance, voiding
its warranty. Any change to this
appliance and/or its operating
controls is dangerous.

WARNING

Clothing or other flammable
material should not be placed
on or near the appliance.

AVERTISSEMENT

On ne devrait pas placer de
vêtements ni d’autres matières
inflammables sur l’appareil ni
à proximité.

WARNING

Any safety screen or guard
removed for servicing the appli­ance must be replaced prior to
operating the appliance.

AVERTISSEMENT

Tout écran ou protecteur retiré
pour permettre l’entretien de
l’appareil doit être remis en
place avant de mettre l’appareil
en marche.

WARNING

Improper installation or use of
this appliance can cause serious
injury or death from fire, burns,
explosion or carbon monoxide
poisoning.

WARNING

Failure to position the parts in
accordance with these diagrams
or failure to use only parts specifi­cally approved with this appliance
may result in property damage or
personal injury.

AVERTISSEMENT

Risque de dommages ou de
blessures si les pièces ne sont
pas installées conformément à
ces schémas et ou si des pièces
autres que celles spécifiquement
approuvées avec cet appareil sont
utilisées.

Installation and repair should be done by
a qualified service person. The appliance
should be inspected before use and at least
annually by a professional service person.
More frequent cleaning may be required due
to excessive lint from carpeting, bedding
material, etcetera. It is imperative that control
compartments, burners and circulating air
passageways of the appliance be kept clean.

L’installation et la réparation devrait
être confiées à un technicien qualifié.
L’appareil devrait faire l’objet d’une in­spection par un technicien professionnel
avant d’être utilisé et au moins une fois
l’an par la suite. Des nettoyages plus
fréquents peuvent être nécessaires si les
tapis, la literie, et cetera produisent une
quantité importante de pous-sière. Il est
essentiel que les compartiments abritant
les commandes, les brûleurs et les con­duits de circulation d’air de l’appareil
soient tenus propres.

Do not use this appliance if any part has been
under water. Immediately call a qualified ser­vice technician to inspect the appliance and
to replace any part of the control system and
any gas control which has been under water.

Ne pas utiliser cet appareil s’il a été
plongé, même partiellement, dans
l’eau. Appeler un technicien qualifié pour
inspecter l’appareil et remplacer toute
partie du système de commande et toute
commande qui a été plongée dans l’eau.

Only trim kit(s) supplied by the manufacturer
shall be used in the installation of this ap­pliance.

Seules les trousses de garniture fournies
par le fabricant doivent être utilisées pour
l’installation de cet appareil.

Codes and Standards

These appliances comply with National Safety
Standards and are tested and listed by Intertek

(Report No. 100513650) to Z21.50b-2009
(in Canada, CSA-2.22b-2009), and CAN/
CGA-2.17-M91 (R2009) in both USA and
Canada, as vented gas replaces.

These appliances are listed by Intertek for
installation in bedrooms and manufactured
(mobile) homes.

Installation must conform to local codes. In the

absence of local codes, installation must comply
with the current National Fuel Gas Code, ANSI
Z223.1/NFPA 54 (in Canada, the current CAN/
CGA-B149.1 installation code).

The appliance, when installed, must be electri-

cally grounded in accordance with local codes

or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70 - latest
edition, or the Canadian Electrical Code, CSA

C22.1 - latest edition.

Provide adequate clearances around air open­ings and adequate accessibility clearance for
service and proper operation. Never obstruct
the front openings of the appliance.

These appliances are designed to operate on
natural gas. The use of other fuels or combina­tion of fuels will degrade the performance of
this system and may be dangerous.

These appliances must not be connected to a
chimney or flue serving a separate solid fuel
burning appliance.

These electronic appliances are remotely con­trolled and feature an electronic intermittent

pilot ignition system. External electrical power

is required to operate these units.

These electronic models come standard with a
remotely-modulated gas valve; flame appear­ance and heat output cannot be controlled at the
gas valve. The BTU Input for these appliances
is shown in Table 1.

Input (BTU/HR), Natural Gas

Model No. Input (BTU/Hr)

40 in. 26,500 - 42,000
45 in. 35,000 - 48,000

Table 1

3

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Gas Pressure - All Models

Tables 2 and 3 show the appliance inlet and
manifold gas pressure requirements.

Inlet Gas Supply Pressure

Minimum Maximum

5.5" WC

(1.37 kPa)

10.5" WC

(2.62 kPa)

Table 2

Manifold Gas Supply Pressure

Low High

1.6" WC

(.40 kPa)

3.5" WC

(.87 kPa)

Table 3

Test gauge connections are provided on the front

of the gas control valve; identied IN for the inlet
and OUT for the manifold side (see Figure 1).

The appliance and its appliance main gas
valve must be disconnected from the gas
supply piping system during any pressure
testing of that system at test pressures in

excess of 1/2 psi (3.5 kPa).

The appliance must be isolated from the gas
supply piping system by closing its equipment
shutoff valve during any pressure testing of
the gas supply piping system at test pres­sures equal to or less than 1/2 psi (3.5 kPa).

Gas Valve Diagram

See Figure 1 for gas valve diagram.

PURGE CYCLE
This is a power vented fireplace that
requires household electrical power
to operate. It will not operate during
a power failure. When the fireplace
is turned off, the exhaust blower will
continue to operate for approximately
fifteen (15) seconds after shutdown
to expel the exhaust gases from the
venting system.

Orifice Sizes - Sea Level To High Altitude

These appliances are tested and approved for

installation at elevations of 0 - 4500 ft (0 - 1370
m) above sea level, using the standard burner
orice sizes (marked with an "*" in Table 4).
For elevations above 4500 ft, contact your gas
supplier or qualied service technician.

Deration - At higher elevations, the amount

of BTU fuel value delivered must be reduced
by either:

• Using gas that has been derated by the gas

company.

• Changing the burner orice to a smaller size

as regulated by the local Authorities Having

Jurisdiction and by the (USA) National Fuel
Gas Code NFPA 54/ANSI Z223.1 - latest
edition, or in Canada, the CAN/CGA-B149.1

code - latest edition.

Install the appliance according to the regulations

of the local authorities having jurisdiction, and
the (USA) National Fuel Gas Code NFPA 54 /
ANSI Z223.1 - latest edition,
or (Canada) CAN/CGA-B149.1 - latest edition.

NOTE: Flame appearance will diminish 4%
per one thousand feet of altitude.

Burner Orifice Size

Elevation 0 - 4500 ft (0 - 1370 m)

Model Orifice Size / Catalog Number

40 in. 0.125" (1/8") * H7924 •
45 in. 0.136" (#29) * H8141 •

Table 4

* Standard size installed at factory

• Part /Cat. Number

In Canada - CAN/CGA-2.17-M91 (R2009) (high
altitude):

THE CONVERSION SHALL BE CARRIED OUT
BY A MANUFACTURER’S AUTHORIZED REP­RESENTATIVE, IN ACCORDANCE WITH THE
REQUIREMENTS OF THE MANUFACTURER,
PROVINCIAL OR TERRITORIAL AUTHORITIES
HAVING JURISDICTION AND IN ACCORDANCE
WITH THE REQUIREMENTS OF THE CAN/CGA­B149.1 OR CAN/CGA-B149.2 INSTALLATION
CODES.

REQUIREMENTS FOR THE COMMON­WEALTH OF MASSACHUSETTS

These replaces are approved for installation in

the US state of Massachusetts if the following
additional requirements are met:

• Install this appliance in accordance with

Massachusetts Rules and Regulations 248
C.M.R.

• Installation and repair must be done by a
plumber or gas tter licensed in the Com-

monwealth of Massachusetts.

• The exible gas line connector used shall
not exceed 36 in. (92 centimeters) in length.

• The individual manual shut-off must be a

T-handle type valve.

Massachusetts Horizontal Vent Requirements

In the Commonwealth of Massachusetts, hori­zontal terminations installed less than seven
(7) feet above the finished grade must comply
with the following additional requirements:

• A hard wired carbon monoxide detector

with an alarm and battery back-up must be

(From DFC Wire

Manifold (Out)

Test Port

Green Wire

Harness)

Connect GTMS
Wire Harness

installed on the floor level where the gas

Inlet (In) Test Port

Pressure
Regulator
Tower

replace is installed. The carbon monoxide
detector must comply with NFPA 720, be
ANSI/UL 2034 listed and be ISA certied.

• A metal or plastic identication plate must
be permanently mounted to the exterior of
the building at a minimum height of eight (8)

feet above grade and be directly in line with
the horizontal termination. The sign must

read, in print size no less than one-half (1/2)
inch in size, GAS VENT DIRECTLY BELOW.

(From DFC Wire

Harness)

Main Gas Inlet

3/8" NPT

Wire

Yellow Ground Wire
(From DFC Wire
Harness)

KEEP CLEAR OF ALL OBSTRUCTIONS.

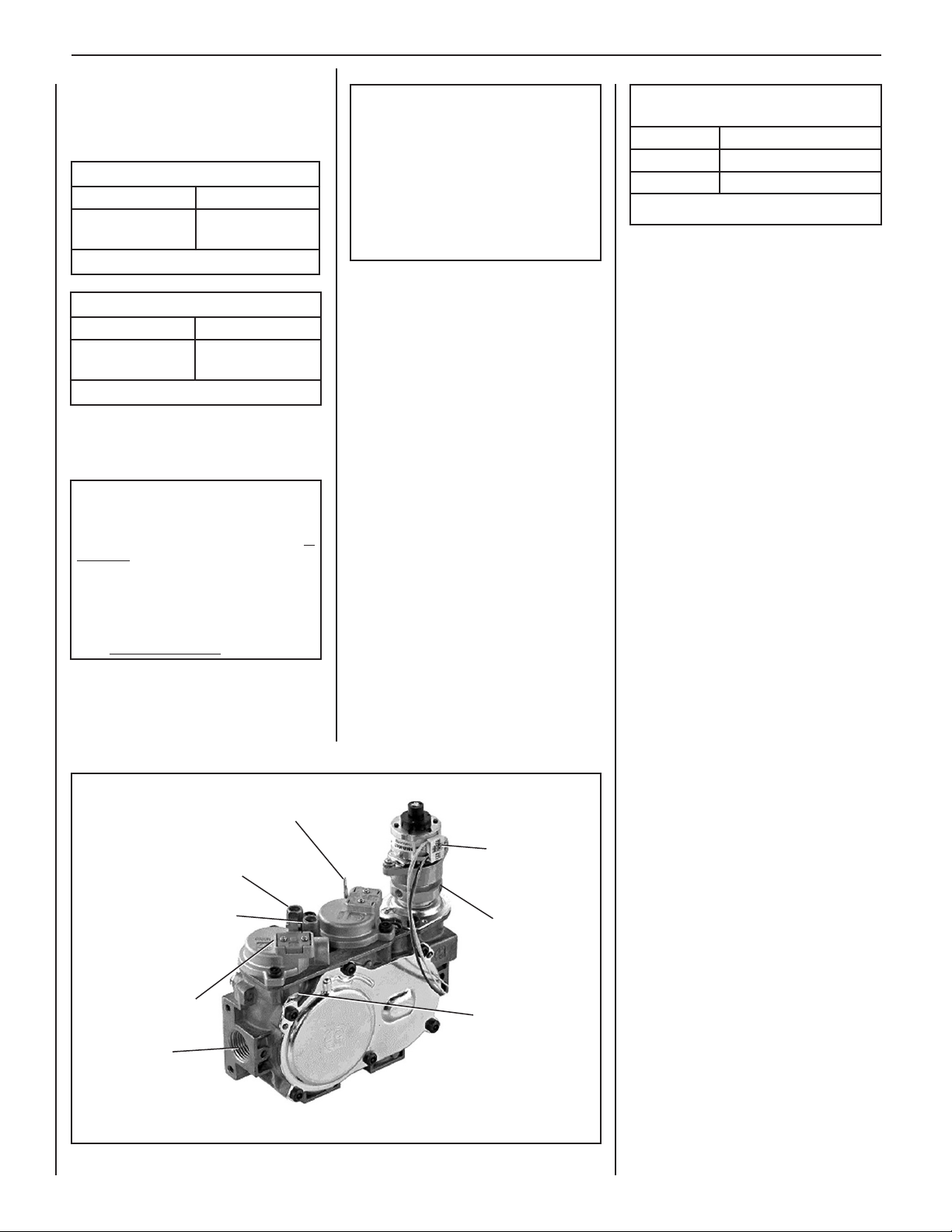

Figure 1 - SIT Electronic Gas Valve

4

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

COLD CLIMATE INSULATION

For cold climate installations, seal all cracks

around your appliance with noncombustible
material and wherever cold air could enter
the room. It is especially important to insulate
outside chase cavity between studs and under

oor on which appliance rests, if oor is above
ground level. Gas line holes and other open-

ings should be caulked or stuffed with unfaced

berglass insulation.

If the replace is being installed on a cement
slab in cold climates, a sheet of plywood or

other raised platform can be placed underneath

to prevent cold transfer to the replace and

into the room. It also helps to sheetrock inside

surfaces and tape for maximum air tightness
and caulk restops.

MANUFACTURED HOME
REQUIREMENTS

This appliance may be installed in an aftermar-

ket permanently located, manufactured home

and must be installed in accordance with the
manufacturer's instructions.

Cross Corner

Application

Room Divider

Application

Recessed

Application

Island

Application

Flat

Application

Application

Flat on Wall

Horizontal

Termination

Fireplace

NOTE: When the unit is installed
with one side flush with a wall, the
wall on the other side of the unit
must not extend beyond the front
edge of the unit.

Drywall

Cet appareil peut être installé cómme
du matéri-el d'origine dans une maison

préfabriquée (É.U. seulement) ou mobile

et doit être installé selon les instructions
du fabricant.

This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases.

Cet appareil doit être utilisé uniquement
avec le type de gaz indiqué sur la plaque
signalétique. Cet appareil ne peut être
converti à d'autres gaz.

CAUTION: Ensure that the cross mem­bers are not cut or weakened during
installation. The structural integrity of
the manufactured home floor, wall, and
ceiling/roof must be maintained.

CAUTION: This appliance must be
grounded to the chassis of the manu­factured home in accordance with local
codes or in the absence of local codes,
with the National Electrical Code ANSI /
NFPA 70 - latest edition.

Figure 2 - Typical Installation

LOCATION

In selecting the location, the aesthetic and

functional use of the appliance are primary

concerns. However, vent system routing to
the exterior and access to the fuel supply are

also important.

Due to high temperatures, the appliance
should be located out of traffic and away from
furniture and draperies (Figure 2).

En raison des températures élevées,
l’appareil devrait être installé dans un
endroit où il y a peu de circulation et loin
du mobilier et des tentures (Figure 2).

The location should also be free of electrical,

plumbing or other heating/air conditioning
ducting.

Top of Fireplace

Opening

Noncombustible

Be aware that this is a heat producing ap­pliance. Objects placed above the unit are
exposed to elevated temperatures.

Do not insulate the space between the appli­ance and the area above it.

The appliance must be mounted on a fully

supported base extending the full width and

depth of the unit. The appliance may be lo­cated on or near conventional construction

materials. However, if installed on combustible
materials, such as carpeting, vinyl tile, or other
combustible material other than wood ooring,

the appliance shall be installed on a metal or

wood panel extending the full width and depth

of the appliance.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

5

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

VENT TERMINATION CLEARANCES

These instructions should be used as a guide­line and do not supersede local codes in any
way. Install venting according to local codes,
these instructions, and the current (USA)
National Fuel Gas Code ANSI-Z223.1 / NFPA
54, or (Canada) CAN/CGA-B149.1 standards.

Horizontal Vent Termination Clearances

The horizontal vent termination must have

a minimum of 3" (76 mm) clearance to any
overhead combustible projection of 2-1/2" (64
mm) or less (see Figure 3). For projections
exceeding 2-1/2" (64 mm), see Figure 3. For

additional vent location restrictions refer to
Figure 4 on Page 7.

Combustible Projection

Combustible Projection

Greater than 2-1/2" in length

Ventilated or

Unventilated Soffit

See Figure 19 on Page 17 for the re­cess allowances, into exterior walls,
of the power vent terminations.

24"

(610 mm)

Side Elevation View

Power Vent Termination

Combustible

Figure 3 - Horizontal Vent Termination Clearances

2-1/2" or less in length

3".

(76 mm)

18"

(457 mm)

6

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

NOTE: Local Codes Or Regulations May Require
Different Clearances.

NOTE: Location Of The Vent Termination Must Not
Interfere With Access To The Electrical Service.

H

3 ft.

X

A



3 ft.

M

I

E

D

X

V

K

Exterior Wall

Horizontal

Termination

B

V

L

X

= Air Supply Inlet

* See Item D in the Text Below.

24"

Inside Corner

*18”

of Termination

18”

36"

DETAIL D

F

V

Center Line

Ventilated Soffit

V

V

C

A

= Vent Terminal

V

Fixed

Closed

Window

Inside

Corner Detail

G

V

A

= 9" in U.S.



A

=12" in Canada

B

C

C

C

Operable

V

Window

B

B

= Area where Terminal is NOT permitted

B



A

J

Minimum Clearances Canadian Installation * US Installation **

Clearance above grade, veranda, porch, deck or

A

balcony.

B Clearance to window or door that may be opened.

C Clearance to permanently closed window

Vertical clearance to ventilated soft located above

D

the terminal within a horizontal distance of 36"
(91.4cm) from the center line of the terminal

12" (30 cm) * 12" (30 cm) **

6" (15.2 cm) for appliances < 10,000 BTU/hr (3kW),
12" (30 cm) for appliances > 10,000 BTU/hr (3kW)

and < 100,000 BTU/hr (30kW),
36" (91 cm) for appliances > 100,000 BTU/hr (30kW)*

12" (305 mm) recommended to prevent window

condensation

6" (15.2 cm) for appliances < 10,000 BTU/hr (3kW),
9" (23 cm) for appliances > 10,000 BTU/hr (3kW) and

< 50,000 BTU/hr (15kW),
12" (30 cm) for appliances > 50,000 BTU/hr (15kW)*

9" (229 mm) recommended to prevent window

condensation

24" (61.0 cm) 24" (61.0 cm)

E Clearance to unventilated soft 24" (61.0 cm) 24" (61.0 cm)
F Clearance to outside corner 5" (12.7 cm) 5" (12.7 cm)
G Clearance to inside corner 36" (91.4 cm) 24" (61.0 cm)

Clearance to each inside of center line extended

H

above meter / regulator assembly

3 ft (91 cm) within a height of 15 ft above the meter /
regulator assembly *

3 ft (91 cm) within a height of 15 ft above the meter /
regulator assembly **

I Clearance to service regulator vent outlet 3 ft (91 cm) * 3 ft (91 cm) **

Clearance to non-mechanical air supply inlet to

J

building or the combustion air inlet to any other
appliance

6" (15.2 cm) for appliances < 10,000 BTU/hr (3kW),
12" (30 cm) for appliances > 10,000 BTU/hr (3kW)

and < 100,000 BTU/hr (30kW),
36" (91 cm) for appliances > 100,000 BTU/hr (30kW)*

6" (15.2 cm) for appliances < 10,000 BTU/hr (3kW),
9" (23 cm) for appliances > 10,000 BTU/hr (3kW) and

< 50,000 BTU/hr (15kW),
12" (30 cm) for appliances > 50,000 BTU/hr (15kW)*

K Clearance to mechanical air supply inlet 6 ft (1.83 m) * 3 ft (91 cm) above, if within 10 ft (3 m) horizontally**

Clearance above paved sidewalk or paved

L

driveway located on public property

7 ft (2.13 m) ‡ 7 ft (2.13 m) ‡

M Clearance under veranda, porch, deck or balcony 18" (46.0 cm) * ‡ 18" (46.0 cm) ** ‡

* In accordance with the current CAN/CGA-B149.1 National Gas and B149.2 Propane Installation Code - Latest Editions.
** In accordance with the current ANSI Z223.1 / NFPA 54 National Fuel Gas Code - Latest Edition.
‡ A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.
*‡ Only permitted if veranda, porch, deck or balcony is fully open on a minimum 2 sides beneath the oor.

V

Figure 4 - Exterior Horizontal Vent Termination Clearance Requirements

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

7

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

12 (305) MANTEL

10 (254) MANTEL

8 (203) MANTEL

6 (152) MANTEL

4 (102) MANTEL

4

(102)

14

(356)

12

(305)

10

(254)

2 (51) MANTEL

TOP OF
APPLIANCE

6

(152)

8

(203)

MANTEL CLEARANCES

Inches (mm)

NOTE: Hood shown as positioned in louvered
front model. The hood position in the flush
faced front model is lower than shown.

MINIMUM CLEARANCES TO COMBUSTIBLES

Appliance And Vent Clearances

The appliance is approved with zero clearance to combustible materials
on all sides. Refer to Table 5 for minimum clearance values. For typical
installations, see Figure 2 on Page 5.

MINIMUM CLEARANCES* Inches (millimeters)

Sides

Top Spacers 0" (0 mm)

Floor 0" (0 mm)

Back

Bottom of Appliance To C eili ng 64" (1626 mm)

Vent

SERVICE CLEARANCES Feet (meters)

Front 3 feet (0.9 meters)

1/2" (13 mm)

0" (0 mm) Spacers **

1/2" (13 mm)

0" (0 mm) Spacers

3" (76 mm) Top*

1" (25.4 mm) Sides and Bottom

Table 5

Figure 5 - Minimum Mantel Clearances

* 3" (75 mm) above any horizontal/inclined vent component.

** See Page 9, Step 1 for clearance requirements to the nailing ange

located at each side of the unit and any screw heads adjacent to it.

Wall Finishes / Surrounds / Mantels

NOTE: Combustible wall nish materials and/or surround materials

must not be allowed to encroach the area defined by the appliance
front face (black sheet metal). Never allow combustible materials to
be positioned in front of or overlapping the appliance face. See Figure
6 and Figure 44 on Page 26.

Noncombustible materials, such as surrounds and other appliance trim,
may be installed on the appliance front face with these exceptions: they

must not cover any portion of the removable glass panel.

Vertical installation clearances to combustible mantels vary according to
the depth of the mantel (see Figure 5). Mantels constructed of noncom-
bustible materials may be installed at any height above the appliance.

Minimum clearance requirements include any projections such as shelves,
window sills, mantels, etc. above the appliance.

NOTE: We recommend the use of high temperature paint (rated 175 °F

or higher) on the underside of the mantel.

Top View of

Fireplace

At 0” minimum
side wall clearance,
one combustible
wall can project to
any length.

Mantel Leg,

Trim, or Wall

3-1/2”

(89 mm)

Combustible materials
may project beyond
either side of the
fireplace opening as
long as they are kept
within the shaded
“Safe Zone” area.

45

o

Figure 6 - Minimum Distance to Unprotected Side Wall

8

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

PRE-INSTALLATION STEPS

The appliance is shipped with all gas controls
and components installed and pre-wired.

Before installing the appliance, follow these steps:

1. Remove the shipping carton.

2. Remove the shipping pad, exposing the front

glass door.

3. Using a Phillips screwdriver, unfasten the two
(2) screws located at the top of the glass frame
(see Figure 40 on Page 24). Tilt the top of the
glass frame away from the unit. Lift it carefully
off the bottom door track and set the door aside,

protecting it from inadvertent damage.

4. Remove the embers and volcanic stone from
the control compartment.

TYPICAL INSTALLATION SEQUENCE

The typical sequence of installation is outlined

below. However, each installation is unique and

may result in variations to the steps described.

See the page numbers references in the follow­ing steps for detailed procedures.

DETAILED INSTALLATION STEPS

Step 1. FRAMING

Frame these appliances as illustrated in Figure

8 on Page 10, unless the appliance is to be
installed in a corner. See Figure 9 on Page 11
for corner framing installations. All framing
details must allow for a minimum clearance
to combustible framing members as shown in
Table 5 on Page 8.

If the appliance is to be elevated above floor

level, a solid continuous platform must be

constructed below the appliance.

Headers may be in direct contact with the ap­pliance top spacers but must not be supported

by them or notched to t around them.

The replace should be secured to the side fram-

ing members using the unit nailing flanges - one

top and bottom on each side of the replace front

(see Figure 7). Use 8d nails or their equivalent.

Use Top Flange For
1/2” Thick Drywall

Front Of
Fireplace

Use Center Flange
For Flush Mount

Use Bottom Flange For
5/8” Thick Drywall

NOTE: The nailing flanges, combustible members
and screw heads located in areas directly adja-

cent to the nailing anges, are EXEMPT from the
1/2" clearance to combustible requirements for

the firebox outer wrapper. Combustible framing
may be in direct contact with the nailing flanges

and may be located closer than 1/2" from screw

heads and the firebox wrapper in areas adjacent
to the nailing flanges. Frame the opening to
the exact dimensions specified in the framing

details of this manual.

Left Side Front Corner of Fireplace Shown
(Right Side Requirements the Same).

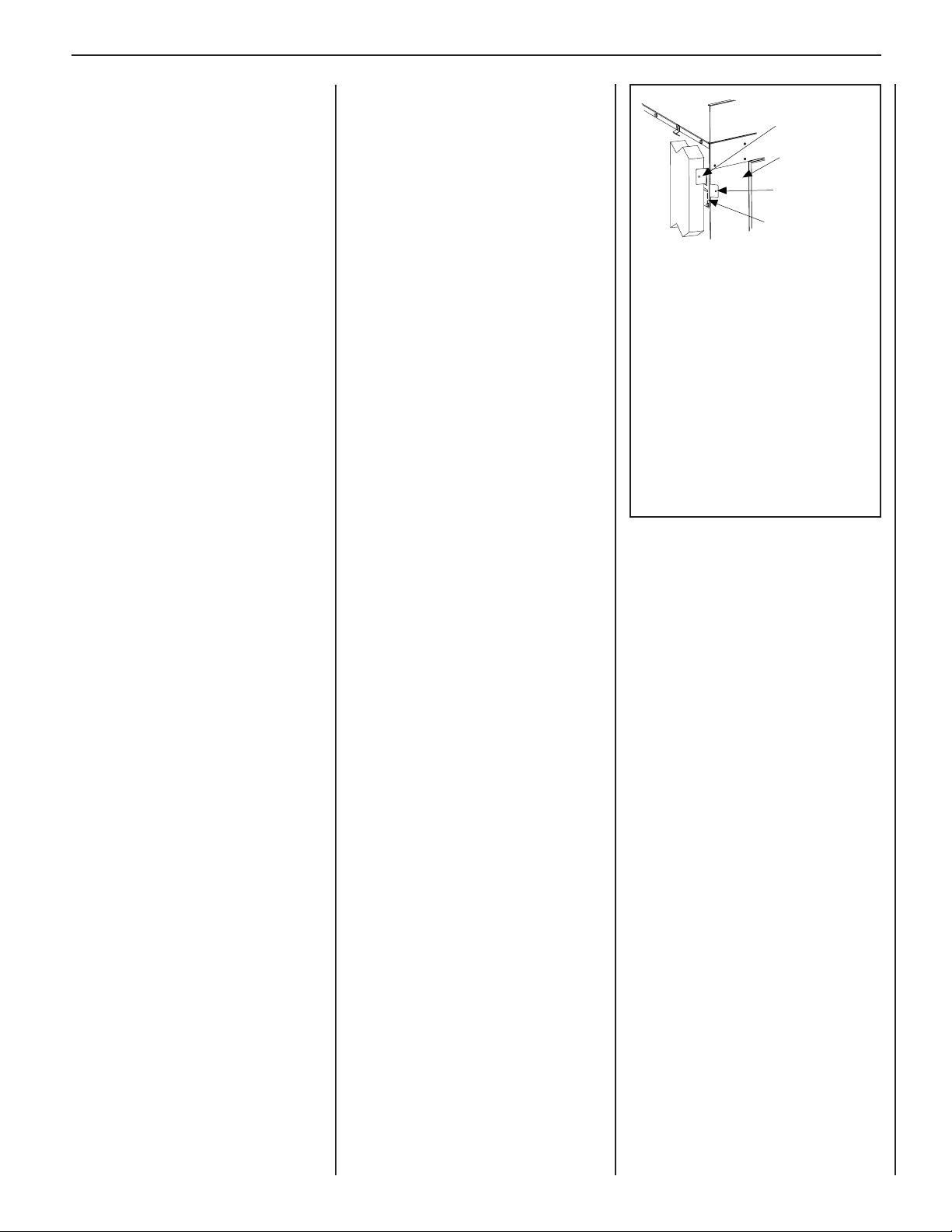

Figure 7 - Unit Secured by Nailing

Flanges to the Framing

Step 1. (Page 9) Construct the appliance

framing. Position the appliance within
the framing and secure with nailing
brackets.

Step 2. (Page 11) Route gas supply line to the

right side.

Step 3. (Page 12) Install the vent system and

exterior termination.

Step 4. (Page 18) Field Wiring
Connect 120 VAC electrical power to

the appliance receptacle.

Step 5. (Page 20) Remove glass door assem-

bly.

Step 6. (Page 21) Make connection to gas

supply.

Step 7. (Page 21) Install rebox liner kit.
Step 8. (Page 21) Verify appliance operation.
Step 9. (Page 22) Install volcanic stone, glow-

ing embers, and logs.

Step 10. (Page 24) Install glass door assembly.
Step 11. (Page 24) Adjust burner to ensure

proper flame appearance.

Step 12. (Page 27) Attach Safety-in-Operation

Warnings.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

9

E

A

B

D

Top View

Front View

5-3/32” (129)

Right Side View

14-1/8”
8-1/2”
(216)

5-1/4”
(133)

(359)

26-15/32”

(672)

C

25-29/32”

(658)

25-1/2”

(648)

7”

2-1/2” (64)

(178)

19-5/8”

(498)

Gas Inlet

(This
Side

Only)

Electrical

Inlet

8-3/8”
(213)

F

G

H

J

8” / 11”

Vent / Intake

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

A

B

C

VENT FRAMING
TOP VENT WITH 2 FEET
VERTICAL VENT AND
ONE 90° ELBOW

Framing should be constructed

of 2x4 or larger lumber.

Inches (mm)

(641)

25-1/4”

1/2 A

10-1/2”
(267)

7”

(178)

5-1/8”

(130)

12-1/8”

(308)

PIPE CENTERLINE

FIREPLACE AND FRAMING SPECIFICATIONS

Model No. A B C *

40 in.

45 in.

* C = Adaptor Plus 4 ft Vertical Vent (min.) and 90° Elbow

in. 50-3/4 43 139-1/8

mm 1289 1092 3534

in. 56-7/8 48 144-1/8

mm 1445 1219 3661

Adaptor Plus 4 ft
Vertical Vent
(min.) and 90°
Elbow

10

Model

No.

40 in.

45 in.

A B C D E F G H J

in. 50-5/8 37-1/4 42-7/8 25-5/16 34 37-5/8 33-3/32 29-9/32 34-3/4

mm 1286 946 1089 643 864 956 840 744 883

in. 56-11/16 42-1/4 47-7/8 28-3/8 40-1/8 43-5/8 38-3/32 34-1/2 40-59/64

mm 1440 1073 1216 721 1019 1108 968 876 1039

Figure 8 - Fireplace and Framing Specications

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Vent Size

Co-axial DV

Vent Size

Diagrams, illustrations and photographs
are not to scale - consult installation

instructions. Product designs, materials,

dimensions, specifications, colors and
prices are subject to change or discon­tinuance without notice.

4-1/2" Inner
7-1/2" Outer

Notes

C

Back wall of chase/enclosure

(including any finishing materials)

D

A

B

6-1/4”

(159 mm)

19-5/8”

(498 mm)

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Schedule 40 Black Iron Pipe

Inside Diameter

Length Inside Diameter
0 - 10 ft (0 - 3.1 m) 1/2" (12.7 mm)
10 - 40 ft (3.1 - 12.2 m) 1/2" (12.7 mm)
40 - 100 ft (12.2 - 30.5 m) 1/2" (12.7 mm)
100 - 150 ft (30.5 - 45.7 m) 3/4" (19.1 mm)
150 - 200 ft (45.7 - 61.0 m) 3/4" (19.1 mm)

Table 6

Gas lines must be routed, constructed and made

of materials that are in strict accordance with

local codes and regulations. We recommend
hiring a qualied plumber or gas tter to cor-

rectly size and route the gas supply line to the
appliance. Installing a gas supply line from the

Model No. A B C D

40 in.

45 in.

in. 50-5/8 83-5/8 59-1/8 41-7/8

mm 1286 2124 1502 1064

in. 56-3/4 89-7/8 63-1/2 44-7/8

mm 1441 2283 1613 1140

Figure 9 - Corner Framing with Power Vent Termination

fuel supply to the appliance involves numerous

considerations of materials, protection, sizing,
locations, controls, pressure, sediment, and
more. Only a qualied installer should attempt

sizing or installing gas pipe.

NOTES:

• All appliancesarefactory-equippedwitha
exiblegaslineconnectorand1/2"shutoff

valve (see Figure 30 on Page 21).

• SeeMassachusetts Requirements on Page

Step 2. ROUTING GAS LINE

4foradditionalrequirementsforinstallations
inthestateofMassachusettsintheUSA.

Route a 1/2" (13 mm) gas line along the inside

of the right side framing as shown in Figure

10. Gas lines must be routed, constructed and

made of materials that are in strict accordance
with local codes and regulations.

• ThegassupplylineshouldNotbeconnected
totheapplianceuntilStep 6 (Page 21).

• Apipejointcompoundratedforgasshould
beusedonthethreadedjoints.Beverycareful
thatthepipecompounddoesnotgetinside
thepipe.

All appliances are factory-equipped with a ex­ible gas line connector and 1/2" shutoff valve.
(see Step 6 on Page 21).

• Installing a sediment trap in the supply
lineascloseaspossibletotheapplianceis

recommended.

• Check withlocal building ofcial forlocal
coderequirements.

Figure 10 - Right-Front Corner of

Fireplace Framing

Proper Sizing of Gas Line

Properly size and route the gas supply line from
the supply regulator to the area where the appli­ance is to be installed per requirements outlined

in the (USA) National Fuel Gas Code, ANSI
Z223.1/NFPA 54 - latest edition, or (Canada)
CAN/CGA-B149.1 - latest edition.

Never use galvanized or plastic pipe. Refer to

Table 6 for proper sizing of the gas supply line,

if black iron pipe is being used.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

11

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Step 3. INSTALL THE VENT SYSTEM

General Information

These instructions should be used as a guide­line and do not supersede local codes in any
way. Install venting according to local codes,

these instructions, and the (USA) National
Fuel Gas Code, ANSI Z223.1/NFPA 54 - latest
edition, or (Canada) CAN/CGA-B149.1 - latest
edition.

These fireplaces are designed, tested and
listed for operation and installation only
with Secure Vent

®

(SV4.5) and Secure Flex®
Direct-Vent System Components, manufac­tured by Security Chimneys International.
These approved vent system components are
labeled for identification. DO NOT use any
other manufacturer's vent components with
these appliances.

Ensure clearances are in accordance with
local installation codes and the requirements
of the gas supplier.

Dégagement conforme aux codes
d'installation locaux et aux exigences du
foumisseunde gaz.

Use only approved venting components. See
Approved Vent Components on Page 2.

These fireplaces must be vented directly
to the outside.

Power Vent Components

Locate the replace as instructed in this manual. Make the following modications to add the com­ponents used with the Power Vent Kit. This kit may only be used in conjunction with Direct-Vent
series electronic versions of Innovative Hearth Products Fireplaces. This installation must conform
with local codes, or, in the absence of local codes, with the (USA) National Fuel Gas Code, ANSI
Z223.1/NFPA 54 - latest edition, or (Canada) CAN/CGA-B149.1 - latest edition.

CAUTION: This power vent kit cannot be used with millivolt appliances. Use the kit only with
the electronically controlled fireplaces listed for its use as shown in this document.

Item No.

1 604187-01 Adaptor Assembly With Probe 1

2 601970-01 Vacuum Hose 1
3 601451-01 Termination Assembly 1
4 74L61 SV Termination Adaptor (SV4.5RCH) 1
5 102010-01 Strain Relief - 3/8" 1
6 H2246 Firestop Assembly (Horizontal) 1
7 102022-01 Hose Clamp - 11/32" 2

8 P-8-7102 Snap Bushing 1
9 - Ring Terminal - #10 2

10 - Insulated 1/4" Male Terminal 4

Part

Number

Description Qty.

1

2

3

The vent system may not service multiple

appliances, and must never be connected to a

flue serving a separate solid fuel burning ap­pliance. The vent pipe is tested to be run inside

an enclosed wall (such as a chase). There is

no requirement for inspection openings in the
enclosing wall at any of the joints in the vent pipe.

Venting System

With the appliance secured in framing, de­termine vent routing and identify the exterior

termination location. The following sections
describe horizontal (exterior wall) vent applica­tions. A list of approved venting components

is shown on Page 28.

4

8

Figure 11 - Power Vent Kit Components

5

7

6

8

9

12

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

TRAHCHTGNELNOITCESTNEV

lanimoN

htgneLnoitceS

)sehcni(

6 21 42 63 84

T
OOOOO
TTTTT
AAAAA
LLLLL

QQQQQ
TTTTT
YYYYY

noitceSteN

)sehcni(htgneL

2/1-4 2/1-01 2/1-22 2/1-43 2/1-64

tneVfothgieH snoitceStneVforebmuN

sehcni tf

5.4 573.0 1 0 0 0 0 1

9 57.0 2 0 0 0 0 2

5.01 578.0 0 1 0 0 0 1

51 52.1 1 1 0 0 0 2

5.22 578.1 0 0 1 0 0 1

5.13 526.2 0 3 0 0 0 3

5.43 578.2 0 0 0 1 0 1

5.73 521.3 1 1 1 0 0 3

5.34 526.3 0 2 1 0 0 3

54 57.3 0 0 2 0 0 2

5.64 578.3 0 0 0 0 1 1

15 52.4 1 0 0 0 1 2

5.55 526.4 0 1 2 0 0 3

75 57.4 0 0 1 1 0 2

5.76 526.5 0 0 3 0 0 3

96 57

.5 0 0 0 2 0 2

5.37 521.6 1 0 0 2 0 3

5.97 526.6 0 1 0 2 0 3

18 57.6 0 0 0 1 1 2

5.19 526.7 0 0 2 0 1 3

39 57.7 0 0 0 0 2 2

5.79 521.8 1 0 0 0 2 3

5.301 526.8 0 0 0 3 0 3
801 9 1 0 0 3 0 4

711 57.9 1 0 5 0 0 6

5.811 578.9 1 1 0 3 0 5

621 5.01 0 0 1 3 0 4

5.031 578.01 1 0 1 3 0 5

531 52.11 0 0 6 0 0 6

5.931 526.11 0 0 0 0 3 3

5.241 578.11 1 0 0 4 0 5

441 21 1 0 0 0 3 4

5.451 578.21 1 1 0 0 3 5

5.061 573.31 0 2 0 0 3 5

5.271 573.41 0 0 0 5 0 5

771 57.41 1 0 0 5 0 6

681 5.51 0 0 0 0 4 4

5.691 573.61 0 1 0 0 4 5

702 52.71 0 0 0 6 0 6

5.112 526.71 1 0 0 6 0 7

5.712 521.81 0 1 0 6 0 7

5.922 521.91 0 0 1 6 0 7

5.23

2 573.91 0 0 0 0 5 5

5.142 521.02 0 0 0 7 0 7

642 5.02 1 0 0 7 0 8

252 12 0 1 0 7 0 8

TRAHCHTGNELNOITCESTNEV

lanimoN

htgneLnoitceS

)sehcni(

6 21 42 63 84

T
OOOOO
TTTTT
AAAAA
LLLLL

QQQQQ
TTTTT
YYYYY

noitceSteN

)sehcni(htgneL

2/1-4 2/1-01 2/1-22 2/1-43 2/1-64

tneVfothgieH snoitceStneVforebmuN

sehcni tf

5.4 573.0 1 0 0 0 0 1

9 57.0 2 0 0 0 0 2

5.01 578.0 0 1 0 0 0 1

51 52.1 1 1 0 0 0 2

5.22 578.1 0 0 1 0 0 1

5.13 526.2 0 3 0 0 0 3

5.43 578.2 0 0 0 1 0 1

5.73 521.3 1 1 1 0 0 3

5.34 526.3 0 2 1 0 0 3

54 57.3 0 0 2 0 0 2

5.64 578.3 0 0 0 0 1 1

15 52.4 1 0 0 0 1 2

5.55 526.4 0 1 2 0 0 3

75 57.4 0 0 1 1 0 2

5.76 526.5 0 0 3 0 0 3

96 57

.5 0 0 0 2 0 2

5.37 521.6 1 0 0 2 0 3

5.97 526.6 0 1 0 2 0 3

18 57.6 0 0 0 1 1 2

5.19 526.7 0 0 2 0 1 3

39 57.7 0 0 0 0 2 2

5.79 521.8 1 0 0 0 2 3

5.301 526.8 0 0 0 3 0 3
801 9 1 0 0 3 0 4

711 57.9 1 0 5 0 0 6

5.811 578.9 1 1 0 3 0 5

621 5.01 0 0 1 3 0 4

5.031 578.01 1 0 1 3 0 5

531 52.11 0 0 6 0 0 6

5.931 526.11 0 0 0 0 3 3

5.241 578.11 1 0 0 4 0 5

441 21 1 0 0 0 3 4

5.451 578.21 1 1 0 0 3 5

5.061 573.31 0 2 0 0 3 5

5.271 573.41 0 0 0 5 0 5

771 57.41 1 0 0 5 0 6

681 5.51 0 0 0 0 4 4

5.691 573.61 0 1 0 0 4 5

702 52.71 0 0 0 6 0 6

5.112 526.71 1 0 0 6 0 7

5.712 521.81 0 1 0 6 0 7

5.922 521.91 0 0 1 6 0 7

5.23

2 573.91 0 0 0 0 5 5

5.142 521.02 0 0 0 7 0 7

642 5.02 1 0 0 7 0 8

252 12 0 1 0 7 0 8

TRAHCHTGNELNOITCESTNEV

lanimoN

htgneLnoitceS

)sehcni(

6 21 42 63 84

T
O
T
A
L

Q
T
Y

noitceSteN

)sehcni(htgneL

2/1-4 2/1-01 2/1-22 2/1-43 2/1-64

tneVfothgieH snoitceStneVforebmuN

sehcni tf

672 32 0 0 0 8 0 8

972 52.32 0 0 0 0 6 6

5.082 573.32 1 0 0 8 0 9

5.982 521.42 0 1 0 0 6 7

5.103 521.52 0 0 1 0 6 7

5.013 578.52 0 0 0 9 0 9

5.523 521.72 0 0 0 0 7 7

033 5.72 1 0 0 0 7 8

543 57.82 0 0 0 01 0 01

5.943 521.92 1 0 0 01 0 11

273 13 0 0 0 0 8 8

5.973 526.13 0 0 0 11 0 11

5.814 578.43 0 0 0 0 9 9

564 57.83 0 0 0 0 01 01

5.574 526.93 0 1 0 0 01 11

084 04 1 1 0 0 01 11

294 14 1 0 1 0 01 21

5.994 526.14 0 0 0 1 01 11

405 24 1 0 0 1 01 21

5.115 526.24 0 0 0 0 11 11

5.025 573.34 0 2 0 1 11 41

135 52.44 0 2 2 0 11 51

5.835 578.44 1 0 0 2 11 41

945 57.54 1 0 2 1 11 51

855 5.64 0 0 0 0 21 21

5.265 578.64 1 0 0 0 21 31

5.865 573.74 0 1 0 0 21 31

375 57.74 1 1 0 0 21 41

5.085 573.84 0 0 1 0 21 31

5.985 521.94 0 1 2 2 01 51

5.595 526.94 1 1 1 0 21 51

5.406 573.05 0 0 0 0 31 31

516 52.15 0 1 0 0 31 41

5.526 521.25 0 2 0 0 31 51

5.136 526.25 1 0 1 0 31 51

5.736 521.35 0 1 1 0 31 51

156 52.45 0 0 0 0 41 41

5.556 526.45 1 0 0 0 41 51

276 65 0 2 0 0 41 61

876 5.65 1 0 1 0 41 61

5.886 573.75 1 1 1 0 41 71

5.796 521.85 0 0 0 0 51 51

207 5.85 1 0 0 0 51 61

5.217 573.95 1 1 0 0 51 71

027 06 0 0 1 0 51 61

TRAHCHTGNELNOITCESTNEV

lanimoN

htgneLnoitceS

)sehcni(

6 21 42 63 84

T
O
T
A
L

Q
T
Y

noitceSteN

)sehcni(htgneL

2/1-4 2/1-01 2/1-22 2/1-43 2/1-64

tneVfothgieH snoitceStneVforebmuN

sehcni tf

672 32 0 0 0 8 0 8

972 52.32 0 0 0 0 6 6

5.082 573.32 1 0 0 8 0 9

5.982 521.42 0 1 0 0 6 7

5.103 521.52 0 0 1 0 6 7

5.013 578.52 0 0 0 9 0 9

5.523 521.72 0 0 0 0 7 7

033 5.72 1 0 0 0 7 8

543 57.82 0 0 0 01 0 01

5.943 521.92 1 0 0 01 0 11

273 13 0 0 0 0 8 8

5.973 526.13 0 0 0 11 0 11

5.814 578.43 0 0 0 0 9 9

564 57.83 0 0 0 0 01 01

5.574 526.93 0 1 0 0 01 11

084 04 1 1 0 0 01 11

294 14 1 0 1 0 01 21

5.994 526.14 0 0 0 1 01 11

405 24 1 0 0 1 01 21

5.115 526.24 0 0 0 0 11 11

5.025 573.34 0 2 0 1 11 41

135 52.44 0 2 2 0 11 51

5.835 578.44 1 0 0 2 11 41

945 57.54 1 0 2 1 11 51

855 5.64 0 0 0 0 21 21

5.265 578.64 1 0 0 0 21 31

5.865 573.74 0 1 0 0 21 31

375 57.74 1 1 0 0 21 41

5.085 573.84 0 0 1 0 21 31

5.985 521.94 0 1 2 2 01 51

5.595 526.94 1 1 1 0 21 51

5.406 573.05 0 0 0 0 31 31

516 52.15 0 1 0 0 31 41

5.526 521.25 0 2 0 0 31 51

5.136 526.25 1 0 1 0 31 51

5.736 521.35 0 1 1 0 31 51

156 52.45 0 0 0 0 41 41

5.556 526.45 1 0 0 0 41 51

276 65 0 2 0 0 41 61

876 5.65 1 0 1 0 41 61

5.886 573.75 1 1 1 0 41 71

5.796 521.85 0 0 0 0 51 51

207 5.85 1 0 0 0 51 61

5.217 573.95 1 1 0 0 51 71

027 06 0 0 1 0 51 61

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

VENT SECTION LENGTHS

Determine the number of straight vent sections

required. 4-1/2" (114 mm), 10-1/2" (267 mm),
22-1/2" (572 mm), 34-1/2". (876 mm) and 46­1/2" (1181 mm) net section lengths are available
(see Tables 7 and 8).

Offset Installation

Analyze the vent routing and determine the
quantities of vent sections and number of
elbows required. Refer to Figures 16 and 17
on Page 15 showing vent run requirements to
aid in selecting the type of vertical installation
desired. Vent sections are available in net lengths
of 4-1/2" (114 mm), 10-1/2" (267 mm), 22-1/2"

(572 mm), 34-1/2" (876 mm) and 46-1/2" (1181
mm). Refer to the Vent Section Length Chart for

an aid in selecting length combinations. Elbows

are available in 90° and 45° congurations. Refer

to Figure 15 on Page 14 for the SV4.5 E45 and

SV4.5 E90 elbow dimensional specications.

Where required, a telescopic vent section

(SV4.5LA) may be used to provide the installer

with an option in installing in tight and conned
spaces or where the vent run made up of xed

length pieces develops a joint in a undesirable

location, or will not build up to the required
length. The SV4.5LA Telescopic Vent Section
has an effective length of from 1-1/2" (38 mm)
to 6-3/4" (171 mm). The SV4.5LA is tted with a
dimpled end (identical to a normal vent section
component) and a plain end with 3 pilot holes.

Slip the dimpled end over the locking channel
end of a standard SV4.5 vent component the
required distance and secure with three screws.

Maintain a minimum 1" (25 mm) clearance
to combustible materials for all vertical ele­ments. Clearances for all horizontal elements
are 3" (76 mm) on top, 1" (25 mm) on sides
and 1" (25 mm) on the bottom.

Table 7

Effective Vent Length

Model Effective Length

SV4.5L6 4-1/2"
SV4.5L12 10-1/2"
SV4.5L24 22-1/2"
SV4.5L36 34-1/2"
SV4.5L48 46-1/2"

Table 8 - Vent Section Length

NOTE: Convert inches into metric equivalent
measurement, as follows:

Millimeters (mm) = Inches x 25.4
Centimeters (cm) = Inches x 2.54
Meters (m) = Inches x .0254

13

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

8-1/8”

(206 mm)

4-13/16”

(122 mm)

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

A. Frame ceiling opening - Use a plumb line
from the ceiling above the appliance to locate
center of the vertical run. Cut and/or frame

an opening, 10-1/2" x 10-1/2" (267 mm x 267
mm) inside dimensions, about this center mark

(Figure 12).

10-1/2" min.

10-1/2" min.

(267 mm)

Plumb Bob

Ceiling Framing

Figure 12 - Framing Ceiling Opening

B. Attach adaptor (with probe) to appliance
collar - Secure Vent

tem components are unitized concentric pipe
components featuring positive twist lock con-

nections (see Figure 13).

All of the appliances covered in this document

are tted with collars having locking inclined
channels. The dimpled end of the adaptor ts

over the appliance collar to create the positive
twist lock connection.

Arrow

Adaptor on Appliance Collar
or Vent Section

®

SV4.5 direct-vent sys-

Align the dimple (four places) of the
upper vent section with the opening
of the locking incline channel on
the lower vent section or appliance
collar. Twist vent component
clockwise to engage and seal until
arrow and dimple align.

Dimple

Locking Incline
Channel

Connected Vent
Sections

Figure 13 - Attaching the Vent Adaptor

To attach a vent component to the adaptor on

appliance collar, align the dimpled end over the
adaptor collar, adjusting the radial alignment

until the four locking dimples are aligned with the
inlet of the four inclined channels on the collar

(refer to Figure 13). Push the vent component
against the collar until it fully engages, then twist
the component clockwise, running the dimples

down and along the incline channels until they
seat at the end of the channels.

14

(267 mm)

Arrow

®

The unitized design of the Secure Vent

com­ponents will engage and seal both the inner and
outer pipe without the need for sealant or screws.

If desired a #6 x 1/2" screw may be used at the
joint, but it is not required as the pipe will securely

lock when twisted.
C. Attach vent components to each other - Other

vent sections may be added to the previously
installed section in accordance with the require­ments shown in Figures 16 and 17 on Page 15.

To add another vent component to a length of

vent run, align the dimpled end over the inclined
channel end of the previously installed section,

adjusting the radial alignment until the four
locking dimples are aligned with the inlets of
the four incline channels of the previous section.

Push the vent component against the previ-

ous section until it fully engages, then twist

the component clockwise running the dimples
down and along the incline channels until they
seat at the end of the channels. This seating

position is indicated by the alignment of the
arrow and dimple as shown in Figure 13.

D. Install firestop/spacer at ceiling - When

using Secure Vent, use SV4.5VF restop/spacer

at ceiling joists. If there is living space above

the ceiling level, the restop/spacer must be

installed on the bottom side of the ceiling. If

attic space is above the ceiling, the restop/

spacer must be installed on the top side of
the joist. Route the vent sections through the

framed opening and secure the restop/spacer

with 8d nails or other appropriate fasteners at
each corner.

Maintain 1" (25 mm) clearance to combus­tibles, framing members, and attic or ceiling
insulation when running vertical chimney
sections. Attic insulation shield (H3907) may
be used to obtain the required clearances
indicated here. See installation accessories
on Page 28. The gap between the vent pipe
and a vertical firestop may be sealed with
noncombustible caulking.

E. Support the vertical vent run sections -

Blocking

Support Straps
(Plumber's
tape)

8' (2.4 m)

Maximum

1/2" (13 mm)
minimum
clearance to
combustibles

Figure 14 - Supporting Vertical Vents

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Support the vertical portion of the venting
system every eight feet (2.4 m) above the
fireplace vent outlet. One method of support

is by utilizing eld provided support straps
(conventional plumber's tape). Secure the

plumber's tape to the framing members with
nails or screws. Strap the tape around the vent,
securing the ends of the tape to the framing.

If desired, sheet metal screws #6 x 1/2" length

may be used to secure the support straps to
the vent pipe.

F. Change vent direction to horizontal/inclined
run - At transition from or to a horizontal/in-

clined run, install the SV4.5E45 and SV4.5E90

elbows in the same manner as the straight vent
sections. The elbows feature a twist section to

allow them to be routed about the center axis

of their initial collar section to align with the

required direction of the next vent run element.

Twist elbow sections in a clockwise direction
only so as to avoid the possibility of unlocking
any of the previously connected vent sections
(see Figures 13 and 15).

Swivel Joint

(360° swivel)

SV4.5E45

45° Elbow)

Swivel Joint

(360° swivel)

SV4.5E90

90° Elbow)

Figure 15 - Vent Elbow Sections

G. Continue installation of horizontal/inclined
sections - Continue with the installation of the

straight vent sections in horizontal/inclined run
as described in Step C. Install support straps

every three feet (914 mm) along horizontal/

inclined vent runs using conventional plumber’s
tape (Figure 16 on Page 15).

NOTE: Maintain the horizontal/inclined run in

a straight, slightly elevated plane - approxi-

mately 1/4" per foot (20 mm per meter) - in

a direction away from the fireplace. Smaller
rise per foot run ratios are acceptable, down
to at or near level. Use a carpenter’s level to
measure from a constant surface and adjust
the support straps as necessary.

NOTE: Maintain the required clearances to

combustibles: 1" (25 mm) at all sides for all
vertical runs; and 3" (76 mm) at the top, 1" (25
mm) at sides, and 1" (25 mm) at the bottom
for all horizontal/inclined runs.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

VENT FIGURES

NOTES:

• SecureVent

• Two45°elbowsmaybeusedinplaceofone90°elbow.

• SV4.5VF(SecureVent)restop/spacermustbe usedanytimeventpipepassesthrougha combustibleoororceiling.SV4.5HF(SecureVent)

restop/spacermustbeusedanytimeventpipepassesthroughacombustiblewall.

• Maintain the horizontal/inclined run in a straight, slightly elevated plane - approximately 1/4" per foot (20 mm per meter) - in a direction

away from the fireplace. Smaller rise per foot run ratios are acceptable, down to at or near level. Use a carpenter’s level to measure from a
constant surface and adjust the support straps as necessary.

®

components(rigidventpipeandterminal)areshown.

Power Vent
Termination

Exterior
Wall

SV4.5L 6 / 12 / 24 / 36 / 48

Vent Sections

Horizontal / Inclined Run

Figure 16 - Typical Power Vent Routing

Firestop / Spacer

Maximum Horizontal

Venting 110 ft

Up to 6 Elbows

Floor

Venting Can Run Up To
3 ft Below Unit

Support
Brackets

Ceiling

Probe Adaptor
(required)

Building
Support
Framing

SV4.5E90
Elbow

Vertical Rise

66 ft max.

4 ft min.

Fireplace

Minimum

Vent Run

Horizontal

10 ft

Probe Adaptor

(required)

Exterior
Wall

Power Vent
Termination

Power Venting

Maximum Number Of Elbows - 6

Maximum Feet Of Run A + B 110 ft

Minimum Horizontal Run B 10 ft

Minimum Vertical Run A

Maximum Vertical Rise A 66 ft

Adaptor Plus 4 ft Vertical Vent

(min.) and 90° Elbow

Table 9

Minimum Clearance to Combustibles

Vertical Vent Pipe 1.0" (25.4 mm)

Top - 3" (76.2 mm)

Horizontal Vent Pipe

Sides - 1" (25.4 mm)

Bottom - 1" (25.4 mm)

Table 10

B

A

(See Chart)

Probe Adaptor

(Required)

Figure 17 - Power Vent Routing with Probe Adaptor

15

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

HORIZONTAL (OUTSIDE WALL)
TERMINATION SYSTEM

See Figures 16 and 17 on Page 15 illustrating

the various horizontal venting congurations

that are possible for use with these appliances.
Table 9 on Page 15 shows each system’s

minimum and maximum vertical and horizontal

length values that can be used to design and
install the vent components in a variety of
applications.

The horizontal vent system terminates through
an outside wall. Building codes limit or prohibit

terminating in specic areas. Refer to Figure 4
on Page 7 for location guidelines.

Secure Vent

®

SV4.5 direct-vent system compo-

nents are unitized concentric pipe components

featuring positive twist lock connection, (refer

to Figure 13 on Page 14). All of the appliances

covered in this document are tted with collars

having locking inclined channels. The dimpled

end of the vent components t over the appliance

collar to create the positive twist lock connection.

A. Plan the vent run -
Analyze the vent routing and determine the

types and quantities of sections required

4-1/2" (114 mm), 10-1/2" (267 mm), 22-1/2"
(572 mm), 34-1/2" (876 mm) and 46-1/2"
(1181 mm) net section lengths are available.

Make allowances for elbows as indicated in
Figure 15 on Page 14.

Maintain a minimum 1" (25 mm) clearance

to combustibles on the vertical sections.
Clearances for the horizontal runs are: 3"
(76 mm) on top, 1". (25 mm) on sides, and
1" (25 mm) at the bottom.

B. Frame exterior wall opening -

Locate the center of the vent outlet on the

exterior wall according to the dimensions

shown in Figure 8 on Page 10.

Cut and/or frame an opening, 10-1/2" x 12-

1/8" (267 mm x 308 mm) inside dimensions,

about this center.

C. Frame ceiling opening - If the vertical route

is to penetrate a ceiling, use a plumb line to

locate the center above the appliance. Cut

and/or frame an opening, 10-1/2" x 10-1/2"
(267 mm x 267 mm) inside dimensions,
about this center (see Figure 12 on Page

14).

D. Attach vent components to appliance - To

attach a vent component to the appliance

collar, align the dimpled end over the collar,

adjusting the radial alignment until the four
locking dimples are aligned with the inlets of

the four incline channels on the collar (refer
to Figure 13 on Page 14).

Push the vent component against the collar

until it fully engages, then twist the component
clockwise, running the dimples down and along

the incline channels until they seat at the end of
the channels. The unitized design of the Secure
Vent components will engage and seal both the
inner and outer pipe elements with the same
procedure. Sealant and securing screws are
not required.

E. Attach vent components to each other -

Other vent sections may be added to the
previously installed section in accordance
with the requirements of the vent tables.
To add another vent component to a length

of vent run, align the dimpled end of the

component over the inclined channel end

of the previously installed section, adjusting

the radial alignment until the four locking
dimples are aligned with the inlets of the four
incline channels of the previous section. Push
the vent component against the previous

section until it fully engages, then twist the

component clockwise running the dimples
down and along the incline channels until they
seat at the end of the channels. This seating

position is indicated by the alignment of
the arrow and dimple as shown in Figure
13 on Page 14.

F. Install firestop/spacer at ceiling -

When using Secure Vent, use SV4.5VF re-

stop/spacer at ceiling joists. If there is living

space above the ceiling level, the restop/

spacer must be installed on the bottom side
of the ceiling. If attic space is above the ceil-

ing, the restop/ spacer must be installed

on the top side of the joist. Route the vent
sections through the framed opening and

secure the restop/spacer with 8d nails or

other appropriate fasteners at each corner.

The gap between the vent pipe and a restop

can be sealed with noncombustible caulking.

Maintain 1" (25 mm) clearance to com-

bustibles, framing members, and attic or
ceiling insulation when running vertical
chimney sections.

G. Support the vertical run sections -

On the vertical run, support the venting system

every eight feet (2.4 m) above the replace
vent outlet with eld provided support straps
(Plumber's tape). Attach the straps to the vent

pipe and secure to the framing members with
nails or screws.

H. Change vent direction - At transitions from

or to a horizontal/inclined run, install the

SV4.5E45 and SV4.5E90 elbows in the same
manner as the straight vent sections. The
elbows feature a twist section to allow them

to be routed about the center axis of their

initial collar section to align with the required

direction of the next vent run element. Twist
elbow sections in a clockwise direction only
so as to avoid the possibility of unlocking
any of the previously connected vent sec­tions (see Figure 13 on Page 14).

I. Continue installation of horizontal/inclined

sections - Continue with the installation

of the straight vent sections in horizontal/
inclined run as described in Step E. Install

support straps every three feet (1914 mm)

along horizontal/inclined vent runs using

conventional plumber’s tape (see Figure 16

on Page 15).
NOTE: Maintain the horizontal/inclined

run in a straight, slightly elevated plane

- approximately 1/4" per foot (20 mm

per meter) - in a direction away from the
fireplace. Smaller rise per foot run ratios
are acceptable, down to at or near level.
Use a carpenter’s level to measure from
a constant surface and adjust the support

straps as necessary.

Installing Power Vent Termination

J. Assemble vent run to exterior wall - If not

previously measured, locate the center of
the vent on the exterior wall. Prepare an

opening as described in this manual. As­semble the vent system to a point where

the terminus of the last section is within 8"

of the outside wall surface where the power

vent is to be mounted (see Figure 18 on
Page 17).

If the terminus of the last section is not

within this distance, use the telescopic
vent section SV4.5LA, as the last vent

section. For wall thicknesses greater than

that shown in Figure 19 on Page 17, refer
to Table 11 on Page 17 for the additional

venting components needed (in addition to
the termination and adaptor) for a particular

range of wall thicknesses.

K. Attach termination adaptor - Attach the

adaptor (SV4.5RCH - provided with the power
vent kit) to the vent section telescoping vent
section, or elbow, as shown in Figures 18

and 19 on Page 17 in the same manner as
any SV4.5 vent component.

16

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

L. Install Firestop/Spacer at exterior wall -

Install SV4.5HF Firestop/Spacer, provided

with the power vent kit, over the opening at
the exterior side of the framing, long side
up, with the 3" spacer clearance at the top as
shown in Figure 18, and nail into place. The
Firestop/Spacer may also be installed over

the opening at the interior side of the fram­ing. The gap between the vent pipe and a

restop can be sealed with noncombustible

caulking.

(The Firestop/Spacer may also be installed

over the opening at the interior side of the

framing).

M. Install the Power Vent termination - From

outside the exterior wall, slide the collars of

the termination onto the adaptor until the

termination seats against the exterior wall

surface to which it will be attached. Orient
the housing of the termination with the
arrow pointed upwards. Secure the termi-

nation to the exterior wall. The termination
must not be recessed into the exterior wall
or siding by more that the 1-1/4" (32 mm)

as shown in Figure 19.

The Power Vent termination has been
designed to perform in a wide range of
weather conditions. Terminations meet
or exceed industry standards.

When selecting the location of termination,
do not place the termination where water
from eaves and adjoining roof lines may
create a heavy flow of cascading water onto
the termination. If the termination must be
placed where the possibility of cascading
water exists, it is the responsibility of the
builder to direct the water away from the
termination cap by using gutters or other
means.

Carefully follow the Installation Instruc­tions for the termination, including the
use of silicone caulking where required.

To help minimize water infiltration

it is recommended that the Firestop/Spacer (SV4.5HF)

be installed on the exterior side of the wall.

10-1/2”
(267 mm)

NOTE: Centerline of Vent Piping is NOT
the Same as the Centerline of the

Frame Opening.

See Figure 8 on Page 10 for Minimum
Distance to Base of Appliance

Base of Appliance

5-1/8”

(130 mm)

(178 mm)

12-1/8”

(308 mm)

Adaptor
SV4.5RCH

6” to 48” Vent Section,
Telescopic vent section,

Elbow or Appliance Collar

7”

Figure 18 - Installing Power Vent Horizontal Termination

*Use silicone caulking to

seal the top and sides of
the termination, up to the
underlayment, stucco, or
masonry wall surface.

*Caulk

*Caulk

Stucco

Siding

**For thicknesses greater

than 9-1/4", see Table 11

Interior Surface of

Finished Wall

Maximum Extent of Vent Run
Sections Relative to Exterior
Surface of Framing

Last Vent Section.

Use Telescopic Vent

Section (SV4.5LA),

If Necessary

Power Vent

Termination

Adaptor

SV4.5RCH

Power Vent

Termination

3”

(76 mm)

1”

(25.4 mm)

Maximum wall thickness

9-1/4” (235 mm)**

Exterior Surface of Siding

Exterior Surface of
Framing

6” to 9-1/4”
(152 to 235 mm)**

Power Vent
Termination

1-1/4” (32 mm) Maximum
Recess of the Square
Termination into Exterior
Finishing Material

See Table 11 as an aid in venting component
selection for a particular range of exterior

wall thicknesses.

WARNING: The vent termination is hot
while in operation and for a period of
time following the use of the fireplace.
Young children should be carefully su­pervised when in the same area as a hot
termination.

Figure 19 - Venting Connection and Exterior Wall Recessing of the Power Vent

Horizontal Termination

Venting Components Required for Various Exterior Wall Thicknesses

when Using the Power Vent Termination

Vent Components Required Exterior Wall Thickness
Termination Kit Only 6 to 9-1/4" (152 to 235 mm)
Termination Kit and 6" Vent Section (SV4.5L6) 10-3/4 to 14" (273 to 356 mm)
Termination Kit and 12" Vent Section (SV4.5L12) 16-3/4 to 20" (426 to 508 mm)
Termination Kit and Telescopic Section (SV4.5L12) 11-3/4 to 20" (299 to 508 mm)

Table 11

17

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Step 4. FIELD WIRING
CAUTION: Label all wires prior to disconnection when servic-

ing controls. Wiring errors can cause improper and dangerous
operation.

ATTENTION: Au moment de l'entretien des commandes,
étiquetez tous les fils avant de les débrancher. Des erreurs
de cáblage peuvent entraîner un fonctionnement inadéquat
et dangereux.

Verify proper operation after servicing.

S'assurer que l'appareil fonctionne adéquatement une fois
l'entretien terminé.

CAUTION: Ground supply lead must be connected to the wire
attached to the green ground screw located on the outlet box.
See Figures 27 and 28 on Page 20. Failure to do so will result
in a potential safety hazard. The appliance must be electrically
grounded in accordance with local codes or, in the absence of
local codes, the (USA) National Electrical Code, ANSI/NFPA
70 - latest edition, or the Canadian Electrical Code, CSA C22.1

- latest edition.
Route Cable

NOTE: Electrical wiring must be performed by a qualified electrician.

• Install the strain relief in the hole provided on the right side of replace
for the electrical wiring (see Figure 20).

• Either use the intgrated junction box, or position an electrical junction
box (not provided) within reach of the termination wiring pigtail (see
Figure 23 on Page 19). Route the pigtail to the junction box as the

termination is installed.

• Route 14 gage AWG grounded solid wire Romex
stranded cable (e.g., SJOT) from the replace to the newly installed
junction box near the termination. Ensure the cable is safety plated to
prevent damage from framing nails and nish drywall screws. Route

it into the lower control compartment and cut to length before install­ing the terminals. Install provided hardware on the ends of the cable.
Cable is not provided. The provided crimp terminals are intended for

use with stranded cable. If using Romex, connect per National Electric

Code or local code.

®

or equally-sized

• Refer to Figure 25 on Page 19 and install the electrical hardware on
the ends of the cable. Male terminals on the Black and White wires,

and ring terminals on the ground wire.

• Using standard electrical practices and the terminals provided, con­nect the three wires of the cable to the termination pigtail within the

Electrical junction box. Ensure ground.

• The replace end of the cable will be addressed in Connecting The

Power Vent To The Fireplace Control System.

Probe (1 *)

Hose Clamp (7 *)

Vacuum Hose (2 *)

Adaptor Assembly

* See Figure 11 on Page 12

Figure 21 - Vacuum Hose Connection to Probe

Vacuum Hose

Pressure Switch

Strain
Relief

14 Gage
Grounded
Romex or

similar

Stranded

Cable

Vacuum

Hose

Snap

Bushing

Wall Switch

Harness

Figure 20 - Routing Wiring

18

Pressure switch is located
behind the panel on the right
side of firebox

Right Side

of Fireplace

Firebox

Vacuum Hose

Junction Box

Pressure Switch

NOTE: Pressure switch style may vary from that shown.

Figure 22 - Vacuum Hose Connection to Pressure Switch

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Wiring - Fireplace (See Figures 27 and 28 on Page 20)

NOTE: These electronic appliances must be connected to the main
power supply. The gas valve is set in place and pre-wired at the factory.

1. Route a 3-wire 120 Vac 60 Hz 1ph power supply to the appliance

junction box.

2. Remove the electrical inlet cover plate from the side of the unit by remov-

ing the plate securing screws (see Figure 8 on Page 10).

3. Remove the cover plate knockout and then feed the power supply through

the knockout opening and into the unit junction box.

4. Connect the black power supply to the power outlet red pigtail lead and
the white power supply to the common terminal of the outlet as shown in
Figures 27 and 28 on Page 20.

5. Connect the ground supply to the pigtail lead attached to outlet
green ground screw.

6. Wall-mounted ON/REMOTE/OFF burner control switch and remote

control kits may be used. Mount the switch in a convenient location

on a wall near the replace.

NOTE: One end of the supplied wire (15 ft) is factory-connected and

the other end is attached to the side of the unit.

CAUTION: Do Not connect the ON/REMOTE/OFF wall switch to a 120
V power supply.

8. Turn the wall-mounted ON/REMOTE/OFF burner control switch to the

OFF position.

9. After the wiring is complete, replace the cover plate.

• Refer to Figure 26 and install the electrical hardware on the replace
end of the cable. Male terminals (#10) on the Black and White wires,
and ring terminals (#9) on the ground. The termination end of the cable
will be connected to the termination with wire nuts (not provided).

• Refer to Figure 26 to connect the three wires of the cable to the termina-

tion. Ensure the ground ring terminal is grounded beneath a structural

screw as shown. Attach the junction box cover to the termination with

the screw previously removed.

• The replace end of the cable will be addressed in Connecting The
Power Vent To The Fireplace Control System.

Black and White

Cable

Ground Wire

10

9

Figure 24 - Cable Connections

Wiring - Power Vent Termination

Alternate Instructions (For use when access to the termination is easy

and a secondary electrical junction box installation is not desired).

• Remove the junction box cover from the termination by removing the
attaching screw (see Figure 23).

• Loosen the strain relief on the termination shown in Figure 25. Pull
the pigtail in and shorten it to t within the junction box cover.

WARNING: Crimp connectors may be used on stranded cables (such as
SJOT cable) only. Solid wire Romex must be connected per the National
Electric Code, NEC 70 - latest version, or local codes.

• Route 14 gage AWG grounded solid wire Romex or equally sized
stranded cable (e.g., SJOT) from the replace to the newly installed
junction box near the termination. Ensure the cable is safety plated to
prevent damage from framing nails and nish drywall screws. Route

it into the lower control compartment and cut to length before install­ing the terminals. Install provided hardware on the ends of the cable.
Cable is not provided. The provided crimp terminals are intended for

use with stranded cable. If using Romex, connect per National Electric

Code or local code.

Strain Relief

Figure 25 - Back of Termination

Pigtail Wires Cut

Off and Shortened

Cable

Ground Cable to
The Termination

Pigtail

Junction Box Cover

Figure 23 - Bottom of Termination

Attaching Screw

Figure 26 - Junction Box Cover Removed

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Strain Relief Holding Cable

Wire Nuts

19

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Field Wired

Junction Box

Tab Intact

Tab
Intact

n e e r G - d n u o r G

e t i h W - l a r

t
u e N

120 VAC - Black

Green
Ground

White

Green

Neutral

Side

Hot

Side

Red

Black

ELECTRONIC WIRING DIAGRAM

(Schematic representation only)

COLOR CODE:
B = Black
BB = Brown w/Black Stripe
BG = Brown w/Green Stripe
BL = Blue
BR = Brown
G = Green
GY = Gray
O = Orange
R = Red
W = White
Y = Yellow

Note: On models
without pressure

switch, these

connectors are

plugged together.

BR

Air Pressure Switch

Power Vent Only

Main Wire

Harness

G

Y

Battery Holder with Switch

Battery Holder w/Switch
ON/ Remote
/OFF

Y

Battery Holder
Wire Harness

GR

ON/Remote/OFF

B

O

R

BL

O

G

IPI Pilot

Pilot Tube

Optional

885 Valve

BL

G

W

R

B

R

B

WH

B

W

G

Split Flow

Reset Switch

(See instructions.)

B

Control Module

Fuse

B

B

Flame
Sensor

Spark
Electrode

B

Ground Y

G

W

Figure 27 - Electronic Wiring Diagram

Figure 28 - Junction Box Wiring -

20

120 V, 60 hz, 1-phase

Power Vent Blower

Power Vent
Models Only

Step 5. REMOVE THE GLASS DOOR
ASSEMBLY

Refer to Figure 40 on Page 24 and remove the
front glass door assembly as follows:

Main Power Cord

To remove the rescreens, lift up the center of
the rod to disengage it from the center bracket,

WARNING

bend down at center, hold left side with hand
until it disengages from left side, being careful

• Handle this glass with extreme
care! Glass is susceptible to
damage - Do not scratch or
handle roughly.

• Do not attempt to substitute the
materials used on this door,
or replace cracked or broken
glass with any materials other
than those provided by the

not to scratch the paint. Slowly remove the rod
from the right side.

Using a Phillips screwdriver, unfasten the two
(2) screws located at the top of the glass door

assembly.

Tilt the glass door assembly at the top away

from the unit. Lift it carefully off the bottom

door track and set the glass door assembly

aside, protecting it from inadvertent damage.

appliance manufacturer.

• The glass door of this appliance
must only be replaced as a
complete unit as provided
by the manufacturer. Do not
attempt to replace broken,
cracked, or chipped glass
separately.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Gas

Valve

3/8” NPT x

Flare Fitting

3/8” Flex Tubing

3/8” Nipple

3/8” Union

3/8” Close

Nipple

3/8” Shut-off Valve

1/2” x 3/8”

Reducer

Gas

Stub

1/2 x 3/8” Flare

Shut-off Valve

Gas Solid Line Connector

Gas Flex Line Connector

*Sediment
Trap

3 in.

Min

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Step 6. CONNECTING GAS LINE

All codes require a shut-off valve mounted in
the supply line. The orientation of the shut-off
valve should face the front. Figure 30 illustrates
two methods for connecting the gas supply.
A Sediment Trap is recommended to prevent
moisture and debris in gas line from damaging
the valve.

The ex-line method is acceptable in the USA

where local codes permit. Installation must be in
compliance with local codes. These appliances

are equipped with a gas ex-line for use in

connecting the unit to the gas line.See Figure
30 for ex-line description.

A manual shutoff valve is also provided with

the ex-line. The gas control valve is located

on the right side of the unit.

When using solid gas line connector, access

the valve by removing the front door assembly
on the valve access side and the access plate

(see Figure 29).

The electronic control valve has a 3/8" (10 mm)

NPT thread gas supply inlet.

NOTE: Using a soapy water solution is

an effective leak test solution but it is not
recommended, because the soap residue

that is left on the pipes/ttings can result in

corrosion over time.

A. Light the appliance (refer to the lighting

instructions label in control compartment
or in the Care and Operation instructions

manual).

B. Brush all joints and connections with the

gas leak test solution to check for leaks.

If bubbles are formed, or gas odor is detected,

turn the unit off. Either tighten or refasten the

leaking connection, then retest as described

above.

C. When the gas lines are tested and leak free

be sure to rinse off the leak testing solution.

D. Re-install the access plate, making certain

the gasket has not been damaged.

NOTE: The gas supply line
must be installed in accor­dance with building codes
by a qualified installer ap-

proved and/or licensed as

required by the locality. In
the Commonwealth of Mas­sachusetts, installation must
be performed by a licensed
plumber or gas fitter.

Secure all joints tightly using appropriate
tools and sealing compounds.

Bring the shutoff valve on the end of the ex-line

over to the hard pipe and tighten with wrenches

from above through the rebox opening.

Right Side

Modesty Panel

Access Plate

Gas Shutoff

Valve

Gas Valve

Figure 29 - Fireplace Right Side

TEST ALL CONNECTIONS FOR GAS LEAKS
(FACTORY AND FIELD)

Never use an open flame to

WARNING

check for leaks.

Turn on gas supply and test for gas leaks using

a gas leak test solution (also referred to as
bubble leak solution).

Figure 30 - Gas Connection

Step 7. INSTALL FIREBOX LINER KIT

Install the rebox liner kit per the included

instructions.

Step 8. VERIFYING APPLIANCE
OPERATION

Turn on burner then observe the individual
tongues of flame on the burner. Make sure all
ports are open and producing flame evenly

across the burner. If any ports are blocked, or
partially blocked, clean out the ports.

With gas line installed run initial system

checkout before closing up the front of the unit.

Follow the pilot lighting instructions provided.

NOTE: Lighting Instructions are also found on
the literature tag tied to the bracket above the
gas valve. To access the tag, reach into the
right side opening.

When rst lighting the appliance, it will take a few

minutes for the line to purge itself of air. Once

purging is complete, the pilot and burner will

light and operate as indicated in the instruction
manual. Subsequent lighting of the appliance
will not require such purging. Inspect the pilot

ame (remove logs, if necessary, handling
carefully).

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Electronic Appliance Checkout

To light the burner, turn the ON/REMOTE/OFF

wall switch or remote control to the ON posi­tion. Ensure the igniter lights the pilot. The pilot
flame should engulf the flame sensor as shown
in Figure 31.

NOTE: The control must detect the pressure
switch in the open state, at startup, and then
close after the blower starts.

Igniter
Rod

Flame
Sensor

Pilot
Nozzels

Pilot Hood

Figure 31 - Electronic Pilot

Assembly - Proper Pilot

Flame Appearance

21

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Step 9. INSTALL VOLCANIC STONE, GLOWING EMBERS, AND
LOGS (TRADITIONAL ONLY), OR
GLASS MEDIA (CONTEMPORARY ONLY)

NOTE: If installing the contemporary burner/floor kit, skip
this step and instead refer to the instructions provided
with the kit.

WARNING

• DO NOT operate this appliance without the
required accessories properly installed:

- floor (log set or contemporary kit), and

- panels (ceramic or porcelain).

WARNING

• DO NOT attempt to install the logs until the

appliance installation has been completed, the
gas line connected and tested for leaks and the
initial burner operation has been checked out.
The size and position of the log set was

•

engineered to give the appliance a safe, reliable
and attractive flame pattern. Any attempt to
use a different log set in the fireplace will
void the warranty and will result in incomplete
combustion, sooting, and poor flame quality.
Logs get very hot and will remain hot up to one

•

hour after gas supply is turned off. Handle only
when logs are cool. Turn off all electricity to
the appliance before you install grate, volcanic
stone, embers and logs.
This appliance is not designed to burn wood. Any

•

attempt to do so could cause irreparable damage to
the appliance and prove hazardous to your safety.
If logs are not installed according to the log

•

installation instructions, flame impingement and
improper combustion could occur and result in soot
and/or excessive production of carbon monoxide
(CO), a colorless, odorless, toxic gas.

Firebox Accessories

Cat. No. Model Description

88L53 FGE Bag of Glowing Embers
80L42 FDVS Bag of Volcanic Stone

H8312 PGE Bag of Platinum Embers

Step 5. Position the individual logs as shown in Figures 36 through 39.

Logs should be placed in the order shown. Place logs 2 and 3
against the pins on the grate, NOT over them.

Proper log and twig placement is critical to encourage outstand-

ing ame appearance and prevent sooting. When positioned
properly, as shown, twigs will be positioned between ame

peaks and will not impinge any flames.

Volcanic Stone

Figure 32 - Volcanic Stone Placement

Figure 33 - Separating Glowing Embers

Step 1. Install the ceramic or porcelain panels per the instructions

provided in kit.

Step 2. Place volcanic stone around the burner (the entire bag of volcanic

stone will NOT be used). DO NOT PLACE VOLCANIC STONE ON

THE BURNER. See Figure 32.

Step 3. Separate the glowing embers (rockwool) into pieces about the

size of a quarter (Figure 33). Keep the pieces uffed, not matted.
Distribute these pieces over the burner as shown in Figure 34.

Do not use more than is necessary. When properly positioned,
the glowing embers will cover approximately 75% of the burner.

Step 4. Distribute the platinum embers over the burner as desired. Do

not use more than is necessary.

NOTE: Excessive use of embers may result in sooting or poor
flame. This appliance is provided with enough embers for
several applications, do not use all that is in a new bag. For
best glowing effect, replace the ember material annually.
Replacement volcanic stone, glowing embers, and platinum

22

embers are available.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Glowing Embers (Rockwool)

Figure 34 - Glowing Ember Placement

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Traditional Only: Log Placement

3

6

Log Number Description

7

1 Log, Center
2 Log, Rear

3 Log, Center/Left

4 Log, Center/Right
5 Log, Rear/Top
6 Log, Front/Left
7 Log, Front/Center

5

Table 6 - Log Set

3

4

2

1

4

Engage Logs (3 & 4) With The Grate Pins And Align Groves At
The Bottom Of The Logs Over The Grate.

Figure 37 - Placing Logs 3 and 4

6 5

Align Hole At Bottom Of Log (5)
Over The Pin On Log (2).

7

2

Align Two Holes At Bottom Of Log (1)
Over The Pins On The Gas Burner.

Figure 35 - Placing Log 1

1

Engage Log (6) With The Grate Pin
And Align Groove At The Bottom Of
The Log Over The Grate.

Engage Log (7) With
The Pin On Log (4).

4

Figure 38 - Placing Logs 5, 6, and 7

Contemporary Only: Glass Media Placement

1. Spread a thin layer of the media evenly on the burner and
media screen.

2

Align Groove At The Bottom Of Log (2) Over
The Grate And Push It Towards The Rear.

Figure 36 - Placing Log 2

Figure 39 - Glass media installed

2. On the corner of the right media screen, arrange the media to allow

the pilot flame to reach the burner during lighting.

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

23

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Step 10. INSTALLATION AND REMOVAL
OF GLASS DOOR

WARNING

• When reinstalling the glass

door, the door latch screws
must be securely tightened
to prevent the glass door
from falling out, which could
potentially cause damage and
possible injury.

• Do not attempt to substitute the

materials used on this door,
or replace cracked or broken
glass.

• Handle this glass with extreme

care! Glass is susceptible to
damage - Do not scratch or
handle roughly while reinstall­ing the glass door frame.

• The glass door of this appli­ance must only be replaced
as a complete unit as provided
by the manufacturer. Do not
attempt to replace broken,
cracked or chipped glass sepa­rately.

• Do not attempt to touch the

front enclosure glass with your
hands while the fireplace is in
use.

WARNING

Do not operate appliance with
the glass front removed, cracked
or broken.

WARNING: Any safety screen or guard re­moved for servicing the appliance must be
replaced prior to operating the appliance.

AVERTISSEMENT : Tout écran ou pro­tecteur retiré pour permettre l’entretien de
l’appareil doit être remis en place avant
de mettre l’appareil en marche.

Installing Glass Enclosure Panel
(see Figure 40)

To install the front glass door assembly, proceed

as follows:

1. Retrieve the glass door assembly. Visually
inspect the gasket on the backside of the

panel. The gasket surface must be clean,
free of irregularities and seated rmly.

2. Position the door frame in front of the rebox

opening and engage the bottom flange over

the rail at the bottom of the rebox opening.

3. Swing the door up and back. Ensure the

gasket seats evenly as the door draws shut.
Engage the nut insert and fasten with two
screws to secure the door.

4. Install the door modesty shield on top
flange glass door as follows: grab the door

modesty shield with both hands, with the

open hem going down and engage it with
the upper lip of the glass door frame by
pushing it all the way down. Make sure the

installed shield is rmly in place.

5. With the rescreen hanging on the screen rod,

drop in the right side of the rod to the right
modesty panel. Then drop in the left side of
the rod through the slot of the left modesty
panel. Make sure that the rod is supported

by the bracket in the center of the replace.

WHEN INSTALLING THE GLASS DOOR, SE­CURELY TIGHTEN THE LATCH SCREWS - SEE
THE FIRST WARNING ON THIS PAGE.

Top Flange Glass door
assembly

Glass Door Latch (2)

Step 11. BURNER ADJUSTMENTS

Flame Appearance and sooting

Proper flame appearance is a flame which is blue
at the base and becomes yellow-orange in the

body of the ame. When the appliance is rst lit,

the entire flame may be blue and will gradually

turn yellow-orange during the rst 15 minutes
of operation. After 15 minutes of operation, if
the ame is blue, or if the ame is orange with
evidence of sooting (black tip), the air shutter

opening may need to be adjusted.

If the air shutter opening is closed too far,

sooting may develop. Sooting is indicated by
black puffs developing at the tips of very long
orange flames. Sooting results in black deposits

forming on the logs, appliance inside surfaces
and on exterior surfaces adjacent to the vent

termination.

Sooting is caused by incomplete combustion
in the flames and lack of combustion air enter­ing the air shutter opening. To achieve a warm
yellow-orange flame with an orange body that

does not soot, the shutter opening must be

adjusted between these two positions.

Air Shutter Adjustment Guidelines

• If there is smoke or soot present, rst check

the log set positioning to ensure that the
flames are not impinging on any of the logs.
If the log set is properly positioned and a

sooting condition still exists, then the air

shutter opening should be increased.

• The more offsets in the vent system, the larger

the air shutter opening will need to be.

• An appliance operated with the air shutter
opened too far, may have ames that appear
blue and transparent. These weak, blue and

transparent flames are termed anemic.

The following chart is provided to aid in correctly
adjusting the air shutter.

AVERTISSEMENT

Ne pas utiliser l'appareil si le
panneau frontal en verre n'est
pas en place, est craqué ou
brisé.

Only doors certified with the appliance
shall be used.

Seules des portes certifiées pour cet
appareil doivent être utilisées.

WARNING: DO NOT abuse glass door by
striking or slamming shut.

24

Latch
Screws

Firebox Floor

Glass Door Assembly

When installing the glass door, ensure
the spacing on both sides are equal.

Figure 40 - Installing the Glass Door

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Air Shutter Adjustment Guidelines

Amount of

Primary Air

If air shutter is
closed too far

If air shutter is
open too far

Flame

Color

Flame will
be orange

Flame will
be blue

Air Shutter

Adjustment

Air shutter
gap should be
increased

Air shutter
gap should be
decreased

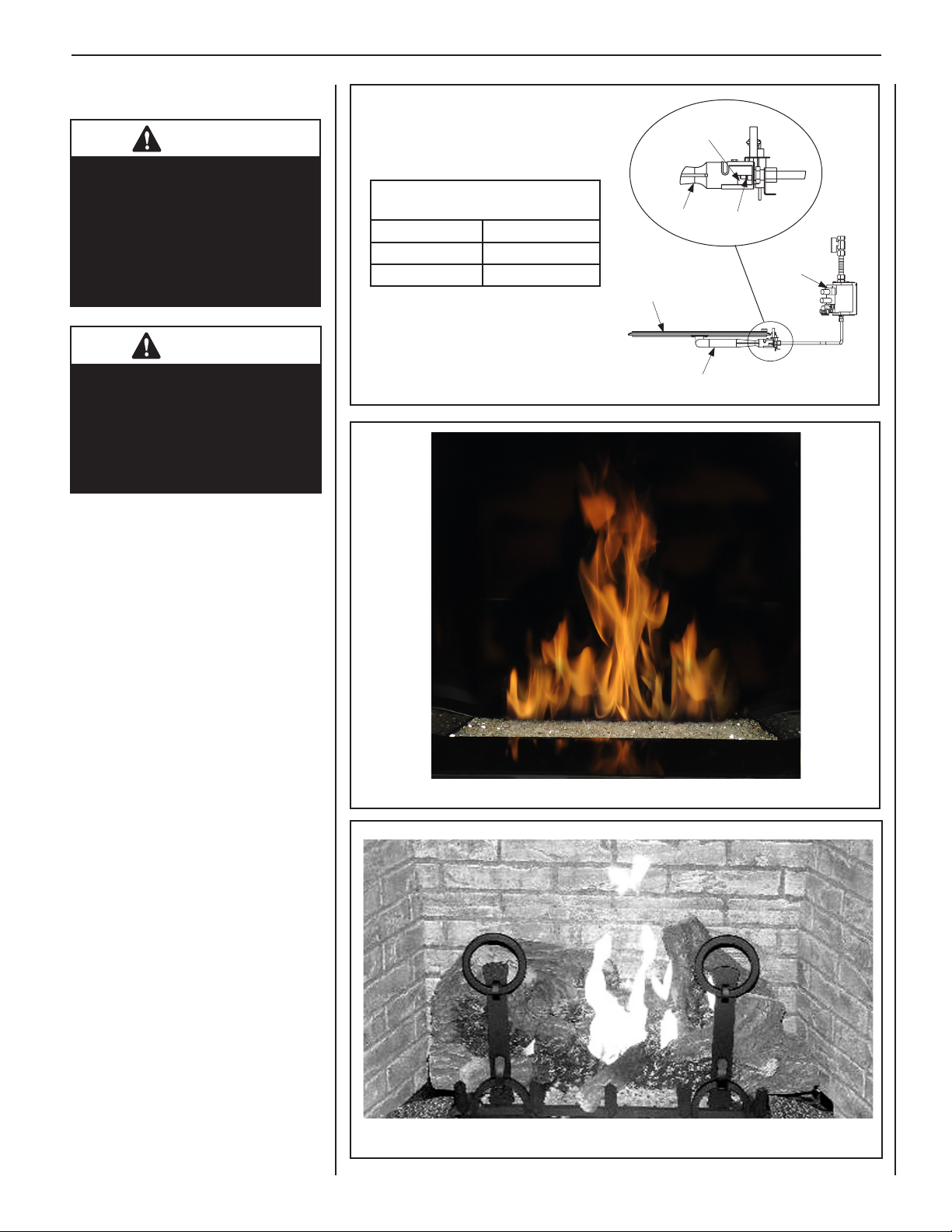

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Air Shutter

Opening

Burner

Orifice

Gas

Valve

Venturi

Venturi

Burner Air Shutter Adjustment Procedure

WARNING

• Air shutter adjustment should

only be performed by a quali­fied professional service tech­nician.

• Ensure that the front glass

door assembly is in place and
sealed After adjustment.

CAUTION

Main Burner Factory Air Shutter

Opening Setting - Inches (millimeter)

Model Nat.Gas

40 in.
45 in.

1/8" (3.18 mm)
1/8" (3.18 mm)

Soot will be produced if the
air shutter is closed too much.
Any damage due to carboning
resulting from improperly setting
the air shutter is not covered
under the warranty.

To adjust the ame, move the adjustment air
shutter (located on the lower venturi) back or

forward to increase or reduce the air shutter

opening, respectively. Position the air shutter to

the factory setting as shown in Figure 41. Allow
the burner to operate for at least 15 minutes.
Observe the flame continuously. If it appears

weak or sooty as previously described, adjust

the air shutter until the flame appearance is
as desired.

When satised that the appliance operates
properly, nish the installation. Leave the
ON/REMOTE/OFF wall switch in the REMOTE
position and turn the remote switch OFF.

Use the remote to adjust the flame height
as desired.

Figure 41 - Air Shutter Adjustment

Figure 42 - Burner Flame Appearance

Figure 43 - Burner Flame Appearance

25

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Glass Door

Assembly

Fireplace

Finish Combustible
Or Non-Combustible
Material

Bottom Of
Fireplace

1/8”

Minimum

Door Track

Finish Combustible
Or Non-Combustible
Material

Front Face
Of Fireplace

Floor Panel

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

FINISHING REQUIREMENTS
Wall Details

Complete the nished interior wall. To install the appliance facing ush
with the nished wall, position framework to accommodate the thickness
of the nished wall (Figure 44).

3” Min.

(76 mm)*

Combustible
Finished Wall
Materials

Header
(2x4’s)

Combustible
materials are
allowed above
this point on
the face of the
appliance.

8-3/8” Min.

(213 mm)

The gray shaded
area must be
non-combustible
or Dura Rock

1”
(25.4mm)
Minimum

Top of

Appliance

Spacers

Adaptor Plus 4

Feet Vertical

Vent (Min.)
& 90° Elbow

Noncombustible materials, such as surrounds and other appliance trim,
may be installed on the appliance front face with the exceptions.

Vertical installation clearances to combustible mantels vary according to
the depth of the mantel (see Figure 5 on Page 8). Mantels constructed
of noncombustible materials may be installed at any height above the
appliance opening.

Combustible materials may project beyond the side of the replace

opening as long as it is kept within the shaded area illustrated in Figure
6 on Page 8.

Top of Door Frame

Fireplace (right side)

* Insulation is NOT ALLOWED in the clearance zones around vent compo-

nents. Keep this area free from combustible materials.

Figure 44 - Finished Wall

A hearth extension is not required with this appliance. If a hearth extension
is used, there are two methods of installation:

Combustible or noncombustible nish material may abut the front face
of the replace and the oor panel (see Figure 45).

Combustible or noncombustible nish material may be positioned below
the replace (see Figure 46). Remove the oor panel as shown in Figure

45 by removing the screws on the right side of the panel and sliding the
left side away from the tab. Discard the screws and floor panel.

NOTE: There must be least a 1/8" gap between the bottom of the door

track and the surface of the finish material.

Figure 45 - Hearth Extension

Figure 46 - Hearth Extension Prole

26

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

Step 12. INSTALLER INSTRUCTIONS - ATTACHING SAFETY IN OPERATION WARNINGS
It is the installers responsibility to ensure these warnings are properly affixed during installation. These warning labels are a

critical step in informing consumers of safe operation of this appliance.

ATTACHING SAFETY IN OPERATION WARNINGS

It is required that the set of safety instruction labels

that have been furnished with the replace be afxed
to the operation and control points of the replace. A
safety instruction label must be afxed to the receiver
wall switch plate where the replace is turned on and

off (SeeFigure A) and on the remote control handheld
transmitter (SeeFigure B). To properly complete the

installation of this replace, locate the multi-lingual

adhesive labels provided with the Care and Operation
Instructions and proceed as follows:

1. Locate the wall receiver that controls the replace
(verify the switch operates the replace by turn­ing it on and off). Clean the wall receiver plate
thoroughly to remove any dust and oils. Afx the

label to the surface of the plate of the wall receiver
that controls the replace (Figure A). Choose
the language primarily spoken in the home. If

unknown, afx the English language label.

2. Locate the remote control transmitter and clean
it thoroughly to remove any dust and oils. Afx

the label to the surface of handheld transmitter
(Figure B). Choose the language primarily spo-

ken in the home. If unknown, afx the English

language label.

3. If you are unable to locate the labels, please

call Innovative Hearth Products or your nearest
Innovative Hearth Products dealer to receive ad­ditional safety instruction labels free of charge.

Cat. No. H8024 Replacement Label Kit

INNOVATIVE HEARTH PRODUCTS

NOTE: English is red text on clear label. French
and Spanish are white text on black label.

APPOSITION DES MISES EN GARDE RELATIVES
À LA SÉCURITÉ D’UTILISATION

Il est impératif que le jeu d’étiquettes de sécurité qui
ont été fournies avec le foyer soient collées à côté
des dispositifs de contrôle du foyer. Une étiquette de
sécurité doit être collée sur la plaque du récepteur mural
contrôlant l’allumage du foyer (voir Figure A) et sur le
boîtier de la télécommande (Figure B). Pour achever

l’installation correcte de ce foyer, procédez comme suit

avec les étiquettes adhésives en langues étrangères
fournies avec les instructions d’utilisation et d’entretien :

1. Repérez le récepteur mural qui contrôle le foyer

(vériez que l’interrupteur contrôle le fonction -

nement du foyer en le faisant basculer de Marche
à Arrêt, et vice-versa). Nettoyez soigneusement
la plaque du récepteur mural pour éliminer la
poussière et les traces de graisse ou d’huile. Collez
l’étiquette sur la surface de la plaque du récepteur
mural qui contrôle le foyer (Figure A). Choisissez
la langue qui est principalement parlée dans la

résidence du propriétaire. En cas de doute, collez

l’étiquette en anglais.

2. Repérez la télécommande et nettoyez-la soigneuse­ment pour éliminer la poussière et les traces
de graisse ou d’huile. Collez l’étiquette sur le boîtier
de la télécommande (Figure B). Choisissez la
langue qui est principalement parlée dans la

résidence du propriétaire. En cas de doute, collez

l’étiquette en anglais.

3. Si vous ne trouvez pas les étiquettes, veuillez
appeler Innovative Hearth Products ou votre distribu­teur Innovative Hearth Products local pour recevoir
gratuitement des étiquettes supplémentaires.

Étiquettes de remplacement, n° cat. H8024

INNOVATIVE HEARTH PRODUCTS

Remarque : Le texte anglais est rouge sur un support
transparent. Le texte français et espagnol est blanc
sur un support noir.

COLOCACIÓN DE ADVERTENCIAS DE SEGURIDAD
EN OPERACIÓN

Se requiere que el juego de etiquetas de instrucciones
de seguridad que se incluyeron con la chimenea se
coloque en los puntos de operación y control de la
misma. Se debe colocar una etiqueta de instrucciones
de seguridad en la placa del interruptor de pared
del receptor desde el cual se enciende y se apaga
la chimenea (ver la Figura A) y en el transmisor de
control remoto (ver la Figura B). Para completar

correctamente la instalación de esta chimenea,

encuentre las etiquetas adhesivas multilingües
incluidas con las instrucciones de cuidado y operación
y haga lo siguiente:

1. Identique el receptor de pared que controla la
chimenea (verique que el interruptor opera la
chimenea encendiéndola y apagándola). Limpie

bien la placa del receptor de pared para quitar el

polvo y aceite. Pegue la etiqueta en la supercie

de la placa del receptor de pared que controla la
chimenea (Figura A). Seleccione el idioma que

más se habla en la casa. Si no sabe cuál es, use la

etiqueta en inglés.

2. Identique el transmisor de control remoto y límpielo

bien para quitar el polvo y aceite. Pegue la etiqueta
en la supercie del transmisor (Figura B). Seleccione
el idioma que más se habla en la casa. Si no sabe

cuál es, use la etiqueta en inglés.

3. Si no puede encontrar las etiquetas, sírvase llamar

a Innovative Hearth Products o al distribuidor de
Innovative Hearth Products más cercano para
recibir etiquetas de instrucciones de seguridad
adicionales gratuitas.

Juego de etiquetas de repuesto - Nº de cat. H8024

INNOVATIVE HEARTH PRODUCTS

Nota: La etiqueta en inglés es transparente con texto
rojo. Las etiquetas en francés y español son negras
con texto blanco.

SAFETY LABEL

DIAGRAMS

Figure A

DIAGRAMMES DES ÉTIQUETTES

DE SÉCURITÉ

On

Remote

Off

PRG

NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

Figure B

DIAGRAMAS DE ETIQUETAS

DE SEGURIDAD

27

S

e

a

l

a

n
t

INNOVATIVE HEARTH PRODUCTS • POWER VENT DV GAS FIREPLACES (DRT63__TYN / DRC63__TYN) • INSTALLATION INSTRUCTIONS

INSTALLATION ACCESSORIES

Listed Secure Vent® Components

Cat. No. Model No. Description

77L70 SV4.5L6

77L71 SV4.5L12

77L72 SV4.5L24

77L73 SV4.5L36

77L74 SV4.5L48

77L75 SV4.5LA

77L76 SV4.5E45

77L77 SV4.5E90

H2246 SV4.5HF

H2247 SV4.5VF

The following flashings come packaged with a storm collar:

H5816 SV4.5-TWSK

6" (152mm)
Vent Section

12" (305mm)
Vent Section

24" (610mm)
Vent Section

36" (914mm)
Vent Section

48" (1219mm)
Vent Section

Telescopic Section

45 Degree Elbow

90 Degree Elbow

Firestop/Spacer,
Horizontal
(3 - 1 - 1 spacing) 10
pack

Firestop/Spacer,
Vertical
(1 - 1 - 1 spacing) 10
pack

Through Wall Shield
Kit
(used to shield the
direct-vent pipe from
blown insulation)
Ref. instr. # 750247M

Listed Secure Vent / Secure Flex® Components

Cat. No. Model No. Description

H3907 SV4.5RSA

H7748 FVK36

10K81 SFMP

89L40 SFMP-12

91L66 SF-GC4-6

91L67 SF-GC7-6

Attic Insulation Shield

(adjustable 12" to 22")

36" Flex Vent Kit

NOTE: Flex attaches to
appliance collar at one
end and to rigid venting at
the other end.

Mill-Pac, Black, High
Temperature Sealant

Mill-Pac, Black, High
Temperature Sealant ­Bulk 12 pack

Gear Clamp 4.5" (114
mm) for flex (6 pieces)

Gear Clamp 7.5"
(190.5 mm) for flex (6
pieces)

96K93 SV4.5SU

96K92 SV4.5SP

Innovative Hearth Products reserves the right to make changes at any time, without notice, in
design, materials, specications, and prices, and also to discontinue colors, styles, and products.
Consult your local distributor for replace code information.

Printed in U.S.A. © 2013 Innovative Hearth Products LLC

P/N 506009-16 Rev. NC 12/2013

28

Support Strap

Support Plate

1508 Elm Hill Pike, Suite 108 • Nashville, TN 37210
