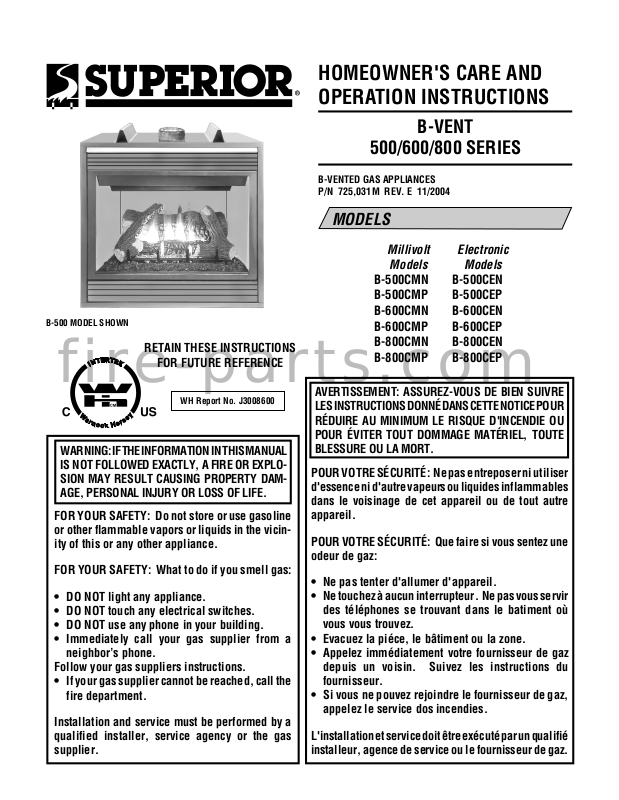

Superior Fireplaces B-500CMN, B-500CMP, B-600CMN, B-600CEN, B-500CEP Homeowner's Care And Operation Instructions Manual
...
HOMEOWNER'S CARE AND
OPERATION INSTRUCTIONS
B-VENT
500/600/800 SERIES
B-VENTED GAS APPLIANCES
P/N 725,031M REV. E 11/2004
MODELS
B-500 MODEL SHOWN
RETAIN THESE INSTRUCTIONS
FOR FUTURE REFERENCE
tlovilliM
sledoM
NMC005-BNEC005-B
PMC005-BPEC005-B
NMC006-BNEC006-B
PMC006-BPEC006-B
NMC008-BNEC008-B
PMC008-BPEC008-B
cinortcelE
sledoM
f i r e - p a r t s . c o m
WH Report No. J3008600
WARNING: IF THE INFORMATION IN THIS MANUAL
IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY: Do not store or use gasoline
or other flammable vapors or liquids in the vicinity of this or any other appliance.
FOR YOUR SAFETY: What to do if you smell gas:
• DO NOT light any appliance.
• DO NOT touch any electrical switches.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
Follow your gas suppliers instructions.
• If your gas supplier cannot be reached, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
AVERTISSEMENT: ASSUREZ-VOUS DE BIEN SUIVRE
LES INSTRUCTIONS DONNÉ DANS CETTE NOTICE POUR
RÉDUIRE AU MINIMUM LE RISQUE D'INCENDIE OU
POUR ÉVITER TOUT DOMMAGE MATÉRIEL, TOUTE
BLESSURE OU LA MORT.
POUR VOTRE SÉCURITÉ: Ne pas entreposer ni utiliser
d'essence ni d'autre vapeurs ou liquides inflammables
dans le voisinage de cet appareil ou de tout autre
appareil.
POUR VOTRE SÉCURITÉ: Que faire si vous sentez une
odeur de gaz:
• Ne pas tenter d'allumer d'appareil.
• Ne touchez à aucun interrupteur. Ne pas vous servir
des téléphones se trouvant dans le batiment où
vous vous trouvez.
• Evacuez la piéce, le bâtiment ou la zone.
• Appelez immédiatement votre fournisseur de gaz
depuis un voisin. Suivez les instructions du
fournisseur.
• Si vous ne pouvez rejoindre le fournisseur de gaz,
appelez le service dos incendies.
L'installation et service doit être exécuté par un qualifié
installeur, agence de service ou le fournisseur de gaz.
1
CONGRATULATIONS!
In selecting this SUPERIOR B-Vent Gas Appliance you have chosen the finest and most
dependable fireplace to be found anywhere. A beautiful, prestigious, alternative to a
wood burning fireplace. Welcome to a Family of tens of thousands of satisfied
SUPERIOR Fireplace Owners.
Please read and carefully follow all of the instructions found in this manual. Please pay
special attention to the safety instructions provided in this manual. The Homeowner's
Provide adequate clearances around air openings and adequate accessibility clearance for
service and proper operation. Never obstruct
the front openings of the appliance.
Due to high temperatures the appliance should
be located out of traffic and away from furniture and draperies. Locate furniture and window coverings accordingly.
Care and Operation Instructions included here will assure that you have many years of
dependable and enjoyable service from your SUPERIOR product.
WARNING: THESE FIREPLACES ARE
VENTED DECORATIVE GAS APPLIANCES.
TABLE OF CONTENTS
Introduction ..................................... page 2
General Information......................... page 2
Operation/Care of Your Appliance.... page 3
Variable Flame Adjustment .............. page 4
Outside Combustion Air Control ...... page 5
Manual Limit Switch ........................ page 5
Maintenance Schedule..................... page 6
Maintenance .................................... page 7
Front Glass Enclosure Panel,
Removal and Installation ............... page 7
Burner Adjustments......................... page 8
Millivolt Appliance Checkout............ page 8
f i r e - p a r t s . c o m
Electronic Appliance Checkout......... page 8

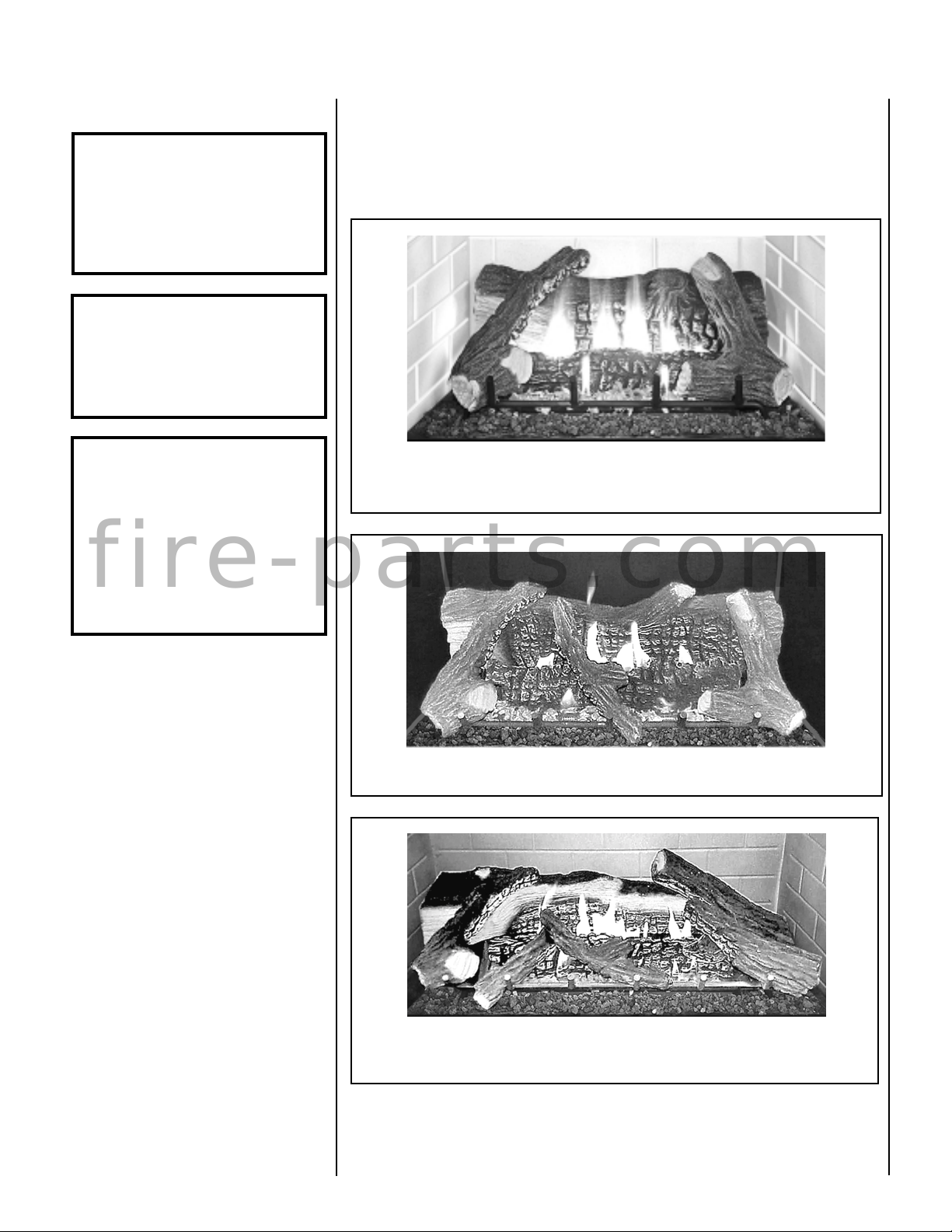

Log Placement................................. page 9
Rockwool/Volcanic Stone Placement page 9
Wiring Diagrams.............................. page 10
Warranty.......................................... page 10
Replacement Parts .......................... page 10
Product Reference Information ....... page 10
Accessory Components ................... page 10
Lighting Instructions – Millivolt ....... page 13
Lighting Instructions – Electronic .... page 15
Troubleshooting Guide – Millivolt ..... page 17
Troubleshooting Guide – Electronic .. page 18
Replacement Parts List ..................... page 19
These appliances comply with National Safety
Standards and are tested and listed by Warnock
Hersey (Report No. J3008600) to ANSI Z21.50
- 2000 (in Canada, CSA 2.22 - 2000), and CAN/
CGA-2.17-M91 in both USA and Canada, as
vented gas fireplace heaters.
Installation must conform to local codes. In
the absence of local codes, installation must
comply with the current National Fuel Gas
Code, ANSI Z223.1 (NFPA 54). (In Canada, the
current CAN/CGA B149 installation code.) Electrical wiring must comply with local codes. In
the absence of local codes, installation must
be in accordance with the National Electrical
Code, NFPA 70 - (latest edition). (In Canada,
the current CSA C22.1 Canadian Electric Code.)
DO NOT ATTEMPT TO ALTER OR MODIFY
THE CONSTRUCTION OF THE APPLIANCE OR ITS
COMPONENTS. ANY MODIFICATION OR ALTERATION MAY VOID THE WARRANTY,
CERTIFICATION AND LISTINGS OF THIS UNIT.
WARNING: IMPROPER INSTALLATION,
ADJUSTMENT, ALTERATION, SERVICE
OR MAINTENANCE CAN CAUSE INJURY
OR PROPERTY DAMAGE. REFER TO
THIS MANUAL. FOR ASSISTANCE OR
ADDITIONAL INFORMATION CONSULT
A QUALIFIED INSTALLER, SERVICE
AGENCY OR THE GAS SUPPLIER.
DO NOT BURN WOOD OR OTHER MATERIAL IN THESE APPLIANCES.
These appliances are designed to operate on
natural or propane gas only.
Input of millivolt models is variable. These
rates are shown in the following table:
saGlarutaNsaGenaporP
ledoM
005-B
006-B
008-B
Electronic Models -
Electronic models have a fixed rate gas valve.
Input of electronic models is shown in the
following table:
The following table shows the units' orifice size
for the elevations indicated.
etartupnI
)H/UTB(
ot005,71
000,32
ot005,12
000,92
ot000,42
000,23
sledoM
005-B000,32
006-B000,92
008-B000,23
htiwsledoMtlovilliM
evlaVsaGdetaludoM-yllaunaM
ledoM
005-B
006-B
008-B
etartupnI
)H/UTB(
ot005,71
000,32
ot005,22
000,92
ot005,52
000,23
evlaVsaGetaR-dexiFhtiwsledoMcinortcelE
saGenaporPdnalarutaN
etartupnI
)H/UTB(
INTRODUCTION
The millivolt appliances are designed to operate on either natural or propane gas. A millivolt
gas control valve with piezo ignition system
provides safe, efficient operation. External
electrical power is required to operate the
optional electrically powered components if
installed. Electrical power must be wired
during appliance installation.
The electronic appliances are designed to operate on either natural or propane gas. An
electronic intermittent pilot system provides
safe, efficient operation. External electrical
power is required to operate these units.
2
GENERAL INFORMATION
Note: Installation and repair should be per-
formed by a qualified service person. The appliance should be inspected annually by a qualified professional service technician. More frequent inspections and cleanings may be required due to excessive lint from carpeting,
bedding material, etc. It is imperative that the
control compartment, burners and circulating
air passage ways of the appliance be kept clean.
S'assurer que le brùleur et le compartiment
des commandes sont propres. Voir les instructions d'installation et d'utilisation qui
accompagnent l'appareil.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
sledoM
005-B .ni090.045#
006-B 63#25#
008-B 33#.ni560.0
Maximum manifold pressure is 3.5 in. w.c.
(0.87 kPa) for natural gas and 10 in. w.c.
(2.49 kPa) for LP/Propane gas.
Do not use these appliances if any part has
been under water. Immediately call a qualified,
professional service technician to inspect the
appliance and to replace any parts of the
control system and any gas control which
have been under water.
ezisecifirO
.taN.porP
noitavelE
)sretem(teeF
0054-0
)0731-0(
Ne pas se servir de cet appareil s'il a été plongé
dans l'eau, complètement ou en partie. Appeler
un technicien qualifié pour inspecter l'appareil et
remplacer toute partie du système de contrôle et
toute commande qui ont été plongés dans l'leau.
Test gage connections are provided on the
front of the millivolt gas control valve (identified OUT for the manifold side and IN for inlet
pressure. A ¹⁄₈" NPT test gage connection is
provided on the electronic gas control valve
adjacent to the outlet to the main burner.
Minimum inlet gas pressure to these appliances
is 5.0 inches water column (1.24 kPa) for natural
gas and 11 inches water column (2.74 kPa) for
propane for the purpose of input adjustment.
Maximum inlet gas supply pressure to these appliances is 10.5 inches water column (2.61 kPa) for
natural gas and 13.0 inches water column (3.23
kPa) for propane.
The appliance must be isolated from the gas
supply piping system (by closing its individual
manual shut-off valve) during any pressure testing of the gas supply piping system at test
pressures equal to or less than ¹⁄₂ psig (3.5 kPa).
The appliance and its individual shut-off valve must
f i r e - p a r t s . c o m
be disconnected from the gas supply piping system
during any pressure testing of that system at pressures in excess of ¹⁄₂ psig (3.5 kPa).
These appliances must not be connected to a
chimney or flue serving a separate solid fuel
burning appliance.
Any safety guard or screen removed for servicing the appliance must be replaced prior to
operating the appliance.
WARNING: B-VENT APPLIANCES ARE
NOT DESIGNED TO OPERATE IN NEGATIVELY PRESSURED ENVIRONMENTS
(PRESSURE WITHIN THE HOME IS LESS
WARNING: FAILURE TO COMPLY
WITH THE INSTALLATION AND OPERATING INSTRUCTIONS PROVIDED IN
THIS DOCUMENT WILL RESULT IN AN
IMPROPERLY INSTALLED AND OPERATING APPLIANCE, VOIDING ITS
WARRANTY. ANY CHANGE TO THIS
APPLIANCE AND/OR ITS OPERATING
CONTROLS IS DANGEROUS. IMPROPER INSTALLATION OR USE OF
THIS APPLIANCE CAN CAUSE SERIOUS INJURY OR DEATH FROM FIRE,
BURNS, EXPLOSION OR CARBON
MONOXIDE POISONING.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning are similar to
the flu with headaches, dizziness and/or
nausea. If you have these signs, obtain
fresh air immediately. Turn off the gas
supply to the appliance and have it serviced by a qualified professional, as it may
not be operating correctly.
WARNING: CHILDREN AND ADULTS
SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES. USE CAUTION AROUND THE
APPLIANCE TO AVOID BURNS OR
CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME
ROOM AS THE APPLIANCE.
WARNING: DO NOT PLACE CLOTHING OR OTHER FLAMMABLE MATERIALS ON OR NEAR THIS APPLIANCE.
AVERTISSEMENT: SURVEILLER LES
ENFANTS. GARDER LES VÊTEMENTS,
LES MEUBLES, L'ESSENCE OU AUTRES
LIQUIDES À VAPEUR INFLAMMABLES
LOIN DE L'APPAREIL.

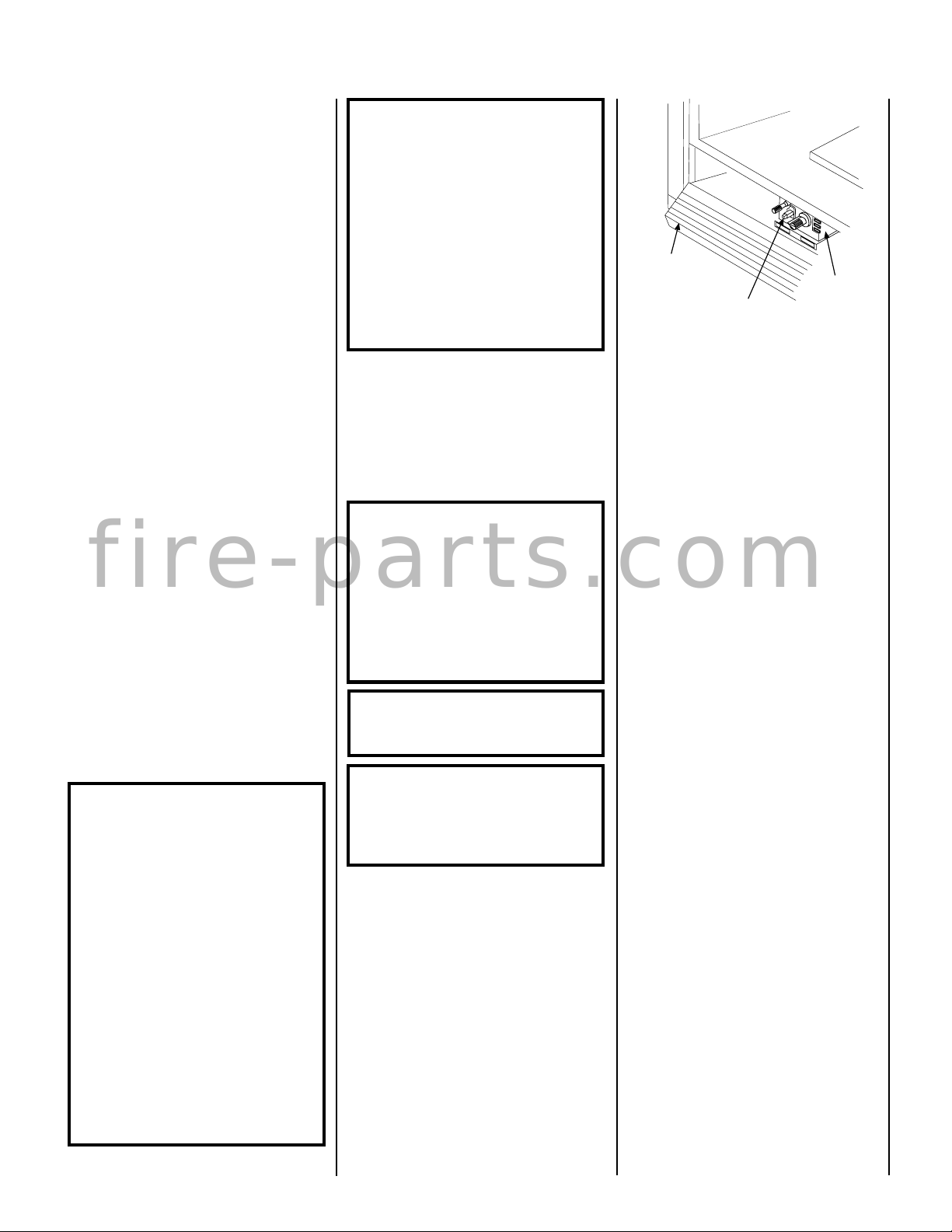

Control
Compartment
Access Panel
Piezo Ignitor
Control Compartment Access -
Millivolt Control Valve Shown
Figure 1
Gas Controls/Control Compartment
Access
The gas controls can be found behind the
control compartment access panel. To open
the control compartment access panel, actuate
the spring loaded magnetic catches securing
the panel. First, gently depress the upper right
top corner of the panel until the magnet catch
"pops" the door free. Then, gently pulling the
panel forward, disengage the left magnet catch
and allow the panel to swing down to open.
Operation of millivolt and electronic gas control
systems are different. Before lighting and operating your appliance determine if you have a
millivolt or electronic appliance. See
for access to the control compartment.
Millivolt appliances will be fitted with the gas
control valve shown in
4 (Honeywell) on page 4
Appliances with electronic systems will be fitted with the electronic valve shown in
on page 4
Familiarize yourself with the gas control valve
that your appliance uses.
.
Figure 3 (SIT) or Figure
.
THAN PRESSURES OUTSIDE). SIGNIFICANT NEGATIVELY PRESSURED ENVIRONMENTS CAUSED BY WEATHER,
HOME DESIGN, OR OTHER DEVICES MAY
IMPACT THE OPERATION OF THESE APPLIANCES. NEGATIVE PRESSURES MAY
RESULT IN POOR FLAME APPEARANCE,
SOOTING, DAMAGE TO PROPERTY AND/
OR SEVERE PERSONAL INJURY. DO NOT
OPERATE THESE APPLIANCES IN NEGATIVELY PRESSURED ENVIRONMENTS.
PROVIDING ADEQUATE VENTILATION
TO THE APPIANCE FOR COMBUSTION
AIR WILL ELIMINATE A NEGATIVE PRESSURE ENVIRONMENT.
OPERATION AND CARE OF YOUR
APPLIANCE
Appliance operation may be controlled through
a remotely located optional wall switch. Separate switches may provide independent control
for the remote controlled fireplace operation
(optional equipment).
In lieu of remote or remote wall switch operation, the appliance must be operated directly
through the controls located on the front of the
valve located within the control compartment
which is located behind the control compartment access panel below the appliance front
glass enclosure panel. See
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Figure 1.
Millivolt Appliances -
To light millivolt appliances refer to the detailed
lighting instructions found on
glish) and page 14 (French)
ance lighting instructions may also be found
on the pull-out lighting instruction labels attached to the gas control valve. Refer to
Figure 3 (SIT), 4 (Honeywell) on page 4
the location of the piezo ignitor.
Millivolt appliances may be fitted with an optional burner ON/OFF Rocker Switch. The optional ON/OFF Rocker switch will be installed in
the bracket just beneath the gas control valve.
Once the pilot is lit, the ON/OFF rocker switch
will control the appliance ON/OFF operation. To
operate: Toggle the switch between its ON and
OFF positions.
Honeywell
Millivolt
Gas Valve
Shown
Figure 1
Figure 2
page 13 (En-
. Millivolt appli-
for
3
If your millivolt appliance is equipped with an
optional remote wall switch or remote control kit
and the pilot is lit, the appliance main burner may
be turned on and off with the wall switch or
remote control.
Electronic Appliances -
To light electronic appliances refer to the detailed lighting instructions found in both English and French on
pages 15 and 16
of these
instructions respectively. Electronic appliance
lighting instructions may also be found on the
pull out lighting instruction labels attached to
the gas control valve. If your electronic appli-
ance is equipped with an optional remote wall
switch or remote control kit the appliance main
burner may be turned on and off with the wall
switch or remote control.
If your electronic appliance is not equipped
with a wall switch or remote control, the main
burner must be turned off and on with the gas
control switch. Toggle the switch from ON to
OFF to operate the main burner .
Variable Flame Height Adjustment
Manifold Pressure Port
TPTH TP TH
L
P
I
L
O
T
Piezo Ignitor
Figure 3
Manifold
Pressure Port
Piezo Ignitor
I
H
W
O
Inlet Pressure Port
OUT
F
F
O
P
I
L
it
O
T
O
N
Optional Burner ON/OFF Rocker Switch Location
Inlet
Pressure Port
IN
Piezo Ignitor
Main Gas
Control Knob
(One of Two Places)
SIT Millivolt Gas Valve
OFF
ON
ON/OFF Switch
IN
PSI
Inlet
Pressure
Port
Electronic
Gas Control
Valve
T
O
L
H
I
O
L
Variable Flame
Height Adjustment
I
P
N
O
Main Gas
Control Knob
Figure 4
3. Keep lower control compartment clean by
vacuuming or brushing at least twice a year.
More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It is important that control compartments, burners and circulating air passageways of the appliance be kept clean.
4. Always turn off gas to the pilot (millivolt
appliances) before cleaning. Before re-lighting, refer to the lighting instructions in this
manual. Instructions are also found on a pullout panel located on the floor of the appliance.
.
5. Always keep the appliance area clear and
free from combustible materials, gasoline and
other flammable liquids.
F
F
O
Piezo Ignitor
Optional ON/OFF Rocker Switch
Location (One of Two Places)
Honeywell Millivolt Gas Valve
6. Remember, Millivolt appliances have a con-
tinuous burning pilot flame. Exercise caution
when using products with combustible vapors.
7. Clean the front glass enclosure only when
necessary. Wipe surface with clean, dampened, soft cloth. Follow with dry, soft towel as
desired. Take care not to scratch the glass
surface.
WARNING: DO NOT USE ABRASIVE
CLEANERS. NEVER CLEAN THE GLASS
WHEN IT IS HOT.
CAUTION: DO NOT ATTEMPT TO TOUCH THE
FRONT ENCLOSURE GLASS WITH YOUR
HANDS WHILE THE FIREPLACE IS IN USE.
Manifold Pressure Port
IG
N
IT
E
R
CONTROL
f i r e - p a r t s . c o m
Honeywell Electronic Gas Valve
Figure 2
Variable Flame Height Adjustment
( Millivolt Appliances only)
1. All Millivolt appliances are equipped with a
variable gas control valve. Flame height for
these models may be adjusted through a range
between fixed low and high settings, alternately, while the appliance is in operation. Adjust the flame height as desired after lighting
the appliance by rotating the variable adjustment control knob located on the front of the
valve
(refer to Figure 3 - SIT, 4 - Honeywell)
2. When lit for the first time, this appliance will
emit a slight odor for an hour or two. This is
due to the “burn-in” of internal paints and
lubricants used in the manufacturing process.
4
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Outside Combustion Air Controls
Many appliances are equipped, when installed,
with an outside (make-up air) vent system that
is designed to provide the appliance with outside make-up air for combustion when in operation. The combustion air control lever for
the outside air system is standard on all appliances but should not be operated if the complete system is not installed. Refer to
When the complete outside air vent system is
installed, the installer will remove the securing
screw from the combustion air control lever
located on the left side of the fireplace bottom
opening.
If the securing screw has not been removed and
you have reason to believe that you have a
complete outside air system, contact your distributor to have your appliance inspected for
the presence of the complete system. DO NOT
assume that you have this system in place.
Outside Air Control Lever
Figure 5
f i r e - p a r t s . c o m
Outside Air Control Lever
Securing Screw
Air Shutter in Closed Position
Outside Air Control Lever
Outside Air Control Lever
Securing Screw Removed
Air Shutter in Open Position
Combustion Air Control Lever
and Securing Screw Location
Figure 5
WARNING: DO NOT OPERATE THE
SHUTOFF LEVER UNLESS A COMPLETE OUTSIDE COMBUSTION AIR
SYSTEM HAS BEEN INSTALLED WITH
YOUR APPLIANCE.
To open the outside air shutter, open the
bottom control access panel, reach into con-
.
trol compartment and pull the combustion air
control lever all the way out. The outside air
shutter should be fully open when the fireplace is in use and completely closed when the
fireplace is not being used. Closing it when
not in use will prevent outside cold air from
entering the dwelling.
Step 13. Spillage Test and Safety Limit
Switch Operation
Spillage Test
After appliance installation, perform this spillage test to verify that proper venting conditions
exist:
1 - Place unit in its normally-operated
condition, that is, with the glass enclosure
panel in place.
2 - Close all doors and windows in the
room. Turn on all exhaust fans in the
house.
3 - Light the appliance.
4 - Wait 15 minutes.
5 - To check for venting action, start by
holding a smoke producing device within
an inch of one edge (side edge, not top or
bottom edge) of the glass enclosure panel.
The smoke should be drawn toward the
edge of the glass enclosure panel. Continue the test by moving the smoke producing device along the entire length of
both side-edges of the glass door.
6 - If the smoke is not drawn towards the
edges of the glass door turn off the appliance and call a qualified service
technican.
Manually-Reset Safety Limit Switch
This appliance is equipped with a manuallyreset blocked flue safety limit switch. Refer to
Figure 6 on page 7
appliance operation, the flame goes out (independently of the burner on/off wall switch),
it may be due to the operation of this safety
limit switch. First allow the appliance to
cool. Remove top louver panel. Then reset
the safety limit switch by pushing the red
reset button, located between the wire terminals, on the back of the switch. See
of Figure 6
The appliance should then relight and remain
lit. Reinstall top louver panel. If the appliance
does not relight, turn off the appliance and
call for a qualified service technician.
To replace the blocked flue safety limit switch
Figure 6 on page 7 (Details B and C):
refer to
NOTE - This procedure should only be per-
formed by a qualified service technician.
Important - Turn electrical power off before
beginning this procedure.
1 - Lower the bottom control compartment
access panel. Remove the glass enclosure panel: open the latch (located in
the center of the unit front opening,
under the firebox floor) securing the
glass enclosure panel. Remove the
panel by tilting it outward at the bottom
and lifting it up. Set the door aside
protecting it from inadvertent damage.
See Figure 7 on page 7.
2 - Remove the lintel securing screws (3)
and then remove the lintel. One of the
lintel cabinet top holes is shown in
Figure 6 (Detail B)
3 - Remove the scoop securing screws
(3) and then remove the scoop. See
Figure 6 (Detail B)
4 - Remove the safety switch bracket secur-
ing screws (2), and pull the switch/bracket
assembly, with low voltage wires attached, through the side panel slot into
the firebox. See
5 - Replace the switch.
6 - Reinstall the switch/bracket assembly.
7 - Reinstall the scoop and lintel.
8 - Reinstall the glass enclosure panel.
9 - Raise the bottom control compartment
access panel.
10 - The appliance should then relight and
remain lit. If this does not occur, check
unit for a blocked flue condition.
for its location. If, during
for location.
.
.
Figure 6 (Detail C)
Detail A
.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
5
Maintenance Schedule
Annually (Before the onset of the Burning Season)
Maintenance Task Accomplishing Person Procedure
Inspecting/Cleaning Burner, Logs
and Controls
Check Flame Patterns and Flame Height
Inspecting/Cleaning Pilot and Burner
Checking Vent System
f i r e - p a r t s . c o m
Appliance Checkout
Replacing Rockwool Ember Materials
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Qualified Service Technician
Homeowner/Qualified Services Technician
Inspect valve and ensure it is properly operating. Check piping for leaks. Vacuum the control
compartment, fireplace logs and burner area.
Refer to
14 (B-800) on page 9
pattern and height displayed by the appliance conforms to the picture. Flames must
not impinge on the logs.
Refer to
(Honeywell Millivolt) or Figure 11 (Elec-
tronic) on page 8
build-up on pilot and burner assembly. Wipe
the pilot nozzles, ignitor/flame rod and hood.
Ensure the pilot flame engulfs the flame
sensor as shown.
Inspect the vent system at the top and at the
base (within the firebox) for signs of blockage
or obstruction. Look for any signs of dislocation of the vent components.
Perform the appropriate appliance checkout
procedure detailed in this manual.
Remove old ember materials and vacuum the
screened rockwool placement area. Place
new rockwool as described in this document.
Figures 12 (B-500), 13 (B-600) or
and verify the flame
Figure 9 (SIT Millivolt), Figure 10
. Remove any surface
Periodically (After the Burning Season)
Maintenance Task Accomplishing Person Procedure
Cleaning Firebox Interior
Check Flame Patterns and Flame Height
Checking Vent System
Cleaning Front Glass Enclosure Panel
6
Homeowner
Homeowner
Homeowner
Homeowner
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Carefully remove logs, Rockwool and volcanic stone if used. Vacuum out interior of the
firebox. Clean firebox walls and log grate.
Replace logs, Rockwool and volcanic stone
as detailed in this manual.
Refer to
14 (B-800) on page 9
pattern and height displayed by the appliance conforms to the picture. Flames must
not impinge on the logs.
Inspect the vent system at the top and at the
base (within the firebox) for signs of blockage or obstruction. Look for any signs of
dislocation of the vent components.
Clean as necessary following the directions
provided in this manual. DO NOT TOUCH OR
ATTEMPT TO CLEAN GLASS WHILE HOT.
Figures 12 (B-500), 13 (B-600) or
and verify the flame
Detail A
Wire
Termianls
Cabinet
Corner
Back Of
Limit
Switch
Door
Frame
Refer to the maintenance schedule for maintenance tasks, procedures, periodicity and
by whom they should be performed. Always
verify proper operation of the appliance after
servicing.
IMPORTANT: TURN OFF GAS AND ANY ELECTRICAL POWER BEFORE SERVICING THE
APPLIANCE.
Front Glass Enclosure Panel, Removal
and Installation.
THE GLASS DOOR OF THIS APPLIANCE
MUST ONLY BE REPLACED AS A COMPLETE
UNIT AS PROVIDED BY THE MANUFACTURER. DO NOT ATTEMPT TO REPLACE
BROKEN, CRACKED OR CHIPPED GLASS
SEPARATELY.
Refer to
enclosure panel as follows:
1. Remove the top louver assembly or radiant
panel.
Figure 7
and remove the front glass
Lintel Securing Screw
Fire Box Top
Hole in Cabinet Top
Scoop
Scoop Securing Screws
Detail B
f i r e - p a r t s . c o m
Fire Box Top
Lintel Securing-Screw
Hole in Cabinet Top
Limit/Bracket
Securing Screws
Limit
View Without Scoop
Detail C
Blocked Flue Safety Limit Location
Inside View of Firebox -
Top/Right Side Intersection
Figure 6
Maintenance
The appliance and venting system should be
thoroughly inspected before initial use and at
least annually by a qualified service technician. However, more frequent periodic inspections and cleanings should be performed by
the homeowner. Homeowner must contact a
qualified service technician at once if any
abnormal condition is observed.
WARNING: NEVER OPERATE THE APPLIANCE WITHOUT THE GLASS ENCLOSURE
PANEL IN PLACE AND SECURE. DO NOT OPERATE APPLIANCE WITH THE FRONT GLASS
PANEL CRACKED, BROKEN OR MISSING. REPLACEMENT PANELS ARE AVAILABLE
THROUGH YOUR LOCAL LENNOX DEALER
AND MUST BE INSTALLED BY A LICENSED
OR QUALIFIED SERVICE TECHNICIAN.
These appliances are designed to operate
only with the front glass enclosure panel
properly installed. Generally, the glass enclosure panel should not be removed except
to gain access to the components within the
firebox, and the appliance may only be operated without the front glass enclosure panel
in place for very brief periods of time during
initial appliance checkout and adjustment.
During this appliance checkout and adjustment period, a potential safety hazard exists
- EXERCISE EXTREME CAUTION to prevent
the occurrence of any burn injuries from the
exposed flames or hot surfaces. Also note,
that while the front glass enclosure panel is
removed, the flame appearance will appear to
be smaller than normal.
WARNING: HANDLE THE GLASS WITH EXTREME CARE! TEMPERED GLASS IS SUSCEPTIBLE TO DAMAGE (SCRATCHES, FOR
EXAMPLE) – HANDLE GLASS DOOR
(GLASS ENCLOSURE PANEL) GENTLY
WHILE REINSTALLING IT.
WARNING: NO NOT ATTEMPT TO SUBSTITUTE THE MATERIALS USED ON THIS
DOOR, OR REPLACE CRACKED OR BROKEN
GLASS WITH ANY MATERIALS OTHER THAN
THOSE PROVIDED BY THE APPLIANCE
MANUFACTURER.
2. Open the hinged drop-down control com-
partment access panel.
3. Locate the latch at the top of the control
compartment and disengage it from the door
frame bottom Vee-flange, pulling down on its
handle to open it.
4. Swing the bottom of the door out and raise
it slightly to lift the top flange of the door frame
away from the appliance.
Top Flange
Door Frame
Latch
Bottom Vee-flange
Door Frame
Figure 7
To install the front glass enclosure panel,
proceed as follows:
1. Retrieve the glass door frame. Visually
inspect the gasket on the backside of the
panel. The gasket surface must be clean, free
of irregularities and seated firmly.
2. Position the door frame in front of the
firebox opening and engage the top flange
over the lip at the top of the firebox opening.
3. Swing the door down and back. Ensure the
gasket seats evenly as the door draws shut.
Engage the Vee-flange at the bottom of the
door with the latch and close the latch to
secure the door.
Firebox Floor
Glass Door
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
4. Reinstall the top louver assembly or radiant
panel.
7

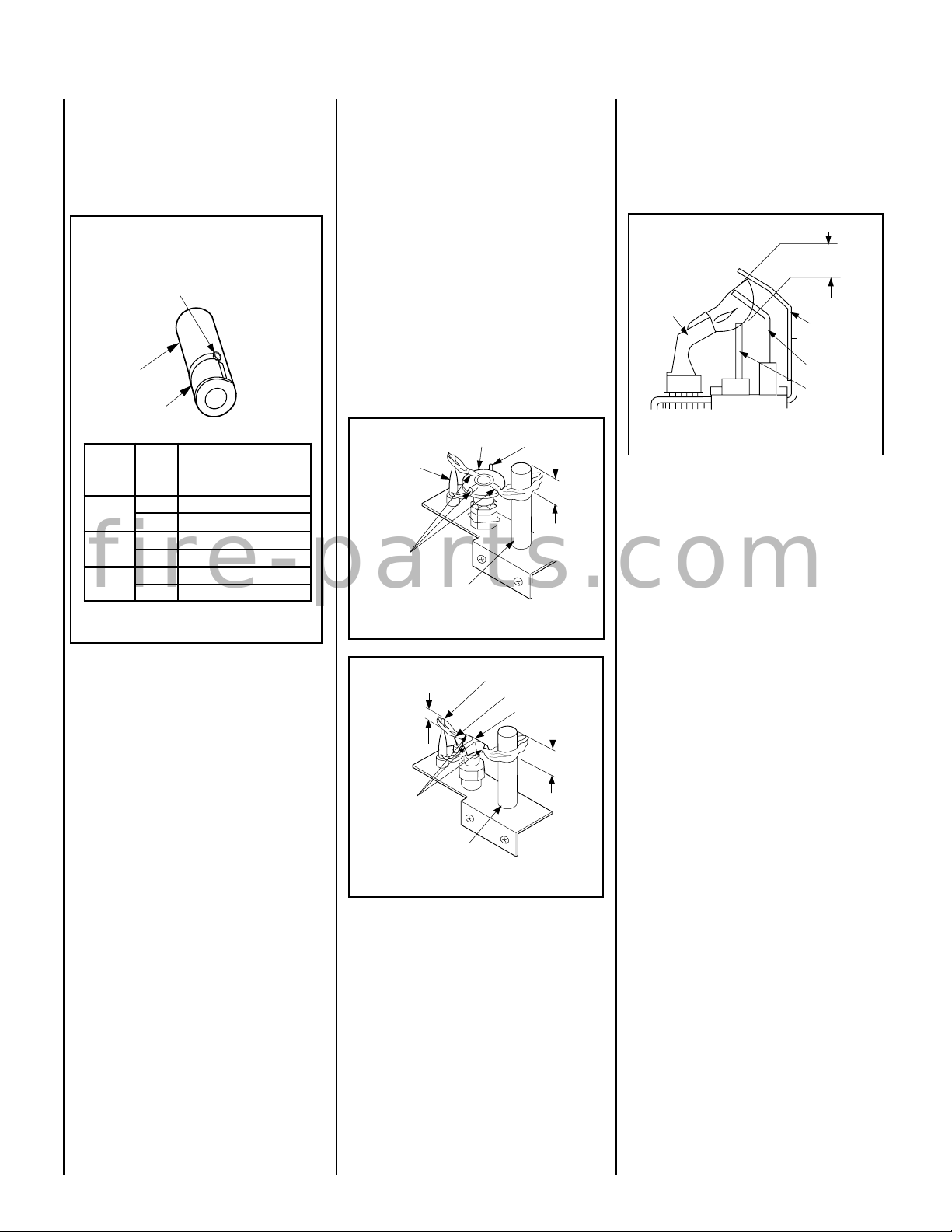

Burner Adjustments
Note -
The air shutter for the burner primary air
opening is factory-set. Do not adjust the factoryset position. The factory-set position is shown in
Figure 8.
Set Screw - Factory Located in the Natural
Gas Position; Relocate Set Screw for
LP/Propane Gas in the Alternate Position.
See Table below for Air Shutter Openings
for these Set Screw Locations.
Venturi
Air Shutter
SIT and Honeywell Millivolt Appliance
Checkout
The pilot flame should be steady, not lifting or
floating. Flame should be blue in color with
traces of orange at the outer edge.
The top ³⁄₈" (10 mm) at the pilot generator
(thermopile) and the top ¹⁄₈" min (tip) of
the quick drop out thermocouple should be
engulfed in the pilot flame. The flame
should project 1" (25 mm) beyond the
hood at all three ports (
Figure 10 - Honeywell
Figure 9 - SIT,
).
To light the burner, refer to the lighting instructions on
pages 13 and 14
for Honeywell
and SIT millivolt gas valves).
Electronic Appliance Checkout
To light the burner, refer to the lighting instructions on
page 15 and 16
. Ensure the ignitor
lights the pilot. The pilot flame should engulf the
flame sensor as shown in
ELECTRONIC
Proper Flame
Adjustment
Pilot
Nozzle
Figure 11.
3/8 To 1/2 Inch
(9 mm to 13 mm)
Ground
Electrode
Flame Rod
Hot Surface
Igniter
saG
sledoM
epyT
.taNnepo)95.1(61/1
005-B
006-B
f i r e - p a r t s . c o m
008-B
.porP4/1nepo)53.6(
.taNnepo)95.1(61/1
.porP61/5nepo)49.7(
.taNdesolcylluF
.porP23/7nepo)55.5(
RIAYROTCAF
GNITTESRETTUHS
)mm(sehcni
Figure 8
MILLIVOLT
Thermocouple
Pilot
Nozzels
Figure 9
MILLIVOLT HONEYWELL
¹⁄₈" Min
(3 mm)
Pilot
Nozzels
Thermopile
Hood Ignitor Rod
Thermopile
³⁄₈" Min
(9 mm)
Thermocouple
Ignitor Rod
Hood
³⁄₈" Min
(9 mm)
Figure 11
With proper care and maintenance, your appliance will provide many years of enjoyment. If you should experience any problem,
first refer to the trouble shooting guide in
this manual. If problem persists, contact
your Lennox distributor.
Figure 10
8
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Log Placement
WARNING: LOGS GET VERY HOT AND
WILL REMAIN HOT UP TO ONE HOUR
AFTER GAS SUPPLY IS TURNED OFF.
HANDLE ONLY WHEN LOGS ARE COOL.
TURN OFF ALL ELECTRICITY TO THE
APPLIANCE BEFORE YOU INSTALL
GRATE AND LOGS.
WARNING: THIS APPLIANCE IS NOT
MEANT TO BURN WOOD. ANY ATTEMPT TO DO SO COULD CAUSE IRREPARABLE DAMAGE TO YOUR APPLIANCE AND PROVE HAZARDOUS TO
YOUR SAFETY.
Carefully position the ceramic fiber logs and twigs over the burner as shown in
13 (B-600) or 14 (B-800)
PLACEMENT GUIDE accompanying this document.
Proper twig placement is critical to prevent sooting. Twigs should be placed in the gaps between
the flame peaks and should be positioned so that at no time they impinge the flames.
. For more detailed placement instructions, refer to the LOG
Figures 12 (B-500),
WARNING: THE SIZE AND POSITION
ON THE LOG SET WAS ENGINEERED
TO GIVE YOUR APPLIANCE A SAFE,
RELIABLE AND ATTRACTIVE FLAME
PATTERN. ANY ATTEMPT TO USE A
DIFFERENT LOG SET IN THE FIREPLACE
WILL VOID THE WARRANTY AND WILL
f i r e - p a r t s . c o m
RESULT IN INCOMPLETE COMBUSTION, SOOTING, AND POOR FLAME
QUALITY.
Glowing Embers (Rockwool) Placement
Refer to the detailed glowing embers
placement instructions provided in the
LOG PLACEMENT GUIDE accompanying
this document.
Decorative Volcanic Stone Placement -
Figures 12, 13 and 14.
Spread this Decorative Volcanic Stone evenly
over the bottom surface of the appliance firebox bottom plate as desired to achieve an
esthetically pleasing appearance. For best results, spread in a non-uniform manner while
ensuring complete coverage of the black sheetmetal surface.
See
Figure 12
Figure 13
(Fire shown with optional Brick Liner Kit)
B-500 MODEL
B-600 MODEL
Note: Do Not place decorative volcanic stone
on top of the gas burner where it will block the
burner ports.
(Fire shown with optional Brick Liner Kit)
Figure 14
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
B-800 MODEL
9

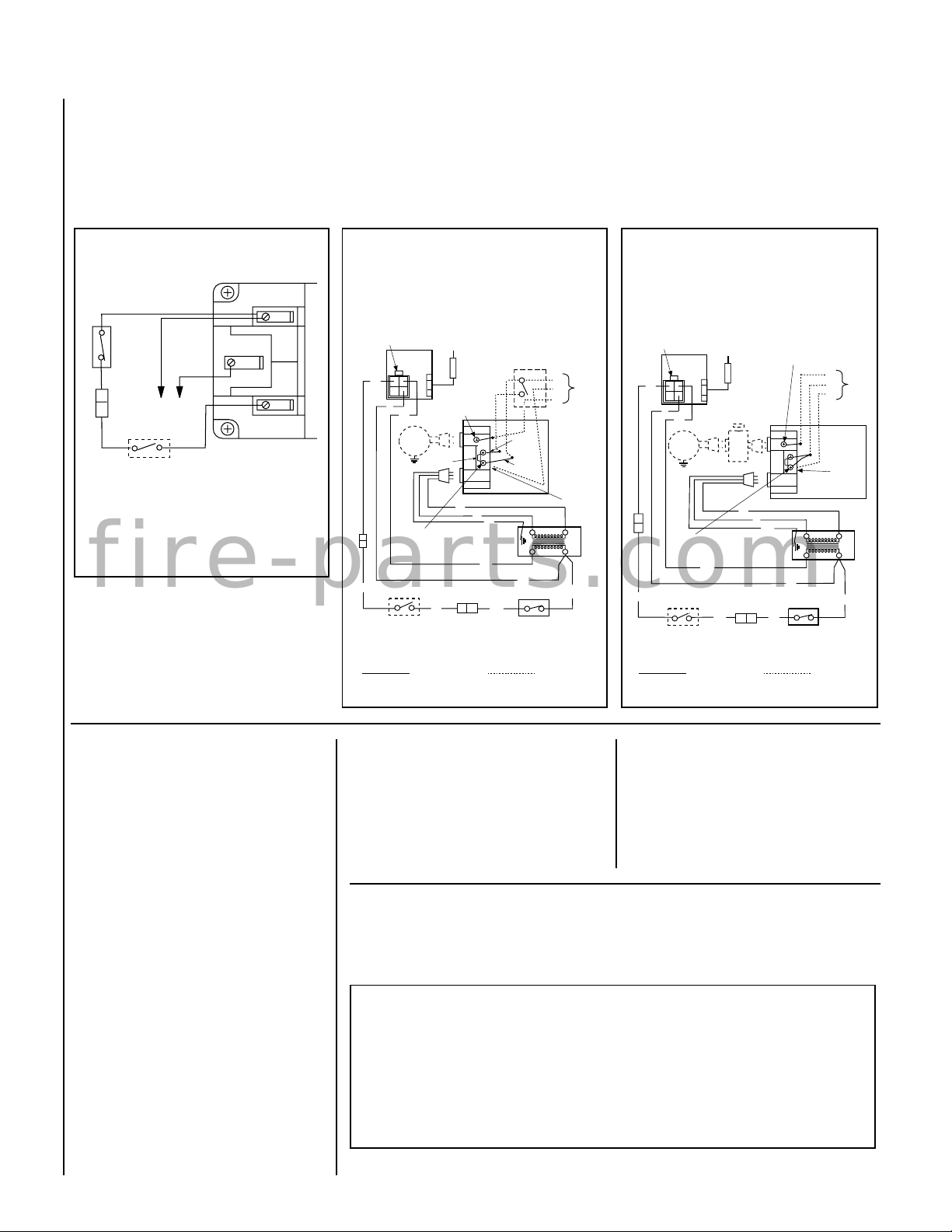

WIRING DIAGRAMS
Wiring diagrams are provided here for reference purposes only. This information is also provided on schematics attached directly to the appliance
on a pullout panel located within the control compartment.
CAUTION: LABEL ALL WIRES PRIOR TO DISCONNECTION WHEN SERVICING CONTROLS. WIRING ERRORS CAN CAUSE IMPROPER AND
DANGEROUS APPLIANCE OPERATION.
Honeywell and SIT Millivolt Wiring Diagram
If any of the original wire as supplied must be replaced,
it must be replaced with Type AWM105°C – 18 GA. wire.
BK
TH
TP
TP
BK
LIMIT SWITCH
TH
Thermopile
BK
AB
*OPTIONAL ON/OFF SWITCH,
WALL SWITCH, THERMOSTAT
OR REMOTE CONTROL RECEIVER
*TWIST WIRES “A” AND “B” TOGETHER TO OPERATE UNIT
SOLELY BY MANIPULATING THE GAS VALVE CONTROL KNOB;
OR CONNECT WIRES TO OPTIONAL ON/OFF SWITCH OR WALL
SWITCH OR THERMOSTAT OR REMOTE CONTROL RECEIVER
Schematic Representation Only
WT
TO OPERATE UNIT.
f i r e - p a r t s . c o m
Electronic Wiring Diagram (Honeywell)
Showing the Blower Wiring for the Optional
FBK-100 and FBK-200 Kits
1. If any of the original wire as supplied must be replaced,
1. it must be replaced with Type AWM 105°C – 18 GA. wire.
2. 120V, 60Hz – Less than 3 amps.
**ON/OFF Switch (Integral
with Gas Valve)
Gas Valve
BK
R
Hot side of Outlet
W
OPTIONAL WALL SWITCH
OR OPTIONAL THERMOSTAT OR
OPTIONAL REMOTE RECEIVER
*Blower speed control switch is provided in FBK200 blower kit.
**Leave the ON/OFF switch, which is integral
with the gas valve, in the ON position.
*OPTIONAL
ACCESSORY
G
Junction Box
B
G
BL
SWITCH
Black
pigtail
Red
pigtail
Transf.
120 V.
24 V
R
LIMIT SWITCH
PILOT
ASSEMBLY
IGNITER
Outlet Box
Green Ground
BL
BLOWER
Screw
OPT
Break Off
Tab
W
BK BK
Factory Wired Field Wired
Schematic Representation Only
BK
W
VAC.
G
White Wire
to Opposite
Side
BK
Electronic Wiring Diagram (Honeywell)
Showing the Blower Wiring for the Optional
FBK-250 Kits
1. If any of the original wire as supplied must be replaced,
1. it must be replaced with Type AWM 105°C – 18 GA. wire.
2. 120V, 60Hz – Less than 3 amps.
*Leave the ON/OFF switch, which is integral
*ON/OFF Switch (Integral
with Gas Valve)
Gas Valve
120
BK
R
BL
OPT
BLOWER
Hot side of Outlet
W
OPTIONAL ON/OFF SWITCH,
WALL SWITCH, THERMOSTAT
OR REMOTE CONTROL RECEIVER
with the gas valve, in the ON position.
Outlet Box Green
Ground Screw
PILOT
ASSEMBLY
IGNITER
Optional FBK-250
Module
W
B
G
BL
BK
Factory Wired Field Wired
Schematic Representation Only
R
BK
LIMIT SWITCH
G
BK
W
White Wire
To Opposite
Junction Box
Transf.
120 V.
24 V
Side
120
VAC.
BK
WARRANTY
Your gas appliance is covered by a limited
twenty year warranty. You will find a copy of
the warranty accompanying this manual.
Please read the warranty to be familiar with
its coverage.
Retain this manual. File it with your other documents for future reference.
REPLACEMENT PARTS
A complete parts list is found at the end of this
manual. Use only parts supplied from the
manufacturer.
Normally, all parts should be ordered through
your Lennox distributor or dealer. Parts will be
shipped at prevailing prices at time of order.
When ordering repair parts, always give the
following information:
10
1. The model number of the appliance.
2. The serial number of the appliance.
3. The part number.
4. The description of the part.
5. The quantity required.
6. The installation date of the appliance.
If you encounter any problems or have any
questions concerning the installation or application of this system, please contact your distributor, or Lennox directly:
LHP
1110 West Taft Avenue • Orange, CA
92865
PRODUCT REFERENCE INFORMATION
We recommend that you record the following important information about your fireplace. Please
contact your Lennox dealer for any questions or concerns. For the number of your nearest Lennox
dealer, please call 800-731-8101
Your Fireplace's Model Number _______________________________________
Your Fireplace's Serial Number ________________________________________
The Date On Which Your Fireplace Was Installed __________________________
The Type of Gas Your Fireplace Uses ___________________________________
Your Dealer's Name_________________________________________________
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

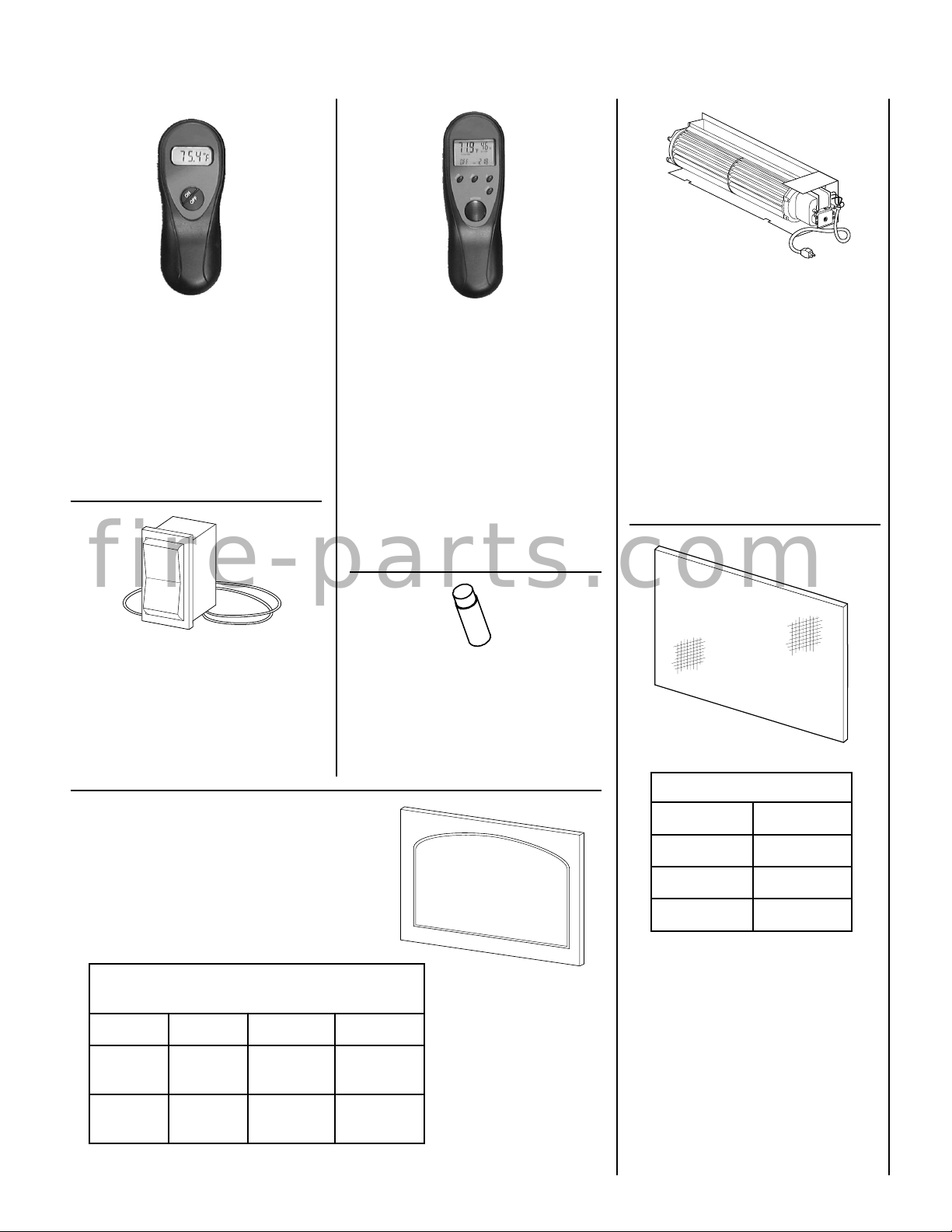

ACCESSORY COMPONENTS
Forced Air Blower Kits
-Single Speed 80L84 FBK-100
-Variable Speed with wall-mountable switch
Remote Control System (Standard) H0249 RCL
Standard Remote Control System
The Model RCL (Standard) Remote Control
System, features a simple On/Off control function for the fireplace. This model includes a
hand-held transmitter, a remote receiver with
wall-mount coverplate and all hardware required to install the unit. The remote receiver
can be wall or hearth mounted.
Remote Control System (Deluxe) H0251 RCL-T
Deluxe Remote Control System
The Model RCL-T (Deluxe) Remote Control
System has all of the features of the standard
system along with an added easy to read LCD
screen which presents access to many enhancements, including; battery power level indicator, timer, mode of operation, thermostatic
display including room temperature in either
metric of English units, flame indicator and
clock. Fully programmable, the Model RCL-T
allows for command over nearly all operational
and temperature variables, using the hand held
remote control transmitter.
-Variable Speed with unit- or wall-mountable switch
Forced Air Kit
The FBK-100 blower provides constant velocity
forced air circulation. The FBK-200 assembly
with variable speed, wall-mountable switch
provides variable speed forced air circulation.
The FBK-250 assembly with variable speed
wall- or unit-mountable switch, also provides
variable speed forced air circulation.
f i r e - p a r t s . c o m
80L85 FBK-200
80L86 FBK-250
Rocker Switch Kit 80L41 FRS
Unit-Mountable Rocker Switch
This rocker switch kit can be installed directly in
the gas valve mounting bracket (millivolt gas
valve equipped fireplaces) to provide On/Off
operation in lieu of a wall switch.
The kits attach to the glass enclosure panel
without the use of hardware. The decorative
arch kits can not be used in conjunction with the
screen panel kit.
stiKrooDhcrA
.oNgolataC
ledoMtinU
.oN
dehsiloP
ssarB
hsiniF
dehsurB
sselniatS
hsiniF
005-B006-B008-B
29L08
B5-KDA
20L18
SB5-KDA
.oNledoMtiK
39L08
30L18
Touch-Up Paint (Black) Kit 90L73 FTPK-B
Touch-Up Paint (Tan) Kit 98K67
Touch-Up Paint Kit
Repair of minor scratches and discoloration of
the appliance's painted surfaces may be accomplished with the use of these touch-up paint kits.
49L08
B06/6-KDA
SB06/6-KDA
B08/8-KDA
40L18
SB08/8-KDA
stiKlenaPneercS
.oNledoMtinU
005-B
006-B
008-B
These screen panels can be installed on the glass
enclosure panel to provided protection from
the hot glass surface. The screen panel kits
cannot be used in conjunction with either of the
arch door kits or door frame kits.
.oNgolataC
.oNledoMtiK
34L08
5-KPS
44L08
06/6-KPS
54L08
08/8-KPS
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
11
ACCESSORY COMPONENTS CONTINUED

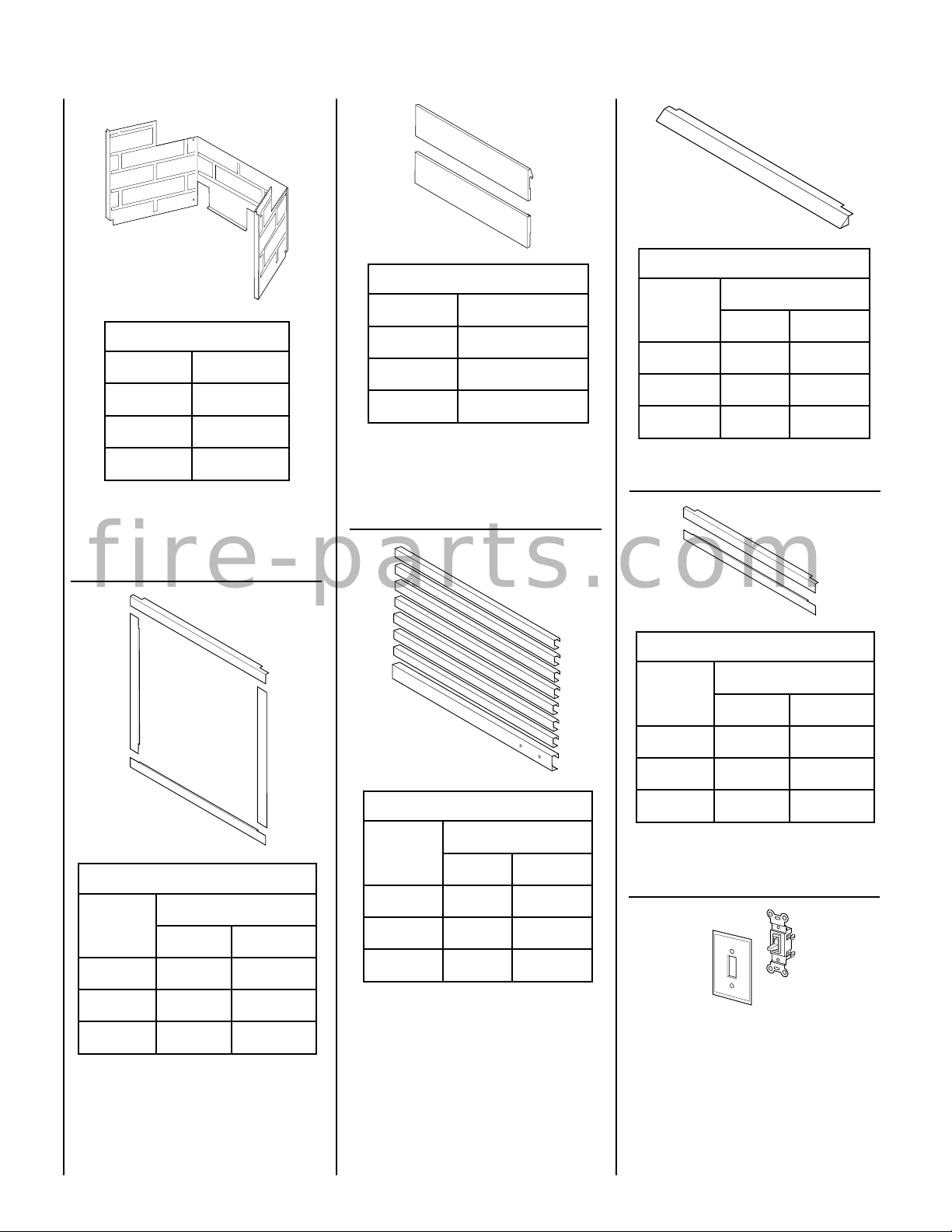

stiKdooH
stiKlenaPecaFnaelC
stiKreniLkcirB
ledoMtinU
.oN
005-B
006-B
008-B
The brickade liner kits include tan stamped
sheetmetal panels for the rear and side walls of
the firebox. The panels have brick-like features
in relief. These kits can be retrofitted into
previously installed appliances.
.oNgolataC
.oNledoMtiK
9520H
B5-KLB
0620H
B6-KLB
1620H
B8-KLB
ledoMtinU
.oN
005-B
006-B
008-B
Clean faced panel kits are available to convert
the standard louvered fireplaces to radiant models which are more suited for finishing around
the firebox opening with non-combustible
materials, such as tile.
.oNgolataC
.oNledoMtiK
67L08
05/5-KPFC
77L08
06/6-KPFC
87L08
08/8-KPFC
These hood kits replace the standard hood
that comes with these fireplaces.
ledoMtinU
.oN
005-B
006-B
008-B
dehsiloP
ssarB
25L08
B05/5-KH
35L08
B06/6-KH
45L08
B08/8-KH
f i r e - p a r t s . c o m
.oNgolataC
.oNledoMtiK
dehsurB
sselniatS
06L08
SB05/5-KH
16L08
SB06/6-KH
26L08
SB08/8-KH
ledoMtinU
.oN
005-B
006-B
008-B
These kits are designed to attach directly to the
front face of the fireplace at the four edges of
the glass enclosure panel.
12
dehsiloP
ssarB
11L08
B5-KFD
21L08
B06/6-KFD
31L08
B08/8-KFD
stiKemarFrooDeceiP-2
.oNgolataC
ledoMtinU
.oN
005-B
006-B
stiKrevuoL
.oNgolataC
ledoMtinU
.oN
stiKemarFrooDeceiP-4
.oNgolataC
.oNledoMtiK
dehsurB
sselniatS
61L08
SB5-KFD
71L08
SB06/6-KFD
81L08
SB08/8-KFD
These louvers are designed to replace the
standard black louvers that come with the
fireplace, or the radiant panels that are also
available with the fireplace. Eight louvers are
provided in the kit.
005-B
006-B
008-B
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
dehsiloP
ssarB
86L08
B05/5-KL
96L08
B06/6-KL
07L08
B08/8-KL
.oNledoMtiK
dehsurB
sselniatS
27L08
SB05/5-KL
37L08
SB06/6-KL
47L08
SB08/8-KL
These kits are designed to attach directly to the
front face of the fireplace at the top and bottom
edges of the glass enclosure panel.
ON/OFF Wall Switch Kit 85L87 FWSK
ON/OFF Wall Switch Kit
The ON/OFF wall switch kit may be used to
control the operation of the fireplace burner as
an alternative to the modesty panel mounted
ON-OFF switch. Install the ON/OFF wall switch
in a convenient location near the fireplace.
008-B
dehsiloP
ssarB
58M91
B5-KTD
98M91
B06/6-KTD
39M91
B08/8-KTD
.oNledoMtiK
dehsurB
sselniatS
68M91
SB5-KTD
09M91
SB06/6-KTD
49M91
SB08/8-KTD

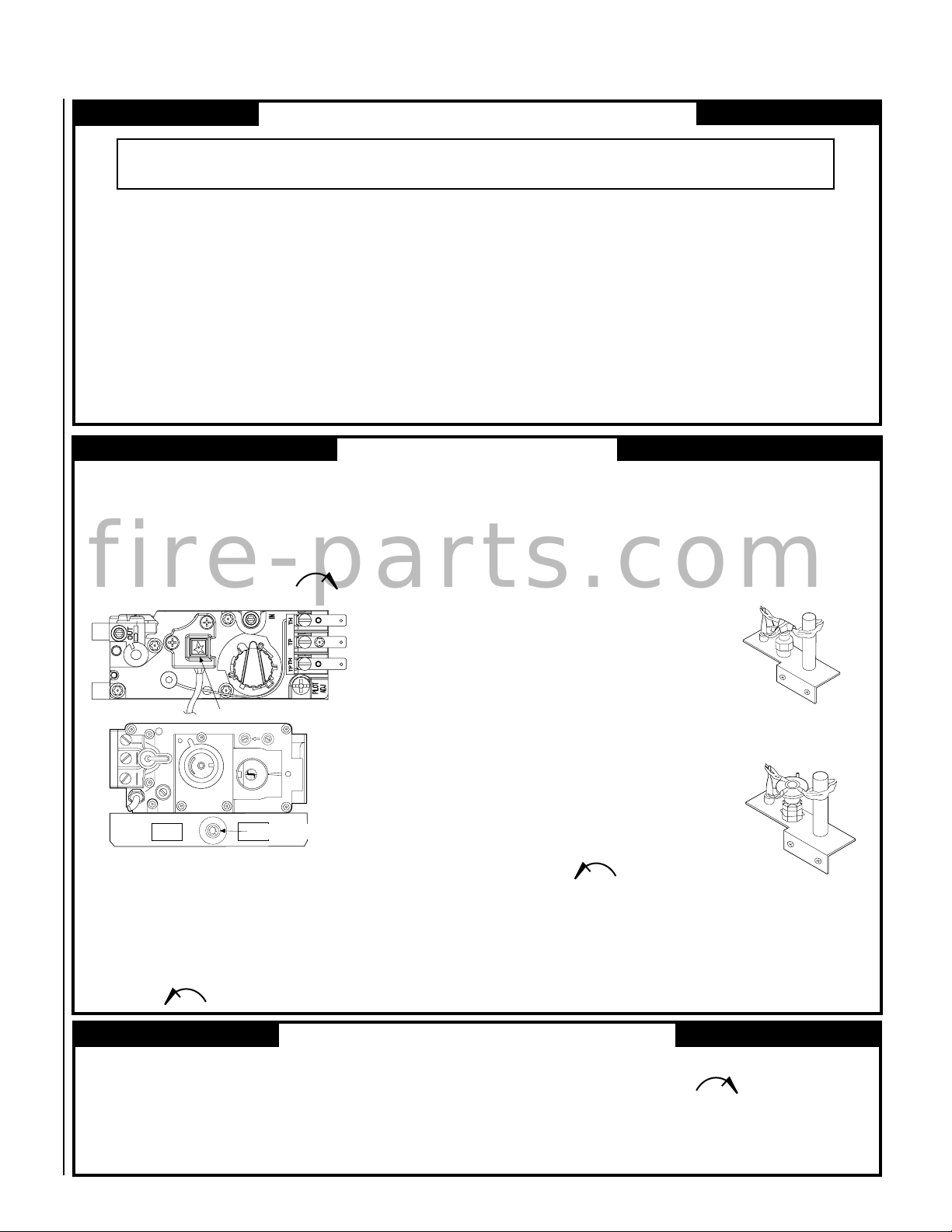

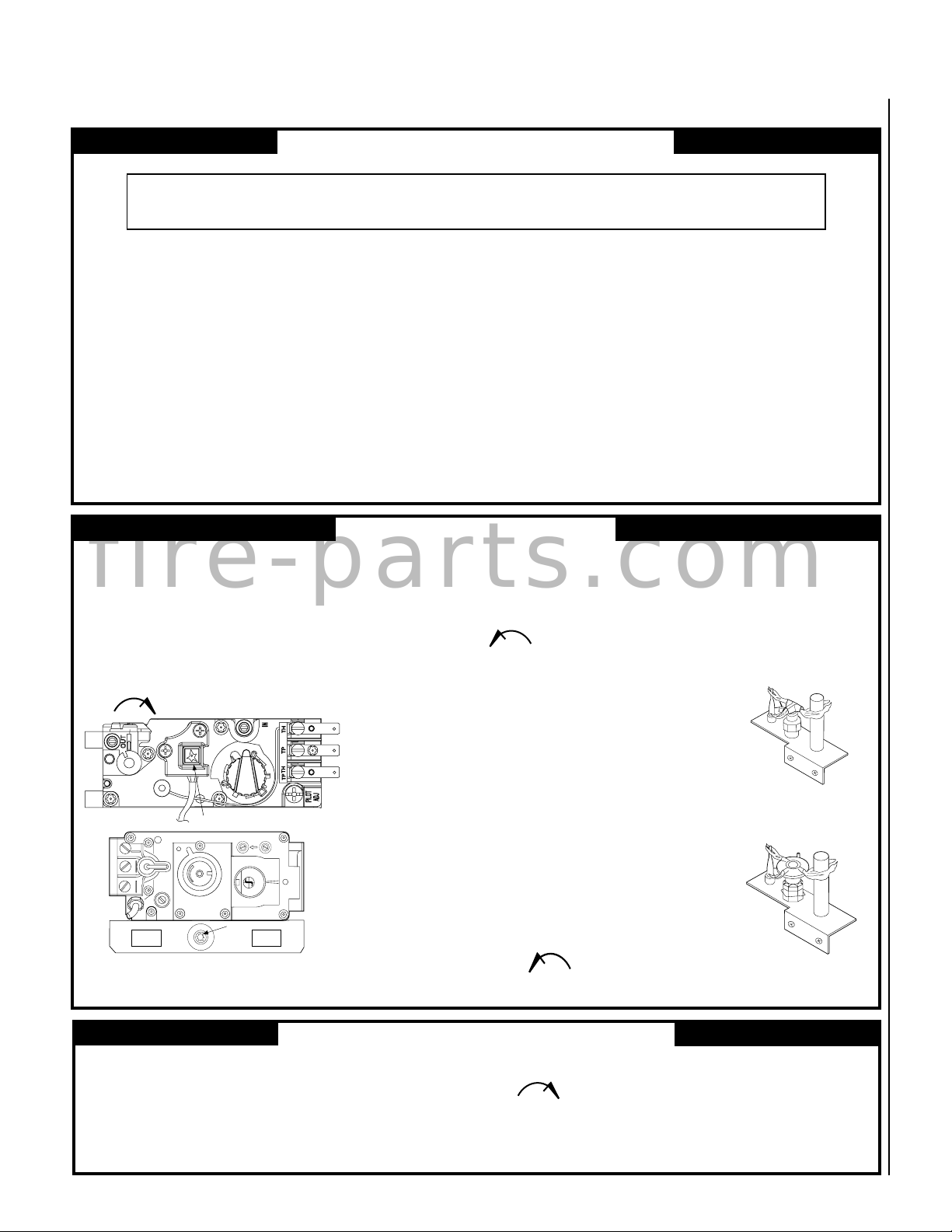

LIGHTING INSTRUCTIONS – HONEYWELL AND SIT MILLIVOLT GAS VALVE
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance has a pilot which must be lighted with a piezo
ignitor. When lighting the pilot, follow these instructions
exactly.
B. BEFORE OPERATING smell all around the appliance area for
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone.
• If your gas supplier cannot be reached, call the fire depart-
ment.
gas. Be sure to smell next to the floor because some gas is
heavier than air and will settle on the floor.
C. Use only your hand to push in or turn the gas control knob.
Never use tools. If the knob will not push in or turn by hand,
WHAT TO DO IF YOU SMELL GAS
do not try to repair it, call a qualified service technician. Force
or attempted repair may result in a fire or an explosion.
• Extinguish any open flame.
• Open windows.
• Do not light any appliance.
• Do not touch any electrical switches.
D. Do not use this appliance if any part has been under water.
Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and
any gas control which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this page.
f i r e - p a r t s . c o m
2. Access the lower control compartment.
3. Turn remote wall switch to “OFF.”
4. Verify main line shut-off valve is open.
5. Push in gas control knob slightly and turn clockwise
to “OFF.”
HONEYWELL
F
T
F
O
O
L
H
I
O
L
I
P
N
O
MILLIVOLT
GAS VALVE
6. Wait five (5) minutes to clear out any gas. If you then smell gas,
STOP! Follow “B” in the safety information above on this page. If you
do not smell gas, go to the next step.
7. Push in gas control knob slightly and turn counterclockwise
to “PILOT.”
8. Push in control knob all the way and hold in.
Immediately light the pilot by triggering the
HONEYWELL
MILLIVOLT PILOT
spark ignitor (pushing the button) until pilot
lights. Continue to hold the control knob in
for about 1 ¹⁄₂ minutes after the pilot is lit.
Release knob and it will pop back up. Pilot
should remain lit. If it goes out, repeat steps
5 through 8.
PIEZO IGNITOR
TPTH TP TH
I
H
L
W
O
P
I
L
O
T
OUT
F
F
O
P
it
O
N
PIEZO IGNITOR
IN
SIT
I
L
O
T
MILLIVOLT
GAS VALVE
Note: Knob cannot be turned from “PILOT” to “OFF”
unless the knob is pushed in slightly. Do not force.
TO TURN OFF GAS TO APPLIANCE
1. Turn remote wall switch “OFF.” The pilot will remain lit for
normal service.
2. For complete shutdown, turn remote wall switch to “OFF.”
3. Access the lower control compartment.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
• If knob does not pop up when released,
stop and immediately call your service
technician or gas supplier.
• If pilot will not stay lit after several tries,
turn the control knob to “OFF” and call
your service technician or gas supplier.
9. Turn gas control knob counterclockwise
to “ON.”
10. Close lower control compartment.
4. Depress gas control knob slightly and turn clockwise
to “OFF.” Do not force.
5. Close lower control compartment.
SIT
MILLIVOLT PILOT
13
INSTRUCTIONS D’ALLUMAGE – VANNE GAZ MILLIVOLT HONEYWELL ET SIT
POUR VOTRE SÉCURITÉ, LISEZ CES INSTRUCTIONS AVANT L’ALLUMAGE
AVERTISSEMENT : SI VOUS NE SUIVEZ PAS CES INSTRUCTIONS À LA LETTRE, IL POURRAIT S’EN SUIVRE UN INCENDIE OU UNE
EXPLOSION CAUSANT DES DOMMAGES MATÉRIELS, DES BLESSURES CORPORELLES OU MÊME DES PERTES DE VIE.
A. Cet appareil est muni d’une veilleuse qui doit être allumée avec un
allumeur piézo-électrique. Lorsque vous allumez la veilleuse, suivre
exactement ces instructions.
B. AVANT L’ALLUMAGE: Assurez-vous que vous ne détectez aucune
odeur de gaz autour de l’apareil ainsi que près du sol; certains gaz, étant
plus lourds que l’air, descendent au niveau du sol.
VOICI CE QUE VOUS DEVEZ FAIRE SI VOUS DÉCELEZ UNE ODEUR
DE GAZ:
• Éteignez toute flamme visible.
• Ouvrez les fenêtres.
• N’allumez aucun appareil.
• Ne touchez à aucun commutateur électrique.
• Ne vous servez d’aucun téléphone dans votre édifice.
• Appelez immédiatement votre compagnie de gaz en utilisant le téléphone
du voisin.
• S’il vous est impossible de contacter votre compagnie de gaz, appelez
le service des incendies.
C. N’utilisez que votre main pour manipuler le bouton de réglage du gaz.
N’utilisez jamais d’outils. Si le bouton refuse de tourner ou de bouger,
n’essayez pas de le réparer. Communiquez immédiatement avec un
technicien de service qualifié. Toute tentative pour le forcer ou le
réparer, risquerait de provoquer un incendie ou une explosion.
D. Ne vous servez pas de cet appareil si l’un de ses éléments a été
immergé dans l’eau. Appelez immédiatement un technicien compétent
pour faire inspecter l’appareil et remplacer toute pièce du système de
réglage ou commande du gaz qui a été sous l’eau.
INSTRUCTIONS D'ALLUMAGE
1. ARRÊTEZ! Lisez les consignes de sécurité au verso de cette plaque.
2. Ouvrez le compartiment de contrôle du bas.
3. Tournez l’interrupteur mural à la position d’arrêt “OFF”.
4. Assurez-vous que la soupape d’arrêt de la canalisation principale est
ouverte.
5. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans
le sens des aiguilles d’une montre jusqu’à la position
f i r e - p a r t s . c o m
d’arrêt “OFF”.
F
T
F
O
O
L
N
O
PIEZO-ELECTRIQUE
I
H
L
W
O
I
P
IN
OUT
F
F
O
P
I
L
it
O
T
O
N
PIEZO-ELECTRIQUE
H
I
O
L
TPTH TP TH
P
I
L
O
T
VANNE GAZ
MILLIVOLT
HONEYWELL
VANNE GAZ
MILLIVOLT SIT
Remarque: Il est impossible de tourner le bouton de “PILOT” à “OFF” à
moins qu’il ne soit légèrement enfoncé. Ne le forcez pas.
6. Attendez cinq (5) minutes pour l’evacuation du gaz. Si vous décelez
une odeur de gaz, ARRÊTEZ ! Retournez au point “B” des consignes
de sécurité au verso de cette plaque. Si vous ne remarquez aucune
odeur de gaz, passez à l’étape suivante.
7. Enfoncez légèrement le bouton de réglage du gaz et tournez-le en
sens inverse des aiguilles d’une montre jusqu’à la position de
veilleuse “PILOT”.
8. Enfoncez le bouton de réglage jusqu’au fond et gardez-le enfoncé.
Allumez immédiatement la veilleuse en déclenchant l’allume-gaz à
étincelle (en poussant le bouton) jusqu’à ce que la veilleuse
s’enflamme. Continuez de tenir le bouton de réglage enfoncé
pendant environ 90 secondes après l’allumage de la veilleuse.
Relâchez le bouton et il sortira
subitement. La veilleuse devrait rester
allumée. Si elle s’éteint, répétez les
étapes 5 à 8 inclusivement.
HONEYWELL
MILLIVOLT PILOT
• Si le bouton ne sort pas
automatiquement après avoir été
relâché, arrêtez immédiatement et
téléphonez à votre technicien de
service ou à votre fournisseur de gaz.
• Si la veilleuse refuse de rester allumée
après plusieurs tentatives, tournez le
bouton de réglage jusqu’à sa position
SIT
MILLIVOLT PILOT
d’arrêt “OFF” et téléphonez à votre
technicien de service ou à votre
fournisseur de gaz.
9. Tournez le bouton de réglage du gaz en
sens inverse des aiguilles d’une
montre jusqu’à sa position
de marche “ON”.
10. Fermez le compartiment de contrôle du bas.
11. Au besoin, rebrancher l’appareil au courant électrique et remettre
l’interrupteur du brûleur principal à la position “ON” ou régler le
thermostat à la température désirée.
12. Si l’appareil ne fonctionne pas, suivre les instructions intitulées
“Pour fermer le gaz qui alimente l’appareil” et appeler un
technicien ou le fournisseur de gaz.
POUR FERMER LE GAZ QUI ALIMENTE L’APPAREIL
1. Tournez l’interrupteur mural à la position d’arrêt “OFF”. La veilleuse
restera allumée jusqu’au retour du service normal.
2. Pour une fermeture complète, tournez l’interrupteur mural à la
position d’arrêt “OFF”.
3. Ouvrez le compartiment de contrôle du bas.
14
4. Enfoncez légèrement le bouton de réglage du gaz et tournez-le dans
le sens des aiguilles d’une montre jusqu’à la position
d’arrêt “OFF”. Ne forcez pas le bouton.
5. Fermez le compartiment de contrôle du bas.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

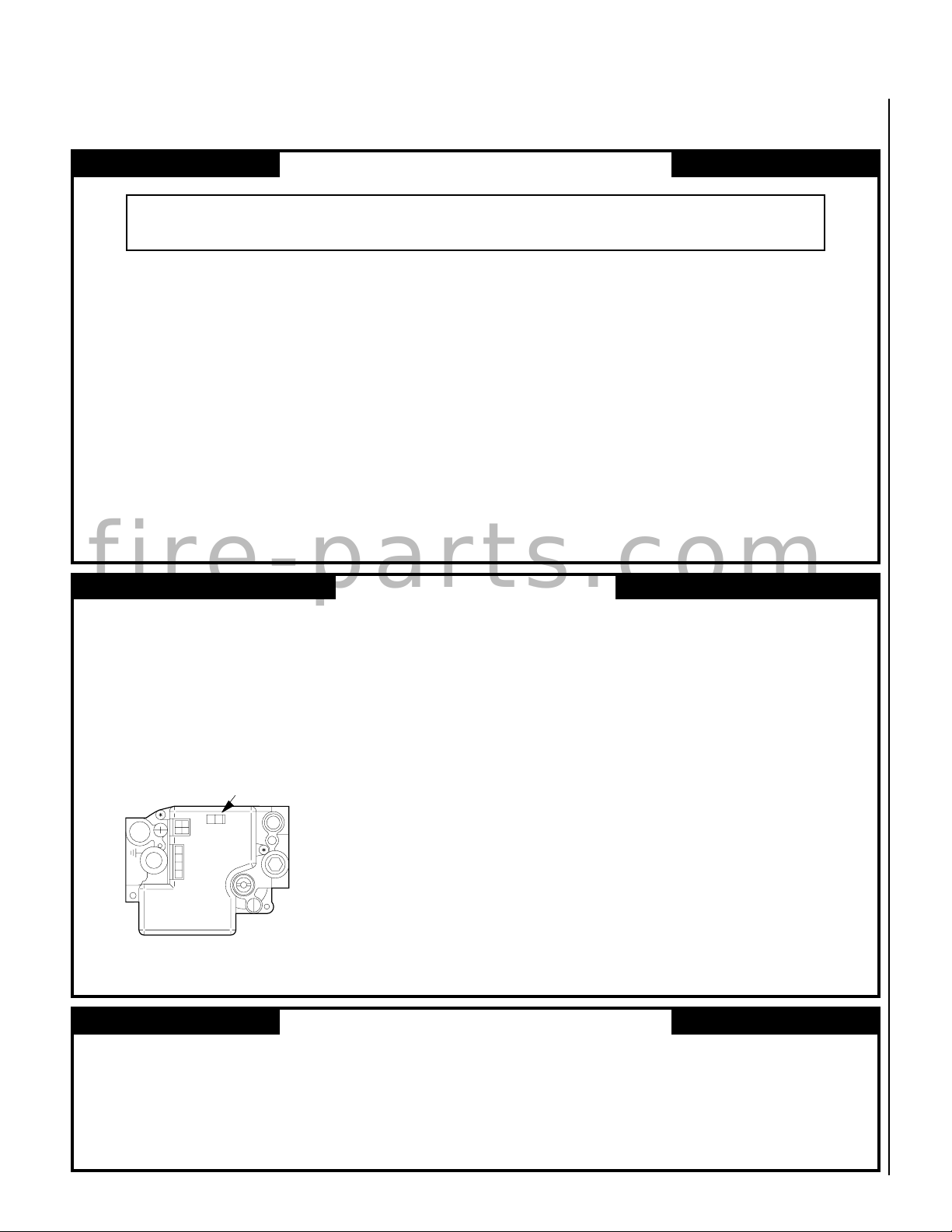

LIGHTING INSTRUCTIONS — ELECTRONIC
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. When lighting the appliance, follow these instructions
exactly.
• Immediately call your gas supplier from a neighbor’s
phone.
• If your gas supplier cannot be reached, call the fire
B. BEFORE OPERATING smell all around the appliance area
department.
for gas. Be sure to smell next to the floor because some
gas is heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Extinguish any open flame.
• Open windows.
• Do not light any appliance.
• Do not touch any electrical switches.
• Do not use any phone in your building.
f i r e - p a r t s . c o m
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above on this page.
2. Turn remote wall switch to “OFF.”
C. Use only your hand to turn the gas control lever. Never
use tools. If the lever will not turn by hand, do not try to
repair it, call a qualified service technician. Force or
attempted repair may result in a fire or an explosion.
D. Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been
under water.
5. Turn the ON/OFF switch to “OFF”. Do not force.
6. Wait five (5) minutes to clear out any gas. If you then
smell gas, STOP! Follow “B” in the safety information
3. Open lower control compartment door.
above on this page. If you do not smell gas, go to the
next step.
4. Verify main line shut-off valve is open.
7. Turn the ON/OFF switch to “ON”. Do not force.
ON/OFF Switch
CONTROL
OFF
ON
IG
N
IT
E
R
Front View
IN
I
S
P
TO TURN OFF GAS TO APPLIANCE
1. For complete shut-down, turn remote wall switch to
“OFF.”
2. Open lower control compartment door.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
8. Turn “ON” all electrical power to appliance (remote wall
switch).
9. Close lower control compartment door.
TO SHUT OFF
1. Turn off all electrical power to the appliance (remote wall
switch).
3. Turn the ON/OFF switch to “OFF”. Do not force.
4. Close the main line shut-off valve.
5. Close lower control compartment door.
15

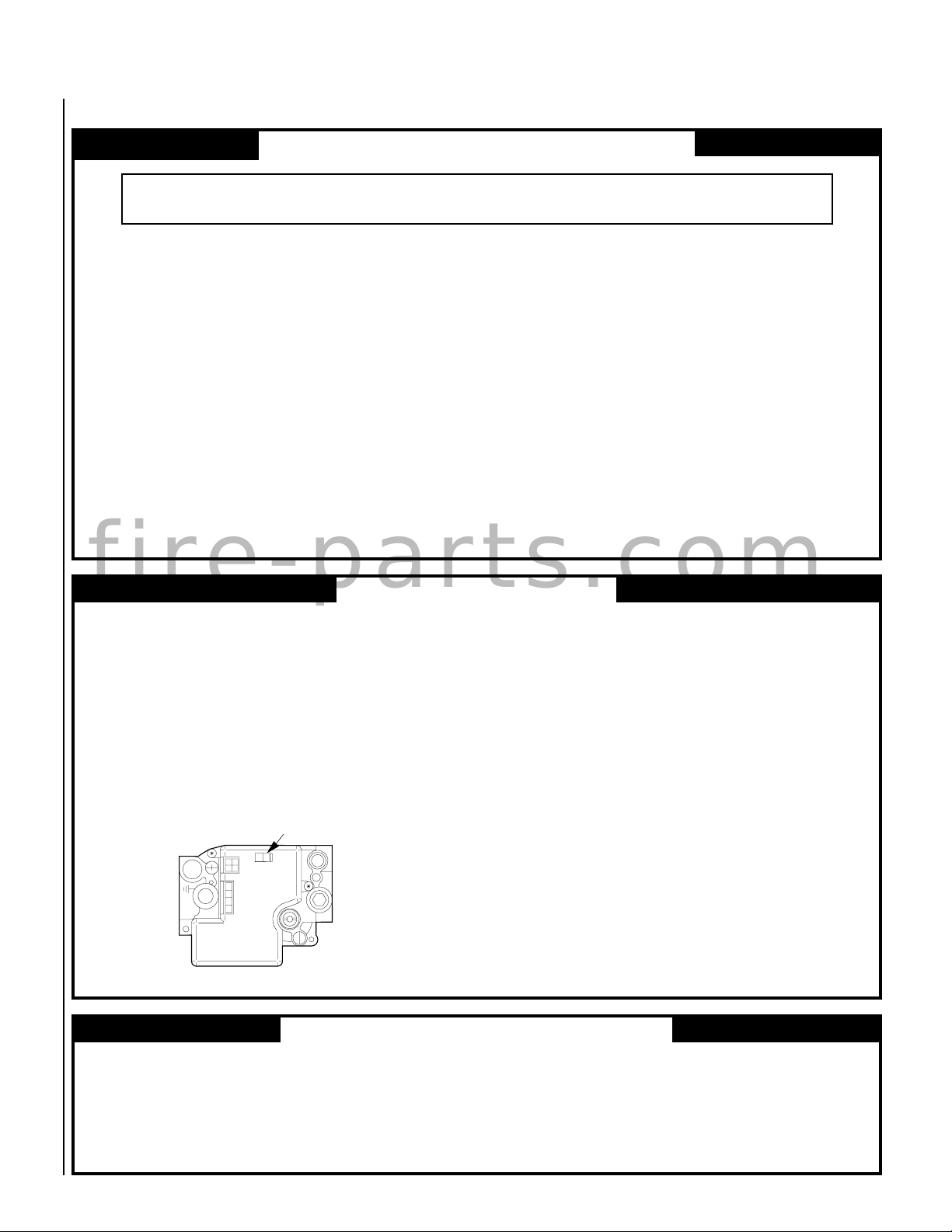

INSTRUCTIONS D’ALLUMAGE — ELECTRONIC
POUR VOTRE SÉCURITÉ, LISEZ CES INSTRUCTIONS AVANT L’ALLUMAGE
AVERTISSEMENT: SI VOUS NE SUIVEZ PAS CES INSTRUCTIONS À LA LETTRE, IL POURRAIT S’EN SUIVRE UN INCENDIE OU
UNE EXPLOSION CAUSANT DES DOMMAGES MATÉRIELS, DES BLESSURES CORPORELLES OU MÊME DES PERTES DE VIE.
A. Lorsque vous allumez l’appareil, suivez exactement ces instruc-
tions.
B. AVANT L’ALLUMAGE: Assurez-vous que vous ne détectez
aucune odeur de gaz autour de l’apareil ainsi que près du sol;
certains gaz, étant plus lourds que l’air, descendent au niveau
du sol.
VOICI CE QUE VOUS DEVEZ FAIRE SI VOUS DÉCELEZ UNE
ODEUR DE GAZ
• Éteignez toute flamme visible.
• Ouvrez les fenêtres.
• N’allumez aucun appareil.
• Ne touchez à aucun commutateur électrique.
• Ne vous servez d’aucun téléphone dans votre édifice.
• Appelez immédiatement votre compagnie de gaz en utilisant
le téléphone du voisin.
• S’il vous est impossible de contacter votre compagnie de
gaz, appelez le service des incendies.
C. N’utilisez que votre main pour manipuler linterrupteur “ON/
OFF” de la valve à gaz. N’utilisez jamais d’outils. Si
l’interrupteur ne bouge pas manuellement, n’essayez pas de le
réparer. Communiquez immèdiatement avec un technicien de
service qualifié. Toute tentative pour forcer l’interrupteur ou le
réparer, risquerait de provoquer un incendie ou une explosion.
D. Ne vous servez pas de cet appareil si l’un de ses éléments a été
immergé dans l’eau. Appelez immédiatement un technicien
compétent pour faire inspecter l’appareil et remplacer toute
pièce du système de réglage ou commande du gaz qui a été sous
l’eau.
f i r e - p a r t s . c o m
INSTRUCTIONS D’ALLUMAGE
1. ARRÊTEZ ! Lisez les consignes de sécurité au verso de cette
plaque.
2. Tournez l’interrupteur mural à la position d’arrêt “OFF”.
3. Ouvrez la porte du compartiment de contrôle du bas.
4. Assurez-vous que la soupape d’arrêt de la canalisation principale
est ouverte.
6. Attendez cinq (5) minutes pour l’evacuation du gaz. Si vous
décelez une odeur de gaz ARRÊTEZ ! Retournez au point “B” des
consignes de sécurité au verso de cette plaque. Si vous ne
remarquez aucune odeur de gaz, passez à l’étape suivante.
7. Tournez la manette de réglage du gaz jusqu’à la position de marche
“ON”. Ne la forcez pas.
8. Ouvrez le courant électrique (“ON”) qui alimente l’appareil
(interrupteur mural).
5. Tournez la manette de réglage du gaz à la position d’arrêt “OFF”.
Interrupteur
ON/OFF
CONTROL
OFF
ON
IGNITER
Vue de face
IN
PSI
POUR FERMER LE GAZ QUI ALIMENTE L’APPAREIL
1. Pour une fermeture complète, tournez l’interrupteur mural à la
position d’arrêt “OFF”.
2. Ouvrez la porte du compartiment de contrôle du bas.
16
9. Fermez la porte du compartiment de contrôle du bas.
10. Au besoin, rebrancher l’apareil au courant électrique et
remettre l’interrupteur principal du brûleur à la position “ON”
ou régler le thermostat à la température désirée.
11. Si l’appareil ne se met pas en marche, suivre les instructions
intitulées “Pour fermer le gaz qui alimente l’appareil” et appeler
un technicien ou le fournisseur de gaz.
POUR ÉTEINDRE L’APPAREIL
1. Coupez tout le courant électrique qui alimente l’appareil (interrupteur
mural).
3. Tournez la manette de réglage du gaz à la position d’arrêt “OFF”.
Ne la forcez pas.
4. Fermez la soupape d’arrêt de la canalisation principale.
5. Fermez la porte du compartiment de contrôle du bas.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
TROUBLESHOOTING THE MILLIVOLT GAS CONTROL SYSTEM
Note: Before troubleshooting the gas control system, be sure external gas shut off valve (located at gas supply inlet) is in
the “ON” position.
Important: Valve system troubleshooting should only be accomplished by a qualified service technician.
POSSIBLE CAUSES
1. Spark ignitor will not light
pilot after repeated
triggering of ignitor button.
2. Pilot will not stay lit after
f i r e - p a r t s . c o m
carefully following the
lighting instructions.
3. Pilot burning, no gas to
burner, Valve knob “ON,”
Wall Switch “ON.”
A. Defective ignitor
(no spark at electrode).
B. Defective or misaligned electrode
at pilot (spark at electrode).
C. Gas supply pressure errant.
D. Pilot orifice plugged.
A. Defective pilot generator
(thermocouple).
A. Limit Switch defective.
Check for spark at electrode and pilot; if no spark and
electrode wire is properly connected, replace ignitor.
Using a match, light pilot. If pilot lights, turn off pilot and
trigger the ignitor button again. If pilot lights, an improper gas
mixture caused the bad lighting and a longer purge period is
recommended. If pilot will not light – check gap at electrode
and pilot – should be ¹⁄₈" to have a strong spark. If gap
measures ¹⁄₈", replace pilot
on page 8
Check inlet gas pressure. It should be within the limits as
marked on the rating plate.
Clean or replace pilot orifice.
Check pilot flame, it must impinge on thermocouple
Figure 9 (SIT), or 10 (Honeywell) on page 8
or adjust pilot for maximum flame impingement on thermocouple. Ensure that the connection between the valve
and thermocouple are tight and secure.
Isolate the “limit” switch. Disconnect the wires from the “ON/
OFF” switch and the valve (label wires for reattachment). Test
for continuity with a multimeter. If continuity is not indicated,
switch is defective and must be replaced.
CORRECTIVE ACTIONSYMPTOM
- Figure 9 (SIT), or 10 (Honeywell)
.
. Clean and/
-
4. Frequent pilot/burner outage
problem.
B. Wall switch or wires defective.
C. Thermopile may not be generating
sufficient millivoltage.
D. Plugged burner orifice.
A. Pilot flame may be too low or
blowing (high) causing the pilot/
valve safety to drop out.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
Check wall switch and wires for proper connections. Jumper
wire across terminals at wall switch, if burner comes on,
replace defective wall switch. If okay, jumper wires across wall
switch wires at valve, if burner comes on, wires are faulty or
connections are bad.
Check thermopile with millivolt meter. Take reading at thermopile terminals of gas valve. Should read 325 millivolts minimum with optional wall switch “OFF.” Replace faulty thermopile if reading is below specified minimum.
Check burner orifice for stoppage and remove.
Clean and/or adjust pilot flame for maximum flame impingement on thermocouple
on page 8
.
- Figure 9 (SIT), or 10 (Honeywell)
17
TROUBLESHOOTING THE ELECTRONIC IGNITION SYSTEM
N
ote: Before troubleshooting, be sure that the appliance main line gas shut-off valve, the gas control valve and the wall switch are in
the “ON” position.
Important: Valve system troubleshooting should only be accomplished by a qualified service technician.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1. Burner will not light.
A. Faulty Valve System.
B. “OFF/ON” or wall switch
defective.
See Below.
Disconnect the two black wires from the wire nuts. Test switch(s) for
continuity with a multimeter. If continuity is not indicated, switch(s) is
defective and must be replaced.
Note: Before replacing “OFF/ON” switch, be sure to check wiring for loose
connections or broken wires and repair as needed.
C. Faulty limit switch
Reset the limit switch button. If still not working, access the leads attached to
the limit switch and check for continuity. If no continuity, replace limit switch.
2. Burners come “ON” but
A. Burner orifice plugged.
Check main burner orifice(s) for stoppage. Clean or replace.
go “OFF.”
B. Obstructed vent system.
START
f i r e - p a r t s . c o m
• Turn Off Gas Supply
• Assure Valve Switch Is In ON Position
• Disconnect Control Harness
• Set Thermostat To Call For Heat
Insert A
24 Volt Hot
24 Volt
Switched
Check For Damaged Or Missing Terminals
In Connector
Insert B
Igniter Terminals
End View Of
Control Harness
Connector
24 Volt
Common
• Check For Proper Voltage At Control Harness
(See Insert A). Voltage Should Be 24V
Between Thermostat Or Pressure Switch
And 24V Common And 24V Hot.
YES
• Plug Control Harness Into Valve. Wait For
Internal Check Delay.
• Igniter Warms Up And Glows Red.
1
YES
• Turn On Gas Supply. • Pilot Burner Lights.
YES
Check vent system for obstructions.
CHECK
• Line Voltage Power
NO
• Low Voltage Transformer
• Limit Controller
2
• Thermostat
• Wiring
• With Pilot Burner Cable Connected, Measure
NO
Voltage At Valve HSI Element Output. 24V
Nominal. (See Insert B)
YES
• Replace Igniter/Flame Rod Assembly.
YES
NO
• Check That Pilot Gas Is Flowing. Wait To
Assure Plot Gas Tubing Is Purged. Recycle
Call For Heat If Necessary.
YES
• Measure Voltage Between 24V Hot And 24V Common
Leads To Valve Control. Must Measure At Least 19.5
VAC With Igniter Powered (See Insert A). To Identify
Proper Lead, This Check Must Be Done With The
Valve Control Connected And Igniter Powered.
YES
• Replace Pilot Assembly.
NO
2
1
• Replace Valve.
NO
• Replace Valve.
NO
• Check Transformer And
Line Volt Supply.
18
Igniter Will Cycle Off And Back On Once During
1
The 90 Second Ignition Trial. All Voltage
Measurements Must Be Taken While The Igniter
Is Powered.
• Main Valve Opens And Main Burner Lights.
YES
• System Is Okay.
When Measured Voltage At Connections, Use
2
Care To Assure Terminals Are Not Damaged.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
• Check That Pilot Flame Makes Good Contact With
Pilot Burner Flame Rod.
NO
• Check For Good Electrical Connection Through The
Pilot Tubing.
• If Both Of The Above Are Good, Replace Igniter/Flame
Rod Assembly.
YES
• Cycle Thermostat Off And Back On.
• Main Burner Lights.
NO
• Replace Valve.
REPLACEMENT PARTS LIST
.oNNOITPIRCSED
ylbmessAecalperiFsaG ––––––
.1dooHZB14919-BL1 ZC14919-BL1ZD14919-BL1
.2revuoLZB00429-BL7 ZC00429-BL7ZD00429-BL7
.3)esaB(,revuoLZB20429-BL1ZC20429-BL1ZD20429-BL1
.4)etelpmoC(tnorFssalG,erusolcnEA51679-BL1B51679-BL1C51679-BL1
.5)dnarB(etalpemaN1039L651 1039L6511039L651
.6hctaL1012L961 1012L9611012L961
.7citengaM,rooD,hctaC1013L962 1013L9621013L962
.8)etelpmoC(teSgoL96L961 77L961 1003L471
.9ylbmessArenruB1090L9611001L9611011L961
.01tekcarBrenruB75329-BL375329-BL375329-BL3
.11ylbmesAetarGgoLB60429-BL1C60429-BL1D60429-BL1
.21-renruBniaM,ecifirO saG.taN 1007L731 1004L8111077K991
.21-renruBniaM,ecifirO saGPL 1079K991 D47855-BL11088L471
.31)loowkcoR(srebmEfogaB35L881 35L88135L881
.41enotScinacloVevitaroceDfogaB1067L4711067L4711067L471
.51rotcennoCelbixelFeniLsaG1033K341 1033K3411033K341
.61hctiwStimiL1061L261 1022M3111061L261
005-B006-B008-B
.oNtraP.ytQ.oNtraP.ytQ.oNtraP.ytQ
GAS CONTROLS — SIT MILLIVOLT
f i r e - p a r t s . c o m
.oNNOITPIRCSED
.02TIS-evlaVsaG1070K3411035J881
.12retingIozeiP1068K011 1068K011
.22ylbmessAtoliP1071L9611081L961
.32rotareneGtoliP1097J061 1097J061
.42elpuocomrehT1075L4711075L471
.52ebuTtoliP1065L4711065L471
.62elbaCdnAedortcelE1085L471 1085L471
larutaNenaporP
.oNtraP.ytQ.oNtraP.ytQ
GAS CONTROLS — HONEYWELL MILLIVOLT
.oNNOITPIRCSED
.03evlaVsaG1021M4211078L281
.13ylbmessAtoliP1007L761 1007L761
.23rotareneGtoliP1097J061 1097J061
.33elpuocomrehT1076L7611076L761
.43ebuTtoliP1086L7611086L761
.53elbaCdnAedortcelE1078L761 1078L761
.63retingIozeiP1098M421 1098M421
larutaNenaporP
.oNtraP.ytQ.oNtraP.ytQ
GAS CONTROLS — ELECTRONIC
.oNNOITPIRCSED
.04llewyenoH-evlaVsaG1081L2611091L261
.14ylbmessAtoliP1041L261 1051L261
.24remrofsnarT1023J2411023J241
.34)tiK(ylbmessArotingI45L781 45L781
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
larutaNenaporP
.oNtraP.ytQ.oNtraP.ytQ
19

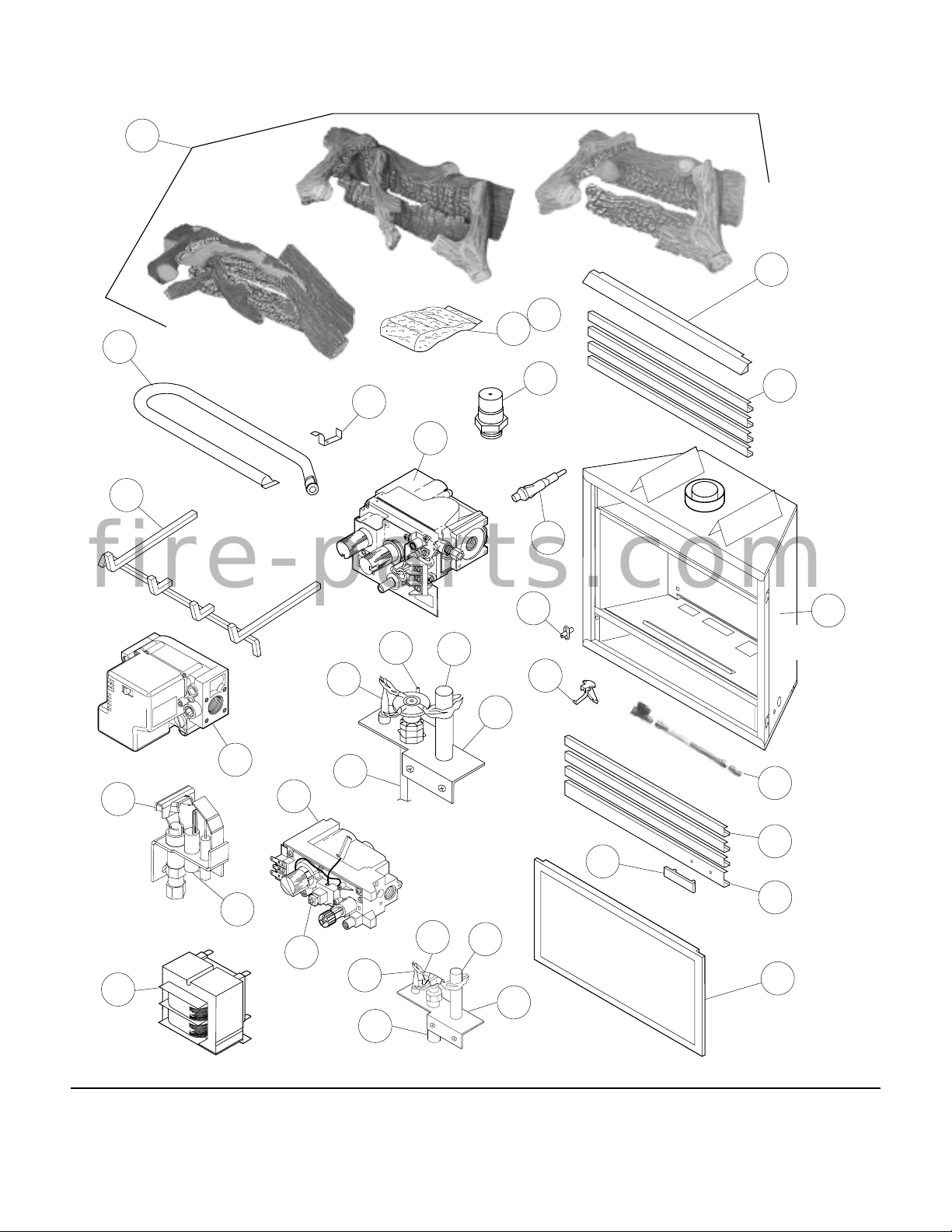

REPLACEMENT PARTS
B-500
1
2
9
11
8
B-800
10
B-600
14
13
12
20
21
f i r e - p a r t s . c o m
7
See page 5,
Figure 6
24
26
23
6
16
22
40
41
43
42
The manufacturer reserves the right to make changes at any time, without notice, in design, materials, specifications, prices and also to discontinue colors, styles and products.
Consult your local distributor for fireplace code information.
Printed in U.S.A. © 2002 by Lennox Hearth Products
P/N 725,031M REV. E 11/2004
20
30
36
25
35
33
34
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
32
5
31
LHP
1110 West Taft Avenue • Orange, CA 92865
15
2
3
4
Loading...
