Page 1

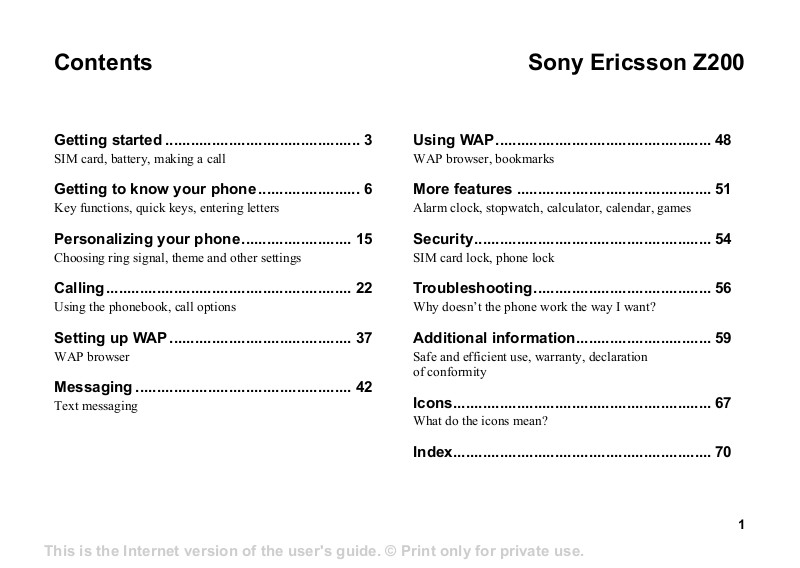

Sony Ericsson Z200

Getting started .............................................. 3

SIM card, battery, making a call

Getting to know your phone ........................ 6

Key functions, quick keys, entering letters

Personalizing your phone.......................... 15

Choosing ring signal, theme and other settings

Calling.......................................................... 22

Using the phonebook, call options

Setting up WAP........................................... 37

WAP browser

Using WAP................................................... 48

WAP browser, bookmarks

More features .............................................. 51

Alarm clock, stopwatch, calculator, calendar, games

Security........................................................ 54

SIM card lock, phone lock

Troubleshooting.......................................... 56

Why doesn’t the phone work the way I want?

Additional information................................ 59

Safe and efficient use, warranty, declaration of conformity

Messaging ................................................... 42

Text messaging

Icons............................................................. 67

What do the icons mean?

Index............................................................. 70

This is the Internet version of the user's guide. © Print only for private use.

Page 2

Sony Ericsson

GSM 900/1800/1900

Forth edition (March 2004) This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide.

Sony Ericsson Mobile Communications AB, 2003

Publication number: AE/LZT 108 6475 R4A.

Please note:

Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112.

Please contact your network operator or service provider if you are in doubt as to whether you can use a particular service or not.

Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone.

T9™ Text Input is a trademark or a registered trademark of Tegic Communications.

T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide.

Other product and company names may be the trademarks of their respective owners.

Any rights not expressly granted herein are reserved.

This is the Internet version of the user's guide. © Print only for private use.

Page 3

Getting started

SIM card, battery, making a call

About this user’s guide

For ease of reference, the “Getting to know your phone” chapter gives a quick overview of the main functions of the phone, shortcuts and general information.

More information and downloads are available at www.SonyEricsson.com or wap.SonyEricsson.com.

The SIM card

When you register as a subscriber with a network operator, you get a SIM (Subscriber Identity Module) card. The SIM card contains a computer chip that keeps track of your phone number, the services included in your subscription, and your phonebook information, among other things.

Tip: Verify that your information is saved to the SIM card before you remove it from another phone. For example, phonebook entries may be saved in the phone memory.

Available services

Some services and functions described in this user’s guide are network- or subscription-dependent. Because of this, all menus may not be available in your phone.

This symbol indicates that a service or function is network- or subscriptiondependent.

Please consult your network operator for more information about your subscription.

This is the Internet version of the user's guide. © Print only for private use.

Assembly

Before you can use your phone you need to:

• Insert the SIM card.

• Attach and charge the battery.

Getting started 3

Page 4

SIM card and battery information

Always turn off the phone and detach the charger before you insert or remove a SIM card.

≈

30 min.

≈

4 h.

4 Getting started

This is the Internet version of the user's guide. © Print only for private use.

To insert the SIM card and charge the battery

1. Insert the SIM card. Make sure the SIM card is placed under the silvery holders.

2. Place the battery on the back of the phone with the connectors facing each other, and push until you hear a click.

3. Place the back cover into the slots on the phone and push until you hear a click.

4. Connect the charger to the phone at the flash symbol with the symbol on the charger plug facing upwards.

5. It may take up to 30 minutes before the battery charging icon appears in the display.

6. Wait approximately 4 hours or until the icon indicates that the battery is fully charged. If you do not see the battery icon after this time, press any key to activate the display.

7. Remove the charger by tilting the plug upwards.

Turning on the phone and making calls

Your PIN (Personal Identity Number) is provided by your network operator but not all operators require a PIN to activate services.

If your PIN starts with the same digits as an emergency number, for example 112, the digits are not hidden with an * when you enter them.

Page 5

This is so that you can see and call an emergency number without entering a PIN. See “Emergency

1. Open the phone. Press and hold .

2. Enter your PIN, if you have one for your SIM card.

calls” on page 23 for more information.

If you make a mistake while entering your PIN,

delete the number by pressing .

Note: If you enter the wrong PIN three times in a row, the SIM card is blocked and the message PIN blocked appears. To unblock it, you need to enter your PUK (Personal Unblocking Key). Your PUK

To make and receive calls

• Enter the area code and phone number, and press

YES to make the call.

•Press

NO or close the phone to end the call.

• When the phone rings, press

phone to answer the call. See “Phone functions”

on page 20.

is provided by your network operator.

Navigating the menus

To turn on thephone

The main menus are shown as icons on the desktop. To go to the desktop, press the center of the navigation key. (See “Key functions – phone open” on page 7.) Press left, right, up, or down to move through menus. Press the navigation key to select highlighted items.

This is the Internet version of the user's guide. © Print only for private use.

YES or open the

Getting started 5

Page 6

Getting to know your phone

Key functions, quick keys, entering letters

Key functions – phone closed

Vo l u m e keys

Infrared Exchange data via the

6 Getting to know your phone

This is the Internet version of the user's guide. © Print only for private use.

Increase or decrease the speaker volume during a call. Enter the status menu in standby. Press twice to reject an incoming call. Press once to turn off the ring signal when receiving a call.

IR port.

Battery status

External display

A red light indicates charging or low battery.

Shows, for example, the time, battery status, network strength, profile, signal off, incoming call, missed call, new text message.

Page 7

Key functions – phone open

Speaker.

Main display.

Make and answer calls. Select a menu, submenu or an option.

Navigation key. Press to enter the desktop menus. Press up, down, left, right to move through menus, lists and texts. Press the navigation key as an alternative to .

9 3 4 5

Press for options or help. Press and hold for WAP.

Enter digits, 0-9, and letters.

Enter *. Shift between lower or upper case. Microphone. Press to end or reject a call, go back one level in the

menus, or leave an option unchanged. Press and hold to go back to standby mode from menus.

Delete numbers, letters or an item from a list.

Enter # or a space.

Press and hold to turn the phone on or off.

Getting to know your phone 7

This is the Internet version of the user's guide. © Print only for private use.

Page 8

Quick keys

Useful key combinations (using shortcuts) are described below.

To... When in standby:

reach a phone number at a specific position

speed dial press any of the number

make an emergency call enter the international

emergency number and press

YES

enter the menus press the navigation

key or

enter the first submenu

press

in My Shortcuts enter Find and Call press or

enter Call List press

YES

call your voicemail press and hold enter the + sign press and hold turn off the ring signal

when receiving a call set the phone to silent,

options reach a phonebook entry

beginning with a specific

press , or a volume key once

press and hold or press ,

YES

press and hold any of the keys –

enter the Status menu to see today’s date, the profile in use and the model name of the phone

change the language to Automatic

change the language to English

reject a call quickly press a volume

To... In standby when phone

change information in external display

letter

8 Getting to know your phone

This is the Internet version of the user's guide. © Print only for private use.

press the position number and

keys – and

YES

press a volume key once.

press 8888

press 0000

key twice when receiving a call or press

is closed:

press a volume key once

Page 9

To... During a call:

To... When entering letters

put a call on hold press YES retrieve a call press YES again

To... When in the menus:

move through menus or lists

enter a quick options menu

use the navigation key or press a volume key

press

or help, if available delete an item press when in lists go back to standby press and hold

To... When entering letters:

shift between upper- and

press , then the letter

lower-case letters enter numbers press and hold any of the

number keys

delete letters and numbers press select multitap or

press and hold

T9 Text input methods select input languages

press and hold

enter a space press

To... When entering letters

view alternative words press or accept a word and add a

space enter a period press view alternative

punctuation marks

Using shortcuts

A quicker way to move through the menus is to use shortcuts. Enter the menus by pressing and then simply press the navigation key to enter the menu. To get back to standby, press and hold

You can quickly and easily reach the settings you use most by placing them in the menu My Shortcuts. See “My shortcuts” on page 20.

and other character or numeric input methods

Getting to know your phone 9

This is the Internet version of the user's guide. © Print only for private use.

using multitap text input:

using T9™ Text Input:

press

press , then or repeatedly

NO.

Page 10

Delete, edit and rename

If you add items, for example, a phonebook entry, a calendar item or a WAP bookmark, it can be deleted, edited or renamed.

Note: This menu only appears if your SIM card supports this service. Some operators may not use the name “Online services”. Your phone may not support all of the services offered.

To delete an item

• Select an item and press .

To enter your new menu system

Scroll to Connect,

YES, Online Services, YES.

• Select an item, press , select Delete or Delete All.

To edit items

Select an item, press , select Edit.

Online services

Online services are customized services offered by network operators, independently of mobile phones and mobile phone manufacturers.

A SIM card which supports online services works

in the same way as a normal SIM card. When you have inserted your SIM card and turned on your phone, your network operator can download data to your SIM card. When you restart your phone after the first data download, a new submenu appears under the Connect menu.

10 Getting to know your phone

This is the Internet version of the user's guide. © Print only for private use.

Page 11

Menu overview

Calls WAP Services My Shortcuts Fun & Games Messages

Missed Calls Call List Manage Calls Time & Cost Next Call Options

Organizer Connect Phonebook Settings Ongoing Call*

Calendar Alarms Timer Stop wat ch Calculator

Sony Ericsson Bookmarks Push Inbox Enter Address Resume Select Profile Advanced Options

Online Services* Infrared Port GSM Networks Data Comm.

Write New Ring Volume Select Profile My Numbers Edit Shortcuts

Find and Call Add Number Find and Edit Picture Personal Rings Groups Email Addresses Options Memory Status Special Numbers

Games My Pictures My Sounds Themes Composer Operator link*

Sounds & Alerts Profiles Display Language Time and Date Locks Handsfree Flip functions Master Reset

Write New Inbox Call Voicemail Unsent Te mp la t es Sent Items Options Area Info. SMS Memory

Turn Off Tones** Hold Call** Switch Calls** Release Active Call** Retrieve Call** Join Calls** Transfer Call** Extract Part** Release All Calls** Release Party** Parties in Conf.** Calls**

Getting to know your phone 11

This is the Internet version of the user's guide. © Print only for private use.

*Please note that some menus are operator-, network- and subscriptiondependent.

**Only available during a call or conference call.

Page 12

Entering letters and characters

You can enter letters, for example, when you add names to the phonebook, write text messages or enter WAP addresses.

Apart from the way you normally enter letters

Multitap text input

When saving names in the phonebook or when writing WAP addresses, you enter letters using multitap text input. You press each key as many

times as needed to show the letter you want. in your phone, using multitap input, you can use T9™ Text Input for entering text messages if the input language you select supports this.

The following example shows how to write a name

in the phonebook. T9 Text Input is a predictive input method and is a quicker way to write texts.

Input languages

Before you start entering letters, you need to select the input languages that you want to use when writing.

To enter letters using multitap text input

1. Scroll to Phonebook, Add New,

YES.

2. Add the number,

YES, Add Number, YES,

YES.

3. Press the appropriate key, – , or , repeatedly until the character you want

To select input languages

1. Scroll to Settings,

YES, Language, YES, Input, YES.

2. Scroll to the language or alphabet that you want to use for entering letters and press for each

appears in the display, e.g., to enter an A, press once, to enter a B, quickly press twice, to shift between upper- and lower-case letters, press , then enter the letter.

language you want.

3. Press

YES to exit the menu.

When writing, you can switch to one of your selected input languages by pressing and then selecting Language. See “The list of options” on page 14.

12 Getting to know your phone

See the Latin alphabet, abc, table below:

Press… to see/enter…

. , - ? ! ' @ : ; / ( ) 1 A B C Å Ä Æ à Ç 2 Γ

This is the Internet version of the user's guide. © Print only for private use.

Page 13

Press… to see/enter…

D E F è É 3 ∆ Φ G H I ì 4 J K L 5 Λ

Note: A language must be selected in order to use the T9™ Text Input method. If you change input method in Settings/Language/T9 Input, this is valid for all input of texts, not only for the text you are currently writing.

M N O Ñ Ö Ø ò 6 P Q R S ß 7 Π Σ T U V Ü ù 8 W X Y Z 9 + 0 Θ Ξ Ψ Ω Space # * ↵ ¶ to delete letters and numbers to shift between upper- and lower-

case letters

– press and hold to enter numbers

The following shows how to start writing a text message.

Tip: Press to enter a period. To enter other punctuation marks, press and then or repeatedly. Press to accept and add a space. Press and hold to select an input method for the text you are currently writing.

To enter letters using T9™ Text Input

1. Scroll to Messages,

YES, Te xt , YES, Write New, YES.

2. For example, if you want to write “Jane”, press

T9™ Text Input

You can use T9™ Text Input when writing text messages. The T9™ Text Input method uses a builtin dictionary to recognize the most commonly used words for each sequence of key presses. This way, you press each key only once, even if the letter you want is not the first letter on the key.

, , , . A list of alternative words or candidates are shown. If the candidates do not include a word you want, you can add a new word to the list whilst selecting.

3. Scroll to select Jane.

4. When the word is highlighted, press

without a space, or press to accept and add a space.

Getting to know your phone 13

This is the Internet version of the user's guide. © Print only for private use.

YES to accept

Page 14

To add a word to candidates

1. Scroll to a candidate similar to the word you want to add, press , select Edit Word,

YES.

2. Press repeatedly to delete one letter at a time. Write the new word using multitap text input,

YES.

The word is added to the dictionary. The next time you enter the word you just added to the dictionary, it appears as one of the alternative words.

3. Continue writing your message. See also

• Language – Select an input language.

• Input Method – A list of input methods available for the current input language is shown.

• Candidates – For T9™ Text Input only. Turn on or off the alternative words list.

• National Char. – Turn off language-specific characters to save space. This option only appears for some input languages.

• Help.

“Text messages (SMS)” on page 43.

To turn T9™ Text Input on or off

The list of options

Press when writing to enter a list of options.

Scroll to Settings,

YES, Language, YES, T9 Input, YES

or press and hold when writing. The list may contain some or all of the following options:

• Add Symbol – Symbols and punctuation marks

such as ? and , are shown. Move between the symbols by using the navigation key.

• Insert Item – Add a picture, sound effect,

melody or animation to a message.

• Edit Word – For T9™ Text Input only.

Edit the suggested word by using multitap text input.

• Te xt F or m at – Edit size, style, alignment

or start a new paragraph.

14 Getting to know your phone

This is the Internet version of the user's guide. © Print only for private use.

Page 15

Personalizing your phone

Choosing ring signal, theme and other settings

Caller-ID service). See “To add a picture to a phonebook entry” on page 26.

• Enclose a black and white picture in a text message.

• Send a picture via IR.

Themes

• Download a picture via WAP. You can change the appearance of the display, for example, the colors and wallpaper, by using themes. Your phone comes with a number of preset themes.

Handling pictures

You can also add, delete or rename pictures in My Pictures. The number of pictures that can be saved depends on the size of the pictures. File

To select a theme

Scroll to Fun & Games,

YES, Themes, YES.

To adjust the display contrast

Scroll to Settings,

YES, Display, YES, Contrast, YES.

Pictures

Your phone comes with a number of pictures. All pictures are saved in Fun & Games/My Pictures. You can:

• Set a picture as a wallpaper when in standby mode.

• Assign a picture to an entry in the phonebook.

When that person calls, the picture appears in the

types supported are GIF, JPEG and WBMP.

Tip: When viewing your pictures in Fun & Games/ My Pictures, you can set a wallpaper by pressing .

To view your pictures

Scroll to Fun & Games, The pictures are shown in thumbnail view. To get a full view, press

YES.

Animations can only be viewed when inserting an item in a text message. See “To insert an item in a text message” on page 43.

display (provided your subscription supports the

Personalizing your phone 15

This is the Internet version of the user's guide. © Print only for private use.

YES, My Pictures, YES.

Page 16

To select a picture as wallpaper

1. Scroll to Settings, Select Picture,

2. Select a picture,

YES, Display, YES, Wallpaper, YES,

YES.

To receive a picture via Infrared

1. From standby, press , scroll to Activate IR,

2. When you receive the picture, press

YES to save it in

My Pictures.

YES.

To turn the wallpaper on or off

Scroll to Settings, Activate,

YES, Display, YES, Wallpaper, YES,

YES.

To receive a picture via a message

When you receive a picture via a message, a new message appears in your Inbox. Highlight the picture in the message by using the navigation key to select it,

Exchanging pictures

press and select Save to save it in My Pictures. You can send and receive pictures via IR and in text messages. For more information on sending pictures in messages, see “Messaging” on page 42.

Note: You are not allowed to exchange copyrightprotected material.

To send a picture

1. Scroll to Fun & Games,

2. Select a picture,

3. Select Send,

YES.

4. Select a transfer method,

16 Personalizing your phone

YES, My Pictures, YES.

YES. Press .

YES.

Ring signals and melodies

Your phone comes with a number of standard

and polyphonic melodies which can be used as

ring signals. See “Icons” on page 67 for more

information. You can create and edit melodies,

and send them to a friend, in a text message.

You can also exchange melodies via IR or download

new via WAP.

Note: You are not allowed to exchange copyright-

protected material.

This is the Internet version of the user's guide. © Print only for private use.

Page 17

Managing ring signals and melodies

Exposure to a loud ring volume may damage hearing. Answer the call or lower the volume before placing the phone to your ear.

To select a ring signal

Scroll to Settings, Ring Sounds,

YES, Sounds & Alerts, YES,

YES.

To set the ring signal volume

1. Scroll to Settings, Ring Volume,

YES, Sounds & Alerts, YES,

YES.

2. Press or to decrease or increase the volume.

3. Press

YES to save the setting.

To turn the ring signal on or off

Press or press and hold from standby and select Turn On Silent or Turn Off Silent. All signals except the alarm signal are turned off.

To compose your own ring signal

You can compose up to ten personal ring signals.

• Press to raise the note one octave.

• Press once to raise the note one semitone.

• Press twice to lower the note one semitone.

• Press to remove notes.

To compose a ring signal

1. Scroll to Fun & Games,

2. Compose your ring signal using the options

described above.

3. To listen to your ring signal, press

4. Press

YES again to save and name it, or press NO

to continue composing.

Exchanging ring signals and melodies

You can send and receive a sound, ring signal or melody via IR, text messages, or download it via WAP. To send a ring signal or melody in a text message, see “To insert an item in a text message” on page 43.

Note: You cannot exchange a polyphonic melody via text messages.

To send a melody

1. Scroll to Fun & Games,

Options available when composing a ring signal are:

• Press a key to enter a note. Press and hold the key

to make it a long note.

2. Select a melody and press .

3. Select Send,

YES.

4. Select a transfer method.

Personalizing your phone 17

This is the Internet version of the user's guide. © Print only for private use.

YES, Composer, YES.

YES.

YES, My Sounds, YES.

Page 18

To receive a sound or melody via Infrared

1. From standby, press , scroll to Activate IR,

2. When you receive the sound or melody, press

to save it in My Sounds.

YES.

1. Scroll to Settings,

YES

Vibrating Alert,

2. Select the setting you want,

To set the vibrating alert

YES, Sounds & Alerts, YES,

YES.

Increasing Ring

You can choose a ring signal that rises in steps from the lowest volume to the highest, or you can choose a ring signal with constant volume.

Menu language

Most SIM cards automatically set the menu language to the language of the country where you bought your SIM card. If this is not the case, the preset language is English.

To turn increasing ring On or Off

Scroll to Settings, Increasing Ring,

YES, Sounds & Alerts, YES,

YES.

Note: You can always choose Automatic by pressing

8888 in standby. You can always choose

English by pressing 0000 in standby.

Sounds & Alerts

You can choose to be notified of an incoming call by the buzzing of the vibrating alert. You can set the phone’s vibrating alert to On, On If Silent or Off.

From Settings/Sounds & Alerts, you can also select:

• Message Alert when messages are received.

• Key Sound when using the keypad.

• Minute Minder to beep after every minute

during calls.

To change the menu language

1. Scroll to Settings,

2. Select a language,

YES, Language, YES, Menus, YES.

YES.

Display light

The display light can be set to Automatic, Off or On. In automatic mode, the display light is turned off a few seconds after you press the last key.

Note: If set to On, the display light consumes extra battery power and reduces standby time.

18 Personalizing your phone

This is the Internet version of the user's guide. © Print only for private use.

Page 19

To set the display light

Scroll to Settings,

YES, Display, YES, Light, YES.

Date

When the phone is in standby, you can always see today’s date in the main display or you can press one

To set the display contrast

Scroll to Settings,

YES, Display, YES, Contrast, YES.

Time settings

The time is displayed in the external display when the phone is closed.

You can also see the time in the main display in standby. The time can be displayed in a 12-hour or a 24-hour clock.

Note: If you select the 12-hour clock, you can alternate between am and pm by pressing when setting the time.

To set the time

Scroll to Settings, Set Time,

YES, Time and Date, YES,

YES.

To set the time format

Scroll to Settings, Time Format,

YES, Time and Date, YES,

YES.

of the volume keys to see the date in the status menu. To return to standby, wait a few seconds.

To set the date

Scroll to Settings, Set Date,

YES, Time and Date, YES,

YES.

To set the date format

Scroll to Settings, Date Format,

YES, Time and Date, YES,

YES.

Advanced time settings

Under Advanced in the Settings/ Time and Date menu, you can set time zone

and daylight saving time. Modyfying these settings changes the time accordingly if your network operator supports this service.

When your phone changes network and the time sent out from the network operator deviates from the time in your phone, you are asked whether you want to update the time if you have turned on Auto Time Zone. If you press is updated automatically.

Personalizing your phone 19

This is the Internet version of the user's guide. © Print only for private use.

YES, the time

Page 20

Note: Contact your network operator for more information.

My shortcuts

You can place your favorite functions that you want to reach quickly and easily in the My Shortcuts menu.

Answering mode

When using a portable handsfree kit, you can choose to answer a call by opening the phone, pressing any key (except the

NO key), or setting the phone to

answer the call automatically.

To select answering mode

Scroll to Settings, Answering Mode,

YES, Handsfree, YES, YES.

Phone functions

You can answer a call by opening the phone.

To set the phone functions

1. Scroll to Settings,

YES, Flip functions, YES.

2. Select Answer call or Off.

My phone numbers

You can check your own phone number(s).

To check your phone number

Scroll to Phonebook, My Numbers,

YES, Special Numbers, YES,

YES. If your number is not saved

To reach a shortcut from standby

Press to enter the first shortcut in My Shortcuts.

To add a function to my shortcuts

1. Scroll to My Shortcuts,

YES, Edit Shortcuts, YES.

2. Select a function from the list by pressing .

3. Enter the position number you want for this function

in your menu and press

4. Press

YES to save and exit the list.

Profiles

Your phone has a number of preset profiles which are set to suit a certain environment. You can rename, change, or add accessories to the profiles. For example, when you go to a meeting you can simply choose the Meeting profile and a number of settings are changed, such as the ring signal is turned off. You can reset all profile settings to the default or the way they were set when you bought your phone: for example Normal.

on your SIM card, you can enter it yourself.

20 Personalizing your phone

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 21

Accessories may change the selected profile in your phone automatically. For example, when using a portable handsfree the profile switches from Normal to Port H-free. The profile should automatically change back when the accessory is disconnected.

Master reset

You can reset all the settings in the phone to the way they were when you bought your phone by selecting Reset Settings.

If you also want to delete all phonebook entries, messages and other personal data, select Reset All instead.

To select a profile

Scroll to Settings, Select Profile,

YES.

YES, Profiles, YES,

Note: If you select Reset All, content such as melodies and pictures that you have downloaded, received or edited is also deleted.

To change a profile setting

1. Scroll to Settings, Edit Profile,

2. Select a setting,

YES, Profiles, YES,

YES.

3. Change the profile settings and press

YES to confirm.

To reset the phone

1. Scroll to Settings,

YES, Master Reset, YES.

2. Select Reset Settings or Reset All,

3. Press

YES to continue.

4. Enter the phone lock code (0000 or the new code

To rename a profile

Scroll to Settings,

YES, Profile name:, YES.

YES, Profiles, YES, Edit Profile,

To reset all profiles

Scroll to Settings, Reset Profiles,

YES, Profiles, YES,

YES.

if you have changed it) and press

The infrared (IR) port

The infrared port can be used to transfer and exchange information with another device equipped with an infrared port. See “Getting to know your phone” on page 6 to locate the infrared port. When used with certain functions, such as sending a picture, IR is automatically activated for a shot while.

Personalizing your phone 21

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 22

Note: Infrared ports must be facing each other at a distance of 20 to 30 cm (7.9 to 11.8 Inches) when used.

Calling

Using the phonebook, call options

The infrared port can be activated in the following ways:

• Press from standby, scroll to Activate IR,

• Scroll to Connect,

an option,

YES, Infrared Port, YES, select

YES.

• When selecting a transfer method, for example,

for sending a picture.

Making calls

Before you can make or receive any calls, you must turn on the phone and be within range of a network.

YES.

See “SIM card and battery information” on page 4.

Tip: You can call numbers from the call list and the phonebook. See “Call list” on page 25 and “Phonebook” on page 25.

To turn infrared off

Scroll to Connect,

YES, Infrared Port, YES, Off, YES.

To make a call

1. Enter the area code and the phone number, and press

YES to make the call.

2. Press

NO or close the phone to end the call. See

“Phone functions” on page 20.

During calls

You can increase or decrease the speaker volume during a call. The microphone must be turned on to change the speaker volume during a call.

22 Calling

This is the Internet version of the user's guide. © Print only for private use.

Page 23

To change the speaker volume

Press the volume keys to change the speaker volume.

To turn off the microphone during a call

1. Press and hold until the display shows Muted.

2. Press again to resume the conversation.

Automatic redialing

Automatic redialing is available for all calls except data calls.

Note: Do not hold the phone to your ear while waiting. When the call is connected, the phone gives a loud signal.

The phone re-dials the number up to ten times or until:

• the call is connected

• you receive a call

• you press a key.

International calls

It is useful to enter the + sign and country code for all numbers in the phonebook as they can then be easily used whether home or abroad.

To make international calls

1. Press and hold until a + sign appears in the display. The + replaces the international prefix number of the country from which you are calling.

2. Enter the country code, area code (without the leading zero) and phone number,

YES.

Emergency calls

Your phone supports international emergency numbers such as 112, 911, and 08. This means that these numbers can normally be used to make an emergency call in any country, with or without a SIM card inserted, if a GSM network is within range.

To re-dial a number

If the connection of the call failed and the display shows Retry?, press

YES.

Note: Some network operators may require that a SIM card be inserted, or in some cases, that a correct PIN be entered, in order to make an emergency call.

This is the Internet version of the user's guide. © Print only for private use.

Calling 23

Page 24

In some countries, other emergency numbers may also be promoted. Your operator may therefore have saved additional local emergency numbers on the SIM card.

To make an emergency call

Enter, for example, 112 (the international emergency number),

YES.

To view your local emergency numbers

Scroll to Phonebook, Emergency Nos.,

YES, Special Numbers, YES,

YES.

Receiving calls

If your subscription includes the Caller ID service and the caller’s number is identified, the number appears in the external display when the phone is closed. If you have saved the number in your phonebook, the name and number appear.

If the number is a restricted number, Withheld

appears.

Answer or reject calls

If you receive a call when the phone is closed, the phone rings and a phone icon appears in the external display. If the phone is open, Answer? appears in the main display.

24 Calling

To answer a call

• Open the phone and press

• Open the phone (if the phone function Answer call

is activated. See “Phone functions” on page 20.).

• If the phone is already open, press

To re j ect a c all

• Close the phone.

•Press

NO.

• Quickly press a volume key twice.

Missed calls

If you have missed a call, Missed calls:1 appears in the external display and in the main display, indicating the number of missed calls.

The most recent missed call is first on the call list, and the oldest call is last. Scroll to select and show the time if the call occurred on the same day. Otherwise, only the date appears for older missed calls.

To check your missed calls

1. When Missed calls: 1 is displayed, open the phone and press

YES to display the missed calls.

2. To call a number from the list, scroll to the number,

YES.

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 25

Call list

The numbers of the last calls that you have made or received are saved in the call list. If your subscription includes the Calling Line Identification service and the caller’s number is identified, you will also find the numbers of answered and missed calls in the call list.

Saving a number

When you want to save a phone number, you use the Add Number function in the phonebook menu. If you have already made and received calls, you can find these numbers in the Add numbers list.

Every phone number you save also gets a position number. If you want to, you can choose to sort your phonebook entries according to their position number

To call a number from the call list

1. To enter the call list, press

YES from standby.

2. Scroll to the number you want to call,

YES.

instead of the name.

If you intend to use your phone both at home and abroad, it is a good idea to save all phone numbers as international phone numbers, i.e. with the + sign,

To clear the call list

Scroll to Calls,

YES, Options, YES, Clear Call List, YES.

followed by the country code, the area code and the phone number. Press and hold to enter the + sign.

To turn the call list on or off

Scroll to Calls,

YES, Options, YES, Call Listing, YES.

Phonebook

Your phone has a phonebook in which you can save numbers and accompanying names (an entry).

This means that you can retrieve a number from

To save a number together with a name

1. Scroll to Phonebook,

YES, Add Number, YES.

2. Select Add New or any of the numbers from the list by pressing

YES.

3. Enter the phone number that you want to save and press

YES.

the phonebook instead of entering the number again.

This is the Internet version of the user's guide. © Print only for private use.

Calling 25

Page 26

4. Enter a name that you want to associate with the phone number and press

YES. See “Entering letters

and characters” on page 12.

5. Press

YES again to save the entry in the suggested

position.

Pictures and personal rings

You can add a picture to a phonebook entry.

If your subscription includes the CallerID (CID) service, you can assign a personal ring signal to a caller.

Calling a number saved in the phonebook

You use the Find and Call function to call a number that you have saved in the phonebook.

To call a number saved in the phonebook

1. Scroll to Phonebook,

YES, Find and call, YES.

2. Enter the name or the first few letters of the name (sort order by name) associated with the number that you want to call and press

3. If the name displayed is not the one you want, press

or until you find the correct name and number.

4. Press

YES to make the call.

To add a picture to a phonebook entry

1. Scroll to Phonebook,

2. Select Add New, press

3. Press

YES to go to the phonebook, YES.

4. This takes you to Picture. Select a picture and press

YES.

YES, Picture, YES.

YES.

Speed dialing

You can call the phone numbers that you have saved in positions 1–9 by entering the position number in standby, and then pressing

Example:

To add a ring signal to a phonebook entry

1. Scroll to Phonebook,

2. Select Add New, press

3. Press to go to the phonebook,

YES, Personal Rings, YES.

YES.

4. This takes you to Personal Rings. Select a ring signal and press

26 Calling

YES.

Press and then

YES.

Shortcuts to phonebook entries

When in standby, you can find an entry of the keys

– to find an entry beginning with the first

letter on that key, or the closest following.

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 27

Example:

Press and hold to get to the first entry beginning with the letter “G” (or the closest following). Then scroll up or down, using or . When you find the entry you want, press

YES to

make the call.

To edit an entry

1. Scroll to Phonebook,

YES, Find and Edit, YES.

2. Enter the name (or the first few letters) for the entry that you wish to edit and press

3. Press

YES to select the entry.

4. Select Edit and press

YES.

5. When you have finished editing, press

Ask to save

If Ask to Save is on, you are asked if you want to save any called or answered number that is not already saved in your phonebook.

Note: Your subscription must include the Caller ID service if you want to save answered numbers.

To turn the Ask to Save function on or off

1. Scroll to Phonebook, Ask to Save,

2. Select On or Off and press

YES, Options, YES,

YES.

Keeping the phonebook up to date

You can change and delete names and numbers from the phonebook.

your changes.

To delete an entry from the phonebook

1. Scroll to Phonebook,

YES, Find and Edit, YES.

2. Enter the name (or the first few letters) for the entry that you wish to delete and press When the entry you want to delete is highlighted, press

YES.

3. Press

YES to confirm.

Sort order

You may change the sort order of your phonebook entries, so that they are sorted according to their position number instead of the name. This means that you search for the position number when you use the Find and Call or the Find and Edit functions.

This is the Internet version of the user's guide. © Print only for private use.

YES.

YES to save

YES.

Calling 27

Page 28

To choose a sort order

1. Scroll to Phonebook, Sort Order,

YES.

YES, Options, YES,

2. Select a sort order and press

YES.

• To save the number in another position, press to delete the position number, enter a new

position number and press

• To save the number in the phone memory, you

first need to know how many positions you have

Phonebook memories

Your phonebook entries are saved in the memory on your SIM card. The number of entries you can save depends on your SIM card. By saving your entries on the SIM card, you still have access to

got on your SIM card. You can check this in the Memory Status menu, see page 28. If, for example, you have 200 positions on your SIM card, you can enter position number 201 to save a number in the first position of the phone memory.

them if you use the card with another phone.

You can also save your entries in the phone memory. The phone memory holds a number of positions in which your entries are saved when all SIM positions are occupied. If you save your entries in the phone memory, you still have access to them if you use another SIM card with your phone.

Choosing where to save an entry

Replacing entries

If you try to save a phone number in a position which already contains a phone number, the message Overwrite? appears together with the name saved in that position. You now have two options:

•Press

YES to replace the number with the new one.

•Press

NO if you do not want to replace the old

number. Enter a new position and press When you save an entry and are asked to enter the position number, you can do the following:

• To save the number in the first empty position

suggested, press

YES.

Checking the status of the memory

You can check how many memory positions you have in your memories and how many of them you have used.

28 Calling

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 29

To check the status of the memories

Scroll to Phonebook,

YES, Memory Status, YES.

If you have saved entries in the phone memory, you can delete them.

Groups

You can create a group of phonebook entries. You can then send a text message to all members of that group at the same time. See “Text messages (SMS)” on page 43.

To delete all entries from the phone memory

1. Scroll to Phonebook, Delete all?,

2. Press

YES.

YES again. If you delete all entries from the phone

YES, Options, YES,

memory, the entries on your SIM card are not deleted.

To create a new group

1. Scroll to Phonebook, Add group?,

YES, Groups, YES,

YES.

2. Enter a name for the group and press

3. Scroll to Add New and press

Copy phonebook entries

You can copy the phonebook entries between your phone’s memory and the SIM card. The number of entries that can be saved depends on the type of SIM card.

To copy entries to the SIM card

Scroll to Phonebook,

YES, Options, YES,

Copy to SIM.

To copy entries to the phone

Scroll to Phonebook,

YES, Options, YES,

4. Select an entry in your phonebook and press

5. To add the next member, repeat steps 3 and 4.

6. Press

NO to leave the menu.

To add a member to an existing group

Select the group you want and then select Edit, Add New,

YES.

Voice mail

If your subscription includes an answering service, callers can leave a voice mail message when you cannot answer a call.

Copy from SIM.

This is the Internet version of the user's guide. © Print only for private use.

YES.

YES,

Calling 29

Page 30

Receiving a voice mail message

Depending on your network operator, you are informed that someone has left a message by a text message or by a voice mail indication.

Calling your voice mail service

You can easily call your voice mail service by pressing and holding , if you have saved your voice mail number in the phone. You get the number from your service provider.

To enter a voice mail number

Scroll to Messages, Voicemail No.,

YES, Options, YES,

YES.

Call cost

For cost information you need to verify with your network operator or service provider whether you can subscribe to such a service where call cost (or the number of call units) is displayed.

Cost information

If you have a subscription with a cost information service, you can check the cost of your last call and the total cost of your calls.

Note: If you subscribe to cost information, you must enter your PIN2 to clear the cost or time counter.

Call time

During a call, the duration of the call is shown in the display.

You can check the duration of your last call,

outgoing calls and the total time.

To check the call time and reset timer

• Scroll to Calls, Call Timers and select an option,

YES, Time & Cost, YES,

YES.

•Select Reset Timers to reset the call time meter.

30 Calling

To check the call cost and reset cost meter

• Scroll to Calls,

YES, Time & Co st, YES, Call Costs

and select an option,

•Select Clear Total Cost to reset the call cost meter.

Setting the call cost

You can use the rate function to specify the price per call unit. If you do not specify a price per call unit, the number of call units is displayed.

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 31

To enter the price per call unit

1. Scroll to Calls,

YES, Set Rate, YES.

2. Enter your PIN2,

3. Select Change Rate,

YES, Time & Cost, YES, Call Costs,

YES.

Forwarding calls

If you cannot answer incoming voice or data calls, you can forward them to another number, for example your answering service.

4. Enter the code for the currency you want (for example USD for US Dollars),

5. Enter the price per call unit,

YES.

Note: When the Restrict Calls function is on, some Forward Calls options cannot be activated.

To enter a decimal point, press .

For voice calls, you can choose between the

Credit limit for calls

You can enter a total amount of money that can be used for making calls. When the amount reaches zero, no more calls can be made. Please note that the credit limit is only an estimated value.

To set a credit limit

1. Scroll to Calls,

YES, Set Credit, YES.

2. Enter your PIN2,

3. Select Change,

4. Enter an amount,

YES, Time & Cost, YES, Call Costs,

YES.

See “Security” on page 54 for more information about PIN2.

following forward alternatives:

• Always Forward – forward all voice calls.

• When Busy – forward calls if you are already on the phone.

• Not Reachable – forward calls if your phone is turned off or if you are unreachable.

• No Reply – forward calls that you do not answer within a specified time limit (operator-dependent).

To turn on a call forward

1. Scroll to Calls, Forward Calls,

YES, Manage Calls, YES,

YES.

2. Select a call category and then a forward alternative,

YES.

This is the Internet version of the user's guide. © Print only for private use.

Calling 31

Page 32

3. Select Activate, YES.

4. Enter the phone number to which you want your

calls to be forwarded and press

YES, or retrieve it

from the phonebook.

Note: During a call the Ongoing Call menu replaces the Calls menu.

Call waiting service

If the call waiting service is activated, you hear a beep

To turn off a call forward

Select a forward alternative and select Cancel.

To check status

1. Scroll to Calls, Forward Calls,

2. Select a call type,

3. Scroll to the forward you want to check,

Select Get Status,

YES, Manage Calls, YES, YES.

YES.

To check the status of all call forwards

Select Check All in the Forward Calls menu.

More than one call

You can handle more than one call simultaneously. For example, you can put an ongoing call on hold, while you make or answer a second call, and then switch between the two calls. You cannot answer a third call without ending one of the first two calls.

32 Calling

in the earpiece if you receive a second call during an ongoing call.

To activate or deactivate the call waiting service

Scroll to Calls, Call Waiting,

YES, Manage Calls, YES,

YES.

To make a second call

1. Press

YES to put the ongoing call on hold. You can

only put one call on hold.

2. Enter the number you want to call and press or retrieve a number from the phonebook. You can also reach different options by pressing .

To receive a second call

• To answer the second call and put the ongoing call

on hold, press

YES.

• To reject the second call and continue the ongoing

call, select Busy.

• To answer the second call and to end the ongoing

call, select Release & Answ.

This is the Internet version of the user's guide. © Print only for private use.

YES,

Page 33

Handling two calls

When you have one ongoing call and one call on hold,

To join the two calls into a conference call

Scroll to Ongoing Call,

you can do the following:

•Press

YES to switch between the two calls.

• Press and select Join Calls to join the two calls into a conference call.

• Press and select Transfer Call to connect the two calls. You are disconnected from both calls.

•Press

NO to end the ongoing call, then press YES

To add a new participant

1. Press

YES to put the conference call on hold.

2. Call the next person you wish to include in the conference call.

3. Press , select Join Calls, Repeat steps 1 to 3 to include more participants.

to retrieve the held call.

•Press

NO twice to end both calls.

To release a participant

1. Press , select Release Party,

Conference calls

2. Select the participant,

YES.

You can have a joint conversation (conference call) with up to five people. You can also put a conference on hold

To end the conference call

Press

NO.

and make another call.

Having a private conversation

Note: There may be additional charges for calls involving multiple parties. Contact your service

You can have a private conversation with one of the participants and put the other participants on hold.

provider for more information.

To start a private conversation

Creating a conference call

To create a conference call, you must first have one ongoing call and one call on hold.

1. Press , then select Extract Part to select the participant that you want to talk with.

2. Select Join Calls to resume the conference call.

This is the Internet version of the user's guide. © Print only for private use.

YES, Join Calls, YES.

YES.

Calling 33

Page 34

Restricted dialing

You can use the restrict calls service to restrict outgoing and incoming calls. This may be useful, for example, when you

Fixed dialing

The fixed dialing function allows calls to be made only to certain numbers saved on the SIM card.

are abroad. To use this service, you need a password which you get from your service provider.

Note: If you forward incoming calls, you cannot activate some Restrict Calls options.

Note: Calls to international emergency numbers can still be made even when the fixed dialing function is on.

Fixed dialing requires a SIM card that allows fixed numbers to be saved. The fixed numbers

The following calls can be restricted:

• All Outgoing – All outgoing calls.

• Outgoing Intl. – All outgoing international calls.

• Outg. Intl. Roam – All outgoing international calls except to your home country.

• All Incoming – All incoming calls.

• Inc. when Roam – All incoming calls when you are abroad (when roaming).

are protected by your PIN2.

You can save partial numbers or numbers with

question marks.

• Partial numbers: Saving 0123456 allows calls to be made to all numbers starting with 0123456.

• Numbers with question marks: Saving 01234567?0, allows calls to be made to numbers from 0123456700 to 0123456790. To enter a question mark, press and hold .

To turn a call restriction on or off

1. Scroll to Calls, Restrict Calls,

2. Select an option,

YES, Manage Calls, YES,

YES.

3. Select Activate or Cancel,

4. Enter your PIN,

34 Calling

YES.

To turn fixed dialing on or off

1. Scroll to Phonebook, Fixed Dialing,

2. Enter your PIN2,

3. Select On or Off,

YES, Options, YES,

YES.

This is the Internet version of the user's guide. © Print only for private use.

Page 35

To save a fixed number

1. Scroll to Phonebook, Fixed Numbers,

YES, Special Numbers, YES,

YES.

2. Select Add New and enter the number.

Closed user groups

The Closed User Group function is a way of lowering call costs. On some networks it is cheaper to make calls within a call group. You can save ten groups.

To call outside a Closed User Group

Select Open Calls and then select On.

Accept calls

With the accept calls service, you can choose to receive calls only from certain numbers. Other calls are automatically rejected by a busy tone. The phone numbers of calls you have rejected are saved in the Call List.

To add a group

1. Scroll to Calls, Closed Groups,

2. Scroll to Add New,

YES, Manage Calls, YES,

YES, Edit List, YES.

YES.

3. Enter the name of the user group,

4. Enter the index number,

YES. You get the index

number from your operator.

To activate a group

1. Scroll to Calls, Closed Groups,

2. Select a group,

3. Select Activate,

YES, Manage Calls, YES,

YES, Edit List, YES.

YES.

YES. Calls can only be made within

the selected group.

YES.

To add numbers to the accepted callers list

1. Scroll to Calls, Accept Calls,

2. Scroll to Add New,

3. Select an option,

4. Select an entry,

YES, Manage Calls, YES,

YES, Accepted List, YES.

YES.

To select an accept option

Scroll to Calls, Accept Calls,

YES, Manage Calls, YES,

YES, Accept Options, YES.

Networks

When you turn on the phone it automatically selects your home network if this is within range. If it is not within range, you may use another network. This is called roaming.

This is the Internet version of the user's guide. © Print only for private use.

Calling 35

Page 36

Additional calling functions

To show or hide your phone number

1. Enter the phone number you want to call.

Tone signals

You can use telephone banking services or control an answering machine by sending

2. Press or scroll to Calls,

3. Select Hide My Number or Show MyNumber and

press

YES to make the call.

tone signals (also known as DTMF tones or touch tones) during a call.

To send and clear tones

• Press the number keys 0-9, and .

• To clear the display after a call, press

NO.

Notepad

You can use the phone to make note of a number during a call. When you press the number keys, the person you are talking to hears tone signals. To turn these tone signals off during the call, press , select Tur n Off Tones,

YES. When you end the call,

the number remains in the display. You can then call the number by pressing

YES.

Showing or hiding your number

If your subscription supports the Caller ID Restriction service, you can hide your phone number when making a call.

36 Calling

This is the Internet version of the user's guide. © Print only for private use.

YES, Next Call, YES.

Page 37

Setting up WAP

WAP browser

Requirements

In order to use the Internet or browse via WAP services, the following are required:

• A phone subscription that supports data transmission.

• Settings entered in your phone. Settings may already be entered when you buy your phone or you can receive settings in a text message from your network operator or service provider. You can also find settings at www.SonyEricsson.com.

• You may also have to register as a WAP user with your service provider or network operator.

Receiving settings in a text message

Your GSM network operator or Internet service provider may be able to send the required data account and WAP settings direct to your phone in a text message (SMS).

Request settings from Sony Ericsson

Use a PC to go to www.SonyEricsson.com. Select your region and then use the Configurators to request that a text message be sent to your phone with the settings you need.

To install settings

When the message arrives, New settings received. Install? appears:

•Press

YES to install the new settings. If settings

already exist in your phone you can either keep or replace them. See “Advanced setting information” on page 38.

•Press

NO to cancel installation.

After installation, see “Using WAP” on page 48.

Set up with the wizard

If your phone is not set up for WAP, you can ask your network operator or service provider to provide you with WAP settings information. Then you can simply use the wizard in your phone to help guide you through the relevant settings.

This is the Internet version of the user's guide. © Print only for private use.

Setting up WAP 37

Page 38

To use the wizard for setting up WAP

1. Scroll to WAP Services, Sony Ericsson),

YES, homepage (for example

YES. The wizard now starts if no WAP

settings exist.

2. Enter and save settings when asked, press to confirm.

YES

Data account settings

You can have several data accounts saved in your phone with different settings for different purposes. The main setting for a data account is the Account Type (connection method).

Advanced setting information

Some advanced settings that are described in the following texts may not be mandatory, please

Tip: If there are no data account or WAP profile settings in your phone, you can enter data account settings when you enter WAP profile settings.

consult your network operator or service provider for more information.

You can choose from GPRS Data or GSM Data

account types. If you want to change access type, A data account includes connection settings for access to a server at your service provider,

you have to create a new data account and select

the access type you want to use. for example via WAP or via email.

A WAP profile includes user settings that

allow WAP browsing.

Note: Please contact your network operator

for charging details.

To use the WAP browser, via a WAP service provider, you need settings for a specific data account for WAP, and a WAP profile.

To send a text message (SMS) to an email address via your network operator, you need to set an email

GPRS

GPRS (General Packet Radio Service) allows fast and efficient access where you can always be online.

gateway phone number.

Note: You need a subscription that supports GPRS.

38 Setting up WAP

This is the Internet version of the user's guide. © Print only for private use.

Page 39

GPRS settings that are available:

• APN (Access point name address) – the address

of the external data network you want to connect

to, either an IP address or a text string.

• User ID – your user id to log on to the external

data network.

• Password – your password to log on to the external

data network.

• Pwd. Request (Password request) – if this setting

GSM

GSM settings include some settings that are similar to GPRS settings and some that are GSM-specific as follows:

• Phone Number – the phone number of your Internet service provider.

• Data Rate – select the speed you want for the connection.

• Dial Type – select analog or ISDN connection.

is on, you are asked for a password each time you log on to the external data network.

• Allow Calls (Preferred service) – if you want to be able to accept incoming calls during a GPRS session, select Automatic. If not, select GPRS Only.

• IP Address – the IP address that the phone uses when communicating with the network. If you do not enter an address, the network provides you with a temporary IP address.

To create a data account manually

1. Scroll to Connect, Data Accounts,

YES, Data Comm., YES,

YES, Add account?, YES.

2. Select an account type for access.

3. Enter a name for the data account.

4. Enter the settings that you have received from your

network operator or service provider. Confirm each setting by pressing

5. Scroll to Save?,

YES.

• DNS Address – if the network does not provide the IP address to the DNS server automatically, you may enter it here.

• Advan. Settings (Advanced settings) – these are optional. Consult your network operator.

To edit a data account

1. Scroll to Connect, Data Accounts,

YES, Data Comm., YES,

YES.

2. Select a data account,

YES.

3. Select Edit.

This is the Internet version of the user's guide. © Print only for private use.

YES.

Setting up WAP 39

Page 40

4. Select the setting you want to edit, YES. Edit the setting,

YES.

5. Repeat step 4 for other settings you want to edit.

To enter WAP profile settings manually

1. Make sure you have a data account set up between your phone and the Internet server, as described in “Data account settings” on page 38.

Preferred service

You can set GPRS or GSM as the preferred service.

2. Scroll to WAP Services, WAP Profiles,

YES.

3. Select Add profile? to add a new profile or select

Note: To see the status of GPRS coverage and

an existing profile that you want to edit,

connection in standby look at the triangle above the signal strength indicator. If the triangle is filled GPRS is available. Otherwise it is not.

To select preferred mode

Scroll to Connect, Pref. Service,

YES, Data Comm., YES,

YES, and select GPRS and GSM

or GSM Only.

WAP profile settings

The WAP settings are stored in a WAP profile. In most cases you only need to use one profile to access the Internet.

You set up and use additional WAP profiles, for example, when accessing secure Internet sites such as a banking site or a corporate intranet. You then

To enter information in a new profile

When selecting Add profile? enter a name for the profile,

YES, Connect using:, YES, select the data

account to be used,

YES. A list appears. Scroll to Save?, YES.

YES and enter the IP address:,

To edit an existing profile

When selecting an existing profile, you can do the following:

• Rename – Change the name of the profile.

• Connect Using – Select data account.

• IP Address – WAP gateway server address.

• Advanced – More profile settings, see below.

• Delete – Remove the profile.

simply switch between profiles when you need to change the network connection.

40 Setting up WAP

This is the Internet version of the user's guide. © Print only for private use.

YES, Options, YES,

YES.

Page 41

To use advanced profile settings

If you select Advanced you can do the following:

• Chg. Homepage – Enter the address of the WAP

site you want as the homepage.

• Second Account – Select an alternative data

account if the first in Connect Using fails.

To turn on a secure connection

1. Scroll to WAP Services, WAP Profiles,

YES.

2. Select the profile to be used,

3. Select Advanced,

4. Select On,

YES, Security, YES.

YES.

• User ID – Enter your user id for the WAP gateway.

• Password – Enter your password for the WAP gateway.

• Security – See WAP security settings.

Trusted certificates

To establish a secure connection when using certain WAP services, for example banking or WAP shopping, you need certificates in your phone.

• Show Pictures – View pictures while browsing.

The different types of certificates are as follows:

WAP security settings

Your phone has support for WAP secure browsing. Security for a connection between a WAP gateway and a WAP service provider is the responsibility of the WAP service provider.

• Server certificates are used to identify a WAP gateway to the phone and to show that it is certified by a trusted authority. The server certificate is checked against trusted certificates that are stored in the phone. If the phone cannot verify the identity of a server, you are given the options to terminate or continue the connection.

Turning on security

When you turn on security, the connection between your phone and the WAP gateway is secure.

• Trusted certificates are used to verify the WAP gateway that you are trying to connect to. Your phone may already contain trusted certificates when you buy it.You can also download trusted certificates from Sony Ericsson or other WAP pages.

This is the Internet version of the user's guide. © Print only for private use.

YES, Options, YES,

YES.

Setting up WAP 41

Page 42

To check the certificates in your phone

• Scroll to WAP Services,

YES, Security, YES, Trusted Certif., YES.

YES, Options, YES, Common,

Messaging

Text messaging

Service numbers

The number to your service center is provided by your operator. If the number to your service center is not saved on your SIM card, you must specify the number yourself. Otherwise you cannot reply to received messages or send your own messages.

Your phone also features enhanced messaging

services (EMS) that allow you to add pictures, animations, sounds and melodies to text messages.

To check the number to your service center

1. Scroll to Messages, Service Centers,

YES, Options, YES,

YES. If no number is found,

select Add New and press

2. Enter the number, including the international + sign and country code, and press

42 Messaging

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 43

Text messages (SMS)

You can use the Short Message Service (SMS) to send and receive text messages consisting of up to 160 characters.

Note: Some language-specific characters use more space. Turn off National Char. to save space. See “The list of options” on page 14.

To send a text message

1. Scroll to Messages,

2. Enter your message and press

YES, Write New, YES.

YES. See “Entering

letters and characters” on page 12.

3. Enter the recipient’s phone number or retrieve it from the phonebook by pressing .

4. Press

YES to send the message.

To insert an item in a text message

1. Scroll to Messages,

YES, Write New, YES.

2. While writing your message press to enter the option menu.

3. Select Add Symbol or Insert Item,

YES.

4. Select Picture, Sound, Melody or Animation,

5. Select an object or symbol,

YES.

YES. Then press YES

Sending a text message to a group

You can send text messages to groups that you have specified and saved in your phonebook, see “Groups” on page 29. You will be charged for each group member.

To send a text message to a group

1. Scroll to Messages,

YES, Write New, YES.

2. Enter your message and press

3. Press , select Groups and press

4. Select a group and press

Text formatting

You can change the style, size and alignment of the text in a text message.

To format the text in a text message

1. Scroll to Messages,

YES, Write New, YES.

2. Write the text message.

3. Press .

4. Select Te xt F or ma t,

YES. Then select Te xt S iz e,

Te xt S ty le or Alignment,

and press

YES.

again to confirm.

This is the Internet version of the user's guide. © Print only for private use.

YES.

YES. Select a format

Messaging 43

Page 44

Long messages

A text message can contain up to 160 characters. You can send a longer message by linking two or more messages. Please note that you are charged

• Request Reply – Include a reply request if you want the recipient of your message to reply.

• Status Request – Verify whether a message has been delivered.

for the number of linked messages.

To set a default message option

To turn long messages on

Scroll to Messages, Long Messages,

YES, Options, YES,

YES, On, YES.

1. Scroll to Messages,

YES, Options, YES.

2. Select SMS Type, Validity Period, Request Reply, or Status Request,

YES.

3. Select an option from the list,

Message options

You can set a default value for the message options below, or you can turn on the Set on Send option which means that you choose the settings each time

To turn set on send on or off

Repeat steps 1 and 2 above, then select Set on Send,

YES.

you send a message.

• SMS Type – The phone supports different types of messages. Your service provider may offer the facility of converting a text message into a format (email, for example) that suits the equipment that is going to receive the message.

• Validity Period – If your message cannot be delivered, for example, if the recipient has turned off the phone, your service center can save the

Te mp l at es

If you have one or more messages that you send often, you can save these as templates. You can save 20 templates consisting of up to 60 characters each.

Your phone may come with a set of templates that your operator or service provider has prepared for you. These templates appear in the list of templates, indicated by an icon.

message to send it later.

44 Messaging

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 45

To create a template

1. Scroll to Messages, Add New,

YES.

2. Enter the message and press

YES, Templates, YES,

YES to save the

template.

To use a template

Select a template from the Templates list in the Messages menu, and proceed as described in

“To send a text message” on page 43.

Message counter

You can check the number of text messages that you have sent.

Receiving a message

When you receive a message, the phone beeps and the message New Messages appears in the display.

If the sender of the message wants you to reply, the message Reply requested. Reply? appears in the display. Press to reply, press

YES again to reply. If you do not want

NO.

To read the message now

1. Press

YES.

2. Use the navigation key to scroll through the message. When you have read the message, press

YES. A new

menu with different options appears. These options are described on the following pages.

To check the number of sent messages

Scroll to Calls, SMS Counter,

YES, Time & Cost, YES,

YES, Show Counter.

To reset the message counter

Scroll to Calls, SMS Counter,

YES, Time & Cost, YES,

YES, Reset Counter.

To read the message later

Press

NO to save the message in your Inbox in the

Messages menu.

To reply to a message

1. When you have read the message, press

2. Select Reply in the option list and press

This is the Internet version of the user's guide. © Print only for private use.

YES.

Messaging 45

Page 46

3. Select the message you want to send as a reply and press

YES. You can choose between: Write Ne w,

Include This Msg. or Templates.

4. Write your message and press

YES.

To forward a message

1. When you have read the message, press

2. Select Forward and press

YES.

Continue in the same way as when sending a new text message.

Saving incoming messages

Incoming messages are saved in the phone memory. When both the phone memory and the SIM memory are full, a flashing envelope in the display indicates that you have to empty the inbox to be able to receive new messages.

If the phone memory becomes full of unread messages, new messages are automatically saved on the SIM card. Messages that are saved on the SIM card remain there until you delete them.

To call a phone number found in a message

When the number is highlighted, press

YES.

To save a message on the SIM card

1. When you have read the message, press

2. Select Save on SIM and press

To call the sender of the message

1. When you have read the message, press

2. Select Call and press

YES.

Area information

The ordinary Short Message Service is a personal service that carries your private

To read the next message

1. When you have read the message, press

2. Select Read Next and press

YES.

messages. Area Information is another type of text message that is sent to all subscribers in a certain network area.

This information could, for example, be a local

To delete a message

1. When you have read the message, press

2. Select Delete and press

46 Messaging

YES.

traffic report or the phone number of a local taxi company.

This is the Internet version of the user's guide. © Print only for private use.

YES.

Page 47

Area information usage

Please refer to the information provided by your operator for more information about the area information codes.

Cell information

The “Cell information channel” is used by some network operators for sending messages to their subscribers within a certain network area. You read messages

To turn area information on or off

1. Scroll to Messages,

2. Select On or Off and press

YES, Area Info., YES, Reception.

YES.

on the Cell information channel in the same way as when reading area messages.

To turn the Cell information channel on

To enter an area information code

1. Scroll to Messages, Message List,

YES, Area Info., YES,

YES, Add New, YES.

2. Enter the new code and press

YES.

Scroll to Messages, Cell Information,

YES, Area Info., YES,

YES and then select On.

Receiving an area message

When you receive an Area Information message, the message automatically appears in the display. You read the message in the same way as you read an ordinary text message. You cannot save area messages. When you have read the message and press

YES or NO, it is deleted.

Messaging 47

Page 48

Using WAP

WAP browser, bookmarks

Your phone has a WAP (Wireless Application Protocol) browser which is designed to bring a modified Internet to your mobile phone. A wide range of services are available, for example, news, entertainment, timetables, reservations, banking, e-commerce, positioning and email.

Before you start

First make sure that you have:

• A phone subscription that supports data

transmission.

• Correct settings in your phone for WAP.

See “Setting up WAP” on page 37.

• Registered as a WAP user with your network

operator or service provider.

Using the WAP browser

Settings may already be entered when you buy the phone. Otherwise you can receive the settings from your network operator or your service provider in a text message.

48 Using WAP

To start browsing

First select the WAP profile you want to use. Scroll to WAP Services, Then select one of the following:

• Open your homepage, for example, Sony Ericsson.

• Go to one of your bookmarks. Select Bookmarks,

YES.

• Enter the address of a WAP site. Select Enter Address,

YES, New address? to enter

a new WAP address or select one of the 10 most recently entered addresses. When you enter a WAP address, the normal http:// prefix is not needed.

To exit WAP and disconnect

• Press and hold

NO or

• Press , select Exit.

Options when browsing

When you have started browsing, you can reach different browsing options by pressing .

The options menu is dynamic. Its content may

vary depending on which WAP site you are visiting. The options menu contains the following:

YES, Select Profile, YES.

Page 49

• Go to the homepage set for the current WAP profile. If you select an email address when browsing a WAP site, you can reply with a text message.

• Bookmarks – Add the site you are currently

Using bookmarks

You use bookmarks in your mobile phone just as you do with a PC Internet browser. You can have up to

a maximum of 25 bookmarks. browsing to your list of bookmarks, or see the list of bookmarks for the current profile.

• Push Inbox – Displays received push messages.

• Enter Address – Enter the WAP address of a site you want to visit.

• Save Picture – Save a picture from the site.

To work with bookmarks

1. Scroll to WAP Services,

2. Select the bookmark you want to work with, .

Select Go to Bookmark, Edit, Delete, Send via SMS, or Set as homepg and press

• Send via SMS – Send a text message with a link to the current WAP page to another phone.

• Reload – Refresh the contents of the WAP page.

• Exit – Disconnect and go to standby.

Downloading

You can download, for example, pictures and ring signals, from WAP sites directly to your phone.

• Status – Display current status information, for example, profile, access type, connection time, data rate, security, address.

• Set as homepg – Set the current site as the

Note: Make sure the file sizes do not exceed the free memory in your phone, see “Memory status” on page 55 for more information.

homepage of the WAP profile you are using.

• Edit – Edit the name and/or the WAP address of the bookmark.

• Delete – Delete the bookmark.

To download from wap.SonyEricsson.com

1. Scroll to WAP Services, Sony Ericsson,

YES.

2. Select what you want to download and follow the instructions that appear,

YES, Bookmarks, YES.

YES.

YES, Bookmarks, YES,

YES.

Using WAP 49

Page 50

WAP push messages

You can receive push messages via WAP Services. This means that a service provider sends WAP content (information) to your phone without you having to do anything. You can, for example, get updated news or new WAP settings from your service provider.

There are two kinds of push messages:

• Text messages that inform you about WAP services by sending a link. To go to the WAP service, click the link and select Load.

• Updated information from a WAP service is sent to appear in the WAP browser.

Receiving a push message

You can set your phone to either accept or reject push messages. This is valid for all your WAP profiles.

• Prompt – You allow push messages, but only when you confirm.

• Off – You do not allow push messages.

To respond to a push message

Scroll to WAP Services, scroll to any push message,

YES, Push Inbox, YES,

YES and select one

of the following:

• Load – The browser starts and loads the WAP site so that you can see the push content.

• Delete – Deletes the push message.

• Postpone – Save the message to be loaded later.

Stored information

The following information can be saved in your phone:

• Cache – improves memory efficiency.

• Passwords – improves server access efficiency.

• Cookies – improves site access efficiency.

To set push message acceptance

Scroll to WAP Services,

YES, Push Access, YES and select one of the following

YES, Options, YES, Common,

settings:

It is advisable to clear any sensitive information about previously visited WAP services. This is to avoid a security risk if your phone is misplaced, lost or stolen.

• On – You allow push messages to be automatically loaded.

50 Using WAP

Page 51

Note: See “WAP security settings” on page 41 for more information regarding security and certificates.

More features

Alarm clock, stopwatch, calculator, calendar, games

To allow WAP information in your phone

1. Scroll to WAP Services, Common,

YES.

2. Select the information to allow,

YES, Options, YES,

YES.

Alarm clock

The alarm can be set to ring at a specific time within 24 hours, or recurrently at a specific time on several days. You can have both these alarms set at the same time. Even if you have set your phone to silent, the

To clear cache, password list, cookies or push inbox

1. Scroll to WAP Services,

YES, Advanced, YES.

2. Select the information to be cleared.

3. Press

YES to confirm.

alarm signals ring. The alarm clock also rings if the phone is turned off.

To set an alarm

1. Scroll to Organizer, or Recurrent Alarm,

2. Enter the time, and pressing ,

YES, Alarms, YES, Alarm YES.

YES and day, if recurrent, by scrolling

YES.

To change the alarm time

1. Scroll to Organizer, Set New Time,

YES, Alarms, YES, Alarm, YES,

YES.

2. Press any key to turn the alarm signal off when it rings. If you do not want the alarm to be repeated, press

YES.

More features 51

Page 52

To cancel the alarm

Scroll to Organizer, or Recurrent Alarm,

YES, Alarms, YES, Alarm YES, Cancel, YES.

To select an alarm signal

Scroll to Settings, Alarm Signal,

YES, Sounds & Alerts, YES,

YES.

Stopwatch

The stopwatch is turned off when you answer an incoming call or when you exit the stopwatch menu.

Note: The accuracy of the calculator function is limited.

To use the calculator

1. Scroll to Organizer,

YES, Calculator, YES.

2. Enter digits with the keypad, then press:

or to get ÷, x, -, +, a decimal point or %.

to delete the figure.

YES to calculate a result, equals to (=).

to save to memory. to retrieve from memory.

To use the stopwatch

Scroll to Organizer,

YES, Stopwatch, YES, then press:

Timer

The phone has a 24-hour timer.

to reset (when stopped). to save up to nine lap times.

YES to start, stop or restart. NO to stop.

To set the timer

Scroll to Organizer,

YES, Timer, YES. When the

signal rings, press any key to turn it off.

or to check saved lap times.

Calendar

Calculator

The phone has a built-in calculator which can add, subtract, divide and multiply.

52 More features

In the calendar you can add tasks for things that you have to remember. The tasks can be edited or deleted.

Page 53

To add a task

1. Scroll to Organizer,

2. Select Add task?,

3. Enter a description,

4. Enter the start/end dates and times,

5. Scroll to Continue?,

YES, Calendar, YES.

YES.

6. Set a reminder, if required, or select None and press

YES to save.

To delete all tasks

Scroll to Organizer, Delete All,

YES, Calendar, YES,

YES.

To edit a task

1. When the task is displayed, press

2. Select Edit,

3. Edit the task,

reminder,

YES.

YES, edit the date, YES, edit the

YES.

To set the reminder

Select any of the predefined values or select Other Reminder, and enter the alarm date, and the alarm time. Press

YES to save the task.

YES

Games

Your phone has several entertaining games. Game controls are specified with help for each game.

To view a task

1. Scroll to Organizer,

YES, Calendar, YES.

2. Select View Today, View All Tasks, View Week, or View Month. Press

YES.

To start a game

1. Scroll to Fun & Games,

2. Select a game,

YES.

3. Select New Game or Resume Game,

To delete a task

4. Start the game.

Scroll to the task that you want to delete, press .

YES.

YES, Games, YES.

YES.

More features 53

Page 54

Security

SIM card lock, phone lock

To unblock your SIM card

1. PIN blocked. appears.

2. Enter your PUK and press

3. Enter a new four- to eight-digit PIN and press

SIM card lock

4. Reenter the new PIN to confirm and press The SIM card lock protects your subscription, but not your phone itself, from unauthorized use. If you change SIM cards, the phone still works with the new SIM card.

PIN and PUK code

Most SIM cards are locked at the time of purchase. If the SIM card lock is on, you have to enter a “PIN” (Personal Identity Number) every time you turn on your phone.

As you enter your PIN, the digits are hidden with an *. However digits are shown if your PIN starts with the same digits as an emergency number, for example 112. This is so that you can see and call an emergency number without entering a PIN. See “Emergency calls” on page 23 for more information.

If you enter your PIN incorrectly three times in a row, the SIM card is blocked. This is indicated by the message PIN blocked. To unblock it you need to enter your “PUK” (Personal Unblocking Key). Your PIN and PUK are supplied by your operator.

54 Security

To edit your PIN

Scroll to Settings, Change PIN,

YES, Locks, YES, SIM Lock, YES,

YES. If the message Codes do not match.

appears, you entered the new PIN incorrectly. If the message Wrong PIN. appears, followed by Old PIN:, you entered your old PIN incorrectly.

PIN2

Certain services are protected by a second PIN.

To edit your PIN2

Scroll to Settings, Change PIN2,

YES, Locks, YES, SIM Lock, YES,

YES.

To turn the SIM card lock on or off

1. Scroll to Settings, SIM Lock,

YES, Locks, YES,

YES, Protection, YES.

2. Select On or Off, and press

3. Enter your PIN and press

YES.

Page 55

Phone lock

The phone lock protects the phone against unauthorized use if it is stolen and the SIM card is exchanged. It is not on when you buy the phone. You can change the phone lock code (0000) to any

To set the phone lock

1. Scroll to Settings, Protection,

YES, Locks, YES, Phonelock, YES,

YES.

2. Select an alternative and press

3. Enter the phone lock code and press

four- to eight-digit personal code. The phone lock can be set to on, automatic or off.

Editing the phone lock code

It is important that you remember your new code.

Note: The phone lock code must be entered to use Master Reset. See “Master reset” on page 21 for

If you should forget it, you will need to bring your phone in to your local Sony Ericsson retailer.

more information.

To edit your phone lock code

Phone lock on

If the phone lock is on, the message Phone locked.

Scroll to Settings, Change Code,

YES.

YES, Locks, YES, Phonelock, YES,

appears each time you turn on the phone. You have to enter your code followed by

YES to use your phone.

Memory status

Check for example, how many positions are left

Automatic

in your phonebook or how much memory is used.

If the phone lock is set to automatic, you do not need to enter your phone lock code until a different SIM card is inserted in the phone.

To check the memory of the phonebook

Scroll to Phonebook,

YES, SMS Memory, YES.

YES.

Security 55

Page 56

To check the memory for themes, pictures, sounds, games

Scroll to Fun & Games, menus,

YES, , select Memory Status, YES.

YES, select one of the

To check memory for text messages

Scroll to Messages,

YES, SMS Memory, YES.

Memory full

Free memory by deleting unused files or information.

Troubleshooting

Why doesn’t the phone work the way I want?

This chapter lists some problems that you might encounter while using your phone. Some problems require that you call your service provider, but most of the problems you can easily correct yourself.

The phone cannot be switched on

To delete saved files or information

Some factory default files and information cannot be deleted.

• Select a file or information, press ,

YES.

• Select a submenu option or advanced option to delete.

Hand-held phone

Recharge or replace the battery. See “SIM card and battery information” on page 4.

No indication of charging

When you start charging a battery that is empty or a battery that has not been used for a long time, it may take up to 30 minutes before the battery icon appears in the display.

56 Troubleshooting

Page 57

Menu language

If the display shows a language that you do not understand, you can always set the following from standby:

• Press 0000 for English menus.

• Press 8888 for automatic, local menus.

Grey menu options

Grey text indicates a function that is temporarily unavailable, for example, due to your subscription or due to a certain setting which has not been turned on.

Since you cannot send pictures and sounds that

are copyright-protected, the Send menu is sometimes unavailable.

Error messages

Insert SIM.

There is no SIM card in the phone, it may need cleaning or you may have inserted it incorrectly. See “SIM card and battery information” on page 4.

Insert correct SIM card.

The phone is set to work only with certain SIM cards. Insert the correct SIM card.

Inactive SIM

The SIM card is not activated. Contact your network operator for more information.

Emergen. Calls Only

You are within range of a network, but you are not allowed to use it. However, in an emergency, some operators allow you to call, for example, the international emergency number 112. See “Emergency calls” on page 23.

No network.

There is no network within range or the received signal is too weak. You have to move to get a signal that is strong enough.

Wrong PIN./Wrong PIN2.

You have entered your PIN or PIN2 incorrectly. Enter the correct PIN or PIN2, and press See “SIM card lock” on page 54.

YES.

Troubleshooting 57

Page 58

Codes do not match.

When you want to change a security code (for example your PIN) you have to confirm the new code by entering it again. The two codes that

Number not permitted.

The Fixed Dialing function is on and the number you have dialed is not on your fixed numbers list.

See “Fixed dialing” on page 34. you have entered do not match. See “SIM card lock” on page 54.

PIN blocked./PIN2 blocked.

You have entered your PIN or PIN2 incorrectly three times in a row. To unblock, see “SIM card lock” on page 54.

PUK blocked. Contact operator.

You entered your personal unblocking key code (PUK) incorrectly 10 times in a row. Contact your network operator or service provider.

Phone locked.

The phone is locked. To unlock the phone, see “Phone lock” on page 55.

Phone lock code:

Your phone comes with the phone lock code, 0000. You can change it to any four- to eight-digit code. See “Phone lock” on page 55.

58 Troubleshooting

Page 59

Additional information

Safe and efficient use, warranty, declaration of conformity

Exchangeable front covers

You can replace the front cover.

To change the front cover

1. Gently pull the front cover away, starting from the top of the phone.

2. Slide the front cover and lift it off the phone.

3. Insert the notches of the new front cover into the

corresponding slots on the phone. Slide and push the front cover up until it locks into place.

Sony Ericsson Consumer web site

At www.SonyEricsson.com there is a support section where help and tips are only a few clicks away. Here you find the latest software updates, tips on how to use your product more efficiently, function guides for some of the products and additional help when you require it.

Additional information 59

Page 60

Guidelines for Safe and Efficient Use

Please read this information before using

your mobile phone.

RECOMMENDATIONS

• Always treat your product with care and keep it in a clean and dust-free place

• Do not expose your product to liquid or moisture or humidity.

• Do not expose your product to extreme high or low temperatures.

• Do not expose your product to open flames or lit tobacco products.

• Do not drop, throw or try to bend your product.

• Do not paint your product.

• Do not use your product near medical equipment without requesting permission.

• Do not use your product when in, or around aircraft, or areas posted “turn off two-way radio”.

• Do not use your product in an area where a potentially explosive atmosphere exists.

• Do not place your product or install wireless equipment in the area above your car’s air bag.

60 Additional information

• Do not attempt to disassemble your product. Only Sony Ericsson authorised personnel should perform service.

ANTENNA

Only use an antenna that has been specifically designed by Sony Ericsson for your mobile phone. Use of unauthorised or modified antennas could damage your mobile phone and may violate regulations, causing loss of performance and SAR levels above the recommended limits (see below).

EFFICIENT USE

Hold your mobile phone as you would any other phone. Do not cover the top of the phone when in use, as this affects call quality and may cause the phone to operate at a higher power level than needed, thus shortening talk and standby times.

RADIO FREQUENCY (RF) EXPOSURE AND SAR

Your mobile phone is a low-power radio transmitter and receiver. When it is turned on, it emits low levels of radio frequency energy (also known as radio waves or radio frequency fields).

Governments around the world have adopted

comprehensive international safety guidelines, developed by scientific organizations, e.g. ICNIRP

Page 61

(International Commission on Non-Ionizing Radiation Protection) and IEEE (The Institute of Electrical and Electronics Engineers Inc.), through periodic and thorough evaluation of scientific studies. These guidelines establish permitted levels of radio wave exposure for the general population. The levels include a safety margin designed to assure the safety of all persons, regardless of age and health, and to account for any variations in measurements.

Specific Absorption Rate (SAR) is the unit of measurement for the amount of radio frequency energy absorbed by the body when using a mobile phone. The SAR value is determined at the highest certified power level in laboratory conditions, but the actual SAR level of the mobile phone while operating can be well below this value. This is because the mobile phone is designed to use the minimum power required to reach the network.

Variations in SAR below the radio frequency exposure guidelines do not mean that there are variations in safety. While there may be differences in SAR levels among mobile phones, all Sony Ericsson mobile phone models are designed to meet radio frequency exposure guidelines.

Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations

(that is, at the ear and worn on the body) as required by the FCC for each model. For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when the handset is positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when used with the original Sony Ericsson body worn accessory intended for this phone. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

A separate leaflet with SAR information for this mobile phone model is included with the material that comes with this mobile phone. This information can also be found, together with more information on radio frequency exposure and SAR, on: www.SonyEricsson.com.

DRIVING

Please check if local laws and regulations restrict the use of mobile phones while driving or require drivers to use handsfree solutions. We recommend that you use only Ericsson or Sony Ericsson handsfree solutions intended for use with your product. Please note that because of possible interference to electronic equipment, some vehicle manufacturers forbid the use of mobile phones in their vehicles unless a handsfree kit with an external antenna supports the installation.

Additional information 61

Page 62

Always give full attention to driving and pull off the road and park before making or answering a call if driving conditions so require.

PERSONAL MEDICAL DEVICES

Mobile phones may affect the operation of cardiac pacemakers and other implanted equipment. Please avoid placing the mobile phone over the pacemaker, e.g. in your breast pocket. When using the mobile phone, place it at the ear opposite the pacemaker. If a minimum distance of 15 cm (6 inches) is kept between the mobile phone and the pacemaker, the risk of interference is limited. If you have any reason to suspect that interference is taking place, immediately turn off your mobile phone. Contact your cardiologist for more information. For other medical devices, please consult the manufacturer of the device.

CHILDREN

DO NOT ALLOW CHILDREN TO PLAY WITH YOUR MOBILE PHONE OR ITS ACCESSORIES. THEY COULD HURT THEMSELVES OR OTHERS, OR COULD ACCIDENTALLY DAMAGE THE MOBILE PHONE OR ACCESSORY. YOUR MOBILE PHONE OR ITS ACCESSORY MAY CONTAIN SMALL PARTS THAT COULD BE DETACHED AND CREATE A CHOKING HAZARD.

62 Additional information

DISPOSING OF THE PRODUCT

Your mobile phone should not be placed in municipal waste. Please check local regulations for disposal of electronic products.

POWER SUPPLY

Connect the AC power adapter only to designated power sources as marked on the product. Make sure the cord is positioned so that it will not be subjected to damage or stress. To reduce risk of electric shock, unplug the unit from any power source before attempting to clean it. The AC power adapter must not be used outdoors or in damp areas. Never alter the cord or plug. If the plug will not fit into the outlet, have a proper outlet installed by a qualified electrician.

EMERGENCY CALLS

Mobile phones operate using radio signals, which cannot guarantee connection under all conditions. Therefore you should never rely solely upon any mobile phone for essential communications (e.g. medical emergencies). Emergency calls may not be possible on all cellular networks or when certain network services and/or mobile phone features are in use. Check with your local service provider.

Page 63

BATTERY USE AND CARE

We recommend that you fully charge the battery before you use your mobile phone for the first time. The battery should only be charged in temperatures between +5°C (+41°F) and +45°C (+113°F). A new battery or one that has not been used for a long time could have reduced capacity the first few times it is used. The talk and standby times depend on the actual transmission conditions when using the mobile phone. If the mobile phone is used near a base station, less power is required and talk and standby times are prolonged.

• War ning! May explode if disposed of in fire.

• Use only Sony Ericsson branded original batteries and chargers intended for use with your mobile phone. Other chargers may not charge sufficiently or may produce excessive heat. Using other batteries and chargers could be dangerous.

• Do not expose the battery to liquid.

• Do not let the metal contacts on the battery touch another metal object. This could short-circuit and damage the battery.

• Do not disassemble or modify the battery.

• Do not expose the battery to extreme temperatures, never above +60°C (+140°F). For maximum battery capacity, use the battery in room temperature.

• Turn off your mobile phone before removing the battery.

• Keep out of children’s reach.

• Use the battery for the intended purpose only.

• Do not allow the battery to be put into the mouth. Battery electrolytes may be toxic if swallowed.

DISPOSING OF THE BATTERY

Please check local regulations for disposal of batteries or call your local Sony Ericsson Customer Care Center for information. The battery should never be placed in municipal waste. Use a battery disposal facility if available.

Limited Warranty

Sony Ericsson Mobile Communications AB, S-221 88 Lund, Sweden, (Sony Ericsson), provides this Limited Warranty for your mobile phone and original accessory delivered with your mobile phone (hereinafter referred to as “Product”).

Should your Product need warranty service,

please return it to the dealer from whom it was purchased, or contact your local Sony Ericsson Customer Care Centre (national rates may apply) or visit www.SonyEricsson.com to get further information.

Additional information 63

Page 64

Our warranty

Subject to the conditions of this Limited Warranty, Sony Ericsson warrants this Product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year.

What we will do

If, during the warranty period, this Product fails to operate under normal use and service, due to defects in design, materials or workmanship, Sony Ericsson authorised distributors or service partners, in the country/region* where you purchased the Product, will, at their option, either repair or replace the Product in accordance with the terms and conditions stipulated herein.

Sony Ericsson and its service partners reserve the right to charge a handling fee if a returned Product is found not to be under warranty according to the conditions below.

Please note that your personal settings/downloads might be lost when the Product is repaired or replaced.

Conditions

1. The warranty is valid only if the original proof of

purchase issued to the original purchaser by an, for this Product, Sony Ericsson authorised dealer, specifying the date of purchase and serial number**, is presented with the Product to be repaired or replaced.

64 Additional information

Sony Ericsson reserves the right to refuse warranty service if this information has been removed or changed after the original purchase of the Product from the dealer.

2. If Sony Ericsson repairs or replaces the Product,

the repaired or replaced Product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer. Repair or replacement may involve the use of functionally equivalent reconditioned units. Replaced parts or components will become the property of Sony Ericsson.

3. This warranty does not cover any failure of the

Product due to normal wear and tear, or due to misuse, including but not limited to use in other than the normal and customary manner, in accordance with the Sony Ericsson instructions for use and maintenance of the Product. Nor does this warranty cover any failure of the Product due to accident, software or hardware modification or adjustment, acts of God or damage resulting from liquid.

A rechargeable battery can be charged and discharged hundreds of times. However, it will eventually wear out – this is not a defect. When the talk-time or standby time is noticeably shorter, it is time to replace your battery. Sony Ericsson recommends that you use only batteries and chargers approved by Sony Ericsson.

Page 65

4. Since the cellular system on which the Product is

to operate is provided by a carrier independent from Sony Ericsson, Sony Ericsson will not be responsible for the operation, availability, coverage, services or range of that system.

5. This warranty does not cover Product failures caused

by installations, modifications, or repair or opening of the Product performed by a non-Sony Ericsson authorised person.

6. The warranty does not cover Product failures which

have been caused by use of accessories or other peripheral devices which are not Ericsson or Sony Ericsson branded original accessories intended for use with the Product.

7. Tampering with any of the seals on the Product will

void the warranty.

8. THERE ARE NO EXPRESS WARRANTIES, WHETHER

WRITTEN OR ORAL, OTHER THAN THIS PRINTED LIMITED WARRANTY. ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. IN NO EVENT SHALL SONY ERICSSON OR IT S LICENSORS BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER, INCLUDING BUT NOT LIMITED TO LOST PROFITS OR COMMERCIAL LOSS, TO THE FULL EXTENT THOSE DAMAGES CAN BE DISCLAIMED BY LAW.

Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you.

The warranty provided does not affect the consumer's statutory rights under applicable legislation in force, nor the consumer's rights against the dealer arising from their sales/ purchase contract.

* European union (EU)

If you have purchased your Product in an EU country you can have your Product serviced, under the conditions set out above, within the warranty period in any EU country where an identical Product is sold by an authorised Sony Ericsson distributor. To find out if your Product is sold in the EU country you are in, please call the local Sony Ericsson Customer Care Centre. Please observe that certain services may not be possible elsewhere than in the country of original purchase, for example due to the fact that your Product may have an interior or exterior which is different from equivalent models sold in other EU countries. It may not be possible to repair SIM-locked Products. ** In some countries/regions additional information is requested. If so, this is clearly shown on the valid proof of purchase.

Additional information 65

Page 66

FCC Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity

We, Sony Ericsson Mobile Communications AB of Nya Vattentornet S-221 88 Lund, Sweden.

declare under our sole responsibility that our product

Sony Ericsson type AAB-1021021-BV

and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards 3GPP TS 51.010-1, EN 301489-7, EN 60950, following the provisions of, Radio Equipment and Telecommunication Terminal Equipment directive

99/5/EC with requirements covering EMC directive 89/336/EEC, and Low Voltage directive 73/23/EEC.

Lund, June 2003

Hiroshi Yoshioka, Head of Product Business Unit GSM/UMTS

We fulfill the requirements of the R&TTE Directive (99/5/EC).

66 Additional information

0682

Page 67

Icons

What do the icons mean?

The table below shows icons which may appear in standby or in the menus.

Icon Description

Main menus

Your personal phonebook.

Handling of text (SMS) and voice messages.

Handling of outgoing/incoming calls, call time and cost information.

Handling of pictures, sounds and themes. Play games.

Personal settings including profiles, display, language, time and locks.

Gives you access to WAP services on the Internet.

Events, alarm clock and other extras.

Icon Description

Receive items via infrared, networks, data communications settings and accessories.

Create your own menu for the functions you use most often.

Standby

Tells you the strength of the GSM network signal.

GPRS is within range, but can not be used.

GPRS is within range and can be used.

Tells you the status of the battery.

You cannot receive any incoming calls.

You have missed an incoming call.

All incoming calls are forwarded to a defined number.

No calls or only certain calls from numbers in a list are received.

Icons 67

Page 68

Icon Description

All signals are off.

The alarm clock has been set and is on.

Icon Description

Ciphering is currently not being provided by the network.

The network is preferred and can be used.

The timer has been set and is on.

A profile other than Normal has been chosen.

The card lock is on or a secure WAP connection is established.

You have received a text message.

You have received a voice message.

You have received a WAP push message.

The infrared port is on.

Infrared communication is in progress.

A GPRS session is in progress.

68 Icons

The network is forbidden and cannot be used.

Your home network is within range and can be used.

An ongoing call.

Phonebook

You can enter the phonebook by pressing .

A picture is connected to a phonebook entry.

Messages

A text message is saved on the SIM card.

A voice message has not been checked.

Page 69

Icon Description

A message has not been read.

A message has been read.

A damaged message.

Icon Description

Fun & Games

A standard melody saved in My Sounds.

A polyphonic melody saved in My Sounds.

The message has not been sent.

The message has been sent.

Pre-defined message template (not editable).

User-defined message template.

Calls

A missed call in the call list.

An answered call in the call list.

A dialed number in the call list.

Icons 69

Page 70

Index

Alarm clock 51 Animations 15 Answering mode 20 Area information 46 Ask to save 27

Battery 4

Calculator 52 Calendar 52 Call costs 30

credit limit 31

minute minder 18 Call time 30 Calls

accept 35

answer 5, 24

automatic re-dialling 23

call list 25

emergency 23

70 Index

fixed dialing 34 forward 31 international 23 make 5, 22 missed 24 put on hold 32 receive 5, 24 reject 24

restrict 34 Cell information 47 Charging (battery) 4 Conference calls 33 Contrast (display) 19

Declaration of conformity 66 Display

contrast 19

icons 67

light 18 Downloading 49

Emergency calls 23 Error messages 57

Fixed dialing 34 Flip functions 20 Forwarding calls 31

Games 53

memory status 55 GPRS 38 Groups

closed user groups 35

conference calls 33 Groups. See Phonebook 29 GSM 39 GSM frequencies 2

Handsfree 20

Icons (display) 67 Infrared port 21 International

calls 23

emergency number 23

Page 71

Key functions

flip closed 6 flip open 7

Key sound 18

Language (display) 18 Locks

phone 55 SIM card 54

Master reset 21 Melodies, see Ring signals 16 Memory

full 56

status 55 Menu language 18 Menu navigate 5 Menu overview 11 Messages. See Text messages Minute minder 18 Missed calls 24 Multitap text input 12

My numbers 20 My shortcuts 20

Networks 5, 35

Online services 10 Own number 20

Personal ring signal 26 Phone lock 55 Phonebook 25

ask to save 27 call from 26 card memory 28 check the memory 28 delete a phone number 27 edit a name 27 edit a phone number 27 groups 29 memory 28 memory status 55 phone memory 28

replacing entries 28 save a number 25 shortcuts 26 sort order 27

Pictures 15

animations 15 exchange 16 memory status 55 send 16 wallpaper 16

change 54 enter 5

PIN2 54 Profiles 20 PUK 54

Quick keys 8

Reading a message 45 Redialling 23 Reset 21 Ring signals 16

Index 71

Page 72

Save a number 25 Security

phone lock 55 SIM card 54

WAP 41 Send a message 43 Service centre 42 Shortcuts 8, 9, 20 Silent ring signal 17 SIM card 4, 10

copy phonebook entries 29

lock 54

unblock 54 SMS. See Text messages Sony Ericsson

web site 59 Sounds

memory status 55 Speed dial 26 Stopwatch 52

T9 Text input 13 Text messages

call phone number 46 delete 46 forward 46 insert item 43 memory status 55 options 44 read 45 reply 45 save 46 send 43

Themes 15

memory status 55 Time settings 19 Turning the phone on/off 5

Vibrating alert 18 Voice mail 29 Volume

WAP

bookmarks 48 downloading 49 options 48 security 41 setting up 37 using WAP 48

Warranty 63

change speaker volume 22

72 Index

Superior Z200 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Getting started

Getting to know your phone

Personalizing your phone

Calling

Setting up WAP

Messaging

Using WAP

More features

Security

Troubleshooting

Additional information

Icons

Index
