Installation and Operation Instructions

Superior™ Unvented (Vent-Free) Gas Compact Classic Hearth Fireplace

P/N 126872-01 Rev.A 02/2014 Models

VCM3026ZMP VCM3026ZMN

P126872-01

INSTALLER: Leave this manual with the appliance. CONSUMER: Retain this manual for future reference.

This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

This is an unvented gas-ﬁred heater. It uses air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to Air for Combustion and Ventilation section on page 6 of this manual.

WARNING: If the information in these instructions is not followed exactly, a ﬁre or explosion may result

causing property damage, personal injury or loss of life.

— Do not store or use gasoline or other ﬂammable vapors and liquids in the vicinity of this or any other

appliance.

— WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the ﬁre department.

— Installation and service must be performed by a qualiﬁed installer, service agency or the gas supplier.

TABLE OF CONTENTS

Safety .................................................................. 2

Product Identication ........................................... 4

Optional Remote Control Accessories ................. 4

Local Codes......................................................... 4

Product Features ................................................. 5

Unpacking............................................................ 5

Assembly ............................................................. 5

Air For Combustion and Ventilation ..................... 6

Installation ........................................................... 9

Operation ........................................................... 22

Inspecting Burners............................................. 25

SAFETY

Cleaning and Maintenance ................................ 26

Wiring Diagram .................................................. 27

Troubleshooting ................................................. 28

Specications .................................................... 32

Replacement Parts ............................................ 32

Service Hints ..................................................... 32

Technical Service............................................... 32

Accessories ....................................................... 33

Parts .................................................................. 34

Warranty ............................................................ 36

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for correct installation and operational procedures. For assistance or additional information consult a qualified installer, service agency, or the gas supplier.

WARNING: This is an un-

vented gas-red heater. It uses

air (oxygen) from the room in which it is installed. Provisions for adequate combustion and ventilation air must be provided. Refer to Air for Combustion and Ventilation section on page 6 of this manual.

This appliance may be installed in an aftermarket,* permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer

WARNING: This product contains and/or generates chemicals known to the State of California to cause cancer or birth defects, or other reproductive harm.

IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, op-

erate, or service this replace. Improper use of this replace

can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

DANGER: Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs

of carbon monoxide poisoning resemble the

u, with headaches, dizziness, or nausea. If you have these signs, the replace may not be working properly. Get fresh air at once! Have replace serviced. Some people are

more affected by carbon monoxide than oth-

ers. These include pregnant women, people with heart or lung disease or anemia, those under the inuence of alcohol, and those at

high altitudes. Natural and Propane/LP Gas: Natural and

propane/LP gases are odorless. An odormaking agent is added to the gas. The odor

helps you detect a gas leak. However, the odor added to the gas can fade. Gas may be

present even though no odor exists.

www.SuperiorFireplaces.US.com

126872-01A2

SAFETY

Continued

Make certain you read and understand all

warnings. Keep this manual for reference. It

is your guide to safe and proper operation of

this replace.

WARNING: Any change to

this replace or its controls can

be dangerous.

Carefully supervise young children when they are in the room

with replace. When using the

hand-held remote accessory keep selector switch in the OFF position to prevent children from turning on burners with remote.

WARNING: Do not use a blower insert, heat exchanger insert, or other accessory not ap-

proved for use with this replace.

WARNING: Do not allow fans

to blow directly into the replace.

Avoid any drafts that alter burner

ame patterns. Ceiling fans can

create drafts that alter burner

ame patterns. Altered burner

patterns can cause sooting.

Due to high temperatures, the appliance should be located out

of trafc and away from furniture

and draperies.

Do not place clothing or other

ammable material on or near

the appliance. Never place any objects on the heater.

Fireplace front and screen become very hot when running heater. Keep children and adults away from hot surfaces to avoid burns or clothing ignition. Fireplace will remain hot for a time after shutdown. Allow surfaces to cool before touching.

You must operate this replace with the replace screen in place. Make sure replace screen is closed before running replace.

Keep the appliance area clear and free from combustible materials, gasoline, and other

ammable vapors and liquids.

1. This appliance is only for use with the type

of gas indicated on the rating plate. This

appliance is not convertible for use with

other gases.

2. Do not place propane/LP supply tank(s) inside any structure. Locate propane/LP supply tank(s) outdoors.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do not

use any phone in your building

• immediately call your gas supplier from

a neighbor’s phone. Follow the gas sup-

plier’s instructions

• if you cannot reach your gas supplier,

call the re department

4. This replace shall not be installed in a

bathroom or bedroom.

5. Do not use this replace as a wood-burning replace. Use only the logs provided with the replace.

6. Do not add extra logs or ornaments such

as pine cones, vermiculite, or rock wool.

Using these added items can cause sooting. Do not add lava rock around base. Rock and debris could fall into the control

area of replace.

7. This replace is designed to be smokeless. If logs ever appear to smoke, turn off replace and call a qualied service person.

126872-01A 3

www.SuperiorFireplaces.US.com

Note: During initial operation, slight smoking

N O

F R

could occur due to log curing and replace

burning manufacturing residues.

8. To prevent the creation of soot, follow

the instructions in Cleaning and Maintenance, page 26.

9. Before using furniture polish, wax, carpet cleaner, or similar products, turn replace off. If heated, the vapors from these products may create a white powder residue within burner box or on adjacent walls or

furniture.

10. This replace needs fresh air ventilation to run properly. This replace has an Oxygen

Depletion Sensing (ODS) safety shutoff system. The ODS shuts down the replace if not enough fresh air is available. See Air for Combustion and Ventilation,

page 6. If replace keeps shutting off, see

Troubleshooting, page 28.

11. Do not run replace

• where ammable liquids or vapors are

used or stored.

• under dusty conditions.

12. Do not use this replace to cook food or burn paper or other objects.

PRODUCT

IDENTIFICATION

Fireplace Cabinet

Left Side

Selector

Switch

(Optional)

Figure 1 - Vent-Free Compact Classic

Control

Ignitor Button

Knob

Remote Control (Optional)

Hearth® Fireplace

www.SuperiorFireplaces.US.com

SAFETY

Continued

Screen

Right Side

Logs

Front

13. Do not use replace if any part has been under water. Immediately call a qualied

service technician to inspect the room

replace and to replace any part of the control system and any gas control which has been under water.

14. Turn off and unplug fireplace and let

cool before servicing. Only a qualied

service person should service and repair

replace.

15. Operating replace above elevations of 4,500 feet could cause pilot outage.

16. Do not operate fireplace if any log is

broken. Do not operate replace if a log is chipped (dime-sized or larger).

17. To prevent performance problems, do not

use propane/LP fuel tank of less than 100 lbs. capacity.

18. Provide adequate clearances around air openings.

19. The screen or any other part removed for servicing must be replaced prior to operating this heater.

OPTIONAL REMOTE

CONTROL ACCESSORIES

There are ve optional remote controls that

can be purchased separately:

• wall switch

• hand-held ON/OFF remote

• wall thermostat

• hand-held thermostat remote

• hand-held touch-screen thermostat remote

See Accessories, page 33.

LOCAL CODES

Install and use replace with care. Follow all local codes. In the absence of local codes,

use the latest edition of The National Fuel Gas Code ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

126872-01A4

LOCAL CODES

Continued

State of Massachusetts: The installation must be made by a licensed plumber or gas

tter in the Commonwealth of Massachusetts.

Sellers of unvented propane or natural

gas-red supplemental room heaters shall

provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

Vent-free gas products are prohibited for bedroom and bathroom installation in the

Commonwealth of Massachusetts.

UNPACKING

1. Remove replace and hood from carton. Log is wrapped and inside replace. Do

not remove at this time.

2. Remove all protective packaging applied

to replace for shipment.

3. Make sure your replace includes one hardware packet.

ASSEMBLY

WARNING: Always have

branch support and screen in

place before operating replace.

This prevents excessive tem-

peratures on replace surfaces.

WARNING: Failure to position the parts in accordance with these diagrams or failure

to use only parts specically approved with this replace

may result in property damage or personal injury.

ASSEMBLING FIREPLACE

Tools Required:

• Phillips screwdriver

• 5/16" hex wrench

• slotted screwdriver

• scissors

1. Remove two screws that hold replace screen in place for shipping. These screws

are located near top of screen. Discard

screws. Lift replace screen up and pull out

to remove. Set screen aside until installation has been completed.

PRODUCT FEATURES

SAFETY PILOT

This replace has a pilot with an Oxygen Depletion Sensing (ODS) safety shutoff system. The ODS/pilot is a required feature for vent-free

room replaces. The ODS/pilot shuts off the replace if there is not enough fresh air.

PIEZO IGNITION SYSTEM

This replace has a piezo ignitor. This system requires no matches, batteries, or other sources to light replace.

4. Check replace for any shipping dam-

age. If heater is damaged call INNOVATIVE HEARTH PRODUCTS at 1-800655-2008 for replacement parts before returning to dealer.

2. Cut two plastic straps to remove the log from the rebox cavity.

3. An optional blower is available. See Ac- cessories, page 33. Install optional blower now. Follow installation instructions provided with blower or (see page 14).

4. Locate four black phillips sheet metal

screws from the hardware packet.

5. Rotate hood as shown in Figure 3. Make sure hood tabs point toward replace.

6. Insert hood tabs between bafe and louvers (see Figure 3, page 6).

Shoulder

Screw

Burner Support With Log Locator Tabs

Screen

Branch Support

Figure 2 - Removing Screen

126872-01A 5

www.SuperiorFireplaces.US.com

ASSEMBLY

Continued

7. Gently rotate hood to upright position.

Make sure hood tabs are behind louvers

and hood is resting on rebox top (see Figure 3,).

8. Align screw holes on hood with screw holes on rebox top.

9. Insert screws as shown in Figure 3. Tighten screws rmly.

Hood Tabs

Figure 3 - Assembling Hood

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall not be installed in a room or space unless the required volume of indoor combustion air is provided by the method described in the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, the International Fuel Gas Code, or

applicable local codes. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home.

Today’s homes are built more energy efcient than ever. New materials, increased insulation, and new construction methods help reduce heat loss in homes. Home owners weather strip and caulk around windows and doors to keep the cold air out and the warm air in. During heating months, home owners want

their homes as airtight as possible. While it is good to make your home energy

efcient, your home needs to breathe. Fresh

air must enter your home. All fuel-burning appliances need fresh air for proper combustion and ventilation.

Exhaust fans, replaces, clothes dryers, and fuel burning appliances draw air from the house to operate. You must provide adequate fresh

www.SuperiorFireplaces.US.com

Louver

Hood

Sheet Metal

Screws

air for these appliances. This will insure proper

venting of vented fuel-burning appliances.

Hood Tab

Bafe

Firebox Top

PROVIDING ADEQUATE VENTILATION

The following are excerpts from National Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation.

All spaces in homes fall into one of the three

following ventilation classications:

1. Unusually Tight Construction

2. Unconned Space

3. Conned Space The information on pages 6 through 8 will help

you classify your space and provide adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows

may provide enough fresh air for combustion

and ventilation. However, in buildings of unusually tight construction, you must provide

additional fresh air.

Unusually tight construction is dened as

construction where: a. walls and ceilings exposed to the out-

side atmosphere have a continuous water vapor retarder with a rating of one perm (6 x 10 with openings gasketed or sealed and

b. weather stripping has been added on

openable windows and doors and

-11

kg per pa-sec-m2) or less

126872-01A6

AIR FOR COMBUSTION AND VENTILATION

Continued

c. caulking or sealants are applied to

areas such as joints around window and door frames, between sole plates

and oors, between wall-ceiling joints,

between wall panels, at penetrations for plumbing, electrical, and gas lines, and at other openings.

If your home meets all of these three criteria, you must provide additional fresh air. See Ventilation Air From Outdoors, page 8.

If your home does not meet all of the three criteria above, proceed to Determining Fresh-Air Flow For Fireplace Location, below.

Conned and Unconned Space

The National Fuel Gas Code, ANSI Z223.1/ NFPA 54 denes a conned space as a space

whose volume is less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw) of the ag-

gregate input rating of all appliances installed

in that space and an unconned space as a space whose volume is not less than 50 cubic feet per 1,000 Btu per hour (4.8 m3 per kw)

of the aggregate input rating of all appliances installed in that space. Rooms communicating

directly with the space in which the appliances are installed*, through openings not furnished with doors, are considered a part of the unconned space.

* Adjoining rooms are communicating only if there are doorless passageways or ventilation grills between them.

DETERMINING FRESH-AIR FLOW FOR FIREPLACE LOCATION

Determining if You Have a Conned or Unconned Space

Use this work sheet to determine if you have a conned or unconned space.

Space: Includes the room in which you will

install replace plus any adjoining rooms with doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length

x width x height).

Length x Width x Height =__________cu. ft.

(volume of space)

Example: Space size 16 ft. (length) x 14 ft.

(width) x 8 ft. (ceiling height) = 1792 cu. ft.

(volume of space)

If additional ventilation to adjoining room

126872-01A 7

www.SuperiorFireplaces.US.com

is supplied with grills or openings, add the

volume of these rooms to the total volume of the space.

2. Multiply the space volume by 20 to determine the maximum Btu/Hr the space can support.

________ (volume of space) x 20 = (Maxi-

mum Btu/Hr the space can support)

Example: 1792 cu. ft. (volume of space) x 20

= 35,840 (maximum Btu/Hr the space can

support)

3. Add the Btu/Hr of all fuel burning appliances in the space.

Vent-free replace ___________ Btu/Hr Gas water heater* ___________ Btu/Hr Gas furnace ___________ Btu/Hr

Vented gas heater ___________ Btu/Hr Gas replace logs ___________ Btu/Hr Other gas

appliances* + __________ Btu/Hr Total = __________ Btu/Hr * Do not include direct-vent gas appliances.

Direct-vent draws combustion air from the

outdoors and vents to the outdoors.

Example:

Gas water heater ___________ Btu/Hr Vent-free replace + __________ Btu/Hr

Total = __________ Btu/Hr

4. Compare the maximum Btu/Hr the space

can support with the actual amount of Btu/

Hr used.

_______

support)

_______

Example: 35,840 Btu/Hr (maximum the

40,000 Btu/Hr (actual amount of

Btu/Hr (maximum the space can

Btu/Hr (actual amount of Btu/Hr

ed)

space can support)

Btu/Hr used)

30,000 10,000 40,000

The space in the example on the previous

page is a conned space because the actual

Btu/Hr used is more than the maximum Btu/Hr

the space can support. You must provide additional fresh air. Your options are as follows:

A. Rework worksheet, adding the space

of an adjoining room. If the extra space provides an unconned space, remove door to adjoining room or add ventilation grills between rooms. See Ventilation Air

From Inside Building, page 8

B. Vent room directly to the outdoors. See

Ventilation Air From Outdoors.

AIR FOR COMBUSTION AND VENTILATION

Or Remove Door into

Adjoining

Room,

Option 3

Ventilation Grills

Into Adjoining Room,

Option 2

12"

Ventilation

Grills

into

Adjoining

Room,

Option 1

Outlet Air

Ventilated Attic

Outlet

Inlet Air

Ventilated

Crawl Space

Crawl

Space

To Attic

Continued

C. Install a lower Btu/Hr replace, if lower

Btu/Hr size makes room unconned.

If the actual Btu/Hr used is less than the

maximum Btu/Hr the space can support, the space is an unconned space. You will need

no additional fresh air ventilation.

WARNING: If the area in which the heater may be operated does not meet the required volume for indoor combustion air, combustion and ventilation air shall be provided by one of the methods described in the National Fuel

Gas Code, ANSI Z223.1/NFPA 54, the International Fuel Gas Code, or applicable local codes.

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconned space. When ventilating to an adjoining unconned space, you must provide two permanent openings: one within 12" of the ceiling and one within 12" of the oor on the wall connecting the two spaces (see options 1 and 2, Figure 4). You can also remove door into adjoining room (see option 3, Figure 4). Follow the National Fuel Gas Code, ANSI

Z223.1/NFPA 54, Air for Combustion and Ventilation for required size of ventilation

grills or ducts.

Figure 4 - Ventilation Air from Inside

Building

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation

grills or ducts. You must provide two permanent openings: one within 12" of the ceiling and one within 12" of the oor. Connect these

items directly to the outdoors or spaces open to the outdoors. These spaces include attics

and crawl spaces. Follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Air for Combustion and Ventilation for required size

of ventilation grills or ducts. IMPORTANT: Do not provide openings

for inlet or outlet air into attic if attic has a

thermostat-controlled power vent. Heated air entering the attic will activate the power vent.

Figure 5 - Ventilation Air from Outdoors

www.SuperiorFireplaces.US.com

126872-01A8

INSTALLATION

NOTICE: This heater is intended for use as supplemental heat. Use this heater along with your primary heating system. Do not install this heater as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using heater. This will help circulate the heat throughout the house. In the event of a power outage, you can use this heater as your primary heat source.

WARNING: A qualied ser-

vice person must install re-

place. Follow all local codes.

WARNING: Never install the

replace

• in a bathroom or bedroom

• in a recreational vehicle

• where curtains, furniture,

clothing, or other ammable

objects are less than 36" from the front, top, or sides of the

replace

• as a replace insert

• in high trafc areas

• in windy or drafty areas

CAUTION: This fireplace creates warm air currents. These currents move heat to

wall surfaces next to replace. Installing replace next to vinyl

or cloth wall coverings or oper-

ating replace where impurities

(such as, but not limited to, tobacco smoke, aromatic candles,

cleaning uids, oil or kerosene

lamps, etc.) in the air exist, may discolor walls or cause odors.

IMPORTANT: Vent-free replaces add moisture to the air. Although this is benecial,

installing replace in rooms without enough ventilation air may cause mildew to form from

too much moisture. See Air for Combustion and Ventilation, page 6.

Note: Your replace is designed to be used in

zero clearance installations. Wall or framing material can be placed directly against any exterior

surface on the rear, sides, or top of your replace,

except where standoff spacers are integrally attached. If standoff spacers are attached to your

replace, these spacers can be placed directly

against wall or framing materials.

Note: When installing replace directly on

carpeting, tile or other combustible material,

other than wood ooring, the replace shall be

installed on a metal or wood panel extending

the full width and depth of the replace.

Use the dimensions shown for rough openings

to create the easiest installation (see Built-In Fireplace Installation, page 10).

CHECK GAS TYPE

Use the correct gas type (natural or propane/ LP) for your unit. If your gas supply is not cor-

rect, do not install replace. Call dealer where you bought replace for proper type replace.

WARNING: This appliance is equipped for either natural gas or propane/LP gas but not both. Gas type is indicated on the rating plate. Field conversion is not permitted.

INSTALLATION ITEMS

Before installing replace, make sure you have the items listed below.

• external regulator (supplied by installer, for

propane/LP units only)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection*

• ground joint union

• sediment trap

• tee joint

• pipe wrench * An equipment shutoff valve with 1/8" NPT

tap is an acceptable alternative to test gauge connection. Purchase the optional equipment shutoff valve from your dealer.

Note: If desired, purchase a three-sided trim kit for built-in installations. See Accessories, page 33.

126872-01A 9

www.SuperiorFireplaces.US.com

INSTALLATION

Continued

FIREPLACE CLEARANCES

WARNING: Maintain the minimum clearances shown in Figure 6. If you can, provide

greater clearances from oor,

ceiling, and joining wall.

If your replace is to be used with an optional mantel, the installation instructions included with your mantel shows an approved method of attaching the replace/mantel system to a wall. IMPORTANT: Only use optional cabinet or corner mantels specied in this manual.

Purchase the optional mantel from your dealer (see Accessories, page 33).

If your replace is to be recessed into the wall,

see Built-In Fireplace Installation to secure

your replace into the wall.

CAUTION: If you install the

replace in a home garage

• replace pilot and burner must

be at least 18" above oor.

• locate replace where moving

vehicle will not hit it.

For convenience and efficiency, install replace

• where there is easy access for operation, inspection, and service

• in coldest part of room

An optional blower kit is available from your dealer. See Accessories, page 33. If planning to use blower, follow instructions provided with blower for power source.

Example

Minimum Clearances For Side Combustible Material, Side Wall, and Ceiling

A. Clearances from the side of the replace

cabinet to any combustible material and

wall should follow diagram in Figure 6.

Example: The face of a mantel, bookshelf,

etc. is made of combustible material and protrudes 3 1/2" from the wall. This com-

bustible material must be 4" from the side of the replace opening (see Figure 6).

B. Clearances from the top of the replace

opening to the ceiling should not be less

than 36".

For mantel clearances, see Figure 10

on page 12.

MINIMUM CLEARANCE TO

COMBUSTIBLE MATERIALS

Top

36" 6" 0"

Left and

Right Sides

Bottom and

Rear

BUILT-IN FIREPLACE INSTALLATION

Built-in installation of this replace involves installing replace into a framed-in enclosure. This makes the front of replace ush with wall. An optional trim kit accessory is available (see Accessories, page 33). Trim will extend past sides of replace approximately 1/2". This will cover the rough edges of the wall

opening. If installing a built-in mantel above

the replace, you must follow the clearances shown in Figure 10, page 12. Follow the instructions below to install the replace in

this manner.

Actual Framing Height 26" 26 7/8" Front Width 26 3/4" 26 7/8" Depth 9 1/2" 10 1/2" Bottom 3/4" 3/4"

*Minimum 16" from Side Wall

Figure 6 - Minimum Clearance for

Combustible to Wall

www.SuperiorFireplaces.US.com

1. Frame in rough opening. Use dimensions

shown in Figure 7, page 11 for the rough opening. If installing in a corner, use di-

mensions shown in Figure 8, page 11 for the rough opening. The height is 26 7/8" which is the same as the wall opening

above.

2. If installing GA3450TA blower accessory, do so at this time. Follow instructions included with blower accessory.

126872-01A10

3/4" Off The Floo

Minimum

INSTALLATION

Wall Studs

Continued

Note: If not installing blower accessory,

you may wish to run electrical wiring to

your replace for future blower installation

(see Accessories, page 33). Use only approved three-wire electrical wiring.

Note: A qualied installer should make all

electrical connections.

WARNING: If pre-wiring, do not connect wiring to any electrical source at this time.

Install replace electrical outlet

and connect wiring to outlet before connecting to electrical source. The replace electrical outlet is included with the GA3450TA blower accessory.

Only use the replace electrical outlet supplied with the GA3450TA blower accessory.

3. Install gas piping to replace location. This installation includes an approved exible gas line (if allowed by local codes) after the equipment shutoff valve. The exible

gas line must be the last item installed on the gas piping.

4. If you have not assembled rebox, follow

instructions beginning on page 5.

5. Carefully set replace in front of rough opening with back of replace inside wall

opening.

6. Attach exible gas line to replace gas

regulator. See Connecting Fireplace to Gas Supply, page 17.

7. Bend four nailing anges on outer casing with pliers (see Figure 9).

8. Attach replace to wall studs using nails or wood screws through holes in nailing ange.

9. Check all gas connections for leaks. See

Checking Gas Connections, page 19.

10. If using optional trim kit, install the trim after nal nishing and/or painting of wall. See instructions included with trim acces-

sory for attaching trim.

IMPORTANT: When nishing your rebox, combustible materials such as wall board, gypsum board, sheet rock, drywall, plywood,

etc. may be butted up next to the sides and

top edge of the rebox. Combustible materials should never overlap the rebox front facing.

WARNING: Do not allow any

combustible or noncombustible

materials to overlap the rebox

front facing.

Figure 7 - Rough Opening for Installing

in Wall

Nails or Wood Screws

Figure 8 - Rough Opening for Installing

126872-01A 11

in Corner

www.SuperiorFireplaces.US.com

Figure 9 - Attaching Fireplace to Wall Studs

Nailing Flanges

13" 16"

19"

21"

2 1/2"

10"

Note:

ll vertical measurements are from top of fireplace opening to bottom of mantel shelf. All measurements are in inches.

Mantel Clearances for Built-In Installation

If placing mantel above built-in replace, you must meet minimum clearance between mantel shelf and top of replace opening.

INSTALLATION

Continued

WARNING: Do not allow noncombustible materials to cover any necessary openings like louvered slots.

WARNING: Never modify or cover the louvered slots on the

front of the rebox.

NOTICE: Surface temperatures of adjacent walls and mantels become hot during operation. Walls

and mantels above the rebox

may become hot to the touch. If installed properly, these temperatures meet the requirement of the national product standard. Follow all minimum clearances shown in this manual.

NOTICE: If your installation does not meet the minimum clearances shown in Figure 10, you must do one of the following:

• raise the mantel to an accept-

able height

• remove the mantel

Mantel Shelf

Side of Firebox

Figure 10 - Minimum Mantel Clearances

for Built-In Installation

OPTIONAL MANTEL INSTALLATION

Refer to instructions provided with the mantel for assembly instructions. Refer to the follow-

ing instructions for system installation. Refer to instructions on page 6 for hood assembly.

Blower accessory should be installed prior to

mantel if it is being used (see Installing Optional Blower Accessory GA3450TA, page 14).

1. Assemble cabinet mantel as shown in

accessory instruction sheet.

2. If blower is installed, install a properly grounded, 120 volt three-prong electrical outlet at replace location if an outlet is not there. If possible, locate outlet so cabinet mantel will cover it when installed (see

Figure 11).

3. Place hearth base against wall at installation

location. Cut an access hole in hearth base

to run gas line to replace (see Figure 11).

Make sure to locate access hole so cabinet

mantel will cover it when installed.

Note: You can secure base to oor using

wood screws. Countersink screw heads and putty over.

Hearth Base

Pipe and Gas

Shutoff Valve

Electrical Outlet

Figure 11 - Placing Hearth Base Against Wall

www.SuperiorFireplaces.US.com

126872-01A12

INSTALLATION

Continued

4. Route exible gas line through access

hole in hearth base.

5. Center cabinet mantel on hearth base (see Figure 12). Make sure mantel is

ush against wall and centered left to

right on base.

6. Use screws provided with mantel accessory to attach mantel assembly to base (see mantel instruction sheet).

7. Attach exible gas line to replace gas

regulator. See Connecting to Gas Supply, page 17.

8. Route electrical cord(s) through access

holes in either side of replace with bushing.

Plug electrical cord(s) into electrical outlet.

9. Check all gas connections for leaks. See Checking Gas Connections, page 19.

10. Carefully insert replace into cabinet mantel

(see Figure 13). Be careful not to scratch or damage hearth base or cabinet mantel.

11. Place metal trim on shoulder screws located on the side and top of the replace

(see Assembling Perimeter Trim). Firmly

snap trim over shoulder screws. Align replace in mantel assembly so the trim

overlaps mantel evenly on all three sides.

12.

Lower bottom louver door. Use 3" wood screws provided with mantel accessory to attach replace to base (see mantel

instruction sheet).

Cabinet Mantel

Assembled Trim

Hearth Base

Figure 13 - Installing Fireplace into

Mantel Assembly

Assembling Perimeter Trim

1. Remove packaging from three remaining pieces of trim.

2. Locate two adjusting plates with set screws, and two shims in the hardware packet.

3. Align shim under adjusting plate as shown

in Figure 14.

4. Slide one end of adjusting plate/shim

in slot on mitered edge of top trim (see Figure 14).

5. Slide other end of adjusting plate/shim

in slot on mitered edge of side trim (see Figure 14).

6. While rmly holding edges of trim together, tighten both set screws on the adjusting plate with slotted screwdriver.

7. Repeat steps 1 through 6 for other corner.

8. Set assembly aside for later installation.

Hearth Base

Set Screws

Slot

Top Trim

Mitered Edge

Adjusting

Plate

Figure 12 - Installing Cabinet Mantel onto

Hearth Base

126872-01A 13

www.SuperiorFireplaces.US.com

Shim

Slot

Figure 14 - Assembling Perimeter Trim

Side Trim

INSTALLATION

Continued

INSTALLING OPTIONAL BLOWER ACCESSORY GA3450TA

Removing Upper Louver Assembly and Branch Support

To install the blower accessory, you must rst

remove the upper louver assembly.

1. Lift screen off replace and remove log

set if installed.

2. Remove 2 screws from each side of

branch support and pull branch support out (see Figure 15).

3. Remove 4 screws from upper louver

assembly (see Figure 15). Save these

screws.

4. Pull upper louver assembly straight out from the cabinet. Be careful not to scratch

the paint. Set louver assembly and screws

aside.

5. Open lower louver door by swinging door down (see Figure 15).

Blower Bracket

Mounting Holes

Branch Support

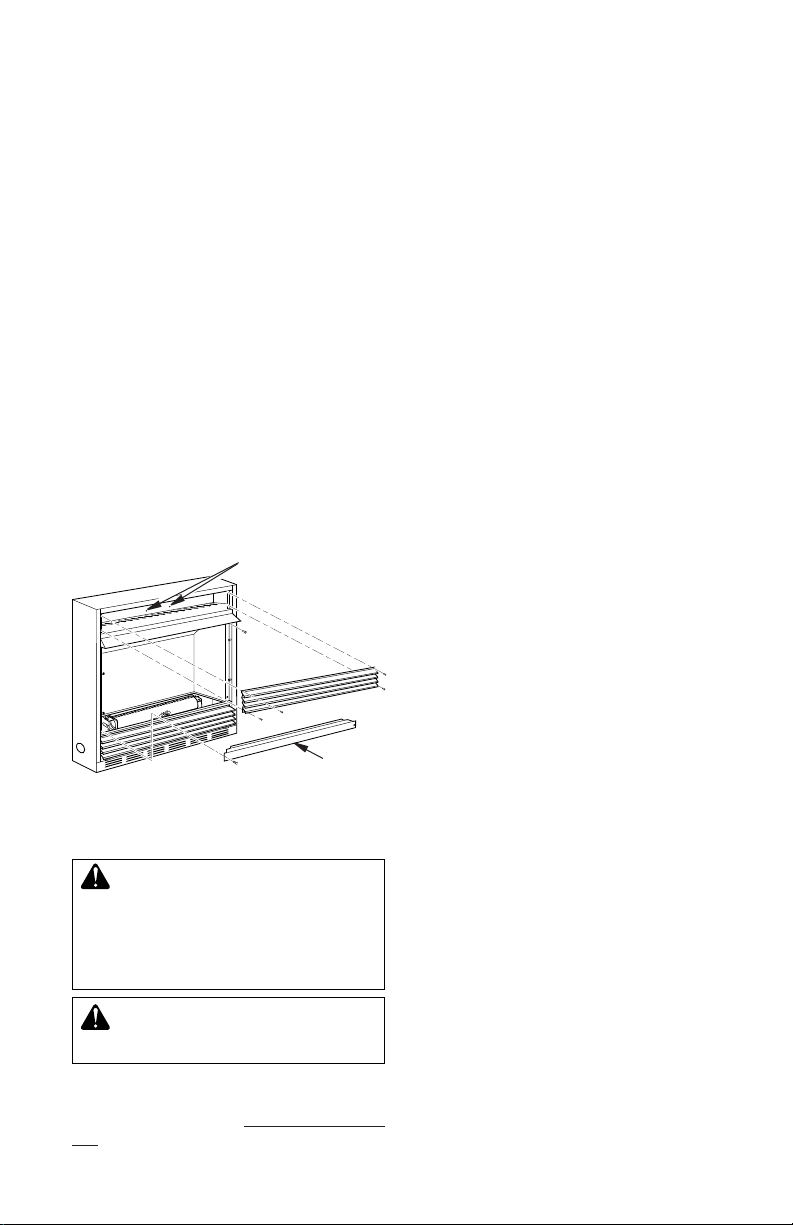

Figure 15 - Removing Top Louver and

Branch Support

Installing Blower Accessory

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

CAUTION: Verify proper operation after servicing.

Note: If you are using a mantel with your replace, use the following instructions. If your replace is built-in, see For Built-In Installa-

tion, page 16.

www.SuperiorFireplaces.US.com

1. Install snap bushings found in hardware

kit into both holes in rear of valve cover shield.

2. Make sure the wire harness is firmly connected to the terminals on the blower

bracket assembly.

3. Note the wire locations on back of AUTO/ OFF/ON switch. The terminals on back of switch are numbered 1, 2, and 3. Carefully remove red wire from terminal 3 and blue wire from terminal 1. Black wire can

remain on middle terminal 2 (see Figure

16, page 15).

4. Carefully disconnect green and white wires at their insulated connectors (see Figure 17, page 15).

5. In top of the replace cabinet, locate the

four mounting holes on the outer casing.

Align these four holes with those on the blower bracket assembly. Attach blower bracket assembly to the outer casing with 4 #10 screws provided (see Figure 16,

page 15).

6. Route the wire harness through the hole in left side of bafe. Pull wire harness through lower opening on the side of the valve cover shield (see Figure 16, page 15).

7. Insert the 4 wire harnesses into one of the

round holes in the rear of the valve cover shield and through the rectangular hole in

the front of shield (see Figure 16, page 15).

8. Reconnect red wire to switch position 3. Reconnect blue wire to switch position 1. Reconnect green and white wires.

9. Install the switch plate on the valve cover shield with 2 #10 screws provided (see Figure 18, page 15). Route power cord out

of the cabinet by inserting it through the bushing on the outer casing (see Figure

16, page 15). Plug fan kit into 120-Volt grounded power supply and test operation.

Note: When switch is in the AUTO posi-

tion, the fan will start after the replace

has run for a few moments. The fan will continue to run for several moments after

the replace has been turned off. When

switch is in the ON position, the fan will run until turned to OFF. Reinstall upper louver assembly (see Figure 15) and branch support. Close lower louver door.

126872-01A14

Red

Fan Switch

(Auto/Off/On)

Blue

Thermostat

Switch

(N.O.)

Green

White

Green

White

110/115

V.A.C.

Blower

Motor

Black

Off

Auto

Blower Bracket

Assembly

INSTALLATION

Continued

Wire Harness

Wiring Routing

Switch Plate

Screw

Switch

3 2 1

Blue

Red

Black

Wire Harness

Figure 16 - Installing Blower Bracket Assembly

Power Cord

Valve Cover Shield

Lower Louver Door

Blower Mounting Holes

Snap Bushing

Figure 17 - Wiring Diagram For Blower Accessory Standard Installation

126872-01A 15

Figure 18 - Installing Switch Plate to Valve Cover Shield

Switch

Plate

www.SuperiorFireplaces.US.com

Valve Cover Shield

Screw

INSTALLATION

Red

Fan Switch

(Auto/Off/On)

Blue

Thermostat

Switch (N.O.)

Green

White

Green

White

110/115

V.A.C.

Blower

Motor

Black

Off

Auto

Lower Louver Door

Blower

Continued

For Built-In Installation

WARNING: A licensed electrician must connect the wiring harness to electrical supply following all local codes. Electrician must provide a clamp on the box cover to secure the wiring. Wiring should be routed through the bushing in the hole on the

outer casing of replace.

1. Install a snap bushing found in hardware

kit into one of the holes on rear of valve cover shield. The other hole is for a strain relief clamp (not supplied) to secure incoming electrical supply.

2. Follow steps 2 through 6 in Installing Blower Accessory, page 14.

3. A licensed electrician must follow the wiring diagram to connect incoming electri-

cal supply to fan kit wiring harness (see

Figure 19).

4. Plug power cord to the outlet receptacle (not provided) as shown in Figure 20. Wind the extra power cord and tie with plastic wire strap (see Figure 20). Set the power cord bundle between the burner bracket and outer casing, away from the

burner.

5. Test to make sure the blower is working

properly.

6. Reinstall upper louver assembly (see Fig-

ure 15, page 14) and close lower louver.

Figure 19 - Wiring Diagram For Blower Accessory Built-In Installation

Extension Cord

Use extension cord if needed. The cord must

have a three-prong, grounding plug and a

three-hole receptacle. Make sure cord is in good shape. It must be heavy enough to carry

the current needed. An undersized cord will cause a drop in line voltage. This will result in loss of power and overheating. Use a No. 16 AWG cord for lengths less than 50 feet.

www.SuperiorFireplaces.US.com

Bracket Assembly

Screw

Switch

Switch Plate

Red

Black

Wire Harness

Plastic Wire Strap

Wire Harness

Power Cord

Blue

Outlet Receptacle (not included)

Figure 20 - Installing Blower Bracket

Assembly

Clamp Connector (not included)

126872-01A16

INSTALLATION

Continued

CONNECTING TO GAS SUPPLY

WARNING: This appliance

requires a 45° male are tting 5/8"-18 UNF (Unied National

Fine Thread) inlet connection

and the exible gas line provided.

WARNING: A qualified

service person must connect

replace to gas supply. Follow

all local codes.

WARNING: Never connect

natural gas replace to private

(non-utility) gas wells. This gas is commonly known as wellhead gas.

IMPORTANT: For natural gas, check gas line pressure before connecting replace to gas line. Gas line pressure must be no greater than 14" of water. If gas line pressure is higher,

heater regulator damage could occur.

CAUTION: Never connect

propane/LP replace directly

to the propane/LP supply. This

replace requires an external

regulator (not supplied). Install the external regulator between

the replace and propane/LP

supply.

For propane/LP units, the installer must

supply an external regulator. The external

regulator will reduce incoming gas pressure. You must reduce incoming gas pressure to between 11" and 14" of water. If you do not reduce incoming gas pressure, fireplace

regulator damage could occur. Install exter-

nal regulator with the vent pointing down as shown in Figure 21. Pointing the vent down protects it from freezing rain or sleet.

CAUTION: Use only new, black iron or steel pipe. Internally-tinned copper tubing may be used in certain areas. Check your local codes. Use pipe of 1/2" or greater diameter to allow

proper gas volume to replace.

If pipe is too small, undue loss of volume will occur.

Installation must include an equipment shutoff

valve, union, and plugged 1/8" NPT tap. Locate NPT tap within reach for test gauge hook

up. NPT tap must be upstream from heater

(see Figure 22, page 18).

IMPORTANT: Install equipment shutoff valve in an accessible location. The equipment shutoff valve is for turning on or shutting off the gas to the appliance.

Check your building codes for any special requirements for locating equipment shutoff

valve to replaces. Apply pipe joint sealant lightly to male NPT

threads. This will prevent excess sealant from

going into pipe. Excess sealant in pipe could

result in clogged replace valves.

WARNING: Use pipe joint sealant that is resistant to liquid petroleum (LP) gas.

Propane/LP Supply Tank

External Regulator

with Vent

Pointing

Down

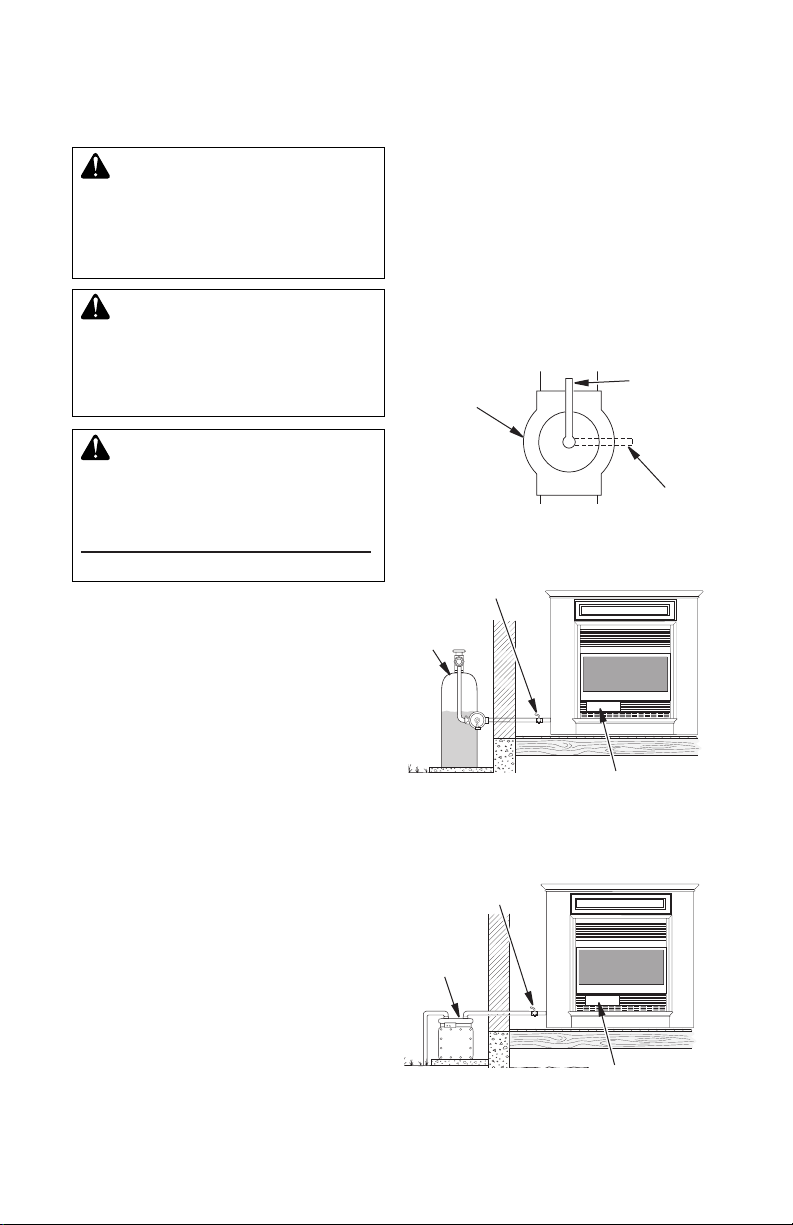

Figure 21 - External Regulator With Vent

126872-01A 17

www.SuperiorFireplaces.US.com

Pointing Down

INSTALLATION

Continued

We recommend that you install a sediment

trap in supply line as shown in Figure 22. Locate sediment trap where it is within reach for cleaning. Install in piping system between fuel supply and heater. Locate sediment trap where trapped matter is not likely to freeze. A sediment

trap traps moisture and contaminants. This

keeps them from going into replace controls.

If sediment trap is not installed or is installed

wrong, replace may not run properly.

Equipment Shutoff Valve

With 1/8" NPT Tap*

Propane/LP

From External

Approved

Flexible Gas

Line

3" Minimum

Pipe Nipple Cap Tee Joint

Sediment Trap

Figure 22 - Gas Connection

* Purchase the optional equipment shutoff valve from your dealer.

CONNECTING FIREPLACE TO GAS SUPPLY

Installation Items Needed

• Phillips screwdriver

•

sealant (resistant to propane/LP gas, not

provided)

1. Remove screws that attach branch support to replace (see Figure 23). Carefully

lift up branch support and remove from

replace (see Figure 23).

NOTICE: Most building codes do not permit concealed gas

connections. A exible gas line

is provided to allow accessibility

from the replace (see Figure 23). The exible gas supply line con-

nection to the equipment shutoff valve should be accessible.

Regulator (11"

W.C.** to 14" W.C.

Pressure)

NATURAL

From Gas Meter

(5" W.C.** to 10.5"

W.C. Pressure)

Route exible gas line, included, from

fireplace control to equipment shutoff valve through side or rear access holes in outer casing.

3. Apply pipe joint sealant lightly to male

threads of gas connector attached to

exible gas line/equipment shutoff valve

(see Figure 24).

CAUTION: Avoid damage to gas control. Hold gas control with wrench when connecting

it to gas piping and/or ttings.

4. Check all gas connections for leaks. See Checking Gas Connections, page 19.

5. Replace branch support back into replace. Feed exible gas line into replace base area while replacing branch support. Make sure the entire exible gas line is in replace base area. Reattach branch support to replace with screws removed in step 1.

Flexible

Gas Line

Figure 23 - Removing Branch Support

To Control Valve

Flexible Gas Line from Fireplace Gas

Regulator Provided With Fireplace

Figure 24 - Attaching Flexible Gas Line

From Fireplace

Equipment Shutoff Valve

to Equipment Shutoff Valve

Branch Support

PROPANE/LP

To External Regulator

NATURAL

To Gas Supply

www.SuperiorFireplaces.US.com

126872-01A18

INSTALLATION

Continued

CHECKING GAS CONNECTIONS

WARNING: Test all gas piping and connections, internal and external to unit, for leaks after installing or servicing. Correct all leaks at once.

WARNING: Never use an open

ame to check for a leak. Apply a noncorrosive leak detection uid

to all joints. Bubbles forming show a leak. Correct all leaks at once.

CAUTION: Make sure external regulator has been installed between propane/LP supply and

replace. See guidelines under

Connecting to Gas Supply, page 17.

PRESSURE TESTING GAS SUPPLY PIPING SYSTEM Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)

1. Disconnect appliance with its appliance

main gas valve (control valve) and equipment shutoff valve from gas supply piping system. Pressures in excess of 1/2 psig

(3.5 kPA) will damage heater regulator.

2. Cap off open end of gas pipe where equipment shutoff valve was connected.

3. Pressurize supply piping system by either

opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for

natural gas, or using compressed air.

4. Check all joints of gas supply piping system. Apply noncorrosive leak detection uid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Reconnect fireplace and equipment shutoff valve to gas supply. Check recon-

nected ttings for leaks.

Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Figure 25).

2. Pressurize supply piping system by either

opening propane/LP supply tank valve for propane/LP gas or opening main gas valve located on or near gas meter for

natural gas, or using compressed air.

3. Check all joints from gas meter to equip-

ment shutoff valve for natural gas or propane/LP supply to equipment shutoff valve for propane/LP (see Figures 26 or

27). Apply noncorrosive leak detection uid to all joints. Bubbles forming show a leak.

4. Correct all leaks at once.

Equipment Shutoff Valve

Figure 25 - Equipment Shutoff Valve

Equipment Shutoff Valve

Propane/LP Supply Tank

Figure 26 - Checking Gas Joints

(Propane/LP Only)

Equipment Shutoff Valve

Gas Meter

Figure 27 - Checking Gas Joints for

Natural Gas (Shown with Optional Mantel)

Open

Closed

Gas Control Valve

126872-01A 19

www.SuperiorFireplaces.US.com

INSTALLATION

AUTO

OFF

Continued

PRESSURE TESTING FIREPLACE GAS CONNECTIONS

Open equipment shutoff valve (see Figure

25, page 19).

2. Open main gas valve located on or near gas meter for natural gas or open propane/LP supply tank valve.

3. Make sure control knob of replace is in

the OFF position.

4. Check all joints from equipment shutoff

valve to gas control valve (see Figures

26 or 27, page 19). Apply noncorrosive leak detection uid to all joints. Bubbles forming show a leak.

5. Correct all leaks at once.

6. Light replace (see Operation, page 22). Check all other internal joints for leaks.

7. Turn off replace (see To Turn Off Gas to Appliance, page 23).

OPTIONAL WIRELESS HAND-HELD REMOTE CONTROL ACCESSORIES (MRC AND TRC)

Installing Receiver

1. Remove screws.

2. Disconnect switch wires from control valve.

3. Remove switch plate (see Figure 28). Discard switch plate after removing. Save the screws.

4. Place remote receiver unit onto replace

base.

5. Connect the wire harness from the receiver to the TH and TH/TP terminals on the valve.

6. For further information see installation

instructions provided with remote control

kit.

Switch

Screw

Black Wire

Figure 28 - Switch Plate and Wiring

Harness

Plate

Red Wire

www.SuperiorFireplaces.US.com

OPTIONAL WALL MOUNTED THERMOSTAT - GWMT1

WARNING: Read and follow installation instructions. Installation should be done by

a qualied installer familiar with

low-voltage wiring procedures.

WARNING: Do not connect this thermostat to any electrical source! Electrical shock and/or

re hazard will occur.

1. Connect one terminal of 25 ft. wire to bottom contact of switch (see Figure 29).

2. Connect remaining wire terminal to “TH”

terminal on control valve. Make sure that

wire terminals are in the positions on your unit as pictured in Figure 29. If wires are not “crossed” thermostat will not work.

Switch on Gas

Fireplace

One Terminal of 25 ft. Wire

Figure 29 - Connecting Wire Terminals

3. Route 25 ft. wire to a convenient location

to mount your thermostat (no outside wall). IMPORTANT: Wire may be short- ened but must not be lengthened.

Thermostat should be mounted 54" above

the oor in a location where there is good

air circulation. Avoid heat sources such as

lamps, direct sunlight, replace, or heat

and air conditioning ducts.

4. Gently remove thermostat cover from base. Grasp sides of cover rmly and pull

to separate from base.

Feed electrical wires through rectangular

slots on each side of base (see Figure 30).

Control Valve

To Wall Thermostat

or Switch

126872-01A20

INSTALLATION

Continued

WARNING: Do not connect the thermostat to a power source. Electrical shock and/or

a re hazard will occur.

6. Connect one bare wire end to each terminal (“W” and “R”) of the thermostat base (see

Figure 31).

7. Install base onto wall with provided screws.

Feed wires through rectangular slots

Figure 30 - Back View of Thermostat

Base

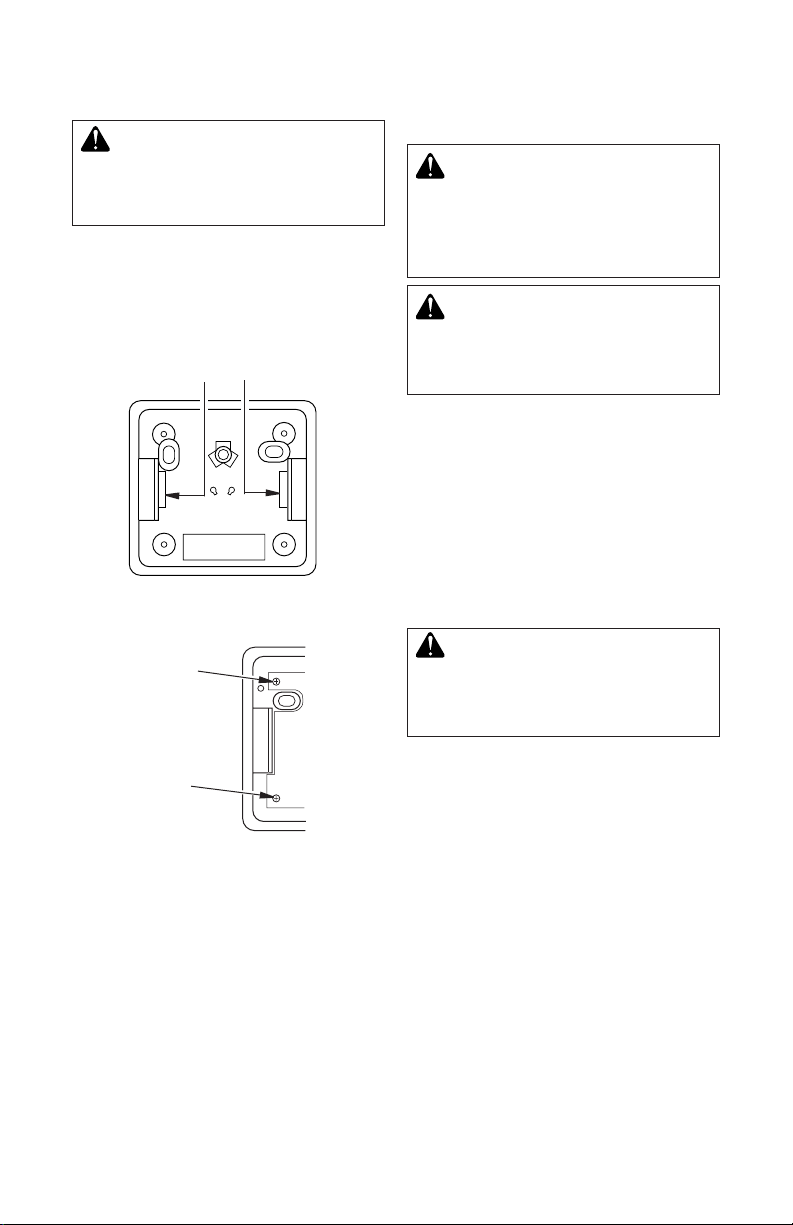

OPTIONAL WALL SWITCH - GWMS2

WARNING: Read and follow installation instructions. Installation should be done by

a qualied installer familiar with

low-voltage wiring procedures.

WARNING: Do not connect this switch to any electrical source! Electrical shock and/or

re hazard will occur.

1. Connect one terminal of 25 ft. wire to bottom contact of switch (see Figure 29,

page 20).

2. Connect remaining wire terminal to “TH”

terminal on control valve. Make sure that

wire terminals are in the positions on your unit as pictured in Figure 29, page 20. If wires are not “crossed” thermostat will not work.

3. Route 25 ft. wire to a convenient location to mount your wall switch (no outside walls).

Terminal “W”

WARNING: Do not connect the switch to a power source. Electrical shock and/or re hazard will occur.

IMPORTANT: Wire may be shortened but

Terminal “R”

Figure 31 - Thermostat Base Terminals

8. Move temperature adjustment back

and forth to insure bimetal is free from restrictions.

9. Replace cover onto base. (Upon installa-

tion, thermostat must be allowed to stabilize at room temperature for a minimum

of 30 minutes for proper operation).

10. Set switch on replace to Auto position.

11. Set temperature adjustment to desired

setting. This thermostat has been electronically calibrated at the factory. No

adjustment or leveling is necessary.

126872-01A 21

“W” and “R”

www.SuperiorFireplaces.US.com

must not be lengthened.

4. Connect one bare wire end to each of the terminals of provided wall switch.

5. Install wall switch and cover in wall.

INSTALLATION

Continued

INSTALLING LOG SET AND SCREEN

1. Remove log packaging material and

discard packaging. Gently place log

on burner support (see Figure 32). Log

should t at against top of burner support and log locator tabs t into slots under log. Do not allow log to contact ame. If ame contacts log, soot will be created.

2. Reattach screen by placing notches in

screen frame over shoulder screws and pushing down.

Shoulder

Screw

Log

Screen

Burner Support

with Log

Locator Tabs

Figure 32 - Installing Log and Screen

OPERATION

FOR YOUR SAFETY

READ BEFORE LIGHTING

WARNING: If you do not fol-

low these instructions exactly,

a re or explosion may result

causing property damage, personal injury or loss of life.

A. This appliance has a pilot which must

be lighted by hand. When lighting the pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around

the appliance area for gas. Be sure to

smell next to the oor because some

gas is heavier than air and will settle

on the oor.

OPERATION

Continued

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do

not use any phone in your building.

• Immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier,

call the re department.

C. Use only your hand to push in or turn

the gas control knob. Never use tools. If the knob will not push in or turn by hand, don’t try to repair it, call a quali-

ed service technician or gas supplier.

Force or attempted repair may result in

a re or explosion.

D. Do not use this appliance if any part

has been under water. Immediately

call a qualied service technician to

inspect the appliance and to replace any part of the control system and any gas control which has been under water.

LIGHTING

INSTRUCTIONS

WARNING: You must operate

this replace with the replace screen in place. Make sure re-

place screen is installed before

running replace.

NOTICE: During initial operation

of new replace, burning logs will

give off a paper-burning smell. Open window to vent smell. This will only last a few hours.

1. STOP! Read the safety information in

column 1.

2. Make sure equipment shutoff valve is fully open.

3. Set switch in the OFF position.

WARNING: Burner will come on automatically within one minute when the selector switch is in the ON position after the pilot is lit.

www.SuperiorFireplaces.US.com

126872-01A22

AUTO OFF ON

OPERATION

Continued

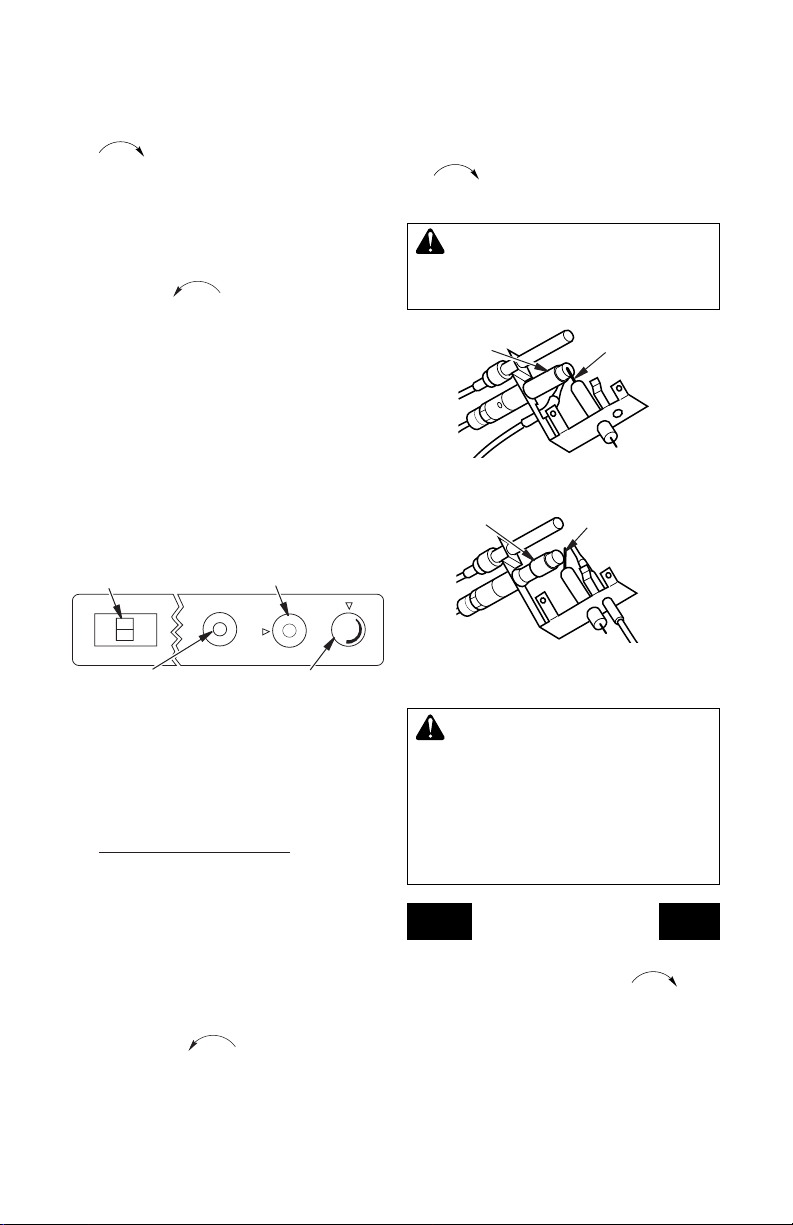

4. Press in and turn control knob clockwise

5. Wait ve (5) minutes to clear out any gas.

6. Press in and turn control knob counter-

Note: You may be running this replace

7. With control knob pressed in, press and

Selector Switch in

OFF Position

to the OFF position (see Figure 33).

Then smell for gas, including near the oor. If you smell gas, STOP! Follow “B” in the safety information, column 1. If you don’t smell gas, go to the next step.

clockwise to the PILOT position. Press in control knob for ve (5) seconds

(see Figure 33).

for the rst time after hooking up to gas

supply. If so, the control knob may need to be pressed in for 30 seconds or less. This will allow air to bleed from the gas system.

release ignitor button. This will light pilot.

The pilot is attached to the front burner. If

needed, keep pressing ignitor button until

pilot lights.

Control Knob

12. To shut off burners only and keep pilot

lit, you can turn control knob clockwise

to PILOT position, use remote control manual OFF button, or set selector switch in OFF position.

CAUTION: Do not try to adjust heating levels by using the equipment shutoff valve.

Pilot Burner

Figure 34 - Propane/LP Gas Pilot

Pilot Burner

Ignitor Electrode

Ignitor Button

Flame Adjustment Knob

Figure 35 - Natural Gas Pilot

Figure 33 - Control Knob and Ignitor

Button Location (Shown as Supplied - No

Control Options)

Note: If pilot does not stay lit, contact a

qualied service person or gas supplier for

repairs. Until repairs are made, light pilot with match. To light pilot with match, see Manual Lighting Procedure, page 24.

8. Keep control knob pressed in for 30 sec-

WARNING: Make sure the selector switch is in the OFF position when you are away from home for long periods of time. Fireplace will come on automatically with selector switch in the ON position.

onds after lighting pilot. After 30 seconds,

release control knob.

• If control knob does not pop out when released, contact a qualified service

person or gas supplier for repairs.

Note: If pilot goes out, repeat steps 4

through 8, page 23.

9. Slightly push in and turn control knob coun-

terclockwise to the ON position.

10. Wait one minute and switch selector switch to the ON position to light burner.

Shutting Off Fireplace

1. Turn control knob clockwise to the

2a. Set selector switch in the OFF position.

2b. If Using Optional Hand-Held Remote:

TO TURN OFF GAS

TO APPLIANCE

OFF position.

Set selector switch in the OFF position to

prevent draining battery.

11. Set ame adjustment knob to any level between HI and LO.

126872-01A 23

www.SuperiorFireplaces.US.com

OPERATION

REMOTE OFF ON

Continued

3. To shut off burners only and keep pilot

lit, you can turn control knob clockwise

to PILOT position, use remote control manual OFF button, or set selector switch in OFF position.

Shutting Off Burners Only (pilot stays lit)

You may shut off the burners and keep the pilot lit by doing one of the following:

1. Turn control knob clockwise to the

PILOT position.

2. Use remote control manual OFF button.

3. Set selector switch in the OFF position.

MANUAL LIGHTING

PROCEDURE

1. Follow steps 1 through 6 under Lighting Instructions, page 22.

2. Depress control knob and light pilot with

match.

3. Keep control knob pressed in for 30

seconds after lighting pilot. After 30 sec-

onds, release control knob. Now follow steps 9 through 11, Lighting Instructions,

page 22.

OPTIONAL HAND-HELD

REMOTE OPERATION

Note: All remote control accessories must be purchased separately (see Accessories, page 33). Follow instructions included with the remote control.

NOTICE: You must light the pilot before using the hand-held remote control unit. See Lighting Instructions on page 22.

After lighting, let pilot ame burn for about

one minute. Turn control knob to ON posi-

tion. Adjust ame adjustment knob anywhere between HI and LO. Slide the selector switch

to the REMOTE position (see Figure 36).

Note: The burner may light if hand-held remote was on when selector switch was last turned off. You can now turn the burner on and off with the hand-held remote control unit.

IMPORTANT: Do not leave selector switch in

REMOTE or ON position when pilot is not lit. This will drain the battery.

Selector Switch in REMOTE Position

(Optional Hand-Held Remote Control)

Flame

Control Knob

Adjustment Knob

Figure 36 - Setting the Selector Switch,

Control Knob, and Flame Adjustment

Knob for Hand-Held Remote Operation

GWMT1 WALL MOUNTED

THERMOSTAT (OPTIONAL)

Make sure heater switch is on AUTO and set temperature adjustment on wall thermostat

to desired setting. Thermostat has been electronically calibrated at the factory and

requires no adjustment or leveling. Upon installation, thermostat must be allowed

to stabilize at room temperature for a minimum

of 30 minutes for proper operation. See installation instructions on page 20 of this manual.

GWMS2 WALL MOUNTED

SWITCH (OPTIONAL)

Make sure heater switch is on AUTO. This wall switch works just like the conventional light switch. Flip switch up for on and down for off.

Note: Make sure that this switch is not in a position to be mistaken for a light switch. This

may result in replace being inadvertently

turned on without proper precautions being taken. See installation instructions on page 21 of this manual.

OPERATING

BLOWER (OPTIONAL)

This blower has three settings: ON, OFF, and AUTO. In ON position, blower will operate constantly. In OFF position, blower will not operate. In AUTO position, blower will start when thermostat senses a sufcient increase in rebox temperature.

Note: Your replace and thermostat blower

will not turn on and off at the same time. Fireplace may run for several minutes before blower turns on. After heater modulates to pilot position, blower will continue to run. The

blower will shut off after rebox temperature

decreases.

www.SuperiorFireplaces.US.com

126872-01A24

OPERATION

Continued

Note: It is safe to operate replace with blower

turned off. However, blower helps distribute

heated air from replace.

AUTO/OFF/ON

Switch

Figure 37 - AUTO/OFF/ON Blower Switch

INSPECTING BURNERS

Check pilot ame pattern and burner ame

patterns often.

PILOT FLAME PATTERN

Figure 38 shows a correct pilot ame pattern. Figure 39 shows an incorrect pilot ame pattern. The incorrect pilot ame is not touching the thermocouple. This will cause the thermocouple to cool. When the thermocouple cools, the replace will shut down.

If pilot ame pattern is incorrect, as shown

in Figure 39

• turn replace off (see To Turn Off Gas to

Appliance, page 23)

• see Troubleshooting, page 28.

Note: The pilot ame on natural gas units will have a slight curve, but ame should be blue

and have no yellow or orange color.

INSPECTING BURNERS

Continued

BURNER FLAME PATTERN

Figure 40 shows a correct burner ame pattern. Figure 41 shows an incorrect burner ame pattern. The incorrect burner ame pattern shows sporadic, irregular ame tipping. The ame should not be dark or have

an orange/reddish tinge.

Note: When using the replace the rst time, the ame will be orange for approximately one

hour until the log cures.

If burner ame pattern is incorrect, as shown

in Figure 41

• turn replace off (see To Turn Off Gas to Appliance, page 23).

• see Troubleshooting, page 28.

Bright yellow burner ame;

ame will be blue next to burner

26,000 Btu/Hr Units

10,000 Btu/Hr Units

Figure 40 - Correct Burner Flame Pattern

Pilot Burner

Thermocouple

26,000 Btu/Hr Units

Figure 38 - Correct Pilot Flame Pattern

Pilot Burner

Figure 39 - Incorrect Pilot Flame Pattern

126872-01A 25

(Propane/LP Shown)

Thermocouple

(Propane/LP Shown)

www.SuperiorFireplaces.US.com

10,000 Btu/Hr Units

Figure 41 - Incorrect Burner Flame

Dark orange burner ame

Pattern

CLEANING AND MAINTENANCE

WARNING: Turn off replace

and let cool before cleaning.

CAUTION: You must keep control areas, burner, and circulating air passageways of

replace clean. Inspect these areas of replace before each use. Have replace inspected yearly by a qualied service

person. Fireplace may need more frequent cleaning due to excessive lint from carpeting, pet hair, bedding material, etc.

WARNING: Failure to keep the primary air opening(s) of the burner(s) clean may result in sooting and property damage.

BURNER INJECTOR HOLDER AND PILOT AIR INLET HOLE

The primary air inlet holes allow the proper amount of air to mix with the gas. This provides a clean burning ame. Keep these holes clear of dust, dirt, lint, and pet hair. Clean these air in-

let holes prior to each heating season. Blocked

air holes will create soot. We recommend that

you clean the unit every three months during

operation and have replace inspected yearly by a qualied service person.

We also recommend that you keep the burner tube and pilot assembly clean and free of dust

and dirt. To clean these parts we recommend

using compressed air no greater than 30 PSI.

Your local computer store, hardware store, or

home center may carry compressed air in a

can. If using compressed air in a can, please follow the directions on the can. If you don’t follow directions on the can, you could dam-

age the pilot assembly.

1. Shut off unit, including pilot. Allow unit to

cool for at least thirty minutes.

2. Inspect burner, pilot, and primary air inlet holes on injector holder for dust and dirt

(see Figure 42).

3. Blow air through ports/slots and holes in

burner.

4. Check injector holder located at end of

burner tube again. Remove any large

particles of dust, dirt, lint, or pet hair with a soft cloth or vacuum cleaner nozzle.

5. Blow air into primary air holes on injector

holder.

6. In case any large clumps of dust have now

been pushed into burner repeat steps 3 and 4.

Clean pilot assembly also. A yellow tip on pilot ame indicates dust and dirt in pilot assembly. There is a small pilot air inlet hole about 2" from where pilot ame comes out of pilot assembly

(see Figures 43 or 44 depending on model).

With unit off, lightly blow air through air inlet hole. You may blow through a drinking straw

if compressed air is not available.

Injector

Holder

Ports/Slots

Burner Tube

Primary Air Inlet Holes

Figure 42 - Injector Holder On Outlet

Burner Tube

Pilot Air Inlet Hole

Pilot Assembly

Figure 43 - Pilot Inlet Air Hole

(Propane/LP Gas)

Pilot Air Inlet Hole

Pilot Assembly

Figure 44 - Pilot Inlet Air Hole

(Natural Gas)

www.SuperiorFireplaces.US.com

126872-01A26

CLEANING AND MAINTENANCE

Switch

Black

Auto

Off On

Red

White

Thermopile

Gas Control

TPTH TH

TPTH

Continued

LOG SET

• If you remove one-piece log set for clean-

ing, refer to Installing Log Set and Screen, page 22, for placement instructions.

• Replace log set if broken or chipped (dime-

sized or larger).

WIRING DIAGRAM

CABINET

Air Passageways

Use a vacuum cleaner or pressurized air to

clean.

Exterior

Use a soft cloth dampened with a mild soap and water mixture. Wipe cabinet to

remove dust.

126872-01A 27

www.SuperiorFireplaces.US.com

TROUBLESHOOTING

WARNING: Turn off and unplug replace and let cool before servicing. Only a qualied service person should service and repair replace.

CAUTION: Never use a wire, needle, or similar object to clean ODS/pilot. This can damage ODS/pilot unit.

Note: All troubleshooting items are listed in order of operation.

OBSERVED PROBLEM

When ignitor button is pressed,

there is no spark at ODS/pilot

When ignitor button is pressed,

there is spark at ODS/pilot but no ignition

POSSIBLE CAUSE

1. Ignitor electrode not connected to ignitor cable

2. Ignitor cable pinched or

wet

3. Broken ignitor cable

4. Bad piezo ignitor

5. Ignitor electrode posi-

tioned wrong

6. Ignitor electrode broken

1. Gas supply turned off or

equipment shutoff valve closed

2. Control knob not in PILOT position

3. Control knob not pressed

in while in PILOT position

4. Air in gas lines when in-

stalled

5. Depleted gas supply (propane/LP only)

6. ODS/pilot is clogged

7. Gas regulator setting is not

correct

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any metal or tubing.

Keep ignitor cable dry

3. Replace ignitor cable

4. Replace piezo ignitor

5. Replace pilot assembly

6. Replace pilot assembly

1. Turn on gas supply or open equipment shutoff valve

2. Turn control knob to PILOT position

3. Press in control knob while

in PILOT position

4. Continue holding down control knob. Repeat igniting operation until air is removed

5. Contact local propane/LP gas company

6. Clean ODS/pilot (see Clean-

ing and Maintenance, page

26) or replace ODS/pilot assembly

7. Replace gas regulator

www.SuperiorFireplaces.US.com

126872-01A28

TROUBLESHOOTING

OBSERVED PROBLEM

ODS/pilot lights but flame

goes out when control knob

is released

Continued

POSSIBLE CAUSE

1. Control knob not fully pressed in

2. Control knob not pressed in long enough

3. Safety interlock system has been triggered

4. Equipment shutoff valve not fully open

5. Pilot flame not touching

thermocouple, which allows thermocouple to cool, causing pilot ame to go

out. This problem could be caused by one or both of

the following:

A) Low gas pressure

B) Dirty or partially clogged

ODS/pilot

6. Thermocouple connection loose at control valve

7. Thermocouple damaged

8. Control valve damaged

REMEDY

1. Press in control knob fully

2. After ODS/pilot lights, keep

control knob pressed in 30 seconds

3. Wait one minute for safety interlock system to reset. Repeat ignition operation

4. Fully open equipment shutoff valve

5. A) Contact local natural or propane/LP gas company

B) Clean ODS/pilot (see

Cleaning and Maintenance, page 26) or replace ODS/ pilot assembly

6. Hand tighten until snug,

then tighten 1/4 turn more

7. Replace pilot assembly

8. Replace control valve

Burner does not light after ODS/pilot is lit

Delayed ignition of burner

Burner backfiring during combustion

126872-01A 29

1. Inlet gas pressure is too

low

2. Burner orice is clogged

3. Thermopile leads disconnected or improperly connected

4. Burners will not come on

in remote position

1. Manifold pressure is too

low

2. Burner orice is clogged

1. Burner orice is clogged or

damaged

2. Damaged burner

3. Gas regulator defective

4. Inlet gas pressure is too

low

www.SuperiorFireplaces.US.com

1. Contact local natural or propane/LP gas company

2. Clean burner (see Cleaning and Maintenance, page 26)

or replace burner orice

3. Reconnect leads (see Wiring Diagram, page 27)

4. Replace battery in handheld remote and receiver

1. Contact local natural or propane/LP gas company

2. Clean burner (see Cleaning

and Maintenance, page 26) or replace burner orice

1. Clean burner (see Cleaning and Maintenance, page 26)

or replace burner orice

2. Replace damaged burner

3. Replace gas regulator

4. Contact local natural or propane/LP gas company

TROUBLESHOOTING

OBSERVED PROBLEM

Slight smoke or odor during initial operation

Continued

POSSIBLE CAUSE

1. Residues from manufacturing processes and log curing

2. Not enough air

3. Gas regulator defective

REMEDY

1. Problem will stop after a few

hours of operation

2. Check burner for dirt and

debris. If found, clean

burner (see Cleaning and Maintenance, page 26)

3. Replace gas regulator

Fireplace produces a whistling noise when burner is lit

White powder residue forming within burner box or on adjacent walls or furniture

Moisture/condensation noticed

on windows

1. Turning control knob to

HI position when burner

is cold

2. Air in gas line

3. Air passageways on replace blocked

4. Dirty or partially clogged

burner orice

1. When heated, vapors from furniture polish, wax, carpet cleaners, etc. may turn into white powder residue

1. Not enough combustion/ ventilation air

1. Turn control knob to LO

position and let warm up

for a minute

2. Operate burner until air is removed from line. Have gas line checked by local natural gas company

3. Observe minimum installation clearances (see page 10)

4. Clean burner (see Cleaning

and Maintenance, page 26) or replace burner orice

1. Turn fireplace off when using furniture polish, wax, carpet cleaners, or similar

products

1. Refer to Air for Combustion and Ventilation requirements (page 6)

www.SuperiorFireplaces.US.com

126872-01A30

TROUBLESHOOTING

Continued

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your

building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

IMPORTANT: Operating replace where impurities in air exist may create odors. Cleaning supplies, paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These fumes may mix with combustion air and create odors. These odors will disappear over time.

OBSERVED PROBLEM

Remote does not function

POSSIBLE CAUSE

1. Battery is not installed.

Battery power is low

REMEDY

1. Replace batteries in receiver and remote control

Fireplace produces a clicking/

ticking noise just after burners

are lit or shut off

Fireplace produces unwanted

odors

Fireplace shuts off in use (ODS operates)

Gas odor even when control

knob is in OFF position

Gas odor during combustion

126872-01A 31

1. Metal expanding while

heating or contracting

while cooling

1. Fireplace burning vapors

from paint, hair spray, glues, cleaners, chemicals, new carpet, etc. (See IMPOR-

TANT statement above)

2. Low fuel supply (propane/

LP only)

3. Gas leak. See Warning

statement at top of page

1. Not enough fresh air is available

2. Low line pressure

3. ODS/pilot is partially clogged

1. Gas leak. See Warning statement at top of page

2. Control valve defective

1. Foreign matter between

control valve and burner

2. Gas leak. See Warning statement at top of page

www.SuperiorFireplaces.US.com

1. This is normal with most replaces. If noise is excessive, contact qualied

service person

1. Open window to ventilate room. Stop using odor

causing products while replace is running

2. Refill supply tank (propane/LP only)

3. Locate and correct all leaks (see Checking Gas Con- nections, page 19)

1. Open window and/or door

for ventilation

2. Contact local natural or propane/LP gas company

3. Clean ODS/pilot (see

Cleaning and Maintenance, page 26)

1. Locate and correct all leaks (see Checking Gas Con-

nections, page 19)

2. Replace control valve

1. Take apart gas tubing and remove foreign matter

2. Locate and correct all leaks (see Checking Gas Con- nections, page 19)

SPECIFICATIONS

VCM3026ZMP

• Rating: 14,000/26,000 Btu/Hr

• Gas Type: Propane/LP Gas Only

• Ignition: Piezo

• Manifold Pressure: 8" W.C.

• Inlet Gas Pressure (in. of water): Maximum: 14" W.C., Minimum*: 11" W.C.

• Dimensions (H x W x D): Fireplace (including hood and screws) - 25 7/8" x 26 13/16" x 9 3/8"

Carton - 32 5/8" x 27 13/16" x 11 5/8"

•

Weight: Fireplace - 44.5 lbs.

Shipping - 48 lbs.

* For purpose of input adjustment

REPLACEMENT PARTS

Note: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty.

Contact authorized dealers of this product.

If they can’t supply original replacement part(s ), call INNOVATIVE HEARTH PRODUCTS at 1-800-655-2008.

VCM3026ZMN

• Rating: 14,000/26,000 Btu/Hr

• Gas Type: Natural Gas Only

• Ignition: Piezo

• Manifold Pressure: 3.5" W.C.

• Inlet Gas Pressure (in. of water): Maximum: 10.5" W.C., Minimum*: 5" W.C.

• Dimensions (H x W x D): Fireplace (including hood and screws) - 25 7/8" x 26 13/16" x 9 3/8"

Carton - 32 5/8" x 27 13/16" x 11 5/8"

•

Weight: Fireplace - 44.5 lbs.

Shipping - 48 lbs.

* For purpose of input adjustment

When calling, have ready:

• your name

• your address

• model and serial numbers of your heater

• how heater was malfunctioning

• purchase date

Usually, we will ask you to return the part to

the factory.

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• replace will not produce specied heat

• for propane/LP units, propane/LP gas supply may be low

You may feel your gas pressure is too low. If so, contact your local natural or propane/LP

gas supplier.

www.SuperiorFireplaces.US.com

TECHNICAL SERVICES

You may have further questions about installation, operation, or troubleshooting. If so, contact

INNOVATIVE HEARTH PRODUCTS at 1-800655-2008. When calling please have your model and serial numbers of your heater ready.

You can also visit our web site at www.IHP.US.com.

126872-01A32

ACCESSORIES

TEMPSETONROOM

OFF

MODE

SET

Purchase these accessories from your local dealer. If they can not supply these accessories

call INNOVATIVE HEARTH PRODUCTS at 1-800-655-2008 for information. You can also write

to the address listed on the back page of this manual.

PERIMETER TRIM KIT

GAB6094 - Black GAP6094 - Platinum

Optional three-sided perimeter trim kit for re-

cessed installations (when unit is on the oor) or mantel. Provides a nished appearance by covering rough edges of wall/mantel opening.

EXTRUDED LOUVER KIT

GAP9092 - Platinum

Optional extruded louver. Kit contains 2

louvers.

WALL-MOUNT THERMOSTAT SWITCH - GWMT1

The desired comfort setting can be selected

on the wall thermostat and the replace will

automatically cycle from pilot to the heat setting selected.

WALL-MOUNT ON/OFF SWITCH GWMS2

Allows the replace to be turned on and off with a wall switch.

RECEIVER AND HAND-HELD TOUCH-SCREEN THERMOSTAT REMOTE CONTROL KIT - TRSC

For all models. Allows gas log heater to be

operated in a manually, thermostatically, or

THERMOSTAT-CONTROLLED

programmed controlled mode.

BLOWER KIT - GA3450TA

Provides better heat distribution. Makes replace more efcient. Automatically turns off

and on as needed.

CORNER MANTEL WITH FULL HEARTH BASE

C26TU - Unnished, Traditional Design C26TO - Oak Finished, Traditional Design C26GO - Oak Finished, Georgian Design

Space-saving mantel and hearth base corner

design features clean, classic lines. Available in a stained oak, nish or an unnished hardwood,

ready to stain or paint. Complete assembly instructions included. Three-sided perimeter trim kit is sold separately.

RECEIVER AND HAND-HELD THERMOSTAT REMOTE CONTROL KIT - TRC

Allows the replace to be operated in a manually or thermostatically controlled mode. You can turn the replace on and off without ever leaving the comfort of your easy chair. A wall-

mount docking station is included.

WALL MANTEL AND FULL HEARTH BASE

W26TU - Unnished, Traditional Design W26TO - Oak Finished, Traditional Design W26GO - Oak Finished, Georgian Design

Mantel features clean, classic lines. Available in a stained oak or unnished hardwood,

ready to stain or paint. Complete assembly instructions included. Three-sided perimeter trim kit is sold separately.

RECEIVER AND HAND-HELD

OFF

REMOTE CONTROL KIT - MRC

126872-01A 33

www.SuperiorFireplaces.US.com

Allows the replace to be turned on and off by using a hand-held remote control. A wall-

mount docking station is included.

PARTS

27-1

27-2

MODELS VCM3026ZMP AND VCM3026ZMN

www.SuperiorFireplaces.US.com

126872-01A34

This list contains replaceable parts used in your replace. When ordering parts, follow the

PARTS

instructions listed under Replacement Parts on page 34 of this manual.

KEY NO. PART NO. DESCRIPTION QTY.

1 102633-02 Outer Casing Top • • 1 2 102624-02 Outer Casing • • 1 3 099230-02 Shoulder Screw • • 14 4 098304-01 Screw, #10 x 3/8" • • 13 5 109824-05 Burner • • 1 6 098304-02 Screw, PPH AB 6-20 x 0.38 • 4

098304-06 Screw, PPH AB 6-20 x 0.38 • 4 7 102635-02 Left and Right Side Front • • 2 8 103209-09 Louver • • 2 9 104281-02 Firebox Hood • • 1 10 102638-01 Firebox Top • • 1 11 PP225 ODS/Pilot Assembly • 1

PP231 ODS/Pilot Assembly • 1 12 ** Firebox Wrapper • • 1 13 104322-01 Burner Tube • • 1 14 104335-01 Outer Shell Base • • 1 15 102649-02 Branch Support • • 1 16 102445-01 Piezo Ignitor • • 1 17 099918-02 Regulator, Pilot • 1 18 098271-10 Ignitor Cable • • 1 19 107186-01 Injector • • 1 20 M11084-26 Screw, Hex Head, #10 x 3/8" • • 25 21 098249-01 Nut, M5 • • 6 22 103781-05 Gas Valve • 1

103781-06 Gas Valve • 1 23 102639-01 Bafe • • 1 24 101628-01 Flexible Connector • • 1 25 104305-01 Control Shield • • 1 26 103295-05 Screen Assembly • • 1 27 107048-01 Log Set Assembly Kit • • 1 28 104313-01 Right Hinge • • 1 29 104313-02 Left Hinge • • 1 30 M10908-2 Hinge Screws • • 4 31 103734-01 Burner Support • • 2 32 101006-02 Pilot Bracket • • 1 33 097809-03 Connector, Male • • 1 34 101629-01 Bushing • • 1 35 101629-02 Bushing • • 1 36 M12461-26 Gas Valve Screws • • 4 37 103587-02 Switch Plate • • 1 38 099998-01 Fan Switch • • 1 39 098264-02 Male Connector • • 1 40 103284-03 Wire Harness • • 1 41 099387-14 Pilot Tube to Regulator • 1 42 099387-13 Pilot Tube to Control Valve • 1

099387-15 Pilot Tube to Control Valve • 1 43 107634-02 NG Conversion Plate • 1 44 M10908-75 Hex Wsr Head Tapping Screw • • 1

PARTS AVAILABLE — NOT SHOWN

103877-01 Lighting Instructions Plate • • 1

100563-01 Warning Plate • • 1

103470-02 Hardware Package • • 1

** Part not available for eld replacement.

126872-01A 35

www.SuperiorFireplaces.US.com

VCM3026ZMN

VCM3026ZMP

Innovative Hearth Products

Superior™ Brand Gas Fireplaces, Stoves and Inserts

20 Year Limited Warranty

THE WARRANTY

Innovative Hearth Products ("IHP") 20 Year Limited Warranty warrants your Superior™ Brand gas ﬁreplace, Stove or Insert ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body and ﬁrebox carry the 20 Year Limited Warranty. Ceramic glass carries the 20 Year Limited Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the 20 Year Limited Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to ﬁve years. THERE ARE EXCLUSIONS AND LIMITATIONS to this 20 Year Limited Warranty as described herein.

COVERAGE COMMENCEMENT DATE

Warranty coverage begins on the date of installation. In the case of new home construction, warranty coverage begins on the date of ﬁrst occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date.

EXCLUSIONS AND LIMITATIONS

This 20 Year Limited Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices.

This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be provided. The Product body and ﬁrebox carry the 20 Year Limited Warranty from the date of installation. Vent components, trim components and paint are excluded from this 20 Year Limited Warranty. The following do not carry the 20 Year Limited Warranty but are warranted as follows:

Burner – Repair or replacement for one year from the date of installation Gas components – Repair or replacement for one year from the date of installation Gaskets – Repair or replacement for one year from the date of installation Logs – Replacement for one year from the date of installation against thermal breakage only Optional blowers & remote controls – Repair or replacement for one year from the date of installation Optional glass doors – Repair or replacement for 90 days from the date of installation Tempered glass - Replacement for one year from the date of installation Labor coverage – Prevailing IHP labor rates apply for the warranty period of the component

Parts not otherwise listed carry a 90 day warranty from the date of installation.

Whenever practicable, IHP will provide replacement parts, if available, for a period of 10 years from the last date of manufacture of the Product.

IHP will not be responsible for: (a) damages caused by normal wear and tear, accident, riot, ﬁre, ﬂood or acts of God; (b) damages caused by abuse, negligence, misuse, or unauthorized alteration or repair of the Product affecting its stability or performance (The Product must be subjected to normal use. The Product is designed to burn either natural or propane gas only. Burning conventional fuels such as wood, coal or any other solid fuel will cause damage to the Product, will produce excessive temperatures and could result in a ﬁre hazard.); (c) damages caused by failing to provide proper maintenance and service in accordance with the instructions provided with the Product; (d) damages, repairs or inefﬁciency resulting from faulty installation or application of the Product.

IHP is not responsible for inadequate ﬁreplace system draft caused by air conditioning and heating systems, mechanical ventilation systems, or general construction conditions which may generate negative pressure in the room in which the appliance is installed. Additionally IHP assumes no responsibility for drafting conditions caused by venting conﬁgurations, adjoining trees or buildings, adverse wind conditions or unusual environmental factors and conditions that affect the operation of the unit.

This 20 Year Limited Warranty covers only parts and labor as provided herein. In no case shall IHP be responsible for materials, components or construction, which are not manufactured or supplied by IHP or for the labor necessary to install, repair or remove such materials, components or construction. Additional utility bills incurred due to any malfunction or defect in equipment are not covered by this warranty. All replacement or repair components will be shipped F.O.B. from the nearest stocking IHP factory.

LIMITATION ON LIABILITY

It is expressly agreed and understood that IHP’s sole obligation and the purchaser’s exclusive remedy under this warranty, under any other warranty, expressed or implied, or in contract, tort or otherwise, shall be limited to replacement, repair, or refund, as speciﬁed herein.

In no event shall IHP be liable for any incidental or consequential damages caused by defects in the Product, whether such damage occurs or is discovered before or after repair or replacement, and whether such damage is caused by IHP’s negligence. IHP has not made and does not make any representation or warranty of ﬁtness for a particular use or purpose, and there is no implied condition of ﬁtness for a particular use or purpose.

IHP makes no expressed warranties except as stated in this 20 Year Limited Warranty. The duration of any implied warranty is limited to the duration of this expressed warranty.

No one is authorized to change this 20 Year Limited Warranty or to create for IHP any other obligation or liability in connection with the Product. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. The provisions of this 20 Year Limited Warranty are in addition to and not a modiﬁcation of or subtraction from any statutory warranties and other rights and remedies provided by law.

INVESTIGATION OF CLAIMS AGAINST WARRANTY

IHP reserves the right to investigate any and all claims against this 20 Year Limited Warranty and to decide, in its sole discretion, upon the method of settlement.

To receive the beneﬁts and advantages described in this 20 Year Limited Warranty, the appliance must be installed and repaired by a licensed contractor approved by IHP.

Contact IHP at the address provided herein to obtain a listing of approved dealers/distributors. IHP shall in no event be responsible for any warranty work done by a

contractor that is not approved without ﬁrst obtaining IHP's prior written consent.

HOW TO REGISTER A CLAIM AGAINST WARRANTY

In order for any claim under this warranty to be valid, you must contact the IHP dealer/distributor from which you purchased the product. If you cannot locate the dealer/ distributor, then you must notify IHP in writing. IHP must be notiﬁed of the claimed defect in writing within 90 days of the date of failure. Notices should be directed to the IHP Warranty Department at 1508 Elm Hill Pike, Suite 108; Nashville, TN 37210 or visit our website at WWW.SUPERIORFIREPLACES.US.COM.

P/N 900223-00, Rev. NC 12/2013

Innovative Hearth Products

1508ElmHillPike,Suite108•Nashville,TN37210

KEEP THIS WARRANTY

Model (

located on product or identication tag

Serial No. (

located on product or identication tag

Date Purchased __________________________

Keep receipt for warranty verication.

WARRANTY

) _____________________________

) __________________________

126872-01A 37

www.SuperiorFireplaces.US.com

P126872-01

1508 Elm Hill Pike, Suite 108

Nashville, TN 37210

1-800-655-2008

www.IHP.US.com

126872-01 Rev. A 02/14

Superior VCM3026ZMP, VCM3026ZMN Installation And Operation Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
