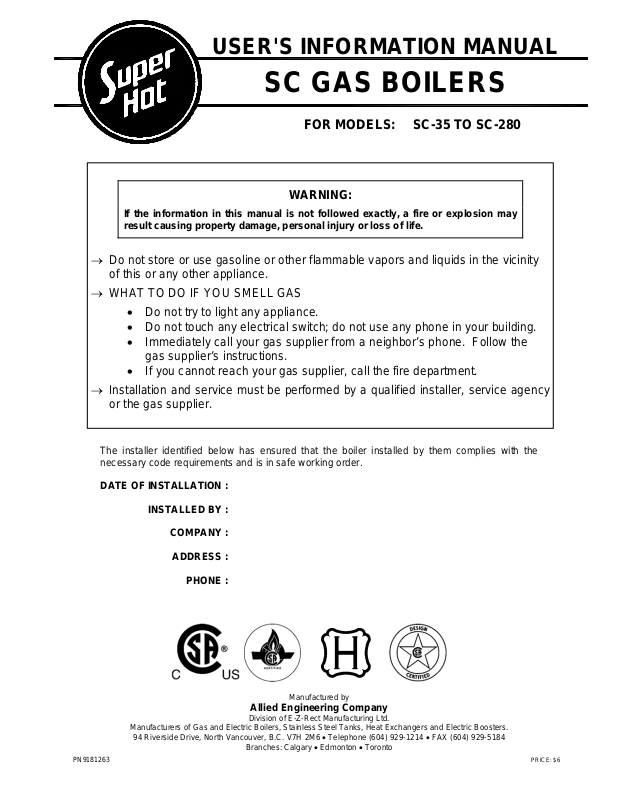

USER'S INFORMATION MANUAL

SC GAS BOILERS

FOR MODELS: SC-35 TO SC-280

WARNING:

If the information in this manual is not follow ed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.

→ Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other appliance.

→ WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the

gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

→ Installation and service must be performed by a qualified installer, service agency

or the gas supplier.

The installer identified below has ensured that the boiler installed by them complies with the
necessary code requirements and is in safe working order.

DATE OF INSTALLATION :

INSTALLED BY :

COMPANY :

ADDRESS :

PHONE :

Manufactured by

Allied Engineering Company

Manufacturers of Gas and Electric Boilers, Stainless Steel Tanks, Heat Exchangers and Electric Boosters.

94 Riverside Drive, North Vancouver, B.C. V7H 2M6 • Telephone [phone] • FAX [phone]

PN9181263 PRICE: $6

Division of E-Z-Rect Manufacturing Ltd.

Branches: Calgary • Edmonton • Toronto

SC Series Boilers – Installation and Service Manual

1 ABOUT OUR MANUALS

Your Super Hot boiler has been provided with two manuals:

• User's Information Manual - This manual is intended for the owner or user of the boiler and provides
information on routine operation and maintenance, and emergency shutdown.

• Installation and Service Manual - This manual must only be used by a qualified heating installer,
service technician or gas supplier. Installation or service by anyone unqualified to do so may

result in severe personal injury, death or substantial property damage.

Both manuals should be kept in the envelope provided and affixed adjacent to the boiler so that they are
readily available for future reference.

2 LIGHTING INSTRUCTIONS

This boiler is always equipped with an ignition device which automatically and directly lights the main
burners (there is no pilot burner).

There are two possible ignition systems:

1. direct spark ignition with combination gas valve (equipped with gas control knob) and module.

2. hot surface ignition with combination gas valve (equipped with gas control knob) and module.

The lighting instructions shown in this section apply to both ignition systems. In addition, the lighting
instructions have been printed on a label attached to the boiler. If you are unsure which type of gas valve
or ignition system your boiler is equipped with, check the wiring diagram sticker on the boiler or contact
the factory.

WARNING

Should boiler overheat, or the gas supply fail to shut off, do not turn off or disconnect the
electrical supply to the circulating pump. Instead, shut off the gas supply at a location external
to the boiler.

2

SC Series Boilers – Installation and Service Manual

FOR YOUR SAFETY READ BEFORE OPERATING

WARNING: If you do not follow these instructions exactly, a fire or explosion may result

causing property damage, personal injury or loss of life.

A. This appliance does not have a pilot. It is

equipped with an ignition device which
automatically lights the burner. Do not
to light the burner by hand.

B. BEFORE OPERATING smell all around the

appliance area for gas. Be sure to smell
next to the floor because some gas is
heavier than air and will settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance

• Do not touch any electrical switch; do
not use any phone in your building.

• Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.

OPERATING INSTRUCTIONS

1. STOP! Read the safety information above
on this label.

2. Turn off all electrical power to the appliance.

3. Set the room thermostat to lowest setting.

4. This appliance is equipped with an ignition
device which automatically lights the
burner. Do not

try to light the burner by

hand.

5. Remove control access panel.

• If you cannot reach your gas supplier,

try

C. Use only your hand to push in or turn the

D. Do not use this appliance if any part has

6. Turn gas control knob clockwise

7. Wait five (5) minutes to clear out any gas.

8. Turn gas control knob counterclockwise

9. Replace control access panel.

10. Set room thermostat to desired setting.

11. Turn on all electrical power to the appliance.

12. If the appliance will not operate, follow the

call the fire department.

gas control knob. Never use tools. If the
knob will not push in or turn by hand, don't
try to repair it, call a qualified service
technician. Force or attempted repair may
result in a fire or explosion.

been under water. Immediately call a
qualified service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.

3 to

"OFF".

Then smell for gas, including near the floor.
If you smell gas, STOP! Follow "B" in the
safety information above on this label. If
you don't smell gas, go to the next step.

4

to "ON".

instructions "To Turn Off Gas To Appliance"
and call your service technician or gas
supplier.

TO TURN OFF GAS TO APPLIANCE

1. Turn off all electrical power to the appliance
if service is to be performed.

2. Set the room thermostat to lowest setting.

3. Remove control access panel.

4. Turn gas control knob clockwise
"OFF". Do not force.

5. Replace control access panel.

3

3 to

SC Series Boilers – User’s Information Manual

3 AREA AROUND BOILER

Keep boiler area clear and free from combustible materials, gasoline and other flammable vapors and
liquids.

Do not store anything against the boiler or allow dirt or debris to accumulate in the area immediately
surrounding the boiler. It is unsafe for the flow of supply and exhaust air to be obstructed in any way.

Should your boiler be subjected to fire, flood or some other unusual condition, turn off all gas and
electrical supply. If you are unable to turn off the gas, call your gas company or gas supplier at once. Do
not put the boiler in operation again until it has been ascertained by a qualified agency that the controls
are functioning correctly. The installer should always clearly identify the emergency shut-off devices and
make the owner aware of their location and method of operation.

WARNING

Do not use this boiler if any part has been under water. Immediately call a qualified service
technician to inspect the boiler and to replace any part of the control system and any gas
control which has been under water.

4 CHECK FOR GAS LEAKS

To identify gas leaks, smell for gas around boiler area and gas piping connections. To check a specific
area, including the manifold joint connected to the gas valve outlet, for leakage, spray a mixture of soap
and water onto the suspected area – active bubbling indicates a gas leak. DO NOT TEST FOR LEAKS
WITH AN OPEN FLAME.

Propane or liquefied petroleum (LP) is heavier than air may collect or "pool" in a low area in the event of a
leak from defective equipment. This gas may then ignite resulting in a fire or explosion. Smell near to the
ground and low points when checking for propane gas leaks.

If you smell gas, STOP! Follow "A" in the safety instructions in Section 2. Gas leaks must be repaired
immediately.

5 CORROSIVE ATMOSPHERES

If a gas boiler is to be installed near a corrosive or potentially corrosive air supply, the boiler should be
isolated from it and outside air should be supplied.

Chemical vapors from products containing chlorine or fluorine must be avoided. Even though these
chemicals may be safe to breathe, corrosive substances can become liberated when passed through a
gas flame. Even at low concentrations, these chemicals can significantly contaminate the air supply and
shorten the life of any gas-fired appliance. The following is a list of some of the products which should be
avoided:

• bleaches and chlorinated cleaning products

• paints and sprays

• water softeners (calcium or sodium chloride)

• leaking refrigeration equipment

• freon from common aerosol dispensers

These chemicals are especially commons near swimming pools, beauty shops, dry cleaning
establishments, laundry areas, workshops, and garages. The warranty is void when failure is due to

corrosion.
