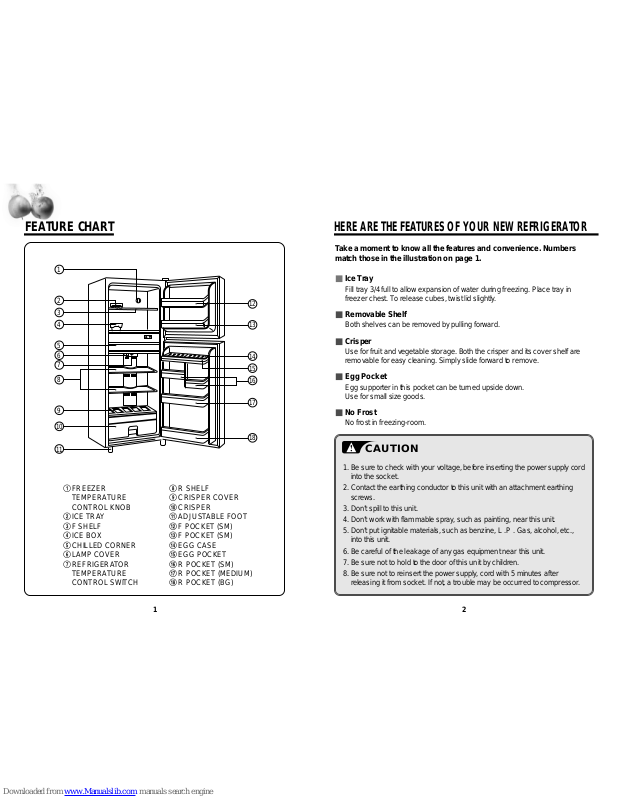

HERE ARE THE FEATURES OF YOUR NEW REFRIGERATOR
FEATURE CHART
2
2
4
3
5
7
8
9
10
11
1
12
13
17
18
15
16
6
14

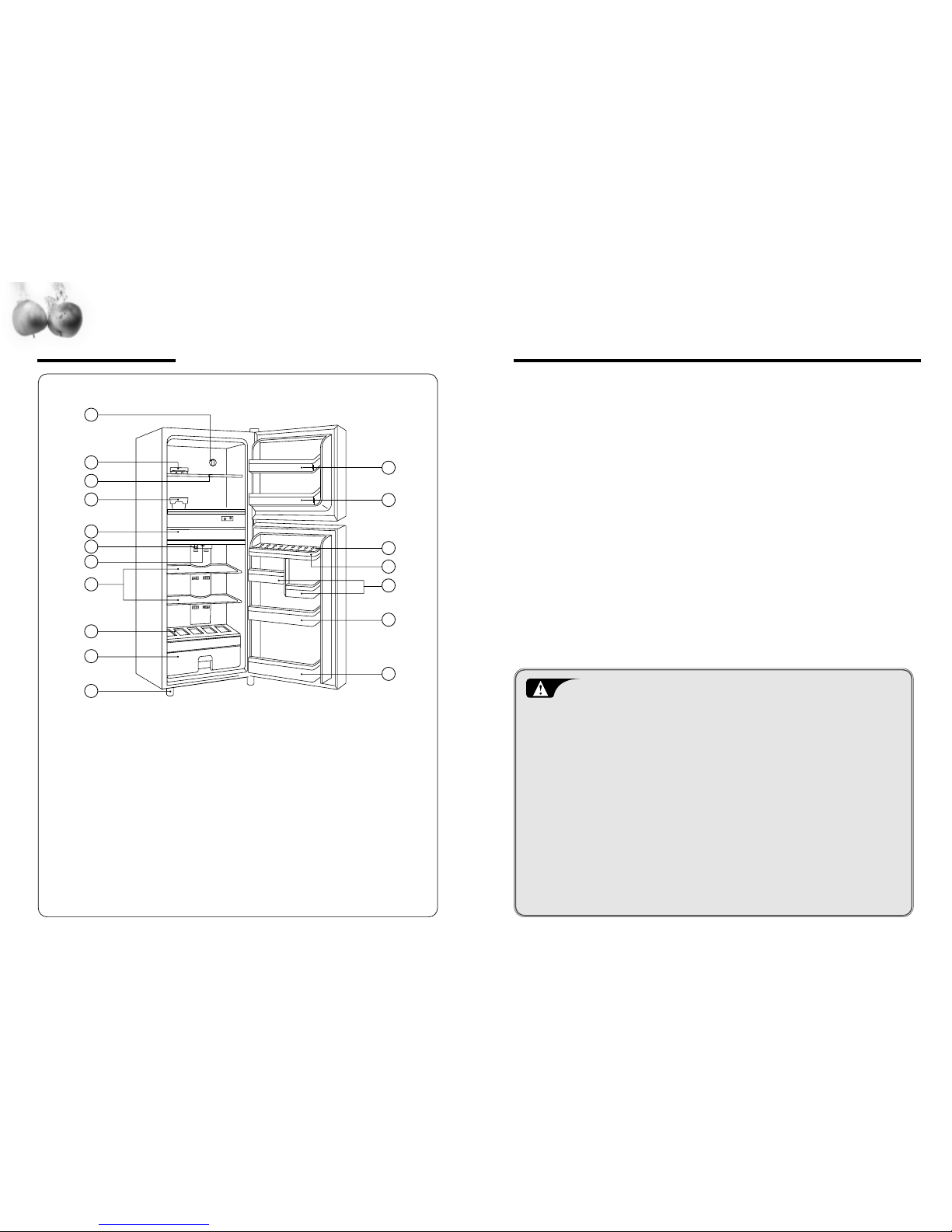

! FREEZER
TEMPERATURE
CONTROL KNOB
@ ICE TRAY
# F SHELF
$ ICE BOX
% CHILLED CORNER
^ LAMP COVER
& REFRIGERAT OR
TEMPERATURE
CONTROL SWITCH
* R SHELF
( CRISPER COVER
) CRISPER
1 ADJUSTABLE FOOT
2 F POCKET (SM)
3 F POCKET (SM)
4 EGG CASE
5 EGG POCKET
6 R POCKET (SM)
7 R POCKET (MEDIUM)
8 R POCKET (BG)
Take a moment to know all the features and convenience. Numbers
match those in the illustration on page 1.
■ Ice Tray
Fill tray 3/4 full to allow expansion of water during freezing. Place tray in
freezer chest. T o release cubes, twist lid slightly.
■ Removable Shelf
Both shelves can be removed by pulling forward.
■ Crisper
Use for fruit and vegetable storage. Both the crisper and its cover shelf are
removable for easy cleaning. Simply slide forward to remove.
■ Egg Pocket
Egg supporter in this pocket can be turned upside down.
Use for small size goods.
■ No Frost
No frost in freezing-room.
CAUTION
1. Be sure to check with your voltage, before inserting the power supply cord
into the socket.
2. Contact the earthing conductor to this unit with an attachment earthing
screws.
3. Don’t spill to this unit.
4. Don’t work with flammable spray, such as painting, near this unit.
5. Don’t put ignitable materials, such as benzine, L .P . Gas, alcohol, etc.,
into this unit.
6. Be careful of the leakage of any gas equipment near this unit.
7. Be sure not to hold to the door of this unit by children.
8. Be sure not to reinsert the power supply, cord with 5 minutes after
releasing it from socket. If not, a trouble may be occurred to compressor.
Page 2

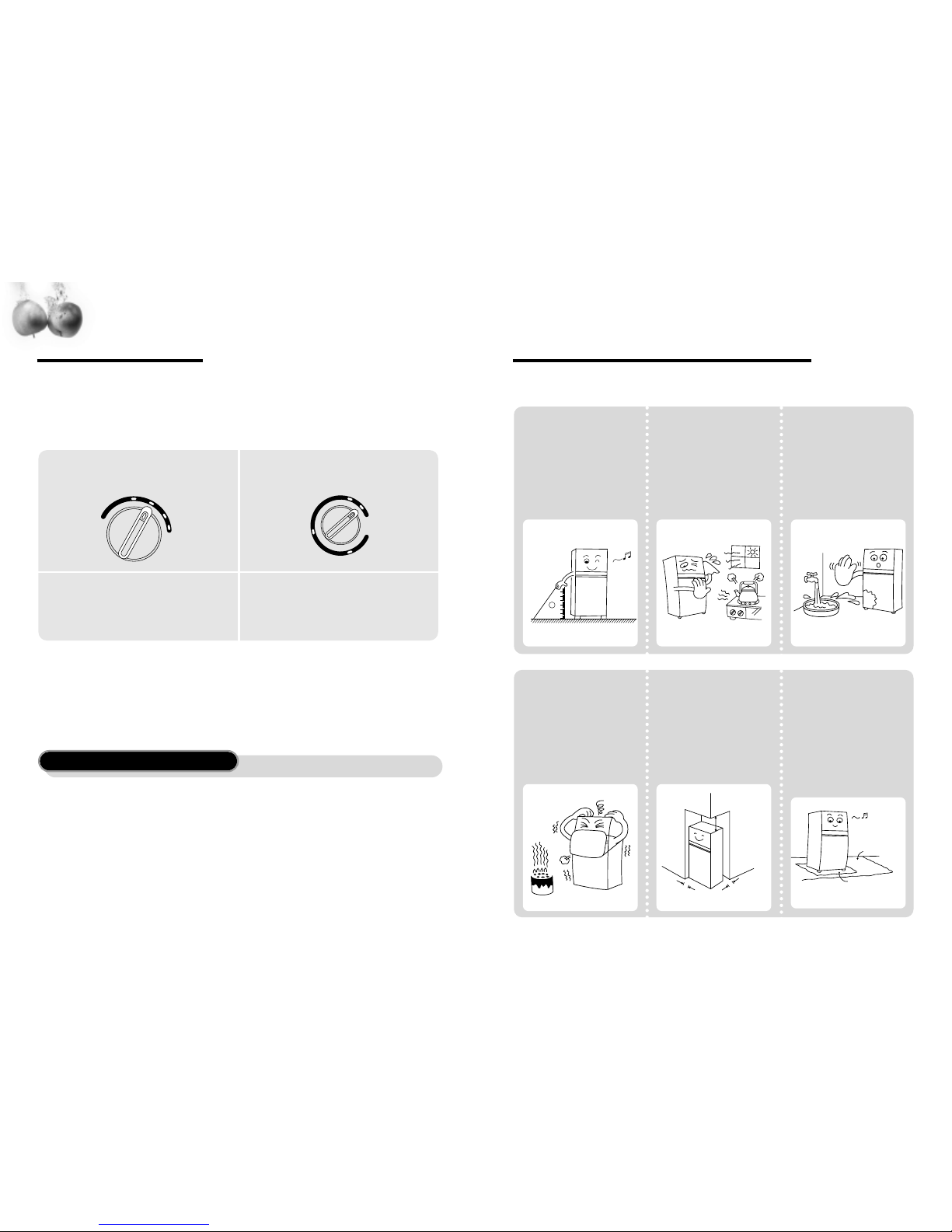

METHODS OF SAFE INSTALLATION
1. SAFE INST ALLATION PLACE FOR YOUR REFRIGERA TOR
4
• Place the refrigerator on
hard and level floor.
NO
NO
•Place your refrigerator
where there is no heat
source nearby.
High surrounding
temperature will lower
cooling efficiency and
increases your electricity
bill.
•Place the refrigerator in
an area with low
moisture.
Splashing water or a
high moisture area may
cause a short circuit and
make rusting easier.
•Avoid places that are
exposed to smoke.
The discoloring can
occur to the refrigerator.
At least 15cm
At least 15cm
At least 30cm
Carpet
Wooden Board,
Rubber Mat
•For good ventilation
place refrigerator with
the spaced specified on
the figure.
This helps cooling
efficiency and lowers the
electricity bill.
•Placing the refrigerator
on the carpet may cause
heat to develop and
discolor the appliance. In
such a case put a hard
wooden board or a
rubber mat between the
refrigerator and the
carpet.
HOW TO OPERATE
1. TEMPERA TURE CONTROL
3
Temperature is controlled by thermostat automatically.
The Temperature Control inside the refrigerator controls the degree of
cooling for each compartment.
Freezer Temperature Control
The control has four settings form
MIN to WINTER. The WINTER
mode is available only if atmosphere
temperature is below 10°C.
Refrigerator Temperature Control
The control has the four settings from
MIN to WINTER. The WINTER mode
is available only if atmosphere
temperature is below 10°C.
WINTER
MAX
MED
MIN
TEMP. CONTROL
WINTER
MAX
MED
MIN
TEMP. CONTROL
Starting your new refrigerator
To control temperature
Many factors may influence the internal temperature of the refrigerator
and freezer compartments.
■The temperature and humidity of the surrounding environment.
■The opening frequency of the doors and the amount of warm food placed in
the refrigerator.
■
The combination of food and containers stored in the refrigerator.
For these reasons, you may want to adjust the control to suit the season and your needs.
1. Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside
with a damp cloth.
2. Set the temperature control knob at normal position.
3. Connect the power supply cord.
Page 3
Check
•Check if the doors are
completely shut.
6
•Unplug the power cord.
Adhesive
Tape
•Fasten the interior
components with tape.
•Take food out of the
refrigerator
compartments.
•For relocating indoors
use the wheels.
R
elocating
Indoors
Adhesive Tape
•When moving have two
people carry the
refrigerator for safety
•Fasten the doors with
tape while moving to
prevent them from
opening.

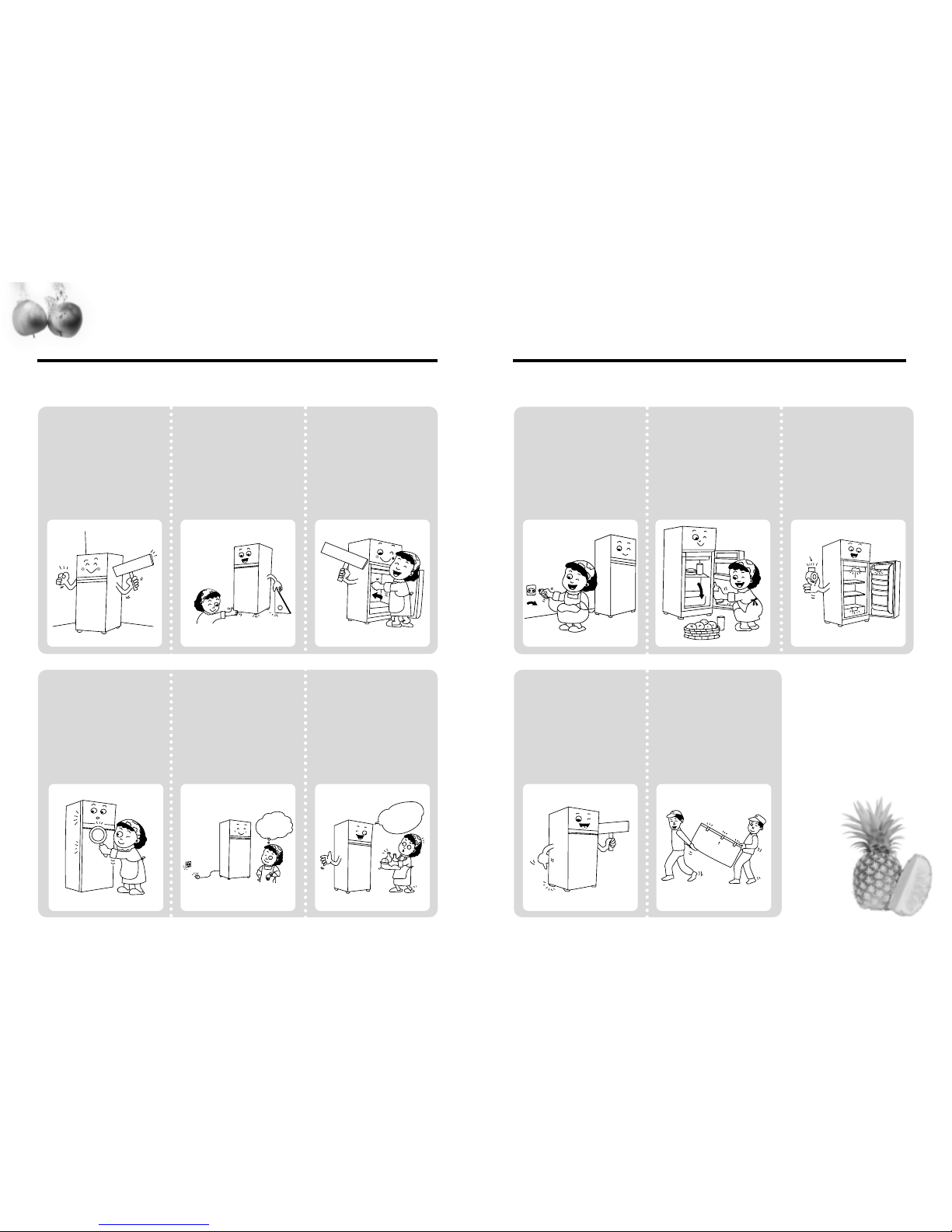

2. INST ALLATION STEPS
5
S
a
fe
in
sta
lla
tio
n
p
la
c
e
Maintain ~
Level
C
om
ponents to their
original places
Check
Plug in after
about hour
Put food after
2~3 hours
•Level the refrigerator by
using the adjustable foot.
•Install the parts to their
own place.
3.
THINGS TO KNOW BEFORE MOVING OR RELOCATING THE REFRIGERAT OR!
•Select a safe place to
install your refrigerator.
•After running the
refrigerator for 2 ~ 3
Hours put food in the
refrigerator.
•Check the voltage and
wait about an hour
before plugging the
power cord into an
outlet.
Page 4
8

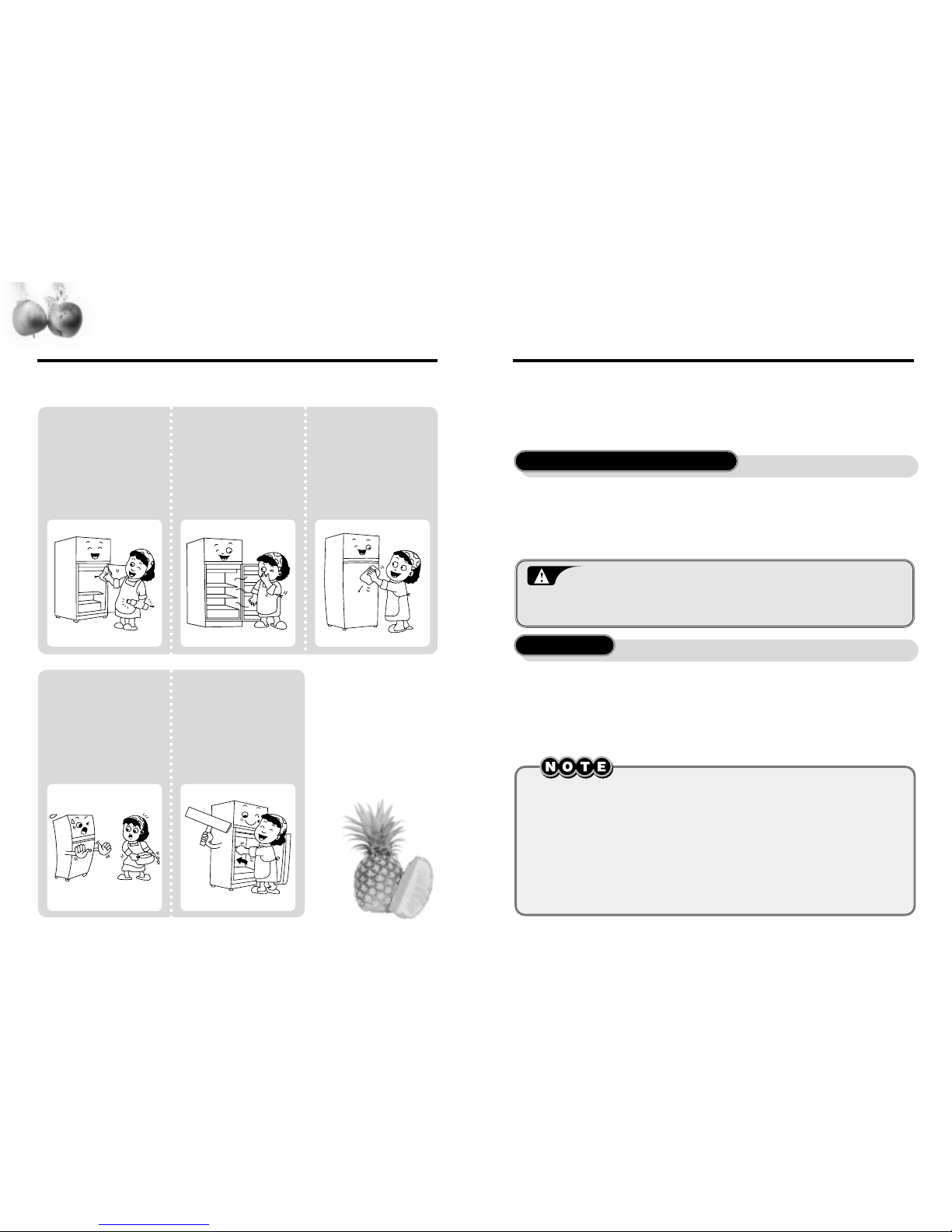

4. CLEANING YOUR REFRIGERA TOR
7
•When cleaning your
refrigerator, unplug the
power cord and use a
soft cloth and
dishwashing liquid to
clean.
Soft cloth
Soft cloth
•The refrigerator can
smell on its initial
operation, but the odor
will be away when the
refrigerator is cooled
sufficiently.
•Use a soft cloth for
cleaning the interior and
exterior of the
refrigerator.
•Do not splash water
directly on the
refrigerator itself.
W
ater
Components to their
original places
•Put the parts back to
their original position.
■Turn the temperature control in the refrigerator and freezer compartment
toward WINTER for colder temperature and toward MIN for warmer
temperature.
■Allow approximately 12 hours or overnight for the temperature to stabilize,
Then check to see if further adjustments are necessary.
To turn off the refrigerator
Disconnect the power supply cord. Remove ice tray and food. Leave
doors ajar for air circulation and dehumidification of both sections.
DEFROSTING THE REFRIGERA TOR
It is defrosted automatically in the refrigerator.
CAUTION
To Avoid The Risk of Electrical Shock or Death unplug the power
cord before replacing a burned out light bulb or cleaning.
Cleaning
Remove all food from the freezer and refrigerator sections.
Exterior : Wash with warm, soapy water , rinse and dry.
Use appliance polish or wax periodically to keep the exterior looking
like new.
Door gasket : Clean at least twice a year with mild soap and water. Rinse and dry.
Apply a light film of petroleum jelly to the gaskets to keep them soft.
Interior : Wash the liner with warm, soapy water , rinse and dry.
Interior and Exterior
1. DO NOT USE abrasive, heavy-duty Powders, etc.
These can scratch and dull the surface, depending on their abrasiveness
and the cleaning pressure applied.
Avoid metal pads and abrasive impregnated plastic, nylon and cloth pads,
etc.
2. DO NOT USE concentrated liquid dishwashing detergent (dissiove in
warm water before using.), abrasive cleaners, solvents or polishing agents
on plastic parts. These cleaners may cause cracking or discoloring.
Page 5
HOW TO INSTALL
10
WHAT TO DO...
9
When out of operating for a long time
■Remove the power supply cord.
■Dry your refrigerator, opening the door for 2-3 days.
When you get ready to move
■Securely fasten removable interior parts (or move and package them
separately).
■Do not lay your refrigerator horizontally, or compressor may be damaged.
If refrigerator is not operating:
■Is the power supply cord unplugged?
■Is home fuse blown or circuit breaker off?
If refrigerator is warmer than usual:
■Has the door been open frequently or for a long period?
■If refrigerator overcrowded preventing good air circulation?
■Is the hot thing stored without cooling?
■Is the clearance between side and rear plate of the refrigerator and the wall
allowed sufficiently?
If these are unusual sounds:
■Is refrigerator placed on the level?
■Are foreign objects behind the refrigerator?
■Are dishes on refrigerator shelves vibrating?
If so, rearrange the dishes.
Before you calling for service check a few things as below for yourself first.
Location
Install refrigerator in a convenient location away from extreme heat and
cold. Allow sufficient clearance about 15 cm between the refrigerator
and rear wall so it is easy for refrigerator to radiate heat.
Leveling
Level refrigerator so it rests solidly on the floor without rocking.
Make sure all packing material is removed. If the shipping tape has left a
residue on the door, clean it with isopropyl alcohol (most rubbing alcohol is
this type).
If the supply cord is damaged, it must be replaced by the manufacturer or
its service agent or a simmilary qualified person in order to avoid a hazard.
■The electrical plug must be accessible without moving the set.
■Changing the internal light bulb.
Disconnect the refrigerator from the main supply by removing the plug.
Replace the bulb with one of the correct type and size (15Watt SES
E14 Base).
Page 6
MODEL NO
Before operating this
refrigerator, please
read this manual
carefully.
REFRIGERATOR
Instruction Manual
SG-R410
=
