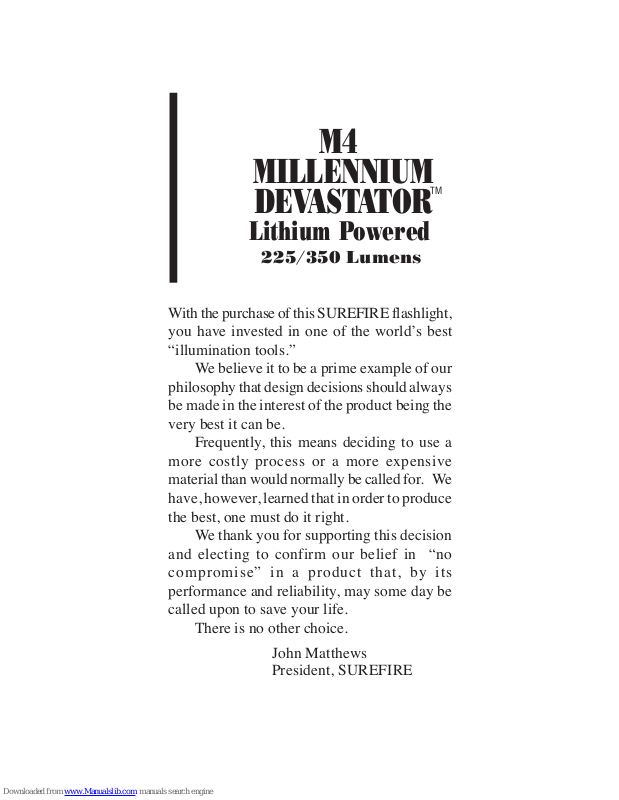

Superfire m4 User Manual

M4
MILLENNIUM
DEVASTATOR

TM

With the purchase of this SUREFIRE flashlight,
you have invested in one of the world’s best
“illumination tools.”

We believe it to be a prime example of our
philosophy that design decisions should always
be made in the interest of the product being the
very best it can be.

Frequently, this means deciding to use a
more costly process or a more expensive
material than would normally be called for. We
have, however, learned that in order to produce
the best, one must do it right.

We thank you for supporting this decision
and electing to confirm our belief in “no
compromise” in a product that, by its
performance and reliability, may some day be
called upon to save your life.

There is no other choice.

Lithium Powered

225/350 Lumens

John Matthews
President, SUREFIRE

WELCOME

TO THE SUREFIRE TEAM



SUREFIRE lights provide overwhelming

power, and they do this with a quality of
beam that is unmatched in brilliance and
performance.



SUREFIRE’s high pressure Xenon/
Halogen lamps operate at the highest
temperatures possible, producing
extraordinary, brilliant, white light.



Our reflectors are machined from solid
billets of aircraft grade aluminum.



Each SUREFIRE lamp assembly is
permanently prefocused to within less than
five thousands of an inch to achieve the
absolutely flawless SUREFIRE beam.



The switch is ergonomically located for in­the-dark positive activation.



Whether you need a small light that can
be carried in your pocket or a multipurpose
professional light, SUREFIRE offers you
models that range in power from 15
lumens to 500 lumens.



You can have confidence that your choice
of a SUREFIRE light will always reward
you with years of superb, unfailing
performance.

You have just become the owner of one of the
most incredible pieces of lighting technology
ever conceived. It is a masterpiece of
engineering, a member of the SUREFIRE
family which has gained the acceptance and
respect of military and law enforcement
professionals around the world.

The M4 Devastator can drive an intense,
concentrated light beam deep into the night,
revealing objects at over 100 yards.
The M4 Devastator utilizes the exclusive
SureFire beam that combines a brilliant
prefocused spotlight center with a
surrounding flawless, uniform, wide,
floodlight that is free of irregularities and dark
spots. This enables you to shine the spot on
the subject of primary interest and at the same
time illuminate a wide surrounding area so
you maintain peripheral awareness.
To give you maximum control of the
light, the M4 utilizes a proven fail-proof
switch system introduced by SureFire. For
quick access and momentary light, a pressure
switch located on the tail cap is easily located
by feel, regardless of the position of the
flashlight in your hand. When constant light
is needed simply rotate the tail cap clockwise;
you can deactivate the light to prevent
unintended activation during covert
operations.
For greater reliability, the M4 lamp
assembly is protected against shock from
impacts.

Along with all of these benefits, the
weather resistant design, Mil. Spec. finish and
aircraft grade aluminum construction makes
the M4 the unquestionable best choice for
numerous marine, urban, and rural
applications.

THE M4 DEVASTATOR

Turn

Tail Cap

for

“ON”

There are two ways to activate the light from
the M4. The Tail Cap switch of the Flashlight
can be activated by rotating the Tail Cap in a
clockwise direction for a constant “ON”
setting or by pressing on the Push Button for
temporary light.

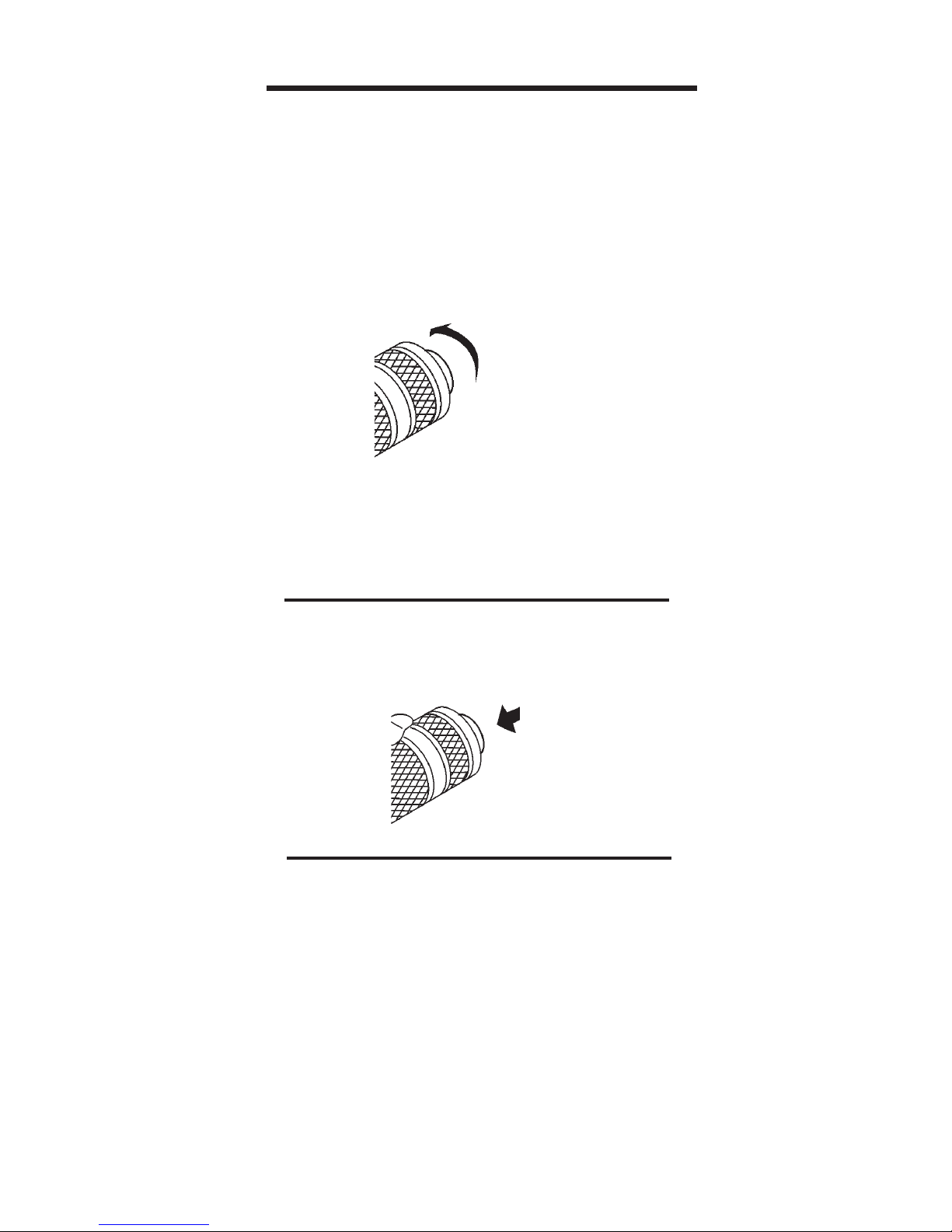

For Constant Light

ON - Turn Tail Cap clockwise
(viewed from the tail)

For Momentary Light

ON - Press Push Button
OFF -

Push

For

“ON”

To Turn Flashlight “ON”

M4 DEVASTATOR

OFF -

Turn Tail Cap counterclockwise

Release Push Button

Switch Lockout Procedure

1. From the constant “ON” position, back the
M4 Tail Cap “OFF” until the light goes out
and turn the Tail Cap one full turn counter­clockwise from this position.

2. Push Button switch is now locked out.

3. Restore Push Button function, rotate the
Tail Cap one full turn clockwise

Power Output MN60 - 225 Lumens

MN61 - 350 Lumens

Run Time MN60 - 60 Minutes

MN61 - 35 Minutes

Battery Type Lithium - DL123A

Number Required Four (4)

Supplied Yes

Length 8.9 inches

Weight 11.3 ounces

Diameter Body - 1.0 inch

Bezel - 2.5 inch

Lamp Assembly Xenon/Halogen

Lens Pyrex

Switch Tail Cap Type:

Rotation/Pressure Activation
w/ Lock-Out Disable

Body Material Aircraft Grade Aluminum

Finish External: Hard Anodized
Mil-A-8625, Type III, Class 2

Internal: Chemfilm Mil-C-5541

Color Grey

Water Resistant O-Ring Sealed

SPECIFICATIONS

Component Part No.

Lithium Battery SF123A

Bezel Assembly 13849-1

Flashlight Body 13690-1

225 lumen Lamp Assembly MN60

350 lumen Lamp Assembly MN61

Lanyard 12452-31

Lanyard Ring 12455-11

Rear O-Ring Seal (front) 19-01-040

Rear O-Ring Seal (end) 19-01-077

Front O-Ring Seal 19-01-028

Lock Out Tail Cap Assembly 12708-11

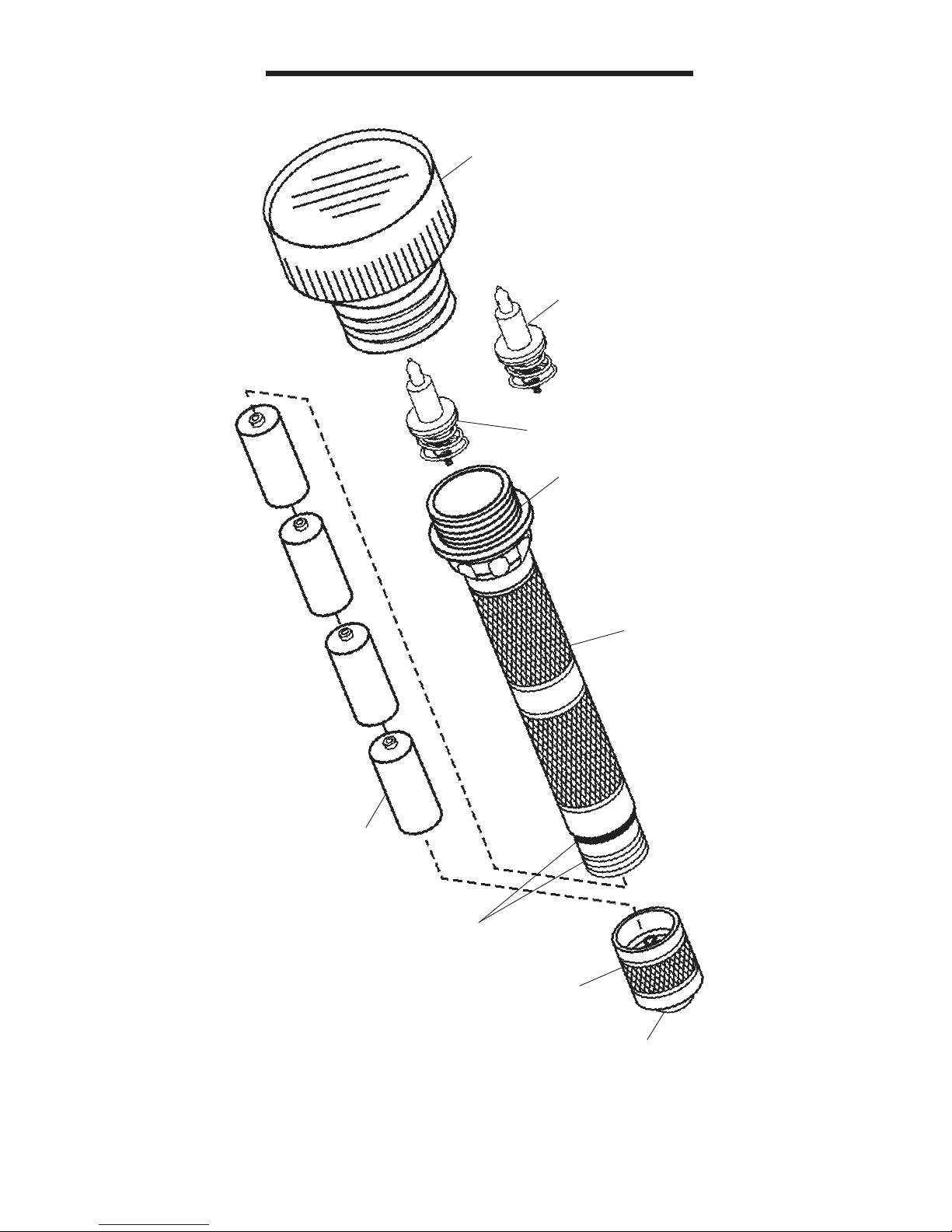

PARTS REPLACEMENT

PUSH BUTTON

REAR O-RINGS

MN60 LAMP

MN61 LAMP

BATTERY (4)

BEZEL ASSEMBLY

TAIL CAP

+

+

+

+

M4 DEVASTATOR

BODY

O-RING

(front)

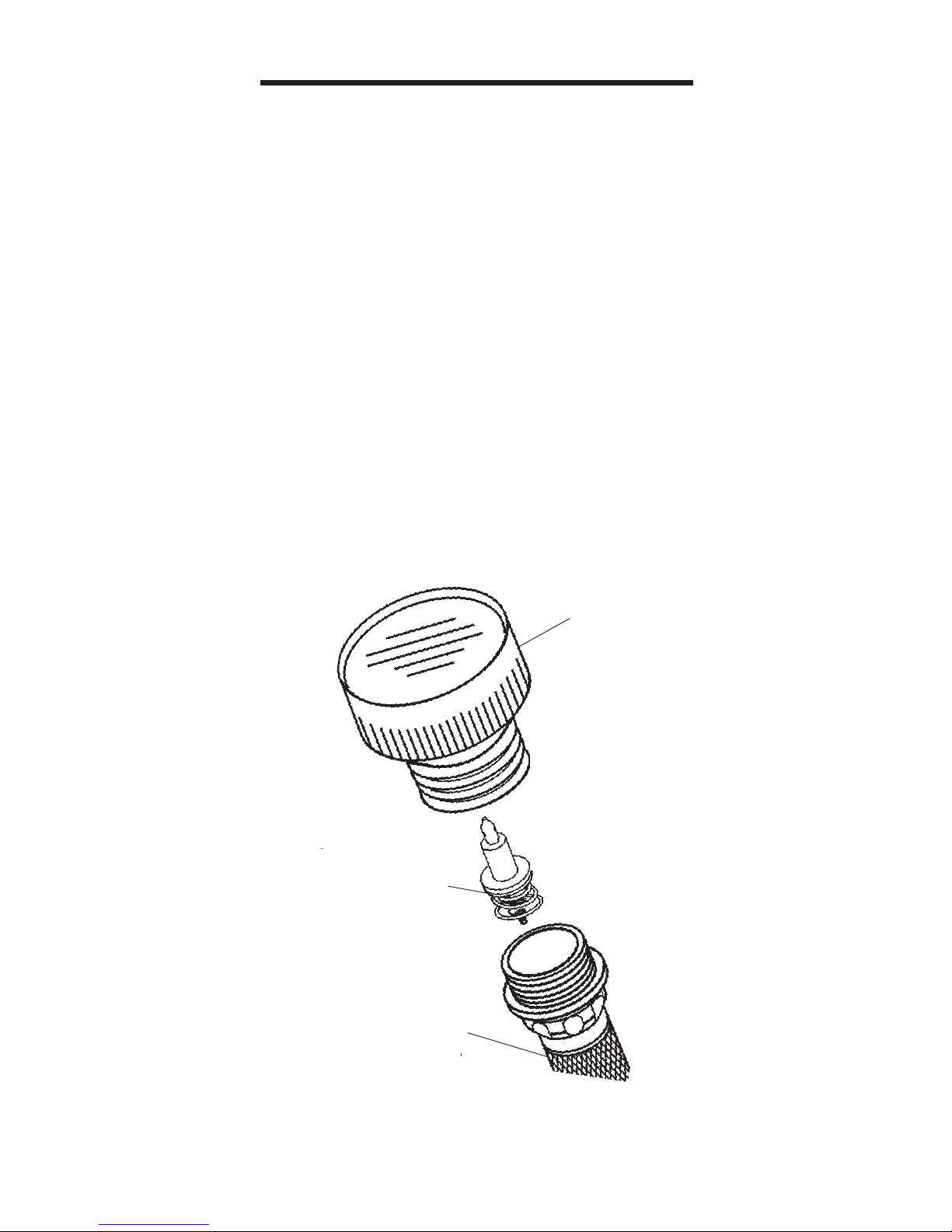

CHANGING THE LAMP

1. Remove the Flashlight Bezel from the
Flashlight Body by holding the Body and ro­tating the Head counterclockwise (as viewed
from the front of the Flashlight) until it is free
of the Body.

2. Remove the Lamp and replace with the
desired Lamp.

Avoid touching the inside of the Lamp
envelope or Reflector as this will degrade
the performance of your Sure-Fire Light.

3. Install the Bezel back on to the Body.

BEZEL

LAMP

BODY

1. Remove the Flashlight Tail Cap by un­screwing it until it is free of the Flashlight
Body.

2. Insert the SF123A Batteries into the Flash­light Body with the positive (+) end of the
batteries facing forward.

3. Install the Flashlight Tail Cap back on to
the Flashlight Body by turning it until the light
comes on. Then back off 1/2 to 1 turn until
the light goes off.

4. The M4 is now ready for use.

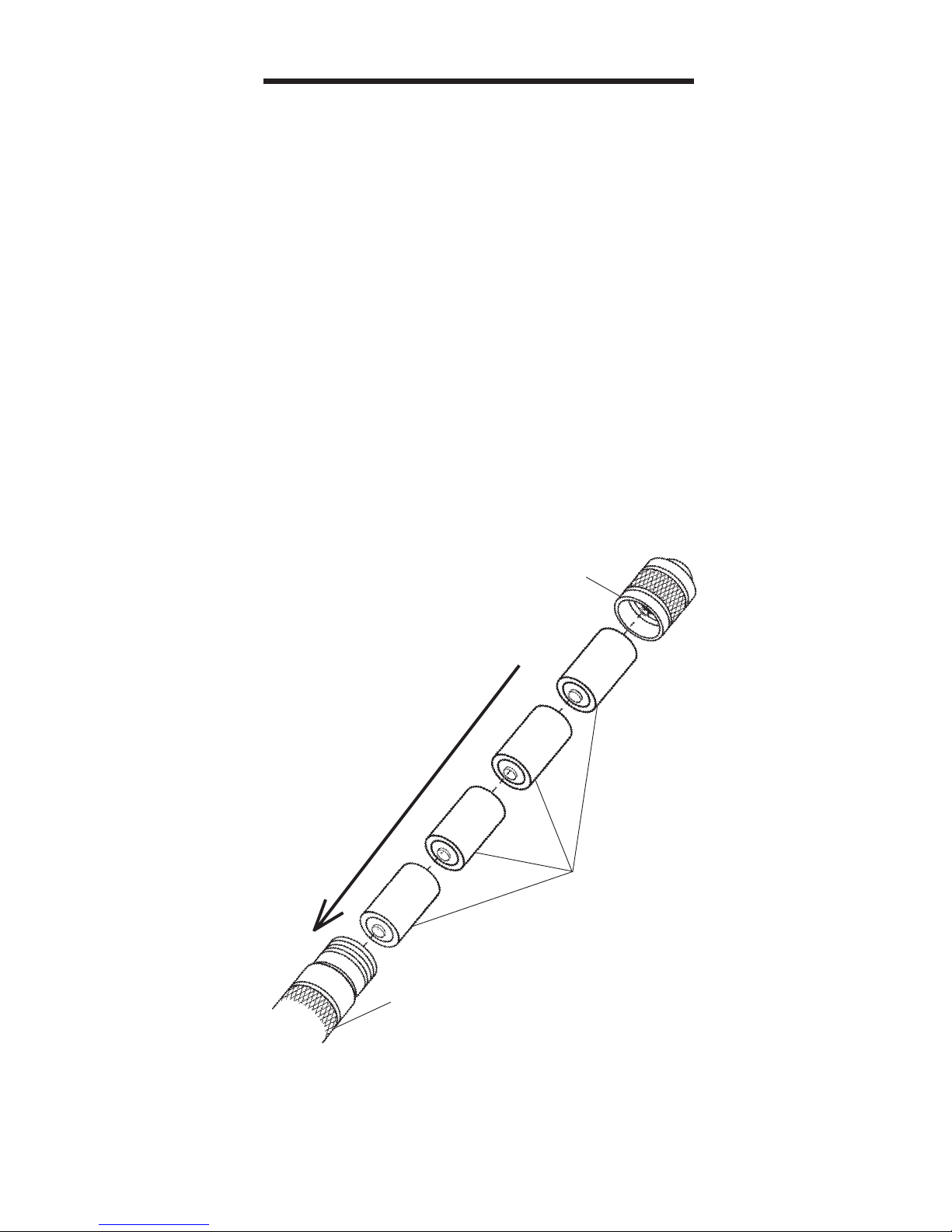

INSTALLING THE BATTERY

+

+

+

+

BATTERY

(4)

BODY

TAIL CAP

CUSTOMER SERVICE

REPAIRS AND REPLACEMENTS
To obtain repair or replacement contact

Customer Service at 800-828-8809 (toll free)
or 714-545-9444 and obtain a Return
Authorization number (RA#). Then package
the unit carefully and return (no COD’s please)
to:

SUREFIRE LLC
Repairs Department, RA# ___
18300 Mt. Baldy Circle
Fountain Valley, CA 92708

SUREFIRE will pay any reasonable shipping

costs to return the unit to you.

Protected by U.S. Patent Number(s)

6,046,572 , 6,222,138
6,276,088 , 6,345,464

71-01-339/2-14-1

SURE-FIRE LLC 2001 ALL RIGHTS RESERVED

©

ACCESSORIES

BeamFilters FM25 Red

FM26 Blue

FM23 Infrared

Tip-Off Cover FM27

Polymer Holster V70

Leather Holsters V16 Plain

V17 Basketweave

V18 Clorino

Tail Cap Lanyard Ring Z26

Tail Cap Lanyard Kit Z33

Lanyard, Black Z27

Spares Carrier SC2

Hurricane™ Emergency 12B
Battery Pack Light
(includes 12 each DL123A)
