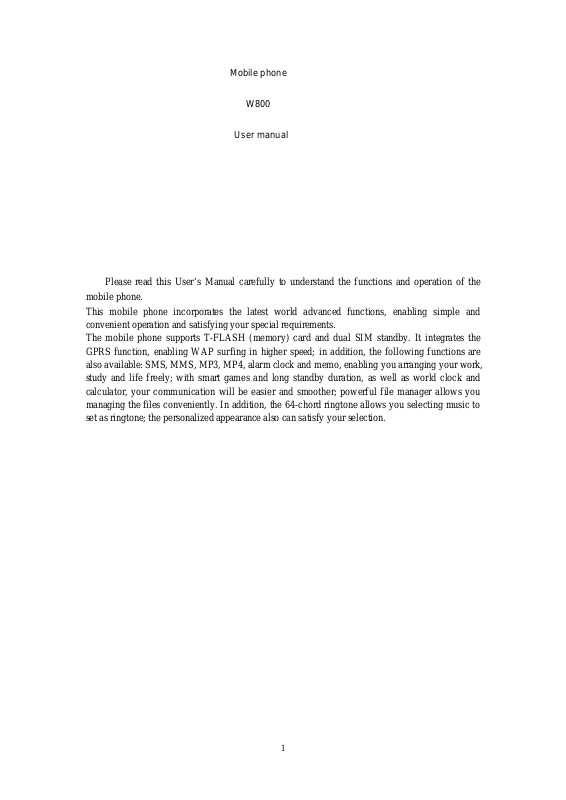

SUPERDIGITAL TECHNOLOGY W800 User Manual

Mobile phone

W800

User manual

Please read this User’s Manual carefully to understand the functions and operation of the mobile phone. This mobile phone incorporates the latest world advanced functions, enabling simple and

convenient operation and satisfying your special requirements. The mobile phone supports T-FLASH (memory) card and dual SIM standby. It integrates the GPRS function, enabling WAP surfing in higher speed; in addition, the following functions are also available: SMS, MMS, MP3, MP4, alarm clock and memo, enabling you arranging your work, study and life freely; with smart games and long standby duration, as well as world clock and calculator, your communication will be easier and smoother; powerful file manager allows you managing the files conveniently. In addition, the 64-chord ringtone allows you selecting music to set as ringtone; the personalized appearance also can satisfy your selection.

1． Index.. 4

2. Safety

precautions.................................. 5

Driving safety _______________________________________________ 5

Power off in aircraft ________________________________________ 5

Power off in the operation area of explosion _________________ 5

Power off near dangerous articles ____________________________ 5

In hospitals _________________________________________________ 5

Interference _________________________________________________ 6

Professional service _________________________________________ 6

Accessories and battery ______________________________________ 6

Rational application _________________________________________ 6

Emergency call _______________________________________________ 6

3. About the phone 6

3.1 Display settings ___________________________________________________ 6

3.2 Status icons _______________________________________________________ 7

4. Getting

started...................................... 7

4.1 First call _________________________________________________________ 7

4.2 Installing the SIM card ____________________________________________ 7

4.3 Installing memory card _____________________________________________ 8

4.4 Battery and charging _______________________________________________ 8 Installing the battery _________________________________________________ 8

Charging the battery ___________________________________________________ 8 Using battery __________________________________________________________ 8

4.5 Switching on/off ___________________________________________________ 9

4.6 Password ___________________________________________________________ 9 SIM1 PIN ______________________________________________________________ 10 SIM2 PIN ______________________________________________________________ 10

4.7 Using handsfree kit _______________________________________________ 10 Keypad lock ___________________________________________________________ 10 Number keys ___________________________________________________________ 11 Language and input method _____________________________________________ 11 Service _______________________________________________________________ 11 Group _________________________________________________________________ 11 Noun __________________________________________________________________ 11 Shortcut functions ____________________________________________________ 12

5. Common functions

............................................ 12

5.1 Making a call _____________________________________________________ 12

5.2 Adjusting receiver volume _________________________________________ 12

5.3 Answering calls ___________________________________________________ 12

5.4 Call options ______________________________________________________ 13

5.5 Missed calls ______________________________________________________ 13

5.6 Connecting to voicemail ___________________________________________ 14

6. Menu guide

............................................ 14

6.1 Music player ______________________________________________________ 14

6.2 Phonebook _________________________________________________________ 14

6.3 Call center _______________________________________________________ 15 [Call log] ____________________________________________________________ 15 [General call settings] _______________________________________________ 16

6.4 Services __________________________________________________________ 17

6.5 Messaging _________________________________________________________ 18

6.6 Multimedia ________________________________________________________ 21 [Cameral selection] ___________________________________________________ 21 [Camera] ______________________________________________________________ 21 [Video recorder] ______________________________________________________ 22 [Video Player] ________________________________________________________ 22 [FM radio] ____________________________________________________________ 22 [Sound recorder] ______________________________________________________ 22 [Mobile TV] ___________________________________________________________ 23

6.7 Organizer _________________________________________________________ 23

6.8 File manager ______________________________________________________ 23

6.9 Calendar __________________________________________________________ 24

6.10 Game _____________________________________________________________ 24

6.11 Profiles _________________________________________________________ 25

6.12 Settings _________________________________________________________ 25

7. Appendix

............................................ 26

Appendix A: Please take care of your mobile phone _____________________ 26 Appendix B: Troubleshooting ___________________________________________ 27 Appendix C: Abbreviation and explanation ______________________________ 27 Appendix D: Optional parts ____________________________________________ 27

1． Index

………………………………………………………………………… 1. Index

……………………………………………………………… 2. Safety precautions

……………………………………………………………… 3. About the phone

……………………………………………………………… 4. Getting started

……………………………………………………………… 5. Common functions

……………………………………………………………… 6. Menu guide

…………………………………………………………… 7. Appendix

2. Safety precautions

Please read and follow these concise rules carefully to prevent danger or breaking laws.

Driving safety

Do not use mobile phone when driving. Use the hands-free accessories if you have to use the phone. Put the mobile phone in the holder, instead of the passenger seat or any place that the phone will fall off.

Power off in aircraft

The interference of mobile phone will affect the flight safety and it is illegal to use mobile phone in aircraft. Please switch off you mobile phone before boarding.

Power off in the operation area of explosion

Please follow the regulations or rules and switch off your mobile phone in or near operation area of explosion.

Power off near dangerous articles

Please turn off your mobile phone at gas station or places near fuels and chemicals.

In hospitals

Please follow the regulations or rules of hospitals when you use mobile phone there. Switch the device off near medical equipment. Any wireless device, including mobile phone, will interfere with the medical devices which are not fully protected. Other electronic devices also may be affected. If you have any question, please consult your doctor or the manufacturer.

Interference

Any mobile phone might be interfered with and its performance will be affected thereby.

Professional service

Only qualified maintenance personnel can install or maintain this mobile phone. It may cause serious danger and also violates warranty clauses if you install or maintain the mobile phone by yourself.

Accessories and battery

Use manufacturer approved accessories and batteries only.

Rational application

Use the mobile phone in normal way. Do not put your mobile phone in the environment with too high temperature (higher than 60℃), for example, put it under the window which is irradiated by sunshine directly. Please use wet or antistatic cloth to clean your phone. Do not use the cloth with static to wipe the phone.

Emergency call

Make sure that the mobile phone is switched on and in service area, enter the emergency number (e.g. 110) and

press the Call key to call the number. Report your position and explain your condition briefly. Do not end the

call without permission.

Note: Like other mobile phones, the characteristics of this phone may be not supported because of the network coverage or wireless signals transmission. Certain networks even don’t support emergency call. Therefore, do not depend on mobile phone only for very important communication (e.g. medical emergency). Please consult your local network operator.

3. About the phone

The mobile phone has 51 keys, one display, one earphone, charger/data cable port and one external memory card (T-FLASH card) interface.

3.1 Display settings

The display area consists of three parts:

1> The top line displays icons, indicating the signal intensity and battery status. 2> The center area displays the text and figures, including numbers, words and dynamic icons.

3.2 Status icons

| | | | | | | | | | |____ New WAP message | | | | | | | | | |_________ Roaming | | | | | | | | |_______________ New MMS | | | | | | | |____________________ MMS busy | | | | | | |_________________________ New SMS | | | | | |_____________________________ Missed calls | | | | |_________________________________ Battery status | | | |______________________________________ Alarm clock activated | | |__________________________________________ Keypad lock | |______________________________________________ Divert all calls |_____________________________________________________ Signal intensity

Ringtone state:

---- ringing -----vibrator ----- ringing after vibrator -----ringing and vibrator

4. Getting started

4.1 First call

1> Insert the SIM card (switch off the phone first). For detailed installation guide, please refer to “4.2 Installing the SIM card”. 2> Charge the battery. Refer to “4.4 Battery and charging”. 3> Press and hold the End key to switch on the mobile phone. 4> If the display prompts, enter the four-digit password and press OK. 5> If the display prompts, enter the PIN code (provided together with the SIM card) and press OK. 6> Enter area code and telephone number and then press the Call key. Or click the icon with the stylus to bring out soft keypad, enter the telephone number and press the Call key. Note: Before using the mobile phone, please insert a valid SIM card and charge the battery.

4.2 Installing the SIM card

When you register mobile phone, you can apply for two different telephone numbers and two SIM cards (Subscriber

Identity Module).

With the two cards, you can use the functions of the mobile phone. The SIM card saves the parameters required by the communication, and personal information, including PIN code (personal identity number), Contacts, short messages and other system services.

Warning: Do not bend or scratch the SIM card, or contact static, dust or water; if the SIM card is lost, please contact your network operator.

Please switch off the mobile phone before installing the SIM card. The SIM card is inserted into the rear side of the mobile phone.

Note: The T-flash card is tiny. Please keep it away from children to avoid swallowed.

If the SIM card is invalid or damaged, the phone displays “Insert SIM card”. Switch off the phone and take out the SIM card, and then re-insert it into the slot properly. If the SIM card is damaged, please contact your network operator. If the SIM card is locked, please contact your network operator.

4.3 Installing memory card

Since the mobile phone doesn’t have enough space, you may need to install a memory card (T-FLASH card).

To install the T-FLASH card: open the rear cover, take out the battery, insert the T-FLASH ca rd into the slot, install the battery and then turn on the mobile phone.

To remove the T-FLASH card: open the buckle and take out the T-FLASH card, and then lock the buckle.

Note: T-Flash card is tiny. Please keep it away from children.

Note: Please select qualified T-FLASH cards, such as SANDISK, V-DATA, and Transcend. Please match with the mobile phone when you purchase the card.

4.4 Battery and charging

Installing the battery

Only use qualified battery and accessories. When the battery isn’t used, put it in the protective case.

Note: Please operate according to the figure to avoid damaging the battery contact.

Charging the battery

The new battery will reach its optimized performance after complete charging and discharging for several times.

Please charge in time when the battery voltage is low. Over discharging will damage the battery.

Disconnect the charger from the AC power supply and the mobile phone after charging.

While charging, the battery status icon flashes from left to right, and stops flashing after charging.

It is normal that the battery becomes warm in the charging process.

Battery status

Your mobile phone can monitor and display the battery status. 1> You can check the battery status from the icon in the upper right corner of the screen.

2> If the electricity is insufficient, the “Low Battery” prompt shows up. The mobile phone sends warning tone if the “Alert

Tone – Warning Tone” in Profiles is activated.

3> During charging, the icon of battery status blinks until the charging completes. Note: The actual standby time and call time depend on the operation, local network, and settings of the SIM card and mobile phone.

Using battery

The performance of the battery is affected by various factors, including wireless network settings, signal intensity, environment temperature, the function or settings that you select, accessories and the mode of voice, data or other applications that you select.

To keep the battery in optimum performance, please follow the rules below:

 The charging of new battery or batteries haven’t been used for long time may be longer;  Keep the battery in room temperature when it is being charged;

 It is normal that the charging time becomes longer after long time using. If the call time becomes shorter and charging time

becomes longer after normal charging, you need to change a qualified battery. Unqualified battery may damage your phone and cause danger.

 If the battery is left unused for too long time or the battery voltage is too low, it takes certain period of time to display the

charging interface normally when the charger is connected.

Note: To protect your safety and the environment, do not dispose the battery randomly. Warning: The short circuit of battery may cause explosion, fire or body hurt.

Precautions of using battery

1> Switch off the phone before removing the battery.

2> Use the battery carefully. It will cause short circuit to connect the anode (+) and cathode (-) of the battery with metal

objects (coin, clip, etc.), and damage the battery and metal objects. When the battery is removed and put in the bag, do not contact the anode and cathode of the battery with metal objects (e.g. keys).

3> Do not put the battery in fire, or use in any place with high temperature. 4> Do not disassemble or refit the battery. 5> Do not put the battery in the place with strong mechanical impact or break through with hard object. 6> Store the battery in cool and dry place, and avoid high temperature (> 60°C) and direct sunlight. 7> Stop using if there is any particular smell or overheating. 8> Stop using the battery if there is any crack, distortion or electrolyte leakage. 9> If the electrolyte stains the skin or clothes, please wash with soap and clean water immediately; the electrolyte enters the

eyes, wash with clean water immediately and go to see the doctor.

10> Do not use the lithium battery in low temperature, in which the battery can’t get the maximum standby/call time. 11> Do not wash the battery with water or organic solvent, or put it in water. 12> Fully charge the battery if it won't be used for a long time. 13> You are recommended to return wasted batteries to the manufacturer of mobile phone or put them in the specified public

recovery area of wasted batteries. Do not put them together with other garbage or dispose casually.

Using 2-in-1 charger (charger + data cable)

The 2-in-1 charger may charge the battery through the mobile phone. 1> Connect the data cable and charger 2> Connect the data cable of the 2-in-1 charger to the I/O slot of the mobile phone. 3> Connect the charger plug of the 2-in-1 charger to the appropriate power outlet. 4> During charging, the icon of battery status blinks until the charging completes. 5> After charging, the battery icon stops flashing, and you can pull out the 2-in-1 charger. Note: If the battery voltage is too low and can’t turn on the mobile phone, the charging icon may appear on the screen after several minutes. The mobile phone may be turned on or off during charging. Warning: Make sure that the local voltage and power match the rated voltage and power of the 2-in-1 charger.

4.5 Switching on/off

1> Press and hold the End key to switch on the mobile phone. The screen shows the power on video. 2>

If the phone lock is activated, please input the password and press “OK”. The default password is 1122.

If the PIN code is activated, please input the code and press “OK”. The PIN code is provided by the network operator.

4> Access standby interface. 5> Press and hold the End key to switch off the mobile phone.

4.6 Password

The mobile phone and SIM card have several passwords, which will prevent your mobile phone and SIM card from illegal operation. Press “OK” after inputting the valid password (expressed in *). If there is misinput, please press the “Clear” key to
