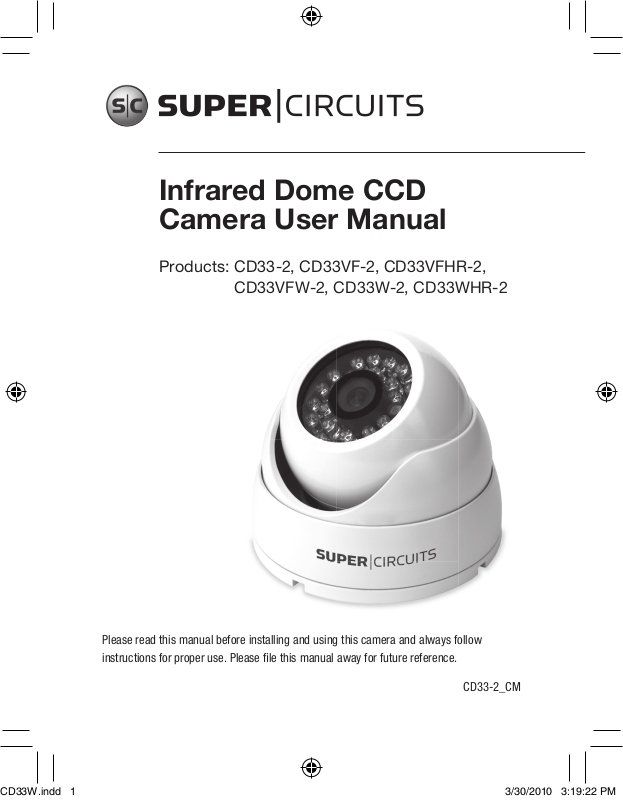

Infrared Dome CCD
Camera User Manual

Products: CD33-2, CD33VF-2, CD33VFHR-2,

CD33VFW-2, CD33W-2, CD33WHR-2

Please read this manual before installing and using this camera and always follow
instructions for proper use. Please  le this manual away for future reference.

CD33-2_CM

CD33W.indd 1 3/30/2010 3:19:22 PM

WARNING

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

To reduce the risk of electric shock, do not
remove cover (or back). No user serviceable
parts inside. Refer servicing to qualied
service personnel.

LEGAL NOTICE

Supercircuits’ products are designed to meet safety and per formance
standards with the use of specic Supercircuits authorized accessories.
Supercircuits disclaims liability associated with the use of non­Supercircuits authorized accessories.
The recording, transmission, or broadcast of any person’s voice without
their consent or a court order is strictly prohibited by law.
Supercircuits makes no representations concerning the legality
of certain product applications such as the making, transmission,
or recording of video and /or audio signals of others without their
knowledge and/or consent. We encourage you to check and comply
with all applicable local, state, and federal laws and regulations before
engaging in any form of surveillance or any transmission of radio
frequencies.
No part of this document may be reproduced or distributed in any form or
by any means without the express written permission of Supercircuits, Inc.

© 2010 Superc ircuits , Inc. A ll rights r eserved.

Supercircuits, Inc.,
11000 N. Mopac Expressway, Building 30 0, Austin, TX 78759
Sales/Support:

1.800.335.9777 | Fax: [phone] | www.supercircuits.com

CD33W.indd 2 3/30/2010 3:19:22 PM

!

WARNING



CAUTION

WARNINGS & CAUTI ONS

Do not use the camera if fumes, smoke or a strange
odor is emitted from the unit, or if it seems to not
function correctly. Disconnect the power source
immediately and consult your supplier.

Always follow the instructions in the installation guide
when applying power. Fire and equipment damage can
occur if power is applied incorrectly. For the correct
power supply, refer to the speci cation sheet.

CD33W.indd 3 3/30/2010 3:19:23 PM



CAUTION



CAUTION



CAUTION

Do not install or operate in small, unventilated areas.
Heat build up can signi cantly reduce the performance
and operating life of the product and may cause a  re.

To prevent damage, do not drop the camera or
subject it to strong shock or vibration.

If installed close to a TV, radio transmitter, magnet,
electric motor transformer or audio speakers the
magnetic  eld generated may interfere with or distort
the image.

Infrared Dome CCD Camera User Manual

iii

WARNINGS & CAUTI ONS

Whether or not the camera is used outdoors, never



CAUTION



CAUTION

point it toward the sun. Use caution when operating the
camera in the vicinity of spot lights or other bright lights
and light re ecting objects.

Do not use the camera in extreme environments where
high temperatures or high humidity exists. Use the
camera under conditions where temperatures are
between -4°F ~ 122°F (-20°C ~ 50°C), and humidity
is below 85%.

CD33W.indd 4 3/30/2010 3:19:23 PM

www.supercircuits.com

iv

TABLE OF CONTENTS

Table of Contents

SECTION 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 Camera components . . . . . . . . . . . . . . . . . 2

1.2 Camera connections . . . . . . . . . . . . . . . . . 3

SECTION 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 What’s in the box . . . . . . . . . . . . . . . . . . . . 4

2.2 Tools you need . . . . . . . . . . . . . . . . . . . . . . 4

2.3 Installation instructions . . . . . . . . . . . . . . . 5

SECTION 3 Aiming the Camera . . . . . . . . . . . . . . . . . . . . . 11

SECTION 4 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SECTION 5 Specifi cations . . . . . . . . . . . . . . . . . . . . . . . . . 13

SECTION 6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 15

Tables

Table 1. Specifi cations for

CD33W-2, CD33-2, CD33WHR-2 cameras . . . . . . . . . . . . . . . . 13

Table 2. Specifi cations for

CD33VF-2, CD33VFHR-2, CD33VFW-2 cameras . . . . . . . . . . . 14

CD33W.indd 5 3/30/2010 3:19:23 PM

Infrared Dome CCD Camera User Manual

v

SECTION 1: FEATURES

SECTION 1

Features

The CD33-2 series weatherproof, vandal resistant turret dome
cameras are ideal for exterior locations where surveillance in low-light
environments is required. These cameras include:

• Advanced image sensors for greater picture clarity

• Precision lenses to achieve the perfect view

• The ability to see in the dark with built-in IR array

• A turrent design for increased vandal resistance

CD33W.indd 1 3/30/2010 3:19:23 PM

www.supercircuits.com

1

SECTION 1: FEATURES

1.1 Camera components

Drop

Cable

Base

Housing Bezel

Turrent Style

Camera Housing

Focus Adjust

(VF Models)

Camera Lens

IR LEDs

Video 75 Ohm

12 V DC

CD33W.indd 2 3/30/2010 3:19:24 PM

Infrared Dome CCD Camera User Manual

2

SECTION 1: FEATURES

1.2 Camera connections

Connect

Connect

Single camera with monitor (above);

Multiple camera system with DVR and monitor (below)

www.supercircuits.com

3

CD33W.indd 3 3/30/2010 3:19:24 PM

SECTION 2: IN STALLATION

SECTION 2

Installation

2.1 What’s in the box

The camera package contains:

• Camera assembly

• Instruction manual

• Hardware kit, including four 1" screws and four wall inserts

2.2 Tools you need

To install the camera, you will need:

• Phillips #2 screwdriver

• Small blade screwdriver (for adjusting VF model cameras)

Depending on how the camera is mounted, you may also need:

• Hammer

• Drill with 3/32" and 3/16" drill bits

• 3/4" hole saw

CD33W.indd 4 3/30/2010 3:19:24 PM

Infrared Dome CCD Camera User Manual

4

SECTION 2: IN STALLATION

2.3 Installation instructions

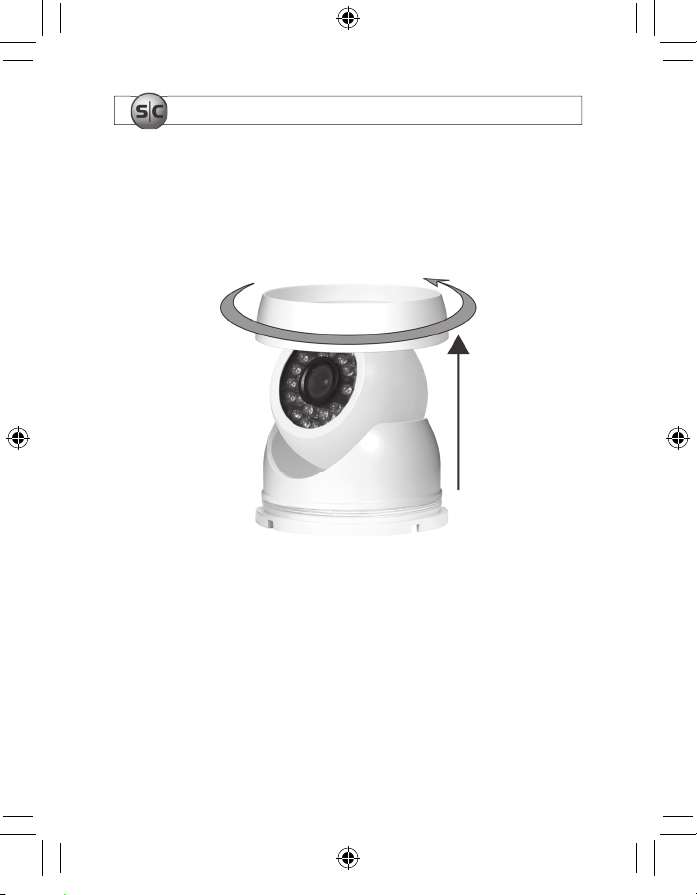

1. Separate the base from the rest of the camera assembly by
unscrewing the housing bezel.

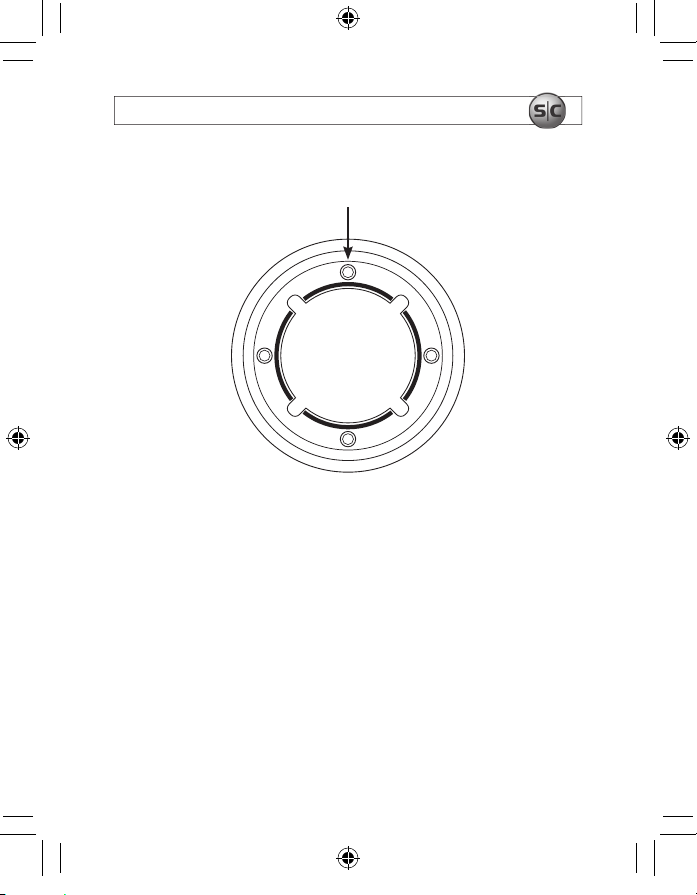

Removal of housing bezel

2. Determine where the camera will be mounted.

3. Using the base as a template, mark the location of the four
mounting screw holes.

CD33W.indd 5 3/30/2010 3:19:25 PM

www.supercircuits.com

5

SECTION 2: IN STALLATION

Mounting Screw

Holes

Camera base

4. Drill mounting screw holes into the mounting surface.

a. If the mounting surface is a soft material, such as a drywall,

use a 3/16" bit to drill the mounting holes. Use a hammer to
tap the wall inserts provided into each hole until they are  ush
with the surface.

OR (continued on next page)

CD33W.indd 6 3/30/2010 3:19:25 PM

Infrared Dome CCD Camera User Manual

6

SECTION 2: IN STALLATION

b. If the mounting surface is a very soft material, such as ceiling

tile, place a wood block behind the tile. Screws longer than 1"
may be required. Drill holes for the mounting screws through
the surface and into the wood block.

OR

c. If mounting the camera on a harder surface, such as wood,

drill the mounting screw holes with a 3/32" bit.

5. Determine the cable routing. If the cable is to be routed through
a hole in the mounting location within the coverage of the base,
perform the following steps. If the cable will be routed through a
cable guide in the base, skip to step 9.

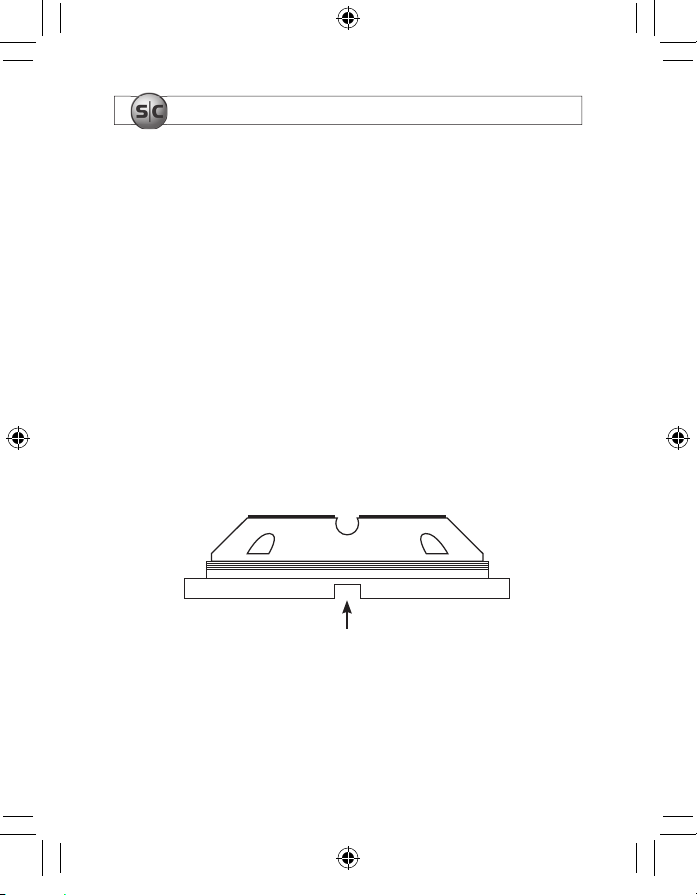

Cable Guide

in Base

CD33W.indd 7 3/30/2010 3:19:25 PM

www.supercircuits.com

7

SECTION 2: IN STALLATION

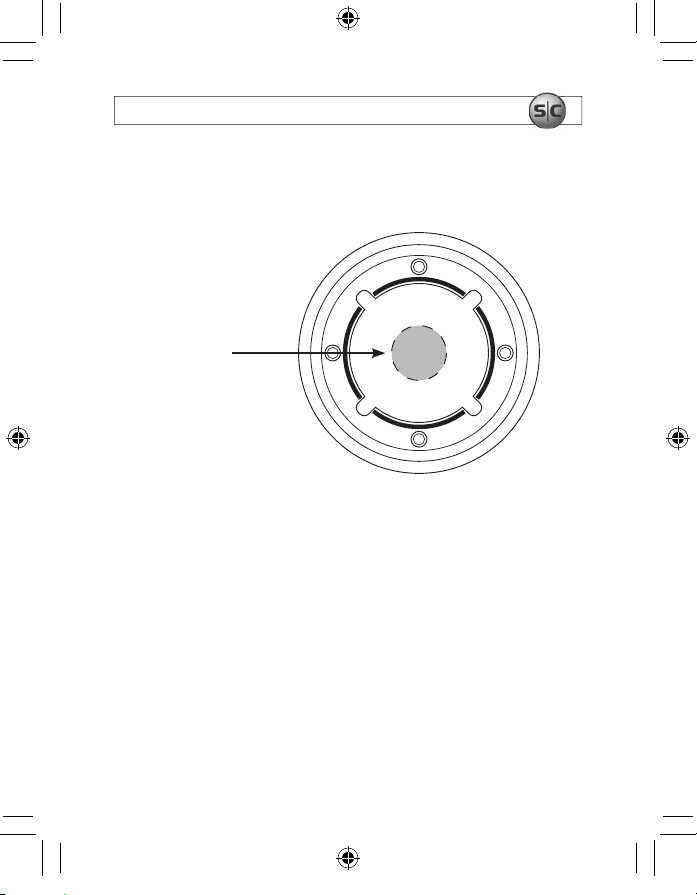

6. Drill a 3/4" hole through the mounting surface at the center
of the base.

3/4" Cable

Routing Hole

7. Use a #2 Phillips screwdriver to mount the base with the
provided screws.

8. With the camera in the camera housing, route the drop cable
through the 3/4" hole until the camera housing is  tted onto the
base. Place the housing bezel over the camera housing and screw
it onto the base until the camera and camera housing are held in
place. Skip to step 12.

CD33W.indd 8 3/30/2010 3:19:25 PM

Infrared Dome CCD Camera User Manual

8

SECTION 2: IN STALLATION

9. Set the camera on the base with the camera cable pressed into
one of the cable guides of the base. Allow some slack in the cable
within the base to allow for camera positioning later.

10. Use a #2 Phillips screwdriver to mount the base with the
provided screws.

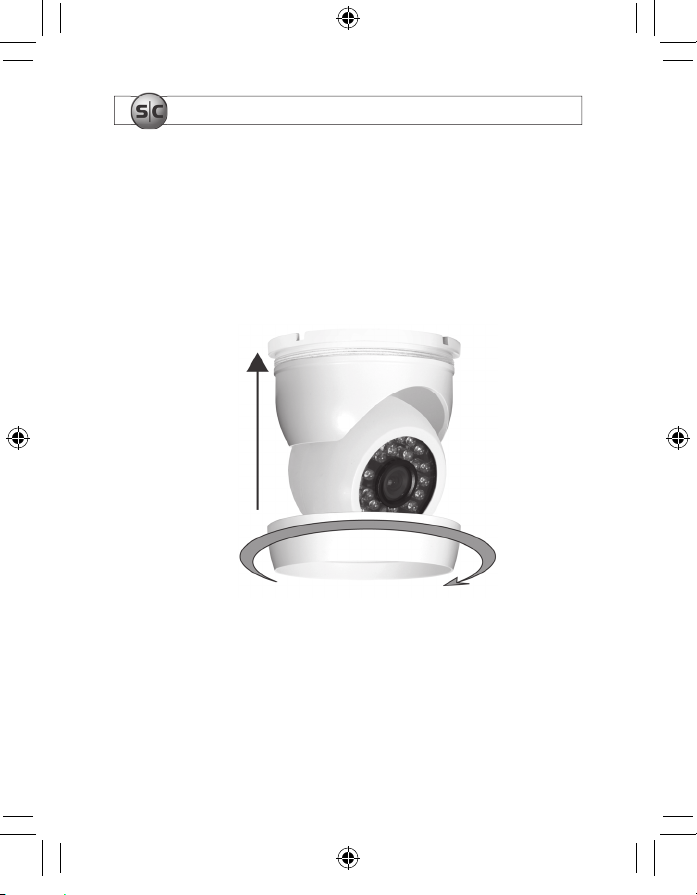

Tighten housing bezel

11. Without allowing the camera to hang by the drop cable, place the
camera housing with the housing bezel over the camera and  t

CD33W.indd 9 3/30/2010 3:19:25 PM

www.supercircuits.com

9

SECTION 2: IN STALLATION

it onto the base. Screw the housing bezel onto the base until the
camera and camera housing are held in place.

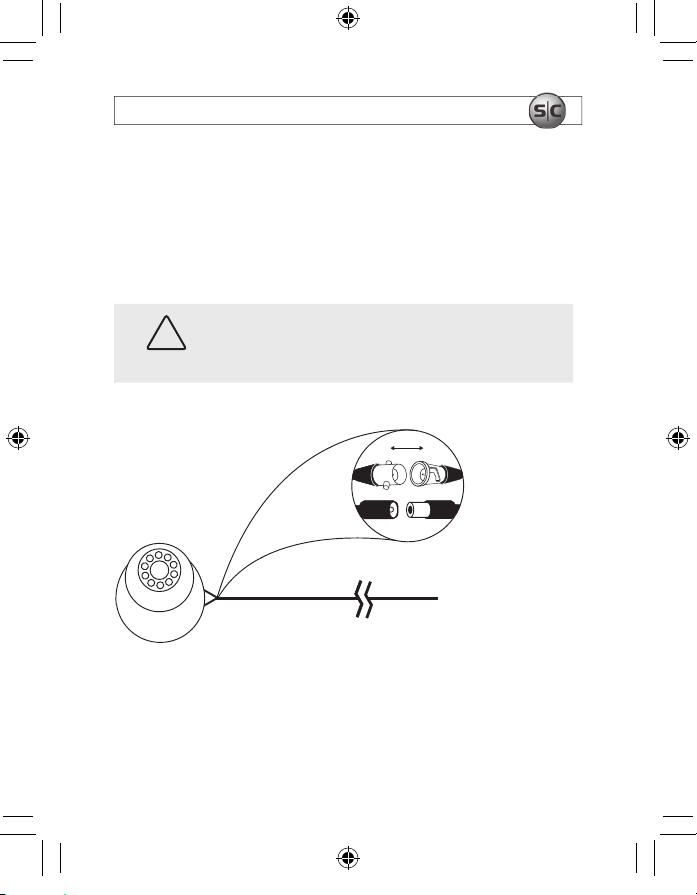

12. Attach the BNC video/power cable to the camera cable
as required.

CD33W.indd 10 3/30/2010 3:19:26 PM



CAUTION

Notice that power connectors on the BNC video/power
cable are different at each end!

Connect

To DVR/Monitor

To DVR/Monitor

and Power

and Power

Cable attachment

Infrared Dome CCD Camera User Manual

10

SECTION 3: AI MING THE CAMERA

SECTION 3

Aiming the Camera

1. Connect the video cable from the camera to (a test monitor or to)
the BNC input on the DVR.

2. Connect the DC12V adapter to the camera.

3. Loosen the housing bezel until the housing can be rotated on
the base.

4. While observing the video from the camera, rotate the camera
housing and/or tilt the camera within the housing to point it at your
surveillance target.

5. Tighten the housing bezel to hold the camera in place.

6. If you have a CD33VF-2, CD33VFW-2, or CD33VFHR-2 camera,
use a small blade screwdriver to adjust the focus and zoom if
necessary.

CD33W.indd 11 3/30/2010 3:19:26 PM

www.supercircuits.com

11

SECTION 4: CLE ANI NG

SECTION 4

Cleaning

Clean the camera lens and IR lamp shield with an approved glass
cleaning solution and a lint free cloth.

• Dust can be removed from the unit by wiping it with a soft damp

cloth. To remove stains, gently rub the surface with a soft cloth
moistened with a mild detergent solution, then rinse and dry it with
a soft cloth.

• Remove all foreign particles, such as plastic or rubber materials,

attached to the camera housing. These may cause damage to the
surface over time.

Do not use benzene, thinner or other chemical



CAUTION

products on the camera assembly; these may dissolve
the paint and promote damage of the surfaces. Before
using any chemical product, read the accompanying
instructions carefully.

CD33W.indd 12 3/30/2010 3:19:26 PM

Infrared Dome CCD Camera User Manual

12

SECTION 5: SPECIFICATIONS

Table 1. Speci cations for CD33W-2, CD33-2, CD33WHR-2 cameras

Model CD33W-2 CD33-2 CD33W HR-2

Image Sensor 1/4" Sharp CCD 1/4" Sharp CCD 1/3" SONY CCD

TV system NTSC

CCD tot al pixels 537 (H) x 505 ( V) 537 (H) x 505 ( V) 811 (H) x 508 (V)

Scanning system 525 Lines, 60 fi elds/sec

SYNC system Internal

Horizontal resolution 420 TV lines 420 TV lines 540 T V line

Minimum illumination 0 Lux /F2.0 (L ED on)

Lens Standard 3.6mm lens

IR range 50 f t (15.24 m) 65 ft (19.81 m)

Infrared status Under 10 Lux by CDS Auto Control

B.L.C. control Auto

White balance Auto

Gain control Auto

Electronic shut ter 1/60 ~ 1/120,000 sec

S/N ratio >48 dB (AGC off)

Gamma correction >0.4 5

Video output 1.0v p-p / 75O

Operating temp. -4°F ~ 122°F (-20 °C ~ 50° C)

Operating humidi ty Below 8 5% RH

Power supply 12 V DC (±10%) 230 mA 12 V DC 320mA

Dimensions 3.7 in (D) x 3.25 in (H) (9 4mm (D) x 68.5mm (H))

Weight-Net (g) Approx. 1 lb (450 g)

CD33W.indd 13 3/30/2010 3:19:26 PM

www.supercircuits.com

13

SECTION 5: SPECIFICATIONS

Table 2. Speci cations for CD33VF-2, CD33VFHR-2, CD33VFW cameras

Model CD33VFW-2 CD33V F-2 CD33VFHR-2

Image Sensor 1/3" SONY CCD 1/3" SONY CCD 1/3" SONY CCD

TV system NTSC

CCD tot al pixels 537 (H) x 505 ( V) 537 (H) x 505 ( V) 811 (H) x 508 (V)

Scanning system 525 Lines, 60 fi elds/sec

SYNC system Internal

Horizontal resolution 420 TV lines 420 TV lines 540 TV lines

Minimum illumination 0 Lux /F2.0 (L ED on)

Lens 4 ~ 9 mm vari focal lens

IR range 90 ft ( 27.43 m)

Infrared status Under 10 Lux by CDS Auto Control

B.L.C. control Auto

White balance Auto

Gain control Auto

Electronic shut ter 1/60 ~ 1/120,000 sec

S/N ratio >48 dB (AGC off)

Gamma correction >0.4 5

Video output 1.0v p-p / 75O

Operating temp. -4°F ~ 122°F (-20 °C ~ 50°C)

Operating humidi ty < 85% RH

Power supply 12 V DC (±10%) 320 mA

Dimensions 4.69 in (D) x 3.25 in (H) (119 mm (D) x 68.5mm (H))

Weight-Net (g) Approx. 3 lbs (1361 g)

CD33W.indd 14 3/30/2010 3:19:26 PM

Infrared Dome CCD Camera User Manual

14

SECTION 6: TROUBLES HOOTING

SECTION 6

Troubleshooting

Before sending the camera for repair, please check below to make
sure that the camera is installed correctly. If it still does not perform
adequately, please consult your supplier or contact Supercircuits
directly at 1.800.335.9777.

1. No picture on the monitor screen.

a. Check that all connected devices are powered on.
b. Con rm that the voltage is correct.
c. Con rm that the power supply provides enough current

to power the camera.

d. Check that all video cables are correctly connected.

2. The picture is not clear.

a. Check that your monitor is correctly adjusted.
b. Con rm that the glass in front of the lens is clean.

If there is dust, dirt or  ngerprints on the glass, the image
quality will be affected. To clean the glass use a soft, dry
and non-abrasive cloth or a commercially available lens
cleaning set.

c. Correctly adjust the focus (varifocal models only.)

CD33W.indd 15 3/30/2010 3:19:26 PM

www.supercircuits.com

15

SECTION 6: TROUBLES HOOTING

3. The picture has interference.

a. The camera may be close to a high voltage source,

such as a power generator.
b. The BNC cable is not terminated properly.
c. The video cables are not connected properly.

This camera is a precision instrument and when



CAUTION

treated with care, will provide years of satisfactory
performance. If a problem does occur, do not open the
camera to make repairs. Servicing should always be
referred to your supplier.

CD33W.indd 16 3/30/2010 3:19:27 PM

Infrared Dome CCD Camera User Manual

16

CD33W.indd 17 3/30/2010 3:19:27 PM

CD33W.indd 18 3/30/2010 3:19:27 PM

CD33W.indd 19 3/30/2010 3:19:27 PM
