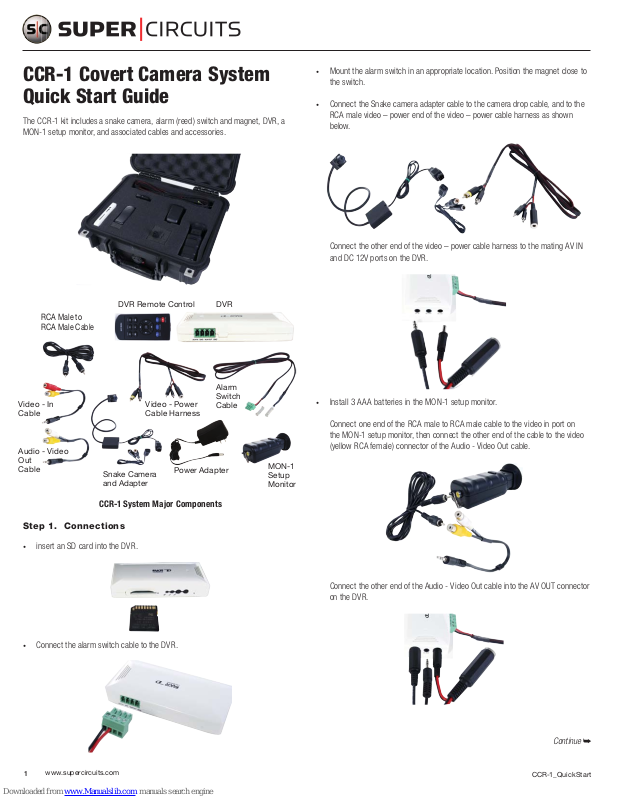

CCR-1 Covert Camera System
• Mount the alarm switch in an appropriate location. Position the magnet close to
the switch.
Quick Start Guide

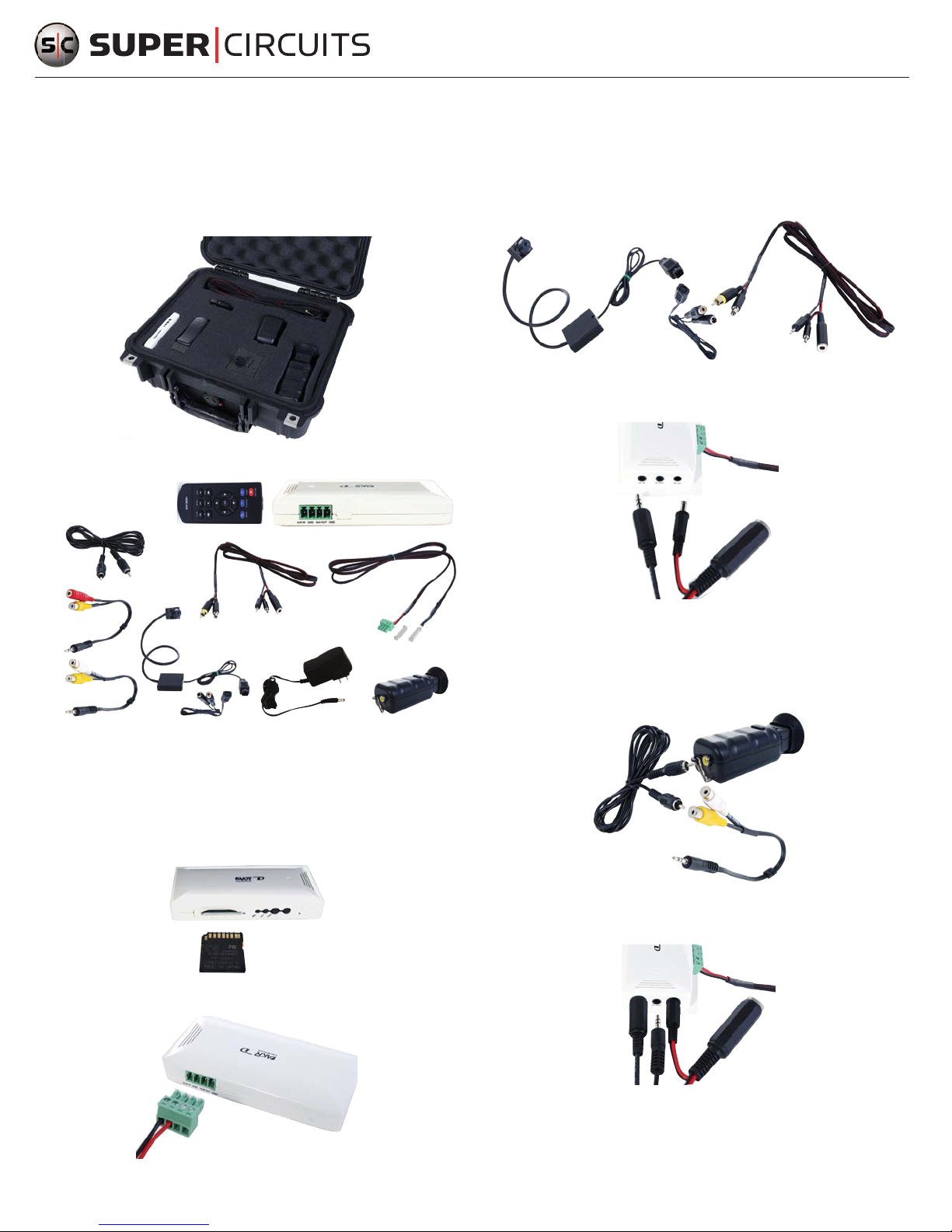

The CCR-1 kit includes a snake camera, alarm (reed) switch and magnet, DVR, a
MON-1 setup monitor, and associated cables and accessories.
RCA Male to
RCA Male Cable
Video - In
Cable
Audio - Video
Out
Cable
DVR Remote Control
Video - Power
Cable Harness
Snake Camera
and Adapter
Power Adapter
DVR
Alarm
Switch
Cable
MON-1
Setup
Monitor
• Connect the Snake camera adapter cable to the camera drop cable, and to the
RCA male video – power end of the video – power cable harness as shown
below.
Connect the other end of the video – power cable harness to the mating AV IN
and DC 12V ports on the DVR.
• Install 3 AAA batteries in the MON-1 setup monitor.
Connect one end of the RCA male to RCA male cable to the video in port on
the MON-1 setup monitor, then connect the other end of the cable to the video
(yellow RCA female) connector of the Audio - Video Out cable.
CCR-1 System Major Components
Step 1. Connections
• insert an SD card into the DVR.
• Connect the alarm switch cable to the DVR.
www.supercircuits.com
1
Connect the other end of the Audio - Video Out cable into the AV OUT connector
on the DVR.
Continue ➥
CCR-1_QuickStart
Page 2

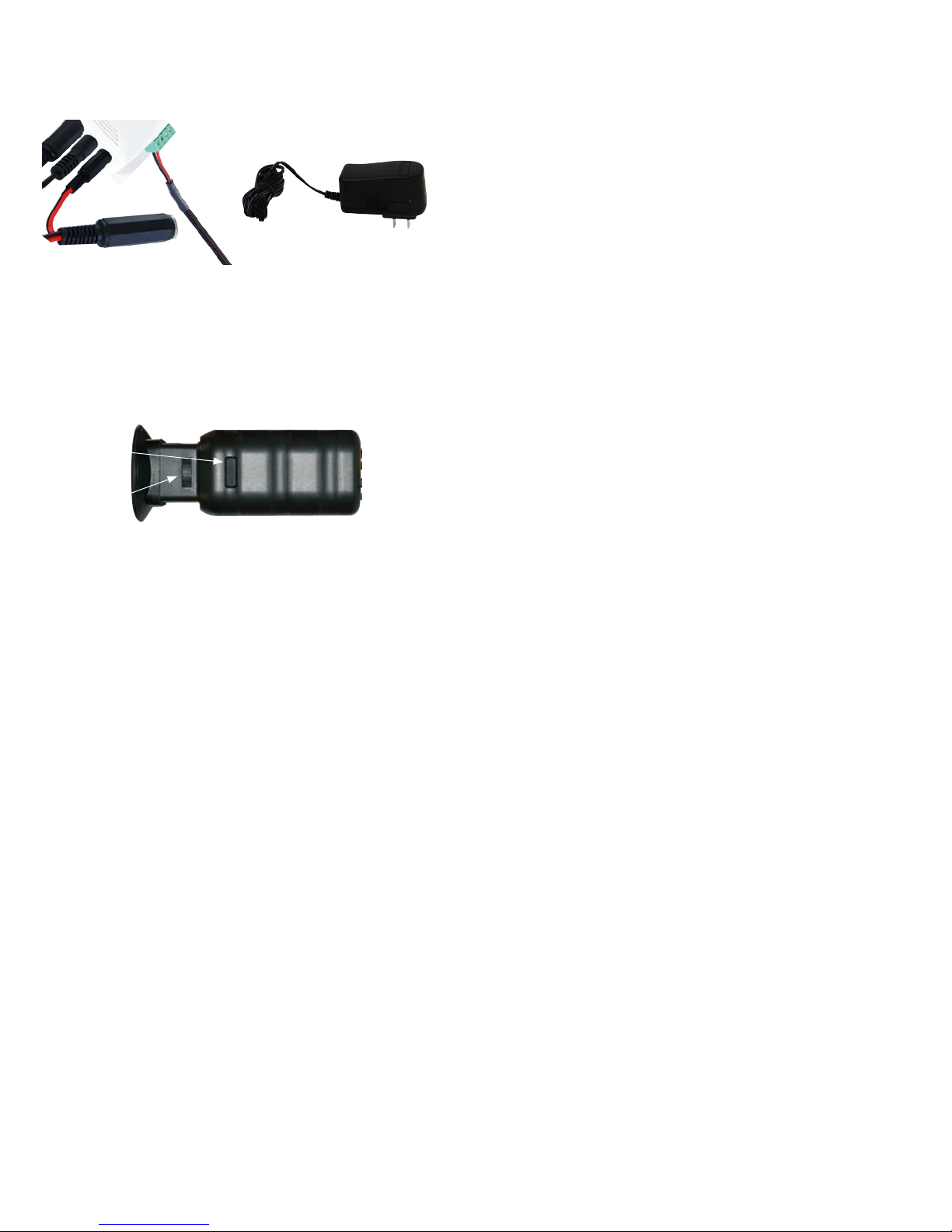

• Connect the power adapter to the power connector on the video – power cable
harness. NOTE: An additional power adapter, also include, is for powering the
DVR without using the video - power cable harness.
Step 2. Setup the DVR
• Plug the power adapter into a standard electrical outlet to power on the system.
• While pressing the (power) button on the side of the MON1 monitor, look into
the eyepiece. You should see a video image from the camera.
Power
Video In
Button
Focus
Adjust
• The DVR is pre congured for alarm contact recording. The default password
for the DVR is 0000. Note: You must use the included software to play back the
video les. You can also use the software to convert to a standard AVI format.
www.supercircuits.com
2
© 2010 Supercircuits, Inc. All rights reserved.
