Super Circuits BLK-HDC20HDMI User Manual
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
ISO14001
The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
their own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
☞Do NOT use power sources other than those specified.
This installation should be made by a qualified service person and
should conform to all local codes.
2. Safety Instructions
•
This camera should be installed by qualified personnel only
•
There are no user serviceable parts inside
•
Do not disassemble this camera other than to make initial adjustments
•
Use a UL approved regulated 24 volt AC or 12 volt DC power supply
•
Use appropriate low voltage power cable to prevent fire or electrical shock
•
Please insure that your installation area can support the weight of the camera
•
Do not use a strong or abrasive detergent when cleaning the camera
•
Do not expose the camera to direct sun
•
Do not install camera in places where humidity is high
•
Do not install near cooling or heating device
•
Do not expose camera to rain or moisture
Precautions for use
Please handle this camera carefully
1. Precautions
Do not install the camera in
extreme temperature conditions.
Do not touch the front lens of the
camera.
Do not expose the camera to rain
or spill liquids on it.
Do not install or use the camera in an
environment where the humidity is high.
Do not install or use the camera in an
environment where the humidity is high.
Never keep the camera pointed
directly at strong light.
Do not expose the camera to
radioactivity.
Do not install the camera under
unstable lighting conditions.
Do not drop the camera or subject
it to physical shocks.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to
provide ventilation when operating under
high temperatures.
This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.
If it gets wet, wipe dry immediately.
Liquids can contain minerals that
corrode the electronic components.
It can cause malfunctions to occur.
If exposed to radioactivity the CCD
will fail.
Severe lighting change or flicker can
cause the camera to work improperly.
Housing damage can compromise
weatherproof ratings.
NOTE
* If the camera is exposed to
spotlight or object reflecting
strong light, smear or
blooming
may occur.
* please check that the power
satisfies the normal
specification before
connecting the camera.
1 | Digital Video Security Systems 2 | Digital Video Security Systems
3 | Digital Video Security Systems 4 | Digital Video Security Systems

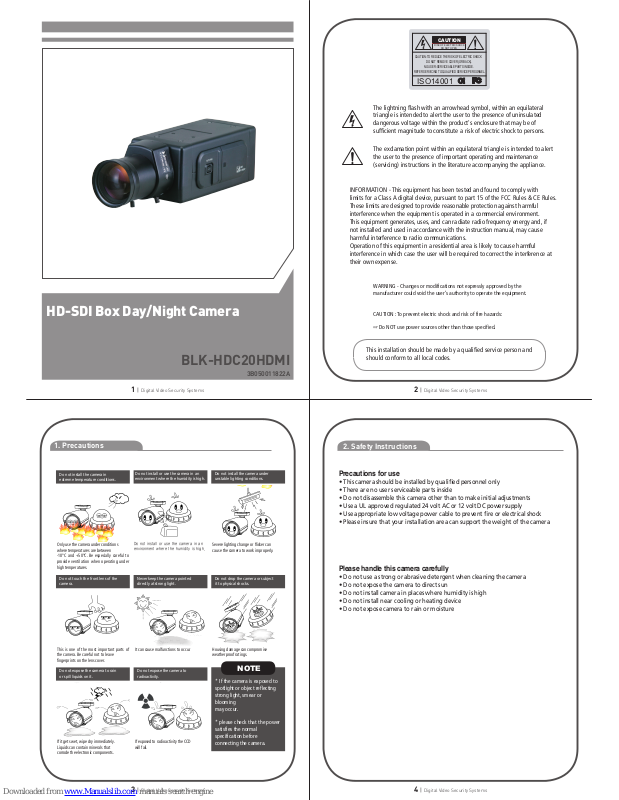

HD-SDI Box Day/Night Camera
BLK-HDC20HDMI
3B050011822A
Digital Video Security Systems
6 | Digital Video Security Systems
8 | Digital Video Security Systems
5 | Digital Video Security Systems
7 | Digital Video Security Systems
AUTO IRIS LENS
CONNECTOR
2EA
C RING
1EA
Instruction Manual
1EA
FOOT
1EA
SCREW
2EA
8. Package
4. Key Features
5. Specifications
6. Cable Connection
7. Camera Connection
• 1/3” SONY Progressive Scan Color CMOS Sensor
• 1080(1920x1080)@30fps
• TV out(BNC) with NTSC/PAL selectable
• Dual Output-Megapixel HD CCTV(BNC) & SD CCTV(BNC) Out
• Defog(Visibility enhancement on the low contrast scene)
• High resolution digital zoom (x64)
• PIP(Full Image / Zoom Image)
• Flicker suppression
• No noise, ghosting effect with DNR
• Dual Power(AC 24V / DC 12V)
Camera
1EA
*C & CS Mount Lens
3. Dimension
OSD Control Board D&N RS485(HD-F750)
Sensor
Total Pixels
Effective Pixels
Scanning System
S/N Ratio
Minimum Illumination
White Balance
Video Output
Electronics Shutter Speed
OSD
BLC
AGC
DNR
Day & Night
Defog
PIP / Digital Zoom
Privacy
Lens
Power Supply
Power Counsumption
Operating Temperature
Storage Temperature
Dimension
Weight
MODEL
BLK-HDC20HDMI
1/3" SONY CMOS
2000(H) X 1121(V)
1984(H) X 1105(V)
Progressive Scan
More than 50dB
0.02Lux(Sens-up x60)
ATW / AWC >SET / Manual >SET
HD-SDI / CVBS : 1.0 Vp-p 75ohm
Auto / Manual Selectable
Built-in
BLC / HSBLC / Off Selectable
High / Middle / Low
2DNR / 3DNR
Auto / BW / Color / EXT
High / Middle / Low / Off Selectable
On(x2~x64) / Off
On(8 Programmable Zone) / Off
C & CS Mount (Lens Option)
Dual Voltage
120mA
0°C~60°C
-10°C~70°C
58mm(W) * 52mm(H) * 123mm(D)
350g
HD OUT
TX(+)RX(-)EXTGND MD
VIDEO
HD-SDI
POWER
POWER
RS485
D&N
