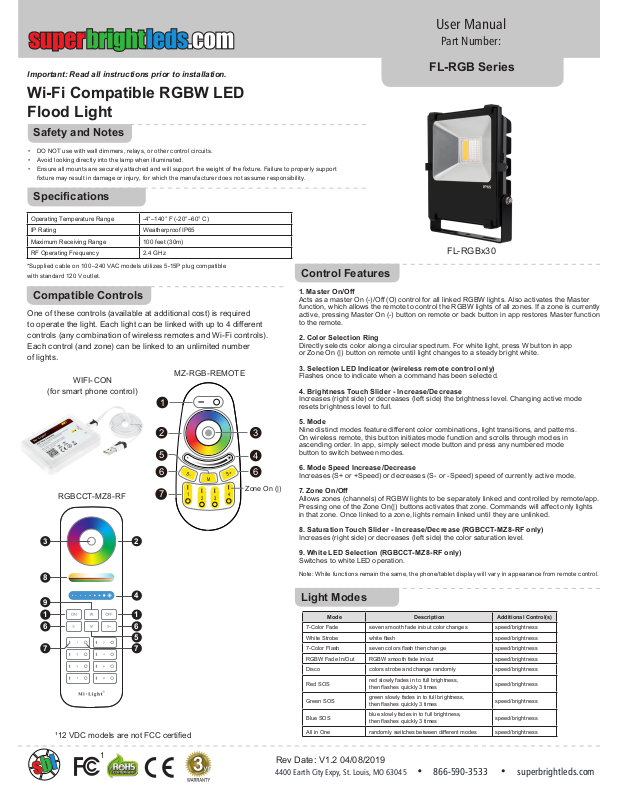

Page 1
User Manual
Part Number:
Important: Read all instructions prior to installation.
Wi-Fi Compatible RGBW LED
Flood Light
Safety and Notes
• DO NOT use with wall di mmers , relays, o r other c ontrol circuits.
• Avoid looking directly into the lamp when illuminated.
• Ensure al l mounts a re securely attached and will suppor t the wei ght of the xture . Failure to p roper ly support
xtur e may result in damag e or injur y, for which the manufact urer doe s not assu me resp onsibi lity.
Specications
Operating Temperature Range -4°–140° F (-20°–60° C)
IP Rating Weatherproof IP65
Maximum Receiving Range 100 feet (30m)
RF Operating Frequency 2.4 GHz
*Suppl ied cab le on 100 –240 VAC models ut ilizes 5 -15P plug compatible
with standard 120 V o utlet.
Compatible Controls
One of these controls (available at additional cost) is required
to operate the light. Each light can be linked with up to 4 dierent
controls (any combination of wireless remotes and Wi-Fi controls).
Each control (and zone) can be linked to an unlimited number
of lights.
WIFI- CON
(for smart phone control)
RGBC CT- M Z8-RF
3
8
2
MZ-RGB-REMOTE
1
2
5
S-
6
1
7
2 3
3
4
6
S+
M
Zone On (|)
4
Control Features
1. Master On/O
Acts as a master On (-)/O (O) control for all linked RGBW lights. Also activates the Master
function, which allows the remote to control the RGBW lights of all zones. If a zone is currently
active, pressing M aster On (-) but ton on remote or back button in app restores Master function
to the remote.
2. Color Selection Ring
Directly selects color along a circular spectrum. For white light, press W button in app
or Zone On (|) button on remote until light changes to a steady bright white.
3. Selection LED Indicator (wireless remote control only)
Flashes once to indicate when a command has been selected.
4. Brightness Touch Slider - Increase/Decrease
Increases (right side) or decreases (lef t side) the br ightness level. Changing ac tive mode
resets br ightness level to full.
5. Mode
Nine distinct modes feature dierent color combinations, light transitions, and pat terns.
On wireless remote, this button initiates mode function and scrolls through modes in
ascending order. In app, simply select mode button and press any numbered mode
button to switch between modes.
6. Mode Speed Increase/Decrease
Increases (S+ or +Speed) or decreases (S- or -Speed) speed of currently active mode.
7. Zone On/O
Allows zones (channels) of RGBW lights to be separately linked and controlled by remote/app.
Pressing one of the Zone On(|) buttons activates that zone. Commands will aect only lights
in that zone. Once linked to a zone, lights remain linked until they are unlinked.
8. Saturation Touch Slider - Increase/Decrease (RGBCCT-MZ8-RF only)
Increases (right side) or decreases (lef t side) the color saturation level.
9. White LED Selection (RGBCCT-MZ8-RF only)
Switches to white LED operation.
Note: Whi le func tions re main the same, th e phone/tabl et display will var y in appe aranc e from re mote control.
FL-RGB Series
WIFI-CON
FL- RG Bx 3 0
9
4
1 1
6
6
5
7 7
¹12 VDC models are not FCC certied
1
Light Modes
Mode Description Additional Control(s)
7-Color Fade seven smooth fade in/out color changes speed/brightness
White Strobe white ash speed/brightness
7-Color Flash seven colors ash then change speed/brightness
RGBW Fade In/Out RGBW smooth fade in/out speed/brightness
Disco colors strobe and change randomly speed/brightness
Red SOS
Green SOS
Blue SOS
All in One randomly switches between dierent modes speed/brightness
Rev Date: V1.2 04/08/2019
4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com
red slowly fades in to full brightness,
then ashes quickly 3 times
green slowly fades in to full brightness,
then ashes quickly 3 times
blue slowly fades in to full brightness,
then ashes quickly 3 times
speed/brightness
speed/brightness
speed/brightness
Page 2
User Manual
Part Number:
Important: Read all instructions prior to installation.
Wi-Fi Control
Parts Included
1 - WIFI-CON
1 - USB- 500MA-5V
Setup Instructions
1. Download Mi-Light 3.0 app on compatible device (iOS or Android).
2. See WIFI-CON manual for complete instructions on how to establish connection
and set up Wi-Fi control.
Note: Constant Wi-Fi connection is required for remote access to Wi-Fi control
through your device.
Linking Lights to App Remote
Linking a Light
1. Press control conguration select button in top, right corner. (1A)
2. Select the remote pictured (MZ-RGB- REMOTE). (1B)
Note: Remote RGBCCT-MZ8-RF can also be selected if desired.
3. Make certain light is powered o and select desired zone in app.
4. Select linking icon in top right. (1C)
5. Apply power and press link button within 3 seconds. Light will ash 3 times
if successfully linked.
Activating and Controlling a Specic Zone
To activate a specic zone, select one of the zones and press On (|) button.
Zone is now active and remote commands will only aect lights linked to that zone.
FL-RGB Series
1A
1C
1B
Unlinking a Light
Make certain the light is powered o and select the desired zone in app.
6. Select linking icon in top right. (1C)
7. Apply power and press unlink button within 3 seconds. Light will ash 10 times
if successfully unlinked. Unlinking a light from one remote will unlink it from all
other remotes it is linked to as well.
Wireless Remote Control
Parts
1 - MZ-RGB-REMOTE or RGBCCT-MZ8-RF
Setup Instructions
Install two AAA batteries (not included) into wireless remote.
Note: Wireless remote operates using radio frequency and has 100 ft. (30 m) range.
Linking Lights to Remote Control
Linking a Light
1. Make certain light is powered o.
2. Apply power. Within 3 seconds, press and hold one of the Zone On (|)
buttons until light begins ashing. Light will ash 3 times if successfully
linked to selected zone.
Activating and Controlling a Specic Zone
To activate a specic zone, press Zone On (|) button for desired zone. Zone
is now active and remote commands will only aect lights linked to that zone.
Unlinking a Light
1. Make certain light is powered o.
2. MZ-RGB-REMOTE—Apply power. Within 3 seconds, press and hold
Zone On (|) or Master On (|) button until light begins ashing.
RGBC CT-MZ8 - R F —Apply power. Within 3 seconds, press Zone On (|)
or Master On (|) button ve times quickly.
Note: With either remote, light will ash 10 times if successfully unlinked.
Mi-Light 3.0 app on iOS
FCC Statement
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation. Any changes or modications in construction
of this device which are not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.
¹12 VDC models are not FCC certied
1
Rev Date: V1.2 04/08/2019
4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com
