Super SC809LT-780B, SC809T-980B, SC809T-1200B, SC809T-780B User Manual

SUPER

SC809 Chassis Series

®

SC809LT-780B

SC809T-780B

SC809T-980B

SC809T-1200B

USER’S MANUAL

1.0b

SC809 Chassis Manual

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.
The vendor assumes no responsibility for any inaccuracies that may be contained in this document,
makes no commitment to update or to keep current the information in this manual, or to notify any
person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product
described in this manual at any time and without notice. This product, including software, if any,
and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or
reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,
SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO
USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY
HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE
COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH
HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa
Clara County in the State of California, USA. The State of California, County of Santa Clara shall
be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all
claims will not exceed the price paid for the hardware product.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate
warning applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate
Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this
product may expose you to lead, a chemical known to
the State of California to cause birth defects and other
reproductive harm.

Manual Revision 1.0a
Release Date: August 10, 2009

Unless you request and receive written permission from Super Micro Computer, Inc., you may not
copy any part of this document.

Information in this document is subject to change without notice. Other products and companies
referred to herein are trademarks or registered trademarks of their respective companies or mark
holders.

Copyright © 2009 by Super Micro Computer, Inc.
All rights reserved.

Printed in the United States of America

ii

Preface

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It

provides information for the installation and use of the SC809 1U chassis. Installa-

tion and maintenance should be performed by experienced technicians only.

Supermicro’s SC809 1U chassis features a unique and highly-optimized design

for twin dual-core Xeon platforms. The chassis is equipped with a 780W, 980W or

1200W high-efciency power supply for superb power savings. High-performance

fans provide ample optimized cooling for the SC809's twin motherboards, and eight

2.5" hot-swap drive bays offers maximum storage capacity in a 1U form factor.

Recommended for SAS or enterprise SATA HDDs only

This document lists compatible parts available when this document was published.

Always refer to the our Web site for updates on supported parts and congura-

tions.

iii

SC809 Chassis Manual

Manual Organization

Chapter 1 Introduction

The rst chapter provides a checklist of the main components included with this

chassis and describes the main features of the SC809 chassis. This chapter also

includes contact information.

Chapter 2 System Safety

This chapter lists warnings, precautions, and system safety. You should thoroughly

familiarize yourself with this chapter for a general overview of safety precautions

that should be followed before installing and servicing this chassis.

Chapter 3 Chassis Components

Refer here for details on this chassis model including the fans, bays, airow shields,

and other components.

Chapter 4 System Interface

Refer to this chapter for details on the system interface, which includes the functions

and information provided by the control panel on the chassis as well as other LEDs

located throughout the system.

Chapter 5 Chassis Setup and Maintenance

Follow the procedures given in this ch apter when installing, removing, or

reconguring your chassis.

Chapter 6 Rack Installation

Refer to this chapter for detailed information on chassis rack installation. You should

follow the procedures given in this chapter when installing, removing or reconguring

your chassis into a rack environment.

iv

Preface

Appendices

This section lists compatible cables, power supply specications, and compatible

backplanes. Not all compatible backplanes are listed. Refer to our Web site for the

latest compatible backplane information.

Appendix A Chassis Cables

Appendix B Power Supply Specications

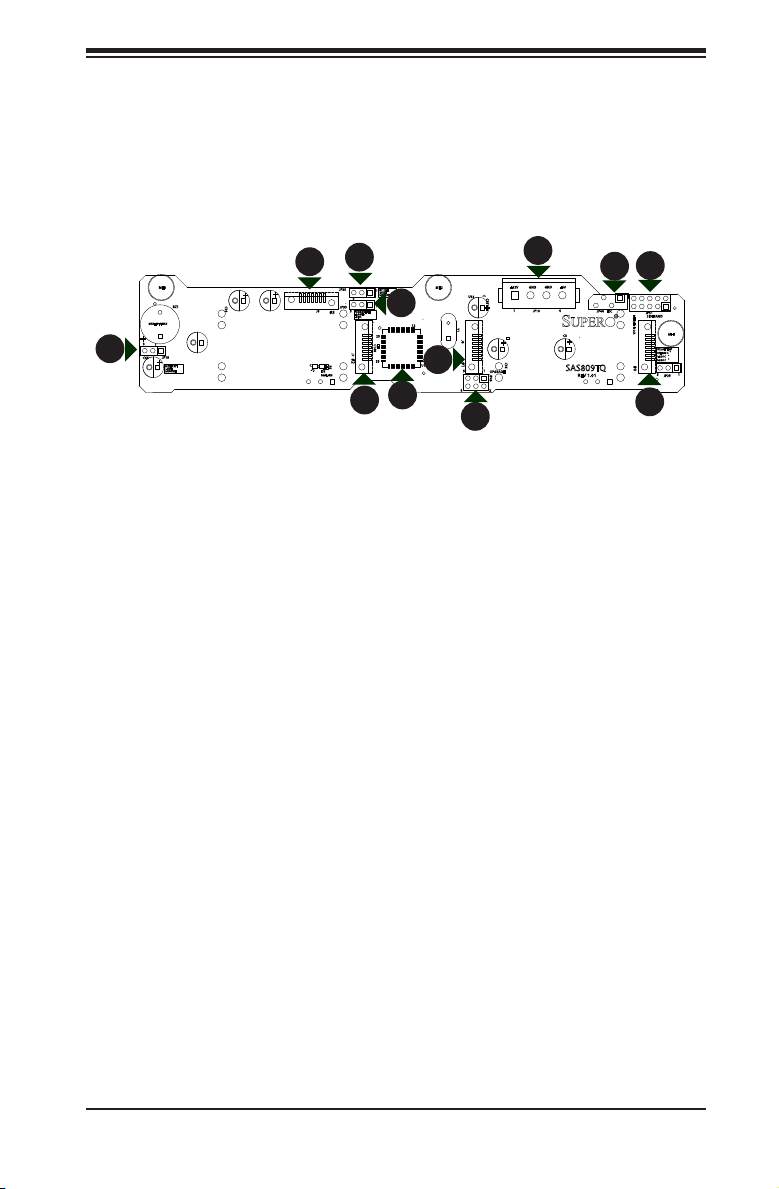

Appendix C SAS-809 Backplane Specications

v

SC809 Chassis Manual

Table of Contents

Chapter 1 Introduction

1-1 Overview ......................................................................................................... 1-1

1-2 Shipping List .................................................................................................... 1-1

1-3 Contacting Supermicro .................................................................................... 1-2

1-4 Returning Merchandise for Service................................................................. 1-3

Chapter 2 System Safety

2-1 Overview ......................................................................................................... 2-1

2-2 Warnings and Precautions ..............................................................................2-1

2-3 Preparing for Setup ......................................................................................... 2-1

2-4 Electrical Safety Precautions ..........................................................................2-1

2-5 General Safety Precautions ............................................................................ 2-2

2-6 System Safety ................................................................................................. 2-3

Chapter 3 Chassis Components

3-1 Overview ......................................................................................................... 3-1

3-2 Components .................................................................................................... 3-1

Chassis ............................................................................................................ 3-1

Backplane ........................................................................................................ 3-1

Fans ................................................................................................................3-1

Mounting Rails ................................................................................................ 3-1

Power Supply .................................................................................................. 3-2

Air Shroud ....................................................................................................... 3-2

3-3 Where to get Replacement Components ........................................................ 3-2

Chapter 4 System Interface

4-1 Overview ......................................................................................................... 4-1

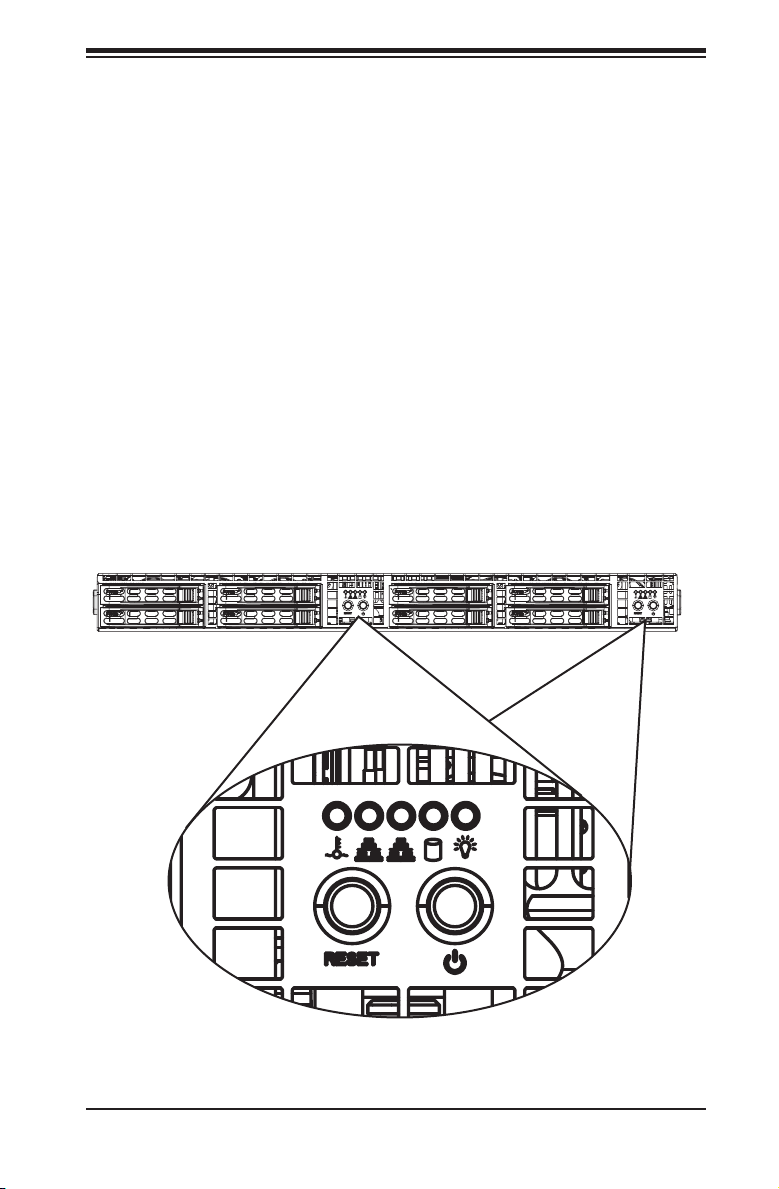

4-2 Control Panel Buttons ..................................................................................... 4-2

4-3 Control Panel LEDs ........................................................................................ 4-2

4-4 Drive Carrier LEDs .......................................................................................... 4-3

SAS/SATA Drives ............................................................................................ 4-3

SCSI Drives ..................................................................................................... 4-4

Chapter 5 Chassis Setup and Maintenance

5-1 Overview ......................................................................................................... 5-1

Installation Procedures .................................................................................. 5-1

General Maintenance Procedures .................................................................. 5-1

5-2 Removing the Chassis Cover ......................................................................... 5-2

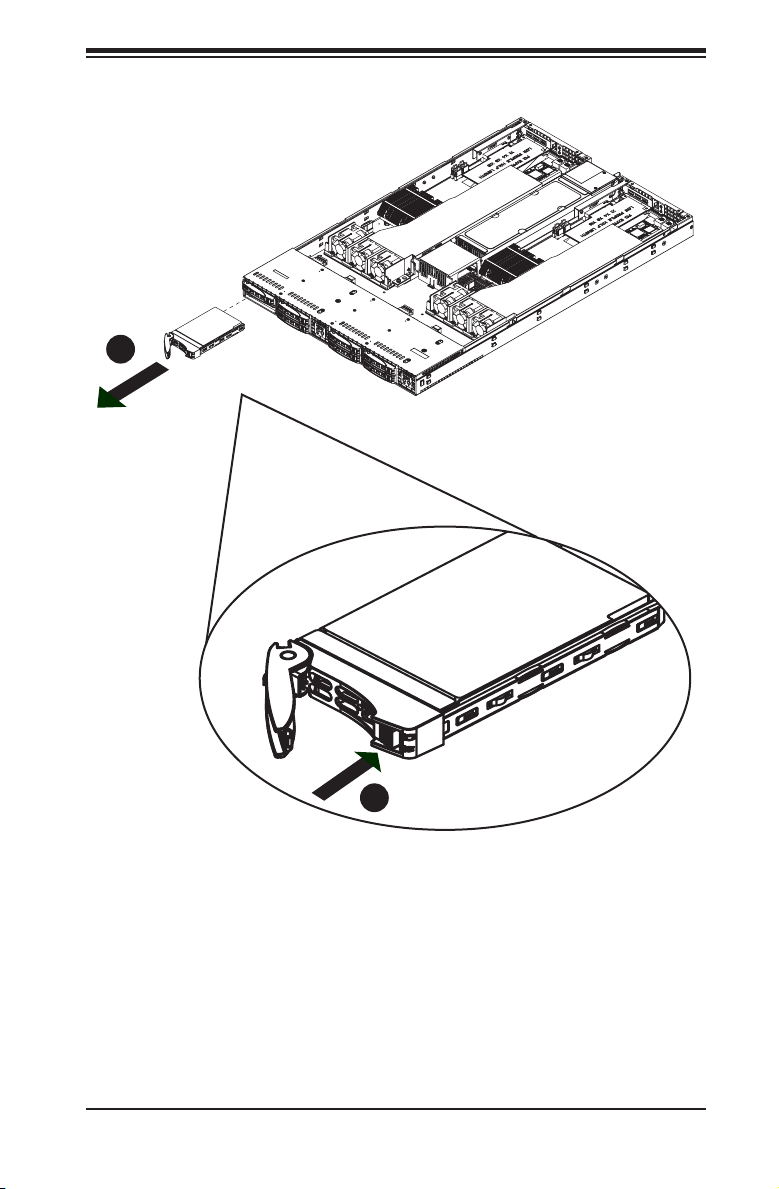

5-3 Installing Hard Drives ...................................................................................... 5-3

5-4 Motherboard Installation .................................................................................. 5-5

vi

Preface

I/O Shield ........................................................................................................ 5-5

Permanent and Optional Standoffs ................................................................. 5-5

Installing the Motherboards ............................................................................. 5-6

Add-on Card/Expansion Slot Setup ................................................................ 5-7

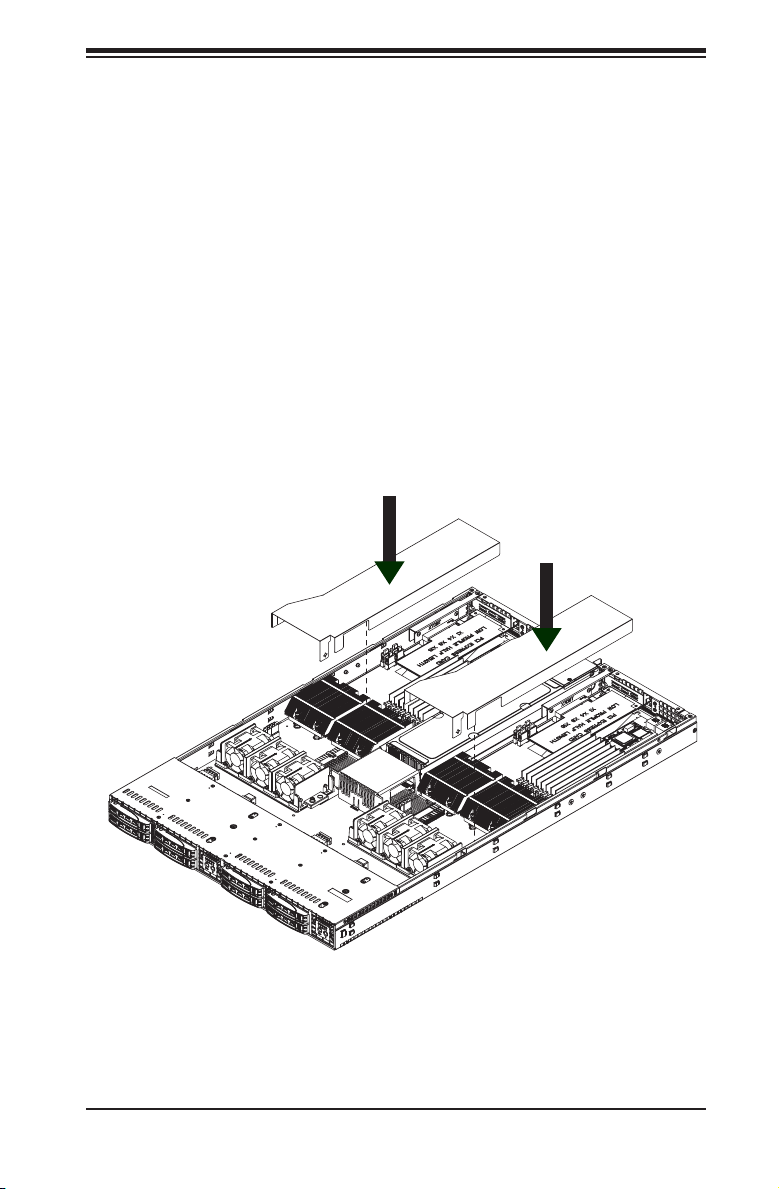

5-5 Installing the Air Shrouds ................................................................................ 5-9

Air Shrouds ..................................................................................................... 5-9

5-6 Checking the Air Flow ................................................................................... 5-10

Installation Complete ..................................................................................... 5-10

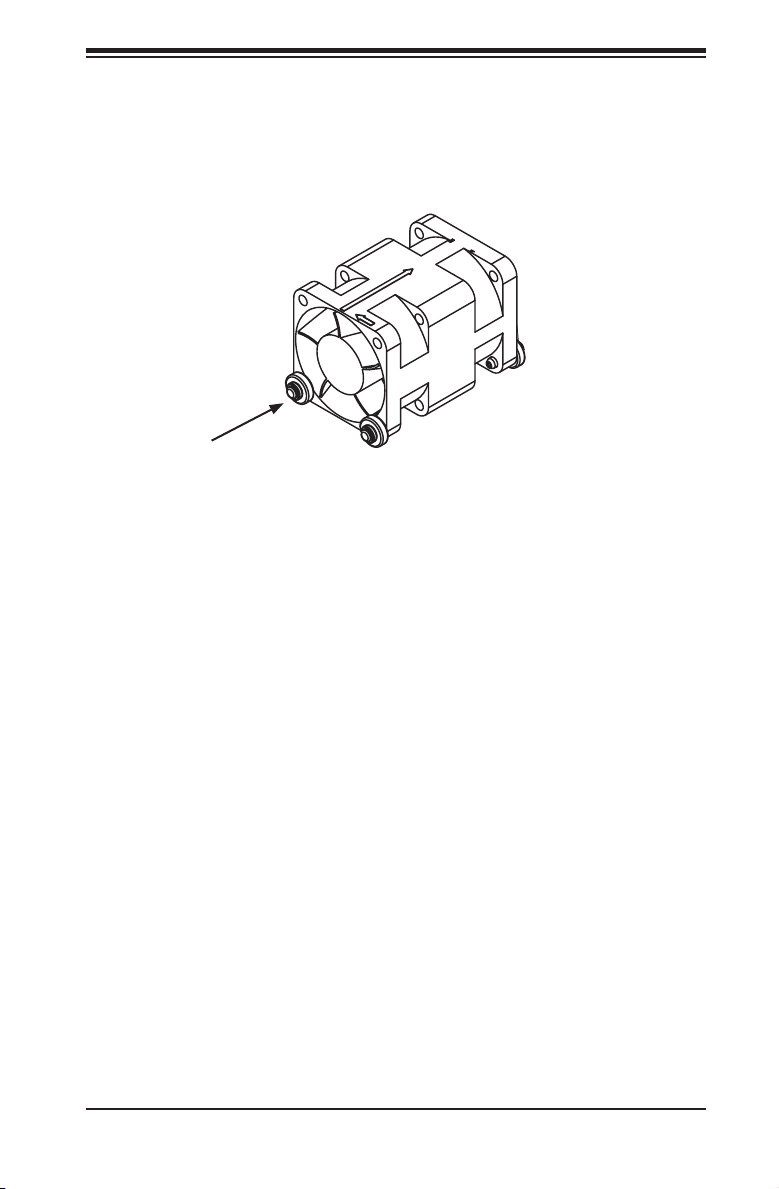

5-7 System Fans ..................................................................................................5-11

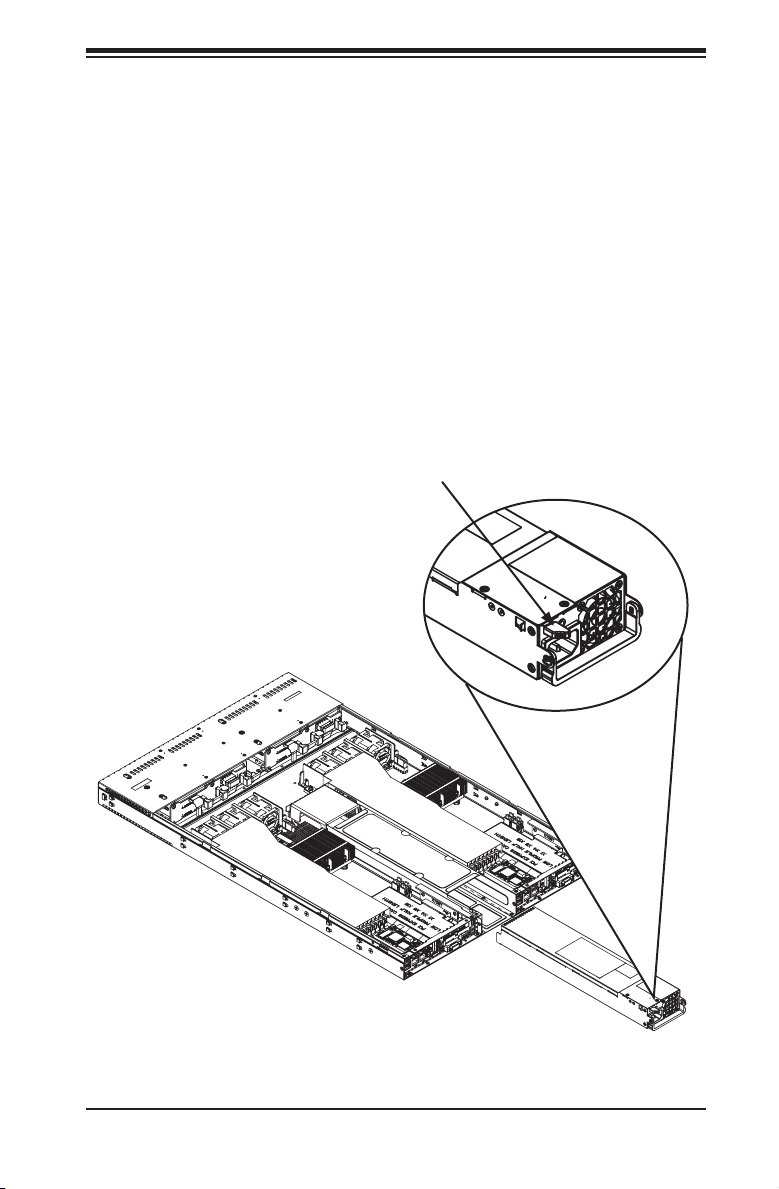

5-8 Power Supply ............................................................................................... 5-13

Power Supply Replacement .......................................................................... 5-13

Chapter 6 Rack Installation

6-1 Overview ......................................................................................................... 6-1

6-2 Unpacking the System .................................................................................... 6-1

6-3 Preparing for Setup ......................................................................................... 6-1

Choosing a Setup Location ............................................................................. 6-1

6-4 Warnings and Precautions ..............................................................................6-2

Rack Precautions ............................................................................................ 6-2

General Server Precautions ............................................................................ 6-2

Rack Mounting Considerations ....................................................................... 6-3

Ambient Operating Temperature ................................................................ 6-3

Reduced Airow ......................................................................................... 6-3

Mechanical Loading ................................................................................... 6-3

Circuit Overloading ..................................................................................... 6-3

Reliable Ground .............................................................................................. 6-3

6-5 Rack Mounting Instructions ............................................................................. 6-4

Identifying the Sections of the Rack Rails ...................................................... 6-4

Installing the Inner Rail Extensions ................................................................ 6-5

Installing the Outer Rails ................................................................................. 6-6

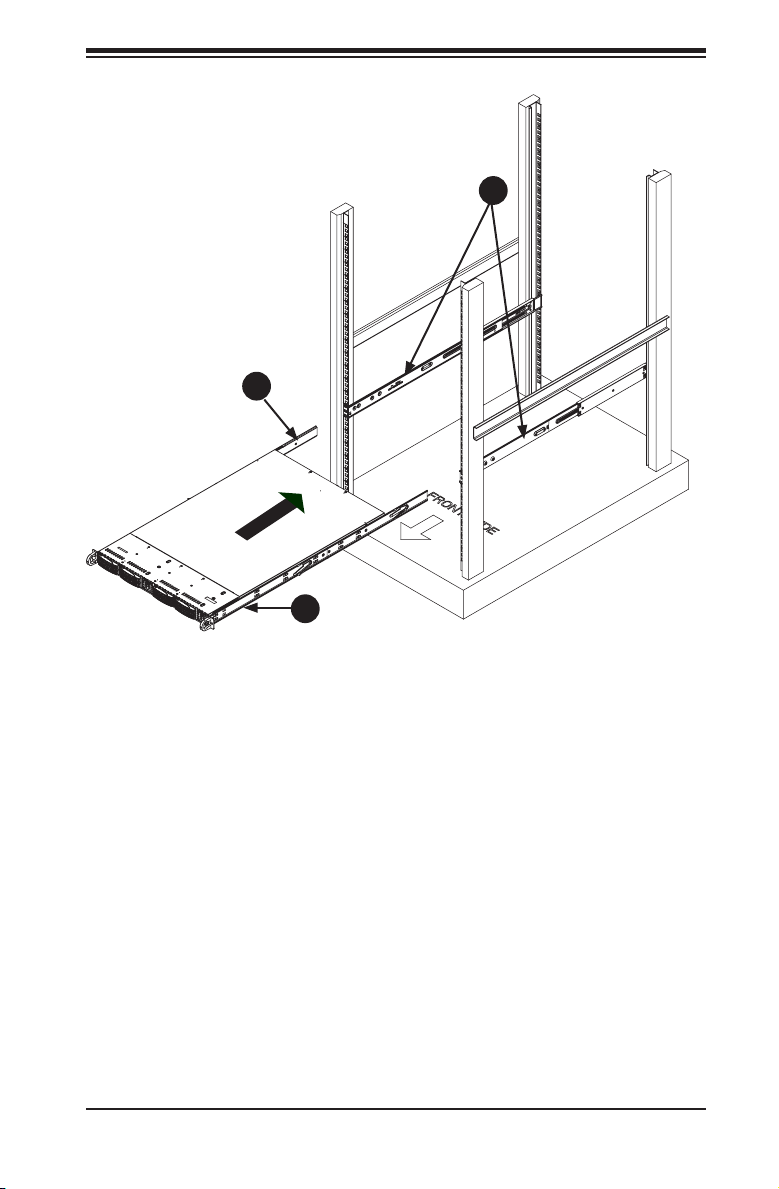

Installing the Chassis into a Rack................................................................... 6-7

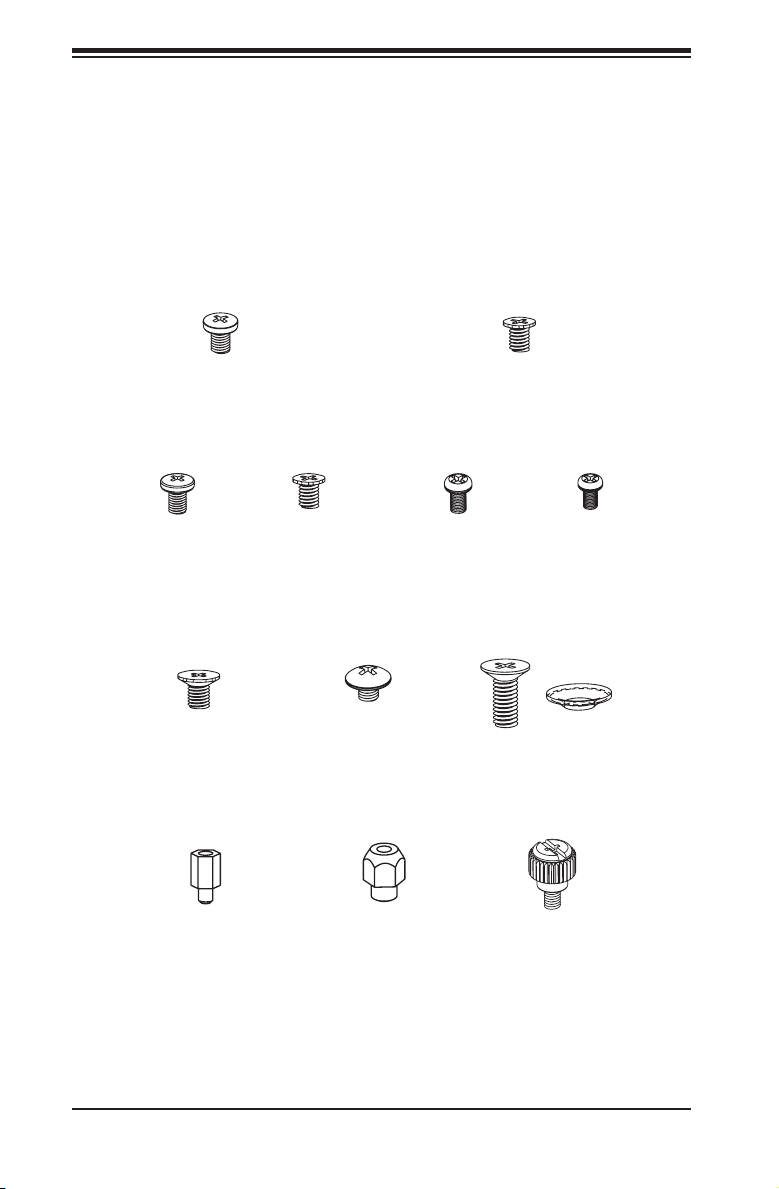

Appendix A Cables, Screws, and Other Accessories

Appendix B SC809 Power Supply Specications

Appendix C SAS-809T/TQ Backplane

vii

SC809 Chassis Manual

Notes

viii

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

Supermicro’s SC809 1U chassis features a unique and highly-optimized design.

The chassis is equipped with either a 780W, 980W or 1200W high-efciency power

supply. High performance fans provide ample optimized cooling for the twin moth-

erboards, and eight hot-swappable drive bays offer maximum storage capacity in a

1U form factor. Recommended for SAS or enterprise SATA HDDs only

1-2 Shipping List

Please visit the following link for the latest shiping lists and part numbers for your par-

ticular chassis model http://www.supermicro.com/products/chassis/1U/?chs=809

SC809 Chassis

Model CPU HDD I/O Slots

SC809LT-780B

SC809T-780B

SC809T-980B

SC809T-1200B

Single/Dual CPU

Single/Dual CPU

Single/Dual CPU

Single/Dual CPU

Twin 4x Hot-

swap

2.5”

Twin 4x Hot-

swap

2.5”

Twin 4x Hot-

swap

2.5”

Twin 4x Hot-

swap

2.5”

1-1

Power

Supply

Twin LP 780W

Twin LP 780W

Twin LP 980W

Twin LP 1200W

SC809 Chassis Manual

1-3 Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: [phone]

Fax: [phone]

Email: [email protected] (General Information)

[email protected] (Technical Support)

Web

Site:

Europe

Address: Super Micro Computer B.V.

Tel: [phone]

Fax: [phone]

Email: [email protected] (General Information)

www.supermicro.com

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

[email protected] (Technical Support)

[email protected] (Customer Support)

Asia-Pacic

Address: Super Micro Computer, Inc.

4F, No. 232-1, Liancheng Rd.

Chung-Ho 235, Taipei County

Taiwan, R.O.C.

Tel: [phone]

Fax: [phone]

Web

Site:

Technical Support:

Email: [email protected]

Tel: [phone]

www.supermicro.com.tw

1-2

Chapter 1: Introduction

1-4 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required be-

fore any warranty service will be rendered. You can obtain service by calling your

vendor for a Returned Merchandise Authorization (RMA) number. When returning

to the manufacturer, the RMA number should be prominently displayed on the

outside of the shipping carton, and mailed prepaid or hand-carried. Shipping and

handling charges will be applied for all orders that must be mailed when service

is complete.

For faster service, RMA authorizations may be requested online (http://www.

supermicro.com/support/rma/).

Whenever possible, repack the chassis in the original Supermicro carton, using the

original packaging material. If these are no longer available, be sure to pack the

chassis securely, using packaging material to surround the chassis so that it does

not shift within the carton and become damaged during shipping.

This warranty only covers normal consumer use and does not cover damages in-

curred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor rst for any product problems.

1-3

SC809 Chassis Manual

Notes

1-4

Chapter 2: System Safety

Chapter 2

System Safety

2-1 Overview

This chapter provides a quick setup checklist to get your chassis up and running.

Following the steps in the order given should enable you to have your chassis set up

and operational within a minimal amount of time. This quick setup assumes that you

are an experienced technician, famailiar with common concepts and terminology.

2-2 Warnings and Precautions

You should inspect the box the chassis was shipped in and note if it was damaged

in any way. If the chassis itself shows damage, le a damage claim with carrier

who delivered your system.

Decide on a suitable location for the rack unit that will hold that chassis. It should

be situated in a clean, dust-free area that is well venilated. Avoid areas where heat,

electrical noise and eletromagnetic elds are generated.

You will also need it placed near at least one grounded power outlet. The SC809

chassis includes one power supply.

2-3 Preparing for Setup

The SC809 chassis includes a set of rail assemblies, including the mounting brack-

ets and mounting screws required to install the system into the rack. Please read

this manual in its entirety before you begin the installation procedure.

2-4 Electrical Safety Precautions

Basic electrical safety precautions should be followed to protect yourself from harm

and the SC809 from damage.

Be aware of the locations of the power on/off switch on the chassis as well •

as the room’s emergency power-off switch, disconnection switch or electrical

outlet. If an electrical accident occurs, you then can quickly remove power from

the system.

Do not work alone when working with high voltage components.•

2-1

SC809 Chassis Manual

Power should always be disconnected from the system when removing or install-•

ing main system components, such as the serverboard, memory modules and

the DVD-ROM/USB comport unit. When disconnecting the power, you should

rst power down the system with the operating system and then unplug the

power cords from all the power supply modules in the system.

When working around exposed electrical circuits, another person who is fa-•

miliar with the power-off controls should be nearby to switch off the power, if

necessary.

Use only one hand when working with powered-on electrical equipment. This •

is to avoid making a complete circuit, which will cause electrical shock. Use

extreme caution when using metal tools, which can easily damage any electrical

components or circuit boards they come into contact with.

Do not use mats designed to decrease electrostatic discharge as protection from •

electrical shock. Instead, use rubber mats that have been specically designed

as electrical insulators.

The power supply power cord must include a grounding plug and must be •

plugged into grounded electrical outlets.

Serverboard battery: CAUTION - There is a danger of explosion if the onboard •

battery is installed upside down, which will reverse its polarities This battery

must be replaced only with the same or an equivalent type recommended by

the manufacturer. Dispose of used batteries according to the manufacturer’s

instructions.

DVD-ROM laser: CAUTION - This server may have come equipped with a •

DVD-ROM drive. To prevent direct exposure to the laser beam and hazardous

radiation exposure, do not open the enclosure or use the unit in any uncon-

ventional way.

2-5 General Safety Precautions

Keep the area around the chassis clean and free of clutter.•

Place the chassis top cover and any system components that have been re-•

moved away from the system or on a table so that they won’t accidentally be

stepped on.

2-2

Chapter 2: System Safety

While working on the system, do not wear loose clothing such as neckties and •

unbuttoned shirt sleeves, which can come into contact with electrical circuits or

be pulled into a cooling fan.

Remove any jewelry or metal objects from your body, which are excellent metal •

conductors that can create short circuits and harm you if they come into contact

with printed circuit boards or areas where power is present.

After accessing the inside of the system, close the system back up and secure •

it to the rack unit with the retention screws after ensuring that all connections

have been made.

2-6 System Safety

Electrostatic discharge (ESD) is generated by two objects with different electrical

charges coming into contact with each other. An electrical discharge is created to

neutralize this difference, which can damage electronic components and printed

circuit boards. The following measures are generally sufcient to neutralize this

difference before contact is made to protect your equipment from ESD:

Do not use mats designed to decrease electrostatic discharge as protection from •

electrical shock. Instead, use rubber mats that have been specically designed

as electrical insulators.

Use a grounded wrist strap designed to prevent static discharge.•

Keep all components and printed circuit boards (PCBs) in their antistatic bags •

until ready for use.

Touch a grounded metal object before removing any board from its antistatic •

bag.

Do not let components or PCBs come into contact with your clothing, which may •

retain a charge even if you are wearing a wrist strap.

Handle a board by its edges only; do not touch its components, peripheral chips, •

memory modules or contacts.

When handling chips or modules, avoid touching their pins.•

Put the serverboard and peripherals back into their antistatic bags when not •

in use.

2-3

SC809 Chassis Manual

For grounding purposes, make sure the computer chassis provides excellent •

conductivity between the power supply, the case, the mounting fasteners and

the serverboard.

2-4

Chapter 3: Chassis Components

Chapter 3

Chassis Components

3-1 Overview

This chapter describes the most common components included with your chassis.

Some components listed may not be included or may not be compatible with your

particular chassis model. For more information, see the installation instructions

detailed later in this manual.

3-2 Components

Chassis

The chassis includes four hard drive bays, which contain a total of eight hard drives.

Hard drives must be purchased separately. For the latest shipping lists, visit our

Web site at: http://www.supermicro.com.

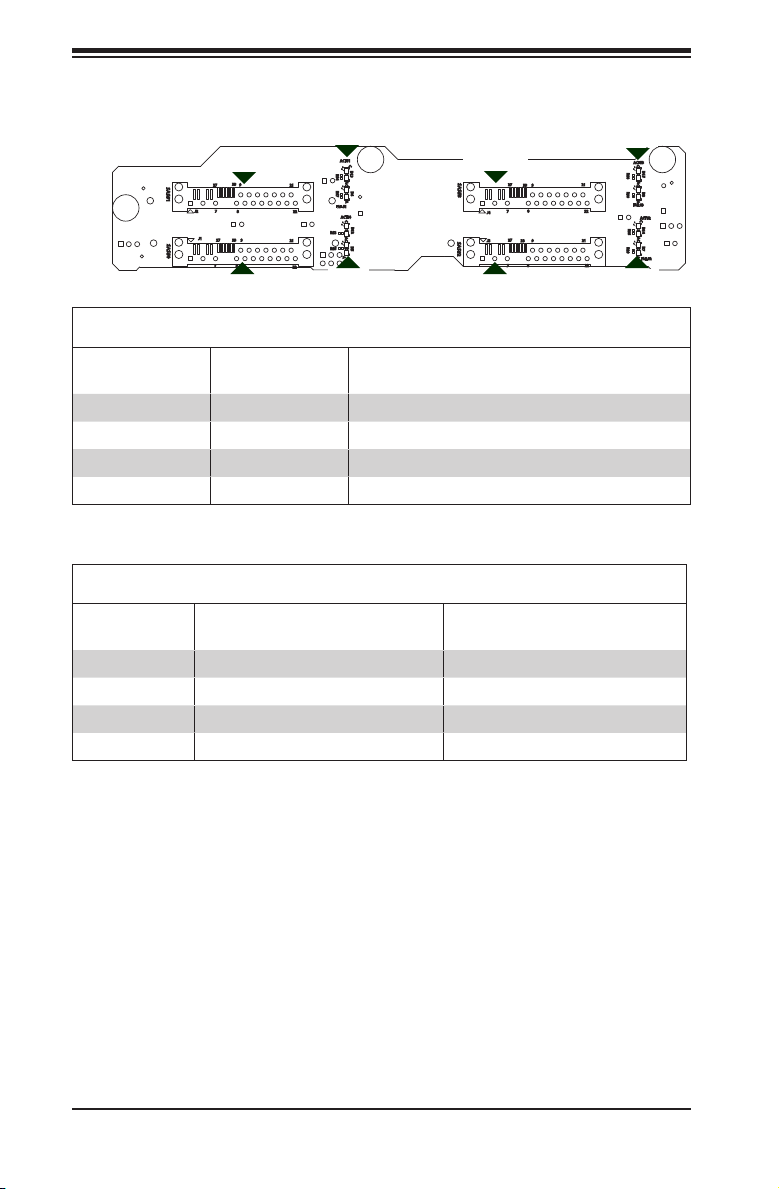

Backplane

Each SC809 chassis comes with a 1U backplane. For more information regarding

compatible backplanes, view the appendices found at the end of this manual. for

the latest information, visit our Web site at http://www.supermicro.com.

Fans

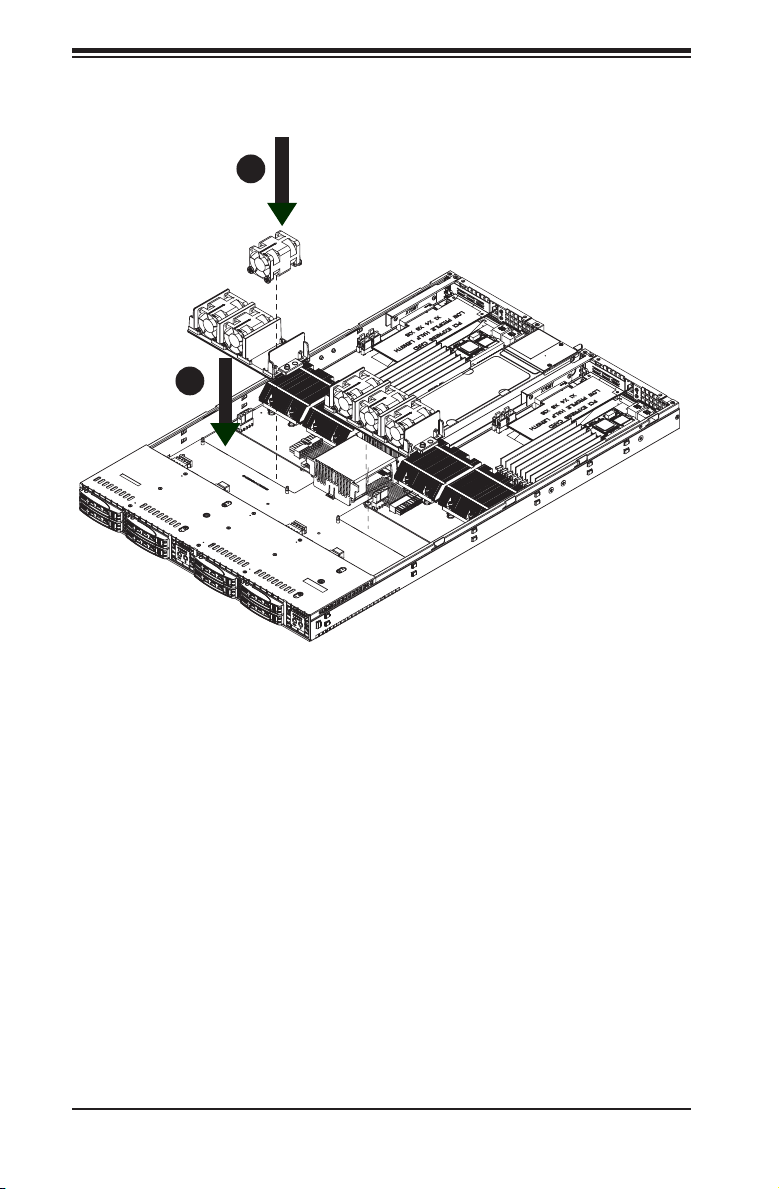

The SC809 chassis accepts six system fans. System fans for SC809 chassis are

powered from the serverboard. These fans are 1U high and are powered by 4-pin

connectors in models with a 780 Watt or 1200 Watt power supply, and 6-pin con-

nectors in models with a 980 Watt power supply.

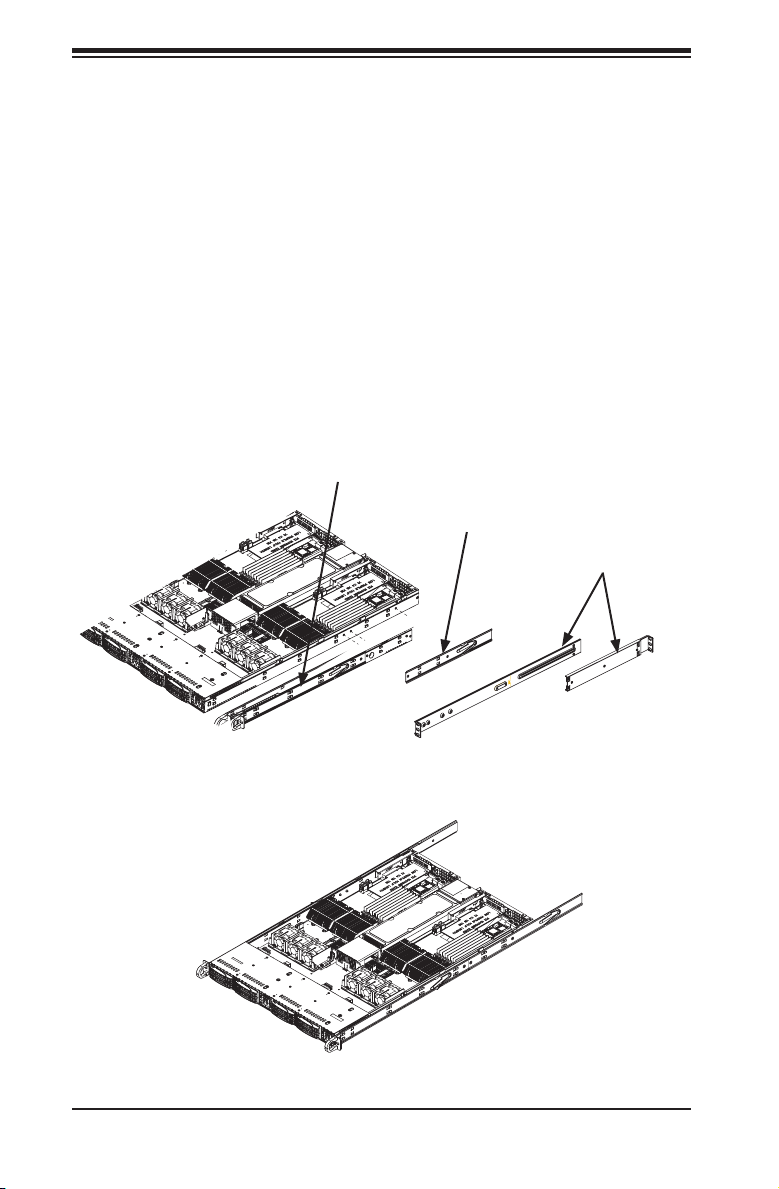

Mounting Rails

The SC809 can be placed in a rack for secure storage and use. To setup your rack,

follow the step-by-step instructions included in this manual.

3-1

SC809 Chassis Manual

Power Supply

Each SC809 chassis model includes a high-efciency power supply rated at 780,

980, 1200 Watts. In the unlikely event your power supply fails, replacement is simple

and can be done without tools.

Air Shroud

The SC809 chassis includes two mylar air shrouds that funnel air directly to where

it is needed. Always use the air shroud included with your chassis.

3-3 Where to get Replacement Components

Though not frequently, you may need replacement parts for your system. To en-

sure the highest level of professional service and technical support, we strongly

recommend purchasing exclusively from our Supermicro Authorized Distributors /

System Integrators / Resellers. A list of Supermicro Authorized Distributors / System

Integrators /Reseller can be found at: http://www.supermicro.com. Click the Where

to Buy link.

3-2

Chapter 4: System Interface

Chapter 4

System Interface

4-1 Overview

There are several LEDs on the control panel and drive carriers to keep you con-

stantly informed of the overall status of the system. SC809 models include two front

panels that control two semi-independent systesm.

This chapter explains the meanings of all LED indicators and the appropriate re-

sponse you may need to take.

4-1

SC809 Chassis Manual

4-2 Control Panel Buttons

There are two push-buttons located on the front of the chassis. These are (in order

from left to right) a reset button and a power on/off button.

Reset: The reset button is used to reboot the system.•

Power: The main power switch is used to apply or remove power from the power •

supply to the server system. Turning off system power with this button removes

the main power but keeps standby power supplied to the system. Therefore,

you must unplug system before servicing.

4-3 Control Panel LEDs

The control panel located on the front of the SC809 chassis has ve LEDs. These

LEDs provide you with critical information related to different parts of the system.

This section explains what each LED indicates when illuminated and any corrective

action you may need to take.

Overheat/Fan Fail: When this LED ashes it indicates a fan failure. When •

continuously on (not ashing) it indicates an overheat condition, which may be

caused by cables obstructing the airow in the system or the ambient room

temperature being too warm. Check the routing of the cables and make sure all

fans are present and operating normally. You should also check to make sure

that the chassis covers are installed. Finally, verify that the heatsinks are installed

properly. This LED will remain ashing or on as long as the temperature is too

high or a fan does not work correctly.

4-2

NIC2: Indicates network activity on GLAN2 when ashing.•

NIC1: Indicates network activity on GLAN1 when ashing.•

HDD: Indicates IDE channel activity. SAS/SATA drive, SCSI drive, and/or DVD-•

ROM drive activity when ashing.

Chapter 4: System Interface

Power: Indicates power is being supplied to the system's power supply units. •

This LED should normally be illuminated when the system is operating.

4-4 Drive Carrier LEDs

Your chassis uses SAS/SATA.

SAS/SATA Drives

Each SAS/SATA drive carrier has two LEDs.

Green: Each Serial ATA drive carrier has a green LED. When illuminated, this •

green LED (on the front of the SATA drive carrier) indicates drive activity. A con-

4-3

SC809 Chassis Manual

nection to the SATA backplane enables this LED to blink on and off when that

particular drive is being accessed.

Red: The red LED to indicate an SAS/SATA drive failure. If one of the SAS/SATA •

drives fail, you should be notied by your system management software.

SCSI Drives

This chassis does not support SCSI drives at this time. Recommended for SAS or

enterprise SATA HDDs only

4-4

Chapter 5: Chassis Setup and Maintenance

!

Chapter 5

Chassis Setup and Maintenance

5-1 Overview

This chapter covers the steps required to install components and perform mainte-

nance on the chassis. The only tool you will need to install components and perform

maintenance is a Phillips head screwdriver.

Installation Procedures

Removing the Chassis Cover•

Installing Hard Drives•

Removing Hard Drives and their Carriers from the Hard Drive Bays•

Installing a Hard Drive to the Hard Drive Carrier•

Installing the Motherboard•

Installing Add-on Cards:•

Installing the Air Shrouds•

Checking the Chassis the Air Flow•

General Maintenance Procedures

Installing System Fans•

Replacing the Power Supply •

Review the warnings and precautions listed in the manual
before setting up or servicing this chassis. These include in­formation in Chapter 2 System Safety and the warning/precau­tions listed in the setup instructions.

5-1

SC809 Chassis Manual

!

5-2 Removing the Chassis Cover

1

Remove this screw

3

2

Remove these

screws

4

Remove this screw

1

Removing the Chassis Cover

Remove the two screws securing the cover to the sides of the chassis.1.

Remove the two screws securing the cover to the back of the chassis.2.

Slide the cover toward the rear of the chassis3.

Lift the cover off the chassis.4.

Warning: Except for short periods of time, do NOT operate the
server without the cover in place. The chassis cover must be in

place to allow proper airow and prevent overheating.

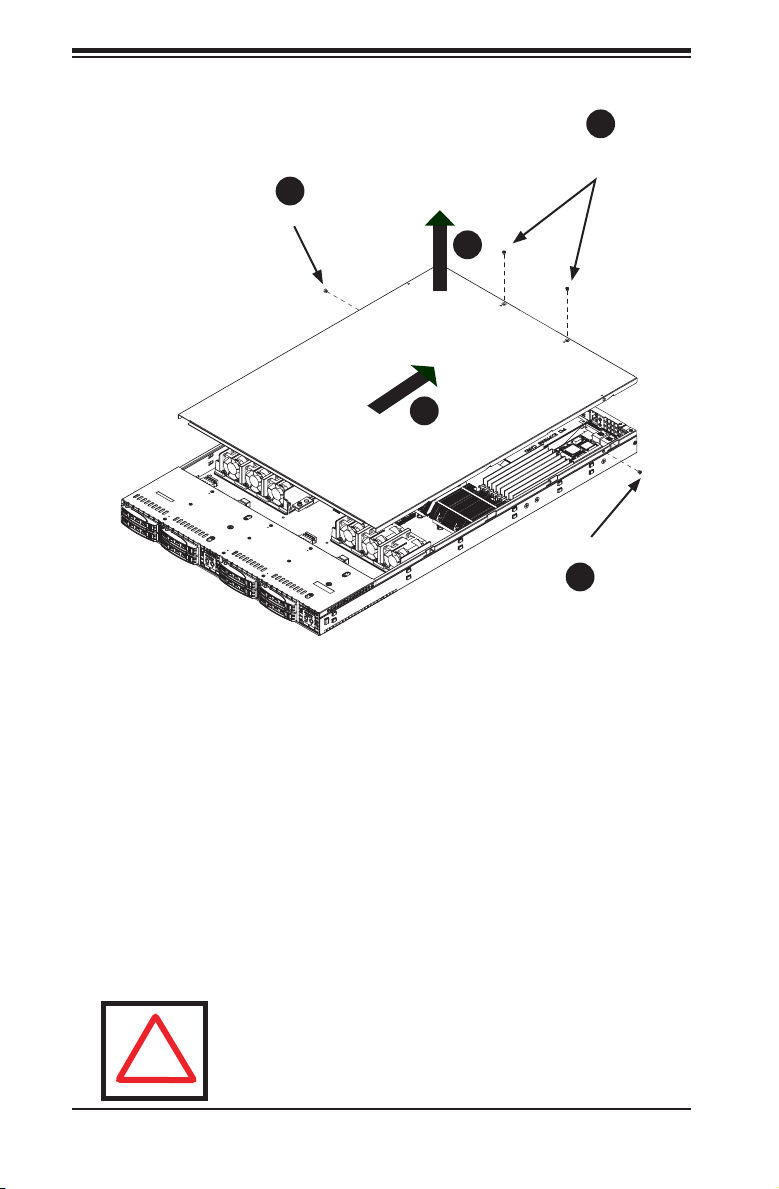

Figure 5-1: Removing the Chassis Cover

5-2

5-3 Installing Hard Drives

2

Chapter 5: Chassis Setup and Maintenance

1

Figure 5-2: Removing Hard Drive

The SC809 has two sets of four hard disk drives (eight total) which are mounted

in drive carriers and reside within the the hard drive bays. These drives are hot-

swappable and can be removed or replaced without powering down the chassis.

Recommended for SAS or enterprise SATA HDDs only

Removing Hard Drives and their Carriers from the Hard Drive Bays

1. Press the release button on the drive carrier. This extends the drive carrier

handle.

2. Use the handle to pull the drive and its carrier out of the chassis.

5-3

SC809 Chassis Manual

Installing a Hard Drive into a Drive Carrier

Insert a drive into the carrier with the PCB side facing down and the connec-1.

tor end toward the rear of the carrier.

Align the drive in the carrier so that the screw holes of both line up. Note that 2.

there are holes in the carrier marked “SATA” to aid in correct installation.

Secure the drive to the carrier with four screws as illustrated below.3.

Insert the drive carrier into its bay, keeping the carrier oriented so that the 4.

hard drive is on the top of the carrier and the release button is on the right

side. When the carrier reaches the rear of the bay, the release handle will

retract.

Push the handle in until it clicks into its locked position.5.

Figure 5-3: Removing Dummy Drive from Tray

5-4

Chapter 5: Chassis Setup and Maintenance

5-4 Motherboard Installation

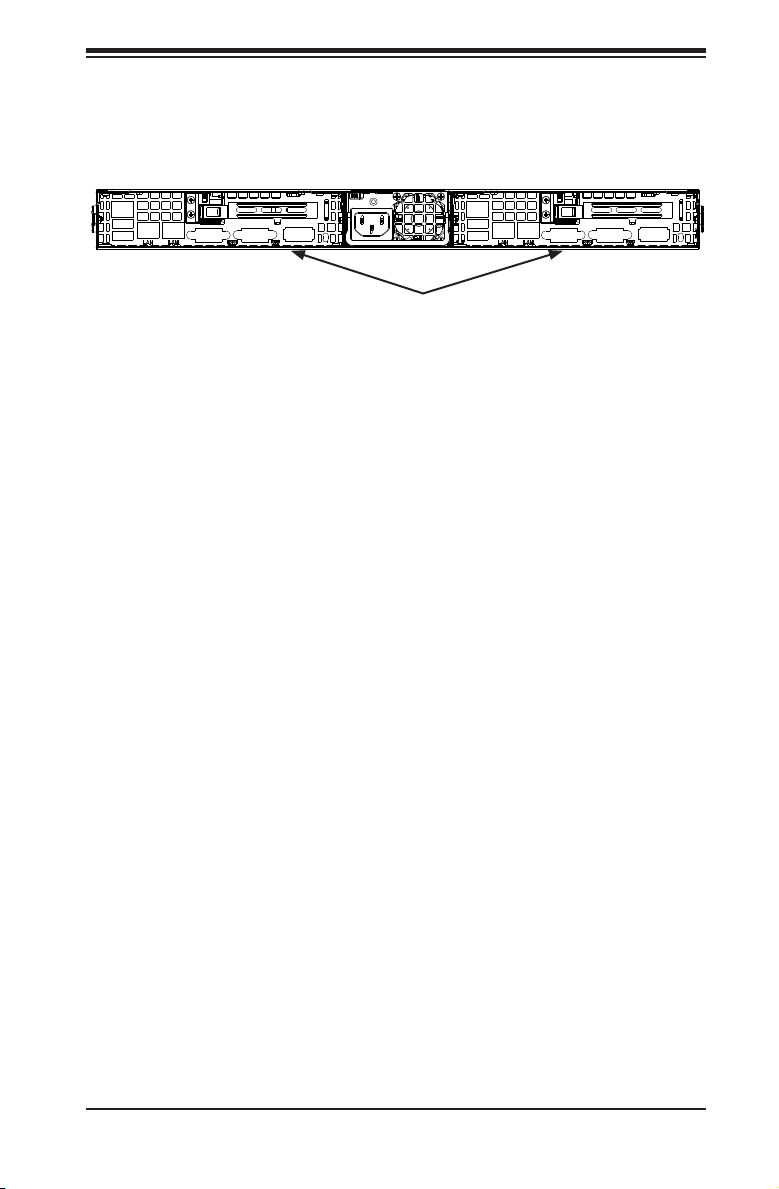

I/O Shields

Figure 5-4: I/O Shield Placement

I/O Shield

The I/O shield holds the motherboard ports in place. The I/O shield does not re-

quire installation. However, you must conrm that the motherboard matches the

I/O shield.

Permanent and Optional Standoffs

Standoffs prevent short circuits by securing space between the motherboard and

the chassis surface. The SC809 chassis includes optional removable standoffs in

locations used by the motherboards. All of these standoffs are optional and are

removable.These standoffs accept the rounded Phillips head screws included in

the SC809 accessories packaging.

Some motherboard require additional screws for heatsinks, general components

and/or non-standard security. Optional standoffs are used for these motherboards.

To use an optional standoff, you must place the hexagonal screw through the bottom

the chassis and secure the screw with the hexagon nut (rounded side up).

The SC809 chassis does not require optional standoffs.

5-5

SC809 Chassis Manual

Remove Six Screws

Chassis
Standoffs

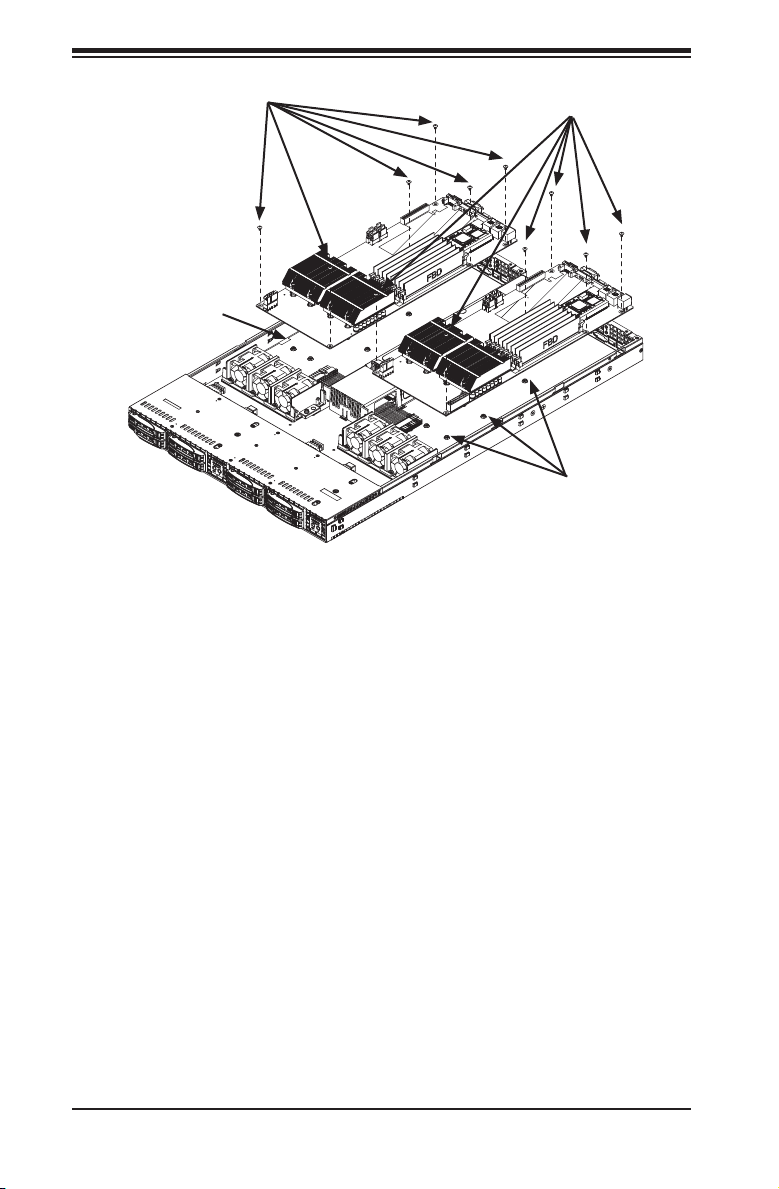

Figure 5-5: Motherboard Installation

Remove Six Screws

Chassis Standoffs

Installing the Motherboards

Installing Motherboards

Review the documentation that came with your motherboard. Become familiar 1.

with component placement, requirements, precautions, and cable connec-

tions.

Open the chassis cover.2.

Remove the add-on card brackets. To do this- 3.

a. Remove screw securing the add-on card bracket to the chassis.

b. Lift the bracket out of the chassis.

c. Repeat this process for the second riser card.

Lay the rst motherboard in the chassis, aligning the standoffs4.

Secure the motherboard to the chassis using the rounded, Phillips head 5.

screws. Each motherboard requires ve screws.

Repeat steps 3 - 5 for the second side of the chassis.6.

Secure the CPU(s), heatsinks, and other components to the motherboard as 7.

described in the motherboard documentation.

5-6

Chapter 5: Chassis Setup and Maintenance

Connect the cables between the motherboard, backplane, chassis, front 8.

panel, and power supply, as needed. Also, fans may be temporarily removed

to allow access to the backplane ports.

Replace the add-on card bracket and secure the bracket with a screw.9.

Add-on Card/Expansion Slot Setup

SC809 chassis includes I/O slots for add-on cards and expansion cards. Each side

supports one low prole/half-length add-on card, for a total of two per system.

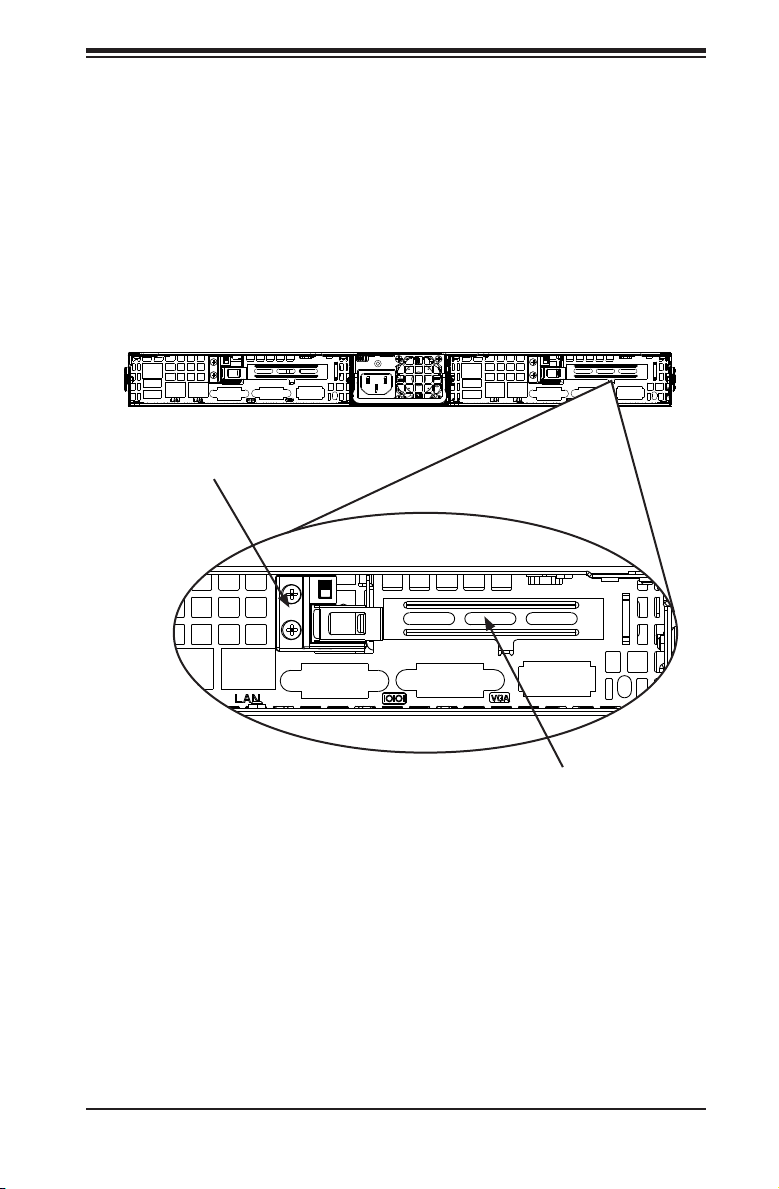

Add-on Card Slot Clip

Figure 5-6: I/O Shield Placement

Installing Add-on Cards

Disconnect the power supply, lay the chassis on a at surface, and open the 1.

chassis cover.

Pull open the add-on card slot clip in the rear of the chassis.2.

Slide the temporary add-on card "L" bracket toward the slot clip and remove 3.

the temporary bracket from the chassis.

Temporary "L" Bracket

5-7

SC809 Chassis Manual

Add-on Card Bracket

Connect the add-on card to the riser card and slide the add-on card L-bracket 4.

into the rear add-on card slot.

Add-on Card

Bracket Screw

Riser Card

Add-on Card

Figure 5-7: I/O Shield Placement

Close the add-on card slot clip.5.

Note: Under normal circumstances, the riser card and add-on card bracket are not

separated.

5-8

Chapter 5: Chassis Setup and Maintenance

5-5 Installing the Air Shrouds

Air Shrouds

Air shrouds concentrate airow to maximize fan efciency. The SC809 chassis air

shrouds do not require screws to set them up. The SC809 chassis requires two

identical air shrouds.

Installing the Air Shrouds

Conrm that all six fans are in place and working properly. (See the end of 1.

this chapter for details on the SC809 system fans).

Place the rst air shroud into the chassis. The air shroud sits behind the 2.

system fans. Each air shroud covers three fans.

Install the second air shroud in the same manner as the rst.3.

Figure 5-8: Air Shroud Placement

5-9

SC809 Chassis Manual

5-6 Checking the Air Flow

Checking the Server's Air Flow

Make sure there are no objects to obstruct airow in and out of the server. In 1.

addition, if you are using a front bezel, make sure the bezel's lter is replaced

periodically.

Do not operate the server without drives or drive trays in the drive bays. Use 2.

only recommended server parts.

Make sure that no wires or foreign objects obstruct air ow through the chas-3.

sis. Pull all excess cabling out of the airow path or use shorter cables. The

control panel LEDs inform you of the system status. See “Chapter 3 System

Interface” for details on the LEDs and the control panel buttons.

Installation Complete

In most cases, the chassis power supply and fans are pre-installed. If you need to

install fans continue to the Systems Fan section at the end of this chapter. If the

chassis will be installed into a rack, continue to the next chapter for rack installa-

tion instructions.

5-10

Chapter 5: Chassis Setup and Maintenance

5-7 System Fans

Six fans provide cooling for the chassis. These fans circulate air through the chassis

as a means of lowering the chassis internal temperature. The SC809 system fans

are hot-swappable. There is no need to power down the system when switching

fans.

Rubber Feet

Figure 5-9: System Fan

Changing a System Fan

If necessary, open the chassis while the power is running to determine which 1.

fan has failed. (Never run the server for an extended period of time with the

chassis cover open).

Remove the failed fan's power cord from the serverboard. 2.

Lift the fan housing up and out of the chassis.3.

Gently push the fan upwards from underneath the fan housing to remove it. 4.

Place the new fan into the vacant space in the housing while making sure 5.

the arrows on the top of the fan (indicating air direction) point in the same

direction as the arrows on the other fans. Make sure that all four of the fan's

rubber feet are in place.

Place the fan housing back in the chassis.6.

Reconnect the wiring.7.

Conrm that the fan is working properly before replacing the chassis cover.8.

5-11

SC809 Chassis Manual

7

6

Figure 5-10: System Fan Placement

5-12

Chapter 5: Chassis Setup and Maintenance

5-8 Power Supply

Depending on your chassis model, the SC809 Chassis has a 780 Watt or 980

Watt power supply. This power supply is auto-switching capable. This enables it to

automatically sense and operate at a 100v to 240v input voltage. An amber light

will be illuminated on the power supply when the power is off. An illuminated green

light indicates that the power supply is operating.

Power Supply Replacement

The SC809 chassis utilizes one power supply. In the unlikely event that the power

supply unit must be replaced, the system will shut down. Replacement units can

be ordered directly from Supermicro. (See the Contact Information section in the

Preface of this manual).

Release Tab

Figure 5-11: Changing the Power Supply

5-13

SC809 Chassis Manual

Changing The Power Supply:

1. Power down the server and unplug the power cord.

2. Push the release tab (on the back of the power supply) as illustrated.

3. Pull the power supply out using the handle provided.

4. Push the new power supply module into the power bay until it clicks into place.

5. Plug the AC power cord back into the module and power up the server.

5-14

Chapter 6: Rack Installation

Chapter 6

Rack Installation

6-1 Overview

This chapter provides a quick setup checklist to get your chassis up and running.

Following these steps in the order given should enable you to have the system

operational within a minimum amount of time.

6-2 Unpacking the System

You should inspect the box the chassis was shipped in and note if it was damaged

in any way. If the chassis itself shows damage you should le a damage claim with

the carrier who delivered it.

Decide on a suitable location for the rack unit that will hold your chassis. It should

be situated in a clean, dust-free area that is well ventilated. Avoid areas where

heat, electrical noise and electromagnetic elds are generated. You will also need

it placed near a grounded power outlet. Be sure to read the Rack and Server Pre-

cautions in the next section.

6-3 Preparing for Setup

The box your chassis was shipped in should include two sets of rail assemblies,

two rail mounting brackets and the mounting screws you will need to install the

system into the rack. Please read this section in its entirety before you begin the

installation procedure outlined in the sections that follow.

Choosing a Setup Location

Leave enough clearance in front of the rack to enable you to open the front •

door completely (25 inches).

Leave approximately 30 inches of clearance in the back of the rack to allow for •

sufcient airow and ease in servicing.

This product is for installation only in a Restricted Access Location (dedicated •

equipment rooms, service closets and similar environments).

6-1

SC809 Chassis Manual

6-4 Warnings and Precautions

Rack Precautions

Ensure that the leveling jacks on the bottom of the rack are fully extended to •

the oor with the full weight of the rack resting on them.

In single rack installations, stabilizers should be attached to the rack.•

In multiple rack installations, the racks should be coupled together.•

Always make sure that the rack is stable before extending a component from •

the rack.

Only one chassis should be extended from the rack at a time. Extending two or •

more chassis simultaneously may cause the rack to become unstable.

General Server Precautions

Review the electrical and general safety precautions that came with the com-•

ponents you are adding to your chassis.

Determine the placement of each component in the rack • before you install the

rails.

Install the heaviest server components on the bottom of the rack rst, and then •

work upward.

Use a regulating uninterruptible power supply (UPS) to protect the server from •

power surges, voltage spikes and to keep your system operating in case of a

power failure.

Allow the hot-swappable hard drives and power supply modules to cool before •

touching them.

Always keep the rack's front door and all panels and components on the servers •

closed when not servicing to maintain proper cooling.

6-2

Chapter 6: Rack Installation

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating tempera-

ture of the rack environment may be greater than the ambient temperature of the

room. Therefore, consideration should be given to installing the equipment in an

environment compatible with the manufacturer’s maximum rated ambient tempera-

ture (TMRA).

Reduced Airow

Equipment should be mounted into a rack so that the amount of airow required

for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not

arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power

supply circuitry and the effect that any possible overloading of circuits might have

on overcurrent protection and power supply wiring. Appropriate consideration of

equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself

should be grounded. Particular attention should be given to power supply connec-

tions other than the direct connections to the branch circuit (i.e. the use of power

strips, etc.).

6-3

SC809 Chassis Manual

6-5 Rack Mounting Instructions

This section provides information on installing the SC818G chassis into a rack unit

with the rails provided. There are a variety of rack units on the market, which may

mean that the assembly procedure will differ slightly. You should also refer to the

installation instructions that came with the rack unit you are using.

NOTE: This rail will t a rack between 26" and 33.5" deep.

Identifying the Sections of the Rack Rails

The chassis package includes two rack rail assemblies in the rack mounting kit.

Each assembly consists of two sections: an inner xed chassis rail that secures

directly to the server chassis and an outer xed rack rail that secures directly to

the rack itself.

Preattached to the Chassis

Figure 6-1: Identifying the Sections of the Inner and Outer Rack Rails

Inner Rail -

Inner Rail Extension ­Attach to the Chassis

Outer Rack Rails ­Attach to the Rack

(right side rack rail shown)

Figure 6-2: Inner Rails and Inner Rail Extension Installed

6-4

Chapter 6: Rack Installation

A

Inner Rail

Preattached to

the Chassis

Inner Rail Extension

B

1

3

2

Figure 6-3: Installing the Inner Rail Extensions

Installing the Inner Rail Extensions

The SC818G chassis includes a set of inner rack rails in two sections: inner rails (A)

and inner rail extensions (B). The inner rails are preattached and do not interfere

with normal use of the chassis if you decide not to use a server rack. Attach the

inner rail extensions to to the inner rails, to stabilize the chassis within the rack.

Installing the Inner Rail Extensions

Place the inner rail extensions (B) over the preattached inner rails (A) which 1.

are attached to the side of the chassis. Align the hooks of the inner rail with

the rail extension holes. Make sure the extension faces "outward" just like the

inner rail.

Slide the extension toward the front of the chassis.2.

Secure the chassis with screws as illustrated.3.

Repeat steps 1-3 for the other inner rail extension.4.

6-5

SC809 Chassis Manual

Outer Rail

Secure to the

Front of the Rack

Secure Outer Rails

Together

Figure 6-4: Assembling the Outer Rails

Rear of the Rack

Installing the Outer Rails

Installing the Outer Rails to the Rack

Attach the short bracket to the outside of the long bracket. You must align the 1.

pins with the slides. Also, both bracket ends must face the same direction.

Adjust both the short and long brackets to the proper distance so that the rail 2.

ts snugly into the rack.

Secure to the

Secure the long bracket to the front side of the outer rail with two M5 screws 3.

and the short bracket to the rear side of the outer rail with three M5 screws.

Repeat steps 1-4 for the other outer rail.4.

6-6

Chapter 6: Rack Installation

C

B

A

Figure 6-5: Installing the Rack Rails

Installing the Chassis into a Rack

Rack Installation

Conrm that chassis includes the inner rails (A) and rail extensions (B). Also, 1.

conrm that the outer rails (C) are installed on the rack.

Align the chassis rails extentions (B), with the front of the rack rails (C).2.

Slide the chassis rail extensions into the rack rails, keeping the pressure even 3.

on both sides (you may have to depress the locking tabs when inserting).

When the server has been pushed completely into the rack, you should hear

the locking tabs "click" into position.

(Optional) Insert and tightening the thumbscrews that hold the front of the 4.

server to the rack.

6-7

SC809 Chassis Manual

Notes

6-8

Appendix A: Cables, Screws and Other Accessories

Appendix A

Cables, Screws,

and Other Accessories

A-1 Overview

This appendix lists supported cables for your chassis system. It only includes the

most commonly used components and congurations. For more compatible cables,

refer to the manufacturer of the motherboard you are using and our Web site at:

www.supermicro.com.

A-2 Cables Included with SC809 Chassis (SAS/SATA)

SC809LT-780B, SC809T-780B, SC809T-980B, SC809T-1200B

Part # Type Length Description

CBL-0087

CBL-0212L Wire 15 cm

CBL-0160L Cable 6' Regional power cord

CBL-0201L SATA various

Ribbon,

Round

20"

16 pin to 16 pin ribbon cable for
control panel

Hard drive power extension cable,
ST TO RA,

Set for 4 SATA cables. Length varies

to minimize airow interference.

SC809T-1200B

Part # Type Length Description

CBL-0087

CBL-0303L Cable 40cm 4-pin power cable, ST to RA

CBL-0207L Cable 59cm SATA round S-S

CBL-0226L SATA 43cm SATA round S-RA

CBL-0227L 48cm SATA round S-RA

CBL-0228L 55cm SATA round S-RA

Ribbon,

Round

20"

16 pin to 16 pin ribbon cable for
control panel

A-1

SC809 Chassis Manual

A-4 Compatible Cables

These cables are compatible with the SC809 Chassis.

Alternate SAS/SATA Cables

Some compatible motherboards have different connectors. If your motherboard

has only one SAS connector that the SAS/SATA cables must share, use one of the

following cables. These cables must be purchased separately.

Cable Name: SAS Cable Quantity: 1

Part #: CBL-0175L
Alt. Name: "Big Four"

Description: This cable has one SFF-8484 (32 pin) connector on one end and

4 SAS connectors (7 pins each) at the other. This cable connects from the Host

(motherboard or other controller) to the backplane SAS hard drive port.

Cable Name: SAS Cable Quantity: 1

Part #: CBL-0116L
Alt. Name: iPass or "Small Four"

Description: This cable has one ipass (SFF-8087/mini-sas) connector (36 pins)

at one end and 4 SAS connectors on one end. This cable connects from the Host

(motherboard or other controller) to the backplane SAS hard drive port.

Extending Power Cables

Although Super Micro chassis are designed with to be efcient and cost-effective,

some compatible motherboards have power connectors located in different areas.

To use these motherboards you may have to extend the power cables to the mother

boards. To do this, use the following chart as a guide.

Power Cable Extenders

Number of Pins Cable Part # Length

24 pin CBL - 0042 7.9”(20 CM)

20 pin CBL - 0059 7.9”(20 CM)

8 pin CBL - 0062 7.9”(20 CM)

4 pin CBL - 0060 7.9”(20 CM)

A-2

Appendix A: Cables, Screws and Other Accessories

Front Panel to the Motherboard

The SC809 chassis includes a cable to connect the chassis front panel to the

motherboard. If your motherboard uses a different connector, use the following list

to nd a compatible cable.

Front Panel to Motherboard Cable (Ribbon Cable)

Number of Pins

(Front Panel)

16 pin 16 pin CBL - 0049

16 pin 20 pin CBL - 0048

20 pin 20 pin CBL - 0047

16 pin Various* CBL - 0068

20 pin Various* CBL - 0067

* Split cables: Use these cable if your motherboard requires several different
connections from the front panel.

Number of Pins

(Motherboard

Cable Part #

A-3

SC809 Chassis Manual

Flat head

M4 x 4 mm

[0.157]

RAIL

Round head

M4 x 4 mm

[0.157]

Flat head

M5 x 12 mm[0.472]

Washer for M5

DVD-ROM, CD-ROM, and FLOPPY DRIVE

Flat head

6-32 x 5 mm

[0.197]

Pan head

6-32 x 5 mm

[0.197]

Round head

3 x 5 mm

[0.197]

Pan head

6-32 x 5 mm

[0.197]

M/B

Flat head

6-32 x 5 mm

[0.197]

HARD DRIVE

Thumb screw

6-32 x 5 mm [0.197]

M/B standoff

6-32 to 6-32

M/B STANDOFFS

M/B (CPU) standoff

M5 to 6-32

Round head

2.6 x 5 mm
[0.197]

A-5 Chassis Screws

The chassis and accessory box include all the screws needed to setup your chassis.

This section include descriptions of the most common screws used. Your chassis

may not require all the parts listed.

A-4

Appendix B: Power Supply Specications

Appendix B

SC809 Power Supply Specications

This appendix lists power supply specications for your chassis system.

SC809LT-780B and SC809T-780B

780W

MFR Part # PWS-781-1S

180 - 240V

Rated AC Voltage

+5V standby 4 Amp

50 - 60Hz
5 - 3.5 Amp
Power supply operates at 700W with a 100-140V input, and at
780W with a 180-240V input

+12V 58 - 65 Amp

MFR Part # PWS-981-1S

100 - 240V

Rated AC Voltage

+5V standby 4 Amp

50 - 60Hz
14- 6A max
Power supply operates at 900W with a 100-140V input, and at
980W with a 180-240V input

+12V 59 - 65 Amp

SC809-980B

980W

B-1

SC809 Chassis Manual

MFR Part # PWS-1K21P-1R

100 - 140V
50 - 60Hz

7.5 - 11 Amp

SC808T-1200B

1200W

Rated AC Input

+5V standby 4 Amp

+12V

180 - 240V
50 - 60Hz
5 - 8 Amp
Power supply operates at 1200W with a 100-140V input and at
1200W with a 180-240V input

74 Amp @ 100 - 140
100 Amp @ 180 - 240

B-2

Appendix C: SAS-809T/TQ Backplane Specications

Appendix C

SAS-809T/TQ Backplane

Safety Guidelines

To avoid personal injury and property damage, carefully follow all the safety steps

listed below when accessing your system or handling the components.

C-1 ESD Safety Guidelines

Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufcient to protect your equipment from ESD.

Use a grounded wrist strap designed to prevent static discharge.•

Touch a grounded metal object before removing a component from the antistatic •

bag.

Handle the backplane by its edges only; do not touch its components, peripheral •

chips, memory modules or gold contacts.

When handling chips or modules, avoid touching their pins.•

Put the card and peripherals back into their antistatic bags when not in use.•

C-2 General Safety Guidelines

Always disconnect power cables before installing or removing any components •

from the computer, including the backplane.

Disconnect the power cable before installing or removing any cables from the •

backplane.

C-1

SC809 Chassis Manual

Make sure that the backplane is securely and properly installed on the mother-•

board to prevent damage to the system due to power shortage.

C-3 An Important Note to Users

All images and layouts shown in this user's guide are based upon the latest PCB •

Revision available at the time of publishing. The card you have received may or

may not look exactly the same as the graphics shown in this manual.

C-4 Introduction to the SAS-809TQ Backplane

The SAS-809TQ backplane has been designed to utilize the most up-to-date tech-

nology available, providing your system with reliable, high-quality performance.

This manual reects SAS-8009TQ Revision 1.01, the most current release available

at the time of publication. Always refer to the Supermicro Web site at www.supermi-

cro.com for the latest updates, compatible parts and supported congurations.

C-2

Appendix C: SAS-809T/TQ Backplane Specications

MADE IN TAIWAN

DESIGNED IN USA

Y1

U19

12

23

33

U31

R6

MH3 MH2

MH1

C32

C56

C59

C3

+

+

+

+

+

C65

+

D3

C

JP18

1

3

JP35

1

3

JP25

13

JP33

1

3

JP44

JP46

1

2

5

6

C148

JP10

1

4

JP51

J7

J6

J8

BZ1

+

2-3:NO RST

1-2:RST

1-2:RST
2-3:NO RST

JP25:OH TEMP
OPEN:45 C
1-2:50 C
2-3:55 C

+5V

GND

GND+12V

D3:ALARM

#3

#2

#1

#0

BUZZER RST

I2C

SIDEBAND

2-3:I2C

1-2:SGPIO

JP33:MODE SEL

9071 RST:

UPGRADE

REV 1.01

SAS809TQ

Jumper Settings and Pin Denitions

C-5 Front Connectors and Jumpers

9

5

1

6

7

10

11

4

The SAS-809T and SAS-809TQ model backplanes have the same printed circuit

board, except that the SAS-809T model does not include the MG9071 AMI chip

and its supporting components.

Front Connectors

Power Connector (4-pin) JP10 1.

SAS Port #0 J52.

SAS Port #1 J63.

SAS Port #2 J74.

SAS Port #3 J85.

Sideband JP51 (Not included on the SAS-809T backplane)6.

I7. 2C JP44 (Not included on the SAS-809T backplane)

12

3

8

2

Upgrade JP46 (Not included on the SAS-809T backplane)8.

Chip Reset JP35 (Not included on the SAS-809T backplane)9.

Mode Select JP33 (Not included on the SAS-809T backplane)10.

Buzzer Reset JP1811.

MG9071 Chip (not included on the SAS-809T backplane)12.

C-3

SC809 Chassis Manual

C-6 Front Connector and Pin Denitions

1. Backplane Main Power Connectors

The 4-pin connectors designated JP10 pro-

vides power to the backplane. See the table

on the right for pin denitions.

2. - 5. SAS Ports

The SAS ports are used to connect the SAS

drive cables. The four ports are designated #0

- #3. Each port is also compatible with SATA

drives.

6. Sideband Header

The sideband header is designated JP51. For

SAS-2 to work properly, you must connect an

8-pin sideband cable. See the table to the right

for pin denitions.

Backplane

Main Power

4-Pin Connector

Pin# Denition

+12V

1

2 and 3 Ground

4 +5V

Sideband Headers

Pin # Denition Pin # Denition

2 SDIN/

Backplane
Addressing
(SB5)

4 SDOUT/I2C

Reset
(SB4)

6 GND (SB3) 5 SDA (SB1)

8 Backplane

ID (SB7)

10 No Connec-

tion

1 Controller

ID (SB6)

3 GND (SB2)

7 SCL (SB0)

9 No Connec-

tion

7. I2C Connectors

The I2C Connector, designated JP44, is used

to monitor HDD activity and status. See the

table on the right for pin denitions.

C-4

I2C Connector

Pin Denitions

Pin# Denition

1 Data

2 Ground

3 Clock

4 No Connection

Appendix C: SAS-809T/TQ Backplane Specications

8. Upgrade Connectors

The upgrade connector, designated JP46, is

only included on the SAS-809TQ backplane

and is used for manufacturer's diagnostic

purposes only.

9. MG9071 Chip Reset

The chip reset, designated JP35, is only

included on the SAS-809TQ backplane

and is used to reset the MG9071 chip. For

details, see the jumper settings section of

this manual.

10. Mode Select

Mode select, designated JP33, is only included

on the SAS-809TQ backplane. It allows

switching between I2C and SGPIO modes.

For details, see the I2C and SGPIO settings

section of this manual.

11. Buzzer Reset

The buzzer reset is designated as JP18. It

is used to reset the buzzer after it has been

activated.

12. MG9071 Chip

The MG9071 chip, is only included on the

SAS-809TQ backplane. It is an enclosure

management chip that supports the SES-2

controller and SES-2 protocols.

C-5

SC809 Chassis Manual

Connector

Pins

Jumper

Setting

3 2 1

3 2 1

MADE IN TAIWAN

DESIGNED IN USA

Y1

U19

12

23

33

U31

R6

MH3 MH2

MH1

C32

C56

C59

C3

+

+

+

+

+

C65

+

D3

C

JP18

1

3

JP35

1

3

JP25

13

JP33

1

3

JP44

JP46

1

2

5

6

C148

JP10

1

4

JP51

J7

J6

J8

BZ1

+

2-3:NO RST

1-2:RST

1-2:RST
2-3:NO RST

JP25:OH TEMP
OPEN:45 C
1-2:50 C
2-3:55 C

+5V

GND

GND+12V

D3:ALARM

#3

#2

#1

#0

BUZZER RST

I2C

SIDEBAND

2-3:I2C

1-2:SGPIO

JP33:MODE SEL

9071 RST:

UPGRADE

REV 1.01

SAS809TQ

MADE IN TAIWAN

MH3 MH2

C59

+

+

C65

+

JP18

1

3

J8

BZ1

+

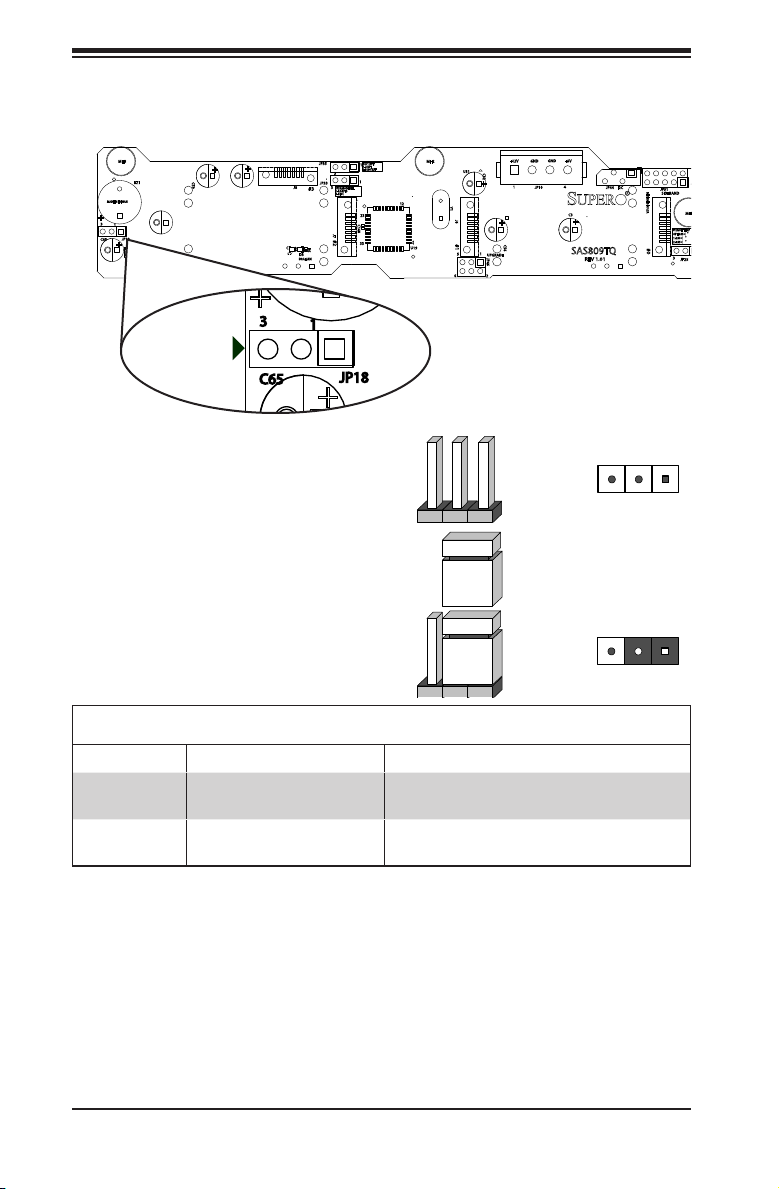

C-7 Front Jumper Locations and Pin Denitions

JP18

Explanation of Jumpers

To modify the operation of the backplane,

jumpers can be used to choose between

optional settings. Jumpers create shorts

between two pins to change the function

of the connector. Pin 1 is identied with

a square solder pad on the printed circuit

board. Note: On two pin jumpers, "Closed"

means the jumper is on and "Open" means

the jumper is off the pins.

Jumper Jumper Settings Note

JP18

JP35

2-3: Enabled
1-2: Disabled

2-3: Default
1-2: Reset

*The buzzer sound indicates that a condition requiring immediate attention has

occurred.

The buzzer alarm is triggered by the following conditions:

Hard drive failure1.

Fan failure2.

System temperature over 45º Celsius.3.

Jumper Settings

Buzzer Reset*

MG9071 Reset

C-6

Appendix C: SAS-809T/TQ Backplane Specications

MADE IN TAIWAN

DESIGNED IN USA

Y1

U19

12

23

33

U31

R6

MH3 MH2

MH1

C32

C56

C59

C3

+

+

+

+

+

C65

+

D3

C

JP18

1

3

JP35

1

3

JP25

13

JP33

1

3

JP44

JP46

1

2

5

6

C148

JP10

1

4

JP51

J7

J6

J8

BZ1

+

2-3:NO RST

1-2:RST

1-2:RST
2-3:NO RST

JP25:OH TEMP
OPEN:45 C
1-2:50 C
2-3:55 C

+5V

GND

GND+12V

D3:ALARM

#3

#2

#1

#0

BUZZER RST

I2C

SIDEBAND

2-3:I2C

1-2:SGPIO

JP33:MODE SEL

9071 RST:

UPGRADE

REV 1.01

SAS809TQ

Y1

U19

C159 C157

C151

D3

JP35

JP33

U25

C149

J7

J6

J8

11

23

33

34

44

A

C

1

3

1

3

5

6

D3:ALARM

#3

#1

2-3:I2C

1-2:SGPIO

JP33:MODE SEL

I2C and SGPIO Modes and Jumper Settings

This backplane can utilize I2C or SGPIO. SGPIO is the default mode and can be

used without making changes to your jumpers. The following information details

which jumpers must be congured to use I2C mode or restore your backplane to

SGPIO mode. This feature is only available with the SAS-809TQ backplane.

I2C Setting

Jumper Jumper Setting Note

JP33 2-3 Controller ID

SGPIO (Default)

Jumper Jumper Setting Note

JP33 1-2 Controller ID

Front LED Indicators

LED STATE SPECIFICATION

D3 ON

Front Panel LEDs

D3

Overheat/ Drive Failure LED Indicator

(Red light: ashing, Buzzer: On)

C-7

SC809 Chassis Manual

R90 R89R88

R87

R86

R85

R84

R83

D8

A

C

D7

A

C

D6

A

C

D5

A

C

D12

A

C

D15

A

C

D14

A

C

D13

A

C

J1

22

21

3327

8

7

9

J4

22

21

33

27

8

7

9

J3

22

21

33

27

87

9

J2

22

21

33

27

8

7

9

FAIL#2

ACT#2

FAIL#3

ACT#3

FAIL#0

ACT#0

FAIL#1

ACT#1

SAS#3

SAS#2

SAS#1

SAS#0

C-8 Rear Connectors and LED Indicators

D13

D6

SAS #1

SAS #3

D15

D8

SAS #0

D12

D5

SAS #2

Rear SAS/SATA Connectors

Rear

Connector

Connector

Number

SAS Drive

Number

SAS #0 J1 SAS/SATA HDD #0

SAS #1 J2 SAS/SATA HDD #1

SAS #2 J3 SAS/SATA HDD #2

SAS #3 J4 SAS/SATA HDD #3

Rear LED Indicators

Rear

Connector

Hard Drive Activity

(Not included on SAS-809T)

Failure LED

SAS #0 D12 D5

SAS #1 D13 D6

SAS #2 D14 D7

SAS #3 D15 D8

D14

D7

C-8

Appendix C: SAS-809T/TQ Backplane Specications

Notes

C-9

SC809 Chassis Manual
