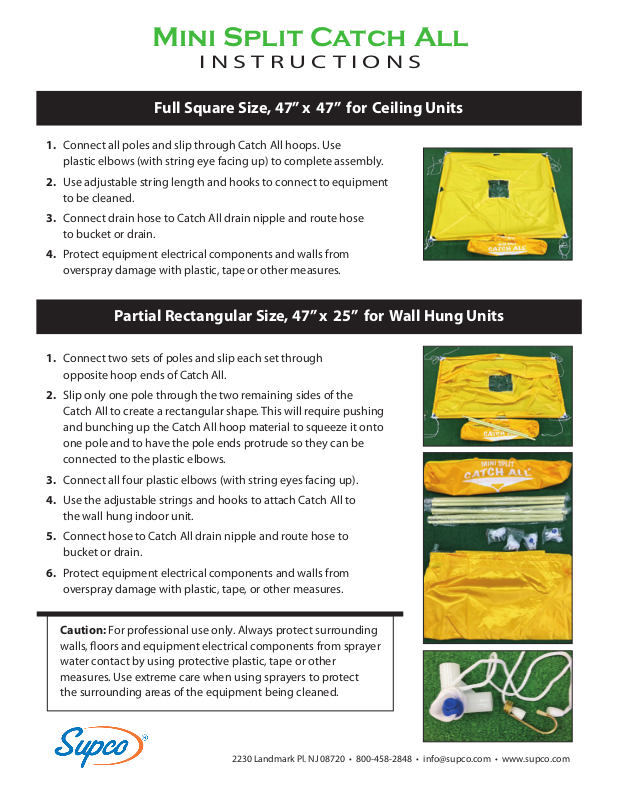

Mini Split Catch All
I N S T R U C T I O N S
Full Square Size, 47” x 47” for Ceiling Units
1. Connect all poles and slip through Catch All hoops. Use
plastic elbows (with string eye facing up) to complete assembly.
2. Use adjustable string length and hooks to connect to equipment
to be cleaned.
3. Connect drain hose to Catch All drain nipple and route hose
to bucket or drain.
4. Protect equipment electrical components and walls from
overspray damage with plastic, tape or other measures.
Partial Rectangular Size, 47” x 25” for Wall Hung Units
1. Connect two sets of poles and slip each set through
opposite hoop ends of Catch All.
2. Slip only one pole through the two remaining sides of the
Catch All to create a rectangular shape. This will require pushing
and bunching up the Catch All hoop material to squeeze it onto
one pole and to have the pole ends protrude so they can be
connected to the plastic elbows.
3. Conn
4. Use the adjustable strings and hooks to attach Catch All to
5. Connect hose to Catch All drain nipple and route hose to
6. Protect equipment electrical components and walls from
ect all four plastic elbows (with string eyes facing up).
the wall hung indoor unit.
bucket or drain.
overspray damage with plastic, tape, or other measures.
Caution: For professional use only. Always protect surrounding
walls, oors and equipment electrical components from sprayer
water contact by using protective plastic, tape or other
measures. Use extreme care when using sprayers to protect
the surrounding areas of the equipment being cleaned.
2230 Landmark Pl. NJ 08720 • 800-458-2848 • [email protected] • www.supco.com
