Supco Refrigerator/Freezer Selection Manual

Download
SEALED UNIT PARTS CO., INC
P.O.Box 21
2230 Landmark Place
Allenwood, NJ 08720 USA
(732)223-6644
Fax: (732)223-1617

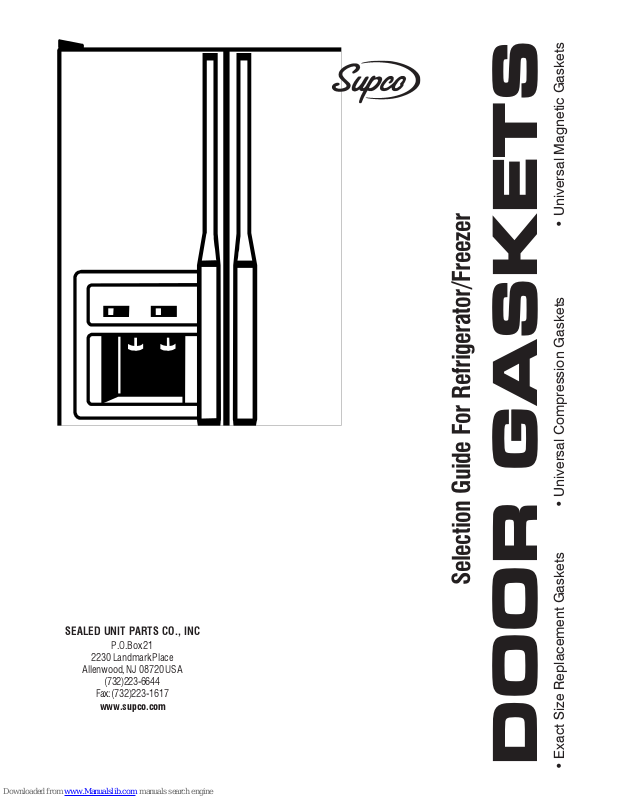

Selection Guide For Refrigerator/Freezer
DOOR GASKETS
• Exact Size Replacement Gaskets • Universal Compression Gaskets • Universal Magnetic Gaskets

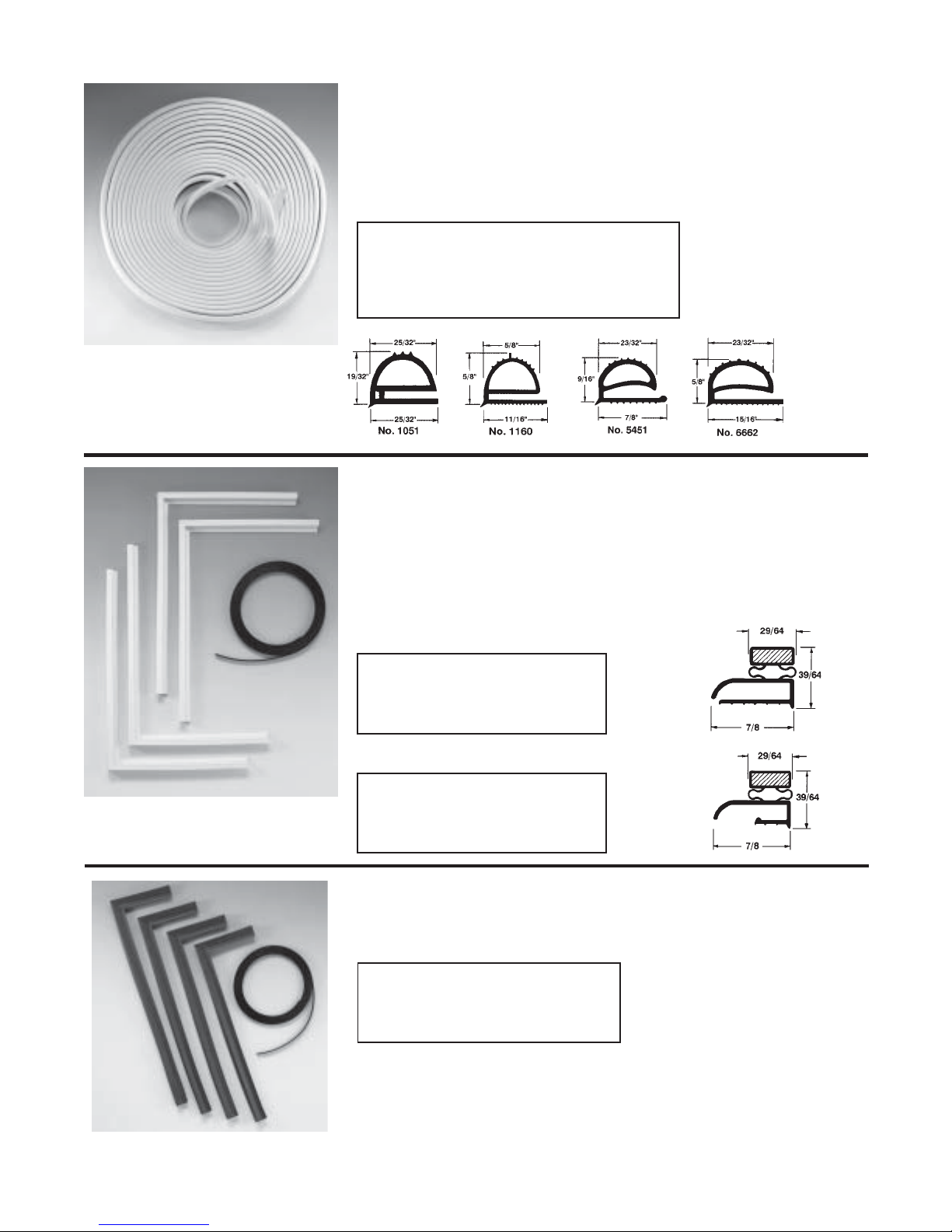

DOOR GASKETS, UNIVERSAL 50 AND 100 FOOT COILS
Four of the most commonly used compression gaskets are available in both 50 and 100 foot coils. Gaskets Numbers 1160 and 1051 are designed for forming easy corner curves with a short radius of 6" standard. Smaller radius curves to 2" minimum radius can be made with simple notching. All gasket material is made of refrigeration grade 100% virgin vinyl and is F.D.A. acceptable.
COILED UNIVERSAL DOOR GASKET
50 FOOT COIL 100 FOOT COIL PART NO. PART NO. COLOR
1051-50 1051-100 WHITE 1160-50 1160-100 WHITE 5451-50 5451-100 GRAY 6662-50 6662-100 GRAY
MAGNETIC DOOR GASKETS, UNIVERSAL SIZE KITS
Designed for universal replacement on refrigerators and freezers when original equipment replacement frame is not available. The illustrated cross sections show the two most popular frames used where the clearance between the door and the cabinet body is 5/8" to 3/4". Each gasket is furnished with (4) L-shaped sections complete with factory welded corners. The magnetic insert strip is furnished in a roll. Both the gasket and magnetic strip can be easily cut to size. Gasket material is made of refrigeration grade virgin vinyl (F.D.A. acceptable) and will provide long life and ease of installation.
SU2000 SERIES UNIVERSAL DOOR GASKETS
PART NO. MAX. DOOR SIZE
SU2001 20" x 30" SU2002 32" x 42" SU2003 32" x 55" SU2004 36" x 84"
SU2300 SERIES
PART NO. MAX. DOOR SIZE
SU2301 20" x 30" SU2302 32" X 42" SU2303 32" X 55" SU2304 36" X 84"
G.E. REPLACEMENT MAGNETIC DOOR GASKETS KITS
Same material and packaging specifications as Universal Kits shown above except these have been designed to have the exact same gasket profile as the G.E. models they are replacing.
PART NO. REPLACES G.E. NO.
SGE421 (BR) WR24X421 SGE422 WR24X422 SGE432 (BR) WR24X432 SGE433 WR24X433
NOTE: (BR) Indicates brown color
2
EXACT SIZE REPLACEMENTS - O.E.M. TO SUPCO GASKET CROSS REFERENCE
All SUPCO Replacement Door Gaskets are made of 100% virgin vinyl, to meet or exceed original equipment manufacturers specifications. Each gasket is packaged in a
reinforced corrugated box to meet shipping and stocking requirements. All gaskets have factory welded square corners to assure proper fit. Magnetic gaskets have
magnets installed prior to sealing. Some magnetic gaskets have magnets installed on only three sides to allow for ease of opening the refrigerator door.
NOTE: (BR) Indicates BROWN colored gasket; (TN) Indicates TAN or BEIGE colored gasket; (BK) Indicates BLACK colored gasket. Bold indicates NEW gasket.
O.E.M. NO. SUPCO NO. O.E.M. NO. SUPCO NO.
ADMIRAL
24157-12 SAD38 26693-13 SAD51 26693-18 SAD52 26693-2 SAD53 26693-21 SAD54 26693-24 SAD55 26693-25 SAD56 56287-11 SAD77 59787-1 SAD57 66929-1 SAD75 66929-10 SAD89 66929-11 SAD94 66929-12 SAD90 66929-13 SAD91 66929-14 SAD92 66929-15 SAD93 66929-2 SAD63 66929-31 SAD76 66929-32 SAD82 66929-32 SAD95 66929-4 SAD84 66929-5 SAD85 66929-6 SAD86 66929-8 SAD87 66929-9 SAD88 68543-3 SAD79 68543-4 SAD80 69348203 SAD65 69351298 SAD64
70025-1 SAD98 70025-2 SAD99
70025-3 SAD96
70025-4 SAD97 70025-5 SAD100 70025-6 SAD101
70047-1 SAD67 70047-2 SAD69 70047-3 SAD71 70047-4 SAD74 70048-1 SAD68 70048-2 SAD70 70048-3 SAD72 70048-4 SAD73 70048-5 SAD81
AMANA
038804-2 SAM23 039282-05 SAM31 039282-07 SAM32
10359708Q SAM62 10359709Q SAM63 10359710Q SAM64 (BK) 10359711Q SAM65 (BK) 10456854Q SAM61 12550101Q SAM54 (BK) 12550109Q SAM55 12550111Q SAM56 12550112Q SAM57 12550115Q SAM58 12550116Q SAM59
D3786409 SAM22
D7065102Q SAM60 (TN)
D7092601Q SAM28
D7092602Q SAM29 D7092603Q SAM30 D7092608Q SAM41 D7092609Q SAM45 D7251001Q SAM50 D7251002Q SAM47 D7251004Q SAM49 D7251019Q SAM48 (TN) D7251020Q SAM46 (TN) D7431904Q SAM53 (TN) D7431905Q SAM52 (TN) D7431906Q SAM51 (TN) D7605101Q SAM37 (TN) D7605104Q SAM38 (TN) D7605105Q SAM42 D7605106Q SAM43 D7605107Q SAM44 D7605108Q SAM33 D7605109Q SAM34 D7605110Q SAM35 (TN) D7605111Q SAM36 (TN) D7605115Q SAM39 D7605116Q SAM40
FRANKLIN
57810-10 SFN13
FRIGIDAIRE
5300622114 SFR104 5300622929 SFR94 5300622930 SFR95 5300624971 SFR99 5300624974 SFR100 5300624975 SFR101 5300627766 SFR103 5300627857 SFR105 5300628810 SFR88 5301124534 SFR85 5307112517 SFR76 5307510058 SFR71 5307512516 SFR75 5307512518 SFR77 5307512519 SFR78 5307514191 SFR80 5307516633 SFR84 5307541122 SFR86 5307545059 SFR91 5318680314 SFR79 622115 SFR93 622931 SFR96 622970 SFR106 626288 SFR102 627251 SFR104 627766 SFR103 6583286 SFR62 7546760 SFR102
GE
WR14X5032 SGE73 WR14X5034 SGE68 WR14X5035 SGE75 WR24X0517 SGE517
WR24X10049 SGE485
WR24X142 SGE42
O.E.M. NO. SUPCO NO.
WR24X159 SGE52 WR24X163 SGE55 WR24X164 SGE164 WR24X165 SGE82 WR24X179 SGE57 WR24X182 SGE182 WR24X192 SGE79 WR24X193 SGE76 WR24X194 SGE81 WR24X205 SGE205 WR24X220 SGE88 WR24X229 SGE229 WR24X230 SGE230 WR24X232 SGE118 WR24X233 SGE121 WR24X244 SGE244 WR24X245 SGE245 WR24X246 SGE108 WR24X247 SGE247 WR24X248 SGE248 WR24X249 SGE249 WR24X252 SGE109 WR24X256 SGE120 WR24X259 SGE259 WR24X260 SGE116 WR24X261 SGE119 WR24X266 SGE266 WR24X267 SGE117 WR24X267 SGE267 WR24X268 SGE268 WR24X269 SGE78 WR24X271 SGE126 WR24X272 SGE125 WR24X273 SGE112 WR24X274 SGE111 WR24X276 SGE276 WR24X277 SGE277 WR24X279 SGE279 WR24X282 SGE282 (BR) WR24X283 SGE283 (BR) WR24X284 SGE284 (BR) WR24X285 SGE285 (BR) WR24X286 SGE286 (BR) WR24X287 SGE287 (BR) WR24X289 SGE289 WR24X290 SGE290 (BR) WR24X292 SGE292 (BR) WR24X294 SGE294 (BR) WR24X295 SGE295 (BR) WR24X297 SGE297 WR24X298 SGE298 WR24X300 SGE300 (BR) WR24X301 SGE301 (BR) WR24X302 SGE302 WR24X303 SGE303 WR24X305 SGE305 (BR) WR24X308 SGE308 (BR) WR24X309 SGE309 (BR) WR24X310 SGE310 WR24X311 SGE311 WR24X312 SGE312 WR24X313 SGE127 WR24X315 SGE110 WR24X317 SGE317
O.E.M. NO. SUPCO NO.
WR24X318 SGE318 (BR) WR24X319 SGE319 WR24X389 SGE389 (BR) WR24X390 SGE390 (BR) WR24X391 SGE391 WR24X392 SGE392 WR24X411 SGE411 (BR) WR24X416 SGE416 (BR) WR24X420 SGE420 (BR) WR24X421 SGE421 (BR) WR24X422 SGE422 WR24X424 SGE424 (BR) WR24X427 SGE427 (BR) WR24X432 SGE432 (BR) WR24X433 SGE433 WR24X435 SGE435 (BR) WR24X436 SGE436 (BR) WR24X437 SGE437 WR24X438 SGE438 WR24X446 SGE446 WR24X449 SGE449 WR24X450 SGE450 WR24X454 SGE454 (BR) WR24X464 SGE464 (BR) WR24X473 SGE473 (BR) WR24X474 SGE474 (BR) WR24X481 SGE481 (BR) WR24X482 SGE482 (BR) WR24X484 SGE484 WR24X485 SGE485 WR24X486 SGE486 WR24X490 SGE490 (BR) WR24X5008 SGE5008 (BR) WR24X5010 SGE104 WR24X5011 SGE105 WR24X5013 SGE107 WR24X5015 SGE5015 WR24X5017 SGE5017 WR24X5024 SGE024 WR24X5068 SGE115 WR24X5071 SGE94 WR24X5100 SGE69 WR24X5101 SGE77 WR24X5103 SGE71 WR24X5104 SGE5104 WR24X5105 SGE5105 WR24X5106 SGE106 WR24X5106 SGE5106 WR24X5113 SGE5113 WR24X5116 SGE5116 WR24X5119 SGE5119 WR24X5124 SGE113 WR24X5126 SGE102 WR24X5144 SGE5144 WR24X5148 SGE422 WR24X5149 SGE5149 WR24X5210 SGE5210 WR24X5211 SGE5211 WR24X5212 SGE5212 WR24X5231 SGE5231 WR24X5232 SGE5232 WR24X5238 SGE5238 WR24X524 SGE524 WR24X5256 SGE5256 (BR)
3
O.E.M. NO. SUPCO NO. O.E.M. NO. SUPCO NO. O.E.M. NO. SUPCO NO.
WR24X5258 SGE5258 WR24X527 SGE527 WR24X528 SGE528 WR24X550 SGE550 WR24X558 SGE558
GIBSON
186803-03 SGI43 5308007115 SGI46 5308007124 SGI44 5308016563 SGI41 5314220908 SGI33 5315282802 SGI48 5315627301 SGI30 5318693207 SGI47
KELVINATOR
5301205009 SKL35 5301207363 SKL56 5301207364 SKL57 K1205007 SKL34 K1205008 SKL36 K1205010 SKL37 K1207363 SKL56 K1207364 SKL57
PHILCO
6007-356-1 SPH47 6007-356-11 SPH57 6007-356-2 SPH48 6007-356-3 SPH49 6007-356-4 SPH50 6007-356-6 SPH52 6007-356-7 SPH53 6007-356-8 SPH54 6007-356-9 SPH55
WCI
215608916 SWC64 215732413 SWC59 215740401 SWC62 215740402 SWC63 218730604 SWC71 (TN) 218730609 SWC59 5300412101 SWC16 5300412103 SWC67 5300627766 SWC19
5300628042 SWC18 5300661994 SWC27 5303001049 SWC36 (TN) 5303001304 SWC55 (BR) 5303001317 SWC69 (BR) 5303001398 SWC10 (TN) 5303001399 SWC11 (TN) 5303001486 SWC45 (TN) 5303007357 SWC35 (TN) 5303017189 SWC34 (BR) 5303017373 SWC41 (BR) 5303018791 SWC24 5303018792 SWC22 5303200473 SWC37 (TN) 5303200474 SWC38 (TN) 5303200799 SWC49 (TN) 5303200800 SWC48 (TN) 5303200832 SWC33 5303201013 SWC32 (TN) 5303201811 SWC39 (TN) 5303207112 SWC15 5303207113 SWC30 5303207115 SWC31 5303207345 SWC61 5303270902 SWC65 (BR) 5303271473 SWC66 5303276826 SWC34 (BR) 5303276826 SWC45 (TN) 5303288856 SWC11 (TN) 5303288856 SWC55 (BR) 530329557 SWC10 (TN) 5303297557 SWC58 (BR) 5303297557 SWC69 (BR) 5306583289 SWC47 5307510063 SWC46 5308007114 SWC44 5308007229 SWC52 5308010756 SWC25 5308015544 SWC12 (TN) 5308016562 SWC54 (TN) 5308016564 SWC51 (TN) 5308016627 SWC13 5308016628 SWC14 5308017487 SWC60 (BR) 5317532406 SWC42 5317532408 SWC43 5317532506 SWC53
5318680302 SWC21 5318680305 SWC23 5318680311 SWC26 5318680314 SWC43 5318680314 SWC44 R000900734 SWC56 (BR) R000900798 SWC57 (BR)
WESTINGHOUSE
*R462603 SWE71 5300280161 SWE59 5300280163 SWE55 5300280166 SWE60 5300280168 SWE56 5300462603 SWE71 C280162 SWE58 C280164 SWE57 C280165 SWE61
WHIRLPOOL
1109187 SCS71 1129252 SCS49 2166000 SCS113 2188404A SCS105 2188404A SCS44 2188404A SCS94 2188405A SCS79 2188433A SCS116 2188434A SCS97 2188436A SCS91 2188437A SCS106 2188438A SCS96 2188439A SCS117 2188442A SCS73 2188444A SCS75 2188445A SCS115 2188446A SCS98 2188447A SCS99 2188448A SCS112 2188450A SCS42 2188450A SCS84 2188451A SCS46 2188452A SCS64 2188453A SCS61 2188456A SCS102 2188458A SCS103 2188459A SCS104
O.E.M. NO. SUPCO NO.
2188460A SCS92 2188461A SCS100 2188464A SCS93 2188465A SCS55 2188466A SCS66 4343266 SCS114 4343449 SCS107 4387567 SCS80 4387583 SCS59 4387632 SCS85 510342 SCS24 510343 SCS25 510344 SCS26 510345 SCS27 512300 SCS28 528919 SCS29 576662 SCS110 576664 SCS108 592945 SCS111 592946 SCS109 653209 SCS36 658998 SCS40 838141 SCS60 845282 SCS50 845283 SCS51 848395 SCS31 848410 SCS32 876480 SCS37 876482 SCS34 876483 SCS33 912395 SCS77 912396 SCS78 991745 SCS74 992582 SCS49
UNIVERSAL KITS
KIT SU2001 KIT SU2002 KIT SU2003 KIT SU2004 KIT SU2301 KIT SU2302 KIT SU2303 KIT SU2304
4
EXACT SIZE REPLACEMENTS - GEM TO SUPCO GASKET CROSS REFERENCE
GEM NO. SUPCO NO.
2001 SU2001 2002 SU2002 2003 SU2003 2004 SU2004 2301 SU2301 2301 SU2301 2302 SU2302 2303 SU2303 2304 SU2304 AD38 SAD38 AD51 SAD51 AD52 SAD52 AD53 SAD53 AD54 SAD54 AD55 SAD55 AD57 SAD57 AD63 SAD63 AD64 SAD64 AD65 SAD65 AD67 SAD67 AD68 SAD68 AD69 SAD69 AD70 SAD70 AD71 SAD71 AD72 SAD72 AD73 SAD73 AD74 SAD74 AD76 SAD76 AD77 SAD77 AD77 SAD81 AD78 SAD78 AD79 SAD79 AD79 SAD83 AD80 SAD80 AM22 SAM22 AM23 SAM23 AM28 SAM28 AM29 SAM29 AM30 SAM30 AM31 SAM31 AM32 SAM32 CS25 SCS25 CS26 SCS26 CS27 SCS27 CS28 SCS28 CS29 SCS29 CS31 SCS31 CS32 SCS32 CS33 SCS33 CS34 SCS34 CS36 SCS36 CS37 SCS37 CS40 SCS40 CS41 SCS79 CS42 SCS42 CS43 SCS92 CS44 SCS44 CS46 SCS46 CS47 SCS100 CS49 SCS49 CS50 SCS64 CS51 SCS98
GEM NO. SUPCO NO.
CS52 SCS115 CS53 SCS55 CS54 SCS50 CS55 SCS51 CS56 SCS116 CS57 SCS102 CS58 SCS97 CS59 SCS102 CS60 SCS115 FR105 SFR105 FR106 SWC18 FR108 SWC45 (TN) FR109 SWC38 (TN) FR110 SWC39 (TN) FR111 SWC34 (BR) FR112 SWC30 FR113 SWC44 FR114 SWC32 (TN) FR115 SWC33 FR116 SWC20 FR116 SWC36 (TN) FR117 SWC59 FR118 SWC60 (BR) FR119 SWC41 (BR) FR119 SWC71 (TN) FR122 SWC62 FR26 SWC26 FR90 SWC61 GE 42 SGE42 GE107 SGE107 GE108 SGE108 GE109 SGE109 GE110 SGE110 GE111 SGE111 GE112 SGE112 GE113 SGE113 GE115 SGE115 GE116 SGE116 GE117 SGE117 GE118 SGE118 GE119 SGE119 GE120 SGE120 GE121 SGE121 GE125 SGE125 GE126 SGE126 GE127 SGE127 GE128 SGE301 (BR) GE129 SGE303 GE130 SGE284 (BR) GE131 SGE285 (BR) GE132 SGE286 (BR) GE133 SGE318 (BR) GE134 SGE309 (BR) GE135 SGE319 GE136 SGE390 (BR) GE137 SGE433 GE138 SGE287 (BR) GE139 SGE312 GE140 SGE298 GE141 SGE311 GE142 SGE422 GE143 SGE266
GEM NO. SUPCO NO.
GE144 SGE268 GE146 SGE276 GE147 SGE277 GE148 SGE279 GE149 SGE282 (BR) GE150 SGE283 (BR) GE151 SGE289 GE152 SGE292 (BR) GE153 SGE295 (BR) GE155 SGE300 (BR) GE156 SGE302 GE157 SGE305 (BR) GE158 SGE308 (BR) GE159 SGE317 GE160 SGE389 (BR) GE161 SGE421 (BR) GE162 SGE432 (BR) GE163 SGE5106 GE164 SGE230 GE165 SGE244 GE166 SGE245 GE167 SGE247 GE168 SGE248 GE169 SGE249 GE170 SGE297 GE172 SGE392 GE173 SGE411 (BR) GE174 SGE416 (BR) GE175 SGE420 (BR) GE176 SGE424 (BR) GE177 SGE427 (BR) GE391 SGE391 GE435 SGE435 (BR) GE437 SGE437 GE446 SGE446 GE449 SGE449 GE450 SGE450 GE464 SGE464 (BR) GE485 SGE485 GE52 SGE52 GE5231 SGE5231 GE5232 SGE5232 GE55 SGE55 GE558 SGE558 GE57 SGE57 GE68 SGE68 GE69 SGE69 GE71 SGE71 GE72 SGE5104 GE73 SGE73 GE75 SGE75 GE76 SGE76 GE77 SGE77 GE78 SGE78 GE79 SGE79 GE81 SGE81 GE82 SGE82 GE88 SGE88 GE94 SGE94 GI30 SGI30 GI33 SGI33 GI41 SGI41
GEM NO. SUPCO NO.
GI42 SGI48 GI43 SGI47 GI44 SGI46 KL34 SKL34 KL35 SKL35 KL36 SKL36 KL37 SKL37 KL56 SKL56 KL57 SKL57 PH47 SPH47 PH48 SPH48 PH49 SPH49 PH50 SPH50 PH52 SPH52 PH53 SPH53 PH54 SPH54 PH55 SPH55 PH57 SPH57 WC10 SWC10 (TN) WC12 SWC12 (TN) WE51 SWE57 WE55 SWE55 WE56 SWE56 WE58 SWE58 WE59 SWE59 WE60 SWE60 WE61 SWE61 WE70 SWC15 WE71 SWE71 WE72 SWC16 WE73 SWC67 WP104 SCS104 WP13 SCS80 WP16 SCS79 WP16 SCS85 WP17 SCS91 WP18 SCS92 WP20 SCS96 WP21 SCS105 WP28 SCS93 WP31 SCS24 WP32 SCS77 WP33 SCS78 WP449 SCS59 WP566 SCS102 WP567 SCS80 WP570 SCS100 WP572 SCS92 WP577 SCS103 WP589 SCS64 WP590 SCS46 WP591 SCS84 WP608 SCS115 WP609 SCS75 WP617 SCS79 WP622 SCS105 WP626 SCS117 WP634 SCS97 WP638 SCS116 WP745 SCS74 WP99 SCS99
5
PROFILE/ SUPCO NO. DIMENSION
A
SGE301 (BR) 28 5/8 X 38 SGE303 28 1/2 X 38 SGE309 (BR) 31 1/8 X 38 SGE318 (BR) 26 1/8 X 39 3/4 SGE319 26 1/4 X 39 3/4 SGE389 (BR) 21 1/4 X 32 5/8 SGE390 (BR) 32 5/8 X 38
AA
SAD67 16 3/8 X 28 1/4 SAD68 28 1/4 X 36 5/8 SAD69 18 7/16 X 28 1/4 SAD70 28 1/4 X 39 1/8 SAD71 19 3/8 X 30 3/4 SAD72 30 3/4 X 39 1/8 SAD73 32 1/4 X 39 1/8 SAM57 18 7/8 X 31 1/4 SWC27 28 X 38 7/8
AB
SGE125 28 1/4 X 41 1/2 SGE126 28 3/8 X 40
AD
SCS74 19 1/16 X 40 1/4
AE
SAM33 19 1/4 X 30 3/4 SAM34 30 7/8 X 40 1/2 SAM35 (TN) 24 X 30 3/4 SAM36 (TN) 30 3/4 X 35 1/2 SAM37 (TN) 17 1/2 X 30 3/4 SAM38 (TN) 30 3/4 X 39 1/4 SAM39 24 1/8 X 31 SAM40 30 5/8 X 35 5/8 SAM42 31 3/4 X 40 1/2 SAM43 17 1/2 X 30 3/4 SAM44 30 3/4 X 39 1/4 SAM54 (BK) 23 3/4 X 31 SAM55 28 1/2 X 39 3/4 SAM56 31 1/2 X 41 1/2 SAM58 37 3/4 X 31 1/4 SAM59 23 1/2 X 31 1/4 SAM60 (TN) 19 1/4 X 30 3/4 SAM61 18 5/8 X 28 1/4 SAM62 19 3/4 X 61 SAM63 14 1/4 X 61 SAM64 (BK) 20 X 61 1/8 SAM65 (BK) 14 1/8 X 60 3/4 SGE5238 24 X 30 3/4
AF
SAD80 31 3/4 X 38 3/4 SAD81 27 7/8 X 36 1/4 SAD82 28 X 38 7/8 SAD83 30 1/2 X 38 3/4
AG
SGE5015 27 X 45 3/4 SGE5017 27 X 70 3/4
AH
SAM46 (TN) 13 7/8 X 61 1/4 SAM47 13 7/8 X 61 1/4 SAM48 (TN) 13 3/4 X 29 SAM49 13 3/4 X 29 SAM50 14 X 19 3/4 SAM51 (TN) 27 X 44 1/B SAM52 (TN) 14 7/8 X 21 SAM53 (TN) 21 X 42 1/8 SGE490 (BR) 23 3/8 X 41 3/8
6
PROFILE/ SUPCO NO. DIMENSION
AJ
SGE435 (BR) 32 1/2 x 39 1/2 SGE436 (BR) 21 X 32 5/16 SGE437 32 5/8 X 39 3/8 SGE438 21 1/8 X 32 7/16 SGE446 29 3/16 x 38 3/4 SGE449 18 7/8 x 27 1/4 SGE450 27 1/4 x 38 5/8 SGE481 (BR) 26 1/2 X 37 7/8 SGE482 (BR) 16 5/8 X 26 1/16 SGE484 16 5/8 X 26 SGE485 26 1/8 X 37 15/16 SGE486 25 15/16 X 41 SGE524 16 5/8 X 26 1/16 SGE558 26 X 43 1/16
AK
SCS108 26 1/2 X 58 1/2 SCS109 26 13/16 X 61 SCS110 26 1/2 X 47 3/8 SCS111 26 3/4 X 42 1/2
AM
SWC67 29 X 42 3/16
C
SAD100 19 1/8 X 29 7/8 SAD101 30 X 37 7/8 SAD57 26 7/8 X 41 SAD63 20 X 60 1/2 SAD64 28 3/4 X 38 SAD65 29 1/2 X 41 SAD75 13 1/2 X 60 5/8 SAD76 18 X 60 5/8 SAD79 28 3/8 X 38 1/4 SAD84 23 1/8 X 60 3/8 SAD85 10 3/4 X 60 1/2 SAD86 18 X 60 5/8 SAD87 10 7/8 X 18 1/4 SAD88 13 1/2 X 18 1/8 SAD89 13 1/2 X 41 1/4 SAD90 15 7/8 X 41 1/4 SAD91 10 7/8 X 41 1/4 SAD92 20 X 60 3/8 SAD93 10 7/8 X 60 1/8 SAD94 15 7/8 X 18 1/8 SAD95 10 3/4 X 60 1/8 SAD96 18 1/4 X 27 3/8 SAD97 27 3/8 X 38 SAD98 16 1/8 X 27 3/8 SAD99 27 3/8 X 35 3/8
D
SAM28 13 15/16 X 61 3/8 SAM29 20 5/16 X 61 13/32 SAM30 16 9/16 X 61 13/32 SAM31 30 7/8 x 42 SAM32 30 7/16 x 43 SAM41 20 1/4 X 61 3/8 SAM45 16 3/8 X 61 1/4 SCS36 19 1/8 X 55 11/16 SCS77 23 X 38 5/8 SCS78 13 1/4 X 73 SFR100 19 1/4 X 60 1/8 SFR101 12 1/4 X 60 1/8 SFR102 19 1/2 X 30 1/2 SFR103 28 1/2 X 41 3/4 SFR104 11 7/8 X 57 1/16 SFR105 28 5/8 X 36 1/4 SFR106 11 7/8 X 60 SFR62 21 5/8 X 45 3/8 SFR71 28 1/2 X 49 1/4 SFR75 30 1/2 X 53 1/4
PROFILE/ SUPCO NO. DIMENSION
SFR76 13 1/2 X 30 1/4 SFR77 30 1/4 X 38 1/2 SFR78 30 1/2 X 33 1/4 SFR79 19 X 30 1/4 SFR80 22 1/2 X 47 1/8 SFR84 22 X 32 1/4 SFR85 13 1/4 X 28 5/8 SFR86 28 5/8 X 34 5/8 SFR88 16 1/4 X 30 1/2 SFR91 30 1/2 X 39 1/2 SFR93 11 7/8 X 57 SFR94 20 1/16 X 60 I/8 SFR95 13 I/2 X 60 1/8 SFR96 17 7/8 X 60 1/8 SFR99 32 1/4 X 40 5/8 SGE113 15 7/16 X 30 1/8 SGE120 26 1/8 X 51 7/16 SGE121 29 X 59 1/4 SGE5105 30 1/8 X 54 3/4 SWC18 17 X 28 1/2 SWC19 28 3/4 X 41 7/8 SWC46 19 3/8 X 30 1/4 SWC47 30 1/4 X 39 1/2 SWC56 (BR) 23 I/8 X 37 3/4 SWC57 (BR) 14 3/4 X 23 1/8
E
SGE127 26 1/4 X 36 1/2 SGE287 (BR) 26 7/16 x 36 3/4 SGE5008 (BR) 21 1/4 X 57
F
SCS100 18 5/8 X 28 1/8 SCS102 16 1/2 X 26 3/4 SCS103 21 1/2 X 31 3/8 SCS104 19 3/8 X 31 3/8 SCS105 19 1/8 X 58 7/8 SCS106 23 1/4 X 60 3/8 SCS112 27 1/16 X 39 7/8 SCS113 18 3/4 X 27 1/8 SCS115 27 X 42 1/2 SCS116 19 1/4 X 62 1/4 SCS40 14 3/4 X 55 3/4 SCS42 31 13/32 X 39 1/8 SCS44 19 1/8 X 59 1/32 SCS46 28 13/32 X 39 1/8 SCS49 15 3/8 X 36 SCS55 16 1/16 X 28 1/2 SCS59 28 1/2 X 35 1/4 SCS61 21 1/8 x 37 3/4 SCS64 31 1/2 X 38 1/8 SCS66 14 9/16 X 26 7/8 SCS71 27 7/16 X 42 5/8 SCS73 23 1/32 X 53 11/32 SCS75 30 1/4 X 42 3/8 SCS79 11 3/8 X 59 1/8 SCS80 16 7/8 X 30 3/8 SCS84 31 1/2 X 39 3/8 SCS85 30 1/4 X 61 1/8 SCS91 27 X 60 5/8 SCS92 18 7/8 X 31 3/4 SCS93 16 1/2 X 23 1/4 SCS94 19 3/8 X 59 1/4 SCS96 31 1/2 X 59 1/8 SCS97 14 5/8 X 62 1/8 SCS98 23 1/8 X 42 1/8 SCS99 28 X 40 1/8 SGE286 (BR) 17 1/8 x 26 3/16 SGE312 17 1/8 x 26 3/16 SWC15 28 3/4 x 41 1/4 SWC16 16 1/4 X 29 SWC30 32 X 42 1/4 SWC31 29 3/8 X 55 3/4
PROFILE/ SUPCO NO. DIMENSION
SWE71 13 3/16 x 58 1/2
G
SGE102 13 1/4X 30 1/4 SGE115 19 X 30 1/8 SGE5144 32 3/8 X 65 5/8 SGE94 30 1/4 X 40 5/8 SKL34 21 1/2 X 51 5/8 SKL35 28 1/2 X 52 SKL36 28 1/2 x 42 SKL37 16 X 28 1/2 SKL56 30 X 41 3/4 SKL57 17 x 30 SU2301 21 1/8 X 30 3/4 SU2302 32 3/8 X 42 3/4 SU2303 32 3/8 X 55 1/2 SU2304 36 X 84
H
SGE024 30 1/8 X 37 SGE108 19 3/4 X 60 1/8 SGE109 11 1/4 X 59 5/16 SGE110 17 1/4 X 57 7/8 SGE230 20 X 60 SGE244 17 1/4 X 60 SGE245 11 1/4 X 60 SGE247 13 15/16 X 60 SGE248 11 X 58 1/4 SGE249 17 1/8 X 58 1/4 SGE289 19 x 28 1/2 SGE294 (BR) 11 1/4 X 57 7/8 SGE295 (BR) 19 5/8 X 59 7/8 SGE297 14 1/16 x 60 1/4 SGE300 (BR) 19 1/8 x 28 3/4 SGE302 19 1/2 X 28 3/4 SGE305 (BR) 17 1/2 X 60 SGE308 (BR) 19 1/2 X 32 SGE310 19 1/2 X 31 1/2 SGE391 21 X 33 SGE392 33 X 38 1/2 SGE411 (BR) 26 3/4 X 39 1/4 SGE416 (BR) 26 3/4 X 42 SGE420 (BR) 14 X 62 SGE421 (BR) KIT 10 X 75 1/2 SGE422 KIT 10 X 75 1/2 SGE424 (BR) 19 3/4 X 60 SGE427 (BR) 17 3/8 X 60 SGE432 (BR) KIT 20 X 62 1/2 SGE433 KIT 20 X 62 1/2 SGE454 (BR) 18 1/4 X 26 3/4 SGE464 (BR) 19 5/8 X 60 9/16 SGE473 (BR) 77 1/8 X 39 1/2 SGE474 (BR) 18 1/8 X 27 SGE5106 31 X 58 3/8 SGE5113 14 1/4 X 16 1/2 SGE5116 11 1/8 X 57 3/4 SGE5119 30 1/4 X 38 3/8 SGE5149 33 X 38 1/4 SGE5211 11 7/8 X 26 5/8 SGE5212 26 5/8 X 41 3/4 SGE5231 19 3/4 X 60 SGE5232 17 3/8 X 60 SGE5258 18 1/4 X 32 1/4 SGE527 11 7/8 X 60 SGE528 17 3/4 X 60 SGI48 18 X 58 5/8
J
SAM22 31 1/2 X 36 1/2 SAM23 31 1/2 X 59 1/8 SFN13 29 1/4 X 36 1/2 SGE5104 26 1/4 X 47 5/8 SGE68 30 X 40 3/8
PROFILE/ SUPCO NO. DIMENSION
PROFILE/ SUPCO NO. DIMENSION
PROFILE/ SUPCO NO. DIMENSION
PROFILE/ SUPCO NO. DIMENSION
SGE69 30 X 36 3/4 SGE71 26 X 54 3/4 SGE73 26 1/4 X 40 3/4 SGE75 13 1/4 X 30 1/8 SGE77 22 7/8 X 30 SU2001 23 1/8 X 32 3/4 SU2002 34 7/8 X 44 3/4 SU2003 34 3/8 X 57 1/2 SU2004 36 X 84
L&M
SCS24 24 1/4 X 48 1/2 SCS25 30 X 48 5/8 SCS26 30 X 33 3/4 SCS27 30 X 39 1/2 SCS28 19 1/8 x 30 SCS29 13 1/2 x 30 SCS31 30 X 55 SCS32 30 X 60 1/2 SCS33 30 3/16 X 39 3/4 SCS34 30 1/8 X 33 7/8 SCS37 13 7/8 x 30 1/8 SCS60 22 3/4 x 53 7/16 SGI30 28 25/32 X 34 11/16 SGI33 26 25/32 X 35 1/32 SPH47 24 7/16 X 52 1/4 SPH48 21 7/16 X 55 7/16 SPH49 29 7/16 X 54 15/16 SPH50 19 1/4 x 29 7/16 SPH52 14 1/8 x 29 7/16 SPH53 29 7/16 X 39 3/4 SPH54 29 7/16 X 34 5/8 SPH55 17 1/8 x 29 7/16 SPH57 29 7/16 X 41 3/4
N
SGE259 22 1/8 X 46 SGE292 (BR) 29 X 39 5/8 SGE311 31 1/4 X 38 1/8 SGE5256 (BR) 18 1/4 X 32 1/4
N&P
SGE276 28 1/8 X 39 5/8
SGE277 18 5/8 X 28 1/16 SGE284 (BR) 28 1/2 X 39 1/2 SGE285 (BR) 18 5/8 X 28 1/4 SGE290 (BR) 28 3/8 x 41 7/8 SGE298 18 3/4 X 28 7/16
Q&R
SCS50 23 1/32 x 38 19/32 SCS51 13 5/16 x 23 1/32
S
SGE104 26 7/16 X 48 SGE105 26 7/16 X 55 SGE106 13 15/32 X 26 7/16 SGE107 26 7/16 X 40 3/4 SGE111 29 X 39 3/8 SGE112 19 1/2 X 28 7/8
T
SAD38 20 5/8 X 58 1/2 SAD51 26 7/8 X 38 3/4 SAD52 23 X 50 7/8 SAD53 26 7/8 X 55 1/8 SAD54 27 X 42 1/2 SAD55 22 15/16 X 41 1/2 SAD56 27 X 52 1/4 SAD77 15 11/16 X 28 1/8 SAD78 22 3/4 X 50 1/2
U
SGE116 18 3/4 X 28 5/8 SGE117 18 5/8 X 28 1/8 SGE118 28 1/2 X 41 5/8 SGE119 28 5/8 X 39 9/16 SGE164 29 1/2 X 51 SGE182 22 3/4 X 32 1/4 SGE205 21 5/8 X 27 3/4 SGE229 28 3/4 X 42 3/4 SGE266 25 1/2 X 35 1/4 SGE267 18 5/8 X 27 3/4 SGE268 15 1/8 x 25 3/8 SGE282 (BR) 25 1/2 X 35 1/4
SGE283 (BR) 15 1/8 x 25 3/8 SGE42 22 X 45 15/16 SGE517 KIT 67 X 67 SGE52 28 3/4 X 39 3/4 SGE5210 22 5/16 X 30 3/8 SGE55 15 1/2 X 28 5/8 SGE57 18 1/2 X 28 3/4 SGE76 26 3/8 X 51 SGE78 15 1/2 X 26 5/8 SGE79 26 1/2 X 35 1/8 SGE81 28 3/4 X 59 1/4 SGE82 28 3/4 X 66 1/4 SGE88 28 X 39 1/2
V
SAD74 19 1/8 X 32 SCS107 30 1/2 X 43 SCS114 16 3/4 X 30 5/8 SCS117 28 1/2 X 59 SGE279 22 5/8 X 53 1/2 SGE317 26 5/8 x 57 3/4 SGE550 22 3/4 X 34 1/2 SGI41 19 1/8 X 30 1/2 SGI43 16 1/2 X 27 5/8 SGI44 27 5/8 X 39 SGI46 30 1/4 x 41 1/2 SGI47 30 7/16 x 40 1/8 SWC10 (TN) 27 1/2 x 43 1/8 SWC11 (TN) 16 1/2 X 27 1/2 SWC12 (TN) 30 3/8 X 44 1/8 SWC13 27 1/2 X 38 7/8 SWC14 13 1/2 X 27 3/8 SWC20 16 11/16 X 27 5/8 SWC21 27 5/8 X 43 SWC22 30 5/8 X 44 SWC23 13 1/2 X 21 1/2 SWC24 16 5/8 X 30 1/2 SWC25 17 1/2 X 30 3/8 SWC26 27 3/4 X 44 SWC32 (TN) 17 1/2 X 60 3/4 SWC33 11 3/4 X 60 3/4 SWC34 (BR) 16 5/8 X 30 1/2 SWC35 (TN) 30 1/2 X 57 5/8
SWC36 (TN) 14 5/8 X 60 3/4 SWC37 (TN) 19 1/2 X 60 5/8 SWC38 (TN) 11 3/4 X 60 5/8 SWC39 (TN) 17 5/8 X 60 3/4 SWC41 (BR) 27 1/2 X 44 SWC42 17 3/4 X 30 1/4 SWC43 19 1/4 X 30 3/8 SWC44 19 1/4 X 30 3/8 SWC45 (TN) 16 5/8 X 30 1/2 SWC48 (TN) 11 13/16 X 39 3/4 SWC49 (TN) 11 13/16 X 19 I/4 SWC51 (TN) 30 1/4 X 41 1 /4 SWC52 17 5/8 X 60 7/8 SWC53 14 7/16 X 60 3/8 SWC54 (TN) 27 5/8 X 53 5/8 SWC55 (BR) 16 11/16 X 27 5/8 SWC58 (BR) 27 5/8 X 43 SWC59 30 1/2 X 44 SWC60 (BR) 30 5/8 X 44 3/16 SWC61 29 X 43 7/8 SWC62 14 1/4 X 22 1/4 SWC63 22 1/4 X 37 1/2 SWC64 16 5/8 X 29 SWC65 (BR) 27 1/2 X 39 3/4 SWC66 27 1/2 X 39 3/4 SWC69 (BR) 27 3/4 X 43 1/8 SWC71 (TN) 27 1/2 X 43 3/4
X
SWE55 28 7/8 X 57 31/32 SWE56 16 1/8 X 28 15/16 SWE57 29 X 41 9/16 SWE58 28 7/16 X 55 SWE59 23 X 53 SWE60 24 3/4 X 31 1/2 SWE61 32 X 34 1/32
7

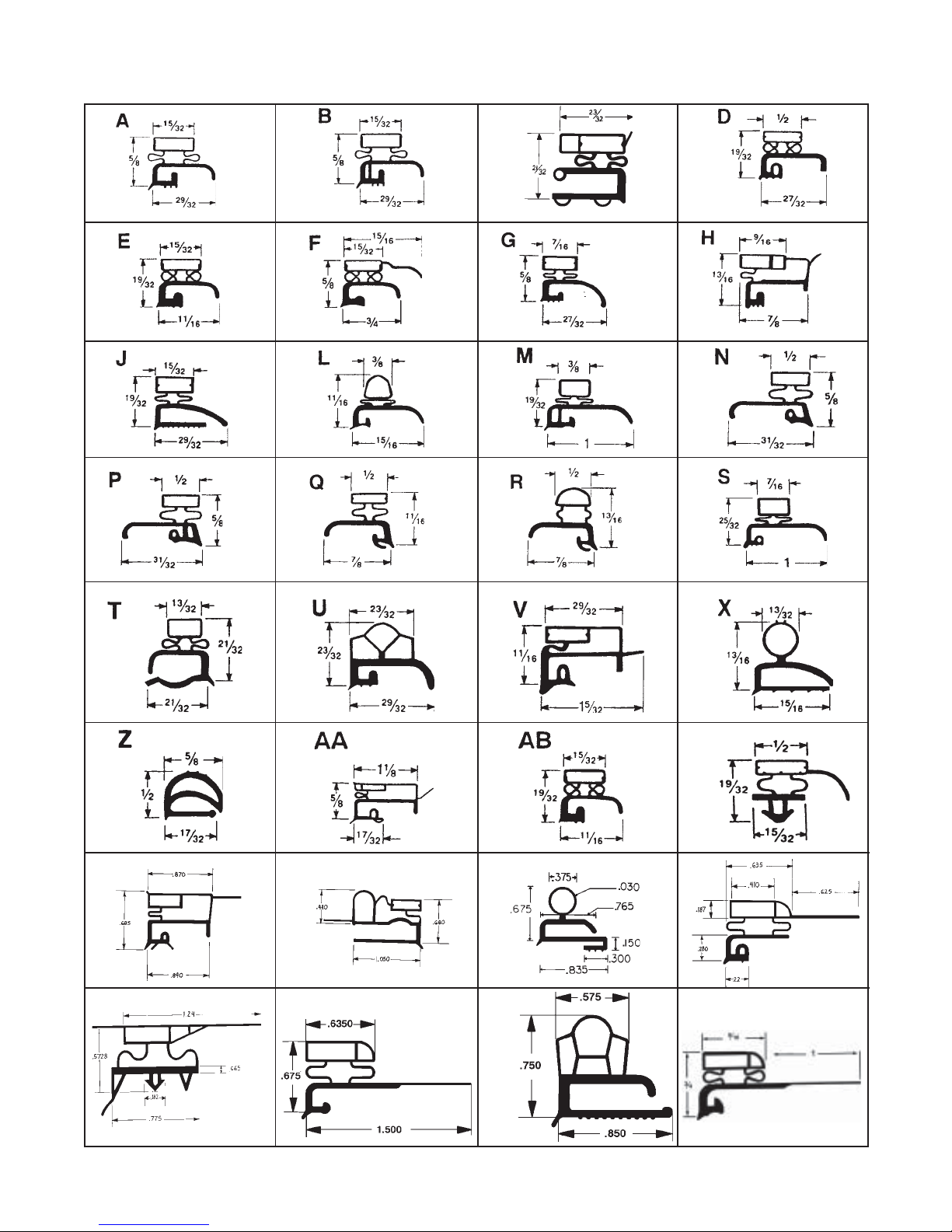

VISUAL IDENTIFICATION CHART
C
AD
AE
8
AF
AK
AG
ALAJ
AH
AM
UNIVERSAL GASKET MATERIAL
Each Part No. comes individually packaged and comes in a length of 14' (unless otherwise indicated)
9
Installation Tips
Pre- Installation Tips for Magnetic Gaskets
• Clean cabinet seal surface and any food reserve left under the old gasket.
• Allow the gasket to reach room temperature before removing from carton.
• When carrying or handling gasket, carry it by the corners to prevent breakage of the internal magnetic tape.
• For those refrigerators using a three-sided magnetic gasket, always install as removed, the balloon side (non-magnetic) to the hinge side of the refrigerator.
Removing Defective Door Gasket and Installing New
• Before removing defective gasket determine how it is secured by pulling back on the inner edge of gasket. (Figures1 and 2 below). Below are listed some of the methods employed.

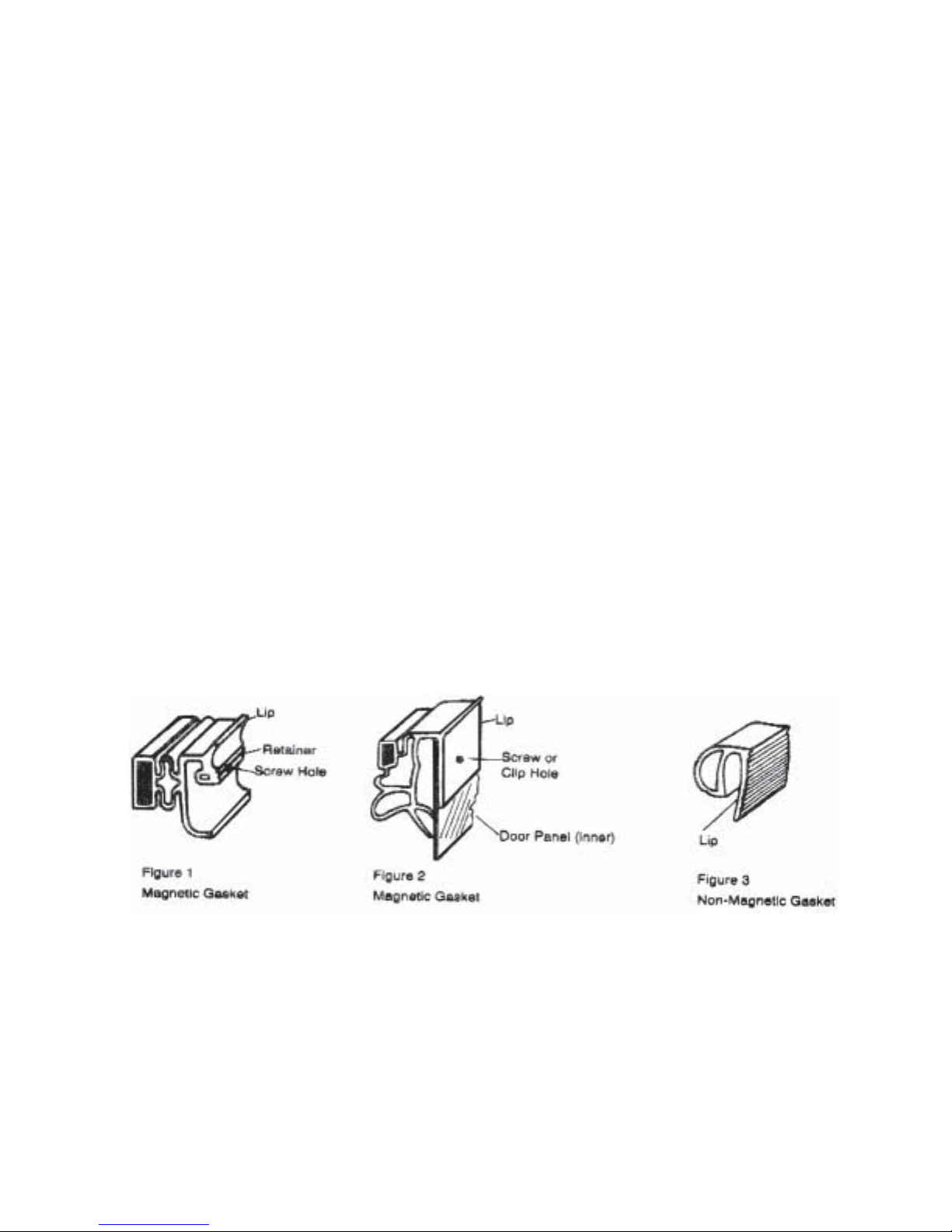

• Procedure A - Retainer Mount - See Figure 1
• You should now be able to close the door and check for alignment. If door alignment is necessary, loosen slightly all the retainer screws
•Procedure B - Panel Mount - See Figure 2
Step 1. Where metal retainers are used loosen screws across top and half way down each side. Loosen only enough to enable
the gasket to be pulled out of the retainer. Start to remove gasket across top, then each side to point where screws are still secure.
Step 2. Take new gasket and starting at the top of the door, slip the lip of the gasket under the retainer. Continue down each
side until you reach the point where old gasket is still retained. Step 3. Tighten screws across top and down each side to about 2 screws above the old gasket. Step 4. Loosen lower screws to remove remaining old gasket. Step 5. Install remaining secton of new gsket and tighten screws.
and flex the door in opposite direction to ensure proper door seal contact when closed. When properly aligned, grasp edge of door about mid-point and slowly open door as to not warp, and re-tighten all screws. On some doors the hinge side seal may tend to roll as it closed against the cabinet shell. In production, petroleum jelly (e.g. Vaseline)is used on hinge side of the gasket surface to allow door gasket to slide into place. Petroleum jelly can also be applied on the new gasket to correct such a condition.
Step 1. Where screws or clips are used without metal retainers, the above steps can be followed. However screw or clips have
to be removed step by step where they were only loosened on retainer style. Replace gasket as above and tighten top
screws and top sides before removing lower and bottom screws.
Step 2. Follow procedure A - Steps 4 and 5.
Non-Magnetic Gasket Installation - See Figure 3
• This gasket design is used on mechanical latch type doors and requires the same installation procedures as in either A or B depending on whether it's a retainer or panel mount.
10
IMPORTANT INFORMATION
This carton has been designed for this gasket to minimize deformity and yet provide a Suitable package that is acceptable for parcel post shipment, plus providing convenience And ease of storage and handling. Allow the gasket to attain room temperature before
Removing from the carton.
RESTORING DEFORMED GASKETS
If a gasket is found to be deformed after a long storage, heat the deformed sections within a pan of hot water or with an electric heater, hair dryer, or a 150 to 300 watt light bulb. Move the source of heat back and forth over the deformed sections to maintain even warming, maintaining a distance three (2) to four (4) inches between the gasket and heat source. Continue applying the heat until the gasket resumes its original shape. Also reshaping the warm gasket by hand will speed-up the process.
It should be noted that this same procedure may be used to correct deformed gaskets already installed on a unit providing caution is used not to damage the inner door panel.
PROPER HANDLING OF MAGNETIC GASKETS
Allow the gasket to reach room temperature before removing it from the carton. When carrying or handling the gasket, carry it by the corners to prevent breakage of the flexible magnet. SHOULD THE MAGNET BE FOUND TO BE BROKEN, IT WILL NOT IMPAIR ITS EFFECTIVENESS.
When a gasket with magnet on three sides balloons section on the fourth side is installed on the door, be sure the balloon section is on the hinge side.
11
