Supco PIT6L User Manual

-１-

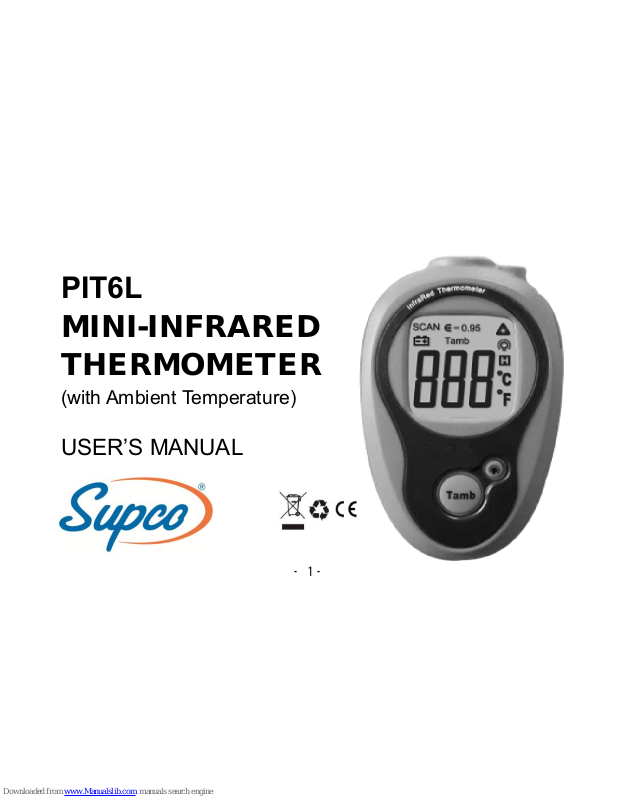

PIT6L

MINI-INFRARED
THERMOMETER

(with Ambient Temperature)

USER’S MANUAL

-２-

1 Introduction

This meter is a convenient non-contact infrared thermometer with

the functions of laser targeting, back light, data hold and auto power

off…

2 Safety Information

▪ Please read the following information carefully before using the

meter.

▪ Do not clean the meter using solvents.

Warning: Do not point laser directly at eye or reflective

surfaces.

-３-

Cautions:

When ambient temperature changes quickly, wait 30 minutes to before

taking measurements.

Avoiding EMF(electro magnetic fields) from arc weld, induction

furnace, etc…

Do not leave the unit on or near high temperature objects.

3. Instrument Description

① Infrared sensor
② LCD display
③ Back light button
④ Ambient temperature measurement button
⑤ Wrist band

-４-

⑥ Laser targeting aperture
⑦ Scan button (Measurement and laser button)
⑧ °C/°F selection switch
⑨ Battery cover

Tamb

0.95=SCAN

-５-

LCD display

① Measurement indication
② Low power indication
③ Ambient temperature measurement indication
