Sunx SF4B-F23-01, SF4B-F31-01, SF4B-F39-01, SF4B-F56-01, SF4B-F47-01 Instruction Manual
...
SUNX Limited MJE-SF4B01 No.0005-03V
f
r
Conforming to the examination o
Japanese Ministry of Health, Labo
and Welfare.
Model Examination No. TA347
- 1 -
(MEMO)
- 2 -
SUNX Limited MJE-SF4B01 No.0005-03V
Thank you for purchasing SUNX’s Light Curtain,
SF4B- -01
(hereinafter called ‘this device’).
Please read this instruction manual carefully and thoroughly for the correct and optimum use
of this product.
Kindly keep this manual in a convenient place for quick reference.
This device is a light curtain for protecting a person from dangerous parts of a machine which
can cause injury or accident.
This manual has been written for the following personnel who have undergone suitable
training and have knowledge of light curtains, as well as, safety systems and standards.
who are responsible for the introduction of this device
who design the system using this device
who install and connect this device
who manage and operate a plant using this device
Notes
1) All the contents of this instruction manual are the copyright of the publishers, and may
not be reproduced (even extracts) in any form by any electronic or mechanical means
(including photocopying, recording, or information storage and retrieval) without permission in writing from the publisher.
2) The contents of this instruction manual may be changed without prior notice for further
improvement of the product.
3) Though we have carefully drawn up the contents of this instruction manual, if there are
any aspects that are not clear, or any error that you may notice, please contact our
local SUNX office of the nearest distributor.
SUNX Limited MJE-SF4B01 No.0005-03V
- 3 -
Contents
Chapter 1 Introduction······················································· 6
1-1 Attention Marks ········································································6
1-2 Safety Precautions ···································································6
1-3 Applicable Standards / Regulations··········································9
1-4 Confirmation of Packed Contents···········································10
Chapter 2 Before Using This Device······························· 11
2-1 Features·················································································11
2-2 Part Description ·····································································11
2-3 Protection Area ······································································14
2-3-1 Sensing Area·············································································14
2-3-2 Safety Distance ·········································································15
2-3-3 Influence of Reflective Surfaces ···············································21
2-3-4 Sensor Placement·····································································22
2-4 Mounting ················································································23
2-4-1 Mounting of the Mounting Bracket ············································23
2-4-2 Mounting of the Bottom Cap Cable (optional) ··························28
2-4-3 Extension and Dismantling of Sensor (Series Connection)······30
2-4-4 Mounting of the Cable Protective Tube·····································32
2-5 Wiring ····················································································33
2-5-1 Power Supply Unit·····································································33

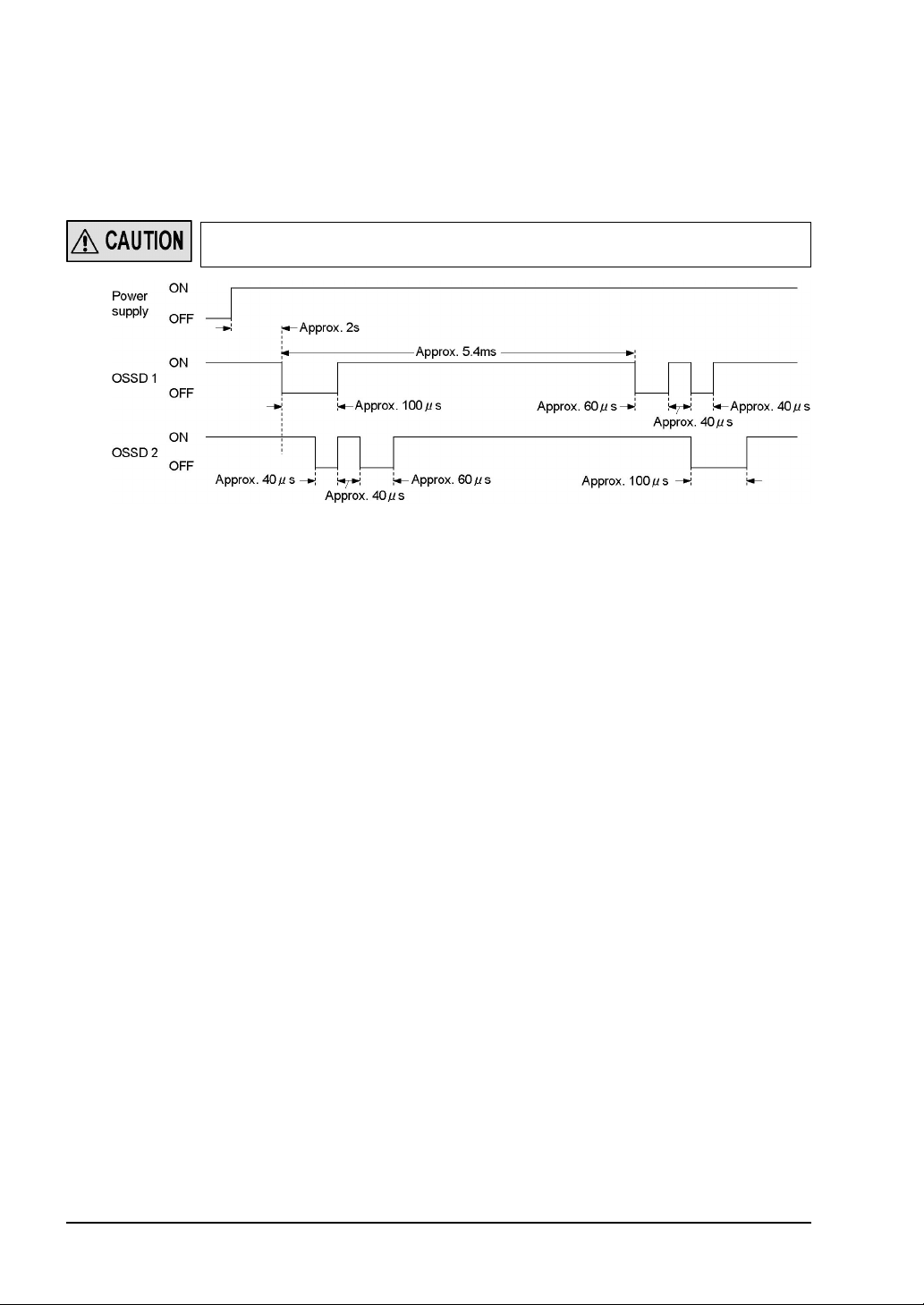

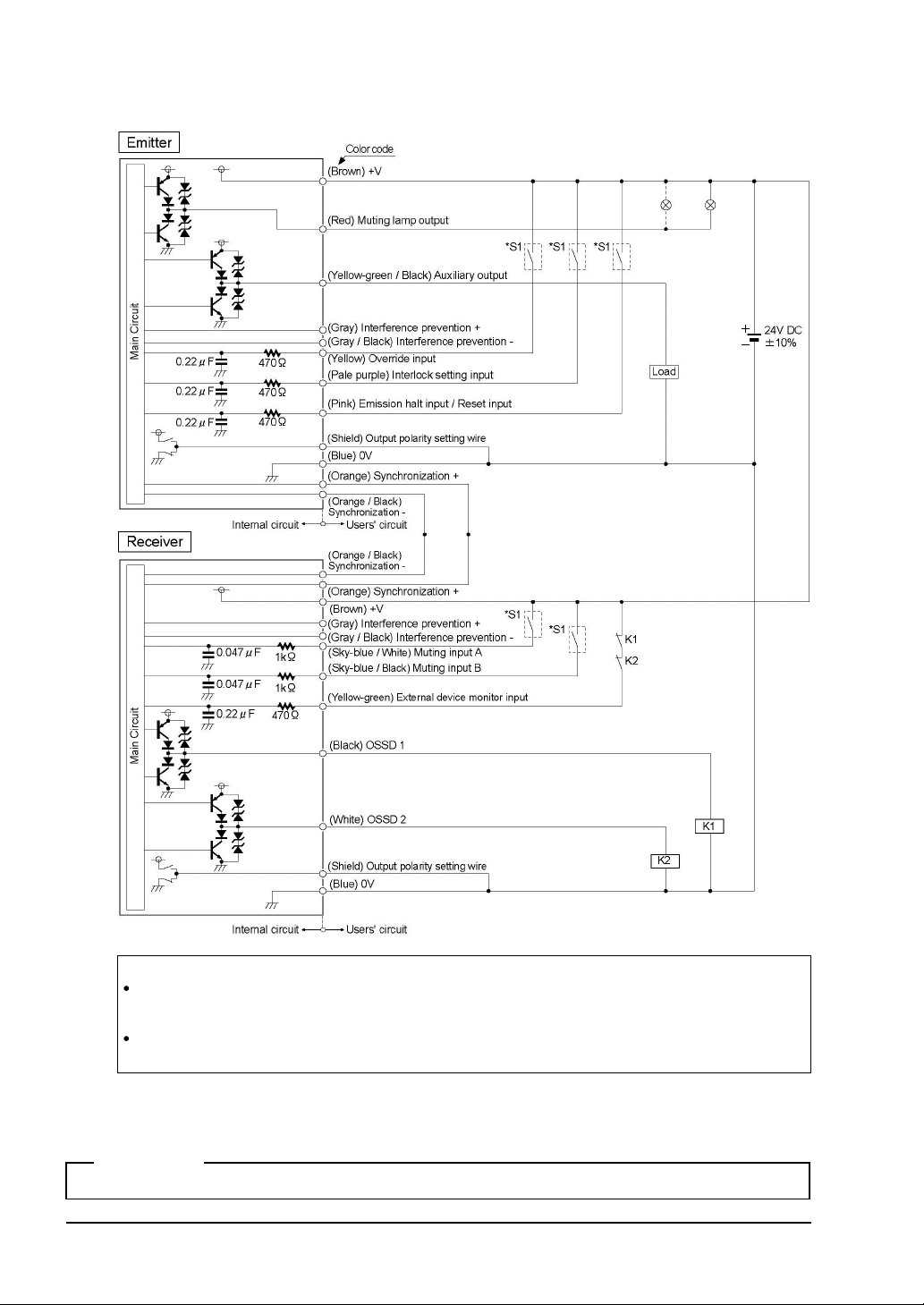

2-5-2 I/O Circuit Diagrams and Output Waveform ·····························34
2-5-3 Wiring

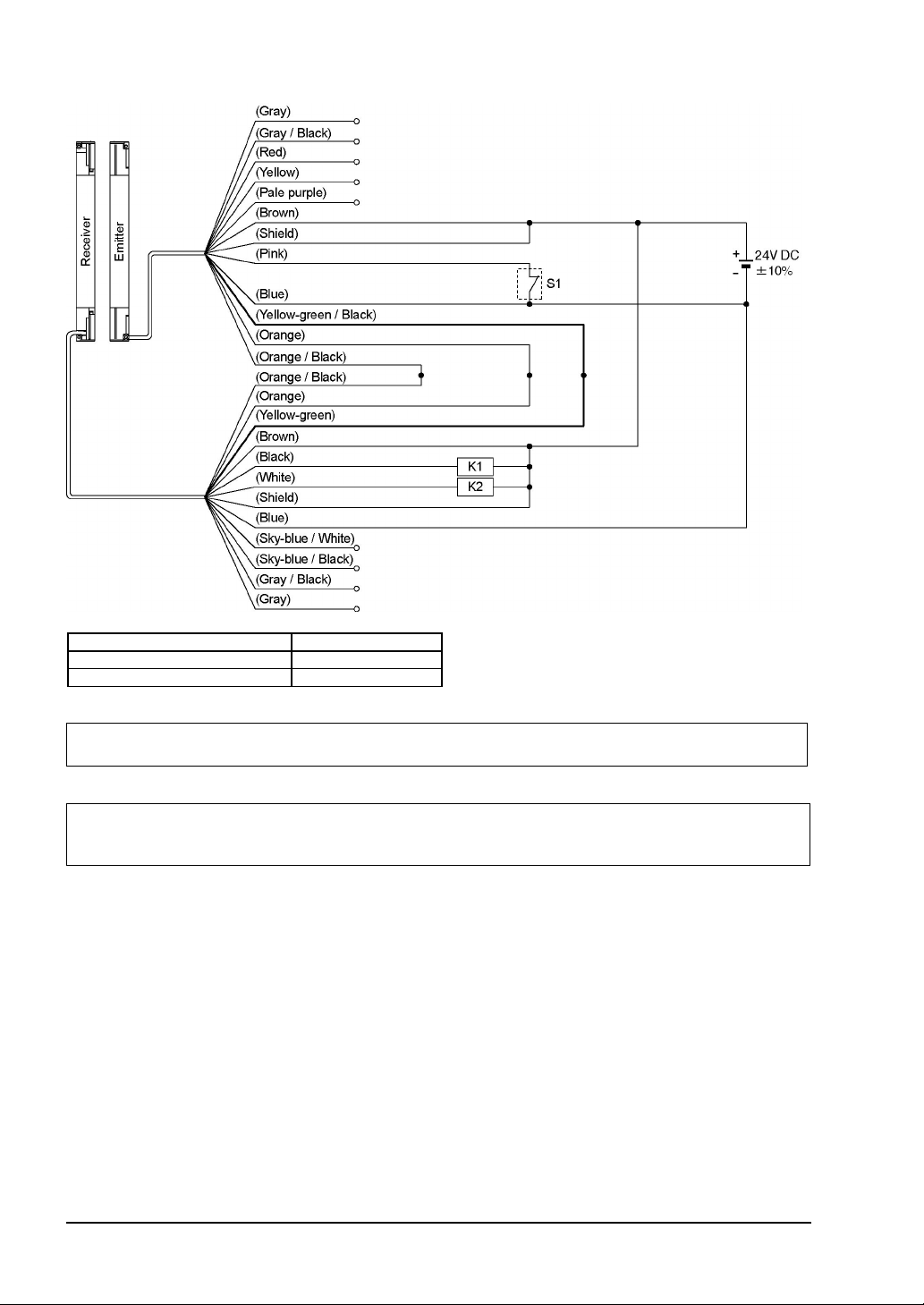

2-5-4 Basic Wiring ··············································································39
2-5-5 Wiring for Manual Reset (Interlock is Valid)······························41

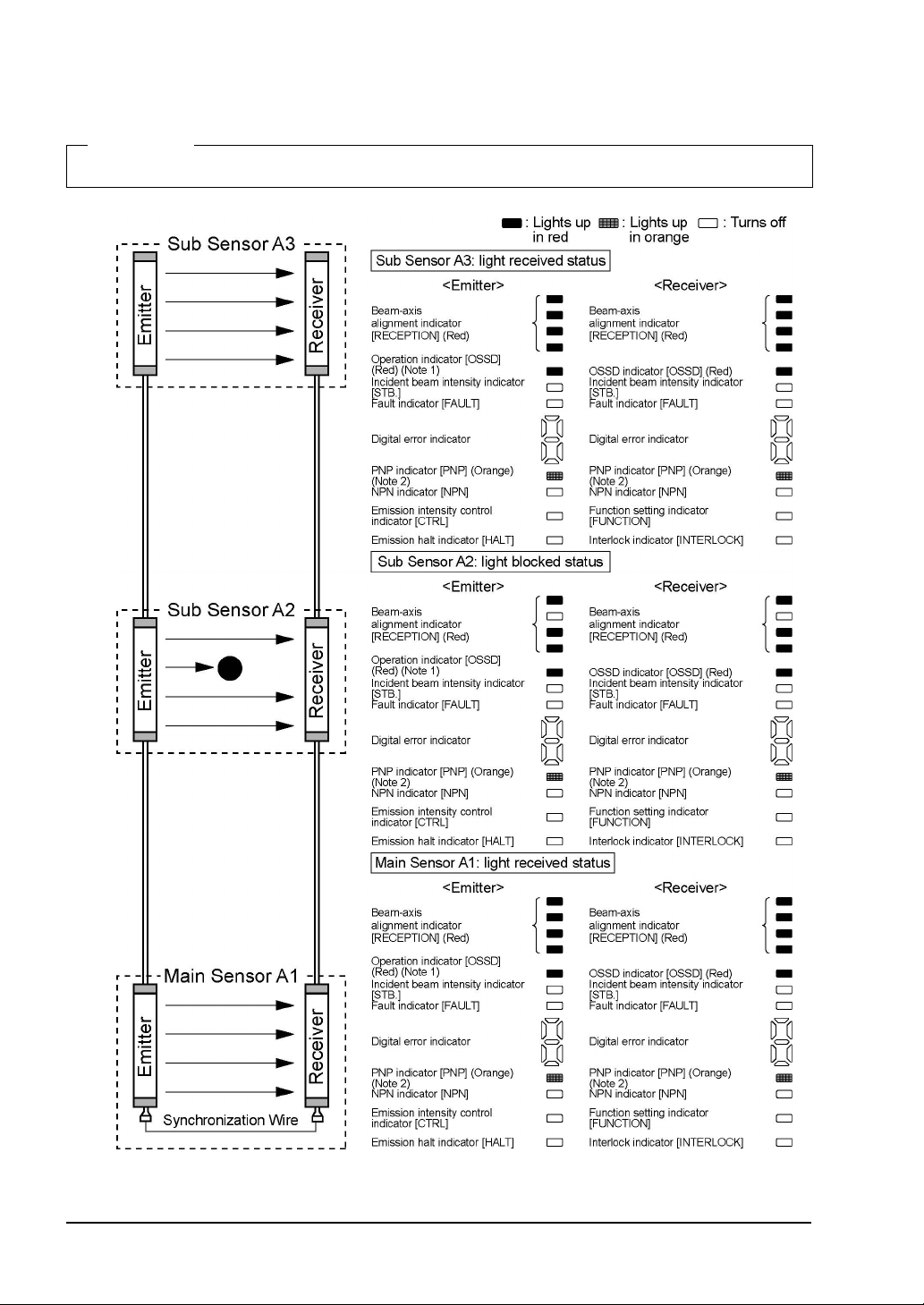

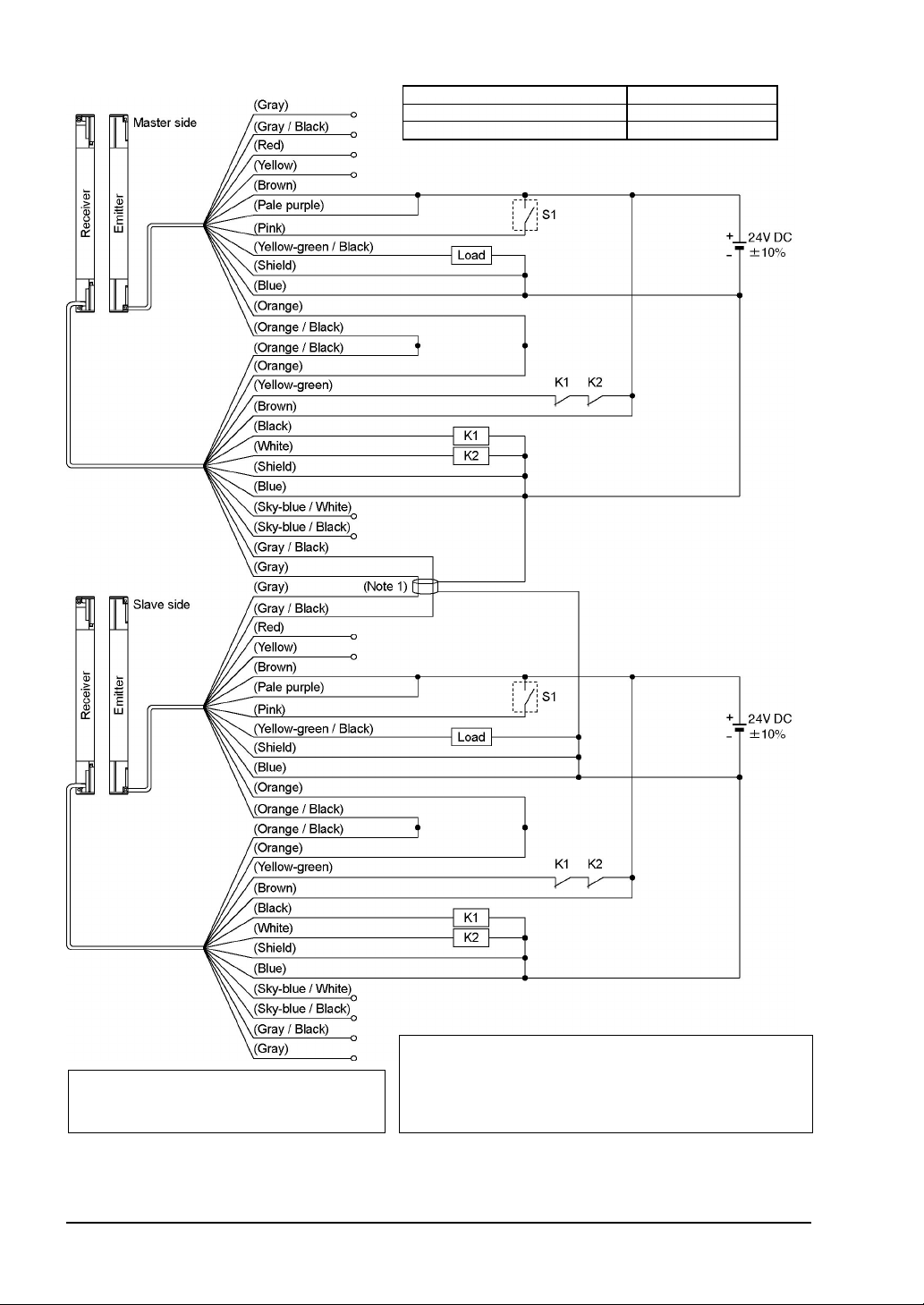

2-5-6 Series Connection·····································································43
2-5-7 Parallel Connection ···································································45

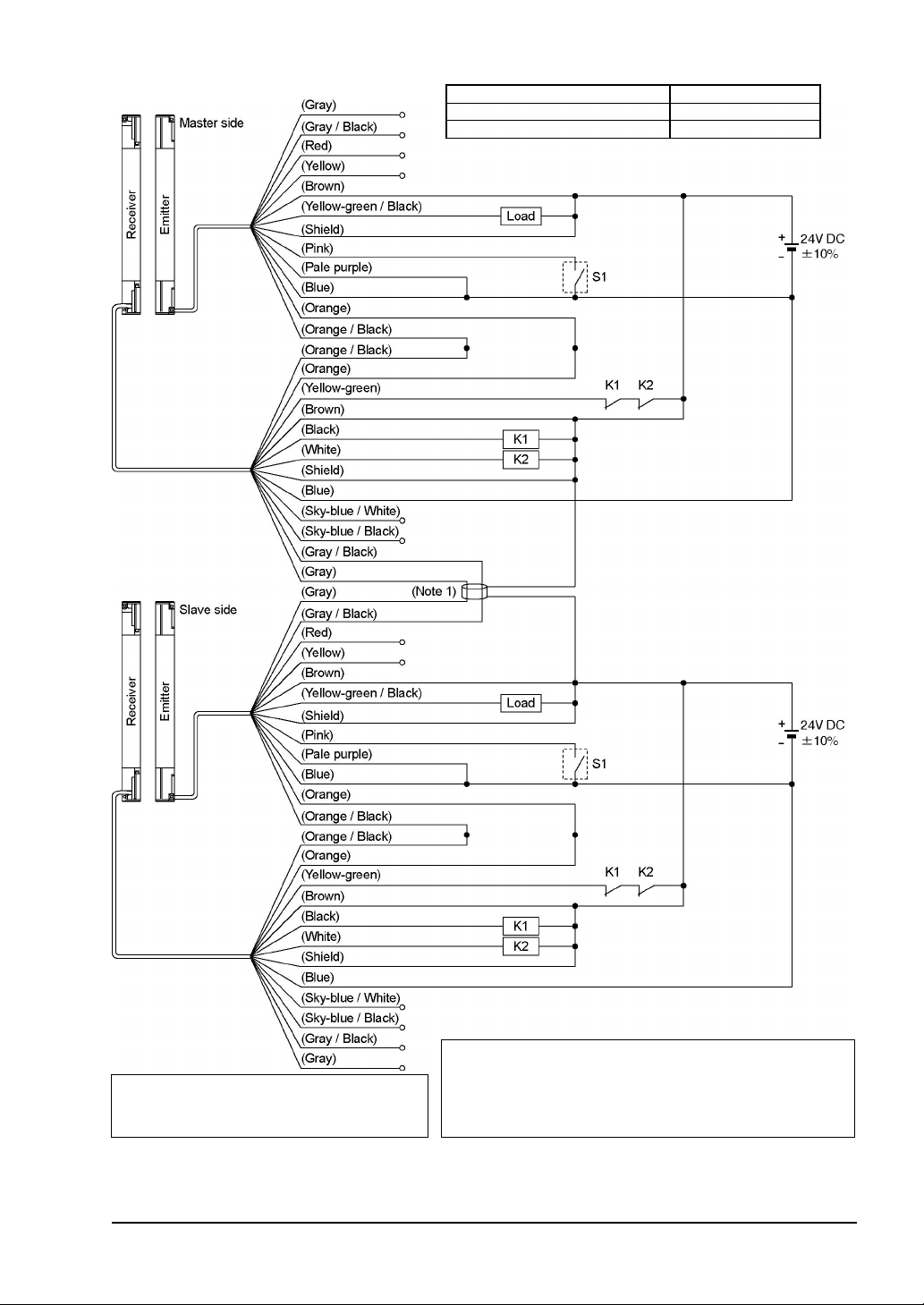

2-5-8 Series and Parallel Mixed Connection······································48
2-5-9 Wiring for Auto-reset (Interlock is Invalid)·································51
2-5-10 Wiring Configuration for Invalid External Device
2-5-11 Connection Configuration for Valid Muting Function ················55
2-6 Adjustment ·············································································57
2-6-1 Beam-axis Alignment ································································57
2-6-2 Operation Test···········································································59
2-6-3 Operation···················································································60
㨯
Connecting Procedure and Connector Pin
Arrangement··············································································37
Monitor Function ·······································································53
Chapter 3 Functions························································· 67
3-1 Self-diagnosis Function··························································67
3-2 Interlock Function···································································67

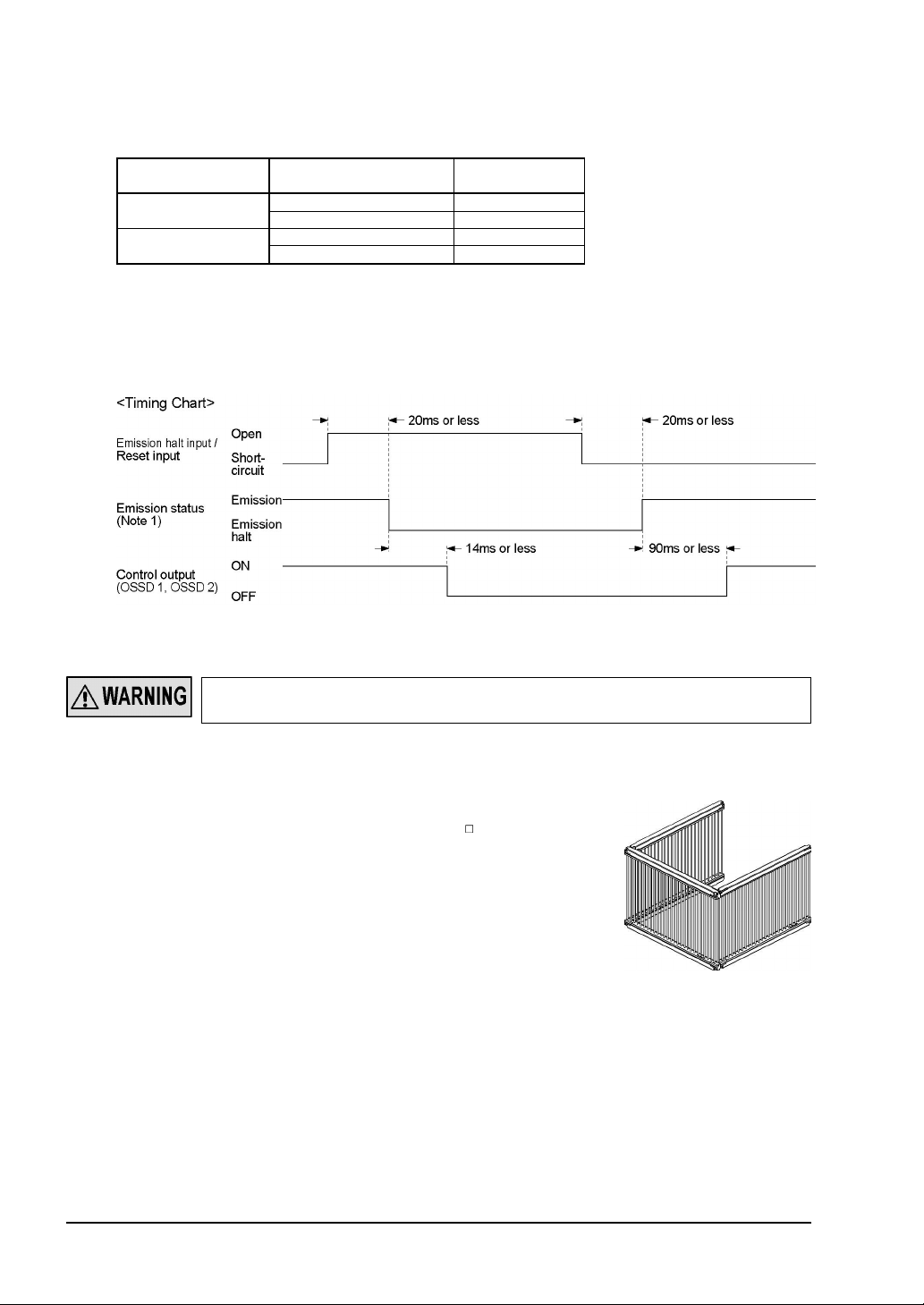

3-3 Emission Halt Function ··························································68
3-4 Interference Prevention Function ···········································68
3-5 Auxiliary Output (Non-safety Output) ·····································69
3-6 External Device Monitor Function ··········································69
3-7 Muting Function ·····································································70
3-8 Override Function ··································································74
SUNX Limited MJE-SF4B01 No.0005-03V
- 4 -
Chapter 4 Maintenance···················································· 76
4-1 Daily Inspection ····································································· 76
4-2 Periodic Inspection (Every Six Months) ································· 77
4-3 Inspection after Maintenance ················································ 78
Chapter 5 Troubleshooting ············································· 79
5-1 Troubleshooting of Emitter····················································· 79
5-2 Troubleshooting of Receiver·················································· 81
Chapter 6 Specifications · Dimensions ·························· 83

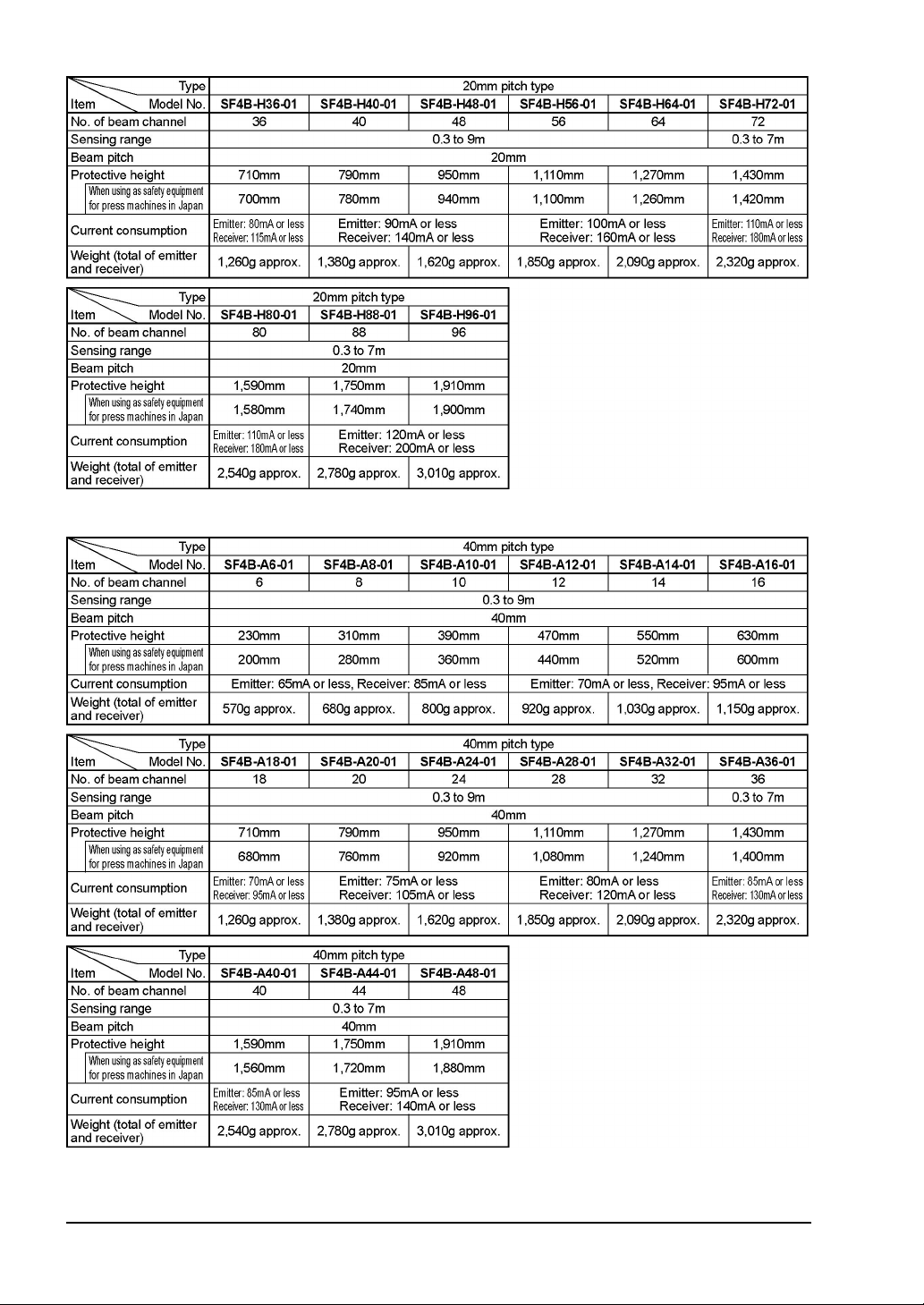

6-1 Specifications ········································································ 83
6-2 Options ·················································································· 86
6-3 Dimensions············································································ 92

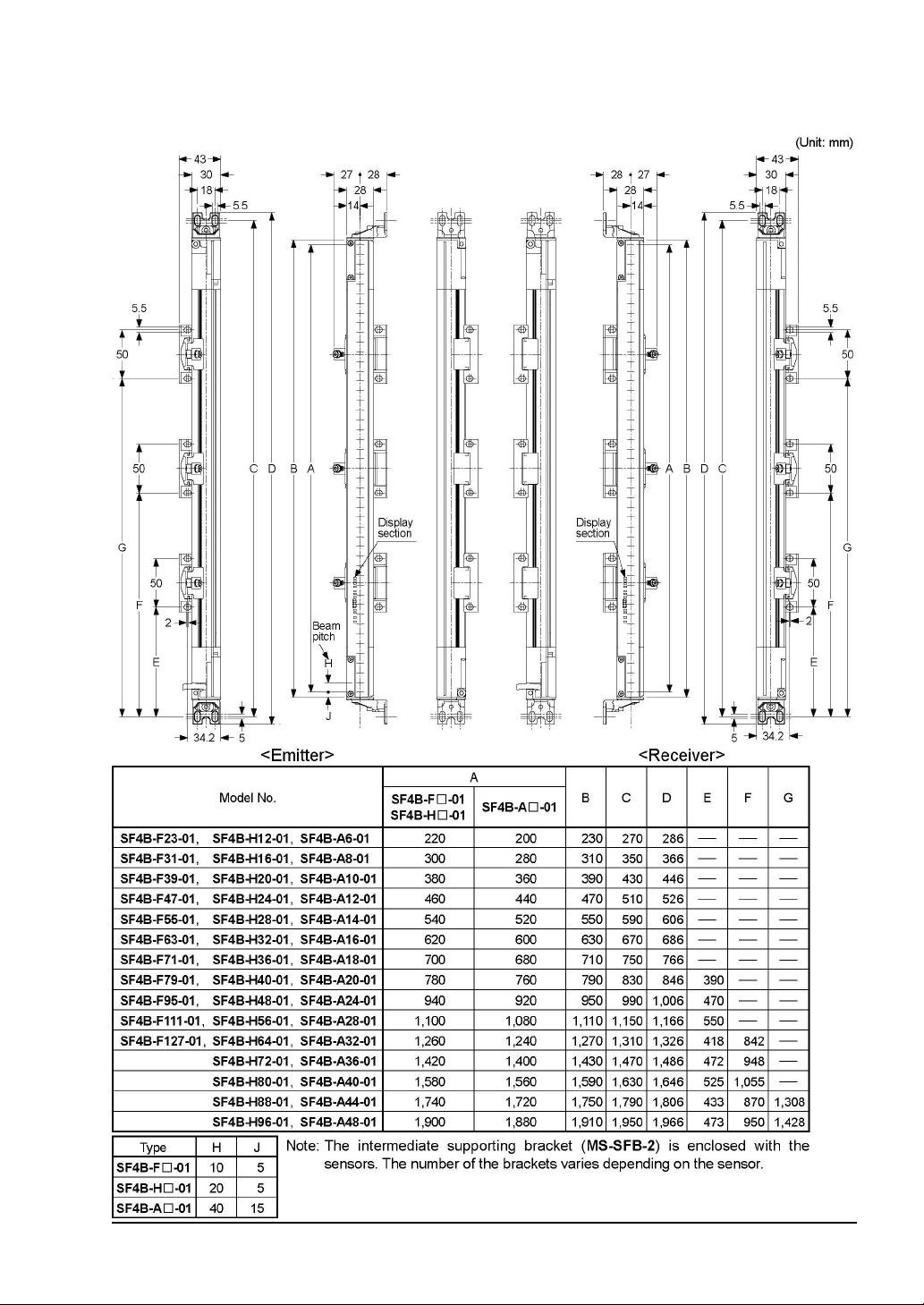

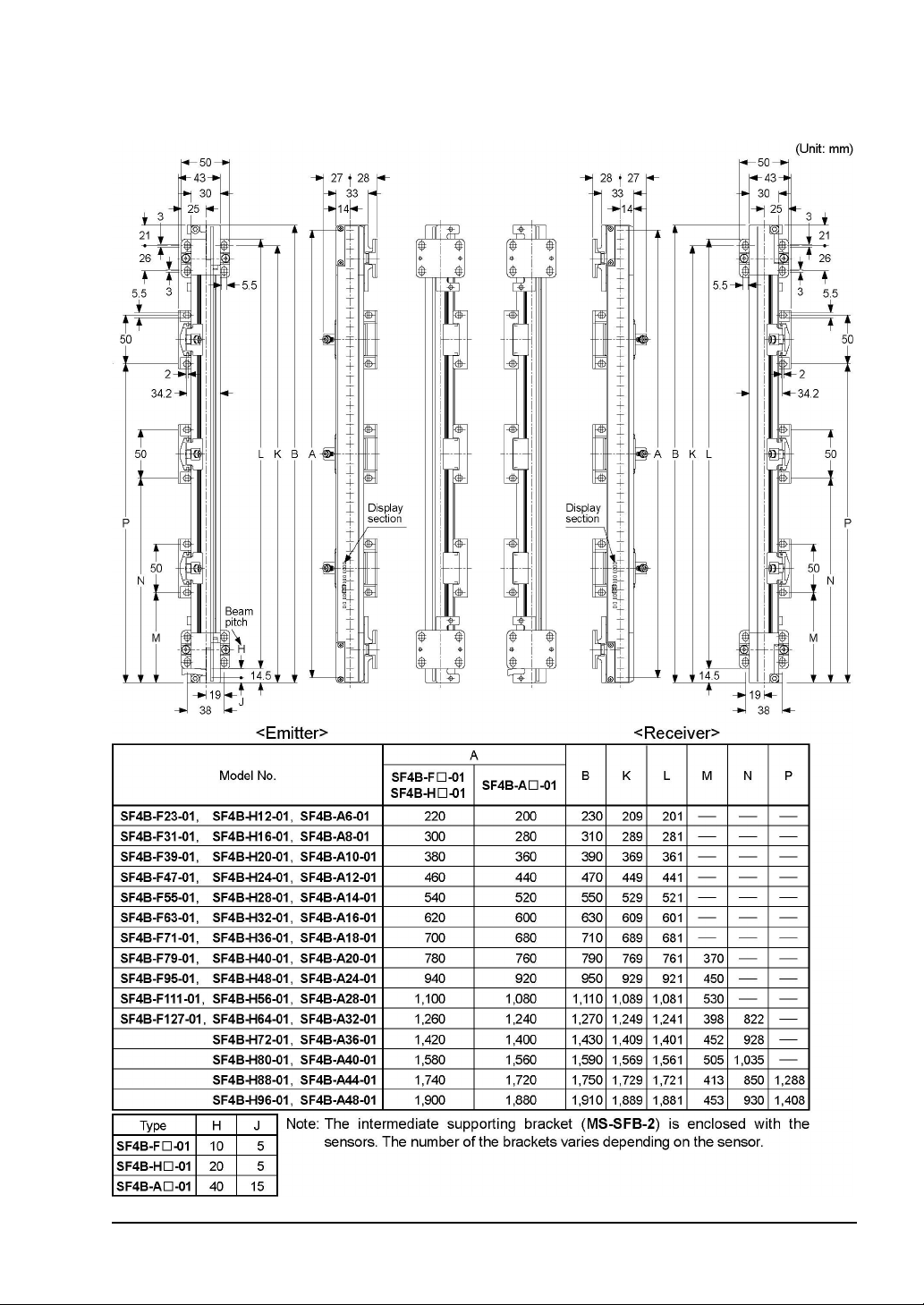

6-3-1 Rear Mounting with Standard Mounting Bracket (

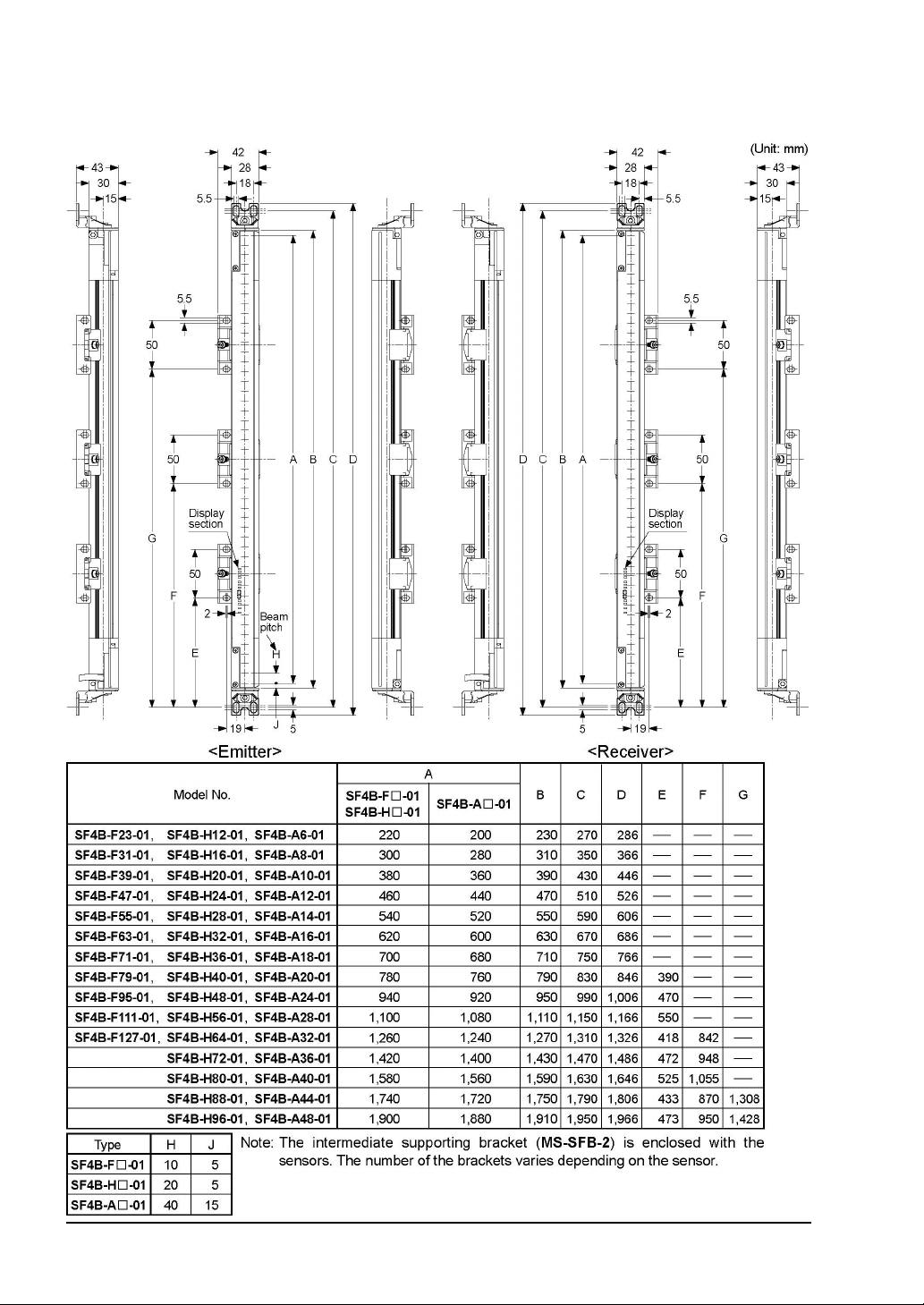

6-3-2 Side Mounting with Standard Mounting Bracket (
6-3-3 Rear Mounting with Dead Zoneless Mounting
Bracket (
6-3-4 Side Mounting with Dead Zoneless Mounting
Bracket (

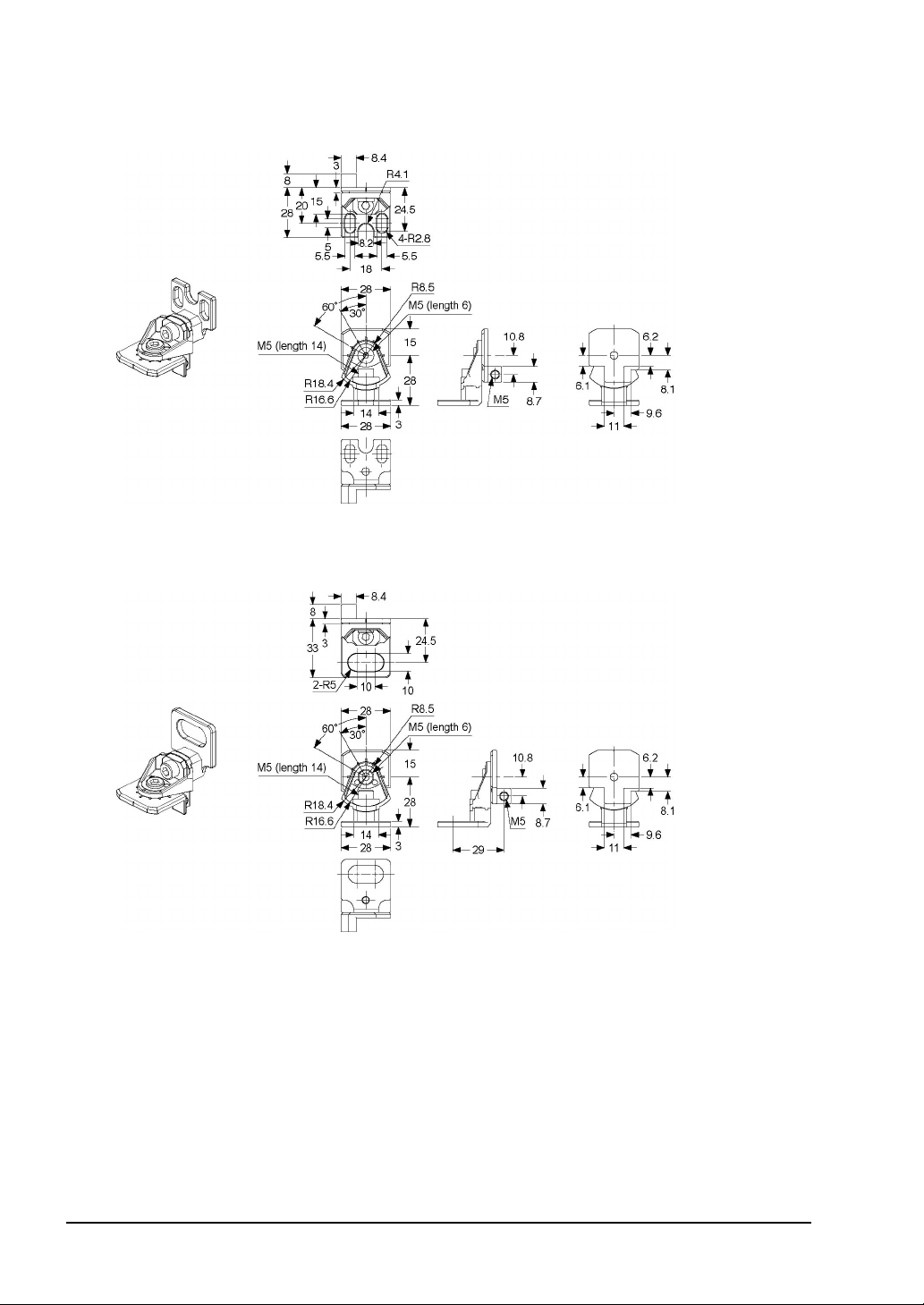

6-3-5 Mounting Brackets···································································· 96
MS-SFB-3
MS-SFB-3
)································································· 94
)································································· 95
MS-SFB-1
MS-SFB-1
)· 92
)·93
Chapter 7 Others······························································ 99
7-1 Glossary ················································································ 99
When this device is used as safety equipment for press machines in Japan, be sure to familiarize yourself with the following.
Chapter 1 1-2 Safety Precautions··································································6, 8
Chapter 1 1-3 Applicable Standards / Regulations ········································9, 10
Chapter 2 2-2 Part Description ······································································12
Chapter 2 2-3 Protection Area ·······································································19, 20
Chapter 2 2-4 Mounting ·················································································23, 28, 29, 31, 32
Chapter 2 2-5 Wiring······················································································37
Chapter 2 2-6 Adjustment ··············································································59
Chapter 3 3-7 Muting Function ······································································72
Chapter 4 4-1 Daily Inspection ······································································77
Chapter 6 6-1 Specifications ··········································································83, 84
Chapter 6 6-2 Options ···················································································88, 90
Chapter 6 6-3 Dimensions ·············································································92, 93, 94, 95
SUNX Limited MJE-SF4B01 No.0005-03V
- 5 -
Chapter 1 Introduction
1-1
Attention Marks
This instruction manual employs the following attentions marks , depending on the degree of the danger to call operator’s attention to each particular action.
Read the following explanation of these marks thoroughly and observe these notices without
fail.
If you ignore the advice with this mark, death or serious injury could result.
If you ignore the advice with this mark, injury or material damage could
result.
<Reference>
1-2
Safety Precautions
Use this device as per its specifications. Do not modify this device since its functions and
capabilities may not be maintained and it may malfunction.
This device has been developed / produced for industrial use only.
Use of this device under the following conditions or environment is not presupposed.
Please consult us if there is no other choice but to use this device in such an environment.
1) Operating this device under conditions and environment not described in this manual.
2) Using this device in the following fields: nuclear power control, railroad, aircraft,
automobiles, combustion facilities, medical systems, aerospace development, etc.
When this device is to be used for enforcing protection of a person from any danger occurring around an operating machine, the user should satisfy the regulations established
by national or regional security committees (Occupational Safety and Health Administration: OSHA, the European Standardization Committee, etc.). Contact the relative organization(s) for details.
In case of applying this device to particular equipment, follow the safety regulations in
regard to appropriate usage, mounting (installation), operation and maintenance. The
users including the installation operator are responsible for the introduction of this device.
Use this device by installing suitable protection equipment as a countermeasure for failure, damage, or malfunction of this device.
Before using this device, check whether the device performs properly with the functions
and capabilities as per the design specifications.
In case of disposal, dispose this device as industrial waste.
It gives useful information for better use of this device.
When using this device as safety equipment for press machines in Japan, be sure to use the
device in combination with cable with protective tube (
- 6 -
SFPB-
) (optional).
SUNX Limited MJE-SF4B01 No.0005-03V
Machine designer, installer, employer and operator
The machine designer, installer, employer and operator are solely responsible to ensure that all applicable legal requirements relating to the installation and the use in any
application are satisfied and all instructions for installation and maintenance contained
in the instruction manual are followed.
Whether this device functions as intended to and systems including this device comply
with safety regulations depends on the appropriateness of the application, installation,
maintenance and operation. The machine designer, installer, employer and operator
are solely responsible for these items.
Engineer
The engineer would be a person who is appropriately educated, has widespread
knowledge and experience, and can solve various problems which may arise during
work, such as a machine designer, or a person in charge of installation or operation etc.
Operator
The operator should read this instruction manual thoroughly, understand its contents,
and perform operations following the procedures described in this manual for the correct operation of this device.
In case this device does not perform properly, the operator should report this to the
person in charge and stop the machine operation immediately. The machine must not
be operated until correct performance of this device has been confirmed.
Environment
Do not use a mobile phone or a radio phone near this device.
If there exists a reflective surface in the place where this device is to be installed, make
sure to install this device so that reflected light from the reflective surface does not
enter into the receiver, or take countermeasures such as painting, masking, roughening, or changing the material of the reflective surface, etc. Failure to do so may cause
the sensor not to detect, resulting in death or serious injury.
Do not install this device in the following environments.
1) Areas exposed to intense interference (extraneous) light such as direct sunlight
2) Areas with high humidity where condensation is likely to occur
3) Areas exposed to corrosive or explosive gases
4) Areas exposed to vibration or shock of levels higher than that specified
5) Areas exposed to contact with water
6) Areas exposed to too much steam or dust
7) Areas where the beam-receiving part of this device is directly exposed to light from
high-frequency fluorescent lamp (inverter type) or rapid starter fluorescent lamp.
Installation
Always keep the correctly calculated safety distance between this device and the
dangerous parts of the machine.
Install extra protection structure around the machine so that the operator must pass
through the sensing area of this device to reach the dangerous parts of the machine.
Install this device such that some part of the operator’s body always remains in the
sensing area when operator is done with the dangerous parts of the machine.
Do not install this device at a location where it can be affected by wall reflection.
When installing multiple sets of this device, connect the sets and, if necessary, install
some barriers such that mutual interference does not occur.
Do not use this device in a reflective configuration.
The corresponding emitter and receiver must have the same serial No. and be correctly oriented.
SUNX Limited MJE-SF4B01 No.0005-03V
- 7 -
Equipment in which this device is installed
When this device is used in the ‘PSDI Mode’, an appropriate control circuit must be
configured between this device and the machinery. For details, be sure to refer to the
standards or regulations applicable in each region or country.
Do not install this device with a machine whose operation cannot be stopped immediately in the middle of an operation cycle by an emergency stop equipment.
This device starts the performance after 2 seconds from the power ON. Have the
control system started to function with this timing.
Wiring
Be sure to carry out the wiring in the power supply off condition.
All electrical wiring should conform to the regional electrical regulations and laws.
The wiring should be done by engineer(s) having the special electrical knowledge.
Do not run the sensor cable together with high-voltage lines or power lines or put them
together in the same raceway.
In case of extending the cable of the emitter or the receiver, each can be extended up
to 50m by using the exclusive cable. Furthermore, if the cable is extended in the state
that the sensor is in series connection, or the muting lamp is used, the total extendable
length of the cable depends on the number of the sensors in series connection.
For details, refer to ‘
rangement
Do not control the device only at one control output (OSSD 1, OSSD 2).
Maintenance
When replacement parts are required, always use only genuine supplied replacement
’.

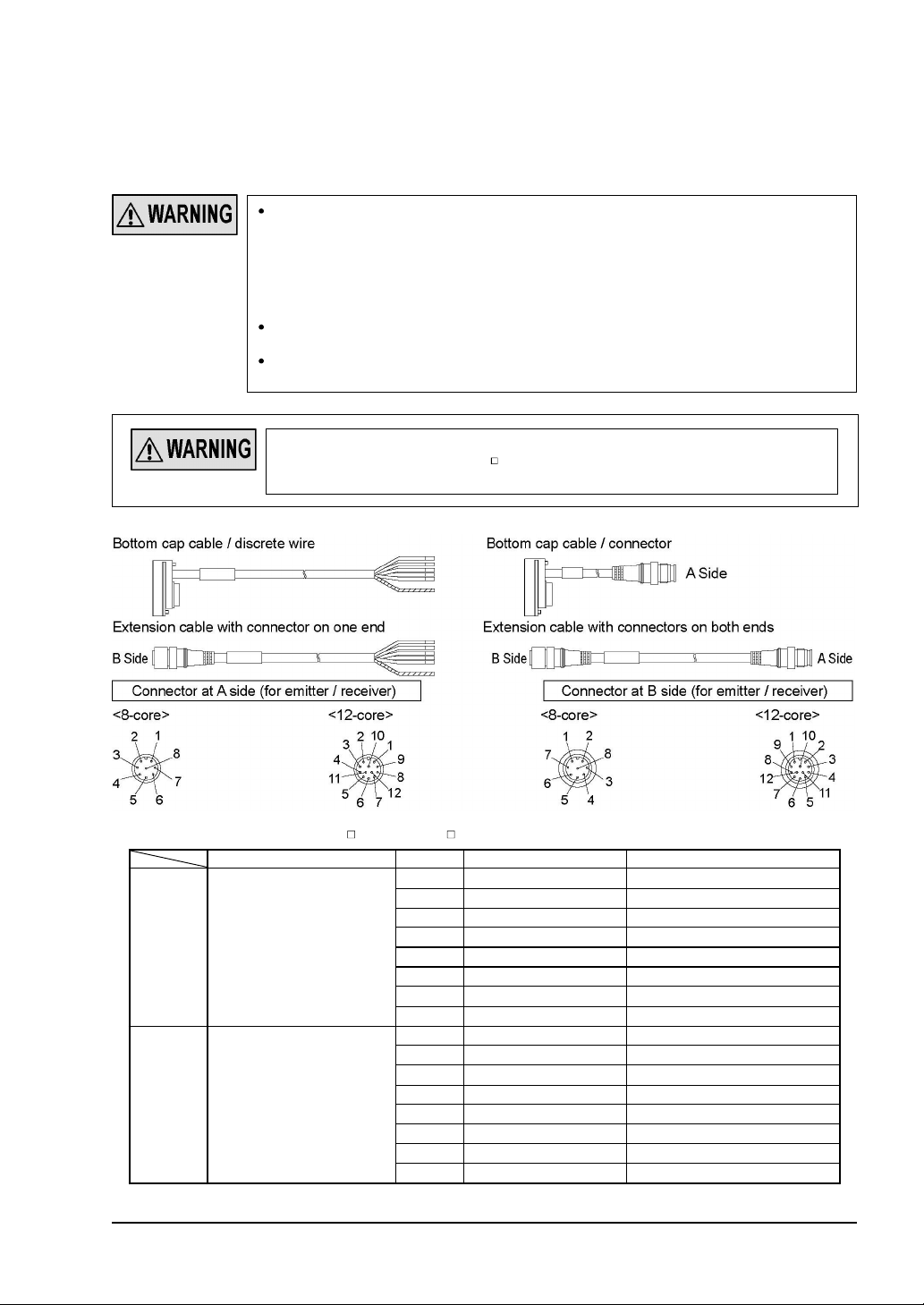

2-5-3 Wiring㨯Connecting Procedure and Connector Pin Ar-
parts. If substitute parts from another manufacturer are used, the sensor may not come
to detect, result in death or serious body injury.
The periodical inspection of this device must be performed by an engineer having the
special knowledge.
After maintenance or adjustment, and before starting operation, test this device following the procedure specified in ‘
Clean this device with a clean cloth. Do not use any volatile chemicals.
Others
Never modify this device. Modification may cause the sensor not to detect, resulting in
Chapter 4 Maintenance
’.
death or serious body injury.
Do not use this device to detect objects flying over the sensing area.
Do not use this device to detect transparent objects, translucent objects or objects
smaller than the specified minimum sensing objects.
When using this product as safety equipment for press machines in Japan, do not use this
device with press machines that do not satisfy the following specifications.
Item Specifications
Model
Pressure capacity 50,000kN or less
Sudden stop time 500ms or less
Stroke length (Within protective height and slide adjustment range)
Range of die size Within bolster width
- 8 -
Press machine having sudden stop device and restart
Prevention mechanism
SUNX Limited MJE-SF4B01 No.0005-03V
1-3
e
e
r
Applicable Standards / Regulations
This device complies with the following standards / regulations.
<EU Directives>
EU Machinery Directive 98/37/EC, EMC Directive 89/336/EEC
<European Standards>
EN 61496-1 (Type 4), EN 55011, EN 954-1 (Category 4)
<International Standards>
IEC 61496-1/2 (Type 4)
<Japanese Industrial Standards (JIS)>
JIS B 9704-1/2 (Type 4), JIS B 9705-1 (ISO 13849-1) (Category 4)
<Standards in U.S. / Canada)>
UL 61496-1/2 (Type 4), UL 1998, CSA C22.2 No.14, CSA C22.2 No.0.8
<Regulations in U.S.>
OSHA 1910.212, OSHA 1910.217(C), ANSI B11.1 to B11.19, ANSI/RIA 15.06
Regarding EU Machinery Directive, a Notified Body, UL International Demko A/S, has certified with the type examination certificate.
With regard to the standards in US / Canada, a NRTL, UL (Underwriters Laboratories Inc.)
has certified for Canada-U.S. Listing.
<Reference>
The conformity to JIS, OSHA and ANSI for this device has been evaluated by ourselves.
The C-CL US Listing Mark
This device conforms to the EMC directive and the Machinery directive. The
body indicates that this product conforms to the EMC directive.
indicates compliance with both Canadian and U.S. requirements.
mark on the sensor main
<Regulations in Japan>
Standards for press machine or shears safety equipment structure
(Ministry of Health, Labor and Welfare Notice No.102, issued September 21, 1978)
This product satisfies the ‘Model Examination’ as set forth in the Japanese Industrial Safety
and Health Laws Provision 44-2 as indicated below.
When this device is used as safety equipment for press machines, be sure to use th
cable with protective tube (
(
SFPB-
) (optional) is not used, this device cannot be used as safety equipment fo
press machines.
SFPB-
) (optional). If the cable with protective tub
<When using this device on its own>
Model Examination No.: No.TA347
Conforming Standards: Standards for press machine or shear safety equipment structure
(Ministry of Health, Labor and Welfare Notice No.102, issued September 21, 1978)
* No.TA347 is a Model Examination No. for this device only.
Up to three sets (maximum number of the beam channel: 192 beam channels) can be
connected in series connection.
* The Model Examination No.TA347 is indicated on the device.
SUNX Limited MJE-SF4B01 No.0005-03V
- 9 -
<When using this device in combination with the control unit SF-C11>
Model Examination No.: No.TA348
Conforming Standards: Standards for press machine or shear safety equipment structure
(Ministry of Health, Labor and Welfare Notice No.102, issued September 21, 1978)
* No.TA348 is a Model Examination No. for the combination of the
SF-C11
and this device.
Up to three sets (maximum number of the beam channel: 192 beam channels) can be
connected in series connection.
* The Model Examination No.TA348 is indicated on
(The Model Examination No.TA347 is indicated on this device.)
SF-C11
.
<When using this device in combination with the control unit SF-C13>
Model Examination No.: No.TA349
Conforming Standards: Standards for press machine or shear safety equipment structure
(Ministry of Health, Labor and Welfare Notice No.102, issued September 21, 1978)
* No.TA349 is a Model Examination No. for the combination of the
SF-C13
and this device.
Up to three sets (maximum number of the beam channel: 192 beam channels) can be
connected in series connection.
* The Model Examination No.TA349 is indicated on
(The Model Examination No.TA347 is indicated on this device.)
SF-C13
.
<When using this device in combination with the application expansion unit
SF-C14EX-01>
Model Examination No.: No.TA350
Conforming Standards: Standards for press machine or shear safety equipment structure
(Ministry of Health, Labor and Welfare Notice No.102, issued September 21, 1978)
* No.TA350 is a Model Examination No. for the combination of the
SF-C14EX-01
and this
device.
Up to three sets (maximum number of the beam channel: 192 beam channels) can be
connected in series connection.
* The Model Examination No.TA350 is indicated on
(The Model Examination No.TA347 is indicated on this device.)
SF-C14EX-01
.
1-4
Confirmation of Packed Contents
Sensor: Emitter, Receiver each 1pc.
Test Rod 1 pc.
For
SF4B-F -01:SF4B-TR14
Intermediate Supporting Bracket (
Note: The intermediate support bracket (
fers depending on the product as shown below:
- 10 -
SF4B-F -01
1 set :
SF4B-H -01
SF4B-A -01
SF4B-F127-01, SF4B-H -01
2 sets :
SF4B-A -01
SF4B-H -01
3 sets :
SF4B-A -01
Instruction Manual (this manual) 1 pc.
… Sensor with 79 to 111 beam channels
… Sensor with 40 to 56 beam channels
… Sensor with 20 to 28 beam channels
… Sensor with 32 to 40 beam channels
… Sensor with 88 to 96 beam channels
… Sensor with 44 to 48 beam channels
(ø 14 x 220mm), For
MS-SFB-2
MS-SFB-2
… Sensor with 64 to 80 beam channels
) is enclosed with the following products. The quantity dif-
SF4B-H -01:SF4B-TR25 (Ǿ
) 0 to 3 sets
SUNX Limited MJE-SF4B01 No.0005-03V
25 x 220mm)
Chapter 2 Before Using This Device
2-1
Features
This device is the light curtain with the following features.
No special controller is required.
The control output (OSSD 1, OSSD 2) is PNP / NPN output switching type.
Beam-axis alignment indicators which make beam-axis alignment easy are incorporated.
Refer to ‘
2-2
Part Description
6-2 Options
’ for details of options.
SUNX Limited MJE-SF4B01 No.0005-03V
- 11 -
<Emitter>
It emits light to the receiver facing it. Furthermore, the status of the emitter and the receiver is
indicated on its display section.
<Receiver>
It receives light from the emitter facing it. Simultaneously, it turns ON the control output
(OSSD 1, OSSD 2) when the all beam channels receive light from emitter, and it turns OFF
the control output (OSSD 1, OSSD 2) when one or more beam channels are blocked light.
Besides, the receiver displays its status on the display section.

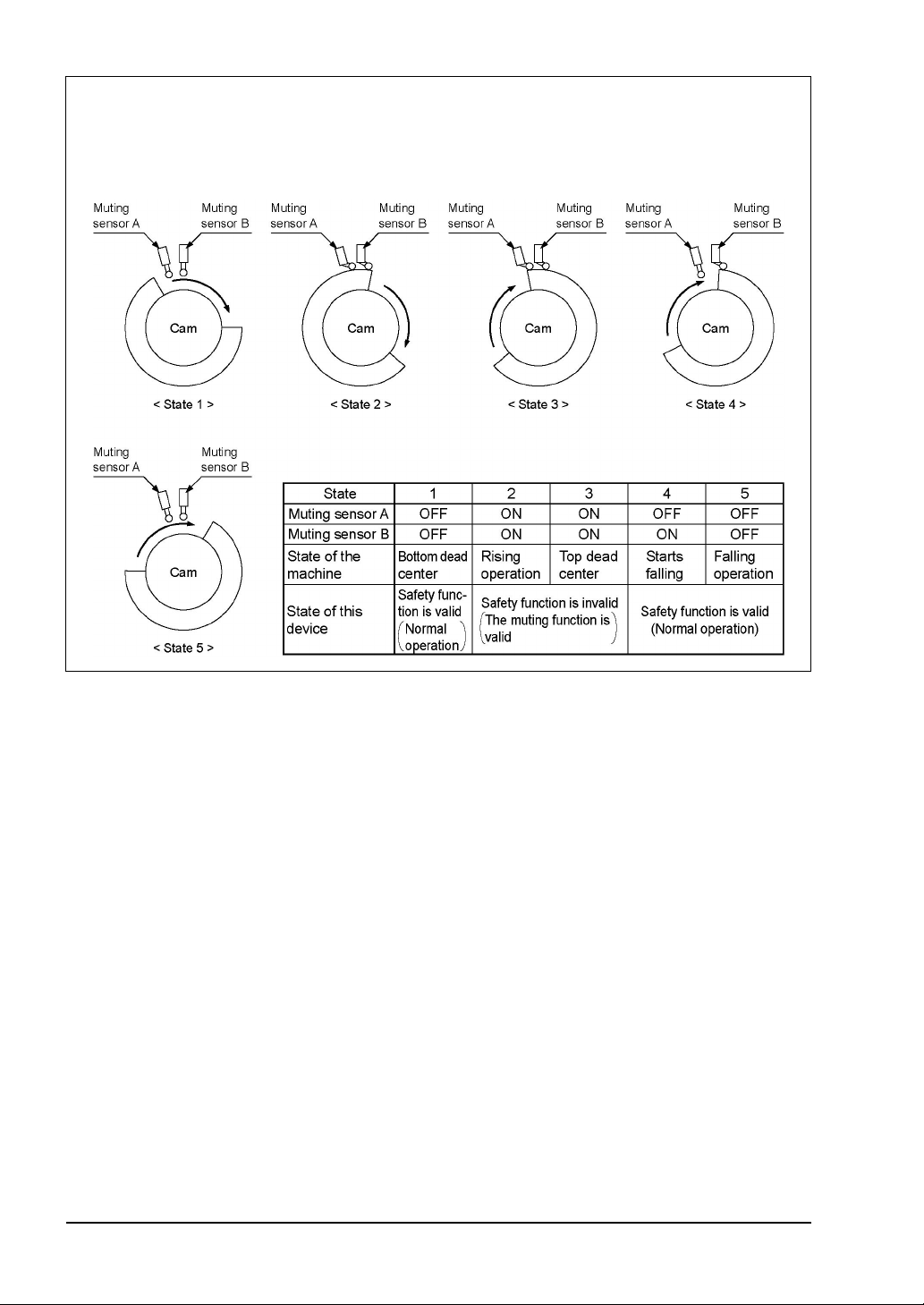

Note: In case of using the muting function, the following items, 12-core bottom cap cable (
SFB-CCB -MU
bottom cap cable, muting sensor, and muting lamp separately.
) (optional), muting sensor and muting lamp are required. Please purchase 12-core
SFB-CB05-MU
When this device is used as safety equipment for press machines in Japan, use
SFPB-CB05-MU
/
SFPB-CCB -MU
(optional) for 12-core bottom cap cable.
<Beam channel>
The light emitting elements of the emitter and the light receiving elements of the receiver are
placed at the following intervals, 10mm (
(
SF4B-A -01
).
SF4B-F -01
), 20mm (
SF4B-H -01
),and 40mm
<Standard mounting bracket (optional)>
This bracket is to be used for mounting the emitter / receiver. It enables to adjust the horizontal mounting angle using the standard mounting bracket.
<M8 mounting bracket (optional)>
This allows the light curtain to be mounted at the rear side with one M8 hexagon-socket-head
bolt. Horizontal angle can be adjusted.
,
<Pitch adapter bracket (optional)>
This is used as the mounting bracket when changing over a previous light curtain with a
protective height of 200 to 750mm to this device. It is installed using two M5 hexagon-socket-head bolts. Horizontal angle can be adjusted.
<M8 pitch adapter bracket (optional)>
This is used as the mounting bracket when changing over a previous light curtain with a
protective height of 200 to 750mm to this device. It is installed using two M8 hexagon-socket-head bolts. Horizontal angle can be adjusted.
<Dead zoneless mounting bracket (optional)>
This dead zoneless bracket is used for mounting both emitter and receiver. This bracket is
useful for mounting the sensor to the limited mounting space.
<Intermediate supporting bracket (optional)>
This bracket is to be used for mounting the sensor having 79 beam channels or more for
SF4B-F -01,
SF4B-A -01
40 beam channels or more for
.
SF4B-H -01
, 20 beam channels or more for
- 12 -
SUNX Limited MJE-SF4B01 No.0005-03V

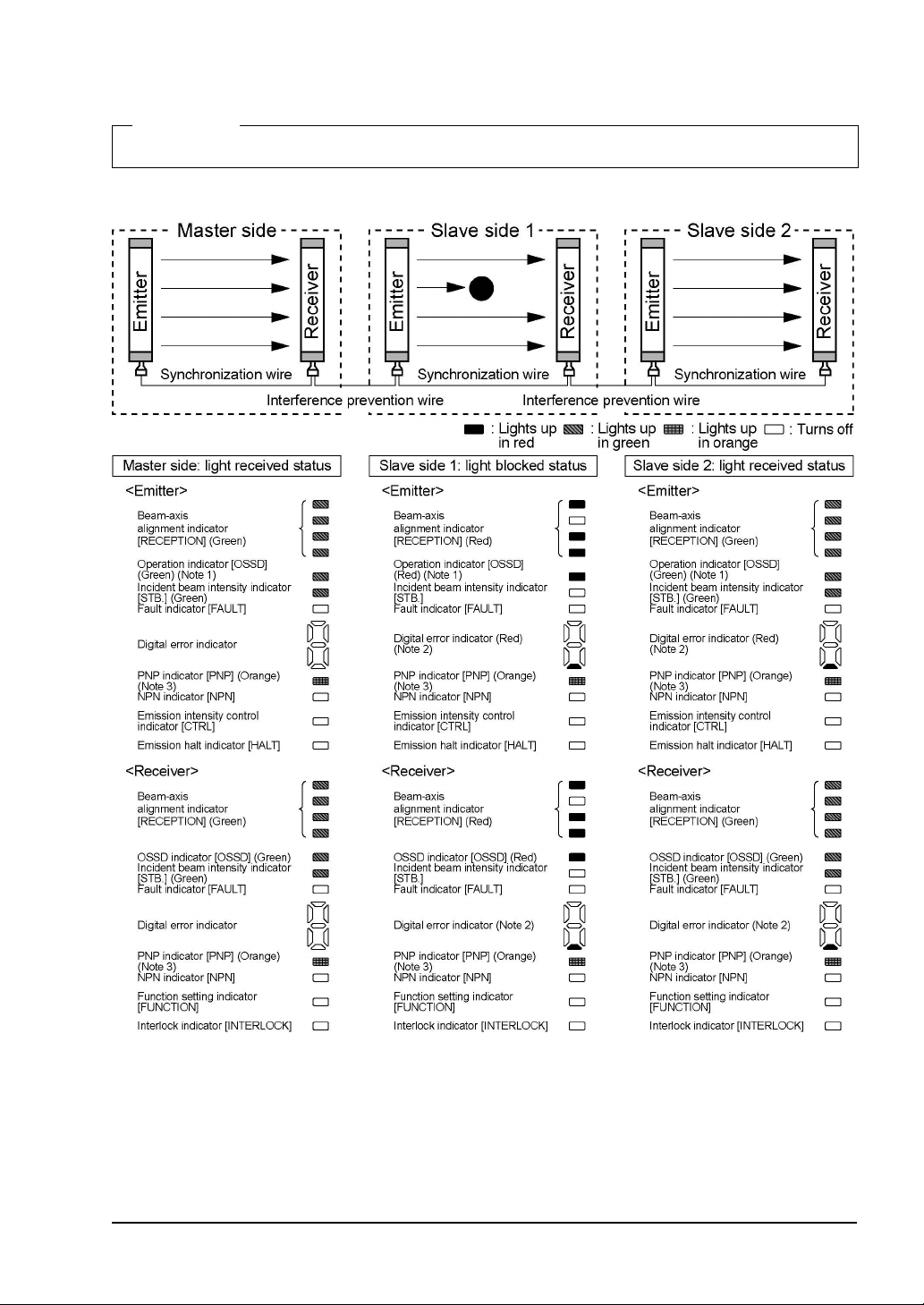

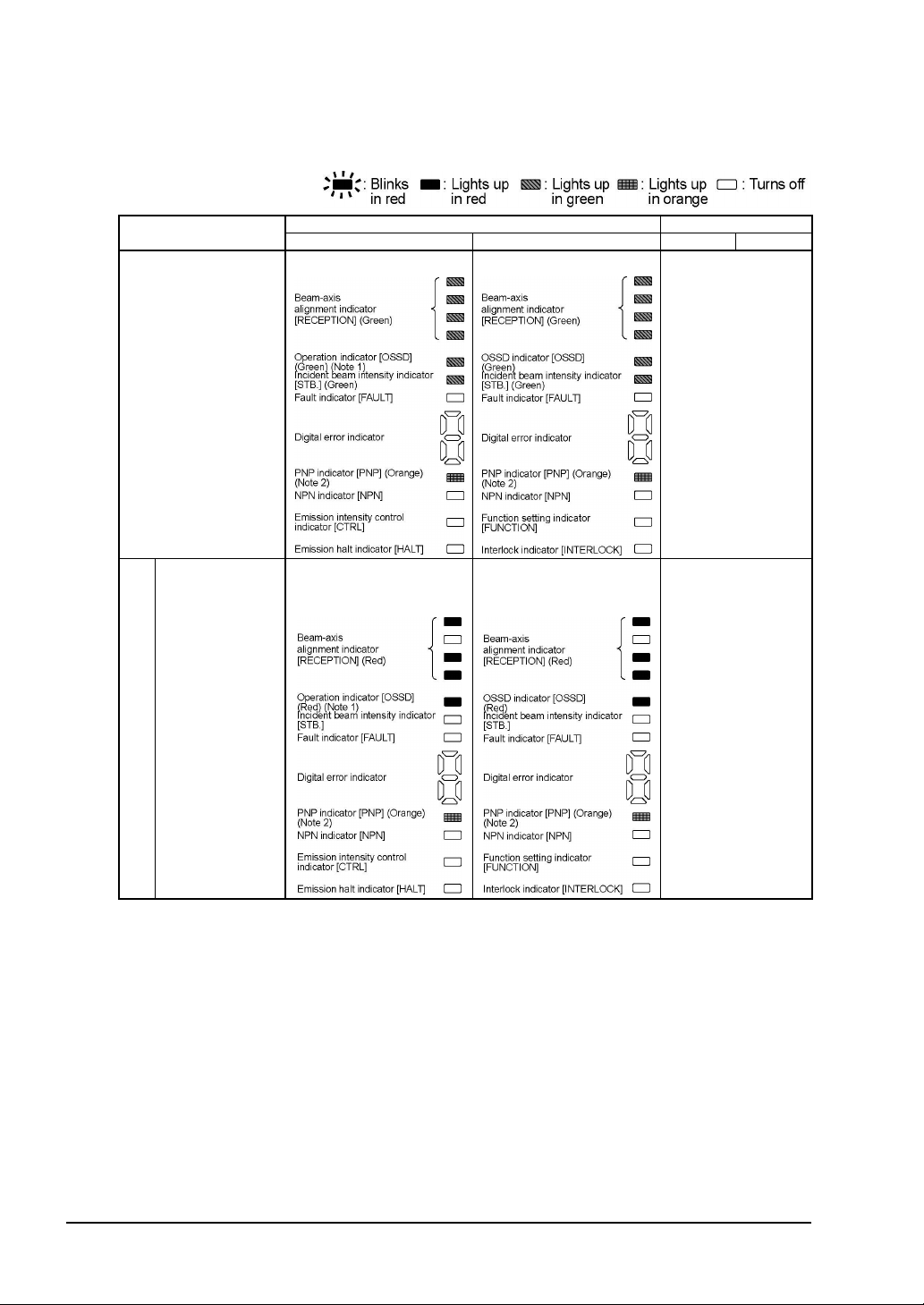

<Display section>
Notes: 1) Since the color of the operation indicator changes according to ON / OFF status of the control output (OSSD
2) The threshold where the control output (OSSD 1, OSSD 2) changes from OFF to ON is applied as ‘100%
3) The status ‘when light is blocked’ refers to the status that the some obstacle is existed in the sensing area.
4) The description given in [ ] is marked on the sensor.
1, OSSD 2), the operation indicator is marked as ‘OSSD’ on the sensor.
incident beam intensity’.
SUNX Limited MJE-SF4B01 No.0005-03V
- 13 -
2-3
y
Protection Area
2-3-1 Sensing Area
Be sure to install protection structure around the machine so that the operator must pass
through the sensing area of this device to reach the dangerous parts of the machine.
Furthermore, ensure that some part of the operator’s body always remains in the sensing
area when operation is done with the dangerous parts of the machine. Failure to do so can
result in serious injury or death.
Do not use any reflection type or recursive reflection type arrangement.
When connecting the sensor, use the correct combination of emitter and receiver (same
beam pitch and number of beam channels) and match their top-bottom orientation. Combining different types of emitter and receiver could produce a non-sensing area, which ma
result in serious injury or death.
Furthermore, facing several receivers towards one emitter, or vice versa, could produce a
non-sensing area or cause mutual interference, which may result in serious injury or death.
The sensing area is the zone formed by the sensing height of the sensor and the sensing
range between the emitter and the receiver. The sensing height is determined by the number
of beam channels. Furthermore, the sensing range can be 0.3 to 9m for
64 beam channels) and
and
SF4B-H -01
(72 to 96 beam channels) and
SF4B-A -01
(6 to 32 beam channels), 0.3 to 7m for
SF4B-A -01
(36 to 48 beam channels).
Take care that the sensing range becomes short after mounting either protection cover
FC-SFBH-
(
) (optional). Take care that if the sensing range is less than 0.3m, malfunction
may occur due to the optical structure.
SF4B-H -01
(12 to
SF4B-F -01
<Example of Correct Installation>
<Example of Incorrect Installation>
- 14 -
SUNX Limited MJE-SF4B01 No.0005-03V
2-3-2 Safety Distance
r
t
t
Calculate the safety distance correctly, and always maintain the distance which is equal to o
greater than the safety distance, between the sensing area of this device and the dangerous
parts of the machine. If the safety distance is miscalculated or if sufficient distance is no
maintained, the machine will not stop quickly before reaching to the dangerous parts, which
can result in serious injury or death.
The safety distance is the minimum distance that must be maintained between the light curtain and the dangerous parts of the machine so that the machine can be stopped before a
human body or an object can reach the dangerous parts.
The safety distance is calculated based on the equation described in the next page when a
person moves perpendicular (normal intrusion) to the sensing area of the area sensor.
Before designing the system, refer to the relevant standards of the region where this device is
to be used, and then install this device.
Furthermore, the equation described in the next pages is to be used only in case the intrusion
direction is perpendicular to the sensing area. In case the intrusion direction is not perpendicular to the sensing area, be sure to refer to the relevant standard (regional standard,
specification of the machine, etc.) for details of the calculation.
The max. response time of the machine is from the point that the machine receives the hal
signal from this device to the point that the dangerous part of the machine stops. The max.
response time of the machine should be timed with the machine to be actually used.
SUNX Limited MJE-SF4B01 No.0005-03V
- 15 -
[For use in Europe (EU) (as EN 999)] (Also applicable to ISO 13855)
(For intrusion direction perpendicular to the sensing area)
<In case that the minimum sensing object is ø40mm or less>
Equation 1 S = K x T + C
S : Safety distance (mm)
Minimum required distance between the sensing area surface and the dangerous
parts of the machine
K : Intrusion velocity of operator’s body or object (mm/s)
Taken as 2,000 (mm/s) for calculation
T : Response time of total equipment (s)
T = Tm+ T
SF4B01
Tm: Maximum halting time of device (s)
T
SF4B01
: Response time of this device (s)
C : Additional distance calculated from the size of the minimum sensing object of
the sensor (mm)
However, the value of C cannot be 0 or less.
C = 8 x (d - 14)
d: Minimum sensing object diameter (mm)
<Reference>
For calculating the safety distance S, there are the following five cases.
First calculate by substituting the value K = 2,000 (mm/s) in the equation above. Then, classify the obtained
value of S into three cases, 1) S < 100, 2) 100
For Case 3) S > 500, recalculate by substituting the value K = 1,600 (mm/s). After that, classify the calculation
result into two cases, 4) S
’.
Europe
For calculating T
When this device is used in the ‘PSDI Mode’, an appropriate safety distance S must be calculated.
For details, be sure to refer to the standards or regulations applicable in each region or country.
m
(maximum halt time of the device), use a special device called a ‘brake monitor’.
500 and 5) S > 500. For details, refer to ‘
S 500, and 3) S > 500.
Calculation Example 1 For use in
<In the case the minimum sensing object is ø40mm or less>
Equation S = K x T + C
S : Safety distance (mm)
K : Intrusion velocity of operator’s body or object (mm/s)
Taken as 1,600 (mm/s) for calculation
T : Response time of total equipment (s)
T = Tm+ T
SF4B01
T
m
: Maximum halting time of device (s)
T
SF4B01
: Response time of this device (s)
C : Additional distance calculated from the size of the minimum sensing object of
the sensor (mm)
C = 850 (mm)
- 16 -
SUNX Limited MJE-SF4B01 No.0005-03V
<Calculation Example>
Calculation Example 1 For use in Europe
(OFF response time: 14ms or less, minimum sensing object diameter: 14mm)
First, calculate with K = 2,000.
S = K x T + C
= K x (T
= 2,000 x (T
= 2,000 x T
= 2,000 x T
m
+ T
) + 8 x (d - 14)
SF4B01
+ 0.014) + 8 x (14 - 14)
m
+ 2,000 x 0.014
m
+ 28
m
If the result is:
1) In case S < 100 (mm)
Safety distance S is taken as 100 (mm)
2) In case 100
Safety distance S is taken as 2,000 x T
S 500 (mm)
+ 28 (mm)
m
3) In case S > 500 (mm)
S = K’ x (T
= 1,600 x (T
= 1,600 x T
= 1,600 x T
+ T
m
) + 8 x (d - 14)
SF4B01
+ 0.014) + 8 x (14 - 14)
m
+ 1,600 x 0.014
m
+ 22.4
m
then, calculate again.
If the result is:
4) In case S
500 (mm)
Safety distance S is taken as 500 (mm)
5) In case S > 500 (mm)
Safety distance S is taken as 1,600 x T
+ 22.4 (mm)
m
In case this device is installed in a system with a maximum halting time of 0.1 (s)
S = 2,000 x T
+ 28
m
= 2,000 x 0.1 + 28
= 228
Since this value matches with Case 2) above, S is 228 (mm).
In case this device is installed in a system with a maximum halting time of 0.4 (s)
S = 2,000 x T
+ 28
m
= 2,000 x 0.4 + 28
= 828
Since this value matches with Case 3) above,
S = 1,600 x T
+ 22.4
m
= 1,600 x 0.4 + 22.4
= 662.4
Since this value matches with Case 5) above, S is 662.4 (mm).
SUNX Limited MJE-SF4B01 No.0005-03V
- 17 -
[For use in the United States of America (as per ANSI B11.19)]
Equation 2 S = K x (Ts+ Tc+ T
SF4B01
+ Tbm) + Dpf
S : Safety distance (mm)
Minimum required distance between the sensing area surface and the dangerous
parts of the machine
K : Intrusion speed {Recommended value in OSHA is 63 (inch/s) [ 1,600 (mm/s)] }
ANSI B11.19 does not define the intrusion speed ‘K’. When determining K, consider possible factors including physical ability of operators.
T
: Halting time calculated from the operation time of the control element (air
s
valve, etc.) (s)
T
: Maximum response time of the control circuit required for functioning the
c
brake (s)
T
T
: Response time of this device (s)
SF4B01
: Additional halting time tolerance for the brake monitor (s)
bm
The following equation holds when the machine is equipped with a brake monitor.
bm
= Ta - (Ts+ Tc)
T
T
a
: Setting time of brake monitor (s)
When the machine is not equipped with a brake monitor, it is recommended that
20% or more of (T
pf
D
: Additional distance calculated from the size of the minimum sensing of the
s
+ Tc) is taken as additional halting time.
sensor (mm)
SF4B-F -01
SF4B-H -01
SF4B-A -01
Dpf = 23.8mm
Dpf = 61.2mm
Dpf = 129.2mm
Dpf = 3.4 x (d - 0.276) (inch)
3.4 x (d - 7) (mm)
d: Minimum sensing object diameter 0.552 (inch) 14 (mm)
Minimum sensing object diameter 0.985 (inch)
Minimum sensing object diameter 1.772 (inch)
25 (mm)
45 (mm)
SF4B-F -01
SF4B-H -01
SF4B-A -01
Note that the value of Dpf cannot be 0 or less.
<Reference>
Since the calculation above is performed by taking 1 (inch) = 25.4 (mm), there is a slight difference between the
representation in (mm) and that in (inch). Refer to the relevant standard for the details.
<Calculation Example>
Calculation Example 2 For use in the United States of America
[OFF response time: 14ms or less, minimum sensing object diameter: 0.552 inch 14 (mm)]
S = K x (Ts+ Tc+ T
= 63 x (T
= 63 x (T
= 63 x T
= 63 x T
+ 0.014) + 3.4 x (d - 0.276) (inch)
a
+ 0.014) + 3.4 x (0.552 - 0.276)
a
+ 63 x 0.014 + 3.4 x 0.276
a
+ 1.8204
a
SF4B01
+ Tbm) + Dpf
63 x Ta+ 1.82 (inch)
In case this device is installed in a system with a maximum halting time 0.1 (s)
S = 63 x T
+ 1.82
a
= 63 x 0.1 + 1.82
= 8.12 (inch)
206.248 (mm)
Hence, as per the calculations S is 206.2 (mm).
<Reference>
Since the calculation above is performed by taking 1 (inch) = 25.4 (mm), there is a slight difference between the
representation in (mm) and that in (inch). Refer to the relevant standard for the details.
- 18 -
SUNX Limited MJE-SF4B01 No.0005-03V
[When this device is used as a safety equipment for press machines in Japan]
[Standards for power press machine structure]
<Safety distance (reference)>
The following formula is for the safety distance given in the ‘Standards for power press machine structure’ (Ministry of Health, Labor and Welfare Notice No.116, issued December 26,
1977) based on the Industrial Safety and Health Law Provision 44. The following example
should be considered a reference value.
When actually installing the light type press machine safety equipment at the press machine,
follow the ‘Standards for power press machine structure’.
Formula (from Standards for power press machine structure, Provision 50)
D = 1.6 x (T
In the above formula, D, T
+ TS)
L
and TS respectively indicate the following values.
L
D : Distance between light type press machine safety equipment's beam-axis and danger limit
(danger source) (mm)
T
: Time from shielding of light to operation of press machine's sudden halting mechanism
L
[The device delay time (14ms)]
T
: Time from start of press machine's sudden stop mechanism to stop of slide (ms)
S
The safety distance (D) is calculated from the formula to determine the installation distance (A).
If the distance between the beam-axis and bolster front line exceeds a horizontal distance of
400mm, or if the distance is shorter than 400mm but the operator could enter between the
beam channels and bolster front line, install the auxiliary beam channels or an additional
guard.
<Calculation Example>
Setting the press machine's maximum stop time to 200ms.
D = 1.6 x (200 + 14)
= 342.4 (mm)
The safety distance in this case is D = 342.4 (mm).
<Installing the auxiliary beam channels>
Connecting the devices used for the main beam channels and auxiliary beam channels serially
is recommended. A series connection can prevent mutual interference.
(1) If installing the auxiliary beam channels when there is space between the main beam
channels radiated on the light type press machine safety equipment, installed with the
safety distance, and the bolster front line in which the operator could enter, install so that
the horizontal distance between the main beam channels and auxiliary beam channels is
200mm or less, and so that the horizontal distance between the bolster and the auxiliary
beam channels closest to the bolster is 200mm or less.
(2) Install the auxiliary beam channels so that it is horizontal to the bolster's front line, and so that
it is at a point approximately the same as the operator's waist.
SUNX Limited MJE-SF4B01 No.0005-03V
- 19 -
[When this device is used as a safety equipment for press machines in Japan]
The emitter and receiver set installed to directly protect the total length of the press machine's
stroke length and slide adjustment range is called the ‘main beam channels’. Other emitters
and receivers installed for other purposes are called the ‘auxiliary beam channels’. When installing this device as the main beam channels, the beam channels with a protective height
larger than the total length of the press machine's stroke length and slide adjustment range
must be selected. If the distance between the center of the main beam channels and the bolster front line is 400mm or more, the auxiliary beam channels must be installed at 200mm intervals between the main beam channels and bolster to prevent operators from entering the
area.
Refer to ‘Policy on Press Machine Safety Equipment Control’ (Ministry of Health, Labor and
Welfare, Basic Publication No.446-2, issued on July 9, 1993) for details.
When using the auxiliary beam channels, set the auxiliary beam channels so that the
machine operator cannot stand between the machine and this device, and so that the
operator cannot go past this device's protective range and enter the machine's dangerous areas. Failure to use an auxiliary beam channels could result in death or serious
injury.
- 20 -
SUNX Limited MJE-SF4B01 No.0005-03V
2-3-3 Influence of Reflective Surfaces
If there exists a reflective surface in the place where this device is to be installed, make sure
to install this device so that reflected light from the reflective surface does not enter into the
receiver, or take countermeasures such as painting, masking, roughening, or changing the
material of the reflective surface, etc. Failure to do so may cause the sensor not to detect,
resulting in death or serious injury.
Install this device at a distance of at least A (m) (given below) away from reflective surfaces
such as metal walls, floors, ceilings, workpieces, covers, panels or glass surfaces.
<Side View> <Top View>
Distance between emitter and receiver
(Sensing range L)
0.3 to 3m 0.16m
3 to 9m (Note 1) L x tan = L x 0.052 (m) ( = 3°)
Notes: 1) The sensing range L is applicable to
32 beam channels). For
(36 to 48 beam channels), the distance between emitter and receiver is 3 to 7m.
2) The effective aperture angle for this device is ±2.5° (when L > 3m) as required by IEC 61496-2 / UL
61496-2. However, install this device away from reflective surfaces considering an effective aperture
angle of ±3° to take care of beam misalignment, etc. during installation.
SF4B-F -01
SF4B-H -01
and
Allowable installation distance A
(12 to 64 beam channels) and
SF4B-H -01
(72 to 96 beam channels) and
SF4B-A -01
SF4B-A -01
(6 to
Allowable Distance from Sensor Beam Channel to Reflective Surface
SUNX Limited MJE-SF4B01 No.0005-03V
- 21 -
2-3-4 Sensor Placement
y
This is the configuration when two or more sets of emitter and receiver facing each other are
placed without series or parallel connection between them. It is used for the case that there is
a problem in wiring or for system evaluation in case of addition of equipment. Perform an
operation test by referring to ‘
Refer to the examples of sensor placement given below and understand them thoroughl
before installing the sensors. Improper sensor placement could cause sensor malfunction,
which can result in serious injury or death.
If this device is used in multiple sets, arrange them to avoid mutual interference. If mutual
interference occurs, it can result in serious injury or death.
<Example of sensor placement>
2-6-2 Operation Test
’.
<Reference>
The above figures are just examples of sensor placement. If there are any questions or problems, please contact
our office.
SUNX Limited MJE-SF4B01 No.0005-03V
- 22 -
2-4
r
o
f
r
Mounting
2-4-1 Mounting of the Mounting Bracket
For selecting the appropriate mounting bracket matched to the installation environment,
the mounting bracket is not incorporated in this device. Please purchase the optional
mounting bracket to fit on the mounting environment.
Do not apply the load such as forced bending to the cable of this device. Applying imprope
load could cause the wire breakage.
The minimum bending radius of the cable
the cable bending radius.
When this device is used as safety equipment for press machines in Japan, be sure t
use the cable with protective tube (
the
SFPB
considering the cable bending radius.
- is R55mm (When the cable protective tube is fitted). Mount the senso
<Reference>
Mount the emitter and the receiver at the same level and parallel to each other. The effective aperture angle of
this device is ±2.5° or less for a sensing distance exceeding 3m.
Unless otherwise specified, the following mounting procedure is common for both emitter and receiver. For the
preparation of the mounting, prepare the mounting holes on the mounting surface by referring to ‘
Dimensions
’.
<In case of using standard mounting bracket (MS-SFB-1) (optional)>
1. Loosen the hexagon-socket head bolt for alignment [M4 (length: 6mm)] of the standard
mounting bracket.
SFB
- is R6mm. Mount the sensor considering
SFPB
- ) (optional). The minimum bending radius o
6-3
2. As shown in the figure below, adjust the direction of this device and that of installation
surface by declining the bracket, and tighten and fix the hexagon-socket head bolt for
alignment. The tightening torque should be 2N
㨯
m or less.
SUNX Limited MJE-SF4B01 No.0005-03V
- 23 -
The marks are engraved on the standard mounting bracket so as to adjust the direction of
.
this sensor by 30 degrees
Set and fix both emitter and receiver using the marks so that
they face to each other.
Refer to ‘
2-6-1 Beam-axis Alignment
’ for details of the beam-axis alignment.
3. Set the device with its mounting hole on the side just overlapping with the mounting hole
of the standard mounting bracket, and fix the standard mounting bracket with the accessory hexagon-socket head bolt [M5 (length: 16mm)].
The tightening torque should be 1.2N
㨯
m or less.
4. Set the standard mounting bracket (
MS-SFB-1
surface using either four hexagon-socket head bolts [M5 (please arrange separately)] or
two hexagon-socket head bolts [M8 (please arrange separately)].
Note: For the models that the intermediate supporting bracket (
intermediate supporting bracket (
supporting bracket (MS-SFB-2) (accessory)>
MS-SFB-2
<Reference>
Mounting method of the M8 mounting bracket (
M8 pitch adapter bracket (
MS-SFB-4-T
) is the same as the standard mounting bracket (
MS-SFB-1-T
) that is ready for setting to the mounting
MS-SFB-2
). For details, refer to
.
), the pitch adapter bracket (
) is enclosed with, be sure to use the
<In case of using intermediate
MS-SFB-4
MS-SFB-1
) and the
).
- 24 -
SUNX Limited MJE-SF4B01 No.0005-03V
< In case of using dead zoneless mounting bracket (MS-SFB-3) (optional)>
1. Set the spacer attached to the dead zoneless mounting bracket (
MS-SFB-3
) onto the
mounting hole on the side of the top (bottom) end part of this device, and insert the hexagon-socket head bolt [M4 (length: 25mm)] into the hole.
2. Adjust the hexagon-socket head bolt with the status described in Step 1 to the mounting
hole of the dead zoneless mounting bracket, and tighten and fix the bracket.
The tightening torque should be 1.2N
㨯
m or less.
3. Set the dead zoneless mounting bracket that is ready for setting to the mounting surface
using four hexagon-socket head bolts [M5 (please arrange separately)].
Note: For the models that the intermediate supporting bracket (
intermediate supporting bracket (
supporting bracket (MS-SFB-2) (accessory)>
MS-SFB-2
). For details, refer to
.
MS-SFB-2
) is enclosed with, be sure to use the
<In case of using intermediate
SUNX Limited MJE-SF4B01 No.0005-03V
- 25 -
<In case of using intermediate supporting bracket (MS-SFB-2) (accessory)>
1. Loosen the hexagon-socket head bolt [M4 (length: 12mm)] screw of the intermediate
supporting bracket (
MS-SFB-2
).
2. Insert the side of this device into the intermediate supporting bracket, and fix it with the
hexagon-socket head bolt [M4 (length: 12mm)].
The tightening torque should be 1.2N
Refer to ‘
6-3 Dimensions
’ for the mounting position of the intermediate supporting
㨯
m or less.
bracket.
When setting the intermediate supporting bracket on both side surfaces of this device, fit
the four pits and projectiles of both side surfaces of the main body to those of both side
surfaces (inner surfaces) of the intermediate supporting bracket.
3. After aligning the beam axis, mount the intermediate supporting bracket to the mounting
surface using two hexagons-socket head bolts [M5 (please arrange separately)].
For the details of beam axis alignment, refer to ‘
2-6-1 Beam-axis Alignment’
.
- 26 -
SUNX Limited MJE-SF4B01 No.0005-03V
<Mounting protect bar (MC-SFBH- ) (optional)>
1. Loosen the hexagon-socket head bolt for alignment [M4 (length: 6mm)] of the protect bar
mounting bracket.
2. Align this device with the mounting surface inclining the bracket as shown in the
figure below, and then tighten the hexagon-socket head bolt for alignment.
The tightening torque should be 2N㨯m or less.
Marks are engraved on the protect bar mounting bracket, which enables the angle of the
emitter / receiver to be adjusted by 30 degrees. Before fixing, adjust the protect bar
mounting bracket using the engraved marks so that the emitter and receiver face each
other.
For details of alignment, refer to ‘
2-6-1 Beam-axis Alignment
’.
3. Mount the protect bar mounting bracket with the accessory two hexagon-socket head
bolts [M5 (length: 16mm)]. The tightening torque should be 1.2N
4. Mount the protect bar to the protect bar mounting bracket with a hexagon-socket head bolt
[M5 (length: 20mm)]. The tightening torque should be 2.5N
5. If the intermediate supporting bracket is used, mount the bracket with two hexagon-socket
bolts [M5 (please arrange separately)] on the mounting surface temporarily. Furthermore,
if the protect bar intermediate supporting bracket (
bracket with a hexagon-socket bolt [M8 (please arrange separately) on the mounting
surface temporarily.
6. Mount the protect bar mounting bracket with a hexagon-socket bolt [M8 (please arrange
separately)] on the mounting surface temporarily.
7. Adjust the angle of the emitter and the receiver horizontally within the adjustable range of
the elongate hole, and tighten the hexagon-socket bolt [M8 (please arrange separately)].
8. Adjust the intermediate supporting bracket and protect bar intermediate supporting
bracket, and then tighten the hexagon-socket bolt [M8 (please arrange separately)].
SUNX Limited MJE-SF4B01 No.0005-03V
MS-SFB-6
㨯
m or less.
㨯
m or less.
) is used, also mount the
- 27 -
2-4-2 Mounting of the Bottom Cap Cable (optional)
r
The cable is not enclosed with this device.
Mount the bottom cap cable (optional) in accordance with the following procedure.
Do not lose any screws during extension / dismantling.
The bottom cap cables are distinguished with the color of the connectors, the color of the
connector for emitter is gray and that of the receiver is black. Connect the cable to emitte
and receiver without fail using their colors as the guide.
- 28 -
When this device is used as safety equipment for press machines in Japan, be sure to
use the cable with protective tube (
SFPB
- ) (optional).
SUNX Limited MJE-SF4B01 No.0005-03V
<Reference>
There are two types of the bottom cap cable, 8-core type and 12-core type, and in addition to these types, two
more types are available for the bottom cap cable, discrete wire type and connector type. Select the bottom cap
cable as usage.
The length of the bottom cap cable differs depending on the model No.
Type Model No. Cable length (m)
8-core
12-core
Discrete wire type
Connector type
Discrete wire type
Connector type
SFB-CCB3
SFB-CCB7
SFB-CCB10
SFB-CCB15
SFB-CB05
SFB-CB5
SFB-CB10
SFB-CCB3-MU
SFB-CCB7-MU
SFB-CB05-MU
3
7
10
15
0.5
5
10
3
7
0.5
When this device is used as safety equipment for press machines in Japan, be sure to use the
cable with protective tube (
Type Model No. Cable length (m) Remarks
Discrete wire type
8-core
12-core
Connector type
Discrete wire type
Connector type
SFPB-
).
SFPB-CCB3
SFPB-CCB7
SFPB-CB05
SFPB-CB5
SFPB-CB10
SFPB-CCB3-MU
SFPB-CCB7-MU
SFPB-CB05-MU
3
7
0.5
5
10
3
7
0.5
The cable
tube is enclosed.
protective

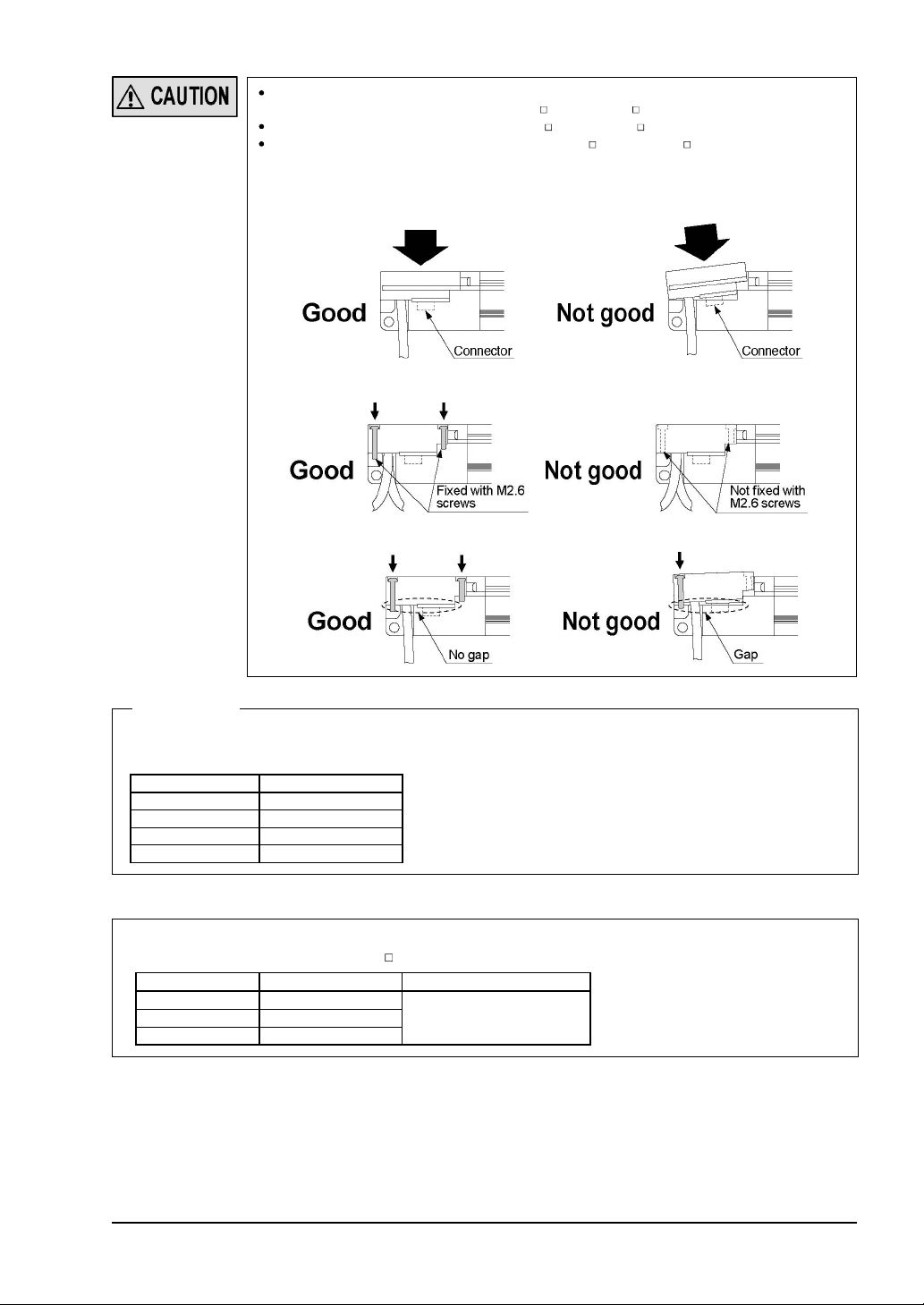

<Mounting method>
1. Insert the connector of the bottom cap cable (optional) into the connector of this device.
When inserting the connector, fit the cable to the groove of this device.
2. Tighten the two M2.6 screws. The tightening torque should be 0.3N·m or less.
SUNX Limited MJE-SF4B01 No.0005-03V
- 29 -
2-4-3 Extension and Dismantling of Sensor (Series Connection)
This section describes the extension method of the series connection using the options.
For constructing the series connection, the following procedure is required.
Do not lose any screws during extension / dismantling work.
Furthermore, do not mix emitters and receivers to mount in series connection.
<Mounting method of cable for series connection>
Replace the cable for series connection (
1. Loosen the two M2.6 screws of the end cap on the main side sensor (emitter and receiver
to which the synchronization line has been connected), and then remove the end cap from
the sensor.
SFB-CSL
/
SFPB-CSL
).
2. Insert the connector of the cable for series connection (
SFB-CSL
/
SFPB-CSL
tional) into the connector. When inserting the connector, fit the cable into the groove of this
device.
3. Tighten each two M2.6 screws. The tightening torque should be 0.3N·m or less.
) (op-
- 30 -
SUNX Limited MJE-SF4B01 No.0005-03V
Loading...
