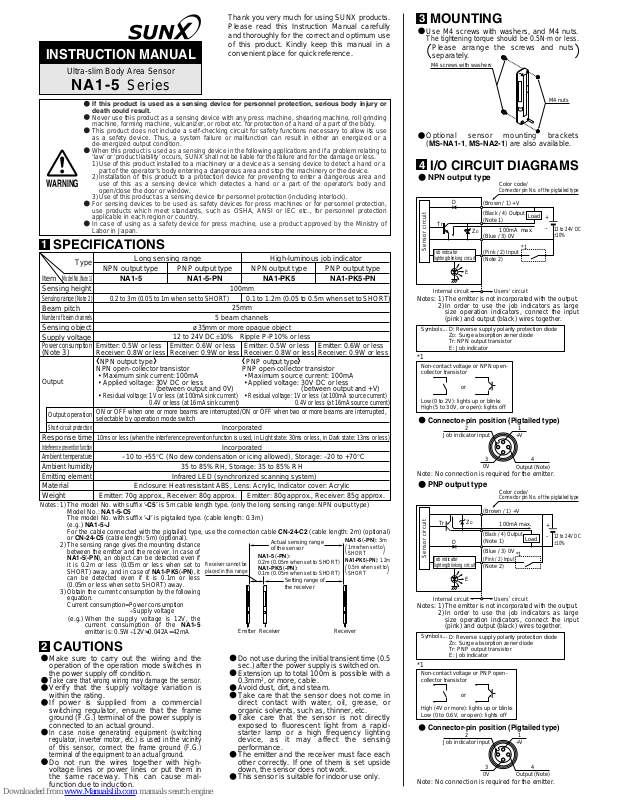

Sunx NA1-5, NA1-5-PN, NA1-PK5, NA1-PK5-PN Instruction Manual

Ultra-slim Body Area Sensor

NA1-5 Series

Thank you very much for using SUNX products.
Please read this Instruction Manual carefully
and thoroughly for the correct and optimum use
of this product. Kindly keep this manual in a
convenient place for quick reference.

INSTRUCTION MANUAL

Note: No connection is required for the emitter.

Connector-pin position (Pigtailed type)

1

+V

2

Job indicator input

4

Output (Note)

3

0V

Note: No connection is required for the emitter.

Connector-pin position (Pigtailed type)

1

+V

2

Job indicator input

4

Output (Note)

3

0V

If this product is used as a sensing device for personnel protection, serious body injury or
death could result.

Never use this product as a sensing device with any press machine, shearing machine, roll grinding
machine, forming machine, vulcanizer, or robot etc. for protection of a hand or a part of the body.
This product does not include a self-checking circuit for safety functions necessary to allow its use
as a sefety device. Thus, a system failure or malfunction can result in either an energized or a
de-energized output condition.
When this product is used as a sensing device in the following applications and if a problem relating to
‘law’ or ‘product liability’ occurs, SUNX shall not be liable for the failure and for the damage or less.

1)

2)

3)
For sensing devices to be used as safety devices for press machines or for personnel protection,
use products which meet standards, such as OSHA, ANSI or IEC etc., for personnel protection
applicable in each region or country.
In case of using as a safety device for press machine, use a product approved by the Ministry of
Labor in Japan.

Use of this product installed to a machinery or a device as a sensing device to detect a hand or a
part of the operator’s body entering a dangerous area and stop the machinery or the device.
Installation of this product to a protection device for preventing to enter a dangerous area and
use of this as a sensing device which detectes a hand or a part of the operator’s body and
open/close the door or window.
Use of this product as a sensing device for personnel protection (including interlock).

WARNING

1

2

3

4

SPECIFICATIONS

Type

Model No.(Note 1)

Item
Sensing height
Sensing range

(Note 2)
Beam pitch
Number of beam channels
Sensing object
Supply voltage

Response time
Interference prevention function
Ambient temperature
Ambient humidity
Emitting element
Material
Weight

Power consumption
(Note 3)

Output

Output operation
Short-circuit protection

Long sensing range

NPN output type

NA1-5 NA1-5-PN NA1-PK5 NA1-PK5-PN

100mm

25mm

5 beam channels

0.2 to 3m (0.05 to 1m when set to SHORT) 0.1 to 1.2m (0.05 to 0.5m when set to SHORT)

ø35mm or more opaque object

12 to 24V DC±10% Ripple P-P10% or less

ON or OFF when one or more beams are interrupted/ON or OFF when two or more beams are interrupted,
selectable by operation mode switch

10ms or less (when the interference prevention function is used, in Light state: 30ms or less, in Dark state: 13ms or less)

Incorporated

Incorporated

Emitter: 0.5W or less
Receiver: 0.8W or less

Emitter: 0.6W or less
Receiver: 0.9W or less

Emitter: 0.5W or less
Receiver: 0.8W or less

Emitter: 0.6W or less
Receiver: 0.9W or less

NPN output type
NPN open-collector transistor

• Maximum sink current: 100mA

• Applied voltage: 30V DC or less
(between output and 0V)

•

Residual voltage: 1V or less (at 100mA sink current)

0.4V or less (at 16mA sink current)

PNP output type
PNP open-collector transistor

• Maximum source current: 100mA

• Applied voltage: 30V DC or less
(between output and +V)

•

Residual voltage: 1V or less (at 100mA source current)

0.4V or less (at 16mA source current)

High-luminous job indicator

PNP output type NPN output type PNP output type

–10 to +55°C (No dew condensation or icing allowed), Storage: –20 to +70°C

35 to 85% RH, Storage: 35 to 85% RH

Infrared LED (synchronized scanning system)

Enclosure: Heat-resistant ABS, Lens: Acrylic, Indicator cover: Acrylic

Emitter: 70g approx., Receiver: 80g approx. Emitter: 80g approx., Receiver: 85g approx.

(e.g.)

When the supply voltage is 12V, the
current consumption of the NA1-5
emitter is: 0.5W÷12V=0.042A=42mA

The sensing range gives the mounting distance
between the emitter and the receiver. In case of
NA1-5(-PN), an object can be detected even if
it is 0.2m or less (0.05m or less when set to
SHORT) away, and in case of NA1-PK5(-PN), it
can be detected even if it is 0.1m or less
(0.05m or less when set to SHORT) away.
Obtain the current consumption by the following
equation.
Current consumption=Power consumption

÷Supply voltage

The model No. with suffix ‘-C5’ is 5m cable length type. (only the long sensing range: NPN output type)
Model No.: NA1-5-C5
The model No. with suffix ‘-J’ is pigtailed type. (cable length: 0.3m)
(e.g.) NA1-5-J
For the cable connected with the pigtailed type, use the connection cable CN-24-C2 (cable length: 2m) (optional)
or CN-24-C5 (cable length: 5m) (optional).

Notes: 1)

2)

3)

Receiver cannot be
placed in this range

Emitter

Receiver

Setting range of
the receiver

Actual sensing range
of the sensor

Receiver

NA1-5(-PN):

0.2m (0.05m when set to SHORT)
NA1-PK5(-PN):

0.1m (0.05m when set to SHORT)

1m when set to
SHORT

()

NA1-5(-PN): 3m

0.5m when set to
SHORT

()

NA1-PK5(-PN): 1.2m

Make sure to carry out the wiring and the
operation of the operation mode switches in
the power supply off condition.
Take care that wrong wiring may damage the sensor.
Verify that the supply voltage variation is
within the rating.
If power is supplied from a commercial
switching regulator, ensure that the frame
ground (F.G.) terminal of the power supply is
connected to an actual ground.
In case noise generating equipment (switching
regulator, inverter motor, etc.) is used in the vicinity
of this sensor, connect the frame ground (F.G.)
terminal of the equipment to an actual ground.
Do not run the wires together with high­voltage lines or power lines or put them in
the same raceway. This can cause mal­function due to induction.

Do not use during the initial transient time (0.5
sec.) after the power supply is switched on.
Extension up to total 100m is possible with a

0.3mm2, or more, cable.
Avoid dust, dirt, and steam.
Take care that the sensor does not come in
direct contact with water, oil, grease, or
organic solvents, such as, thinner, etc.
Take care that the sensor is not directly
exposed to fluorescent light from a rapid­starter lamp or a high frequency lighting
device, as it may affect the sensing
performance.
The emitter and the receiver must face each
other correctly. If one of them is set upside
down, the sensor does not work.
This sensor is suitable for indoor use only.

CAUTIONS

Use M4 screws with washers, and M4 nuts.
The tightening torque should be 0.5N·m or less.

Optional sensor mounting brackets
(MS-NA1-1, MS-NA2-1) are also available.

MOUNTING

M4 screws with washers

M4 nuts

Please arrange the screws and nuts
separately.

I/O CIRCUIT DIAGRAMS

NPN output type

PNP output type

Non-contact voltage or NPN open­collector transistor

Low (0 to 2V): lights up or blinks
High (5 to 30V, or open): lights off

Symbols...

Symbols...

D: Reverse supply polarity protection diode
Z

D: Surge absorption zener diode

Tr: NPN output transistor
E: Job indicator

*1

or

Tr

100mA max.

E

D

ZD

Users, circuitInternal circuit

*1

Color code/
Connector pin No. of the pigtailed type

Color code/
Connector pin No. of the pigtailed type

12 to 24V DC
±10%

+
–

E

100mA max.

Tr

D

ZD

Users, circuitInternal circuit

*1

12 to 24V DC
±10%

The emitter is not incorporated with the output.
In order to use the job indicators as large
size operation indicators, connect the input
(pink) and output (black) wires together.

Notes: 1)
Notes: 2)

Sensor circuit

Job indicator
lighting/blinking circuit

Load

(Brown / 1) +V
(Black / 4) Output

(Note 1)

(Blue / 3) 0V

(Pink / 2) Input
(Note 2)

Non-contact voltage or PNP open­collector transistor

D: Reverse supply polarity protection diode
Z

D: Surge absorption zener diode

Tr: PNP output transistor
E: Job indicator

*1

or

The emitter is not incorporated with the output.
In order to use the job indicators as large
size operation indicators, connect the input
(pink) and output (black) wires together.

Notes: 1)
Notes: 2)

High (4V or more): lights up or blinks
Low (0 to 0.6V, or open): lights off

Sensor circuit

Load

(Brown / 1) +V

(Blue / 3) 0V
(Pink / 2) Input
(Note 2)

(Black / 4) Output
(Note 1)

Job indicator
lighting/blinking circuit

+
–

.

.

SUNX Limited

5 7 9

6

8

10

Operation
mode
switch

Job indicator
(Orange)

Job indicator
(Orange)

Emitter

Power indicator
(Green)

Stable incident
beam indicator
(Green)

Operation
indicator
(Red)

PART DESCRIPTION

Receiver

SELECTION OF OPERATION

Selection of output operation

The output operation mode is selected by the
operation mode switch on the receiver.

Make sure to set the switches in the power
supply off condition.
The operation mode does not change even if
the setting is changed in the power supply on
condition.

SINGLE
D ON

DOUBLE
L ON

D-ON

L-ON

D-ON

L-ON

SINGLEDOUBLE

FLASH

Blinking

LIGHT FLASH

LIGHT

Lighting

Receiver

Receiver

LIGHT FLASH

LIGHT FLASH

Emitter

Emitter

LIGHT FLASH

FREQ. A/FREQ. B and LIGHT/FLASH selection
switches are not related to the output operation
selection.

Note:

FREQ. A/FREQ. B, SINGLE/DOUBLE and
LONG/SHORT selection switches are not
related to the setting of job indicator.

Note:

Operation mode
switch

Output
operation

Operation
indicator

Job indicator operation selection

Lighting/blinking is selected by the operation
mode switch on the emitter and the receiver.

Make sure to set the switch in the power
supply off condition.
The operation mode does not change even if
the setting is changed in the power supply on
condition.

ON when one
or more beams
are interrupted.

ON when any
two or more
beams are
interrupted.

OFF when any
two or more
beams are
interrupted.

OFF when one or more
beams are interrupted

Operation mode switch

Job indicator

ON when all beams
are received.

BEAM AXIS ALIGNMENT

Note:

The stable incident beam indicator (green) lights
up when all the five light beams are stably
received by the receiver.

Place the emitter and the receiver face to
face along a straight line.
After the cable has been correctly con­nected, switch the power ON.
Move the emitter in the up, down, left and
right directions, in order to determine the
range of the beam received condition with
the help of the operation indicator (red) on
the receiver. Then, set the emitter at the
center of this range.
Similarly, adjust for up, down, left and
right angular movement of the emitter.
Further, perform the angular adjustment for
the receiver also.
Check that the stable incident beam
indicator (green) lights up.
Interrupt each beam channel with the
actual sensing object, and confirm that the
sensor operates correctly.

Emitter

Receiver

Operation
indicator (Red)

Stable incident
beam indicator
(Green)

By setting different emission frequencies,
two sets of sensors can be mounted close
together, as shown in the figure below.

INTERFERENCE PREVENTION
FUNCTION

Frequency setting

Set the frequency of Sensor A to FREQ. A
(on the emitter and the receiver) and that of
Sensor B to FREQ. B (on the emitter and the
receiver).

Sensor A

Sensor B

Sensor A

Sensor B

Emitter

Operation mode switch

Receiver

Sensor A
(FREQ. A)

Sensor B
(FREQ. B)

FREQ. A FREQ. B FREQ. A FREQ. B

FREQ. A FREQ. B

FREQ. A FREQ. B

Make sure to set the switch in the power
supply off condition.
The operation mode does not change even if
the setting is changed in the power supply on
condition.

LIGHT/FLASH, SINGLE/DOUBLE and D-ON/L-ON
selection switches are not related to the
interference prevention function.

Note:

Select the switch setting
according to the setting
distance L between the
emitter and the receiver
as given below.

LONG/SHORT SELECTION SWITCH
(incorporated on the emitter)

NA1-5(-PN

)

Setting distance L

Operation mode
switch (Emitter)

NA1-PK5(-PN)

Emitter

Setting
distance

L

Receiver

LONG SHORT

LONG SHORT

SHORTLONG

Make sure to set the switch in the power
supply off condition.
The operation mode does not change even if
the setting is changed in the power supply on
condition.

0.05 to 1m

(0.05m<L<1m)

1 to 3m

(1m<L<3m)

0.05 to 0.5m

(0.05m<L<0.5m)

0.5 to 1.2m

(0.5m<L<1.2m)

Assembly dimensions for MS-NA1-1

M4 screws with washers, nuts and hooks are
attached with MS-NA1-1.

Assembly dimensions for MS-NA2-1

M4 screws with washers, nuts, hooks and
spacers are attached with MS-NA2-1.

FIXING OF SENSOR MOUNTING
BRACKET (OPTIONAL)

M4 (length 15mm)
screw

Hook

Sensor mounting bracket

Nut

Sensor

M4 (length 15mm)
screw

Hook

Sensor mounting bracket

Nut

Sensor

Rear mounting

M4 (length 18mm)
screw

Hook

Sensor mounting
bracket

Nut

Sensor

Spacer

Front mounting

Lights up
when the
output is
ON.

Lights up
when the
output is
OFF.

Lights up
when the
output is
ON.

Lights up
when the
output is
OFF.

=

== ==

=

SINGLE
D ON

DOUBLE
L ON

SINGLE
D ON

DOUBLE
L ON

SINGLE
D ON

DOUBLE
L ON

Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [e-mail]
