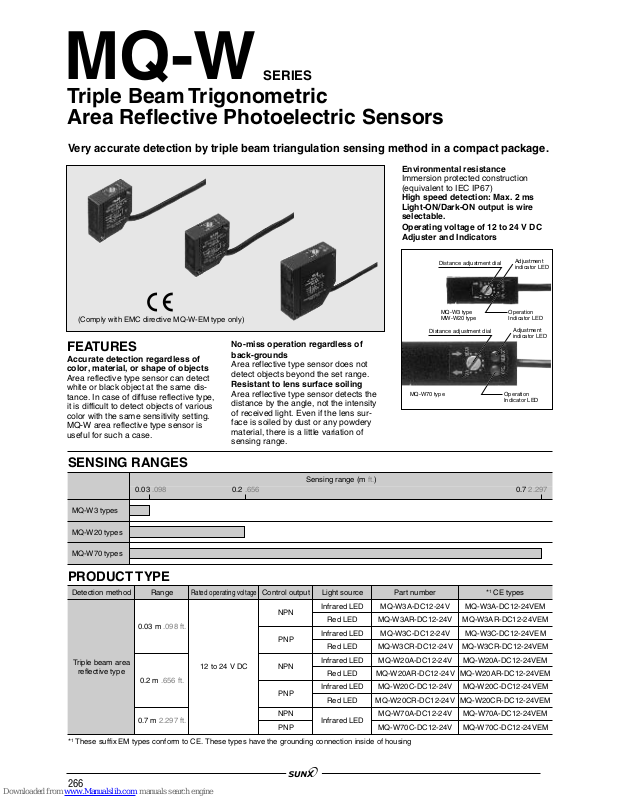

Sunx MQ-W3, MW-W20, MQ-W20, MQ-W70 Specification Sheet
266
Operation
Indicator LED
MQ-W3 type
MW-W20 type
Distance adjustment dial
Adjustment
indicator LED
Adjustment
indicator LED
Operation
Indicator LED
MQ-W70 type
Distance adjustment dial
Very accurate detection by triple beam triangulation sensing method in a compact package.
FEATURES
Accurate detection regardless of
color, material, or shape of objects
Area reflective type sensor can detect
white or black object at the same distance. In case of diffuse reflective type,
it is difficult to detect objects of various
color with the same sensitivity setting.
MQ-W area reflective type sensor is
useful for such a case.
No-miss operation regardless of
back-grounds
Area reflective type sensor does not
detect objects beyond the set range.
Resistant to lens surface soiling
Area reflective type sensor detects the
distance by the angle, not the intensity
of received light. Even if the lens surface is soiled by dust or any powdery
material, there is a little variation of
sensing range.
Environmental resistance
Immersion protected construction
(equivalent to IEC IP67)
High speed detection: Max. 2 ms
Light-ON/Dark-ON output is wire
selectable.
Operating voltage of 12 to 24 V DC
Adjuster and Indicators
(Comply with EMC directive MQ-W-EM type only)
SENSING RANGES
PRODUCT TYPE
Sensing range (m ft.)
0.03 .098 0.2 .656 0.7 2.297
MQ-W3 types
Detection method
Triple beam area
reflective type
Range
0.03 m .098 ft.
12 to 24 V DC
NPN
Infrared LED MQ-W3A-DC12-24V
MQ-W3AR-DC12-24V
MQ-W3C-DC12-24V
MQ-W3CR-DC12-24V
MQ-W20A-DC12-24V
MQ-W20AR-DC12-24V
MQ-W20C-DC12-24V
MQ-W20CR-DC12-24V
MQ-W70A-DC12-24V
MQ-W70C-DC12-24V
MQ-W3A-DC12-24VEM
MQ-W3AR-DC12-24VEM
MQ-W3C-DC12-24VEM
MQ-W3CR-DC12-24VEM
MQ-W20A-DC12-24VEM
MQ-W20AR-DC12-24VEM
MQ-W20C-DC12-24VEM
MQ-W20CR-DC12-24VEM
MQ-W70A-DC12-24VEM
MQ-W70C-DC12-24VEM
Red LED
Infrared LED
Red LED
Infrared LED
Red LED
Infrared LED
Red LED
Infrared LED
PNP
NPN
PNP
NPN
PNP
0.2 m .656 ft.
0.7 m 2.297 ft.
Rated operating voltage
Control output Light source Part number *1 CE types
MQ-W20 types
MQ-W70 types
*
1
These suffix EM types conform to CE. These types have the grounding connection inside of housing
MQ-W
Triple Beam Trigonometric
Area Reflective Photoelectric Sensors
SERIES
MQ-W
267
SPECIFICATIONS
1) Ratings
2) Performance
3) Output circuit diagram
NPN Output type PNP Output type
Operating side
Rated operating voltage
Detection principle Triple beam triangulation sensing method
Detection method Area reflective type
Type Amplifier selfcontained DC type
Part number
MQ-W3A-DC12-24V
MQ-W3AR-DC12-24V
MQ-W3C-DC12-24V
MQ-W3CR-DC12-24V
MQ-W20A-DC12-24V
MQ-W20AR-DC12-24V
MQ-W20C-DC12-24V
MQ-W20CR-DC12-24V
MQ-W70A-DC12-24V
MQ-W70C-DC12-24V
Sensing range 0.03 m .098 ft. 0.2 m .656 ft. 0.7 m 2.297 ft.
Detectable distance 0.02 to 0.04 m .066 to .131 ft. 0.04 to 0.2 m .131 to .656 ft. 0.2 to 0.7 m .656 to 2.297 ft.
Standard target
White drawing paper
11 cm .394.394 inch
White drawing paper
22 cm .787.787 inch
White drawing paper
7.57.5 cm 2.9532.953 inch
Detectable target Opaque, translucent
Operating voltage range 9.6 to 30 V DC ripple (P-P) included
Response time (freq.) 2 ms or less (250 times per second or less)
Initial insulation resistance Min. 20 MΩ between a lead wire and external housing (at 500 V DC)
Initial breakdown voltage Between a lead wire and external housing: 500 Vrms for 1 min
Vibration resistance 10 to 55 Hz (1 cycle/min), double amplitude 1.5 mm .059 inch (2 h each on 3 axes)
Shock resistance 980 m/s2{approx. 100 G} (6 times each on 3 axes)
Protective construction Diecast case immersion protected (equivalent to IEC IP67)
Incandescent lamp
Usable ambient
light level
10,000 lux or less
Sunlight 30,000 lux or less
Ambient temperature –25 to 55°C –13 to +131°F (non-icing condition)
Ambient humidity Max. 85% RH (non-condensing condition)
Storage temperature –25 to 55°C –13 to +131°F
Indicator
Light source
Operation indicator: Red LED ON with light entry
Adjustment indicator: Red LED ON with sufficient volume of lights
Infrared LED/Red LED (R is added to the suffix of W3(20)A(C) in the part No.)
Hysteresis 10% or less the set range 20% or less of the set range
12 to 24 V DC
30 mA or less (excluding load)
100 mA or less
Rated current consumption
Output current capacityLoad side
Note: Unless otherwise specified, the measurement conditions comprise rated operating voltage, power supply by battery, 20°C 68°F ambient
temperature, standard target and 200 lux or less illuminance on the receiver surface.
