SunX EX14BPN User guide

Note: Excluding EX-19.

2mm opaque object Setting distance between emitter and receiver: 1m

"2mm opaque object

(Setting distance between emitter and receiver: 500mm)

"1mm opaque object

(Setting distance between emitter and receiver: 150mm)

Model No.

MS-EX10-1

MS-EX10-2

MS-EX10-3

MS-EX10-11

MS-EX10-12

MS-EX10-13

Description

Mounting bracket for front sensing type only Two M2 (length 4mm) pan head screws are attached.

Mounting bracket for side sensing type only Two M2 (length 8mm) pan head screws are attached.

L-shaped mounting bracket Two M2 (length 4mm) pan head screws, and two M2 (length 8mm) pan head screws are attached.

Mounting bracket for front sensing type only Two M2 (length 4mm) pan head screws (stainless steel) are attached.

Mounting bracket for side sensing type only Two M2 (length 8mm) pan head screws (stainless steel) are attached.

L-shaped mounting bracket Two M2 (length 4mm) pan head screws (stainless steel), and two M2 (length 8mm) pan head screws (stainless steel) are attached.

Material

Stainless steel (SUS304)

Cold rolled carbon steel (SPCC)

 Apply a slit mask when detecting small objects or for

increasing the accuracy of sensing position. However, the sensing range is reduced when the slit mask is mounted.

 The slit mask should be mounted on the sensor before

mounting the sensor.

 If the front sensing type sensor is used along with the

slit mask and the optional sensor mounting bracket for the front sensing type, MS-EX10-1 or MS-EX10-11, as shown in the figure below, a 0.2mm, or more, thick spacer is separately required.

M3 screws

0.2mm, or more, thick spacer is separately required.

 When mounting the sensor with the optional sensor

mounting bracket, use the attached M2 screws and the tightening torque should be 0.2N m or less.

 Six types of optional sensor mounting brackets are

available.

Material

This product is not a safety sensor. Its use is not intended or designed to protect life and prevent body injury or property damage from dangerous parts of machinery. It is a normal object detection sensor.

PRINTED IN JAPAN

http://www.sunx.co.jp/

Head Office

SUNX Limited

Phone: 81-(0)568-33-7861 FAX: 81-(0)568-33-8591

Overseas Sales Dept.

2431-1 Ushiyama-cho, Kasugai-shi, Aichi, 486-0901, Japan Phone: 81-(0)568-33-7211 FAX: 81-(0)568-33-2631

EX-A(-R), EX-B(-R) /NPN output type

3 I/O CIRCUIT DIAGRAMS

In case of mounting on tapped holes (Unit: mm)

Side sensing

4 MOUNTING

Users’ circuitInternal circuit

Color code

50mA max.

Load

(Brown) V

(Black) Output (Note)

(Blue) 0V

12 to 24V DC

10%

 

Sensor circuit

Note: The emitter of the thru-beam type sensor does not

incorporate the output.

EX-A-PN, EX-B-PN/PNP output type

Users’ circuitInternal circuit

Color code

50mA max.

Load

(Brown) V

(Black) Output (Note)

(Blue) 0V

12 to 24V DC

10%

 

Sensor circuit

The tightening torque should be 0.2Nm or less.

M20.4 holes tapped 6 deep

Attached screw

ƆM2Ტ

length 10

ᲣƇų

Sensing direction

Front sensing

Side sensing Front sensing

In case of using attached screws and nuts (Unit: mm)

The tightening torque should be 0.2Nm or less.

Thickness of mounting plate

2 or less

Attached screw

ƆM2Ტ

length 10

ᲣƇ

Thickness of mounting plate

2.5 or less

Spring washers

Nuts

Flat washers

ƆM2Ტ

length 8

ᲣƇų

Attached screw

Sensing direction

Symbols . . . D : Reverse supply polarity protection diode

D: Surge absorption zener diode

Tr : NPN output transistor

Note: The emitter of the thru-beam type sensor does not

incorporate the output.

Symbols . . . D : Reverse supply polarity protection diode

D: Surge absorption zener diode

Tr : PNP output transistor

OPTIONAL SENSOR MOUNTING BRACKET

6 OPTIONAL SLIT MASK

(EX-13 and EX-19 only)

1 SPECIFICATIONS

2 CAUTIONS

Thru-beam

Convergent reflective

Front sensing Side sensing Front sensing Side sensing Front sensing Front sensing

EX-11A(-PN/-R) EX-11EA(-PN/-R) EX-13A(-PN/-R) EX-13EA(-PN/-R) EX-19A(-PN/-R) EX-14A(-PN/-R) EX-11B(-PN/-R) EX-11EB(-PN/-R) EX-13B(-PN/-R) EX-13EB(-PN/-R) EX-19B(-PN/-R) EX-14B(-PN/-R)

Type

Light-ON Dark-ON

0.05mm or less 0.1mm or less

12 to 24V DCd10% Ripple P-P10%or less

Emitter: 10mA or less, Receiver: 15mA or less 20mA or less

EX-A(-R) and EX-B(-R)

NPN open-collector transistor

Maximum sink current: 50mA

Applied voltage: 30V DC or less (between output and 0V)

Residual voltage: 1V or less (at 50mA sink current)

0.4V or less (at 16mA sink current) Incorporated

0.5ms or less

Red LED (lights up when the output is ON), located on the receiver for the thru-beam type sensor

IP67 (IEC)

25 to 55C (Note 3) (No dew condensation or icing allowed), Storage: 30 to 70C

35 to 85% RH, Storage: 35 to 85% RH

Red LED (modulated)

Enclosure: Polyethylene terephthalate, Lens: Polyalylate

0.1mm

3-core (thru-beam type emitter: 2-core) cabtyre cable, 2m long (Note 4)

Emitter, receiver: 20g approx. each 20g approx.

Mounting screws: 2 sets

Sensing range

Min. sensing object

Hysteresis Repeatability

(Perpendicular to sensing axis) Supply voltage Current consumption

Output

Short-circuit protection Response time Operation indicator

Stability indicator Protection

Ambient temperature Ambient humidity Emitting element Material Cable Weight

Accessories

150mm 500mm 1m

2 to 25mmᲢNote 2

Უ

Ტ

Conv. point: 10mm

Უ

15% or less of operation distance

"0.1mm copper wire

(Setting distance: 10mm)

Item

EX-A-PN and EX-B-PN

PNP open-collector transistor

Maximum source current: 50mA

Applied voltage: 30V DC or less (between output and V)

Residual voltage: 1V or less (at 50mA source current)

0.4V or less (at 16mA source current)

Green LED (lights up under stable light received condition or stable dark condition), located on the receiver for the thru-beam type sensor

Mounting screws:

1 set

Model

No.

(Note 1)

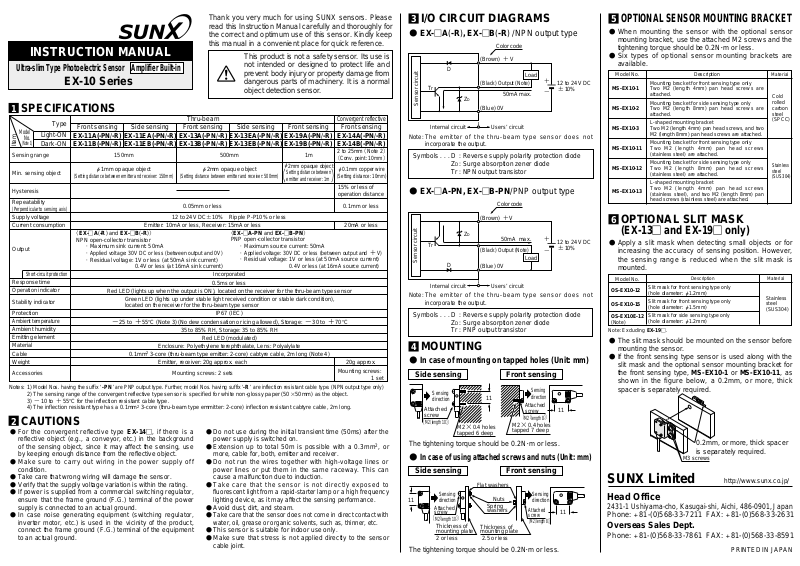

INSTRUCTION MANUAL

Thank you very much for using SUNX sensors. Please read this Instruction Manual carefully and thoroughly for the correct and optimum use of this sensor. Kindly keep this manual in a convenient place for quick reference.

Notes: 1)

Model Nos. having the suffix ‘ -PN ’ are PNP output type. Further, model Nos. having suffix ‘-R ’ are inflection resistant cable type. (NPN output type only)

Notes: 2) The sensing range of the convergent reflective type sensor is specified for white non-glossy paper (5050mm) as the object. Notes: 3)

10 to 55C for the inflection resistant cable type.

Notes: 4) The inflection resistant type has a 0.1mm

3-core (thru-beam type emmitter: 2-core) inflection resistant cabtyre cable, 2m long.

ᲢᲣ

 For the convergent reflective type EX-14, if there is a

reflective object (e.g., a conveyor, etc.) in the background of the sensing object, since it may affect the sensing, use by keeping enough distance from the reflective object.

 Make sure to carry out wiring in the power supply off

condition.

 Take care that wrong wiring will damage the sensor.  Verify that the supply voltage variation is within the rating.  If power is supplied from a commercial switching regulator,

ensure that the frame ground (F.G.) terminal of the power supply is connected to an actual ground.

 In case noise generating equipment (switching regulator,

inverter motor, etc.) is used in the vicinity of the product, connect the frame ground (F.G.) terminal of the equipment to an actual ground.

 Do not use during the initial transient time (50ms) after the

power supply is switched on.

 Extension up to total 50m is possible with a 0.3mm

, or

more, cable for, both, emitter and receiver.

 Do not run the wires together with high-voltage lines or

power lines or put them in the same raceway. This can cause a malfunction due to induction.



Take care that the sensor is not directly exposed to fluorescent light from a rapid-starter lamp or a high frequency lighting device, as it may affect the sensing performance.

 Avoid dust, dirt, and steam. 

Take care that the sensor does not come in direct contact with water, oil, grease or organic solvents, such as, thinner, etc.

 This sensor is suitable for indoor use only.  Make sure that stress is not applied directly to the sensor

cable joint.

Stainless steel (SUS304)

Ultra-slim Type Photoelectric Sensor Amplifier Built-in

EX-10 Series

Model No.

OS-EX10-12

OS-EX10-15 OS-EX10E-12

(Note)

Description

Slit mask for front sensing type only (hole diameter: "1.2mm)

Slit mask for front sensing type only (hole diameter: "1.5mm)

Slit mask for side sensing type only (hole diameter: "1.2mm)

Sensing direction

Attached screw

ƆM2Ტ

length 8

M20.4 holes tapped 7 deep

ᲣƇų
