Handheld Optical Power Meter V1.0
3

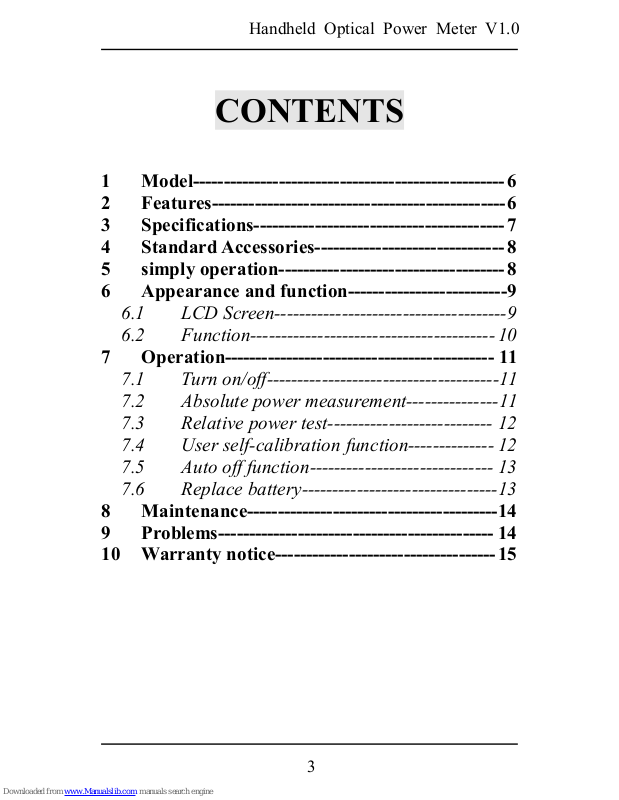

CONTENTS
1 Model--------------------------------------------------- 6
2 Features------------------------------------------------6
3 Specifications----------------------------------------- 7
4 Standard Accessories------------------------------- 8
5 simply operation-------------------------------------8
6 Appearance and function--------------------------9
6.1 LCD Screen--------------------------------------9
6.2 Function---------------------------------------- 10
7 Operation-------------------------------------------- 11
7.1 Turn on/off--------------------------------------11
7.2 Absolute power measurement---------------11
7.3 Relative power test--------------------------- 12
7.4 User self-calibration function-------------- 12
7.5 Auto off function------------------------------ 13
7.6 Replace battery--------------------------------13
8 Maintenance-----------------------------------------14
9 Problems--------------------------------------------- 14
10 Warranty notice------------------------------------ 15
Handheld Optical Power Meter V1.0
4
WARNING
Security rules：
To protect the instrument from being
damaged, do not use under the high
temperature, high pressure, wet or other
prohibited condition.
Do not personally take apart or
repair the instrument.
Quality assurance:
We assure that each unit meets the
declared specification.
Notice:
Technical Parameter is subject to
change without notice.
Handheld Optical Power Meter V1.0
5
Handheld optical
power meter manual
1
Handheld Optical Power Meter V1.0
6
Model
A)measurement range:
-70~+10dBm，calibrated wavelength：
850nm、1300nm、1310nm、1490nm、
1550nm、1625nm
B) measurement range:
-50~+26dBm，calibrated wavelength：
850nm、1300nm、1310nm、1490nm、
1550nm、1625nm
2 Features
High measurement accuracy and display
resolution
Quick response and measurement: when
power changing, it can track and real-time
display the output power
Wide measurement range: 80dB range
Six calibrated wavelength: 850nm、1300nm、
1310nm、1490nm、1550nm and 1625nm(other
wavelength could be provided on request)
Absolute and relative measurement
Real-time monitoring and displaying the
battery level
Auto-off function
Backlight function
Alkaline battery
User self-calibration function
Handheld Optical Power Meter V1.0
7
3 Specifications
Measurement
range dBm
-70～+10 dBm -50～+26 dBm
Other range is on request
Wavelength
range（nm）
800～1650
Calibrated
wavelength
850nm 、 1300nm 、 1310nm 、
1490nm 、 1550nm 、 1625nm
（optional other wavelength）
Detector InGaAs
Accuracy <±3% （-10dBm、22℃）
Resolution
Linearity：0.1%，Non-linearity：
0.01dBm
Working
temperature
-10℃～+50℃
Storage
temperature
-20℃～+70℃
Relative
humidity
90%（＋30℃），
connector
Movable FC/PC，optional ST、SC
Power supply 3pcs AAA batteries
DC
Optional accessory.
AC working range is AC90-240
Working hours >120 hours（without backlight）
weight(g) 160g
dimension(mm) 125×65×29
Handheld Optical Power Meter V1.0
8
4 Standard Accessories
1) power meter…………………………………1
2) pouch ………………………………1
3) manual ………………………………1
4) battery(AAA, transportation permit) ………3
5) certificate ………………………………1
5 simply operation
1) ON/OFF: press it for a few seconds to turn it
on/off .click to turn on/off back light，
2) λ:switch the wavelength
3) dB: press 2 seconds to enter the relative
measurement mode.
4) dBm/W:press it to enter the relative
measurement mode.
5) Replace the battery when the power is low
6) Take out the battery when not in use for a
period of time
7) Refer to the back label for operation
Handheld Optical Power Meter V1.0
9
6 Appearance and function
6.1 LCD Screen
Wavelength ： display the wavelength, such as
850nm、1300nm、1310nm、1490nm、1550nm and
interface
Wavelength
Model
value
battery level
ON/OFF
REF
Relative
power
Test
unit
dBm/w
absolute
power
test
Wavelength
select
Auto-off
Handheld Optical Power Meter V1.0
10
1625nm；
Power value：
it displays the current output power under
absolute test mode
it displays the difference between the current
output power and reference power under
relative test mode
Unit：mW、uW、nW、dBm、dB
Relative test：press dB to start relative test
Auto-off：activate the 10-minute auto off function
Battery level：real-time indicate the battery level.
When blank, it indicates the power is too low
6.2 Function
1) ON/OFF ： click ON/OFF to turn it on. press
for 3 seconds to turn it off. Under power-on
mode, press this key shortly to activate or
deactivate the 10-minute auto off function
2) dBm/W ：press dBm/W to enter absolute test
mode. Press it again to switch the test unit.
3) λ ： switch the wavelength from 6 calibrated
wavelength
4) dB ： press dB key once to enter relative test
and it has 3 working mode:
A) directly enter the relative test: under
absolute test, press this key to enter the relative
test. now the Ref value shows the previous
power values.
Handheld Optical Power Meter V1.0
11
B) Reference value storage：when enter
the relative test, press dB for 2 seconds to save
the current absolute power value as REF value
and show the relative power value in dB unit
c) Enter the relative test and save current
reference value: under the absolute test mode,
press dB for 2 seconds to enter the absolute test
mode and save the current value as reference
value which is showed in Ref position. Now
the value in dB unit on the screen is the
difference between the real test value and
reference value.
5) Backlight is on when turning on the unit. it
would auto turn off 1 minute later. You could
press any key to turn it on for 1 minute again.
7 Operation
7.1 Turn on/off
Press ON/OFF shortly to turn on the unit.
press it for a few seconds to turn it off and
click it to activate or deactivate the auto-off
function.
7.2 Absolute power measurement
Connect the power meter with optical signal
Turn on the power meter
Choose the correct wavelength via λ key.
If the tested wavelength is not exactly same to
the one in the power meter, then choose a
Handheld Optical Power Meter V1.0
12
close one from the power meter.
Press dBm/W to choose the display unit. the
default wavelength is 1310nm and working
mode is dBm.
Then the power meter will show the test
power value.
7.3 Relative power test
Set wavelength
Press dB for 2 seconds to enter the relative
test mode. now LCD screen display 00.00dB
Connect it to the test signal. the current value
is difference between the tested value and
reference value.
Reference value is in the Ref position
Press dBm/W to review the current absolute
power value. Press dB to review the current
reference value
7.4 User self-calibration function
O N
W o rk p o sitio n
1
2
O N
Se lf-c a lib ra tio n
p o sitio n
1
2
Handheld Optical Power Meter V1.0
13
Take out the battery and pull up the switch 1
to “ON” position.
Put the battery back to the battery
compartment and turn on the unit to choose
the wavelength for calibration.
Now connect it with pigtail and press REF
or dBm/W to increase or decrease the data by
0.05dB.
When the value is same to the one in the
standard power meter(or lower 0.03dB), press
on/OFF to save the changed result.
Repeat above operation for other wavelength
After recalibrate each wavelength, please pull
down the switch 1 (come back to the position,
the opposition of the “ON” )and turn off the
meter
End the user self calibration operation
7.5 Auto off function
The auto off is on when turning on the unit.
Press ON/OFF to activate or deactivate it.
7.6 Replace battery
If the battery level is very low, please turn off
the unit immediately and replace the batteries
Take out the battery if not in use for a period
of time
NOTE: do not charge the non-rechargeable
battery, dangerous!
Handheld Optical Power Meter V1.0
14
8 Maintenance
1) keep all optical connectors and surfaces
free from oil, dirt or other contamination
to ensure proper operation.
2) Keep using the same type of connector
3) Please cover the dust cap when not in use
to keep the connector clean.
4) Carefully plug in or out the adapter
5) Regularly clean the connector.
6) Take out the battery when not in use for a
period of time.
9 Problems
Problem Reason Solution
Faint LCD
screen
Lower power Replace the battery
No backlight Lower power Replace the battery
No display
when turning on
Lower
power/other
Turn on again or
replace battery
Fail to turn on Lower power Replace the battery
No changing on
LCD screen
Lower power Replace the battery
In sensitive
LCD screen
Dirty or
polluted
connector
Use the correct
connector and clean
it.
Handheld Optical Power Meter V1.0
15
10 Warranty notice
Warranty Period
：
It is within 18 months from the date of purchase
Warranty clause
：
一、Under the warranty, we would repair the
problems caused under the normal operation
free of charge.
Note: remember to show us the warranty card
when repair
二、For the following situation, we have to charge
certain cost：
1) Out of the warranty；
2) Fail to provide the warranty card
3) alter and omit the warranty card
4) Wrong operation including the problem
caused by human actors, abnormal
working environment and so on.
5) Problems or damages are not caused by
the products quality
6) Do not operate it according to this
manual.
三、For the following situation, we do not repair it
1) Damaged seal label.
2) Take apart it without our agreement
3) Other companies products
Handheld Optical Power Meter V1.0
16
Quality certificate
Product name：handheld optical power meter
Product model：
Serial number：
Date of production：
Inspection ：
Warranty card
Date of purchase：
Customer name：
Customer address：
Customer phone：
Distributor name：
Distributor phone；
Posted back to：
