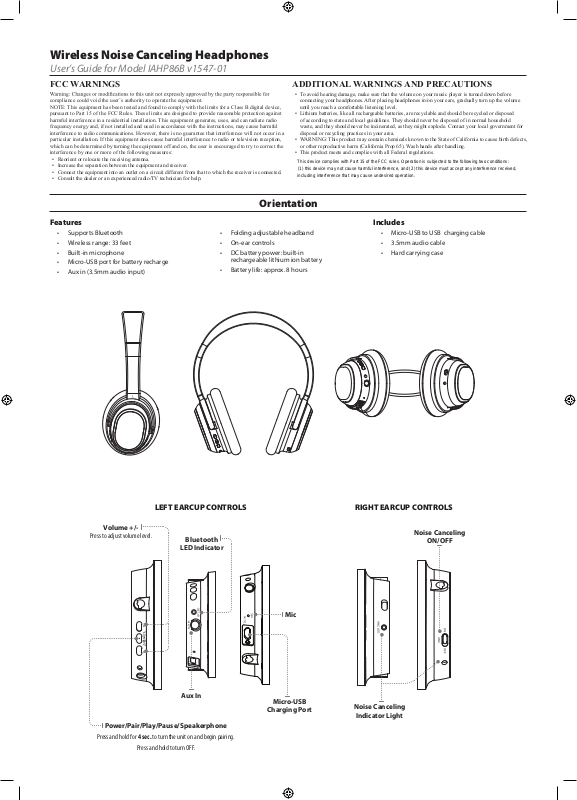

Sunwe Electronic Technology IAHP86 User Manual

Wireless Noise Canceling Headphones

User’s Guide for Model IAHP86B v1547-01

FCC WARNINGS

compliance could void the user’s authority to operate t he equipment.
NOTE: This equipment has been tes ted and found to comply with th e limits for a Class B digital dev ice,
pursuant to Part 15 of the F CC Rules. These limits are designed to provide reasona ble protection against
harmful interferen ce in a residential installation. This equipment gen erates, uses, and can radiate ra dio
frequency energy and, if not installed and used in accordance with the instructions, may cause har mful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or telev
which can be determined by turning the equipment off and on, the use r is encouraged to try to correct the
interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

ision reception,

Orientation

ADDITIONAL WARNINGS AND PRECAUTIONS

• To avoid hearing damage, make sure that the volume on your music player is turned down before
connecting your headphones. After placing headphones in/on your ears, gradually turn up the volume
until you reach a comfortable listening level.

• Lithium batteries, like all rechargeable batteries, are recyclable and should be recycled or disposed
of according to state and local guidelines. They should never be disposed of in normal household
waste, and they should never be incinerated, as they might explode. Contact your local government for
disposal or recycling practices in your area.

• WARNING: This product may contain chemicals known to the State of California to cause birth defects,
or other reproductive harm (California Prop 65). Wash hands after handling.

• This product meets and complies with all Federal regulations.

This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Features

• Supports Bluetooth

• Wireless range: 33 feet

• Built-in microphone

• Micro-USB port for battery recharge

• Aux in (3.5mm audio input)

• Folding adjustable headband

• On-ear controls

• DC battery power: built-in
rechargeable lithium ion battery

• Battery life: approx. 8 hours

Includes

• Micro-USB to USB charging cable

• 3.5mm audio cable

• Hard carrying case

LEFT EARCUP CONTROLS

Volume +/-

Press to adjust volume level.

Power/Pair/Play/Pause/Speakerphone

Press and hold for 4 sec. to turn the unit on and begin pairing.

Press and hold to turn OFF.

Bluetooth

LED Indicator

Aux In

Mic

Micro-USB

Charging Port

RIGHT EARCUP CONTROLS

Noise Canceling

ON/OFF

Noise Canceling

Indicator Light

Charging the Battery

Bluetooth Wireless Audio

Requires a Micro-USB to USB cable (included).

1. Using a Micro-USB to USB cable (included), connect the larger USB plug
to the USB port of a powered on computer or USB power adaptor (not
included).

2. Connect the smaller Micro-USB plug into the Micro-USB port on the unit.
The unit will now charge.

STATUS INDICATOR

Power On Flashing blue light

Charging Solid red light

Charging Complete Solid blue light

Pairing Flashing red and blue lights

Pairing Complete Flashing blue light

Pairing to a Device and Playing Audio

After initial pairing, the unit will stay paired unless unpaired manually by the user,
or erased due to a reset of the device. If your device should become unpaired or
you it is unable to connect, repeat the steps listed here.

1. Press and hold the Power/Pair button on the unit for approximately
4 seconds to power the unit on and begin pairing. The pairing indicator

will begin

When pairing, remain within 3 feet of the unit.

2. Using the controls on your Bluetooth device, select the IAHP86 in your
Bluetooth settings/device menu. If your device requests a password, enter
the default password 0 0 0 0 .

and connecting Bluetooth devices.

3. When successfully paired, the pairing indicator will start
an audible chime will sound through the unit. Audio played through the
connected Bluetooth device will now be heard through the headphones.

4. Use the controls on the connected device to select and begin playing audio.

5. To play or pause audio, use the controls on the connected Bluetooth device,
or press the Play/Pause button on the headphones.

red and blue.

blue and

Using the Speakerphone

1. When a call is received, a ringtone will sound through the unit.

2. Press the
controls on the connected phone.

3. The incoming call received through the device will now be heard through
the headphones.

4. To end the call, press the
the connected device.

button to accept the call, or accept the call using the

button or end the call using the controls on

Aux In

Aux In mode will function even if the headphones are not powered ON.
To conserve battery power, keep them powered OFF when using Aux In.

Requires a 3.5mm audio cable (included).

1. Connect a 3.5mm audio cable to the Aux In on the unit and the
audio output on an audio device.

2. Use the controls on the connected device to select and play audio.

Noise Canceling

The Noise Canceling feature will electronically mute background noise. It can be
used with the Bluetooth or Aux In modes to enhance the quality of any music or
audio that is playing through the headphones.

Noise Canceling mode will function even if the headphones are not powered ON.
To conserve battery power, it is recommended to power the headphones OFF if
you want to use the Noise Canceling feature without playing audio.
