Sunways AT 2700, AT 4500, AT 3000, AT 3600, AT 5000 User Manual

Download

Page 1

User Manual Sunways Solar Inverter

AT 2700, AT 3000, AT 3600, AT 4500, AT 5000

english

Page 2

Imprint

This user manual may only be reprinted or copied in whole or in part with the express, written approval of Sunways AG. Any type of reproduction, distribution or storage on data carriers in any form and of any kind not authorised by Sunways AG represents a violation of the applicable copyright laws and will be prosecuted. We reserve the right to make technical changes which serve to improve the device, or which increase the safety standard – even without separate prior notice.

Publisher responsible for the content: Sunways AG This user manual contains products and product names which are registered trademarks. The mention of products and product names is used only for information purposes and does not represent product misuse. The passage referring to these products in this user manual does not represent original documentation of the respective product.

Page 3

Introduction

Thank you for deciding in favour of a Sunways Solar Inverter of the AT Series!

In doing so you have purchased an innovative, highquality product with unique equipment features and a high, constant efﬁciency. This Solar Inverter is equipped with HERIC

topology and innovative FP switching, and therefore enables operation on a large number of silicon and thin-ﬁlm modules – as accustomed from Sunways – without the use of a transformer.

This user manual contains explanations on using the Sunways Solar Inverter. You will learn to recognise the many possibilities of the Solar Inverter. Information is provided on safety, installation, commissioning, operation and system monitoring.

Please observe the safety precautions exactly to ensure increased safety at the operating site of the Solar Inverter.

Page 4

Content

1 Product description 7

1.1 Proper use 7

1.2 Function description 7

1.3 Integration in solar system 8 Design of solar generator 8 Standard components of a solar system 9

1.4 Assembly description 9

1.5 Delivery scope 10

2 Safety precautions 11

2.1 General safety precautions 11

2.2 Explanation of symbols and warnings 12 Warnings and symbols used in this user manual 12 Symbols used in this user manual 12 Warnings and symbols on device 12

2.3 Basic safety measures 13

2.4 Safety concept 13

3 Installation 14

3.1 Mechanical installation 14 Requirements for installation location 14 Installation 15

3.2 Electrical installation 16 Solar generator connection 16 Grid connection 20

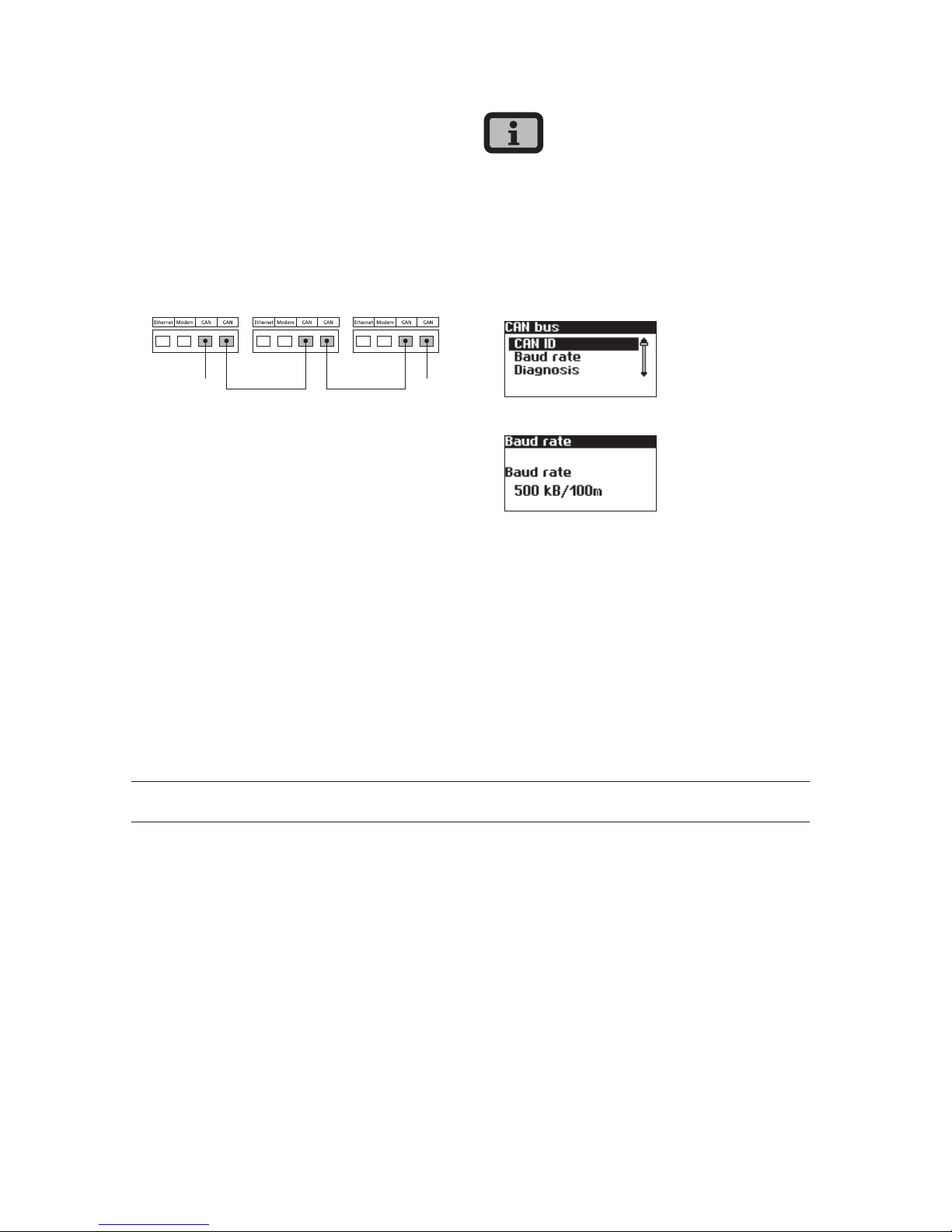

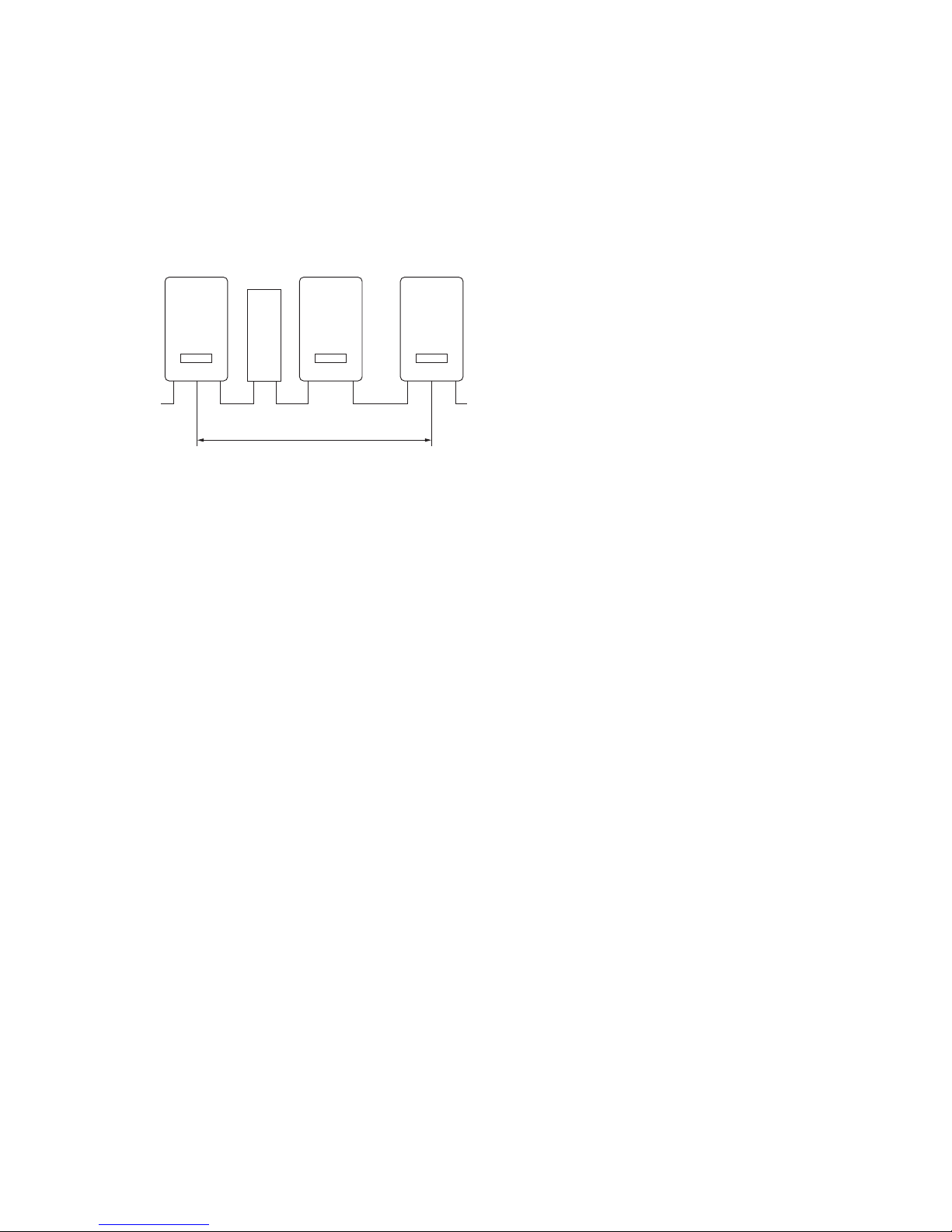

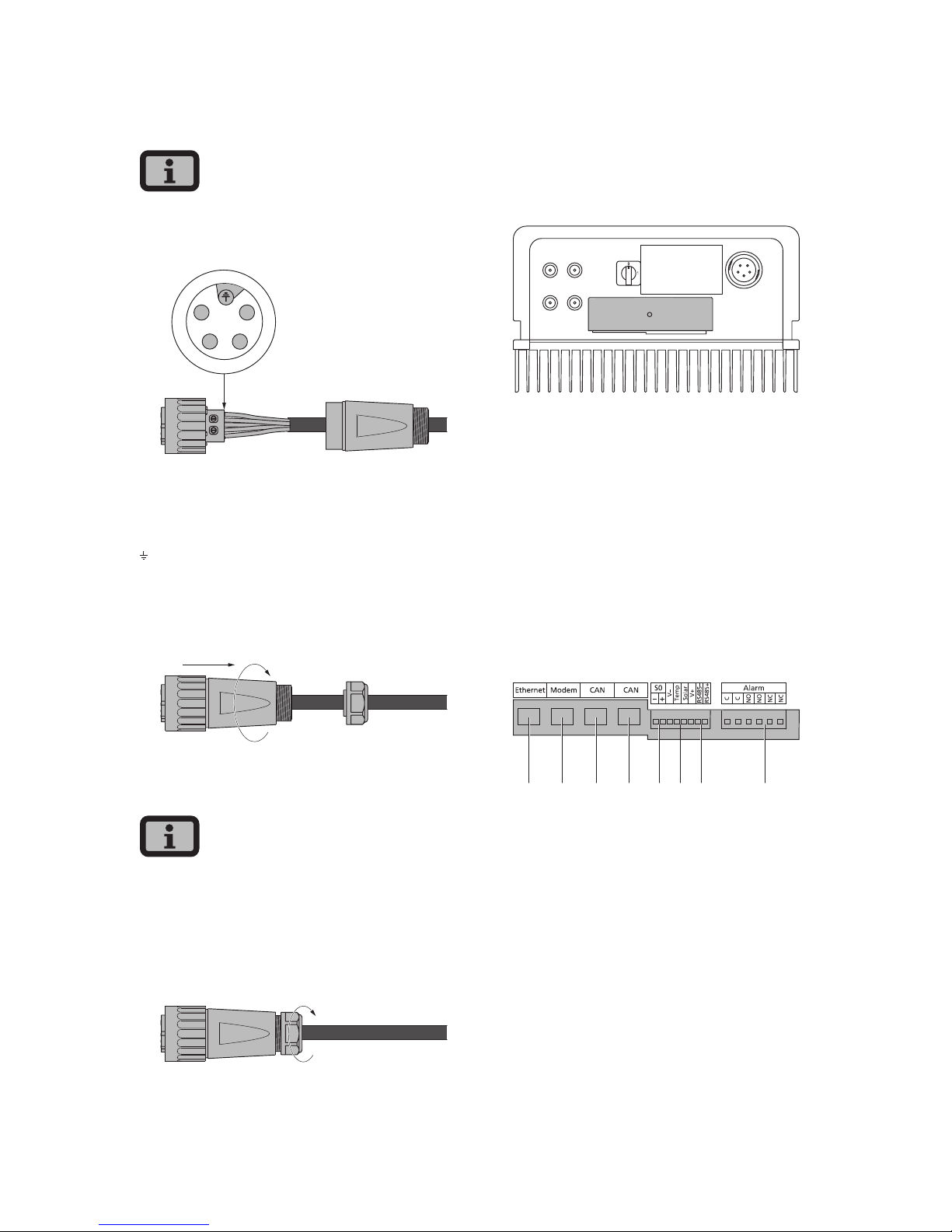

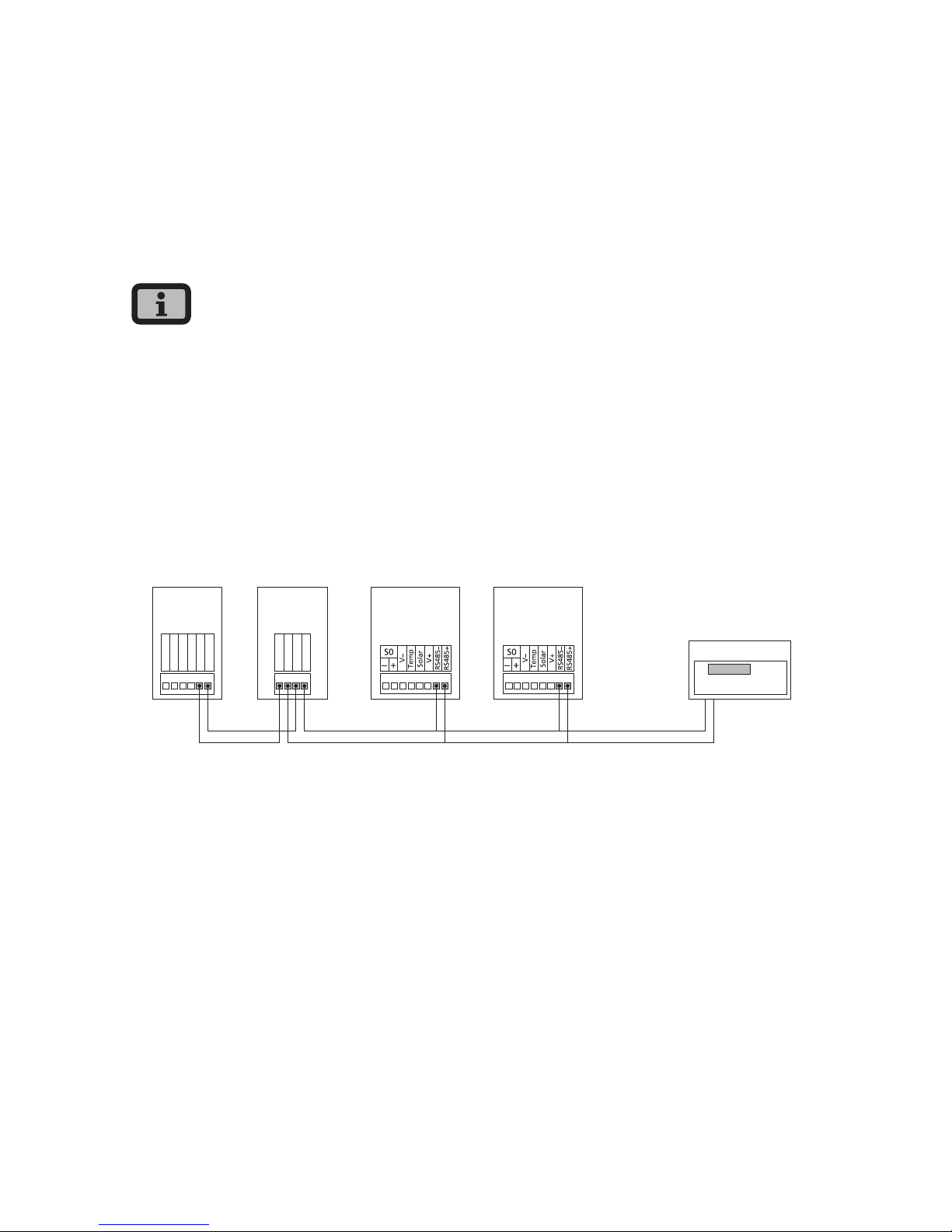

3.3 Installing communication 22 Interface overview 22 Networking Solar Inverters via CAN bus 23 Networking Solar Inverters via RS485 interface 25 S0 interface 26 Connection of temperature and irradiation sensor 26 Connecting alarm relay 27

Page 5

Content

4 Commissioning 28

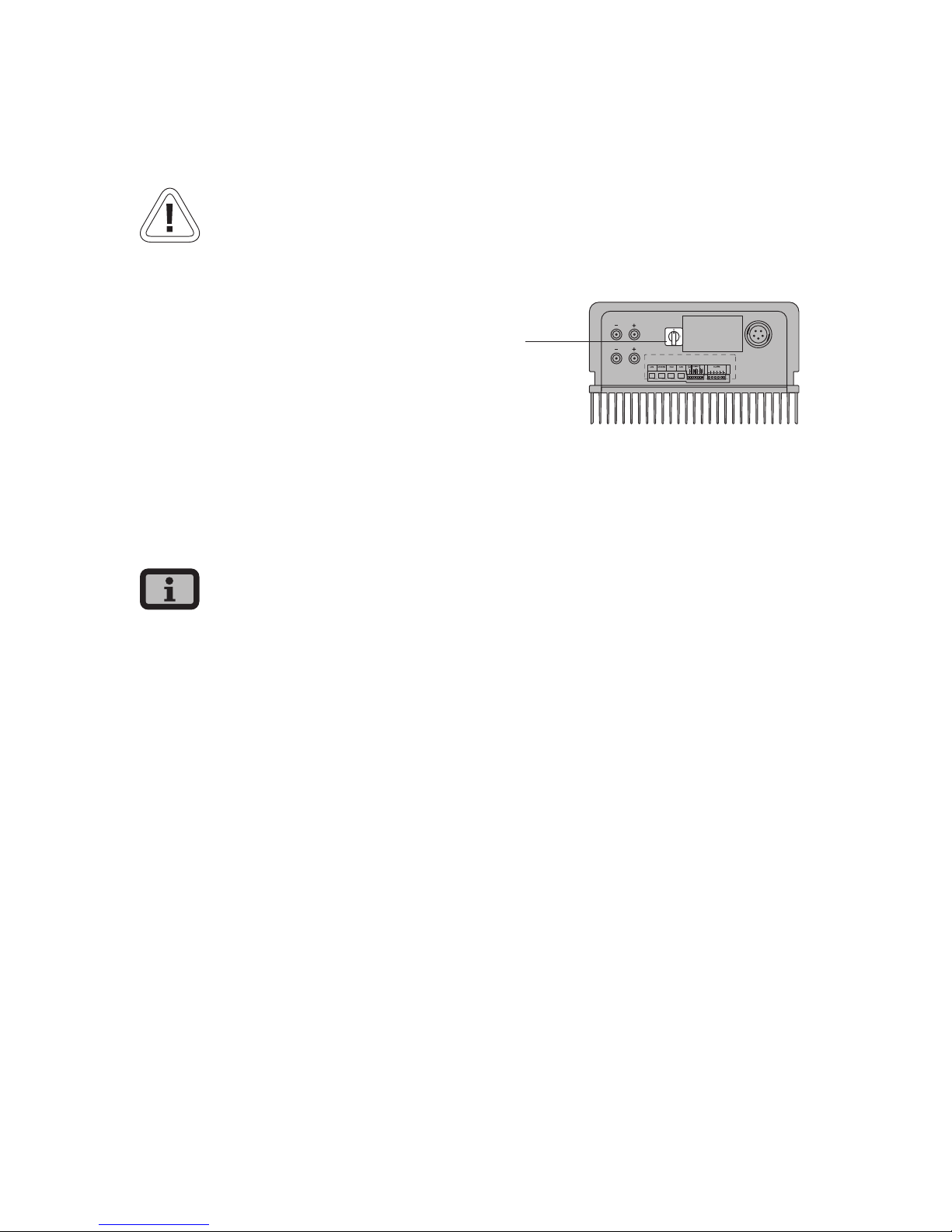

4.1 Connecting and disconnecting Solar Inverter 28 Connecting 28 Switching off 28

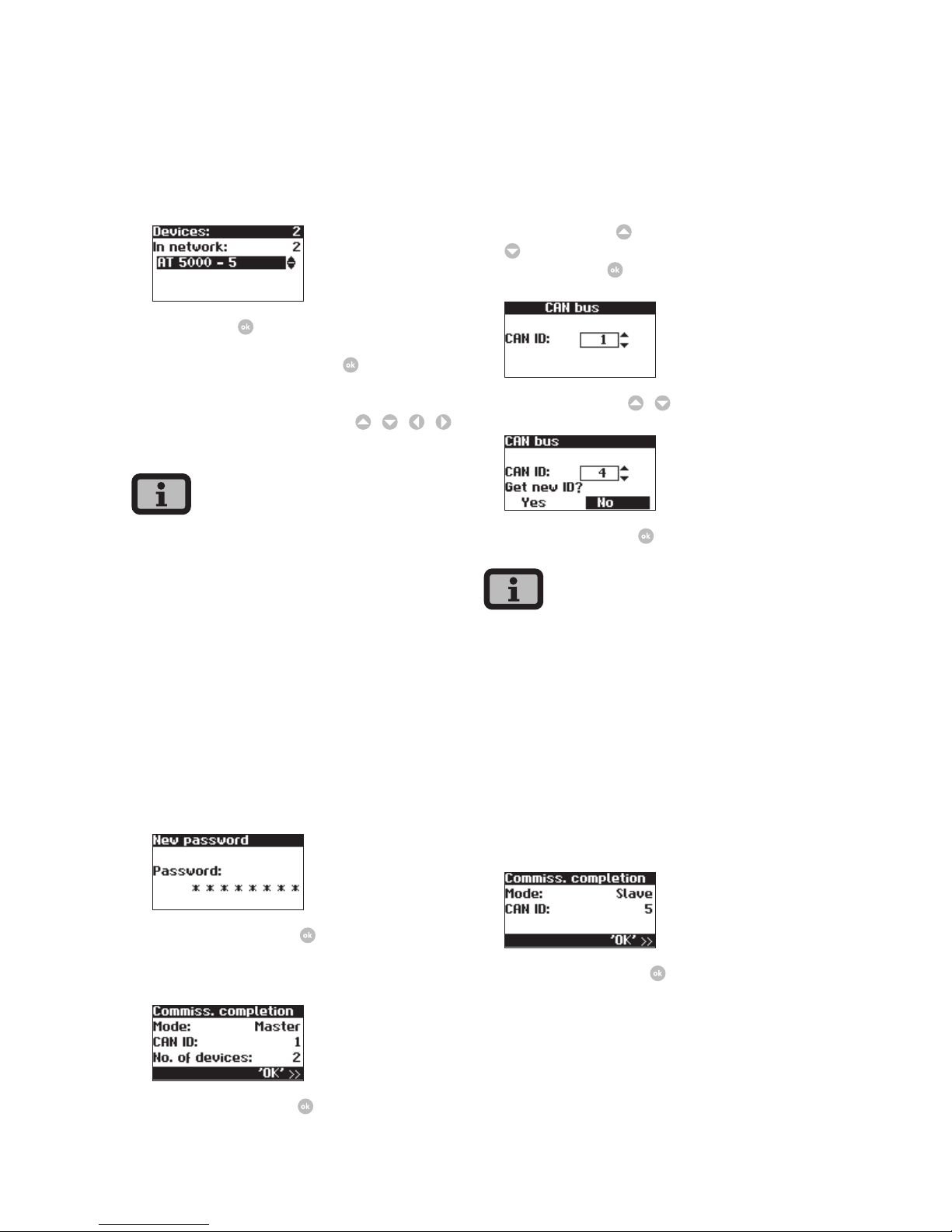

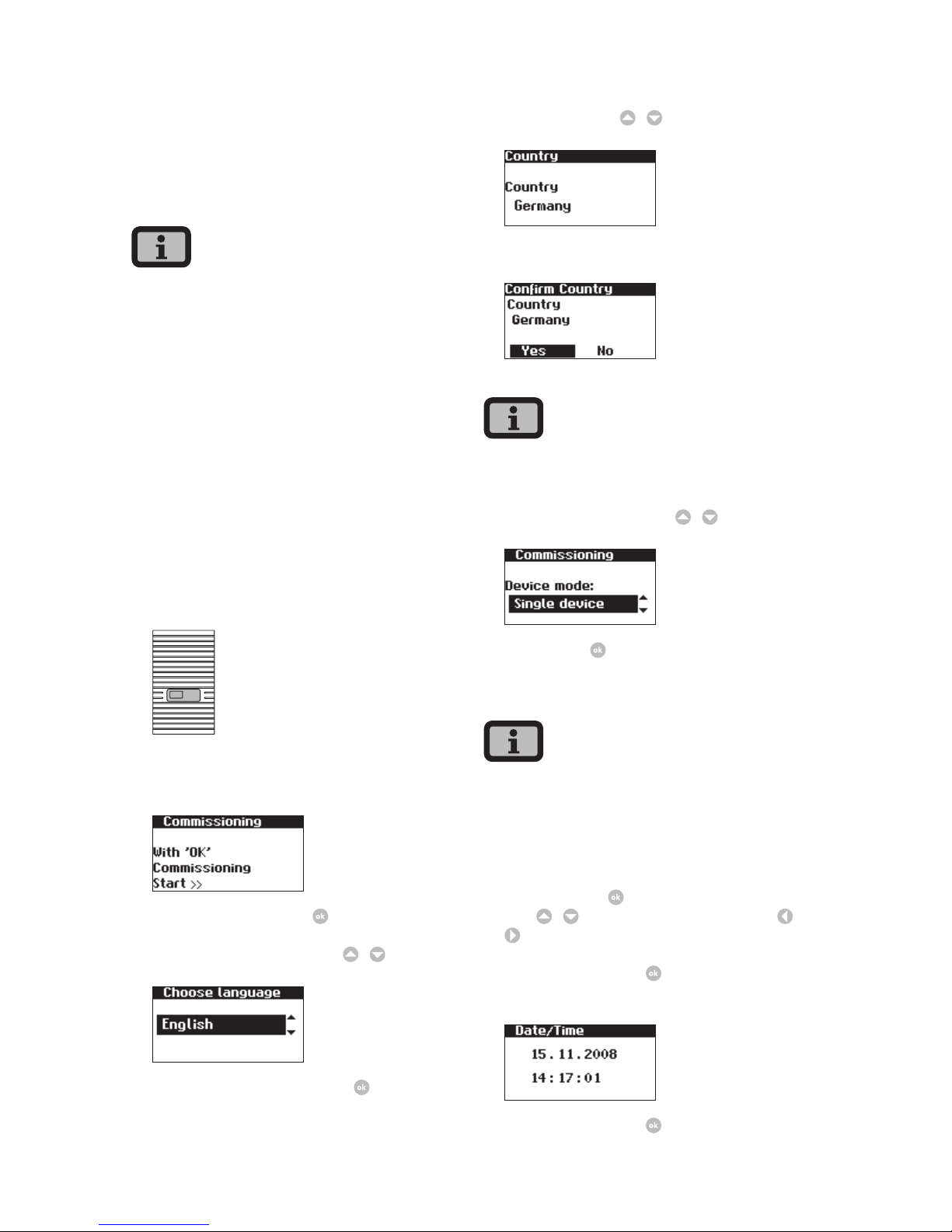

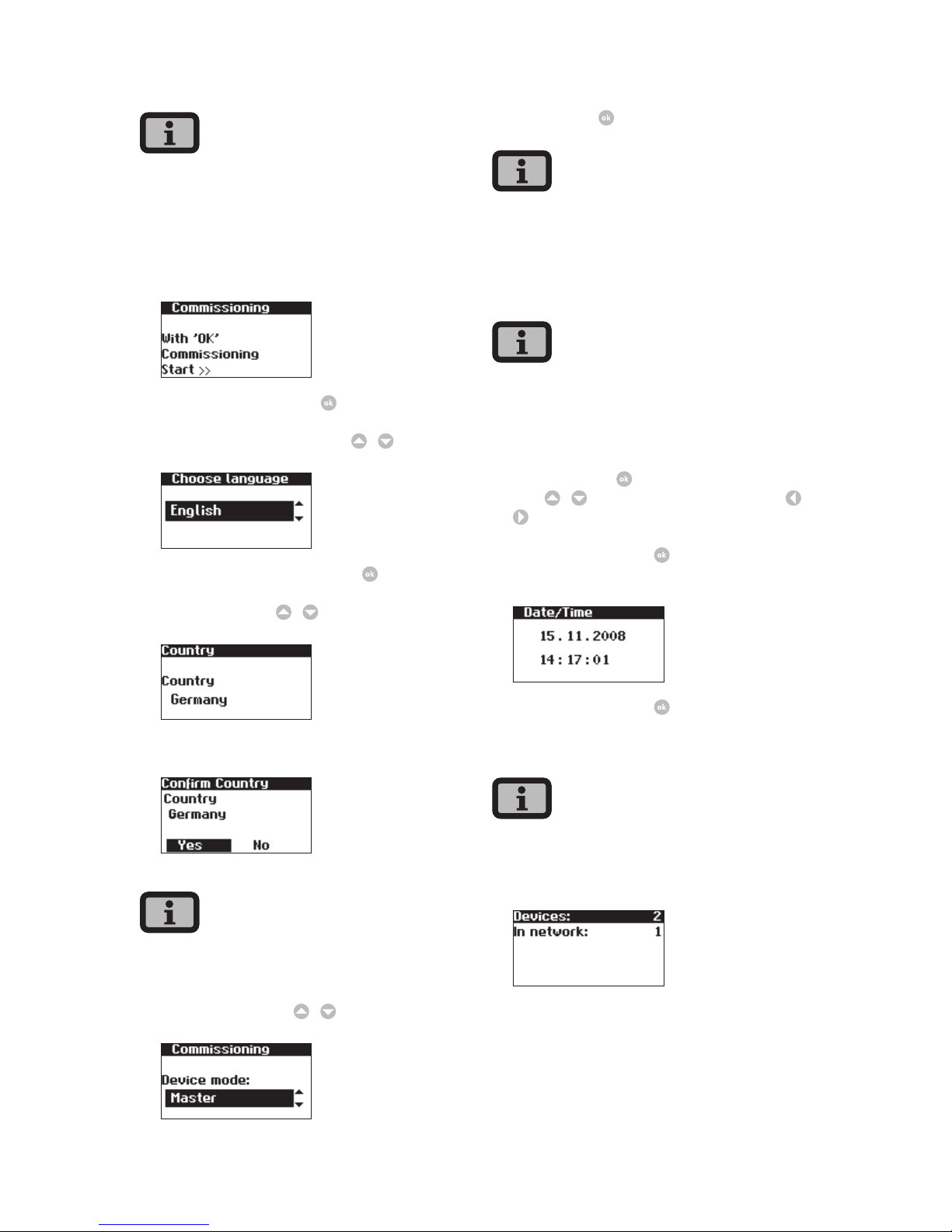

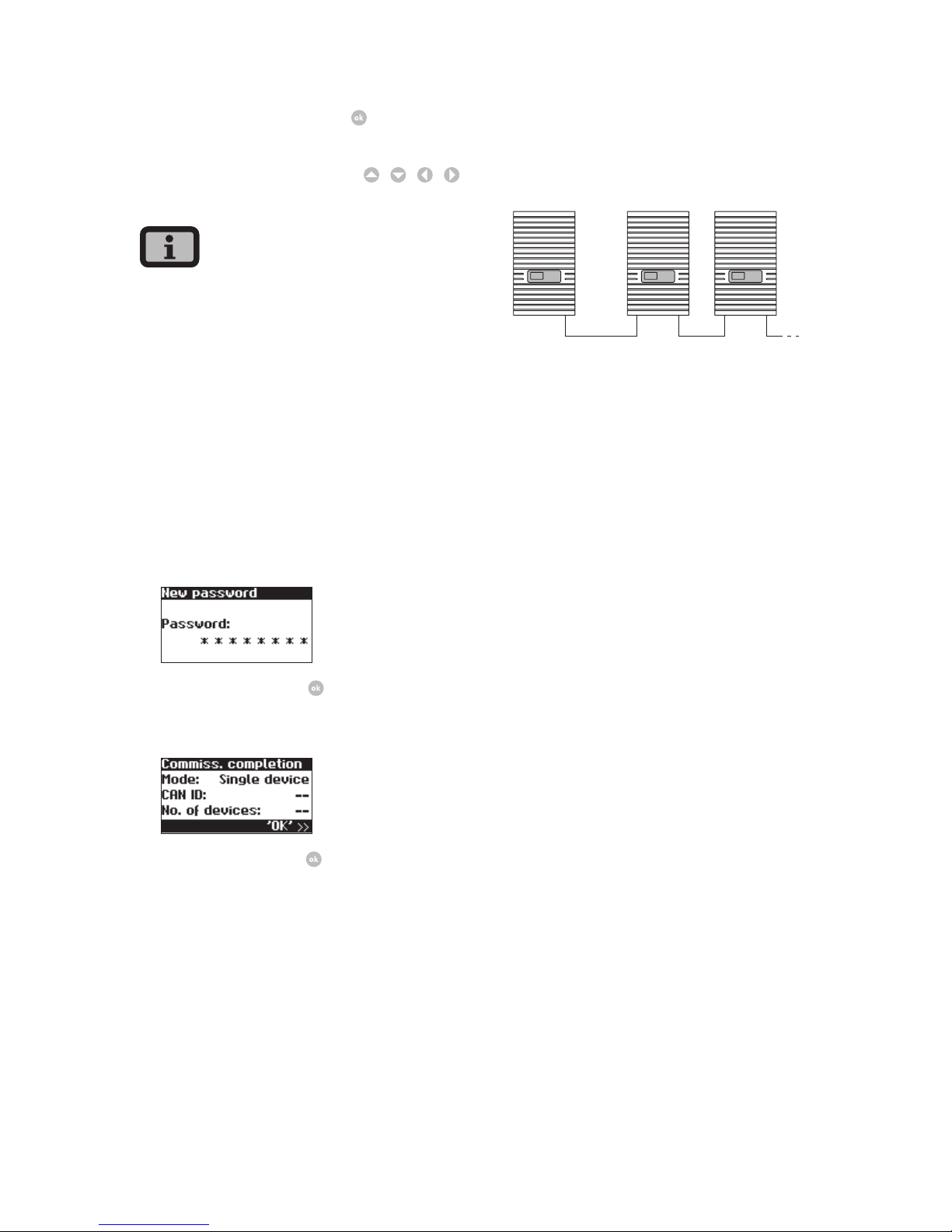

4.2 Commissioning 29 Commissioning single device 29 Commissioning several networked devices 30 Later commissioning 34

5 Operation 35

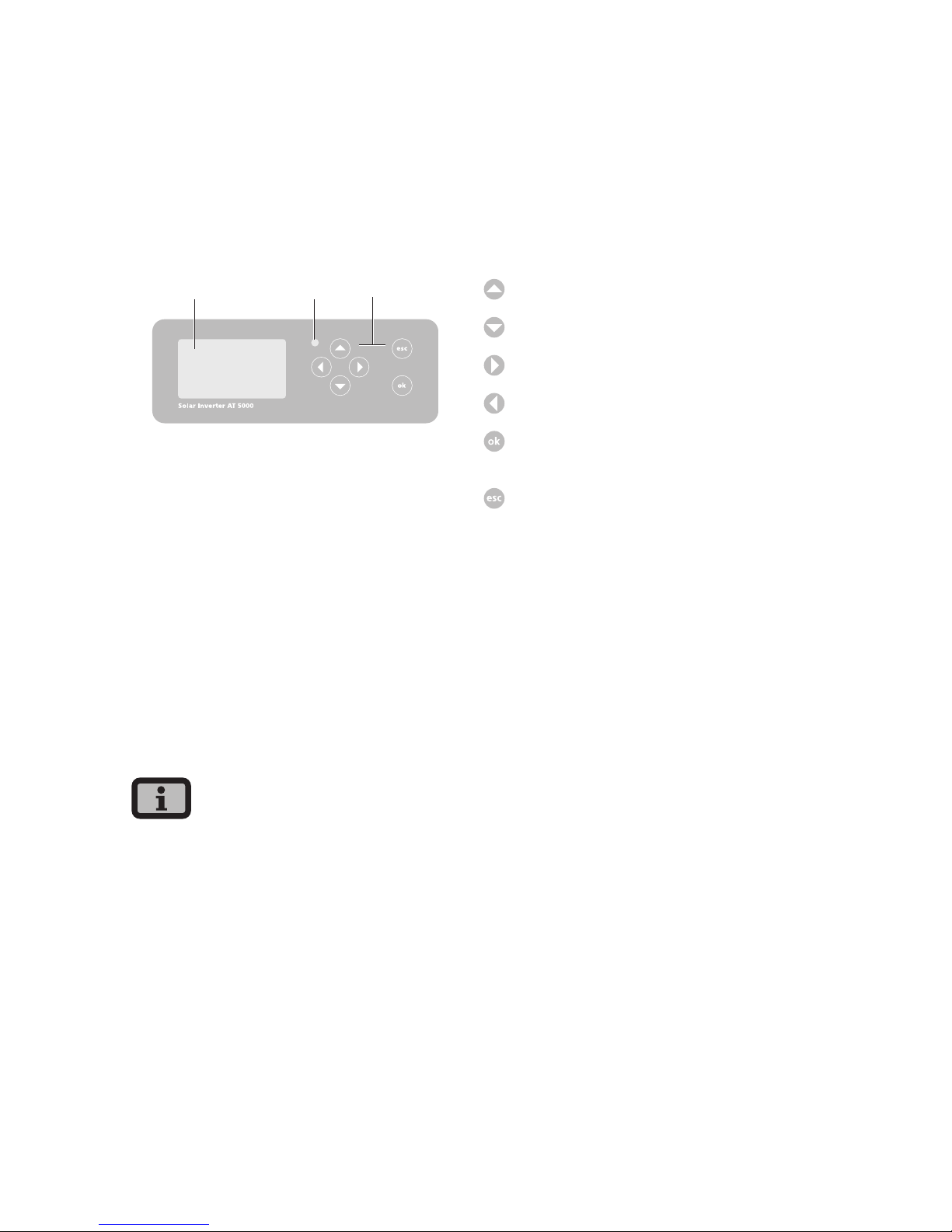

5.1 Operating elements 35 Operating ﬁeld 35 LCD display 35 Operating LED 35 Standard screen (single device) 36 Standard screen (system) 36

5.2 Access rights 37 Customer area 37 Installer area 37

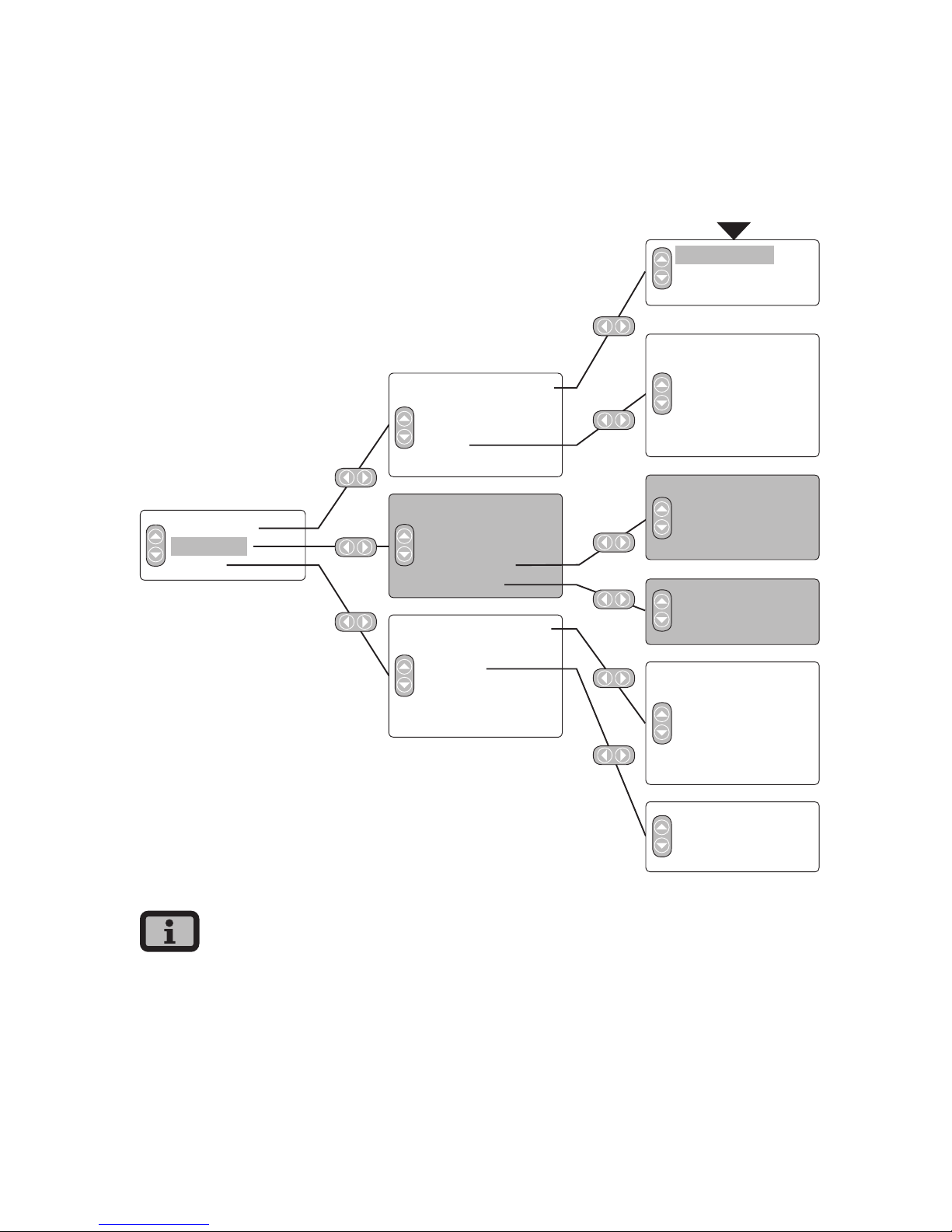

5.3 Menu structure 38

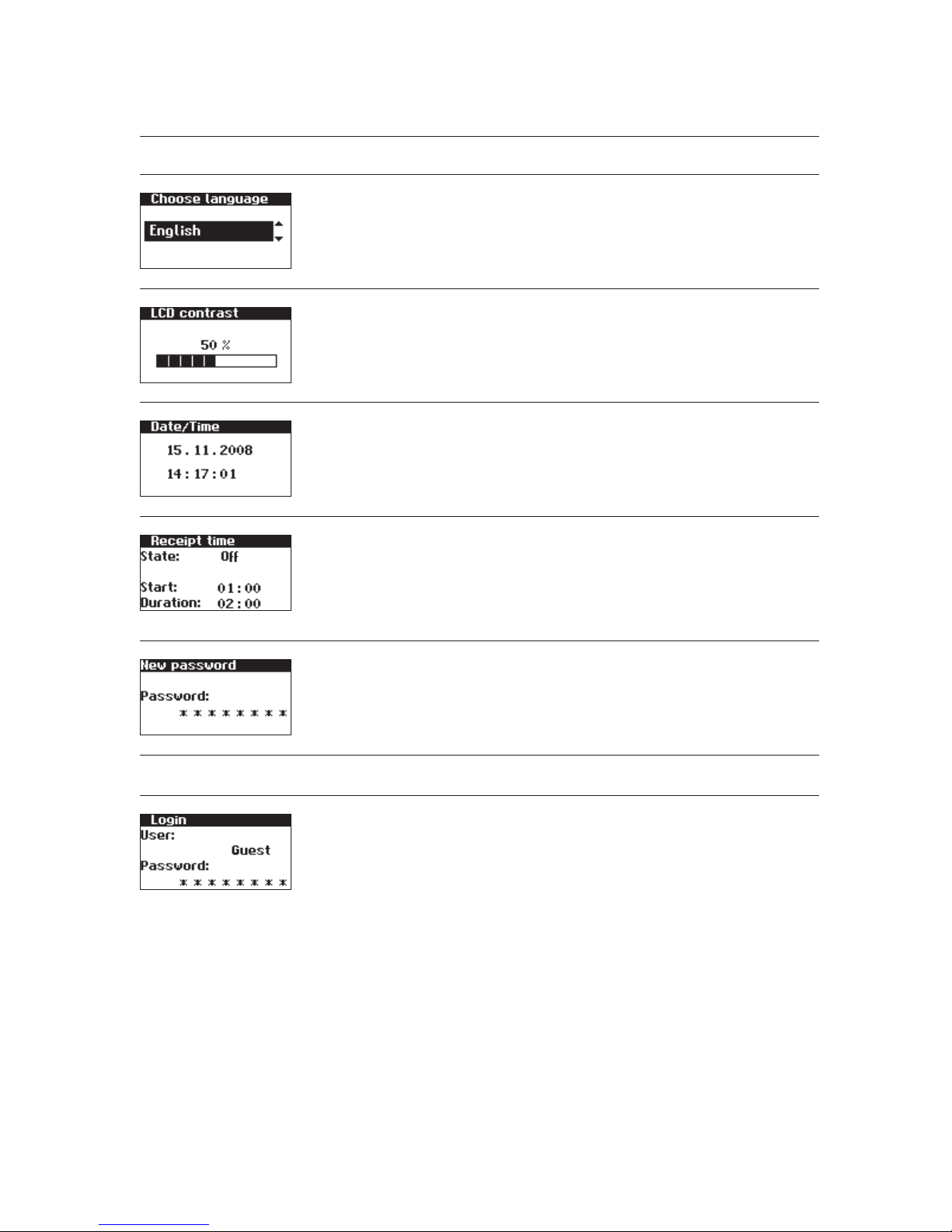

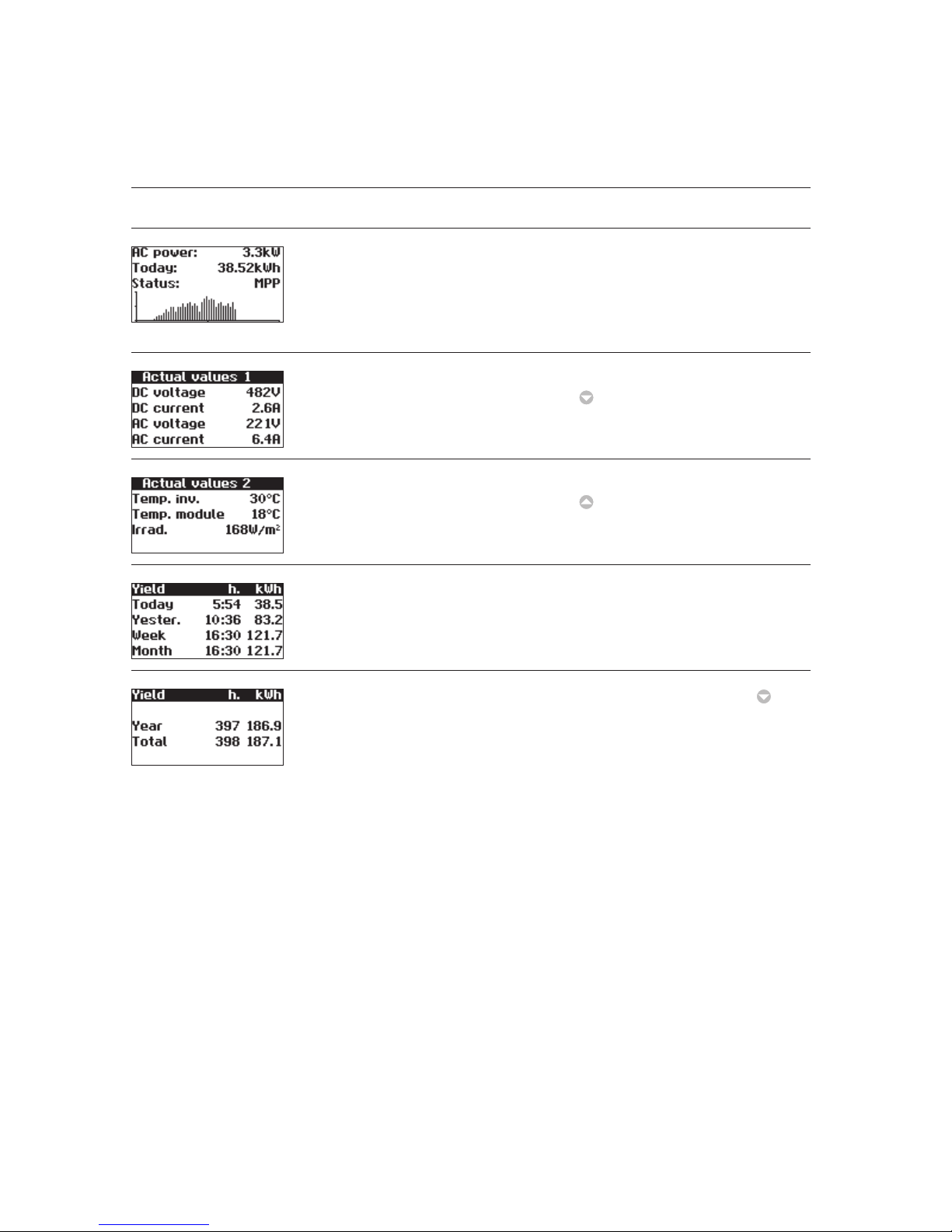

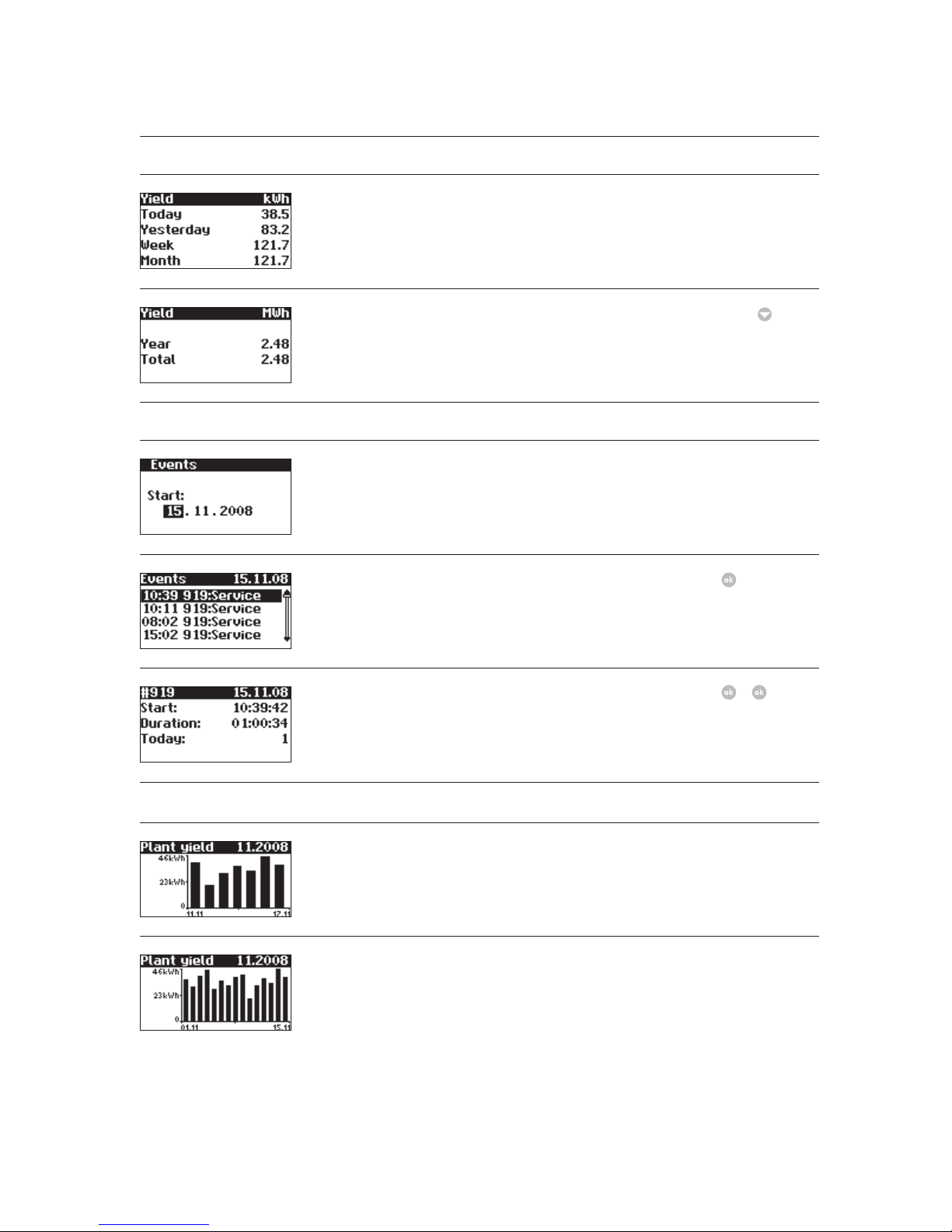

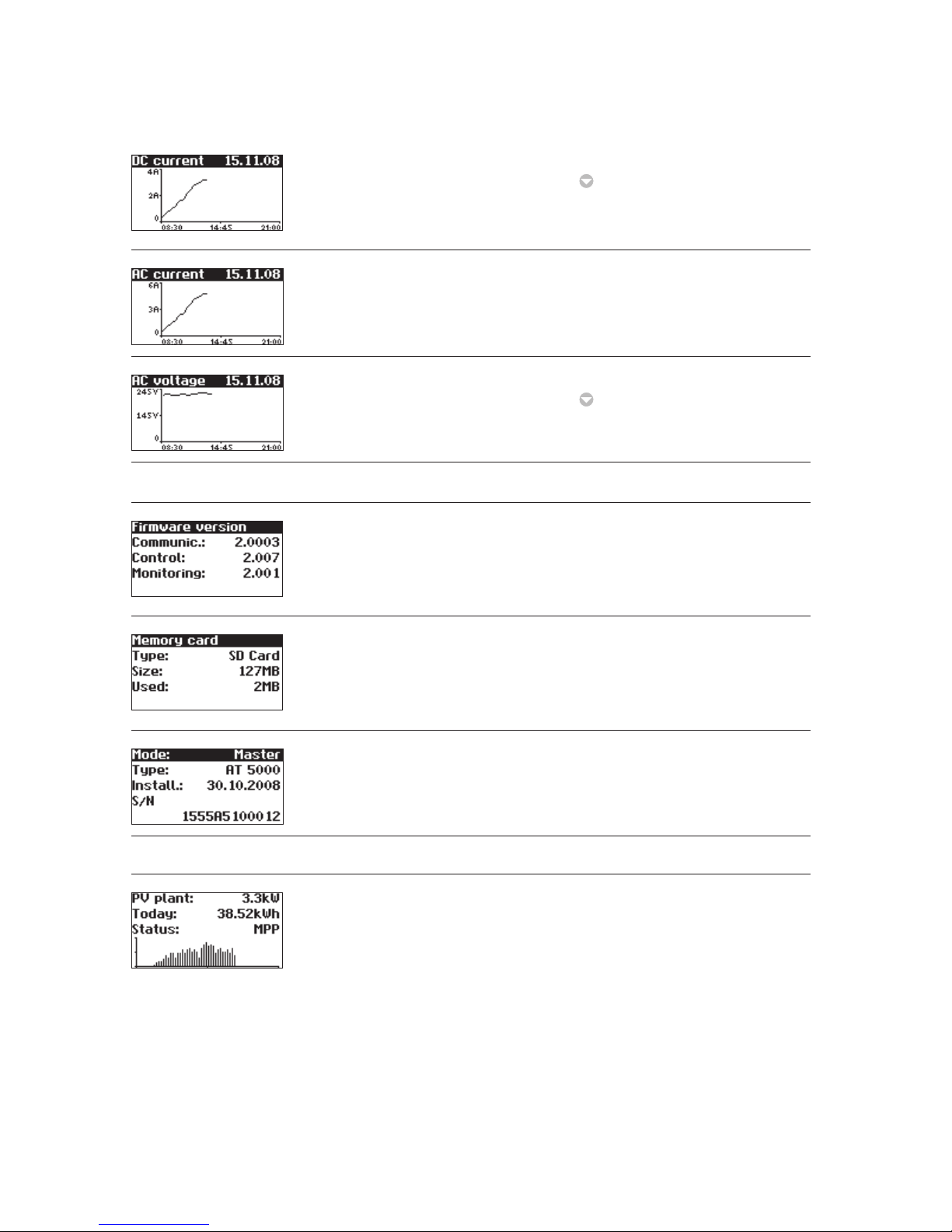

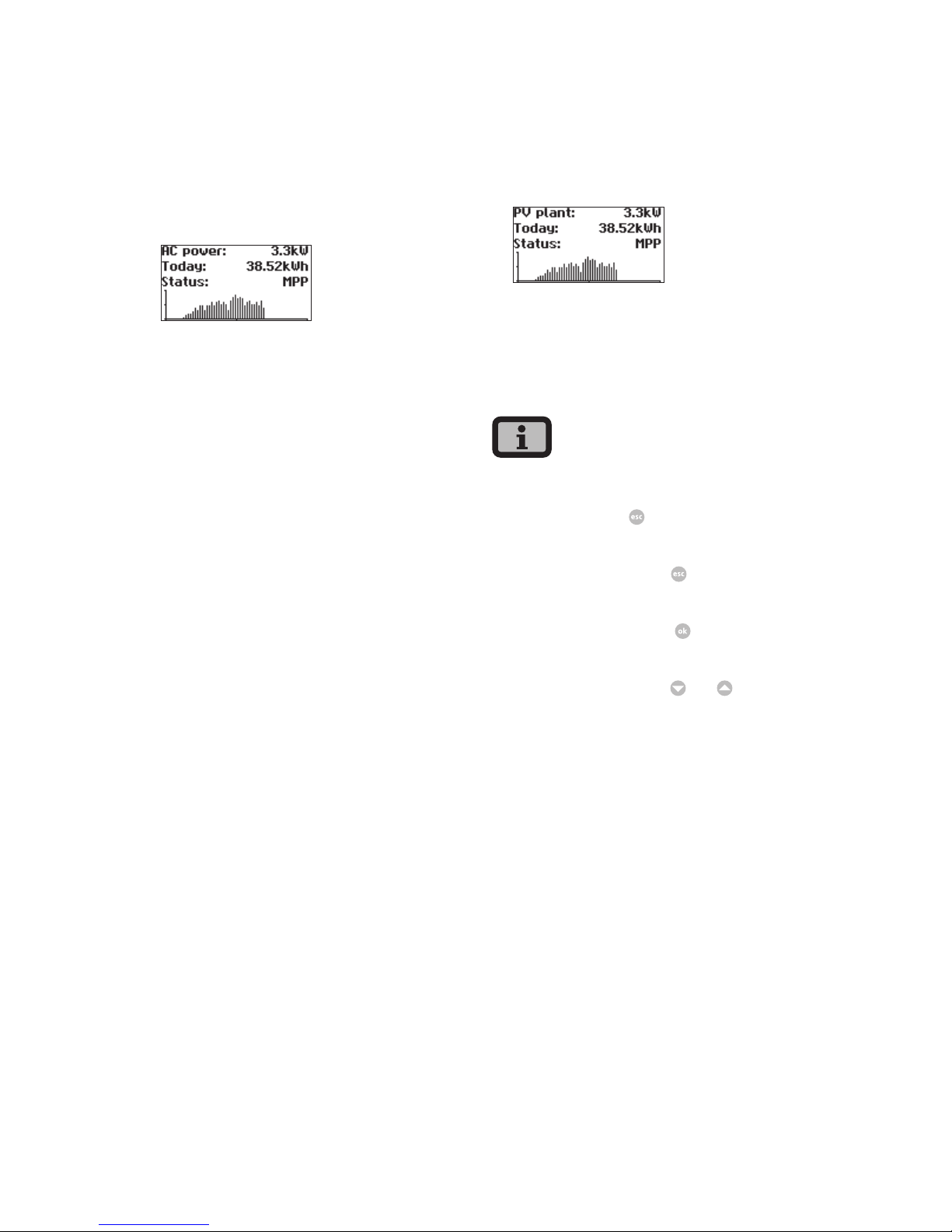

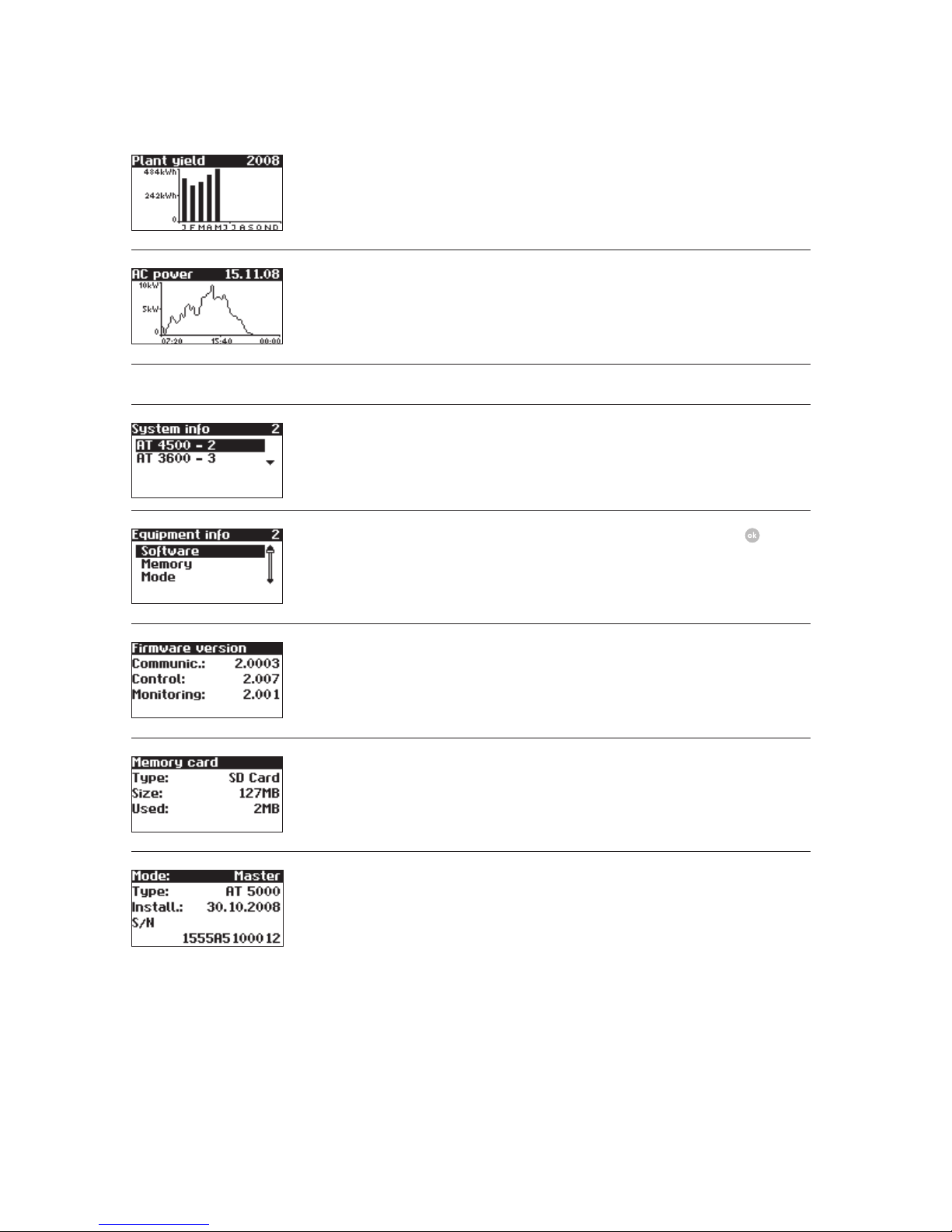

5.4 Overview of screen displays 39

5.5 Malfunction displays 46 Solar generator fault 46 AC network fault 47 Inverter fault 49 Interface/communication fault 51 Service fault 54

6 System monitoring 55

6.1 General information 55

6.2 Integrated data logger 55

6.3 Direct Ethernet connection 56

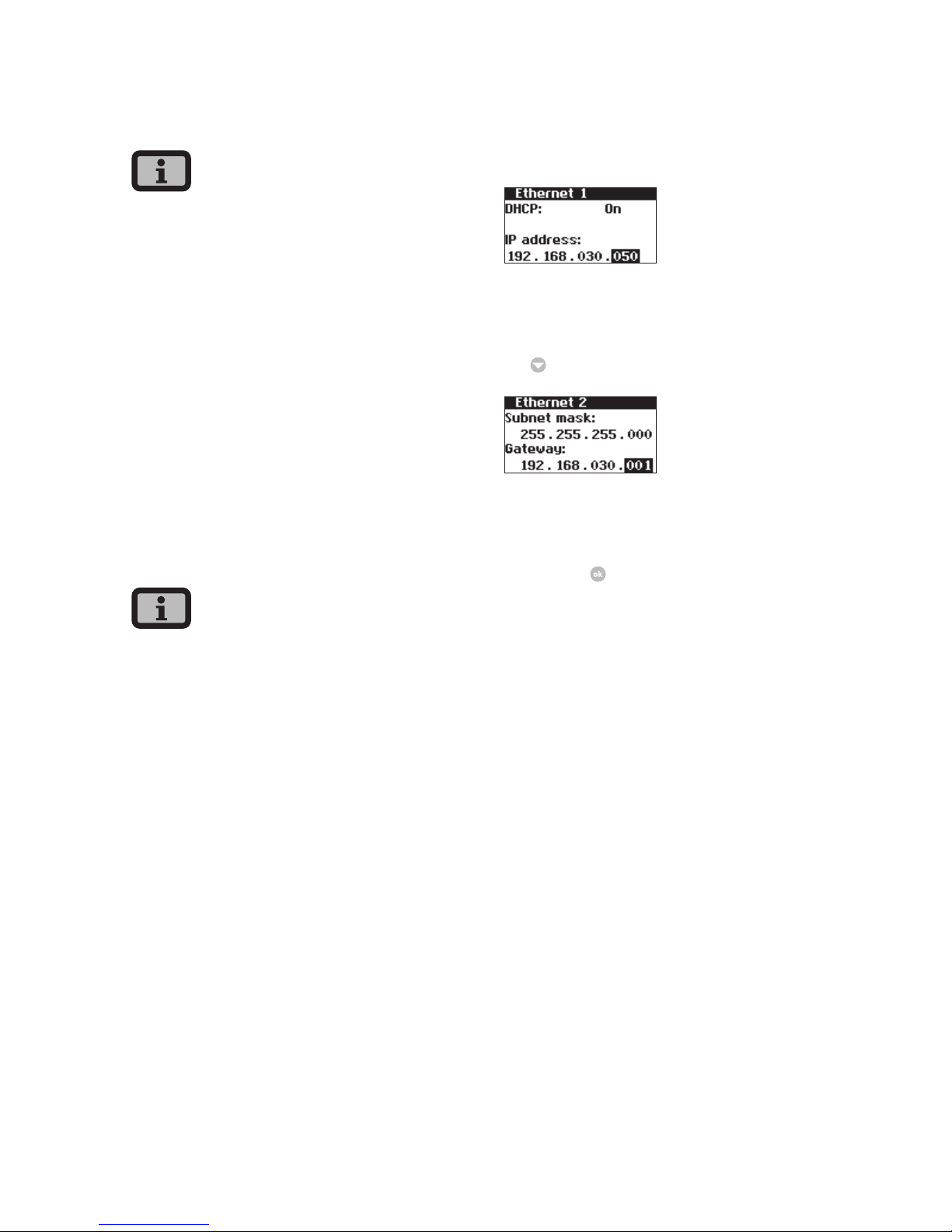

6.4 Network settings on Solar Inverter 57

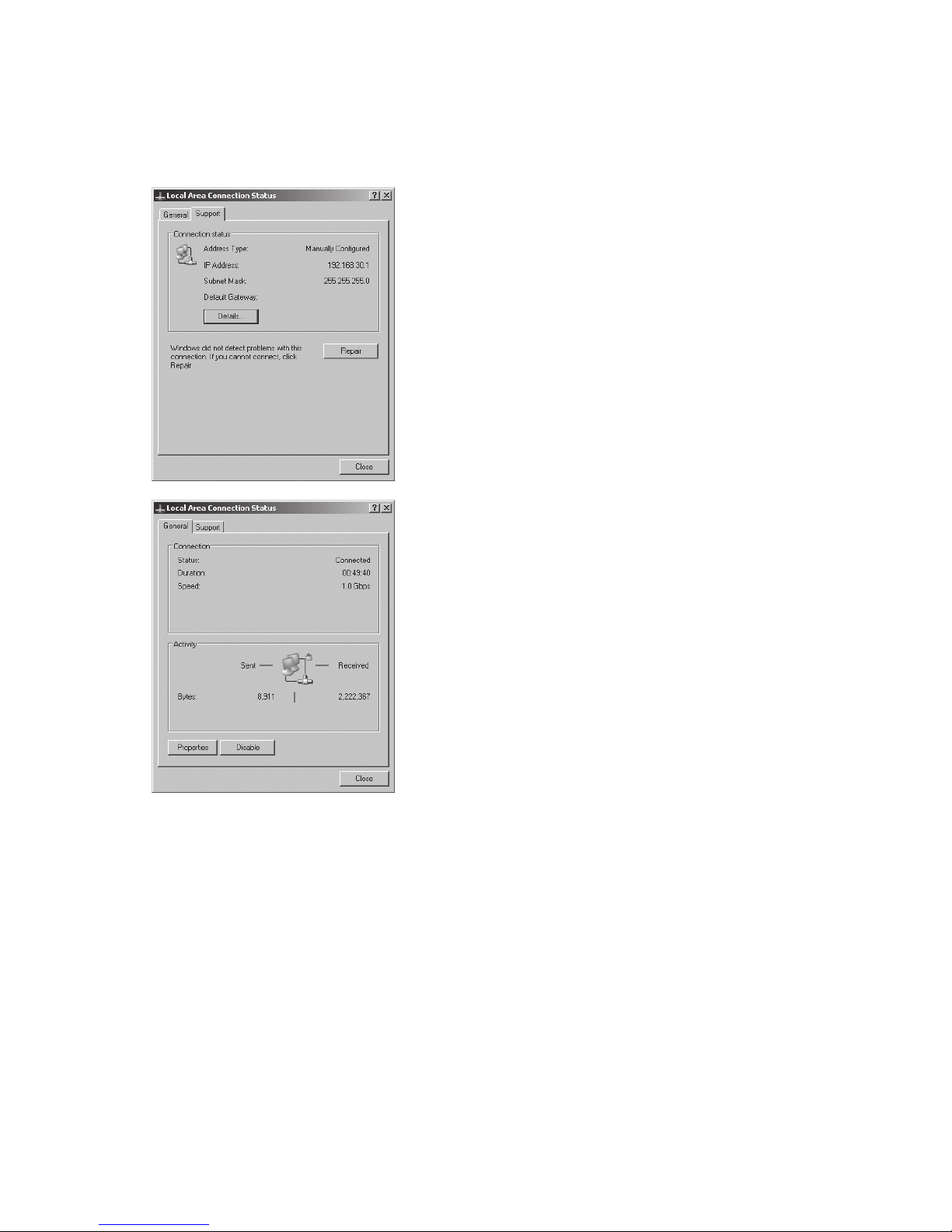

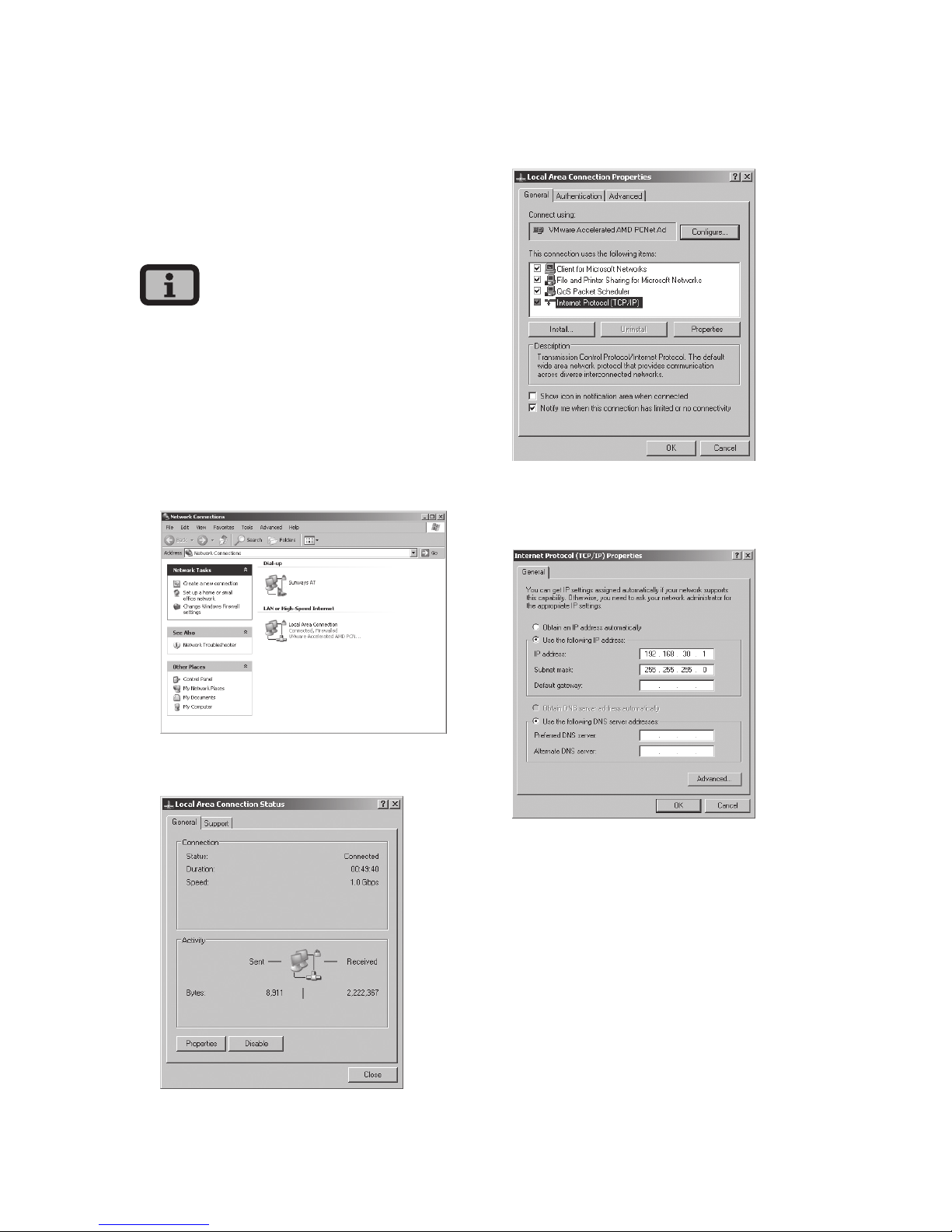

6.5 Network settings on the PC 58

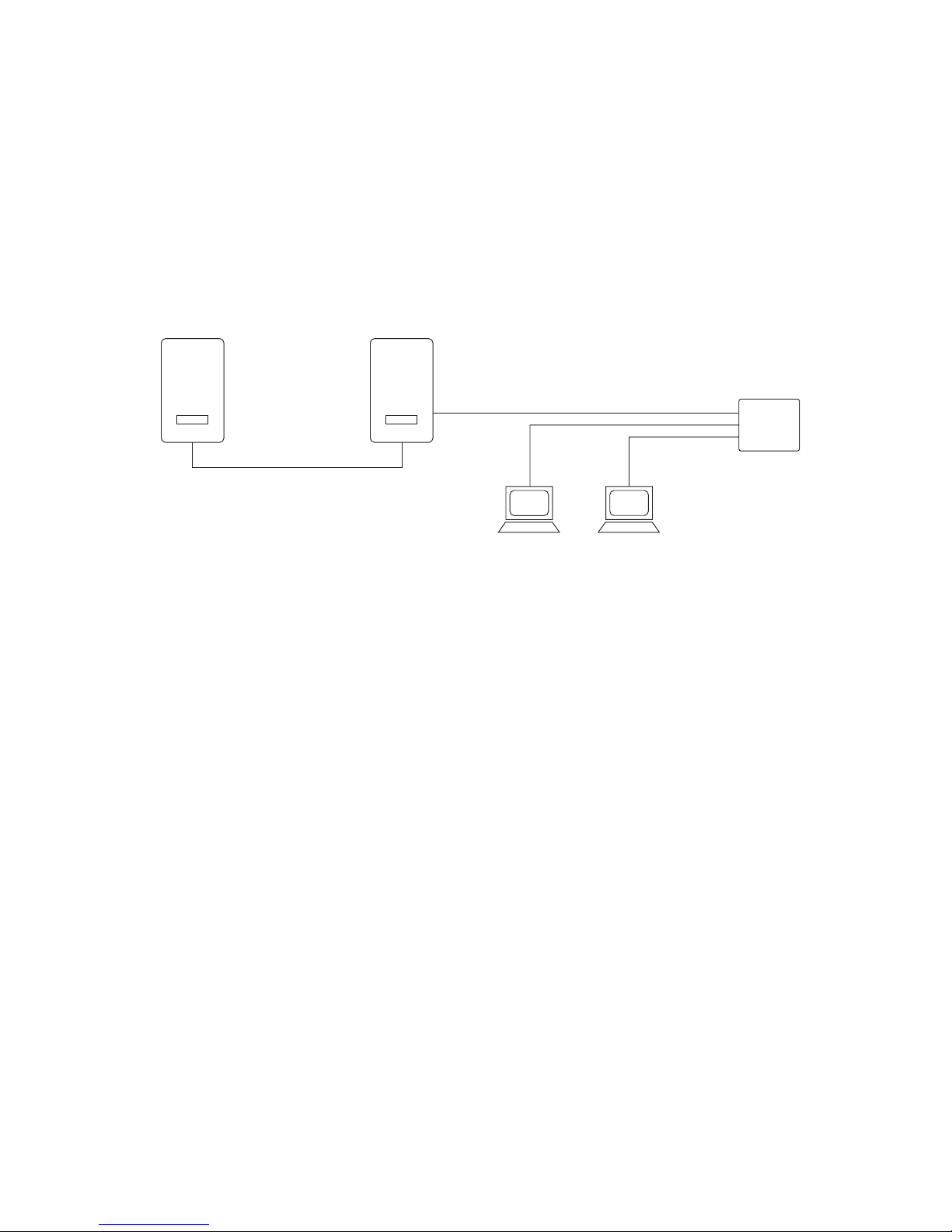

6.6 Connection via an existing Ethernet network 60

6.7 Access via DSL router 61

Page 6

Content

6.8 Connection via the Sunways Modem 61

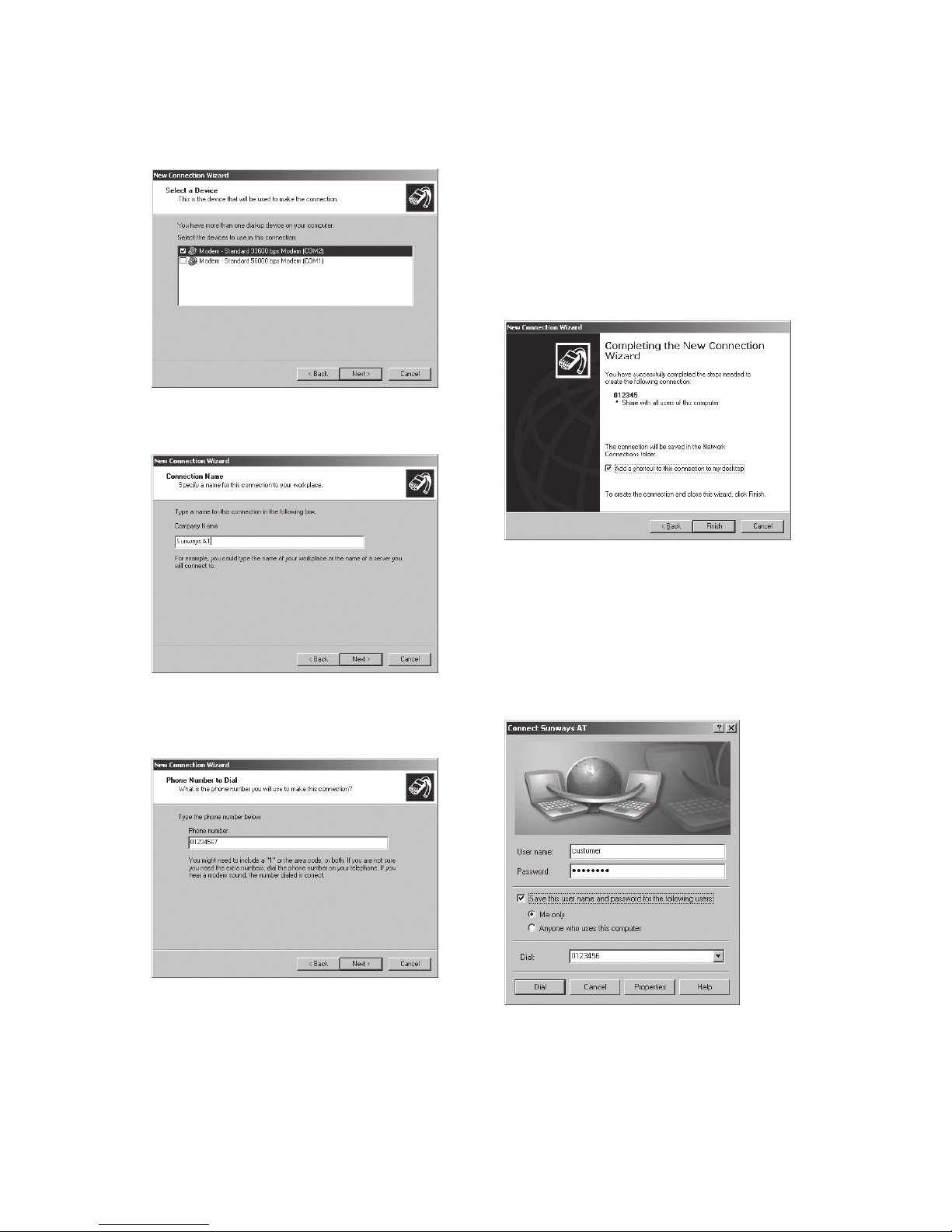

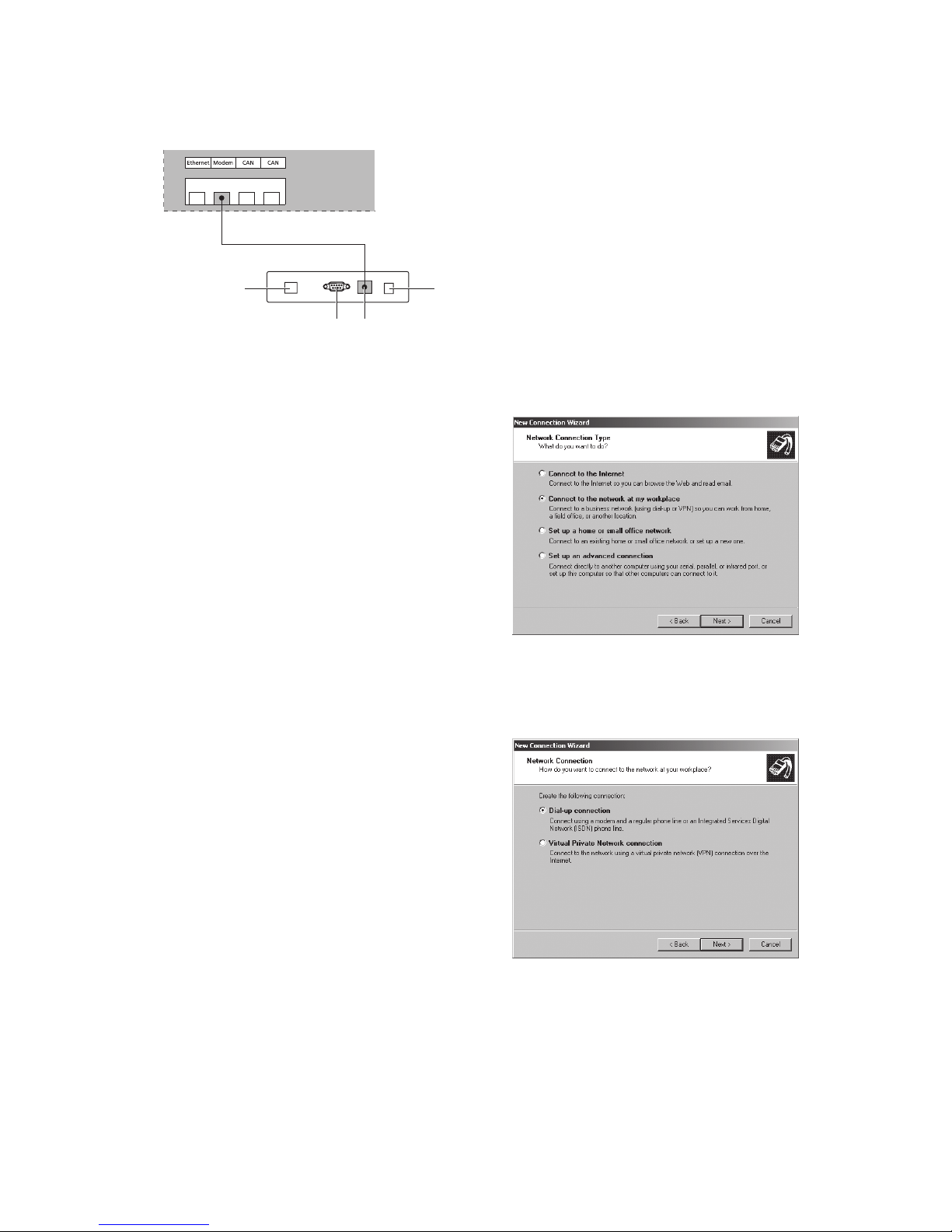

6.9 Dial-up connection from a PC to the Solar Inverter 62

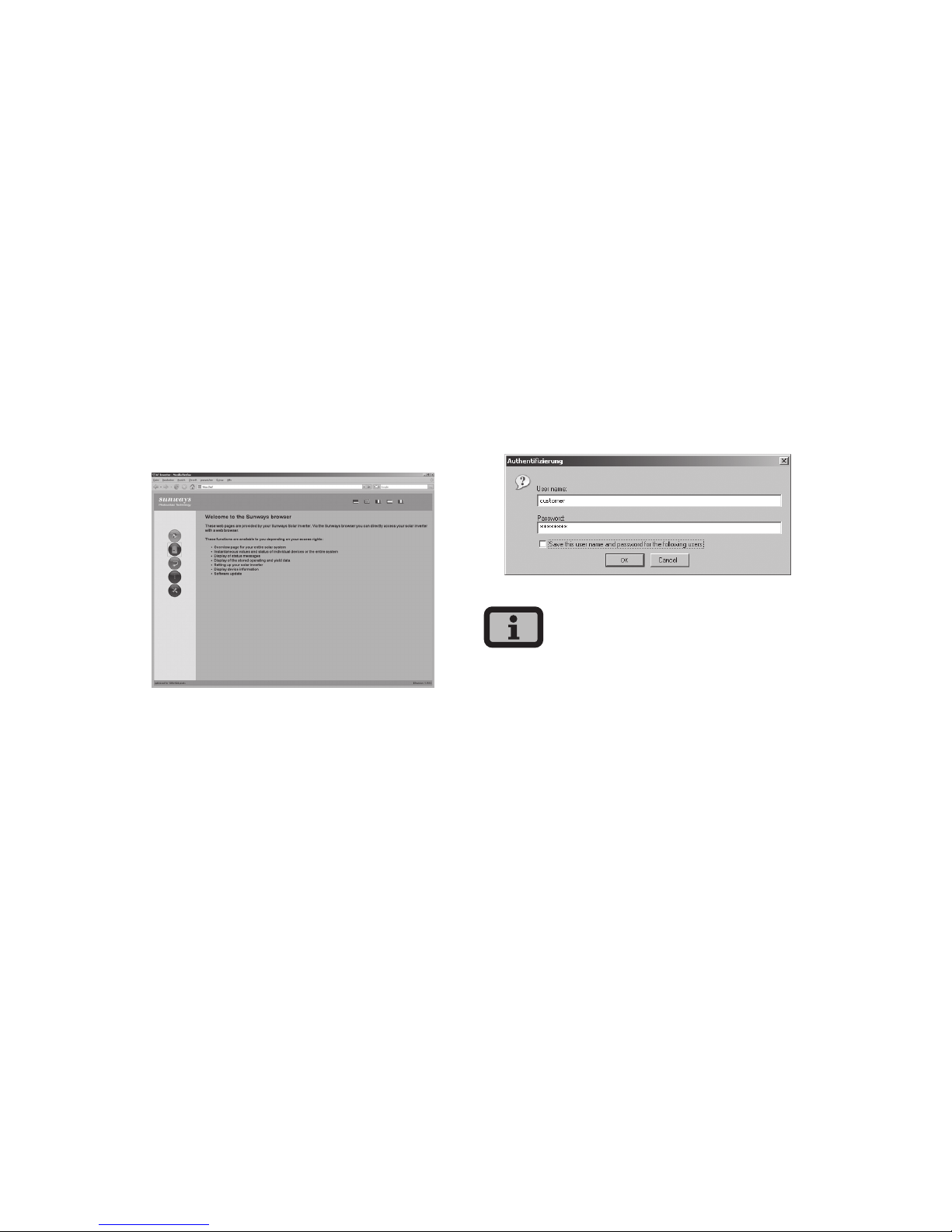

6.10 Sunways Browser 65 General information 65 Access protection 65 Overview – Menu 66 Language selection 66 Setting the date/time 66 Software update 67

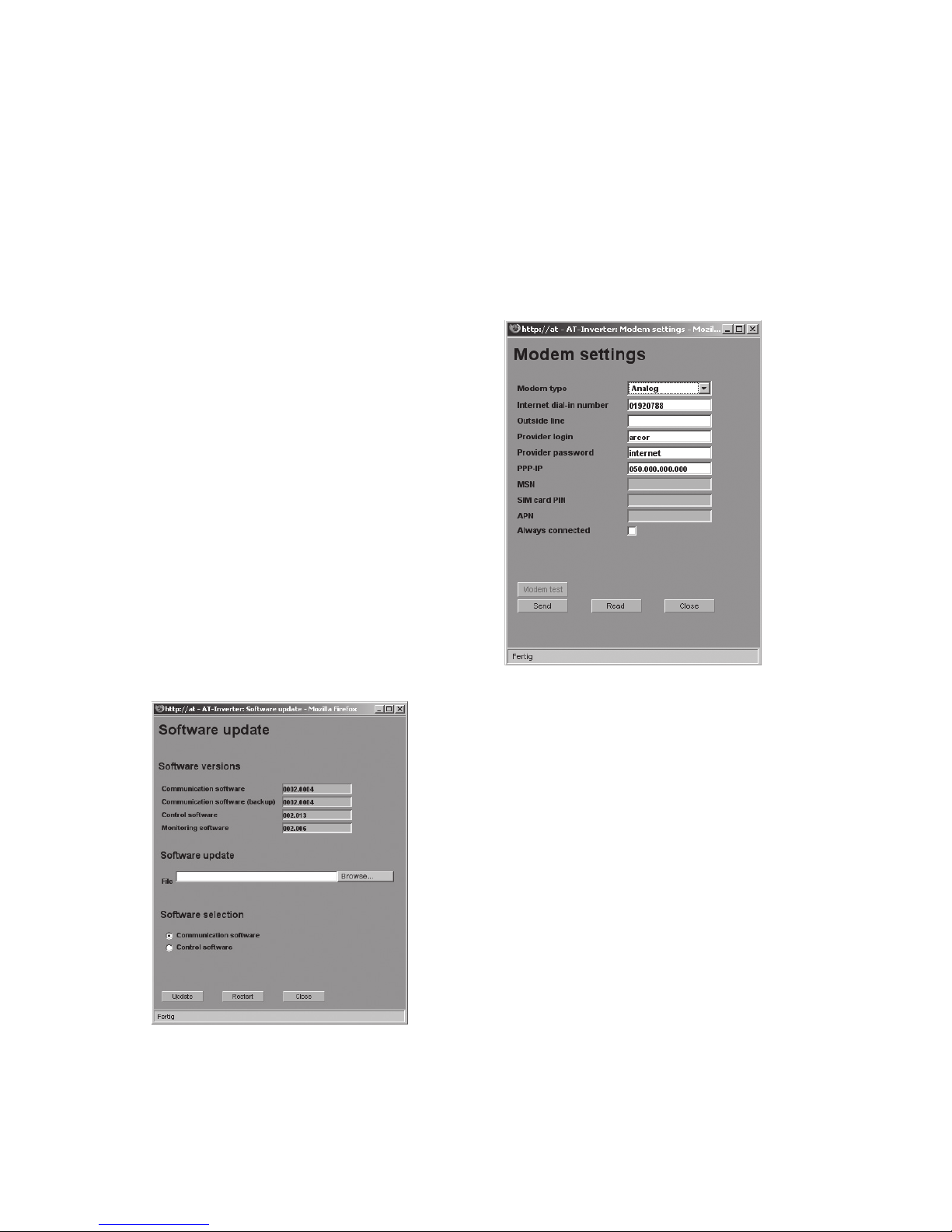

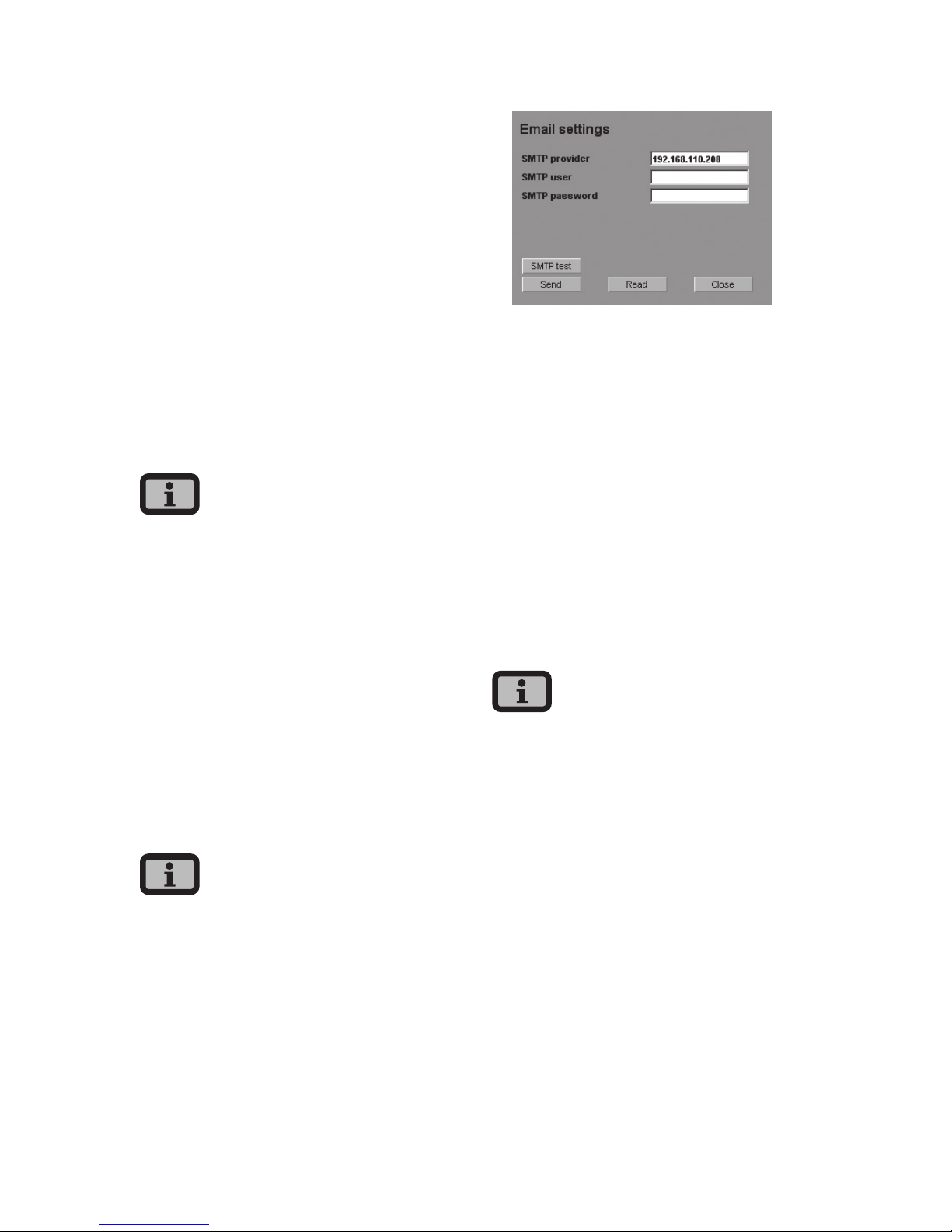

6.11 Internet dial-up via modem 67 Modem settings 67 E-mail settings 68

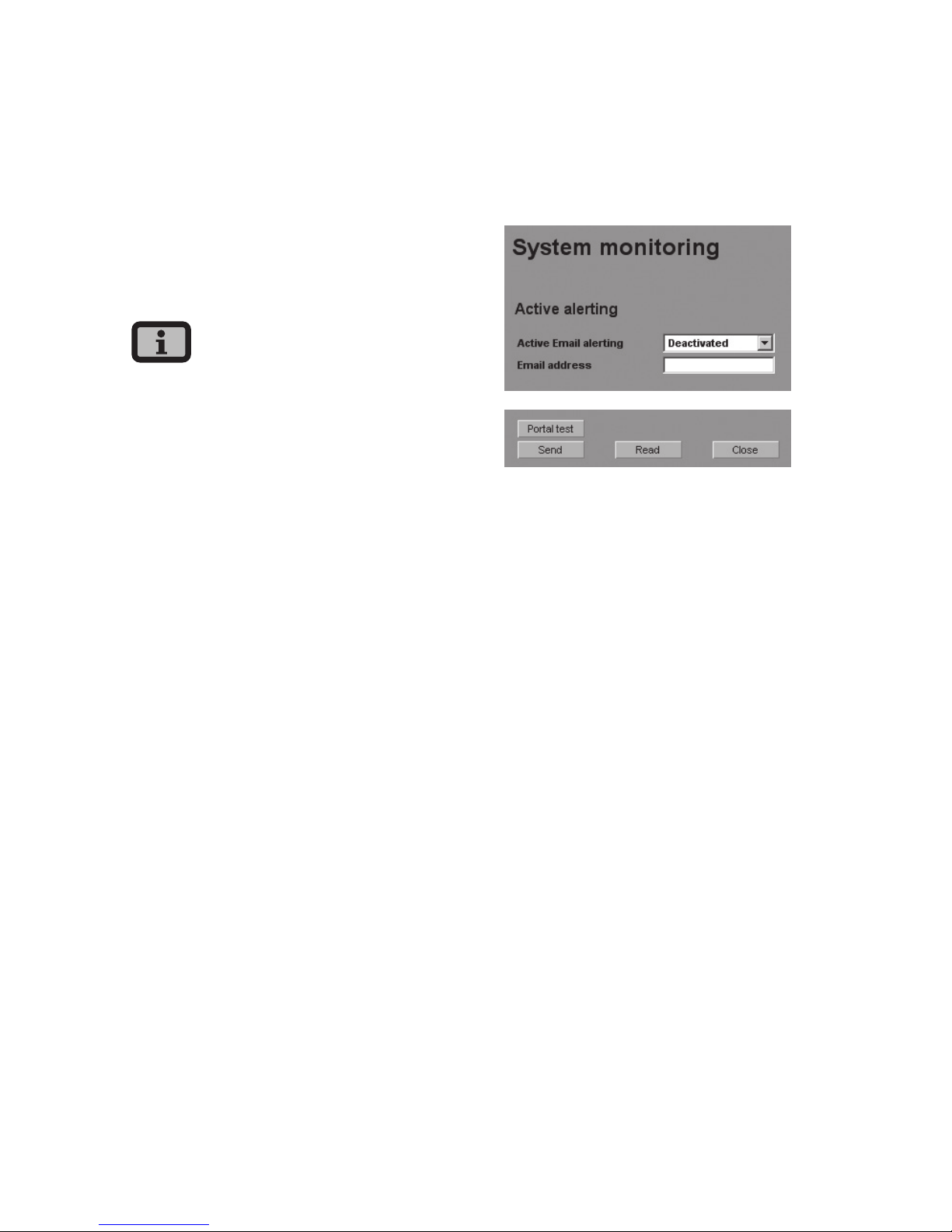

6.12 Active alerting 69 General information 69 Alerting settings 69

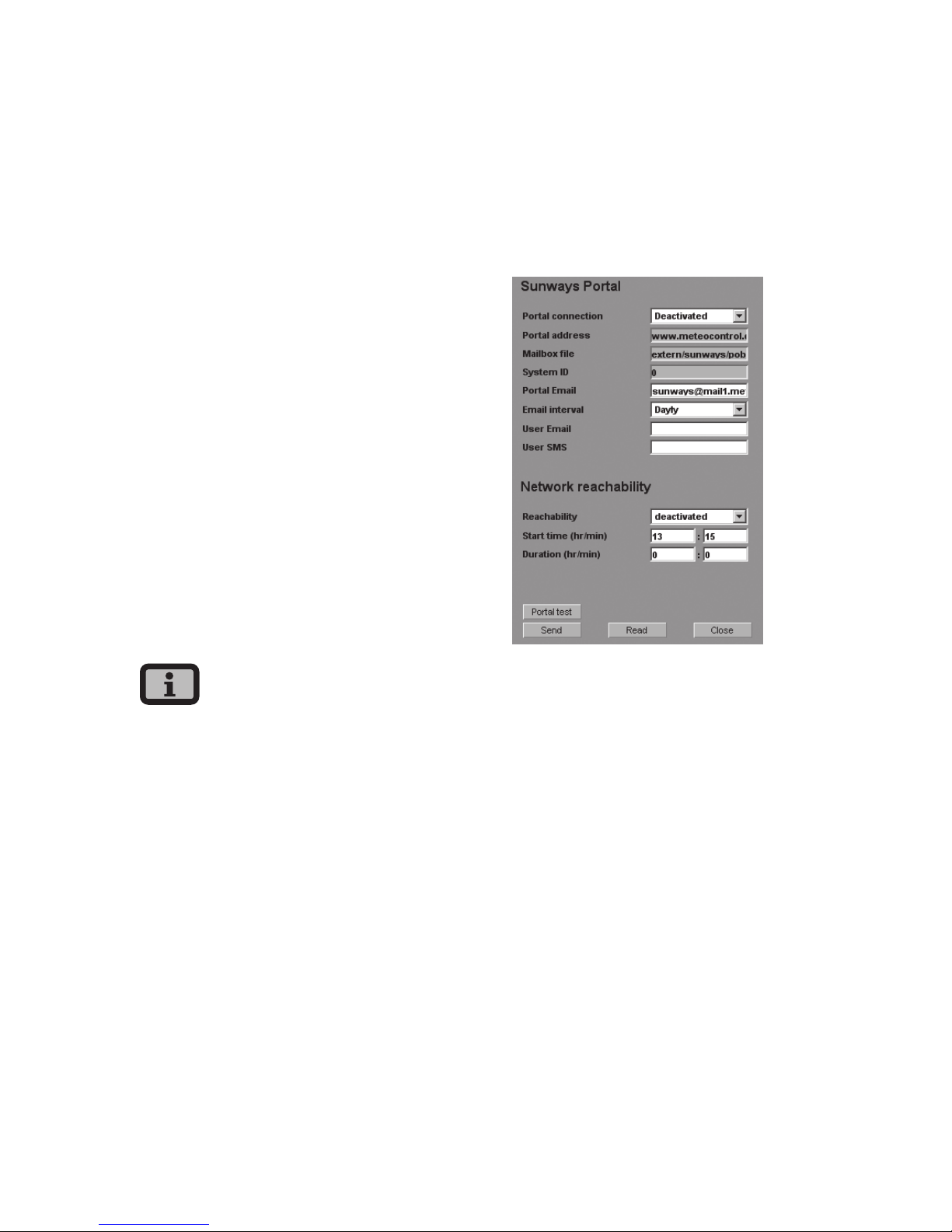

6.13 Sunways Portal connection 70 General information 70 Setup 70

7 Appendix 72

7.1 Technical data 72

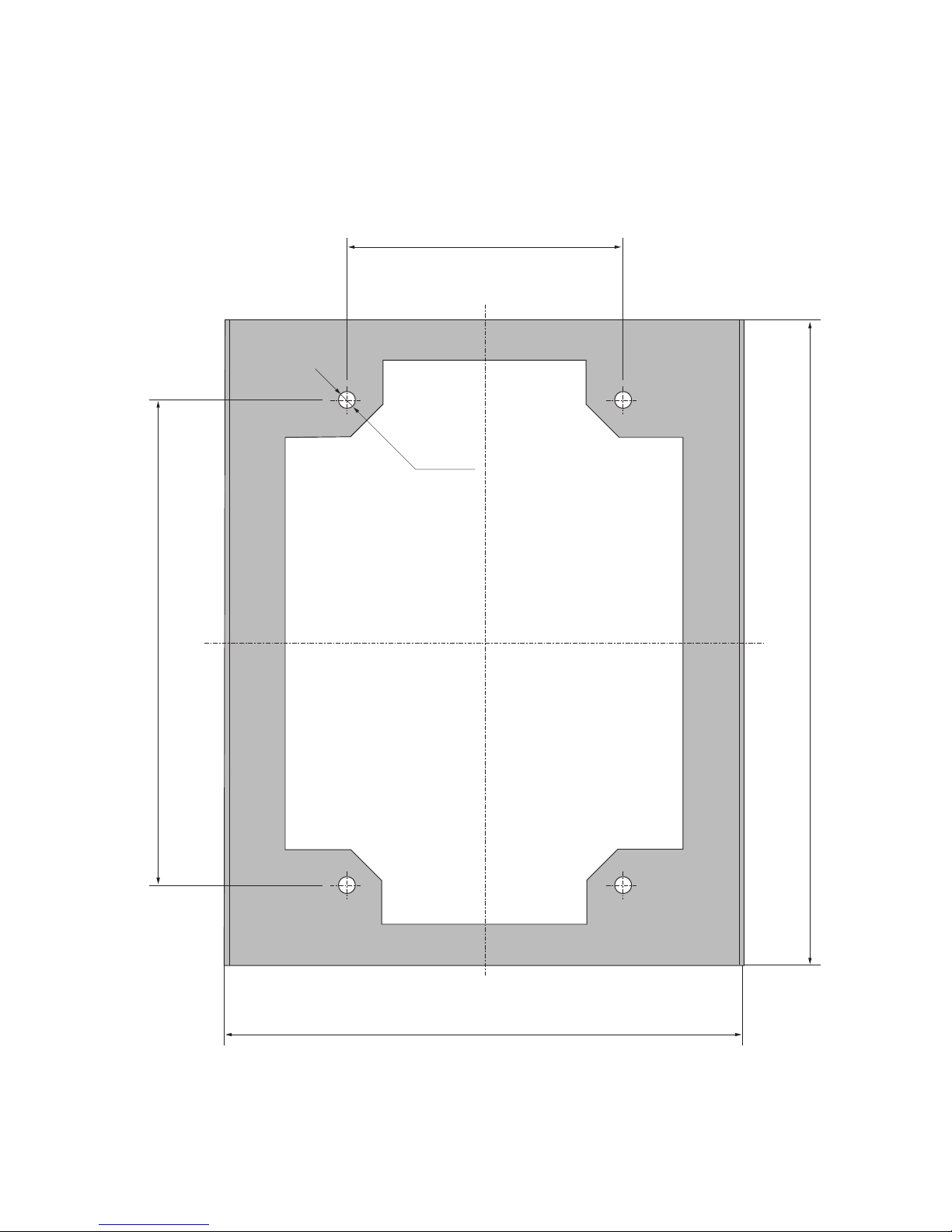

7.2 Drilling template for wall bracket 74

7.3 General liability disclaimer 75

Page 7

1 Product description

1.1 Proper use

The Sunways AT Solar Inverter is the link between your solar generator and the public power grid. The energy from the connected solar generator is converted to grid-conformant AC current and fed into the grid.

Thanks to the HERIC

topology with FP switching, the AT Solar Inverter has a voltage curve which corresponds to that of a transformer device with an earthed negative terminal, and is generally also recognized for operation on thin-ﬁlm modules.

Solar modules which require earthing of the positive terminal cannot be operated with the AT Solar Inverter. If in doubt, always ask your module manufacturer about a release!

1.2 Function description

Conversion from direct into alternating current

The AT Solar Inverter converts the direct current produced by the solar generator into alternating current. The alternating current is then fed into the public power grid.

Operating and display elements

Various interfaces are available for system conﬁguration and monitoring:

· Operating ﬁeld (LCD display and keyboard) for displaying operating and status values or for inputting system parameters

· Operating LED

· Integrated web server for display and conﬁguration via a web browser

Interfaces

· Bus interface for connecting an analogue modem, ISDN modem or GSM/GPRS modem

· Ethernet interface for connecting a PC or for integration in existing networks

· CAN bus interface for interconnecting several Solar Inverters

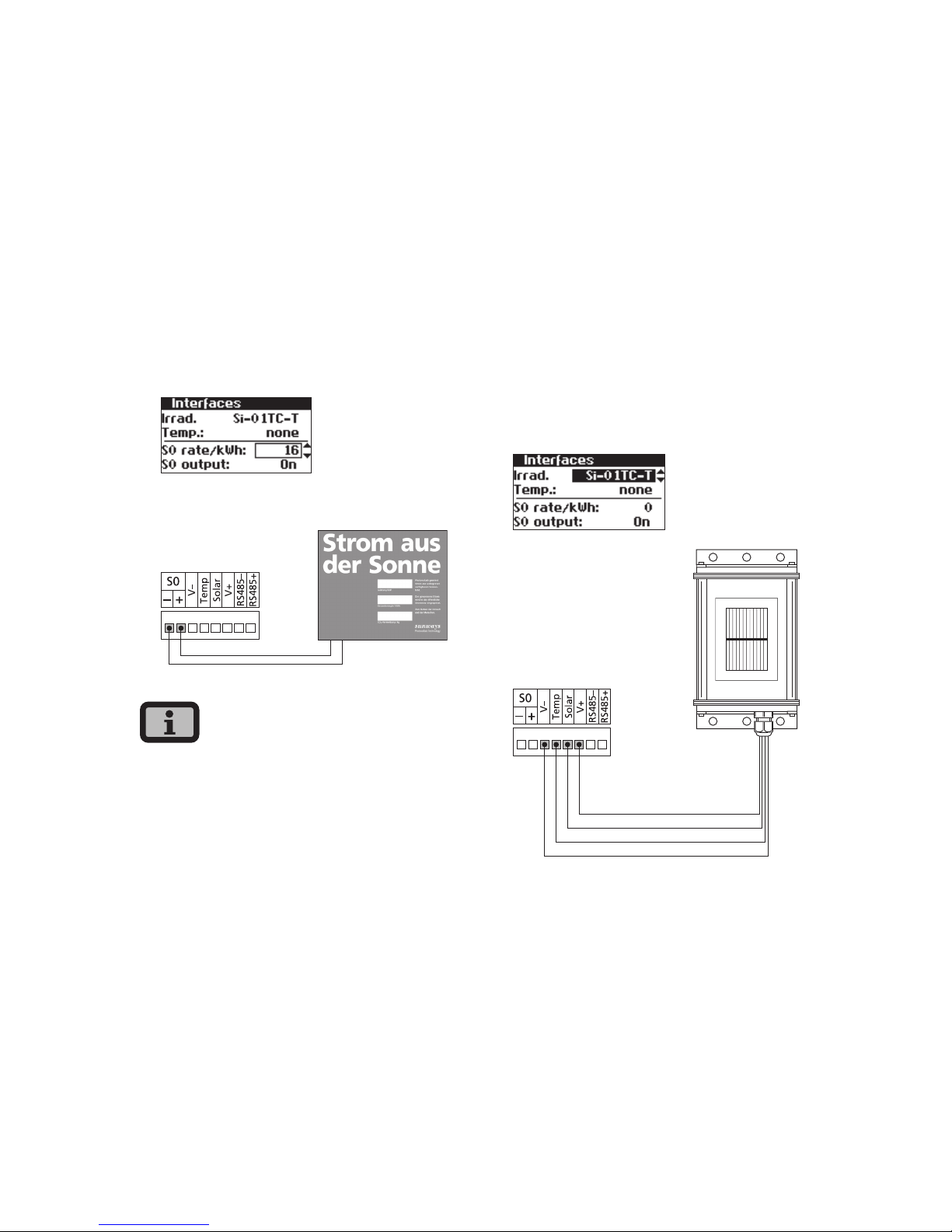

· S0 pulse output for controlling large displays

· Alarm relay for realising simple monitoring locally

· Interface for connecting an irradiation and temperature sensor

Data logging

The AT Solar Inverter is equipped with internal data logging for recording and saving system data:

· 5-minute mean values of voltages, currents, output, temperature and irradiation (if sensor is installed)

· 5-minute, daily, monthly and annual values of energy yield

· Memory for malfunction messages

Grid monitoring

The AT Solar Inverter assumes the task of grid monitoring for the protection of the device and persons. In case of abnormal grid conditions, feeding is immediately interrupted and the Solar Inverter disconnects from the grid by triggering the grid relay.

Design of Solar Inverter

The principle design of the AT Solar Inverters can be recognised from the block diagram. The most important characteristic of the inverter is the earthing of the solar generator, i.e. the negative terminal is directly connected to the neutral conductor on the grid.

The solar generator voltage connected to the inverter input is always positive and is initially adapted by the DC actuator and then converted to alternating current by the high-efﬁciency HERIC

inverter.

Page 8

1 Product description

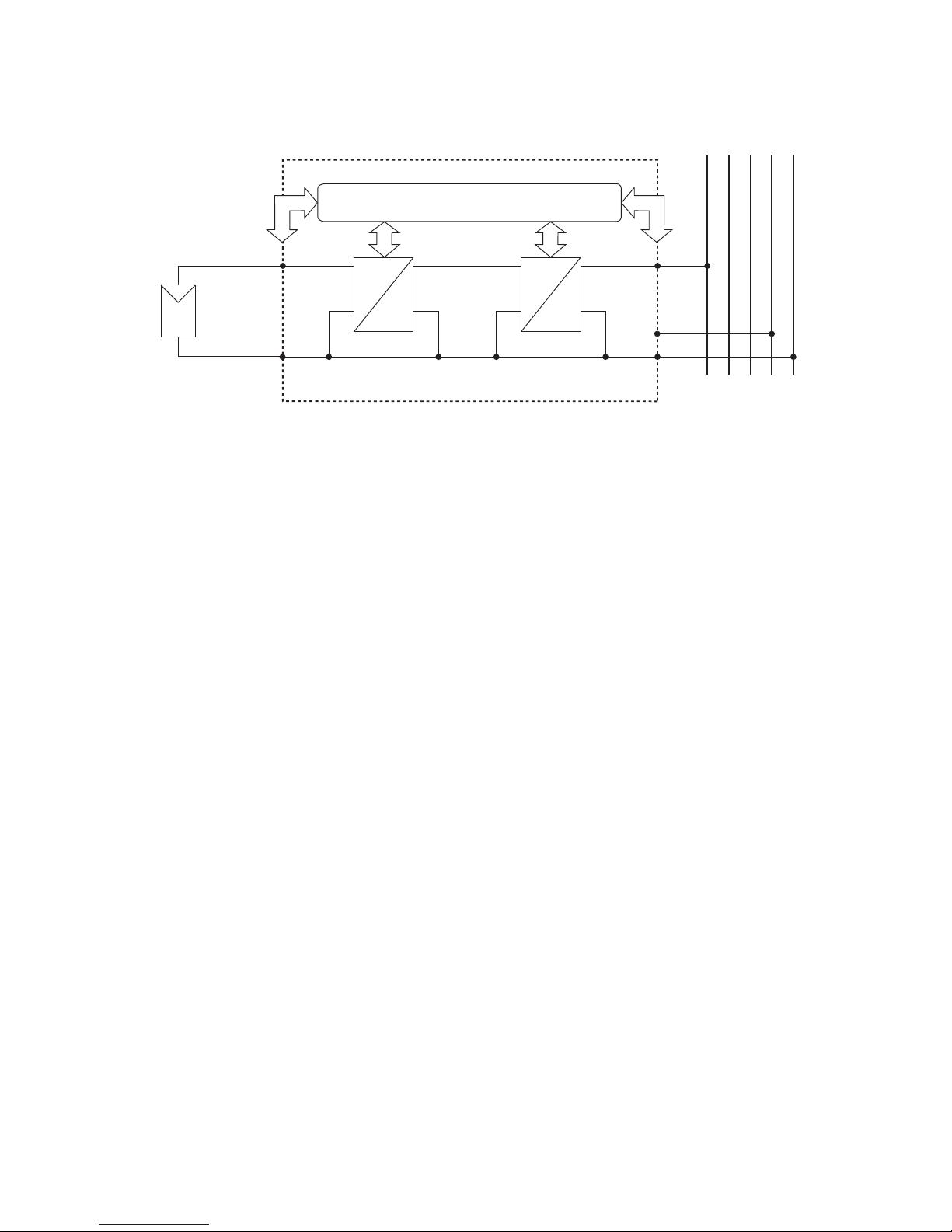

Block diagram

L1 L2 L3 PE N

–

Control and monitoring

DC actuator HERIC

inverter

Solar generator

Grid

1.3 Integration in solar system

Design of solar generator

The technical data of the selected solar generator must be within the Solar Inverter‘s speciﬁcations (see Technical Data). Incorrect dimensioning can lead to reductions in the yield and to destruction of the device.

The design program Sunways Sundim may be helpful to you. Sunways Sundim is available on the included CD-ROM or at our homepage www.sunways.de.

Be sure to take the following points into account before planning your system:

· Watch the celestial alignment of the modules. A maximum yield is achieved in Central Europe with a module slope of 30° to the vertical and direction of the solar generator ﬁeld directly to the south.

· The output of the cells decreases as the module temperature increases. Install your solar generator with sufﬁcient ventilation from behind.

· Check your solar generator approx. every three years for soiling. This occurs especially on the lower edge of the modules and forms a veil that cannot be washed off even by heavy rain. Reduced yield can be prevented by cleaning with a wet cloth or a brush.

· Avoid switching off individual modules or solar cells of your system. This can lead to major decreases in yield.

Page 9

1 Product description

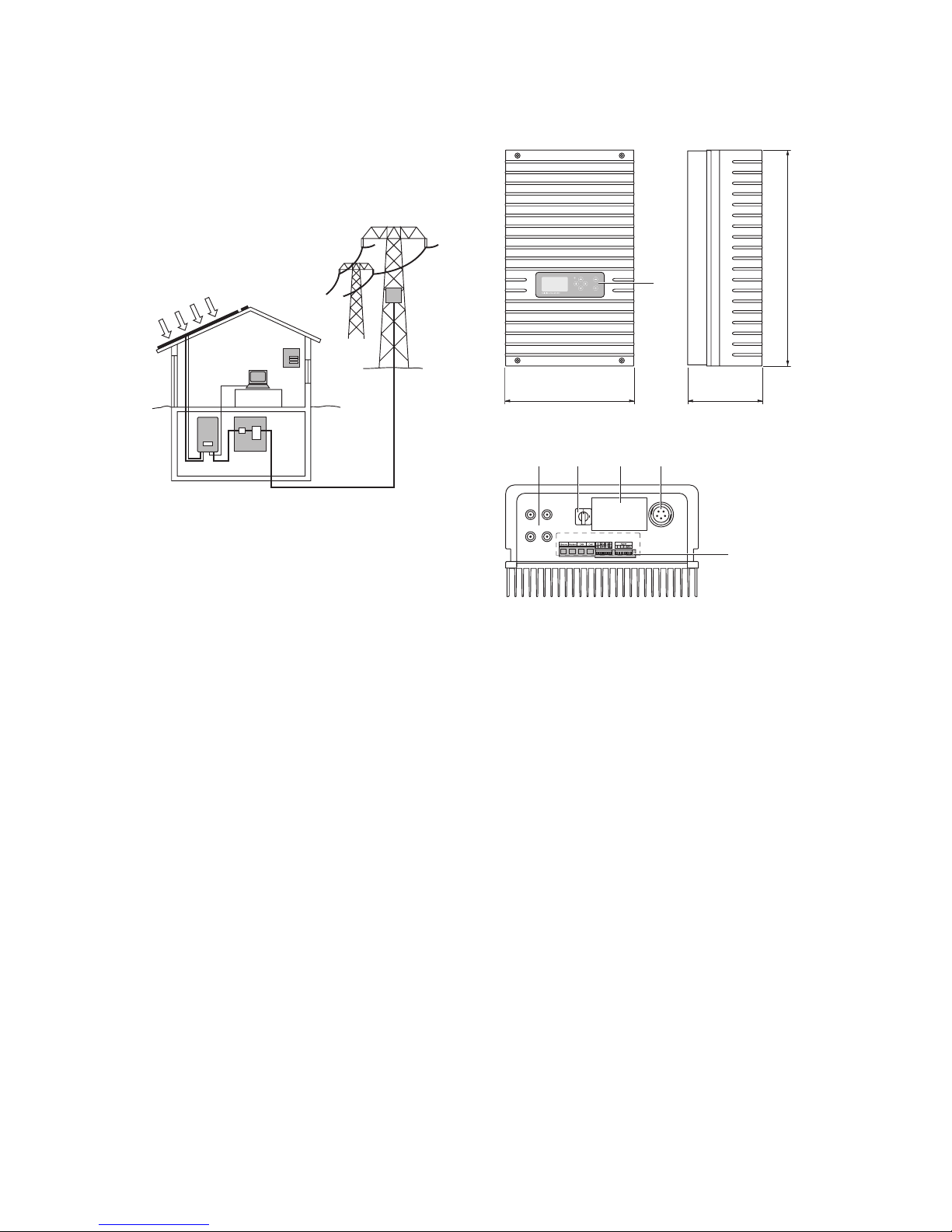

Standard components of a solar system

Depending on the recommendations of your PV planning expert, your PV system consists of the following components:

1 Solar generator 2 Solar Inverter with integrated DC load break

switch

3 Mains fuse and energy meter

Options

4 Irradiation sensor with integrated temperature

sensor 5 PC for monitoring system 6 Large display

1.4 Assembly description

350

585

205

+–

2 3 4 5

1 Operating ﬁeld with LCD display, operating LED

and keyboard 2 DC connections 3 DC load break switch 4 Rating plate 5 AC connection 6 Communication interfaces

Page 10

1 Product description

1.5 Delivery scope

The delivery consists of:

· Sunways Solar Inverter of the AT-Series

· Installation frame

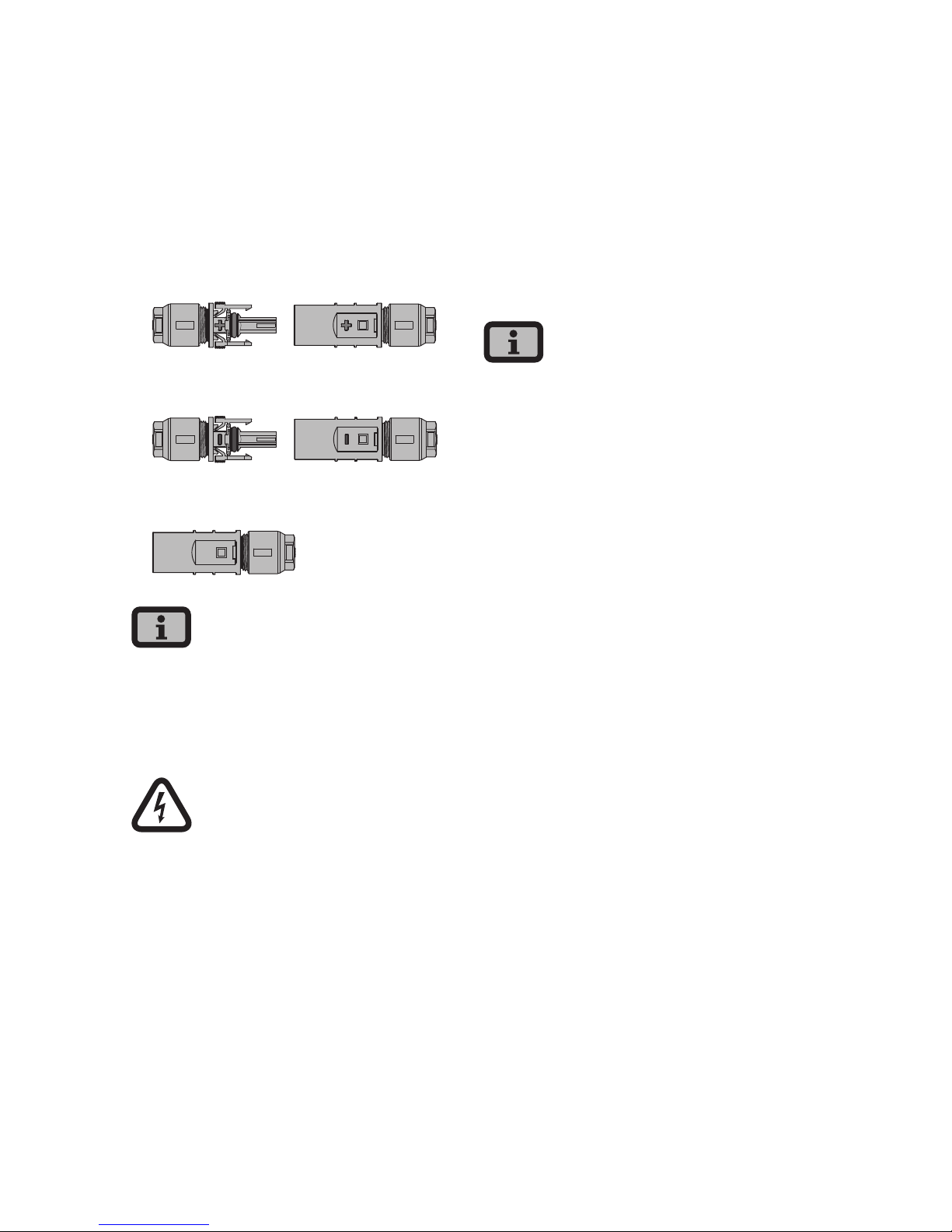

· 2 pairs of Tyco Solarlok plug-in connectors

· AC connector

· CAN terminating resistor connector (connected)

· Ethernet cable, 2 m (CAT 5e, 1:1)

· Warranty card

· Setup

· CD-ROM, including: Manual, Sunways Sundim design program, product and service information

Checking delivery

Before shipment our products are checked for proper condition. Despite careful, recyclable packing, transport damage may occur, for which the transport company is generally responsible.

Please check the delivered Solar Inverter thoroughly!

Should you discover damage to the packing or the Solar Inverter, please inform the transport company immediately. Your specialist dealer will be happy to support you if necessary. A possible damage report must always be received by the transport company in writing at the la-test seven days after receipt of the goods.

Page 11

2 Safety precautions

2.1 General safety precautions

Observe information in operating manual!

The condition for the safe handling and malfunction-free operation of the AT Solar Inverter is a knowledge of the basic safety precautions.

This user manual contains the most important information on operating the system safely.

Each person concerned with the installation, commissioning, maintenance and operation of the Solar Inverter must have read and understood the entire user manual, and in particular the chapter entitled Safety Precautions.

In addition, the rules and regulations for accident prevention applicable for the operating site/plant must be observed.

Dangers when handling the AT Solar Inverter

The Solar Inverter has been built in accordance with the latest rules of techno-logy and the recognized safety rules and may only be used

· for its intended use

· when in proper condition with regard to safety.

Improper use may lead to dangers to the life and limb of the user or others, or can adversely affect the system or other property.

In case of malfunctions which can impair safety, the system must be shut down immediately and secured against being switched on again. The malfunction must then be eliminated immediately.

Warranty and liability

The Sunways AG „General Terms and Conditions of Sale and Delivery« always apply. Warranty and liability claims for personal injury or damage to property are excluded, if they were caused by one or more of the following:

· Improper use of the Solar Inverter

· Improper installation, commissioning, operation and maintenance

· Operation of the Solar Inverter with defective and/or non-operational safety and protective equipment

· Failure to observe the information in the user manual regarding installation, commissioning, operation and maintenance

· Unauthorised constructional modiﬁcations

· Insufﬁcient monitoring of wearing parts

· Improperly conducted repairs

· Emergencies caused by external inﬂuence or force majeure

Page 12

2 Safety precautions

2.2 Explanation of symbols and warnings

To help you quickly understand this manual and safely use the Solar Inverter, the following warnings and symbols are used.

Warnings and symbols used in this user manual

DANGER

This symbol indicates an immediate danger which will result in death, injury or serious damage if the applicable safety regulations are not followed.

Extreme danger from electric shock!

This symbol indicates an immediate danger from electric shock which will result in death, injury or serious damage if the applicable safety regulations are not followed.

CAUTION

This symbol indicates an immediate danger which can result in damage if the applicable safety regulations are not followed.

Symbols used in this user manual

Information

This symbol indicates important information which contributes to a better understanding of the Solar Inverter.

Warnings and symbols on device

The following warnings on the housing of the Solar Inverter point out dangers. Always observe the warnings exactly.

This symbol indicates that the user manual must be read and understood before putting the device into operation.

IMPORTANT

Hot surface! The housing can heat up during operation.

The device must be disconnected from the mains supply and from the PV generator before opening the housing. The device still carries life-threatening voltage for approx. ﬁve minutes internally and at the connection terminals of the PV generator following disconnection from the PV generator. The energy storage capacitors are not completely discharged until after this time. You must wait at least ﬁve minutes after disconnecting the device from the mains supply and from the PV generator before opening the device.

Warning! High leakage current, earth connection essential before connecting supply.

WARNING!

High leakage currents. Be sure to make an earthing connection before connecting the power supply circuit (AC system).

Page 13

2 Safety precautions

2.3 Basic safety measures

Electrical work on the Solar Inverter must be conducted by a qualiﬁed electrician while observing the VDE regulations, national and other regulations.

The Solar Inverter may only be opened by persons authorised by Sunways AG to do so.

When circuit breakers are tripped, the fault cause must be determined and eliminated before returning the device to operation.

Check electrical equipment regularly.

Retighten loose connections.

Replace damaged lines/cables immediately.

2.4 Safety concept

The following parameters are monitored and displayed continuously and simultaneously by the inverter controller:

· DC overvoltage

· Overvoltage L1, L2, L3

· Undervoltage L1, L2, L3

· Isolated operation

· Over- / underfrequency L1

· Surge error (brief overvoltage L1)

· DC share in AC current

· AFI residual current

· Overtemperature of heat sink

When a malfunction occurs, feeding is immediately interrupted and the Solar Inverter disconnects from the grid by triggering the grid relay.

The potential-free alarm relay is switched (except for grid undervoltage L1).

In addition, the following protective equipment in accordance with overvoltage category III is provided on the grid and on the solar generator side:

· Grid-side varistors These protect the power semiconductors in case of high-energy, short-term voltage peaks in the grid and provide for an energy reduction in reactor in case of a grid disconnection.

· Generator-side varistors Varistors offer protection against atmospheric overvoltages (e.g. caused by remote strikes during thunderstorms).

Page 14

3 Installation

3.1 Mechanical installation

Requirements for installation location

DANGER

· The Solar Inverter may not be installed in rooms subject to explosion hazards.

· The Solar Inverter may not be exposed to caustic gases!

· No combustible or highly ﬂammable materials may be stored within 3 metres of the Solar Inverter.

Protection against moisture and foreign bodies

The high protection type IP 54 allows installation indoors and in roof-covered areas outdoors, however the Solar Inverter may not be directly exposed to rain.

Mechanical load-bearing capacity

Note during installation that the Solar Inverter weighs 29 kg. The installation surface must be ﬁrm and able to carry this weight in the long term.

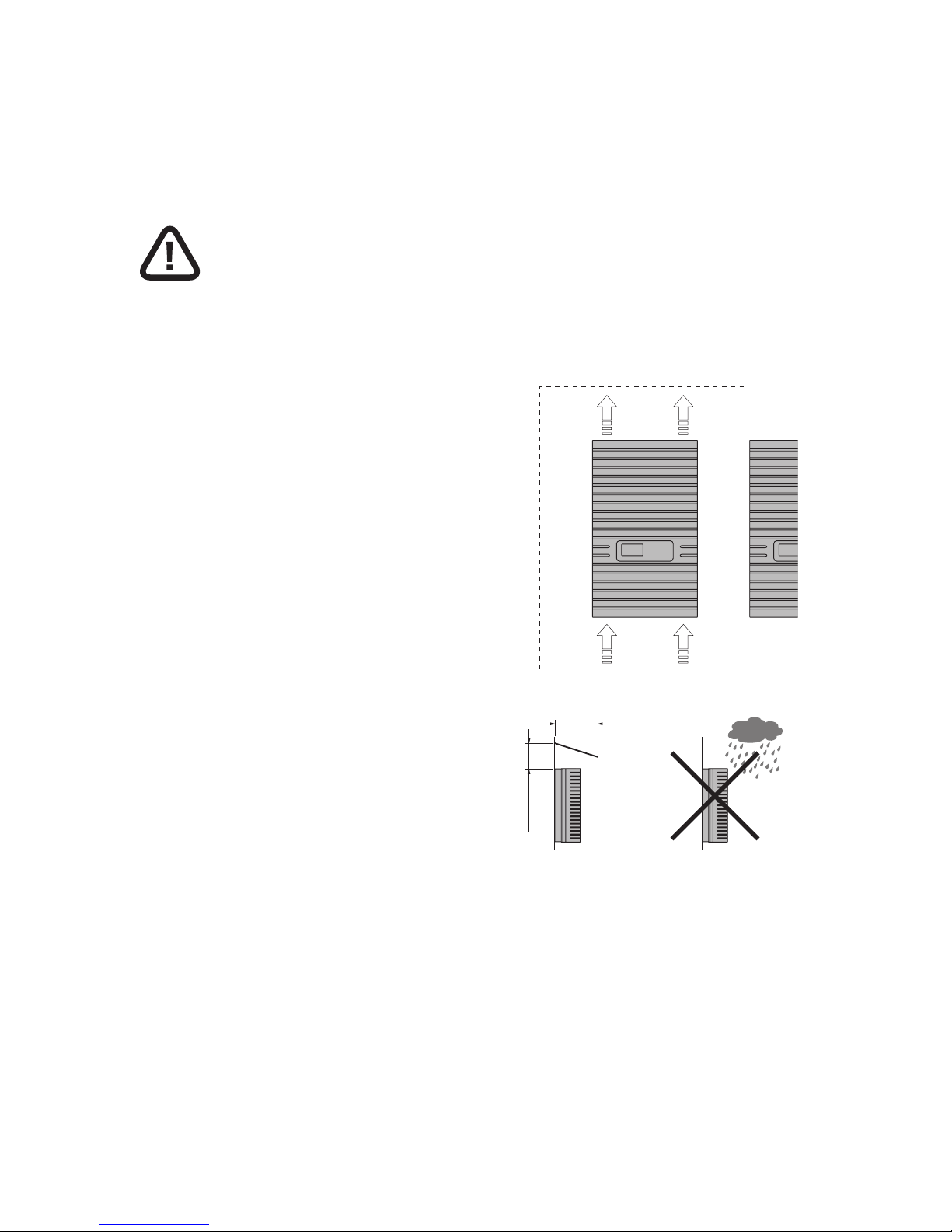

Thermal interaction

· The installation surface must consist of ﬂameretardant material (not suitable: surface of wood or plastic; suitable: concrete and masonry), as the frame of the Solar Inverter can heat up to a maximum of 70°C.

· A minimum distance of 300 mm to other devices, cabinets, ceilings, cable ducts, etc. must be maintained above, below and to the sides of the housing. See the ﬁgure Requirements for installation location.

· The Solar Inverter must be installed vertically to enable sufﬁciently free convection.

· Several Solar Inverters may not be mounted over each other to prevent them from heating each other.

· Ensure sufﬁcient heat dissipation when installing the Solar Inverter in a switch cabinet or closed room.

· The ambient temperature may not drop below or exceed -25°C and +40°C respectively. At ambient temperatures above 40°C, the inverter automatically reduces its output.

· The Solar Inverter must not be exposed to direct sunlight, to protect it from unnecessary external warming.

300 mm

Wall

Ceiling

Cold

air

Hot

air

>300 mm

>350 mm

Page 15

3 Installation

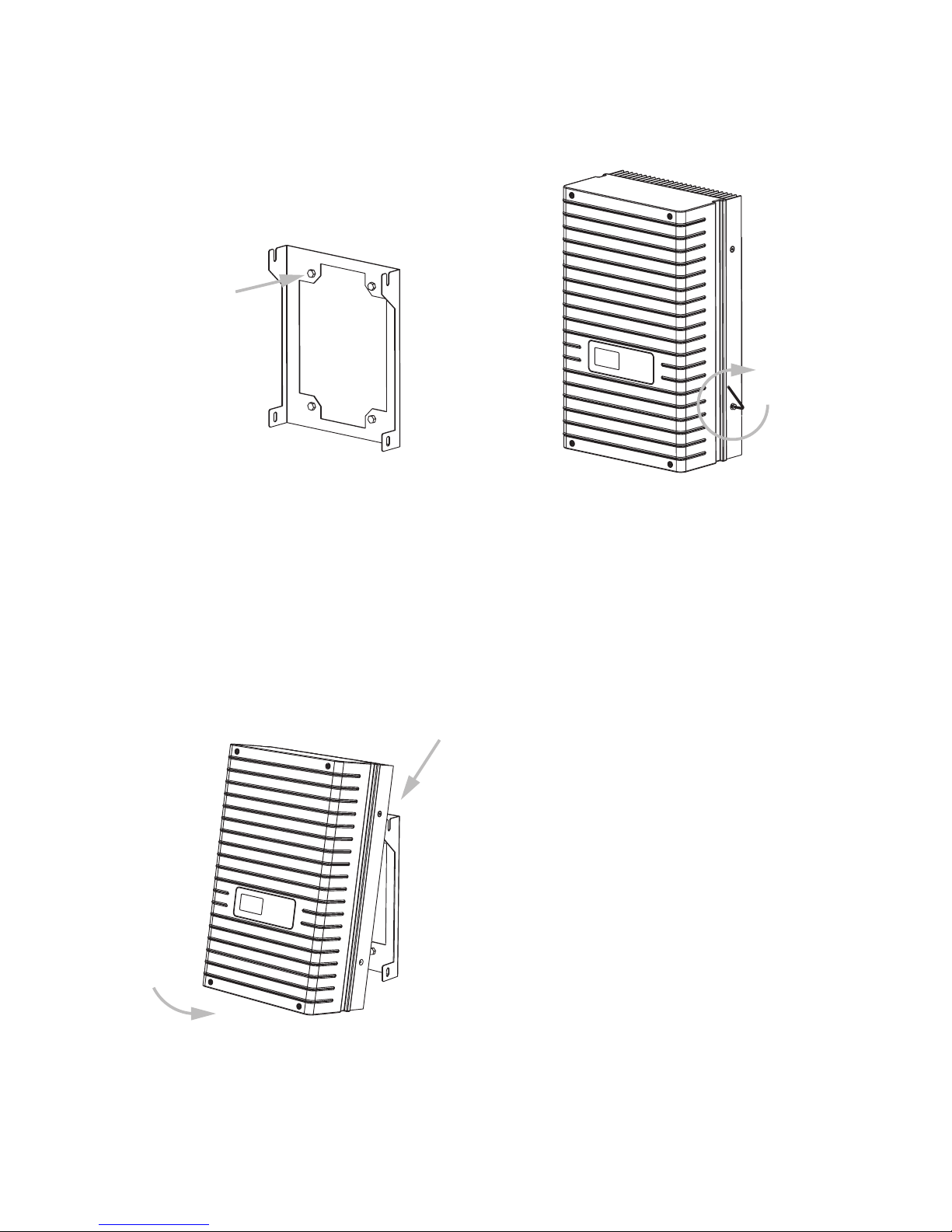

Installation

Proceed as follows to install the Solar Inverter:

1. Hold the wall bracket at the point at which you want to attach the Solar Inverter and mark the mounting holes.

2. Drill the holes with a 10 mm dia. drill bit. A drilling template with exact dimensioning can be found in the appendix.

3. Install the wall bracket with corresponding screws and dowels depending on the surface condition.

4. Unscrew the locking screw of the Solar Inverter at the lower left with an Allen key

5. Hook the Solar Inverter into the cut-outs of the installation frame at the top on both sides.

6. Secure the Solar Inverter by tightening the locking screw.

Page 16

3 Installation

3.2 Electrical installation

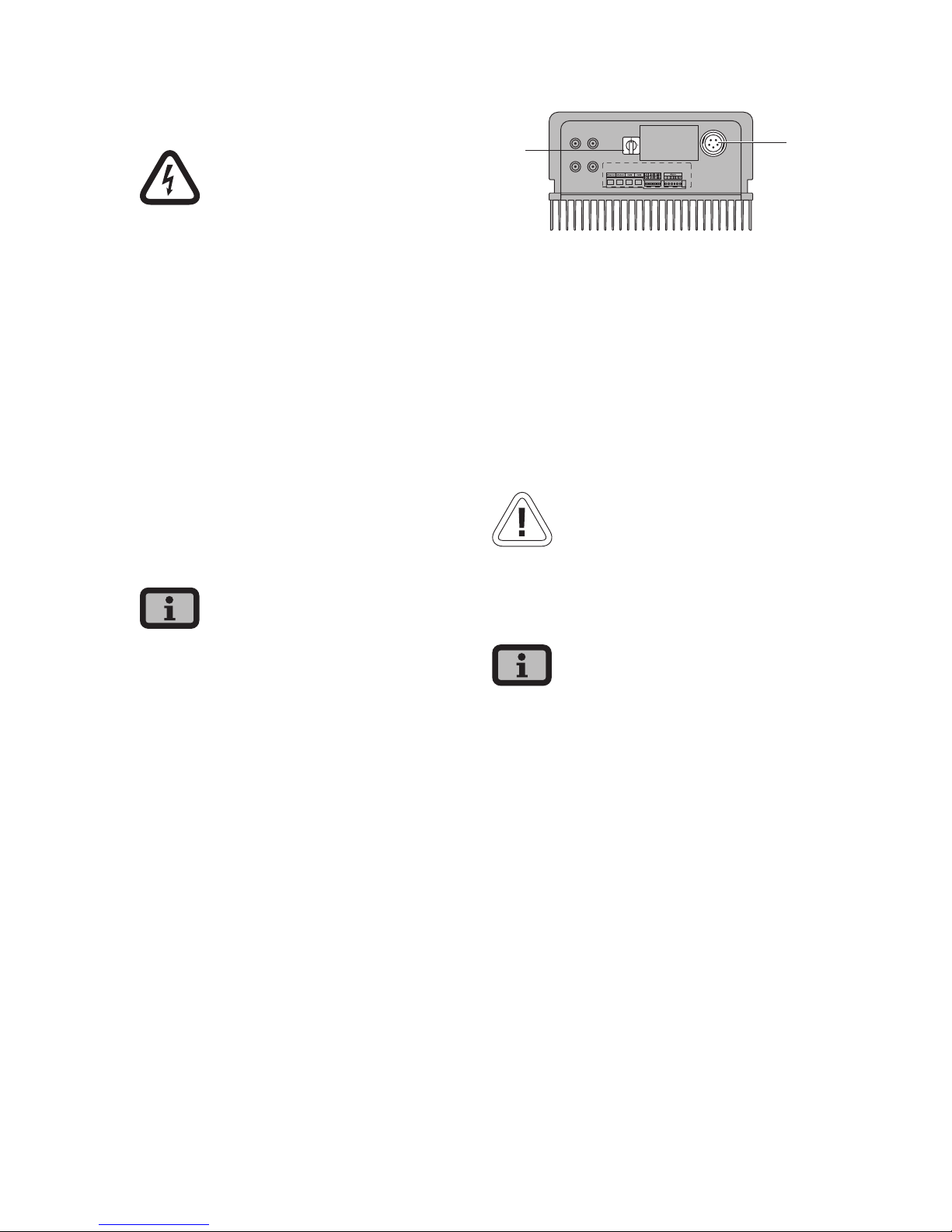

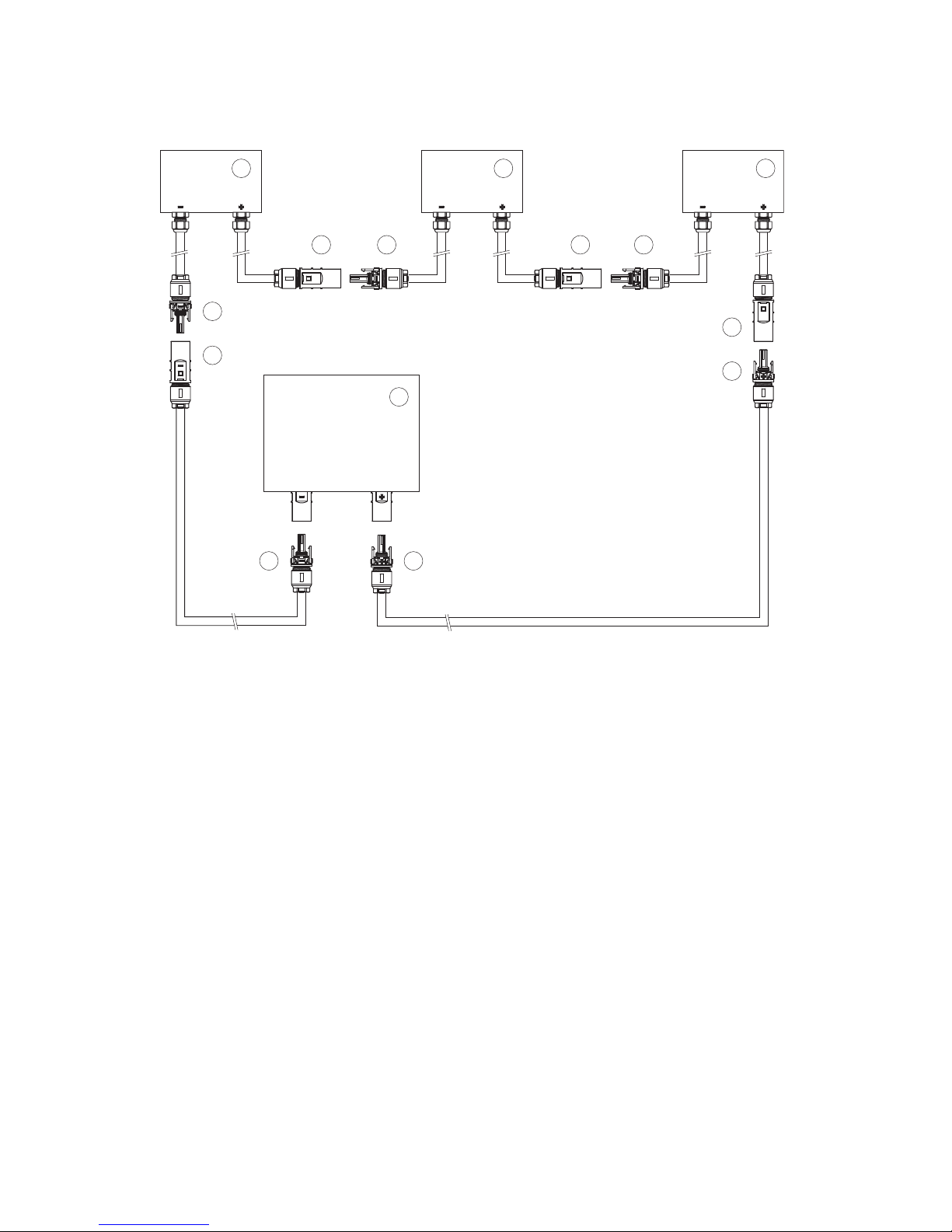

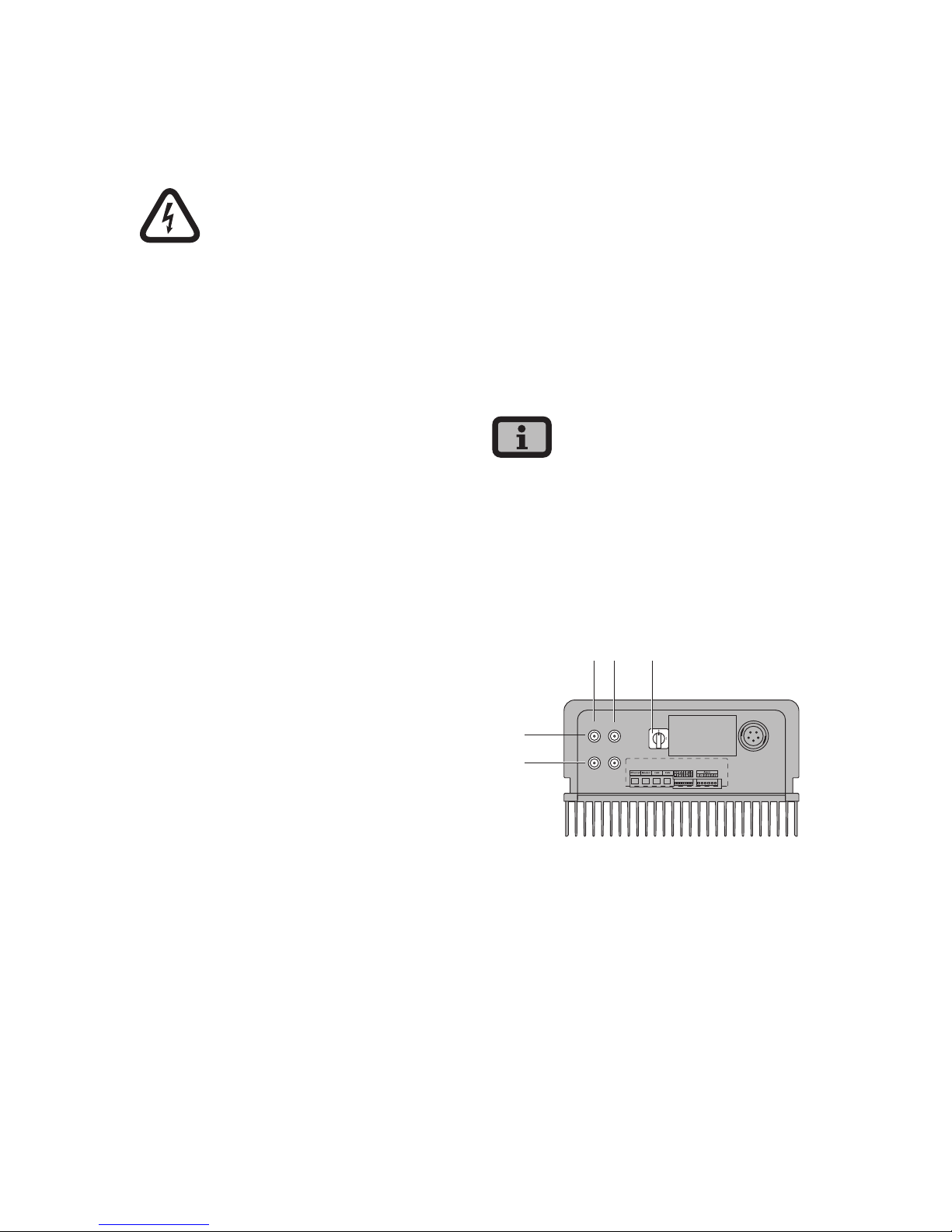

Solar generator connection

Extreme danger from electric shock!

· Touching live parts can result in death.

· All electrical work must be conducted by a qualiﬁed electrician while observing the VDE regulations, national and other regulations!

· Execute the direct current wiring in accordance with the system dimensioning of your planning expert.

· Prepare all solar generator cables before you carry out the connection of the solar generator to the Solar Inverter.

· Check each solar generator string for proper operation with an open-circuit voltage and short-circuit current measurement.

· Check using the rating plate on the Solar Inverter whether it is approved for the maximum solar generator voltage.

· The positive and negative lines must be kept electrically separate from the earth potential.

· Touchable, live parts of the solar generator (e.g. metal frame, carrying structure, etc.) must be earthed (connection with PE).

· Check the solar generator against short-circuits to earth.

· Before connecting the solar generator to the Solar Inverter, the integrated DC load break switch must be opened quickly (position 0).

· After the PV solar generator is connected to the Solar Inverter and the DC load break switch is switched on, the direct generator voltage is present internally.

· The connectors may not be separated while under load.

· Always separate the grid connection ﬁrst by switching off the corresponding mains fuse and then the solar generator side by quickly opening the DC load break switch.

Survey

The solar generator can be directly connected to the Solar Inverter with two strings. The connection is made via the shockproof Tyco Solarlok plug-in connection system accessible from outside.

The Solar Inverter has two electrically connected DC inputs, which are arranged in pairs on the underside.

· The solar generator strings must be identically dimensioned and comply with the speciﬁcations of the Solar Inverter.

· No external DC load break switch is required. A DC load break switch as required in accordance with DIN VDE 0100-712 is integrated in the Solar Inverter.

+–

3– +

1 Connection of solar generator string 1 2 Connection of solar generator string 2 3 DC load break switch

Page 17

3 Installation

Tyco Solarlok plug-in connection system

The Solarlok plug-in connection system is used for the simple, reliable connection of individual solar generators up to the Solar Inverter.

Components

The following connectors are used:

· Positively coded connector

· Negatively coded connector

· Neutral connector

The neutral connector can be used to connect both positively and negatively coded sockets.

Installation

Extreme danger from electric shock!

· Touching live parts can result in death.

· All electrical work must be conducted by a qualiﬁed electrician while observing the VDE regulations, national and other regulations!

· Tyco Solarlok connectors are only reliable for connection on permanently installed lines.

· Only the Tyco-Solarlok hand crimping pliers may be used to crimp the connectors.

· During preassembly, the connectors must be separated from all other voltage sources.

· The connectors may not be separated while under load. The circuit must be opened at a suitable point for this purpose.

· Provide the lines with corresponding stickers as close as possible to the connectors to prevent confusion.

· Any kind of soiling (dust, moisture, etc.) has a negative effect on the connector system with regard to function over the intended period of use. This particularly applies to the suitability for use of the seals and the crimping of the contacts. Therefore, extreme care must be taken to achieve proper processing during assembly.

· Various circular contacts are used for different conductor cross-sections with the Tyco Solarlok connectors. The correct tool insert must be used in accordance with this cross-section. The included Tyco Solarlok connectors are equipped with circular contacts for a cable cross-section of 4 mm² to 6 mm².

· The seals and clamping baskets used in the preassembled connectors are approved for cable sheath diameters from 4.5 mm to 6.9 mm. Special seals and clamping baskets must be used for cables with a sheath diameter greater than

6.9 mm.

· The Tyco Solarlok hand crimping pliers can be purchased from your sales partner.

Page 18

3 Installation

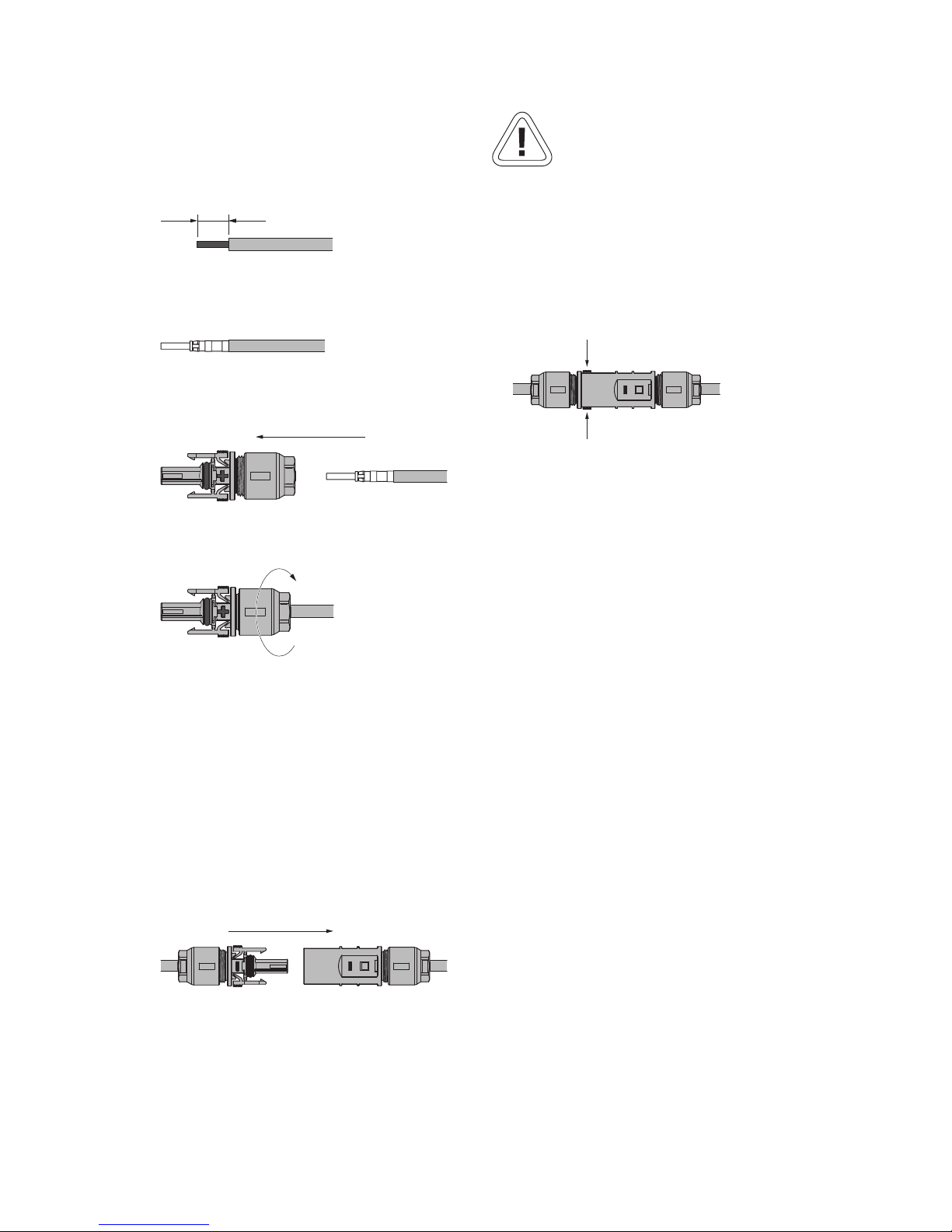

The following sequence must be observed during assembly:

1. Stripping the voltage-free line.

2. Crimping on the circular contact with the Tyco Solarlok hand crimping pliers.

3. Sliding the cable gland onto the line and engaging the contact in the connector housing.

4. Tightening the cable gland with 1.5 Nm.

Handling

The positively/negatively coded connectors are marked with polarity symbols and a coloured ring (blue = negative, red = positive). They are equipped with coding ribs for assignment, which ensures that only connectors of the same polarity can be connected to each other.

Connecting socket and plug. The system is only correctly locked if the locking hooks are recessed ﬂush in the mating piece.

CAUTION

The connectors may not be separated while under load. The circuit must be opened at a suitable point for this purpose.

Release the locking device by pressing on the ribbing of the locking hooks and pulling them apart.

Page 19

3 Installation

Connection example

5 2 5 2

2 4

1 1 1

– –NN

–

+–

1 Solar module box 2 Negatively coded socket 3 Negatively coded plug 4 Positively coded socket 5 Neutral connector 6 Solar inverter

Page 20

3 Installation

Grid connection

Extreme danger from electric shock!

· Touching live parts can result in death.

· All electrical work must be conducted by a qualiﬁed electrician while observing the VDE regulations, national and other regulations!

· Observe the pin assignment of the AC bayonet connector. An incorrect assignment can result in the device being destroyed.

· No consumers may be connected to the supply line from the Solar Inverter to the mains fuse.

· Always separate the grid connection ﬁrst by switching off the corresponding mains fuse and then the solar generator side by quickly opening the DC load break switch.

If the voltage on the AC connection exceeds the permissible value due to a long line length or an insufﬁcient cable cross-section, the Solar Inverter will disconnected from the grid. In power grids with a low output and a high solar generator output, this can lead to individual Solar Inverters being switched off and then on again several times.

Survey

An AC bayonet connector on the underside of the unit is used for the three-wire grid connection (L, N, PE) of the Solar Inverter. The grid connection should always be 1-phase. Feeding is single-phase via AC terminal 2.

+–

1 DC load break switch 2 AC connection

A basic distinction is made between two different connection options of the Solar Inverter to the public power grid:

· 3-phase AC grid (e.g. Germany)

· 1-phase AC grid (e.g. Italy, Spain)

CAUTION

· Observe the regional regulations for the grid connection.

The Solar Inverter always only feeds via AC terminal

2. If several Solar Inverters are operated in parallel in a 3-phase grid, AC terminal 2 of the device must be distributed uniformly among the grid phases L1, L2 and L3 to avoid unequal loading.

Page 21

3 Installation

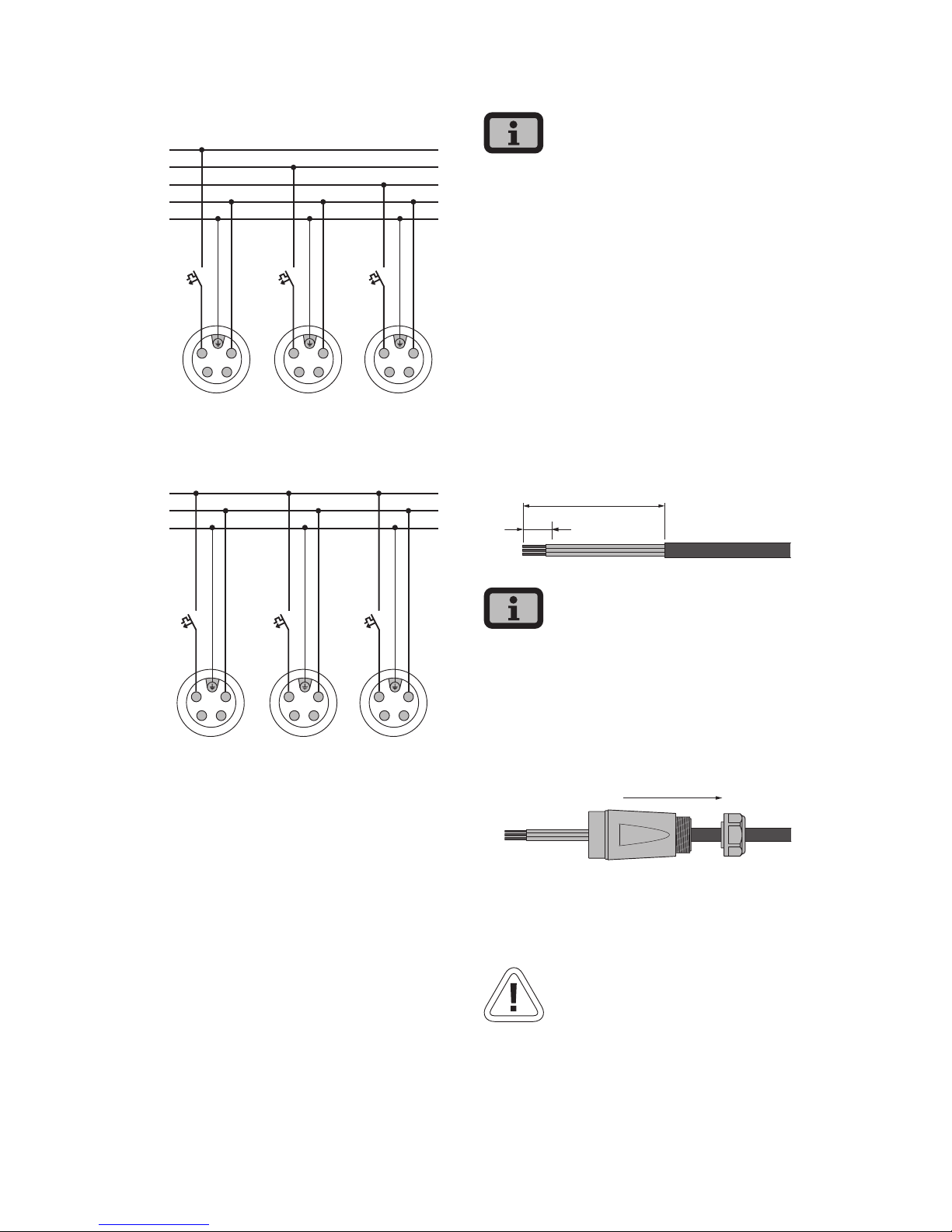

3-phase grid connection (3-phase AC connection)

Inverter 1 Inverter 2 Inverter 3

1-phase grid connection (AC connection)

Inverter 1 Inverter 2 Inverter 3

A corresponding circuit breaker is recommended as a line protection element in the grid feed direction:

AT 2700: 16 A AT 3000: 16 A AT 3600: 25 A AT 4500: 25 A AT 5000: 32 A with slow-blow characteristic B

· Depending on the grid operator and the feed point, a three-phase meter or a single-phase meter must be used.

· Some grid operators require the use of a reversecurrent-capable meter.

AC bayonet connector

The AC bayonet connector is permissible for cable sheath diameters from 13 mm to 20 mm.

The following sequence must be observed during assembly:

1. Strip the voltage-free line and the cable ends.

52,5 (PE 55)

For lines with a cable sheath diameter from 16 to 20mm, the cable gland must be adapted accordingly. To do this, cut out the inner section of the blue sealing ring.

2. Slid the cable gland and the plug housing onto the line.

3. Connect the cable ends to the plug terminals in accordance with the pin assignment. Tightening torque: 0.7 Nm.

CAUTION

Incorrect pin assignment may result in destruction of the unit!

Page 22

3 Installation

Pin assignment for AC bayonet connector

The diagram shows the connections inside the AC connector, as indicated by the cut-out at the PE connection.

1 = N 2 = L (feed-in phase) 3 = not used 4 = not used

= PE (protective earth conductor)

4. Screw plug housing to plug. To do this, press the outer ring of the plug toward the plug housing. Tightening torque: 1-2 Nm.

5. Tighten the cable gland.

Make sure the line is provided with a strain relief device. When using cables with a diameter < 16 mm, the line must be relieved just behind the connector.

Tightening torque for cable sheath diameters from 13 to 20 mm = 6 to 8 Nm

3.3 Installing communication

The interfaces are located behind the weatherproof connection box on the underside of the Solar Inverter.

+–

To open the connection box, loose the centre screw. Then carefully pull way the box toward the front.

After you have installed the connection cable, close the box again by guiding the locking hooks into the notches in the housing and then pressing the box onto the housing.

Retighten the mounting screw.

Interface overview

1 3 4 8765

1 Ethernet connection 2 Modem connection 3 CAN bus 4 S0 interface (pulse output, e.g. for large display) 5 Connection for temperature and irradiation

sensor 6 RS485 interface 7 Connection for alarm relay

Page 23

3 Installation

Networking Solar Inverters via CAN bus

Solar Inverters from the NT, AT und PT series can be networked via the CAN bus interface. Use the included Ethernet cable to network the Solar Inverters with each other. Connect a terminating resistor at the ﬁrst and last Solar Inverter in the series. The pluggable terminating resistors are included in the delivery.

Device 1 Device 2 ...

1 1

1 Terminating resistor

The total length of the CAN bus depends on the selected bit rate. The following table shows the possible bit rates and the resulting bus lengths.

Bit rate Bus length 100 kbit/s 650 m 125 kbit/s 500 m 250 kbit/s 250 m 500 kbit/s 100 m

Solar Inverters of the PT series are delivered with a default setting of 125 kbit/s. The default setting for Solar Inverters of the NT and AT series is 500 kbit/s.

When Solar Inverters from different series are networked the bit rate in all units must be identical. The rate can be set via the Solar Inverter display or the Sunways Browser.

Setting the bit rate via the display menu: «Settings – Network – CAN Bus – Baud rate»

Up to 99 NT, PT and AT series units can be networked via a CAN bus. The following table shows the recommended cable cross-sections depending on the bus length and the number of nodes:

Bus length / Number of nodes 32 64 100

100 m 0,25 mm

or AWG 24 0,25 mm2 or AWG 24 0,25 mm2 or AWG 24

250 m 0,34 mm

or AWG 22 0,5 mm2 or AWG 20 0,5 mm2 or AWG 20

500 m 0,75 mm

or AWG 18 0,75 mm2 or AWG 18 1,0 mm2 or AWG 16

Page 24

3 Installation

In cases where the values speciﬁed in the table cannot be adhered to, a CAN bridge for boosting the signal must be installed, through which the length of the CAN bus can be extended by up to 500 m. The requirement to install a CAN bridge is therefore determined by the bus length, the number of nodes and the cable cross-sections.

CAN-Bus

Network length / number of nodes / cable cross-section outside the table values – 1 or several CAN bridge(s)

INVERTER

CAN-BRIDGE

The CAN bridge is available from Sunways. For further information please contact the Technical Hotline.

The CAN bridge subdivides the bus into two physically independent segments. The maximum cable length of each segment is determined by the set bit rate. With a bit rate of 125 kbit/s two segments with a maximum length of 500 m each are possible. The total line length can therefore be up to 1 km under ideal conditions.

In systems with Solar Inverters from the PT series the CAN bridge can be integrated directly in the PT Solar Inverter and supplied via the 24 V DC power supply unit of the inverter. In systems with AT Solar Inverters and units from the new NT series (900 V) the CAN bridge can be integrated in the AC distribution. In this case an external 24 V DC supply is required (power consumption 1.5 W).

Page 25

3 Installation

Networking Solar Inverters via RS485 interface

For joint monitoring of a solar system with Sunways Solar Inverters from the older NT generation (750 V or 850 V) you can use the RS485 interface integrated in the Solar Inverters. The system networked with the RS485 interface can be monitored with the Sunways Communicator.

· Use a twisted two-wire cable to network the Solar Inverters with each other.

· Mount the terminating resistor on the last Solar Inverter.

NT 8000/10000: Jumper RS485MATCH NT 2600...NT 6000: Jumper JP400

Networking via RS485 interface

RS485GND

RS485+

RS485–

RS485GND

RS485+

RS485–

RS485+

RS485–

RS485+

RS485–

NT 8000 NT 10000

NT 2600... NT 6000

NT (900 V) or AT

Sunways Communicator

Page 26

3 Installation

S0 interface

The S0 pulse output enables, for example, the connection of a large display (Sunways Display) for displaying the momentary output, the energy yields and the CO

reduction.

You can use the S0 interface on the master if you want to transmit the entire line yields as a sum to a large display.

The S0 interface is adjusted via the display on the inverter. Go to the menu «Settings – Network – Interfaces».

· Please note that the maximum pulse rate may not be greater than 15 pulse/sec. Calculate the pulse rate depending on the size of the solar system using the following formula:

Pulse rate [pulses/kWh] = 50,000/system size [kWp]

· The pulse rate must be set on your Solar Inverter and on the large display.

Connection of temperature and irradiation sensor

The optional addition of an irradiation sensor (model Si-01TC-K from Ingenieurbüro Mencke & Tegtmeyer) with an integrated PT-100 temperature sensor for temperature measurement enables the acquisition of irradiation data and the corresponding module temperature and storage in the internal data memory as a 5-minute mean value. This additional measuring device helps analyse the system output. Based on the values, any errors on the PV generator, e.g. shading or failure of solar cells, can be detected.

The sensor is activated via the display. In the menu «Settings – Network – Interfaces» you can select the sensor type in the «Irrad.» and «Temp.» ﬁeld.

Page 27

3 Installation

Assignment of sensor connection

Sensor connector pin assignment

Sensor connection designation

Solar Inverter connection

Pin 1 Plus signal

temperature

Temp

Pin 2 Plus signal

irradiance

Solar

Pin 3 Reference earth V-

Pin 4 Plus connection for

supply +5V

V+

Connecting alarm relay

The Solar Inverters are equipped with a potentialfree alarm relay as standard. The relay can be designed as a make-contact element or as a breakcontact element and is actuated for all malfunctions signalled by the device. This ensures a faster, more reliable indication of a possible fault in the PV system on site. For PV systems with several Solar Inverters, the individual relays can be switched in parallel and connected via a common indicator lamp.

The master also signals faults from other devices in the CAN network via the alarm relay. It is therefore sufﬁcient for simple alerting to connect the alarm relay of the master.

CAUTION

The alarm relay is designed for 230 V/2 A. Higher outputs/voltages can result in the relay being destroyed. The connected signalling device must be fused separately. The terminals are intended for a cable cross-section of 0.2 mm2 to 1.5 mm2. When dimensioning the cross-section, also take the current consumption of the connected signalling device into account.

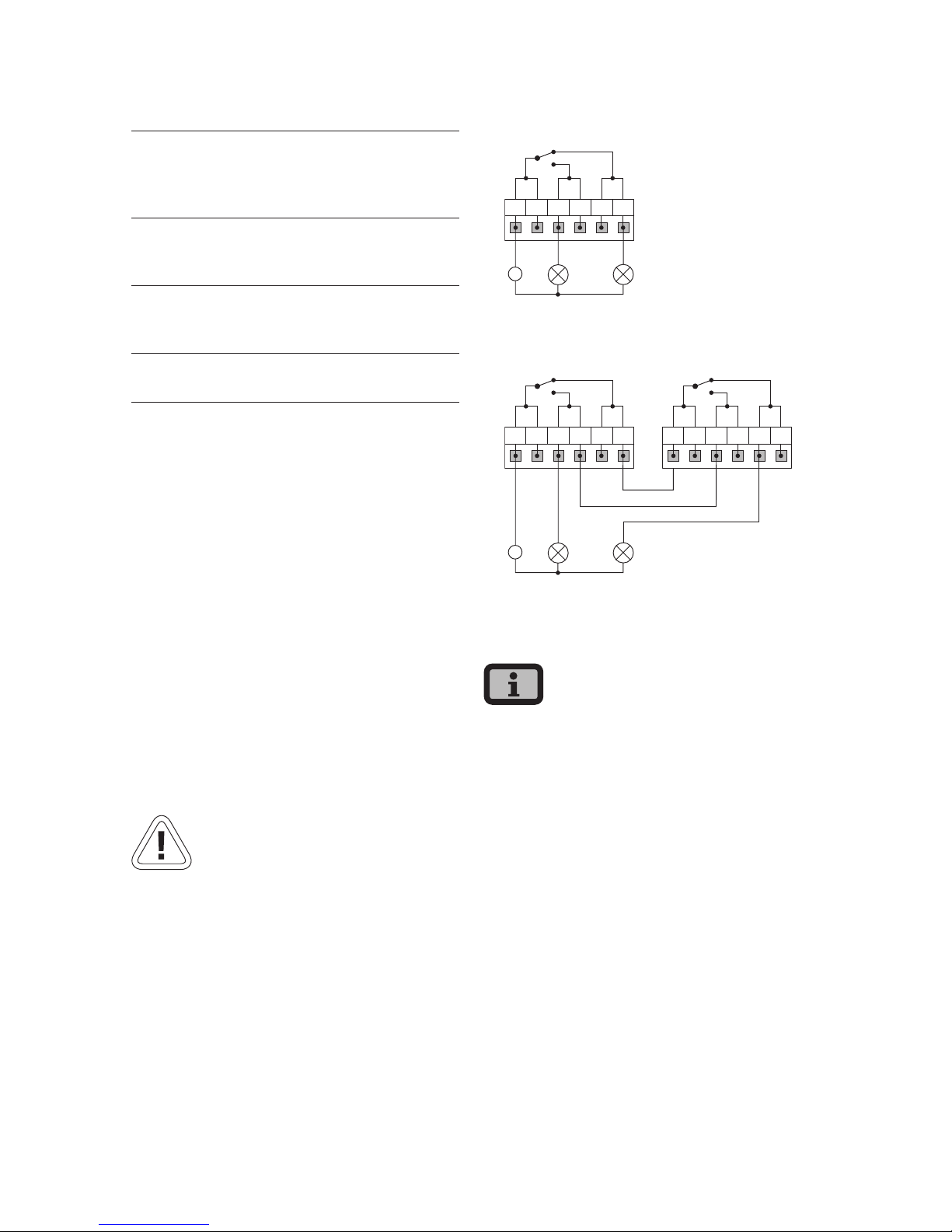

Wiring diagram for a single device

1 2

Wiring diagram for several devices

1 2

1 Indicator lamp, red 2 Indicator lamp, green

The Solar Inverter is supplied by the feed-in phase from the AC grid. If the feed-in phase fails the alarm relay cannot switch, even in the event of a fault.

Page 28

4 Commissioning

4.1 Connecting and disconnecting Solar Inverter

CAUTION

· Ensure proper mechanical and electrical installation before commissioning the Solar Inverter.

· Check the proper condition of the electrical lines.

· Always separate the grid connection ﬁrst by switching off the corresponding mains fuse and then the solar generator side by quickly opening the DC load break switch.

· The Tyco Solarlok connectors of the solar generator connection may not be disconnected while under load. The DC load break switch must be quickly switched to the switching position 0.

The Solar Inverter is supplied from the grid. The Solar Inverter switches on automatically when sufﬁcient solar generator output is available. Corresponding switch-on and switch-off thresholds have been deﬁned for this purpose.

Connecting

1. Switch on the grid connection with the external circuit breakers.

2. Switch on the solar generator voltage by quickly closing the DC load break switch (switching position 1). The Solar Inverter takes up operation when sufﬁcient input voltage is available.

1 DC load break switch

The operating LED lights up in accor-dance with the operating state.

The commissioning menu opens when the Solar Inverter is connected for the ﬁrst time.

Switching off

1. Open the grid connection by switching off the circuit breaker.

2. Disconnect the solar generator side by quickly opening the DC load break switch (switching position 0)

Page 29

4 Commissioning

4.2 Commissioning

The commissioning menu is automatically opened the ﬁrst time the Solar Inverter is connected. It helps you make the standard settings.

For a better understanding of keyboard operation, please also see the chapter Operation.

The commissioning of the Solar Inverter as

· a single device

· a master and slaves with several networked devices

is described in detail in the following.

Commissioning single device

System with one Solar Inverter

Single device

1. During initial start-up the following appears on the display:

Start commissioning with

2. Select required language with

Conﬁrm selected language with .

3. Select the country

Conﬁrm the country of installation.

Your Solar Inverter will only start feeding electricity once the country of installation has been conﬁrmed.

4. Select «Single device» with

Conﬁrm with .

5. Set date and time.

Please proceed with caution for time settings, as they directly affect data logging. For example, if you set the time back by 1 hour, then the existing data for the last hour will be overwritten.

Select date with

. Change selected number

with

and jump to next number with /

Save the set date with

then set the time

accordingly.

Save the set time with

Page 30

4 Commissioning

6. Set password. Select password Default password is:

* * * * * * * *

A new password can be set with

/ / /

as an option.

Please note:

Numerals from 0 – 9 and letters from a – z and from A – Z are admissible.

The password always has 8 characters. If the password you choose is fewer than 8 characters in length, the remainder, up to the full 8 characters, is ﬁlled with “*” symbols.

For example: You choose “Solar” as your password. This password has 5 characters. The system therefore then automatically adds three “*” symbols, meaning that your password becomes “Solar***”.

Conﬁrm password with .

7. Completion of commissioning

Conﬁrm overview with .

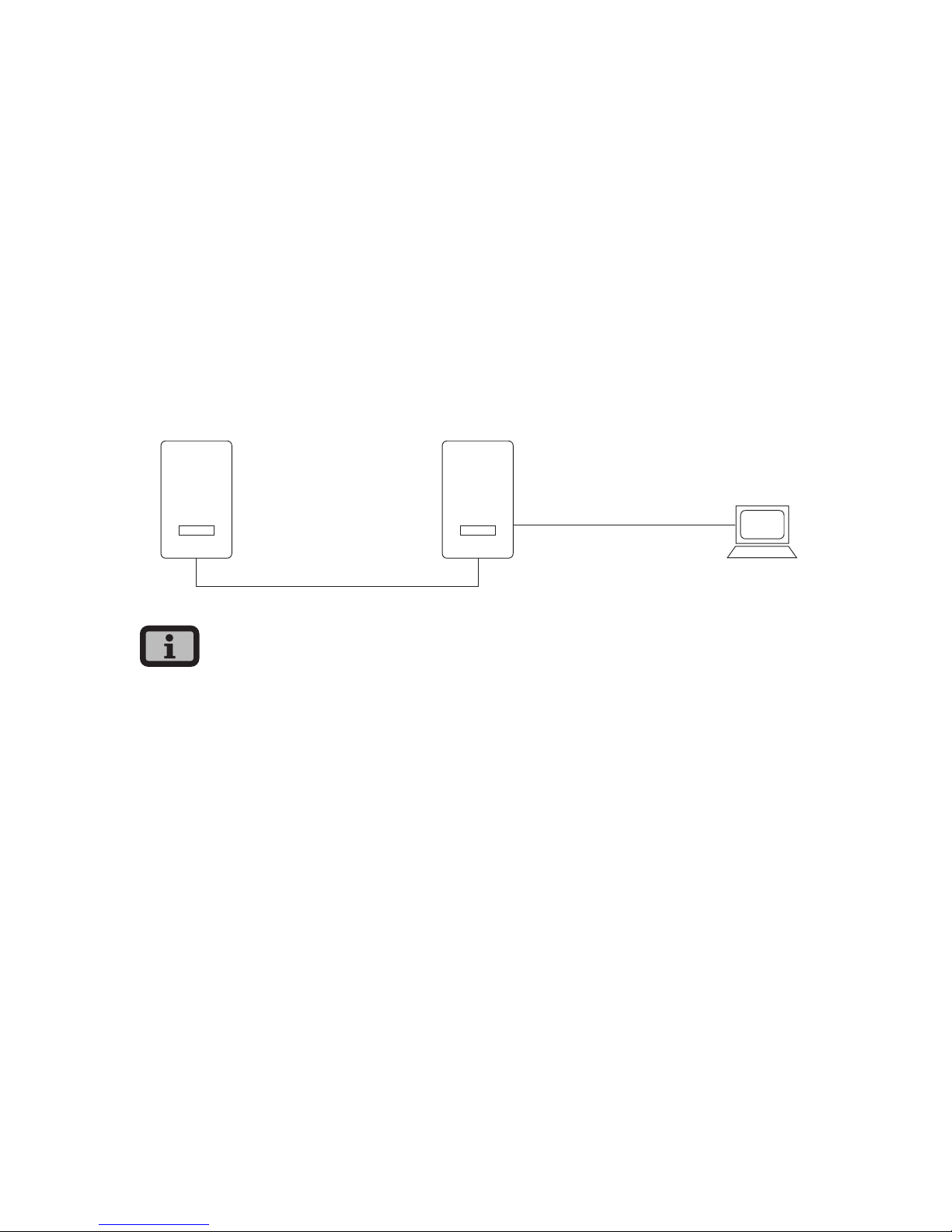

Commissioning several networked devices

System with several Solar Inverters

master slaves

Before commissioning, all devices must be interconnected via the CAN bus interface. See section Networking Solar Inverters via CAN bus.

Switch on all devices following installation. Commissioning begins with the master you have selected.

Page 31

4 Commissioning

Compatibility between Sunways Solar Inverters

The following table provides an overview of which devices can be networked with each other and how, and lists any special considerations:

NT Series (900 V) PT series AT series NT series (850 V)

NT series (850 V)

with RS485:

· Sunways Portal: with Sunways Communicator

NT with RS485 / PT with CAN bus:

· Sunways Portal: connect NTs with Sunways Communicator, PTs with Sunways Modem or DSL/network to the Internet

· Sunways Browser: only available for PT

with RS485:

· Sunways Portal: with Sunways Communicator

· Sunways Monitor

with RS485:

· Sunways Portal: with Sunways Communicator

· Sunways Monitor: with interface converter

AT series with separate CAN

networks:

· Sunways Browser

· Sunways Portal: NT devices (900 V) must be operated in a separate CAN network with independent main unit

with CAN bus:

· Sunways Browser

· Sunways Portal

· The PT Solar Inverter must be the main unit.

with CAN bus:

· Sunways Browser

· Sunways Portal

PT series with separate CAN

networks:

· Sunways Browser

· Sunways Portal: NT devices (900 V) must be operated in a separate CAN network with independent main unit

with CAN bus:

· Sunways Browser

· Sunways Portal

NT Series (900 V)

with CAN-Bus (CANopen/CiA437):

· Sunways Browser

· Sunways Portal

Page 32

4 Commissioning

In mixed systems containing AT and PT Solar Inverters, the Solar Inverter PT is always the master.

Commissioning the master

1. During initial start-up the following appears on the display:

Start commissioning with

2 Select required language with

Conﬁrm selected language with

3. Select the country

Conﬁrm the country of installation.

Your Solar Inverter will only start feeding electricity once the country of installation has been conﬁrmed.

4. Select «Master» with

Conﬁrm with

The other devices in the CAN network are automatically conﬁgured as slaves.

5. Set the data and time centrally for all connected devices.

Please proceed with caution for time settings, as they directly affect data logging. For example, if you set the time back by 1 hour, then the existing data for the last hour will be overwritten.

Select date with

. Change selected number

with

and jump to next number with /

Save the set date with

then set the time

accordingly.

Save the set time with .

6. CAN network list is set up.

Depending on the size of the network, it may take a moment until the master has found all slaves and added them to the list.

Devices = total number of devices found in CAN network, including master

In network = number of conﬁgured devices, including master

Page 33

4 Commissioning

After the master has found all connected slaves, these must be conﬁgured before commissioning of the master is continued. The device list is updated and extended whenever a slave is conﬁgured.

Conﬁrm with .

7. Set password. Select password Default password is:

* * * * * * * *

A new password can be set with

/ / /

as an option.

Please note:

Numerals from 0 – 9 and letters from a – z and from A – Z are admissible.

The password always has 8 characters. If the password you choose is fewer than 8 characters in length, the remainder, up to the full 8 characters, is ﬁlled with “*” symbols.

Conﬁrm password with .

8. Completion of commissioning

Conﬁrm overview with .

Commissioning slaves

After a master has been deﬁned, the display for requesting the CAN-ID is automatically shown on the display on each slave.

1. Request CAN ID. Request next highest free ID from master with

or next lowest free ID with

. The master assigns a free ID to the slave. Con-

ﬁrm the ID with

within 5 seconds.

Request further IDs

Conﬁrm CAN ID with

within 5 seconds.

· The data for the individual slaves can be assigned in the Sunways Browser and in the menu of the master based on the IDs.

· The CAN-ID 1 is automatically assigned to the master. This means the slaves can be assigned IDs between 2 - 99.

· Commissioning cannot continue until an ID has been requested from the master.

2. Completion of commissioning

Conﬁrm overview with .

3. Carry out commissioning for all other slaves as described above.

Page 34

4 Commissioning

Later commissioning

If you add new devices or replace existing ones in your solar system, then you can display the device list in the display on the master under «Settings – Network – CAN bus». The new device can then be put into operation in accordance with the description for commissioning slaves.

Page 35

5 Operation

5.1 Operating elements

Operating ﬁeld

The Solar Inverter is operated via the operating ﬁeld on the front.

1 2 3

1 LCD display (lighted) 2 Operating LED 3 Keyboard

LCD display

A graphics-capable, monochrome dot matrix display is integrated in the oper-ating ﬁeld. In standard operation the momentary output, daily yield and status are displayed. The bar graph shows the energy feed-in of the current day.

Press any key to activate the display lighting. If no key is pressed for approx. 1 minute, the display lighting goes out.

Important!

The LCD display is not a calibrated measuring device. It is characterised by a slight, system-dependent difference of a few percent. Exact accounting of the data with the power supply company requires a calibrated meter.

Keyboard

The keyboard can be used to navigate in the menu, edit text ﬁelds, select entries from lists and enter numbers consecutively and digit by digit. User entries can only be made if the value to be changed is selected. The cursor changes visibly in the editing mode and indicates the digit to be changed.

-key Scroll up.

- key Scroll down.

- key Select menu item..

- key Back one menu level.

-key Select menu item and conﬁrm your entries.

-key Cancel.

Operating LED

The combined red/green LED indicates the device status of the Solar Inverter:

· LED off Solar Inverter is not active (night mode)

· LED green, continuously lit Solar Inverter is active and feeds into power grid (MPP mode)

· LED green, ﬂashing Solar Inverter is active and feeds into power grid, however with current, output or temperature limitation.

· LED red, continuously lit an error has occurred (malfunction)

· LED red, ﬂashing a warning has been issued

Page 36

5 Operation

Standard screen (single device)

The standard screen is always shown when no keyboard entry is made for more than 1 minute. It can also be called up manually with the menu item «Solar Inverter – Instantaneous Values».

The standard screen shows the main data at a glance. The ﬁrst line shows the current feed-in power. The second line shows the energy fed in during the current day.

The status line indicates the device status with the following messages:

MPP Feeding in MPP mode

AC cur.lim. Feeding with AC current limitation

DC cur.lim. Feeding with DC current limitation

Temp.lim. Feeding with temperature limitation

Output lim. Feeding with output limitation

Feed. Feeding

Warning A warning is active

Error An error has occurred

Night Night mode

Start Device initialisation phase

COM-Upd The communication software is being

updated

DSP-Upd The control software is being updated

The graphic in the lower section of the screen shows the output curve for the current day as a bar graph. The current period is shown as a ﬂashing bar, as it is still increasing.

Standard screen (system)

This screen shows the system data for a CAN-networked system.

Next to the total current system output, you also see the energy yield of your solar system and any status messages of all connected devices. These are provided with the inverter number. «M» means that the error has occurred in the master.

· The various functions are accessed via the menu. The main menu is opened from the standard screen by pressing

twice.

· You can always return to the standard screen by pressing and holding the

key.

· If a status message is shown, then you can open the error list directly with

· You can access other instantaneous values from the standard screen with

and

Page 37

5 Operation

5.2 Access rights

Operation of the Solar Inverter is divided into various areas protected with passwords.

The password has 8 digits or characters. The password can be entered in the menu item «Settings – Login».

After a correct password entry the login remains active for 5 minutes. The device then switches back to guest mode. Pressing any key during the login period extends resets the period to > 5 minutes.

Customer area

The customer password must be entered to access this area. All settings can be made which are required for installation and commissioning of the Solar Inverter.

· The password for the customer area is: * * * * * * * *

· The password is preset and is directly conﬁrmed with

· As an option you can assign a personal password in the Commissioning menu. Digits between 0 – 9 and letters between a – z and A – Z are permitted.

· The password always has 8 characters. If the password you choose is fewer than 8 characters in length, the remainder, up to the full 8 characters, is ﬁlled with “*” symbols.

· For example: You choose “Solar” as your password. This password has 5 characters. The system therefore then automatically adds three “*” symbols, meaning that your password becomes “Solar***”.

Installer area

In this area the installer can make special settings on the Solar Inverter which are available after consulting the Technical Hotline. Request a device-speciﬁc password from the Technical Hotline. These passwords are only relevant for the Sunways Browser. All commissioning procedures are accessible from the customer area.

Technical Hotline +49 (0)7531 996 77-577

Page 38

5 Operation

5.3 Menu structure

The menu provides access to all Solar Inverter screens. Open the main menu by pressing the left arrow key twice from the standard screen.

Solar Inverter Solar system Settings

Instantaneous values Energy yield Events History Information

Instantaneous values Energy yield Events System history System info

General information Login Network* Commissioning* Change country* Self-testing**

Yield for week Yield for 15 days Yield for month AC output DC values AC values

Standard screen Instantaneous values 1 Instantaneous values 2

Language LCD contrast Date/Time* Receiving time* Firmware* New password*

Yield for week Yield for 15 days Yield for month Total output

Ethernet CAN bus Interfaces

Firmware Memory Mode

START

· The areas highlighted in grey are only available in the master

· *) after entry of customer password Standard password: ******** (= 8 times star key)

· **) This is only shown if the conﬁgured country of installation is Italy.

Page 39

5 Operation

5.4 Overview of screen displays

Display Description Menu selection

Instantaneous Values – Device

Current feed-in power, daily energy yield and device status MPP:Feeding in MPP mode

The screen appears automatically when you have not made any entries with the keyboard for several minutes.

Solar Inverter – Instantaneous values

Display of voltages and currents from solar generator and grid

Solar Inverter – Instantaneous values –

Interior temperature of device (Temp. Inv.) and temperature and irradiation values (if sensor is connected)

Solar Inverter – Instantaneous values –

AC yields and operating hours from today, yesterday, week and month

Solar Inverter – Energy yield

AC yields and operating hours from year and total value

Solar Inverter – Energy yield –

Page 40

5 Operation

Display Description Menu selection

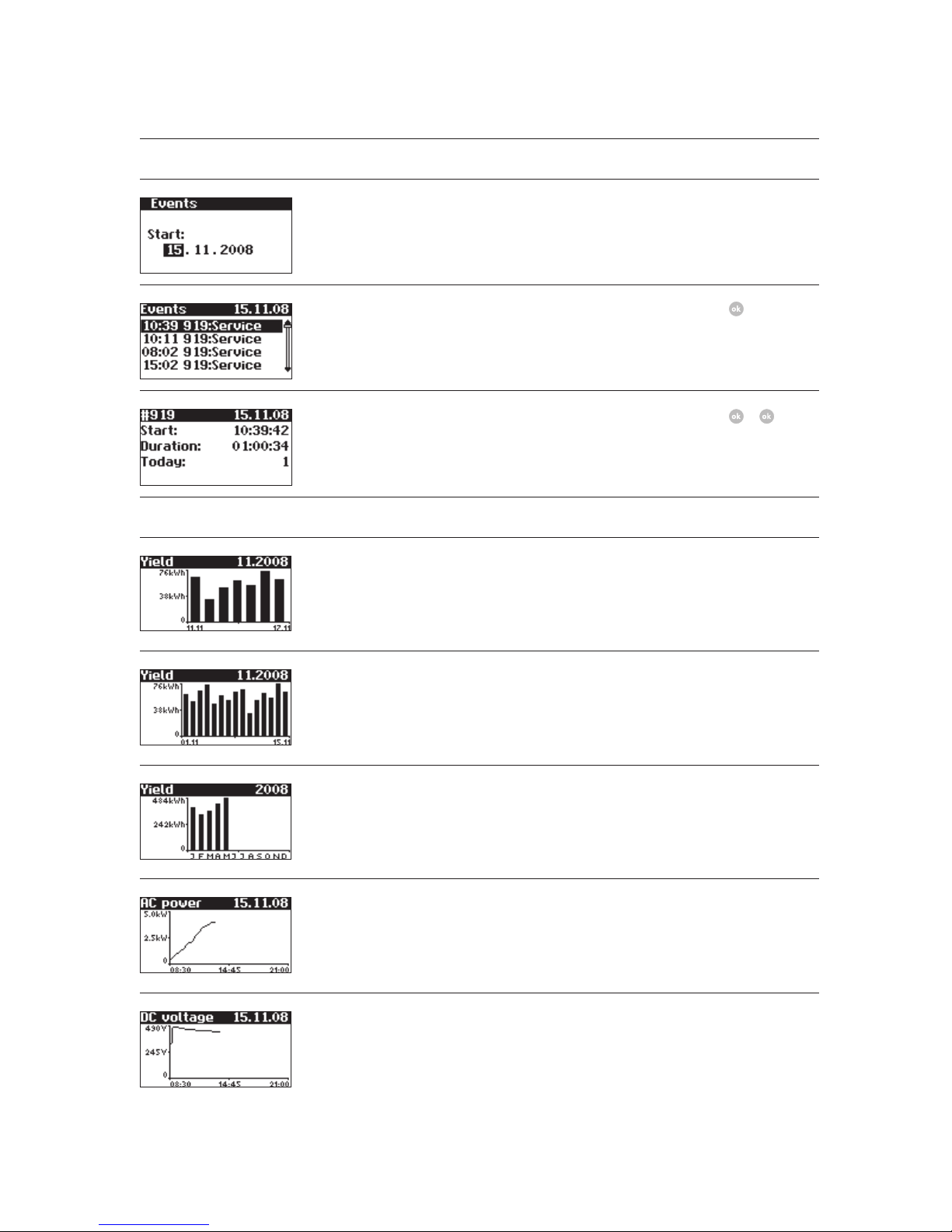

Events – Device

Select starting data for event display Solar Inverter – Events

Display event list Solar Inverter – Events –

Display event details (error number, data, starting time, duration and number of occurrences per day)

Solar Inverter – Events –

–

History – Device

Daily yield for 1 week Solar Inverter – History – Yield for

week

Daily yields for 15 days Solar Inverter – History – Yield for 15

days

Monthly yields Solar Inverter – History – Yield for

month

AC output (5-min. values) Solar Inverter – History – AC output

DC voltage (5-min. values) Solar Inverter – History – DC output

Page 41

5 Operation

Display Description Menu selection

DC current (5-min. values) Solar Inverter – History – DC values

–

AC current (5-min. values) Solar Inverter – History – AC values

AC voltage (5-min. values) Solar Inverter – History – AC values

–

Information – Device

Firmware Solar Inverter – Information

– Firmware

Memory card Solar Inverter – Information – Memory

Device mode Solar Inverter – Information – Mode

Instantaneous values – Solar system (only on master)

Current system feed-in power, daily energy yield and system status

The screen appears on the master automatically when you do not make any entries with the keyboard for several minutes. Solar system – Instantaneous values

Page 42

5 Operation

Display Description Menu selection

Yields – Solar system (only on master)

AC system yields and operating hours from today, yesterday, week and month

Solar system – Energy yield

AC system yields and operating hours from year and total value

Solar system – Energy yield –

Events – Solar system (only on master)

Select starting data for system event display

Solar system – Events

Display event list for entire system Solar system – Events –

Display event details (error number, data, starting time, duration and number of occurrences per day)

Solar system – Events –

–

History – Solar system (only on master)

Solar system daily yield for 1 week Solar system – History – Yield for week

Solar system daily yield for 15 days Solar system – History – Yield for 15

days

Page 43

5 Operation

Display Description Menu selection

Solar system monthly yields Solar system – History – Yield for

month

Solar system AC output (5-min. values)

Solar system – History – AC output

System info – Solar system (only on master)

Device list for selecting a device Solar system – System info

Selection of information Solar system – System info –

Firmware Solar system – System info – Firmware

Memory card Solar system – System info – Memory

Device mode Solar system – System info – Mode

Page 44

5 Operation

Display Description Menu selection

Settings – General

Display language Settings – General – Language

LCD contrast Settings – General – LCD contrast

Set date/time (only possible with customer password)

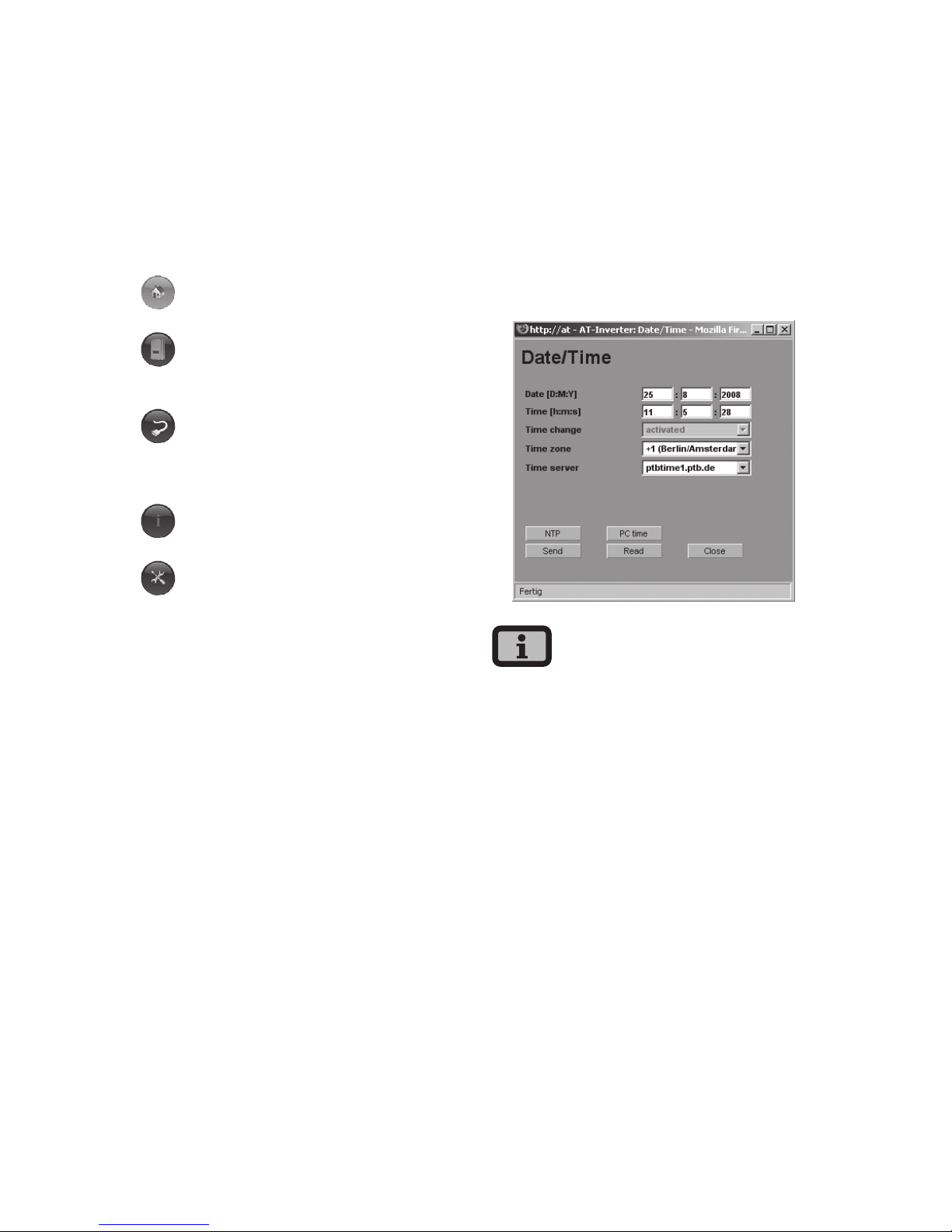

Settings – General – Date/Time

Set receiving time (starting time and duration in which the device can also be addressed in the night mode via the network). (only possible with customer password)

Settings – General – Receiving time

Changing the customer password (only possible with customer password)

Settings – General – Password

Settings – Login

Password entry to access advanced settings (necessary for commissioning)

Settings – Login

Page 45

5 Operation

Display Description Menu selection

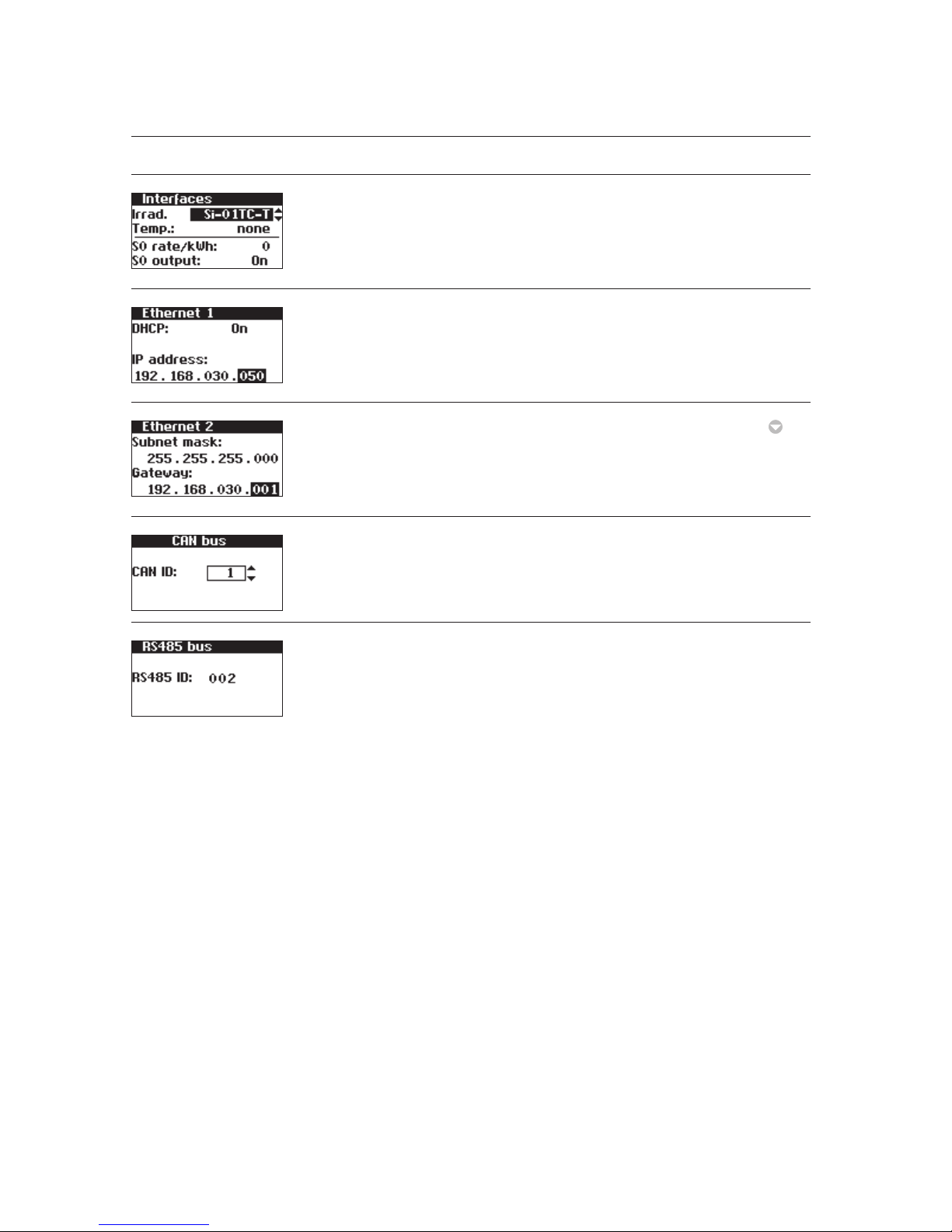

Settings – Network (only possible with customer password)

Setting of the irradiation and temperature sensor and conﬁguration of the S0 pulse output

Settings – Network – Interfaces

Network settings (Screen 1): Activate DHCP for the automatic IP address setting or enter IP address manually

Settings – Network – Ethernet

Network settings (Screen 2): Settings – Network – Ethernet –

Have CAN bus ID assigned by the master

Settings – Network – CAN bus

Assign RS485 address to the device (only necessary if NT devices are connected in the network)

Settings – Network – RS485 bus

Page 46

5 Operation

5.5 Malfunction displays

The Solar Inverter indicates malfunctions in the LCD display and saves these in the internal error memory.

The malfunction display consists of a number and a short designation. Based on the ﬁrst number you can quickly recognise which area the error has occurred in:

1: Error in the area of the solar generator 2: Error in the area of the AC network 3: Error in the area of the inverter 4: Error in the area of the interfaces/communication 9: Service error

If an error is shown in the standard display, then you can look up the exact error message in the menu under «Solar Inverter – Events».

· A restart may be attempted in the event of an error message.

· Please note the serial number of the device and the error number before contacting the Technical Hotline.

· The Technical Hotline can be contacted on +49 (0)7531 996 77-577 during weekdays.

Display message Description Cause and possible remedies

Solar generator fault

101:U-DC max Your AT Solar Inverter is approved for

a maximum open-circuit voltage of the solar generator of 680 V. All components of the DC input are sufﬁciently dimensioned with a safety factor. If the threshold is exceeded, the Solar Inverter stops feeding.

The maximum DC voltage was exceeded.

· Check the dimensioning of your PV generator.

Too many modules are connected in series.

· Reduce the number of mo-dules and carry out commissioning again.

102:Insulat. Before each connection, your Solar

Inverter checks the PV system for a possible earth fault or insulation faults. Should this kind of error be detected, no feeding takes place. The mode of operation is conformant with DIN VDE 0126-1-1.

The Solar Inverter has disco-vered an insulation fault in the PV system during start-up.

· Check your PV system for possible insulation faults (pinched-off DC lines etc).

The measured insulation resistance must be at least 680 kohms.

Page 47

5 Operation

Display message Description Cause and possible remedies

103:AFI>30mA Your Solar Inverter is equipped with a

universally sensitive AFI according to DIN VDE 0126-1-1. This monitoring device has detected a relative residual current jump of >30 mA.

A residual current jump has occurred during operation of the Solar Inverter.

· Check your PV system for possible insulation faults.

104:AFI>0.3A Your Solar Inverter is equipped with a

universally sensitive AFI according to DIN VDE 0126-1-1. This monitoring device has detected an absolute fault current of > 300 mA.

A residual current has occurred during operation of the Solar Inverter.

· Check your PV system for possible insulation faults.

AC network fault

201:Surge e. Your Solar Inverter continually moni-

tors the quality of the AC grid. During high voltage peaks on the phase feeding in, the Solar Inverter stops feeding and attempts a restart.

The Solar Inverter has detected a high voltage peak on the phase feeding in.

· After malfunction elimination the Solar Inverter restarts automatically. Should the error occur frequently, please contact your power supply company.

A monitoring phase and a directly earthed conductor were exchanged when connecting the AC side.

202:UAC1>10% If the voltage of the phase feeding in

was greater than 253 V for a period of ten mi-nutes, the Solar Inverter stops feeding and attempts to switch on again when the grid vol-tage is within the permissible range. The mode of operation is conformant with DIN VDE 0126-1-1.

The cable cross-section in the AC supply line to the Solar Inverter is too small.

Your inverter feeds into a spur line, which is insufﬁciently dimensioned.

· Check the design of your grid connection (energy meter) or the grid feed point to your Electric Utility.

· Ask your Electric Utility about grid stability and design.

Page 48

5 Operation

Display message Description Cause and possible remedies

203:UAC1>Max 205:UAC2>Max 207:UAC3>Max

Your Solar Inverter continually monitors the voltage level of the phases L1, L2 and L3. When the maximum permissible limit is exceeded, the Solar Inverter stops feeding and does not start up again until the voltage value drops below the maximum permissible limit.

The cable cross-section in the AC supply line to the Solar Inverter is too small.

Your inverter feeds into a spur line, which is insufﬁciently dimensioned.

· Check the design of your grid connection (energy meter) or the grid feed point to your Electric Utility.

· Ask your Electric Utility about grid stability and design.

204:UAC1<Min 206:UAC2<Min 208:UAC3<Min

Your Solar Inverter continually monitors the voltage level of the phases L1, L2 and L3. When the minimum permissible limit is dropped below, the Solar Inverter stops feeding and does not start up again until the voltage value exceeds the minimum permissible limit. If the voltage drops below 160 V, the Solar Inverter cannot be supplied.

· Ask your Electric Utility about grid stability and design.

209:Isol.op. You Solar Inverter is equipped with a

high-quality redundant grid monitoring function according to DIN VDE 0126-1-1 and constantly monitors the grid. If one of the phases fails, or if the phase position between the individual conductors changes, the Solar Inverter stops feeding and does not start up again until the error is eliminated.

· Check the phases L2 and L3.

· Ask your Electric Utility about grid stability and design.

210:Frq1>Max 211:Frq1<Min

The Solar Inverter continually monitors the grid frequency of the phase feeding in. If this lies above the permissible value, the Solar Inverter stops feeding and does not start up again until the value is below the limit.

· Ask your Electric Utility about grid stability and design.

212:DC share Your Solar Inverter continually moni-

tors the quality of current fed in. If an increased DC share is found in the current fed in, the Solar Inverter stops feeding. The Solar Inverter does not attempt to feed in again until after a reset (the next day).

· Restart the Solar Inverter.

If the error still occurs, please contact the technical hotline. The phone number is provided on the back of the manual.

Page 49

5 Operation

Display message Description Cause and possible remedies

213:UAC1>10% (Warning)

The voltage of the phase feeding in is higher than 10% above the nominal value. If this is the case for longer than ten minutes, the inverter stops feeding and does not switch on again until the voltage drops below this limit again.

The cable cross-section in the AC supply line to the Solar Inverter is too small.

Your inverter feeds into a spur line, which is insufﬁciently dimensioned.

· Check the design of your grid connection (energy meter) or the grid feed point to your Electric Utility.

· Ask your Electric Utility about grid stability and design.

224:AC P. fail Your Solar Inverter has detected a mains

power failure.

· Ask your Electric Utility about grid stability and design.

225:ULL err Your Solar Inverter is equipped with a

· Check phases L2 and L3.

· Ask your power supply company (PSC) about grid stability and design.

Inverter fault

301:AFI over The integrated sensor for measuring

the residual current has been operated outside its measuring range.

A residual current was detected during start-up.

· Restart the Solar Inverter.

If the error still occurs, please contact the technical hotline. The phone number is provided on the back of the manual.

302:Monit. The AT Solar Inverter is equipped with a

redundant monitoring device which constantly checks the measured values of the controller for plausibility. If a deviation or an error is detected in the process, this message appears. In addition, this message can also appear in case of a power failure.

· Restart the Solar Inverter.

If the error still occurs, please contact the technical hotline. The phone number is provided on the back of the manual.

Page 50

5 Operation

Display message Description Cause and possible remedies

303:Overtmp. Your Solar Inverter is designed for an

ambient temperature of up to +40°C. When a speciﬁed temperature threshold of the heat sink is reached, the output power is reduced linearly. Should the heat sink temperature nevertheless continue to increase, feeding is stopped. After the heat sink temperature drops, the Solar Inverter starts up again automatically.

The maximum permissible ambient temperature has been exceeded.

· The installation location is not suitable. Please ﬁnd another installation location.

The necessary air circulation was not taken into account during installation.

· Clean the Solar Inverter, if dirt prevents cooling.

· Observe the installation distances speciﬁed in the manual.

Objects were laid on the heat sink and unimpaired convection was prevented.

· Remove the objects.

304:Grid re. The AT Solar Inverter checks the opera-

tion of the mains relay prior to every switch-on. An error was detected during this check.

· Restart the Solar Inverter.

If the error still occurs, please contact the technical hotline. The phone number is provided on the back of the manual.

305:AFI test The AT Solar Inverter checks the opera-

tion of its residual-current monitoring device prior to every switch-on. An error was detected during this check.

· Restart the Solar Inverter.

If the error still occurs, please contact the technical hotline. The phone number is provided on the back of the manual.

306:T. meas. The AT Solar Inverter is equipped with

a temperature sensor that monitors the heat sink temperature. This message appears if the sensor reports a value outside its value range or in case of a sensor cable break.

The ambient temperature of the Solar Inverter is outside the permissible range (< -25°C).

· Wait until the temperature reaches the permissible operating range.

A cable break has occurred in the sensor which monitors the heat sink temperature.

· Please contact the technical hotline. The phone number is provided on the back of the manual.

Page 51

5 Operation

Display message Description Cause and possible remedies

307:Overtmp. (Warning)

Your Solar Inverter is designed for an ambient temperature of up to +40°C. When a speciﬁed temperature threshold of the heat sink is reached, the output power is reduced linearly. Should the heat sink temperature nevertheless continue to increase, feeding is stopped. This warning appears when the current heat sink temperature is just below the switch-off threshold.

The maximum permissible ambient temperature has been exceeded.

· The installation location is not suitable. Please ﬁnd another installation location.

The necessary air circulation was not taken into account during installation.

· Clean the Solar Inverter, if dirt prevents cooling.

· Observe the installation distances speciﬁed in the manual.

Objects were laid on the heat sink and unimpaired convection was prevented.

· Remove the objects.

310:no conﬁg No country is set. Contact the technical hotline for the

installer password. (The phone number is provided on the back of the manual.) Reset the country according to the explanatory note see 4.2 Commissioning on page 29

Interface/communication fault

401:SD card The Solar Inverter cannot ﬁnd an SD

card.

· Restart the Solar Inverter.

If the error still occurs, please contact the technical hotline. The phone number is provided on the back of the manual.

402:SD card The SD card is write-protected. · Restart the Solar Inverter.

If the error still occurs, please contact the technical hotline. The phone number is provided on the back of the manual.

403:CAN user Communication error with CAN user. · Check whether an error has occurred

in the CAN slave. Restart slave and master if necessary.

Page 52

5 Operation

Display message Description Cause and possible remedies

404:CAN bus CAN bus not in operation. No communication is possible via the

CAN bus.

· Check the bus lines and the terminating resistors.

· Check whether the maximum permissible line lengths have been complied with.

· Check whether the bus lines have been routed parallel to power cables. Separate bus lines and power cable from each other spatially if necessary.

405:CAN user CAN user does not respond. · Check whether an error has occurred

in the CAN slave. Restart slave if necessary.

406:Solar (Warning)

No sensor found on sensor channel 1 (solar).

If you have connected a sensor:

· Check the connection to your sensor.

If you have not connected a sensor:

· Check the conﬁguration with the Sunways Browser.

407:Temp. (Warning)

No sensor found on sensor channel 2 (temperature).

If you have connected a sensor:

· Check the connection to your sensor.

If you have not connected a sensor:

· Check the conﬁguration with the Sunways Browser.

408:CAN com. (Warning)

Communication malfunctions occur repeatedly on the CAN bus.

A malfunction occurs in the data transmission on the CAN bus. However, a data exchange continues to be possible.

· Check whether all connectors of the bus lines and the terminating resistors are properly mounted.

· Check whether the bus lines have been routed parallel to power cables. Separate bus lines and power cable from each other spatially if necessary.

Page 53

5 Operation

Display message Description Cause and possible remedies

409:CAN cfg. (Warning)

CAN bus is in the conﬁguration mode. No measured values are transferred.

At least one device is in the menu item «Settings – Network – CAN bus».

· Close this menu for all devices.

410:SMTP ser Warning: SMTP server cannot be reached

(410).

Fault during e-mail delivery.

Re-attempt e-mail delivery.

· If the fault recurs check the e-mail settings via the Sunways Browser

411:SMTP no soc Warning: SMTP no socket available (411).

412:SMTP cm Warning: SMTP faulty communication

with server (412).

413:DNS failed Warning: DNS has failed (413). Communication fault between the

integrated web server and an Internet browser in conjunction with the Sunways Browser.

These warnings are non-critical and can be ignored if they only occur occasionally.

These warnings have no inﬂuence on the energy production of the inverter.

414:HTTP client Warning: HTTP client connection has

failed (414).

415:HTTP auth. Warning: HTTP client authorisation has

failed (415).

416:HTTP Tim. Warning: HTTP client timeout (416).

417:HTTP no soc Warning: HTTP client no socket available

(417).

418:HTTP no socket Warning: HTTP client error with socket

(418).

419:HTTP method Warning: HTTP client incorrect method

(419).

420:HTTP protocol Warning: HTTP client error with protocol

(420).

421:HTTP write error

Warning: HTTP client write error (421).

422:HTTP read error.

Warning: HTTP client read error (422).

424:Time syn (Warning)

Warning: Time synchronisation with the NTP server has failed.

Firewall port 123 is blocked.

· Select an alternative time server.

Page 54

5 Operation

Display message Description Cause and possible remedies

Service fault

9xx: Service fault 9xx: Service warning

A service fault has occurred. · Disconnect the Solar Inverter from

the grid and from the solar generator and reconnect it.

If the error occurs again, please contact the Technical Hotline. The phone number is provided on the back of the manual.

Page 55

6 System monitoring

6.1 General information

The basis for the system monitoring is the data logger integrated in the AT Solar Inverter. The Solar Inverters of the AT series are equipped with a broad range of monitoring options for your solar system:

· The Sunways Browser offers the display of instantaneous values, stored operating data and settings.

· With active alerting the master can send errors which have occurred in the solar system to a selected recipient by Email.

· With the Sunways Portal connection the AT Solar Inverter can send the operating data of your solar system to the Sunways Portal daily without additional hardware. This enables you to track your yields via the Internet.

One of the four possible connections between a PC and the Solar Inverter is possible for this purpose:

· Direct connection via an Ethernet cable or internal network

The Solar Inverter is unable to send e-mails via a direct connection. Portal connection and active alerting is therefore not possible.

· Connection via the Internet, e.g. connection of the Solar Inverter to a DSL connection

· Connection via a Sunways Modem

6.2 Integrated data logger

The integrated data logger of the AT Solar Inverter stores the operating data of your solar system. In addition to 5-minute mean values, energy yields are also stored as 5-minute, daily, weekly, monthly and annual values. Up to 200 status changes (warnings and errors with start and end) are also stored. Each data record contains the data and time. The data logger is designed as a circulating memory, i.e. the respective oldest data are overwritten with new data.

Operating data (5-min. mean values) Number Value

2000 DC current 2000 DC voltage 2000 AC current 2000 AC voltage 2000 AC output 2000 Device temperature 2000 Module irradiance (optional) 2000 Module temperature (optional)

Energy yields Number Value

2000 5-minute yield 800 Daily yield 800 Weekly yield 250 Monthly yield 20 Annual yield

Status messages Number Value

200 Status changes

Page 56

6 System monitoring

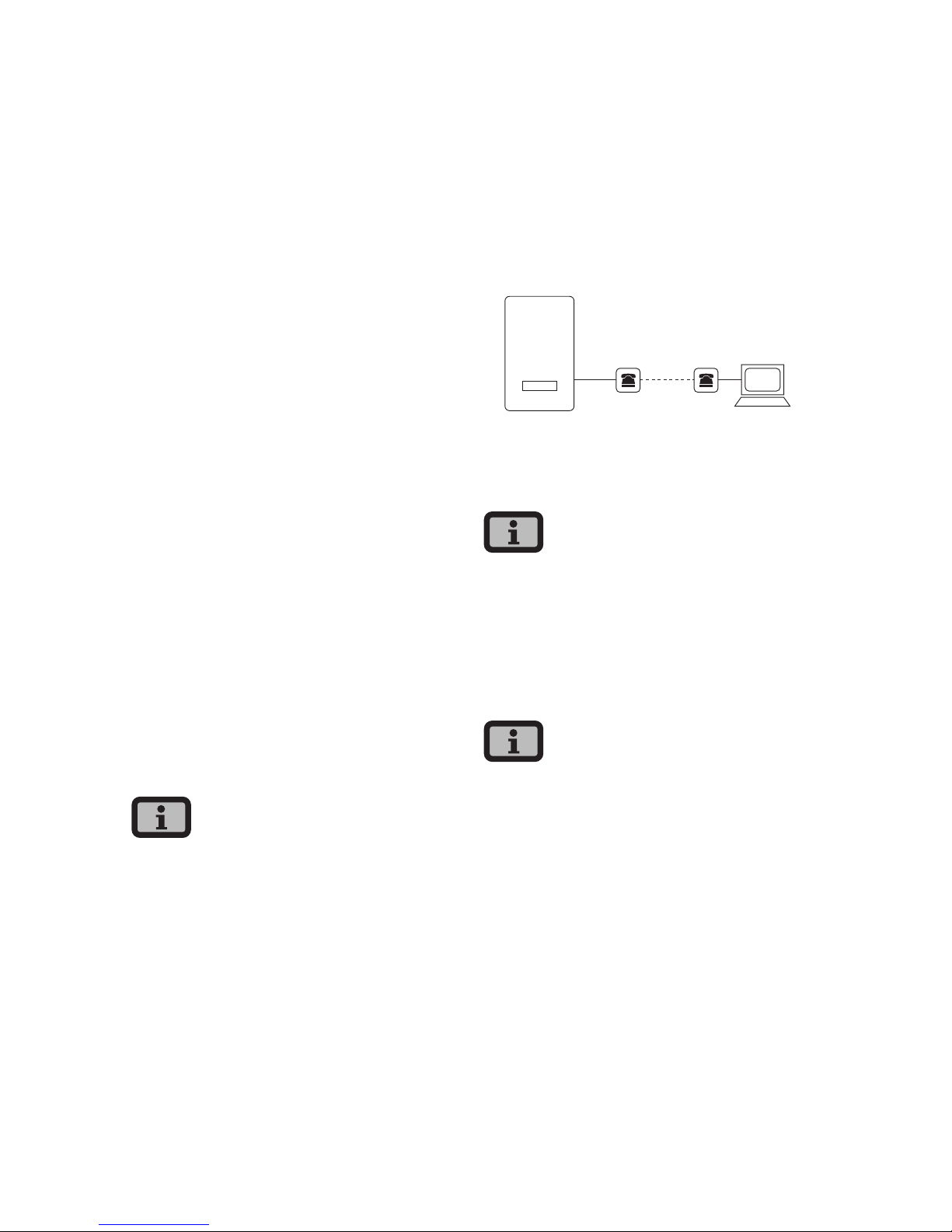

6.3 Direct Ethernet connection

The Solar Inverters are equipped with an Ethernet interface as standard for system monitoring and conﬁguration with a PC.

Connect your PC and the Solar Inverter with the included Ethernet cable. X-patch cables can also be used.

The PC is connected to the master as standard. Basically all Solar Inverters – including Solar Inverters conﬁgured as secondary units or single units – dispose of an own web server so that a connection can be established with each device.

MasterSlave

Max. Ethernet

connection: 100 m

Max. total CAN bus length:

500 m

INVERTER

· To always ﬁnd the suitable conﬁguration for installation and commissioning on the PC, we recommend the use of a second network card (e.g. PCBus, PCMCIA), which you can conﬁgure to match the default setting of the Solar Inverter.

· The PC and the Solar Inverter must have suitable IP addresses and net masks. The network settings can be adjusted either directly on the Solar Inverter via the LCD display or on your PC.

· If two network cards are used the IP addresses must be in separate subnets, e.g. 192.168.30.XXX and 192.168.40.XXX.

Page 57

6 System monitoring

6.4 Network settings on Solar Inverter

· The Solar Inverter is supplied with the following, preset IP address: 192.168.30.50

· In the default setting the Solar Inverter does not support a DHCP (Dynamic Host Conﬁguration Protocol). Therefore, the IP address is not assigned automatically. It is possible to activate the DHCP protocol via the Settings menu.

· IP addresses may only be assigned once within the network.

If required you can assign your own IP address for the Solar Inverter via the Settings menu.

1. Open the menu «Settings – Login».

2. Enter the default password (******** = 8 times star key) or your chosen password.

Please note:

Numerals from 0 – 9 and letters from a – z and from A – Z are admissible.

The password always has 8 characters. If the password you choose is fewer than 8 characters in length, the remainder, up to the full 8 characters, is ﬁlled with “*” symbols.

3. Open the menu «Settings – Network – Ethernet».

4. Enter an IP address suitable for use with your PC. This means the ﬁrst three number blocks must be identical, and the last number block different.

Example: If your PC has the IP address 192.168.1.1, enter

192.168.1.2 for your Solar Inverter

5. Use

to access further settings.

6. Enter the subnet mask 255.255.255.0.

7. Enter the IP address of your PC in the gateway.

8. Conﬁrm with

After the network conﬁguration is completed you can start the Sunways Browser by entering the IP address of the Solar Inverter in the address line of your web browser.

Page 58

6 System monitoring

6.5 Network settings on the PC

To enable your PC to communicate with the Solar Inverter certain network settings are required. The procedure differs slightly depending on the operating system. A conﬁguration example for Windows

XP is shown below..

IP addresses may only be assigned once within the network.

1. Select «Start – Settings».

2. Select «Network Connections».

3. Double-click on the LAN connection through which you are connected to the Solar Inverter.

4. Click in the Status window on «Properties».

5. Select «Internet Protocol (TCP/IP)» and click «Properties» again.

6. Now assign an unused IP address 192.168.30.XXX and enter the subnet mask 255.255.255.0.

7. Click OK to conﬁrm your entries.

Page 59

6 System monitoring

8. In the «Status» menu item you can check the correctness of your entries and the status of your connection

After the network conﬁguration is completed you can start the Sunways Browser by entering the IP address of the Solar Inverter in the address line of your web browser.

For more complex network conﬁgurations please contact your network administrator.

Page 60

6 System monitoring

6.6 Connection via an existing Ethernet network

If an existing home or company network is available you can integrate the AT Solar Inverter directly in the network as a network device.

Connect your PC and the Solar Inverter with a CAT5 Ethernet cable with 1:1 RJ45 sockets.

The master is connected to the network as standard.

MasterSlave

Max. total CAN bus length:

500 m

INVERTER

Hub Switch Router

Max. Ethernet connection:

100 m

With DHCP

If a DHCP server is present in your network, you can activate DHCP on the Solar Inverter. In this case the Solar Inverter obtains the network settings automatically. You can display the assigned IP address via the LCD display (menu «Settings – Network – Ethernet»)

Without DHCP

If there is no DHCP server in your network, you must set an unused IP address on the AT Solar Inverter (see 6.4 Network settings on Solar Inverter on page

57).

Ask your network administrator for suitable settings for IP address, net mask and gateway.

After the network conﬁguration is completed you can start the Sunways Browser by entering the IP address of the Solar Inverter in the address line of your web browser.

Page 61

6 System monitoring

6.7 Access via DSL router

If a DSL connection or a network with Internet access is available you can make the Solar Inverter accessible via the Internet.

Requirement: Your DSL modem or Internet router supports static IP address services, e.g. www.dyndns.org Your router supports port forwarding.

1. Connect your Solar Inverter with your DSL router. Use a CAT5 Ethernet cable with 1:1 RJ45 sockets. The master is connected to the network as standard.

2. Register free of charge at www.dyndns.org, for example

3. Create an alias for accessing your Solar Inverter, e.g. at-sunways.dyndns.org. You can then access your Solar Inverter via this address.

4. Conﬁgure your DSL router such that the IP address is regularly reported to www.dyndns.org (follow the procedure described in the manual for your DSL router for this purpose).

5. Conﬁgure your DSL router such that it accepts requests from the Internet via Port 80, for example, and forwards them internally to the Solar Inverter (port forwarding).

6. Also note that the port for access from the Internet set in your ﬁrewall must be enabled.

Instructions for conﬁguring common DSL routers are available for download from the Sunways AG website.

6.8 Connection via the Sunways Modem

A modem connection can be used to bridge longer distances during system monitoring and conﬁguration. Connect the Sunways Modem with the Solar Inverter. The Sunways Modem is available as an analog, ISDN and GSM type.

INVERTER

max. 100 m

ISDN – ISDN

analog – analog

analog – GSM GSM – analog

GSM – GSM

1. Connect your the Solar Inverter and your PC with a crossed or 1:1 Ethernet connection cable, type CAT5 with RJ45 sockets.

In a networked system only the master should be connected to the remote modem as standard.

2. Connect an external modem to your PC or, if available, use the internal modem of the PC. For commissioning please refer to the Sunways Modem user manual.

The following modem combinations are permitted:

ISDN – ISDN analog – analog analog – GSM GSM – analog GSM – GSM

Page 62

6 System monitoring

Connecting a Sunways Modem

2 3

INVERTER

MODEM

1 Telephone connection 2 RS232 interface 3 LVDS for AT and PT Solar Inverters 4 Power supply device

6.9 Dial-up connection from a PC to the Solar Inverter

To establish a connection between your Solar Inverter and a PC via the modem you have to establish a dial-up connection in Windows. The procedure under Windows

XP is described below.

1. Run the wizard for a new connection via Start –

Settings – Network Connections.

Click «Next» to open the ﬁrst selection screen.

2. Select «Connect to the network at my

workplace».

3. Conﬁrm your selection with «Next» and select

«Dial-up connection» on the next screen and conﬁrm with «Next».

Page 63

6 System monitoring

4. A list of installed modems appears. Select the required modem and click «Next».

5. Enter a connection name and click «Next».

6. Specify the phone number for your Sunways Solar Inverter.

When entering the telephone number, you may have to include one or more digits to connect to an outside line. (An outside line is usually obtained by placing a «0» before the actual telephone number.)

Click «Next».

7. Click the checkbox to place a shortcut on your desktop and click «Finish».

8. The connection window appears automatically once the connection has been established. (Alternatively via the icon on your desktop or via «Start – Settings – Network Connections».)

Further settings are required in the «Properties» section.

Page 64

6 System monitoring

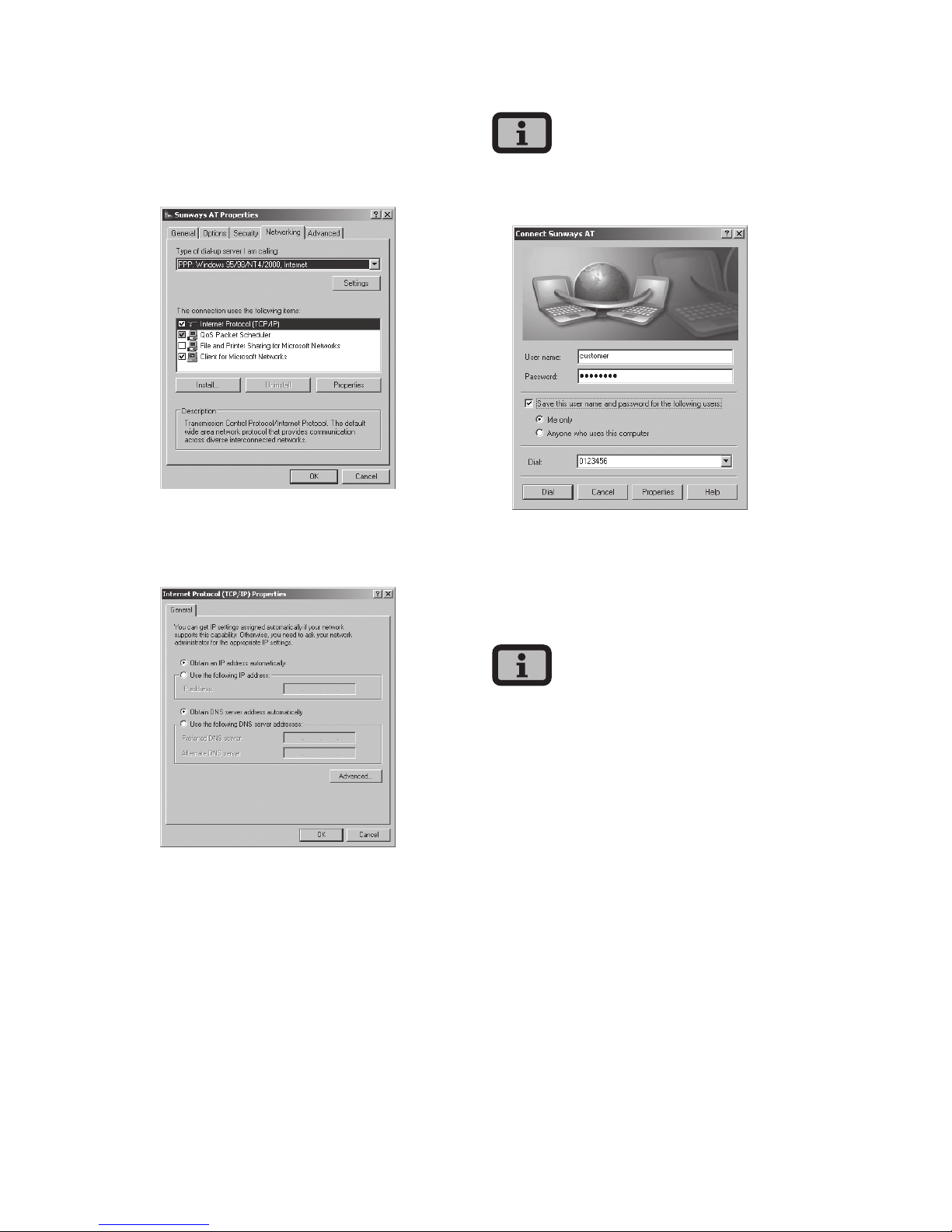

9. First click the «Networking» tab and select «Internet Protocol (TCP/IP)».

Select «Properties».

10. Enter the following data:

Obtain an IP address automatically Obtain DNS server address automatically

11. Enter «customer» as the user name and the standard password (******** = 8 times star key) or the password you entered previously.

The password matches the customer password on the device.

12. Click «Dial» to establish the connection. After the connection is established you can start the Sunways Browser by entering the IP address of the Solar Inverter in the address line of your web browser.

In contrast to the normal IP address for a modem connection the IP address of the Solar Inverter is set to 192.168.20.50 by default.

Page 65

6 System monitoring

6.10 Sunways Browser

General information

The Sunways Browser can be called up via a standard Internet browser, e.g. Mozilla Firefox. One of the four possible connections between a PC and the Solar Inverter is required for this purpose:

· Direct connection via an Ethernet cable

· Connection via an existing internal Ethernet network

· Internet connection, e.g. connection of the Solar Inverter via DSL

· Connection via a Sunways Modem

After entering the IP address for the Solar Inverter in the address line of the browser the following functions are available:

· Display of the operating mode and instantaneous values for a single device or for a CAN-networked system

· Display of energy yields as 5-minute, daily, monthly, annual and total values

· 5-minute mean values of solar generator current and voltage, grid current and voltage and feedin power

· Settings, e.g. for date/time, interface conﬁguration, alerting options, communication parameters etc.

· Communication software update (LCD display, interfaces,communication and Sunways Browser) and the control software (control and monitoring)

Access protection

The Sunways Browser is provided with password protection so that unauthorised persons cannot access your Solar Inverter.

The following user data are set in the delivered state:

User: customer Password: * * * * * * *

· It is recommended that you change this password to an 8-digit/character password.

· This password is identical to the password entered via the LCD display for settings and commissioning.

· Numerals from 0 – 9 and letters from a – z and from A – Z are admissible.

· The password always has 8 characters. If the password you choose is fewer than 8 characters in length, the remainder, up to the full 8 characters, is ﬁlled with “*” symbols.

Page 66

6 System monitoring

· If you cannot remember the password you can request a device-speciﬁc password from the Technical Hotline so that you can access your Solar Inverter again. In this case you should be able to present proof of purchase of the Solar Inverter.

Overview – Menu

Home – Displays the start page

Solar Inverter – Displays the instantaneous

values, stored operating data, Solar Inverter status

Solar System – Displays a system overview

with status, total output, yields and access to slaves (only available if the device is connected with the master).

Information – Device information, e.g. serial

number

Settings and software update for the device

or the networked system

Language selection

The web pages are available in German, English, French, Spanish and Italian. Click on the respective country ﬂag to select the language.

Setting the date/time

This function can be accessed via Settings – Date/ Time. If you have selected the correct time zone and an Internet connection is available, you can automatically synchronise the time of the Solar Inverter with a time server with the NTP button.

Alternatively you can transfer the PC time to the Solar Inverter.

Please proceed with caution for time settings, as they directly affect data logging. For example, if you set the time back by 1 hour, then the existing data for the last hour will be overwritten.

Page 67

6 System monitoring

Software update

The software update is used to extend the functionality of your Solar Inverter. The communication software (responsible for LCD display, interfaces, communication and Sunways Browser) and the control software or the monitoring software can be updated.

1. Select «Settings – Software Update». This function requires entry of a password (default: ******** = 8 times star key or the password you entered previously).

2. The upper screen section shows the current software versions. If a new version is available on our website (www.sunways.de), you can download the ﬁle and load it via the Sunways Browser. Select the ﬁle on your hard disk via the «Browse...» button and conﬁrm with OK.

3. Then select the software you want to update (communication software, control software or monitoring software)

4. Click Update to copy the software update to the Solar Inverter.

5. Click Reboot to reboot the device and load the new software.

Alternatively the system update may be distributed to the slaves via the software master. Please contact our Technical Hotline for further information. The phone number is provided on the back of the manual.

6.11 Internet dial-up via modem

Modem settings

If you use a modem to connect to the Internet, the modem must be set up via the Sunways Browser. First establish a connection between your PC and the Solar Inverter (see section Direct Ethernet connection). Enter the following settings via «Settings – Modem» in your web browser:

Modem type

Select the modem type: analog, ISDN or GSM

Internet dial-in number

Dial-in number for your Internet provider (ISP)

Outside line

If you have a telephone system, you may have to enter 0, for example. A comma results in a dialling pause of 1 second

Provider login

User name deﬁned by your Internet provider

Provider password

Password deﬁned by your Internet provider

PPP-IP

You can reach the Solar Inverter by entering this IP address in your web browser. The address is set to

192.168.20.50 by default.

Page 68

6 System monitoring

MSN

MSN for the modem extension (ISDN modem). This is usually the extension number of without the area code.

SIM card PIN

SIM card PIN for GSM modem.

Function buttons

Click «Send» to save the settings in the Solar Inverter.

Click «Read» to display the current Solar Inverter settings.

Click «Modem Test» to test the connection between the modem and the ISP. You receive a reply as to whether dialling in was successful.

· Before conducting the modem test, the settings must be stored in the Solar Inverter by clicking «Send».

· Cheap ISP dial-up numbers are available from www.teltarif.de/internet or www.billiger-surfen. de, for example. Here you will ﬁnd not only tariff information, but also the access data (phone number, user name, password).

E-mail settings

To enable the Solar Inverter to send E-mails, the E-mail settings must be stored via the Sunways Browser. The settings can be accessed via «Settings – Network» in the «Email Settings» section.

Requirements:

· When dialling in via modem, the correct dial-up settings must be stored (see Internet dial-up via modem).

SMTP provider

SMTP server for sending e-mails, e.g. mail.gmx.net (max. 30 characters). Alternatively an IP address can be entered.

SMTP user

User name for your e-mail provider (generally your e-mail address), e.g. [email protected] (max. 50 characters)

SMTP password

Password for your e-mail provider

Function buttons

Via «SMTP Test» you can send a test e-mail to the e-mail address stored for active alerting.

· Before conducting the SMTP test, the settings must be stored in the Solar Inverter with «Send».

· During the SMTP test an e-mail is sent to the e-mail address stored in the monitoring system (active alerting). Before starting the test check whether a valid e-mail address is stored under active alerting.

· If the conﬁgured SMTP server does not use a login, the user and password ﬁelds must be left blank.

Click «Send» to save the settings in the Solar Inverter.

Click «Read» to display the current Solar Inverter settings.

Page 69

6 System monitoring

6.12 Active alerting

General information

With active alerting you can receive status messages (errors and warnings) for your solar system by e-mail. If a status message was active for longer than 15 minutes or occurred 5 times in one day, you will receive an e-mail at the next full hour under the e-mail address stored in the Solar Inverter.

The master sends the status messages of all Solar Inverters if they are CAN-networked.

Requirements:

· The master must be connected to the Internet via a network or modem.

· When dialling in via modem, the correct dial-up settings must be stored (see Internet dial-up via modem).

· Correct e-mail settings must be stored in the Sunways Browser (see «Email settings»).

Alerting settings

The alerting settings can be accessed with the button «Settings – System Monitoring» in the «Active Alerting» section».

Active Email alerting

Activation or deactivation of the active alerting function.

Email address

In the «Email address» ﬁeld enter the e-mail address to which messages should be sent.

Function buttons

Click «Send» to save the settings in the Solar Inverter.

Click «Read» to display the current Solar Inverter settings.

Page 70

6 System monitoring

6.13 Sunways Portal connection

General information

The operating data of your solar system can be transferred to the Sunways Portal for remote monitoring via the Internet. This is possible without using a Sunways Communicator.

The portal connection is conﬁgured via the Sunways Browser. Following activation the master automatically sends a registration e-mail containing the system data (e.g. number of devices, serial number, etc.) to the Sunways Portal.

After activation the operating data are e-mailed to the Sunways Portal on a daily basis before the master is switched off for the night. Alternatively a shorter interval can be selected. If a change is made to your solar system (e.g. additional device), then the change is automatically reported to the Sunways Portal.

A basis access for the Sunways Portal for displaying the yield data is available to every Sunways customer free of charge. Expanded functions, e.g. the setpoint-actual comparison in the Sunways Portal, can also be purchased for a fee.

The master sends the status messages of all Solar Inverters if they are CAN-networked.

Requirements:

· The master must be connected to the Internet via a network or modem.

· Correct Email settings must be stored in the Sunways Browser (see «Email settings»)

· Correct portal settings must be stored in the Sunways Browser.

Setup

Check whether all requirements are met. Conﬁgure the speciﬁed settings if necessary.

Open the settings page in the Sunways Browser. This can be accessed under «Settings – System Monitoring» in the «Sunways Portal» section.

Portal connection

Activation or deactivation of the portal connection.

Portal address

Preset for the Sunways Portal

Mailbox ﬁle

Preset for the Sunways Portal

System ID

System ID assigned by the portal. This is generated automatically after portal activation and sent to the Solar Inverter. It can take up to 4 minutes before the Solar Inverter displays the system ID.

Portal Email

Preset for the Sunways Portal. Alternatively you can enter a different address if you wish to analyse the operating data yourself.

Page 71

6 System monitoring

Email interval

Select the e-mail interval. If you operate the system on a DSL modem, you can set a short interval. If you use a modem connection, select a longer interval (e.g. daily) to avoid excessive telephone charges.

User Email

Enter an e-mail address for the conﬁrmation e-mail sent by the portal. It contains a link for activating your system in the Sunways Portal.

User SMS

As an option you can specify an SMS number to which an SMS message is sent after your system is successfully set up in the portal.

Function buttons

With «Portal Test» you can test the portal connection. You receive an e-mail at the address speciﬁed under «User e-mail» and an SMS if you have entered your mobile phone number under «User SMS».

Before the portal test you must transmit the settings to your Solar Inverter via «Send». If the test was successful, a message is sent to the user e-mail address or the user SMS address.

Click «Send» to save the settings in the Solar Inverter.

To view your system data in the Sunways Portal, you require a user account. This will be issued to you if you follow the link in the conﬁrmation e-mail and ﬁll out the registration form.

Alternatively you can enter an existing user name with the correct password to assign the system to an existing user account.

Page 72

7 Appendix

7.1 Technical data

Model AT 2700 AT 3000 AT 3600 AT 4500 AT 5000

Article no. SI227AT0B SI230AT0B SI250AT0B SI245AT0B SI250AT0B

DC Input

Rated DC power Maximum DC current Nominal DC voltage MPP voltage range Maximum voltage DC Number of inputs per MPP tracker Number of MPP trackers

2850 W 3150 W 3800 W 4750 W 5250 W 15,5 A 15,5 A 15,5 A 22,0 A 22,0 A 350 V 181 V...600 V 203 V…600 V 242 V...600 V 214 V...600 V 236 V...600 V 680 V 2 x Tyco Solarlok 1

AC output

Rated AC output power Maximum AC power Nominal AC current Maximum AC current Nominal frequency Frequency tolerance range Grid voltage AC voltage range Distortion factor at Pn Reactive power factor (cos phi) Grid voltage monitoring Earth fault protection Insulation, frequency and DC current monitoring Required phases, number of grid connections Number of feed-in phases (230 V single-phase)

2700 W 3000 W 3600 W 4500 W 5000 W 2700 W 3000 W 3600 W 4500 W 5000 W 11,7 A 13,0 A 15,7 A 19,6 A 21,7 A 12,5 A 14,0 A 17,0 A 21,0 A 23,0 A 50 Hz 47,5 Hz...50,2 Hz (according to DIN VDE 0126-1-1) 230 V

-20%...+15% (according to DIN VDE 0126-1-1) < 4% ca. 1 single-phase (according to DIN VDE 0126-1-1) RCD (according to DIN VDE 0126-1-1) integrated according to DIN VDE 0126-1-1

1 (L, N, PE)

Performance

Stand-by consumption Night-time consumption Maximum efﬁciency European efﬁciency MPP efﬁciency (static) Switching concept

6,5 W < 0,06 W 95,5% 95,5% 95,5% 95,5% 95,5% 94,7% 94,8% 94,9% 95,0% 95,0% > 99% > 99% > 99% > 99% > 99% HERIC

/ FP topology, transformerless

Page 73

7 Appendix

Other

DC switch Grid-connection fuse layout Data interfaces Sensor interfaces Display Plant supervision IP degree of protection according to IEC 60529 Max. relative humidity Cooling Ambient temperature Overload behaviour Dimensions (height x width x depth) weight Type of installation Noise development Standard warranty (option) Certiﬁcates

internal, mechanical 16 A 16 A 25 A 25 A 32 A Ethernet, CAN, RS485, voltageless alarm relay, S0 pulse output, modem irradiation, temperature LCD, backlit, 128 x 64 pixels Active alarm via e-mail, Sunways Browser, Sunways Portal IP 54

95% free convection

-25°C...40°C (at full load) working point adjustment 59 x 35 x 21 cm

29 kg wall installation < 35 dB (A) 5 years (10/15/20/25 years) CE, DIN VDE 0126-1-1

Page 74

7 Appendix

7.2 Drilling template for wall bracket

You can use the following template to install the wall bracket. All distances and measures are shown on this drawing.

175

330

300

400

Ø 10

Page 75

7 Appendix

7.3 General liability disclaimer

Although information contained in this manual has been checked with the greatest care for its accuracy and completeness, not liability whatsoever can be accepted for errors or omissions.

· Sunways AG reserves the right to change the hardware and software features described here at any time without prior notice.

· This manual may only be reproduced, passed on, copied or translated into other languages in whole or in part in any form or with any means the prior written approval of Sunways AG.

· Sunways AG shall assume no guarantee for damage caused by faulty or lost data, due to incorrect operation or the malfunction of the Solar Inverter, the software, additional devices or PCs.

The products named on the cover page are protected by copyright and sold under licence. No part of this document may be reproduced in any form without prior written approval of Sunways AG and the Sunways licensors.

Registered trademarks

The Sunways logo is a registered trademark of Sunways AG, Konstanz. HERIC

is a registered trademark of Fraunhofer

Gesellschaft, Munich.

Page 76

7 Appendix

Page 77

C&F | Werbung und Dokumentation, Villingen-Schwenningen · www.cundf.de

Page 78

Sunways AG Photovoltaic Technology Macairestraße 3 - 5 78467 Konstanz Germany Phone +49 (0)7531 996 77-0 Fax +49 (0)7531 996 77-444 email [email protected] www.sunways.de

Technical Hotline Germany: +49 (0)7531 996 77-577 Spain: +34 93 665 20-40

SD130312A 09/10 EN
