SRC-3900

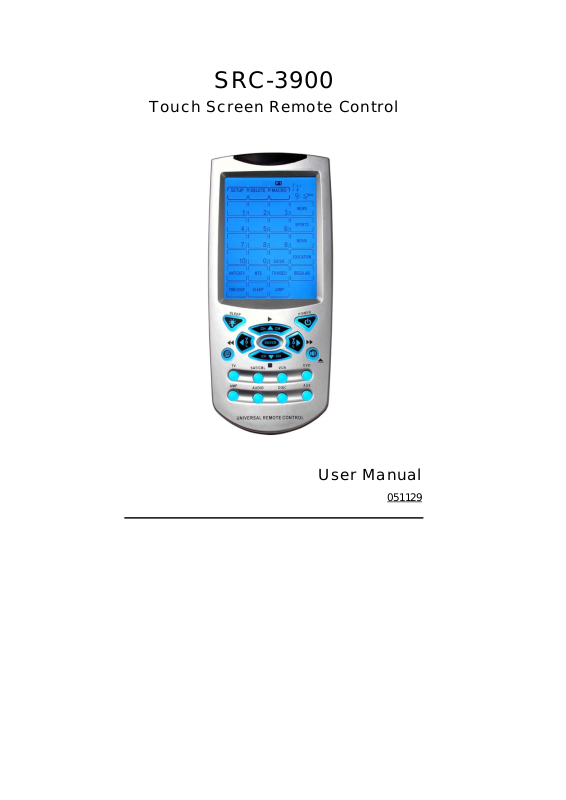

Touch Screen Remote Control
User Manual
051129
Preface
About this manual
This manual is designed to make using the SRC-3900 Touch Screen Remote Control as easy as possible. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice.
Copyright
© Copyright 2005
This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of SUNWAVE Technology Corporation.
Trademarks
All trademarks and registered trademarks are the property of their respective owners.
ii
i
Table of Contents
Chapter 1 - Introducing the SRC-3900 ............................................ 1
SRC-3900 Features .................................................................. 2
Unpacking the SRC-3900 ....................................................... 2
Identifying Components ....................................................... 3
Chapter 2 - Getting Started ............................................................. 4
Features Overview ................................................................. 4
Installing Batteries ................................................................... 6
Battery Low Indicator ............................................................. 7
Battery Tips and Precautions ................................... 7
Touch Screen .......................................................................... 8
Turning the Touch Screen On .................................. 8
Touch Screen Precautions ....................................... 8
Touch Screen Buttons ............................................... 9
Rubber Buttons ........................................................................ 9
Menus ..................................................................................... 10
Setup Menu ........................................................................... 11
Delete Menu ......................................................................... 12
Macro Menu ......................................................................... 12
Chapter 3-Setting Up the SRC-3900 to Control a Device ............ 13
Choosing a Device .............................................................. 13
Creating a New Device ...................................................... 13
Modifying an Existing Device .............................................. 14
Re-Labeling Devices ............................................................ 14
Changing Touch Screen Layout ........................................ 15
Programming Infrared Codes............................................. 16
Using Manufacturer Codes ................................................. 17
Using the Learning Function ............................................... 20
Deleting a Specific Key ....................................................... 24
Deleting a Device ................................................................ 24
Chapter 4 - Controlling Devices .................................................... 26
Selecting Device to Control ............................................... 26
Changing Touch Screen Page ........................................... 26
ii
Controlling the Device ......................................................... 27
Using the AUX Key ................................................................ 27
Chapter 5 - Creating and Using Macros ...................................... 28
Introduction to Macros ........................................................ 28
Creating a Macro Sequence ............................................. 28
Using Macros ......................................................................... 31
Deleting a Macro ................................................................. 31
Chapter 6 - Other Features............................................................ 32
Using Timers ............................................................................ 32
Setting Up a New Timer .......................................... 33
Using Quick Channel Lists .................................................... 34
Setting up Quick Channel Lists .............................. 35
Deleting Channels from a Quick Channel List ... 36
Using Quick Channel Lists ...................................... 37
Transmitting System Setup ................................................... 37
Using Sleep Mode ................................................................. 37
Displaying Version Number ................................................. 39
Date and Clock .................................................................... 39
Power Down Time Period .................................................... 40
Backlight On Time Period .................................................... 40
Beep Toggling ....................................................................... 41
Resetting to Factory Defaults ............................................. 41
Appendix A - Specifications ......................................................... 42
Appendix B - Accessories ............................................................. 43
Appendix C - Troubleshooting ...................................................... 44
iv
Chapter 1 - Introducing the SRC­3900
Congratulations on your purchase of the SRC-3900 Touch-Screen Remote Control. The SRC-3900 is a digital universal remote control that is easy to use, enabling you to control all of your electronic devices equipped with an infrared (IR) remote.
The SRC-3900 uses a touch screen panel and control buttons and is simple to use. Simply select a device and the appropriate screen appears. You can control up to sixteen devi ces, including VCRs , DVDs, TVs, and satellite dishes.
The SRC-3900 is easy to set up. You can quickly configure each device in your household or office b y “learning eye”. You can quickly configure each device in your household or office. In addition, the advanced macro function enables you to initiate a chain of up to 60 commands with the touch of a single button.
Convenient and easy to use, the SRC-3900 provides you with a central control solution.
This manual will help you learn how to use all the advanced features of the SRC-3900. It will not explain how to use the functions for your devices. Please refer to your device’s user manual for information related to your device.
1
SRC-3900 Features
The following list identifies the SRC-3900’s key features.
• Large touch screen display.
• Macro sequence function—each macro can store 60
commands.
• Controls up to sixteen devices including DVDs, TVs, Satellite Receivers, VCRs and CDs.
• Learns the IR codes from your existing remote controls to quickly set up devi ces.
• Pre-programmed manufacturer’s codes for many models.
• User programmable buttons for each device include seven rubber buttons, the device key and forty-eight soft buttons.
• Optional PC Interface for connection to a personal computer.
Unpacking the SRC-3900
After you have unpacked the SRC-3900, check the contents to make sure the following items are included.
• SRC-3900 remote control
• This User’s Manual
• Pre-programmed Code List
If any of the above items are missing or damaged, please contact your dealer immediately. Do not throw the shipping carton away in case you need to ship your SRC-3900.
2
Identifying Components
Please refer to the following illustrations to identify the components of the SRC-3900.
Infrared Eye
Point the infrared eye at the device you want to operate.
Battery Cover
Remove this cover to insert Alkaline batteries.
Touch Screen
The Touch Screen panel enables you to configure and operate your devices by touching the screen. Tap the screen once to turn on the SCR-3900.
Learning Eye
Point your device’s remote control at this eye to enable the SCR-3900 to learn your device’s infrared codes.
Figure 1: Front and Rear Views
3
Chapter 2 - Getting Started
This chapter will give you the information you need to know to quickly get using the SRC-3900 as your single remote control.
Features Overview
The following illustration highlights the different sections of the SRC-3900.
LCD Indicators
Beep On Battery Low Infrared OK Error Page1 Page 2
Touch Screen UART Port
Backlight / Sleep Key
Page / Date Key
Press and hold Page/Date Key to see date and week.
Learning Eye
4
Function Keys
SETUP Menu DELETE Menu MACRO Menu
Q CH Keys
Only key icons show NEWS/SPORTS/ MOVIES/EDUCATION & KIDS to have Quick Channel selection function.
Device Keys
Figure 2: SCR-3900 Overview
5
• LCD Indicators: LCD stands for Liquid Crystal Display and these indicators at the top of the display give you feedback and information. You can look here to see if the beep is turned on, if the batteries have low power, if the infrared signal was sent OK or if there was an ERROR, and also to see which page of Touch Screen buttons you are looking at.
• UART Port: This port allows you to connect the SRC-3900 to a personal computer. See Appendix B -

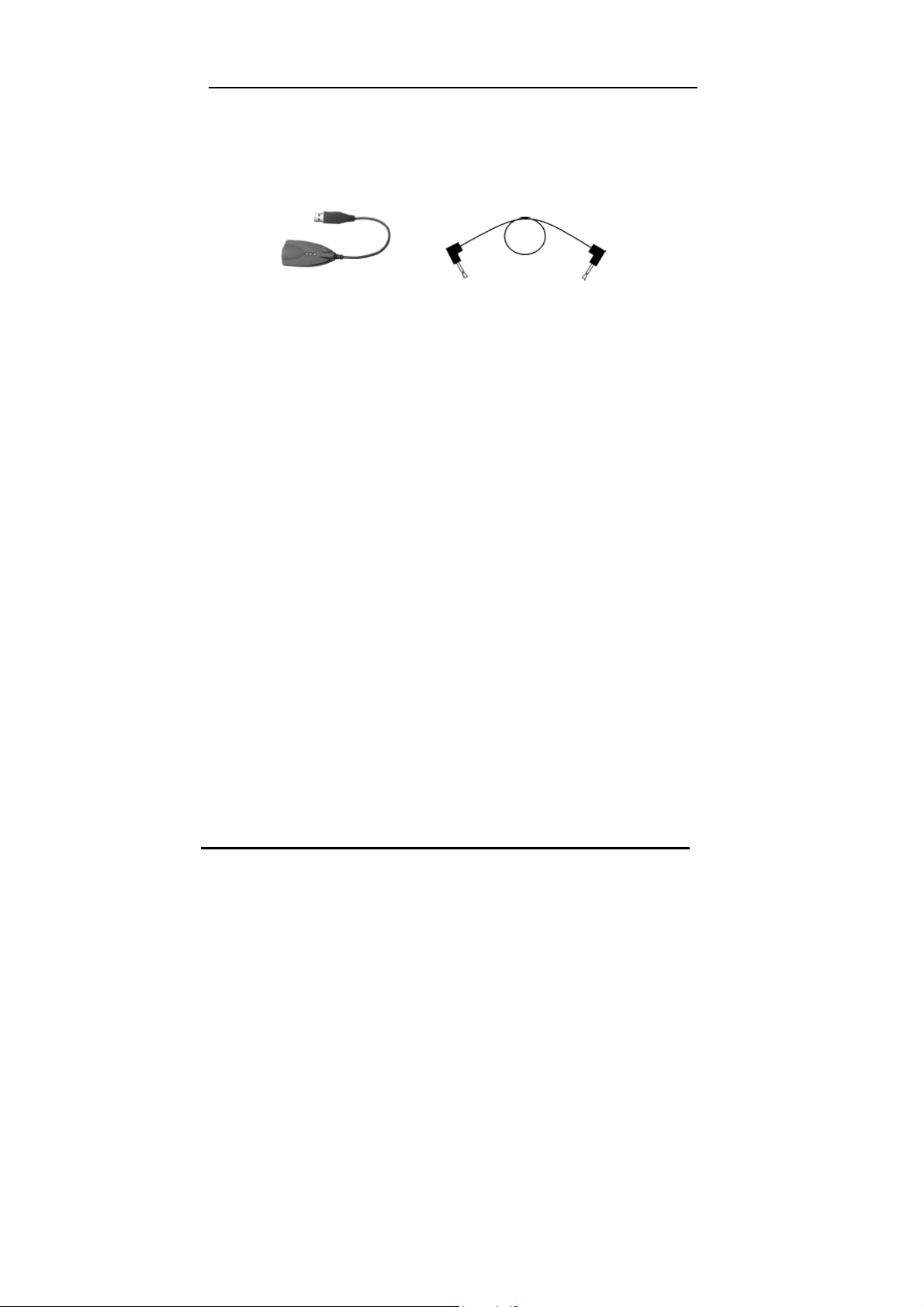

AccessoriesAppendix B - Accessories on page 43 for
more information.
• Backlight / Sleep Key: If pressed quickly, this key will activate the Touch Screen backlight. If held down for two seconds you will enter the Sleep menu.
• Page / Date Key: This key allows you to switch between Page 1 and Page 2 of Touch Screen Buttons. If held down for two seconds you will see the date and year then week.
• Learning Eye: This is an infrared sensor used to detect other remote controls infrared signals. Aim your existing remote control here when using the SRC-3900’s Learning Function.
• Device Keys: These keys allow you to switch between different devices. Each key may have more than one device. (For example, the TV key may have TV1 and TV2 for different TVs in your house.) Repeatedly press the same device key to cycle through all the device names assigned to that key. The SRC-3900 includes 8 devices as the default with a total of 16 devices maximum.
• Touch Screen: The touch screen acts as a “virtual” keyboard on the SRC-3900. The display is normally blank when the remote is not in use and can be activated by simply touching it.
• Function Keys: These keys allow you to enter the SETUP, DELETE, and MACRO menus. To enter the menu, touch the function key for two seconds.
Installing Batteries
The SRC-3900 operates on four AAA Alkaline batteries (batteries are not included). Batteries must be inserted before you can operate the SRC-3900.
To insert the batteries, refer to the following illustrations:
Figure 3: Installing Batteries
1. Turn the remote over, push on the tab and lift the cover off.
2. Insert the batteries, matching the batteries to the (+) and (-) marks inside the battery case.
3. Snap the battery cover back into place.
6
7
Battery Low Indicator
When the batteries are low, the battery low icon will
be displayed in the upper left hand corner just above the SETUP button:
When the battery Low Icon appears, you will not allow entering Functions Keys (SETUP Menu, DELETE Menu & MACRO Menu).
Figure 4: The Battery Low Icon
Battery Tips and Precautions
• Immediately replace the batteries when the battery low icon appears.
• The SRC-3900 will not lose programmed data when batteries are replaced
• Always use fresh batteries. Alkaline batteries are recommended. Do not mix different types of batteries.
• Be sure that the positive (+) and negative (-) polarities of the batteries match the diagram shown in the compartment.
• Do not expose the batteries to excessive heat or flame.
• Keep batteries out of the reach of children.
• Weak batteries reduce the effective distance of the
unit.
• To reduce danger of leakage and damage, remove used batteries when used longer than two years.
加寬
Touch Screen
The touch screen reduces the number of buttons by changing its configuration for each device selected. In this way, the touch screen can provide a total of 768 buttons (16 devices x 2 pages x 24 buttons per page).
Turning the Touch Screen On
Using the touch screen is easy. Simply touch the
screen to activate it. It will turn itself off after the user programmable power down time period. (To change the time, see Power Down Time Period in Chapter 7 -
Changing SRC-3900 Parameters Chapter 7 - Changing SRC-3900 Parameters.)
格式化: 字型: 斜體
格式化: 字型: 斜體, 非 縮
Figure 5: Touch the Screen to Turn It On
Touch Screen Precautions
Please read the following instructions carefully:
• Tap the LCD touch screen gently; never use force.
• Do not use a pen or any sharp object to tap the screen.
You might damage the surface.
• Keep the touch screen dry. Wipe off any spills
8
immediately. The SRC-3900 is not waterproof; never immerse it in liquid.
• Don't expose the SRC-3900 to extreme temperatures. Keep it away from heat sources.
• Avoid dropping the SRC-3900.
• Don't drop anything on the touch screen.
• Clean the LCD touch screen with a soft cloth. If needed,
dampen the cloth slightly before cleaning. Never use abrasives or cleaning solutions.
Touch Screen Buttons
The touch screen buttons enable you to operate the SRC-3900 and your external devices. Use these buttons to program codes from your existing remotes, control your devices and set up command sequences called macros. You will hear a beep when you press a button. To activate or deactivate the beep, please see Beep Toggling on page 41. The SRC-3900 will turn itself off after a user specified time period. To change the time period, please see Power Down Time Period on page 40.
Rubber Buttons
The buttons on the bottom part of the SRC-3900 allow you to operate devices as well as help program the SRC-3900.
There are three rubber buttons that have special functions:
9
• Page/Date Button: Toggles from Page 1 t o Page 2 of the Touch Screen buttons. If held down for more than two seconds, the date and year then week will be shown.
• Power Button: Can turn off and on your devices but also during Touch Screen Layout (see page
15) will display all possible LCD choices.
• Backlight/Sleep Button: Pressing it quickly to turn on the backlight, while holding it down for two seconds will enter the SLEEP Menu.
Menus
In order to use the menu buttons as SETUP, DELETE,
and MACRO you will first need to press and hold the menu button for two seconds. This is to prevent accidental menu entry.
As an additional safety feature, four numbers will
appear which will need to be pressed before the menu will appear. This is simply to make sure you meant to enter the menu and you can enter the numbers in any order you like.
10
Figure 6: Confirm Menu Entry by Pressing Numbers
Setup Menu
Menu Item
DATE NEW CODE
LABL LAY
LRN
PWDN LITE TRAN
VER
Description
Set the system clock and date. 39 Create a new device from scratch. 13 Assign a preprogrammed manufactures
infrared code to a device. Rename a Device. 14
Change the Touch Screen layout to you desires based on all possible LCD choices. Learn infrared codes from an existing remote control.
Set the automatic power off time period. 40 Set the back li g ht time perio d. 40 Transmit system software (MCU Program,
Flash Memory Data or Preprogrammed Code only in Flash Memory Data) or infrared codes from an SRC-3900 to an SRC-3900 or from an SRC-3900 to a personal computer.
Display the PROG & DATA version number. 39
page
17
15
20
37
BEEP
Toggle the key-press beep. 41
11
Delete Menu
Menu Item
KEY
BANK
RST Q CH
Allow you to delete the infrared codes for a specific Touch Screen or Rubber button.
CODE: Allows you to delete all infrared codes for a specific device while leaving the Touch Screen layout the same.
ALL: Deletes both infrared codes and the touch screen layout for a specific device.
Resets the SCR-3900 back to factory settings. 41 Allow you to erase any channel that is stored
in one of the Quick Channels. (NEWS, SPORTS, MOVIES, EDUCTION, or KIDS)
Macro Menu
Menu Item
Description
Description
page
24
24
34
page
KEY
TIMR
Q CH
12
Create a Macro to perform a sequence of actions.
Start one of the eight timers to perform either a regular action (Weekly, daily) or a delayed action on a specific date.
Add channels to a Quick Channel to make cycling through a particular type of television programming easier. (Example: NEWS, SPORTS, MOVIES, EDUCA TION, or KIDS.)
28
32
35
Chapter 3-Setting Up the SRC-3900 to Control a Device
Before the SRC-3900 can be used to control a device, it needs to be configured to display your existing remote control buttons and also programmed to send the correct infrared signals.
This chapter guides you through the Touch Screen layout and SRC-3900 setup procedure.
Choosing a Device
The first step is to choose a device to setup. This could be a new TV, DVD, or VCR etc… You will give this specific device a name (label) on the SRC-3900. There are two ways to do this based on what starting point you want to work from:
• Create new Device: Use this method for a totally new device.
• Modify Existing Device: Use this if you are having a problem with an already setup device and want to make a change or enhancement.
Creating a New Device
To create a new device, follow these steps:
Press and hold the SETUP button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select NEW and then press the OK button.
13
1. Press the device key you wish to use for this device. For example, if this is a new TV you should press the TV button. For a new DVD player, press the DVD button.
2. Give your new Device a label. Use the UP and DOWN arrows to change the letter. Use the LEFT and RIGHT arrows to change the position. (Labels can be four digits long.)
Press the OK button.
3. Select one device attribute to load the default device screen.
Use the UP and DOWN arrows to
choose.
4. Press the OK button to confirm.
Modifying an Existing Device
If you want to modify an existing device that is already setup in the SRC-3900, no additional preparation is required and you may proceed directly to the Touch Screen layout changing section on page 15.
Re-Labeling Devices
You may want to re-label an old device and you can do this using the LABL selection in the SETUP Menu:
14
5
1. Use the device keys to select the device you want to label.
2. Use the arrow keys to give the device
a new label.
3. Press OK when finished. Then press EXIT to leave the SETUP
menu.
Changing Touch Screen Layout
The layout edit mode enables you to customize the SRC-3900's Touch Screen display to match your existing remote controls. The following steps show you how to make the display on the SRC-3900 correspond to an existing remote.
Use the LAY selection in the SETUP Menu:
Press and hold the SETUP button on the
Touch Screen.
Press each number button (2, 4, 6, 8)
until it disappears.
Use the arrow buttons on the Touch Screen to select LAY and then press the OK button.
1
1. Press the device keys to select
the device you want to modify. (ex. Press TV button)
Press the change to the Touch Screen page you want to modify.
Press the available LCD choices for all buttons.
2. Touch the button that you wish to change.
(You may change as many buttons as you wish.)
3. Each time you tou c h t h e b utton its appearance will change.
4. Press OK to confirm your changes.
Then press EXIT to leave the SETUP Menu.
button (Page Button) to
button to show all
Press the Power
button to show all possible
LCD choices.
Programming Infrared Codes
There are two methods you can use to program infrared codes into the SRC-3900:
• Using Manufacturer Codes: Use this method to automatically
16
7
configure all buttons on the SRC-3900 for use with a specific manufacture model number. This feature is the fastest way to program the SRC-3900 but requires that your device be located in Preprogrammed Code Table as the separate page with this manual. (Some newer or less-common devices may not be pre-programmed and must be learned using the Learning Function.)
• Using the Learning Function: Use this method to directly learn the proper infrared signals from another remote control. The learning eye of the SRC-3900 will learn the proper signals to send. This method is perfect for newer or less common devices or if a certain button still not does perform the desired function after using pre-programmed manufacturer codes.
Using Manufacturer Codes
The SRC-3900 is pre-programmed with many manufacturers' codes to operate a wide range of TVs, VCRs, DVDs etc… These are useful if you have lost the original remote. However, because of the great variety and number of remotes on the market, not all functions may work when using the pre-programmed codes. If you have the original remote, it is recommended you teach the SRC-3900 the functions most important to you. (See Using the Learning Function on page 20.)
Some codes are designed to operate more than one model. It may take several tries to find the code that works with your unit.
To program a manufacturer’s code for a device, follow these steps:
1
Press and hold the SETUP button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select CODE and then press the OK button.
1. Use the device buttons to select the device you want to change. You will see the labels changing in the upper right hand corner of the screen. (ex. Press TV button)
There are two ways to program the manufacture codes:
• Manual Entry: Directly enter the code; go to step 2.
• Automatic Search: The SRC-3900 will search known codes;
skip to step 5.
To use manual entry:
Manual Entry
2. Enter the Manufacture code using
the Touch Screen number buttons.
* Note: See Preprogrammed Code List as the separately pages.
3. Press the POWER button to test the
code. The device you are trying to
control should turn on (or off) as you press this button. If not, return to Step 2 and try another code.
18
4. You may also use the TUNING buttons to increase or decrease the code.
When finished, press the OK button to return to the Setup Menu.
When you enter the Manufacture Code, but shows ‘ERROR’ message, two possibilities maybe caused:
1. That code number is not existed among the Manufacture Code table yet.
2. That code number is not in the range of Manufacture Code table reserved for the default device screen.
To use automatic search:
Automatic Search
5. Make sure the SRC-3900 is pointing at the device you want to control and press the AUTO button.
The AUTO button will flash while the SRC-3900 automatically cycles through the codes. Wait for the device to turn on and then press the
POWER button or AUTO button to stop the automatic search.
The last tried code will be displayed in the upper right hand corner. You can test this code by pressing POWER button. (You may need to press TUNING Down and try the previous few codes.)
6. Once your device turns on (or off) when you press the POWER button,
press the OK button to return to the SETUP menu.
19
The AUTO mode‘s preprogrammed code circle depends on the range of Manufacture Code table reserved for that default device screen. Ex. TV’s preprogrammed code circle will be from 0 ~255.
Using the Learning Function
If you have the original remote, the SRC-3900 has the ability to directly learn infrared codes.
Before Using the Learning Function
Before you start using the SRC-3900's learning function,
please heed the following precautions:
• To change from a device that has already been programmed, delete all of the commands for the first device before teaching new ones. For example, to operate the living room TV instead of the bedroom TV, delete all commands for the bedroom TV first. Then re-configure the TV device screen for the living room TV.
• When using the learning function, you must press each button within 2 minutes of pressing the last button. Otherwise, the SRC­3900 will exit the learning mode and return to its normal operation mode.
20
Learning from Another Remote Control
To teach the codes from your remote, set both remotes on a flat surface facing each other. Be sure to point your device’s remote control at the SRC-3900’s learning eye, which is located at the bottom of the unit. Do not use the other eye located at the top of the SRC-3900. You do not have to turn on the actual device (TV, VCR, etc…). Refer to the following illustration.
Figure 7: Using the Learning Eye
21
To learn infrared codes directly from a device’s remote control, follow these steps:
Press and hold the SETUP button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select LRN and then press the OK button.
1. Use the device keys to select the
device you want to program.
Make sure the other remote control is pointed directly at the SRC-3900’s Learning eye. Keep them 2~4 inches apart. (5~10 cm)
Rubber Keys
The first screen shown represents the rubber buttons (Rubber Keys) on the bottom half of the SRC-3900. You can program each button using this screen.
2. Use the Touch screen to select which key you want to program – it should now be flashing.
The DEVICE key’s code will be sent when you press the device button on the SRC-3900. (For example when you
press TV, VCR, etc....)
22
3. Press and hold the button on the other remote control
for 2 seconds.
4. Check to see whether ERROR or OK on the top of the SRC-3900 Touch Screen is displayed. If ERROR is displayed, try again. (You have to hold the other remote control’s button for about 2 seconds before letting go.)
The SRC-3900 will automatically guide you to the next button to program by flashing it on the Touch Screen. When all buttons are programmed on the current page it will automati cally switch to the nex t p a ge.
You can also directly select the next button to program by touching it or press the Page Key to go to page 1 of the Softkeys.
SoftKey Page 1
This screen represents page 1 of the Touch Screen buttons.
Repeat the above process for each
button and press the finished.
SoftKey Page 2
This screen represents the page 2 Touch Screen buttons that will be available
when using the device. Repeat the above process for each button.
5. When finished programming all the buttons you want to assign infrared codes to, press the EXIT button.
6. Press the EXIT button one more
time to leave the SETUP Menu.
button when
23
Deleting a Specific Key
To erase the infrared codes for a specific Touch Screen or Rubber key, follow these steps:
Press and hold the DELETE button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select KEY and then press the OK button.
1. Select the device that has the key that you want to erase.
(ex. Press TV button)
2. Select the key you want to erase.
3. If you want to erase more keys, you may select them now.
4. Then press the EXIT key to leave the DELETE Menu.
Deleting a Device
If you have an unused or an unwanted device, you may erase either the infrared codes for the device but keep the Touch Screen layout the same, or you may erase both the codes and the Touch Screen layout.
24
5
To delete a device from the SRC-3900 follow these steps:
Press and hold the DELETE button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select BANK and then press the OK button.
1. Use the Arrow keys to chose: CODE: Erase infrared codes only but
keep Touch Screen display the same.
ALL: Erase both codes and Touch Screen layout.
2. Select the device you wish to
delete.
Make sure the upper right hand device name is the device you wish to erase.
3. Press OK to erase this device.
Or press EXIT to cancel witho ut erasing the device.
2
Chapter 4 - Controlling Devices
The SRC-3900 is designed to be simple and straight forward to operate. This chapter explains how to use the SRC-3900 to control all your devices.
This Chapter assumes you have already setup the SRC­3900 and assigned Infrared codes to different buttons. See Chapter 3-Setting Up the SRC-3900 to Control a
DeviceChapter 3-Setting Up the SRC-3900 to Control a Device on page 13 for more information on assigning
codes.
Selecting Device to Control
1. Press one of the eight device buttons to pick the device.
Press the same device button again to cycle through different devices in that bank.
Changing Touch Screen Page
2. Press the Page Button to alternate between page 1 and page 2 of available Touch Screen buttons.
26
7
Controlling the Device
Make sure the SRC-3900 is pointing at the device you are trying to control and simply press the button you want to send:
• Press the Touch Screen buttons.
• Press one of the rubber buttons on the bottom half of the
SRC-3900.
Record Button Must Be Held Down for 2 Seconds: As a safety feature, the record button needs to be pressed for 2 seconds. This is to prevent accidentally pressing the VCR record button and overwriting a tape.
Using the AUX Key
The control buttons on the AUX device screen can easily be made identical to the control buttons on any other device screen. You can use it to operate a TV, VCR, etc. For more information please see Creating a New Device on page 13.
2
Chapter 5 - Creating and Using Macros
Introduction to Macros
A macro is simply a series of commands. The MACRO feature enables you to initiate a sequence of up to 60 commands with a single button. You can create a macro on any control button and also insert time delays into the sequence. Remember, however, assigning a macro eliminates the button's original function.
You cannot assign a macro to any of the 8 Device keys, the Page/Date key, the Backlight/ Sleep key, the three functions keys (SETUP, DELETE, MACRO), or the five Channel Classification keys.
Creating a Macro Sequence
The following example will help you to better understand the creating of a macro sequence. It is provided to teach you how to record a macro but by no means is it the only macro sequence you can create. You can create macros using any sequence of commands you desire.
The following macro will:
1. Turn the TV on.
2. Switch the TV to video mode.
3. Turn the DVD on.
4. Create a two-second delay.
5. Instruct the DVD to play a disc.
28
Set up the macro using the following steps:
Press and hold for two seconds the MACRO button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select KEY and then press the OK button.
1. Select a device using the device buttons on the SRC-3900.
(ex. Press TV button)
2. On the Touch Screen select one
of the buttons to assign the macro to. You will hear two
beeps.
Note: If you select a ke y that already has a macro assigned to it you will replace the old macro.
Define Macro
3. Press the TV device button.
4. Press the POWER button.
5. Press the TV/Video button.
Note: You cannot assign a
macro to the Quick channels.
29
6. Press the DVD device button.
7. Press the POWER button.
8. Press the TIME DELAY button.
9. Use the UP and DOWN arrows to select a time delay (in seco nds).
Press OK to confirm ti me delay.
10. Press the PLAY button.
11. Press OK to save the Macro.
Then press EXIT to leave the MACRO Menu.
30
Using Macros
To start a Macro for a specific device, first select the device and then simply press the key assigned to the Macro. If you forget which keys have Macros assigned to them, press the MACRO button and all keys with valid Macros will be shown.
During the Macro transmission, all commands will be shown on the Touch Screen as they are sent.
Deleting a Macro
Deleting a Macro is actually simply a matter of deleting the key that the Macro has been assigned to. For example if you assigned a Macro to the TV1 device’s #1 key, you can erase the Macro by deleting the number “1” key in the TV1 device.
For more information on how to delete a specific key please see page 24.
31
Chapter 6 - Other Features
The SRC-3900 has the following additional features:
• Timers: Can be used to start a macro or send a command at a later time. Many timers are available including: daily, weekly, weekends only, weekdays only, or specific days and times.
• Quick Channel Lists: Used to group certain TV or Satellite channels together. For example, group all news channels together to make it easy to cycle through only the news channels.
• System Setup Transmission: Can be used to transmit system setup to either a personal computer or another SRC-3900.
• Sleep Mode: Can be used to issue a command after a specified time.
• Version: Will display the version num ber of your SRC-3900.
Using Timers
32
Timers are fantastic way to automate functions to occur later in the future. Combined with a Macro you can use the SRC-3900 to record movies, turn on music, act as an alarm clock, or perhaps make your home look and sound like someone is home – even if you’re not.
Setting Up a New Timer
Press and hold the MACRO button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select TIMR and then press the OK button.
1. Choose one of the eight
available timers by pressing the
number on the Touch Screen.
2. Use the arrow keys to select the
timer type.
3. Press OK to confirm timer type.
OFF : Off (no timer) DAIL : Daily SPEC : Specific Day/Time 1-5 : Every Mon – Fri 1-6 : Every Mon – Sat SUN : Every Sunday MON : Every Monday TUE : Every Tuesday WED : Every
Wednesday THU : Every Thursday FRI : Every Friday SAT : Every Saturday
33
4. Use the arrow keys to select the
time.
5. Press OK
Note: If you used SPEC (Specific Day/Time) you will also set the date.
6. Select the key that the timer will press. If you want you can switch devices (use device keys) or Touch Screen pages. (Use the
button.)
At the selected time and date, the SRC-3900 will send the infrared code or start the macro associated with the key selected in step 6.
When finished press the EXIT key to leave the MACRO Menu.
Using Quick Channel Lists
Channel Classifications allow you to group channels
together into different categories for ease of scrolling. Available categories include:
• News
• Sports
• Movies
• Education
• Kids
34
5
Setting up Quick Channel Lists
Press and hold the MACRO button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select Q CH and then press the OK button.
1. Use the device keys to select a device and the Page button to select a Touch Screen page.
2. Use the number keys to enter a
channel number (0~9,10,ENTER).
Some devices may need you to also press ENTER (if they normally require you to press ENTER after a channel change).
3. Select which channel classification to put this channel into. (For example press the NEWS button.)
4. Repeat to add additional channels.
5. Press EXIT when finished and leave the MACRO menu.
Note: For each device, the SRC­3900 can store 50 channels that can be sorted using the five Quick channel classifications.
3
Deleting Channels from a Quick Channel List
Press and hold the DELETE button on the Touch Screen.
Press each number button (2, 4, 6, 8) until it disappears.
Use the arrow buttons on the Touch Screen to select Q CH and then press the OK button.
1. Use the device keys to select a device and the Page button to select a Touch Screen page.
2. Select the Quick channel you want to delete. (The selected classification will flash.)
3. Press the UP and DOWN arrows to rotate through the channels currently assigned.
4. Press OK to delete a particular
channel.
5. Repeat above steps to delete other channels.
6. Press EXIT when finished and leave the DELETE menu.
36
7
Using Quick Channel Lists
Press the Quick Channel button you wish to use. (It will begin to flash.) Now use the Channel Up and Channel Down buttons to
scroll through all channels in this classification. When finished, press the Exit button again to return to
normal operation.
Transmitting System Setup
The SRC-3900 allows transmission of system setup to a personal computer or another SRC-3900. The following information can be transferred using the TRAN selection in the SETUP Menu:
To perform a data transfer you will need to purchase a link cable. Please see the manual that accompanies the cable for more information on how to do the transfer.
You will see 3 running blank keys showed on LCD display for transmitting message.
For more information on the link cable please see
Appendix B - AccessoriesAppendix B
page 43.
- Accessories on
Using Sleep Mode
Sleep mode allows the SRC-3900 to send a command or
start a Macro after a specified time delay. One example
3
格式化: 字型: 斜體
is you could use sleep mode to shut off a TV after you have already fallen asleep.
To use sleep mode:
1. Press and hold the BACKLIGHT (SLEEP) key for two seconds.
2. Use the arrow keys to specify the sleep timeout period. (24 hours maximum)
3. Press OK to confirm.
Select the Device using the device keys
4. Please refer to Macro setup, the
step 6 ~ 13 (on page 43~45) ,
to press the buttons you want the SRC-3900 to send after when the sleep timer reaches zero.
5. Press OK when finished.
Note: If you want to cancel the Sleep function:
• Press and hold the BACKLIGHT (SLEEP) key for t wo seconds.
• Press Exit to cancel.
38
Displaying Version Number
For technical support reasons, the version number might be needed by SUNWAVE.
To display the two version number of PROG and DATA, use the VER selection in the SETUP Menu. Chapter 7 ­Changing SRC-3900 Parameters
Many of the SRC-3900 parameters can be changed. This chapter explains the different customizations you can make.
Date and Clock
To change the date and clock use the DTAE selection in the SETUP Menu:
Enter the year, month, and date first.
1. Use the LEFT and RIGHT arrow keys to move the cursor and the UP and DOWN arrows to change the selection.
Press OK when finished.
Now set the hour, and minutes.
2. Use the arrow keys as in step 1.
Press OK when finished and then EXIT to leave the SETUP menu.
39
Power Down Time Period
This setting specifies the time delay the SRC-3900 will wait until it automatically shuts down. (The touch screen will go blank to conserve battery usage.)
This setting can be changed from 1 minute to 90 minutes by using the PWDN selection of the SETUP menu:
1. Use the arrow keys to set the
power down time.
Press OK when finished and EXIT to leave to the SETUP Menu.
Backlight On Time Period
This setting specifies how long the SRC-3900 will keep the backlight on after the user presses the BACKLIGHT button.
This setting can be changed from 0 second or 3 to 60 seconds by using the LITE selection of the SETUP Menu:
Choose o second will disable Backlight function.
1. Use the arrow keys to set the backlight period.
Press OK when finished and EXIT to leave to the SETUP Menu.
40
Beep Toggling
This setting specifies whether you want the SRC­3900 to beep each time a button is pressed.
Use the BEEP selection in the SETUP Menu to change this setting:
1. Use the OK button to toggle the
beep from ON to OFF.
Resetting to Factory Defaults
This setting will erase all user specified settings (ex. PWDN, LITE…) and reset the SRC-3900 back to factory defaults.
Also the learning codes, Q CH will be erased. To reset the SRC-3900, use the RST selection in the
DELETE Menu:
1. Press the number keys (2, 4, 6, 8) to confirm RESET selection.
2. Press OK to reset the SRC-3900.
41
Appendix A - Specifications
Model SRC-3900
Dimensions (WxHxD):
Weight (Without Batteries): Number of Device:
LCD Screen (WxH) :
Soft Button : Hard Buttons: Backlighting: Learning Frequency: Memory: Batteries:
Power consumption:
Battery Life: Operating Distance: PC Interface:
3.2" x 7.3" x 1.1" (8.2cm x18.5cm x 2.9cm)
7.8 oz (220g) 16 devices
2.7" x 3.2" (6.0cm x 8.0cm)
2 pages / 24 keys : total 48 keys 7 usable Brilliant blue LED (LCD) 10kHz - 455KHZ & Pulse 512KB flash memory 4 AAA Alkaline Batteries LCD Off : 50uA
LCD On : 250uA Operate : 150 mA
Approx. 3 - 4 months Approx. 30 feet USB (Option SLC-2080)
42
Appendix B - Accessories
SLC–2080
USB cable Transmit wire
The SLC–2080 is an optional link cable that enables transmission of system setup to a personal computer or another SRC-3900.
With th
e RemoteComm software enables user to
customize the remote control, create macros and timers. With the Upgrade Tools enables user to upgrade program
and Preprogrammed code.
● Upgrade Memory: Memory include Preprogrammed
code & User’s setup data. When you upgrade all flash memory the Preprogrammed code will be renew and user’s setup will be replace into factory defaults.
● Upgrade Preprogrammed code: Code Library only.
● Upgrade MCU: MCU Pr ogram only.
Please refer to the SLC-2080 user manual for more information.
Using Transmit wire to connect two SRC-3900s. Select the TRANS in the set up menus to transfer flash memory data (all data which setup by user) and Preprogrammed code.
43
Appendix C - Troubleshooting
Problem Solution
LCD does not show anything when you touch it or press the rubber buttons.
The SRC-3900 doesn’t operate a device.
You cannot operate a device even after teaching the device using the learning function.
Batteries may be dead. Replace the batteries with 4 new AA Alkaline Batteries. (page 6)
Check that the batteries are properly installed.
Make sure that the desired device screen on the SRC-3900 LCD panel has been selected.
Move closer to the device. The maximum operating distance is approximately 30 feet.
Ensure that you are aiming the SRC-3900 directly at the device and that there are no obstructions between the SRC-3900 and the device.
Ensure programming with the learning function (page 20) or using the manufacturer codes (page 17) has been properly done.
Re-teach the button. Make sure that you have correctly
“taught” your device’s remote control to the SRC-3900. (page 21)
Delete the device data from the SRC­3900 and carry out the learning function again. (page 25)
44
Make sure you did not program more than one remote for a given device.
5
Problem Solution
You see “ERROR” display on the LCD during the learning procedure.
You see “ERROR” display during operation.
Your VCR will not record.
Problems changing channels.
Macro does not work.
Make sure you hold the other remote’s button down for about 2 seconds.
Make sure you did not program more than one remote for a given device.
Make sure the two remotes are not too close or too far apart and are aiming directly at each other - keep apart between 2~4 inches (5~10cm ).
The button that you pressed has not been taught. Teach the button using the learning procedure. (page 20)
As a safety feature on SRC-3900, you must press the REC key for 2 seconds.
If your original remote requires the ENTER key to be pressed after a channel is selected, press the ENTER key to select the channel.
Be sure to aim the SRC-3900 at the devices while the macro commands are being sent.
A button of your existing remote performs two or more functions
Macro was not properly set up. Repeat macro set-up procedure. (page 28)
Some remotes issue multiple commands when a button is held down. Please be sure to teach different buttons of SRC­3900 for these different commands. Each button of SRC-3900 can only learn one command.
4
Problem Solution
The LCD screen turns off.
IR LEARNING cannot be made successfully.
The SRC-3900 is preset automaticall y to switch the LCD off after the Power Down time. Ju st tap the LCD screen or any button to turn the SRC-3900 back on again. You can also reset the Power Down time period. (page 40)
Replace batteries in the SRC-3900 and the remote you are trying to learn from.
Keep distance between remotes to about 2~4 inches.
Do not learn near an incandescent lamp.
Memory capacity is full (56 keys for each of 16 models).
The learning process has no errors, but you still can’t control your AV devices: repeat the learning procedure again. Original remote might not be compatible with learning procedure.
46
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
