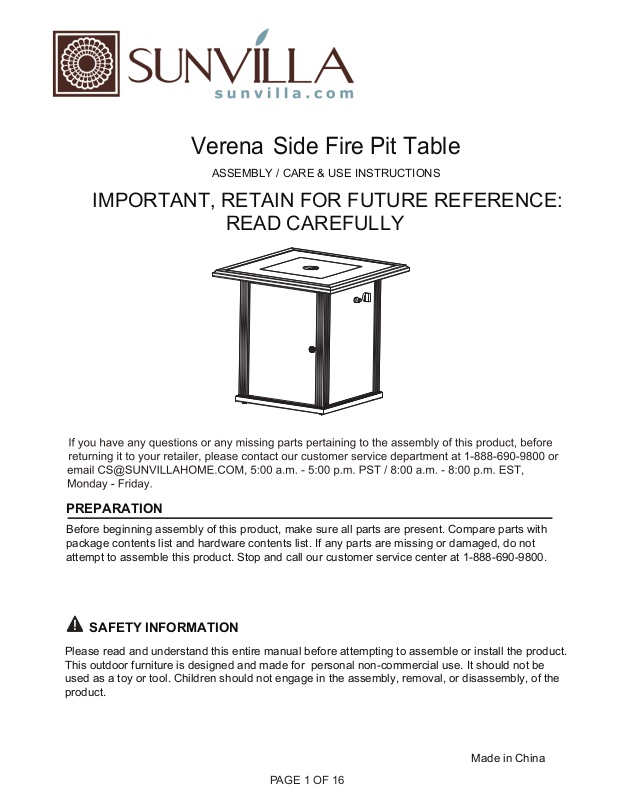

Page 1
Made in China
PREPARATION
Before beginning assembly of this product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any parts are missing or damaged, do not
attempt to assemble this product. Stop and call our customer service center at 1-888-690-9800.
INFORMATION SAFETY
Please read and understand this entire manual before attempting to assemble or install the product.
This outdoor furniture is designed and made for personal non-commercial use. It should not be
used as a toy or tool. Children should not engage in the assembly, removal, or disassembly, of the
product.
PAGE 1 OF 16
ASSEMBLY / CARE & USE INSTRUCTIONS
IMPORTANT, RETAIN FOR FUTURE REFERENCE:
READ CAREFULLY
Verena Side Fire Pit Table
Page 2
PAGE 2 OF 16
Part & Tools 3
Assembly 4-7
Important Safety And Service Information 8-15
TABLE OF CONTENTS
Care Instruction 16
Page 3
PAGE 3 OF 16
Part List
Cover
Decorative Glass Beads
WARNING: To avoid damage of your
new patio furniture, please use either
the carton or another soft surface such
as carpet as a working surface to prev-
ent product damage during assembly.
AAA Battery (Included)
Fire Pit Table
AA
Fire Pit Table
ITEM# FTA10536
Side
20 LB Propane Tank
(Not Included with Product)
20 LB Propane Tank
(Not Included with Product)
BB
Propane Hose with Regulator
CC
Page 4
PAGE 4 OF 16
Battery Installation
D
Step 1:
Make sure the control Knob is in the “ ” position.
Unscrew the push button cap on the ignition module
located on the control panel to access the battery
compartment. The ignition module requires one AAA
size battery (Included).
Page 5
PAGE 5 OF 16
Spread the Decorative Glass Beads (C) out evenly
over the burner area Use all the glass beads provided
for best effect. Keep the glass beads clear of spark
igniter to avoid accidental blockage.
*NOTES:
A percentage of glass beads may arrive split in half.
This is normal. Additional beads may split after use.
DO NOT BURN WITHOUT GLASS
BEADS OR OTHER SUBSTRATE
SUCH AS LAVA ROCK IN BURNER.
Assembly
Step 2:
Step 3:
Step 4:
Please open the door.
Put the propane tank in the fire pit table and close the propane tank.
C
A
Page 6
Step 5:
Open the propane tank valve by rotating the valve
counterclockwise. To ignite slightly push in the knob
and rotate it to the “ ” position as shown.
Step 6:
PAGE 6 OF 16
CC
BB
Securely tighten the Regulator (BB) to the propane tank valve
on a 20 LB Propane Tank (CC) by rotating clockwise, hand-tighten
only. Do not use a wrench to tighten! Use of a wrench may
damage the quick closing nut and result in hazardous condition
Page 7
PAGE 7 OF 16

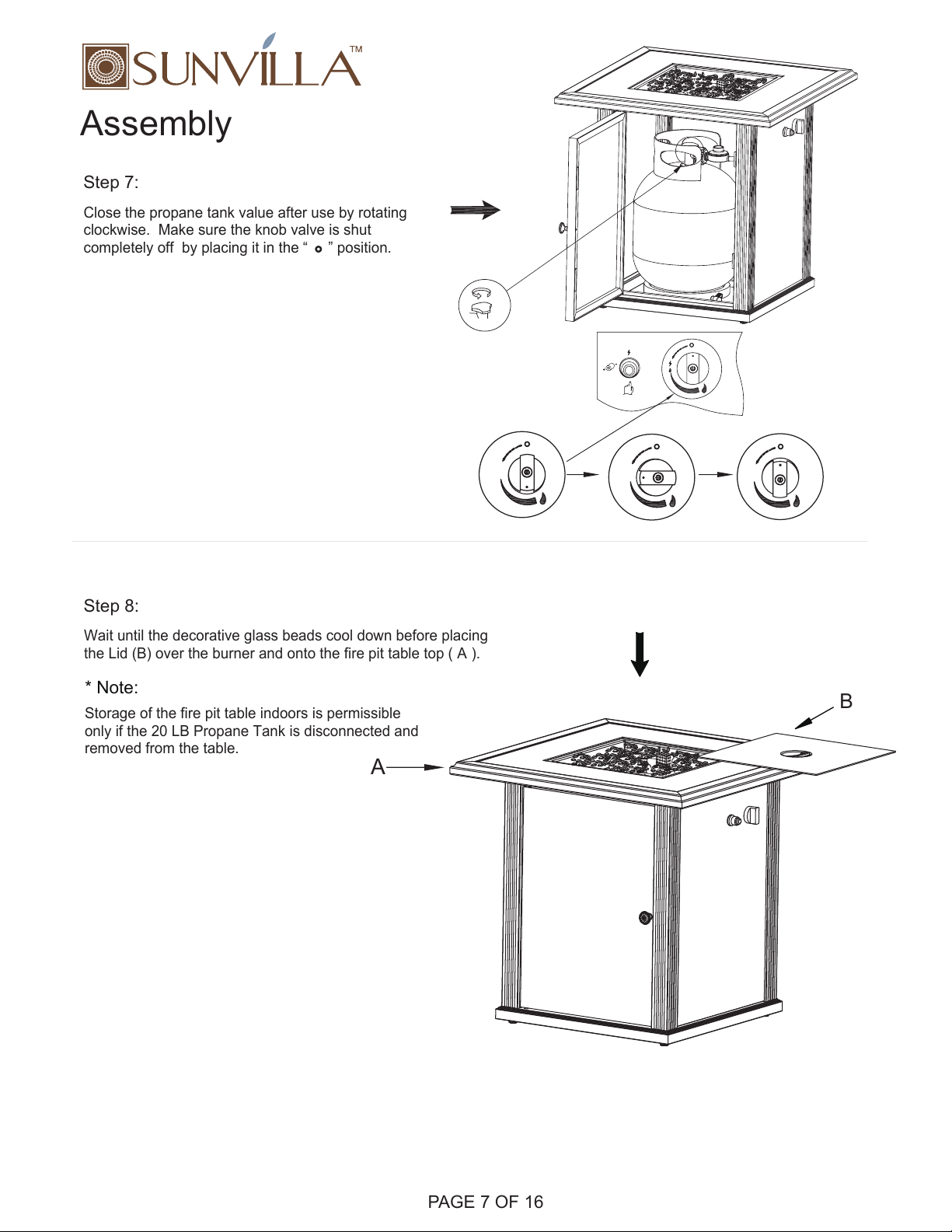

Step 7:
Step 8:
Close the propane tank value after use by rotating
clockwise. Make sure the knob valve is shut
completely off by placing it in the “ ” position.
Wait until the decorative glass beads cool down before placing
the Lid (B) over the burner and onto the fire pit table top ( A ).
Storage of the fire pit table indoors is permissible
only if the 20 LB Propane Tank is disconnected and
removed from the table.
* Note:
Assembly
B
A

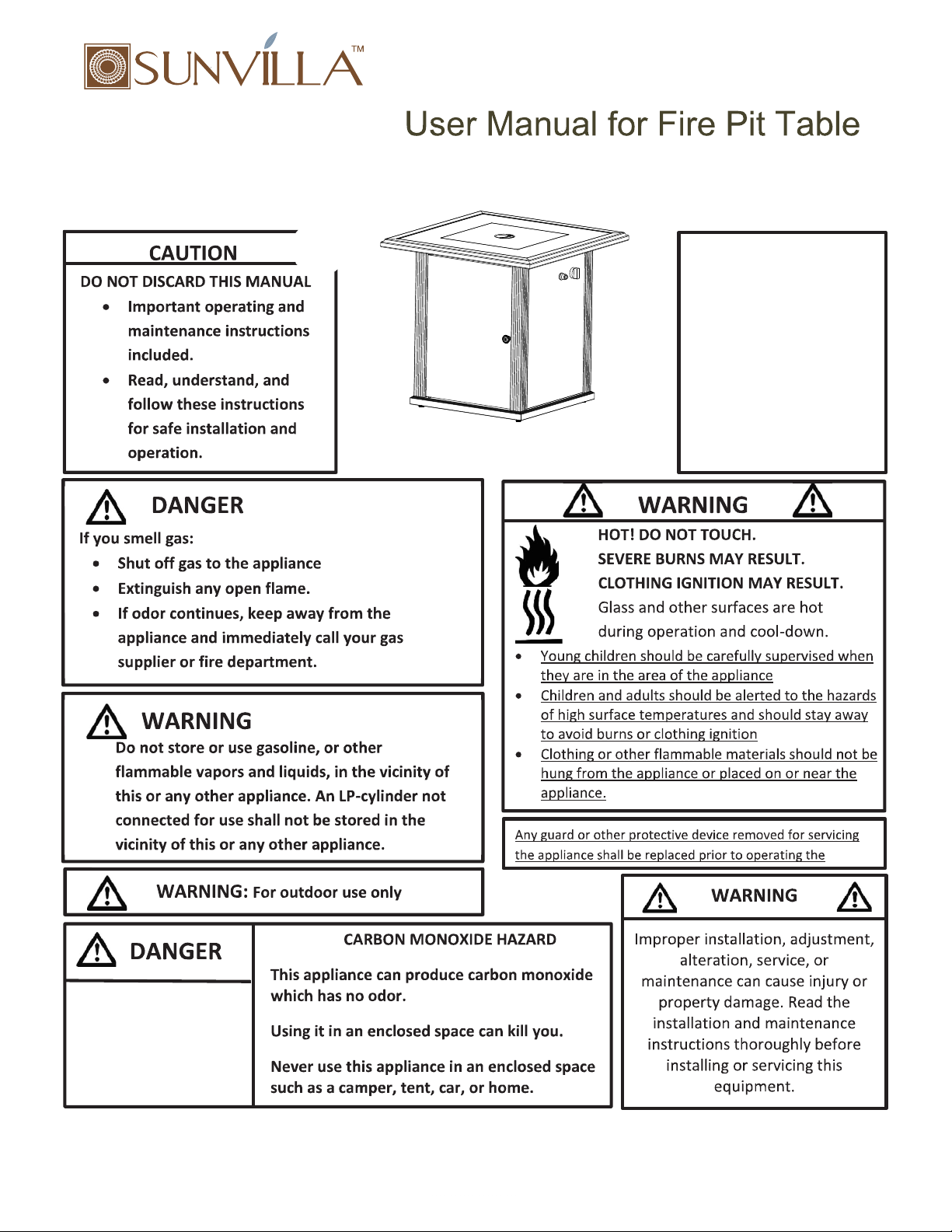

Page 8
PAGE 8 OF 16

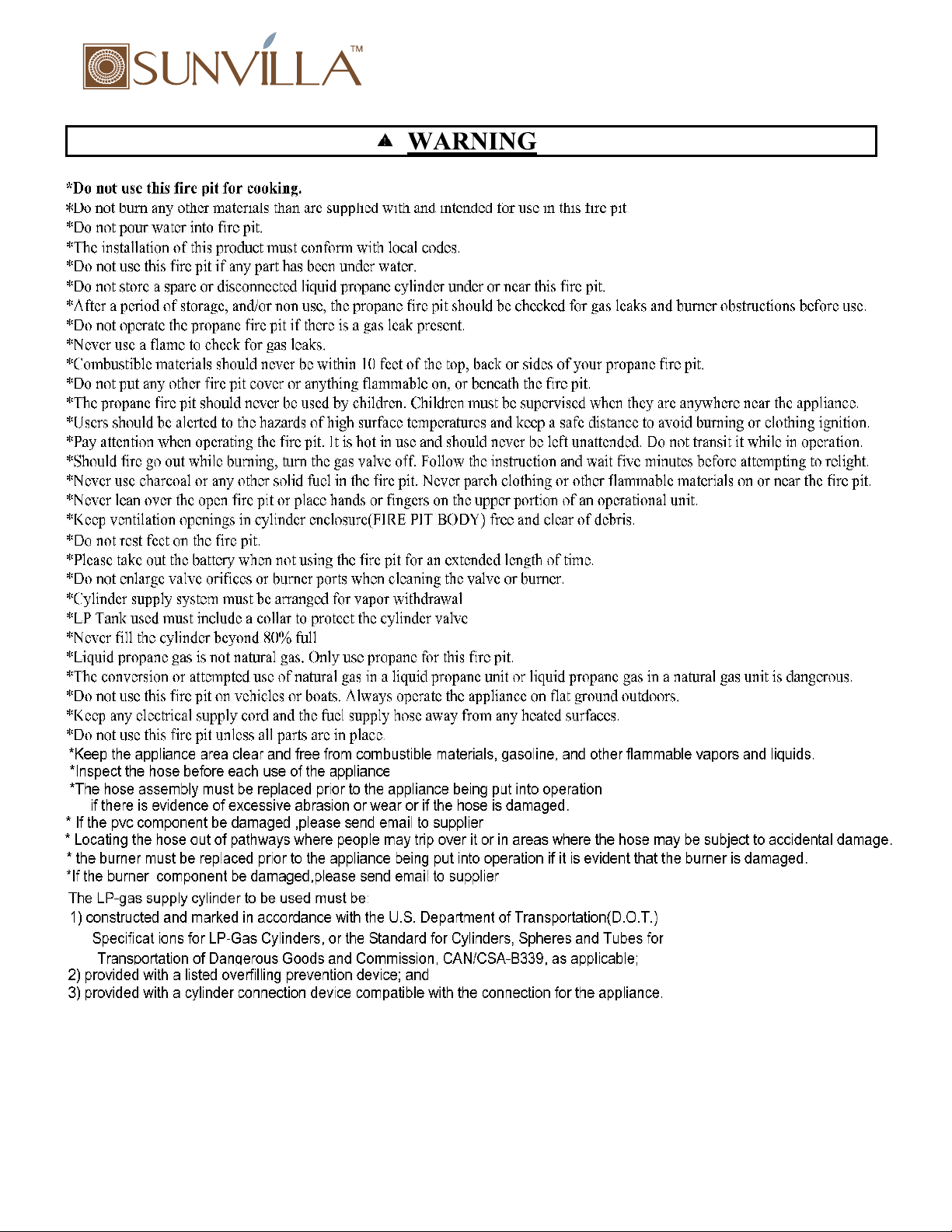

Page 9
PAGE 9 OF 15
Never leave Fire Pit unattended for any
amount of time
Never sit on the Fire Pit
Never use Fire Pit as a storage unit
This product can expose you to chemicals
including carbon monoxide and lead,
which are known to the State of California
to cause cancer and birth defects or other
reproductive harm. For more information
go to www.P65Warnings.ca.gov
WARNING (CALIFORNIA PROPOSITION 65)

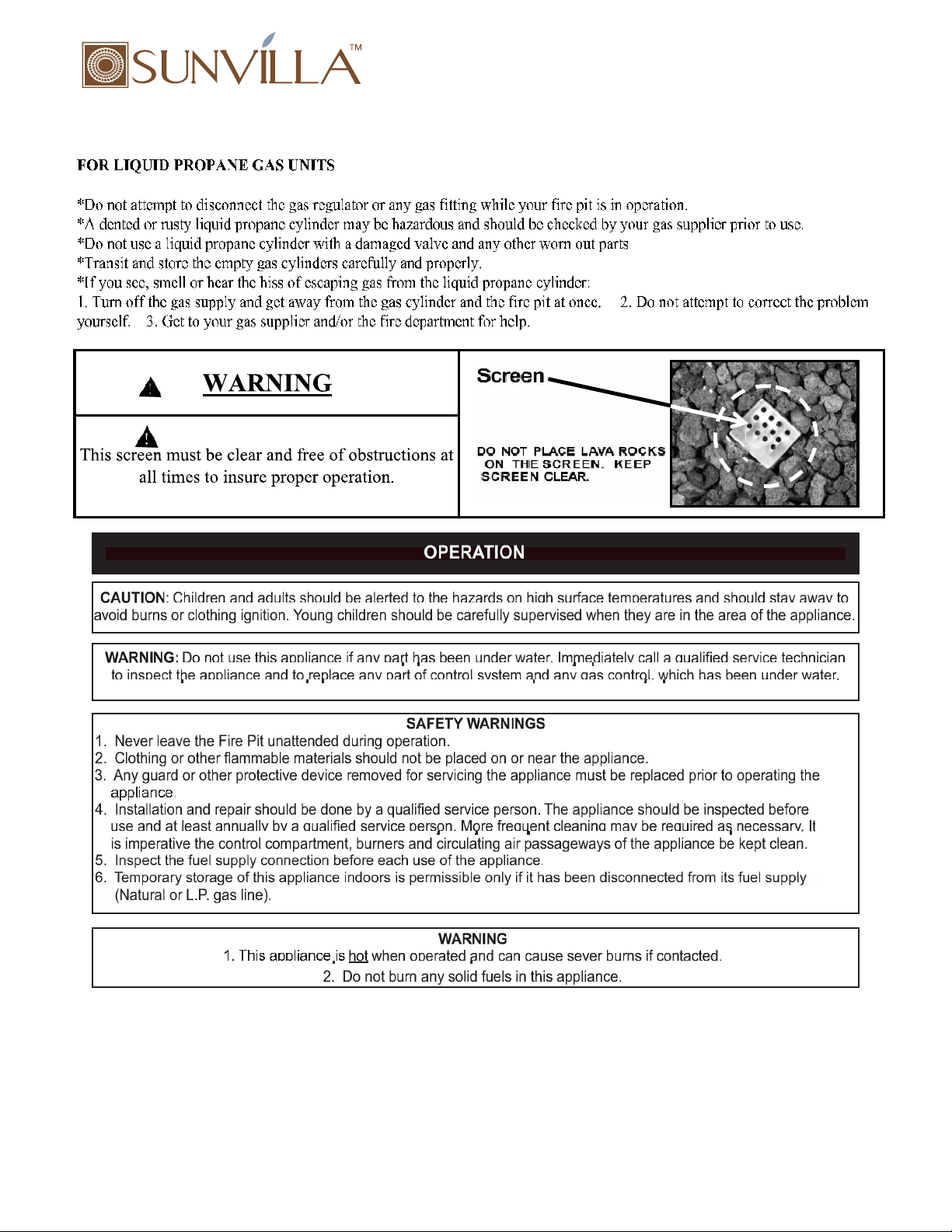

Page 10
PAGE 10 OF 16
Page 11
PAGE 11 OF 16
MANUAL (MATCH) LIGHTING INSTRUCTIONS
OPERATING THE UNIT - LIGHTING AND EXTINGUISHING
Page 12
PAGE 12 OF 16
Page 13
PAGE 13 OF 16
Before returning to your retailer, call our USA Customer Service Hotline at 1-888-690-9800 for assistance.
Page 14
PAGE 14 OF 16
Page 15
PAGE 15 OF 16
Page 16
CARE AND MAINTENANCE
Wash with mild soap. Rinse with water and let air dry.
LIMITED WARRANTY
This warranty is extended to the original purchaser and applies to defects in materials and
workmanship of your patio furniture provided your furniture is maintained with care and used only
for personal, residential purposes.
Frames are warranted to be free from defects in material or workmanship.
Straps and/or Wicker Weaves are covered against defects in material or workmanship.
Exclusions: Items used for commercial, contract or other non-residential purposes; display models;
items purchased "as is;" or items damaged due to acts of nature, vandalism, misuse or improper
assembly are not covered. Discoloration or fading of the finish or fabrics as a result of exposure to
the elements, chemicals or spills is not covered. Tabletop breakage, corrosion or rusting of hardware
and damage to frames or welds caused by improper assembly, misuse or natural causes are not
covered.
If within the stated warranty period a product is found to be defective in material or workmanship,
the purchaser must contact the manufacturer's customer service department at 1-888-690-9800.
The manufacturer, at its option, will repair or replace the defective parts.
Warranty is to the original purchaser and is non-transferable. Any replacement of warranted items
will be in the original style and color or a similar style and color if the original is unavailable or has
been discontinued. As some states do not allow exclusions or limitations on an implied warranty,
the above exclusions and limitations may not apply. This warranty gives you specific rights, and you
may also have other rights which vary from state to state.
Sunbrella® fabric is covered for a period of five (5) year against defects in material or workmanship.
Questions, problems, missing parts? Before returni ng to your retailer, call our customer service
department at (888) 690-9800, 5:00a.m.– 5:00p.m. PST / 8:00a.m. - 8:00p.m., EST, Monday-Friday.
IMPORTANT, RETAIN FOR FUTURE
REFERENCE: READ CAREFULLY
Sunvilla Corporation Customer Service Center
1116 Coiner Court, City of Industry, CA 91748, USA
PAGE 16 OF 16
