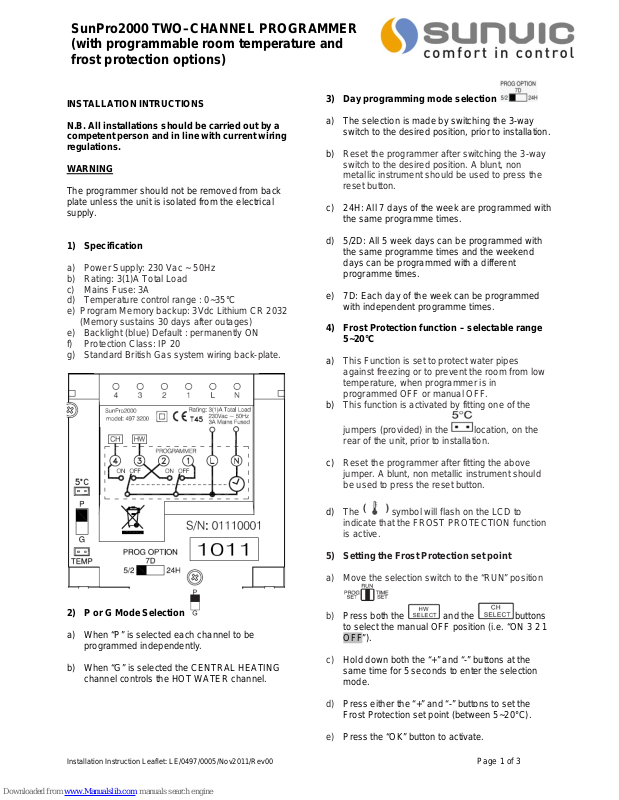

SunPro2000 TWO–CHANNEL PROGRAMMER
(with programmable room temperature and
frost protection options)
INSTALLATION INTRUCTIONS
N.B. All installations should be carried out by a
competent person and in line with current wiring
regulations.
WARNING
The programmer should not be removed from back
plate unless the unit is isolated from the electrical
supply.
1) Specification
a) Power Supply: 230 Vac ~ 50Hz
b) Rating: 3(1)A Total Load
c) Mains Fuse: 3A
d) Temperature control range : 0~35°C
e) Program Memory backup: 3Vdc Lithium CR 2032
(Memory sustains 30 days after outages)
e) Backlight (blue) Default : permanently ON
f) Protection Class: IP 20
g) Standard British Gas system wiring back-plate.
3) Day programming mode selection
a) The selection is made by switching the 3-way
switch to the desired position, prior to installation.
b) Reset the programmer after switching the 3-way
switch to the desired position. A blunt, non
metallic instrument should be used to press the
reset button.
c) 24H: All 7 days of the week are programmed with
the same program m e t i me s .
d) 5/2D: All 5 week days can be programmed with
the same programme times and the weekend
days can be programmed with a different
programme times.
e) 7D: Each day of the week can be programmed
with independent programme times.
4) Frost Protection function – selectable range
5~20°C
a) This Function is set to protect water pipes
against freezing or to prevent the room from low
temperature, when programmer is in
programmed OFF or manual OFF.
b) This function is activated by fitting one of the
jumpers (provided) in the
rear of the unit, prior to installation.
c) Reset the programmer after fitting the above
jumper. A blunt, non metallic instrument should
be used to press the reset button.
d) The
indicate that the FROST PROTECTION function
is active.
5) Setting the Frost Protection set point
2) P or G Mode Selection
a) When “P” is selected each channel to be
programmed independently.
b) When “G” is selected the CENTRAL HEATING
channel controls the HOT WATER channel.
Installation Instruction Leaflet: LE/0497/0005/Nov2011/Rev00 Page 1 of 3
a) Move the selection switch to the “RUN” position
b) Press both the
to select the manual OFF position (i.e. “ON 3 2 1
OFF”).
c) Hold down both the “+” and “-” buttons at the
same time for 5 seconds to enter the selection
mode.
d) Press either the “+” and “-” buttons to set the
Frost Protection set point (betwe en 5~20°C).
e) Press the “OK” button to activate.
symbol will flash on the LCD to
and the buttons
location, on the
y
6) Temperature Control function – selectable
range 5~35°C
a) This function enables the programmer to act as a
programmable room thermostat.
b) This function is activated by fitting one of the
jumpers (provided) in the
on the rear of the programmer, prior to
installation.
c) Reset the programmer after fitting t he above
jumper. A blunt, non metallic instrument should
be used to press the reset button.
d) Please note that when the Temperat ure Control
function is activated the original programmed
ON/OFF times are overridden when the set room
temperature reached.
7) Setting the room temperature
a) Move the selection switch to the “RUN” position
b) Press both the
to select any of ON, 3, 2 or 1 position (i.e. “ON 3
2 1 OFF”).
c) Hold down both the “+” and “-” buttons at the
same time for 5 seconds to enter the selection
mode.
d) Press either the “+” and “-” buttons to set the
room temperature set point (between 5~35°C).
e) Press the “OK” button to activate the selected set
point.
f) N.B. when both Frost Protection and
Temperature Control are activated and the unit is
in RUN mode holding down the “+” and “-”
buttons at the same time for 5 seconds will firstly
allow the us er to change or confirm the room
temperature and then the Frost Protection
temperature.
8) Replacing the battery
Use a flat-headed screwdriver to remove old battery
and replace with a new battery as per Fig 1 to Fig 3.
Fig 1 Fig 2 Fig 3
and the buttons
location,
i Always replace the battery with one of the same
type. Use only a 3V DC Lithium CR 2032 battery.
Do not dispose of the battery
with household rubbish.
Batteries must be returned in
accordance with the local
Safe Disposal
Please note that interference with sealed parts will
render the guarantee void.
SUNVIC CONTROLS Ltd.
Units 1 & 2, Block 1
251 Low Waters Ro ad
Cadzow Industrial Estate
Hamilton
ML3 7QU
Tel. +44 (0)1698 812944
Fax +44 (0)1698 813637
Technical Helpline +44 (0)1698 810945
N.B. In line with a policy of continuous product
development , S UN V IC CO NT ROLS Ltd. res erv es t he
right to change the specification, design and
materials of products without prior notice.
SunPro2000 WIRING COMPATABILITY
It is the installer’s responsibility to examine the
existing programmer to ensure that the wiring is
following charts are for reference only.
Direct replacement for existing programmers
The SunPro2000 will fit directly onto existing back
plates of the programmers shown, on the chart
below, without any rewiring. Otherwise fit using the
new wiring interchange guide
Manufacturer Model
Sunvic
Controls
ACL-Drayton
Danfoss
Randall
Gloworm Mastermind
Landis & Gyr
Potterton Mini Minder
Siemens RWB29
Towerchron DP72, QE2
Select 207XLS, Select 207XL,
Simplex 200
LP112, LS241, LS522, LS722,
LP241, LP522, LP722, Tempus 3,
Tempus 4, Tempus 6, Tempus 7
FP15, FP72, FP75, CP15, CP72,
Cp75, MP15, MP75
RWB2, RWB9, RWB20, RWB40,
RWB102, RWB200, RWB252
statutor
requirements.
Installation Instruction Leaflet: LE/0497/0005/Nov2011/Rev00 Page 2 of 3
Wiring Interchange Guide
When replacing any of the programmers listed below with the SunPro2000, fit the new back plate (supplied with the
unit) and follow the connection details shown. Every effort has been made to ensure the accuracy of the instruction
given, however Sunvic Controls Limited do not accept responsibility for any discrepancies or otherwise that may be
Manufacturer Model N L HW OFF CH OFF HW ON CH ON
Sunvic Select 207 XL N L 1 2 3 4
Select 207 XLS N L 1 2 3 4
SP100 N L 1 4 2 5
SP50 N L 1 4 2 5
SP2 N L 1 4 3 6
Satchwell Libra 1 2 8 5 6 3
DHP2201 1 2 8 5 6 3
ET1401 1 2 8 5 7 4
ET1451 1 2 8 5 7 4
Honeywell ST699B N L 7 4 6 3
ST699C N L 7 4 6 3
ST499A N L - - 6 3
ST6300 N L 1 2 3 4
ST6400 N L 1 2 3 4
ST7100 N L 7 4 8 5
ACL MP 2 1 - - 6 10
FP 2 1 8 11 6 10
2000 2 1 HW OFF CH OFF HW ON CH ON
Randall T992 N L 1 4 3 6
T972 N L 1 4 3 6
4033 7 6 5 3 4 2
701 N L - - 3 1
702 N L 4 2 3 1
102 5 6 - - 1 2
3060 1&7 6 - - 4 2
3020P 1&7 6 - - 4 2
3033 1&7 6 - - 4 2
SET2 N L 3 6 1 4
SET5 N L 3 6 1 4
TSR3+3 3&6 7 2 5 1 4
MK11 R6 3 1&2 - - 4 5
TSR2P 3 1 - - 5 7
ET1401 1 2 8 5 7 4
ET1451 1 2 8 5 7 4
Sangamo 410F1 4&5 3&6 2 7 1 8
410F9 4&5 3&6 2 7 1 8
F414 4&5 3&6 2 7 1 8
M5 4 3 - - 1 6
Potterton EP2000 N L 1 2 3 4
EP3000 N L 1 2 3 4
Horstmann Amethyst 7 2 1 4 6 5 7
Amethyst 10 2 1 4 6 5 7
Coral 2 1 - - 8 4
Diadem N L 3 6 1 4
Diamdo N L - - 2 4
Gem 2 1 6 9 4 7
Leucite 2 1 8 4 3 6
Smiths Controller 1000 N L 1 2 3 4
Switchmaster 400 N L - - 3 1
600 N L - - 3 1
805 N L 4 2 3 1
900 N L 4 2 3 1
9000 N L 4 2 3 1
Thorn Microtimer N L 7 4 6 3
Towerchorn T2002 N L - - HW CH
T2000 N L HW OFF CH OFF HW ON CH ON
T2003 N L HW OFF CH OFF HW ON CH ON
Installation Instruction Leaflet: LE/0497/0005/Nov2011/Rev00 Page 3 of 3
