What is a Programmer
A programmer allows you to set ON OFF time periods. Some models switch the domestic hot
water on and off at the same time, while others allow the domestic hot water and heating to
come on and go off at different times.
Set the ‘On’ and ‘Off’ time periods to suit your own lifestyle. On some programmers you must
also set whether you want the heating and hot water to run continuously, run under the
chosen ‘On’ and ‘Off’ heating periods, or be permanently off.
The time on the programmer must be correct. Some types have to be adjusted in spring and
autumn at the changes between Greenwich Mean Time and British Summer Time.
You may be able to temporarily adjust the heating programme, for example, ‘Override’,
‘Advance’ or ‘Boost’. These are explained in the manufacturer’s instructions.
The heating will not work if the room thermostat has switched the heating off. And, if you have
a hot-water cylinder, the water heating will not work if the cylinder thermostat detects that the
hot water has reached the correct temperature.

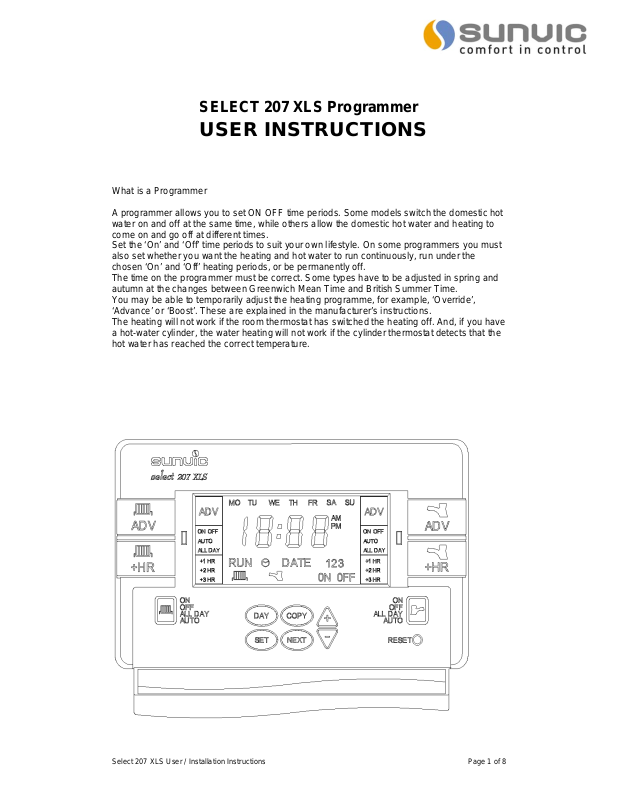

SELECT 207 XLS Programmer
USER INSTRUCTIONS
Select 207 XLS User / Installation Instructions Page 1 of 8
INTRODUCTION
y,
This central heating programmer can automatically switch your central heating and hot water ON & OFF,
independently, up to 3 times a day at whatever times you chose.
During installation, the installer selects 24 Hr., 5 day / 2 day or 7 day programming and 2 or 3 ON/OFF periods per
via the 4 position DIP switches on the back of the unit. (See installation instructions).
da
IMPORTANT:
Contact your i ns t a l l e r .
The 24 Hr. programmer option runs the same programme every day.
The 5day/2day programmer option allows different ON/OFF times at weekends.
The 7 day programmer option allows different ON/OFF times for each day of the week.
The unit is designed to eliminate the possibility of accidental changes to your programme.
Buttons normally visible, only affect your set programme temporarily. All buttons which can
permanently change your programme are located behind the flip down fascia.
SELECTING OPERATING MODE
The heating and hot water mode select buttons are used to set the operating mode for
Central heating and Hot water respectively. Each has 4 modes as described:
ON: Central heating and/or hot water on continuously. (I.E. on all the time)
AUTO: Central heating and/or Hot water will be switched ON or OFF as programmed
ALLDAY: Central heating and/or Hot water will be switched ON only onc e each day
It will be switched ON at the first ON time and OFF at the last OFF time
OFF: Central heatin g an d/or Hot water wil l be c o nt i nu o usly OFF
These settings should only be changed by a qualified person.
Select 207 XLS User / Installation Instructions Page 2 of 8
Setting the Time and Date
Press the SET button the clock icon on the screen will flash. Press the +/- buttons to adjust
the time. Hold down button to change time quicker.
Press SET button till the Y:00 icon (year) appears and the letter D flashes. Press the +/-
button to set the year. Press NEXT, N:00appears (month). Press +/_ button to set month.
Press Next. d:00 appears (day). Press +/- button to set day.
NOTE:The unit will automatically return to run mode if a period of 5 minutes passes without
any buttons being pressed.
CHANGING PROGRAMME TIMES
The built in programmes for Central heating and Hot water can be easily changed to better
suit your needs.
To change the Central heating programme, pre ss SET
until the radiator icon flashes in the screen and 1 ON
appears. This indicates the time shown on the display is
the first ON time. Change this to the required ON time by
pressing the +/- buttons.
Press NEXT button, the display will now show 1OFF.
Change as before.
Use NEXT and +/- buttons in this way to programme the
second time period.
If the unit is set for 3 ON/OFF periods, the number 3 will
appear . This is set in exactly the same way as the
previous first and second time period.
If the unit is installed as a 7 day programmer, the initial programme displayed will be for
Monday. You can go to any day of the week by pressing the DAY button repeatedly. The
ON/OFF times can be changed for each day as above in the “changing programme times”. If
you press the COPY button, the current pr ogramme will be copied onto the next day.
If the unit is installed as a 5 day/2 day programmer, the ini tial programme displayed will be for
Monday to Friday. Pressing the DAY button will take you to the programme for Saturday and
Sunday. The ON/OFF times can be changed for each day group as above in the “changing
programme times”. If you press copy, the current programme will be copied onto the next day
group.
If the unit is installed as a 24 hour programmer, the built in programme will be the same for
each day. The COPY function is not required if installed as a 24 hour programmer.
To return to RUN mode, press the SET button until the dis play indicates run on the d isplay.
To change HOT WATER programme.
Press SET button until the ‘tap’ symbol appears and proceed exactly as Central heating
above.
NOTE: It is not possible to copy Sunday to Monday.
For convenience, to allow for programmes to go past midnight, the programme day is from
03:00am to 02:50 am the next day.
Select 207 XLS User / Installation Instructions Page 3 of 8
If your programme gets ‘scrambled’, or if you want to start again, press the reset button using
a non metallic tool to re-load the default programmes, then press any button to clear the DIP
switch configuration code. The unit should revert time setting mode ready for programming.
USING ADVANCE
This function is only available when programme is in AUTO or ALLDAY operating modes.
To advance central heating
Press the CH 1 channel ADV button. This will turn the Central ON if it’s in an OFF period and
OFF if it’s in an ON period. It will stay in this state until either ADV is pressed again, or until a
programmed ON/OFF period commences. The word ADV will appear in the top left hand
corner of t he MODE box
To advance Hot water, press Hot water ADV button.
This will turn the Hot water ON if it’s in an OFF
period and OFF if it’s in an ON period. It will stay in
this state until either ADV is pressed again, or until a
programmed ON/OFF commences.
The word ADV will appear in the top right hand
corner of the MODE box.
USING +Hrs.
For +Hrs. Central heating, press the left hand + Hr. button. One press of the button will give
one extra hour of heating. Two presses of the button will give two extra hours of heating.
Three presses of the button will give the maximum of three hours extra heating.
If the Central heating mode is OFF, then it will switch on for the extra hours selected. If the
Central heating mode is AUTO or ALLDAY, then during an OFF period it will switch on for the
extra hours selected. If during an ON period, then it will temporarily extend that programme by
the number of hours selected.
For +Hrs. Hot water. Press the right hand +Hrs. button. One press of the button will give one
extra hour of Hot water, two presses of the button will give two extra hours of heating and
three presses of the button, will give the maximum 3 extra hours.
Select 207 XLS User / Installation Instructions Page 4 of 8
If the Hot water mode is OFF, then it will switch on for the extra hours selected. If the Hot
water mode is AUTO or ALLDAY, then during an OFF period it will switch on for the extra
hours selected. If during an ON period, then it will temporarily extend that programme by the
number of hours selected.
POWER INTERRUPTION
In the event of a mains supply failure, the back-up battery ensures the programmer continues
to keep time and retain your stored programme. The screen will go blank, but will return when
power is restored.
THE RESET BUTTON
Press the reset button with a non-metallic pointed tool to restore the built in programme plus
the time and date. The display will then show the current state of the configuration switches.
BRITISH SUMMER TIME
The programmer will automatically change from Greenwich mean time to BST and vice versa.
Select 207 XLS User / Installation Instructions Page 5 of 8
Installation Instructions
SELECT 207 XLS Programmer
Technical Data
Power supply: 230v AC 50Hz.
Ambient temperature: Operating 0°C to 35°C
Total Input: 6A
Switch Rating: 230vAC 6(2)A
Battery: Never needs replaced
Wiring: For fixed wiring only
Maintenance: No user maintenance reqd.
Disconnection class: 1B
This unit must be installe d by a competent person in accordance with the latest appropriate wiring
regulations.
Pre Installation set-up
Before installing, set the bank of 4 DIP switches
on the back, to configure the unit according to the
chart below.
DIP switches shown in factory default position
Pumped – Allows independent control of CH and
HW.
Gravity – Does not allow CH without HW, but can
Provide HW without CH.
24Hr. - Runs same programme every day
5/2 Day - Allows different ON/OFF times at
weekend
7 Day - Allows different on/off times every day
When unit is first switched on, or when the reset
button is pressed, the status of the DIP switches
is displayed.
INSTALLATION
This unit is compatible with many other
programmers and may be fitted to existing
standard wall plates. Please consult the ‘WIRING
INTERCHANGE GUIDE’ for compatible
programmer types. Some are directly
interchangeable, others will require minor
changes to wiring connections.
Be sure to switch off the mains supply before
starting. Please read all installation instructions
before proceeding.
Ensure that the fixed wiring connections to the
mains supply, is via a fuse rated at not more
Pumped
24Hr.
2 on/offs
gravity
7 day
5/2 day
3 on/offs
6 amps, and a class ‘A’ s wit ch, having a contact
separation of a minimum of 3mm in all poles.
DIRECT UPGRADE FOR EXISTING PROGRAMMERS
1.Switch off mains. Loosen 2 securing screws on
old programmer and unplug it.
2.Check existing wall-plate has been correctly
fitted. (See section,Fitting wall plate)
3.Plug SELECT programmer into wall-plate and
re-tighten screws. Switch on at mains.
4.Set timing and programme as detailed in user
guide
Please note, If you wish to change any of the DIP
switch functions at any time, when the unit is
replaced back on the wall plate, it will flash the
latest configuration for 10 secs. and then revert
back to normal run time. If you don’t want to wait
for the 10 secs. pressing any button will also take
the programmer back to the normal run time.
FITTING WALL PLATE
1.Position the wall-plate (terminals along the top
edge) with 60mm(Min) clearance to its right,
25mm(Min) above, 90mm(Min) below. Ensure that
the supporting surface will fully cover the back of
the programmer.
2.Ideal location would be 1.4m above floor level,
easily accessible, reasonably lit and free from
condensation or temperature extremes.
3.Fix the wall-plate to a flush mounting single
conduit box type UA1(BS4662) using M3.5 x 14
bolts.
4.Ensure that the wiring to the wall-plate terminals
leads directly away from the terminals and is
completely enclosed within the wall-plate
aperture. Wire ends must be stripped and
screwed to the terminals, so that minimal bare
wire is showing.
Select 207 XLS User / Installation Instructions Page 6 of 8
5.If the unit is fitted to a metal surface, IT IS
ESSENTIAL that the metal be earthed. Do not use
a surface mounting box.
6.Ensure the mains supply is switched off, then
make wiring connections. No EARTH connection
is required, but ensure continuity of EARTH
throughout the system.
7.After wiring, plug unit into wall plate and tighten
the securing screws. Switch on at mains.
8.Setting timing and programme as detailed in
user guide.
9.NEVER fit or remove the unit to a LIVE
wall-plate.
Factory set programme
Mon to Fri Sat/Sun
st
1
on 06:00 07:00
st
1
off 08:30 09:00
nd
2
on 12:00 12:00
nd
2
off 12:00 12:00
rd
3
on 16:30 16:30
rd
3
off 22:30 23:00
If unit is install ed as a 24 hour programmer, the
built in programme will be the same for each day.
(The weekdays programme)
This product complies with the essential requirements of
the following EC Directi ves:
Electro-magnetic compatibility directive
EMC 89/336/EEC (as amended by 91/263/EEC
And 92/31/EEC
Low Voltage directive
LVD 73/23/EEC;93/68/EEC
Configuration Display
2 On/Off 2PU
pumped
3 On/Off 3PU
pumped
2 On/Off 2GA
gravity
3 On/Off 3GA
gravity
Mon to Sun indicators
7 Day Mon to Sun successively on
5/2 Day Mon to Fri on alte rnating with
Sat Sun on
24 Hour Mon to Sun on all together
Programmer internal wiring diagram
Electronics
N L 1 2 3 4
Mains Fused
6Amps
HW CH HW CH
OFF OFF ON ON
SUNVIC CONTROLS Ltd.
Units 1 & 2, Block 1,
251 Low Waters Raod
Cadzow Industrial Estate
Hamilton Tel: 01698 812944
ML3 7QU Fax: 01698 813637
Tech Helpline 01698 810945
Tech Help. Fax 01698 307437
WWW.sunvic.co.uk
In the interests of continuous product
improvement, Sunvic Controls reserve the right to
alter designs, specifications and materials, without
prior notice, and cannot accept liability for error.
Installation leaflet LE/497/0001 ISSUE 01 Jan 2007
Select 207 XLS User / Installation Instructions Page 7 of 8
Direct plug-in upgrade for existing programmer s
Programmer will plug directly onto existing wall-plates of the following programmers without any rewiring, just follow
the installation instructions.
MANUFACTURER MODEL MANUFACTURER MODEL
ACL LP112, LS241, LS522, LS722 LANDIS & GYR RWB2, RWB2.9, RWB 102,
LP241, LP522, LP722 RWB200, RWB252, RWB20
RWB40
DANFOSS FP75, FP15, CP75, CP15 POTTERTON MINIMINDER
DRAYTON TEMPUS 3 & 4 & 7 GLOW-WORM MASTERMIND
SUNVIC SELECT 207
Otherwise fit new wall-plate supplied, and refer to wiring interchange guide below.
WIRING INTERCHANGE GUIDE
When replacing any of the below with your Sunvic SELECT 207XL programmer, fit new wall-plate supplied and follow
the connection details shown. Whilst every effort is made to ensure accuracy of the instructions given, you will
appreciate that discrepancies may occur, due to various reasons outside of our control.
Make Model Terminals
Sunvic SELECT 207XL N L 1 2 3 4
SP100 & SP50 N L 1 4 2 5
SP2 N L 1 4 3 6
Satchwell Libra & DHP2201 1 2 8 5 6 3
Satchwell ET1401 & ET1451 1 2 8 5 7 4
Honeywell ST699B & C N L 7 4 6 3
ST499A N L - - 6 3
ST6300 & ST6400 N L 1 2 3 4
ST7100 N L 7 4 8 5
ACL MP 2 1 - - 6 10
FP 2 1 8 11 6 10
2000 N L hw off ch off hw on ch on
Randall 922 & 972 N L 1 4 3 6
4033 7 6 5 3 4 2
701 N L - - 3 1
702 N L 4 2 3 1
102 5 6 - - 1 2
3060 & 3020P 1&7 6 - - 4 2
3033 1&7 6 5 3 4 2
SET2 & SET5 N L 3 6 1 4
TSR3+3 3&6 7 2 5 1 4
MK11 R6 3 1&2 - - 4 5
TSR2P 3 1 - - 5 7
Sangamo 410F1 & F9 & F414 4&5 3&6 2 7 1 8
M5 4 3 - - 1 6
Potterton EP2000 & EP3000 N L 1 2 3 4
Horstmann Amethyst 7 & 10 2 1 4 6 5 7
Coral 2 1 - - 8 4
Diadem N L 3 6 1 4
Diamond N L - - 2 4
Gem 2 1 6 9 4 7
Leucite 2 1 8 4 3 6
Smiths Centroller N L 1 2 3 4
Switchmaster 400 & 600 N L - - 3 1
805 & 900 & 9000 N L 4 2 3 1
Thorn Microtimer N L 7 4 6 3
Towerchron T2002 N L - - HW CH
T2000 & T2003 N L HW OFF CH OFF HW ON CH On
Select 207 XLS User / Installation Instructions Page 8 of 8
Loading...
