SUNTECH TECHNOLOGIES TOCSM004 Users Manual

Download

Page 1

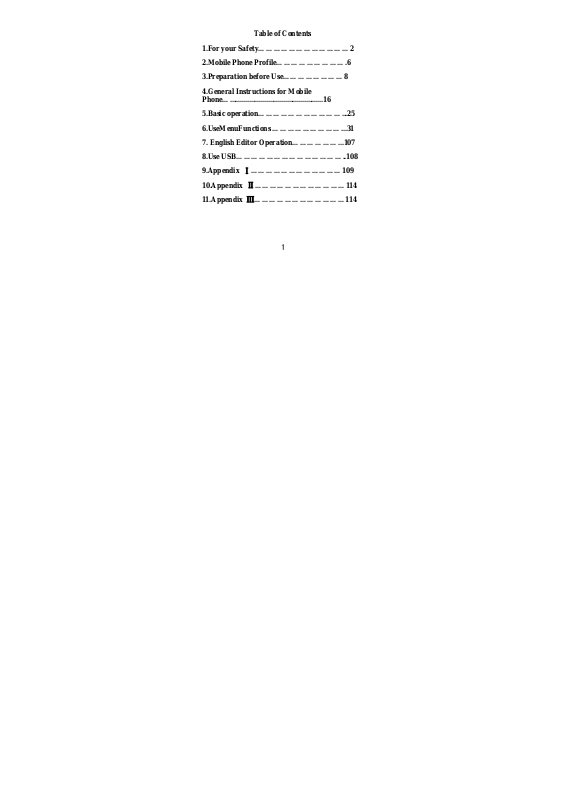

Table of Contents

1.For your Safety………………………………2

2.Mobile Phone Profile……………………….6

3.Preparation before Use……………………8

4.General Instructions for Mobile

Phone….................................................16

5.Basic operation……………………………...25

6.UseMenuFunctions ………………………...31

7. English Editor Operation………………...107

8.Use USB……………………………………..108

9.Appendix Ⅰ………………………………109

10.Appendix Ⅱ………………………………114

11.Appendix Ⅲ………………………………114

Page 2

1.For your Safety

For your safety and proper use of the mobile phone,

please read the following guidelines carefully: Do

not switch the mobile phone on when close to

chemical factory, gas station or other explosive

objects.

 During driving, please use headset for safety

purpose; unless otherwise in emergency,

always stop the car on roadside to have a call

conversation.

 Because the use of the mobile phone can

cause interference in the aircraft, never use

the mobile phone in aircraft. The use of the

mobile phone is dangerous and illegal; do

switch off the mobile phone before boarding.

 Pay special attention to the use of the mobile

phone near heart pacemaker, deaf-aid and

some other medical equipments, because the

Page 3

mobile phone can cause interference with

them.

 None-original factory’s accessories and parts

will lose guarantee.

 Do not dismantle the mobile phone without

permission. In case of failure, please contract

the supplier as soon as possible.

 Do not plug the charger into the mobile phone

and charge without battery. Always power off

the mobile phone when taking out the battery;

otherwise the memory of the phone may be

damaged.

 When charging the mobile phone, always

keep it in the place with good ventilation, heat

sink and away from flammable and explosive

objects.

 In order to avoid demagnetization, always

keep the mobile phone away from magnetic

Page 4

objects such as CD, credit card etc.

 Ensure the mobile phone not to contact any

liquid; once such case occurs, remove the

battery and contact the supplier immediately.

 Do not use the mobile phone in the

environment at too high or too low

temperature, never expose the mobile phone

under strong sunshine or too wet environment.

The suitable temperature for the phone and accessories is 0℃-40℃. The height to use the

phone shall be less than 2,000m.

 Do not use liquid or wet cloth with strong

cleanser to clean the mobile phone.

 This mobile phone has videoing and audio

recording functions, which shall be used as

per the related laws and regulations.

 Always keep the mobile phone out of

children’s reach. Do not throw or vibrate the

Page 5

mobile phone because violent treatment to the

mobile phone may damage the inner circuits

and precise structures.

 Please do not discard the waste battery into

general household garbage. Please deal with

the waste battery according to provisions

where they are definitely made.

Tip: This user manual is based on simplified Chinese

operation mode; so it may vary in English operation

mode.

Warning: We will not be bear any responsibility for

any incompliance with the above guidelines or

improper use of the mobile phone.

Our company keeps the right to make modifications

to any of the content here in this user guide without

public announcement in advance.

The content of this manual may vary from the

actual content displayed in the mobile phone. In

Page 6

such case, the latter shall govern.

2.Mobile Phone Profile

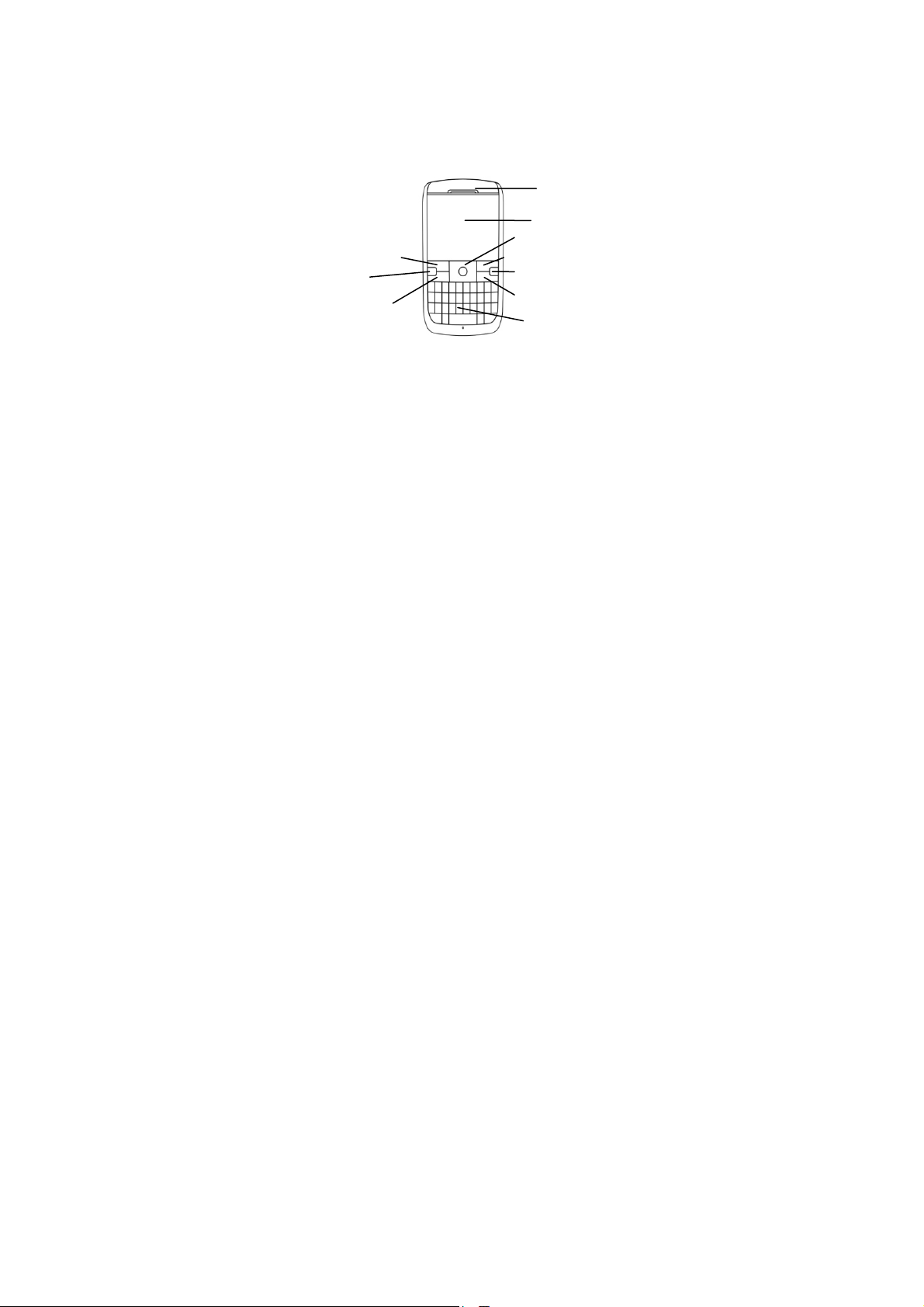

The mobile phone has 42 keys on the keypad,

including single screen，one vibration motor, one

charger/data common transmission port. (Below is

the front of the mobile phone)

Left Softkey

Menu key

call key End key

Receiver

Screen

Direction key

Right Softkey

Message Shortcut Key

Key Board

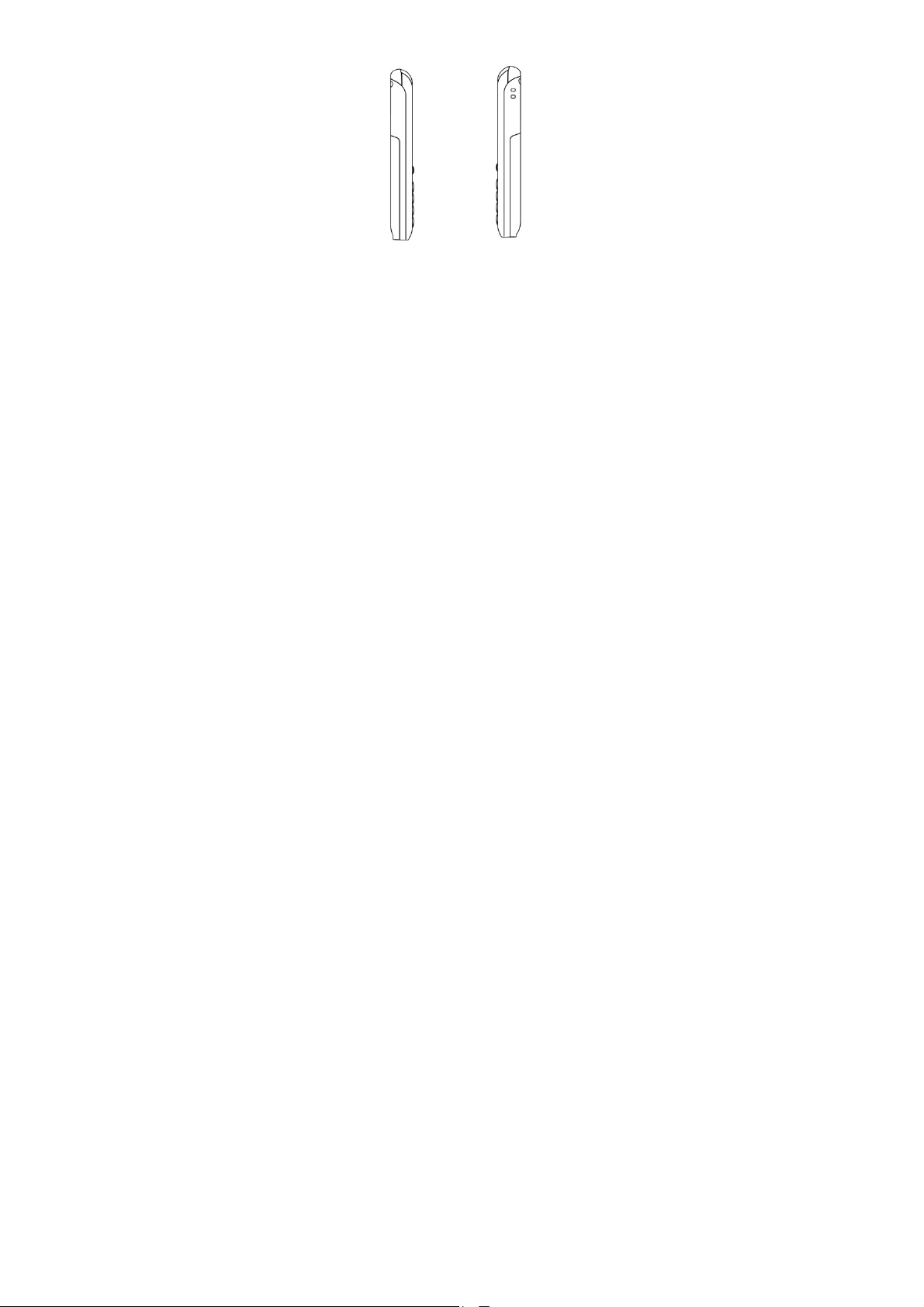

(Below is the side of the mobile phone)

Page 7

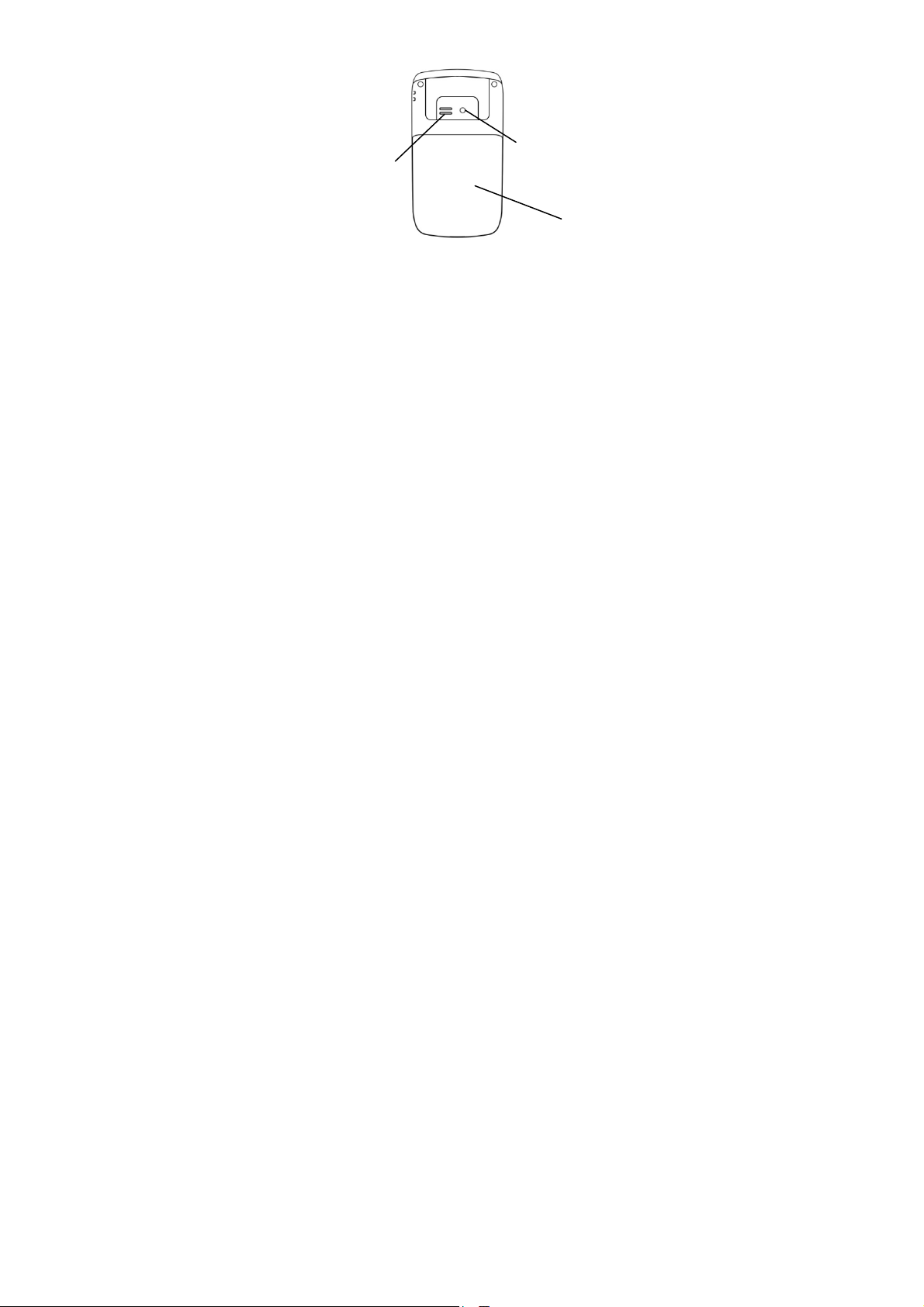

(Below is the back of the mobile phone)

Page 8

Camer

Speaker

Battery cover

3.Preparation before Use Install SIM Card

With SIM card, you can use all functions of

your mobile phone. The SIM card save the

parameters needed for communications and personal

data, including PIN (Personal Identification Number)

Page 9

code, phonebook, short message and other extra

system services.

Warning: Do not distort or scratch the SIM card nor

let it contact static, dust or moisture. If it is lost,

please contact immediately your network operator

for help.

Before SIM card installation, please switch off

the mobile phone. The SIM card is installed on the

back of the mobile phone.

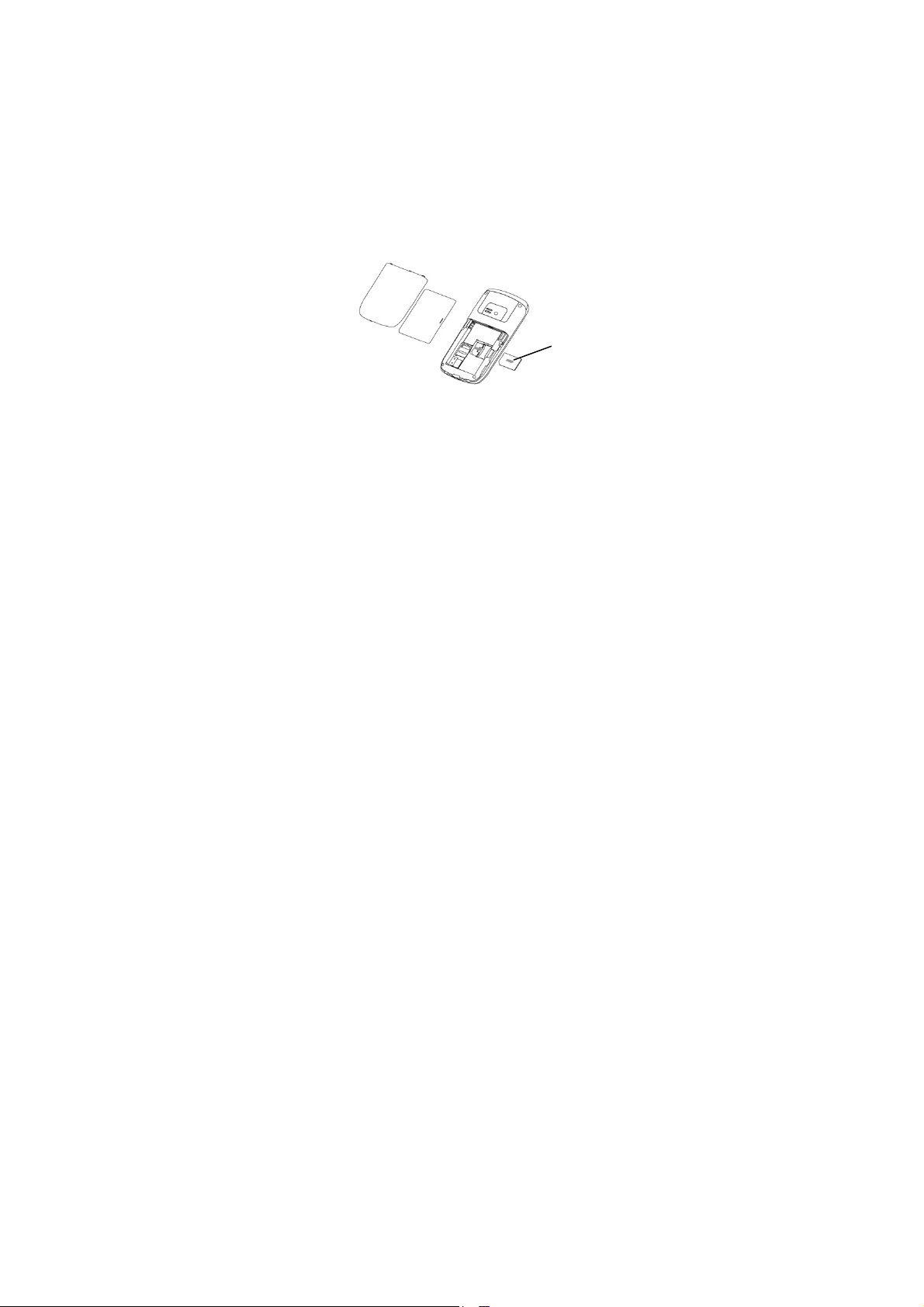

Follow the following diagram to install the SIM

card.

SIM card

Page 10

Note: As the SIM card is small object, keep it out of

children’s touch or prevent children gulping it! Install Memory card

As the mobile phone does not have enough

storage space, to use some functions, you need to

install a memory card (This mobile phone use

T-FLA S H c a r d .)

Install T-FLASH card: Open the back cover to

take out the battery, release the T-Flash card lock,

insert the T-Flash card into its slot, restore the lock

and the battery before restarting the mobile phone.

Note: As the T-FLASH card is small object, keep it

out of children’s touch or prevent children gulping

it!

Install Battery

The mobile phone is suitable for original

battery and accessories. When the battery is idle, it

is recommended to put it into the protection box.

Page 11

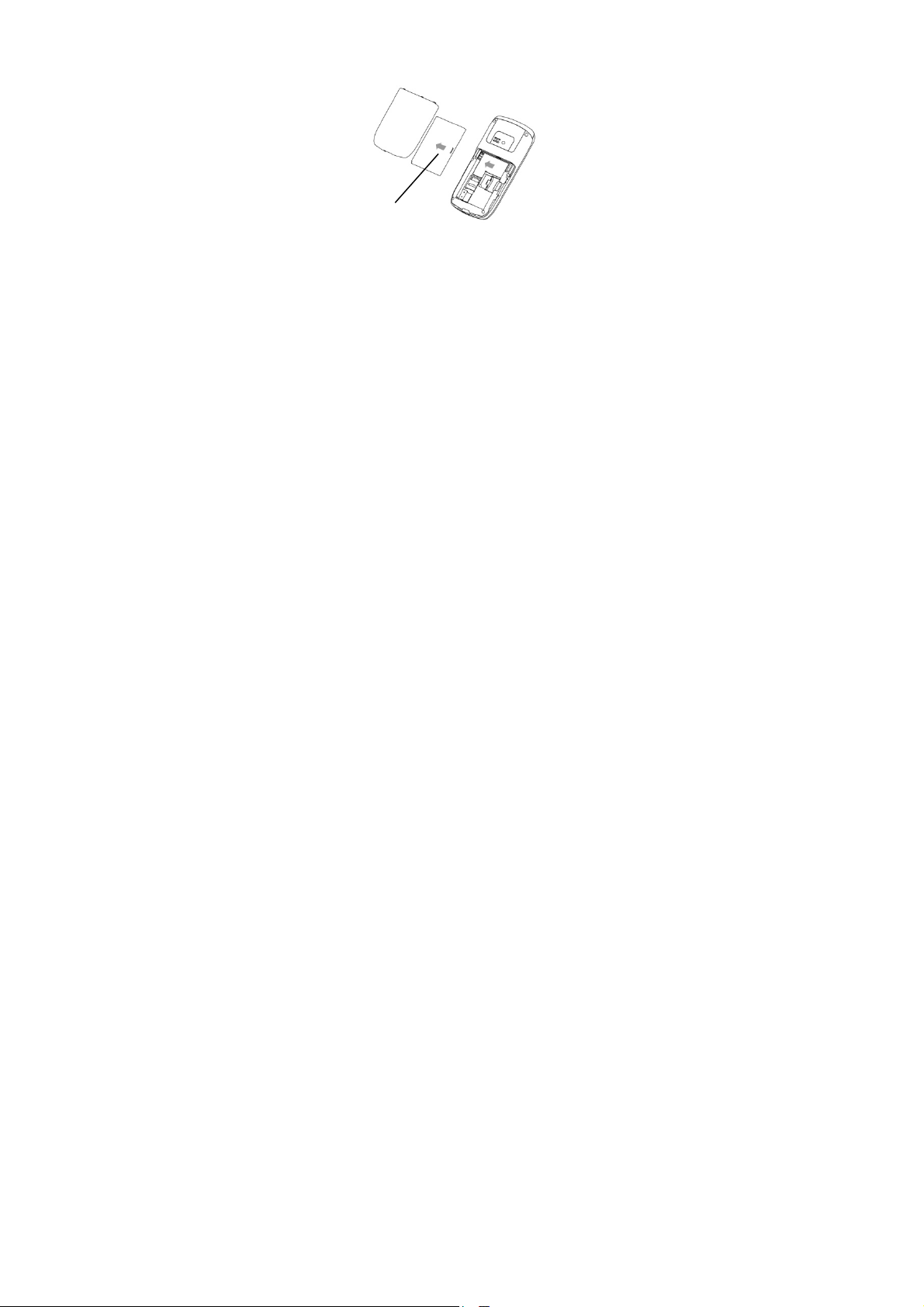

Follow the following diagram to install the

battery.

Battery

Note: Do install the battery as per the diagram so as

prevent the battery contact patch being damaged. Charge Battery

The new battery cannot reach the optimal

efficiency unless it has undergone several

continuous complete charges and discharges.

When the battery is used up, charge it in time.

Over-discharge can damage the battery.

After the battery is charged full, cut off the

Page 12

connection of charger with the AC power supply and

the connection with the mobile phone.

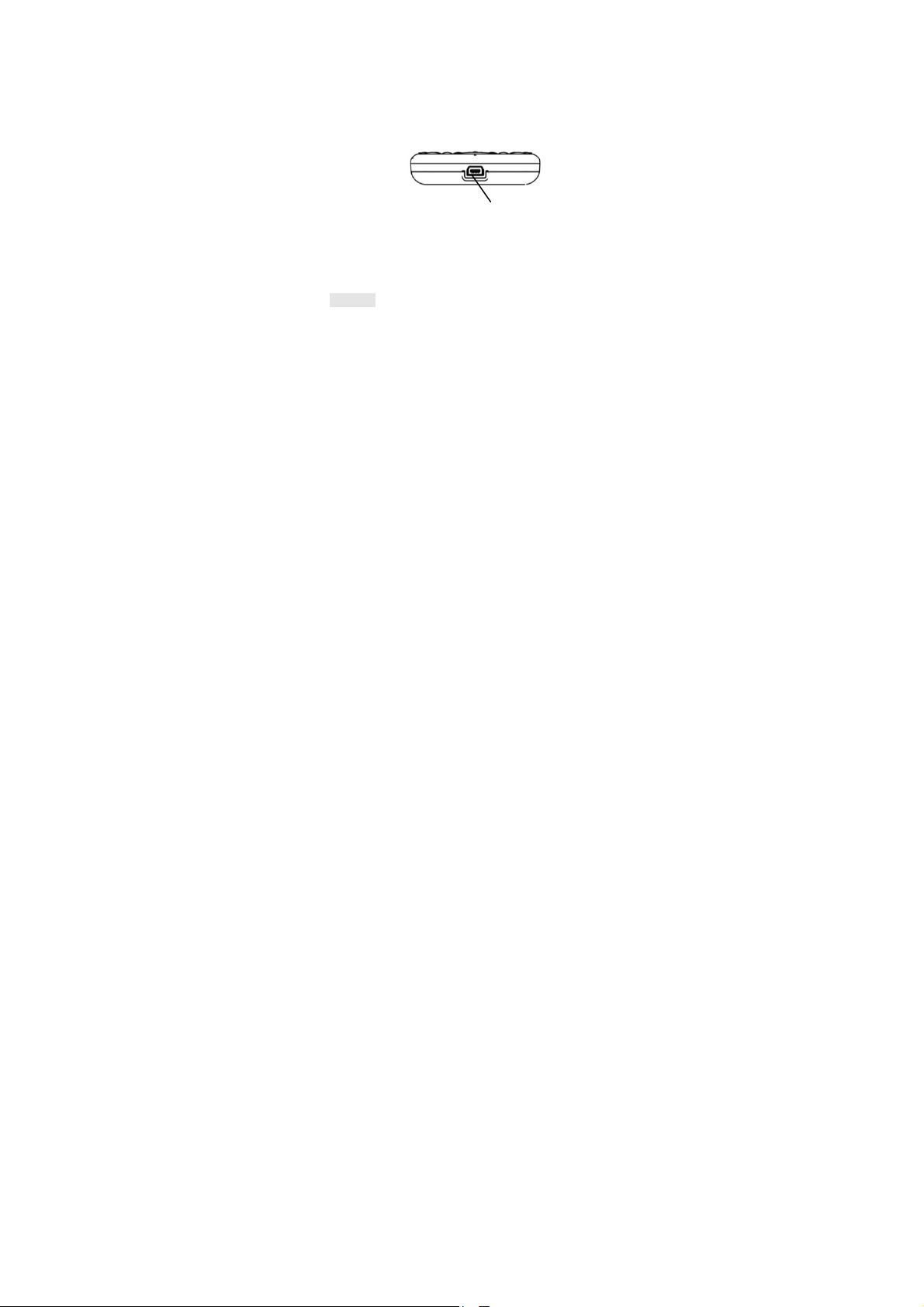

Follow the following diagram to connect the

charger. (Below is the down of the mobile phone)

Headset/charger/data

During charging, the battery capacity icon on

the screen flickers from the right to the left. After the

battery is charged full, the icon is full of bars. Slight

heat during charging is normal.

Warning: When a travel charger and its accessories

are used to charge the battery, please firstly check if

they are original or recognized by the original

manufacturer. The use of other accessories may

damage your mobile phone and cause risks! Always

Page 13

use them indoor and dry places.

Notices on using the battery

The performance of the battery is affected by

many factors, including radio barrier network

settings, signal strength, signal strength, work

temperature, chosen and used functions or settings

as well as phone accessories, tone, data or other

applications.

For optimal performances, please follow the

rules below:

 New battery or the battery having been idle

for long need charging for long. The standard

voltage scope for the battery is 3.6V-4.2V.

 During charging, keep the battery at room

temperature or similar temperature.

 With time passing by, the battery will

gradually be worn and thus need longer time

to charge. This is normal. However, after

Page 14

normal charging, if call duration decreases but

charging time increases, you need to buy

another battery from the original manufacturer

or authorized by the original manufacturer.

The battery of interior quality can damage

your mobile phone and cause danger!

 If the phone is overused at low battery when

charging, there might need a longer time for

the charge indicator to be shown on the

screen.

Note: Please dispose the battery according to the

local regulations. Try to recycle the battery as

possible. Do not treat the waste battery as common

waste.

Warning: Do not throw the battery into fire so as to

prevent fire. The broken battery may cause

explosion.

Page 15

Warning

Charging the mobile phone by improper

means can cause to explosion. Always refer

to the related regulations for the disposal of

the battery.

PIN code

PIN Code:It is the personal identification

number used to enter SIM card and able to prevent

others using SIM card without permission. If the

mobile phone has activated the PIN code protection,

when the mobile phone is switched on, the screen

will display “Input PIN”. In the process of inputting

PIN code, the screen will use “*” to represent the

input content. While obtaining SIM, you can obtain

its PIN code.

PUK Code (8-digit)

To change the locked PIN code, you need to use

PUK (Personal Unblocking Key) code. If the PIN

Page 16

code and PUK code are not provided together with

the SIM cards, ask the local service provider for

them.

Warning: If the PIN code is input wrongly for

successively three times, the SIM card will be

locked. Please contact the network operator

immediately for help. Attempt to unlock the code

may make the SIM card ineffective forever!

4.General Instructions for Mobile Phone Dial key

It is used to dial a call (with phone number

entered or in phonebook state) or receive an

incoming call. In standby state, press this key to

display the latest call register.

Switch-on/off key /End key

In call state, it is used to interrupt a call; in call

conversation state, it is used to end a call or exit

from the current menu and back to the standby state.

Page 17

Hold this key for 4~5s to switch on/off the mobile

phone.

Left/Right soft key

Press the left/right soft key to have the

functions indicated in the bottom row of the main

screen of the mobile phone.

Functional direction key

This mobile phone has four direction keys,

with the left, right, up and down control functions.

In some interfaces, they have special function, for

example, in call state, press the up/down key to

adjust volume. Similarly, these four direction keys

can be set with shortcut functions.Shortcut keys can

be active only in standby state and their function

definitions can be set by yourself with the

procedures as: enter the phone settings menu, choose

dedicated key function to reedit the direction keys.

Standard keypad

Page 18

On the keypad, you can see A-Z （0-9 number

keys ）number keys and some other keys,totally 35

keys.

Press these keys to input phone number,

password, English letters, symbols or choose menus.

In different states or different functional menus,

* key and # key have different functions:

 In music player state, “+” and “-” are used

to adjust volume.

 Continuously press shortly or press long *key to

input “P”, "+" or "W" , among which, “P” and “W” are used for extension calls while “+” for international calls.

Tip: The difference between “W” and “P” is that

“P” will directly send DTMF after 3s pause while

“W” will eject a window asking whether the user to

send DTMF.

Keypad lock

When in standby interface, if the mobile phone

is idle for certain time, it will be locked

Page 19

automatically. Press the right soft key +“#”to release. After the mobile phone is locked, the keypad cannot be activated easily; in case of incoming call, likewise, press the answer key to receive it; after that, the keypad will be locked automatically.

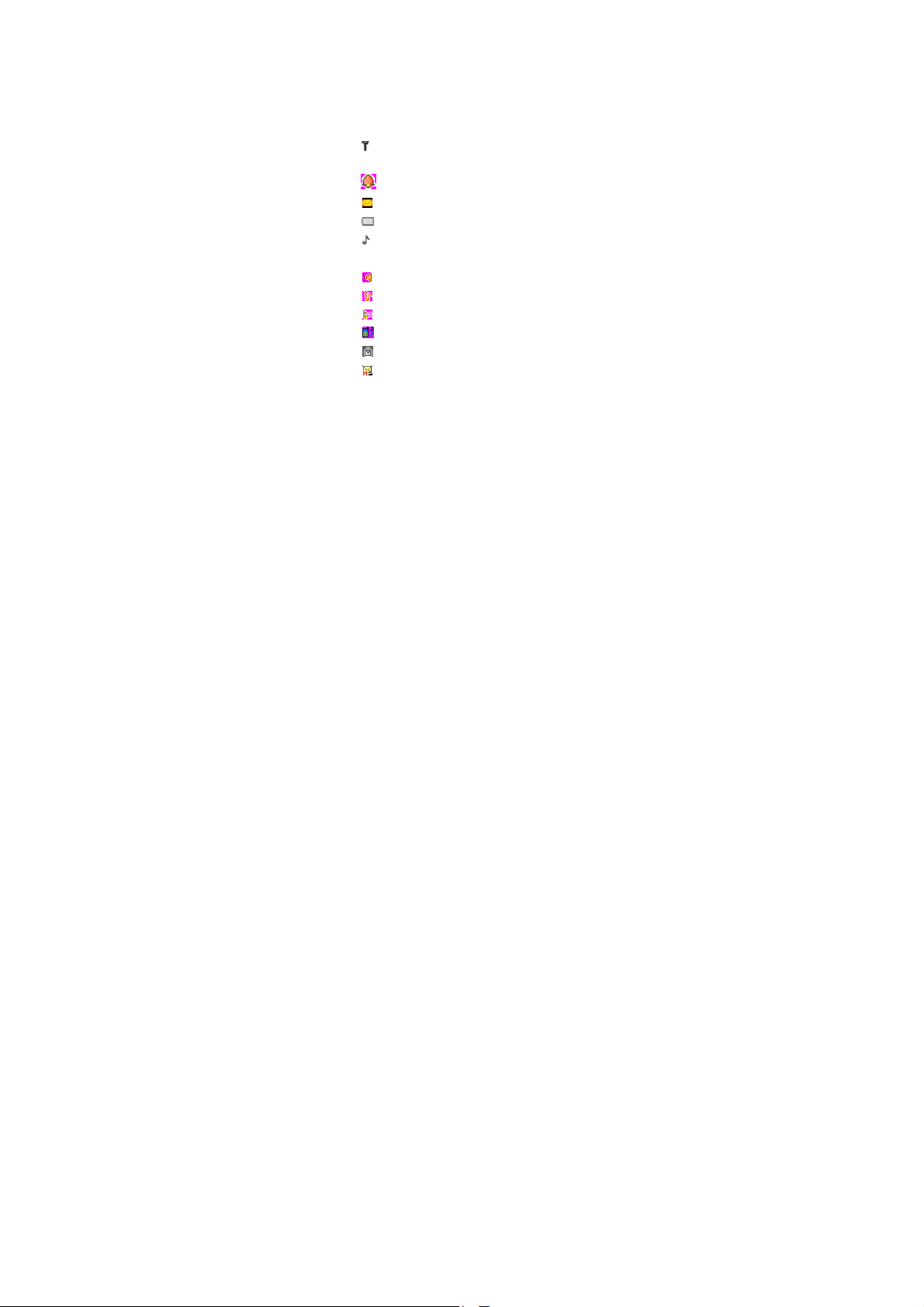

Icons in Standby State

Antenna; the host antenna has“1“on the

icon while the slave antenna has “2“on the icon.

Activate the alarm clock.

Unread SMS

Battery power capacity indication

Ring; this icon may vary with different

warning modes and it may be in the three icons:

Ring after vibration Ring and vibration Vibration

Missed Calls

Locked

MMS

Page 20

PUSH Inbox

GPRS

All calls diverted

Language and Input Mode

The mobile phone has defaulted Multi Abc

input mode. For different areas, there are

different languages and corresponding input

modes.

Call hint

The mobile phone is inbuilt with vibration

motor and buzzer and provides several incoming call

modes:

Ring Vibration Ring and vibration Ring after vibration

Services

Services are provided with SIM kit. The mobile

phone support service function. The detailed menu

Page 21

items depend on SIM card and the network. When

the network provides such function and your SIM

card supports such function, the service menu will

automatically be posted in the services of the mobile

phone. Callers’ group

The callers’ group in the mobile phone includes

friends, family, VIP, colleagues and others etc. You

can set different call tone and photo for different

callers’ group.

Term Description Dial domestic calls

 The simplest method to dial a domestic call is

to input phone number via the number keypad,

then press dial key to dial call. To change

phone number, press “del key”. During

dialing, the screen will display a cartoon.

When the other party is connected, the screen

Page 22

will display the corresponding information.

 Press end key to end the call.  To dial a domestic call, input area code +

phone number and then press the dial key.

Dial international calls

 If you want to make an international call, you

can press * key continuously until the international dialing prefix “+” is seen on the screen. This will allow you make an international call from any country without knowing the dialing prefix (for example, +86 represents China).

 After inputting the prefix, you need to input

the Country number and complete telephone number. You can input the Country number according to the common practice, such as, 49 for Germany, 44 for British, 46 for Sweden, etc.

 Dial international telephone number as

following: “+” Country number +Complete telephone number + Dial key.

Dial fixed-line telephone extension

Page 23

 Some fixed-line telephone extension may not

directly get through, so you need to connect to the switchboard at first then put through extension number. The mobile phone can automatically dial extension number if you input “P” between the switchboard and extension number. Method for input “P” as following: hold press or continually short press three times “*” key (“P” will be shown on the display).

 Dial fixed-line telephone extension as

following: phone number + “P” + extension number + dialing key.

Emergency calls

If your phone is under the network coverage

(you can know this by checking the signal bar at the

up left corner on the screen), you can make

emergency calls. If your network supplier does not

provide roaming service in this area, Emergency will

be shown on the screen. That means you can only

make this kind of calls. If your phone is under the

Page 24

network coverage, you can even make emergency

calls without the SIM card.

* In some areas, 112 (emergency call) service is

provided by the network operator. In case of failure,

consult the network operator.

IMEI

International Mobile Equipment Identity

number. Switch off the mobile phone and take off

the battery, then you will see the label with such

number on the back of the mobile phone. Also, this

number is saved in the mobile phone. After

switch-on, in standby state, input “*#06#” to display

it.

IP dial

Firstly, in Settings/Call Settings, set correct IP

access number. Enter the phonebook and choose IP

Dial.

Note: Regarding whether to activate IP dial

Page 25

when dialing local call, please consult the network

operator.

5.Basic operation Switch on

phone, then the screen will display switch-on image.

automatically check the SIM card availability, and

then it will be shown information as following on

the display by sequence:

Press the switch-on/off key to start the mobile

After insert SIM card, the mobile phone will

1. “Input phone password”——If you have set the

password.

2. “Input PIN” —— If you set SIM card password.

3. “No service”—Indicates fail to make register

and cannot make any calls.

4. “Emergency calls only”—indicates has

registered to other network and only can make

call to 112.

Page 26

5. “Searching”—the mobile phone is searching

network until find appropriate network;

6. “Operator name”—Indicates network

successfully registered.

Note: If you do not know PIN code, please contact

the network service provider.

The defaulted phone password “1122”

Switch off

To switch off the mobile phone, press the end

key. When the screen displays switch-off cartoon,

the host and the slave will be off at the same time.

Do not take out the battery to switch off the mobile

phone. If so, the SIM card can be damaged easily

and some data will be lost.

Dial a Call

 With the number keypad, you can enter phone

numbers (if wrong characters are input, press

the clear key to delete them). Press the dial

Page 27

key to dial the phone number. To end a call,

press the end key; or to cancel a dial, press the

Cancel key or the switch-on/off key. After the

call is connected, you can see the call timer on

the screen.

 Dial a call via phonebook: Enter the

phonebook and search the desired

name/phone number, and then press dial key

to dial call.

 Redial latest dialed number: In standby state,

press dial key to view the list of the latest

dialed 20 phone number or names. Roll to the

desired phone number or name and press dial

key to dial call.

Adjust Receiver Volume

In call conversation, press the upper direction key or

lower direction key to adjust the volume of the

receiver.

Page 28

Answer a Call

When there is a call, as per the settings of the

mobile phone, you will be alerted with ring,

vibration, vibration and ring as well as ring after

vibration.

To receive a call, press Dial/Call Key.

To refuse a call, press Switch-on/off key or the

end key directly.

If the CLI (Call Line Identity) is opened, the

phone number of the caller will occur on the screen.

If this number has been saved in the phonebook, the

name corresponding to this number will be displayed

on the screen.

Send DTMF Signal

When this function is set, in call conversation,

press the desired number key and * key and # key to

send DTMF signals to the other party. If such

function is inactive, then extension call will become

Page 29

impossible.

Dial Hold

If you have applied for dial hold, in the call

conversation process, press “Options” to have the

following function menus:

 Pause: Pause the current call but with the line

keeping connected.

 End: End the current call conversation.  New Call: Enter the dial interface, dial another

call.

 Phonebook: Enter the directory of the

phonebook.

 SMS: Enter the directory of the SMS.  Record: While having call conversation, you

can record the call.

 Activate/Inactivate Handfree: You can

activate/inactivate the speaker.

 DTMF: You can set whether to send DTMF

Page 30

signals.

Note: Some menu items need the support of the local

network or can occur in special cases, such as

Conference and New Call. Consult the local network

operator for details.

Fast Read SMS

When the user receives unread SMS, the screen

will display an icon of unread SMS. Press Read to

enter and read the SMS.

Missed Calls

When there is a missed call incoming, the

screen will display a missed call icon. And press

Read to enter and read missed calls.

Connect to Voice mail

The mobile phone allows connecting the

incoming call into the voice mail and then you can

receive a notice about voice message. (The voice

mail number must be preset).

Page 31

6.Use Menu Functions [Bluetooth]

The mobile phone supports the Bluetooth

function. You can use Bluetooth wireless technology

to set wireless connection with other compatible

devices, including mobile phone, computer, headset,

in-car accessories etc. With Bluetooth function, you

can send photo, video segment, audio segment,

personal business card and memo. You can also

establish wireless connection with the compatible

PC to transmit files and connect to web by dialing

number from SIM.

As the device supporting Bluetooth wireless

technology performs communications via wireless

wave, you need no keeping the device opposite to

other devices but keep the distance between them

not more than 10m (about 33”). However, Bluetooth

connection can be affected by wall or other

Page 32

electronic equipments etc. To ensure mutual

operation between this device and other devices

supporting Bluetooth wireless technology, consult

the manufacturer to confirm whether the device by it

is compatible with this device. Do not use Bluetooth

function in hospital and aircraft etc.

Bluetooth Menu

Power: Before using Bluetooth function, you

need to activate this option. When Bluetooth

function or other functions are being used, allowing

this function to operate in the back desk will

consume more power. It is recommended to close

this function when it is idle.

Inquiry audio device: With this function, you

can inquiry audio device. For other devices, enter

My Devices to search.

My Device: After entering this option, you will

see the Bluetooth devices compatible with the

Page 33

mobile phone. Entering options, you can have

necessary operations on the desired Bluetooth device

or search the incompatible Bluetooth devices.

Active Devices: With this function, you can see

all devices connected with the mobile phone and

their link service type. You can interrupt the

specified link service.

Settings: Before using Bluetooth function,

enter this menu to have corresponding settings. If

your mobile phone’s Bluetooth function is not

activated, you can have activation confirmation.

 Visibility: After this option is activated, other

peripheral devices supporting Bluetooth

wireless technology can see your device and

its name via search. After the step audio play

service is activated, this device will be unable

to be searched.

 Change Device Name: You can edit my

Page 34

device name.

 Authentication: After this option is activated,

matching is needed when peripheral device

accesses my device via Bluetooth (for

matched devices as well). After closing the

option, no matching is needed for the matched

devices.

 Audio Path: You can leave the audio on my

device or send to other hand-free devices via

Bluetooth. If using Bluetooth to have a call,

set this path as hand-free devices.

 Block list:  Storage:  FTP Settings: You can set the file directory

shared by my device and the access right to

online Bluetooth devices.

About: Here, you can see the name of my

device, my device’s Bluetooth device address and

Page 35

the Bluetooth services supported by my device.

Tip: When searching Bluetooth devices, make sure

that the peripheral Bluetooth devices are within the

signal cover range and can be searched. To match

the searched devices, you need to discuss with the

user of this device about a pair of matching

passwords. To match the hand-free device, you must

input its matching password. After matching, this

device will be saved in my device view.

Use Bluetooth to Receive/Send Data:

1. Open the applications needed to save the content

to be sent. For example, to send photos to another

compatible device, you should enter the album or

file management.

2. Choose the content to be sent, and then choose

Options->Send->To Bluetooth. The screen will

display the device supporting Bluetooth wireless

technology and within the signal coverage. To

Page 36

disconnect search, choose “Cancel”.

3. Choose the device to be connected with.

4. If another device requires matching before data

transmission, the device will send hint and require

inputting matching password.

5. After the connection is established, the mobile

phone will display data transmission speed.

6. When other Bluetooth devices send data to my

service, the mobile phone will hint and ask whether

to receive the data. The received data will be stored

in the initially set Received folder.

Tip: You can set the storage position to receive files

as other folders or the folders on T-flash card. After

setting, the file received via Bluetooth will be

automatically saved to the specified folder.

Tip:

 Before using Bluetooth headset for calls,

please go to the menu settings to confirm that

Page 37

the audio path has been set as hand-free

device.

 Non-stereo Bluetooth headset cannot be used

to listen to music.

 When stereo Bluetooth headset is used to

listen to music, there will not audio output on

the phone terminal.

 Incoming calls or dialing calls will suspend

the ongoing music.

Use the following methods to disconnect:

 Close the activated Bluetooth to disconnect all

devices.

 Enter online devices and disconnect the

specified online service.

 Enter my devices; delete the matched devices

to disconnect other devices with my device.

 The connection with the devices out of the

signal coverage will be ineffective.

Page 38

【Multimedia】

[Camera]

With this function, you can use the inbuilt

camera to take photos. The lens of the camera is

located on the back of the slide and the screen is

used as the viewing window. All photos taken are in

JPG form. After downloading the photos onto PC,

you need some software to view them.

If the storage space of the mobile phone is

insufficient to store the taken photos, it is necessary

to delete some old photos or other files in “File

Management” function list to release more space.

Description of Mobile Phone Options:

Options Description

photos To view the saved photos.

Camera

Settings

Shutter Sound: sound 1, sound 2, sound

3 and Off.

Page 39


Settings

White

Balance

Scene

Mode

Effect

Settings

Set

Frame

EV: EV-4 ——EV+4

Banding: 50Hz(default), 60Hz

Delay Time: 5s, 10s, 15s or Off.

Cont.Shot: 1 Shot , 3Shot , 5Shot and

Off.

Size:80*60,160*120,320*240,640*480,

220*176.

Quality: High, Normal, Low

Auto,Daylight,Tungsten,Fluorescent,

Cloud, Incandescence

Auto, Night

Normal,Grayscale,Sepia,Sepia

green,Sepia blue,Color invert

There are 2 options available.

Page 40

Storage Phone, Memory Card

Restore

Default

[Image viewer ]

All photos taken are saved in the album.

Options Description

View You can view the selected photos.

Slide show

Browse

Style

Use as

send

Rename You can rename the selected photo.

You can restore the recorder to factory

settings.

You can browser pictures as Slide

show

There are two browse styles, i.e.

list and matrix.

You can send photo to

wallpaper ,Screen saver, power on

display, power off display, call


As multimedia message;as

email;via bluetooth

Page 41

Delete You can delete the selected photo.

Delete All

files

Sort by

Storage

[Video Recorder ]

Press the OK key to start video recording. The

duration of recording depends on the time limit set

and file management capacity. Entering the options,

you can have the following settings:

Options Description

camcorder

Settings

You can delete all photos in the

album.

For convenience of search, you can

rank them as per name, type, time

and size or choose “None”.

You can choose photos storage

path (to phone or memory card).

You can set White Balance, EV,

Night Mode and Banding for your

recorder so as to have

high-quality videos.

Page 42

Video

Settings

Effect

Setting

Storage

Restore

Default

[Video player]

It supports the videos in AVI. In such mode, you

can have the following operations to the specified

file in AVI.

Options of the player

Options Description

Play

Use as You can use as screen saver,power

You can set Cartoon Quality

There are 6 options available.

You can Save to Phone or Save to

Memory Card.

You can restore the recorder to

factory settings.

It supports the videos in AVI and

will not be limited by file size. Click

the play interface to play.

Page 43

on display, power off display,

send

Rename You can rename the specified video.

Delete You can delete the specified videos.

Delete

All files

Sort by

Storage

[Audio player ]

If the operation system is Windows 2000 above,

no driver needs installing. To download music, you

must insert the T-Flash card into the mobile phone,

switch off the mobile phone, connect the mobile

As multimedia message;as email;via

bluetooth

You can delete all files.

For convenience of search, you can

rank them as per name, type, time

and size or choose “None”.

You can choose video storage path

(to phone or memory card).

Page 44

phone and PC with USB cable, then the PC will

detect the new hardware and create a new mobile

HD. Download the chosen MP3 file to under "My

Music" of the mobile disk rather than in such folders

as Audio, Images and Photos; otherwise, the file

cannot be played. (Only the music in MP3, AMR

and MIDI supportable).

Description of audio player options:

Options Description

Play Play the current chosen music.

Details View file name, track, SQ, file

size, music duration, music

name, singer, music special a

music type etc.

Add to

Ringtones

Refresh

list

Add the chosen music into the

ring base.

Enter the tracklist and update it

(e.g. the deleted music in the file

Page 45

management will not disappear

until update is conducted.

Settings Play Settings: Tracklist path,

automatic tracklist, repeat,

shuffle ,background play.

[Sound Recorder]

After choosing “Sound Recorder” and press

“OK” to enter, you can the previous record files.

Press “Options” to have the following operations:

 Record: You can record new files.  Play: You can play the selected file  Append: You can have annex record for the

files of the superior level (only for the record

files in AMR).

 Rename: You can rename the chosen file.  Delete: You can delete the chosen file.  Delete All files: You can delete all files.  Settings: You can set the storage position for

Page 46

record files, including phone and memory

card. Also you can set the format of the record

file, including AMR and WAV.

 Use as:You can used as user profiles  Send: You send the record file to Bluetooth,

email and multimedia message.

[FM Radio]

Your mobile phone supports FM radio. To use

the mobile phone to listen to radio, insert the headset

connection cable into the headset port on the mobile

phone. The headset connection cable functions as the

antenna of the FM radio, so it should hang freely.

While listening to radio, you can dial or receive a

call normally. During call conversation, the radio

will turn mute automatically. If some applications

are using GPRS or CSD to send or receive data, they

may interfere with the radio.

When the FM radio is activated, the mobile

Page 47

phone will display the number and name (if having

been saved) and frequency of the radio channel. If

you have saved some radio channels (at most 9

channels) in the mobile phone, you can roll to

choose the desired channel or press any of number

keys 1-9 to choose the corresponding channel.

Option menu

 Channel list: You can edit and save 9

channels.

 Manual input: You can edit the specified radio

frequency band. The frequency of the radio is

between 87.5mHz and 108.0mHz.

 Preset Auto Search: You can have automatic

search and save the searched channels into the

list.

 Settings: You can set background play, loud

speaker,record format,audio quality and

record storage.

Page 48

 Record: You can record new files.  Append: You can have annex record for the

files of the superior level (only for the record

files in AMR).

 File list: the record files [Slide show]： You can browser pictures as Slide show

【Phonebook 】

The mobile phone is provided with the business

card folder type phonebook. The information of

every contact saved on the mobile phone include

three phone numbers (mobile phone, home phone

and company phone), company name, e-mail, fax,

birthday, big-head sticker, tone, callers’ group (five

types: family, friends, VIPs, colleagues and others).

Every contact saved into SIM card can only include

name and number. The mobile phone supports 1,000

groups of numbers.

Page 49

[Quick Search ]

You can Input the English letter in the position

where the cursor is flickering to position the contact

from these contacts that meets the conditions

[Search contact]

Input the name to be searched, press “Search” in

the phonebook, then you can find the matching

name.

[Add New Contact]

You can save phone numbers onto SIM card or

phone. On SIM card, one entry has only name and

phone number. On the phone, one contact can

include Name, Number, Home Number, Company

Name, E-mail Address, Office Number, Fax Number,

Birthday, Associate Picture, Associate Sound and Caller Group.

Tip: If one contact is set with photo link, tone link

and callers’ group at the same time, then the callers’

Page 50

group function will be inactive.

[Copy All ]

You can copy all contacts from SIM to phone,

from phone to SIM.

[Delete ]

You can have three modes regarding deletion:

from SIM card ,from phone and one by one.

[Caller Groups]

You can set call tone, photo and members for five

callers’ groups. Callers’ group member can only

come from the number saved on phone.

[Extra Numbers]

You can separately My Caller ID, service

numbers and emergency numbers (the latter two

needs the support of the SIM card, consult the

network operator for details).

[phonebook Settings ]

 Memory Status: You can view the current use

Page 51

status of the phonebook, including SIM card

and phone memory. The display format is

“Used/Total”.

 Preferred Storage: You can choose the storage

path for the current number.

 Fields: You can choose the display items in the

phonebook and the display items in the Add

Contact interface.

 My vCard: You can edit and send my business

card.

 Vcard version:including vcard 2.1 and vcard 3.0

[Caller picture ]

You can set the call big-head sticker.

[Caller ring tone ]

You can set call tones

【Call Center】

Call center includes Call history and general

Call Settings.

Page 52

Call history includes missed calls, dialed calls

and received calls,delete call log,call time,call

cost,SMS counter,GPRS counter etc.

In missed calls, received calls and dialed calls

function list, you can see the date and time of the

call, edit or delete the phone number in the list, save

the number to phonebook or send SMS and MMS to

the number, etc.

Note: Choose any entry from missed calls,

received calls and dialed calls, press the Send key to

dial the number directly.

Call time

 Last Call: With this function, you can view the

last call time.

 Dailled calls: With function, you can view the

duration of all dialed calls.

 Received calls: With the function, you can view

the duration of all received calls.

Page 53

 Reset all: With this function, you can clear all

duration records of calls.

Note: The actual call duration and service time in the

bill of the service provider may be different from

them, which depends on the network functions,

accounting rounding and tax etc.

Call Cost

This needs the support of the network service

provider.

 Last Call Cost: With this function, you can view

the fees of the last call.

 Total Cost: With this function, you can view the

fees of all calls.

 Reset Cost: With this function, you can clear all

fee records.

 Max Cost: With this function, you can limit call

fees in the specified pricing unit or currency

unit. PIN2 code must be input to set call cost.

Page 54

 Price Per Unit: This function needs network

support. For more details, please consult the

network operator.

SIM text message Counter

With this function, you can see and preset the

number of sent messages and received messages .

GPRS Counter

 Last Sent: You can view the sending traffic

of last link.

 Last Received: You can view the reception

traffic of last link.

 All Sent: You can view the sending traffic

of all links.

 All Received: You can view the reception

traffic of all links.

 Reset Counter: You can clear all link traffic.

[General Call Settings] Call setting

Page 55

 Caller ID: Including set by Network, hide ID

and send ID.  Set by Network: While having a call

conversation, you can send my caller ID in the form preset by the system.

 Hide ID: While having a call

conversation, you will not send my

caller ID. If the system does not

support such function, call may fail.

 Send ID: While having a call

conversation, you can send my caller

ID to the system.

Note: This function needs network support.

 Call Waiting: You can set this function On or

Off. The call hold and multi-party call cannot

be active unless this function is activated.

This needs network support.

 Call Divert: This is a kind of network function,

Page 56

which cannot be used unless you apply to the

network operator for it. With this function,

you can divert calls meeting he conditions to

another number.

Name Description

Divert All

Voice Calls

Divert if

Unreachable

Divert if no

Answer

Divert if Busy When you are on line, the

The network will divert all

voice calls without

conditions.

When the network cannot

find your mobile phone

(switched-off or out of the

service area), it will divert

the calls.

When the mobile phone

does not answer the call, the

network will automatically

divert it.

Page 57

Divert All

Data Calls

Cancel All

Diverts

 Call Barring

 Outgoing Calls:

1. All Calls: You can bar all outgoing

2. International Calls: You can bar

3. International Calls Except To

 Incoming Calls:

network will divert the call.

Network support needed.

Cancel all divert functions.

calls.

international calls.

Home PLMN: When abroad, you

can dial the calls of the current

country and the original country

(the service providers allows to do

so).

Page 58

1. All Calls: You can bar all

incoming calls.

2. When Roaming: You can bar all

calls except the calls of the local

service area.

 Cancel All: You can cancel call barring

settings and dial/receive calls

normally.

 Change Barring Password: You can

apply to the network to change the

password for call barring.

 Line Switching: You can choose Line 1 or

Line 2.

 Closed User Group: This function needs

network support. Please consult the local

operator for details.

Auto Redial: You can set it as On or Off. After the

first automatic redial fails, at most ten times can be

Page 59

available to connect a phone number. Speedy Dial: You can set whether to activate this

function and edit the related speed dialing numbers.

If this function is “Active”, then you dial any of the

corresponding individual keys (2-9) on the standby

interface to dial the number specified for this key.

IP Dial: You can set 3 IP calls. Background sound: Background sound in call More: there are three functions ,including the

following:

 Call time Display: You can set whether

to display call duration during call

conversation.

 Call Time Reminder: You can set one

alert tone or periodic alert tone for

several round minutes during call

conversation so that you can understand

call time. You can turn off the alert

Page 60

tone.

 Auto quick end: You can set call

duration. After the set time expires, the

mobile phone will automatically end the

call.

Note: Some settings need network support. For

example, call barring can not be used unless the

local network and SIM card open it.

【Organizer】 [Calendar]

With this function, you can set the alarm clock

to remind you of your schedule and record your

schedule. Roll the highlight block to the desired date

and then the current date will be highlighted in green.

If the date is set with memo function, then this date

will be highlighted in red. To view all memos of one

day, press OK to see the schedule. You can have the

following operations:

Page 61

 View today: You can view the schedule of the

date where the cursor is on and set the time,

date, content and whether to activate alarm on

this schedule of today’s. When editing the

schedule, you can choose alarm type with the

left and right direction keys. In addition, you

can have such operations as Delete, Delete

and Add on the schedule.

 Vi ew a ll : You can view all of the schedule of

the date where the cursor is on and set the

time, date, content and whether to activate

alarm on this schedule.

 Add event: you can select task typeas

reminder,meeting,course

 Jump to Date: You can move to the calendar

of the specified date.

 Go to weekly view: You can go to weekly and

monthly view

Page 62

[Alarm]

The time format for the alarm clock is identical

to that of clock. When the mobile phone is off, the

alarm clock can still work provided the battery is

sufficient. The system has set 5 alarm clock options

and the defaulted is off. You can activate one option

or all options according to the actual demand. Every

alarm clock option can set independent time and

date. When the time is reached, the mobile phone

will give out alert tone and flicker the current time

and date on the screen. Press Stop to stop alarm

clock; press Sleep, then the mobile phone will pause

ringing and continue after 4min.

If alarm time is reached but the mobile phone is

switched off, then the mobile phone will be switch

on automatically and ring. If Stop is pressed, then

the mobile phone will ask you whether to switch on

the mobile phone. Press “No” to switch off the

Page 63

mobile phone and “Yes” to register at the network

and switch on the mobile phone.

[World Clock ]

Press the left and right direction keys to view

the current time of every country corresponding to

every time zone.

[Calculator]

 The upper direction key for “+” and the lower

direction key for “－”, the left direction key

for "×" and the right direction key for "÷";

 Press the clear key to clear the latest inputs

or results digit by digit; press the clear key

long to clear all content or result;

 Press “OK” key to obtain the result.

Note: The precision of this calculator is limited and

can be used for simple calculation.

[Currency Converter ]

To save exchange rate, press “OK”, then choose

Page 64

to set exchange rate. Choose one exchange rate from

the displayed options. After that, press “OK” to

confirm. Then the exchange rate will be saved in the

memory until you enter a new one to replace it. To

convert currency, enter the sum to be converted,

press “OK” and then choose to local currency or

foreign currency.

[Ebook reader]

In standby, choose [Menu/Extras/E-book

Reader]. After e-book is activated, the e-book list

will be displayed. If no e-book, click Options to

have such submenus as CleanUp Bookshelf and

Global Settings.

If there are e-books, you can choose one e-book

and press Options to have such submenus as Open

E-book, Update, System Preset, Details, Delete,

Page 65

Delete All, Ranking, Execute System Preset and

Help.

 Open E-book: Activate the current e-book and

enter the reading menu.

 Clean up bookshelf:  Global settings: You can set Font Style, Font

Size, Scroll By, Auto Scroll, Scroll Speed,

Full Screen, Encoding,alignmet and Storage

Priority.

 Book info: Display the detailed information

about the current e-book.

 Delete: Delete the current e-book.  Delete All files: Delete all e-books.  Sort by: You can have such options as As per

Page 66

Name, As per Type, As per Time, As per Size

or None to rank e-books.

 Apply global settings:You can execute the

options for the preset system.

 Help: You can have some operation

instructions. Use key 0 to go to book settings

screen;use key 1 for help;use key 2 to add a

bookmark;use key 3 to go to find screen;use

key 4 to go to jump to screen;use key 5 to go

to bookmark;use key 6 to find next;use key 7

to toggle the auto scroll;use key 8 to remove

bookmard;use key 9 to toggle full screen mode.

[File Management]

You can manage photos, MP3 and folders.

[Phone]-- The storage body is phone.

[Open]: You can open Audio, Images, Photos, My

Page 67

Music and Video folders.

Received

Audio—Audio folder

　 Play: You can play the selected content.

　 Forward: You can send audio to Profiles,

MMS, e-mail and SMS.

　 Details: You can see the date and size of the

file.

　 Rename: You can rename the folder.

　 Copy: You can copy the file into Audio,

Images, My Music, Photos, Video or specified

folders.

　 Move: You can move the file into Images, My

Music, Photos, Video or specified folders.

　 Delete: You can delete the current record.

　 Delete All files: You can delete all records in

all current folders.

　 Sort by: You can rank files as per name, type,

Page 68

time and size or choose “None”.

Ebook:

Images—Images Folder

　 View: You can see the current image.

　 Forward: You can send images to screen saver,

Switch-on Cartoon, Switch-off Cartoon, Phonebook,

MMS and SMS etc.

　 Details: You can see the date and size of the

file.

　 Rename: You can rename the folder.

　 Copy: You can copy the file into Audio,

Images, My Music, Photos, Video or specified

folders.

　 Move: You can move the file into Audio, My

Music, Images, Photos, Video or specified folders.

　 Delete: You can delete the current record.

　 Delete All files: You can delete all records in

all current folders.

Page 69

　 Sort by: You can rank files as per name, type,

time and size or choose “None”.

My Music—MP3 Folder

　 Play: You can play the current MP3.

　 Forward: You can send music to Profiles,

MMS and SMS.

　 Details: You can see the date and size of the

file.

　 Rename: You can rename the folder.

　 Copy: You can copy the file into Audio,

Images, Photos, Video or specified folders.

　 Move: You can move the file into Audio,

Images, Photos, Video or specified folders.

　 Delete: You can delete the current record.

　 Delete All files: You can delete all records in

all current folders.

　 Sort by: You can rank files as per name, type,

time and size or choose “None”.

Page 70

Photos—Photo Folder

　 View: You can see the current photo.

　 Edit: You can enter photo artist and edit the

desired photo.

　 Forward: You can send photos to screen saver,

Switch-on Cartoon, Switch-off Cartoon, Phonebook,

MMS, e-mail and SMS etc.

　 Details: You can see the date and size of the

file.

　 Rename: You can rename the folder.

　 Copy: You can copy the file into Audio,

Images, My Music, Photos, Video or specified

folders.

　 Move: You can move the file into Audio, My

Music, Images, Video or specified folders.

　 Delete: You can delete the current record.

　 Delete All files: You can delete all records in

all current folders.

Page 71

　 Sort by: You can rank files as per name, type,

time and size or choose “None”.

Video—Video Folder

　 Play: You can play the current video.

　 Forward: You can send videos to Phonebook,

MMS, e-mail, Switch-on Cartoon and Switch-off

Cartoon.

　 Details: You can see the date and size of the

file.

　 Rename: You can rename the folder.

　 Copy: You can copy the file into Audio,

Images, My Music, Photos, Video or specified

folders.

　 Move: You can move the file into Audio,

Images, My Music, Photos or specified folders.

　 Delete: You can delete the current record.

　 Delete All files: You can delete all records in

all current folders.

Page 72

　 Sort by: You can rank files as per name, type,

time and size or choose “None”.

Create Folder: Under the root directory, you can

create a new folder to save more detailed files.

Format: Formatting can clear all files in the mobile

phone and newly created folders. After formatting,

you need to restart the mobile phone and the Audio

folder and Images folder will restore automatically

and Photos folder will automatically occur after the

first photo is taken.

Memory Card

　 Open: You can open the files in the memory

card.

　 New Folder: Under the root directory, you can

create a new folder to save more detailed files.

　 Format: You can format all files in the

memory card.

　 Remove: You can remove the desired memory

Page 73

card from the mobile phone safely.

【Services】

With this function, you can access multiple

services on the Internet. These services include

weather report, news and financial and economic

information etc. This function is provided by the

network supplier. According to the services the SIM

card provides, there will be new menu options

occurring. If the SIM card and network do not

support this function, it will not be inactive. For

more details, please contact the network provider.

[WAP]

Homepage-- Start the website chosen in the

connection settings file.

Bookmarks--Yahoo and Sina. Enter the options

menu and have the following operations on the

bookmark:

 Go to: Log into the chosen website.

Page 74

 Edit: Edit the chosen bookmark name

and website.

 Send: You can send the bookmark via

SMS and via MMS.

 Delete: Delete the chosen bookmark.  Delete All: Delete all bookmarks.  Add bookmark: Add new bookmarks.

Recent pages-- Record the latest 10 web pages

browsed.

Offline pages-- saved pages Input address-- Input the website to be logged in. Service Inbox-- The mobile phone can receive

the service information (“Recommended”

information) sent by the service provider. For

example, the service information can be the notice of

related news headlines, which can include one piece

of news or a service website.

Settings

Page 75

 Edit profile

Activate profile

Edit profile

 Rename profile――settings name  Homepage-- Edit the pre-browsed

website.

 Data Account-- Choose the desired

network ID.

 Connection type-- Continuous link,

discontinuous link and HTTP.

 User Name-- The name of the user.  Password-- Set password.

Note: The setting method of other WAP settings

files is the same as that of AIRTEL GPRS.

Setting Example:

Edit the settings file

 China Mobile

 Activate the settings file

Page 76

 Edit settings file

 Rename settings file name--

Settings name

 Home-- Edit the pre-browsed

website.

 Network ID-- Choose the desired

network ID.

 Link Status-- Continuous link,

discontinuous link and HTTP.

 User Name-- The name of the

user.

 Password-- Set password.

 Browse Options-- You set whether to display

images during waiting time and when

browsing webpages.

 Service Message-- You choose ON or OFF.  Clear Cache-- You can clear cache. When the

data of the cache are excessive, network

Page 77

surfing speed can be affected.

 Clear cookies-- You can clear personal data.

[Data account ] GSM Data-- The use of GSM data will be provided

with the following ID information, such as China

Mobile.

 Account Name: China Mobile  Number: 17266  User Name : wap  Password: wap  Line Type: ISDN and analogue.  Speed: 9.6Kbps, 14.4 Kbps, 4.8 Kbps  DNS: 010.000.000.172

GPRS-- The use of GPRS data will be provided

with the following ID information, such as China

Mobile GPRS

 Account Name: China Mobile GPRS  APN: cmwap

Page 78

 User Name: wap  Password: wap  Auth.type: General and confidential.

Note: For related charging standard and detailed

settings, please consult the local network

service operator. Different network service

providers provide different services. Consult

the local network operator.

【Messages】

[Text message ]

SMS is a kind of network service that cannot be

used to send and receive short messages until you

apply to the network operator

The SMS is sent to the SMS center of the

network and then sent by the network to the target

user (GSM user). If the user does not switch on the

mobile phone or the mobile phone cannot receive

the SMS (the memory is full), the network will save

Page 79

the SMS temporarily. The duration of storage

depends on sender’s settings and network service

provider.

With this function, the mobile phone can send

and receive chain text messages, which may affect

the message fees. For more information, please

consult the service provider.

When the SMS capacity is full, there will be an

SMS icon flickering on the standby interface. The

full capacity can affect SMS reception. Delete some

SMS to solve the problem.

If the other party has received SMS, you will

hear the alert sound from the mobile phone (if such

alert function is set as ON)

Note: When sending SMS via the SMS network, the

mobile phone may display “Message sent”. It

indicates that the SMS has been sent to the SMS

center inbox set in the mobile phone but does not

Page 80

mean the receiver has received the SMS. For more

information, please consult the service provider. Write Message

You can write message in this menu.

Every SMS can contain 4 pages English characters;

To write SMS, press “Aa” key to switch input modes,

“sym” key to select Symbol;

one character before the cursor, long press “Del key”

to delete all characters; press the end key to back to

the standby interface, press the up and down

direction key to choose characters, press “select”

key to confirm.

The mobile phone can send the chain SMS

more than characters (limit for common text

messages). If the SMS contains more than 140

English characters, then the SMS will be split into

2pcs or more. You can insert images, cartoons, rings

etc into SMS. However, the SMS will not be

press “Del key” to clear

Page 81

received and displayed unless the network and the

receiving mobile phone support.

You can enter the phone number or choose a

number from the phonebook to send the SMS.

Inbox

You can see the SMS in the inbox.

 Reply: You can reply to the received SMS.  Delete: Delete the current SMS.  Forward: You can directly forward this SMS to

others.

 Copy to Phone: You can copy the entries in SIM

card onto the phone.

 Move to Phone: You can move the entries in

SIM card onto the phone.

 Delete All: You can delete all SMS in inbox.  Copy all: You can have two options, i.e. copy all

entries on the SIM card in the inbox onto the

phone or vice versa.

Page 82

 Move all: You can have two options, i.e. move

all entries on the SIM card in the inbox onto the

phone or vice versa.

 Use Number: You can extract the number in the

SMS and save it or dial a call.

 Use URL: You can link to the website contained

in the received SMS.

 Use USSD:  Use email address:  Chat:select chat room,and set remote number to

chat.

Outbox

While sending SMS, if choosing “Save and

Send”, you can save the SMS into the Outbox. You

can directly save the edited SMS into the Outbox, in

such case, the Outbox will display “No number”, i.e.

no target number. If you fail to send the SMS, it will

be saved in the Outbox. Also, you can have such

Page 83

operations as send ,edit,delete,copy to phone move to phone,delete all,copy all,move all,use number ，

use URL,Use USSD and Use email address.

Templates

With it, you can pre-edit some common phrases,

which is convenient for quick SMS editing.

SMS Settings

 Profile Settings: To send SMS, you must

input the SMS center number.

Note: The SMS center number is provided by the

network operator.

 Common Settings

 Delivery Report: The network will

inform you whether the other party has

received the SMS and what the time is.

 Reply Path: You can send the reply path

to the network terminal. This function

needs the support from the SMS center.

Page 84

 Memory Status: You can view the capacity

of the SIM card or the phone for SMS.

 Preferred Storage: You can set the storage

position (SIM or phone) for SMS.

[MMS ]

MMS can contain words, sound and photos. If

the MMS is out of the limit, the mobile phone will

be unable to receive the MMS. If the MMS contains

photos, the mobile phone will adjust photos so as to

display them on the screen completely.

The display effect of MMS depends on

reception devices.

Note: You cannot use photo messages unless the

network operator or service provider supports to do

so. You cannot receive and display MMS unless the

mobile phone has the compatible MMS or e-mail

function.

Write Message

Page 85

Receiver

Add Number-- Input the number of the

receiver.

Add E-mail-- Input the e-mail of the receiver.

Copy

 Add Number-- Input the number of the

receiver.

 Add E-mail-- Input the e-mail of the

receiver.

Secret copy

 Add Number-- Input the number of the

receiver.

 Add E-mail-- Input the e-mail of the

receiver.

Subject: You can edit the subject of the MMS Edit

Content

After the MMS is edited, press the OK key to

have the following options:

Page 86

 Done: Finish the editing of the current

MMS.

 Input Method: You can choose the

desired input method.

 Add Picture: You can insert your

desired Picture.

 Add Audio: You can insert your desired

audio.

 Add Video: You can insert your desired

video.

 Add attachment:You can insert your

desired annex

 Add slide before:You can add new

page before

 Add slide after: You can add new page

after

 Add bookmark text:You can insert your

bookmark

Page 87

 Preview: You can preview the editing

effect of the MMS.

 Slide timeing: You can set the play time

of the current page MMS.

Inbox

You can see the MMS in the inbox and have the

following operations:

 view: You can view the MMS and save photos,

audio and annex.

 Reply: Reply the sender with MMS.  Reply by SMS: Reply the sender with SMS  Reply All: If the MMS you receive has been

sent to many receivers by the sender, with such

function, you can send a reply MMS to the same

receivers.

 Forward: You can directly forward this MMS to

others.

 Delete: Delete the current MMS.

Page 88

 Delete All: You can delete all MMS in inbox.  Save as template:take a new mms as a template  Properties:the details of the new mms including

subject,date and file size.

 Use details: View the detailed information of the

current message.

Outbox

You can view the MMS send and saved in the

Outbox and failed and have such operations as view,

send,delete,delete all,save as template,properties,use

details.

Drafts

You can save the edited MMS into the draf

ts, and also you can have such operations as vi

ew, send,edit,delete,delete all,save as template,pro

-perties,use details on the MMS in the drafts.

Templates

There are 5pcs preset MMS in the mobile

Page 89

phone and you can have such operations as View,

Details and write message,properties from Template. MMS Settings: You can set some parameters of the MMS in the menu.

compose:

 creation Mode-- "restricted" and “free

 picture resizing-- You can reduce the

size of the inserted

photo,including:160*120,320*240 and

Off.

 Best page time  Automatic Signature-- You can on/off

such function.

 signature :You can edit the content of

the automatic signature.

Send:

 validity Period-- You can set the time to

Page 90

save in the MMS service center and

send, including 1h, 6h,12h, 1d, 1w and

Max.

 delivery report--You can on/off such

function.

 Read Report- You can on/off such

function.

 Priority-- Including Normal, High and

low.

 Slide timing-- The time space when the
