SunTech CT40 User Manual

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 1

Spot-check Vital Signs Device

User Manual

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 2

Changes

This manual is identified as Part number: 80-0067-00. The most recent is available for download from the SunTech
Medical website. Should you notice errors or omissions in this manual, please notify us at:

SunTech Medical, Inc.
507 Airport Boulevard, Suite 117
Morrisville, NC 27560 USA
Tel: [phone]

919.654.2300
Fax: [phone]
Email: [e-mail]
Web: SunTechMed.com

Copyright Information

All content in this manual is the proprietary of SunTech Medical and is provided solely for purposes of operation,
maintenance or service of the SunTech CT40. This manual and the SunTech CT40 described herein are protected
under copyright law under which states they may not be copied, in whole or in part, without written consent of
SunTech Medical.

The information in this manual is furnished for guidance only, is subject to change without notice, and should not be
construed as a commitment by SunTech Medical. SunTech Medical assumes no liability for errors or inaccuracies
that may appear in this manual.

© 2017 SunTech Medical. All rights reserved.

SunTech Medical, Inc.
507 Airport Blvd, #117
Morrisville, NC 27560-8200
Phone: [phone]
1-800-421-8626
Fax: [phone]

SunTech Medical, Ltd.
Oakfield Industrial Estate
Stanton Harcourt Road
Eynsham, Oxfordshire OX29 4TS
England
Phone: + 44 (0) 1865-884-234
Fax: + 44 (0) 1865-884-235

SunTech Medical (Shenzhen) Co., Ltd.
105 HuanGuan South Road, Suite 15 2~3/F
DaHe Community Guanlan,
LongHua District, Shenzhen
GuangDong PRC 518110
Tel: + 86-755-29588810
+ 86-755-29588986 (Sales)
+ 86-755-29588665 (Service)
Fax: + 86-755-29588829

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 3

Welcome to the SunTech CT40

Thank you for choosing the SunTech CT40 for accurate spot-checking of vital signs.

The SunTech CT40 is designed to be simple and efficient to use and the CT40 features:

• mobility for improved and compact efficiency in a cost-effective package

• automatic BP checks

• averaging of multiple BP readings

• optional use of stethoscope for traditional auscultatory BP measurement

• robust memory

• connection to EMR system

• multiple options for pulse oximetry and temperature measurement

SunTech CT40 Description and Operation

The CT40 vital signs device can perform automatic blood pressure, pulse oximetry and body temperature
measurements for clinical professionals. For measuring blood pressure, a blood pressure cuff is placed around the
patient’s non-dominant upper arm. The cuff is inflated automatically and blood pressure is determined by the
oscillometric method—which senses pressure waves in the artery when occluded by pressure in the cuff.
Measurement of the frequency of the pressure waves enables heart rate to also be measured. The pulse oximetry
function non-invasively measures the patient’s percent oxygen saturation of arterial hemoglobin using principles of
plethysmography via a SpO2 sensor placed on the patient’s finger. Temperature can be measured using one of two
different kinds of temperature probes. The oral/axillary/rectal temperature probe contains a thermistor that
generates a voltage based on changes in temperature, and these voltages are recorded by the temperature circuitry.
The touchless infrared temperature probe detects radiated infrared energy from the temporal artery. The CT40 is a
portable device, approximately 205 x 190 x 140 mm in size and weighs approximately 1440 g without battery. Control
buttons allow the user to stop/start a BP measurement, save a set of measurements to memory, change between BP

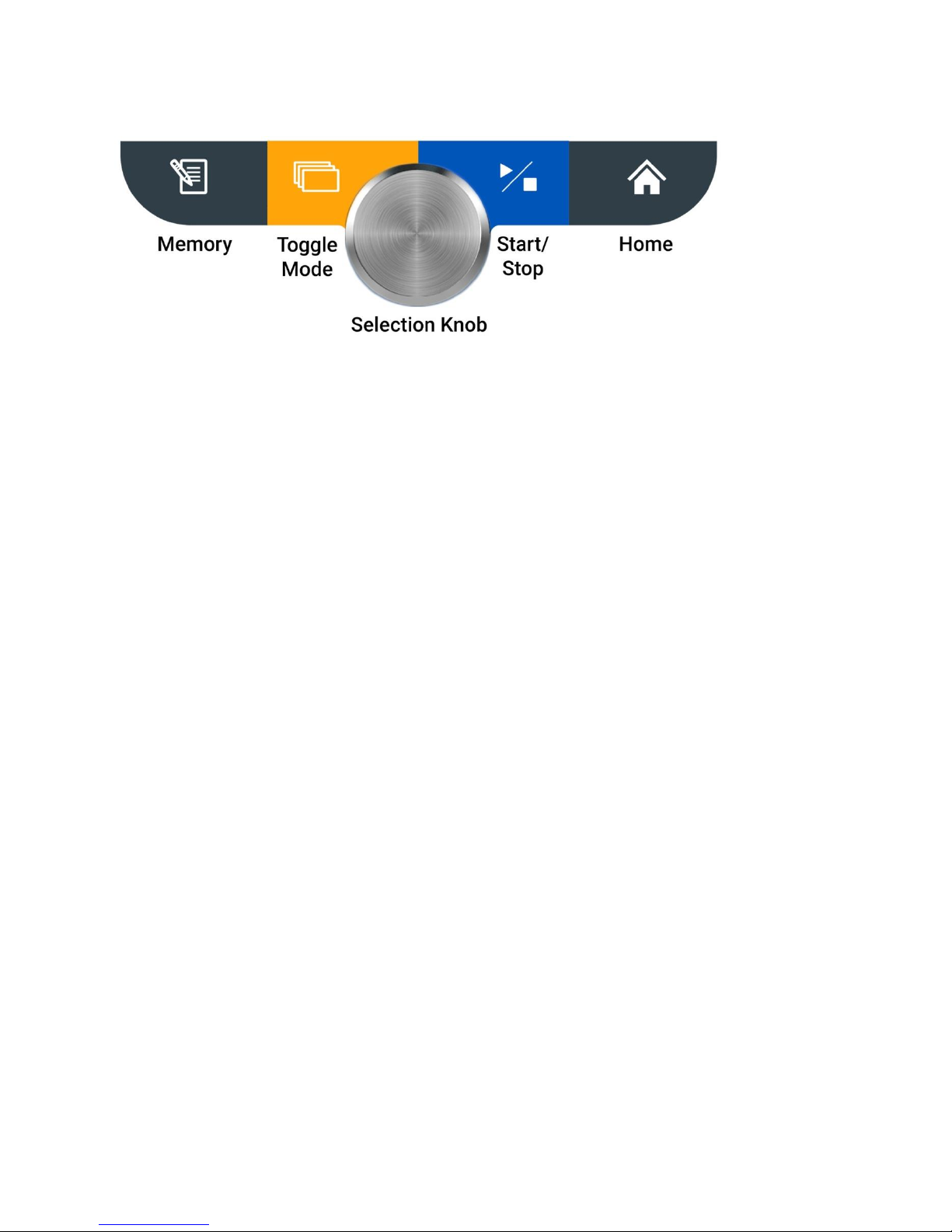

modes, and return to the home screen. There is also a selection knob that is used to scroll and select different device
options. The backlit LCD display shows the user device status and measurement information. The device uses a
microprocessor with software, which is not accessible to the user. The unit is powered by a single rechargeable
lithium-ion battery at the rear of the device. Two USB-A port connections can be used to connect, an optional printer,
barcode scanner or Wi-Fi dongle. There is also RJ11 Ethernet port for network connectivity, and a mini-USB port used
to connect the device to a PC or laptop for advanced device configuration.

Note: For purposes of this manual, the SunTech CT40 (Model 260) may be referred to as “the SunTech CT40,” “the
CT40” or “the device”.

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 4

Table of Contents

Changes .................................................................... 2

Copyright Information .............................................. 2

Welcome to the SunTech CT40 ............................... 3

SunTech CT40 Description and Operation .............. 3

1. Safety Considerations ....................................... 5

Intended Use ............................................................ 5

Indications for Use ................................................... 5

User Responsibility ................................................... 5

Possible Adverse Reactions .................................... 6

Warnings and Cautions ............................................ 6

Icons, Symbols and Abbreviations .......................... 8

Commonly Used Abbreviations ............................... 9

2. Setting Up the SunTech CT40 ............................. 9

Unpacking the Monitor ............................................. 9

Rear Panel Configuration ....................................... 10

Side/Temperature Panel Configuration ................ 10

Side/SpO2 Panel Configuration ............................. 11

Install Batteries ...................................................... 12

Battery Disposal ..................................................... 12

Attach Connections to the Device ......................... 12

Mounting Options ................................................... 13

System Configuration ............................................ 13

3. Getting to Know the SunTech CT40 ....................13

Measurement Display ............................................ 13

Control Panel .......................................................... 16

Monitor Setup ......................................................... 16

Visual Alarms ......................................................... 17

4. Good to Know Before You Begin .........................17

Power Modes ......................................................... 17

Documenting Measurements ................................ 17

Printing ................................................................... 18

Saving Measurements ........................................... 18

5. Using SunTech CT40 for BP Measurement ........19

Step 1: Preparing the Patient ................................. 19

Step 2: Select Between Adult Vs Pediatric Mode . 20

Step 3: Select Measurement Mode ....................... 20

Step 4: How to Measure BP in Each Mode ........... 22

Step 5: Record Results ........................................... 23

Step 6: Prepare for New Patient ............................ 23

6. Using SunTech CT40 for Heart Rate Measurement
…………………………………………………………………………..24

BP Heart Rate Measurement ................................. 24

SpO2 Heart Rate Measurement ............................. 24

7. Using SunTech CT40 for Pulse Oximetry ............24

General Principle of Operation: .............................. 24

System Description: ............................................... 26

Taking SpO2 Measurements: ................................. 26

Special Notes for Masimo® SET SpO2 module: .... 26

Special Notes for ChipOx SpO2 module: ............... 28

8. Using SunTech CT40 for Temperature

Measurement ........................................................29

Covidien® FILAC® 3000 Thermometry Module ..... 29

Oral Temperature Taking ....................................... 30

Axillary Temperature Taking .................................. 30

Rectal Temperature Taking ................................... 30

Other FILAC® 3000 Temperature Settings ............ 31

Touchless Thermometry Module* ......................... 31

9. Using SunTech CT40 EMR and Memory Functions
…………………………………………………………………………..32

Memory Mode ........................................................ 32

EMR Transmissions ............................................... 33

10. Taking Care of SunTech CT40 ......................... 34

Cleaning .................................................................. 34

Preventative Maintenance ..................................... 35

Replacing and Disposal of the Battery .................. 35

Battery Disposal ..................................................... 35

Product Disposal .................................................... 35

Cuff Disposal .......................................................... 35

Routine Calibration ................................................. 35

11. Accessories & Replacement Parts ................... 36

Main Unit ................................................................ 36

Masimo® SET SpO2 Module ................................... 37

ChipOx (Nellcor® Compatible) SpO2 Module ........ 37

Covidien® FILAC® 3000 Temperature Module ...... 37

Touchless IR Temperature Module ....................... 37

Stands/Printer/Scanner ......................................... 37

12. Status Messages & Alarms .............................. 38

Status Messages ................................................... 38

Out of Range Measurements ................................. 40

Service Centers ...................................................... 41

13. Frequently Asked Questions ............................ 41

14. Technical Information ..................................... 42

EMC Statement ...................................................... 42

Specifications, General .......................................... 46

Specifications, Blood Pressure Measurement ...... 46

Notes on Blood Pressure Data .............................. 47

SP02 Sensor Specifications ................................... 47

Temperature Sensor Specifications ...................... 47

Limited Warranty .................................................... 48

Conflict Minerals .................................................... 48

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 5

1. Safety Considerations

Intended Use

The SunTech CT40 is a clinical grade, automated blood pressure measurement device with optional
temperature and pulse oximetry modules for spot-check vital sign measurements in physician offices, long­term care facilities, and low-acuity areas in hospitals. The CT40 can be used in combination with a clinical IT
network to transfer and store patient measurement data on an EMR system.

Indications for Use

The SunTech CT40 is a non-invasive oscillometric spot-check vital signs device. The CT40 is capable of measuring
and displaying brachial systolic and diastolic blood pressure, heart rate, percent oxygenated hemoglobin (SpO2) and
body temperature on children 3 years of age to adults. This device is intended for use by a qualified clinician when it
is necessary to take a single or a series of vital signs measurements on a patient. The CT40 is only for measurement,
recording and display. It makes no specific diagnoses.

The SunTech CT40 is intended to be used on adult and pediatric patients using appropriately-sized SunTech One­piece Durable (OPD) BP cuffs.

User Responsibility

Your SunTech CT40 is designed to perform in conformity with the description thereof contained in this operation
manual and accompanying labels and inserts, when assembled, operated, maintained and repaired in accordance
with the instructions provided.

Further, the user of this device bears sole responsibility for any malfunction that results from improper use, faulty
maintenance, improper repair, damage or alteration by anyone other than SunTech Medical or authorized service
personnel.

Use of SunTech CT40

Use only One-piece Durable (OPD) BP cuffs supplied by SunTech Medical.

Observe the patient carefully during the measurement. Ensure pressure compatibility to all patients. If any
abnormality occurs, either in the unit or the patient, suspend the operation immediately and disconnect the BP cuff,
SpO2 sensor and thermometer (if applicable) from the patient.

Accuracy of any BP reading or oxygen saturation measurement may be affected by the position of the patient, their
physical condition and use outside of the operating instructions detailed in this guide. The interpretation of BP and
oxygen saturation measurements should only be made by a physician.

Safety and effectiveness when used with pregnant women, children under 3 years of age and neonates have not been
established.

Pulse Oximetry (SpO2)

ChipOx SpO2 Module: Use only pulse oximeter (SpO2) sensors supplied by SunTech Medical or original Nellcor® pulse
oximeter (SpO2) sensors supplied by Covidien® (except for forehead reflectance sensors).

Masimo® SpO2 Module: Use only original Masimo® pulse oximeter (SpO2) sensors and cables.

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 6

Check the application site of the SpO2 sensor frequently to confirm proper positioning of the sensor and to check the
circulation and skin sensitivity of the patient.

Wireless Networking

When connecting this device to a wireless network, it is important to use only the hardware specified by SunTech
Medical (see Accessories section for details). Unsupported USB accessories, including unsupported Wireless
adapters, have been intentionally disabled and will not function with this device.

Possible Adverse Reactions

In the area of the BP cuff or SpO2 sensor, allergic exanthema (symptomatic eruption) may result, including the
formation of urticaria (allergic reaction including raised edematous patches of skin or mucous membrane and
intense itching) caused by the fabric material of the cuff or sensor.

Following the application of the BP cuff, petechia formation (a minute reddish or purplish spot containing blood that
appears in the skin) or Rumpel-Leede phenomenon (multiple petechia) may appear on the arm, which may lead to
idiopathic-thrombocytopenia (spontaneous persistent decrease in the number of platelets, associated with
hemorrhagic conditions) or phlebitis (inflammation of a vein).

Warnings and Cautions

WARNING: Do not attach the cuff to a limb being used for IV infusions or any other intravascular access, therapy or
an arteriovenous (A-V) shunt. The cuff inflation can temporarily block blood flow, potentially causing harm to the
patient.

WARNING: Pressurization of the cuff can temporarily cause loss of functionality of SpO2 if simultaneously using
device on the same limb.

WARNING: Not designed for neonates.

WARNING: Do not apply the BP cuff to a limb being used for IV infusions as the cuff inflation can temporarily block

the infusion, causing harm to the patient.

WARNING: Check frequently by observing the limb that operation of the AUTOMATED SPHYGMOMANOMETER does
not result in prolonged impairment of the circulation of the patient.

WARNING: The cuff should not be applied over a wound as this can cause further injury.

WARNING: The cuff should not be placed on the arm on the side of a mastectomy. In the case of a double

mastectomy use the side of the least dominant arm.

WARNING: The CT40 is NOT defibrillator protected.

WARNING: Do not use in the presence of flammable anesthetics or other flammable substances in combination with

air, oxygen-enriched environments, or nitrous oxide.

WARNING: Do not use the device if it has failed its diagnostics self test, or if it displays a greater than zero pressure
with no BP cuff attached or a value of oxygen saturation with no SpO2 sensor attached.

WARNING: Do not use if device is dropped and/or damaged. Have a qualified service representative check the unit
before using again.

WARNING: Do not remove unit covers. Doing so may cause electrical shock to the user. The device does not contain
any user serviceable components.

WARNING: Do not immerse the device in any fluid, place fluids on top, or attempt to clean the unit with any liquid
detergents, cleaning agents, or solvents. This may cause an electrical hazard. Refer to the cleaning section of this
guide for instructions on cleaning. If any of these situations apply, please contact SunTech Medical.

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 7

WARNING: Remove power before servicing device. Failure to remove power could cause electrical shock or death.

WARNING: A pulse oximeter should NOT be used as an apnea monitor.

WARNING: Pulse rate measurement is based on the optical detection of a peripheral flow pulse and therefore may

not detect certain arrhythmias. The pulse oximeter should not be used as a replacement or substitute for ECG based
arrhythmia analysis.

WARNING: Do not use the device or any of its accessories during magnetic resonance imaging (MRI) scanning.
Induced current could potentially cause burns.

WARNING: Tissue damage can be caused by incorrect application or use of an SpO2 sensor, for example by wrapping
the sensor too tightly. Inspect the sensor site as directed in the sensor Directions for Use to ensure skin integrity and
correct positioning and adhesion of the sensor.

WARNING: Do not use high frequency surgical equipment with the CT40 as this may cause loss of stored data

WARNING: No modification of this equipment is allowed.

WARNING: Federal (U.S.) law restricts this device to sale by or on the order of a physician.

CAUTION: A compressed or kinked connection hose may cause continuous cuff pressure resulting in blood flow
interference and potentially harmful injury to the patient.

CAUTION: Check calibration of this device annually.

CAUTION: Calibration should be done by a biomedical technician or other authorized personnel.

CAUTION: Never knowingly use a defective device.

CAUTION: Immediately replace parts that are broken, worn, missing, incomplete, damaged or contaminated.

CAUTION: Contact the nearest SunTech approved service center should repair or replacement become necessary. A

list of approved service centers appears in the guide or on our website at www.SunTechMed.com.

CAUTION: The reliability of the device depends upon conformance with the operation and service instructions, as
detailed in this manual.

CAUTION: Only replace battery with same type and model number.

CAUTION: To avoid the risk of electrical shock, this equipment must be only connected to supply mains with

protective earth.

CAUTION: Do not connect the device to equipment that does not meet EN60601-1. When the device is attached to a
patient, the device’s communication ports must only be connected to equipment that meets EN60601-1 standard.

CAUTION: Use only SunTech branded cuffs approved for use on the CT40 device.

CAUTION: Use only Masimo® oximetry sensors for SpO2 measurements with the Masimo® SpO2 module. Other

oxygen transducers (sensors) may cause improper performance.

CAUTION: Do not use damaged SpO2 or temperature sensors. Do not use a SpO2 sensor with exposed optical
components.

CAUTION: Do not immerse the SpO2 or temperature sensors in water, solvents, or cleaning solutions (the sensors and
connectors are not waterproof). Do not sterilize by irradiation, steam, or ethylene oxide. See the cleaning instructions
in the Sensor Directions for Use.

CAUTION: Do not use damaged patient cables. Do not immerse the patient cables in water, solvents, or cleaning
solutions (the patient cable connectors are not waterproof). Do not sterilize by irradiation, steam, or ethylene oxide.
See the cleaning instructions in the patient cable directions for use.

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 8

CAUTION: Do not position the device so that it is difficult to access and remove the power cord from the electrical
supply. The AC power cord is the means of disconnection to the supply mains.

Icons, Symbols and Abbreviations

Icons and Symbols

The following icons and symbols are used in this guide, on the SunTech CT40 equipment and packaging.

Warning message

Caution message

Manufacturer

Manufacture Date

Authorized representative in the European Community

Catalog Number

Serial Number

Batch or Lot Code

Fragile, handle with care

Keep dry

Temperature limit

Humidity limitation

Consult instructions for use

Refer to instruction manual/booklet

Type B

Type BF Applied Part. Part is isolated from earth ground.

Indicates that the device contains materials which may be
hazardous to human health.

CE Mark: Product meets the Medical Device Directive and is CE
marked to indicate conformance

SpO2 Sensor. Type BF Applied Part

USB-A or USB-B

Warning: Federal (U.S.A.) law restricts this device to sale by or on
the order of a licensed health care practitioner.

Device includes RF transmitter.

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 9

Indicates the arm circumference which is appropriate for the cuff

Cuff index marker, OPD

Artery marker indicating proper placement – Arrow and symbol
should be placed over the brachial artery.

Cuff range indication

Device is not made with natural rubber latex

Device is not made with PVC

Class II Equipment

IPX1

Protection against vertically falling drops of water

Expiration Date

Single Use Only

Commonly Used Abbreviations

BP Blood Pressure

BPM Beats Per Minute

EMR Electronic Medical Record system

K-sounds Korotkoff sounds

MAP Mean Arterial Pressure (Not available in the U.S.)

DIA Diastolic BP

NIBP Non-Invasive Blood Pressure

OPD One-piece Durable

SpO2 Percent Oxygen Saturation of Arterial Blood (hemoglobin)

SYS Systolic BP

2. Setting Up the SunTech CT40

Unpacking the Monitor

As you unpack your SunTech CT40, check to make sure you have all the proper components.

Refer to the separate packing label stating which components you received based on the options you ordered with
your device.

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 10

Rear Panel Configuration

SunTech CT40 connections on the back of the device:

Connect AC power cord

Wi-Fi USB dongle (optional)

Printer or barcode scanner USB cable (optional)

Ethernet cable (optional)

Mini USB cable to connect to PC or laptop

Side/Temperature Panel Configuration

If no temperature module will be added, then attach the right panel of the CT40, using the included Phillips-head
screwdriver. This panel will be on the right side, when the screen is facing the user.

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 11

To add a temperature module, attach the module on the right side of the main unit. Fasten with the included Phillips­head screwdriver.

For FILAC®:

Temperature unit connector: Insert the probe/well-assembly into the top of the FILAC® module.

For Touchless:

Plug in the touchless thermometer cable connector into the already inserted module.

Side/SpO2 Panel Configuration

Remove the left panel of the CT40, using a Phillips head screw driver. This panel will be on the left side, when the
screen is facing the user.

To add an SpO2 module, attach the module on the left side of the main unit. Fasten with the included Phillips-head
screwdriver.

For Masimo®:

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 12

Attach the Masimo® extension cable to the connector on the module, making sure that the connectors lock together.
Then, attach the Masimo® SpO2 sensor to the other end of the extension cable making sure that the retaining clip is in
place.

For ChipOx:

Attach the ChipOx SpO2 sensor to the connector on the module while the retention clip is held upwards. Once the
sensor/cable connector is inserted, push the clip downward over the connector to hold it securely in the module. For
easy insertion, ensure module is parallel to the device.

Install Batteries

Install the rechargeable battery into the battery bay. Please read the battery instructions and the label on its surface

before use. Allow 8 to 12 hours for charging. All segments of the Battery Symbol will be lit when the device is fully

charged.

CAUTION: Fire, explosion and severe burn hazard. Replace only with SunTech part number: 98-0900-00.

If not installed in the device, the battery shall be kept away from heat, fire or other high temperature environments.
Keep the battery in a dry place stored at room temperature.

Do not disassemble, attempt to repair or use the battery for any other device or for any other purpose.

Do not place near any metal or use metal to shield the battery from physical damage as this may cause battery
overheating and/or a fire risk.

Do not short across the contacts of the battery or attempt to discharge the battery by shorting as a risk of fire or
explosion may result.

Do not expose or immerse the battery in water or attempt to clean with any cleaning agents. Only wipe battery with a
damp cloth if necessary.

Wash the affected area if electrolyte spills on skin or clothes. Leaking electrolyte may cause discomfort to the skin. If
it gets into the eyes, do not rob the eyes. Flush eyes immediately with water, and seek medical attention.

Battery Disposal

The SunTech CT40 device contains a lithium ion battery that contains materials which may be hazardous to
human health. Do NOT dispose of battery in domestic waste! Instead, please dispose of in an environmentally
responsible way, or return the battery to SunTech Medical. A prepaid return label can be obtained. Please see our
website for more information about our environmental policy at http://www.suntechmed.com/about-

suntech/environmental-policy.

Attach Connections to the Device

After connecting the Power Cable, plug into an available AC power outlet to charge batteries.

Connect the BP cable, SpO2 sensor cable, and temperature sensor (if option is included) to the device.

Connect the barcode scanner and/or printer to the device if these options are included.

Use the Power Button on the left side of the SunTech CT40 to turn it on.

NOTE: The blue LED around the Selection Knob will be lit whenever the device is powered on.

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 13

Mounting Options

The SunTech CT40 is designed to be used on a tabletop or mounted to a wall or mobile stand. Your device may be
delivered with the appropriate mounting kit, depending on the configuration your facility ordered. Please see the
separate mounting hardware instructions.

System Configuration

The SunTech CT40 can be used out of the box with the factory settings. Any changes desired to the factory settings
can be made using the Advanced Configuration Application. The Advanced Configuration Application can be
accessed when the device is connected to a Windows device. Advanced configuration, such as connecting to a
network or EMR system, should be done by a qualified technician. See Advanced Configuration Application Guide
(SunTech document 80-0072-00-MO) for details.

Advanced device configuration, such as choosing either BP or SpO2 as the pulse rate source, or activating MAP
measurement (not available in the U.S.), is also done using the Advanced Configuration Application.

3. Getting to Know the SunTech CT40

Measurement Display

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 14

Patient Identification and Date/Time Stamp

Patient ID

Memory Mode Information

Memory icon

Memory Delete icon

Connections to Ancillary Devices and Networks

: Wi-Fi radio on (segments will illuminate in series)

Wi-Fi radio connected (segments will be illuminated continuously)

AC power connected

Printer connected and powered on

Barcode scanner connected and powered on

Error Alert Symbol

WARNING: User must take immediate action (see additional information in Section 12)

Battery Level Indicator

Battery symbol (All bars illuminated indicate a full charge)

Blood Pressure Measurement Mode Selection Icons

: Auscultatory Sphygmomanometer Mode

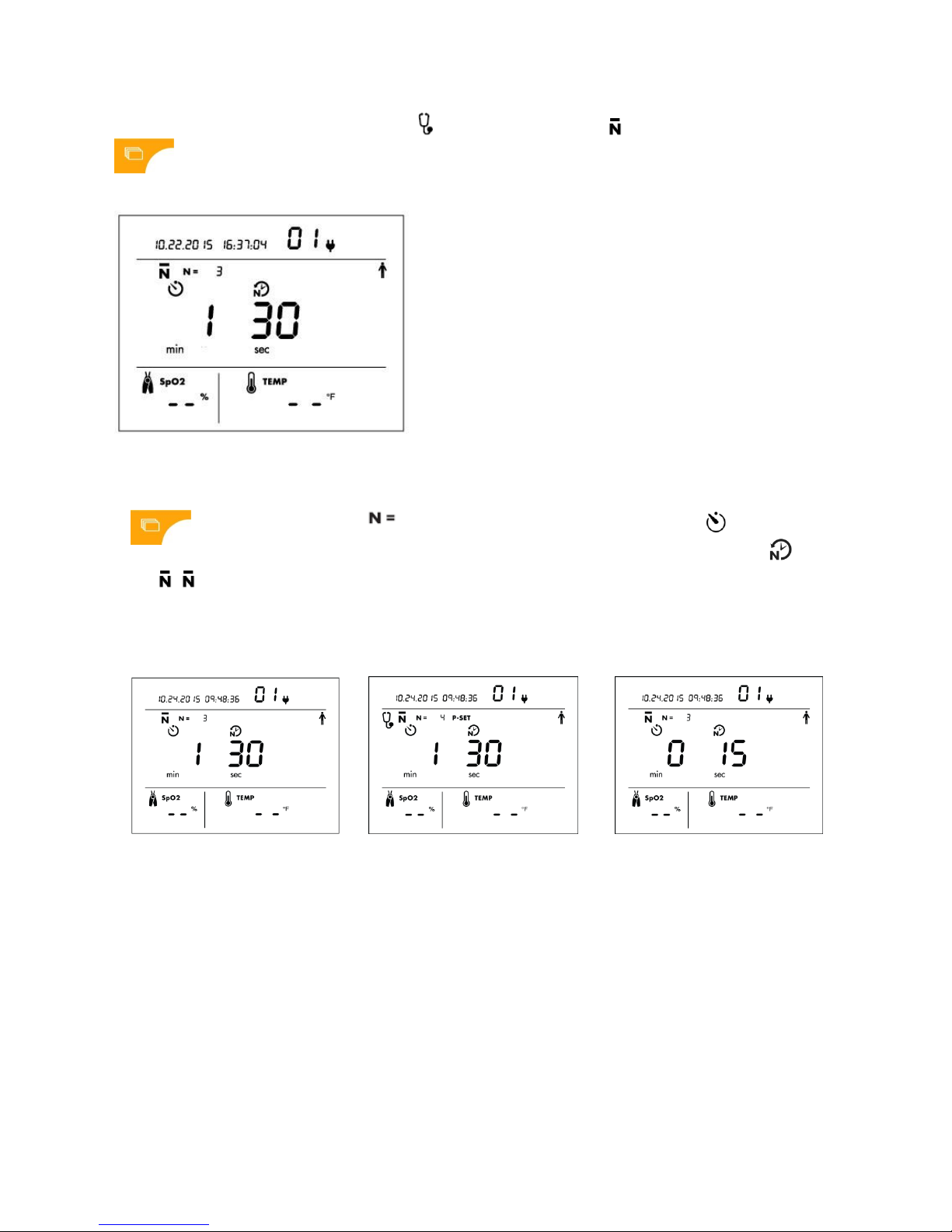

: Averaging mode

: Number of measurements taken in averaging mode

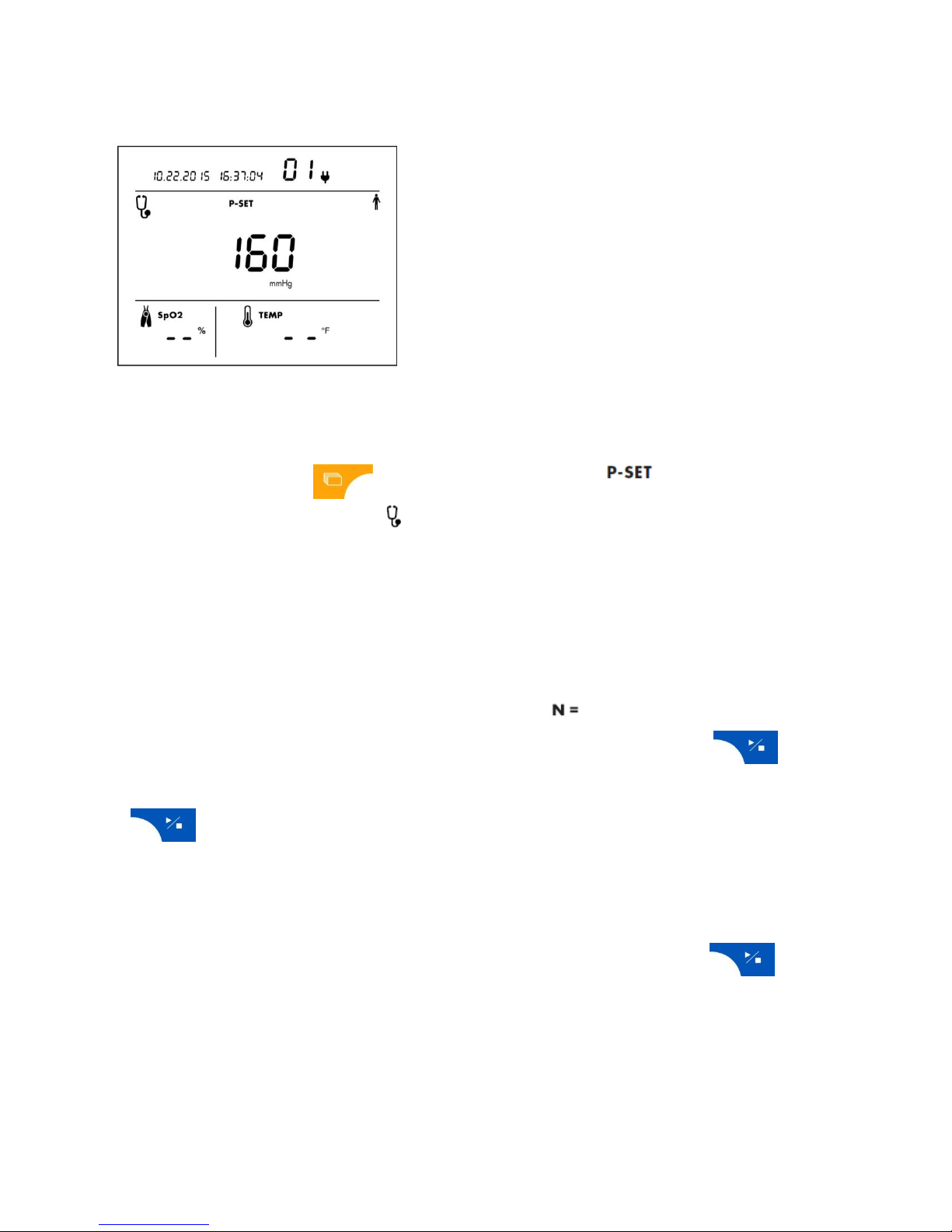

: Maximum pressure setting for Auscultatory Sphyg Mode

: Time before first measurement in minutes (Illuminates when Averaging Mode is selected)

: Time between measurements in seconds (Illuminates when Averaging Mode is selected)

Blood Pressure Results (DIA and SYS)

DIA and mmHg: Diastolic blood pressure

SYS and mmHg: Systolic blood pressure

EMR Transmission Icons

: EMR icon prompts the user to confirm whether or not to send measurement data as message to EMR

system. (Only shown if EMR connectivity has been set up via Configuration Application.)

: Message icon (Indicates if EMR messaging is successful)

80-0067-00-MO-RevF 2017-10-03 SunTech CT40 User Manual | 15

If successful, the icon will flash on and off with check mark.

If not successful, it will flash on and off with X.

Adult or Child Patient Selection

Press and hold toggle button for 4 seconds, until selection knob starts flashing. Release toggle button, and use the
selection knob to select the icon needed. Selected icon will blink after 1 second. Press the selection knob to confirm
the selection.

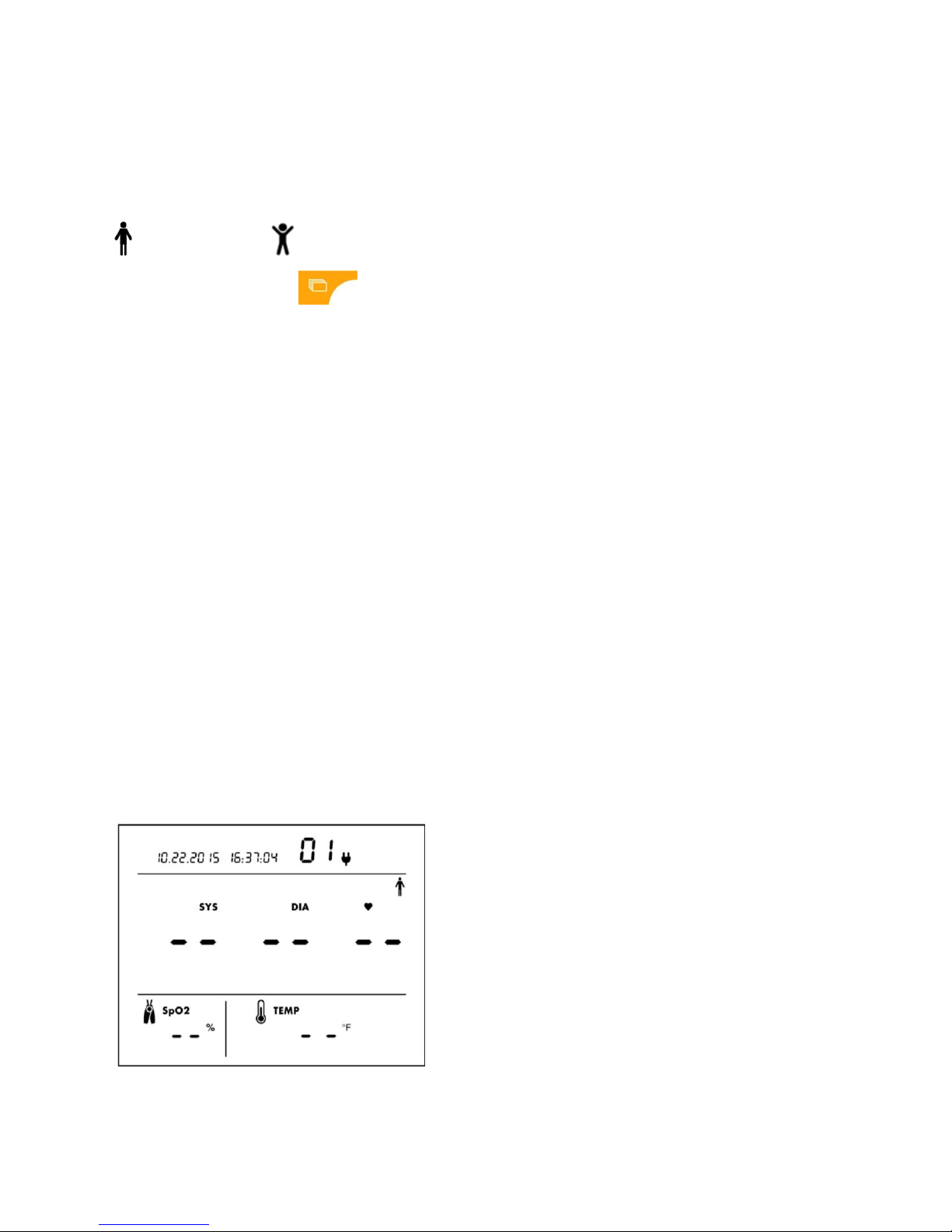

: Adult BP Mode icon. This icon is illuminated when the Adult BP mode is selected.

: Pediatric BP Mode icon. This icon is illuminated when the Pediatric BP mode is selected. The CT40 will remain in

the selected patient mode until a new mode is selected.

Heart Rate and MAP Measurements

♥: Measured in BPM (Beats per minute), is illuminated when a heart rate is shown in the heart rate display.

MAP: Measured in mmHg is illuminated when a MAP value is shown (only if MAP functionality is enabled). NOTE:
This is a factory setting. MAP is not available in the U.S.

Pulse Oximetry Measurement Display

: Expressed in % of arterial oxyhemoglobin

Temperature Measurement Settings and Results Display

: Body temperature in either Fahrenheit or Celsius (user selectable)

: Cold Pre-heat mode

: Predictive mode

: Direct mode

: Human thermometry mode. Temporal (arrow on left side of head), Oral (arrow on right side of head), Axillary

(arrow under arm), or Rectal (arrow pointing to rectum).

: Object thermometry mode. Illuminates when object thermometry mode has been selected.

: Apply temp probe cover
