Sunstream FL10, FL13, FL15 Assembly And Installation Manual
FA-HC30144

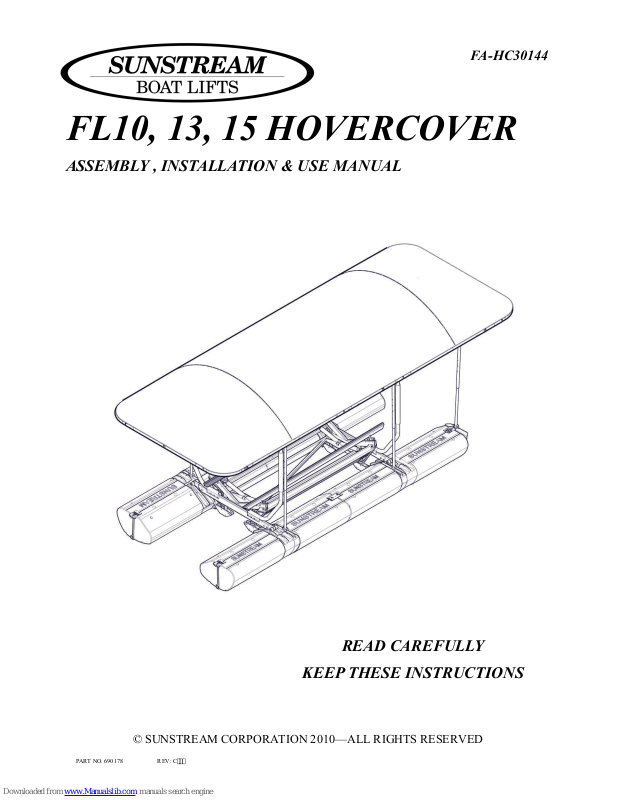

FL10, 13, 15 HOVERCOVER
ASSEMBLY , INSTALLATION & USE MANUAL
© SUNSTREAM CORPORATION 2010—ALL RIGHTS RESERVED
PART NO. 690178 REV: C
READ CAREFULLY
KEEP THESE INSTRUCTIONS
Table of Contents
Disclaimer of Liability
Parts List
Assembly
Height Adjustment
Safety Instructions/Maintenance
Warranty
3
4-5
6-19
20
21
22
Tools Recommended
Socket Wrench, 9/16” & 1/2” sockets
9/16” Wrench
1/2” Wrench
Drill
5/16” & 3/8’ Drill bits
3/8” Nut Driver
Screwdriver
Anti-seize
PART NO. 690178 REV: C 2
Disclaimer of Liability
These assembly and installation instructions have been provided by Sunstream Corporation at the
request of the potential installer and/or assembler. If you are not an authorized Sunstream Dealer
and are not a reasonably skilled mechanic, please contact Sunstream so that we can refer you to a
local dealer who can skillfully and safely perform the assembly and installation of your Sunstream
boat lift.
It is the potential installer and/or assembler’s responsibility to determine whether he or she has the
necessary skills, knowledge, and tools to properly and safely assemble and/or install the Sunstream
Lift described herein. Improper assembly and/or installation may cause the lift to function improperly or not to function. Improper assembly and/or installation may additionally cause a risk to
personal safety or property. If the assembler and/or installer is confused or has questions or concerns about a particular assembly or installation, he or she should contact Sunstream by telephone
at (253)-395-0500, Int’l (001)-(253)-395-0500 before proceeding further. The information contained in these instructions does not constitute a warranty or guarantee of any kind.
An assembler’s and/or installer’s failure to correctly follow these assembly and installation instructions constitutes a waiver of the assembler and/or installer’s rights against Sunstream regarding any subsequent damages to property or personal injury caused by the assembler’s and/or installer’s improper assembly and/or installation.
PART NO. 690178 REV: C 3
Parts List
16
34
4
4
16
25
8
12
SELF THREADING SCREW #14 X 4.00”
MACHINE SCREW 5/16” X 3.50”
11-051401-90
BOLT, 3/8” X 2.00”
11-060801-32
BOLT, 3/8” X 2.50”
11-061001-92
BOLT, 3/8” X 3.00”
11-061200-16
SELF DRILLING SCREW #14 X 1.00”
11-000401-93
SELF DRILLING SCREW #14 X 2.00”
11-000001-81
BOLT, 5/16” X 1.50”
11-050600-38
11-041602-40
4
CAP
690501
17
WIRE TIE
690255
55
28
10
16
NYLOCK, 5/16”
12-050000-62
NYLOCK, 3/8”
12-060000-22
VELCRO STRAP
69-000001-00
D-RING VELCRO STRAP
690493
6
SNAP BUTTON
15-000001-83
RAFTERS
PART NO. 690178 REV: C 4
Parts List
8
RAFTER
941624
4
1
UPRIGHT AS.
94-000009-30
4
PVC ELBOW
44-000011-69
STOP TUBE
440627
2
GUIDE ON
95-000006-19
GUIDE ON SLEEVE
44-000008-99
2
END BRACKET
95-000008-85
2
6
FLOAT BRACKET
44-000011-56
2
SHIM
42-000012-72
2
FRAME BRACKET L
95-000007-92
12
CLAMP
42-000012-73
6
DIAGONAL BAR
44-000012-66
2
FRAME BRACKET R
95-000007-93
1
FRAME TUBE AS.
95-000009-27
BAG 1
1
OWNERS MANUAL 690178
1
PART NO. 690178 REV: C 5
1
END FLOAT BRACKET L
95-000008-87
6
UNION SLEEVE
44-000011-72
1
END FLOAT BRACKET R
95-000008-86
Assembly
Assemble all Telescoping Linkages Assemble all Slide Tubes
Outer PVC Guide
Outer Telescoping Linkage
Snap Button
Inner Telescoping Linkage
Note orientation
Inner Aluminum Guide
PART NO. 690178 REV: C 6
PVC Guide
Assemble all Uprights
Assembly
Telescoping
Linkage
Frame Bracket
Bolt, 3/8” x 3.00”
Nylock 3/8”
Bolt, 3/8” x 2.50”
Nylock 3/8”
IMPORTANT:
Do not over tighten bolt. Squeezing the frame bracket prevents Linkage from pivoting.
PART NO. 690178 REV: C 7
