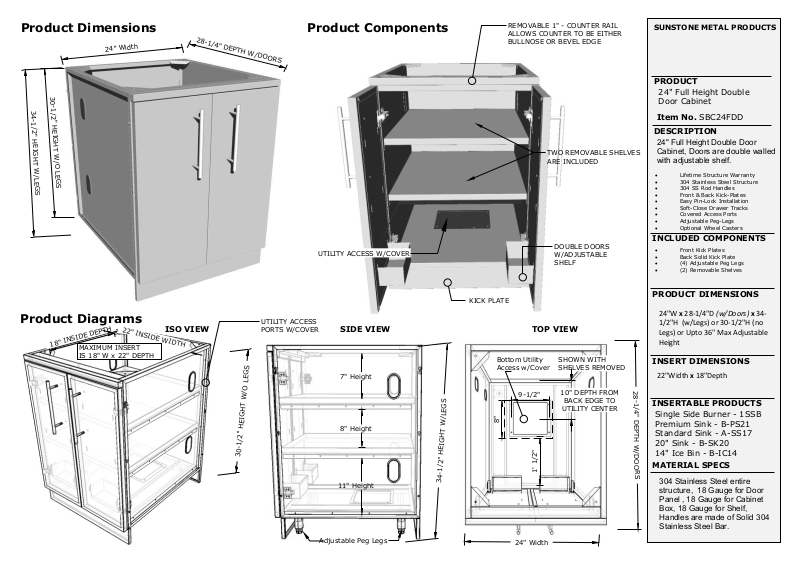

Sunstone SBC24FDD Specifications

28-1/4" DEPTH W/DOORS

24" Width

DOUBLE DOORS
W/ADJUSTABLE
SHELF

Product Dimensions

Product Components

Product Diagrams

SUNSTONE METAL PRODUCTS

DESCRIPTION

24" Full Height Double Door
Cabinet, Doors are double walled
with adjustable shelf.

24" Full Height Double
Door Cabinet

Item No. SBC24FDD

PRODUCT

28-1/4" DEPTH W/DOORS

24" Width

Adjustable Peg Legs

Bottom Utility
Access w/Cover

ISO VIEW

SIDE VIEW

TOP VIEW

UTILITY ACCESS W/COVER

KICK PLATE

1' 1/2"

9-1/2"

8"

34-1/2" HEIGHT W/LEGS

30-1/2" HEIGHT W/O LEGS

34-1/2" HEIGHT W/LEGS

30-1/2" HEIGHT W/O LEGS

REMOVABLE 1" - COUNTER RAIL
ALLOWS COUNTER TO BE EITHER
BULLNOSE OR BEVEL EDGE

•Lifetime Structure Warranty

•304 Stainless Steel Structure

•304 SS Rod Handles

•Front & Back Kick-Plates

•Easy Pin-Lock Installation

•Soft-Close Drawer Tracks

•Covered Access Ports

•Adjustable Peg-Legs

•Optional Wheel Casters

UTILITY ACCESS
PORTS W/COVER

24"W x 28-1/4"D (w/Doors) x 34­1/2"H (w/Legs) or 30-1/2"H (no
Legs) or Upto 36" Max Adjustable
Height

MATERIAL SPECS

304 Stainless Steel entire
structure, 18 Gauge for Door
Panel , 18 Gauge for Cabinet
Box, 18 Gauge for Shelf,
Handles are made of Solid 304
Stainless Steel Bar.

INCLUDED COMPONENTS

•Front Kick Plates

•Back Solid Kick Plate

•(4) Adjustable Peg Legs

•(2) Removable Shelves

PRODUCT DIMENSIONS

Single Side Burner - 1SSB
Premium Sink - B-PS21
Standard Sink - A-SS17
20" Sink - B-SK20
14" Ice Bin - B-IC14

INSERT DIMENSIONS

22"Width x 18"Depth

INSERTABLE PRODUCTS

TWO REMOVABLE SHELVES
ARE INCLUDED

SHOWN WITH
SHELVES REMOVED

8" Height

7" Height

11" Height

18" INSIDE DEPTH

22" INSIDE WIDTH

MAXIMUM INSERT
IS 18" W x 22" DEPTH

10" DEPTH FROM

BACK EDGE TO

UTILITY CENTER
