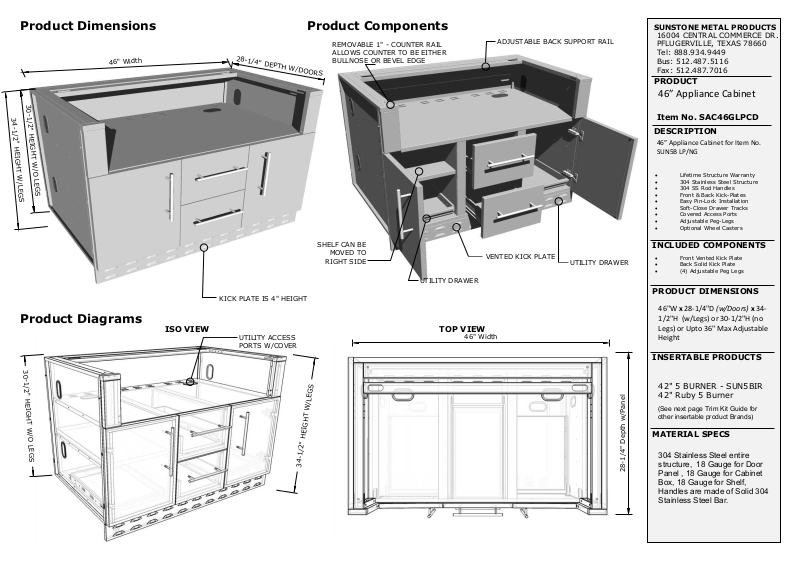

Sunstone SAC46GLPCD Specifications
Product Dimensions
SHELF CAN BE
MOVED TO
RIGHT SIDE
UTILITY DRAWER
VENTED KICK PLATE
Product Components
KICK PLATE IS 4" HEIGHT
28-1/4" DEPTH W/DOORS
46" Width
UTILITY DRAWER
ADJUSTABLE BACK SUPPORT RAIL
SUNSTONE METAL PRODUCTS
DESCRIPTION
46” Appliance Cabinet for Item No.
SUN5B LP/NG
46” Appliance Cabinet
Item No. SAC46GLPCD
PRODUCT
INSERTABLE PRODUCTS
42" 5 BURNER - SUN5BIR
42" Ruby 5 Burner
PRODUCT DIMENSIONS
16004 CENTRAL COMMERCE DR.
PFLUGERVILLE, TEXAS 78660
Tel: 888.934.9449
Bus: 512.487.5116
Fax: 512.487.7016
Product Diagrams
ISO VIEW
TOP VIEW
46"W x 28-1/4"D (w/Doors) x 341/2"H (w/Legs) or 30-1/2"H (no
Legs) or Upto 36" Max Adjustable
Height
34-1/2" HEIGHT W/LEGS
30-1/2" HEIGHT W/O LEGS
34-1/2" HEIGHT W/LEGS
30-1/2" HEIGHT W/O LEGS
MATERIAL SPECS
304 Stainless Steel entire
structure, 18 Gauge for Door
Panel , 18 Gauge for Cabinet
Box, 18 Gauge for Shelf,
Handles are made of Solid 304
Stainless Steel Bar.
REMOVABLE 1" - COUNTER RAIL
ALLOWS COUNTER TO BE EITHER
BULLNOSE OR BEVEL EDGE
•Lifetime Structure Warranty
•304 Stainless Steel Structure
•304 SS Rod Handles
•Front & Back Kick-Plates
•Easy Pin-Lock Installation
•Soft-Close Drawer Tracks
•Covered Access Ports
•Adjustable Peg-Legs
•Optional Wheel Casters
(See next page Trim Kit Guide for
other insertable product Brands)
UTILITY ACCESS
PORTS W/COVER
INCLUDED COMPONENTS
•Front Vented Kick Plate
•Back Solid Kick Plate
•(4) Adjustable Peg Legs
46" Width
28-1/4" Depth w/Panel
SAC46GLPCD TRIM-KIT Overview
SCC46GTK3.25
SCC46GTK3.75
SCC46GTK4.5
SCC46GTK5
SCC46GTK2.5
Compatible between 35-3/4” to 40-1/2”, 8" to 10 1/4” Max Height with counter
at 3/4" Height with Filler Rail installed or removed. (Additional Height can be
adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or
Backer Board)
SCC46GTK5
Item No.
35-3/4" Width
24-1/2" Maximum Depth
21-3/4" Standard Depth
17" Minimum Depth
Support Rail moves in
increments of 1-3/16" Inches
SCC46GTK4.5
Item No.
36-7/8" Width
SCC46GTK3.75
Item No.
38-1/4" Width
SCC46GTK3.25
Item No.
39-1/2" Width
SCC46GTK2.5
Item No.
40-1/2" Width
10-1/4" H w/3/4" H Counter
Model Number
Sleeve Cut-Out
Product Option
SCC46GTK2.5
SCC46GTK3.25
SCC46GTK3.75
SCC46GTK4.5
SCC46GTK5
40-1/2" Width x 10-1/4" Height x
24-1/2" Maximum Depth
39-1/2" Width x 10-1/4" Height x
24-1/2" Maximum Depth
38-1/4" Width x 8" Height w/Rail
or 10-1/4" Height wo/Rail x 241/2" Maximum Depth
36-7/8" Width x 8" Height w/Rail
or 10-1/4" Height wo/Rail x 241/2" Maximum Depth
35-3/4" Width x 8" Height w/Rail
or 10-1/4" Height wo/Rail x 241/2" Maximum Depth
Alfresco® 42" Grill
Sunstone® 5BIR 42" Grill, Ruby® 5BIR 42"
Grill, Bull® 38" Brahma Grill, Coyote® 42" grill
Steele® 40" Grill, Blaze® 40" Grill
Delta Heat® 38" Grill, AOG® 36" Grill
Lynx® 36" Grill, Sedona® 36" Grill
8" H w/3/4" H Counter
10-1/4" H w/3/4" H Counter
Support Rail
Counter Rail
Filler Rail
Side Panel
Support Rail Option
8" H w/3/4" H Counter
8" H w/3/4" H Counter
Counter Rail
Counter Rail Option
Bullnose Counter
Bevel Counter
Remove Counter Rail to make
Counter as Full Bullnose
Trim-Kit Sleeve Dimensions
Removable Filler Rail makes Height
10-1/4" H w/Counter
Removable Filler Rail makes Height
10-1/4" H w/Counter
Removable Filler Rail makes Height
10-1/4" H w/Counter
Support Rail
Adjust Support Rail to modify
Depth Dimension, or remove
for Maximum Depth Dimension
Disclaimer: The trademarks used in the “Product Option” column below belong to their respective owners who do not sponsor nor are they
affiliated with Sunstone Metal Products, L.L.C. The specific product Cut-Out Dimensions have not been directly confirmed by any Sunstone
Metal Products LLC, representative or employee. Use own discretion to confirm exact product fit.
