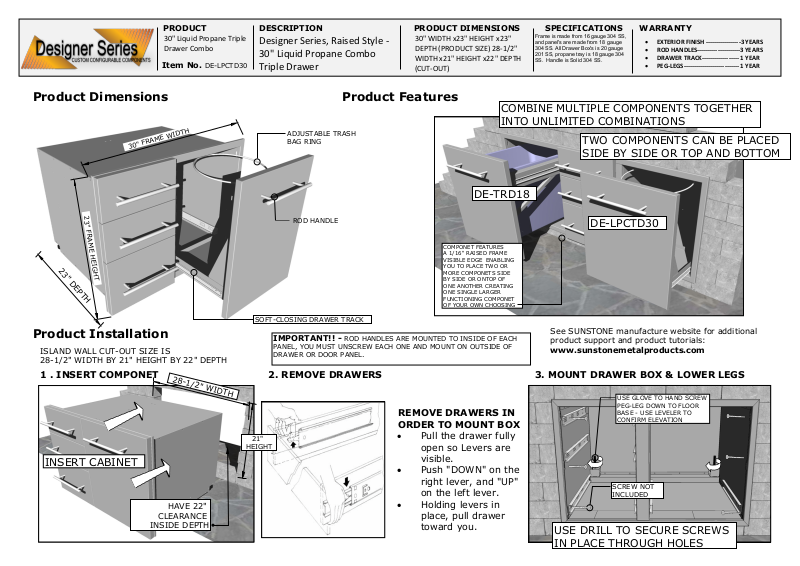

Page 1
PRODUCT DESCRIPTION PRODUCT DIMENSIONS SPECIFICATIONS WARRANTY
30" FRAME WIDTH
23" FRAME HEIGHT
23" DEPTH
Designer Series, Raised Style 30" Liquid Propane Combo
Triple Drawer
30" Liquid Propane Triple
Drawer Combo
Item No. DE-LPCTD30
30" WIDTH x23" HEIGHT x23"
DEPTH (PRODUCT SIZE) 28-1/2"
WIDTH x21" HEIGHT x22" DEPTH
(CUT-OUT)
Product Dimensions Product Features
28-1/2" WIDTH
Product Installation
INSERT CABINET
ISLAND WALL CUT-OUT SIZE IS
28-1/2" WIDTH BY 21" HEIGHT BY 22" DEPTH
USE DRILL TO SECURE SCREWS
IN PLACE THROUGH HOLES
SCREW NOT
INCLUDED
USE GLOVE TO HAND SCREW
PEG-LEG DOWN TO FLOOR
BASE - USE LEVELER TO
CONFIRM ELEVATION
ROD HANDLE
SOFT-CLOSING DRAWER TRACK
ADJUSTABLE TRASH
BAG RING
COMPONET FEATURES
A 1/16" RAISED FRAME
VISIBLE EDGE ENABLING
YOU TO PLACE TWO OR
MORE COMPONETS SIDE
BY SIDE OR ONTOP OF
ONE ANOTHER CREATING
ONE SINGLE LARGER
FUNCTIONING COMPONET
OF YOUR OWN CHOOSING
COMBINE MULTIPLE COMPONENTS TOGETHER
INTO UNLIMITED COMBINATIONS
DE-TRD18
DE-LPCTD30
TWO COMPONENTS CAN BE PLACED
SIDE BY SIDE OR TOP AND BOTTOM
REMOVE DRAWERS IN
ORDER TO MOUNT BOX
•Pull the drawer fully
open so Levers are
visible.
•Push "DOWN" on the
right lever, and "UP"
on the left lever.
•Holding levers in
place, pull drawer
toward you.
2. REMOVE DRAWERS
3. MOUNT DRAWER BOX & LOWER LEGS
1 . INSERT COMPONET
IMPORTANT!! - ROD HANDLES ARE MOUNTED TO INSIDE OF EACH
PANEL, YOU MUST UNSCREW EACH ONE AND MOUNT ON OUTSIDE OF
DRAWER OR DOOR PANEL.
See SUNSTONE manufacture website for additional
product support and product tutorials:
www.sunstonemetalproducts.com
21"
HEIGHT
HAVE 22"
CLEARANCE
INSIDE DEPTH
Frame is made from 16 gauge 304 SS,
and panel's are made from 18 gauge
304 SS. All Drawer Box's is 20 gauge
201 SS, propane tray is 18 gauge 304
SS. Handle is Solid 304 SS.
•EXTERIOR FINISH -----------------3 YEARS
•ROD HANDLES---------------------3 YEARS
•DRAWER TRACK------------------ 1 YEAR
•PEG-LEGS--------------------------- 1 YEAR
