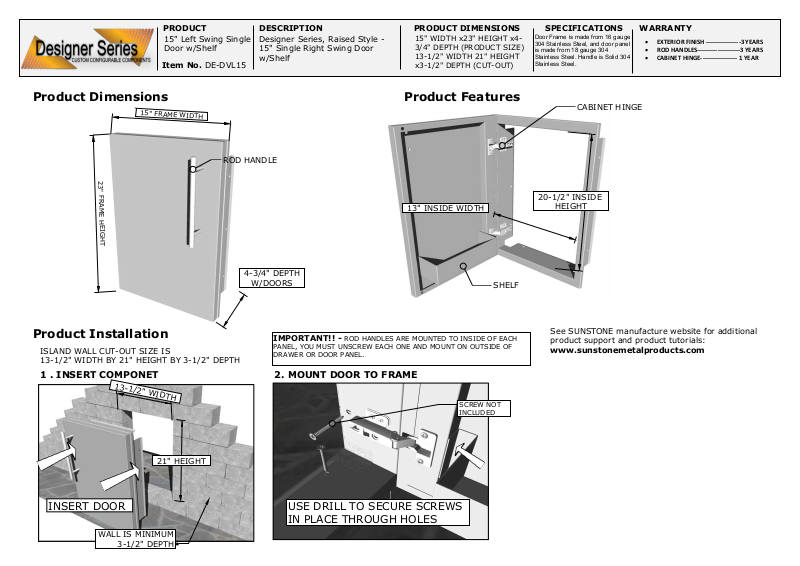

Sunstone DEDVL15 Specifications

PRODUCT DESCRIPTION PRODUCT DIMENSIONS SPECIFICATIONS WARRANTY

15" FRAME WIDTH

23" FRAME HEIGHT

Designer Series, Raised Style ­15" Single Right Swing Door
w/Shelf

15" Left Swing Single
Door w/Shelf

Item No. DE-DVL15

15" WIDTH x23" HEIGHT x4­3/4" DEPTH (PRODUCT SIZE)
13-1/2" WIDTH 21" HEIGHT
x3-1/2" DEPTH (CUT-OUT)

Product Dimensions Product Features

13-1/2" WIDTH

21" HEIGHT

4-3/4" DEPTH

W/DOORS

WALL IS MINIMUM

3-1/2" DEPTH

20-1/2" INSIDE

HEIGHT

13" INSIDE WIDTH

SHELF

ROD HANDLE

CABINET HINGE

INSERT DOOR

ISLAND WALL CUT-OUT SIZE IS
13-1/2" WIDTH BY 21" HEIGHT BY 3-1/2" DEPTH

USE DRILL TO SECURE SCREWS
IN PLACE THROUGH HOLES

SCREW NOT
INCLUDED

2. MOUNT DOOR TO FRAME

1 . INSERT COMPONET

Product Installation

See SUNSTONE manufacture website for additional
product support and product tutorials:

www.sunstonemetalproducts.com

IMPORTANT!! - ROD HANDLES ARE MOUNTED TO INSIDE OF EACH

PANEL, YOU MUST UNSCREW EACH ONE AND MOUNT ON OUTSIDE OF
DRAWER OR DOOR PANEL.

Door Frame is made from 16 gauge
304 Stainless Steel, and door panel
is made from 18 gauge 304
Stainless Steel. Handle is Solid 304
Stainless Steel.

�EXTERIOR FINISH -----------------3 YEARS
�ROD HANDLES---------------------3 YEARS
�CABINET HINGE------------------ 1 YEAR
