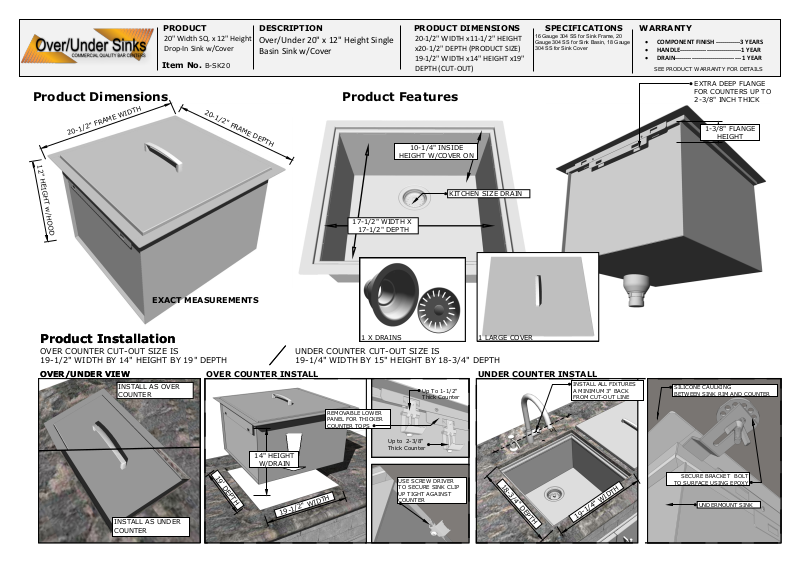

Sunstone BSK20 Specifications

20-1/2" FRAME DEPTH

20-1/2" FRAME WIDTH

PRODUCT DESCRIPTION PRODUCT DIMENSIONS SPECIFICATIONS WARRANTY

16 Gauge 304 SS for Sink Frame, 20
Gauge 304 SS for Sink Basin, 18 Gauge
304 SS for Sink Cover

•COMPONENT FINISH ------------3 YEARS

•HANDLE------------------------------1 YEAR

•DRAIN-------------------------------- 1 YEAR

12" HEIGHT w/HOOD

Over/Under 20" x 12" Height Single
Basin Sink w/Cover

20" Width SQ. x 12" Height
Drop-In Sink w/Cover

Item No. B-SK20

20-1/2" WIDTH x11-1/2" HEIGHT
x20-1/2" DEPTH (PRODUCT SIZE)
19-1/2" WIDTH x14" HEIGHT x19"
DEPTH (CUT-OUT)

Product Dimensions Product Features

10-1/4" INSIDE

HEIGHT W/COVER ON

OVER/UNDER VIEW

OVER COUNTER CUT-OUT SIZE IS
19-1/2" WIDTH BY 14" HEIGHT BY 19" DEPTH

INSTALL AS OVER
COUNTER

INSTALL AS UNDER
COUNTER

UNDER COUNTER CUT-OUT SIZE IS
19-1/4" WIDTH BY 15" HEIGHT BY 18-3/4" DEPTH

19-1/2" WIDTH

19-1/4" WIDTH

18-3/4" DEPTH

Up To 1-1/2"
Thick Counter

Up to 2-3/8"
Thick Counter

Product Installation

OVER/UNDER VIEW

OVER COUNTER INSTALL

Product Installation

INSTALL AS OVER
COUNTER

INSTALL AS UNDER
COUNTER

19' DEPTH

Up To 1-1/2"
Thick Counter

Up to 2-3/8"
Thick Counter

REMOVABLE LOWER
PANEL FOR THICKER
COUNTER TOPS

USE SCREW DRIVER
TO SECURE SINK CLIP
UP TIGHT AGAINST
COUNTER

INSTALL ALL FIXTURES
A MINIMUM 3" BACK
FROM CUT-OUT LINE

3"

UNDER COUNTER INSTALL

UNDERMOUNT SINK

SILICONE CAULKING
BETWEEN SINK RIM AND COUNTER

SECURE BRACKET BOLT

TO SURFACE USING EPOXY

KITCHEN SIZE DRAIN

17-1/2" WIDTH X

17-1/2" DEPTH

1 X DRAINS

14" HEIGHT

W/DRAIN

1-3/8" FLANGE

HEIGHT

EXTRA DEEP FLANGE
FOR COUNTERS UP TO
2-3/8" INCH THICK

1 LARGE COVER

SEE PRODUCT WARRANTY FOR DETAILS

EXACT MEASUREMENTS
