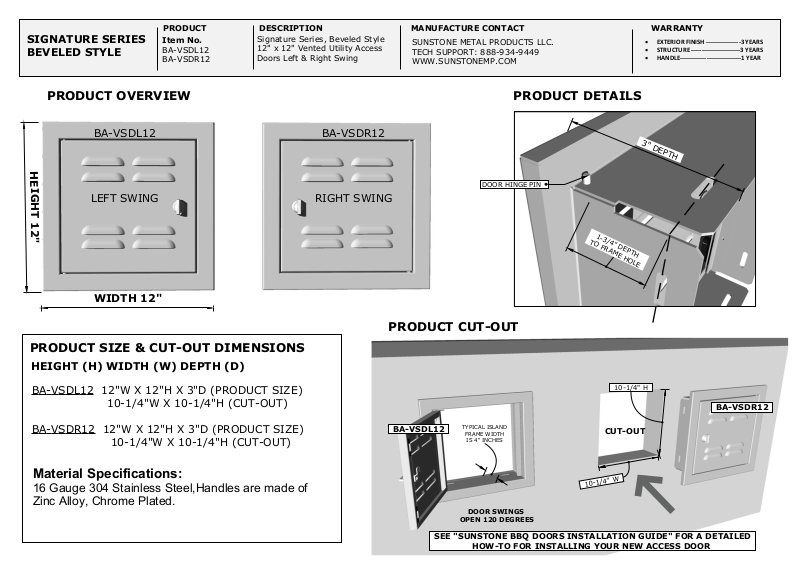

Sunstone BAVSDR12 Specifications
PRODUCT DESCRIPTION MANUFACTURE CONTACT WARRANTY
Signature Series, Beveled Style
12" x 12" Vented Utility Access
Doors Left & Right Swing
Item No.
BA-VSDL12
BA-VSDR12
PRODUCT OVERVIEW PRODUCT DETAILS
PRODUCT SIZE & CUT-OUT DIMENSIONS
�EXTERIOR FINISH -----------------3 YEARS
�STRUCTURE ------------------------3 YEARS
�HANDLE------------------------------1 YEAR
HEIGHT 12"
BA-VSDL12 12"W X 12"H X 3"D (PRODUCT SIZE)
10-1/4"W X 10-1/4"H (CUT-OUT)
BA-VSDR12 12"W X 12"H X 3"D (PRODUCT SIZE)
10-1/4"W X 10-1/4"H (CUT-OUT)
HEIGHT (H) WIDTH (W) DEPTH (D)
SUNSTONE METAL PRODUCTS LLC.
TECH SUPPORT: 888-934-9449
WWW.SUNSTONEMP.COM
WIDTH 12"
BA-VSDR12
RIGHT SWING
TYPICAL ISLAND
FRAME WIDTH
IS 4" INCHES
10-1/4" H
10-1/4" W
DOOR SWINGS
OPEN 120 DEGREES
CUT-OUT
BA-VSDL12
BA-VSDR12
Material Specifications:
16 Gauge 304 Stainless Steel,Handles are made of
Zinc Alloy, Chrome Plated.
BA-VSDL12
LEFT SWING
SEE "SUNSTONE BBQ DOORS INSTALLATION GUIDE" FOR A DETAILED
HOW-TO FOR INSTALLING YOUR NEW ACCESS DOOR
3" DEPTH
1-3/4" DEPTH
TO FRAME HOLE
SIGNATURE SERIES
BEVELED STYLE
DOOR HINGE PIN
PRODUCT CUT-OUT
