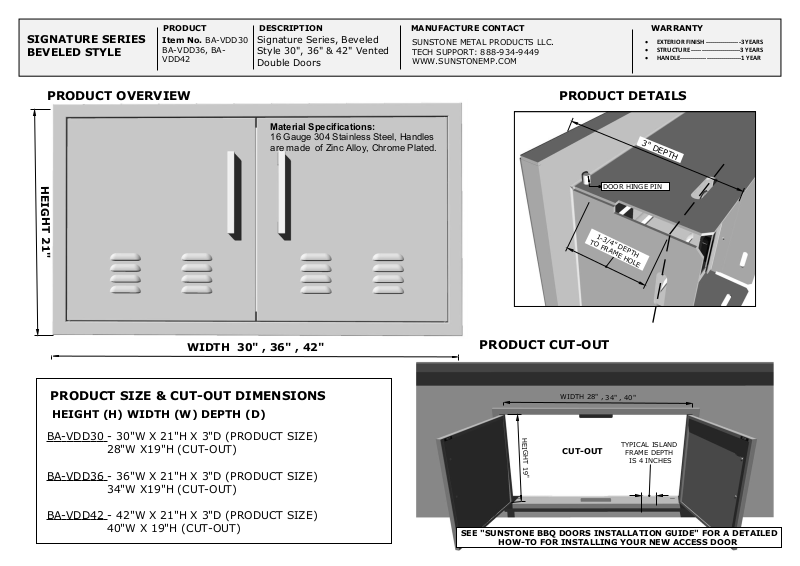

Sunstone BAVDD42 Specifications
PRODUCT DESCRIPTION MANUFACTURE CONTACT WARRANTY
PRODUCT OVERVIEW PRODUCT DETAILS
�EXTERIOR FINISH -----------------3 YEARS
�STRUCTURE ------------------------3 YEARS
�HANDLE------------------------------1 YEAR
SUNSTONE METAL PRODUCTS LLC.
TECH SUPPORT: 888-934-9449
WWW.SUNSTONEMP.COM
SIGNATURE SERIES
BEVELED STYLE
3" DEPTH
1-3/4" DEPTH
TO FRAME HOLE
DOOR HINGE PIN
WIDTH 28" , 34" , 40"
HEIGHT 19"
TYPICAL ISLAND
FRAME DEPTH
IS 4 INCHES
SEE "SUNSTONE BBQ DOORS INSTALLATION GUIDE" FOR A DETAILED
HOW-TO FOR INSTALLING YOUR NEW ACCESS DOOR
PRODUCT SIZE & CUT-OUT DIMENSIONS
BA-VDD30 - 30"W X 21"H X 3"D (PRODUCT SIZE)
28"W X19"H (CUT-OUT)
BA-VDD36 - 36"W X 21"H X 3"D (PRODUCT SIZE)
34"W X19"H (CUT-OUT)
BA-VDD42 - 42"W X 21"H X 3"D (PRODUCT SIZE)
40"W X 19"H (CUT-OUT)
HEIGHT (H) WIDTH (W) DEPTH (D)
HEIGHT 21"
Material Specifications:
16 Gauge 304 Stainless Steel, Handles
are made of Zinc Alloy, Chrome Plated.
WIDTH 30" , 36" , 42"
Item No. BA-VDD30
BA-VDD36, BAVDD42
Signature Series, Beveled
Style 30", 36" & 42" Vented
Double Doors
CUT-OUT
PRODUCT CUT-OUT
