DESCRIPTION
304 Stainless Steel, Classic
Series Flush Style Large under
grill Multi-Purpose Storage
Component
PRODUCT
42" Multi-Storage - Multi-Function
Item No. A-LPCDD42
SUNSTONE METAL
PRODUCTS LLC.
16004 Central Commerce Dr.
Pflugerville, TX. 78665
Tel: 888.934.9449
Bus: 512.487.5116
Fax: 512.487.7016

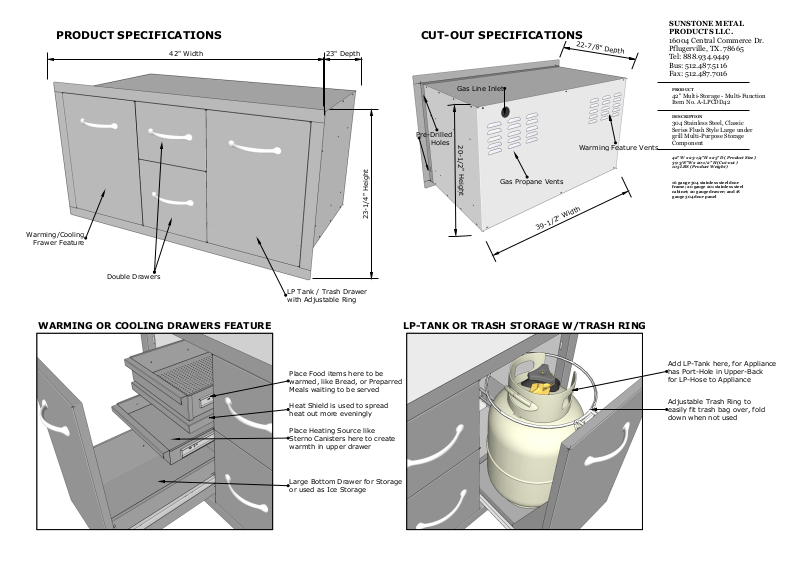

42" W x 23-1/4"H x 23" D ( Product Size )
39-3/8”W x 20-1/2" H (Cut-out )
105 LBS ( Product Weight )
16 gauge 304 stainless steel door
frame; 20 gauge 201 stainless steel
cabinet; 20 gauge drawer; and 18
gauge 304 door panel
42" Width
23-1/4" Height
23" Depth
22-7/8" Depth
39-1/2" Width
20-1/2" Height
Gas Line Inlet
Warming Feature Vents
Gas Propane Vents
Pre-Drilled
Holes
CUT-OUT SPECIFICATIONS
PRODUCT SPECIFICATIONS
Warming/Cooling
Frawer Feature
LP Tank / Trash Drawer
with Adjustable Ring
Double Drawers
Place Heating Source like
Sterno Canisters here to create
warmth in upper drawer
Heat Shield is used to spread
heat out more eveningly
Place Food items here to be
warmed, like Bread, or Preparred
Meals waiting to be served
Large Bottom Drawer for Storage
or used as Ice Storage
WARMING OR COOLING DRAWERS FEATURE
LP-TANK OR TRASH STORAGE W/TRASH RING
Adjustable Trash Ring to
easily fit trash bag over, fold
down when not used
Add LP-Tank here, for Appliance
has Port-Hole in Upper-Back
for LP-Hose to Appliance
