PRODUCT DESCRIPTION MANUFACTURE CONTACT WARRANTY
Classic Series, Flush Style
14" x 20" Vertical Vented access
Doors Left & Right Swing
Item No.
A-DV1420-L
A-DV1420-R

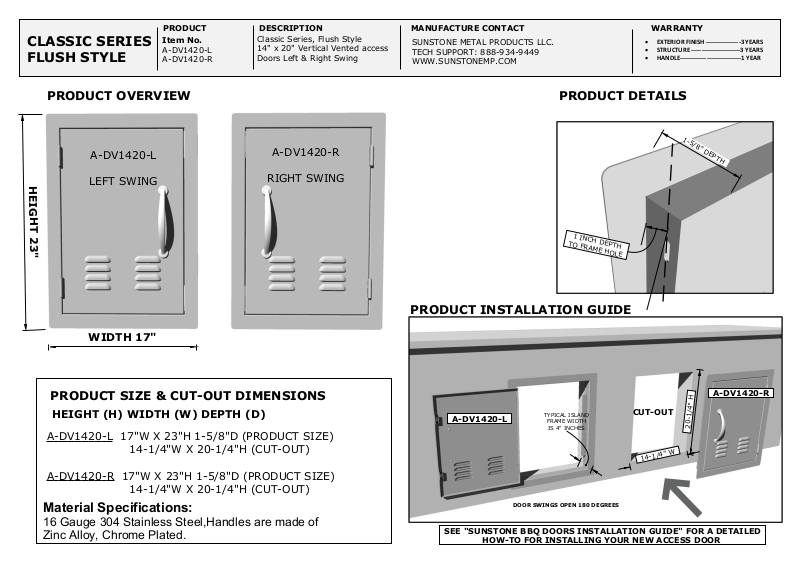

PRODUCT OVERVIEW PRODUCT DETAILS
PRODUCT SIZE & CUT-OUT DIMENSIONS
�EXTERIOR FINISH -----------------3 YEARS
�STRUCTURE ------------------------3 YEARS
�HANDLE------------------------------1 YEAR
CLASSIC SERIES
FLUSH STYLE
HEIGHT 23"
A-DV1420-L 17"W X 23"H 1-5/8"D (PRODUCT SIZE)
14-1/4"W X 20-1/4"H (CUT-OUT)
A-DV1420-R 17"W X 23"H 1-5/8"D (PRODUCT SIZE)
14-1/4"W X 20-1/4"H (CUT-OUT)
PRODUCT INSTALLATION GUIDE
HEIGHT (H) WIDTH (W) DEPTH (D)
1 INCH DEPTH
TO FRAME HOLE
SUNSTONE METAL PRODUCTS LLC.
TECH SUPPORT: 888-934-9449
WWW.SUNSTONEMP.COM
WIDTH 17"
A-DV1420-L
LEFT SWING
A-DV1420-R
RIGHT SWING
TYPICAL ISLAND
FRAME WIDTH
IS 4" INCHES
1-5/8" DEPTH
20-1/4" H
14-1/4" W
DOOR SWINGS OPEN 180 DEGREES
CUT-OUT
A-DV1420-L
A-DV1420-R
Material Specifications:
16 Gauge 304 Stainless Steel,Handles are made of
Zinc Alloy, Chrome Plated.
SEE "SUNSTONE BBQ DOORS INSTALLATION GUIDE" FOR A DETAILED
HOW-TO FOR INSTALLING YOUR NEW ACCESS DOOR
