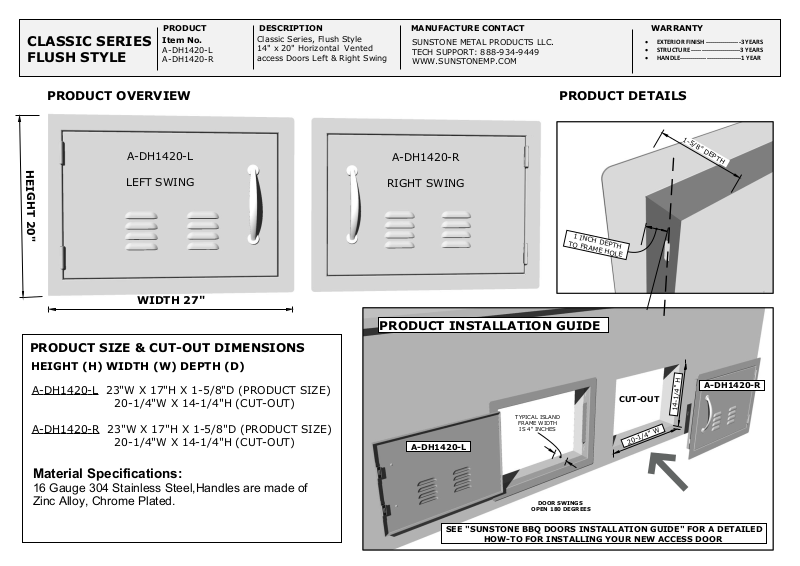

Sunstone ADH1420L Specifications

PRODUCT DESCRIPTION MANUFACTURE CONTACT WARRANTY

Classic Series, Flush Style
14" x 20" Horizontal Vented
access Doors Left & Right Swing

Item No.

A-DH1420-L
A-DH1420-R

PRODUCT OVERVIEW PRODUCT DETAILS

PRODUCT SIZE & CUT-OUT DIMENSIONS

�EXTERIOR FINISH -----------------3 YEARS
�STRUCTURE ------------------------3 YEARS
�HANDLE------------------------------1 YEAR

CLASSIC SERIES
FLUSH STYLE

HEIGHT 20"

A-DH1420-L 23"W X 17"H X 1-5/8"D (PRODUCT SIZE)
20-1/4"W X 14-1/4"H (CUT-OUT)

A-DH1420-R 23"W X 17"H X 1-5/8"D (PRODUCT SIZE)
20-1/4"W X 14-1/4"H (CUT-OUT)

PRODUCT INSTALLATION GUIDE

HEIGHT (H) WIDTH (W) DEPTH (D)

1 INCH DEPTH

TO FRAME HOLE

SUNSTONE METAL PRODUCTS LLC.
TECH SUPPORT: 888-934-9449
WWW.SUNSTONEMP.COM

WIDTH 27"

A-DH1420-L

LEFT SWING

A-DH1420-R

RIGHT SWING

TYPICAL ISLAND

FRAME WIDTH

IS 4" INCHES

1-5/8" DEPTH

14-1/4" H

20-1/4" W

DOOR SWINGS

OPEN 180 DEGREES

CUT-OUT

A-DH1420-L

A-DH1420-R

Material Specifications:

16 Gauge 304 Stainless Steel,Handles are made of
Zinc Alloy, Chrome Plated.

SEE "SUNSTONE BBQ DOORS INSTALLATION GUIDE" FOR A DETAILED

HOW-TO FOR INSTALLING YOUR NEW ACCESS DOOR
