Sunstech CA7CHIL Quick Guide

Quick Guide

Model: CA7CHIL

English

1. DO NOT place objects on top of the device, as
objects may scratch the device.

2. DO NOT expose the device to dirty or
dusty environments.

3. DO NOT place the device on an uneven
or unstable surface.

4. DO NOT insert any foreign objects into the
device.

5. DO NOT expose the device to strong

magnetic or electrical field.

6. DO NOT expose the device to direct
sunlight as it can damage the device. Keep it
away from heat sources.

7. DO NOT store your device in temperatures

higher than 40°C(104°F). The internal operating
temperature for this device is from 20°C(68°F)
to 60°C(140°F).

2

8. DO NOT use the device in the rain.

9. Please check with your Local Authority or

retailer for proper disposal of electronic
products.

10. The device and adaptor may product some

heat during normal operation of charging. To
prevent discomfort or injury from heat

exposure, DO NOT leave the device on your lap.

11. POWER INPUT RATING: Refer to the
rating label on the device and be sure
that the power adaptor complies with
the rating. Only use accessories

specified by the manufacturer.

12. Clean the device with a soft cloth. If
needed, dampen the cloth slightly before

cleaning. Never use abrasives or cleaning solutions.

13. Always power off the device to install or
remove external devices that do not support
hot-plug.

3

14. Disconnect the device from an electrical
outlet and power off before cleaning the device.

15. DO NOT disassemble the device. Only a

certified service technician should perform
repair.

16. The device has apertures to disperse heat.

DO NOT block the device ventilation, the
device may become hot and malfunction as a
result.

17. Risk of explosion if battery replaced by an
incorrect type. Dispose of used batteries
according to the instruction.

18. PLUGGABLE EQUIPMENT: the socket-outlet

shall be installed near the equipment and shall

be easily accessible.

4

Contents

PRECAUTIONS………………………………………………………………………………...……………......6

FEATURES ……………………………………………………………………………………………..………7
BUTTONS……………………………………………………………………………………………………...8
OPERATION

1.1: LED Indicator………………………………………………………………………………………...9

1.2: Switch On/Off …………………………………………………………………………...…...……...9

1.3: Main Menu

1.3.1: Parents Mode Enter……………………………………………………………...….….…….10

1.3.2: Children Mode Enter…………………………………………………………………..……..11

1.4: Parents Setting…………………………………………………………………………………….11

1.4.1: Parents Setting

1.4.1.1: Power off time setting………………………………………………………………12

1.4.1.2: Display brightness setting………………………………………………….………13

1.4.1.3: App Manage………………………………………………………………..……….13

1.4.1.4 : Parents Passcode Manage

1.4.1.4.1: Parents Passcode Change – First time…………………………..……14

1.4.1.4.2: Parents Passcode Change – After first time change………….....….....14

1.4.1.4.3: Forgot Parents Passcode …………………………………...………....14

1.4.1.4.4: Forgot Reset Code ………………………………………………....….15

1.4.1.4.5: Change Reset Code ………………………………….………………..15

1.4.1.5: Kids Passcode Manage

1.4.1.5.1: Kids Passcode Change……………………………..………………….15

1.4.1.5.2: Forgot Kids Passcode………………………………...………………..15

1.5: Children Mode………………………………………………………………………….………….16

1.5.1: Icons & function……………………………………………………...………………………16

1.5.2: User Interface

1.5.2.1: ABC………………………………………………………………..…………………17

1.5.2.2: Funny Camera……………………………………………………...………………...17

1.5.2.3: Family Sports…………………………………………………….…………………..18

1.5.2.4: Mini Games………………………………………………………………………….19

1.5.2.5: Apps…………………………………………………………………...…………….19

1.5.2.6: Photos………………………………………………………………….……………19

1.5.2.7: Music……………………………………………………….………………………..19

1.5.2.8: Video……………………………………………………………..…………………..20

1.5.2.9: Camera………………………………………………………..……………………..20

1.5.2.10: MIC……………………………………………………………...………………….20

1.5.2.11: Calculator………………………………………………….……………………….20

1.5.2.12: Parents Mode……………………………………..………………………………..20

1.6: Factory Reset………………………………………………………………..………………………21

1.7: WiFi Connection……………………………………………………………….……………………22

1.8 : USB Host (OTG) ………………………………………………………….…………………………22

1.9: File Copy/Transfer…………………………………………………………………………...………22

1.10: System Settings……………………………………………………………………………………23

5

PRECAUTIONS

Follow these tips to preserve the operational lifespan of your Kids Tablet

● This device is neither break-proof nor water-proof. Please handle with care.

● It is recommended that you charge the device around 12hours before using the device for

the first time.

● Do not allow young children to charge your Kids Tablet

● Recommended AC adaptor spec: Input: 100-240V 50/60 Hz and Output: 5V, 1500 mA

● Please don’t charge the Kids Tablet if the temperature is too high.

● If the device is nearly running out the battery, please charge it immediately.

● To keep the battery in good condition, please make sure to charge the power once per two weeks if

you don’t use this device for a long time.

● Do not use this Kids Tablet in extreme temperatures. Keep away from extreme hot, cold, dry,
or damp areas. Also keep away from water, fire, and radiation.

● Do not disassemble your Kids Tablet

● Never force any cable connectors into the ports of your Kids Tablet or

computer. Always make sure that your cable connectors are identical in shape and size
before attempting to connect.

● When disconnecting your Kids Tablet from a computer, use the Safely Remove
Device function on your computer. Do not disconnect your Kids Tablet while it is still
transmitting data. .

6

Features

Operation System

● Android OS V4.1.1 preinstalled.

Wireless

● Built-in Wi-Fi 802.11b/g. Support USB _LAN

Display

● 7-inch Digital TFT Full Screen capacitive touch screen

● 800 x 480 pixels (16:9) display resolution

Cameras and Photos

● Features a 0.3 Megapixel front camera.

● Can use it for video conference through Skype, MSN or any other instant messenger.

Easy to shoot and share photos and videos wherever you are.

Parental Controls

● Preloaded with educational content and games for kids

● Parents can easily pick and choose which Apps the kids are allowed to use;

● Parents can unlock device and turn it into a full-featured tablet

Video

● Supports all major video formats such as Flash player 10.1, Plays Flash player 10.1, AVI, RM, RMVB
WMV, MOV,MP4,DAT(VCD),VOB(DVD),MPEG,MPG, FLV, ASF, TS, 3GP, MPG etc HD 1080P,

WebM VP8 decoding video format files
Music Player

● Music player.

● Simply glide through favorite music by album covers and tap on the track list to play. Support all
major

music MP3,WMA, OGG,AAC, FLAC,APE, WAV

Power and Battery

● Built-in 2800mAh li-poly Battery

● Up to 3 hours of surfing the web on Wi-Fi, watching video, or listening to music

● Charging via power adapter or USB to computer system

Memory

Ram 512MB
Internal Memory 4GB up to 32GB via Micro SD.

Input/Output

● T- Flash Card slot

● Micro 5p USB Jacket

● USB OTG port

● 3.5-mm stereo headphone mini jacket

● Input DC 5V / 2 A.

Windows System Requirements

● PC with USB 2.0 port

● Windows 7; Windows Vista; or Windows XP Home or Professional with Service Pack 3 or later

● Internet access

Size and Weight

● Size: 225mm×135mm×16mm

● Weight: 472g

Made in China

7

BUTTONS

1. VOL-

2. VOL+

3. Power

4. Camera

5. Speaker

6. Screen

7. LED Indicator

8. Home button

9. ESC(Back button)

10. MIC

11. DC jacket

12. Micro USB 2.0/OTG port

13. T-flash card slot

14. Earphone Jacket

8

OPERATION

1.1: LED Indicator

● Working: Blue LED Indicator

● Charging: Red LED indicator

● Fully Charged: Red LED Indicator turns to Blue LED Indicator

1.2: Switch On/Off

1.2.1: Switch On and Unlock:

● When the device is in the OFF mode, press and hold “Power” key for 3 seconds to enter the
Android startup progress bar, it need about 28 seconds enter to the system desktop, when

the LCD is under locked mode, please press and drag the icon to the green point,
then the LCD will unlocked automatically, see the figures below,

1.2.2: Power Saving Modes and lock screen.

● Press the “POWER” key shortly after starting up, system enter to power save and lock mode.

● Press the “POWER” key or tap the touch screen, system will return to turn on in 1 second

● The primary operation of the device will not stop under the power save mode, just the LCD

is shut and with black screen. For example: playing music, movie, etc

● Switch OFF: When the device is in the OFF mode, press and hold the “POWER” key for 3
seconds, the screen will display the power off interface, choose the power off item to confirm,
the system will shut automatically

【Note】When the device show low battery after a while shut automatically.
If the device can not start up please check if the battery is low, and connect an adaptor.

9

1.3: Main Menu

1.3.1: Parents Mode Enter

Parents Mode Login :

● Choose “Parents Mode Enter”. You are requested to enter the 4-digital

Passcode factory default: 8888

: To display Passcode, please tick

: Wrong Passcode inputted

: Correct Passcode and Login

: Return to last menu

10

● Once Passcode correctly inputted. It will go to,

A1: Children Mode
A2: Parents Setting
A3: Android OS

1.3.2: Children Mode Enter

Children Mode Login:

● Choose “Children Mode Enter”. You are requested to enter the 4-digital

Passcode factory default. 8888

● Once Passcode correctly inputted. It will go to,

11

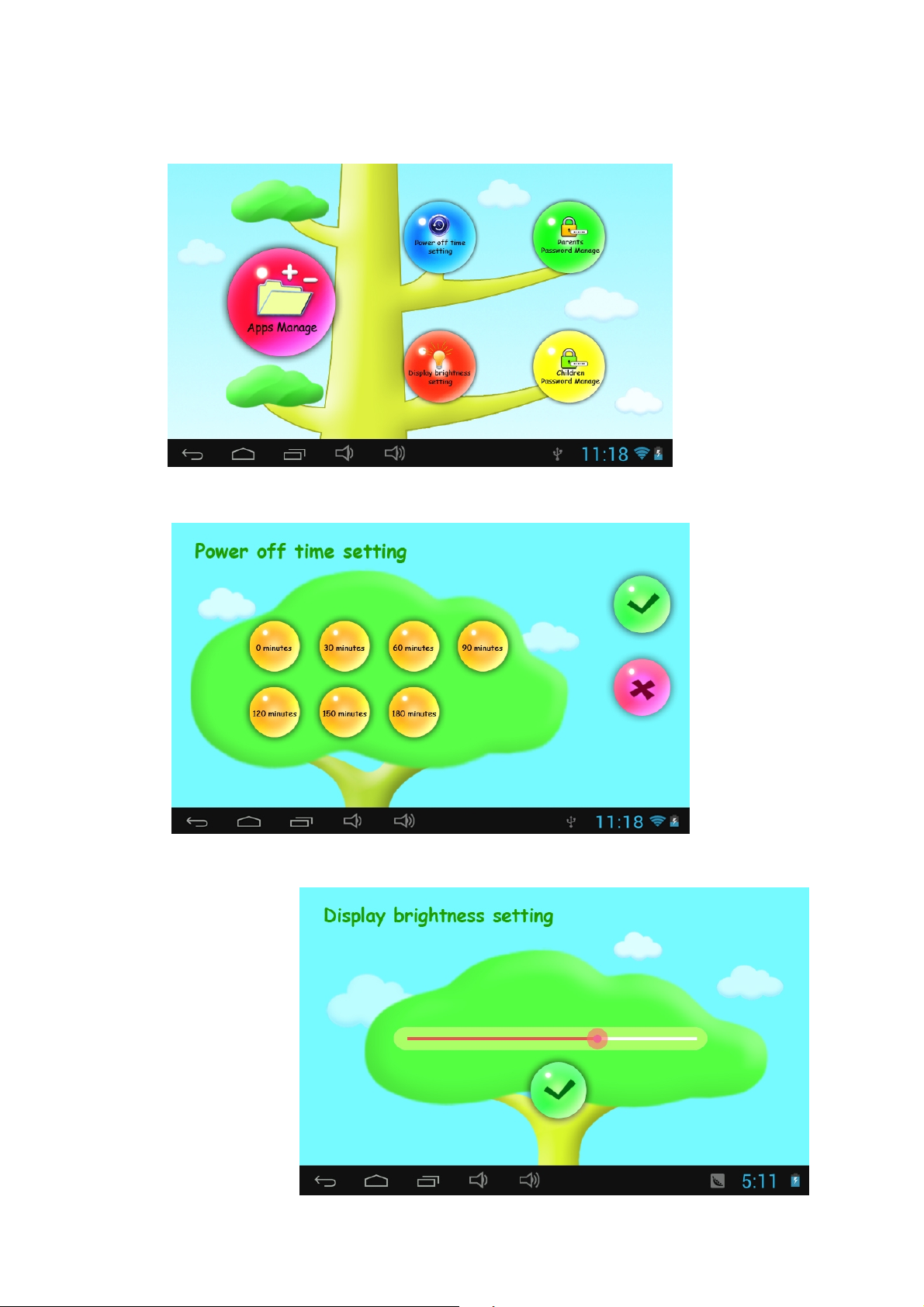

1.4: Parents Setting

1.4.1: Parents Setting

1.4.1.1: Power off time setting

● This is to choose the power off time of the Kids Tablet.

12

1.4.1.2: Display brightness setting

● To adjust the brightness of the display.

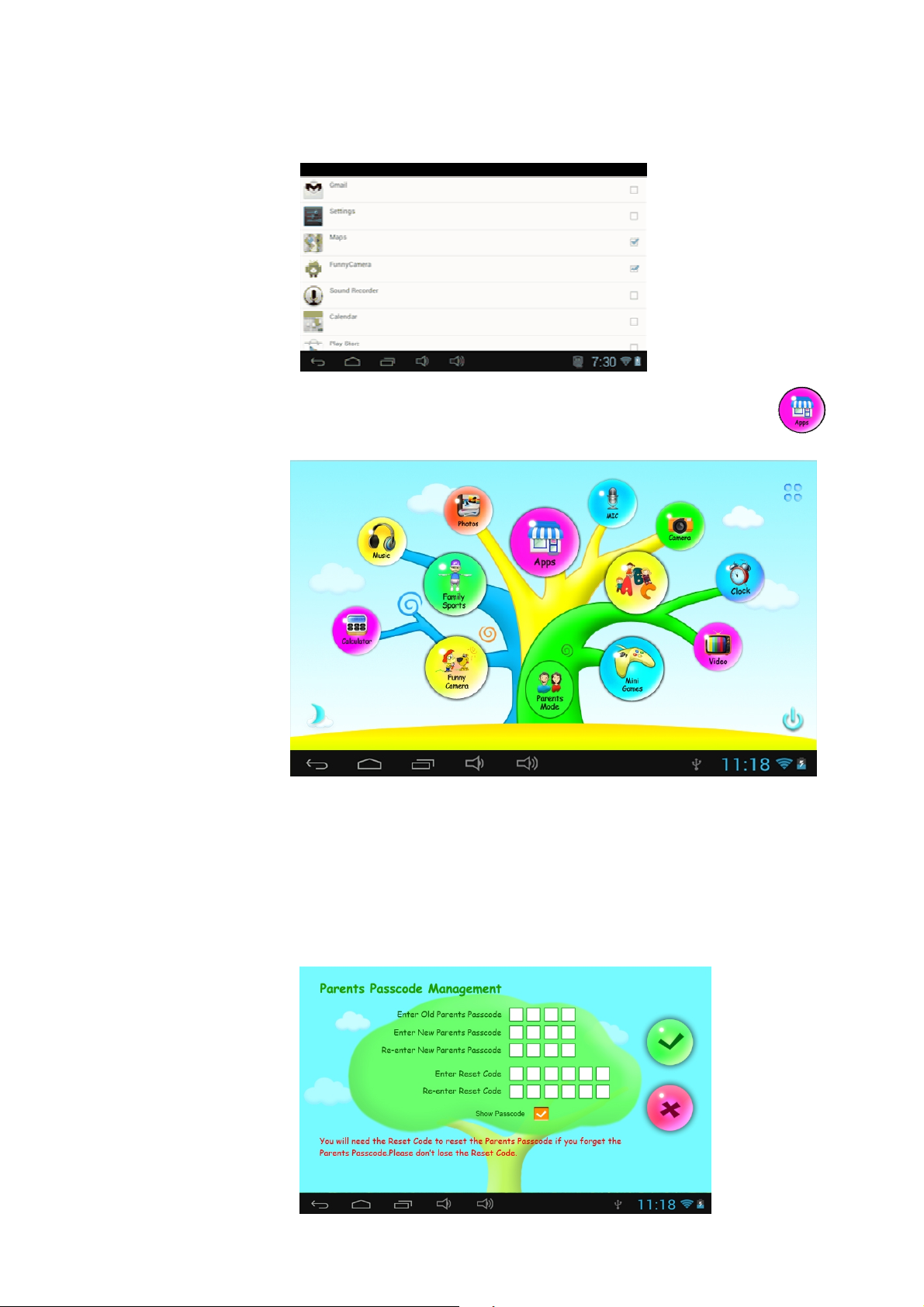

1.4.1.3: App Manage

● These Apps are installed under Android Operation System or Children Mode

Tick(√)any Apps you want your children to access.

● Chosen Apps will be seen in Children Mode at

13

1.4.1.4 : Parents Passcode Manage

1.4.1.4.1: Parents Passcode Change – First time

● For the first time Parents Passcode change. You are requested to
set Reset Code. You will need the Reset Code to reset the Parent Passcode

if you forget your Parents Passcode. Please don’t lose the Reset Code.

1.4.1.4.2: Parents Passcode Change – After first time change

1.4.1.4.3: Forgot Parents Passcode

● Change your Parents Passcode after first time change.

● If you forget the Parents Passcode, please enter the Reset Code

14

● Once you enter the Reset code. Your Parents Passcode will
automatically

reset to factory Passcode 8888

1.4.1.4.4: Forgot Reset Code

● If you also forget the Reset Code. Please send an email to

[e-mail] to apply for a Reset Code

1.4.1.4.5: Change Reset Code

● Change your Reset code (either your own Reset Code or the Reset

Code you got from [e-mail]).

1.4.1.5: Kids Passcode Manage

1.4.1.5.1: Kids Passcode Change

● You can change your Kids Passcode.

1.4.1.5.2: Forgot Kids Passcode

● You can change Kids Passcode freely by using Parents Passcode if

you

forgot your kids Passcode

15

1.5: Children Mode

1.5.1: Icons & function

1. Back to last menu

2. Back to Children Mode Main Menu

3. Children Mode : No function

Android OS: Go to history window.

4. VOL - & VOL +

5. Battery Icon, Time Icon

6. Apps

7. Power Off

8. Background Change

Manually change to day-background. Manually change to night-background.

It will automatically change to day-background from 6:00am- 18:00p.m and night-background from
18:01pm- 5:59a.m

(Day- Background) (Night-background)

16

1.5.2: User Interface

1.5.2.1: ABC

These fifteen educational contents teach children Animals, Transportation and Fruits.

Counting Fish, Gathering Fruits, How Many Squirrels, Piano, Typing Practice,

RotatingGraphics, SpinGuess, Little Pianist, Learning Notes, Learning Clothes,
Learning Sports Goods, Learning Vegetables.

1.5.2.2: Funny Camera

● There are 4 kinds of animation elements for choices

- Photo Frame model : 11 kinds of animation elements for your choice.

- Stamp model : 16 kinds of animation elements for your choice.

17

- Funny Face model : 11 kinds of animation elements for your choice.

- Kaleidoscope model : 9 kinds of animation elements for your choice.

●Choose “

Tap to start record a video, Tap again to stop and exit.

If you press while taking a video, video will not be saved and it will directly exit.

” from the main menu to start record a video.

1.5.2.3: Family Sports

There are 9 Sport games pre-loaded. All these 9 games are fantastic Olympic games

18

1.5.2.4: Mini Games

There are 50 mini games pre-loaded.

1.5.2.5: Apps

Apps is the manager of all the Apps selected by Parents and allowed children to use

it

Explained more in App Manager

1.5.2.6: Photos

● Choose to enter the picture viewer interface

● If there are no files in the photo list, the system will automatically load the image files

from the memory card to the photo list when the picture viewer is started.

● Open the corresponding folder, find the image file and add the picture you want

1.5.2.7: Music

● Choose to enter music player interface.

● Browse through the lists of music and tap the selected song to start playing it.

19

1.5.2.8: Video

● Choose to enter the video player interface.

● If there are no video files in the video player playlist yet, the system will automatically

load the video files from the memory card to the playlist when the video player is
started.

● Drag the playback progress bar to adjust video playback

progress.

1.5.2.9: Camera

Features a 0.3 Megapixel front camera. Can use it for video conference through Skype,

MSN or any other instant messenger. Easy to shoot and share photos and videos
wherever you are.

1.5.2.10: MIC

● Choose to enter the recorder interface .

● Tap” ” to start recording.

● Tap” ” to stop recording.

● Tap to preview the recording.

1.5.2.11: Calculator

1.5.2.12: Parents Mode

20

1.6: Factory Reset

● We strongly suggest you not to factory reset your kids tablet

● If for any reason you have to factory reset your kids tablet.

Please follow these steps .
Settings-Backup & Reset-Factory data reset

● In case you MAY required to re-register Family Sports, ABC,Funny Camera,Mini Games where
under Children Mode Following steps will teach you how to re-register them,

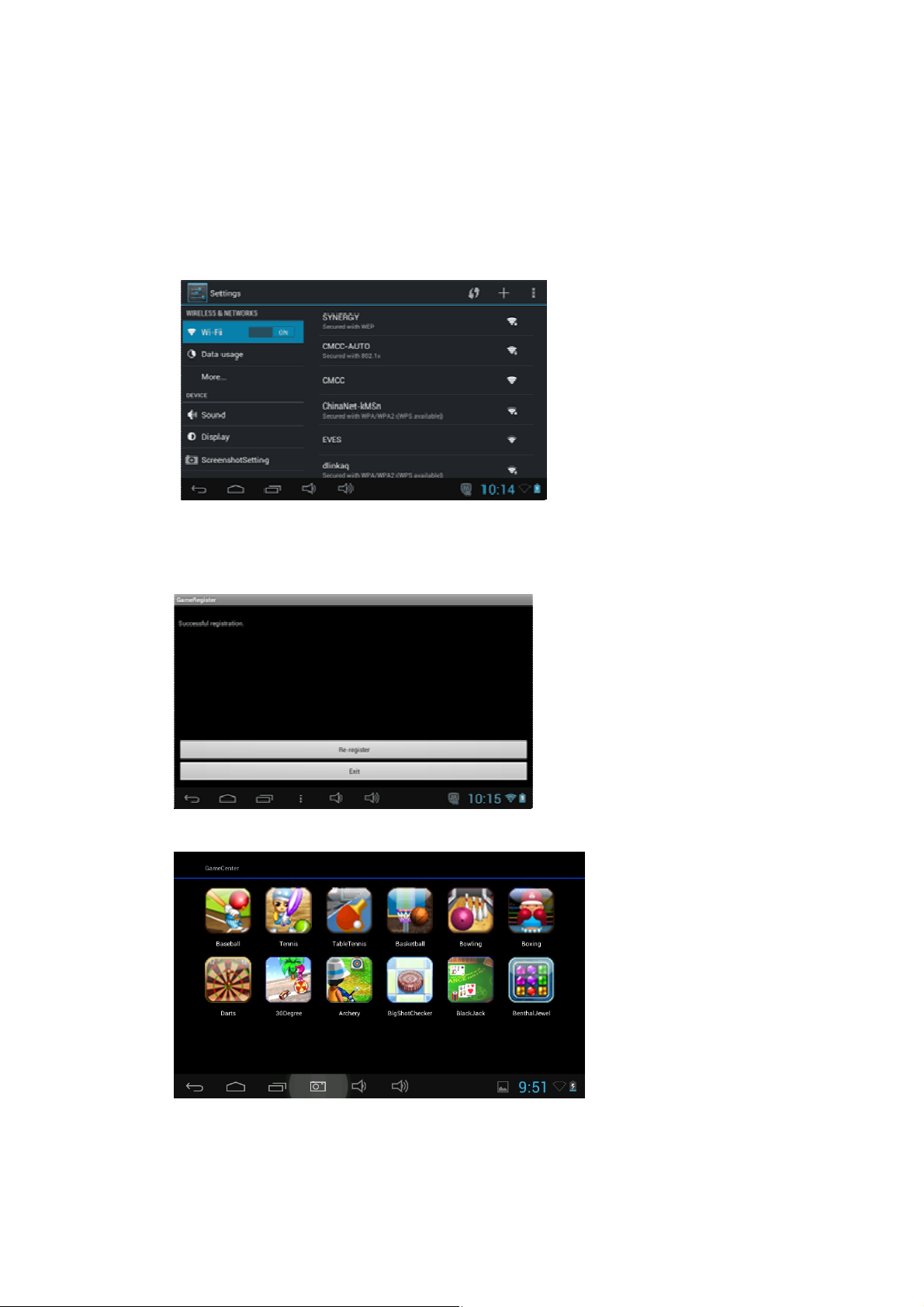

Step 1: Parents Mode à Android OS à Setting à WIFI à Put “ON” à Back

Step 2: Enter Family Sports or ABC or Mini Games. It will show below, Choose” Exit”

Step 3: Re-register is finished (example below)

21

1.7 : WiFi Connection

● The device support Wi-Fi network and external 3G network.

● Turn on Wi-Fi, and Press Wi-Fi settings. The device will scans automatically for available Wi-Fi

Network.

● Choose the Wi-Fi network that you want to connect to.

● Press Connect. Some network may need you input the password.

● On the Wi-Fi settings screen, press the Menu key, touch Advanced, you will get more settings

for Wi-Fi.

1.8 : USB Host (OTG)

● The Mini USB on the device can be used as USB Host.

● Read U-disk:

Insert the U-disk into the HOST port, press the Resource manager in the desktop, press USB enter
into u-disk.

1.9: File Copy/Transfer

● Connect the device to computer by USB Cable, there will be notification in the status bar that

USB connected.

● Choose USB Connected

● Choose USB Connected. Then, Turn on USB storage.

22

● The left picture shows that device storage content could be viewed and modified from

computer.

The right picture means that device storage content could NOT be viewed or modified from
computer.

1.10: System Settings

Click setting icon to enter system settings, then you can change wireless & networks,
sound, display, location & security, Applications, Storage, language & input, voice input & output,
and date & time.

● Wireless & Networks Setting: Please refer to”7- Internet Access”

● Sound Setting: You can adjust Silent mode, Volume, Notification ringtone, Audible selection,

Screen lock sounds, and Haptic feedback.

● Display Setting: You can adjust Brightness, Auto-rotate screen, Animation, Screen timeout.

● Storage Setting: In this setting, you can check storage use and Mount & Erase TF cards.

● Battery Setting: check storage battery usage.

● Apps Setting: You can manage applications here, and check storage & battery usage.

● Security Setting: In this Setting, you can set up screen lock and device administrators,

as well as TF card password.

● Privacy Setting: In this setting, you can back up data, and reset factory default.

● Language & input: In this setting, you can change the language of system, and choose

Keyboard inputs.

Notice: If you have installed an input and you want to use it, please

remember to turn on it in this setting (All inputs could be turned on
here). Long Press the blank where you want to type, there will be popup
to choose inputs.

● Date & time Setting: In this setting, you can adjust date and time.

● About tablet: Check device information.

23

Warranty conditions

- The warranty of this product is for 2 years since the purchase date.

- The warranty will exclude breakdowns caused by bad use of the product, wrong installation or
installation in not desirable places for a proper maintenance of the product, rips, updates of the
products
that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate
use. Also are excluded breakdowns caused for manipulations of the products by people or companies
alien to our company.

- For any request regarding the warranty terms, the purchase receipt must be attached.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment(WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their endof­life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling centre.
In the European Union there are separate collection systems for used
electrical and electronic products.Please help us to conserve the
environment we live in!

24

Guía rápida

Modelo: CA7CHIL

Spanish

1. NO coloque objetos encima del aparato
porque podrían rayarlo.

2. NO exponga el aparato a entornos sucios o
polvorientos.

3. NO coloque el aparato en una superficie
desigual o inestable.

4. NO introduzca ningún objeto extraño en el
aparato.

5. NO exponga el aparato a un campo
magnético o eléctrico fuerte.

6. NO exponga el aparato directamente a la luz
del sol porque podría dañarlo.
Manténgalo apartado de superficies calientes.

7. NO guarde el aparato a temperaturas
superiores a los 40 ºC (104 ºF). La temperatura
interna de funcionamiento de este aparato es
de 20 °C (68 °F) a 60 °C (140 °F).

26

8. NO utilice el aparato bajo la lluvia.

9. Consulte con su ayuntamiento o vendedor
para saber cómo eliminar de forma correcta los
aparatos electrónicos.

10. El aparato y el adaptador pueden
producir algo de calor durante el
funcionamiento normal de la carga.
Para evitar la incomodidad o un daño debido a

la exposición al calor NO deje el aparato en su regazo.

11. CAPACIDAD DE LA POTENCIA DE
ENTRADA: Véase la etiqueta del aparato
y asegúrese de que el adaptador de

potencia corresponde a la capacidad.
Utilice únicamente los accesorios especificados por el
fabricante.

12. Limpie el aparato con un paño suave.

Si fuera necesario, humedezca

ligeramente el paño antes de limpiar.
No utilice nunca mezclas abrasivas o productos de
limpieza.

27

13. Apague siempre el aparato para instalar o
quitar dispositivos externos que no aguanten
la conexión en caliente.

14. Desconecte el aparato de la toma de
corriente eléctrica y apáguelo antes de
limpiarlo.

15. NO desmonte el aparato. Sólo un técnico
de servicio autorizado debe realizar las
reparaciones.

16. El aparato tiene aperturas para liberar calor.
NO bloquee la ventilación del aparato, el
aparato puede calentarse y comenzar a
funcionar mal.

17. Riesgo de explosión en caso de
sustitución de la batería por otra de un tipo
incorrecto. Tire las baterías usadas siguiendo
las instrucciones.

18. EQUIPAMIENTO ENCHUFABLE: el enchufe
debe estar instalado cerca del equipo y tener un
acceso fácil.

28

Contenido

PRECAUCIONES .......................................................................................................................................................... 30

CARACTERÍSTICAS ..................................................................................................................................................... 32

BOTONES....................................................................................................................................................................... 33

FUNCIONAMIENTO

1.1: Indicador LED ............................................................................................................................................ 33

1.2: Encender/Apagar ..................................................................................................................................... 34

1.3: Menú Principal

1.3.1: Entrar en modo parental ............................................................................................................ 35

1.3.2: Entrar en modo infantil ............................................................................................................... 36

1.4: Configuración parental .......................................................................................................................... 36

1.4.1: Configuración parental

1.4.1.1: Configuración del tiempo de apagado .................................................................. 36

1.4.1.2: Configuración del brillo de pantalla ....................................................................... 37

1.4.1.3: Gestión de aplicaciones............................................................................................... 37

1.4.1.4 : Administrar la contraseña parental

1.4.1.4.1: Cambio de la contraseña parental – Por primera vez ............. 38

1.4.1.4.2: Cambio de la contraseña parental – Después de cambiarla por

primera vez .................................................................................................................................................................. 39

1.4.1.4.3: Olvidó su contraseña parental ...................................................... 39

1.4.1.4.4: Olvidó el código de restablecimiento ........................................ 40

1.4.1.4.5: Cambio del código de restablecimiento ................................... 40

1.4.1.5: Administrar la contraseña de los niños

1.4.1.5.1: Cambio de la contraseña de los niños .......................................... 40

1.4.1.5.2: Olvidó la contraseña de los niños ................................................... 40

1.5: Modo infantil ............................................................................................................................................. 41

1.5.1: Iconos y función ............................................................................................................................. 41

1.5.2: Interfaz del usuario

1.5.2.1: ABC ...................................................................................................................................... 42

1.5.2.2: Cámara divertida ............................................................................................................ 43

1.5.2.3: Deportes de familia ....................................................................................................... 44

1.5.2.4: Minijuegos ........................................................................................................................ 44

1.5.2.5: Apps .................................................................................................................................... 44

1.5.2.6: Fotos ................................................................................................................................... 45

1.5.2.7: Música ................................................................................................................................ 45

1.5.2.8: Vídeo ................................................................................................................................... 45

1.5.2.9: Cámara ............................................................................................................................... 45

1.5.2.10: MIC .................................................................................................................................... 46

1.5.2.11: Calculadora .................................................................................................................... 46

1.5.2.12: Modo parental .............................................................................................................. 46

1.6: Restablecimiento de los valores de fábrica ....................................................................................... 46

1.7: Conexión Wi-Fi ............................................................................................................................................. 47

1.8 : Alojamiento UBS (OTG) ......................................................................................................................... 48

1.9: Copia/Transferencia de archivos ........................................................................................................... 48

1.10: Configuración del sistema .................................................................................................................... 49

29

PRECAUCIONES

Siga estos consejos para prolongar el tiempo de vida operativa de su Kids Tablet

● Este aparato no es resistente a la rotura ni al agua. Manéjese con cuidado.

● Se recomienda que cargue el aparato unas 12 horas antes de usarlo por primera vez.

● No deje que los niños carguen su Kids Tablet

● Especificaciones del adaptador de CA recomendado: Entrada: 100-240 V 50/60 Hz y salida: 5V,

1.500 mA

● Por favor, no cargue la Kids Tablet cuando la temperatura sea demasiado elevada.

● Si el aparato se está quedando sin batería cárguelo inmediatamente.

● Para mantener la batería en buenas condiciones asegúrese de cargarla cada dos semanas si no usa el

aparato durante un largo período de tiempo.

● No utilice esta Kids Tablet en temperaturas extremas. Manténgase alejado de zonas con una
temperatura extremadamente caliente, fría, seca o húmeda. Manténgase también alejado del agua, del
fuego y de la radiación.

● No desmonte su Kids Tablet

● Nunca fuerce ningún conector de cable en los puertos de la Kids Tablet o del ordenador. Asegúrese

siempre de que los conectores de los cables tienen una forma y un tamaño idénticos antes de intentar
conectarlos.

● Cuando desconecte su Kids Tablet de un ordenador utilice la función de Quitar hardware de forma
segura de su ordenador. No desconecte su Kids Tablet mientras está transfiriendo datos

Características

Sistema operativo

● Android OS V4.1.1 preinstalado.

Inalámbrico

● Wi-Fi 802.11 b/g incorporada. Compatible con USB _LAN

Pantalla

● Pantalla completa, táctil capacitiva TFT digital de 7 pulgadas.

● Resolución de pantalla de 800 x 480 píxeles (16:9)

Cámaras y fotos

● Cuenta con una cámara frontal de 0.3 píxeles.

● Puede usarse para conferencias de vídeo a través de Skype, MSN o cualquier otro programa de

mensajería instantánea.

Puedes hacer y compartir fotos y vídeos fácilmente desde donde estés.

Control parental

● Previamente cargada con contenido y juegos educativos para niños

● Los padres puede seleccionar fácilmente qué aplicaciones pueden usar los niños.

● Los padres pueden desbloquear el dispositivo y convertirlo en una tableta con todas sus

características

30
