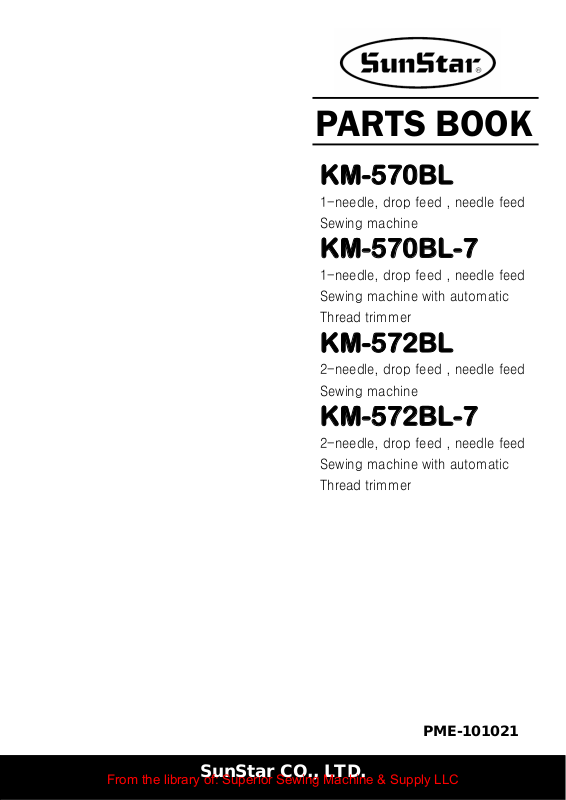

PARTS BOOK
KM-570BL
1-needle, drop feed , needle feed
Sewing machine
KM-570BL-7
1-needle, drop feed , needle feed
Sewing machine with automatic
Thread trimmer
KM-572BL
2-needle, drop feed , needle feed
Sewing machine
KM-572BL-7
2-needle, drop feed , needle feed
Sewing machine with automatic
Thread trimmer
SunStar CO., LTD.
PME-101021
Information
A. Parts Book 구성
Structure of Part Book
①:관계 별 고유 코드
Unique code by mechanism
②:관계 별 고유 명칭
Unique name by mechanism
③:관계도
Explode view
④Ref.No:파트별 고유 식별 번호
⑤Parts No.:고유 제품 코드
Unique Product code
Ex)
①
Unique identification number by part
②
구분
Category
구 부품
Old part
신 부품
New Part
③
Code
01-030C-1230
AS-000000-00
GP-000000-00
EP-000000-00
④
⑥Note:공지사항 표기 및 메모
Refers to notice and memo
⑦품 명:파트의 고유 품명
Name of Part:Unique name of parts
⑧Q’ty :파트의 수량
The number of parts
⑨Assembly no.:조(組) 파트의 식별 번호
조(組) 파트
Set parts
기구적 파트
Instrumental parts
전기적 파트
Electrical parts
⑥ ⑦ ⑧ ⑨ ⑤
Unique identification number by set part
비고
remarks
Warning
1. 조에 속한 파트는 개별 조립 시 제품의 파손 또는 재봉 불량이 발생될 수 있어
해당 파트에 대한 주문 시에는 조 품목으로만 구입이 가능합니다.
2. 본 책자는 Parts Book으로 제작되었으므로 매뉴얼로 사용 불가합니다.
3. 사전 예고 없이 사양이 변경 될 수도 있습니다.
1. The parts classified as ass’y items may cause damage to the machine or bad sewing
when they are separately assembled. Hence, when they are ordered, they can be
purchased as ass’y items only.
2. This is a parts book. It cannot be used as a manual.
3. Parts are Subject to change in Design Without Prior Notice.
CONTENTS
목 차
Machine Body Mechanism
A
두부 외장 관계
Upper Shaft & Needle Bar Mechanism
B
상축 및 바늘대 관계
Presser Foot & Knee Lifting Mechanism
C
노루발 및 무릎올림 관계
Feed Mechanism
D
피이드 관계
Lower Shaft & Hook Mechanism
E
하축 및 훅 관계
Upper Feed Mechanism
F
상 피이드 관계
Thread Trimmer Mechanism
G
사절 관계
Lubrication Mechanism
H
급유 관계
Reverse Button Mechanism
I
역진 버튼 관계
Auto Knee Lifter Solenoid Mechanism
J
자동무릎올림 관계
Accessories Mechanism
K
액세서리 관계
Gauge Parts
L
게이지 파트
6
10
12
14
18
22
24
28
30
32
34
36
Index
인덱스
38
Machine Body Mechanism
A
두부외장 관계
6
Ref. No. Parts No. Note Name of Parts 품 명
A-1 AAB-SM004200 Arm&Bed 암&베드(조) 1set - - -
A-2 CMB-LA020900 Face Plate 면판 1 1 1 1
A-3 DSC-BJ000200 Screw 죔나사 1 1 1 1
A-4 DWS-CB000600 Washer 와셔 1 1 1 1
A-5 DSC-BJ000200 Screw 죔나사 1 1 1 1
A-6 CMB-LA023400 Thread Take Up Cover 실채기 커버 1 1 1 1
A-7 DSC-BJ001100 Screw 죔나사 (9/64" n=40) 2 2 2 2
A-8 CMB-HK002700 Top Cover Thread Guide 세구멍실걸이 2 2 2 1
A-9 DSN-AA000700 Nut 육각너트 2 2 2 1
A-10 CMB-HK005300 Arm Thread Guide(U) 암실안내(상) 1 1 1 1
A-11 DSC-BC000200 Screw 죔나사 (9/64" n=40) 1 1 1 1
A-12 CMB-HK007500 Arm Thread Guide(M) 암실안내(중) 1 1 1 1
A-13 DSC-BC000200 Screw 죔나사 (9/64" n=40) 1 1 1 1
A-14 CLB-JL006500 Upper Thread Felt 윗실급유휄트 1 1 1 1
A-15 CMB-HK005500 Arm Thread Guide(L) 암실안내(하) 1 1 1 1
A-16 CLB-BG003800 Felt Holder for Upper Thread Supply 윗실 급유 휄트잡이 1 1 1 1
A-17 DSC-BJ001600 Screw 죔나사 (3/32" n=56) 2 1 1 1
A-18 DSC-BC000200 Screw 죔나사 (9/64" n=40) 1 1 1 1
A-19 CMB-LD005300 Model Mark(2-Needle,Trimming) 모델마크 (2본침, 사절) - 1 1 -
A-20 CMB-LD005400 Model Mark(2-Needle,Non-Trimming) 모델마크 (2본침, 비사절) 1 - - -
A-21 PPN-AD000100 Pin 핀 2 2 2 2
A-22 CMB-LB008700 Rear Cover 뒷뚜껑 1 1 1 1
A-23 DSC-BJ000200 Screw 죔나사 (11/64" n=40) 4 4 4 4
A-24 CMB-LB008800 Rear Cover(A) 후면커버(A) 1 1 1 1
A-25 DSC-BJ000200 Screw 죔나사 (11/64" n=40) 2 2 2 2
A-26 CMB-LB008900 Rear Cover(B) 후면커버 (B) 1 1 1 1
A-27 DSC-BJ000200 Screw 죔나사 (11/64" n=40) 2 2 2 2
A-28 AMB-PS004400 Slide Plate(F) Ass'y 미끄럼판-전(조) 1 1 1 1
A-29 DSC-CA001700 Screw 죔나사 (11/64" n=40) 1 1 1 1
A-30 CMB-BJ007500 Slide Plate(Rear) 미끄럼판(후) 1 1 1 1
A-31 DSC-BB004700 Screw 죔나사 (9/64" n=40) 2 2 2 1
A-32 CMB-GH000700 Slide Plate(L) 미끄럼판(좌) 1 1 1 -
A-33 CMB-BJ006900 Slide Plate(Right) 미끄럼판 (우) 1 1 1 1
A-34 CGA-GA003500 Needle Plate 침판(1/4") - 1 1 -
A-35 CGA-GA003600 Needle Plate 침판(1/4", 비사절) 1 - - -
A-36 DSC-BG000100 Screw 죔나사 (9/64" n=40) 1 1 1 1
A-37 Pin 핀 1 1 1 1
A-38 CMB-BB008900 Bed Leg 베드 다리 1 1 1 1
A-39 DSC-BF013600 Screw 죔나사 (1/4" n=24) 2 2 2 2
A-40 DSC-HC000900 Bed Support 베드받침 3 3 3 3
A-41 DSC-HC001400 Bed Support (B) 베드 다리(B) 1 1 1 1
A-42 CMB-LB009500 Bed Top Cover 베드 상면 커버 1 1 1 1
A-43 DSC-BC000200 Screw 죔나사 (9/64" n=40) 2 2 2 2
A-44 DPK-CB000200 Rubber Cap 고무마개 1 1 1 1
A-45 DPK-CB000800 Rubber Cap 고무마개 2 2 2 2
A-46 DPK-CB000700 Rubber Cap 고무마개 1 1 1 1
A-47 DPK-CB000200 Rubber Cap 고무마개 1 1 1 1
A-48 ATA-PS005001 Thread Tension Control Ass'y 실조절장치(조) 1set 1set 1set -
A-49 CTA-BJ003300 Thread Tension Control Plate 실조절장치 플레이트 1 1 1 -
A-50 CTR-BJ002300 Tension Release Plate 실늦추기판 1 1 1 1
A-51 CTR-BB001400
A-52 CTR-BB001500
A-53 DPN-AD010500
A-54 DSP-AA012200
A-55 DSC-FA020800 Screw 죔나사 1 1 1 1
A-56 DSC-BF016300 Screw 죔나사 1 1 1 1
Bracket(A) for Thread Tension Release Plate
Bracket(B) for Thread Tension Release Plate
Button for Thread Tension Release Plate
Spring for Thread Tension Release Plate Button
실늦추기 브라켓(A) 1 1 1 1
실늦추기 브라켓(B) 1 1 1 1
실늦추기 버튼 1 1 1 1
실늦추기 버튼 스프링 1 1 1 1
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
7
Machine Body Mechanism
A
두부외장 관계
8
Ref. No. Parts No. Note Name of Parts 품 명
A-57 PSR-AC000500 E-Ring E-링 (호칭경 ф6) 1 1 1 1
A-59 01-018A-7400-21 Screw 죔나사 1 1 1 1
A-60 01-018A-7400-23 Thread Take Up Lever Spring 실채기 스프링 1 1 - -
A-61 CTA-HM002500 Thread Tension Adjusting Shaft 실장력 조절축 1 1 - -
A-62 CTA-BJ002300 Thread Controlling Disc 실채기 스프링 안내판 2 2 1 1
A-63 DSN-CD000700 Thread Tension Nut 실장력 조절축 너트 2 2 1 1
A-64 CTA-HM001800 Tension Stud Right 실장력 조절축(大) 1 1 - -
A-65 DPN-AA009200 Tesion Releasing Shaft 실늦추기 핀(大) 1 1 - -
A-66 CTA-HL001100 Thread Tension Adjusting Disk 실장력 조절접시 4 4 2 2
A-67 CTA-BJ002000 Presser Plate for A-66 실장력 조절접시 누름판 2 2 1 1
A-68 DSP-BA003000 Thread Tension Adjusting Spring 실장력 조절 스프링 2 2 1 1
A-69 CTA-BJ000100 Spring Stopper 실장력 조절 스프링 스토퍼 2 2 1 1
A-70 DSN-CD000100 Upper Thread Tension Adjusting Nut 윗실장력 조절캡 2 2 1 1
A-71 CTA-HM001600 Thread Tension Stud B 실장력 조절축(小) 1 1 1 1
A-72 DPN-AA009100 Thread Release Pin 실늦추기 핀(小) 1 1 1 1
A-73 DPN-AA009400 Pin 실장력 조절접시 고정핀(大) 1 1 - -
A-74 DPN-AA009300 Pin 실장력 조절접시 고정핀(小) 1 1 1 1
A-75 CTA-HM001900 Thread Tension Stud(L) 보조실 안내축(大) 1 1 - -
A-76 CTA-HL001200 Sub Thread Tension Adjusting Disk 보조 실장력 조절접시 4 4 2 2
A-77 DSP-BA002200 Sub Thread Tension Spring 보조 실장력 스프링 2 2 1 1
A-78 DSN-CC000400 Sub Thread Tension Adjusting Nut 보조 실장력 조절너트 2 2 1 1
A-79 CTA-HM002000 Thread Tension Stud(S) 보조실 안내축(小) 1 1 1 1
A-80 DPN-AA009000 Thread Guide Pin 실안내 핀 2 2 1 1
A-81 DSN-AA003300 Nut 너트 1 1 1 1
A-82 DSC-FA014400 Screw 죔나사 2 2 2 2
A-83 CTR-BH001100 Thread Release Spring 실늦추기 스프링 1 1 1 1
A-84 DSC-BA001600 Screw 죔나사 (3/16" n=32, 1=17) 1 1 1 1
A-85 CTA-BJ001900 Thread Take Up Spring Stopper 실조절장치 스토퍼 1 1 1 1
A-86 DSC-BJ001100 Screw 죔나사 (9/64" n=40) 1 1 1 1
A-87 CMB-LD005300 Model Mark(1-Needle,Trimming) 모델마크(1본침, 사절) - - - -
A-88 CMB-LD005400 Model Mark(1-Needle,Non-Trimming) 모델마크(1본침, 비사절) - - 1 -
A-89 CMB-GH000800 Slide Plate Ass'y 미끄럼판(좌) - - 1 1
A-90 CGA-GA003700 Needle Plate 침판 - - 1 -
A-91 Needle Plate(Trimming) 침판(사절) - - - 1
A-92 Arm&Bed Ass'y 암&베드(조) - 1 - -
A-93 Arm&Bed Ass'y 암&베드(조) - - 1 -
A-94 Arm&Bed Ass'y 암&베드(조) - - - 1
A-95 AS-005188-01 Thread Tension Control Ass'y 실조절장치(조) - - 1 1
A-96 CTA-BJ003400 Thread Tension Control Plate 실조절장치 플레이트 - - 1 1
A-97 CTA-HM002600 Thread Tension Adjusting Shaft 실장력 조절축 - - 1 1
A-98 40-001A-5607-14 Thread Take-Up Lever Spring 실채기 스프링 - - 1 1
A-99 CTA-HK000900 Thread Guide Plate 실안내판 1 1 1 1
A-100 DSC-BF013100 Screw 실안내판 고정나사 1 1 1 1
A-101 CMB-FC006800 Rear Cover(A) Gasket 측면커버(A) 가스킷 1 1 1 1
A-102 CMB-LD007100 CE Mark CE 마크 1 1 1 1
A-103 DPK-CB003200 Rubber Cap 링크캡 나사 고정홀 고무마개 2 2 2 2
A-104 DTC-AH001000 Cable Holder 케이블잡이 3 3 3 3
A-105 DTC-AH000200 Code Holder 코드잡이 1 1 1 1
A-106 DSC-BJ000200 Screw(11/64"n=40) 죔나사(11/64"n=40) 4 4 4 4
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
9
Upper Shaft & Needle Bar Mechanism
B
상축 및 바늘대 관계
10
Ref. No. Parts No. Note Name of Parts 품 명
B-1 CUS-KC003100 Upper Shaft 상축 1 1 1 1
B-2 CUS-DA003100 Link Cam 링크캠 1 1 1 1
B-3 DSC-BF003700 Screw(9/32" n=28) 죔나사 (9/32" n=28) 1 1 1 1
B-4 DSC-BF011500 Screw(9/32" n=28) 죔나사 (9/32" n=28) 1 1 1 1
B-5 DBS-DB009500 Upper Shaft Bushing(F) 상축 전 붓싱 1 1 1 1
B-6 DSC-CA000800 Screw(15/64" n=28) 죔나사 (15/64" n=28) 1 1 1 1
B-7 CLB-JL006600 Felt for Upper Shaft Bushing(F) 상축 전 붓싱 휄트 1 1 1 1
B-8 DBS-DA027800 Upper Shaft Bushing(M) 상축 중 붓싱 1 1 1 1
B-9 DSC-CA000800 Screw(15/64" n=28) 죔나사 (15/64" n=28) 1 1 1 1
B-10 DPL-BA000700 Timing Belt Pullley 타이밍 벨트 풀리(상) 1 1 1 1
B-11 DSC-CB000400 Screw(1/4" n=40) 죔나사 (1/4" n=40) 2 2 2 2
B-12 PBT-BA000500 Timing Belt 타이밍 벨트 1 1 1 1
B-13 PBR-AA002400 Upper Shaft Bearing(R) 상축 후 베어링 (6204ZZNR) 1 1 1 1
B-14 DCL-AB003700 Bushing for Upper Shaft Bearing(R) 상축 후 베어링 붓싱 1 1 1 1
B-15 DSC-CB000400 Screw(1/4" n=40) 죔나사 (1/4" n=40) 2 2 2 2
B-16 11-023A-2500 Synchronizer Ass'y 내장형 싱크로(조) - 1 - 1
B-17 11-024S-2500 Screw 죔나사 - 1 - 1
B-18 11-020A-2500 Magnetic Holder 마그네틱 홀더 - 2 - 2
B-19 PSC-AC015800 Screw 죔나사 - 2 - 2
B-20 DWS-CA000100 Washer 와셔 - 2 - 2
B-21 GP-012138-00 Pulley 풀리 1 1 1 1
B-22 DSC-BF000800 Screw(15/64" n=28) 고정나사 (15/64" n=28) 2 2 2 2
B-23 DPK-CY000100 Pulley Cover 풀리커버 1 1 1 1
B-24 02-019S-9570 Screw(15/64" n=28) 풀리커버 고정나사 1 1 1 1
B-25 DPN-AA009600 Link Cam Pin 링크캠핀 1 1 1 1
B-26 DSC-CA000500 Screw(1/4" n=40) 죔나사 (1/4" n=40) 1 1 1 1
B-27 DSC-CB000400 Screw(1/4" n=40) 죔나사 (1/4" n=40) 1 1 1 1
B-28 CTH-CC001400 Needle Bar Crank 바늘대크랭크 1 1 1 1
B-29 CPB-BH001300 Needle Bar 바늘대 1 1 - -
B-30 CNB-BF001800 Needle Bar Holder 바늘대 잡이 1 1 1 1
B-31 DSC-BJ000300 Screw (9/64" n=40) 죔나사 (9/64" n=40) 2 2 2 2
B-32 CLB-JL000800 Felt 휄트 1 1 1 1
B-33 CGA-GD002900 Needle Holder 침지 (1/4") 1 1 - -
B-34 Needle 바늘 (DP×17 #23) 2 2 1 1
B-35 DSC-BJ004300 Screw (9/64" n=40) 죔나사 (9/64" n=40) 2 2 1 1
B-36 DPN-AA013200 Thread Take Up Lever Pin 실채기핀 1 1 1 1
B-37 DSC-CA000800 Screw(15/64" n=28) 죔나사 (15/64" n=28) 1 1 1 1
B-38 GP-012080-02 Thread Take Up Lever 실채기 1 1 - - Feb.28.09
B-39 02-103A-5607 Thread Take Up Lever Holder 실채기잡이 1 1 1 1
B-40 CNB-KA002000 Needle Bar 바늘대 - - 1 1
B-41 CNB-HK001500 Needle Bar Thread Guide 바늘대 실안내 - - 1 1
B-42 CTH-HJ002000 Thread Take-up Lever 실채기 - - 1 1
Q’ty
A B C D
Applied
Period
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
11
Presser Foot & Knee Lifting Mechanism
C
노루발 및 무릎올림 관계
12
Ref. No. Parts No. Note Name of Parts 품 명
C-1 CPB-KB000901 Presser Bar 누름대 1 1 1 1
C-2 DBS-DA022400 Presser Bar Bushing 누름대붓싱 1 1 1 1
C-3 DSC-CA000800 Screw(15/64" n=28) 죔나사 (15/64" n=28) 1 1 1 1
C-4 DSC-HA000500 Presser Adjusting Screw 압력조절나사 1 1 1 1
C-5 DSN-CC000600 Nut 압력조절나사너트 1 1 1 1
C-6 DSP-AA011400 Presser Spring 압력조절스프링 1 1 1 1
C-7 CGA-GC005000 Sub Presser Foot 보조 노루발 1 1
C-8 DSC-BF003800 Screw 죔나사 1 1 1 1
C-9 CPB-BH001300 Finger Guide 핑거가드 1 1 1 1
C-10 CPB-BB001200 Presser Bar Bracket 누름대 브라켓 1 1 1 1
C-11 DSC-BJ000400 Screw(11/64" n=40) 죔나사 (11/64" n=40) 1 1 1 1
C-12 DSC-FG002000 Stud for Presser Bar Bracket 누름대 브라켓 축 단나사 1 1 1 1
C-13 CPB-CL000500 Roller For Presser Bar Bracket 누름대 브라켓 축 롤러 1 1 1 1
C-14 CPB-BK000700 Guide Block 누름대 브라켓 가이드블럭 1 1 1 1
C-15 DSC-BF001000 Screw(11/64" n=40) 죔나사 (11/64" n=40) 2 2 2 2
C-16 CPB-BJ001700 Guide for Bracket Roller 누름대 브라켓 롤러 안내 1 1 1 1
C-17 DSC-BF001000 Screw(11/64" n=40) 죔나사 (11/64" n=40) 2 2 2 2
C-18 DWS-AA001100 Washer 와셔 2 2 2 2
C-19 CPB-BJ001400 Plate for Roller Guide 로울러 안내 부착판 1 1 1 1
C-20 DSC-BB004600 Screw(11/64" n=40) 죔나사 (11/64" n=40) 2 2 2 2
C-21 GP-000090-01 Presser Lifting Lever 누름대 올림레버 1 1 1 1
C-22 DSC-HB002300 Hinge Pin for Presser Lifting Lever 누름대 올림레버 힌지나사 1 1 1 1
C-23 CST-CM000300 Knee Lifting Lever 무릎 올림 레버 1 1 1 1
C-24 DSC-FD001800 Knee Lifting Lever Stud 무릎올림 레버 단나사 1 1 1 1
C-25 DSP-AC007000 Knee Lifitng Lever Spring 무릎올림 레버 스프링 1 1 1 1
C-26 CPM-CA002200 Connecting Link for Knee Lifting Lever 무릎올림 레버 연결링크 1 1 1 1
C-27 DSC-FF003100 Pin for knee Lifting Lever 무릎올림 레버 작동핀 1 1 1 1
C-28 DSC-FD001900 Stud 무릎올림 연결 크랭크 단나사 1 1 1 1
C-29 CPM-CR001100 Knee Lifter Bar 무릎올림 봉 1 1 1 1
C-30 DCL-AA009400 Knee Lifter Bar Collar 무릎올림 봉 카라 1 1 1 1
C-31 DSC-BF006400 Screw(11/64" n=40) 죔나사 (11/64" n=40) 2 2 2 2
C-32 CGA-GC005400 Sub Presser Foot 보조 노루발 - - 1 1
C-33 PN-000229-00 Snap Pin 스냅핀(SSP-6) 1 1 1 1
C-34 AS-005550-00 Thread Tension Release Ass’y 실늦추기 1Set 1Set 1Set 1Set
C-35 DPN-BC005300 Thread Tension Release Pin 실늦추기 핀 1 1 1 1
C-36 DSP-AA009500 Thread Tension Release Spring 실늦추기 스프링 1 1 1 1
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
13
Feed Mechanism
D
5
1
피이드 관계
2
54
14
Ref. No. Parts No. Note Name of Parts 품 명
D-1 CFA-DF001001 Feed Regulator 피이드 조절기 1 1 1 1
D-2 DSC-CA000800 Screw 죔나사 (15/64" n=28) 1 1 1 1
D-3 CLF-CC002200 Feed Regulator Connecting Rod 절환기 연결롯드 1 1 1 1
D-4 DPN-AD010200 Pin for Feed Regulator Conneting Rod 절환기 연결롯드 핀 1 1 1 1
D-5 DSC-BF016400 Screw 죔나사 (15/64" n=28) 2 2 2 2
D-6 CFA-KJ001200 Feed Regulator Control Shaft 피드조절 다이알축 1 1 1 1
D-7 PPK-BA001600 O-Ring O링 1 1 1 1
D-8 CFA-CQ002900 Feed Regulator Control Plate 피드조절 다이알 문자판 1 1 1 1
D-9 DSC-BF001900 Screw 죔나사 (3/16" n=28) 1 1 1 1
D-10 DPN-AA008700 Pin for Feed Regulator Control Plate 다이알 핀 1 1 1 1
D-11 DSP-AA006400
D-12 CFA-KC001300 Feed Regulator Lever Shaft 역진레버 축 1 1 1 1
D-13 CFA-CB001600 Reverse Crank 역진 크랭크 1 1 1 1
D-14 DSC-BF000700 Screw 죔나사 (15/64" n=28) 1 1 1 1
D-15 DSC-BJ000200 Screw 죔나사 (11/64" n=40) 1 1 1 1
D-16 DSP-AB005300 Reverse Lever Spring 역진 레버 스프링 1 1 1 1
D-17 DWS-CB000200 Washer 와셔 - 1 - 1
D-18 DSP-AC004900 Reverse Lever Spring(A) 역진 레버 스프링(A) - 1 - 1
D-19 CFA-CM000800 Reverse Lever 역진 레버 - 1 - 1
D-20 CFA-CM002200 Reverse Lever(B) 역진 레버 (B) - 1 - 1
D-21 DSC-CB001800 Screw 죔나사 (11/64" n=40) 1 1 1 1
D-22 DSC-CB000400 Screw 죔나사 (11/64" n=40) 1 1 1 1
D-23 DSC-FA006200 Stud Screw for Reverse Lever Stopper 역진 레버 스토퍼 단나사 - 1 - 1
D-24 CFA-FZ000100 Reverse Lever Stopper Rubber 역진 레버 스토퍼 고무 - 1 - 1
D-25 CLF-CB003500 Crank for Feed Regulator Shaft 절환기 연결 크랭크 1 1 1 1
D-26 DSC-CB000700 Screw 죔나사 (M5×P0.8) 2 2 2 2
D-27 CLF-CH000600
D-28 PSC-AC006100 Screw 죔나사 (M5×P0.8) 1 1 1 1
D-29 CLF-KK000600 Feed Regulator Shaft 절환기 1 1 1 1
D-30 CLB-JL000800 Felt for Feed Regulator Shaft 절환기 휄트 2 2 2 2
D-31 DCL-AA009500
D-32 DSC-CA000100 Screw 죔나사 (15/64" n=28) 2 2 2 2
D-33 CLF-BK000200 Slide Block 슬라이드 블록 2 2 2 2
D-34 CLF-BJ001400 Slide Guide Plate 슬라이드 블록 안내판 2 2 2 2
D-35 DSC-BF003600 Screw 죔나사 (11/64" n=40) 4 4 4 4
D-36 GP-014602-00 Slide Block Shaft 슬라이드 블록 축 1 1 1 1
D-37 CLF-CB003700 Lever Feed Arm 수평밀대 크랭크 1 1 1 1
D-38 DSC-BA001300 Screw 죔나사 (1/4" n=28) 1 1 1 1
D-39 CLF-CA001100 Lever Feed Connecting Link 수평 피이드 연결링크 1 1 1 1
D-40 DPN-AA016200 Connecting Pin 연결핀 1 1 1 1
D-41 PSR-AC000200 E-Ring E-링 (호칭경 ф5) 2 2 2 2
D-42 DBS-DA029000 Feed Rock Shaft Bushing(F) 수평밀대 전붓싱 1 1 1 1
D-43 DBS-DA028900 Feed Rock Shaft Bushing(R) 수평밀대 후붓싱 1 1 1 1
D-44 DSC-CA000100 Screw 죔나사 (15/64" n=28) 2 2 2 2
D-45 DCL-AA000100 Feed Rock Shaft Collar 수평밀대 카라 2 2 2 2
D-46 DSC-CA000500 Screw 죔나사 (1/4" n=40) 4 4 4 4
D-47 CLF-KD000500 Feed Lock Shaft 수평밀대 1 1 1 1
D-48 CLF-CB003600 Feed Bar Crank 톱니받침 크랭크 1 1 1 1
D-49 DSC-BA000400 Screw 죔나사 (3/16" n=28) 2 2 2 2
D-50 CLF-KC001900 Feed Bar Shaft 톱니받침 축 1 1 1 1
D-51 CLF-BA001400 Feed Bar 톱니 받침 1 1 - -
D-52 PSC-AC006100 Screw 죔나사 (M5×P0.8) 1 1 1 1
D-53 CGA-GB006300 Feed Dog 톱니(1/4˝) - 1 1 1 Feb.28.09
D-54 DSC-AC001500 Screw 죔나사 (1/8" n=44) 2 2 2 2
D-55 DSC-BJ006200 Screw 죔나사 (1/8" n=44) 1 1 1 1
D-56 DSN-AA002700 Nut 너트 (1/8" n=44) 1 1 1 1
Spring for Feed Regulator Control Plate Pin
Eccentric Pin for Feed Regulator Connecting Rod
Stopper Collar for Feed Regulator Shaft
다이알 핀 스프링 1 1 1 1
절환기 연결롯드 편심핀 1 1 1 1
절환기 스토퍼 카라 1 1 1 1
Q’ty
A B C D
Applied
Period
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
15
Feed Mechanism
D
5
1
피이드 관계
2
54
16
Ref. No. Parts No. Note Name of Parts 품 명
D-57 CLF-BB001000 Feed Bar Fork 톱니받침 포크 1 1 1 1
D-58 DSC-BJ001100 Screw 죔나사 (15/64" n=28) 1 1 1 1
D-59 DWS-AA014400 Washer 와셔 1 1 1 1
D-60 CLB-JL006800 Feed Bar Fork Felt 포크 휄트 1 1 1 1
D-61 CLF-DC003000 Feed Cam 피드캠 1 1 1 1
D-62 DSC-CA000100 SCrew 죔나사 (15/64" n=28) 2 2 2 2
D-63 CLF-CC002301 Feed Cam Connecting Rod 피드캠 연결 롯드 1 1 1 1 Feb.28.09
D-64 PBR-BA003200 Needle Bearing 피드캠 연결 롯드니들베어링(TA2616Z) 1 1 1 1
D-65 DSR-AA000400 C-Ring C형 멈춤링 (축용,ф26) 1 1 1 1
D-66 CFA-CA001600 Reverse Link 백택솔레노이드 연결링크 - 1 - 1
D-67 DSC-FA020300 Stud Screw for Reverse Link 백택솔레노이드 연결링크 단나사 - 2 - 2
D-68 DSN-AA000400 Nut 너트 (15/64" n=28) - 2 - 2
D-69 CFA-CB001700 Reverse Solenoid Crank 백택솔레노이드 크랭크 - 1 - 1
D-70 DSC-BF000700 Screw 죔나사 (15/64" n=28) - 1 - 1
D-71 DSP-AD001300 Reverse Solenoid Ass'y 백택솔레노이드(조) - 1 - 1
D-72 CFA-BB002401 Reverse Solenoid Bracket 역진 솔레노이드 브라켓 - 1 - 1
D-73 PSC-AA001500 Screw 죔나사 (M8×P1.25) - 2 - 2
D-74 DSC-HD000600 Adjusting Screw for Hook 스프링걸이 - 1 - 1
D-75 DSN-AA000900 Nut 너트 (11/64" n=40) - 1 - 1
D-76 GP-014725-00 Pin for Feed Regulator Connecting Rod 안전장치 버튼 1 1 1 1
D-77 DSP-AA007000 Return Spring for D-76 안전장치 버튼 복귀스프링 1 1 1 1
D-78 PSR-AC000200 E-Ring E-링 (호칭경 ф5) 1 1 1 1
D-80 CLF-BA001500 Feed Bar 톱니받침 - - 1 1
D-81 GP-012312-00 Wheel Feed(1/4", non trimming) 톱니(1/4˝, 비사절) 1 - - -
D-82 CGA-GB006400 Wheel Feed 톱니 - - 1 1
D-83 CFA-BB002500 Reverse Feed Lever Spring Holder 역진레버 스프링걸이(비사절) 1 - 1 -
D-84 PSC-AA001500 Screw 죔나사(M8×P1.25) 1 - 1 -
D-85 CFA-CM002300 Reverse Feed Lever 역진레버 1 - 1 -
D-86 DCL-AA000200 Reverse Feed Lever Collar 역진레버 카라 1 - 1 -
D-87 DSC-CB000700 Screw 죔나사(M5×P0.8) 2 - 2 -
D-88 DPK-CB003300 Rubber Cap 고무마개 1 1 1 1
D-89 CLB-JL001700 Felt 절환기 펠트 1 1 1 1
D-90 CLB-JD000300 Oil Wick 절환기 유심 1 1 1 1
D-91 CLB-BG004200 Oil Wick Holder 절환기 유심 잡이 1 1 1 1
D-92 DSC-BJ004600 Screw(1/8", n=44) 절환기 유심잡이 고정나사 2 2 2 2
D-93 PWS-AA002700 Washer 와셔 1 1 1 1
D-94 DPN-AA016300 Connecting Pin 연결 핀 1 1 1 1
Q’ty
A B C D
Applied
Period
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
17
Lower Shaft & Hook Mechanism
E
하축 및 훅 관계
29
4
28
31
15
14
3
30
2
1
32
18
Ref. No. Parts No. Note Name of Parts 품 명
E-1 CLS-KC003300 Lower Shaft 하축 1 1 1 1
E-2 DBS-DA030500 Lower Shaft Bushing(F) 하축 전붓싱 1 1 1 1
E-3 DBS-DA030600 Lower Shaft Bushing(M) 하축 중붓싱 1 1 1 1
E-4 CLB-JD000100 Felt for Lower Shaft Bushing 하축 붓싱 휄트 2 2 2 2
E-5 CLB-JC000700 Oil Pump 오일펌프 1 1 1 1
E-6 CLB-JF000100 Nipple 니플 4 4 4 4
E-7 CLB-CN000300 Piston 피스톤 2 2 2 2
E-8 DSP-AA006300 Piston Spring 피스톤 스프링 2 2 2 2
E-9 DSC-BF012700 Cap Bolt for Oil Pump 피스톤 마개나사 1 1 1 1
E-10 PBR-AA007400 Lower Shaft Bearing(R) 하축후 베어링(6004ZZNR) 1 1 1 1
E-11 DCL-AB002300 Lower Shaft Bearing Bushing(R) 하축후 베어링 붓싱 1 1 1 1
E-12 DSC-CB001800 Screw 죔나사 (1/4" n=40) 1 1 1 1
E-13 DSC-CB000400 Screw 죔나사 (1/4" n=40) 1 1 1 1
E-14 CLS-BJ000600 Bearing Presser 하축후 베어링 누름판 1 1 1 1
E-15 DSC-BB003700 Screw 하축후 베어링 누름판 죔나사 3 3 3 3
E-16 DPL-BA000800 Safety Clutch Belt Pulley 안전장치 벨트 풀리 1 1 1 1
E-17 PBR-AD000900 Safety Clutch Driving Ball 안전장치 클러치 구동용 볼(7/3) 3 3 3 3
E-18 CLS-BA000300 Safety Clutch Collar 안전장치 카라 1 1 1 1
E-19 CLS-BJ001000 Safety Clutch Disc 안전장치 클러치판 1 1 1 1
E-20 DSP-AA009600 Safety Clutch Spring 안전장치 스프링 3 3 3 3
E-21 DSC-CA005000 Screw 죔나사 (M10×P1.25) 3 3 3 3
E-22 DSC-CB001800 Screw 죔나사 (1/4" n=40) 1 1 1 1
E-23 DSC-CB000400 Screw 죔나사 (1/4" n=40) 1 1 1 1
E-24 DSR-AK000500 Safety Clutch Belt Pulley Ring 후렌치 1 1 1 1
E-26 CLS-BJ001100 Safety Clutch Collar Washer 안전장치 카라 와셔 2 2 2 2
E-27 DSC-BB002000 Safety Clutch Collar Washer Screw 안전장치 카라 와셔나사 4 4 4 4
E-28 90-001A-7400 Gear(L) 기어 (대) 2 2 1 1
E-29 DSC-CB000400 Screw 죔나사 (1/4" n=40) 2 2 1 1
E-30 DSC-CB001800 Screw 죔나사 (1/4" n=40) 2 2 1 1
E-31 CLF-DC001100 Vertical Feed Eccentric Cam 편심캠 1 1 1 1
E-32 DSC-CB001000 Screw 죔나사 (1/4" n=40) 1 1 1 1
E-33 CL-000079-01 Oil Pump Collar 오일 펌프 카라 1 1 1 1
E-34 DSC-CA000400 Screw 죔나사 (11/64" n=40) 2 2 2 2
E-35 CHB-BA001400 Hook Base(L) 훅베이스(좌) 1 1 - -
E-36 DSC-BJ004500 Screw 죔나사 (1/4" n=24) 1 1 - -
E-37 DWS-AA002200 Washer 와셔 1 1 - -
E-38 CHB-BA001500 Hook Base( R ) 훅베이스(우) 1 1 1 1
E-39 DSC-BJ004400 Screw 죔나사 (1/4" n=24) 1 1 1 1
E-40 DWS-AA002200 Washer 와셔 1 1 1 1
E-41 DBS-DB008800 Hook Bushing(U) 훅붓싱 (상) 2 2 1 1
E-42 DSC-CA000100 Screw 죔나사 (15/64" n=28) 2 2 1 1
E-43 DBS-DA029100 Hook Bushing(L) 훅붓싱 (하) 2 2 1 1
E-44 DSC-CA000100 Screw 죔나사 (15/64" n=28) 2 2 1 1
E-45 CHB-BF000100 Pinch Sleeve(U) 훅토대 슬리브(상) 2 2 1 1
E-46 CHB-BF000200 Pinch Sleeve(L) 훅토대 슬리브(하) 2 2 1 1
E-47 DSC-BF012900 Screw 죔나사 (15/64" n=28) 2 2 1 1
E-48 DGR-AB001200 Gear(S) 기어 (소) 2 2 1 1
E-49 DSC-CB001000 Screw 죔나사 (1/4" n=40) 4 4 2 2
E-50 CHK-HA002400 Hook 훅 2 - - 1
E-51 CHK-HA002500 Hook 훅 - 2 1 -
E-52 DSP-BA002600 Bobbin Tension Spring 보빈장력 조절스프링 2 2 1 1
E-53 CHK-HB001000 Bobbin 보빈 2 2 1 1
E-54 CHB-CA000100 Opener Link 오프너 링크 2 2 1 1
E-55 DSC-GB000400 Opener Link Shaft 오프너 링크축 2 2 1 1
E-56 DSN-AA000600 Nut 너트 (3/16" n=32) 2 2 1 1
E-57 CHB-CM000100 Opner Lever 오프너 레버 2 2 1 1
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
19
Lower Shaft & Hook Mechanism
E
하축 및 훅 관계
29
4
28
31
15
14
3
30
2
1
32
20
Ref. No. Parts No. Note Name of Parts 품 명
E-58 CHB-KC000600 Opner Lever Shaft 오프너 레버축 2 2 1 1
E-59 Wick 유심 2 2 1 1
E-60 DSC-CA000300 Screw 죔나사 (3/16" n=28) 2 2 1 1
E-61 CHB-HN000101 Opener 오프너 2 2 1 1
E-62 DWS-AA003800 Washer 와셔 2 2 1 1
E-63 DSC-BJ001400 Screw 죔나사 (9/64" n=40) 2 2 1 1
E-64 SC-000492-00 Oil Adjusting Screw 유량조절나사 2 2 1 1
E-65 DSN-AA000800 Nut 너트 (3/16" n=28) 2 2 1 1
E-66 SC-000572-00 Screw 죔나사 (1/4" n=40) 2 2 1 1
E-67 DSC-CB000400 Screw 죔나사 (1/4" n=40) 3 3 3 3
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
21
Upper Feed Mechanism
F
상 피이드 관계
22
Ref. No. Parts No. Note Name of Parts 품 명
F-1 CUF-DC000600 Upper Feed Lifting Eccentric Cam 노루발 상하운동 캠 1 1 1 1
F-2 DSC-CB000400 Screw(1/4" n=40) 죔나사 (1/4" n=40) 2 2 2 2
F-3 PBR-BA002800 Needle Bearing 니이들베어링 1 1 1 1
F-4 CUF-CC002300 Upper Feed Lifting Rod 노루발 상하운동 캠 롯드 1 1 1 1
F-5 CUF-CB003300
F-6 DSC-AA000700 Screw(1/4" n=28) 죔나사 (1/4" n=28) 1 1 1 1
F-7 DSC-FB001900
F-8 DWS-AA005300 Washer 와셔 1 1 1 1
F-9 DSN-AA004500 Nut 육각너트 1 1 1 1
F-10 CUF-KZ000800 Upper Feed Driving Shaft 상하운동 축 1 1 1 1
F-11 DBS-DA030700 Upper Feed Shaft Bushing 상하운동 축 붓싱 1 1 1 1
F-12 DSC-CA000800 Screw (15/64" n=28) 죔나사 (15/64" n=28) 2 2 2 2
F-13 CLB-JL009000 Felt for Upper Feed Shaft Bushing 상하운동 축 붓싱 휄트 2 2 2 2
F-14 CUF-CA002200 Upper Feed Lifting Connecting Link 상피이드 연결 링크 1 1 1 1
F-15 DSC-FA020400 Upper Feed Connecting Link Screw 상피이드 연결링크 단나사 1 1 1 1
F-16 CUF-CA002300 Link for Upper Feed Foot 상피이드 노루발 연결링크 1 1 1 1
F-17 DSC-BH000400 Screw(3/16" n=28) 죔나사 (3/16" n=28) 1 1 1 1
F-18 CUF-CA002400 Walking Bar Driving Link 상피이드 노루발 운동링크 1 1 1 1 Feb.28.09
F-19 CUF-CR000200 Walking Bar 상피이드 노루발대 1 1 1 1
F-20 CUF-KZ000900 Walking Foot Pressure Adjusting Pole 상피이드 노루발 압력 봉 1 1 1 1
F-21 DSP-AA012000
F-22 DSC-BF003500 Screw 죔나사 1 1 1 1
F-23 CGA-GC011500 Upper Feed Presser Foot(1/4˝) 상피이드 노루발(1/4˝) 1 1 - - Feb.28.09
F-24 DSC-BA001000 Screw (11/64" n=40) 죔나사 (11/64" n=40) 1 1 1 1
F-25 DBS-DB008900 Needle Bar Rock Shaft Bushing(F) 요동축 전붓싱 1 1 1 1
F-26 DBS-DB009000 Needle Bar Rock Shaft Bushing(R) 요동축 후붓싱 1 1 1 1
F-27 CNB-KC000400 Needle Bar Frame Driving Shaft 바늘대 요동축 1 1 1 1
F-28 CNB-CB000601 Frame Shaft Crank (F)] 바늘대 요동축 크랭크(전) 1 1 1 1
F-29 DPN-AB000200 Pin 핀 1 1 1 1
F-30 DSC-GC000800 Pin for Frame Shaft Crank (F)] 바늘대 요동축 크랭크(전) 핀 1 1 1 1
F-31 CNB-CD001400 Needle Bar Block 바늘대 후레임 블록 1 1 1 1
F-32 CUF-CC002600
F-33 CUF-CA002500 Needle Bar Rock Shaft Link 바늘대 요동 링크 1 1 1 1
F-34 DSC-BJ004400 Screw (1/4" n=24) 죔나사 (1/4" n=24) 1 1 1 1
F-35 DSC-GA000901
F-36 DSN-AA003000 Nut(5/16" n=24) 너트 (5/16" n=24) 1 1 1 1
F-37 CUF-CB002900 Needle Bar Rock Crank 바늘대 요동크랭크 1 1 1 1
F-38 DSC-BA001300 Screw(1/4" n=28) 죔나사 (1/4" n=28) 1 1 1 1
F-39 DSC-FA019800 Needle Bar Rock Crank Rod 바늘대 요동크랭크 단나사 1 1 1 1
F-40 DWS-AA010700 Washer 와셔 1 1 1 1
F-41 DSN-CY001100 Needle Bar Rock Crank Holder 바늘대 요동크랭크 카라 1 1 1 1
F-42 DWS-AA002900 Washer 와셔 1 1 1 1
F-43 PWS-CA002500 Spring Washer 스프링 와셔 1 1 1 1
F-44 DSN-AA002200 Nut (9/32" n=28) 너트 (9/32" n=28) 1 1 1 1
F-45 CNB-BC001300 Needle Bar Frame 바늘대 후레임 1 1 1 1
F-46 DPN-AD008500 Hinge Pin for Needle Bar Frame 바늘대 후레임 힌지핀 1 1 1 1
F-47 DSC-CA000800 Screw(15/64" n=28) 죔나사 (15/64" n=28) 1 1 1 1
F-48 CUF-CD000200
F-49 CNB-BK001200 Walking Bar Guide Plate 노루발대 안내판 1 1 1 1
F-50 DSC-BF001000 Screw(11/64" n=40) 죔나사 (11/64" n=40) 2 2 2 2
F-51 DWS-AA010700 Washer 와셔 2 2 2 2
F-52 CNB-BK001300 Guide for Needle Bar Frame 바늘대 후레임 안내판 1 1 1 1
F-53 DSC-BA001100 Screw(11/64" n=40) 죔나사 (11/64" n=40) 2 2 2 2
F-54 CGA-GC011600 Upper Feed Presser Foot 상피이드 노루발 - - 1 1
F-55 DBS-DB009600 Upper Feed Shaft Bushing(F) 상하운동 축 전붓싱 1 1 1 1
F-56 AS-007867-00 Needle Bar Frame Driving Shift Ass’y 요동축(조) 1 1 1 1
Upper Feed Lifting Eccentric Wheel Crank
Upper Feed Lifting Adjusting Stud Screw
Spring for Walking Foot Pressure Adjusting Pole
Connecting Rod for Needle Bar Frame Driving Shaft
Stud Screw Needle Bar Rock Shaft Link
Guide Block for Upper Feed Walking Foot
노루발 상하운동 크랭크 1 1 1 1
노루발 상하운동 조절 단나사 1 1 1 1
상피이드 노루발 압력 스프링 1 1 1 1
요동축 연결롯드 1 1 1 1
요동 링크 단나사 1 1 1 1
상피이드 노루발 안내 블록 1 1 1 1
Q’ty
A B C D
Applied
Period
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
23
Thread Trimmer Mechanism
G
사절 관계
24
Ref. No. Parts No. Note Name of Parts 품 명
G-1 CTT-NB002100 Fixed Knife 고정메스 - 2 - 1
G-2 DSC-BB005000 Screw(9/64" n=40) 죔나사 (9/64" n=40) - 4 - 2
G-3 CTT-BA001300 Fixed Knife Base 고정메스 베이스 - 2 - 1
G-4 DSC-HZ002200 Fixed Mes Base Eccentric Screw 고정메스 베이스 편심나사 - 2 - 1
G-5 PSC-AC000400 Screw(11/64" n=40) 죔나사 (11/64" n=40) - 2 - 1
G-6 CTT-NA002000 Moving Mes 동메스 - 2 - 1
G-7 DSC-BB002900 Screw(9/64" n=40) 죔나사 (9/64" n=40) - 2 - 1
G-8 DSC-BJ004200 Screw(9/64" n=40) 죔나사 (9/64" n=40) - 2 - 1
G-9 GP-012387-00 Moving Knife Bracket Plate Spring 동메스 브라켓 판 스프링 - 2 - 1
G-10 GP-012392-00 Movong Knife Bracket Spring 동메스 브라켓 스프링 - 2 - 1
G-11 DSC-BF002800 Screw(3/32" n=56) 죔나사 (3/32" n=56) - 4 - 2
G-12 CTT-BJ005100 Moving Knife Guide(L) 동메스 운동 가이드(좌) - 1 - -
G-13 DSC-BB003500 Screw(9/64" n=40) 죔나사 (9/64" n=40) - 2 - -
G-14 CTT-BB003500 Moving Knife Bracket(R) 동메스 브라켓(좌) - 1 - -
G-15 DSC-AC001500 Screw(1/8" n=44) 죔나사 (1/8" n=44) - 2 - -
G-16 CTT-BB003700 Moving Knife Guide Bracket(R) 동메스 운동가이드 브라켓(좌) - 1 - -
G-17 CTT-BJ005200 Moving Knife Guide(L) 동메스 운동 가이드 (우) - 1 - 1
G-18 DSC-BB003500 Screw(9/64" n=40) 죔나사 (9/64" n=40) - 2 - 2
G-19 CTT-BB003600 Moving Knife Bracket(L) 동메스 브라켓 (우) - 1 - 1
G-20 DSC-BB003500 Screw(9/64" n=40) 죔나사 (9/64" n=40) - 2 - 2
G-21 CTT-BB003800 Moving Knife Guide Bracket(R) 동메스 운동가이드 브라켓(우) - 1 - 1
G-22 CTT-KZ000500 Moving Knife Shaft 동메스 운동축 - 2 - 1
G-23 CTT-CB001900 Thread Trimmer Crank(L) 사절 운동 크랭크 (좌) - 1 - -
G-24 DSC-AA000300 Screw(15/64" n=28) 죔나사 (15/64" n=28) - 1 - -
G-25 CTT-CC002000 Thread Trimmer Link(A) 사절운동 링크(A) - 1 - -
G-26 CTT-CC002100 Thread Trimmer Link(B) 사절운동 링크(B) - 1 - -
G-27 DSC-FA002000 Stud for Thread Trimmer Link 사절운동 링크 단나사 - 2 - -
G-28 DSC-BJ005100 Screw(3/16" n=28) 죔나사 (3/16" n=28) - 2 - -
G-29 DWS-AA014400 Washer 와셔 - 2 - -
G-30 CTT-CB002000 Thread Trimmer Crank(R) 사절 운동 크랭크 (우) - 1 - 1
G-31 DSC-AA000300 Screw (15/64" n=28) 죔나사 (15/64" n=28) - 1 - 1
G-33 AS-003584-00 Thread Trimmer Connecting Rod Ass'y 사절 연결 롯드 (조) - 1set - 1
G-34 CTT-CR000100 Thread Trimmer Connecting Rod 사절 연결봉 - 1 - 1
G-35 PBR-GB000200 Rod End Bearing (JFT-5R) 로드 엔드 베어링(JFT-5R) - 1 - 1
G-36 PBR-GB000400 Rod End Bearing (JFT-5L) 로드 엔드 베어링(JFT-5L) - 1 - 1
G-37 PSN-AA000100 Nut(M5×P0.8) 너트 (M5×P0.8) - 1 - 1
G-38 PSN-AA003900 Nut(M5×P0.8, 좌) 너트 (M5×P0.8, 좌) - 1 - 1
G-39 PSC-AC006100 Screw 죔나사 (M5×P0.8) - 2 - 2
G-40 PN-000203-01 Thread Tension Release Pin 실늦추기 핀 - 1 - 1
G-41 CTR-CB000400 Thread Tension Release Crank(A) 실늦추기 크랭크(A) - 1 - 1
G-42 PSC-BF000200 Screw 죔나사 (11/64" n=40) - 2 - 2
G-43 CTR-CB000500 Thread Tension Release Crank(B) 실늦추기 크랭크(B) - 1 - 1
G-44 DSC-FA021200 Stud for Thread Tension Release Crank 실늦추기 크랭크 단나사 - 1 - 1
G-45 DSP-AB005800
G-46 ATR-PS000800 Thread Tension Release Cable 실늦추기 케이블 - 1 - 1
G-47 DSC-BJ000200 Screw(11/64" n=40) 죔나사 (11/64" n=40) - 1 - 1
G-48 DSC-BA000900 Screw(9/64" n=40) 죔나사 (9/64" n=40) - 1 - 1
G-49 CTR-BB001600 Tension Release Bracket 실늦추기 케이블 브라켓 - 1 - 1
G-50 DSC-BJ000200 Screw(11/64" n=40) 죔나사 (11/64" n=40) - 1 - 1
G-51 DSN-AA001400 Nut(M5×P0.8) 너트 (M5×P0.8) - 2 - 2
G-52 CTR-BJ002400 Plate for Tension Release Cable Holder 실늦추기 케이블 잡이 판 - 1 - 1
G-53 CTR-BJ002500
G-54 DSC-FA020500 Stud for Tension Release Cable 실늦추기 케이블 단나사 - 1 - 1
G-55 DSN-AA000800 Nut(3/16" n=28) 너트 (3/16" n=28) - 1 - 1
G-56 CTT-DD000400 Thread Timming Cam 사절캠 - 1 - 1
G-57 DSC-CB001100 Screw(1/4" n=40) 죔나사 (1/4" n=40) - 2 - 2
Return Spring for Thread Tension Release Crank
Stooper For Tension Release Cable Hoder
실늦추기 크랭크 복귀 스프링 - 1 - 1
실늦추기 케이블 스토퍼 - 1 - 1
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
25
Thread Trimmer Mechanism
G
사절 관계
26
Ref. No. Parts No. Note Name of Parts 품 명
G-58 DBS-DB009100 Bushing for Thread Trimming Cam 사절캠 붓싱 - 1 - 1
G-59 DSC-CA000100 Screw(15/64" n=28) 죔나사 (15/64" n=28) - 2 - 2
G-60 CTT-DZ000100 Tension Release Driving Collar 실늦추기 작동 카라 - 1 - 1
G-61 PSC-CB000200 Screw 죔나사 (M4×P0.7) - 2 - 2
G-62 DPN-BA001100 Return Spring Holder 복귀스프링 걸이 - 1 - 1
G-63 DSP-AB005900 Tension Trimming Return Spring 실늦추기 복귀 스프링 - 1 - 1
G-64 CTR-CA001700 Tension Release Driving Link 실늦추기 구동 링크 - 1 - 1
G-65 CTR-BN000200 Guide for Tension Release Driving Link 실늦추기 구동링크 가이드 - 1 - 1
G-66 DSC-BB001600 Screw 죔나사 - 3 - 3
G-67 DSC-HD000600 Spring Hoder 스프링걸이 - 1 - 1
G-68 DSN-AA000900 Nut 너트 (11/64" n=40) - 1 - 1
G-69 CTR-KC000700 Tension Release Driving Link Shaft 실늦추기 구동링크 축 - 1 - 1
G-70 DSC-CB000700 Screw 죔나사 (M5×P0.8) - 1 - 1
G-71 DSC-HD001400 Spring Holder 스프링걸이 - 1 - 1
G-72 DSP-AB006300 Thread Trimming Return Spring 사절 복귀 스프링 - 1 - 1
G-73 GP-012384-00 Tension Release Roller 실늦추기 로울러 - 1 - 1
G-74 GP-012391-00 Stud for Tension Release Rod 실늦추기 롯드 단나사 - 1 - 1
G-75 CTT-CA001801 Thread Trimmer Driving Link 사절 구동 링크 - 1 - 1
G-76 DSC-BF014200 Screw(1/8" n=40) 죔나사 (1/8" n=40) - 1 - 1
G-77 DSC-GA001200 Pin for Thread Trimmer Cam Roller 사절캠 롤러핀 - 1 - 1
G-78 CTT-CL000800 Thread Trimmer Cam Roller 사절캠롤러 - 1 - 1
G-79 GP-012401-00 Stud for Thread Trimmer Driving Link 사절구동 링크 롤러 단나사 - 1 - 1
G-80 CTT-KC001300 Thread Trimmer Driving Shaft 사절 구동 축 - 1 - 1
G-81 DSP-AA012100
G-82 CTT-BA001400 Thread Trimming Base 사절 베이스 - 1 - 1
G-83 PSC-AC001200 Screw(M6×P1) 죔나사 (M6×P1) - 2 - 2
G-84 PSD-AB000400 Thread Trimming Solenoid Ass'y 사절솔레노이드(조) - 1 - 1
G-85 CTT-BB003400 Bracket for Thread Trimming Solenoid 사절솔레노이드 브라켓 - 1 - 1
G-86 PSC-AC005400 Screw(M5×P0.8) 죔나사 (M5×P0.8) - 2 - 2
G-87 DSN-AA001400 Nut(M5×P0.8) 너트 (M5×P0.8) - 2 - 2
G-88 CTT-CB002100 Crank for Thread Trimmer Solenoid 사절솔레노이드 크랭크 - 1 - 1
G-89 PSC-AC000400 Screw 죔나사 (11/64" n=40) - 1 - 1
G-90 CTT-CM003600 Thread Trimming Lever 사절작동레버 - 1 - 1
G-91 DSC-FD001700 Stud for Thread Trimming Lever 사절작동레버 단나사 - 2 - 2
G-92 CTT-BJ005000 Lever Stopper 레버 스토퍼 - 1 - 1
G-93 DSC-BJ000200 Screw(11/64" n=40) 죔나사 (11/64" n=40) - 2 - 2
G-94 SC-000504-00 Lever Stopper Screw 레버 스토퍼 나사 - 1 - 1
G-95 DSC-CB000500 Screw(15/64" n=28) 죔나사(15/64" n=28) - 2 - 2
G-96 CTT-BJ005300 Plate for Thread Trim Stopper 사절 스토퍼판 - 1 - 1
G-97 DSC-BF001200 Screw(11/64" n=40) 죔나사 (11/64" n=40) - 2 - 2
G-98 DSC-GB000500 Stud Screw for Thread Trim Stopper 사절 스토퍼 단나사 - 1 - 1
G-99 DSN-AA000600 Nut(3/16" n=32) 너트(3/16" n=32) - 1 - 1
G-100 DSN-AA001400 Nut(M5×P0.8) 너트(M5×P0.8) - 1 - 1
Return Spring for Thread Trimmer Driving Shaft
사절구동축 복귀스프링 - 1 - 1
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
27
Lubrication Mechanism
H
급유 관계
28
Ref. No. Parts No. Note Name of Parts 품 명
H-1 CLB-BB002300 Oil Filter Bracket 오일필터 브라켓 1 1 1 1
H-2 DSC-BJ000200 Screw(11/64" n=40) 죔나사(11/64" n=40) 3 3 3 3
H-3 CLB-JK000100 Oil Filter 오일필터 1 1 1 1
H-4 CLB-JG000300 Oil Hose 급유호스
H-5 CLB-JH000600 Oil Terminal 오일터미널 1 1 1 1
H-6 DPK-CA002200 Rubber Cap 오일터미널 고무마개 1 1 1 1
H-7 DSC-BJ001100 Screw(9/64" n=40) 죔나사(9/64" n=40) 2 2 2 2
H-8 GP-012345-00 Hook Base Cover 훅받침 커버 2 2 1 1
H-9 CLB-JF000100 Nipple 니플 2 2 1 1
H-10 DSC-CA000400 Screw(9/64" n=40) 죔나사(9/64" n=40) 6 6 3 3
H-13 CLB-BH002100 Hose Holder(A) 호스잡이(A) 1 1 1 1
H-14 DSC-BA000900 Screw(9/64" n=40) 죔나사(9/64" n=40) 1 1 1 1
H-15 CLB-BH002200 Hose Holder(B) 호스잡이(B) 1 1 1 1
H-16 DSC-BA000900 Screw(9/64" n=40) 죔나사(9/64" n=40) 1 1 1 1
H-17 CLB-BG005400 Hose Holder(D) 호스잡이(D) 1 1 1 1
H-18 CLB-JL007100 Oil Wick 면판 환류휄트 1 1 1 1
H-19 CLB-JD000300 Oil Wick 급유유심
H-20 CLB-BH002300 Hose Holder(C) 호스잡이(C) 1 1 1 1
H-21 DSC-BA000900 Screw(9/64" n=40) 죔나사(9/64" n=40) 1 1 1 1
H-22 CLB-JL011500 Felt(A) 휄트(A) 1 1 1 1
H-23 CLB-JB001500 Oil Tank 오일탱크 1 1 1 1
H-24 DSC-BF001000 Screw(11/64" n=40) 죔나사(11/64" n=40) 2 2 2 2
H-25 CLB-BH002400 Oil Tank wick Holder 오일탱크 유심잡이 1 1 1 1
H-26 CLB-BA000500 Base for Oil Receiver 오일받이 베이스 1 1 1 1
H-27 DSC-BF001700 Screw(11/64" n=40) 죔나사(11/64" n=40) 3 3 3 3
H-28 CLB-JB000600 Oil Receiver for Oil window 유창오일받이 1 1 1 1
H-29 DSC-BJ000200 Screw(11/64" n=40) 죔나사(11/64" n=40) 2 2 2 2
H-30 CLB-FA000200 Rubber Packing 유창고무패킹 1 1 1 1
H-31 CLB-JJ000500 Oil Window 유창 1 1 1 1
H-32 CLB-BG005500 Oil Return Tube Holder 환류 호스잡이 1 1 1 1
H-33 DSC-BJ001100 Screw(9/64" n=40) 죔나사(9/64" n=40) 1 1 1 1
H-34 CLB-JG000300 Oil Hose 급유 호스 1 1 1 1
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
29
Release Button Mechanism
I
11
역진 버튼 관계
9
9
8
3
7
6
2
4
10
1
5
30
Ref. No. Parts No. Note Name of Parts 품 명
I-1 ARB-PS000400 Reverse Button Shaft 역진 보턴 - 1 - 1
I-2 CRB-LC000501 Reverse Button Case 역진 보턴 케이스 - 1 - 1
I-3 CRB-LF000100 Insulation Film 역진 보턴 스위치 절연 필름 - 1 - 1
I-4 DSP-AA006600 Reverse Button Spring 역진 보턴 스프링 - 1 - 1
I-5 PSR-AC000400 E-Ring E형 멈춤링 (호칭경 ф3) - 1 - 1
I-6 CRB-BJ000300 Reverse Button Stopper 역진 보턴 스토퍼 - 1 - 1
I-7 DSC-BJ001100 Screw(9/64" n=40) 죔나사 (9/64" n=40) - 1 - 1
I-8 12-003A-7507 Reverse Button Switch 역진 보턴 스위치 - 1 - 1
I-9 DSC-BA001200 Screw(3/32" n=56) 죔나사 (3/32" n=56) - 2 - 2
I-10 DSC-BF012800 Screw(M4×P0.7) 역진 보턴 안내핀 나사(M4×P0.7) - 1 - 1
I-11 DSC-BF003600 Screw (11/64" n=40) 죔나사 (11/64" n=40) - 2 - 2
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
31
Auto Knee Lifter Solenoid Mechanism
J
자동무릎올림 관계
32
Ref. No. Parts No. Note Name of Parts 품 명
J-1 PPP-CA005300 Presser Lifting Cylinder 자동무릎올림 실린더 (CQ2A32-20D) - 1 - 1
J-2 PPP-AA000300 Nipple 니플 - 2 - 2
J-3 PSC-AC001200 Screw(M6×P1.0) 죔나사 (M6×P1.0) - 4 - 4
J-4 CPM-BB001800 Cylinder Bracket 실린더 브라켓 - 1 - 1
J-5 PSC-AC014600 Screw (M5×P0.8) 죔나사 (M5×P0.8) - 2 - 2
J-6 CPM-CA002300 Cylinder Drive Link 실린더 작동링크 - 1 - 1
J-7 SC-000234-00 Screw(M8×P1.25) 죔나사 (M8×P1.25) - 1 - 1
J-8 DSC-FA021100 Stud Screw for Cylinder Drive Link 실린더 작동링크 단나사 - 1 - 1
J-9 PSN-AA000600 Nut 너트 (M6×P1.0) - 1 - 1
J-10 PPP-BA000200 Solenoid Valve Ass'y 솔레노이드 밸브(조) - 1 - 1
J-11 PSC-AC001700 Screw 죔나사 - 2 - 2
J-12 PPP-AA000500 Quick and Joint Ass'y 퀵조인트 - 1 - 1
J-13 PPP-AG000100 Finger Valve 핑거밸브 - 1 - 1
J-14 PPP-BD000100 Filter Regulator 필터 레귤레이터 - 1 - 1
J-15 DWS-AA002100 Washer 와셔 - 2 - 2
J-16 PSC-AC001700 Screw 죔나사 - 2 - 2
J-17 PPP-AA000300 Elbow Union 엘보우 유니언 - 1 - 1
J-18 PPP-AD000200 Urethane Hose 우레탄 호스(ф6)
J-19 CAR-BB001900 Manifolder Bracket 메니폴드 브라켓 - 1 - 1
J-20 PSC-DD000100 Screw 메니폴드 브라켓 목나사 - 2 - 2
J-21 15-107M-106L Presser Lifting Cable 자동무릎올림 케이블 - 1 - 1
J-22 49-0000-1060 Cable Connector 케이블 커넥터 - 1 - 1
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
33
Accessories Mechanism
K
1
12
13
액세서리 관계
2
3
4
14
14
16
15
16
15
17
18
10
26
7
6
19
9
8
KOREA SEWING MACHINE IND. CO. LTD
11
21
20
31
5
28
37
34
35
33
36
38
32
39
46
27
42
43
24
23
41
25
41
22
34
Ref. No. Parts No. Note Name of Parts 품 명
K-1 PTL-BA000100 Driver (Large) 드라이버(大) 1 1 1 1
K-2 PTL-BA000200 Driver (Middle, Small) 드라이버(中), (小) 1 1 1 1
K-3 Needle(DP×17 #23) 바늘 (DP×17 #23) 5 5 5 5
K-4 CHK-HB001000 Bobbin 보빈 4 4 4 4
K-5 CAC-JB000100 Oil Tank 오일 주유통 1 1 1 1
K-6 PTL-AB000100 L-Wrench(2mm) L자 렌치(2mm) 1 1 1 1
K-7 PTL-AB000300 L-Wrench(2.5mm) L자 렌치(2.5mm) 1 1 1 1
K-8 PTL-AB000500 L-Wrench(3mm) L자 렌치(3mm) 1 1 1 1
K-9 PTL-AB000400 L-Wrench(4mm) L자 렌치(4mm) 1 1 1 1
K-10 PTL-AB000200 L-Wrench(5mm) L자 렌치(5mm) 1 1 1 1
K-11 CAC-MA000700 Head Cover 헤드커버 1 1 1 1
K-12 Nail 고정못 10 10 10 10
K-13 PTC-AG000100 Band Clip 밴드클립 5 5 5 5
K-14 CST-FF000800 Hinge Rubber 힌지고무 2 2 2 2
K-15 CST-KC001600 Head Hinge Holder Bar 힌지쇠 걸이봉 2 2 2 2
K-16 CMB-BB009100 Hinge Rubber 힌지쇠 2 2 2 2
K-17 CST-FD001100 Bed Support Rubber(M) 헤드 지지 고무(중) 2 2 2 2
K-18 CST-FD001200 Bed Support Rubber(S) 헤드 지지 고무(소) 2 2 2 2
K-19 CAC-JB000400 Oil Tank 오일통 1 1 1 1
K-20 CST-CR000400 Head Rest 두부 지지봉 1 1 1 1
K-21 GP-020707-02 Knee Lifting Stick Support Cap 무릎올림 받침캡 1 1 1 1
K-22 CMB-LA021300 Belt Cover(A) 벨트커버(A) 1 1 1 1
K-23 CMB-LA021400 Belt Cover(B) 벨트커버(B) 1 1 1 1
K-24 DSC-BF001200 Screw (11/64" n=40) 죔나사 (11/64" n=40) 2 2 2 2
K-25 DSC-BA001500 Screw (11/64" n=40) 죔나사 (11/64" n=40) 3 3 3 3
K-26 CST-MF000300 Thread Stand Ass'y 실패꽂이(조) 1set 1set 1set 1set
K-27 41-101A-1230 Bobbin Winder Ass'y 실감기(조) 1set 1set 1set 1set
K-28 CST-JA002700 Oil Pan 오일팬 1 1 1 1
K-29 DSC-BF006100 Screw(M8×P1.25) 죔나사 (M8×P1.25) 1 1 1 1
K-30 CST-FB000200 O-Ring O링 1 1 1 1
K-31 DTC-AK000300 Magnetic 자석 1 1 1 1
K-32 AS-003770-00 Knee Lifting Pad 무릎올림(조) 1set 1set 1set 1set
K-33 CST-BB005400 Control Body 제어체 1 1 1 1
K-34 DSC-CA004600 Screw(15/64" n=28) 죔나사 (15/64" n=28) 2 2 2 2
K-35 DSN-AA000400 Nut(15/64" n=28) 너트 (15/64" n=28) 2 2 2 2
K-36 DSC-AA000300 Screw 죔나사 1 1 1 1
K-37 DSP-AC004700 Control Body Spring 제어체 스프링 1 1 1 1
K-38 CST-KC001500 Control Body Shaft 제어체 축 1 1 1 1
K-39 PSR-AC000100 E-Ring E-링(호칭경 ф9) 1 1 1 1
K-40 43-001A-1600 Knee Lifting Pad Ass'y 무릎올림 패드(조) 1set 1set 1set 1set
Q’ty
A B C D
Assembly
No.
Note : A → KM-572BL B → KM-572BL-7
C → KM-570BL D → KM-570BL-7
35
Gauge Parts
L
게이지 파트
36
37
Index
Parts No. Name of Parts Page Ref.No.
01-018A-7400 Screw
01-018A-7400
02-019S-9570 Screw(15/64" n=28)
02-103A-5607
11-020A-2500 Magnetic Holder 11 B-18
11-023A-2500 Synchronizer Ass'y 11 B-16
11-024S-2500 Screw
12-003A-7507
15-107M-106L Presser Lifting Cable
40-001A-5607
41-101A-1230 Bobbin Winder Ass'y 35 K-27
43-001A-1600
49-0000-1060 Cable Connector
90-001A-7400 Gear(L) 19 E-28
AAB-SM004200
AMB-PS004400
ARB-PS000400 Reverse Button Shaft
AS-003584-00
AS-003770-00 Knee Lifting Pad
AS-005188-01
AS-005550-00
AS-007867-00
ATA-PS005001
ATR-PS000800
CAC-JB000100 Oil Tank 35 K-5
CAC-JB000400 Oil Tank 35 K-19
CAC-MA000700
CAR-BB001900
CFA-BB002401
CFA-BB002500
CFA-CA001600
CFA-CB001600
CFA-CB001700 Reverse Solenoid Crank
CFA-CM000800
CFA-CM002200
CFA-CM002300
CFA-CQ002900
CFA-DF001001 Feed Regulator
CFA-FZ000100
CFA-KC001300
CFA-KJ001200
CGA-GA003500
CGA-GA003600
CGA-GA003700
CGA-GB006300
CGA-GB006400
CGA-GC005000
CGA-GC005400
CGA-GC011500
CGA-GC011600
CGA-GD002900
CHB-BA001400
CHB-BA001500
CHB-BF000100
CHB-BF000200
CHB-CA000100
CHB-CM000100
CHB-HN000101
CHB-KC000600
CHK-HA002400
CHK-HA002500
CHK-HB001000
Thread Take Up Lever Spring
Thread Take Up Lever Holder
Reverse Button Switch
Thread Take-Up Lever Spring
Knee Lifting Pad Ass'y
Arm&Bed 7 A-1
Slide Plate(F) Ass'y 7 A-28
Thread Trimmer Connecting Rod Ass'y
Thread Tension Control Ass'y
Thread Tension Release Ass’y
Needle Bar Frame Driving Shift Ass’y
Thread Tension Control Ass'y
Thread Tension Release Cable
Head Cover 35 K-11
Manifolder Bracket 33 J-19
Reverse Solenoid Bracket
Reverse Feed Lever Spring Holder
Reverse Link 17 D-66
Reverse Crank 15 D-13
Reverse Lever 15 D-19
Reverse Lever(B) 15 D-20
Reverse Feed Lever 17 D-85
Feed Regulator Control Plate
Reverse Lever Stopper Rubber
Feed Regulator Lever Shaft
Feed Regulator Control Shaft
Needle Plate 7 A-34
Needle Plate 7 A-35
Needle Plate 9 A-90
Feed Dog 15 D-53
Wheel Feed 17 D-82
Sub Presser Foot 13 C-7
Sub Presser Foot 13 C-32
Upper Feed Presser Foot(1/4˝)
Upper Feed Presser Foot
Needle Holder 11 B-33
Hook Base(L) 19 E-35
Hook Base( R ) 19 E-38
Pinch Sleeve(U) 19 E-45
Pinch Sleeve(L) 19 E-46
Opener Link 19 E-54
Opner Lever 19 E-57
Opener 21 E-61
Opner Lever Shaft 21 E-58
Hook 19 E-50
Hook 19 E-51
Bobbin 19 E-53
9 A-59
9 A-60
11 B-24
11 B-39
11 B-17
31 I-8
33 J-21
9 A-98
35 K-40
33 J-22
31 I-1
25 G-33
35 K-32
9 A-95
13 C-34
23 F-56
7 A-48
25 G-46
17 D-72
17 D-83
17 D-69
15 D-8
15 D-1
15 D-24
15 D-12
15 D-6
23 F-23
23 F-54
Parts No. Name of Parts Page Ref.No.
CHK-HB001000
CL-000079-01 Oil Pump Collar 19 E-33
CLB-BA000500 Base for Oil Receiver
CLB-BB002300 Oil Filter Bracket
CLB-BG003800
CLB-BG004200
CLB-BG005400
CLB-BG005500 Oil Return Tube Holder
CLB-BH002100
CLB-BH002200
CLB-BH002300
CLB-BH002400
CLB-CN000300
CLB-FA000200 Rubber Packing 29 H-30
CLB-JB000600
CLB-JB001500 Oil Tank
CLB-JC000700 Oil Pump
CLB-JD000100
CLB-JD000300 Oil Wick
CLB-JD000300 Oil Wick
CLB-JF000100 Nipple 19 E-6
CLB-JF000100 Nipple 29 H-9
CLB-JG000300 Oil Hose 29 H-4
CLB-JG000300 Oil Hose 29 H-34
CLB-JH000600 Oil Terminal 29 H-5
CLB-JJ000500 Oil Window 29 H-31
CLB-JK000100 Oil Filter 29 H-3
CLB-JL000800 Felt 11 B-32
CLB-JL000800
CLB-JL001700 Felt
CLB-JL006500 Upper Thread Felt 7 A-14
CLB-JL006600
CLB-JL006800 Feed Bar Fork Felt 17 D-60
CLB-JL007100 Oil Wick 29 H-18
CLB-JL009000
CLB-JL011500 Felt(A) 29 H-22
CLF-BA001400 Feed Bar 15 D-51
CLF-BA001500 Feed Bar
CLF-BB001000 Feed Bar Fork
CLF-BJ001400 Slide Guide Plate
CLF-BK000200 Slide Block
CLF-CA001100
CLF-CB003500
CLF-CB003600 Feed Bar Crank 15 D-48
CLF-CB003700 Lever Feed Arm 15 D-37
CLF-CC002200
CLF-CC002301
CLF-CH000600
CLF-DC001100
CLF-DC003000 Feed Cam 17 D-61
CLF-KC001900 Feed Bar Shaft
CLF-KD000500 Feed Lock Shaft 15 D-47
CLF-KK000600 Feed Regulator Shaft
CLS-BA000300 Safety Clutch Collar 19 E-18
CLS-BJ000600 Bearing Presser
CLS-BJ001000 Safety Clutch Disc 19 E-19
CLS-BJ001100
CLS-KC003300 Lower Shaft
CMB-BB008900
CMB-BB009100
CMB-BJ006900
CMB-BJ007500
Bobbin 35 K-4
29 H-26
29 H-1
Felt Holder for Upper Thread Supply
Oil Wick Holder 17 D-91
Hose Holder(D) 29 H-17
Hose Holder(A) 29 H-13
Hose Holder(B) 29 H-15
Hose Holder(C) 29 H-20
Oil Tank wick Holder 29 H-25
Piston 19 E-7
Oil Receiver for Oil window
Felt for Lower Shaft Bushing
Felt for Feed Regulator Shaft
Felt for Upper Shaft Bushing(F)
Felt for Upper Feed Shaft Bushing
Lever Feed Connecting Link
Crank for Feed Regulator Shaft
Feed Regulator Connecting Rod
Feed Cam Connecting Rod
Eccentric Pin for Feed Regulator Connecting Rod
Vertical Feed Eccentric Cam
Safety Clutch Collar Washer
Bed Leg 7 A-38
Hinge Rubber 35 K-16
Slide Plate(Right) 7 A-33
Slide Plate(Rear) 7 A-30
7 A-16
29 H-32
29 H-28
29 H-23
19 E-5
19 E-4
17 D-90
29 H-19
15 D-30
17 D-89
11 B-7
23 F-13
17 D-80
17 D-57
15 D-34
15 D-33
15 D-39
15 D-25
15 D-3
17 D-63
15 D-27
19 E-31
15 D-50
15 D-29
19 E-14
19 E-26
19 E-1
Parts No. Name of Parts Page Ref.No.
CMB-FC006800 Rear Cover(A) Gasket
CMB-GH000700
CMB-GH000800
CMB-HK002700
CMB-HK005300
CMB-HK005500
CMB-HK007500
CMB-LA020900
CMB-LA021300
CMB-LA021400
CMB-LA023400 Thread Take Up Cover
CMB-LB008700
CMB-LB008800
CMB-LB008900
CMB-LB009500
CMB-LD005300
CMB-LD005300
CMB-LD005400
CMB-LD005400
CMB-LD007100
CNB-BC001300
CNB-BF001800
CNB-BK001200
CNB-BK001300
CNB-CB000601 Frame Shaft Crank (F)]
CNB-CD001400
CNB-HK001500
CNB-KA002000
CNB-KC000400
CPB-BB001200
CPB-BH001300
CPB-BH001300
CPB-BJ001400 Plate for Roller Guide 13 C-19
CPB-BJ001700
CPB-BK000700
CPB-CL000500
CPB-KB000901
CPM-BB001800
CPM-CA002200
CPM-CA002300
CPM-CR001100
CRB-BJ000300
CRB-LC000501 Reverse Button Case 31 I-2
CRB-LF000100 Insulation Film 31 I-3
CST-BB005400 Control Body 35 K-33
CST-CM000300
CST-CR000400 Head Rest
CST-FB000200 O-Ring 35 K-30
CST-FD001100
CST-FD001200
CST-FF000800 Hinge Rubber
CST-JA002700 Oil Pan 35 K-28
CST-KC001500 Control Body Shaft
CST-KC001600
CST-MF000300
CTA-BJ000100 Spring Stopper 9 A-69
CTA-BJ001900
CTA-BJ002000
CTA-BJ002300
CTA-BJ003300
CTA-BJ003400
CTA-HK000900
Slide Plate(L) 7 A-32
Slide Plate Ass'y 9 A-89
Top Cover Thread Guide
Arm Thread Guide(U) 7 A-10
Arm Thread Guide(L) 7 A-15
Arm Thread Guide(M) 7 A-12
Face Plate 7 A-2
Belt Cover(A) 35 K-22
Belt Cover(B) 35 K-23
Rear Cover 7 A-22
Rear Cover(A) 7 A-24
Rear Cover(B) 7 A-26
Bed Top Cover 7 A-42
Model Mark(2-Needle,Trimming)
Model Mark(1-Needle,Trimming)
Model Mark(2-Needle,Non-Trimming)
Model Mark(1-Needle,Non-Trimming)
CE Mark 9 A-102
Needle Bar Frame 23 F-45
Needle Bar Holder 11 B-30
Walking Bar Guide Plate
Guide for Needle Bar Frame
Needle Bar Block 23 F-31
Needle Bar Thread Guide
Needle Bar 11 B-40
Needle Bar Frame Driving Shaft
Presser Bar Bracket 13 C-10
Needle Bar 11 B-29
Finger Guide 13 C-9
Guide for Bracket Roller
Guide Block 13 C-14
Roller For Presser Bar Bracket
Presser Bar 13 C-1
Cylinder Bracket 33 J-4
Connecting Link 13 C-26
Cylinder Drive Link 33 J-6
Knee Lifter Bar 13 C-29
Reverse Button Stopper
Knee Lifting Lever 13 C-23
Bed Support Rubber(M)
Bed Support Rubber(S)
Head Hinge Holder Bar
Thread Stand Ass'y 35 K-26
Thread Take Up Spring Stopper
Presser Plate for A-66
Thread Controlling Disc
Thread Tension Control Plate
Thread Tension Control Plate
Thread Guide Plate 9 A-99
9 A-101
7 A-8
7 A-6
7 A-19
9 A-87
7 A-20
9 A-88
23 F-49
23 F-52
23 F-28
11 B-41
23 F-27
13 C-16
13 C-13
31 I-6
35 K-20
35 K-17
35 K-18
35 K-14
35 K-38
35 K-15
9 A-85
9 A-67
9 A-62
7 A-49
9 A-96
38
Index
Parts No. Name of Parts Page Ref.No.
CTA-HL001100
CTA-HL001200
CTA-HM001600 Thread Tension Stud B
CTA-HM001800
CTA-HM001900 Thread Tension Stud(L)
CTA-HM002000 Thread Tension Stud(S)
CTA-HM002500
CTA-HM002600
CTH-CC001400
CTH-HJ002000
CTR-BB001400
CTR-BB001500
CTR-BB001600
CTR-BH001100 Thread Release Spring
CTR-BJ002300
CTR-BJ002400
CTR-BJ002500
CTR-BN000200
CTR-CA001700
CTR-CB000400
CTR-CB000500
CTR-KC000700
CTT-BA001300 Fixed Knife Base 25 G-3
CTT-BA001400
CTT-BB003400
CTT-BB003500
CTT-BB003600
CTT-BB003700
CTT-BB003800
CTT-BJ005000 Lever Stopper
CTT-BJ005100
CTT-BJ005200
CTT-BJ005300
CTT-CA001801
CTT-CB001900
CTT-CB002000
CTT-CB002100
CTT-CC002000
CTT-CC002100
CTT-CL000800
CTT-CM003600 Thread Trimming Lever
CTT-CR000100
CTT-DD000400 Thread Timming Cam
CTT-DZ000100
CTT-KC001300
CTT-KZ000500 Moving Knife Shaft 25 G-22
CTT-NA002000 Moving Mes
CTT-NB002100 Fixed Knife 25 G-1
CUF-CA002200
CUF-CA002300
CUF-CA002400 Walking Bar Driving Link
CUF-CA002500
CUF-CB002900 Needle Bar Rock Crank
CUF-CB003300
CUF-CC002300 Upper Feed Lifting Rod
CUF-CC002600 Connecting Rod
CUF-CD000200
CUF-CR000200 Walking Bar
CUF-DC000600
CUF-KZ000800
CUF-KZ000900
CUS-DA003100
Thread Tension Adjusting Disk
Sub Thread Tension Adjusting Disk
Tension Stud Right 9 A-64
Thread Tension Adjusting Shaft
Thread Tension Adjusting Shaft
Needle Bar Crank 11 B-28
Thread Take-up Lever
Bracket(A) for Thread Tension Release Plate
Bracket(B) for Thread Tension Release Plate
Tension Release Bracket
Tension Release Plate
Plate for Tension Release Cable Holder
Stooper For Tension Release Cable Hoder
Guide for Tension Release Driving Link
Tension Release Driving Link
Thread Tension Release Crank(A)
Thread Tension Release Crank(B)
Tension Release Driving Link Shaft
Thread Trimming Base
Bracket for Thread Trimming Solenoid
Moving Knife Bracket(R)
Moving Knife Bracket(L)
Moving Knife Guide Bracket(R)
Moving Knife Guide Bracket(R)
Moving Knife Guide(L)
Moving Knife Guide(L)
Plate for Thread Trim Stopper
Thread Trimmer Driving Link
Thread Trimmer Crank(L)
Thread Trimmer Crank(R)
Crank for Thread Trimmer Solenoid
Thread Trimmer Link(A)
Thread Trimmer Link(B)
Thread Trimmer Cam Roller
Thread Trimmer Connecting Rod
Tension Release Driving Collar
Thread Trimmer Driving Shaft
Upper Feed Lifting Connecting Link
Link for Upper Feed Foot
Needle Bar Rock Shaft Link
Upper Feed Lifting Eccentric Wheel Crank
Guide Block for Upper Feed Walking Foot
Upper Feed Lifting Eccentric Cam
Upper Feed Driving Shaft
Walking Foot Pressure Adjusting Pole
Link Cam 11 B-2
9 A-66
9 A-76
9 A-71
9 A-75
9 A-79
9 A-61
9 A-97
11 B-42
7 A-51
7 A-52
25 G-49
9 A-83
7 A-50
25 G-52
25 G-53
27 G-65
27 G-64
25 G-41
25 G-43
27 G-69
27 G-82
27 G-85
25 G-14
25 G-19
25 G-16
25 G-21
27 G-92
25 G-12
25 G-17
27 G-96
27 G-75
25 G-23
25 G-30
27 G-88
25 G-25
25 G-26
27 G-78
27 G-90
25 G-34
25 G-56
27 G-60
27 G-80
25 G-6
23 F-14
23 F-16
23 F-18
23 F-33
23 F-37
23 F-5
23 F-4
23 F-32
23 F-48
23 F-19
23 F-1
23 F-10
23 F-20
Parts No. Name of Parts Page Ref.No.
CUS-KC003100
DBS-DA022400
DBS-DA027800 Upper Shaft Bushing(M)
DBS-DA028900
DBS-DA029000
DBS-DA029100
DBS-DA030500 Lower Shaft Bushing(F)
DBS-DA030600 Lower Shaft Bushing(M)
DBS-DA030700
DBS-DB008800
DBS-DB008900
DBS-DB009000
DBS-DB009100
DBS-DB009500 Upper Shaft Bushing(F)
DBS-DB009600
DCL-AA000100
DCL-AA000200
DCL-AA009400 Knee Lifter Bar Collar
DCL-AA009500
DCL-AB002300
DCL-AB003700
DGR-AB001200
DPK-CA002200
DPK-CB000200
DPK-CB000200
DPK-CB000700
DPK-CB000800
DPK-CB003200
DPK-CB003300
DPK-CY000100
DPL-BA000700 Timing Belt Pullley 11 B-10
DPL-BA000800
DPN-AA008700
DPN-AA009000
DPN-AA009100
DPN-AA009200 Tesion Releasing Shaft
DPN-AA009300
DPN-AA009400
DPN-AA009600
DPN-AA013200
DPN-AA016200
DPN-AA016300
DPN-AB000200
DPN-AD008500
DPN-AD010200
DPN-AD010500
DPN-BA001100
DPN-BC005300
DSC-AA000300
DSC-AA000300
DSC-AA000300
DSC-AA000700
DSC-AC001500
DSC-AC001500
DSC-BA000400
DSC-BA000900
DSC-BA000900
DSC-BA000900
DSC-BA000900
DSC-BA001000
DSC-BA001100
DSC-BA001200
Upper Shaft 11 B-1
Presser Bar Bushing 13 C-2
11 B-8
Feed Rock Shaft Bushing(R)
Feed Rock Shaft Bushing(F)
Hook Bushing(L) 19 E-43
Upper Feed Shaft Bushing
Hook Bushing(U) 19 E-41
Needle Bar Rock Shaft Bushing(F)
Needle Bar Rock Shaft Bushing(R)
Bushing for Thread Trimming Cam
Upper Feed Shaft Bushing(F)
Feed Rock Shaft Collar
Reverse Feed Lever Collar
Stopper Collar for Feed Regulator Shaft
Lower Shaft Bearing Bushing(R)
Bushing for Upper Shaft Bearing(R)
Gear(S) 19 E-48
Rubber Cap 29 H-6
Rubber Cap 7 A-44
Rubber Cap 7 A-47
Rubber Cap 7 A-46
Rubber Cap 7 A-45
Rubber Cap 9 A-103
Rubber Cap 17 D-88
Pulley Cover 11 B-23
Safety Clutch Belt Pulley
Pin for Feed Regulator Control Plate
Thread Guide Pin 9 A-80
Thread Release Pin 9 A-72
Pin 9 A-74
Pin 9 A-73
Link Cam Pin 11 B-25
Thread Take Up Lever Pin
Connecting Pin 15 D-40
Connecting Pin 17 D-94
Pin 23 F-29
Hinge Pin for Needle Bar Frame
Pin for Feed Regulator Conneting Rod
Button for Thread Tension Release Plate
Return Spring Holder 27 G-62
Thread Tension Release Pin
Screw(15/64" n=28) 25 G-24
Screw (15/64" n=28) 25 G-31
Screw 35 K-36
Screw(1/4" n=28) 23 F-6
Screw 15 D-54
Screw(1/8" n=44) 25 G-15
Screw 15 D-49
Screw(9/64" n=40) 25 G-48
Screw(9/64" n=40) 29 H-14
Screw(9/64" n=40) 29 H-16
Screw(9/64" n=40) 29 H-21
Screw (11/64" n=40) 23 F-24
Screw(11/64" n=40) 23 F-53
Screw(3/32" n=56) 31 I-9
15 D-43
15 D-42
19 E-2
19 E-3
23 F-11
23 F-25
23 F-26
27 G-58
11 B-5
23 F-55
15 D-45
17 D-86
13 C-30
15 D-31
19 E-11
11 B-14
19 E-16
15 D-10
9 A-65
11 B-36
23 F-46
15 D-4
7 A-53
13 C-35
Parts No. Name of Parts Page Ref.No.
DSC-BA001300
DSC-BA001300
DSC-BA001500
DSC-BA001600
DSC-BB001600
DSC-BB002000
DSC-BB002900
DSC-BB003500
DSC-BB003500
DSC-BB003500
DSC-BB003700
DSC-BB004600
DSC-BB004700
DSC-BB005000
DSC-BC000200
DSC-BC000200
DSC-BC000200
DSC-BC000200
DSC-BF000700
DSC-BF000700
DSC-BF000800
DSC-BF001000
DSC-BF001000
DSC-BF001000
DSC-BF001000
DSC-BF001200
DSC-BF001200
DSC-BF001700
DSC-BF001900
DSC-BF002800
DSC-BF003500
DSC-BF003600
DSC-BF003600
DSC-BF003700
DSC-BF003800
DSC-BF006100
DSC-BF006400
DSC-BF011500
DSC-BF012700 Cap Bolt for Oil Pump
DSC-BF012800
DSC-BF012900
DSC-BF013100
DSC-BF013600
DSC-BF014200
DSC-BF016300
DSC-BF016400
DSC-BG000100
DSC-BH000400
DSC-BJ000200 Screw
DSC-BJ000200 Screw 7 A-5
DSC-BJ000200 Screw
DSC-BJ000200 Screw 7 A-25
DSC-BJ000200 Screw
DSC-BJ000200 Screw(11/64"n=40) 9 A-106
DSC-BJ000200 Screw
DSC-BJ000200 Screw(11/64" n=40) 25 G-47
DSC-BJ000200 Screw(11/64" n=40)
DSC-BJ000200 Screw(11/64" n=40)
DSC-BJ000200 Screw(11/64" n=40)
DSC-BJ000200 Screw(11/64" n=40)
DSC-BJ000300 Screw (9/64" n=40)
DSC-BJ000400 Screw(11/64" n=40)
Screw 15 D-38
Screw(1/4" n=28) 23 F-38
Screw (11/64" n=40) 35 K-25
Screw 9 A-84
Screw 27 G-66
Safety Clutch Collar Washer Screw
Screw(9/64" n=40) 25 G-7
Screw(9/64" n=40) 25 G-13
Screw(9/64" n=40) 25 G-18
Screw(9/64" n=40) 25 G-20
Screw 19 E-15
Screw(11/64" n=40) 13 C-20
Screw 7 A-31
Screw(9/64" n=40) 25 G-2
Screw 7 A-11
Screw 7 A-13
Screw 7 A-18
Screw 7 A-43
Screw 15 D-14
Screw 17 D-70
Screw(15/64" n=28) 11 B-22
Screw(11/64" n=40) 13 C-15
Screw(11/64" n=40) 13 C-17
Screw(11/64" n=40) 23 F-50
Screw(11/64" n=40) 29 H-24
Screw(11/64" n=40) 27 G-97
Screw (11/64" n=40) 35 K-24
Screw(11/64" n=40) 29 H-27
Screw 15 D-9
Screw(3/32" n=56) 25 G-11
Screw 23 F-22
Screw 15 D-35
Screw (11/64" n=40) 31 I-11
Screw(9/32" n=28) 11 B-3
Screw 13 C-8
Screw(M8×P1.25) 35 K-29
Screw(11/64" n=40) 13 C-31
Screw(9/32" n=28) 11 B-4
Screw(M4×P0.7) 31 I-10
Screw 19 E-47
Screw 9 A-100
Screw 7 A-39
Screw(1/8" n=40) 27 G-76
Screw 7 A-56
Screw 15 D-5
Screw 7 A-36
Screw(3/16" n=28) 23 F-17
19 E-27
19 E-9
7 A-3
7 A-23
7 A-27
15 D-15
25 G-50
27 G-93
29 H-2
29 H-29
11 B-31
13 C-11
39
Index
Parts No. Name of Parts Page Ref.No.
DSC-BJ001100 Screw
DSC-BJ001100 Screw 9 A-86
DSC-BJ001100 Screw
DSC-BJ001100 Screw(9/64" n=40)
DSC-BJ001100 Screw(9/64" n=40) 29 H-33
DSC-BJ001100 Screw(9/64" n=40) 31 I-7
DSC-BJ001400 Screw
DSC-BJ001600 Screw
DSC-BJ004200 Screw(9/64" n=40)
DSC-BJ004300 Screw (9/64" n=40) 11 B-35
DSC-BJ004400 Screw 19 E-39
DSC-BJ004400 Screw (1/4" n=24) 23 F-34
DSC-BJ004500 Screw
DSC-BJ004600 Screw(1/8", n=44) 17 D-92
DSC-BJ005100 Screw(3/16" n=28)
DSC-BJ006200 Screw
DSC-CA000100
DSC-CA000100
DSC-CA000100
DSC-CA000100
DSC-CA000100
DSC-CA000100
DSC-CA000300
DSC-CA000400
DSC-CA000400
DSC-CA000500
DSC-CA000500
DSC-CA000800
DSC-CA000800
DSC-CA000800
DSC-CA000800
DSC-CA000800
DSC-CA000800
DSC-CA000800
DSC-CA001700
DSC-CA004600
DSC-CA005000
DSC-CB000400
DSC-CB000400
DSC-CB000400
DSC-CB000400
DSC-CB000400
DSC-CB000400
DSC-CB000400
DSC-CB000400
DSC-CB000400
DSC-CB000500
DSC-CB000700
DSC-CB000700
DSC-CB000700
DSC-CB001000
DSC-CB001000
DSC-CB001100
DSC-CB001800
DSC-CB001800
DSC-CB001800
DSC-CB001800
DSC-FA002000
DSC-FA006200
DSC-FA014400
DSC-FA019800
DSC-FA020300
Screw 15 D-32
Screw 15 D-44
SCrew 17 D-62
Screw 19 E-42
Screw 19 E-44
Screw(15/64" n=28) 27 G-59
Screw 21 E-60
Screw 19 E-34
Screw(9/64" n=40) 29 H-10
Screw(1/4" n=40) 11 B-26
Screw 15 D-46
Screw(15/64" n=28) 11 B-6
Screw(15/64" n=28) 11 B-9
Screw(15/64" n=28) 11 B-37
Screw(15/64" n=28) 13 C-3
Screw 15 D-2
Screw (15/64" n=28) 23 F-12
Screw(15/64" n=28) 23 F-47
Screw 7 A-29
Screw(15/64" n=28) 35 K-34
Screw 19 E-21
Screw(1/4" n=40) 11 B-11
Screw(1/4" n=40) 11 B-15
Screw(1/4" n=40) 11 B-27
Screw 15 D-22
Screw 19 E-13
Screw 19 E-23
Screw 19 E-29
Screw 21 E-67
Screw(1/4" n=40) 23 F-2
Screw(15/64" n=28) 27 G-95
Screw 15 D-26
Screw 17 D-87
Screw 27 G-70
Screw 19 E-32
Screw 19 E-49
Screw(1/4" n=40) 25 G-57
Screw 15 D-21
Screw 19 E-12
Screw 19 E-22
Screw 19 E-30
Stud 25 G-27
Stud Screw 15 D-23
Screw 9 A-82
Needle Bar Rock Crank Rod
Stud Screw for Reverse Link
7 A-7
17 D-58
29 H-7
21 E-63
7 A-17
25 G-8
19 E-36
25 G-28
15 D-55
23 F-39
17 D-67
Parts No. Name of Parts Page Ref.No.
DSC-FA020400
DSC-FA020500
DSC-FA020800
DSC-FA021100
DSC-FA021200
DSC-FB001900
DSC-FD001700
DSC-FD001800
DSC-FD001900
DSC-FF003100
DSC-FG002000
DSC-GA000901
DSC-GA001200
DSC-GB000400
DSC-GB000500
DSC-GC000800
DSC-HA000500
DSC-HB002300
DSC-HC000900
DSC-HC001400
DSC-HD000600
DSC-HD000600
DSC-HD001400
DSC-HZ002200
DSN-AA000400
DSN-AA000400
DSN-AA000600
DSN-AA000600
DSN-AA000700
DSN-AA000800
DSN-AA000800
DSN-AA000900
DSN-AA000900
DSN-AA001400
DSN-AA001400
DSN-AA001400
DSN-AA002200
DSN-AA002700
DSN-AA003000
DSN-AA003300
DSN-AA004500
DSN-CC000400
DSN-CC000600
DSN-CD000100
DSN-CD000700
DSN-CY001100
DSP-AA006300
DSP-AA006400
DSP-AA006600
DSP-AA007000
DSP-AA009500
DSP-AA009600
DSP-AA011400
DSP-AA012000
DSP-AA012100
DSP-AA012200
DSP-AB005300
DSP-AB005800
DSP-AB005900
DSP-AB006300
DSP-AC004700
DSP-AC004900
Upper Feed Connecting Link Screw
Stud for Tension Release Cable
Screw 7 A-55
Stud Screw for Cylinder Drive Link
Stud for Thread Tension Release Crank
Upper Feed Lifting Adjusting Stud Screw
Stud for Thread Trimming Lever
Knee Lifting Lever Stud
Stud 13 C-28
Pin for knee Lifting Lever
Stud for Presser Bar Bracket
Stud Screw Needle Bar Rock Shaft Link
Pin for Thread Trimmer Cam Roller
Opener Link Shaft 19 E-55
Stud Screw for Thread Trim Stopper
Pin for Frame Shaft Crank (F)]
Presser Adjusting Screw
Hinge Pin for Presser Lifting Lever
Bed Support 7 A-40
Bed Support (B) 7 A-41
Adjusting Screw for Hook
Spring Hoder 27 G-67
Spring Holder 27 G-71
Fixed Mes Base Eccentric Screw
Nut 17 D-68
Nut(15/64" n=28) 35 K-35
Nut 19 E-56
Nut(3/16" n=32) 27 G-99
Nut 7 A-9
Nut 21 E-65
Nut(3/16" n=28) 25 G-55
Nut 17 D-75
Nut 27 G-68
Nut(M5×P0.8) 25 G-51
Nut(M5×P0.8) 27 G-87
Nut(M5×P0.8) 27 G-100
Nut (9/32" n=28) 23 F-44
Nut 15 D-56
Nut(5/16" n=24) 23 F-36
Nut 9 A-81
Nut 23 F-9
Sub Thread Tension Adjusting Nut
Nut 13 C-5
Upper Thread Tension Adjusting Nut
Thread Tension Nut 9 A-63
Needle Bar Rock Crank Holder
Piston Spring 19 E-8
Spring for Feed Regulator Control Plate Pin
Reverse Button Spring
Return Spring for D-76
Thread Tension Release Spring
Safety Clutch Spring 19 E-20
Presser Spring 13 C-6
Spring 23 F-21
Return Spring 27 G-81
Spring 7 A-54
Reverse Lever Spring 15 D-16
Return Spring 25 G-45
Tension Trimming Return Spring
Thread Trimming Return Spring
Control Body Spring 35 K-37
Reverse Lever Spring(A)
23 F-15
25 G-54
33 J-8
25 G-44
23 F-7
27 G-91
13 C-24
13 C-27
13 C-12
23 F-35
27 G-77
27 G-98
23 F-30
13 C-4
13 C-22
17 D-74
25 G-4
9 A-78
9 A-70
23 F-41
15 D-11
31 I-4
17 D-77
13 C-36
27 G-63
27 G-72
15 D-18
Parts No. Name of Parts Page Ref.No.
DSP-AC007000
DSP-AD001300 Reverse Solenoid Ass'y
DSP-BA002200
DSP-BA002600 Bobbin Tension Spring
DSP-BA003000
DSR-AA000400
DSR-AK000500
DTC-AH000200
DTC-AH001000
DTC-AK000300
DWS-AA001100
DWS-AA002100
DWS-AA002200
DWS-AA002200
DWS-AA002900
DWS-AA003800
DWS-AA005300
DWS-AA010700
DWS-AA010700
DWS-AA014400
DWS-AA014400
DWS-CA000100
DWS-CB000200
DWS-CB000600
GP-000090-01 Presser Lifting Lever 13 C-21
GP-012080-02
GP-012138-00 Pulley 11 B-21
GP-012312-00
GP-012345-00 Hook Base Cover 29 H-8
GP-012384-00
GP-012387-00
GP-012391-00
GP-012392-00
GP-012401-00
GP-014602-00 Slide Block Shaft 15 D-36
GP-014725-00
GP-020707-02
PBR-AA002400
PBR-AA007400
PBR-AD000900
PBR-BA002800
PBR-BA003200
PBR-GB000200
PBR-GB000400
PBT-BA000500 Timing Belt 11 B-12
PN-000203-01
PN-000229-00 Snap Pin
PPK-BA001600 O-Ring 15 D-7
PPN-AD000100
PPP-AA000300 Nipple 33 J-2
PPP-AA000300 Elbow Union
PPP-AA000500 Quick and Joint Ass'y 33 J-12
PPP-AD000200 Urethane Hose
PPP-AG000100
PPP-BA000200 Solenoid Valve Ass'y
PPP-BD000100 Filter Regulator 33 J-14
PPP-CA005300
PSC-AA001500
PSC-AA001500
PSC-AC000400
PSC-AC000400
PSC-AC001200
Knee Lifitng Lever Spring
Sub Thread Tension Spring
Thread Tension Adjusting Spring
C-Ring 17 D-65
Safety Clutch Belt Pulley Ring
Code Holder 9 A-105
Cable Holder 9 A-104
Magnetic 35 K-31
Washer 13 C-18
Washer 33 J-15
Washer 19 E-37
Washer 19 E-40
Washer 23 F-42
Washer 21 E-62
Washer 23 F-8
Washer 23 F-40
Washer 23 F-51
Washer 17 D-59
Washer 25 G-29
Washer 11 B-20
Washer 15 D-17
Washer 7 A-4
Thread Take Up Lever
Wheel Feed(1/4", non trimming)
Tension Release Roller
Moving Knife Bracket Plate Spring
Stud for Tension Release Rod
Movong Knife Bracket Spring
Stud for Thread Trimmer Driving Link
Pin for Feed Regulator Connecting Rod
Knee Lifting Stick Support Cap
Upper Shaft Bearing(R)
Lower Shaft Bearing(R)
Safety Clutch Driving Ball
Needle Bearing 23 F-3
Needle Bearing 17 D-64
Rod End Bearing (JFT-5R)
Rod End Bearing (JFT-5L)
Thread Tension Release Pin
Pin 7 A-21
Finger Valve 33 J-13
Presser Lifting Cylinder
Screw 17 D-73
Screw 17 D-84
Screw(11/64" n=40) 25 G-5
Screw 27 G-89
Screw(M6×P1) 27 G-83
13 C-25
17 D-71
9 A-77
19 E-52
9 A-68
19 E-24
11 B-38
17 D-81
27 G-73
25 G-9
27 G-74
25 G-10
27 G-79
17 D-76
35 K-21
11 B-13
19 E-10
19 E-17
25 G-35
25 G-36
25 G-40
13 C-33
33 J-17
33 J-18
33 J-10
33 J-1
40
Index
Parts No. Name of Parts Page Ref.No.
PSC-AC001200
PSC-AC001700
PSC-AC001700
PSC-AC005400
PSC-AC006100
PSC-AC006100
PSC-AC006100
PSC-AC014600
PSC-AC015800
PSC-BF000200 Screw 25 G-42
PSC-CB000200
PSC-DD000100
PSD-AB000400
PSN-AA000100 Nut(M5×P0.8) 25 G-37
PSN-AA000600 Nut
PSN-AA003900 Nut(M5×P0.8, 좌)
PSR-AC000100
PSR-AC000200
PSR-AC000200
PSR-AC000400
PSR-AC000500
PTC-AG000100
PTL-AB000100 L-Wrench(2mm) 35 K-6
PTL-AB000200 L-Wrench(5mm) 35 K-10
PTL-AB000300 L-Wrench(2.5mm) 35 K-7
PTL-AB000400 L-Wrench(4mm) 35 K-9
PTL-AB000500 L-Wrench(3mm) 35 K-8
PTL-BA000100 Driver (Large) 35 K-1
PTL-BA000200 Driver (Middle, Small) 35 K-2
PWS-AA002700
PWS-CA002500
SC-000234-00 Screw(M8×P1.25) 33 J-7
SC-000492-00 Oil Adjusting Screw 21 E-64
SC-000504-00 Lever Stopper Screw 27 G-94
SC-000572-00 Screw 21 E-66
Screw(M6×P1.0) 33 J-3
Screw 33 J-11
Screw 33 J-16
Screw(M5×P0.8) 27 G-86
Screw 15 D-28
Screw 15 D-52
Screw 25 G-39
Screw (M5×P0.8) 33 J-5
Screw 11 B-19
Screw 27 G-61
Screw 33 J-20
Thread Trimming Solenoid Ass'y
E-Ring 35 K-39
E-Ring 15 D-41
E-Ring 17 D-78
E-Ring 31 I-5
E-Ring 9 A-57
Band Clip 35 K-13
Washer 17 D-93
Spring Washer 23 F-43
Arm&Bed Ass'y 9 A-92
Arm&Bed Ass'y 9 A-93
Arm&Bed Ass'y
Nail
Needle
Needle Plate(Trimming)
Needle(DP×17 #23) 35 K-3
Pin 7 A-37
Wick 21 E-59
27 G-84
33 J-9
25 G-38
9 A-94
35 K-12
11 B-34
9 A-91
Parts No. Name of Parts Page Ref.No.
Parts No. Name of Parts Page Ref.No.
41
Loading...
