Parameter list

NEW EFKA DRIVER MOTOR:

3112

311

Important !

Use manual EFKA for more informations.

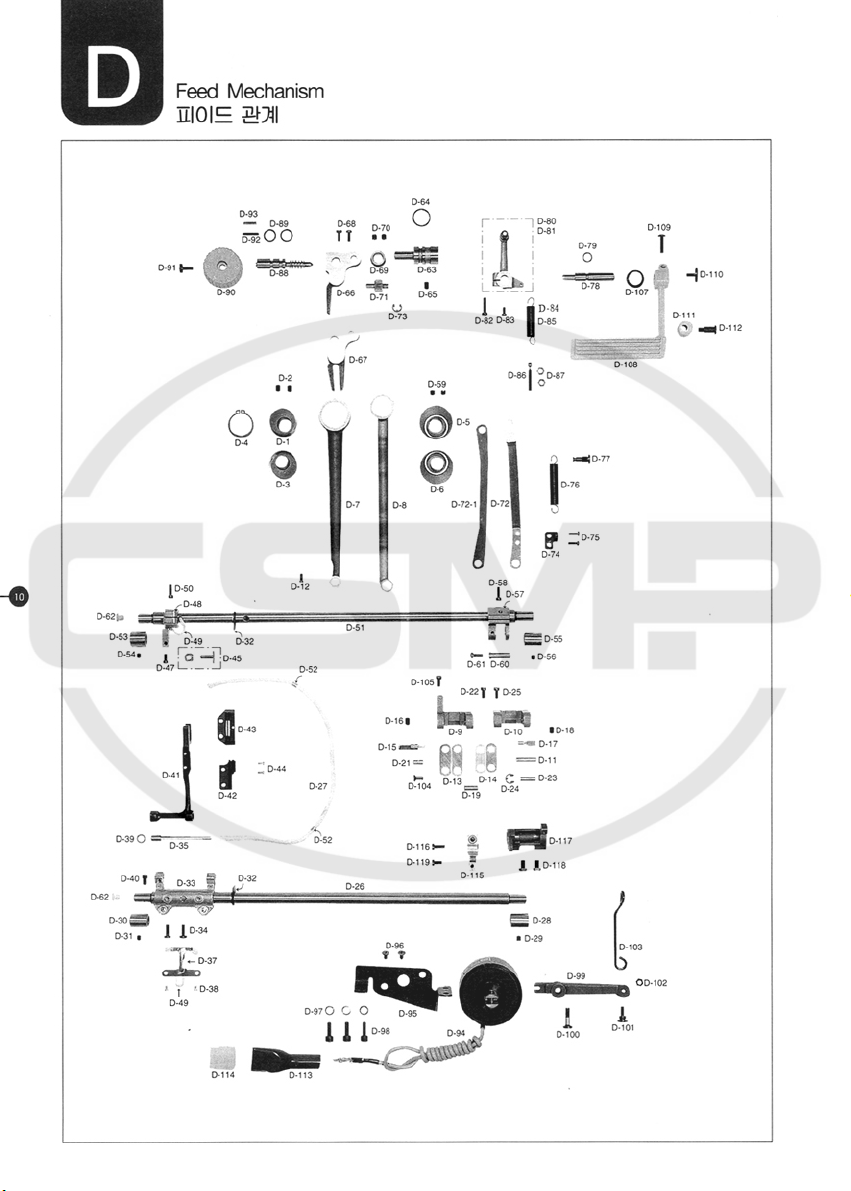

for Sunstar Machines AJ 84-72

OLD EFKA DRIVER MOTOR:

AB211A AB62CV1466

( Original: AB62CV1463 DATE: 26-11-98 )

Parameter Setting Setting Designation

110 180 18 Positioning Speed
111 2600 260 Maximum Speed
153 03 003 Braking Power at standstill
161 1 1 Counterclockwise rotation
171 I 56 I 281 I 98 I 323 I - Setting Needle Positions
180 005 005 Number of reversion increments
181 010 010 Activation delay of reversion
182 1 ON Reversion On

202 200 200 Foot down delay at the start
204 020 2 Holding power for presser foot lift.
213 20 3 Holding power fot Thread Trimm.
240 16 016 Activate Dense Control
270 6 - Pos.senzor
290 00 0 Lock stitch Sunstar

Setting Display: Setting LEDs light:

1 2 3 4 5 6 7 8

Programming the Code Number:

ess the P key and turn power on.

Pr

Supplier CODE:
Technical level: 1907 Technical level: 190

Press the P key
for Exit programming for Exit programming

Supplier CODE:

Press the P key

Note:
Backtaking switches: S1 and S2 = OFF
Needle down switch: S4 = ON

The changed parameter values will be saved when you start sewing again !
Speed parameter is changed only after trimming and when you start sewing again !

Hrubý Miroslav

2.11.2007

AJ 84-72 M

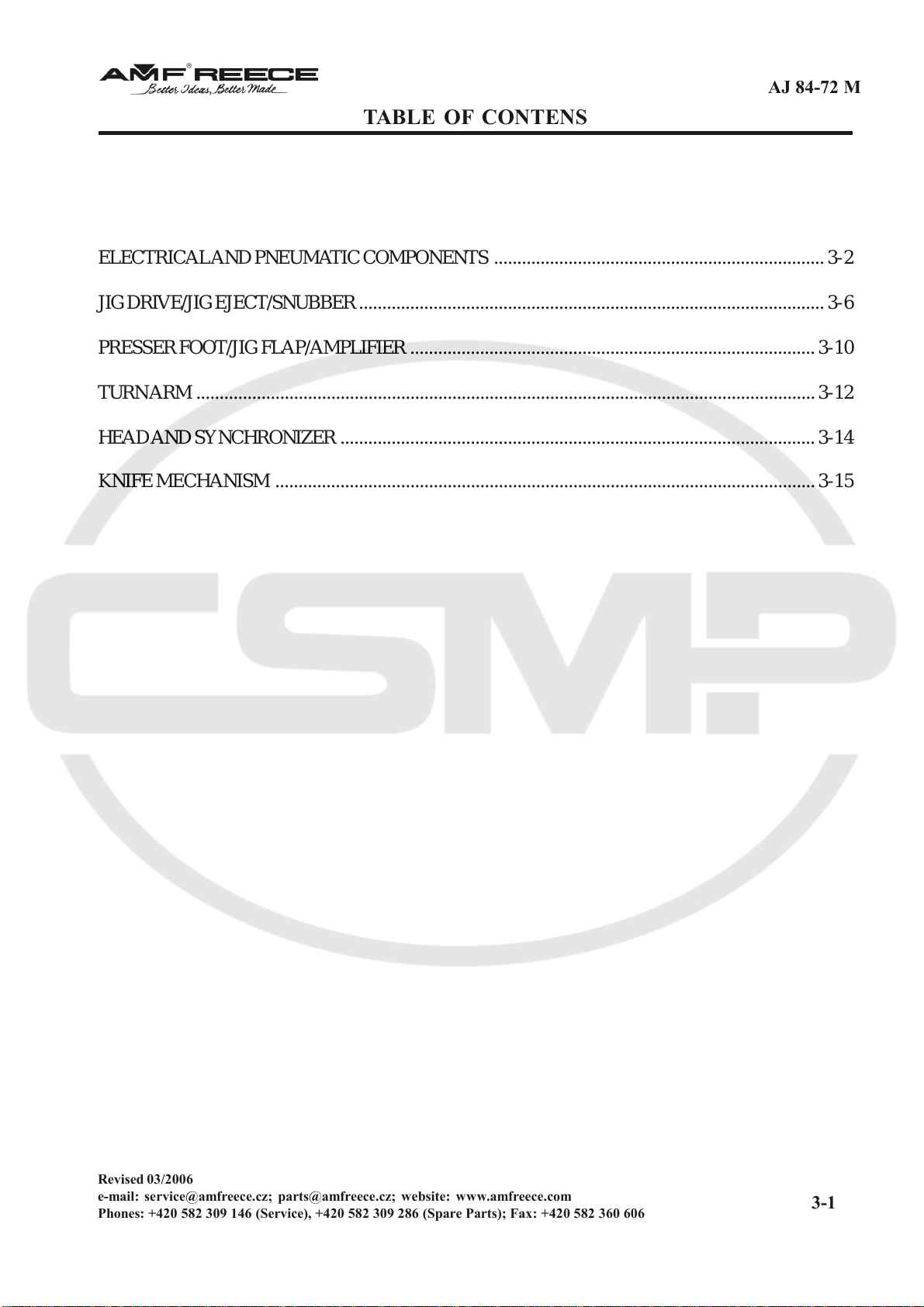

TABLE OF CONTENS

ELECTRICALANDPNEUMATICCOMPONENTS ....................................................................... 3-2

JIGDRIVE/JIGEJECT/SNUBBER....................................................................................................3-6

PRESSERFOOT/JIGFLAP/AMPLIFIER .......................................................................................3-10

TURNARM .....................................................................................................................................3-12

HEADANDSYNCHRONIZER ...................................................................................................... 3-14

KNIFEMECHANISM ....................................................................................................................3-15

Revised 03/2006
e-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

3-1

AJ 84-72 M

ELECTRICAL AND PNEUMATIC COMPONENTS

3-2

Revised 03/2006

e-mail: [e-mail]; [e-mail]; website: www.amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

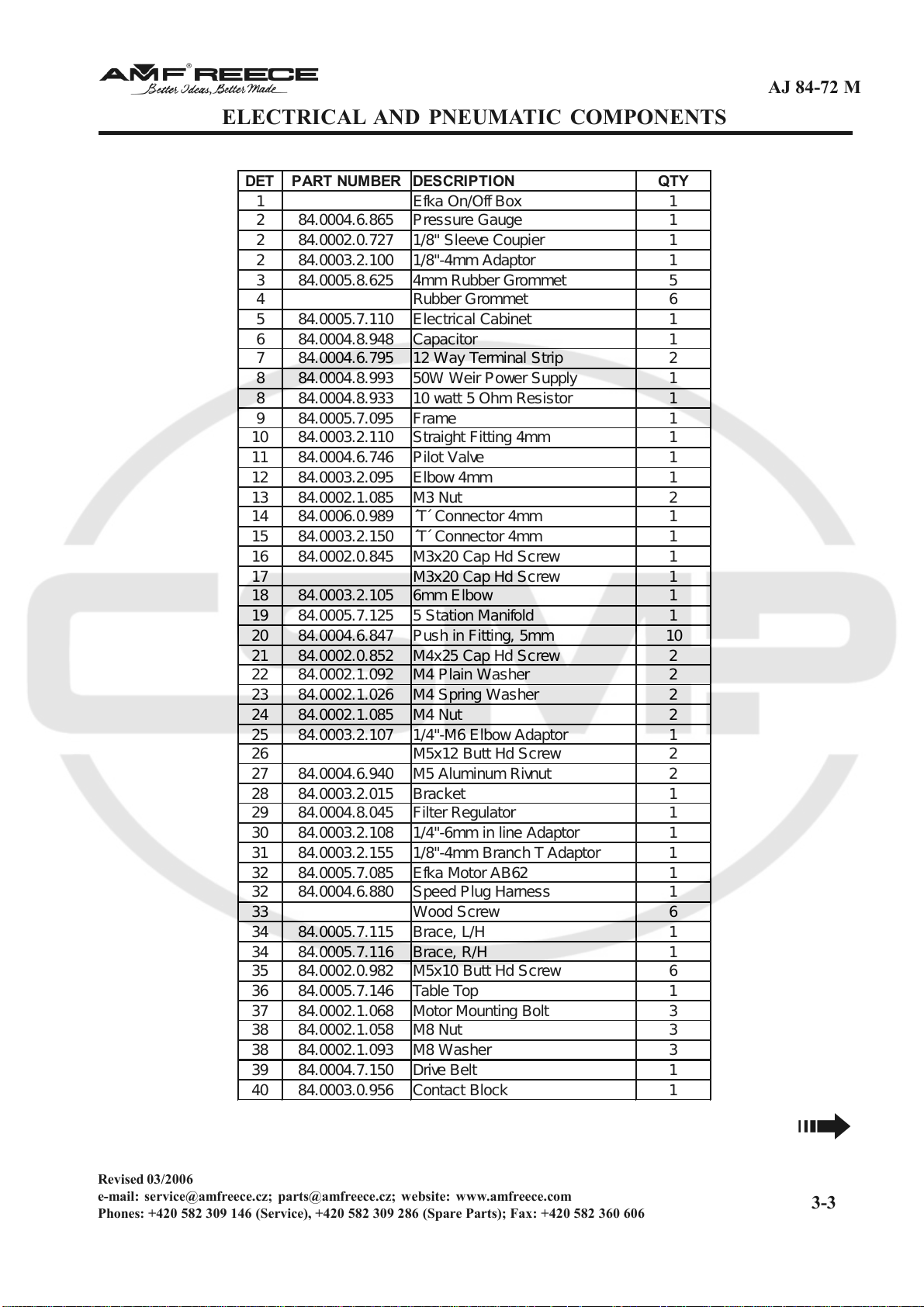

ELECTRICAL AND PNEUMATIC COMPONENTS

DET PART NUMBER DESCRIPTION QTY

1 Efka On/OffBox 1
2 84.0004.6.865 Pressure Gauge 1

2 84.0002.0.727 1/8" Sleeve Coupier 1
2 84.0003.2.100 1/8"-4mm Adaptor 1
3 84.0005.8.625 4mm Rubber Grommet 5

4 Rubber Grommet 6
5 84.0005.7.110 Electrical Cabinet 1
6 84.0004.8.948 Capacitor 1

7 84.0004.6.795 12 Way Terminal Strip 2
8 84.0004.8.993 50W Weir Power Supply 1
8 84.0004.8.933 10 watt 5 Ohm Resistor 1
9 84.0005.7.095 Frame 1

10 84.0003.2.110 Straight Fitting 4mm 1
11 84.0004.6.746 Pilot Valve 1
12 84.0003.2.095 Elbow 4mm 1
13 84.0002.1.085 M3 Nut 2

14 84.0006.0.989 ´T´ Connector 4mm 1
15 84.0003.2.150 ´T´ Connector 4mm 1
16 84.0002.0.845 M3x20 Cap Hd Screw 1
17 M3x20 Cap Hd Screw 1

18 84.0003.2.105 6mm Elbow 1
19 84.0005.7.125 5 Station Manifold 1
20 84.0004.6.847 Push in Fitting, 5mm 10
21 84.0002.0.852 M4x25 Cap Hd Screw 2

22 84.0002.1.092 M4 Plain Washer 2
23 84.0002.1.026 M4 Spring Washer 2
24 84.0002.1.085 M4 Nut 2
25 84.0003.2.107 1/4"-M6 Elbow Adaptor 1

26 M5x12 Butt Hd Screw 2
27 84.0004.6.940 M5 Aluminum Rivnut 2
28 84.0003.2.015 Bracket 1

29 84.0004.8.045 Filter Regulator 1
30 84.0003.2.108 1/4"-6mm in line Adaptor 1
31 84.0003.2.155 1/8"-4mm Branch T Adaptor 1
32 84.0005.7.085 Efka Motor AB62 1

32 84.0004.6.880 Speed Plug Harness 1
33 Wood Screw 6
34 84.0005.7.115 Brace, L/H 1
34 84.0005.7.116 Brace, R/H 1

35 84.0002.0.982 M5x10 Butt Hd Screw 6
36 84.0005.7.146 Table Top 1
37 84.0002.1.068 Motor Mounting Bolt 3

38 84.0002.1.058 M8 Nut 3
38 84.0002.1.093 M8 Washer 3
39 84.0004.7.150 Drive Belt 1
40 84.0003.0.956 Contact Block 1

AJ 84-72 M

Revised 03/2006
e-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]



3-3

AJ 84-72 M

ELECTRICAL AND PNEUMATIC COMPONENTS

3-4

Revised 03/2006

e-mail: [e-mail]; [e-mail]; website: www.amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]



AJ 84-72 M

ELECTRICAL AND PNEUMATIC COMPONENTS

DET P ART NUMBER DESCRIP TI ON QTY

41 84.0002.0.948 No. 6x5/8" Pan Hd Screw 4
42 84.0004.8.455 Stop Start Plate 1

43 84.0004.8.460 Start Button 1
44 84.0003.0.922 Stop Button 1
45 84.0003.0.956 Contact Block 1
46 84.0002.5.490 Nylon Grommet 3

47 84.0003.2.105 Elbow 6mm 1
48 84.0004.6.806 Small Cable Gland 1
49 Wood Screw 2
50 84.0003.2.120 Air Valve On/Off 1

51 84.0010.7.350 Bracket 1
52 84.0002.0.719 Elbow 1/4"x8mm 1
53 84.0002.0.871 M6x50 Cap Hd Screw 2

54 84.0002.1.099 M6 Plain Washer 2
55 84.0002.1.088 M6 Nut 2
56 84.0002.1.028 M6 Spring Washer 2
57 84.0005.7.050 Ext. Harness D Conn 1

58 84.0004.6.565 Control Box Mntg. Bkt 1
59 84.0002.0.851 M4x16 Cap Hd. Screw 4
60 84.0004.7.072 AMF Reece Control Box 1
60 84.0004.6.575 Controller End Plate 2

60 84.0004.6.740 Controller Facia 1
60 84.0004.8.901 EPROM 1
61 84.0004.8.947 Capacitor Clip 1
62 84.0002.0.878 M4x10 Cap Hd Screw 1

62 84.0002.1.086 M4 Nut 1
62 84.0002.1.092 M4 Plain Washer 1
62 84.0002.0.843 M3x12 Cap Hd Screw 1

62 84.0002.1.085 M3 Nut 1
63 84.0002.0.851 M4x16 Cap Hd. Screw 4
64 84.0002.1.086 M4 Nut 4
65 84.0004.8.994 Panduit Connector 1

66 84.0004.8.995 Panduit Connector Cover 1
66 84.0004.8.996 Polarizing Pin 3

84.0005.8.680 5/6mm Ferrite 3

84.0005.8.682 6.5 Ferrite 3

84.0005.8.684 13mm Hinged Ferrite 1

Revised 03/2006
e-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

3-5

AJ 84-72 M

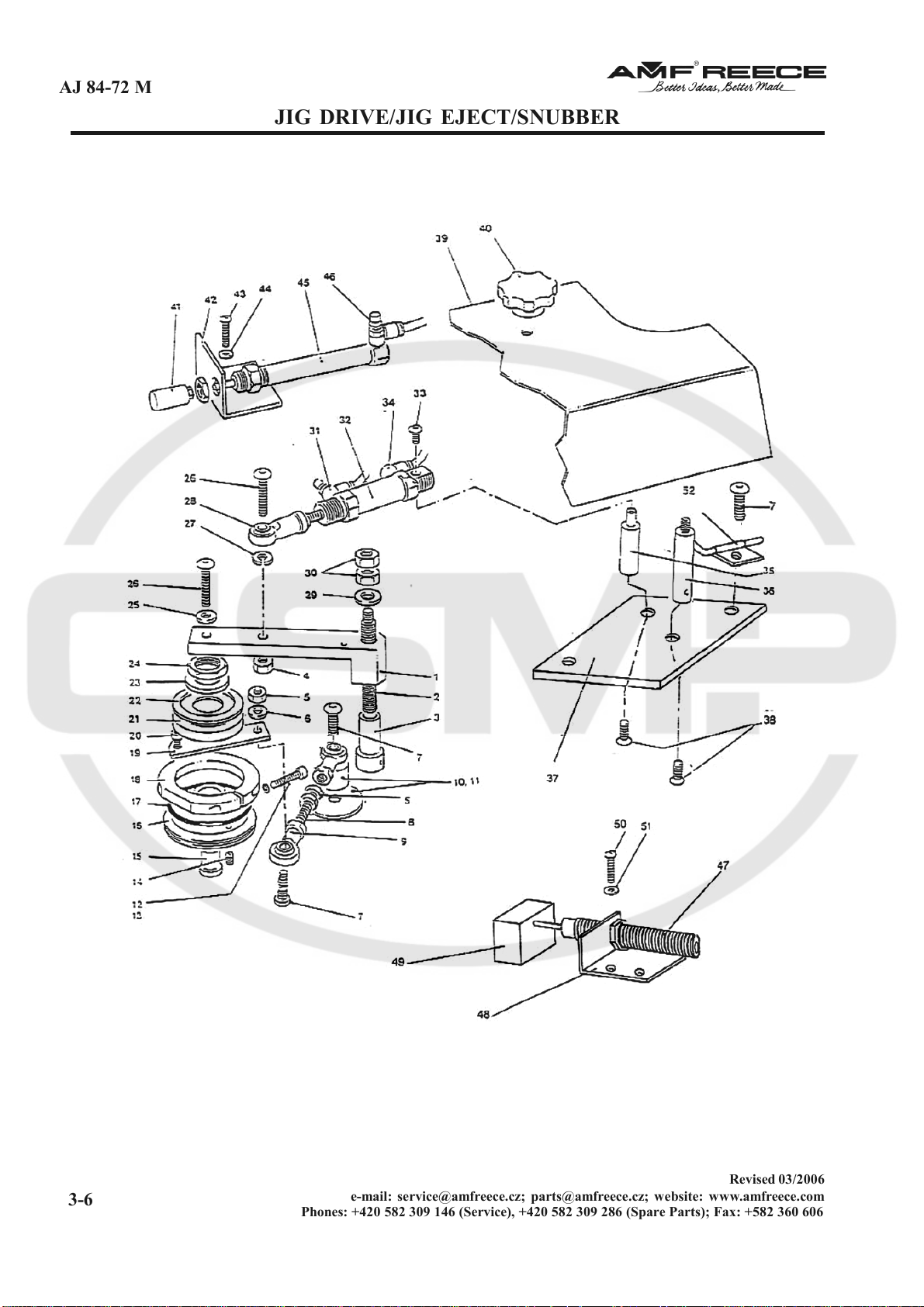

JIG DRIVE/JIG EJECT/SNUBBER

3-6

Revised 03/2006

e-mail: [e-mail]; [e-mail]; website: www.amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

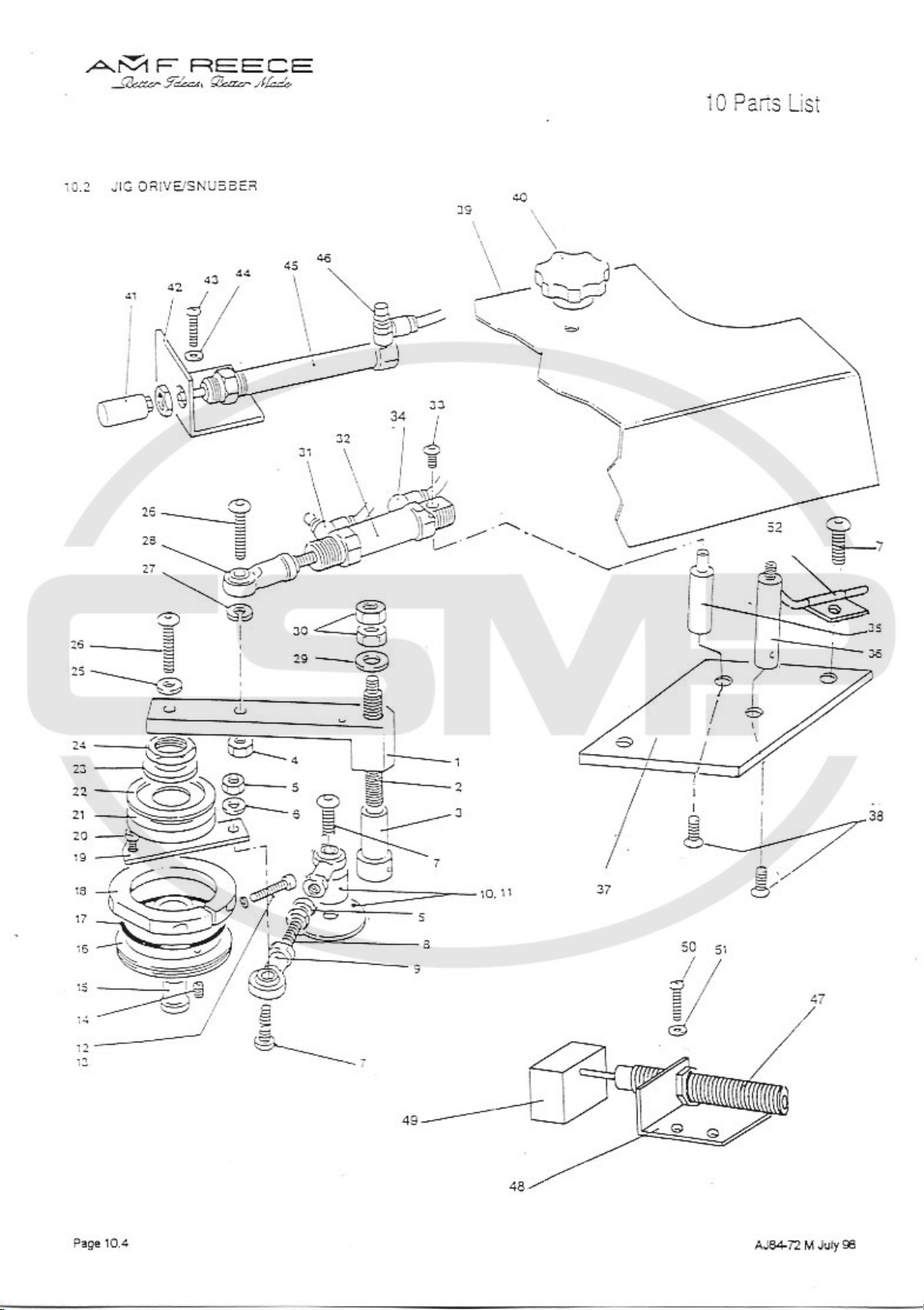

JIG DRIVE/JIG EJECT/SNUBBER

DET PART NUMBER DESCRIPTION QTY

JIG DRIVE

1 84.0004.8.085 Drive Arm 1
2 84.0004.6.935 Drive Cover Stud 1
3 84.0003.0.511 Mounting Arm Eccentric 1
4 84.0002.1.088 M6 Nut 1

5 84.0002.1.087 M5 Nut 1
6 84.0002.1.098 M5 Plain Washer 1
7 84.0002.0.984 M5x16 Butt Hd Screw 4

8 84.0002.9.060 Stud 1

9 84.0002.8.200 Rod End 2
10 84.0004.6.535 Oil Cover Tube 1
11 84.0004.6.530 Oil Cover 1

12 84.0002.0.855 M4x30 Cap Hd Screw 1
13 84.0002.1.026 M4 Spring Washer 1
14 84.0002.0.922 M5x5 Grub Screw 2
15 84.0002.5.280 Pivot Spindle 1

16 84.0002.9.010 Drive Wheel 1
17 84.0002.9.125 "O" Ring 1
18 84.0002.5.290 Free Wheel Housing 1
19 84.0004.6.920 Drive Plate 1

20 84.0002.0.842 M3x10 Cap Hd Screw 2
21 84.0002.9.070 Bearing 1
22 84.0002.9.126 Nilos Ring 1
23 84.0002.9.020 Washer 1

24 84.0002.9.030 Locknut 1
25 84.0002.1.099 M6 Washer 1
26 84.0002.0.992 M6x25 Butt Hd Screw 1

27 84.0002.1.028 M6 Spring Washer 1
28 84.0002.8.210 Rod End 1
29 84.0002.1.093 M8 Plain Washer 1
30 84.0002.1.058 M8 Nut 2

31 84.0003.2.040 Flow Control 2
32 84.0002.8.192 Cylinder 1
33 M4x6 Butt Hd Screw 1
34 84.0003.2.095 M5-4mm Elbow Adaptor 1

35 84.0003.0.620 Drive Cylinder Stud 1
36 84.0005.9.110 Cover Stud 1
37 84.0005.9.023 Jig Drive Base Plate 1

38 84.0002.0.807 M5x10 Csk Screw 1
39 84.0005.7.055 Drive Cover Guard 1
40 84.0004.6.525 Thumb Nut, 8mm 2

AJ 84-72 M

Revised 03/2006
e-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]



3-7

AJ 84-72 M

JIG DRIVE/JIG EJECT/SNUBBER

3-8

Revised 03/2006

e-mail: [e-mail]; [e-mail]; website: www.amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]



AJ 84-72 M

JIG DRIVE/JIG EJECT/SNUBBER

DET P ART NUMBER DESCRIP TI ON QTY

JIG EJECT

41 84.0004.6.540 Nylon Nose 1
42 84.0005.9.010 Jig Eject Brkt 1

43 84.0002.0.984 M5x16 Butt Hd Screw 2
44 84.0002.1.098 M5 Plain Washer 2

45 84.0004.6.950 Jig Eject Cylinder 1
46 84.0003.2.045 Flow Control 1

SNUBBER

47 84.0004.6.765 Shock Absorber
48 84.0005.7.025 Snubber Bkt

49 84.0005.7.030 Nylon Damper Block
50 84.0002.0.984 M5x16 Butt Hd Screw

51 84.0002.1.098 M5 Plain Washer
52 84.0005.7.122 Rear Blower

84.0005.9.140 Jigh Drive Regulator 1

84.0006.0.325 4mm In Line Restrictor 1

Revised 03/2006
e-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

3-9

AJ 84-72 MJ

PRESSER FOOT/JIG FLAP/AMPLIFIER

3-10

Revised 03/2006

e-mail: [e-mail]; [e-mail]; website: www.amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

PRESSER FOOT/JIG FLAP/AMPLIFIER

Not Illustrated:

84.0006.0.325 4mm In Line Restrictor 2

PAGE DET PART NUMBER DESCRIPTION QTY

3-11 1 84.0002.0.840 M3x5 Cap Hd Screw 1
3-11 2 84.0005.7.060 Photocell Mtg Bkt 1
3-11 3 84.0003.0.715 Fibre Optic Head 1
3-11 4 84.0002.5.550 Presser Foot 3/16" 1
3-11 S 84.0002.5.540 Presser Foot 1/8" 1
3-11 S 84.0002.5.560 Presser Foot 1/4" 1
3-11 5 84.0005.7.120 Foot Blower 1
3-11 6 84.0002.1.026 Finger Guard 1
3-11 7 Plain Washer 1
3-11 8 Slot Hd Screw 1

S=Special

3-11 9 84.0004.0.163 Throat Plate Locating Pin 1
3-11 10 84.0005.9.040 Jig Flap Bracket 1
3-11 11 84.0005.7.002 Throat Plate, 3/16" 1
3-11 S 84.0005.9.006 Throat Plate, 1/8" 1
3-11 S 84.0005.7.003 Throat Plate, 1/4" 1
3-11 12 84.0005.7.130 Throat Plate Screw 4
3-11 13 84.0002.0.798 M3x6 Csk Screw 1
3-11 14
3-11 15 M3x16 Hex Hd Screw 1
3-11 16 84.0002.1.085 M3 Nut 3
3-11 17 84.0002.1.091 M3 Plain Washer 2
3-11 18 84.0004.6.840 M2.5x5 Pan Hd Screw 2
3-11 19 84.0004.6.540 Nylon Nose 1
3-11 20 84.0002.1.025 M3 Spring Washer 2
3-11 21 84.0002.0.841 M3x8 Cap Hd Screw 2
3-11 22 84.0003.2.045 Flow Control 1
3-11 23 84.0004.6.745 Jig Flap Cylinder 1
3-11 24 84.0004.6.756 Jig Flap Cylinder Bracket 1
3-11 25 84.0004.6.750 Jig Flap Spring 1
3-11 26 84.0005.7.010 Jig Eject Slide Plate 1
3-11 27 84.0002.0.799 M3x10 Csk Screw 2
3-11 28 84.0005.9.050 Jig Flap Cover Plate 1

S=Special

3-11 29 Screw 2
3-11 30 84.0005.7.062 Amplifier Unit 1

31 84.0005.7.059 Spacer 1

JIG FLAP

AMPLIFIER

PRESSER FOOT

Revised 03/2006
e-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

AJ 84-72 MJ

3-11

AJ 84-72 M

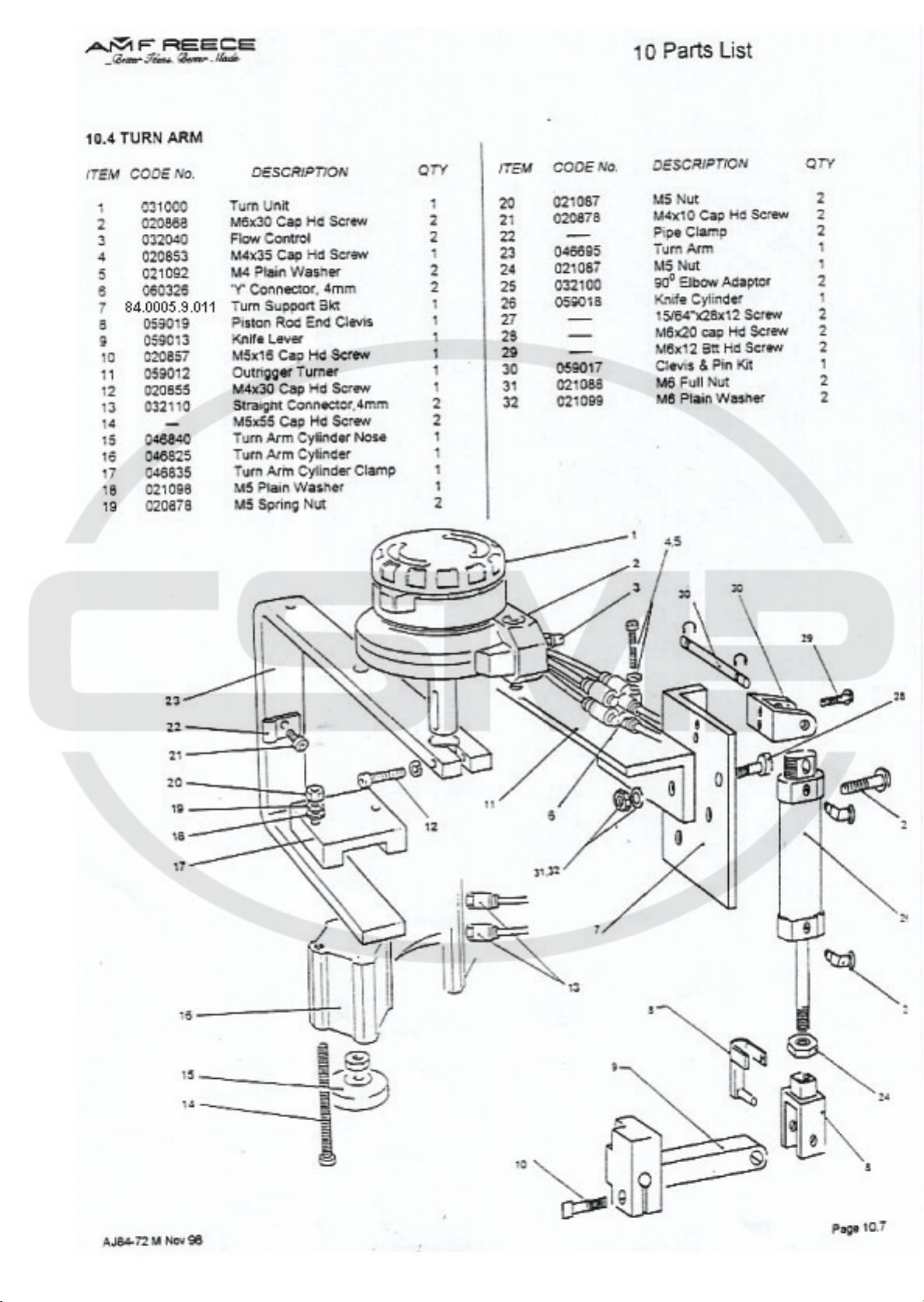

TURN ARM

3-12

Revised 03/2006

e-mail: [e-mail]; [e-mail]; website: www.amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

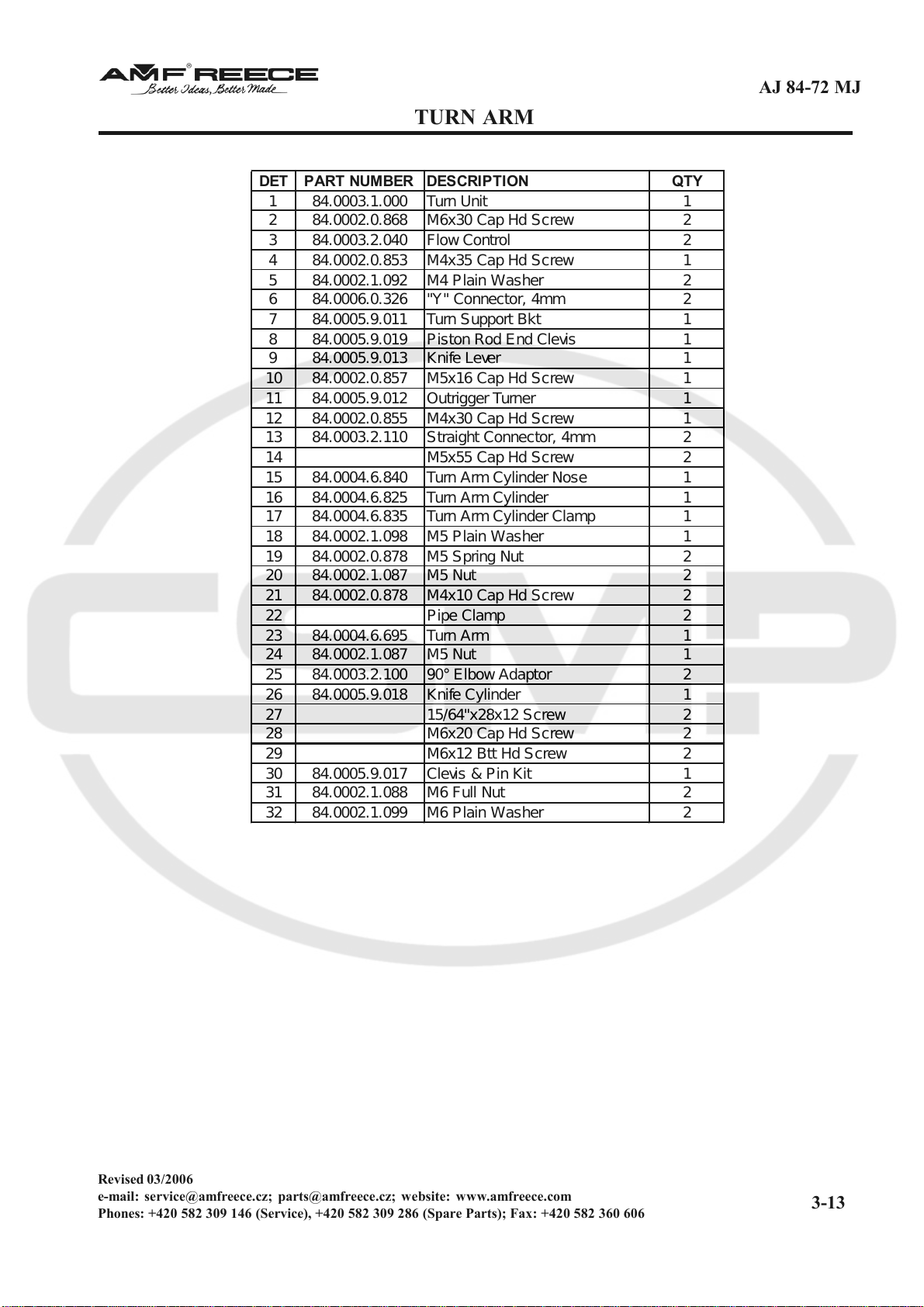

TURN ARM

DET PART NUMBER DESCRIPTION QTY

1 84.0003.1.000 Turn Unit 1
2 84.0002.0.868 M6x30 Cap Hd Screw 2

3 84.0003.2.040 Flow Control 2
4 84.0002.0.853 M4x35 Cap Hd Screw 1
5 84.0002.1.092 M4 Plain Washer 2

6 84.0006.0.326 "Y" Connector, 4mm 2
7 84.0005.9.011 Turn Support Bkt 1
8 84.0005.9.019 Piston Rod End Clevis 1

9 84.0005.9.013 Knife Lever 1
10 84.0002.0.857 M5x16 Cap Hd Screw 1
11 84.0005.9.012 Outrigger Turner 1
12 84.0002.0.855 M4x30 Cap Hd Screw 1

13 84.0003.2.110 Straight Connector, 4mm 2
14 M5x55 Cap Hd Screw 2
15 84.0004.6.840 Turn Arm Cylinder Nose 1
16 84.0004.6.825 Turn Arm Cylinder 1

17 84.0004.6.835 Turn Arm Cylinder Clamp 1
18 84.0002.1.098 M5 Plain Washer 1
19 84.0002.0.878 M5 Spring Nut 2

20 84.0002.1.087 M5 Nut 2
21 84.0002.0.878 M4x10 Cap Hd Screw 2
22 Pipe Clamp 2
23 84.0004.6.695 Turn Arm 1

24 84.0002.1.087 M5 Nut 1
25 84.0003.2.100 90° Elbow Adaptor 2
26 84.0005.9.018 Knife Cylinder 1
27 15/64"x28x12 Screw 2

28 M6x20 Cap Hd Screw 2
29 M6x12 Btt Hd Screw 2
30 84.0005.9.017 Clevis & Pin Kit 1

31 84.0002.1.088 M6 Full Nut 2
32 84.0002.1.099 M6 Plain Washer 2

AJ 84-72 MJ

Revised 03/2006
e-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

3-13

AJ 84-72 MJ

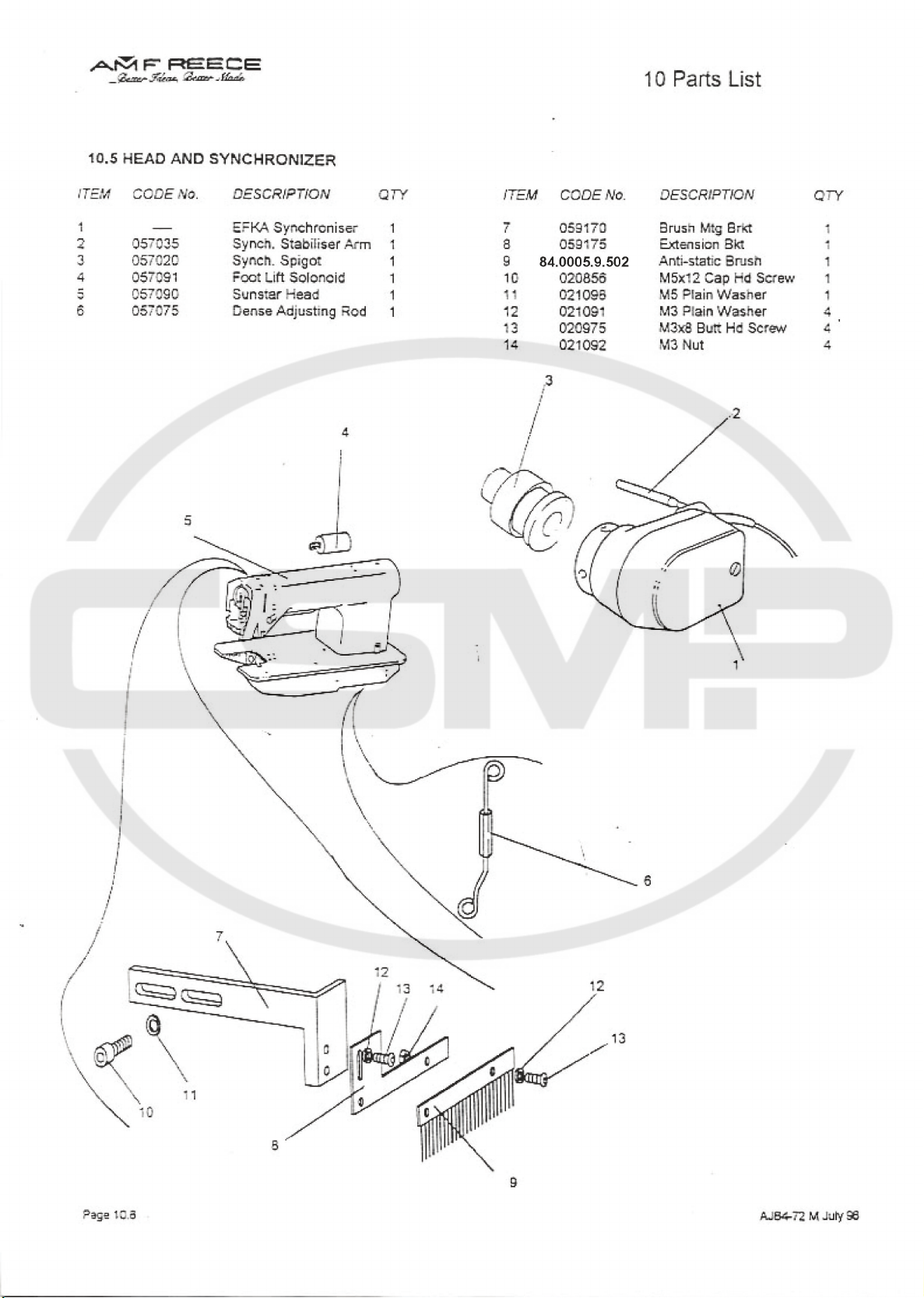

DET PART NUMBER DESCRIPTION QTY

1 EFKA Synchroniser 1
2 84.0005.7.035 Synch. Stabiliser Arm 1
3 84.0005.7.020 Synch. Spigot 1
4 84.0005.7.036 Holder 1
5 84.0005.9.022 JUKI Head 1
6 84.0005.7.076 Dense Adjusting Rod 1
7 84.0005.9.170 Brush Mtg Brkt 1
8 84.0005.9.175 Extension Bkt 1

9 84.0005.9.502 Anti-static Brush 1
10 84.0002.0.856 M5x12 Cap Hd Screw 1
11 84.0002.1.098 M5 Plain Washer 1
12 84.0002.1.091 M3 Plain Washer 4
13 84.0002.0.975 M3x8 Butt Hd Screw 4
14 84.0002.1.092 M3 Nut 4

HEAD AND SYNCHRONIZER

3-14

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

e-mail: [e-mail]; [e-mail]; website: www.amfreece.com

Revised 03/2006

KNIFE MECHANISM

AJ 84-72 M

DET PART NUMBER DESCRIPTION QTY

1 84.0005.9.174 M2.5x6 Countersunk Screw 2
2 84.0005.9.172 Clamp Plate 1
3 84.0005.9.173 16mm Knife 1

4 84.0005.9.161 9mm Knife 1
5 84.0005.9.171 Adapter 1
6 M6 Hexagon Head Screw 1

7 84.0005.9.166 Slide Block 1
8 Clamp Screw 1
9 84.0005.9.166 Adjustable Holder Bkt. 1

10 Slide Clamp Screw 1

3/16" 1/4"

DET PARTNUMBER DESCRIPTION

1 08.6012.1.008 Screw 2 PCS

See page 3-15

Revised 03/2006
e-mail: [e-mail]; [e-mail]; website: www.amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

2 84.0005.9.167 Plate

3,4 84.0003.0.310 Knife

5 84.0005.9.165 Holder

1/8"

3-15

AJ 84-72 M

3-16

Revised 03/2006

e-mail: [e-mail]; [e-mail]; website: www.amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

AJ 84-72 M

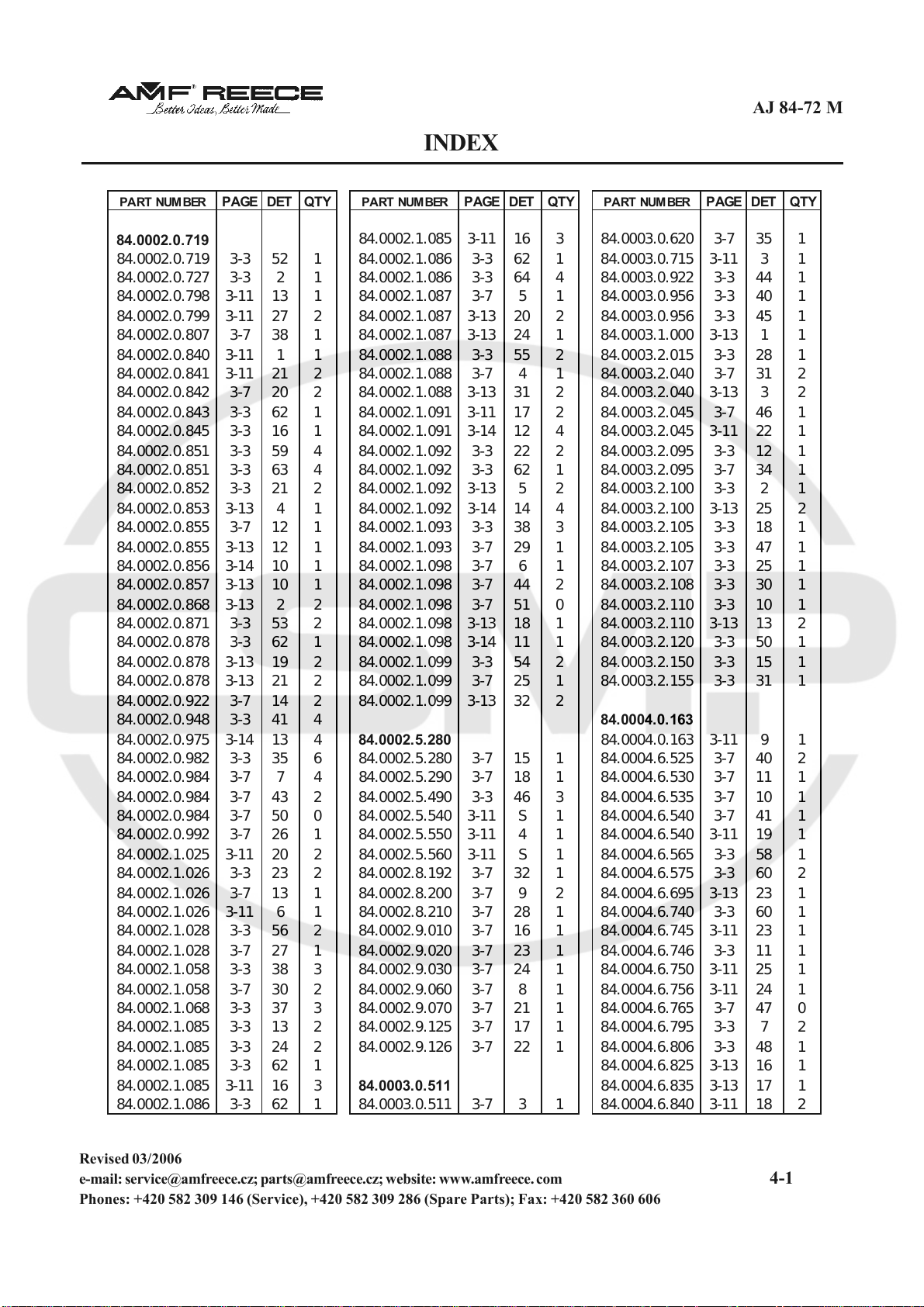

INDEX

PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY PART NUM BER PAGE DET QTY

84.0002.0.719

84.0002.0.719 3-3 52 1 84.0002.1.086 3-3 62 1 84.0003.0.715 3-11 3 1

84.0002.0.727 3-3 2 1 84.0002.1.086 3-3 64 4 84.0003.0.922 3-3 44 1

84.0002.0.798 3-11 13 1 84.0002.1.087 3-7 5 1 84.0003.0.956 3-3 40 1

84.0002.0.799 3-11 27 2 84.0002.1.087 3-13 20 2 84.0003.0.956 3-3 45 1

84.0002.0.807 3-7 38 1 84.0002.1.087 3-13 24 1 84.0003.1.000 3-13 1 1

84.0002.0.840 3-11 1 1 84.0002.1.088 3-3 55 2 84.0003.2.015 3-3 28 1

84.0002.0.841 3-11 21 2 84.0002.1.088 3-7 4 1 84.0003.2.040 3-7 31 2

84.0002.0.842 3-7 20 2 84.0002.1.088 3-13 31 2 84.0003.2.040 3-13 3 2

84.0002.0.843 3-3 62 1 84.0002.1.091 3-11 17 2 84.0003.2.045 3-7 46 1

84.0002.0.845 3-3 16 1 84.0002.1.091 3-14 12 4 84.0003.2.045 3-11 22 1

84.0002.0.851 3-3 59 4 84.0002.1.092 3-3 22 2 84.0003.2.095 3-3 12 1

84.0002.0.851 3-3 63 4 84.0002.1.092 3-3 62 1 84.0003.2.095 3-7 34 1

84.0002.0.852 3-3 21 2 84.0002.1.092 3-13 5 2 84.0003.2.100 3-3 2 1

84.0002.0.853 3-13 4 1 84.0002.1.092 3-14 14 4 84.0003.2.100 3-13 25 2

84.0002.0.855 3-7 12 1 84.0002.1.093 3-3 38 3 84.0003.2.105 3-3 18 1

84.0002.0.855 3-13 12 1 84.0002.1.093 3-7 29 1 84.0003.2.105 3-3 47 1

84.0002.0.856 3-14 10 1 84.0002.1.098 3-7 6 1 84.0003.2.107 3-3 25 1

84.0002.0.857 3-13 10 1 84.0002.1.098 3-7 44 2 84.0003.2.108 3-3 30 1

84.0002.0.868 3-13 2 2 84.0002.1.098 3-7 51 0 84.0003.2.110 3-3 10 1

84.0002.0.871 3-3 53 2 84.0002.1.098 3-13 18 1 84.0003.2.110 3-13 13 2

84.0002.0.878 3-3 62 1 84.0002.1.098 3-14 11 1 84.0003.2.120 3-3 50 1

84.0002.0.878 3-13 19 2 84.0002.1.099 3-3 54 2 84.0003.2.150 3-3 15 1

84.0002.0.878 3-13 21 2 84.0002.1.099 3-7 25 1 84.0003.2.155 3-3 31 1

84.0002.0.922 3-7 14 2 84.0002.1.099 3-13 32 2

84.0002.0.948 3-3 41 4 84.0004.0.163

84.0002.0.975 3-14 13 4 84.0002.5.280 84.0004.0.163 3-11 9 1

84.0002.0.982 3-3 35 6 84.0002.5.280 3-7 15 1 84.0004.6.525 3-7 40 2

84.0002.0.984 3-7 7 4 84.0002.5.290 3-7 18 1 84.0004.6.530 3-7 11 1

84.0002.0.984 3-7 43 2 84.0002.5.490 3-3 46 3 84.0004.6.535 3-7 10 1

84.0002.0.984 3-7 50 0 84.0002.5.540 3-11 S 1 84.0004.6.540 3-7 41 1

84.0002.0.992 3-7 26 1 84.0002.5.550 3-11 4 1 84.0004.6.540 3-11 19 1

84.0002.1.025 3-11 20 2 84.0002.5.560 3-11 S 1 84.0004.6.565 3-3 58 1

84.0002.1.026 3-3 23 2 84.0002.8.192 3-7 32 1 84.0004.6.575 3-3 60 2

84.0002.1.026 3-7 13 1 84.0002.8.200 3-7 9 2 84.0004.6.695 3-13 23 1

84.0002.1.026 3-11 6 1 84.0002.8.210 3-7 28 1 84.0004.6.740 3-3 60 1

84.0002.1.028 3-3 56 2 84.0002.9.010 3-7 16 1 84.0004.6.745 3-11 23 1

84.0002.1.028 3-7 27 1 84.0002.9.020 3-7 23 1 84.0004.6.746 3-3 11 1

84.0002.1.058 3-3 38 3 84.0002.9.030 3-7 24 1 84.0004.6.750 3-11 25 1

84.0002.1.058 3-7 30 2 84.0002.9.060 3-7 8 1 84.0004.6.756 3-11 24 1

84.0002.1.068 3-3 37 3 84.0002.9.070 3-7 21 1 84.0004.6.765 3-7 47 0

84.0002.1.085 3-3 13 2 84.0002.9.125 3-7 17 1 84.0004.6.795 3-3 7 2

84.0002.1.085 3-3 24 2 84.0002.9.126 3-7 22 1 84.0004.6.806 3-3 48 1

84.0002.1.085 3-3 62 1 84.0004.6.825 3-13 16 1

84.0002.1.085 3-11 16 3 84.0003.0.511 84.0004.6.835 3-13 17 1

84.0002.1.086 3-3 62 1 84.0003.0.511 3-7 3 1 84.0004.6.840 3-11 18 2

84.0002.1.085 3-11 16 3 84.0003.0.620 3-7 35 1

Revised 03/2006
e-mail:[e-mail];[e-mail];website: www.amfreece.com 4-1
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

AJ 84-72 M

INDEX

PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY PART NUMBER PAGE DET QTY

84.0004.6.840 3-13 15 1 84.0005.7.122 3-7 52 0

84.0004.6.847 3-3 20 10 84.0005.7.125 3-3 19 1

84.0004.6.865 3-3 2 1 84.0005.7.130 3-11 12 4

84.0004.6.880 3-3 32 1 84.0005.7.146 3-3 36 1

84.0004.6.920 3-7 19 1 84.0005.8.625 3-3 3 5

84.0004.6.935 3-7 2 1 84.0005.8.680 3-3 0 3

84.0004.6.940 3-3 27 2 84.0005.8.682 3-3 0 3

84.0004.6.950 3-7 45 1 84.0005.8.684 3-3 0 1

84.0004.7.072 3-3 60 1 84.0005.9.010 3-7 42 1

84.0004.7.150 3-3 39 1 84.0005.9.012 3-13 11 1

84.0004.8.045 3-3 29 1 84.0005.9.013 3-13 9 1

84.0004.8.085 3-7 1 1 84.0005.9.017 3-13 30 1

84.0004.8.455 3-3 42 1 84.0005.9.018 3-13 26 1

84.0004.8.460 3-3 43 1 84.0005.9.019 3-13 8 1

84.0004.8.901 3-3 60 1 84.0005.9.022 3-14 5 1

84.0004.8.933 3-3 8 1 84.0005.9.023 3-7 37 1

84.0004.8.947 3-3 61 1 84.0005.9.040 3-11 10 1

84.0004.8.948 3-3 6 1 84.0005.9.050 3-11 28 1

84.0004.8.993 3-3 8 1 84.0005.9.110 3-7 36 1

84.0004.8.994 3-3 65 1 84.0005.9.140 3-7 0 1

84.0004.8.995 3-3 66 1 84.0005.9.161 3-15 4 1

84.0004.8.996 3-3 66 3 84.0005.9.166 3-15 7 1

84.0005.9.166 3-15 9 1

84.0005.7.001

84.0005.9.006 3-11 S 1 84.0005.9.171 3-15 5 1

84.0005.7.002 3-11 11 1 84.0005.9.172 3-15 2 1

84.0005.7.003 3-11 S 1 84.0005.9.173 3-15 3 1
0 3-11 14 0 84.0005.9.174 3-15 1 2

84.0005.7.010 3-11 26 1 84.0005.9.175 3-14 8 1

84.0005.9.011 3-13 7 1

84.0005.7.020 3-14 3 1 84.0006.0.325

84.0005.7.025 3-7 48 0 84.0006.0.325 3-7 0 1

84.0005.7.030 3-7 49 0 84.0006.0.325 3-11 0 2

84.0005.7.035 3-14 2 1 84.0006.0.326 3-13 6 2

84.0005.7.036 3-14 4 1 84.0006.0.989 3-3 14 1

84.0005.7.050 3-3 57 1 84.0010.7.350 3-3 51 1

84.0005.7.055 3-7 39 1 M3x16 3-11 15 1

84.0005.7.060 3-11 2 1

84.0005.7.062 3-11 30 1

84.0005.7.076 3-14 6 1

84.0005.7.085 3-3 32 1

84.0005.7.095 3-3 9 1

84.0005.7.110 3-3 5 1

84.0005.7.115 3-3 34 1

84.0005.7.116 3-3 34 1

84.0005.7.120 3-11 5 1

84.0005.9.170 3-14 7 1

Revised 03/2006

4-2 e-mail. [e-mail]; [e-mail]; website: www.amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
