TWIN/TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
(B1-B3)
PAGE 1 OF 6
Page 2
ROLL SLAT
(B1-B3)
ASSEMBLY INSTRUCTIONS
!
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequencs as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commercial establishment

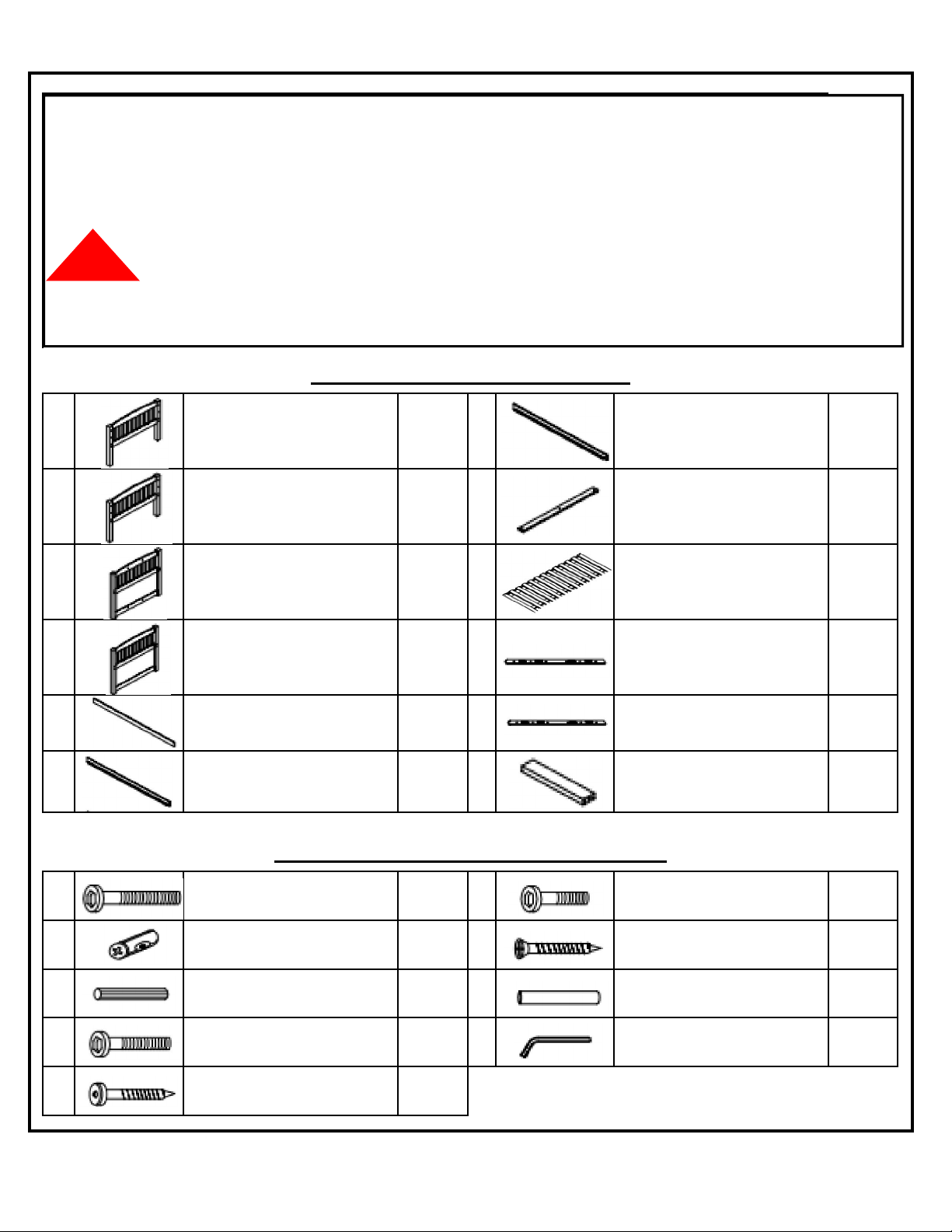

PARTS IDENTIFICATION
A
B
C
D
E
F
RIGHT UPPER BED
END
LEFT UPPER BED END 1PC
RIGHT LOWER BED
END
LEFT LOWER BED
END
UPPER GUARD RAIL 4PCS
UPPER SIDE RAIL 2PCS
1PC
1PC
1PC
HARDWARE IDENTIFICATION
G
H
J
K
L
LOWER SIDE RAIL 2PCS
GUARD SUPPORT 2PCS
I
RIGHT LADDER STILE 1PC
LEFT LADDER STILE 1PC
(13PCS)
LADDER STEP 6PCS
2SETS
1
2
3
4
5
LONG BOLT 24PCS
BARREL NUT 24PCS
WOOD DOWEL 48PCS
MEDIUM BOLT 6PCS
ALLEN CAP SCREW 12PCS
PAGE 2 OF 6
6
7
8
9
SHORT BOLT 6PCS
SCREW 12PCS
METAL DOWEL 4PCS
ALLEN WRENCH 1PC
Page 3
(B1-B3)

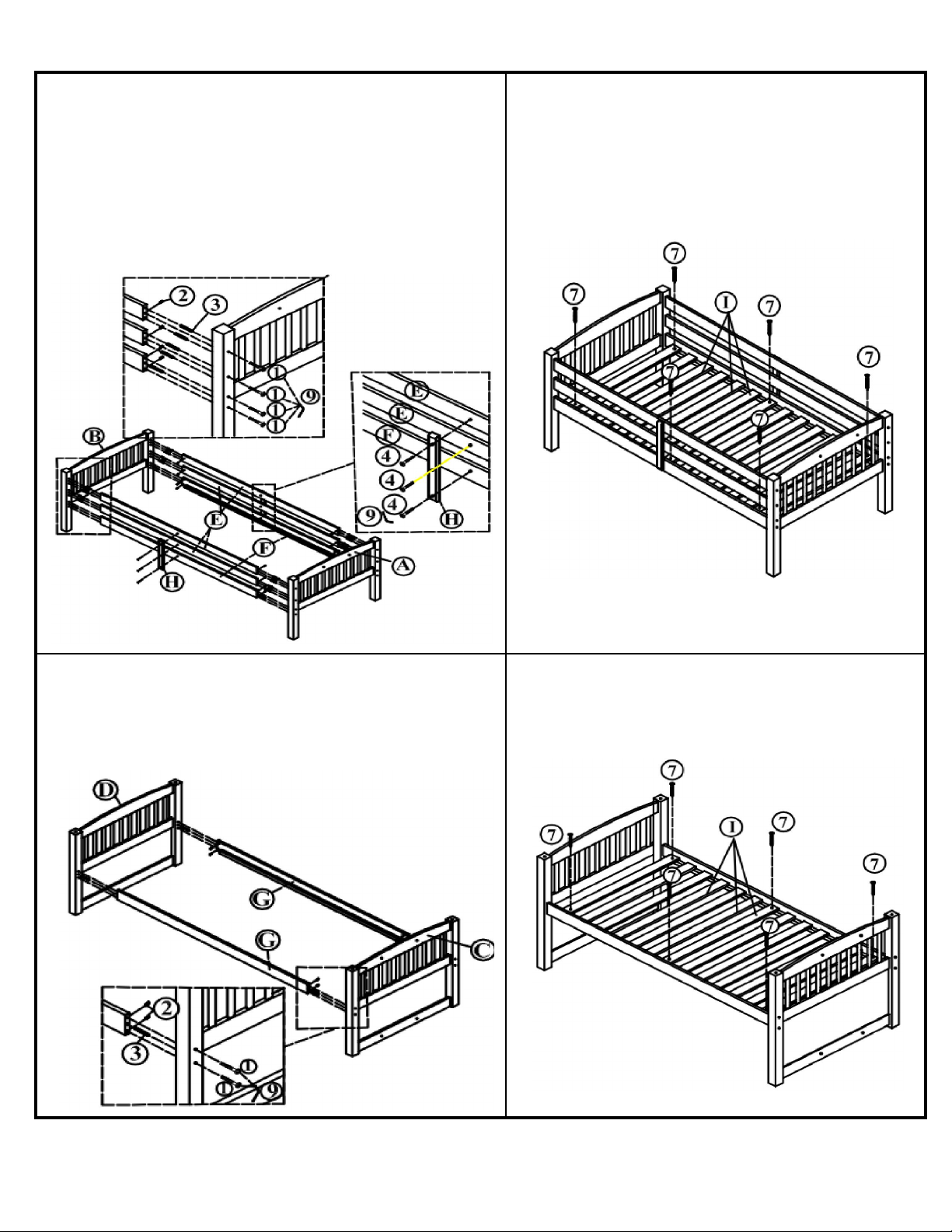

STEP 1 STEP 2
1.1 Insert wood dowel into upper guard rail & upper side rail.
Allen wrench.
3.1 Insert wood dowel into lower side rail.
Align and fasten roll salt to upper side rail using screw
1.2 Align and fasten upper guard rail & upper side rail to
upper bed end using long bolt and barrel nut and tighten with
1.3 Align and fasten trestle bar to upper guard rail and upper
side rail using medium bolt and tighten with Allen wrench.
and tighten with screw driver (not provided).
ASSEMBLY INSTRUCTIONS
STEP 3 STEP 4
Align and fasten roll slat to lower side rail using screw
3.2 Align and fasten lower side rail to lower bed end using
long bolt and barrel nut and tighten with Allen wrench.
and tighten with screw driver (not provided).
PAGE 3 OF 6
Page 4

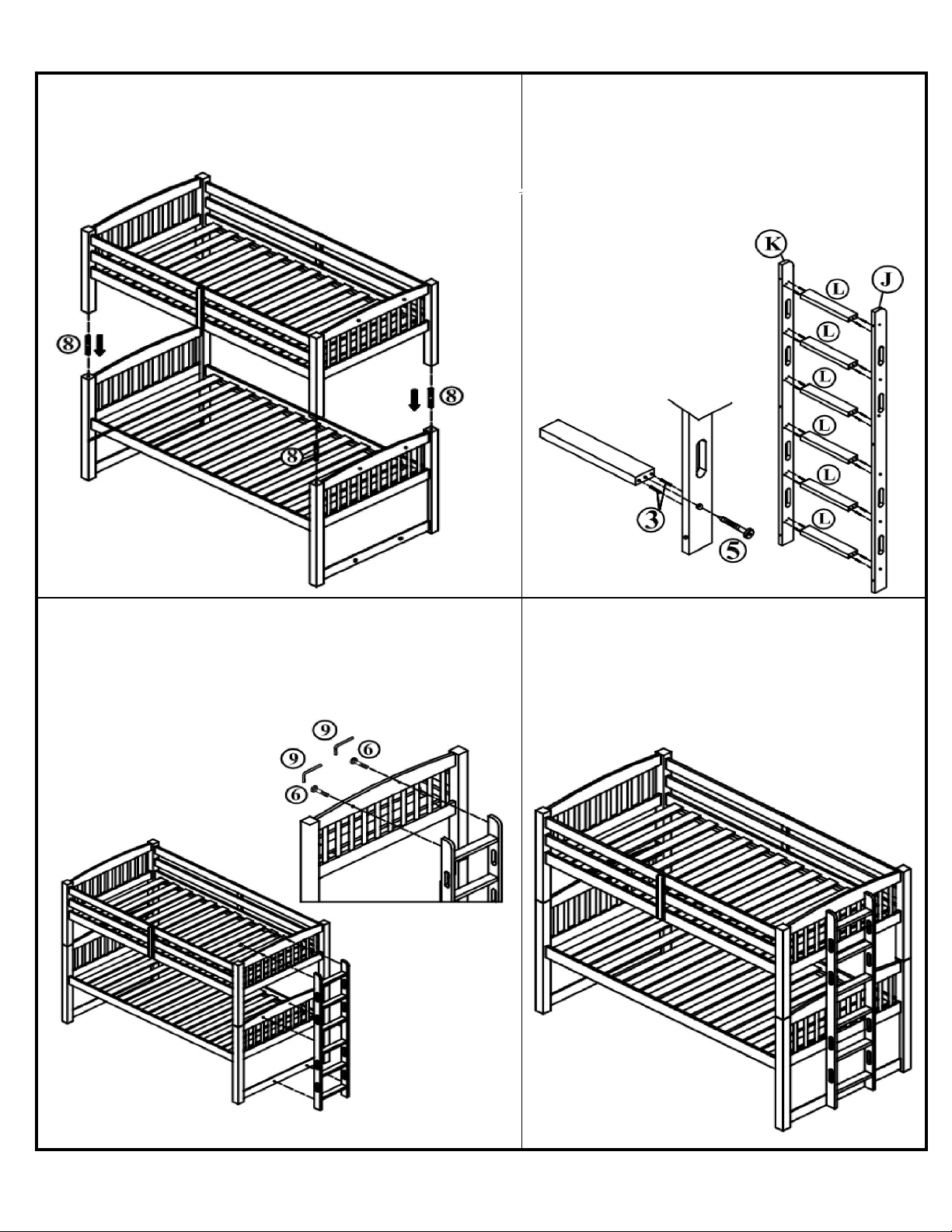

STEP 5 STEP 6
6.1 Insert wood dowel into ladder step
Insert metal dowel to the leg of lower bunk bed, then place the
upper bunk bed onto the metal dowel.
6.2 Align and fasten ladder step to ladder stile using
Allen cap screw and tighten with Allen wrench.
ASSEMBLY INSTRUCTIONS
STEP 7 STEP 8
Align and fasten ladder to the upper bed end top rail and lower
bed end top and bottom rail using short bolt and tighten with
Allen wrench.
Complete.
PAGE 4 OF 6
Page 5
SAFETY WARNING
put your child’s safety as a Top Priority. Our bunk beds have been tested by an independent laboratory
and are certified to be in compliance with ASTMF-1427, “Standard Consumer Safety Specification for Bunk
Beds” and U.S. Government specifications 16 Code of Federal Regulations, parts 1213 and 1513.
Follow the information on the warning attached to the upper bunk end structure and on the carton. Do
1
not remove this label.
Always use the recommended size mattress or mattress support or both to help prevent the likelihood of
2
entrapment or falls.
3 Surface of mattress must be at least five inches (127mm) below the upper edge of guardrails.
4 Do not allow children less than six years of age to use the upper bunk.
5 Prohibit more than one person on upper bunk.
Periodically check and ensure that the guardrail, ladder and other components are in their proper
6
position, free from damage, and that all connectors are tight.
7 Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8 Always use the ladder for entering and leaving the upper bunk.
9 Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10 Use of a night light may provide added safety precaution for a child using upper bunk.
If the bunk bed will be placed next to a wall, the guardrail that runs the full length of the bed should be
11
placed against the wall to prevent entrapment between the bed and the wall. (This applies only to bunk
beds without two full-length guardrails.)
12 Always use guardrails or both long sides of the upper bunk.
13
The use of water or sleep flotation mattress is prohibited.
14 Keep these instructions for future reference.
STRANGULATION HAZARD:
Never attach or hang items to any part of the bunk bed that are not designed for use with the bed for
15
example, but not limited to hooks, belts, and jump ropes.
SIZE OF MATTRESS AND FOUNDATION:
Use only mattress which is 37 ½” – 38 ½” in width and 74” – 75” in length. The total thickness of
mattress and foundation (slat kit, bunk board, etc.) combined must not exceed 6”
Note: There must be at least 5” from mattress sleeping surface to top edge of guardrail.
REPLACEMENT PARTS:
Replacement parts, including additional guardrails may be obtained
PAGE 5 OF 6
Page 6
1. When using beds as bunk beds, the ladder MUST be securely
attached to the upper bunk rail at all times.
2. When using the beds as two (2) separate floor-standing beds,
the ladder MUST be stored in a separate location where children
cannot use the ladder in any manner.
3. DO NOT use, nor permit children to use, the ladder in any
manner whatsoever, other than to access the top unit when
used as bunk beds, and only if the ladder is securely attached
to the top bunk rail, as set forth in the instructions.
4. Any misuse or unauthorized use of the ladder could result in
serious or fatal injury.
PAGE 6 OF 6
