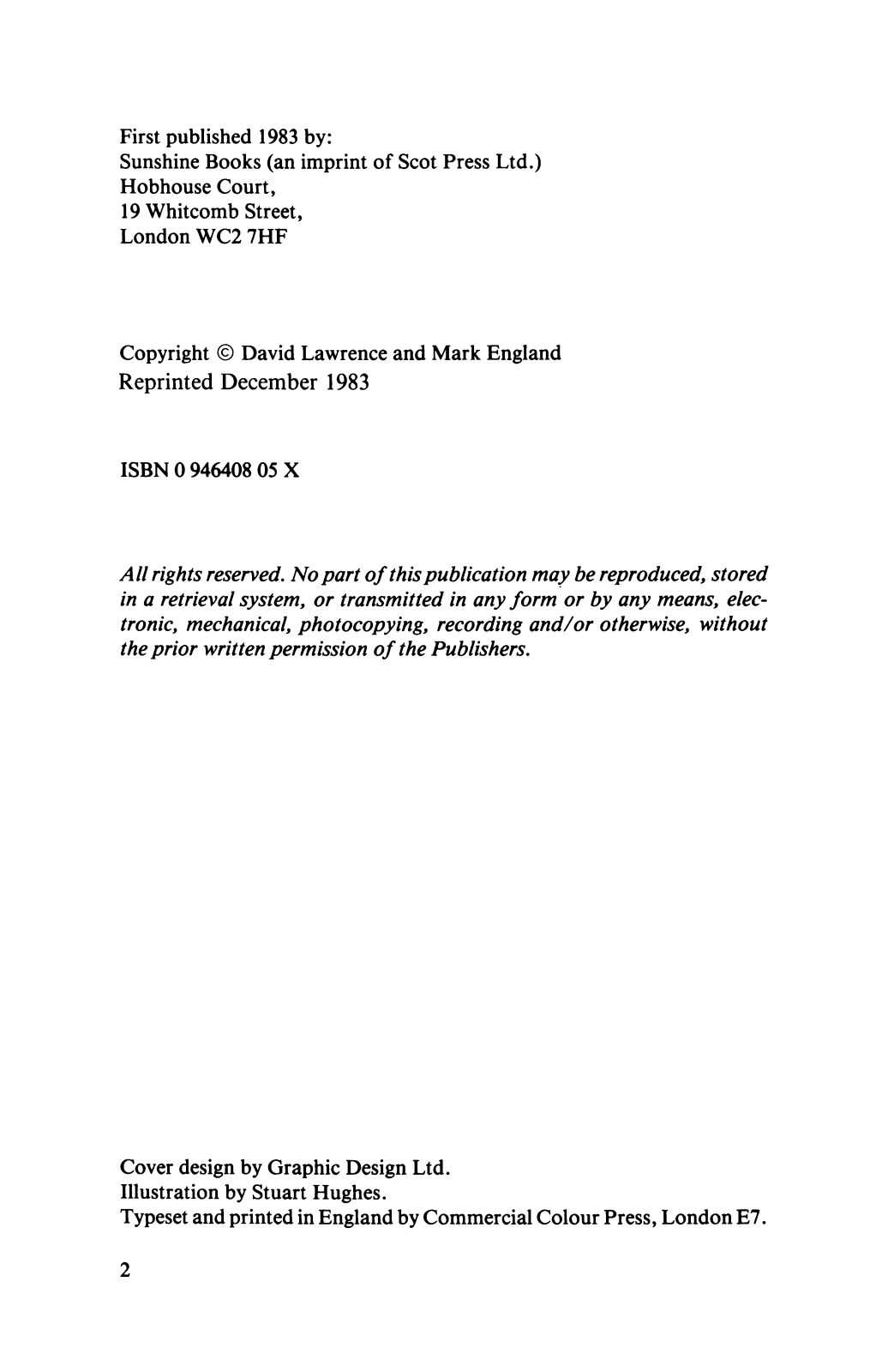

First published 1983 by:
Sunshine Books (an imprint of Scot Press Ltd.)
Hobhouse Court,

19 Whitcomb Street,

London WC2 7HF

Copyright © David Lawrence and Mark England
Reprinted December 1983

ISBN 0 946408 05 X

All rights reserved. No part of this publication may be reproduced, stored
in a retrieval system, or transmitted in any form or by any means, elec
tronic, mechanical, photocopying, recording and/or otherwise, without
the prior written permission of the Publishers.

Cover design by Graphic Design Ltd.
Illustration by Stuart Hughes.
Typeset and printed in England by Commercial Colour Press, London E7.

2

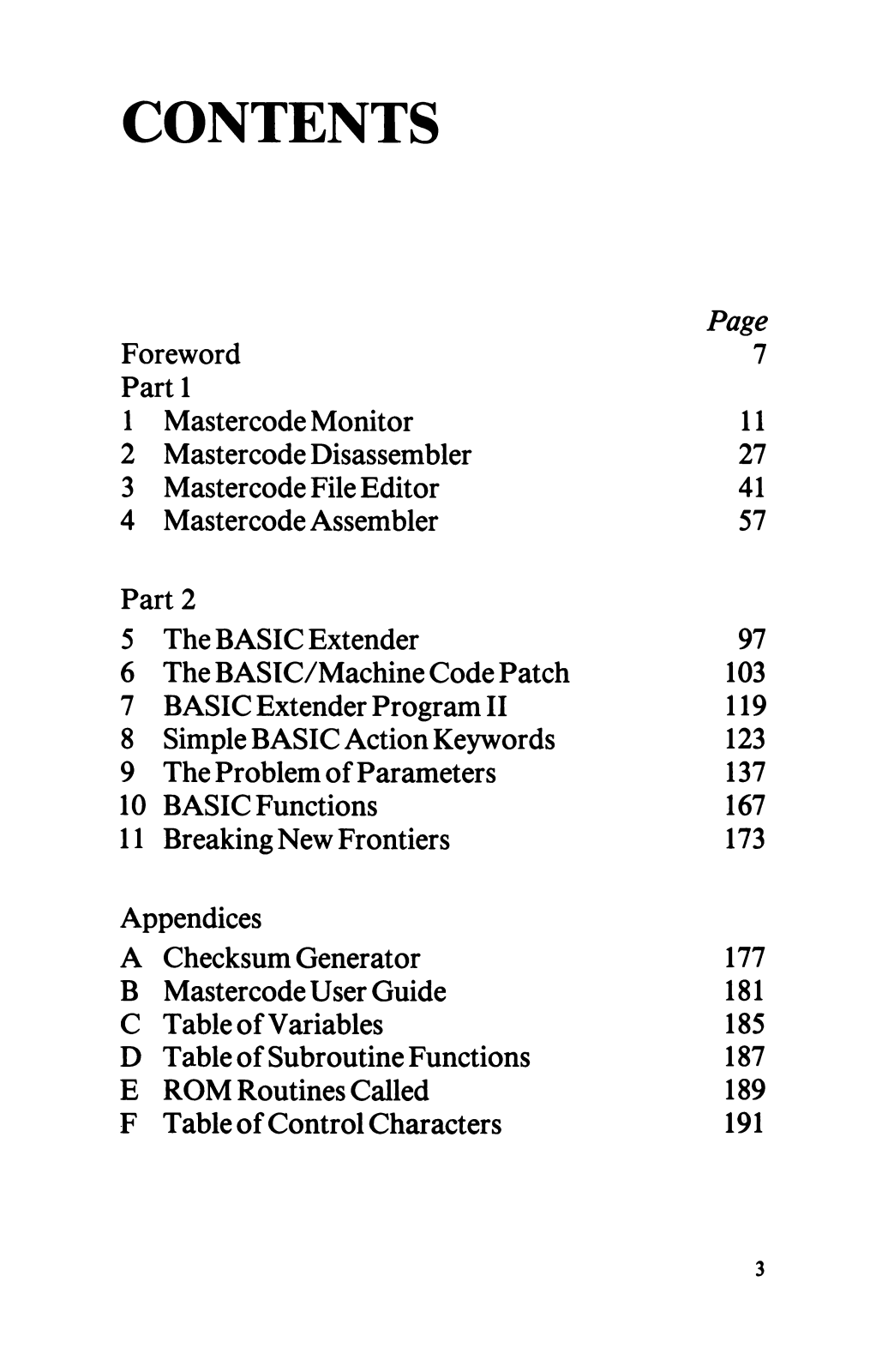

C O N T E N T S

Page

Foreword 7
Parti

1 Mastercode Monitor 11

2 Mastercode Disassembler 27

3 Mastercode File Editor 41

4 Mastercode Assembler 57

Part 2

5 The BASIC Extender 97

6 The BASIC/Machine Code Patch 103

7 BASIC Extender Program II 119

8 Simple BASIC Action Keywords 123
9 The Problem of Parameters 137
10 BASIC Functions 167
11 Breaking New Frontiers 173

Appendices

A Checksum Generator 177

B Mastercode User Guide 181

C Table of Variables 185

D Table of Subroutine Functions 187

E ROM Routines Called 189

F Table of Control Characters 191

3

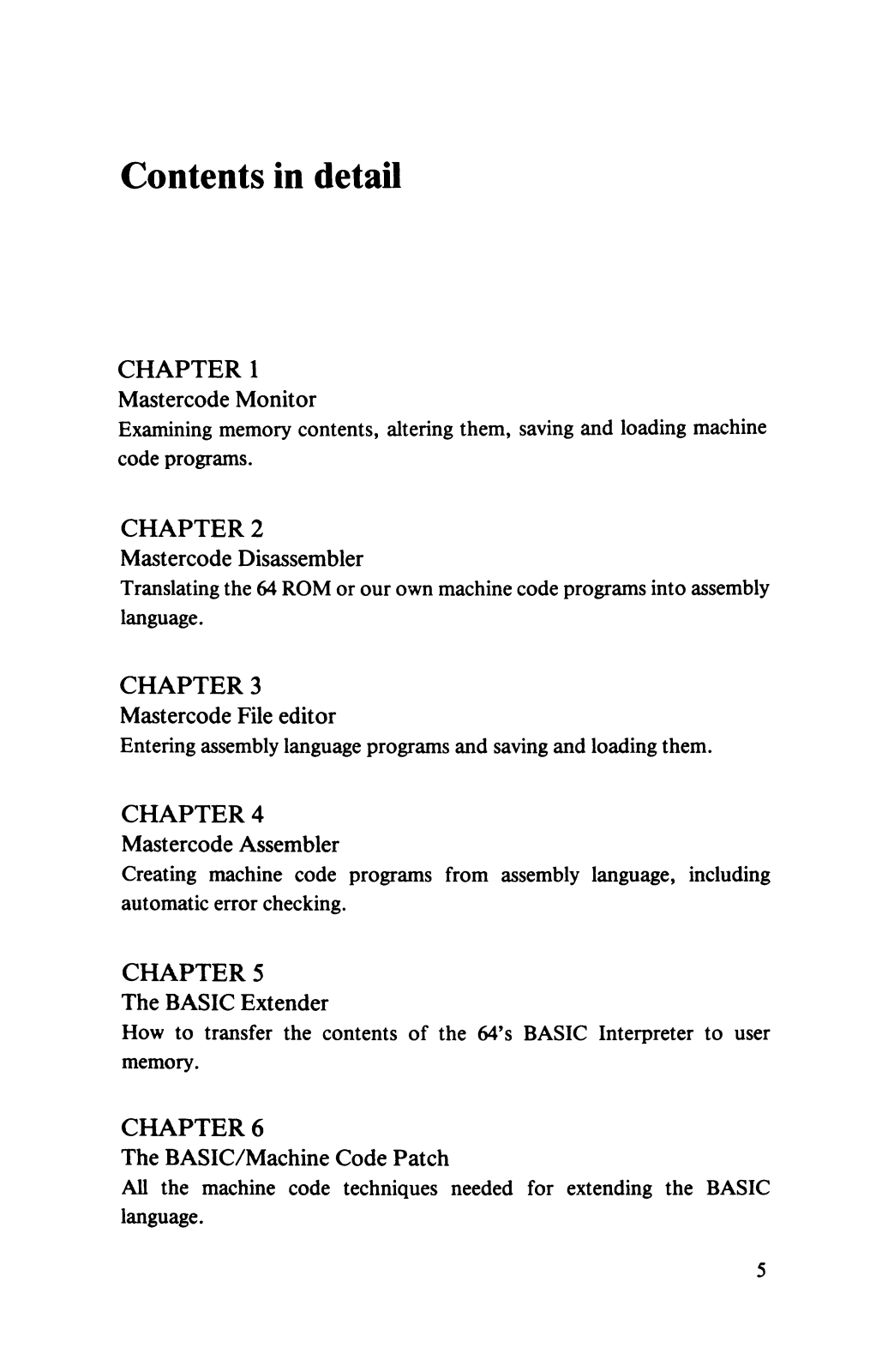

Contents in detail

CHAPTER 1
Mastercode Monitor

Examining memory contents, altering them, saving and loading machine
code programs.

CHAPTER 2
Mastercode Disassembler

Translating the 64 ROM or our own machine code programs into assembly
language.

CHAPTER 3
Mastercode File editor

Entering assembly language programs and saving and loading them.

CHAPTER 4
Mastercode Assembler

Creating machine code programs from assembly language, including
automatic error checking.

CHAPTER 5
The BASIC Extender

How to transfer the contents of the 64’s BASIC Interpreter to user
memory.

CHAPTER 6

The BASIC/Machine Code Patch

All the machine code techniques needed for extending the BASIC

language.

5

Machine Code Master

CHAPTER 7

The BASIC Extender II

The final changes to link extended BASIC to the existing interpreter.

CHAPTER 8

Simple BASIC Action Keywords

Undead, Subex and Rkill.

CHAPTER 9

The Problem of Parameters

Picking up parameters from a BASIC program. Keywords: DOKE,
PLOT, DELETE, BSAVE, BLOAD, BVERIFY, MOVE, FILL and
RESTORE.

CHAPTER 10
BASIC Functions

Extending the 64’s mathematical functions. Keywords: DEEK, VARPTR,
YPOS.

CHAPTER 11

Breaking New Frontiers

The FAST command that wasn’t.

APPENDICES:

A) Checksum Generator: test your Mastercode Program as you enter it.
B) A User Guide to the Mastercode program.
C) A complete table of the variables found in the Mastercode program

and their uses.

D) A quick guide to the purpose of each subroutine in the Mastercode

program.

E) The ROM routines called upon by extended BASIC and what they

do.

F) Representation of control characters in the Mastercode program.

6

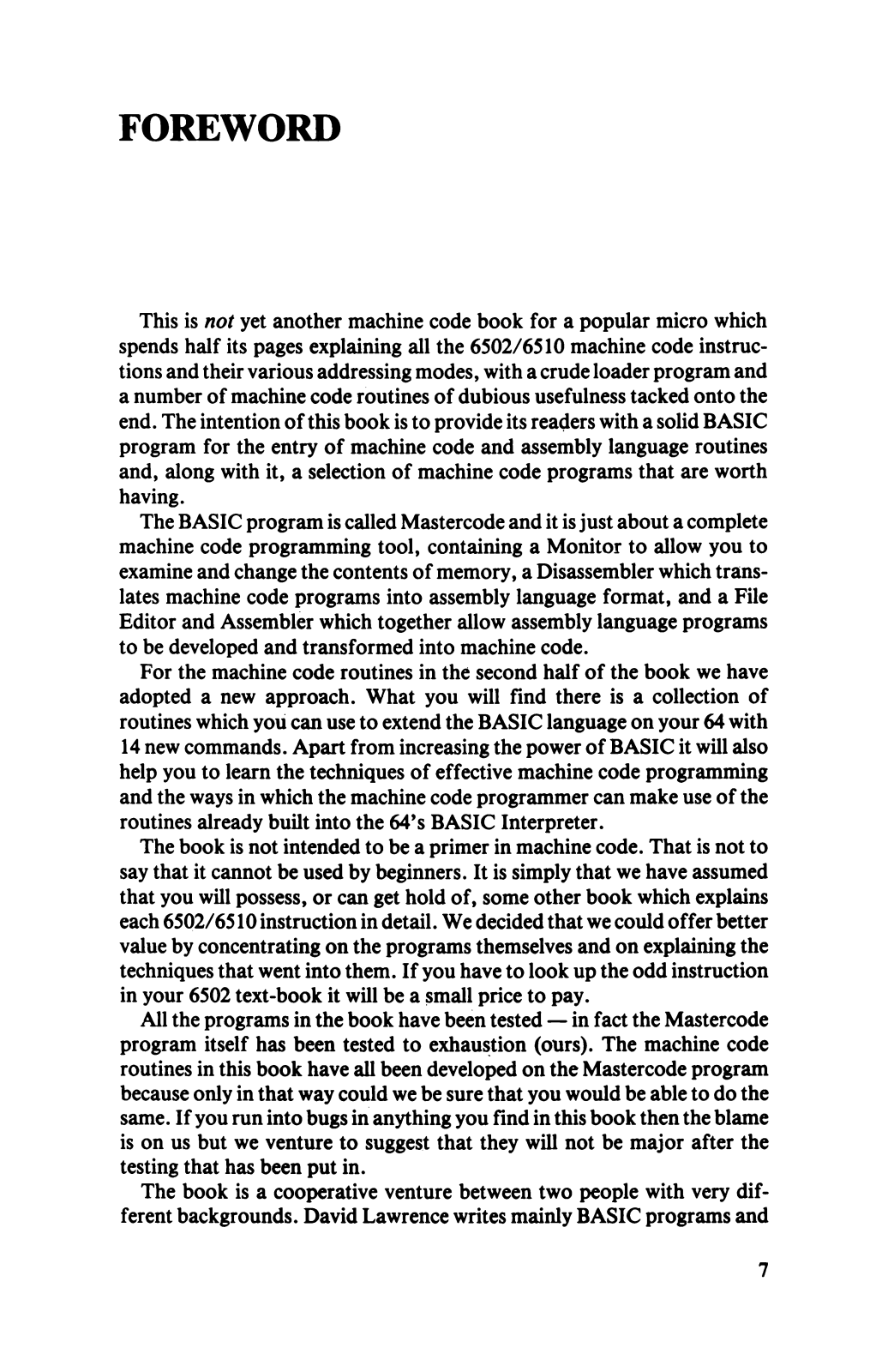

FOREWORD

This is not yet another machine code book for a popular micro which

spends half its pages explaining all the 6502/6510 machine code instruc
tions and their various addressing modes, with a crude loader program and
a number of machine code routines of dubious usefulness tacked onto the
end. The intention of this book is to provide its readers with a solid BASIC

program for the entry of machine code and assembly language routines
and, along with it, a selection of machine code programs that are worth
having.

The BASIC program is called Mastercode and it is just about a complete
machine code programming tool, containing a Monitor to allow you to
examine and change the contents of memory, a Disassembler which trans

lates machine code programs into assembly language format, and a File
Editor and Assembler which together allow assembly language programs
to be developed and transformed into machine code.

For the machine code routines in the second half of the book we have
adopted a new approach. What you will find there is a collection of
routines which you can use to extend the BASIC language on your 64 with

14 new commands. Apart from increasing the power of BASIC it will also
help you to learn the techniques o f effective machine code programming
and the ways in which the machine code programmer can make use of the
routines already built into the 64’s BASIC Interpreter.

The book is not intended to be a primer in machine code. That is not to
say that it cannot be used by beginners. It is simply that we have assumed
that you will possess, or can get hold of, some other book which explains
each 6502/6510 instruction in detail. We decided that we could offer better
value by concentrating on the programs themselves and on explaining the
techniques that went into them. If you have to look up the odd instruction
in your 6502 text-book it will be a small price to pay.

All the programs in the book have been tested — in fact the Mastercode
program itself has been tested to exhaustion (ours). The machine code
routines in this book have all been developed on the Mastercode program
because only in that way could we be sure that you would be able to do the
same. If you run into bugs in anything you find in this book then the blame
is on us but we venture to suggest that they will not be major after the
testing that has been put in.

The book is a cooperative venture between two people with very dif

ferent backgrounds. David Lawrence writes mainly BASIC programs and

7

Machine Code Master

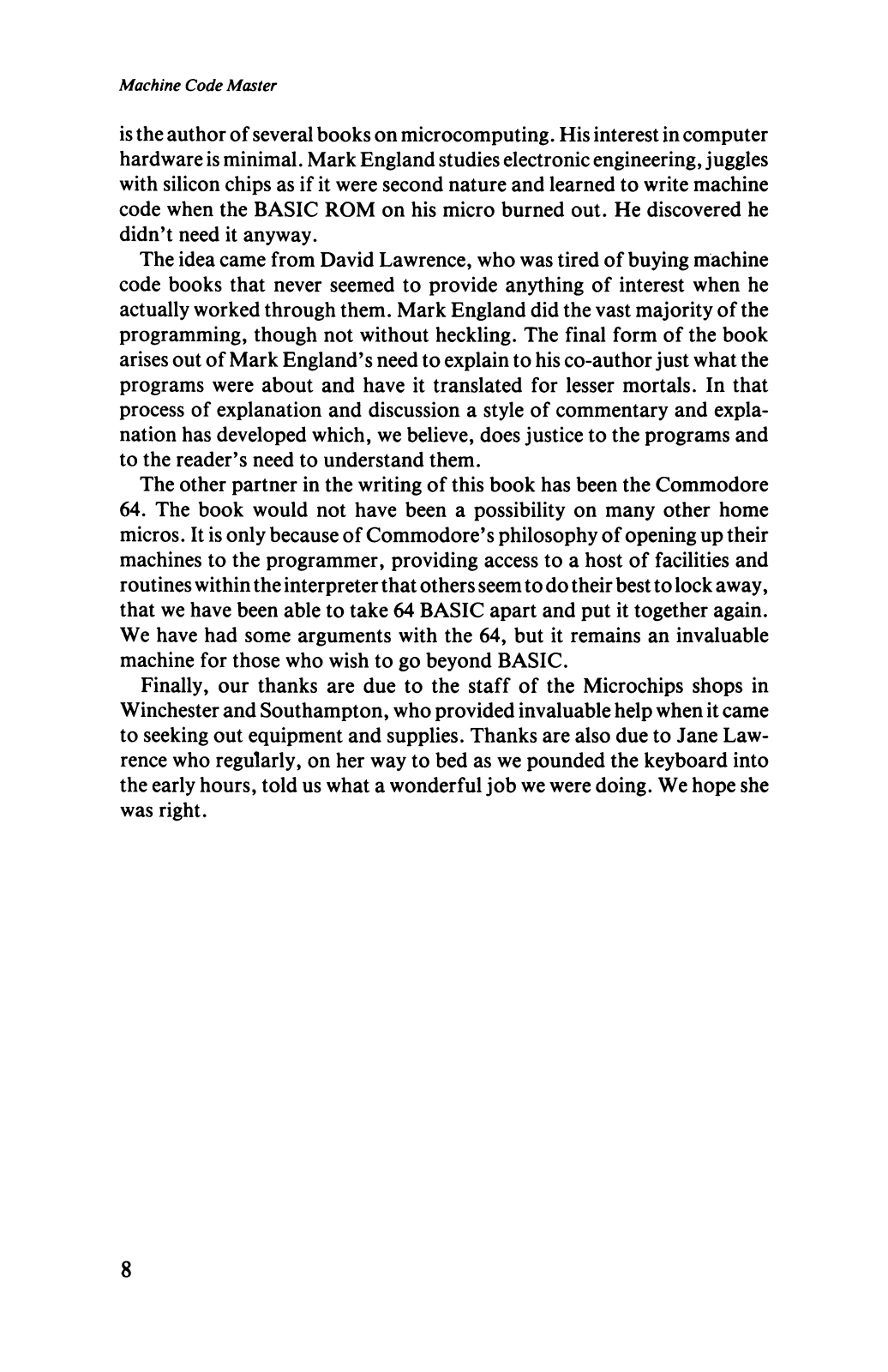

is the author of several books on microcomputing. His interest in computer
hardware is minimal. Mark England studies electronic engineering, juggles

with silicon chips as if it were second nature and learned to write machine
code when the BASIC ROM on his micro burned out. He discovered he

didn’t need it anyway.

The idea came from David Lawrence, who was tired of buying machine

code books that never seemed to provide anything of interest when he

actually worked through them. Mark England did the vast majority of the

programming, though not without heckling. The final form of the book

arises out of Mark England’s need to explain to his co-author just what the
programs were about and have it translated for lesser mortals. In that
process of explanation and discussion a style of commentary and expla
nation has developed which, we believe, does justice to the programs and
to the reader’s need to understand them.

The other partner in the writing of this book has been the Commodore

64. The book would not have been a possibility on many other home
micros. It is only because of Commodore’s philosophy of opening up their
machines to the programmer, providing access to a host of facilities and
routines within the interpreter that others seem to do their best to lock away,
that we have been able to take 64 BASIC apart and put it together again.
We have had some arguments with the 64, but it remains an invaluable
machine for those who wish to go beyond BASIC.

Finally, our thanks are due to the staff of the Microchips shops in
Winchester and Southampton, who provided invaluable help when it came
to seeking out equipment and supplies. Thanks are also due to Jane Law
rence who regularly, on her way to bed as we pounded the keyboard into
the early hours, told us what a wonderful job we were doing. We hope she
was right.

8

Parti

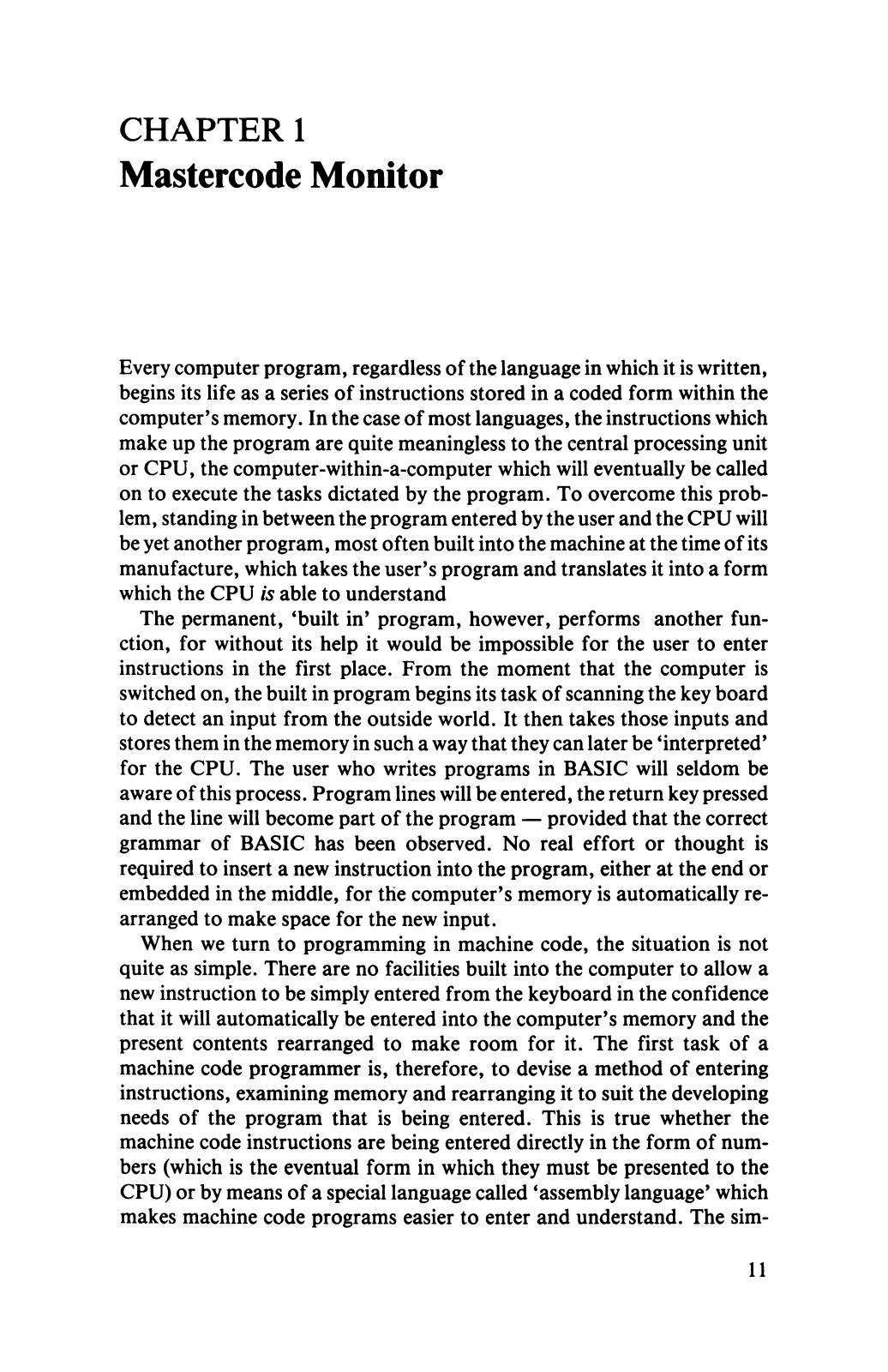

CHAPTER 1

Mastercode Monitor

Every computer program, regardless of the language in which it is written,
begins its life as a series of instructions stored in a coded form within the
computer’s memory. In the case of most languages, the instructions which
make up the program are quite meaningless to the central processing unit
or CPU, the computer-within-a-computer which will eventually be called

on to execute the tasks dictated by the program. To overcome this prob

lem, standing in between the program entered by the user and the CPU will
be yet another program, most often built into the machine at the time of its

manufacture, which takes the user’s program and translates it into a form

which the CPU is able to understand

The permanent, ‘built in’ program, however, performs another fun

ction, for without its help it would be impossible for the user to enter

instructions in the first place. From the moment that the computer is

switched on, the built in program begins its task of scanning the key board

to detect an input from the outside world. It then takes those inputs and

stores them in the memory in such a way that they can later be ‘interpreted’
for the CPU. The user who writes programs in BASIC will seldom be
aware of this process. Program lines will be entered, the return key pressed
and the line will become part of the program — provided that the correct

grammar of BASIC has been observed. No real effort or thought is

required to insert a new instruction into the program, either at the end or
embedded in the middle, for the computer’s memory is automatically re
arranged to make space for the new input.

When we turn to programming in machine code, the situation is not
quite as simple. There are no facilities built into the computer to allow a
new instruction to be simply entered from the keyboard in the confidence
that it will automatically be entered into the computer’s memory and the
present contents rearranged to make room for it. The first task of a
machine code programmer is, therefore, to devise a method of entering
instructions, examining memory and rearranging it to suit the developing
needs of the program that is being entered. This is true whether the
machine code instructions are being entered directly in the form of num
bers (which is the eventual form in which they must be presented to the
CPU) or by means of a special language called ‘assembly language’ which
makes machine code programs easier to enter and understand. The sim

11

Machine Code Master

plest tool which allows the necessary management of the memory to take
place is called a ‘Monitor’ and in this chapter we shall build up a flexible
Monitor program which will allow you to examine individual bytes of
memory or extensive chunks and to modify their contents at will.

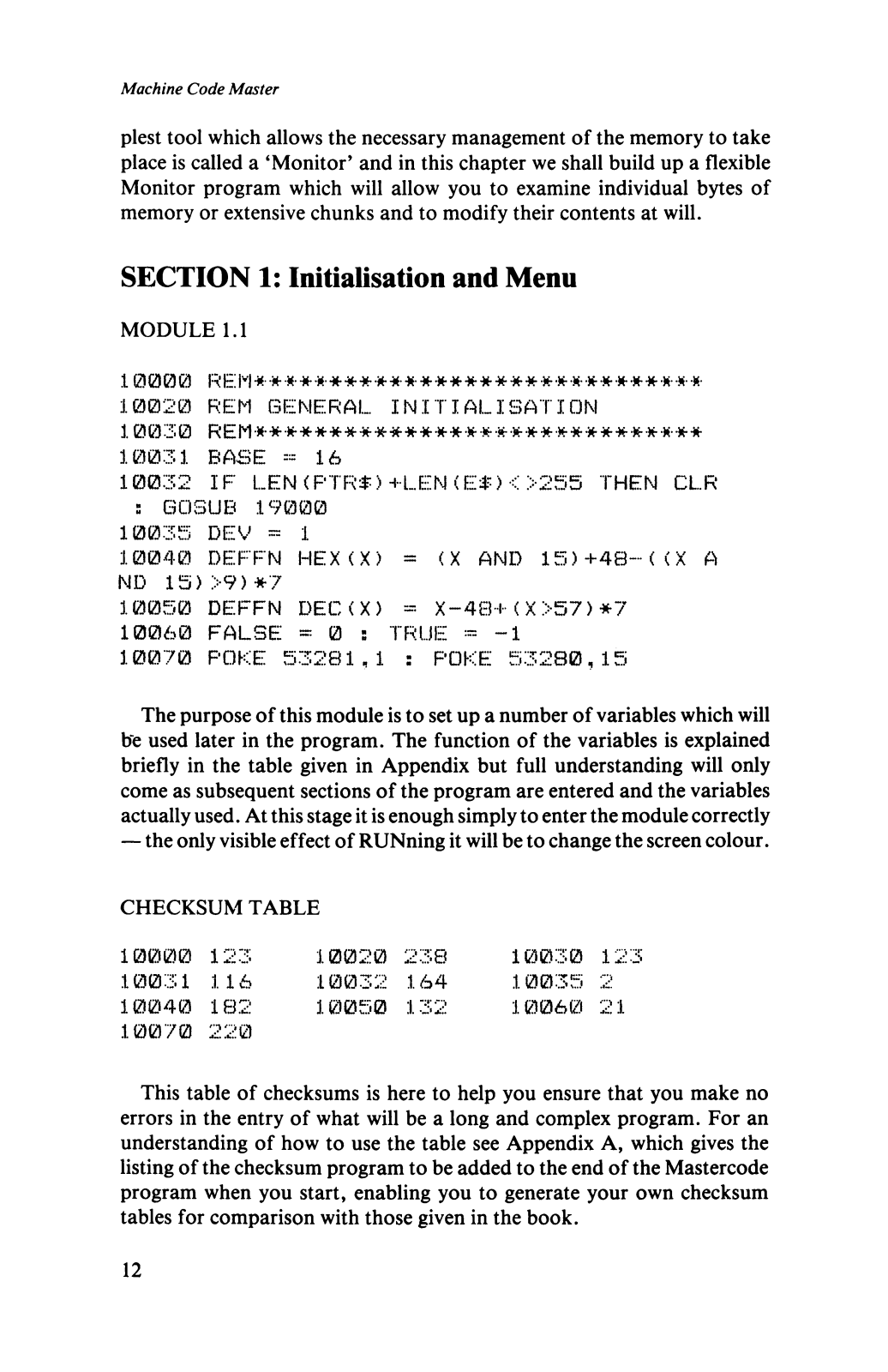

SECTION 1: Initialisation and Menu

MODULE 1.1

1 0 00 0 R E M * ** * * * ** * * ** * * * ** * * * ** * * * ** * * *

3.0020 REM GENERAL IN ITIALISATION

3.0030 REM** *** **** *** **** *** ******* *** *

3.003 3. BASE = 16
10032 IF LEN (FTRT) +LEN (ET) < >255 THEN CL.R

: G03UB 19000

10035 DEV = 1

3.0040 DEFFN HEX(X) = (X AND 15)+48-<(X A

ND 15)>9)*7

3.0050 DEFFN DEC ( X ) = X-48+ < X >57) *7
10060 FALSE = 0 ; TRUE = -1
10070 POKE 53281,1 : POKE 53 28 0,15

The purpose of this module is to set up a number of variables which will
be used later in the program. The function of the variables is explained
briefly in the table given in Appendix but full understanding will only
come as subsequent sections of the program are entered and the variables
actually used. At this stage it is enough simply to enter the module correctly
— the only visible effect of RUNning it will be to change the screen colour.

CHECKSUM TABLE

10000 123

10031 3.16

10040 182

10020 238
10032 .1.64

3.0050 3.32

10030 123
10035 2

3.0060 21

10070 220

This table of checksums is here to help you ensure that you make no
errors in the entry of what will be a long and complex program. For an
understanding of how to use the table see Appendix A, which gives the
listing of the checksum program to be added to the end of the Mastercode
program when you start, enabling you to generate your own checksum
tables for comparison with those given in the book.

12

Chapter 1 Mastercode Monitor

MODULE 1.2

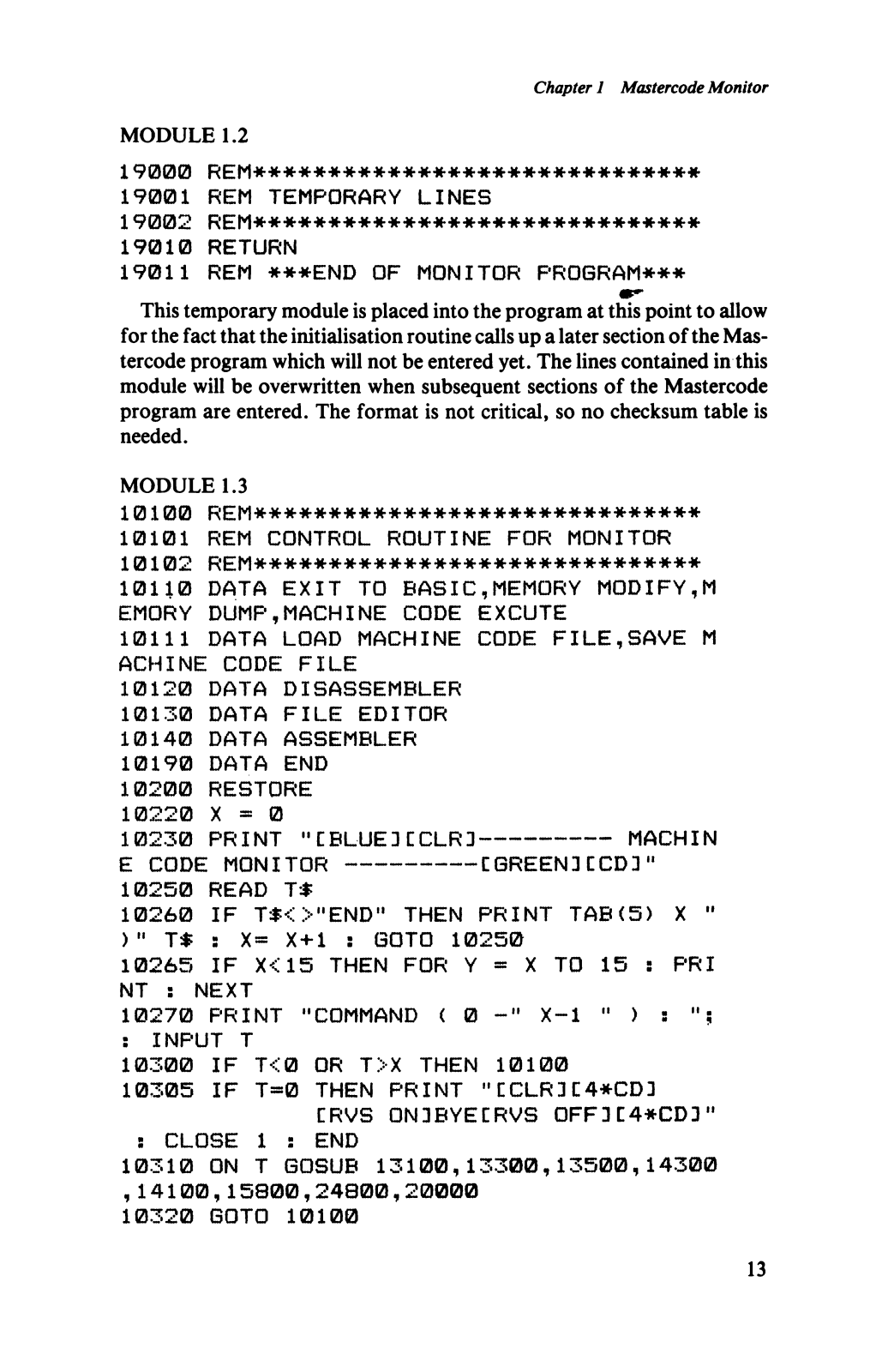

19000 REM******************************
19001 REM TEMPORARY LINES
19002 REM******************************
19010 RETURN
19011 REM ***END OF MONITOR PROGRAM***

This temporary module is placed into the program at this point to allow
for the fact that the initialisation routine calls up a later section of the Mas
tercode program which will not be entered yet. The lines contained in this
module will be overwritten when subsequent sections of the Mastercode
program are entered. The format is not critical, so no checksum table is
needed.

MODULE 1.3

mr

10100 REM******************************
10101 REM CONTROL ROUTINE FOR MONITOR
10102 REM******************************
10110 DATA EXIT TO BASIC,MEMORY MODIFY,M

EMORY DUMP,MACHINE CODE EXCUTE

10111 DATA LOAD MACHINE CODE FILE,SAVE M

ACHINE CODE FILE

10120 DATA DISASSEMBLER

10130 DATA FILE EDITOR

10140 DATA ASSEMBLER

10190 DATA END

10200 RESTORE

10220 X = 0
10230 PRINT " [BLUE 3 CCLR3

E CODE MO NI TO R

----------

----------

MACH IN

CGREEN3 CCD3"
10250 READ T$
10260 IF T*<>"END" THEN PRINT TA B (5) X "
)" T$ : X= X+l s GOTO 10250
10265 IF X<15 THEN FOR Y = X TO 15 s PRI

NT s NEXT

10270 PRINT "COMMAND ( 0 X-l " ) : ";
: INPUT T
10300 IF T<0 OR T>X THEN 10100

10305 IF T=0 THEN PRINT "CCLR3 C4*CD3

CRVS ON3BYECRVS OFF3C4*CD3"

: CLOSE 1 : END

10310 ON T GOSUB 13100,13300,13500,14300

,14100,15800,24800,20000

10320 GOTO 10100

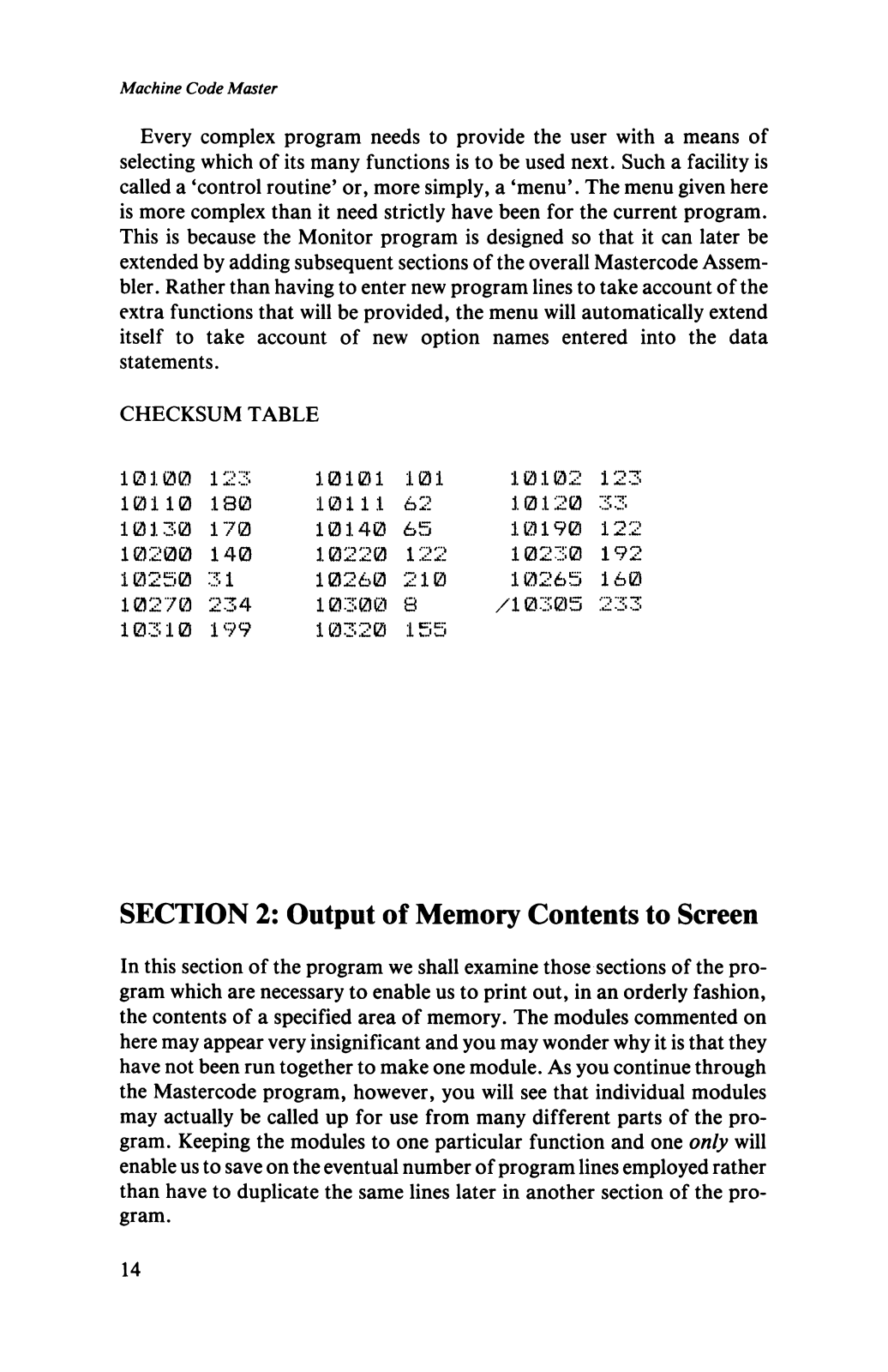

13

Machine Code Master

Every complex program needs to provide the user with a means of
selecting which of its many functions is to be used next. Such a facility is
called a ‘control routine’ or, more simply, a ‘menu’. The menu given here
is more complex than it need strictly have been for the current program.
This is because the Monitor program is designed so that it can later be
extended by adding subsequent sections of the overall Mastercode Assem
bler. Rather than having to enter new program lines to take account of the
extra functions that will be provided, the menu will automatically extend
itself to take account of new option names entered into the data
statements.

CHECKSUM TABLE

10100 123 10101 101
101 10 180 10111
10130 170 10140

62 10120

65 10190
10200 140 10220 122
10250 31 10260 210

10270

234

10:300 8

10102 123

10230
10265

/I0305

1
192
160

10310 199 10320 155

SECTION 2: Output of Memory Contents to Screen

In this section of the program we shall examine those sections of the pro

gram which are necessary to enable us to print out, in an orderly fashion,

the contents of a specified area of memory. The modules commented on
here may appear very insignificant and you may wonder why it is that they
have not been run together to make one module. As you continue through
the Mastercode program, however, you will see that individual modules
may actually be called up for use from many different parts of the pro
gram. Keeping the modules to one particular function and one only will
enable us to save on the eventual number of program lines employed rather
than have to duplicate the same lines later in another section of the pro

gram.

14

Chapter 1 Mastercode Monitor

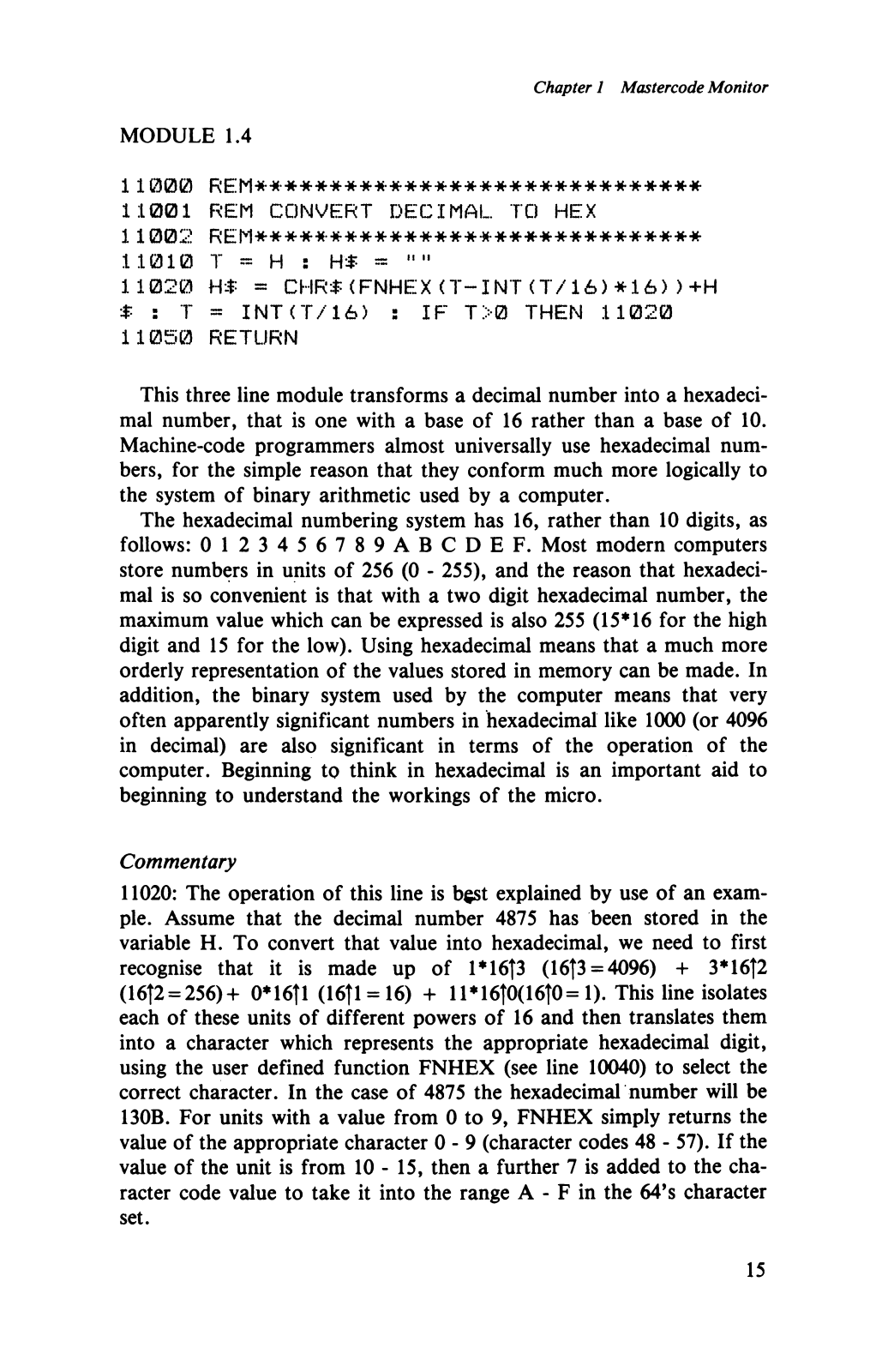

MODULE 1.4

1 1(300 REM********* ********* *** ****** ***
11001 REM CONVE RT DEC IMAL TO HEX
11002 REM* *** *** *** *** *** *** *** *** *****
11010 T = H s H$ = ""
11020 H* = CHR* ( FNHE X<T -INT <T/ 16>* 1 6) )+H

* s T = I NT (T /16) : IF T>0 THEN 11020

11050 RETURN

This three line module transforms a decimal number into a hexadeci
mal number, that is one with a base of 16 rather than a base of 10.
Machine-code programmers almost universally use hexadecimal num
bers, for the simple reason that they conform much more logically to
the system of binary arithmetic used by a computer.

The hexadecimal numbering system has 16, rather than 10 digits, as
follows: 0123456789ABCDEF. Most modern computers
store numbers in units of 256 (0 - 255), and the reason that hexadeci
mal is so convenient is that with a two digit hexadecimal number, the
maximum value which can be expressed is also 255 (15*16 for the high
digit and 15 for the low). Using hexadecimal means that a much more
orderly representation of the values stored in memory can be made. In
addition, the binary system used by the computer means that very
often apparently significant numbers in hexadecimal like 1000 (or 4096
in decimal) are also significant in terms of the operation of the

computer. Beginning to think in hexadecimal is an important aid to

beginning to understand the workings of the micro.

Commentary

11020: The operation of this line is b$st explained by use of an exam

ple. Assume that the decimal number 4875 has been stored in the

variable H. To convert that value into hexadecimal, we need to first

recognise that it is made up of 1*16|3 (16|3 = 4096) + 3*16|2
(16|2 = 256)+ 0*16|1 (16jl = 16) + ll*16t0(16|0 = 1). This line isolates

each of these units of different powers of 16 and then translates them

into a character which represents the appropriate hexadecimal digit,
using the user defined function FNHEX (see line 10040) to select the

correct character. In the case of 4875 the hexadecimal number will be

130B. For units with a value from 0 to 9, FNHEX simply returns the

value of the appropriate character 0 - 9 (character codes 48 - 57). If the

value of the unit is from 10 - 15, then a further 7 is added to the cha

racter code value to take it into the range A - F in the 64’s character
set.

15

Machine Code Master

CHECKSUM TABLE

11000 123

11010 170

MODULE 1.5

11001 167
11020 74

11002 123
11050 142

11951 REM CO NV ER T HEX IN H* TO DEC IN H
11952 REM***************-******* ********
11975 ERR = FALSE : H = 0 s IF LEN<H*>= 0

THEN 12030
11980 FOR X = 1 TO LE N(H T )
11990 T = F N DE C< A S C (M ID *<H * , X , 1 > ) ) : H =

H*BASE+T

12010 IF T > BAS E— 1 DR T<0 THEN ERR = TRUE
12020 NEXT X
12030 RETURN

READY.

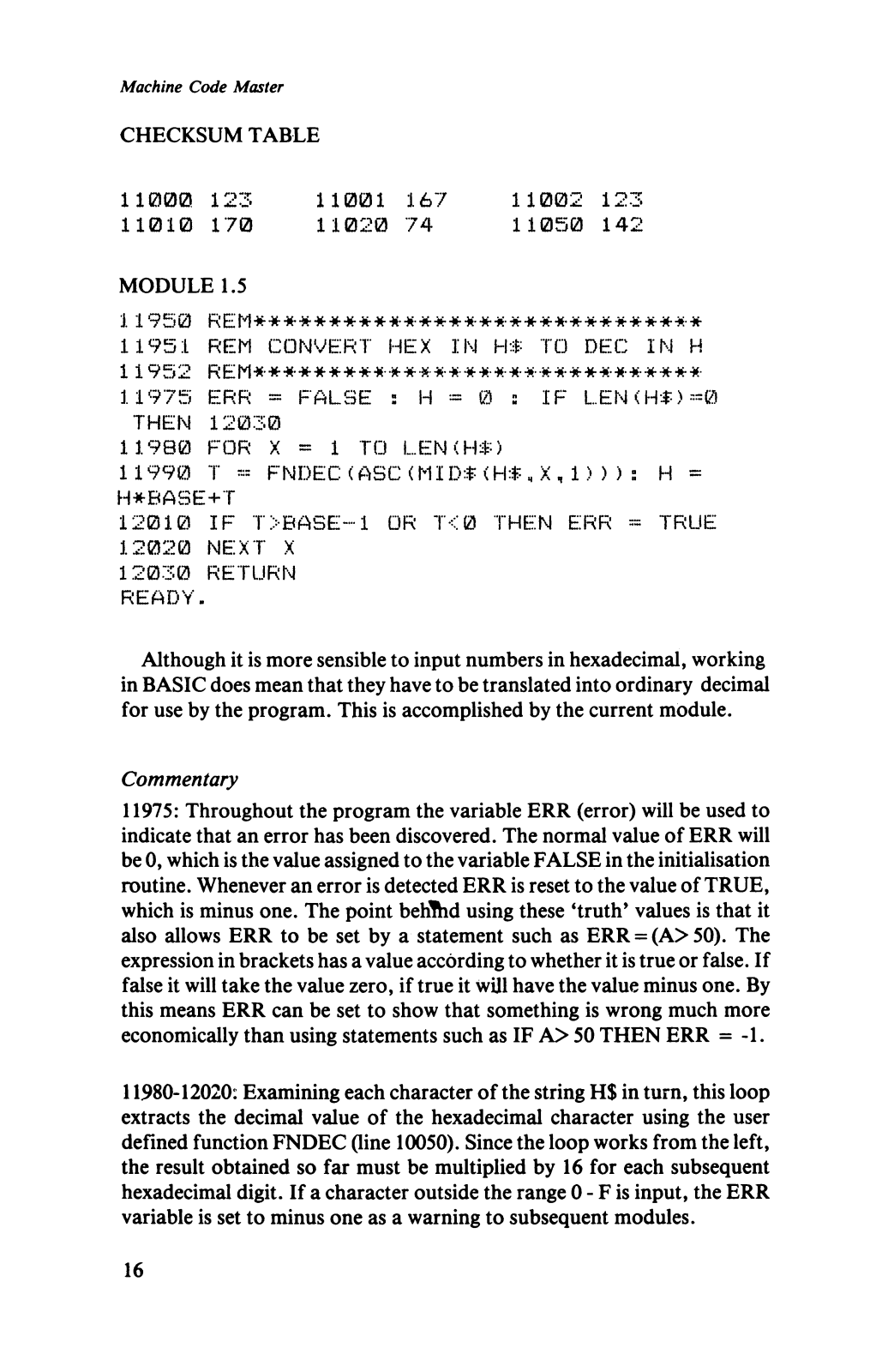

Although it is more sensible to input numbers in hexadecimal, working

in BASIC does mean that they have to be translated into ordinary decimal

for use by the program. This is accomplished by the current module.

Commentary

11975: Throughout the program the variable ERR (error) will be used to
indicate that an error has been discovered. The normal value of ERR will

be 0, which is the value assigned to the variable FALSE in the initialisation
routine. Whenever an error is detected ERR is reset to the value of TRUE,
which is minus one. The point behShd using these ‘truth* values is that it
also allows ERR to be set by a statement such as ERR = (A>50). The
expression in brackets has a value according to whether it is true or false. If

false it will take the value zero, if true it will have the value minus one. By
this means ERR can be set to show that something is wrong much more

economically than using statements such as IF A> 50 THEN ERR = -1.

11980-12020: Examining each character of the string H$ in turn, this loop
extracts the decimal value of the hexadecimal character using the user
defined function FNDEC (line 10050). Since the loop works from the left,
the result obtained so far must be multiplied by 16 for each subsequent
hexadecimal digit. If a character outside the range 0 - F is input, the ERR
variable is set to minus one as a warning to subsequent modules.

16

Chapter 1 Mastercode Monitor

CHECKSUM TABLE

11950 123V 11951 230- 11952 123-

11975 142/ 11980 1287 11990 40-

12010 208V 12020 2501 12030 1427

MODULE 1.6

12050 REM************************'******
12051 REM INPUT START ADDRESS
12052 REM******************************

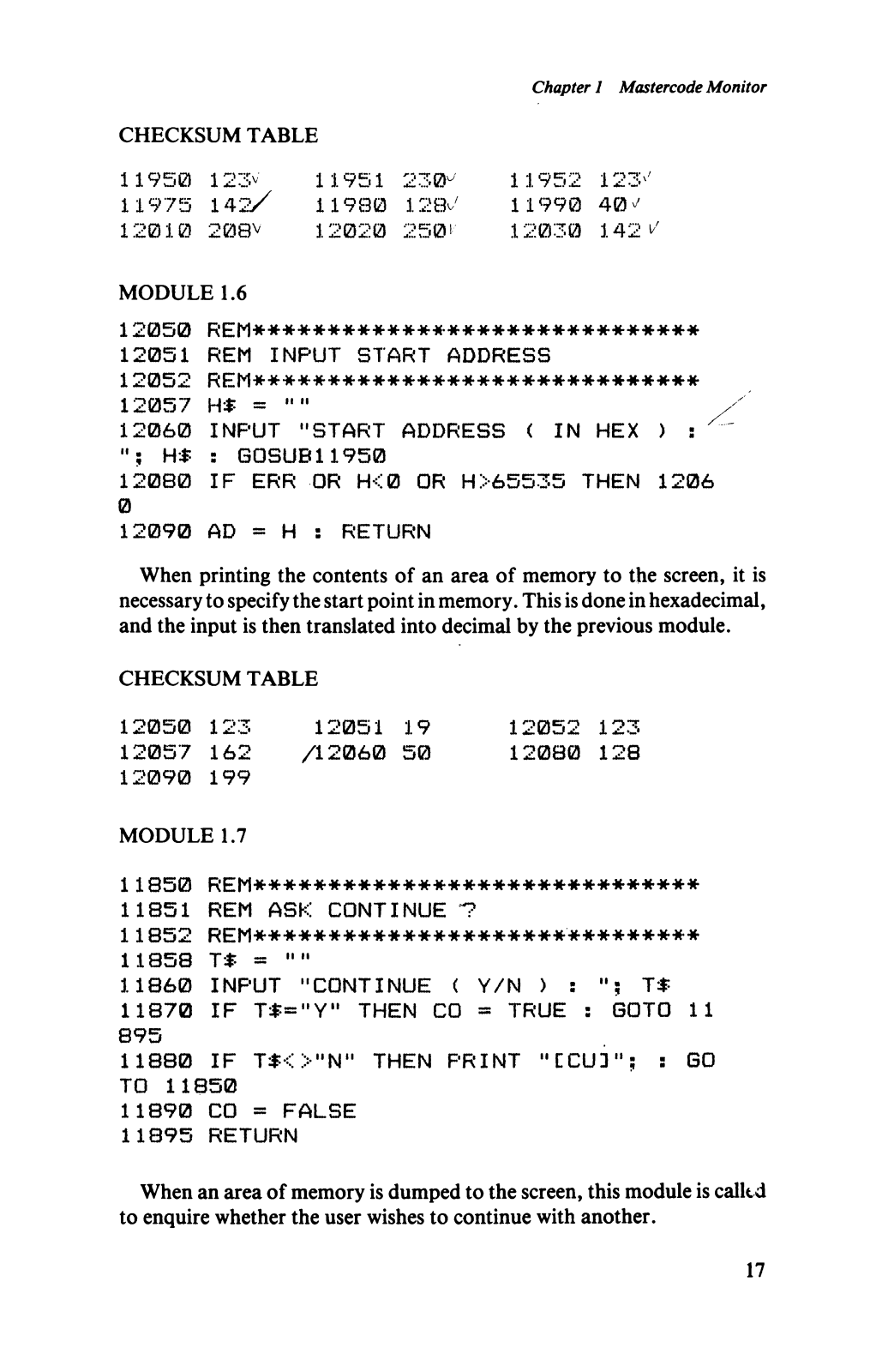

12057 H* = /
12060 INPUT "START ADDRESS ( IN HEX ) :

H* : GOS UB11950

12080 IF ERR OR H<0 OR H >65535 THEN 1206

0

12090 AD = H : RETURN

When printing the contents of an area of memory to the screen, it is
necessary to specify the start point in memory. This is done in hexadecimal,
and the input is then translated into decimal by the previous module.

CHECKSUM TABLE

12050 123 12051 19 12052 123
12057 162 /12060 50 12080 128
12090 199

MODULE 1.7

11850 REM******************************

11851 REM ASK CONTINUE ■?

11852 REM******************************

11858 T$ = ""

11860 INPUT "CONTINUE ( Y/N ) : "; T$

11870 IF T$="Y" THEN CO = TRUE : GOTO 11

895

11880 IF T*<>"N" THEN PRINT "CCU3"; : GO
TO 11850

11890 CO = FALSE
11895 RETURN

When an area of memory is dumped to the screen, this module is called
to enquire whether the user wishes to continue with another.

17

Machine Code Master

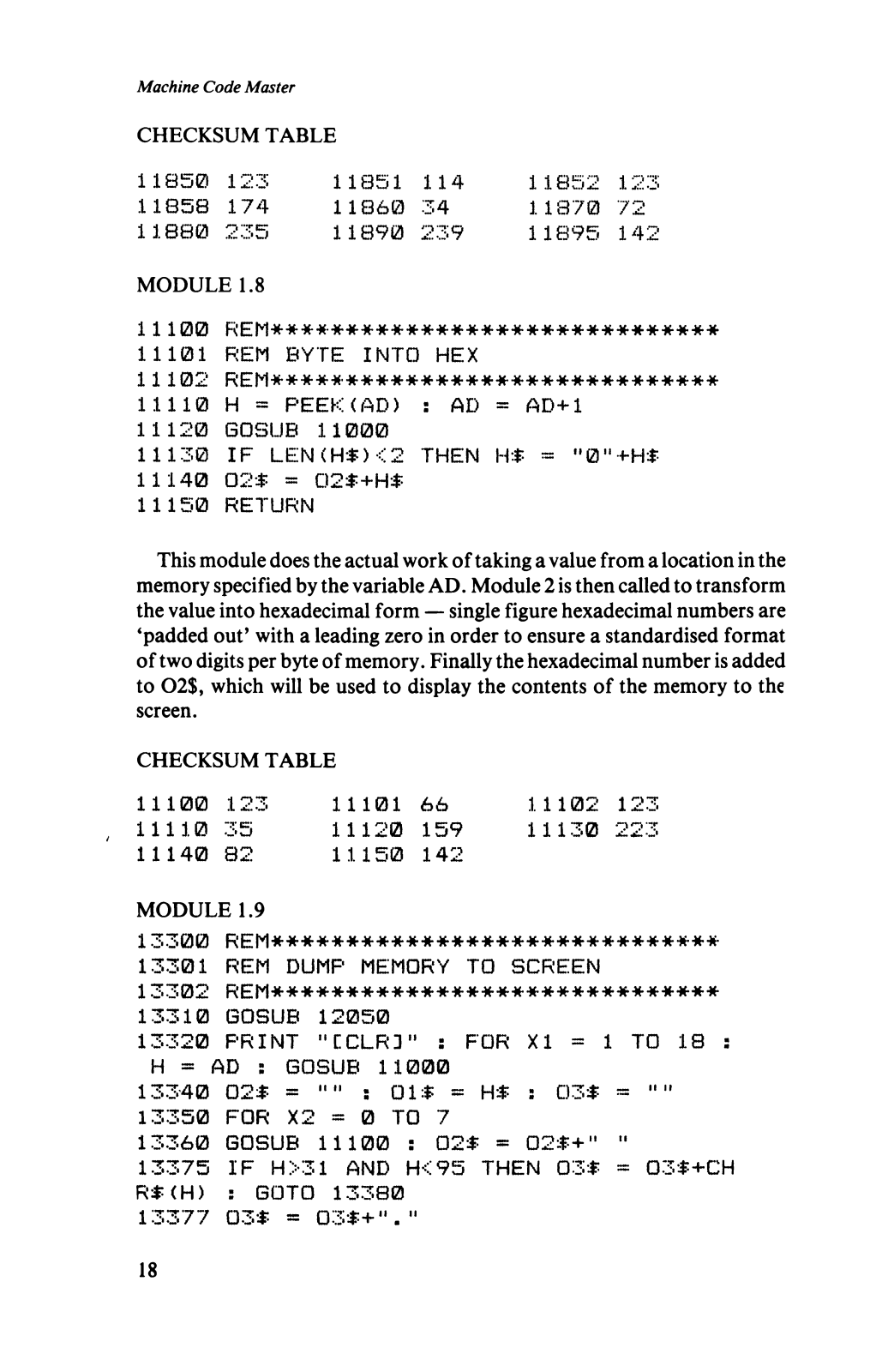

CHECKSUM TABLE

11850

11858

11880

MODULE 1.8

11100
11101

123 11851
174 11860

235 11890

REM* ****** *** **** *** **** *** **** **
REM BYTE INTO

114

1 1852 123

34 11870 72

T <y

11895

142

HEX
11102 REM*** *** **** *** ******* *** **** ***
11110
11120
11130
11140
11150

This module does the actual work of taking a value from a location in the
memory specified by the variable AD. Module 2 is then called to transform
the value into hexadecimal form — single figure hexadecimal numbers are

‘padded out’ with a leading zero in order to ensure a standardised format
of two digits per byte of memory. Finally the hexadecimal number is added
to 02$, which will be used to display the contents of the memory to the
screen.

CHECKSUM TABLE

H = PEEK(AD) : AD
GOSUB 11000

IF L E N (H $)<2

THEN H$ = "0"+H$
02$ = 02$ +H$
RETURN

= AD+1

11100 123 11101 66
11110
11140 82

MODULE 1.9

35

11120

159

11150 142

11102
11130

123

13300 REM******************************

13301 REM DUMP MEMORY TO SCREEN
13302 REM******************************
13310 GOSUB 12050
13320 PRINT "CCLRD" : FOR XI = 1 TO 18 :

H = AD : GOSUB 11000
13340 02#- = "" s 01$ = HiP : 03$ = ""
13350 FOR X2 = 0 TO 7
13360 GOSUB 11100 : 02$ = 02$+" "

13375 IF H >31 AND H<95 THEN 03$ = 03$+CH

R$(H) : GOTO 13380

13377 03$ = 03$+"."

18

Chapter 1 Mastercode Monitor

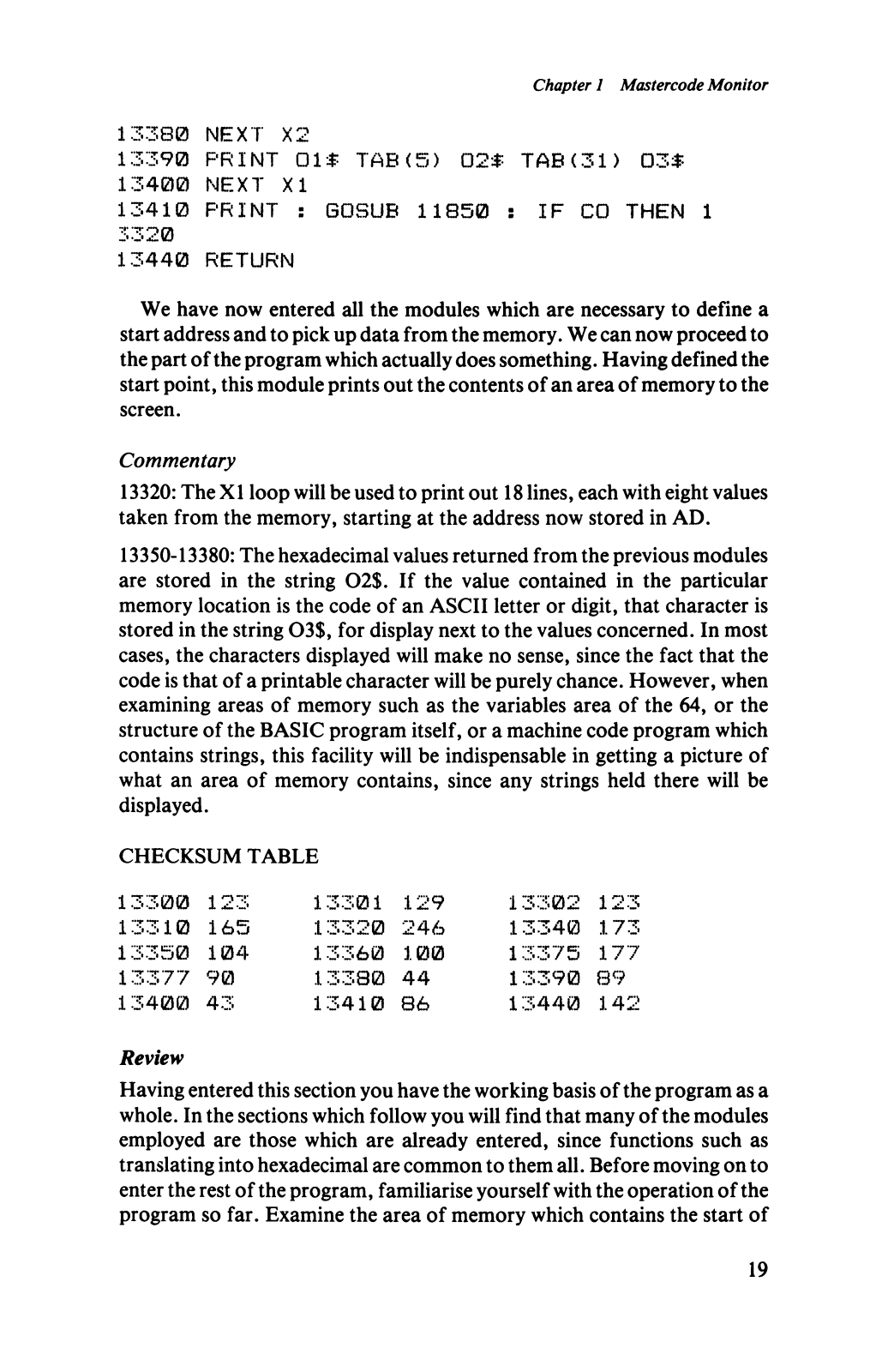

13380 NEXT X2
13390 PRINT 01* T A B (5) 02* T AB (31) 03$
13400 NEXT XI
13410 PRINT : GOSUB 11850 : IF CO THEN 1

3320
13440 RETURN

We have now entered all the modules which are necessary to define a
start address and to pick up data from the memory. We can now proceed to
the part of the program which actually does something. Having defined the
start point, this module prints out the contents of an area of memory to the
screen.

Commentary

13320: The XI loop will be used to print out 18 lines, each with eight values

taken from the memory, starting at the address now stored in AD.

13350-13380: The hexadecimal values returned from the previous modules

are stored in the string 02$. If the value contained in the particular
memory location is the code of an ASCII letter or digit, that character is
stored in the string 03$, for display next to the values concerned. In most
cases, the characters displayed will make no sense, since the fact that the
code is that of a printable character will be purely chance. However, when
examining areas of memory such as the variables area of the 64, or the
structure of the BASIC program itself, or a machine code program which
contains strings, this facility will be indispensable in getting a picture of
what an area of memory contains, since any strings held there will be
displayed.

CHECKSUM TABLE

13300 123 1
13310

165 13320 246 1
13350 104 1
13377 90
13400 43

3301 129 1

3360 100 1
13380 44 1
13410

86

3302 123
3340

173
3375 177
3390 89

13440 142

Review

Having entered this section you have the working basis of the program as a
whole. In the sections which follow you will find that many of the modules
employed are those which are already entered, since functions such as
translating into hexadecimal are common to them all. Before moving on to
enter the rest of the program, familiarise yourself with the operation of the
program so far. Examine the area of memory which contains the start of

19

Machine Code Master

the program itself (starting at 801 hex) and the variables area. This section

of the Monitor, on its own, is a powerful tool in unlocking the secrets of the

64’s memory.

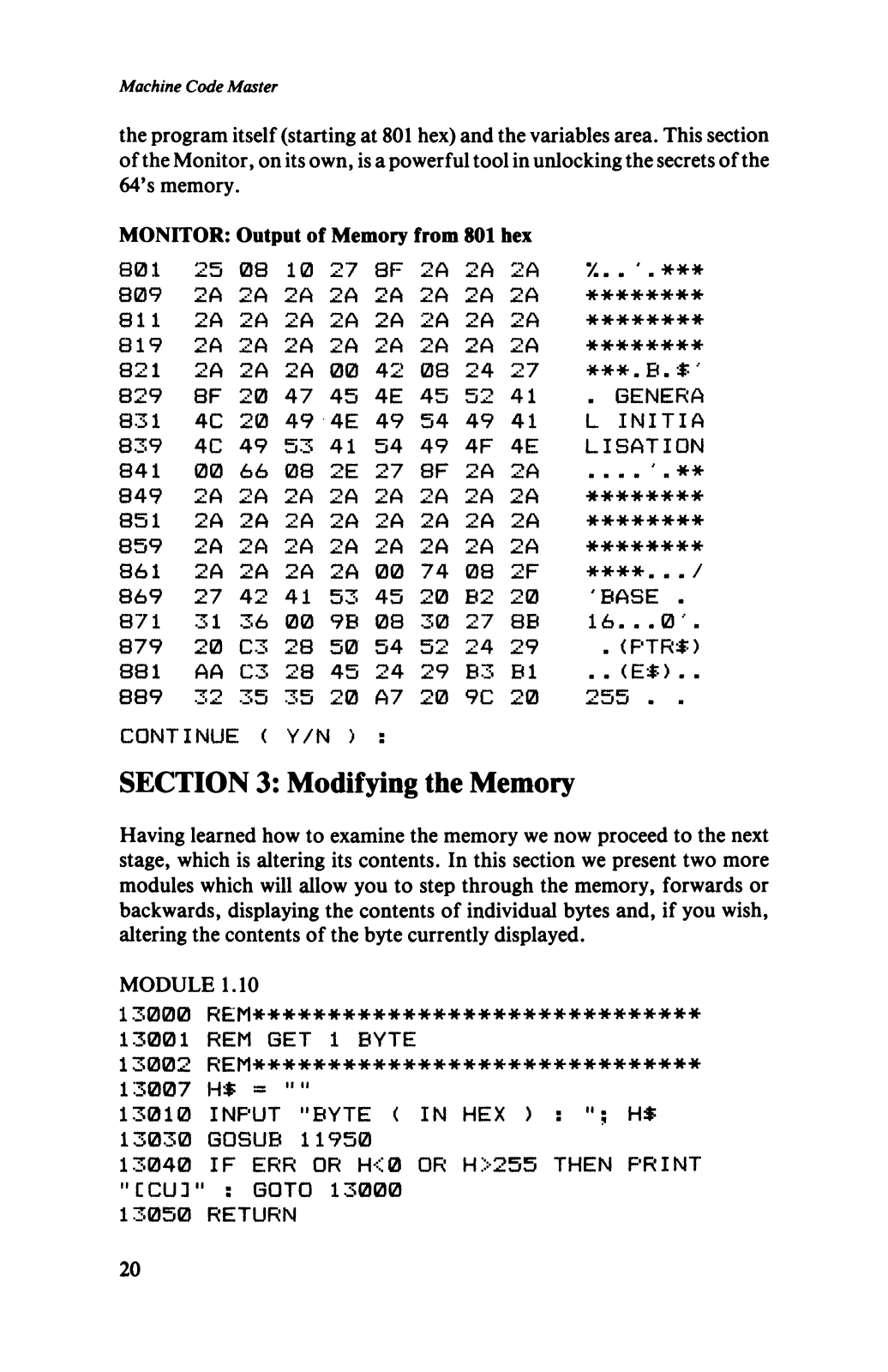

MONITOR: Output of Memory from 801 hex

801

25 08

10

27 8F 2A

2A 2A

. 1 . ***

809

2A

2A 2A 2A

2A

2A 2A 2A

********

811 2A 2A

2A 2A 2A 2A 2A 2A

********

819

2A 2A

2A

2A 2A 2A

2A

2A

********

821

2A 2A 2A 00 42 08

24

27 ***. B. $■'

829

8F 20

47

45

4E 45

52

41 . GENERA

831

4C 20 49 4E 49 54 49

41

L INITIA

839

4C 49 53 41 54 49

4F 4E

LISATION

841

00 66 08 2E

27

8F 2A 2A ....'.**

849

2A 2A 2A 2A 2A

2A 2A 2A

********

851

2A 2A 2A 2A 2A 2A

2A

2A

********

859

2A 2A 2A

2A

2A

2A 2A 2A

********

861 2A 2A 2A

2A

00 74

08 2F

•#*•#*. . . /

869

27 42 41 53 45 20 B2 20 'BASE .

871 31

36

00 9B 08

30

27

8B

16...0'.

879

20 C3 28

50

54 52 24

29

. <PTR$>

881

AA

C3 28 45

24 29

B3 B1 .. <E*>..

889

32 35 35 20

A7

20 9C 20 255 . .

CONTINUE ( Y/N ) :

SECTION 3: Modifying the Memory

Having learned how to examine the memory we now proceed to the next

stage, which is altering its contents. In this section we present two more

modules which will allow you to step through the memory, forwards or

backwards, displaying the contents of individual bytes and, if you wish,

altering the contents of the byte currently displayed.

MODULE 1.10

13000 REM**************************'***'#

13001 REM GET 1 BYTE

13002 REM******************************

13007 H$ ■ ""

13010 INPUT "BYTE ( IN HEX ) : "; H$

13030 GOSUB 11950

13040 IF ERR OR H<0 OR H>255 THEN PRINT

"CCUI" : GOTO 13000

13050 RETURN

20

Chapter 1 Mastercode Monitor

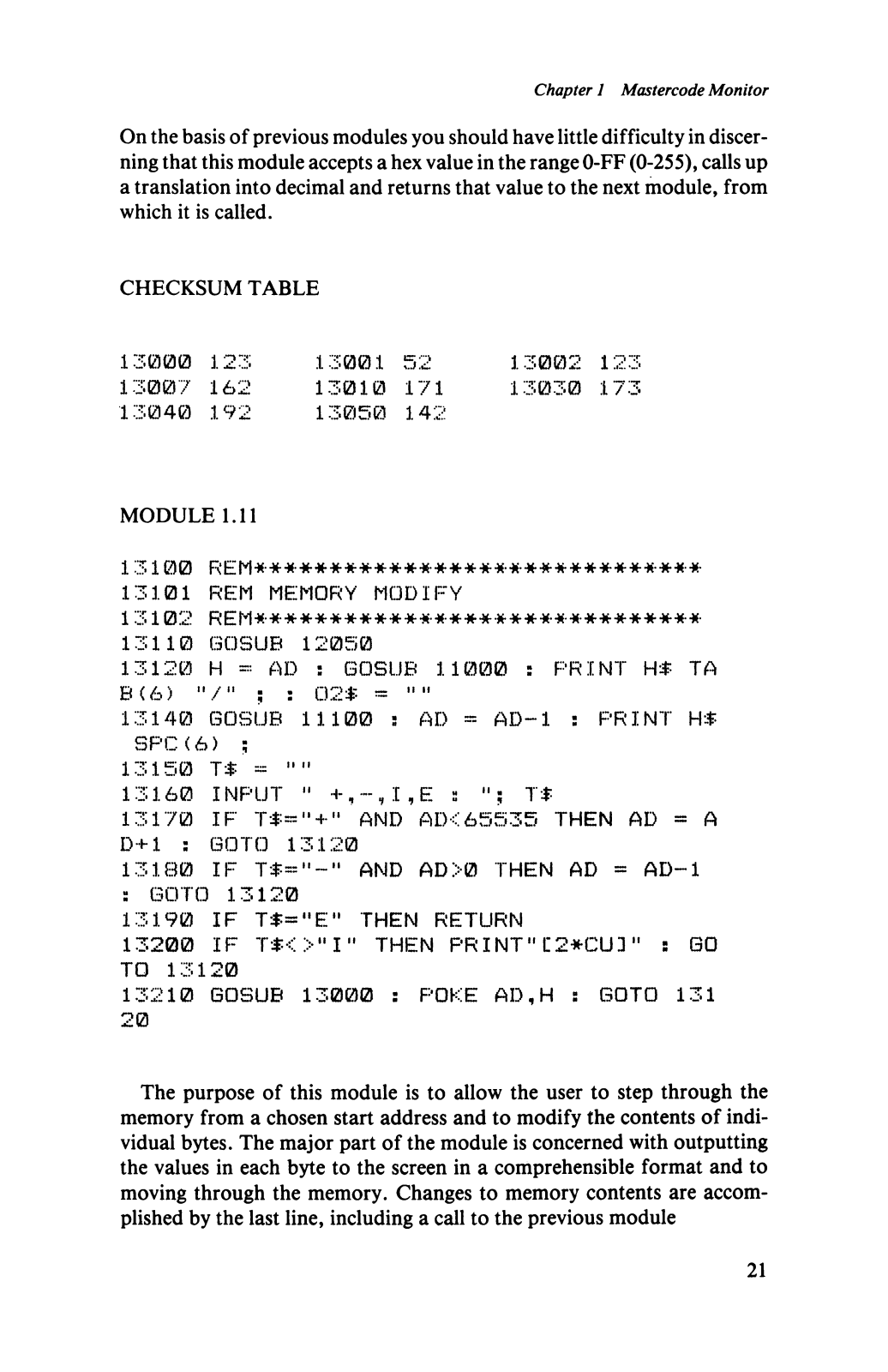

On the basis of previous modules you should have little difficulty in discer

ning that this module accepts a hex value in the range 0-FF (0-255), calls up

a translation into decimal and returns that value to the next module, from

which it is called.

CHECKSUM TABLE

13000 123

13007 162

13040 192

MODULE 1.11

13001 52
13010 171
13050 142

13002 123
13030 173

13100 REM* ******************* ********* *
13101 REM MEMORY MODIFY
13102 REM* ******************* ********* *
13110 GOSUB 12050
13120 H = AD : GOSUB 11000 : PRINT H$ TA

B (6) "/" ; : 0 2$ = ""

13140 GOSUB 11100 : AD = AD-1 : PRINT H$

S P C (6) ;
13150 T$ = ""
13160 INPUT " + I,E s T$
13170 IF T $ ~“+" AND AD< 65535 THEN AD = A

D+l : GOTO 13120

13180 IF TAND AD>0 THEN AD = AD-1
: GOTO 13120
13190 IF T$="E" THEN RETURN
13200 IF T$<>"I" THEN PRINT" L'2*013 " : GO

TO 13120

13210 GOSUB 13000 : POKE AD,H : GOTO 131

20

The purpose of this module is to allow the user to step through the
memory from a chosen start address and to modify the contents of indi
vidual bytes. The major part of the module is concerned with outputting
the values in each byte to the screen in a comprehensible format and to
moving through the memory. Changes to memory contents are accom
plished by the last line, including a call to the previous module

21

Machine Code Master

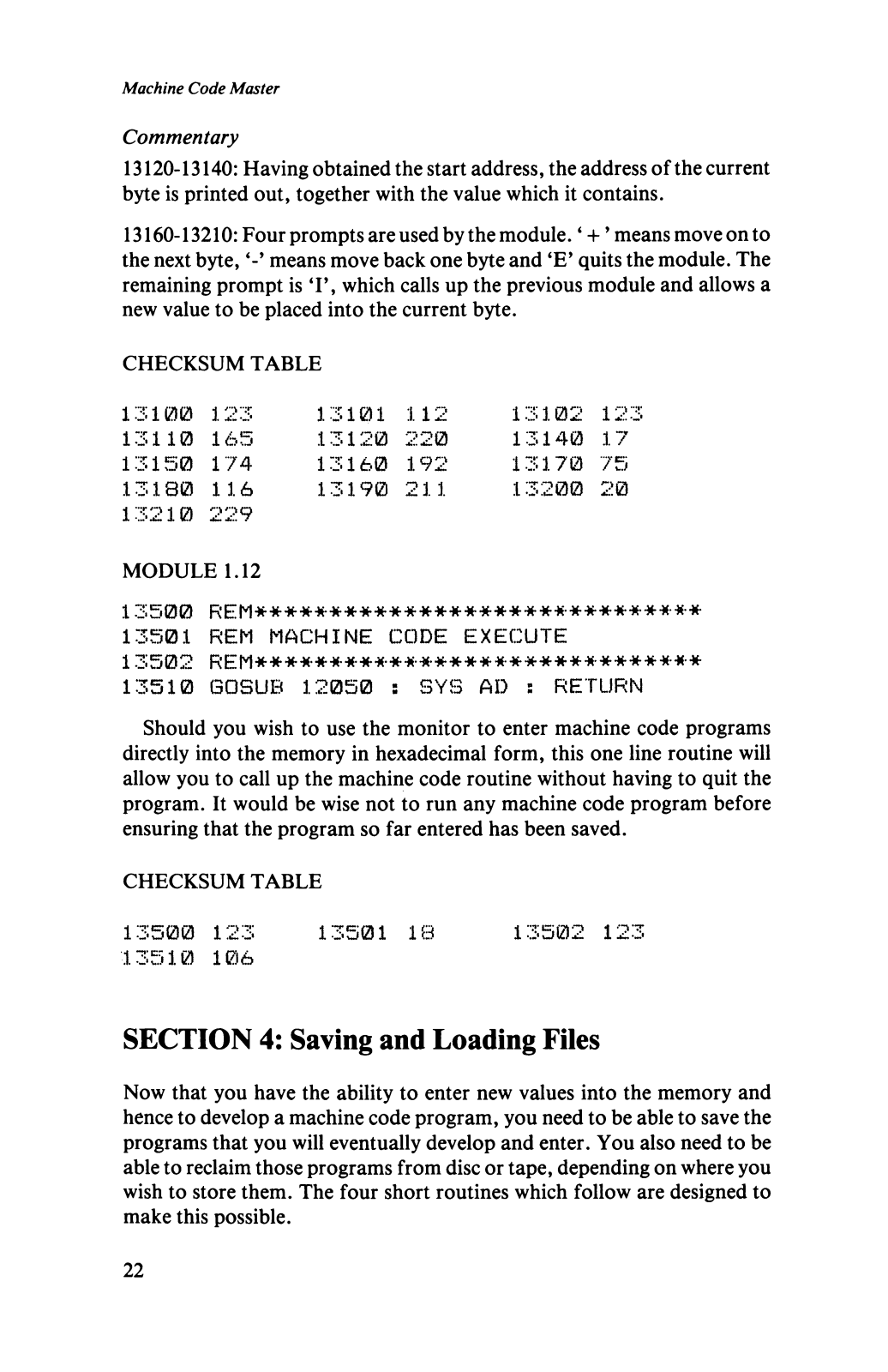

Commentary

13120-13140: Having obtained the start address, the address of the current

byte is printed out, together with the value which it contains.

13160-13210: Four prompts are used by the module. ‘ + ’ means move on to

the next byte, *-* means move back one byte and ‘E* quits the module. The
remaining prompt is T , which calls up the previous module and allows a
new value to be placed into the current byte.

CHECKSUM TABLE

13100 123

13101

112

13110 165 13120 220

13150

13180 116 13190

174

13160 192

211

13102 12:
13140

17
13170 75
13200

20

13210 229

MODULE 1.12

13500 REM *** *** *** *** *** *** ********* ***
13501 REM MACHINE CODE EXECUTE
13502 REM* *** **** ******** ******** *** ***

13510 GOSUB 12050 s SYS AD s RETURN

Should you wish to use the monitor to enter machine code programs
directly into the memory in hexadecimal form, this one line routine will
allow you to call up the machine code routine without having to quit the
program. It would be wise not to run any machine code program before
ensuring that the program so far entered has been saved.

CHECKSUM TABLE

13500 123 13501 18 13502 123
13510 106

SECTION 4: Saving and Loading Files

Now that you have the ability to enter new values into the memory and

hence to develop a machine code program, you need to be able to save the

programs that you will eventually develop and enter. You also need to be
able to reclaim those programs from disc or tape, depending on where you

wish to store them. The four short routines which follow are designed to

make this possible.

22

Chapter 1 Mastercode Monitor

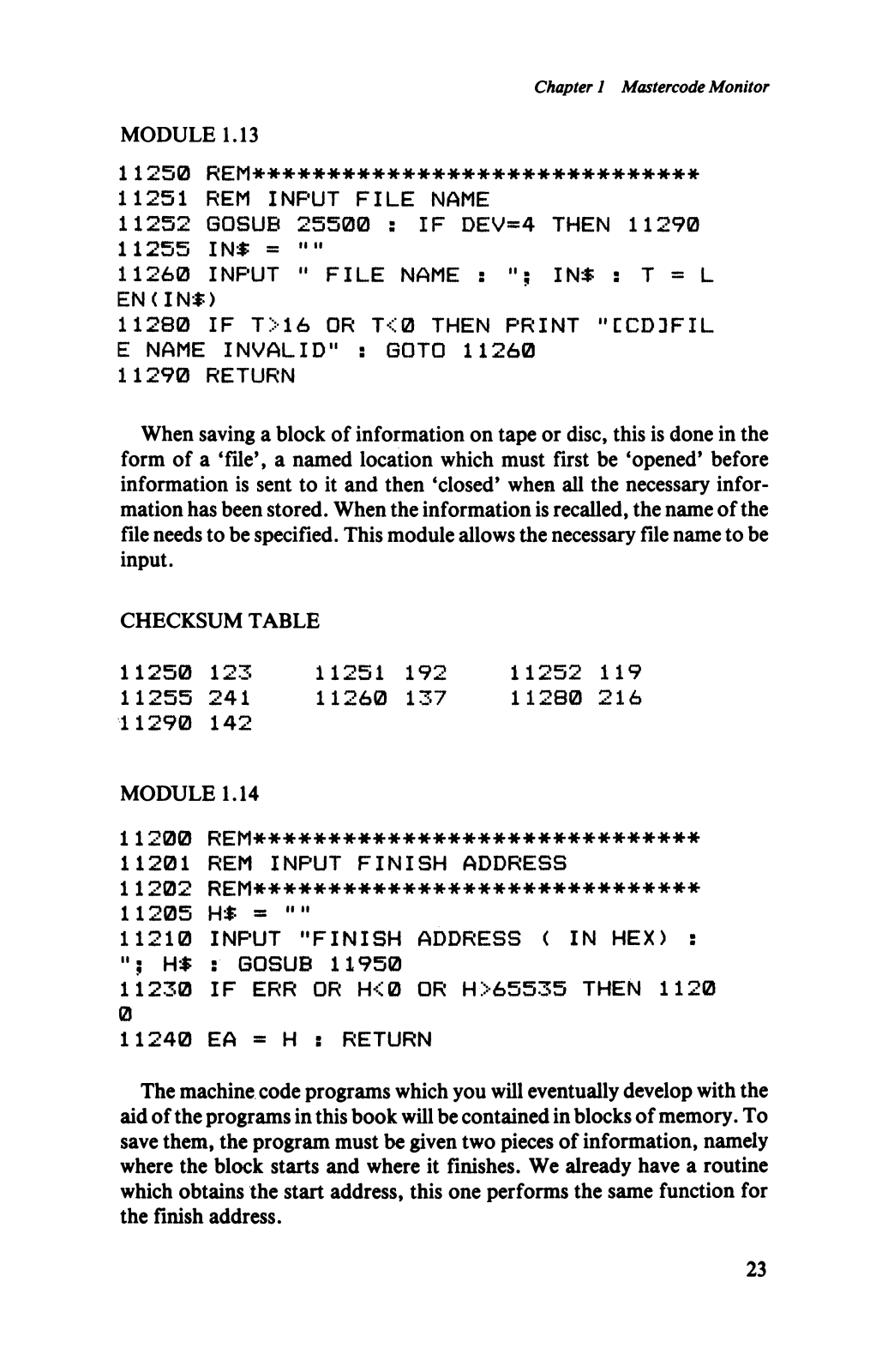

MODULE 1.13

11250 REM******************************
11251 REM INPUT FILE NAME
11252 GOSUB 25500 : IF DEV=4 THEN 11290
11255 IN* = ""
11260 INPUT " FILE NAME s IN* : T = L
E N (IN*)
11280 IF T >16 OR T<0 THEN PRINT "CCD3FIL
E NAME INVALID" s GOTO 11260
11290 RETURN

When saving a block of information on tape or disc, this is done in the
form of a ‘file’, a named location which must first be ‘opened’ before
information is sent to it and then ‘closed’ when all the necessary infor
mation has been stored. When the information is recalled, the name of the
file needs to be specified. This module allows the necessary file name to be
input.

CHECKSUM TABLE

11250 123 11251 192 11252 119
11255 241 11260 137 11280 216

11290 142

MODULE 1.14

11200 REM******************************
11201 REM INPUT FINISH ADDRESS
11202 REM******************************
11205 H$ = ""
11210 INPUT "FINISH ADDRESS ( IN HEX) :

H* : GOSUB 11950

11230 IF ERR OR H<0 OR H >65535 THEN 1120

0

11240 EA = H s RETURN

The machine code programs which you will eventually develop with the
aid of the programs in this book will be contained in blocks of memory. To
save them, the program must be given two pieces of information, namely
where the block starts and where it finishes. We already have a routine
which obtains the start address, this one performs the same function for
the finish address.

23

Machine Code Master

CHECKSUM TABLE

11200 123 11201 70 11202 123
11205 162 11210 10.1 11230 123

11240 200

MODULE 1.15

14100 REM******* *** **** *** **** *** **** **
14101 REM MACHINE CODE SAVE
14102 REM******* *** **** *** **** *** **** **
14110 GOSU B 11250 ; GOSUB 12050 : GOSUB

11 200

14115 T* = "N" : IF DEV=8 THEN INPUT "OV

ERWRITE EXISTING FILE ( Y/N ) : T*

14116 IF T*="Y" THEN IN* ~ "@0:"+IN*
14120 IF DEV=8 THEN IN* = I N$+“ ,S,W"
14125 IF SA>EA THEN 14190
14130 OPEN 2,DE V ,2 , IN* : PRINT# 2 ,AD : P

RINT# 2,EA

14150 FOR X = AD TO EA : PRINT# 2,PEEK<X
) : NEXT : PRINT# 2 : CLOSE 2
14190 RETURN

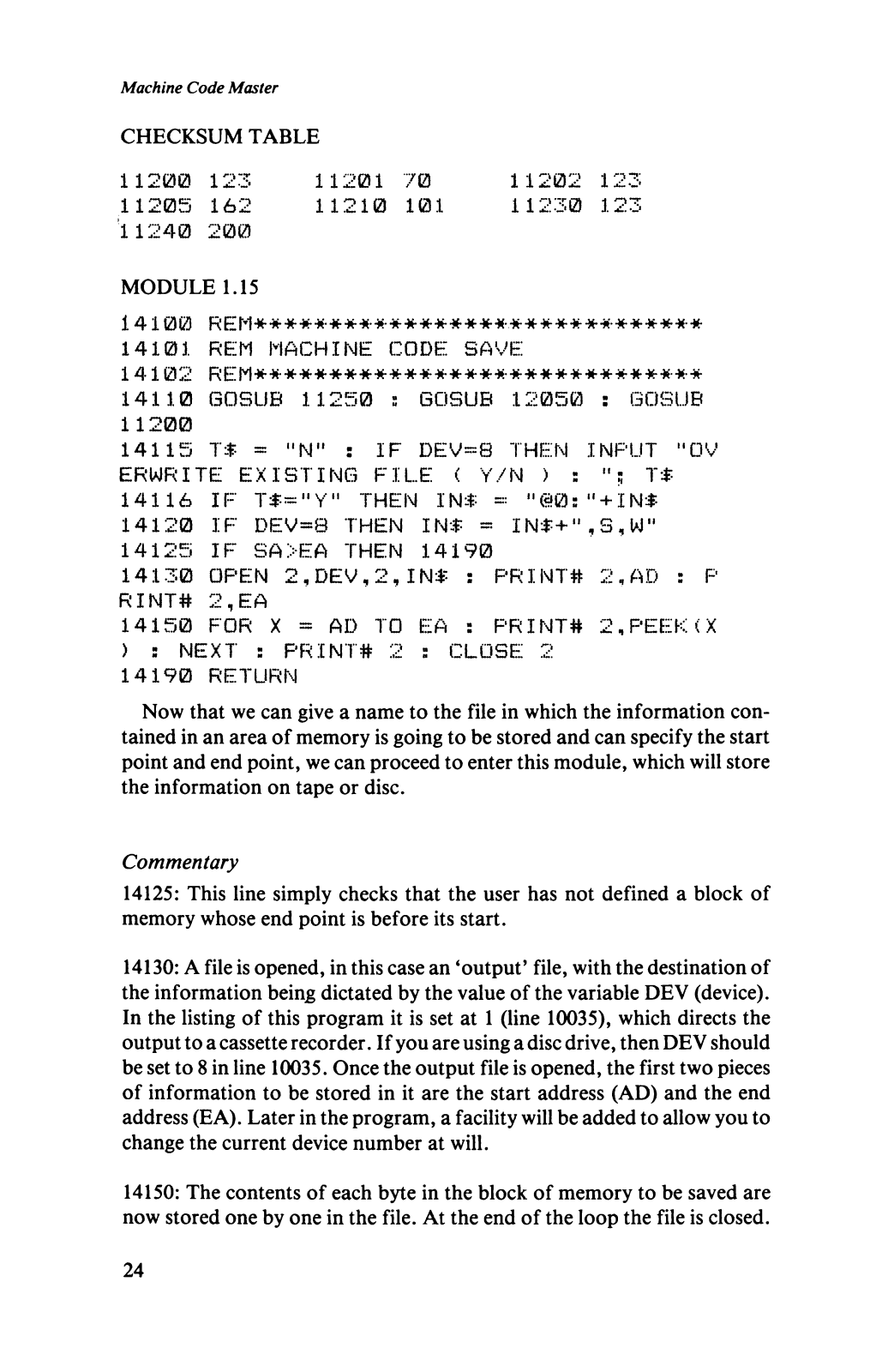

Now that we can give a name to the file in which the information con

tained in an area of memory is going to be stored and can specify the start
point and end point, we can proceed to enter this module, which will store
the information on tape or disc.

Commentary

14125: This line simply checks that the user has not defined a block of

memory whose end point is before its start.

14130: A file is opened, in this case an ‘output’ file, with the destination of
the information being dictated by the value of the variable DEV (device).
In the listing of this program it is set at 1 (line 10035), which directs the
output to a cassette recorder. If you are using a disc drive, then DEV should
be set to 8 in line 10035. Once the output file is opened, the first two pieces
of information to be stored in it are the start address (AD) and the end
address (EA). Later in the program, a facility will be added to allow you to
change the current device number at will.

14150: The contents of each byte in the block of memory to be saved are
now stored one by one in the file. At the end of the loop the file is closed.

24

CHECKSUM TABLE

Chapter 1 Mastercode Monitor

14100 123
14110 224
14120 179
14150 161

MODULE 1.16

14101 46
14115 32

14125 92

14190 142

14102 123

14116 89

14130 108

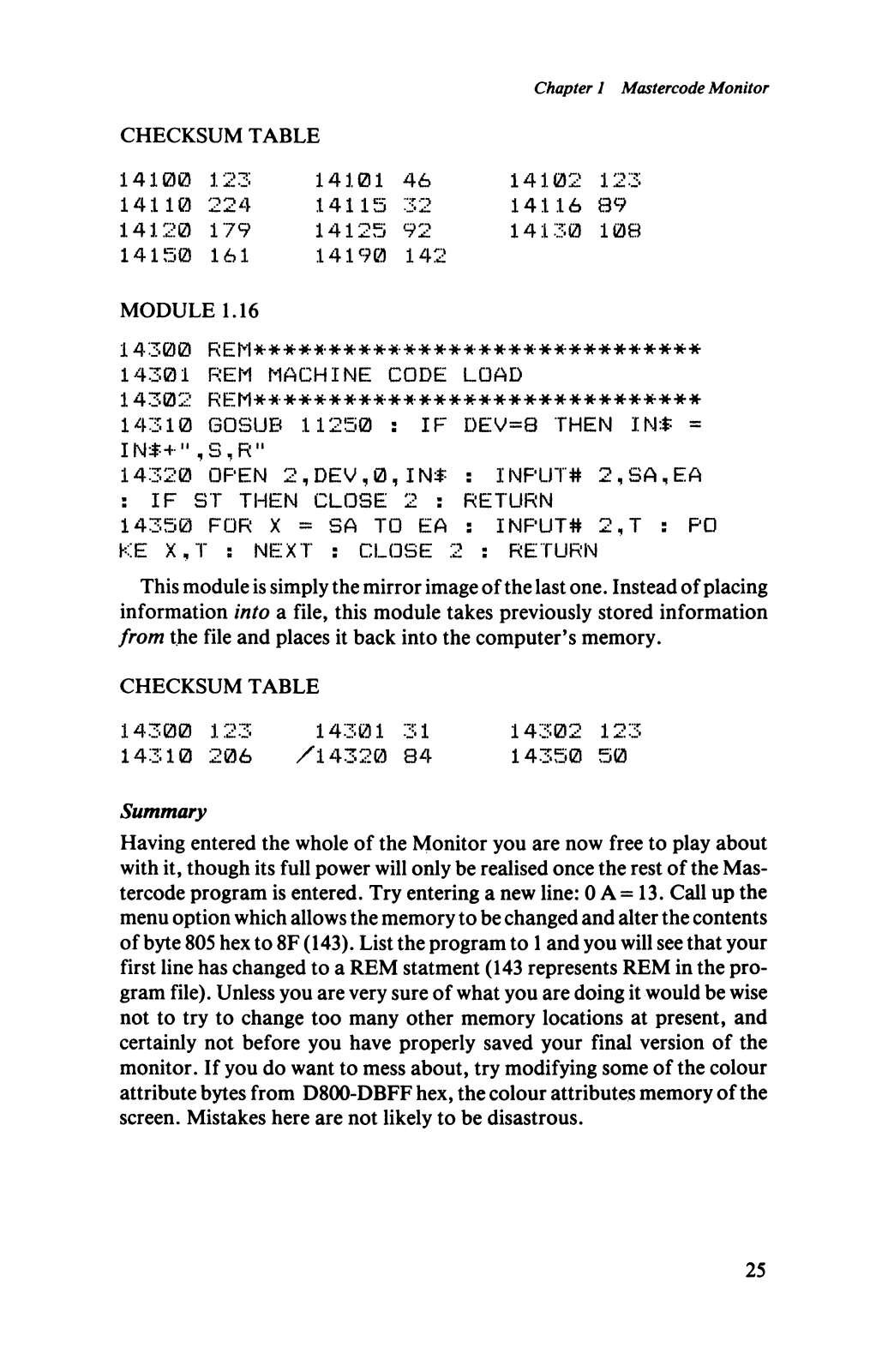

14300 RE M******* *** **** *** **** *** **** **
14301 REM MACHINE CODE LOAD
14302 REM****** *** *** **** *** **** *** ****

14310 GOSU B 11250 : IF DEV=8 THEN IN* =

IN*+",S,R"
14320 OPEN 2, D EV ,0,IN* : INPUT# 2,SA,EA

: IF ST THEN CLOSE 2 : RETURN

14350 FOR X = SA TO EA : INPUT# 2,T : PO

KE X ,T : NEXT : C LOSE 2 : RETU RN

This module is simply the mirror image of the last one. Instead of placing

information into a file, this module takes previously stored information

from the file and places it back into the computer’s memory.

CHECKSUM TABLE

14300 123 14301 31 14302 123

14310 206 / 14320 84 14350 50

Summary

Having entered the whole of the Monitor you are now free to play about
with it, though its full power will only be realised once the rest of the Mas
tercode program is entered. Try entering a new line: 0 A = 13. Call up the
menu option which allows the memory to be changed and alter the contents
of byte 805 hex to 8F (143). List the program to 1 and you will see that your
first line has changed to a REM statment (143 represents REM in the pro
gram file). Unless you are very sure of what you are doing it would be wise
not to try to change too many other memory locations at present, and
certainly not before you have properly saved your final version of the
monitor. If you do want to mess about, try modifying some of the colour
attribute bytes from D800-DBFF hex, the colour attributes memory of the
screen. Mistakes here are not likely to be disastrous.

25

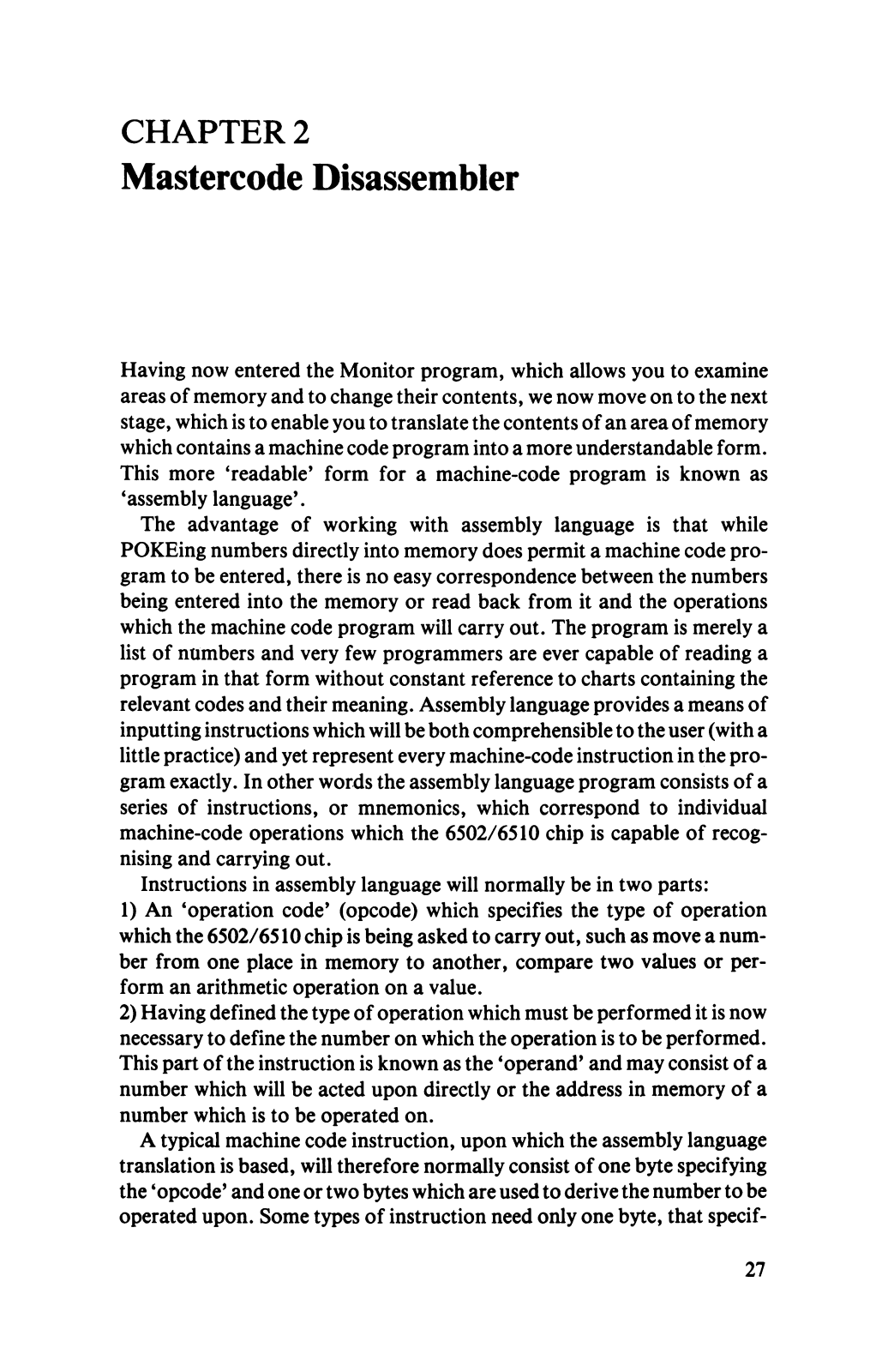

CHAPTER 2

Mastercode Disassembler

Having now entered the Monitor program, which allows you to examine
areas of memory and to change their contents, we now move on to the next
stage, which is to enable you to translate the contents of an area of memory
which contains a machine code program into a more understandable form.
This more ‘readable’ form for a machine-code program is known as

‘assembly language’.

The advantage of working with assembly language is that while
POKEing numbers directly into memory does permit a machine code pro
gram to be entered, there is no easy correspondence between the numbers
being entered into the memory or read back from it and the operations
which the machine code program will carry out. The program is merely a
list of numbers and very few programmers are ever capable of reading a
program in that form without constant reference to charts containing the
relevant codes and their meaning. Assembly language provides a means of
inputting instructions which will be both comprehensible to the user (with a
little practice) and yet represent every machine-code instruction in the pro
gram exactly. In other words the assembly language program consists of a
series of instructions, or mnemonics, which correspond to individual
machine-code operations which the 6502/6510 chip is capable of recog
nising and carrying out.

Instructions in assembly language will normally be in two parts:

1) An ‘operation code’ (opcode) which specifies the type of operation
which the 6502/6510 chip is being asked to carry out, such as move a num
ber from one place in memory to another, compare two values or per

form an arithmetic operation on a value.

2) Having defined the type of operation which must be performed it is now
necessary to define the number on which the operation is to be performed.

This part of the instruction is known as the ‘operand’ and may consist of a

number which will be acted upon directly or the address in memory of a
number which is to be operated on.

A typical machine code instruction, upon which the assembly language
translation is based, will therefore normally consist of one byte specifying
the ‘opcode’ and one or two bytes which are used to derive the number to be
operated upon. Some types of instruction need only one byte, that specif

27

Machine Code Master

ying the opcode itself, since they invariably imply that the value to be
operated upon is at a fixed location which does not need to be spelled out.

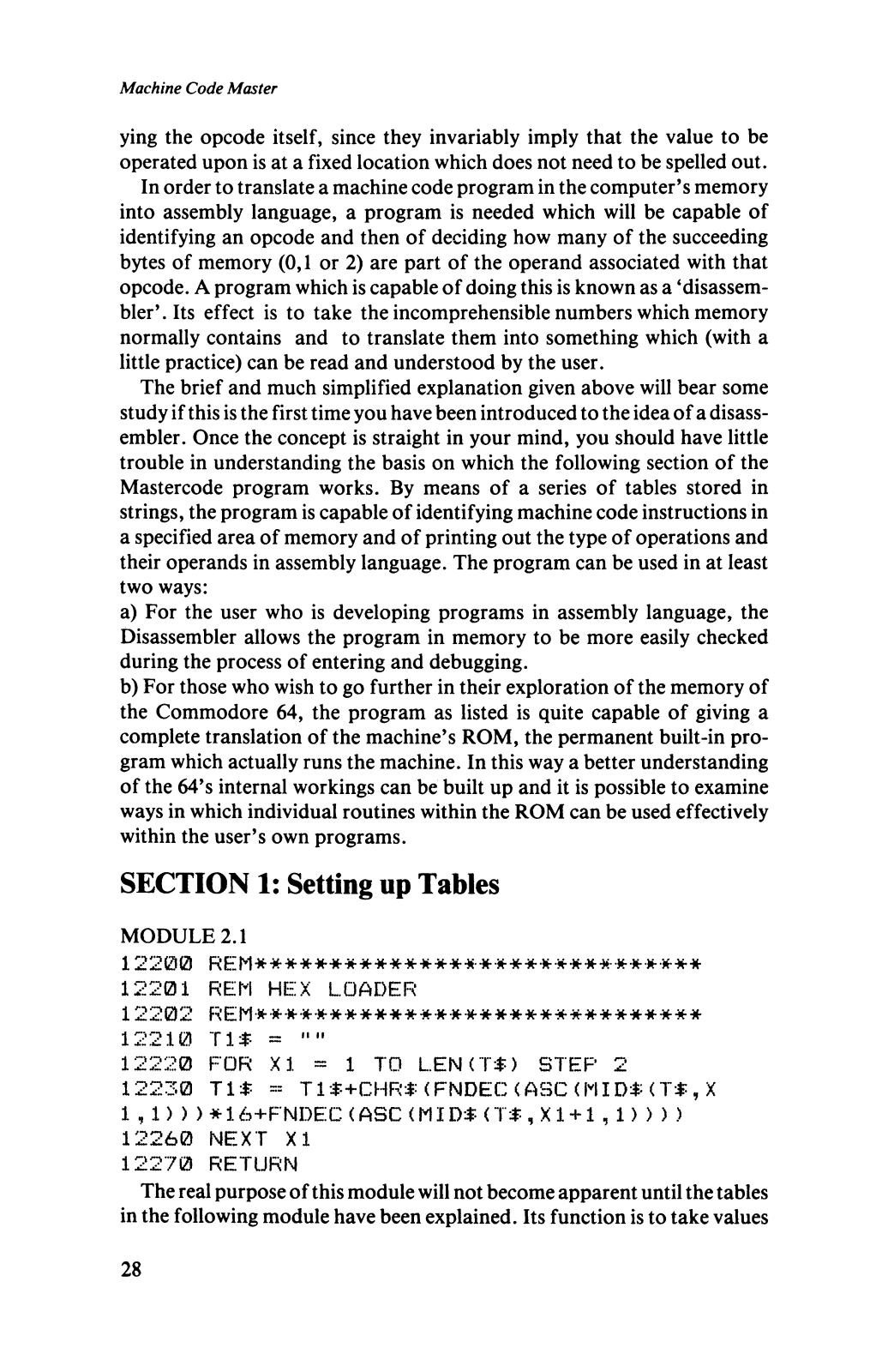

In order to translate a machine code program in the computer’s memory
into assembly language, a program is needed which will be capable of
identifying an opcode and then of deciding how many of the succeeding
bytes of memory (0,1 or 2) are part of the operand associated with that
opcode. A program which is capable of doing this is known as a ‘disassem
bler’. Its effect is to take the incomprehensible numbers which memory
normally contains and to translate them into something which (with a
little practice) can be read and understood by the user.

The brief and much simplified explanation given above will bear some
study if this is the first time you have been introduced to the idea of a disass
embler. Once the concept is straight in your mind, you should have little
trouble in understanding the basis on which the following section of the
Mastercode program works. By means of a series of tables stored in
strings, the program is capable of identifying machine code instructions in
a specified area of memory and of printing out the type of operations and
their operands in assembly language. The program can be used in at least
two ways:
a) For the user who is developing programs in assembly language, the
Disassembler allows the program in memory to be more easily checked
during the process of entering and debugging.
b) For those who wish to go further in their exploration of the memory of
the Commodore 64, the program as listed is quite capable of giving a
complete translation of the machine’s ROM, the permanent built-in pro
gram which actually runs the machine. In this way a better understanding
of the 64’s internal workings can be built up and it is possible to examine
ways in which individual routines within the ROM can be used effectively
within the user’s own programs.

SECTION 1: Setting up Tables

MODULE 2.1

1 2 20 0 R E M * * * ** * * ** * * ** ** ** ** ** ** * * * ** * *

12201 REM HEX LOA DER
12202 REM *** ********* ******************
12210 Tl$ = ""
12220 FOR XI = 1 TO L.EN (T$) STEP 2
12230 Tl* = Tlf+CHRT(FNDE C(A SC(MID*( T*,X
1,1)))*16+FN DEC(ASC <MID$( T$,Xl + 1,1))))
12260 NEXT XI
12270 RETURN

The real purpose of this module will not become apparent until the tables
in the following module have been explained. Its function is to take values

28

Chapter 2 Mastercode Disassembler

from the tables and to compact them into strings. The table values have

been set out in the form of two digit hexadecimal values (ie numbers in the

range 0-255 decimal). This module converts a pair of hexadecimal values
into a single ASCII character. The characters thus formed can be econo
mically stored in a string (Tl$).

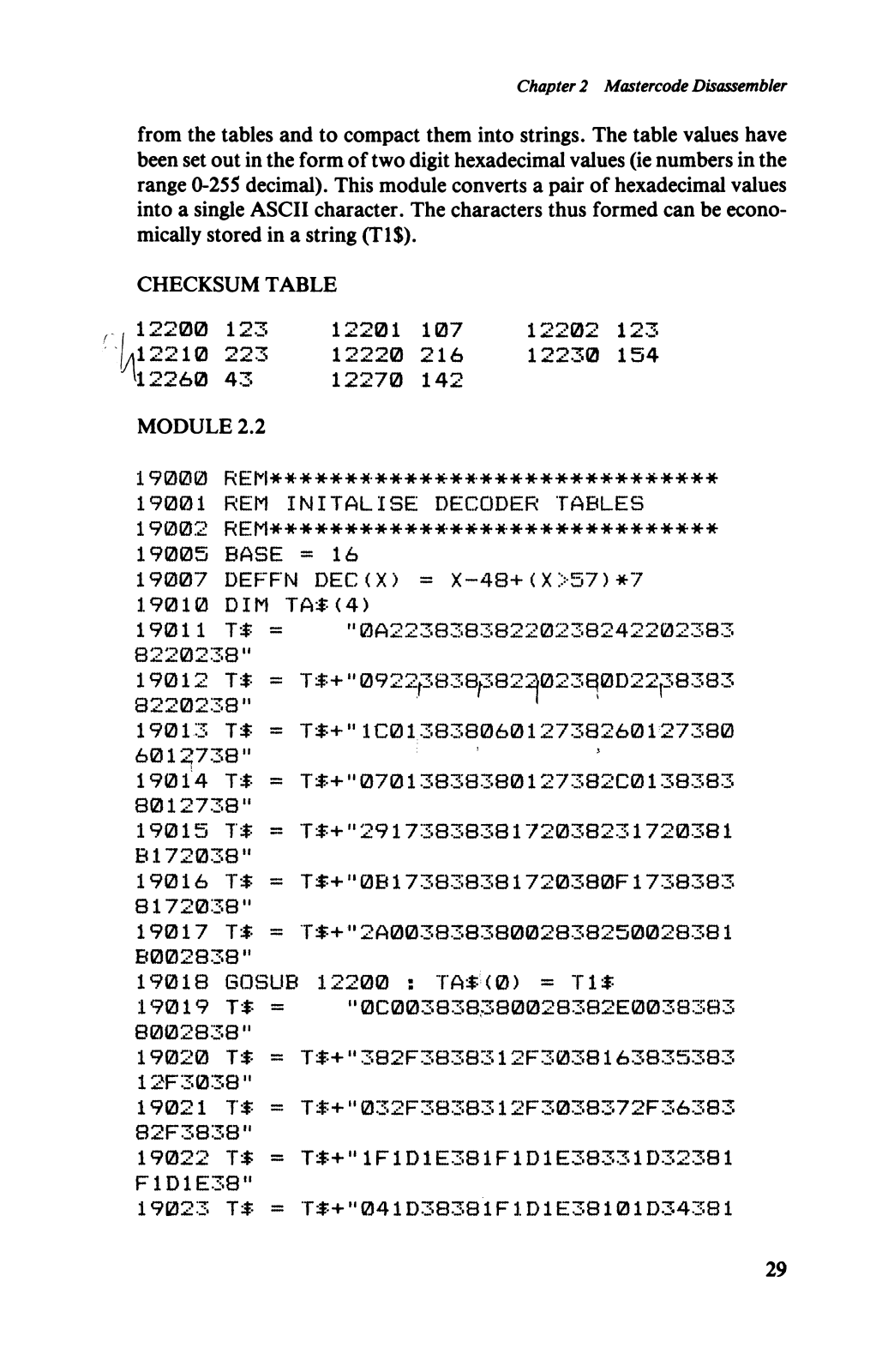

CHECKSUM TABLE

12200 123 12201 107 12202 123

' U12210 223 12220 216 12230 154

12260 43 12270 142

MODULE 2.2

19000 REM******************************
19001 REM INITALISE DECODER TABLES
19002 REM******************************
19005 BASE = 16
19007 DEFFN DEC(X) = X-48+( X >57) *7

19010 DIM TAt<4>
19011 Tt = "0A22383838220238242202383

8220238"

19012 Tt = Tt+"0922f38383822023q0D22,38383

8220238" 1

19013 Tt = T*+"1C01383806012738260127380

6012738"

19014 Tt = Tt+"07013838380127382C0138383

8012738"

19015 Tt = Tt+"2917383838172038231720381

B172038"

19016 Tt = Tt+"0B1738 38381720380F1738383

8172038"

19017 Tt = Tt + "2A00383838002838250028381

B002838"

19018 GOSUB 12200 : TAt<0> = Tit

19019 Tt = "0C003838380028382E0038383

8002838"

19020 Tt- = Tt+"382F3838312F3038163835383

12F3038"

19021 Tt = T t+"032F3838312F3038372F36383

82F3838"

19022 Tt = Tt+"1F 1D1E381F 1D1E38331D323 81

F1D1E38"

19023 Tt = Tt+"041D383S1F1D1 E3 8 101D34-381

29

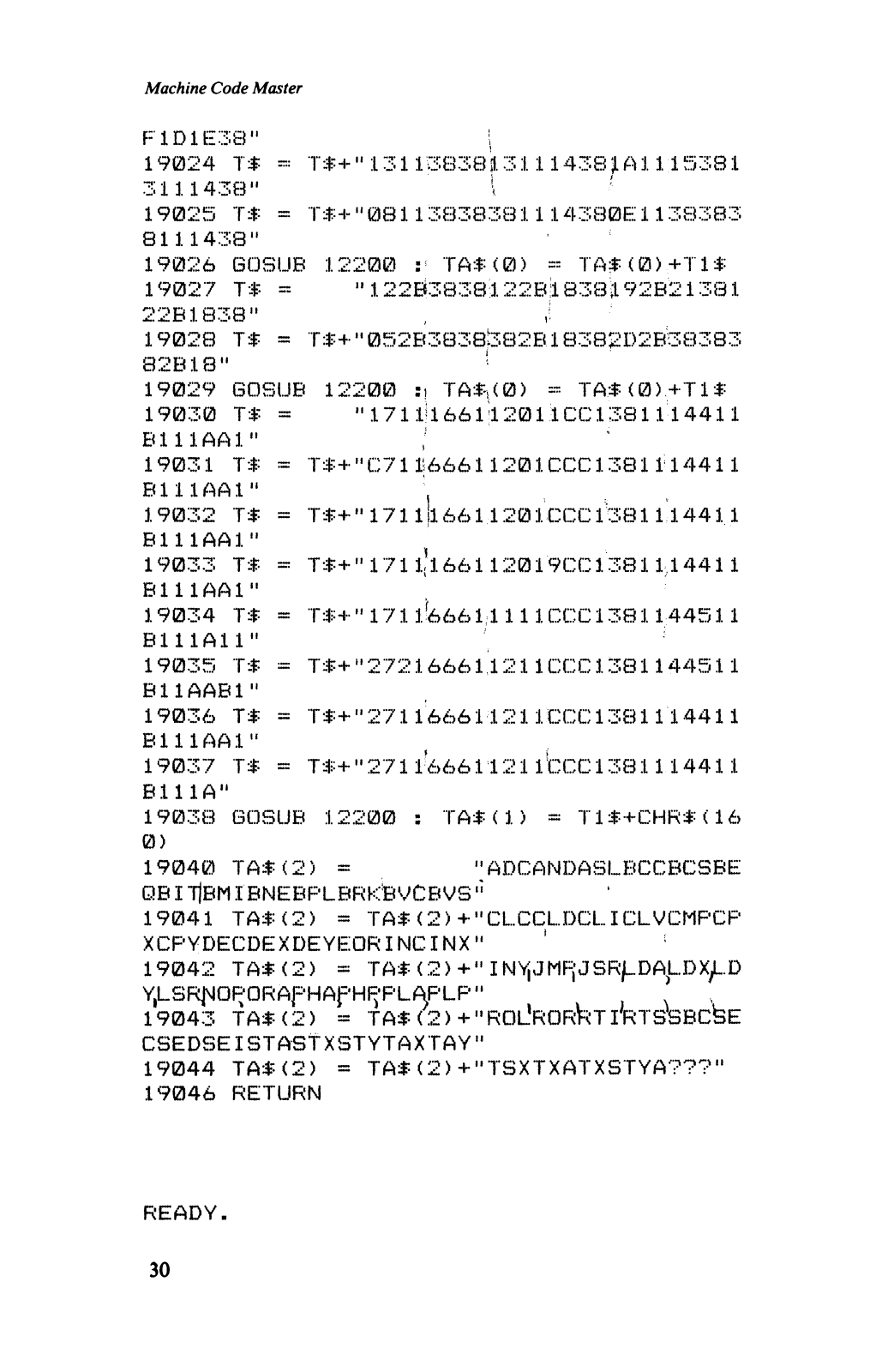

Machine Code Master

F1D1E38" ;

19(324 It- = T$+" 13 113838J311 1 4 3 8 j.AJ. 115381

3111438" 1

19025 T* = T$ +"08 113 83838111 4 3 8 0 E 1138383

8111438"

19026 SOSUB 12200 : TA$<0> = T A *<0>+ T1*

19027 T$ =■- " 122B3838122B:l838;l92B21381

22B1838" , ,!

19028 T$ = T4-+"052B3838582B18382D2B38383

82B1S" 1

19 0 2 9 GO S UB 1 2 2 0 0 :i TAt-,(0) -- TA $<0 )+T 1*

19030 T$

"17111166112011C C1381114411

B111AA1"

19031 J-$

BillAA1"

19032 T*

T$+”C7 11 6661 120 1CCC 1 3 8 11 1 4 4 1 1

T$ + " 1711 |l 6 6 1 12 0 1 CC C 1 3 8 11 1 4 4 1 1

B111AA1"
19033 T-f-

T*+" 171 l!l 66112019 CC13811,14411

B1UAA1"

19034 T$

T* + "171 ll6661:1111 C C C 13 8 1 1 4 4 5 1 1

B111A11"

19035 T#

T$ + "27 2 1 6 66 1 ,1 2 11C CC 13 8 1 14 45 1 1

B11AAB1"

19036 T* » TJ;+"27116 6611 2 11C CC13 8 1114411

B111AA1"

19037 T* = T$ + " 27 1166 6 1121 1CCC 1381 114411

Bill A"

19038 GOSUB 12200 : TA*(1> = Tl $ + CH R t (16
0 )
19040 TA*<2) = "AB CANDASL BC CBCSBE

QB ITlBM IBNEBPLB RKB VCB VS "

19041 TA*(2> = TA# (2) + "CLCCLDCLICLVCMF'CF'
XCPYDE CD EXDEYEO RI NCINX"
19042 TA*<2) = TA^(2>+"IN'yjJMF;JSRj_DAj_.DX/..D
Y,LSRJMOf^ORApHAfHF;PLAPLP"

19043 TA$ (2) = TA$ (2) + "ROL*RORkTIRTSBBCfeE

C SEDSEI STA STX STYT AXT AY"

19 0 4 4 t a $<2> = T A $ ( 2)+"T SXTX ATX STYA ??? "

19 0 4 6 RET URN

RE AD Y .

30

Chapter 2 Mastercode Disassembler

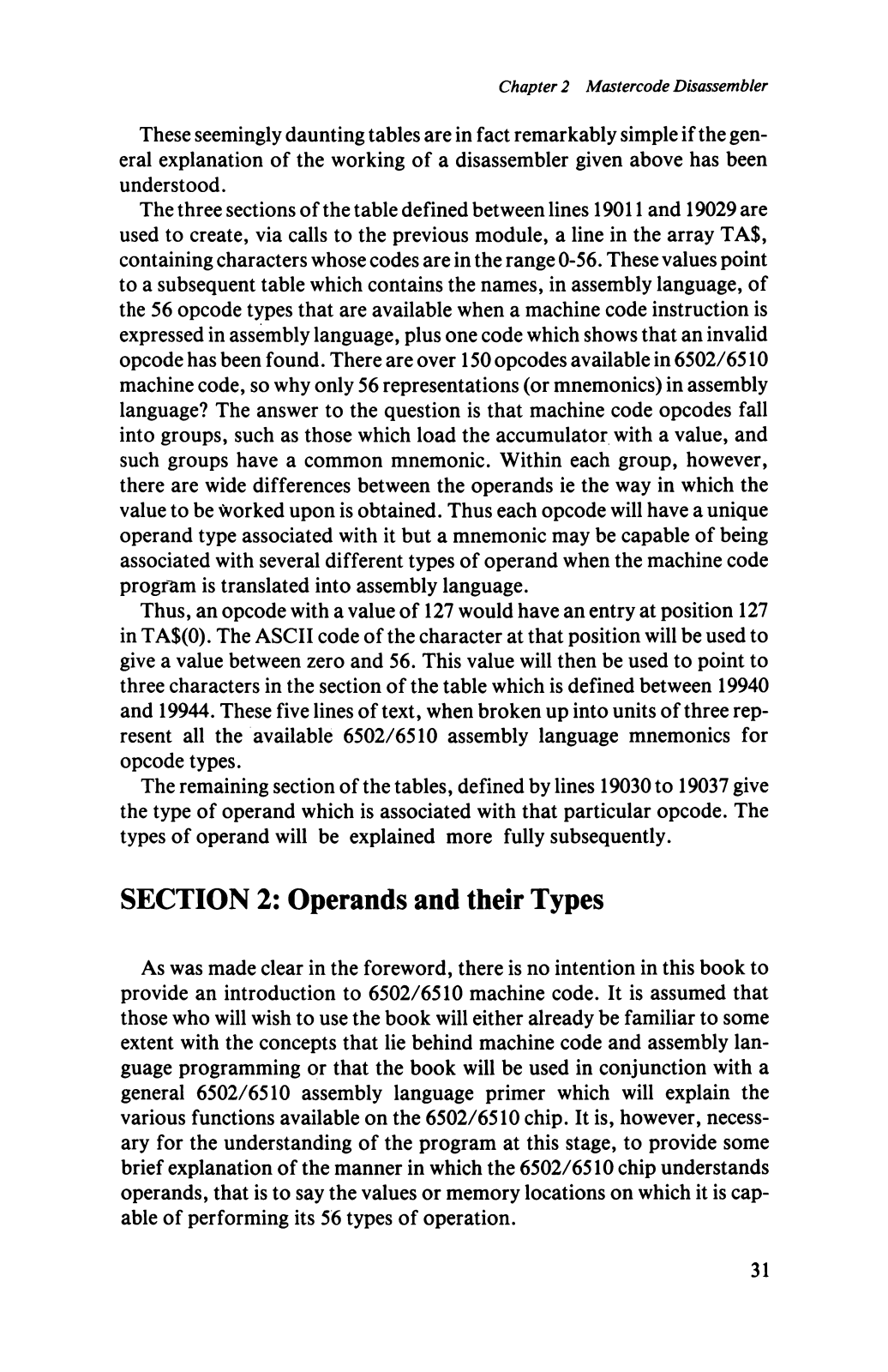

These seemingly daunting tables are in fact remarkably simple if the gen

eral explanation of the working of a disassembler given above has been

understood.

The three sections of the table defined between lines 19011 and 19029 are
used to create, via calls to the previous module, a line in the array TA$,
containing characters whose codes are in the range 0-56. These values point

to a subsequent table which contains the names, in assembly language, of
the 56 opcode types that are available when a machine code instruction is

expressed in assembly language, plus one code which shows that an invalid
opcode has been found. There are over 150 opcodes available in 6502/6510
machine code, so why only 56 representations (or mnemonics) in assembly
language? The answer to the question is that machine code opcodes fall
into groups, such as those which load the accumulator with a value, and
such groups have a common mnemonic. Within each group, however,
there are wide differences between the operands ie the way in which the
value to be worked upon is obtained. Thus each opcode will have a unique
operand type associated with it but a mnemonic may be capable of being
associated with several different types of operand when the machine code
program is translated into assembly language.

Thus, an opcode with a value of 127 would have an entry at position 127
in TA$(0). The ASCII code of the character at that position will be used to
give a value between zero and 56. This value will then be used to point to
three characters in the section of the table which is defined between 19940
and 19944. These five lines of text, when broken up into units of three rep
resent all the available 6502/6510 assembly language mnemonics for
opcode types.

The remaining section of the tables, defined by lines 19030 to 19037 give
the type of operand which is associated with that particular opcode. The
types of operand will be explained more fully subsequently.

SECTION 2: Operands and their Types

As was made clear in the foreword, there is no intention in this book to
provide an introduction to 6502/6510 machine code. It is assumed that
those who will wish to use the book will either already be familiar to some
extent with the concepts that lie behind machine code and assembly lan
guage programming or that the book will be used in conjunction with a
general 6502/6510 assembly language primer which will explain the
various functions available on the 6502/6510 chip. It is, however, necess
ary for the understanding of the program at this stage, to provide some
brief explanation of the manner in which the 6502/6510 chip understands
operands, that is to say the values or memory locations on which it is cap
able of performing its 56 types of operation.

31

Machine Code Master

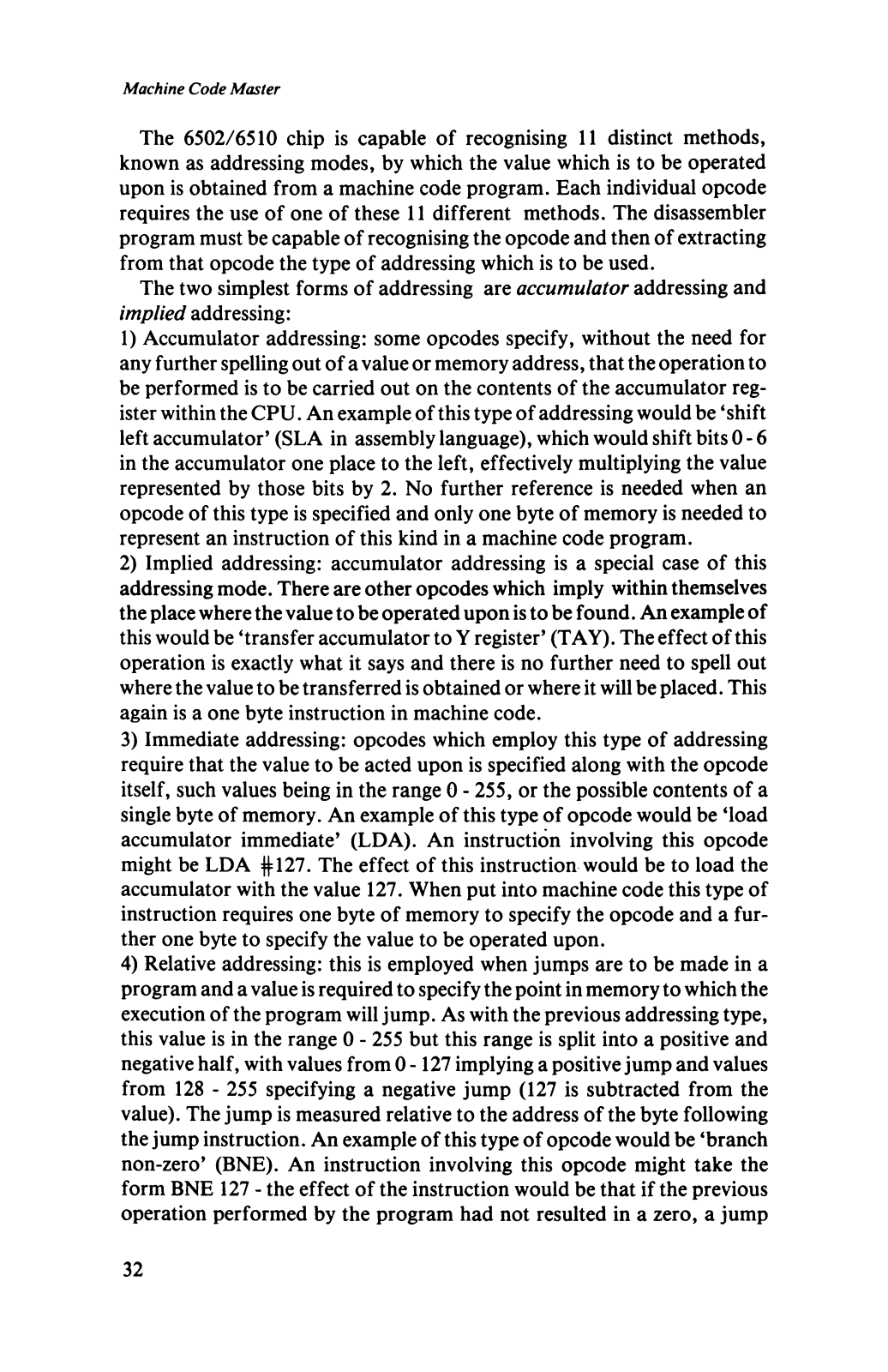

The 6502/6510 chip is capable of recognising 11 distinct methods,

known as addressing modes, by which the value which is to be operated

upon is obtained from a machine code program. Each individual opcode

requires the use of one of these 11 different methods. The disassembler

program must be capable of recognising the opcode and then of extracting

from that opcode the type of addressing which is to be used.

The two simplest forms of addressing are accumulator addressing and

implied addressing:

1) Accumulator addressing: some opcodes specify, without the need for

any further spelling out of a value or memory address, that the operation to

be performed is to be carried out on the contents of the accumulator reg

ister within the CPU. An example of this type of addressing would be ‘shift
left accumulator’ (SLA in assembly language), which would shift bits 0-6
in the accumulator one place to the left, effectively multiplying the value
represented by those bits by 2. No further reference is needed when an
opcode of this type is specified and only one byte of memory is needed to
represent an instruction of this kind in a machine code program.

2) Implied addressing: accumulator addressing is a special case of this
addressing mode. There are other opcodes which imply within themselves

the place where the value to be operated upon is to be found. An example of

this would be ‘transfer accumulator to Y register’ (TAY). The effect of this
operation is exactly what it says and there is no further need to spell out
where the value to be transferred is obtained or where it will be placed. This
again is a one byte instruction in machine code.

3) Immediate addressing: opcodes which employ this type of addressing
require that the value to be acted upon is specified along with the opcode
itself, such values being in the range 0 - 255, or the possible contents of a
single byte of memory. An example of this type of opcode would be ‘load
accumulator immediate’ (LDA). An instruction involving this opcode
might be LDA #127. The effect of this instruction would be to load the
accumulator with the value 127. When put into machine code this type of
instruction requires one byte of memory to specify the opcode and a fur
ther one byte to specify the value to be operated upon.

4) Relative addressing: this is employed when jumps are to be made in a
program and a value is required to specify the point in memory to which the
execution of the program will jump. As with the previous addressing type,
this value is in the range 0-255 but this range is split into a positive and
negative half, with values from 0-127 implying a positive jump and values

from 128 - 255 specifying a negative jump (127 is subtracted from the
value). The jump is measured relative to the address of the byte following
the jump instruction. An example of this type of opcode would be ‘branch
non-zero’ (BNE). An instruction involving this opcode might take the

form BNE 127 - the effect of the instruction would be that if the previous
operation performed by the program had not resulted in a zero, a jump

32

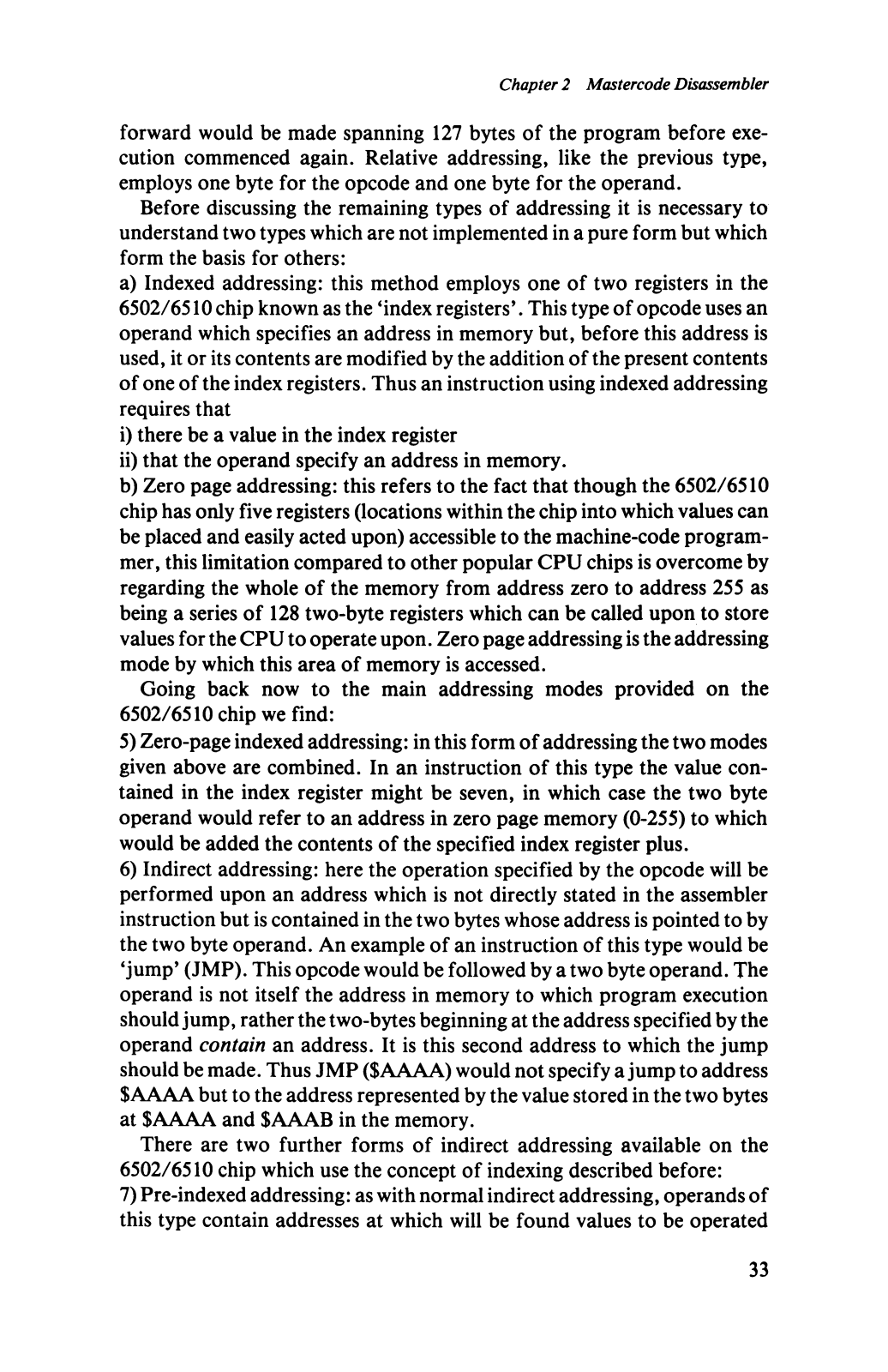

Chapter 2 Mastercode Disassembler

forward would be made spanning 127 bytes of the program before exe

cution commenced again. Relative addressing, like the previous type,
employs one byte for the opcode and one byte for the operand.

Before discussing the remaining types of addressing it is necessary to

understand two types which are not implemented in a pure form but which

form the basis for others:
a) Indexed addressing: this method employs one of two registers in the

6502/6510 chip known as the ‘index registers’. This type of opcode uses an
operand which specifies an address in memory but, before this address is

used, it or its contents are modified by the addition of the present contents

of one of the index registers. Thus an instruction using indexed addressing

requires that
i) there be a value in the index register
ii) that the operand specify an address in memory.
b) Zero page addressing: this refers to the fact that though the 6502/6510
chip has only five registers (locations within the chip into which values can
be placed and easily acted upon) accessible to the machine-code program
mer, this limitation compared to other popular CPU chips is overcome by
regarding the whole of the memory from address zero to address 255 as
being a series of 128 two-byte registers which can be called upon to store
values for the CPU to operate upon. Zero page addressing is the addressing
mode by which this area of memory is accessed.

Going back now to the main addressing modes provided on the

6502/6510 chip we find:

5) Zero-page indexed addressing: in this form of addressing the two modes

given above are combined. In an instruction of this type the value con
tained in the index register might be seven, in which case the two byte
operand would refer to an address in zero page memory (0-255) to which
would be added the contents of the specified index register plus.

6) Indirect addressing: here the operation specified by the opcode will be
performed upon an address which is not directly stated in the assembler
instruction but is contained in the two bytes whose address is pointed to by
the two byte operand. An example of an instruction of this type would be
‘jump’ (JMP). This opcode would be followed by a two byte operand. The
operand is not itself the address in memory to which program execution
should jump, rather the two-bytes beginning at the address specified by the
operand contain an address. It is this second address to which the jump
should be made. Thus JMP ($AAAA) would not specify a jump to address
$AAAA but to the address represented by the value stored in the two bytes
at $AAAA and $AAAB in the memory.

There are two further forms of indirect addressing available on the

6502/6510 chip which use the concept of indexing described before:

7) Pre-indexed addressing: as with normal indirect addressing, operands of
this type contain addresses at which will be found values to be operated

33

Machine Code Master

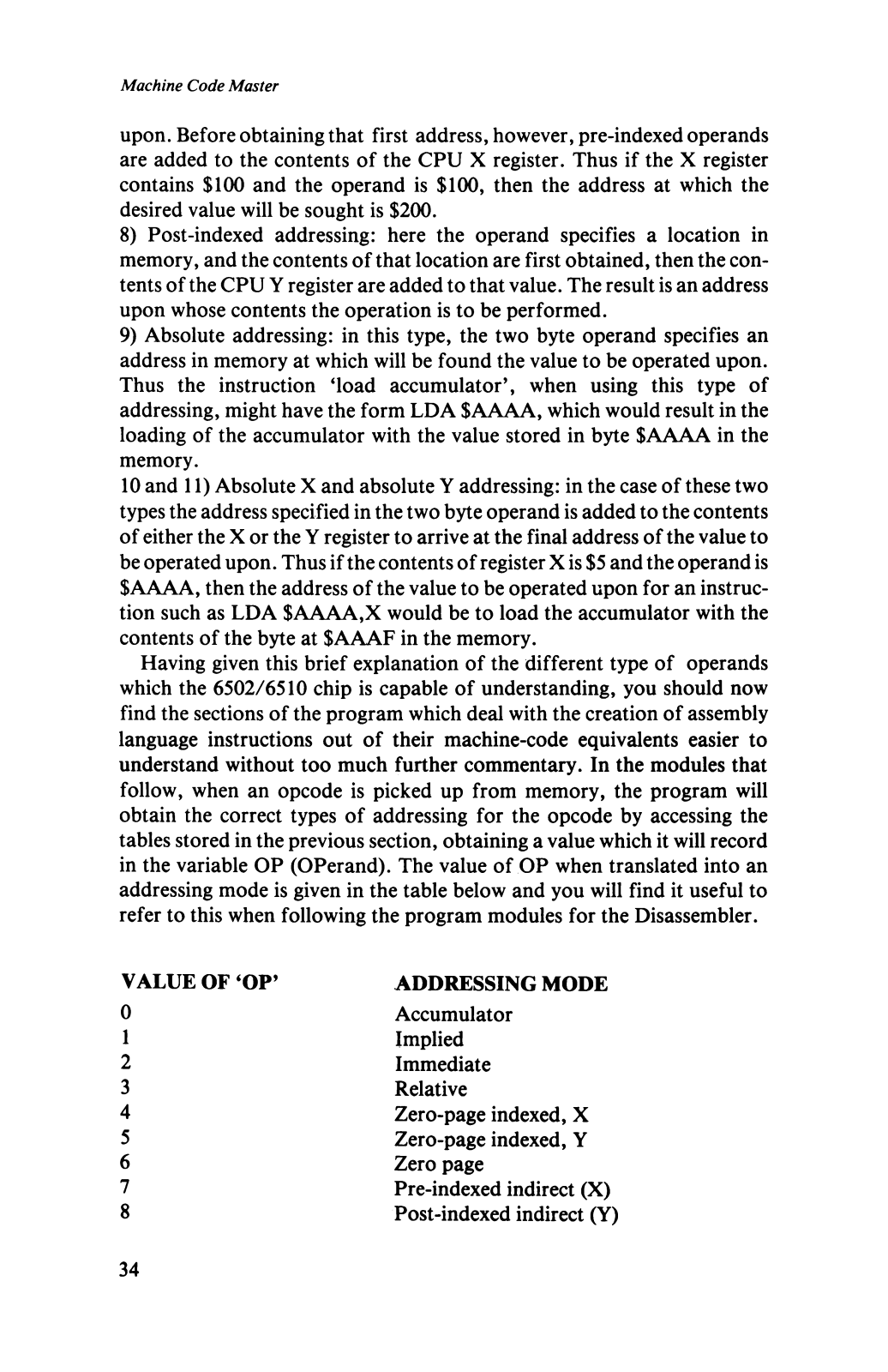

upon. Before obtaining that first address, however, pre-indexed operands
are added to the contents of the CPU X register. Thus if the X register
contains $100 and the operand is $100, then the address at which the
desired value will be sought is $200.

8) Post-indexed addressing: here the operand specifies a location in
memory, and the contents of that location are first obtained, then the con
tents of the CPU Y register are added to that value. The result is an address
upon whose contents the operation is to be performed.

9) Absolute addressing: in this type, the two byte operand specifies an
address in memory at which will be found the value to be operated upon.

Thus the instruction ‘load accumulator’, when using this type of

addressing, might have the form LDA $AAAA, which would result in the
loading of the accumulator with the value stored in byte $AAAA in the
memory.

10 and 11) Absolute X and absolute Y addressing: in the case of these two
types the address specified in the two byte operand is added to the contents
of either the X or the Y register to arrive at the final address of the value to
be operated upon. Thus if the contents of register X is $5 and the operand is
$AAAA, then the address of the value to be operated upon for an instruc

tion such as LDA $AAAA,X would be to load the accumulator with the

contents of the byte at $AAAF in the memory.

Having given this brief explanation of the different type of operands
which the 6502/6510 chip is capable of understanding, you should now
find the sections of the program which deal with the creation of assembly

language instructions out of their machine-code equivalents easier to
understand without too much further commentary. In the modules that

follow, when an opcode is picked up from memory, the program will
obtain the correct types of addressing for the opcode by accessing the

tables stored in the previous section, obtaining a value which it will record

in the variable OP (OPerand). The value of OP when translated into an

addressing mode is given in the table below and you will find it useful to
refer to this when following the program modules for the Disassembler.

VALUE OF ‘OP’
0

1

2

3
4
5

6

7

8

34

ADDRESSING MODE
Accumulator

Implied

Immediate
Relative
Zero-page indexed, X
Zero-page indexed, Y
Zero page
Pre-indexed indirect (X)
Post-indexed indirect (Y)

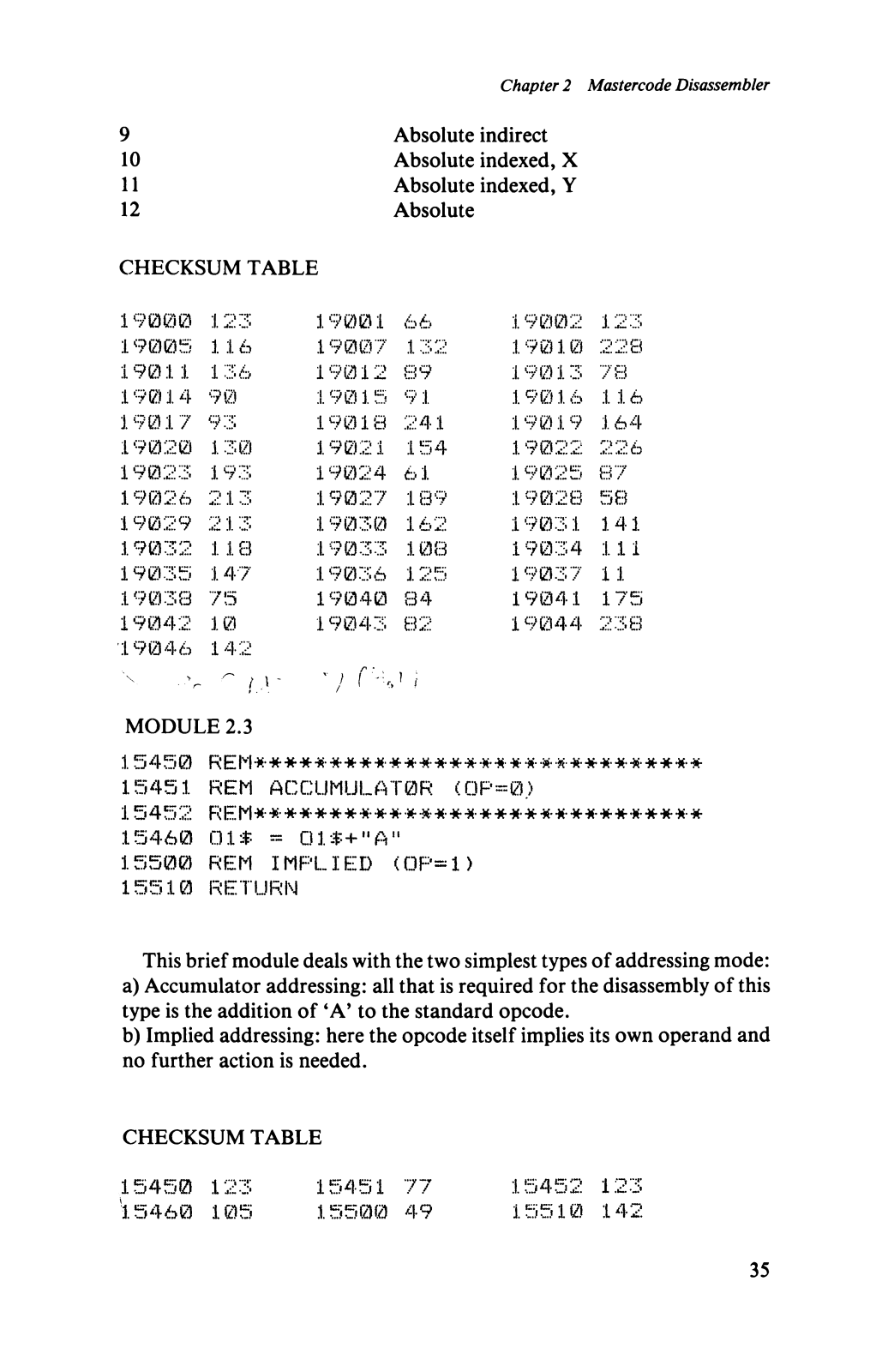

Chapter 2 Mastercode Disassembler

9

10
11
12

CHECKSUM TABLE

19 0 0 0

19 0 0 5

1901 1

123
1 16
1 36

190 1 4 9 0

1 901 7

93

19 0 2 0 1 30

19 0 2 3 193

19 0 2 6

19 0 2 9

19 0 3 2

19 0 3 5

19 0 3 8

21 3
21 3 1 9 0 3 0 162

1 1 a
J. 47 1 9 03 6 125

75

19 0 42 10

19 0 4 6 142

" / .1 '

MODULE 2.3

Absolute indirect
Absolute indexed, X
Absolute indexed, Y
Absolute

19001

66 19 00 2
19 00 7 132
19 01 2 89
19 0 15
190 1 0
19021

91

241

154
190 2 4 61
19 02 7 189

19 0 33

19 04 0
19 04 3

108

84
82

* i

123
1 90 1 0
1 90 1 3
1 901 6
19 01 9
19 02 2

22 8
78

1 16

1 6 4

.c:. cd
19 0 25 87
19 02 8

58

1 90 3 1 1 41
190 3 4
19 03 7

111

11
1 9 04 1 175
19 0 44 23 8

15 4 5 0 REM ********** **************** ****

15451. RE M A C CUMU LAT0R <OP=0>
15 4 5 2 REM ********** **************** ****
15 4 6 0 01* = 01*+"A"
15 5 0 0 REM IMF'LIED <0P=1>
15 5 1 0 RE T URN

This brief module deals with the two simplest types of addressing mode:
a) Accumulator addressing: all that is required for the disassembly of this
type is the addition of ‘A’ to the standard opcode.
b) Implied addressing: here the opcode itself implies its own operand and
no further action is needed.

CHECKSUM TABLE

15 4 5 0 123 15 451 7 7 1 5 45 2 123

154 6 0 1 05 .1.5500 49 1 5 51 0 142

35

Machine Code Master

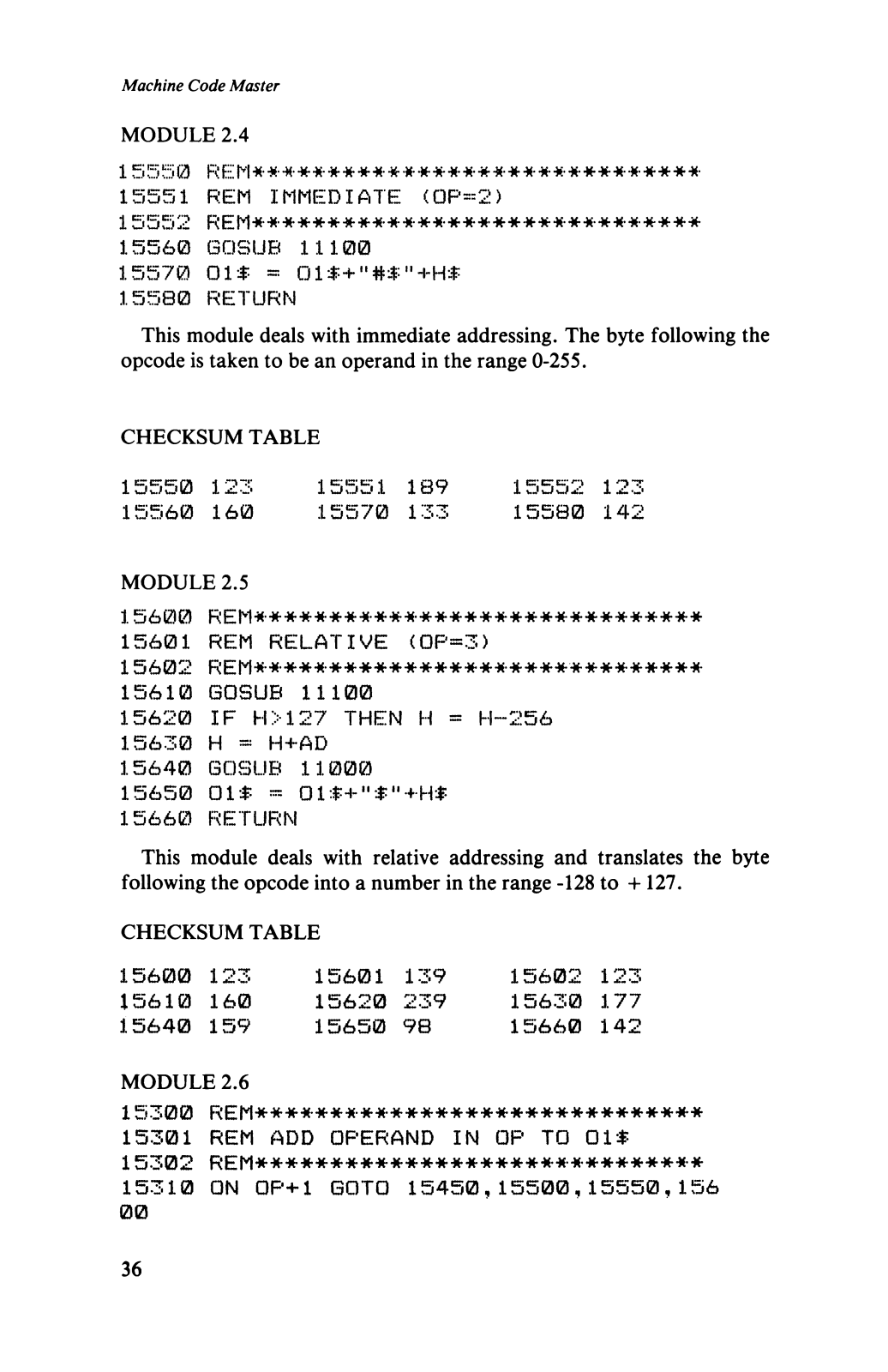

MODULE 2.4

15550 RE M***** *** **** *** *** **** *** **** *

15551 REM IMMEDIATE <OP=2)

15552 RE M** **** *** ******* **** *** **** ***

15560 GOSIJB 11100

15570 01* = 01 $+"#$"+H$

15580 RETURN

This module deals with immediate addressing. The byte following the

opcode is taken to be an operand in the range 0-255.

CHECKSUM TABLE

15550 123 15551 189 15552 123
15560 160 15570 133 15580 142

MODULE 2.5

15600 REM*** *** ******* *** **** *** **** ***

15601 REM RELA TIVE (0P=3)

15602 REM* **** *** **** *** **** *** *** **** *

15610 GOSUB 11100

15620 IF H > 127 THEN H = H--256

15630 H = H+AD

15640 GOSUB 11000

15650 01$ = 01$+"$ "+H$

15660 RETURN

This module deals with relative addressing and translates the byte

following the opcode into a number in the range -128 to +127.

CHECKSUM TABLE

15600 123 15601 139 15602 123
15610 160 15620 239 15630 177
15640 159 15650 98 15660 142

MODULE 2.6

15300 RE M******* ******* *** **** *** **** **

15301 REM ADD OPERAND IN OP TO 01$

15302 REM* *** **** *** **** *** **** *** **** *

15310 ON OP+1 GOTO 1 5450,15 50 0,15550 ,1 56

00

36

Chapter 2 Mastercode Disassembler

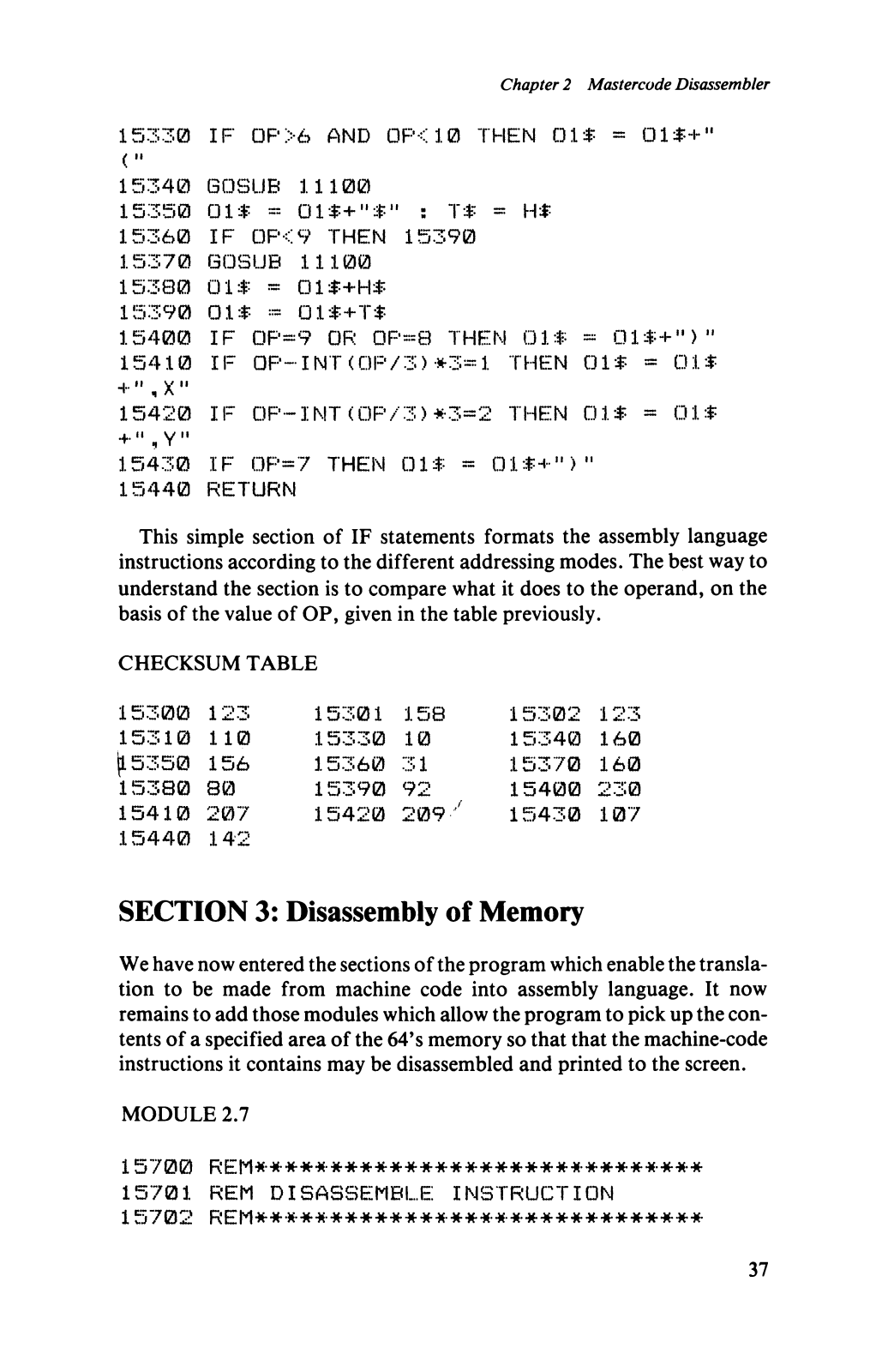

15330 IF D P>6 AND OP<10 THEN GIT = 01*+"

< "

15340 GOSUB 11100
15350 01* = 01*+"*" : T* = H*
15360 IF O P <9 THEN 15390
15370 GOSUB 11100
15380 01* «= 01*+H*
15390 01* = 0 1*+T$
15400 IF OF-9 OR OP=8 THEN 01* = 01*+")"
15410 IF O P -I N T<OP /3 >*3=1 THEN 01* = 01*

+ " , X "

15420 IF OP- I NT(O P/3) *3=2 THEN 01* = 01*

+ " , Y "

15430 IF 0P=7 THEN 01* = 01*+")"

15440 RETURN

This simple section of IF statements formats the assembly language

instructions according to the different addressing modes. The best way to
understand the section is to compare what it does to the operand, on the
basis of the value of OP, given in the table previously.

CHECKSUM TABLE

15300

15310 110

tl5

15380

15410

123

350 156

80 15390
207

15301 158 15302 123
15330 10 15340 160
15360 31 15370 160

15420

cp'P
209 y

15400 230
15430

107

15440 142

SECTION 3: Disassembly of Memory

We have now entered the sections of the program which enable the transla
tion to be made from machine code into assembly language. It now
remains to add those modules which allow the program to pick up the con
tents of a specified area of the 64’s memory so that that the machine-code
instructions it contains may be disassembled and printed to the screen.

MODULE 2.7

15700 REM****** *** *** **** ******* *** ****
15701 REM DISA SSEMBLE INSTRUCTION
15702 RE M******* **** *** **** *** **** *** **

37

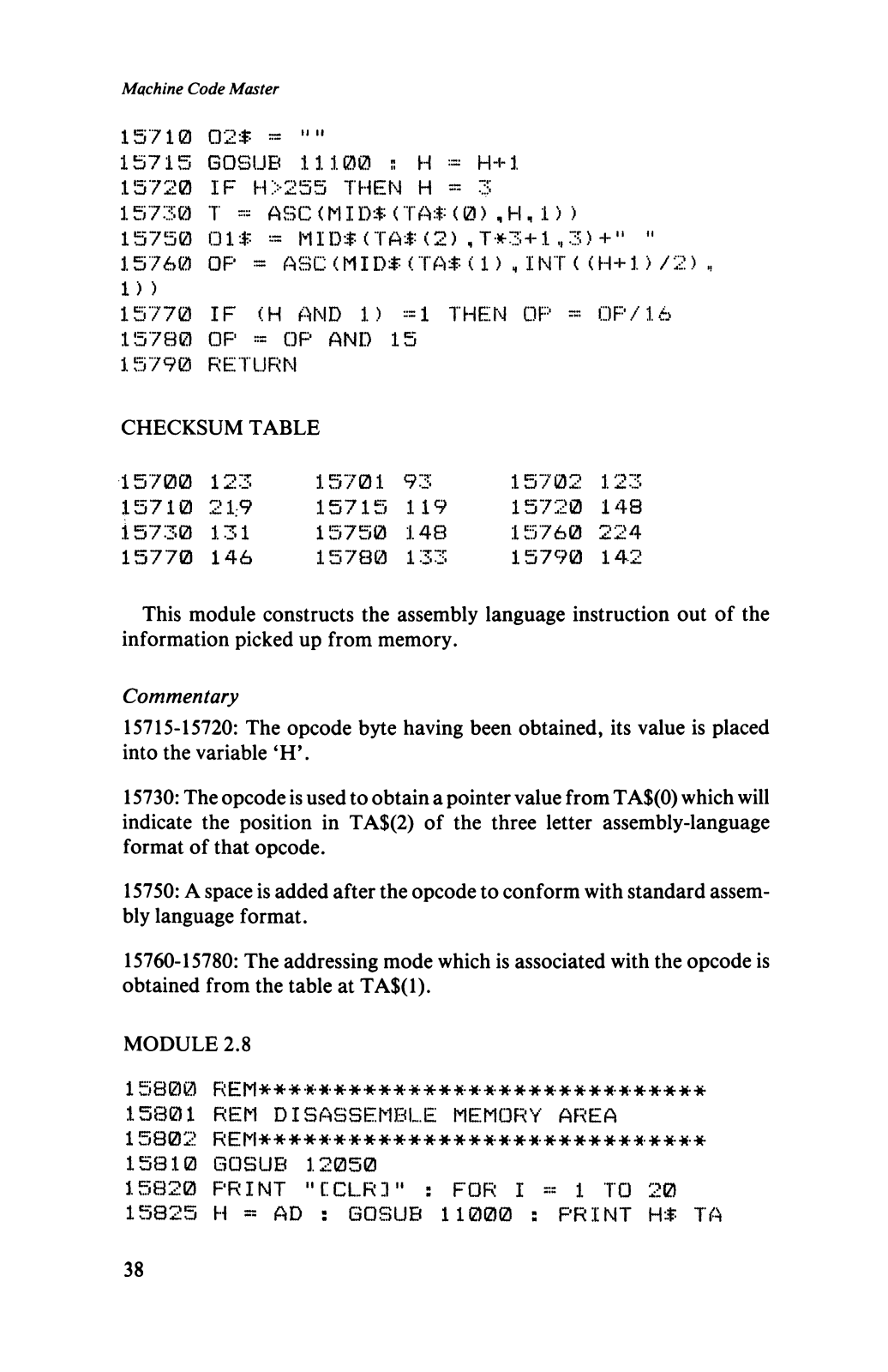

Machine Code Master

15710 02$ = ""

15715 GOSUB 11100 t H = H+l

15720 IF H >255 THEN H = 3

15730 T = AS C(M I D$ (T A T (0),H ,1))

15750 O 1$ = MI D$ (T A T (2),T * 3 +1,3)+" "
15760 OP = A SC (MI D$ < T AT (1) , IN T ((H + 1)/2) ,

1) )
15770 IF (H AND 1) ==1 THEN OP = OP / 16
15780 OP = OP AND 15
15790 RETURN

CHECKSUM TABLE

15700 123 15701 93
15710
15730

15770

This module constructs the assembly language instruction out of the

information picked up from memory.

Commentary

15715-15720: The opcode byte having been obtained, its value is placed

into the variable ‘H’.

15730: The opcode is used to obtain a pointer value from TA$(0) which will
indicate the position in TA$(2) of the three letter assembly-language
format of that opcode.

15750: A space is added after the opcode to conform with standard assem
bly language format.

15760-15780: The addressing mode which is associated with the opcode is
obtained from the table at TA$(1).

MODULE 2.8

21;9

131
146 15780 133

15715 119
15750 148

15702
15720

123

148
15760 224
15790

142

15800 REM***** *** *** **** *** ******* **** *
15801 REM DI SASSEMB LE MEMORY AREA
15802 REM***** *** *** **** *** ******* **** *
15810 GOSUB 12050
15820 PRINT "CCLR]" : FOR I - 1 TO 20
15825 H « AD : GOSUB 11000 : PRINT H$ TA

38

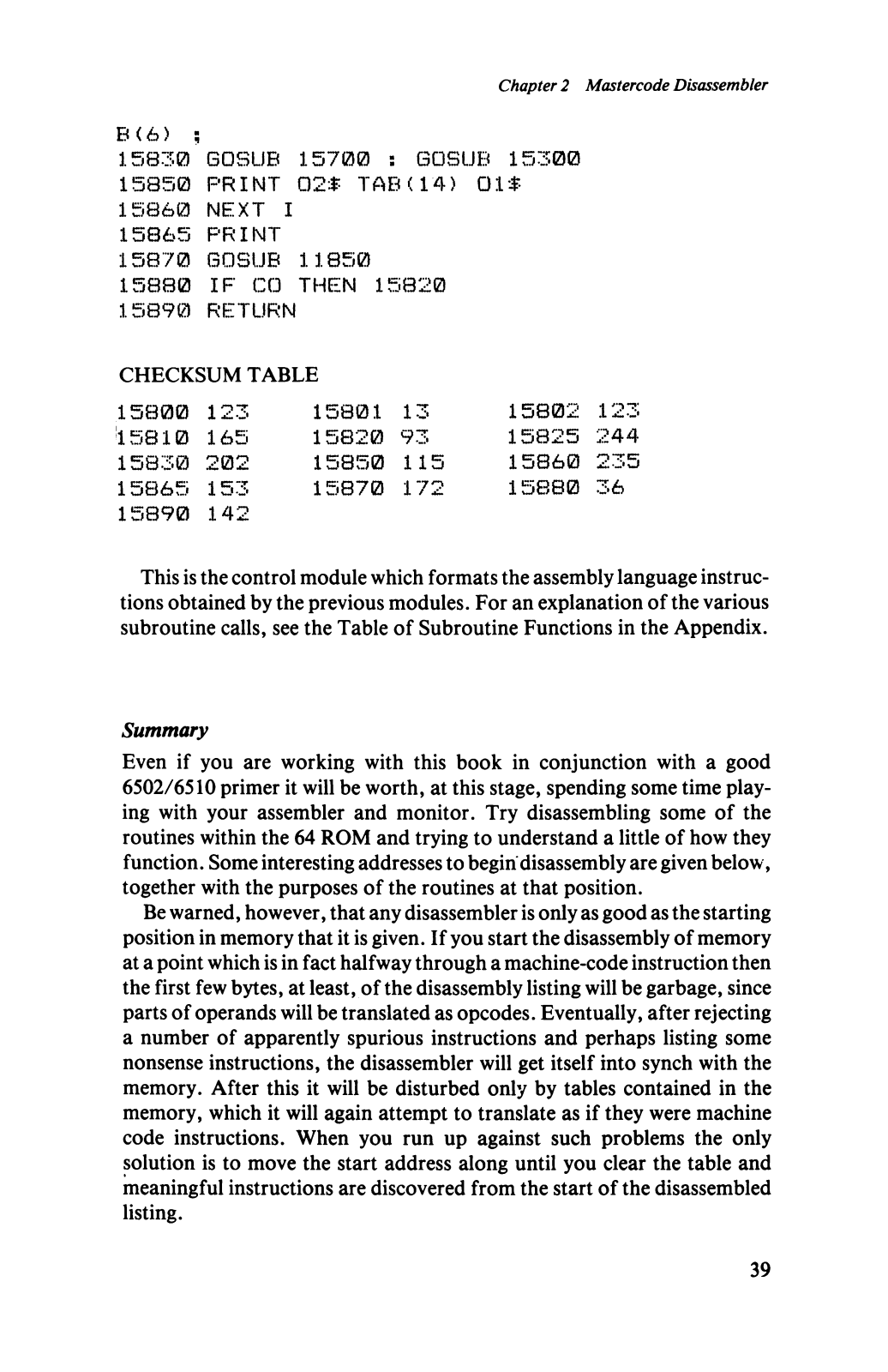

Chapter 2 Mastercode Disassembler

B (6) ;

15830 GDSUB 15700 : GOSUB 15300

15850 PRINT 02# T A B (14) 01$

15860 NEXT I

15865 PRIN T

15870 GOSUB 11850

15880 IF CO THEN 15820
15890 RETURN

CHECKSUM TABLE

15800 123

15801 13

15810 165 15820 93

15830 202
15865 153

15850 115
15870 172

15802
15825
15860
15880

123
244
235
36

15890 142

This is the control module which formats the assembly language instruc
tions obtained by the previous modules. For an explanation of the various
subroutine calls, see the Table of Subroutine Functions in the Appendix.

Summary

Even if you are working with this book in conjunction with a good
6502/6510 primer it will be worth, at this stage, spending some time play
ing with your assembler and monitor. Try disassembling some of the
routines within the 64 ROM and trying to understand a little of how they

function. Some interesting addresses to begin disassembly are given below,

together with the purposes of the routines at that position.

Be warned, however, that any disassembler is only as good as the starting
position in memory that it is given. If you start the disassembly of memory
at a point which is in fact halfway through a machine-code instruction then
the first few bytes, at least, of the disassembly listing will be garbage, since
parts of operands will be translated as opcodes. Eventually, after rejecting
a number of apparently spurious instructions and perhaps listing some
nonsense instructions, the disassembler will get itself into synch with the

memory. After this it will be disturbed only by tables contained in the
memory, which it will again attempt to translate as if they were machine
code instructions. When you run up against such problems the only

solution is to move the start address along until you clear the table and
meaningful instructions are discovered from the start of the disassembled
listing.

39

Machine Code Master

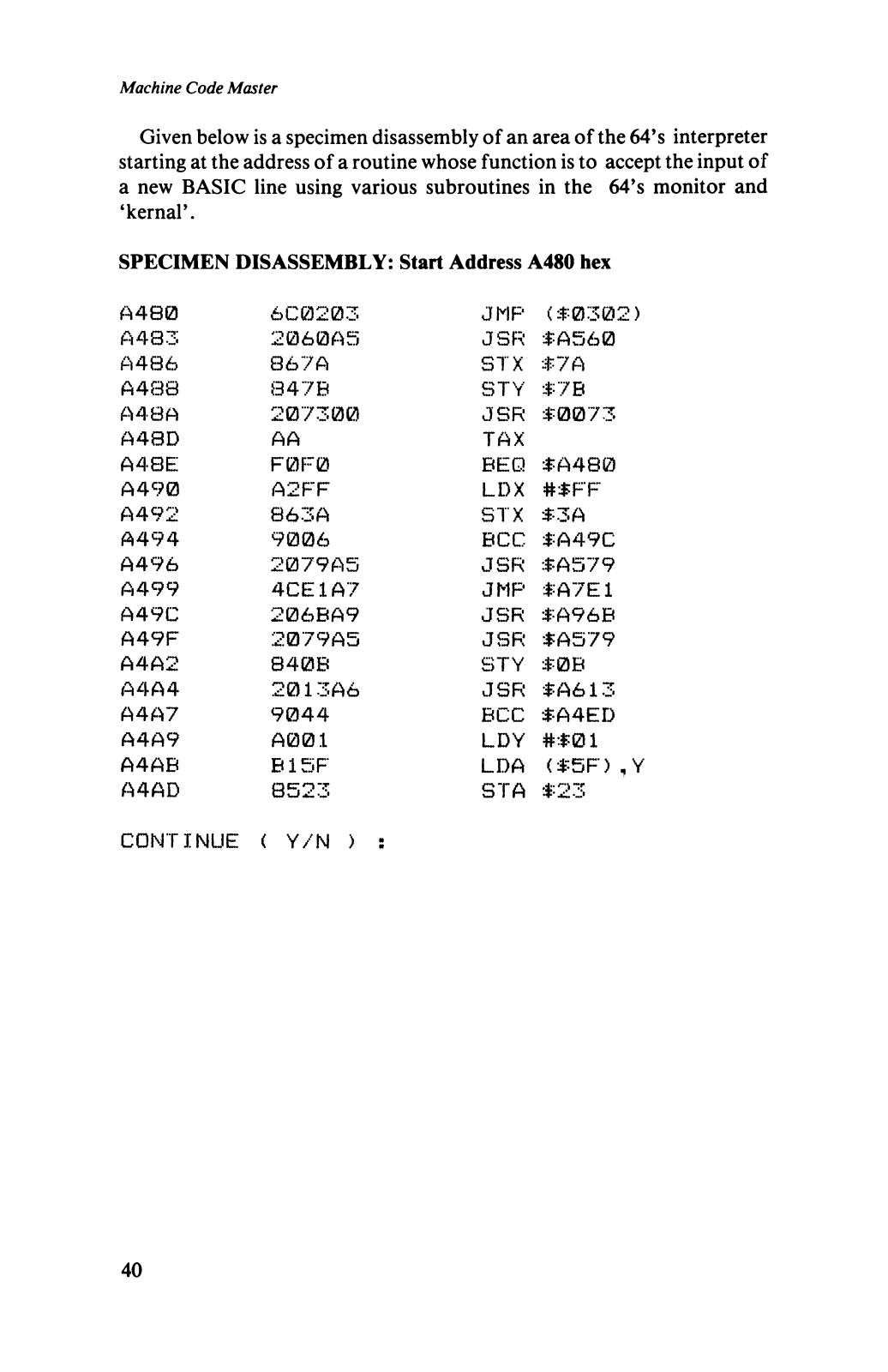

Given below is a specimen disassembly of an area of the 64’s interpreter
starting at the address of a routine whose function is to accept the input of
a new BASIC line using various subroutines in the 64’s monitor and

‘kernal\

SPECIMEN DISASSEMBLY: Start Address A480 hex

A480
A483

6C0203 JMP

2060A5 JSR
A486 867A
A488

847B
A48A 207300
A48D

AA

SIX- *7 A
STY *7B
JSR

TAX

(*0302)

*A560

*0073

A48E F0F0 BEQ *A480
A490 A2FF

LDX #*FF
A492 863A SIX *3A
A494
A496
A499
A49C
A49F
A4A2
A4A4
A4A7

A4A9

A4AB

A4AD

9006 BCC *A49C
2079A5 JSR

*A579
4CE1A7 JMP *A7E1
206BA9 JSR

*A96B
2079A5 JSR *A5'79
840B STY *0B
2013A6 JSR *A613
9044 BCC *A4ED
A001
B15F
8523

LDY #*01
LDA

(* 5F ),Y

STA *23

CON TINUE ( Y/N ) :

40

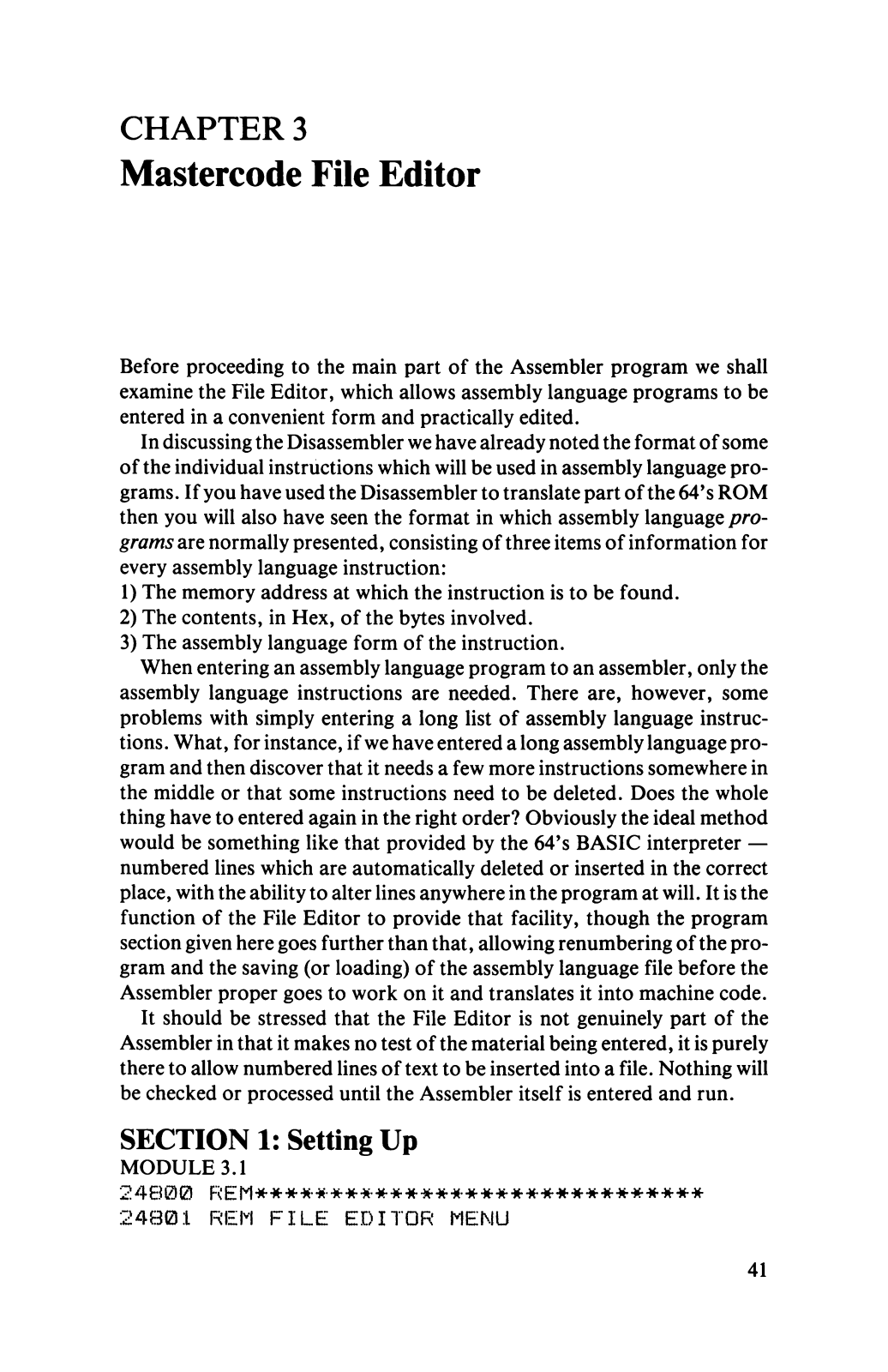

CHAPTER 3

Mastercode File Editor

Before proceeding to the main part of the Assembler program we shall
examine the File Editor, which allows assembly language programs to be
entered in a convenient form and practically edited.

In discussing the Disassembler we have already noted the format of some
of the individual instructions which will be used in assembly language pro
grams. If you have used the Disassembler to translate part of the 64’s ROM
then you will also have seen the format in which assembly language pro

grams are normally presented, consisting of three items of information for

every assembly language instruction:

1) The memory address at which the instruction is to be found.

2) The contents, in Hex, of the bytes involved.

3) The assembly language form of the instruction.

When entering an assembly language program to an assembler, only the
assembly language instructions are needed. There are, however, some
problems with simply entering a long list of assembly language instruc
tions. What, for instance, if we have entered a long assembly language pro
gram and then discover that it needs a few more instructions somewhere in
the middle or that some instructions need to be deleted. Does the whole
thing have to entered again in the right order? Obviously the ideal method
would be something like that provided by the 64’s BASIC interpreter —
numbered lines which are automatically deleted or inserted in the correct
place, with the ability to alter lines anywhere in the program at will. It is the
function of the File Editor to provide that facility, though the program
section given here goes further than that, allowing renumbering of the pro
gram and the saving (or loading) of the assembly language file before the
Assembler proper goes to work on it and translates it into machine code.

It should be stressed that the File Editor is not genuinely part of the
Assembler in that it makes no test of the material being entered, it is purely
there to allow numbered lines of text to be inserted into a file. Nothing will
be checked or processed until the Assembler itself is entered and run.

SECTION 1: Setting Up

MODULE 3.1

24E100 REM**********************'*-*-******

2480.1 REM FILE EDITOR MENU

41

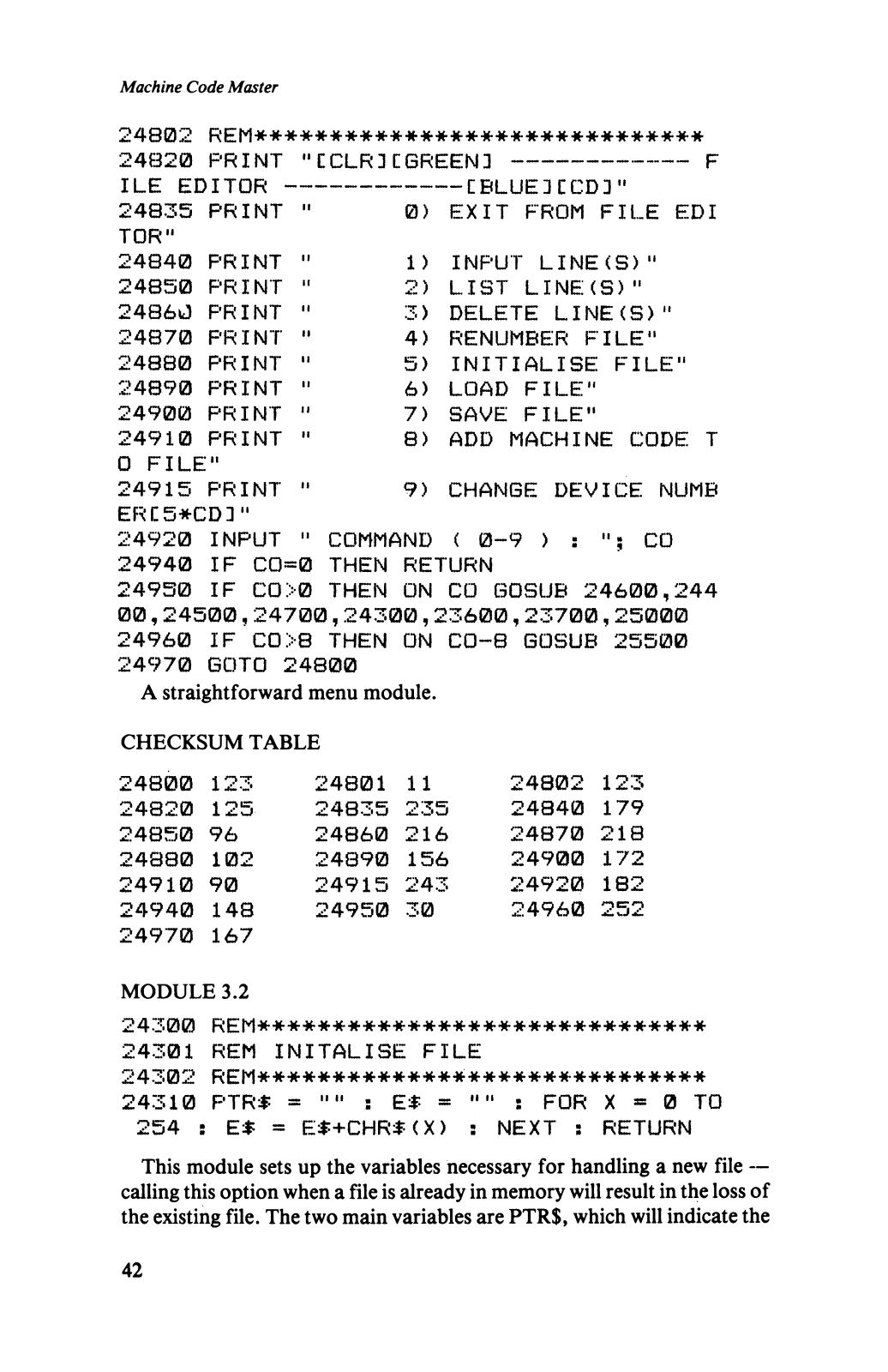

Machine Code Master

24802 RE M*** *** **** *** **** *** *** **** ***
24820 PRIN T

ILE EDITOR -

24835 PRINT

II

CCLR3 CGREEN]

II

— CB L U E3 CCD]"

0)

EXIT FROM FILE EDI

--------------

F

TOR"
24840 PRINT
24850 PRINT
24860 PRINT
24870 PRIN T
24880 PRINT
24890 PRINT
24900 PRIN T
24910 PRINT

II

II

II

II

II

II

II

II

1) INPUT LI NE(S>"
LIST LINE(S)"

2)
DELETE LI N E ( S > "

3)

4) REN UMBER FILE"

5)

INITIALISE FILE"

6) LOAD FILE"

7)

SAVE FILE"

8)

ADD MA CHINE CODE T

0 FILE"
24915 PRINT

II

9)

CHANGE DEVICE NUMB

ERC5*CD]“

24920 INPUT

II

COMMAND ( 0-9 ) : CO

24940 IF CO=0 THEN RETU RN

24950 IF CO>0 THEN ON CO GOSUB 24600,24 4

00 ,245 0 0,24 7 00, 243 00,2 360 0,23 700 ,250 00

24960 IF C O >8 THEN ON CO-8 GOSUB 25500

24970 GOTO 24800

A straightforward menu module.

CHECKSUM TABLE

248 00 123 24801

24820 125 24835
24850 96 24860
24880 102
24910
24940
24970

MODULE 3.2

90 24915 243

148
167

24890 156

24950

11
235
216

30

24802 123

24840

179

24870 218

24900

172

24920 182

24960 252

24300 REM **** *** ******* **** *** **** *** **
24301 REM INITALISE FILE
24302 REM* **** **** *** *** **** *** **** *** *
24310 PTR* = 11" : E$ = "" : FOR X - 0 TO

254 : E* = E$+CHR*(X> : NEXT s RE TU RN

This module sets up the variables necessary for handling a new file —
calling this option when a file is already in memory will result in the loss of
the existing file. The two main variables are PTR$, which will indicate the

42

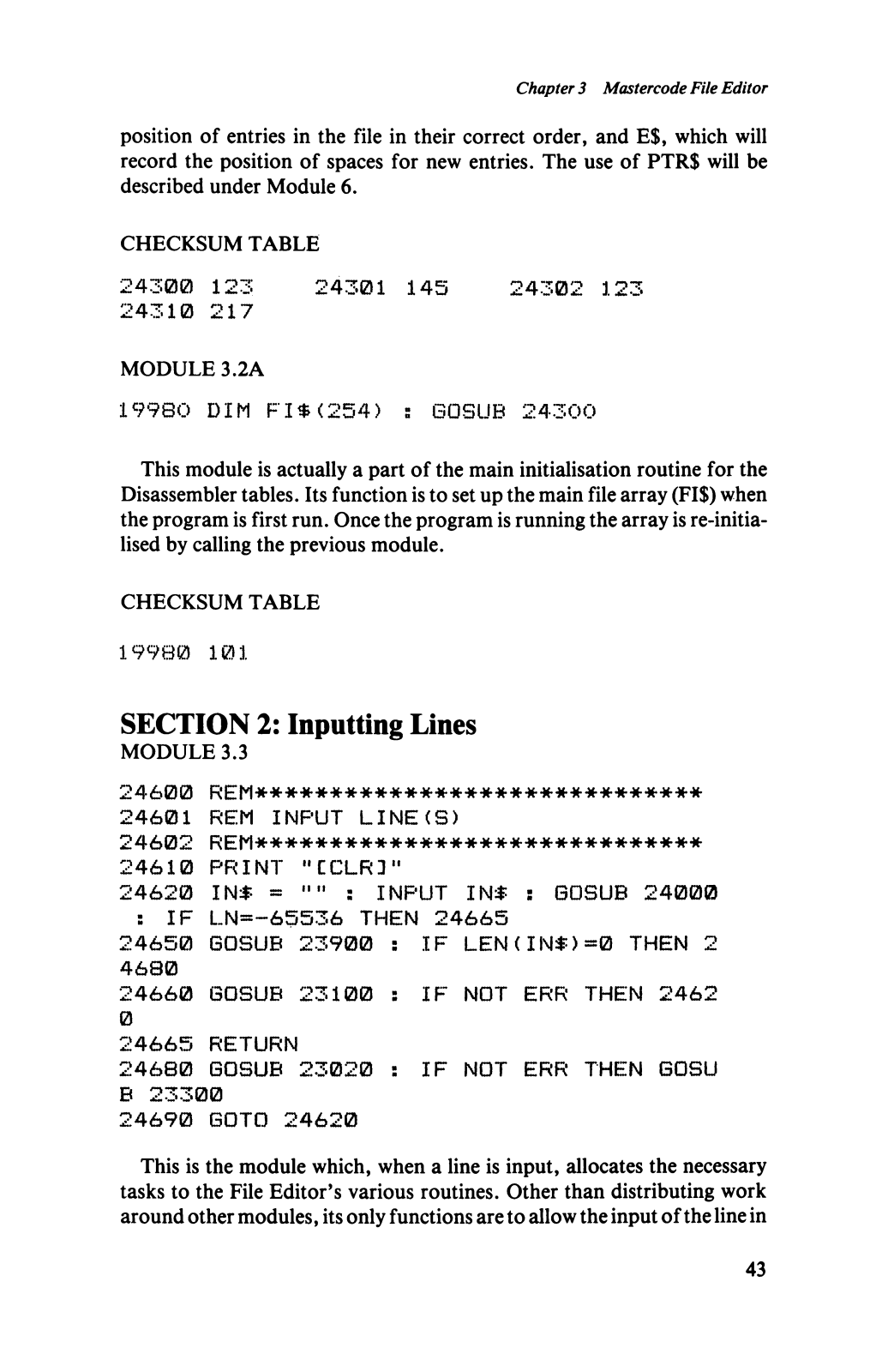

Chapter 3 Mastercode File Editor

position of entries in the file in their correct order, and E$, which will
record the position of spaces for new entries. The use of PTR$ will be
described under Module 6.

CHECKSUM TABLE

24300 123 24301 145 24302 123
24310 217

MODULE 3.2A

19980 DIM F I* <254) s GOSUB 2430 0

This module is actually a part of the main initialisation routine for the
Disassembler tables. Its function is to set up the main file array (FIS) when
the program is first run. Once the program is running the array is re-initia
lised by calling the previous module.

CHECKSUM TABLE

19980 101

SECTION 2: Inputting Lines

MODULE 3.3

24600 REM *** ********* *** **** *** *** **** *
24601 REM INPUT LINE(S)
24602 RE M** *** ****** *** ****** *** ****** *
24610 PRIN T " CCLR3 11
24620 IN* = "" : INPUT IN* : BOSUB 24000

: IF L„N=-65536 THEN 24665
24650 GOSUB 23900 : IF LEN(I N*)=0 THEN 2
4680
24660 GOSUB 23100 : IF NOT ERR THEN 2462

0

24665 RETU RN
24680 GOSUB 23020 : IF NOT ERR THEN GOSU
B 23300
24690 GOTO 24620

This is the module which, when a line is input, allocates the necessary
tasks to the File Editor’s various routines. Other than distributing work
around other modules, its only functions are to allow the input of the line in

43

Machine Code Master

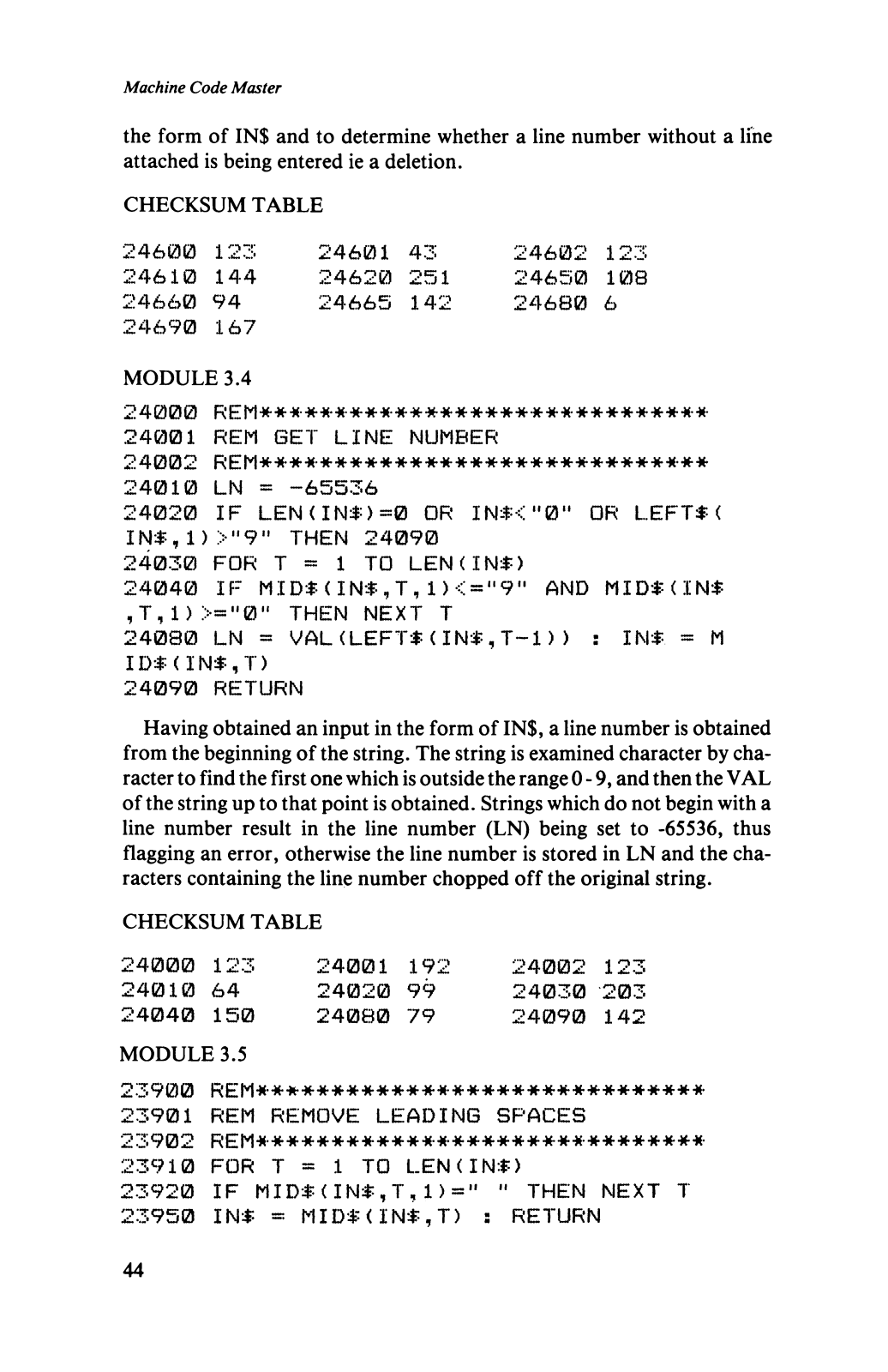

the form of IN$ and to determine whether a line number without a line
attached is being entered ie a deletion.

CHECKSUM TABLE

24600 123
24610 144

24660 94

24601 43
24620 251
24665 142

24602 123
24650 108
24680 6

24690 167

MODULE 3.4

24000 REM****************** -************
24001 REM GET LINE NUMBER
24002 REM* **** **** *** *** **** *** **** *** *
24010 LN = -65536
24020 IF L E N (IN#)=0 OR IN#<"0" OR LE FT # (

IN # , 1)>"9" THEN 24090
24030 FOR T = 1 TO LEN(IN#)
24040 IF M ID # (IN#,T ,1)< = "9" AND MID#(IN#

,T ,1)>="0" THEN NEXT T
24080 LN = VA L (L E F T # (IN#,T - l)) : IN# * M

I D# <1N #,T )

24090 RETURN

Having obtained an input in the form of INS, a line number is obtained
from the beginning of the string. The string is examined character by cha
racter to find the first one which is outside the range 0-9, and then the VAL

of the string up to that point is obtained. Strings which do not begin with a
line number result in the line number (LN) being set to -65536, thus

flagging an error, otherwise the line number is stored in LN and the cha

racters containing the line number chopped off the original string.

CHECKSUM TABLE

24000 123 24001 192 24 00 2 123
24010 64 24020 99 2403 0 203
24040 150 24080 79 2409 0 142

MODULE 3.5

23900 REM** *** **** *** **** *** **** *** *** *

23901 REM REMOVE LEADIN G SPAC ES
23902 REM**** *** **** *** **** *** **** *** **
23910 FOR T = 1 TO LEN(IN#)

23920 IF M I D #(I N # ,T ,1)=" " THEN NEXT 7

23950 IN# = M I D# (IN #,T ) : RETURN

44

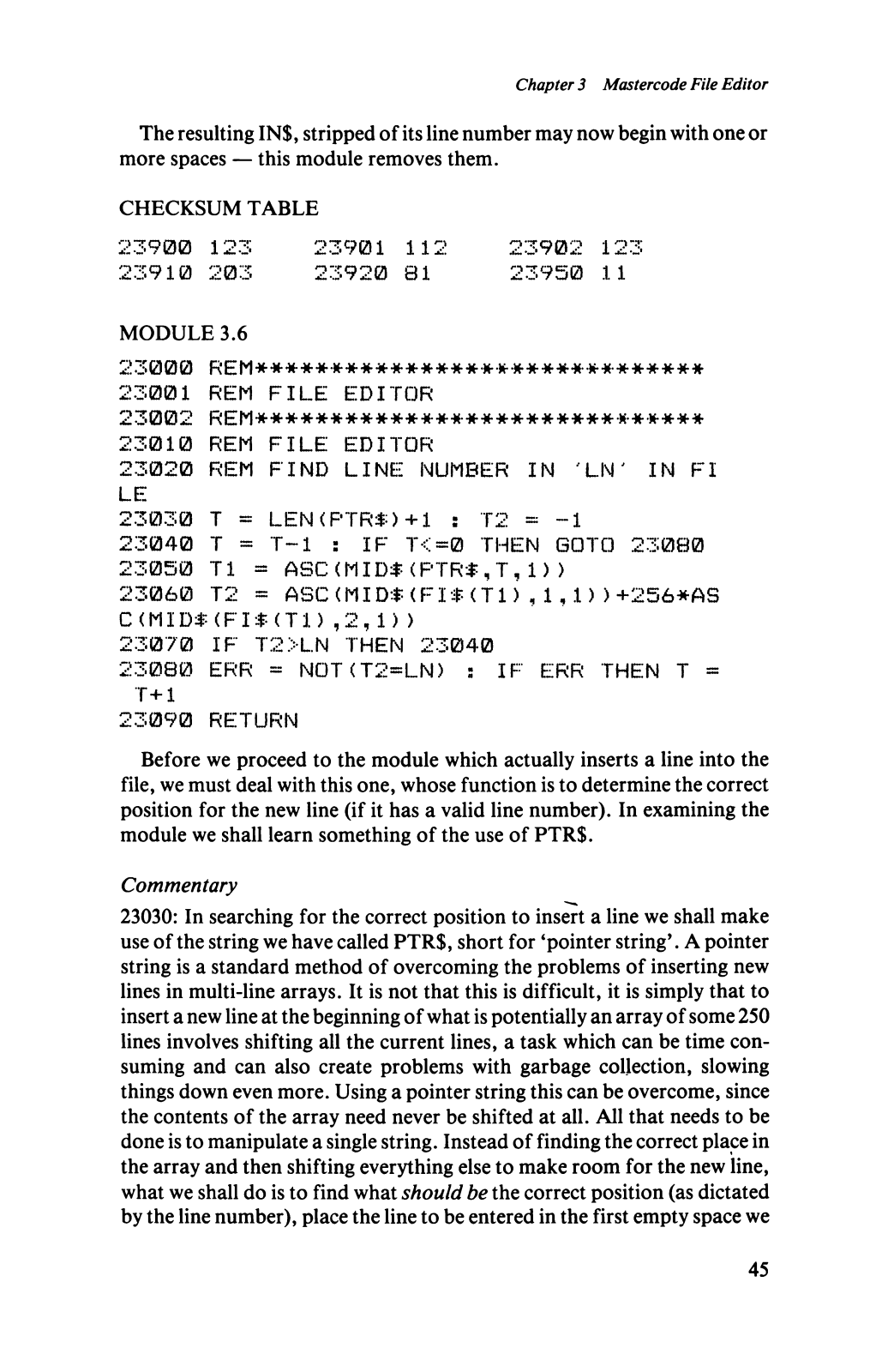

Chapter 3 Mastercode File Editor

The resulting INS, stripped of its line number may now begin with one or

more spaces — this module removes them.

CHECKSUM TABLE

23900 123 23901 112 23902 123
23910 203 23920 81 23950 11

MODULE 3.6

2131000 REM ******* ******* **** *** ******* **

23001 REM FILE EDITOR

23002 REM* **** **** *** *** **** *** **** *** *

23010 REM FILE EDITOR

23020 REM FIND LINE NUM BER IN 'LN' IN FI

LE

23030 T = LEN <PTR4;) +1 : T2 = -1

23040 T = T-l : IF T<=0 THEN GOTO 23080

23050 T 1 = ASC(MI D * (PTR$,T , 1 )>
23060 T2 = AS C(M I D$ (FI$ ( T 1),1,1) )+256*AS
C< MID$(F I $ ( T 1 > ,2,1))
23070 IF T2>L.N THEN 23040
23080 ERR » NOT(T2=LN) : IF ERR THEN T =

T+l

23090 RETURN

Before we proceed to the module which actually inserts a line into the
file, we must deal with this one, whose function is to determine the correct
position for the new line (if it has a valid line number). In examining the
module we shall learn something of the use of PTR$.

Commentary

23030: In searching for the correct position to insert a line we shall make
use of the string we have called PTR$, short for ‘pointer string’. A pointer
string is a standard method of overcoming the problems of inserting new
lines in multi-line arrays. It is not that this is difficult, it is simply that to
insert a new line at the beginning of what is potentially an array of some 250
lines involves shifting all the current lines, a task which can be time con
suming and can also create problems with garbage collection, slowing
things down even more. Using a pointer string this can be overcome, since
the contents of the array need never be shifted at all. All that needs to be
done is to manipulate a single string. Instead of finding the correct place in
the array and then shifting everything else to make room for the new line,

what we shall do is to find what should be the correct position (as dictated

by the line number), place the line to be entered in the first empty space we

45

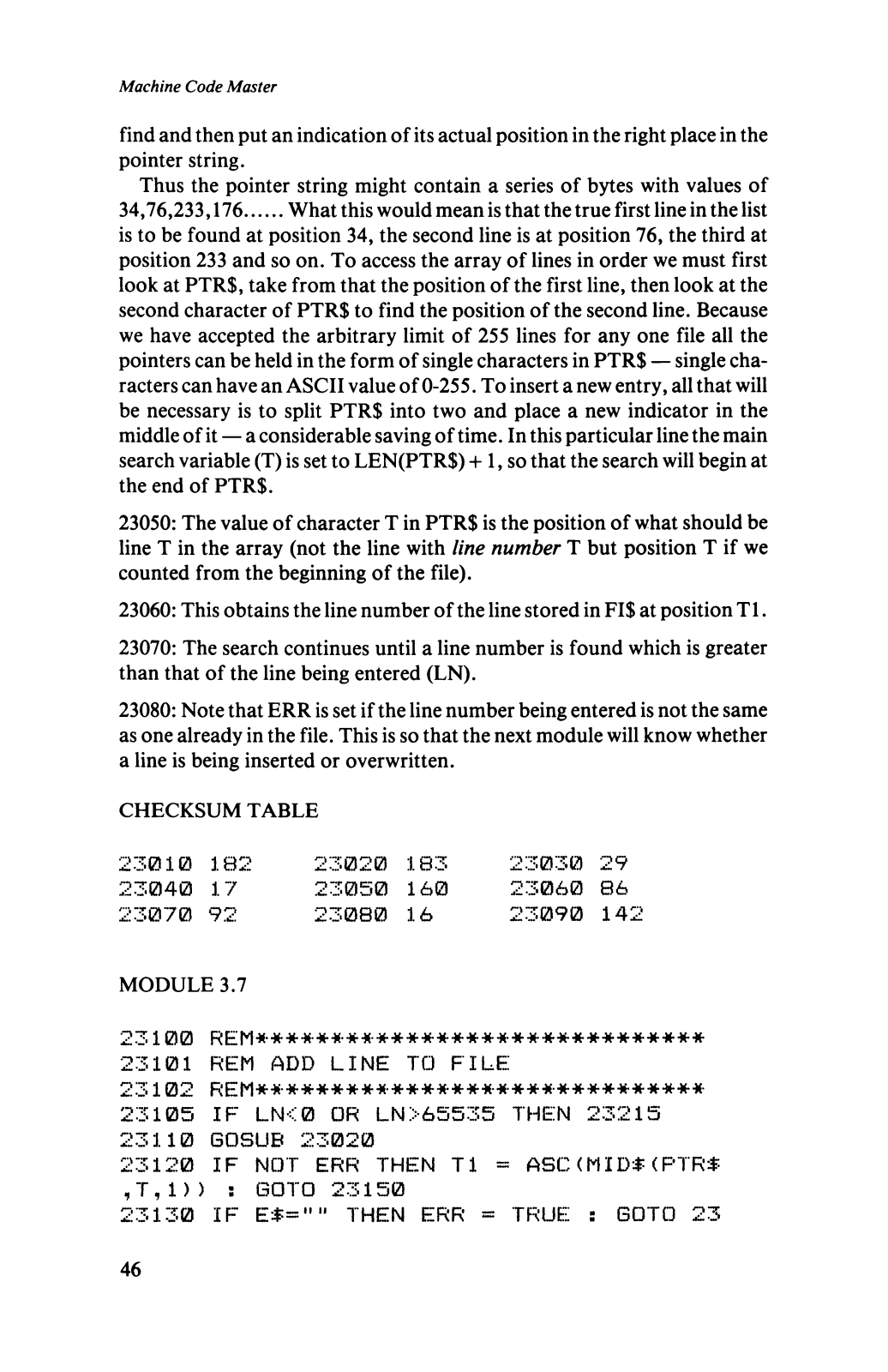

Machine Code Master

find and then put an indication of its actual position in the right place in the

pointer string.

Thus the pointer string might contain a series of bytes with values of
34,76,233,176
is to be found at position 34, the second line is at position 76, the third at
position 233 and so on. To access the array of lines in order we must first
look at PTR$, take from that the position of the first line, then look at the
second character of PTR$ to find the position of the second line. Because
we have accepted the arbitrary limit of 255 lines for any one file all the
pointers can be held in the form of single characters in PTR$ — single cha
racters can have an ASCII value of 0-255. To insert a new entry, all that will
be necessary is to split PTR$ into two and place a new indicator in the
middle of it — a considerable saving of time. In this particular line the main
search variable (T) is set to LEN(PTR$) + 1, so that the search will begin at
the end of PTR$.

23050: The value of character T in PTR$ is the position of what should be
line T in the array (not the line with line number T but position T if we
counted from the beginning of the file).

23060: This obtains the line number of the line stored in FIS at position T1.
23070: The search continues until a line number is found which is greater

than that of the line being entered (LN).

.......

What this would mean is that the true first line in the list

23080: Note that ERR is set if the line number being entered is not the same
as one already in the file. This is so that the next module will know whether
a line is being inserted or overwritten.

CHECKSUM TABLE

;0i0 182
1040 17
;070 92

MODULE 3.7

23020 3.83
23050 160
23080

16

23030 29
23060
23090

86

142

23100 REM* **** *** *** **** *** **** *** **** *
23101 REM ADD LINE TO FILE
23102 REM **** *** **** *** **** *** **** *** **
23105 IF LN<0 OR L N>65535 THEN 23215
23110 GOSUB 2302 0
23120 IF NOT ERR THEN T1 = ASC(MID *(P TR*

,T, 1) ) s GOTO 23150

23130 IF E *= ,,H THEN ERR = TRUE s GOTO 23

46

Chapter 3 Mastercode File Editor

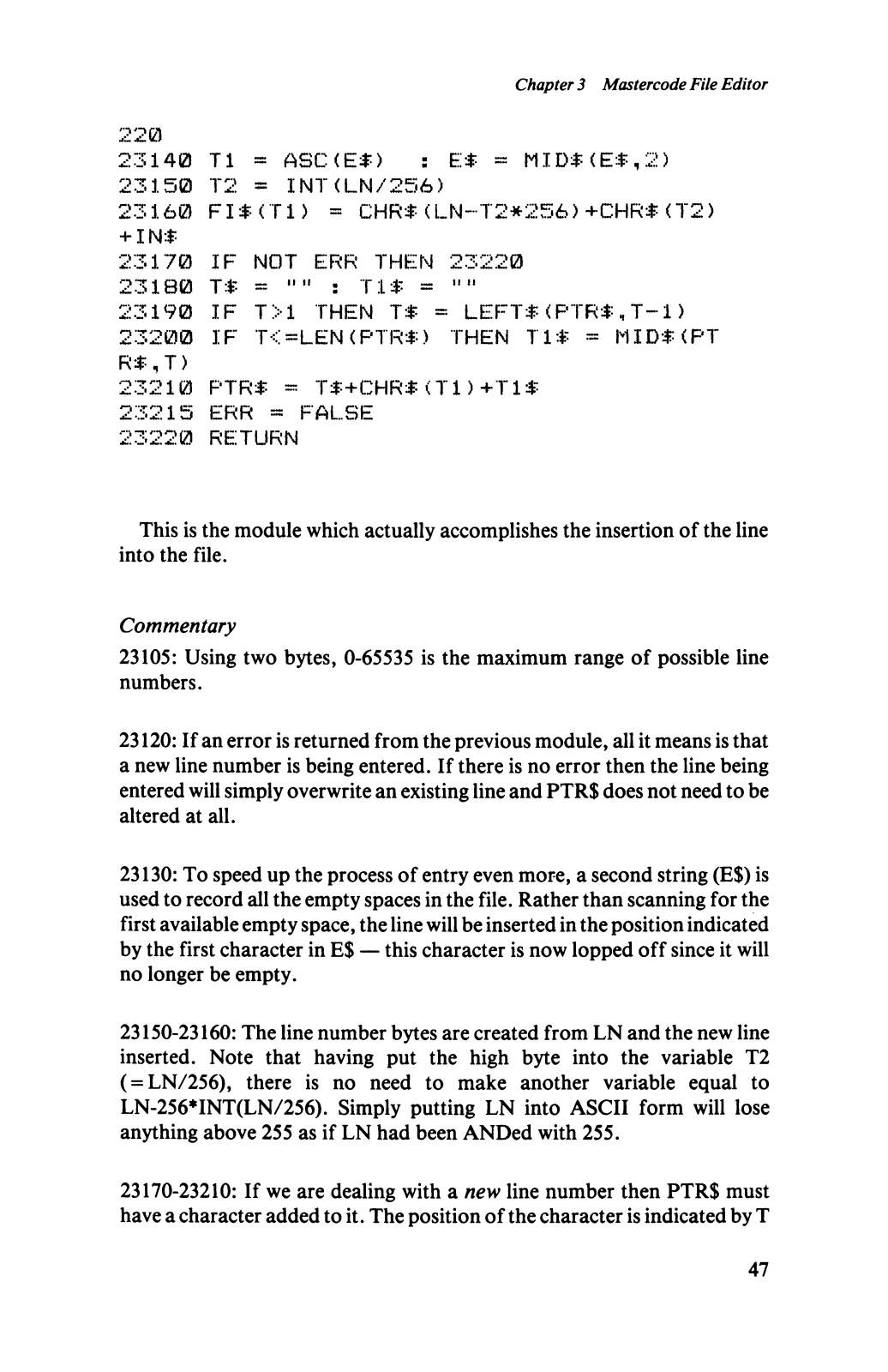

220

23140 T 1 = ASC(E*> : E* = MID*(E*,2)
23150 T2 = INT(LN/256)
23160 FI*<T1> - CHR$(LN- T2*256)+C HR*<T2>

+ IN *

23170 IF NOT ERR THEN 23220

23180 T* = "" : Tl$ =

23190 IF T >1 THEN T* = LE F T * (PT R * ,T- l )

23200 IF T O L E N (PTR-T) THEN 71* = MID*(PT
R * , T )
23210 PTR* = T*+C H R * ( T 1)+T1*

23215 ERR = FALSE

23220 RETURN

This is the module which actually accomplishes the insertion of the line

into the file.

Commentary

23105: Using two bytes, 0-65535 is the maximum range of possible line

numbers.

23120: If an error is returned from the previous module, all it means is that

a new line number is being entered. If there is no error then the line being

entered will simply overwrite an existing line and PTR$ does not need to be

altered at all.

23130: To speed up the process of entry even more, a second string (E$) is

used to record all the empty spaces in the file. Rather than scanning for the

first available empty space, the line will be inserted in the position indicated

by the first character in E$ — this character is now lopped off since it will

no longer be empty.

23150-23160: The line number bytes are created from LN and the new line

inserted. Note that having put the high byte into the variable T2

( = LN/256), there is no need to make another variable equal to

LN-256*INT(LN/256). Simply putting LN into ASCII form will lose

anything above 255 as if LN had been ANDed with 255.

23170-23210: If we are dealing with a new line number then PTR$ must

have a character added to it. The position of the character is indicated by T

47

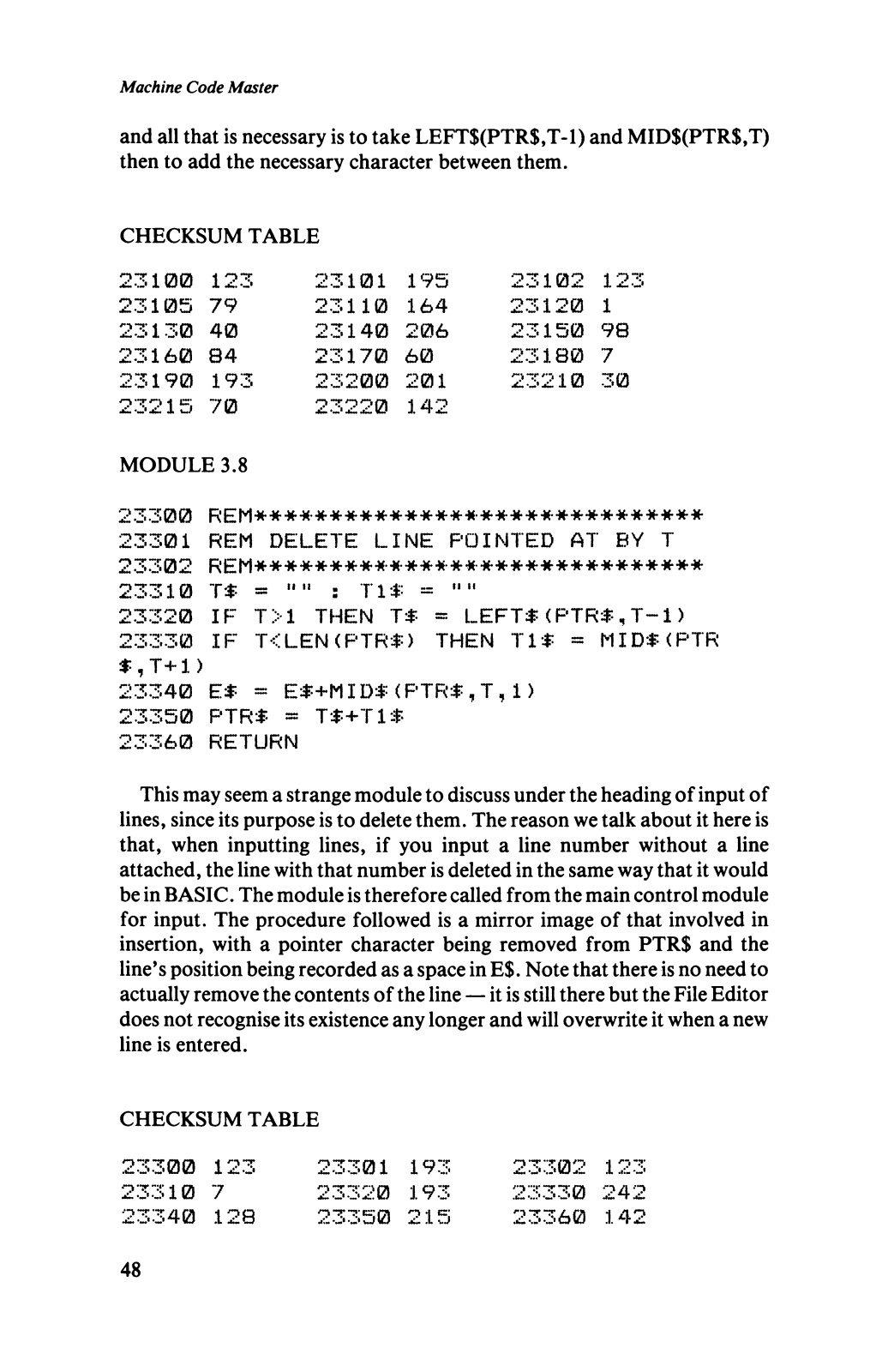

Machine Code Master

and all that is necessary is to take LEFT$(PTR$,T-1) and MID$(PTR$,T)

then to add the necessary character between them.

CHECKSUM TABLE

;i00 123 23101 195 23102 12

105 79

23110

130 40 23140 206 23150

164 23120 1

98

160 84 23170 60 23180 7

;i90 193 23200 201 23210

215 70

MODULE 3.8

23220 142

30

23300 REM******************************
23301 REM DELETE LINE POINTED AT BY T
23302 REM******************************
23310 T* « ,,H : Tl* = " “
23320 IF T>1 THEN T$ = LEFT*(PTR*,T-l)
23330 IF T<LEN<PTR*> THEN Tl* - MID*(PTR
$,T+1>
23340 ES = E$+MID*<PTR$,T,1>
23350 PTR* * T*+T1*
23360 RETURN

This may seem a strange module to discuss under the heading of input of
lines, since its purpose is to delete them. The reason we talk about it here is
that, when inputting lines, if you input a line number without a line
attached, the line with that number is deleted in the same way that it would
be in BASIC. The module is therefore called from the main control module
for input. The procedure followed is a mirror image of that involved in
insertion, with a pointer character being removed from PTR$ and the
line’s position being recorded as a space in E$. Note that there is no need to
actually remove the contents of the line — it is still there but the File Editor
does not recognise its existence any longer and will overwrite it when a new
line is entered.

CHECKSUM TABLE

2

00 123 23301

10 7 23320

40 128 23350

193 23302
193

215

23330 242
23360

123

142

48

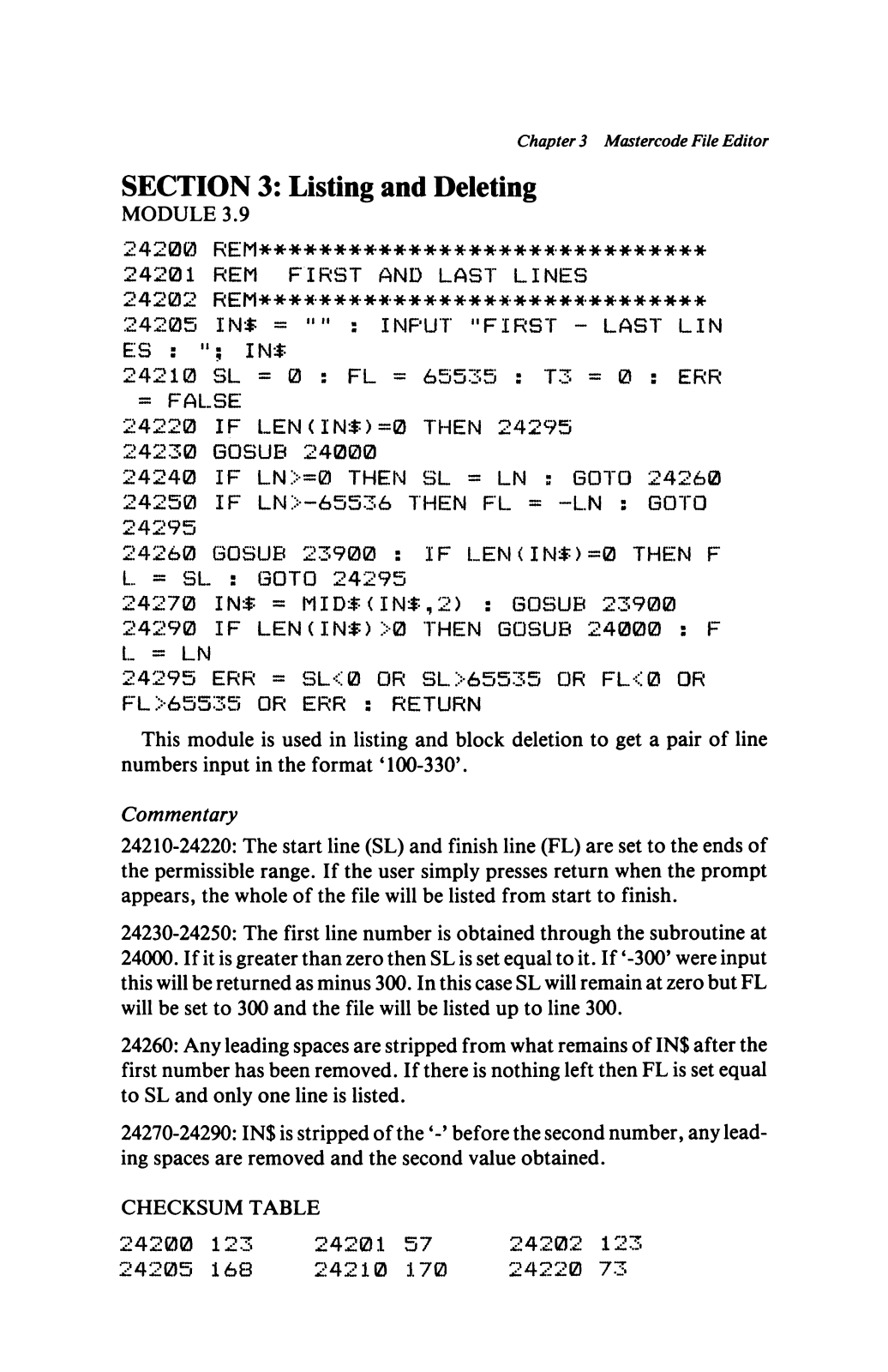

Chapter 3 Mastercode File Editor

SECTION 3: Listing and Deleting

MODULE 3.9

24200 REM *** ********* *** **** *** ******* *
24201 REM FIRST AND LAST LINES
24202 REM** *** *** **** *** **** *** **** *** *
24205 IN* = "" : INPUT "FIRST - LAST LIN
ES : IN*
24210 SL = 0 : FL = 65535 : T3 = 0 : ERR

= FALS E
24220 IF L E N (IN *)=0 THEN 2429 5
24230 GOSUB 24000

24240 IF LN>=0 THEN SL = LN : GOTO 24260

24250 IF L N>-65536 THEN FL = -L.N : GOTO

24295
24260 GOSU B 23900 : IF LEN(IN*) =0 THEN F

L- ■ SL : GOTO 24295

24270 IN* = MID*( IN*, 2) : GO SUB 23900

24290 IF L EN (IN*) >0 THEN GOSUB 24000 : F

L = LN
24295 ERR = SL<0 OR S L >65535 OR FL<0 OR
F L >65535 OR ERR : RETURN

This module is used in listing and block deletion to get a pair of line

numbers input in the format ‘100-330’.

Commentary

24210-24220: The start line (SL) and finish line (FL) are set to the ends of

the permissible range. If the user simply presses return when the prompt

appears, the whole of the file will be listed from start to finish.
24230-24250: The first line number is obtained through the subroutine at

24000. If it is greater than zero then SL is set equal to it. If ‘-300’ were input

this will be returned as minus 300. In this case SL will remain at zero but FL

will be set to 300 and the file will be listed up to line 300.
24260: Any leading spaces are stripped from what remains of INS after the

first number has been removed. If there is nothing left then FL is set equal
to SL and only one line is listed.

24270-24290: INS is stripped of the before the second number, any lead
ing spaces are removed and the second value obtained.

CHECKSUM TABLE

24200 123 24201 57 24202 123

24205 168 24210 170 24220 73

Machine Code Master

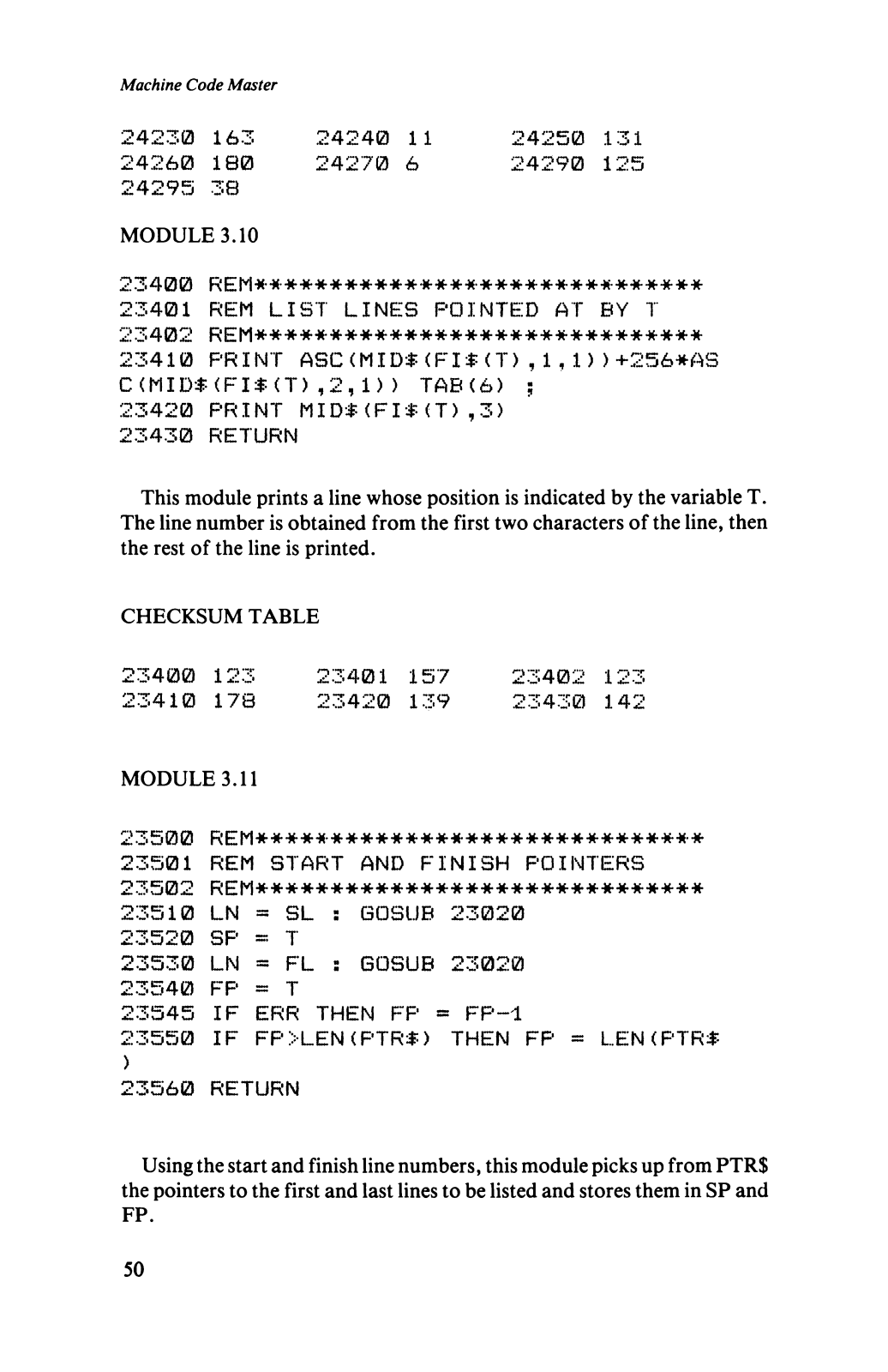

24230 163 24240 11 24250 131
24260 180 24270 6 24290 125

24295 38

MODULE 3.10

23400 REM*** *** **** *** **** *** *** **** ***
23401 REM LIST LINES POINTED AT BY T
23402 REM** *** *** **** *** **** *** **** *** *
23410 PRIN T AS C(MID$ <FI$ ( T > ,1,1))+2 56*AS
C< M I D $ ( F I *(T>,2,1)) T AB (6) ;
23420 PRINT MID*(FI#(T),3)
23430 RETURN

This module prints a line whose position is indicated by the variable T.

The line number is obtained from the first two characters of the line, then

the rest of the line is printed.

CHECKSUM TABLE

23400 123 23401 157 23402 123
23410 178 23420 139 23430 142

MO DU LE3.il

23500 REM *** *** ******* *** **** *** **** ***

23501 REM START AND FINISH POIN TERS

23502 REM *** ********* *** **** *** *** **** *

23510 LN = SL : GOSUB 23020

23520 SP = T

23530 LN = FL : GOSU B 23020

23540 FF' = T

23545 IF ERR THEN FP - FP-1
23550 IF FP>LEN(PTR$> THEN FP = LENtPTR *

)

23560 RETURN

Using the start and finish line numbers, this module picks up from PTR$
the pointers to the first and last lines to be listed and stores them in SP and
FP.

50

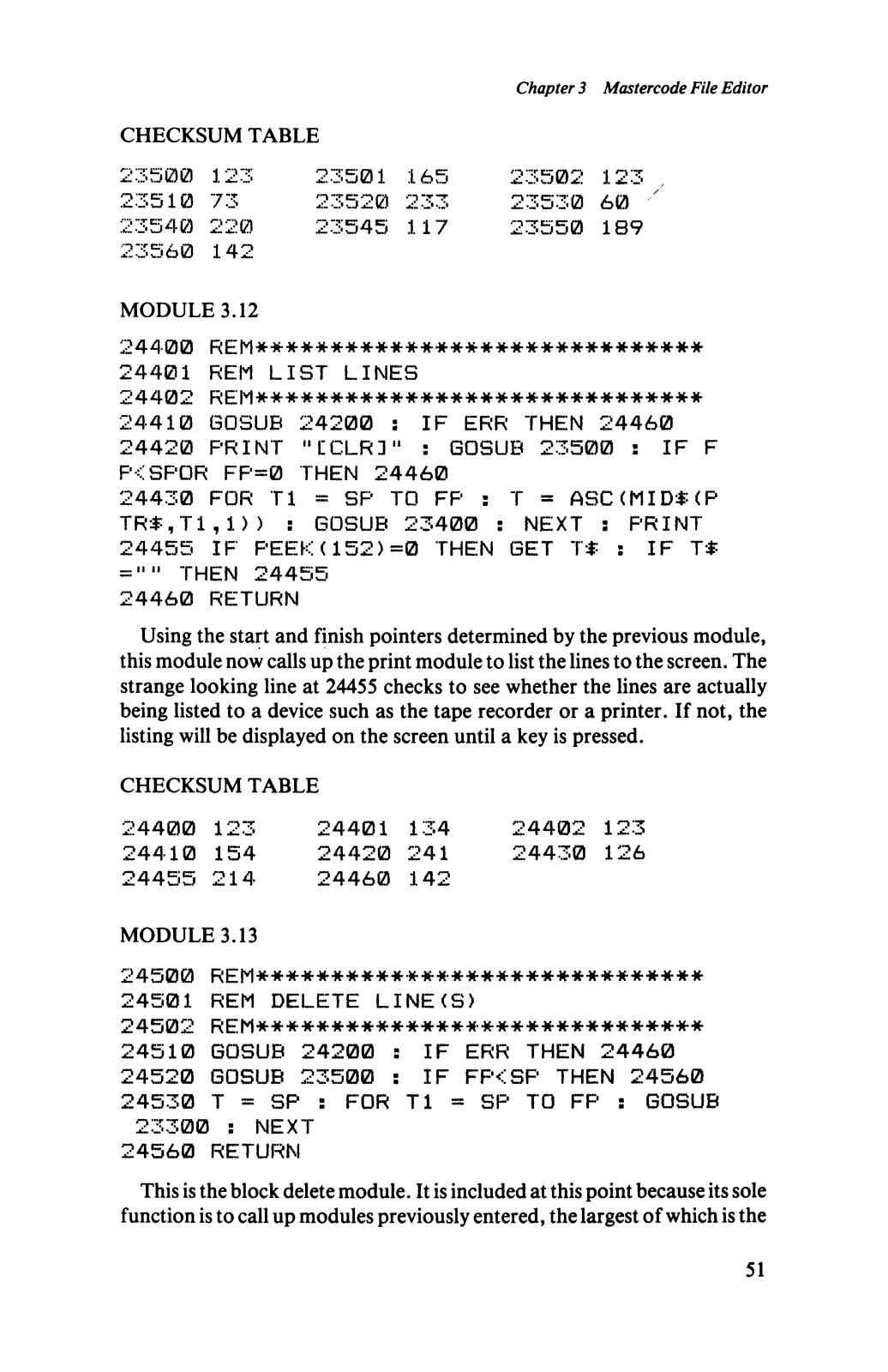

CHECKSUM TABLE

Chapter 3 Mastercode File Editor

23500 123
23510 73
23540 220

501 165

:520 233

545 117

23502 123
23530 60
23550 189

23560 142

MODULE 3.12

24400 REM *** ****** *** ******* *** **** *** *
24401 REM LIST LINES
24402 REM* *** *** *** *** *** *** *** *** *****
24410 GOSUB 24200 : IF ERR THEN 24460
24420 PRINT "CCLR3'1 : G OS UB 23500 : IF F
P< SF'OR FF'=0 THEN 24460
24430 FOR T 1 = SP TO FP : T = ASC( MI D*(P
TR $,T 1,1)) s GOSUB 23400 : NEXT s PRINT
24455 IF P EE K(152)=0 THEN GET T$ : IF T*
="" THEN 24455
24460 RETURN

Using the start and finish pointers determined by the previous module,

this module now calls up the print module to list the lines to the screen. The
strange looking line at 24455 checks to see whether the lines are actually
being listed to a device such as the tape recorder or a printer. If not, the
listing will be displayed on the screen until a key is pressed.

CHECKSUM TABLE

24400 123 24401 134 24402 123

24410 154 2442 0 241 24430 126

24455 214 24460 142

MODULE 3.13

24500 REM** ***** ******* *** **** *** **** **
24501 REM DELETE LINE(S)
24502 REM* *** *** *** *** *** *** *** *** *** **

24510 GOSUB 24200 : IF ERR THEN 24460

24520 GOSUB 23500 : IF FPCSP THEN 24560
24530 T = SP : FOR T1 = SP TO FP : GOSUB

23300 : NEXT

24560 RETU RN

This is the block delete module. It is included at this point because its sole

function is to call up modules previously entered, the largest of which is the

51

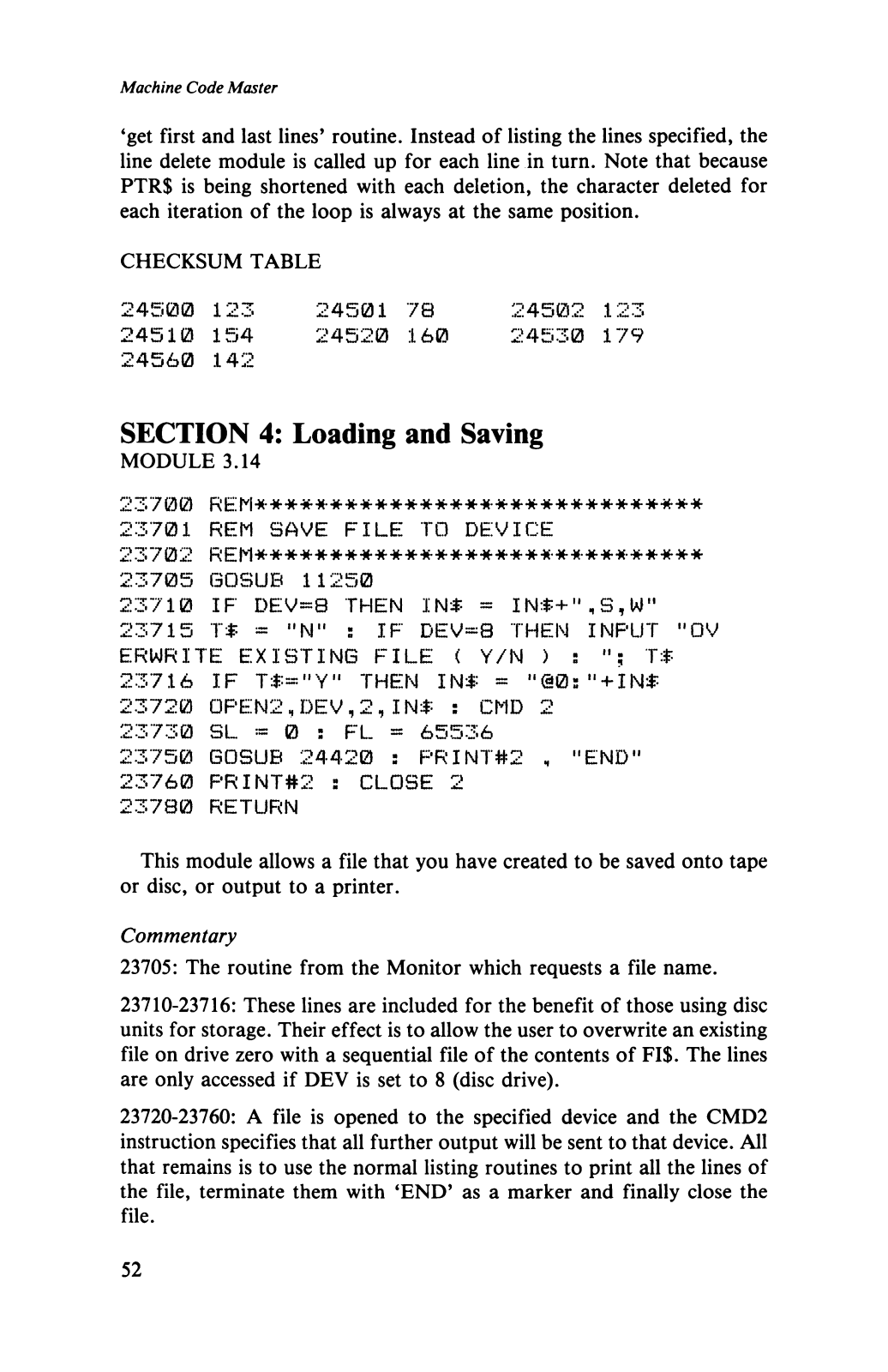

Machine Code Master

‘get first and last lines’ routine. Instead of listing the lines specified, the
line delete module is called up for each line in turn. Note that because
PTR$ is being shortened with each deletion, the character deleted for
each iteration of the loop is always at the same position.

CHECKSUM TABLE

24500 123 24501 78 24502 123
24510 154 24520 160 24 530 179

24560 142

SECTION 4: Loading and Saving

MODULE 3.14

23700 RE M******** *** **** *** ******* **** *
23701 REM SAVE FILE TO DEVICE
23702 REM***** **** *** **** **** *** *** ****
23705 GOSUB 11250
23710 IF DEV — 8 THEN IN* = I N * + " „S ,W"
23715 T* = "N" s IF DEV=8 THEN INPUT "OV
ERWRITE EXISTING FILE ( Y/N ) s "; T*
23716 IF T* — "Y M THEN IN* = "60: " + IN*
23720 0PEN2,DE V,2 ,IN* s CMD 2
23730 SL = 0 : FL. * 65536
23750 GOSUB 24420 : PRINT#2 , "END"
23760 PR INT#2 s CL OSE 2
23780 RETURN

This module allows a file that you have created to be saved onto tape

or disc, or output to a printer.

Commentary

23705: The routine from the Monitor which requests a file name.
23710-23716: These lines are included for the benefit of those using disc

units for storage. Their effect is to allow the user to overwrite an existing
file on drive zero with a sequential file of the contents of FIS. The lines
are only accessed if DEV is set to 8 (disc drive).

23720-23760: A file is opened to the specified device and the CMD2
instruction specifies that all further output will be sent to that device. All
that remains is to use the normal listing routines to print all the lines of
the file, terminate them with ‘END’ as a marker and finally close the
file.

52

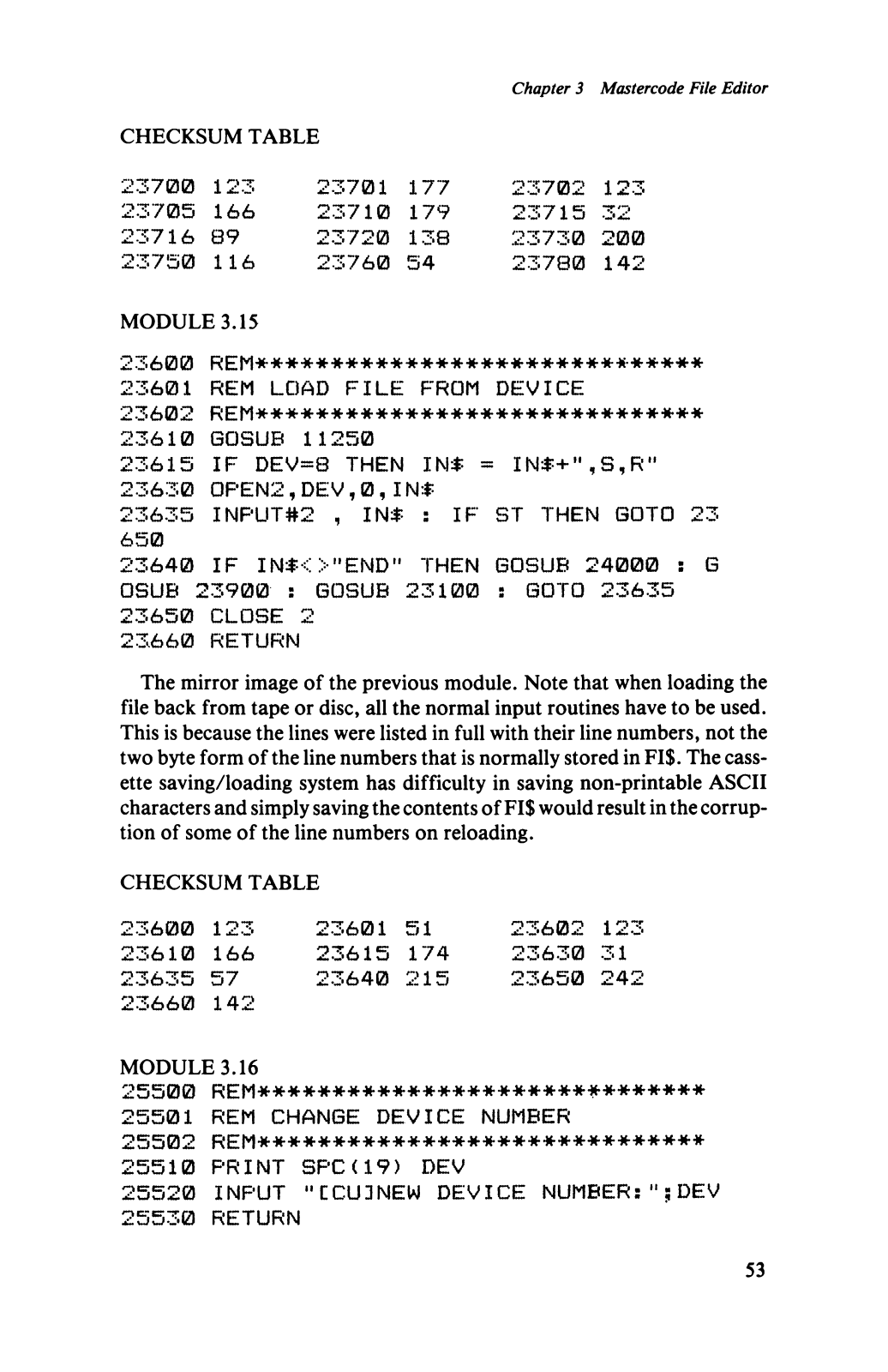

CHECKSUM TABLE

Chapter 3 Mastercode File Editor

23700
23705

23716

23750

MODULE 3.15

123
166

89

116

23701

177
23710 179
23720 138
23760 54

2-3702 123
23715
23730

TV?
200

23780 142

23600 REM* *** ********* *** **** *** **** ***
23601 REM LOAD FILE FROM DEVICE
23602 REM *** *** **** *** *** **** *** **** ***
23610 GOSUB 11250
23615 IF DEV= 8 THEN IN* = IN*+ H ,S,RH
23630 0P EN 2,D E V,0,1N$
23635 INPUT#2 , IN* : IF ST THEN GOTO 23
650
23640 IF I N *<>”END" THEN GOSU B 24000 : G
OSUB 23900 : GOSUB 23100 : GOTO 23635
23650 CLOSE 2
23660 RETURN

The mirror image of the previous module. Note that when loading the

file back from tape or disc, all the normal input routines have to be used.
This is because the lines were listed in full with their line numbers, not the
two byte form of the line numbers that is normally stored in FI$. The cass
ette saving/loading system has difficulty in saving non-printable ASCII
characters and simply saving the contents of FIS would result in the corrup
tion of some of the line numbers on reloading.

CHECKSUM TABLE

23600 123 23601 51
23610 166 23615 174
23635 57 23640 215

23602 123
23630 31
23650 242

23660 142

MODULE 3.16

25500 REM *** *** ******* *** **** *** **** ***

25501 REM CHANGE DEVICE NUMBER

25502 REM *** ********* *** **** *** *** **** *

25510 PRINT SPC (19) DEV

25520 INPUT "CC U3NEW DEVICE N U M B E R : D E V

25530 RETURN

53

Machine Code Master

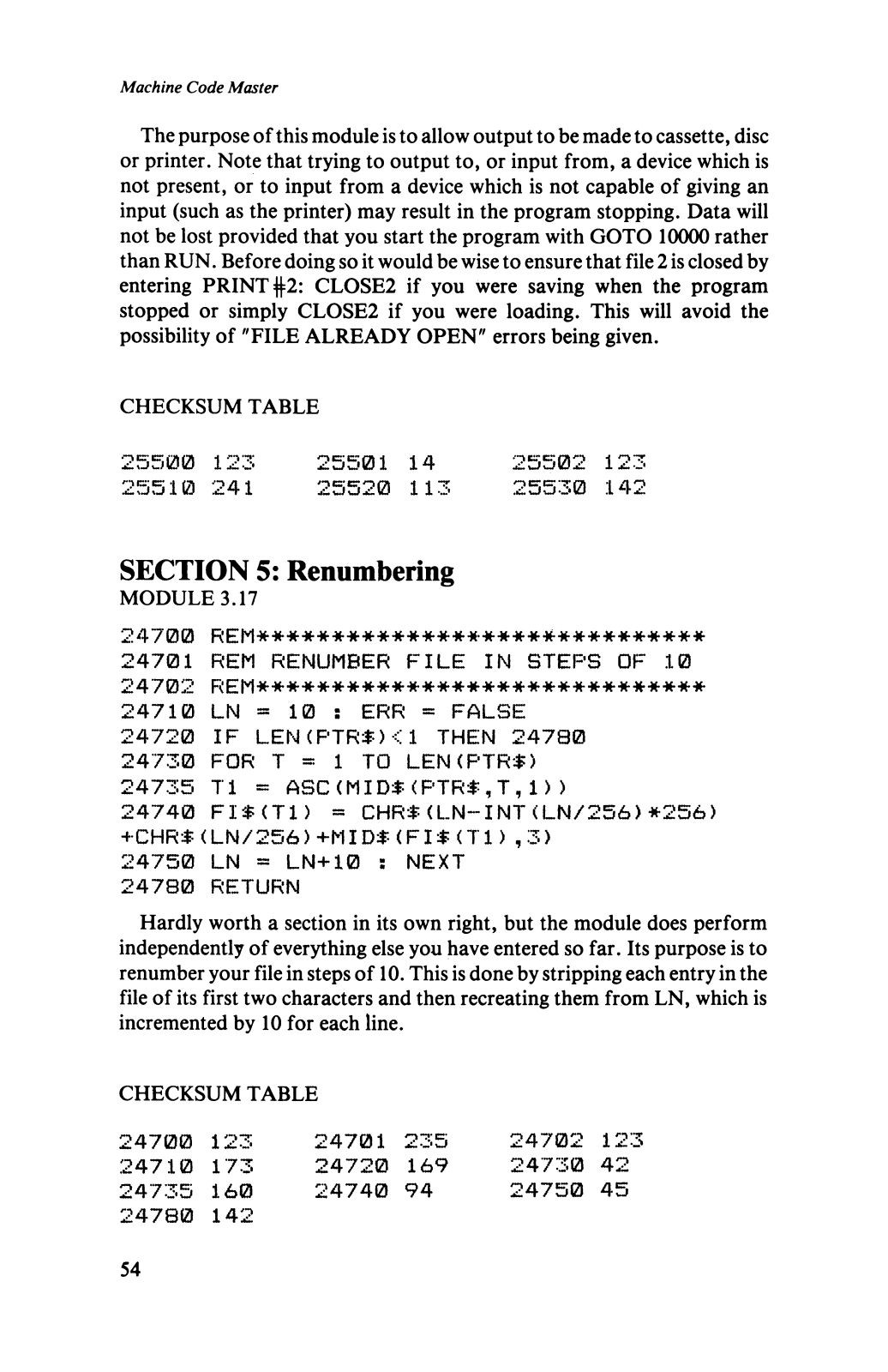

The purpose of this module is to allow output to be made to cassette, disc
or printer. Note that trying to output to, or input from, a device which is
not present, or to input from a device which is not capable of giving an
input (such as the printer) may result in the program stopping. Data will
not be lost provided that you start the program with GOTO 10000 rather
than RUN. Before doing so it would be wise to ensure that file 2 is closed by
entering PRINT ^2: CLOSE2 if you were saving when the program
stopped or simply CLOSE2 if you were loading. This will avoid the
possibility of "FILE ALREADY OPEN" errors being given.

CHECKSUM TABLE

255m 123 25501 14 25502 123
25510 241 25520 113 25530 142

SECTION 5: Renumbering

MODULE 3.17

24700 REM* * *** **** *** **** *** **** *** *** *
24701 REM RENUMB ER FILE IN STEP S OF 10
24702 REM* * *** **** *** **** *** **** *** ****
24710 LN = 10 : ERR « FALSE
24720 IF LEN(PTR*)<1 THEN 24780

24730 FOR T = 1 TO LENtPTR*)

24735 71 = ASC( M I D * (PTR*, T , 1)>

24740 FI$(T1> = CHR$ (LN- INT( L N/25 6)*256)

+CHR *(LN/2 56)+MID * (FI* <T1) ,3)

24750 LN = LN+10 : NEXT

24780 RETURN

Hardly worth a section in its own right, but the module does perform

independently of everything else you have entered so far. Its purpose is to

renumber your file in steps of 10. This is done by stripping each entry in the
file of its first two characters and then recreating them from LN, which is

incremented by 10 for each line.

CHECKSUM TABLE

24700 123 24701 235 24702 123

24710 173 24720 169 24730 42
24735 160 24 740 94 24750 45
24780 142

54

Chapter 3 Mastercode File Editor

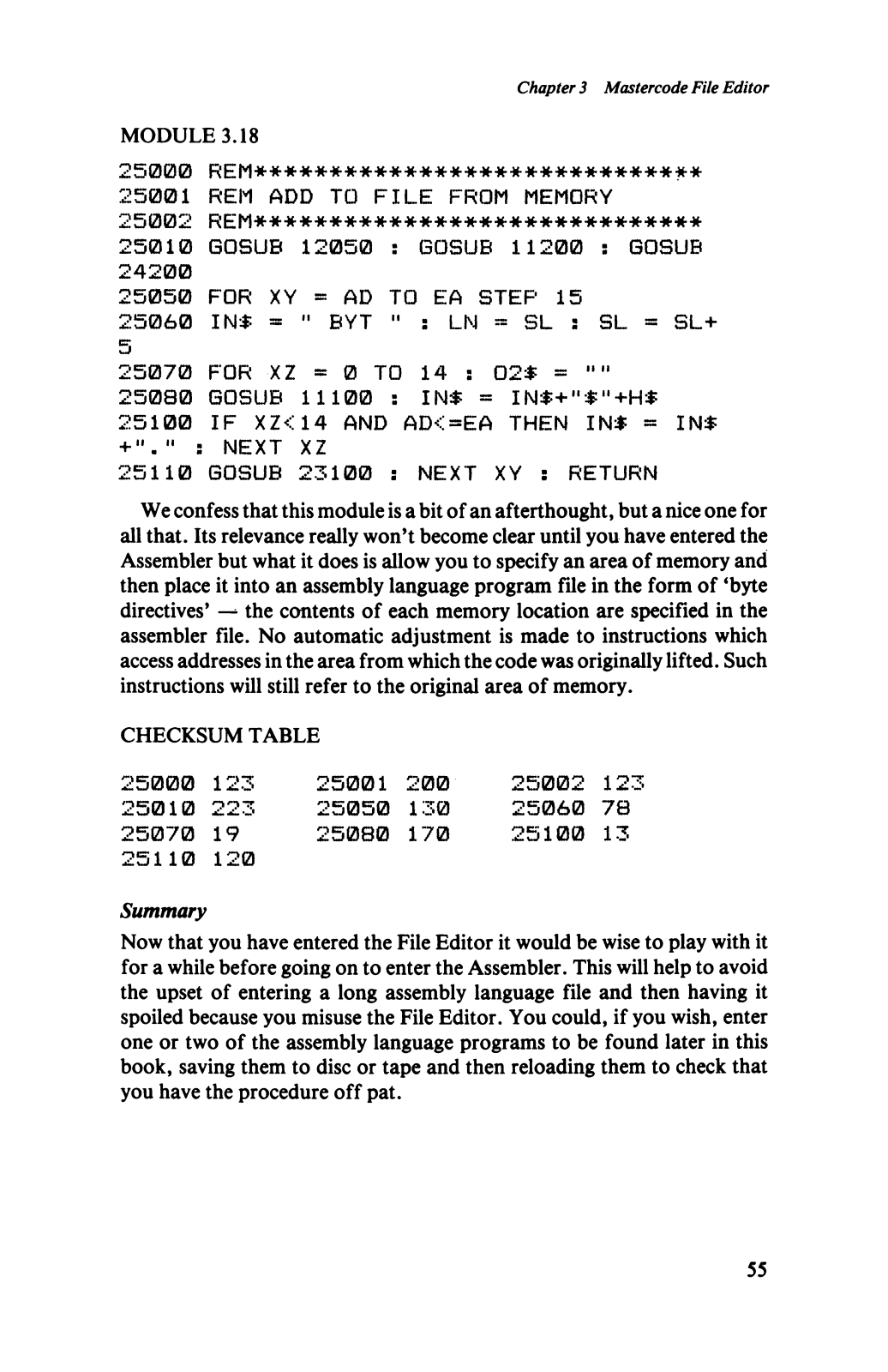

MODULE 3.18

25000 REM *** ********* *** **** *** ******* *
25001 REM ADD TO FILE FROM MEMO RY
25002 REM *** *** **** *** *** **** *** **** ***
25010 60SUB 12050 : GOSUB 11200 : GOSUB
24200
25050 FOR XY ■ AD TO EA STEP 15
25060 IN* * " BYT " : LN » SL s SL = SL+
5
25070 FOR XZ ■ 0 TO 14 : 02* - ""
25080 GOSU B 11100 : IN* » IN*+"*"+H*
25100 IF XZ< 14 AND A D O E A THEN IN* = IN*

+ •'. " : NEXT XZ

25110 GOSUB 23100 .■ NEXT XY : RE TURN

We confess that this module is a bit of an afterthought, but a nice one for
all that. Its relevance really won’t become clear until you have entered the
Assembler but what it does is allow you to specify an area of memory and
then place it into an assembly language program Hie in the form of ‘byte
directives’ — the contents of each memory location are specified in the
assembler file. No automatic adjustment is made to instructions which
access addresses in the area from which the code was originally lifted. Such
instructions will still refer to the original area of memory.

CHECKSUM TABLE

25000 123 25001 200 25002
25010 223 25050 130
25070 19

25080

170 25100 13

25060 78

123

25110 120

Summary

Now that you have entered the File Editor it would be wise to play with it
for a while before going on to enter the Assembler. This will help to avoid

the upset of entering a long assembly language file and then having it

spoiled because you misuse the File Editor. You could, if you wish, enter

one or two of the assembly language programs to be found later in this
book, saving them to disc or tape and then reloading them to check that
you have the procedure off pat.

55

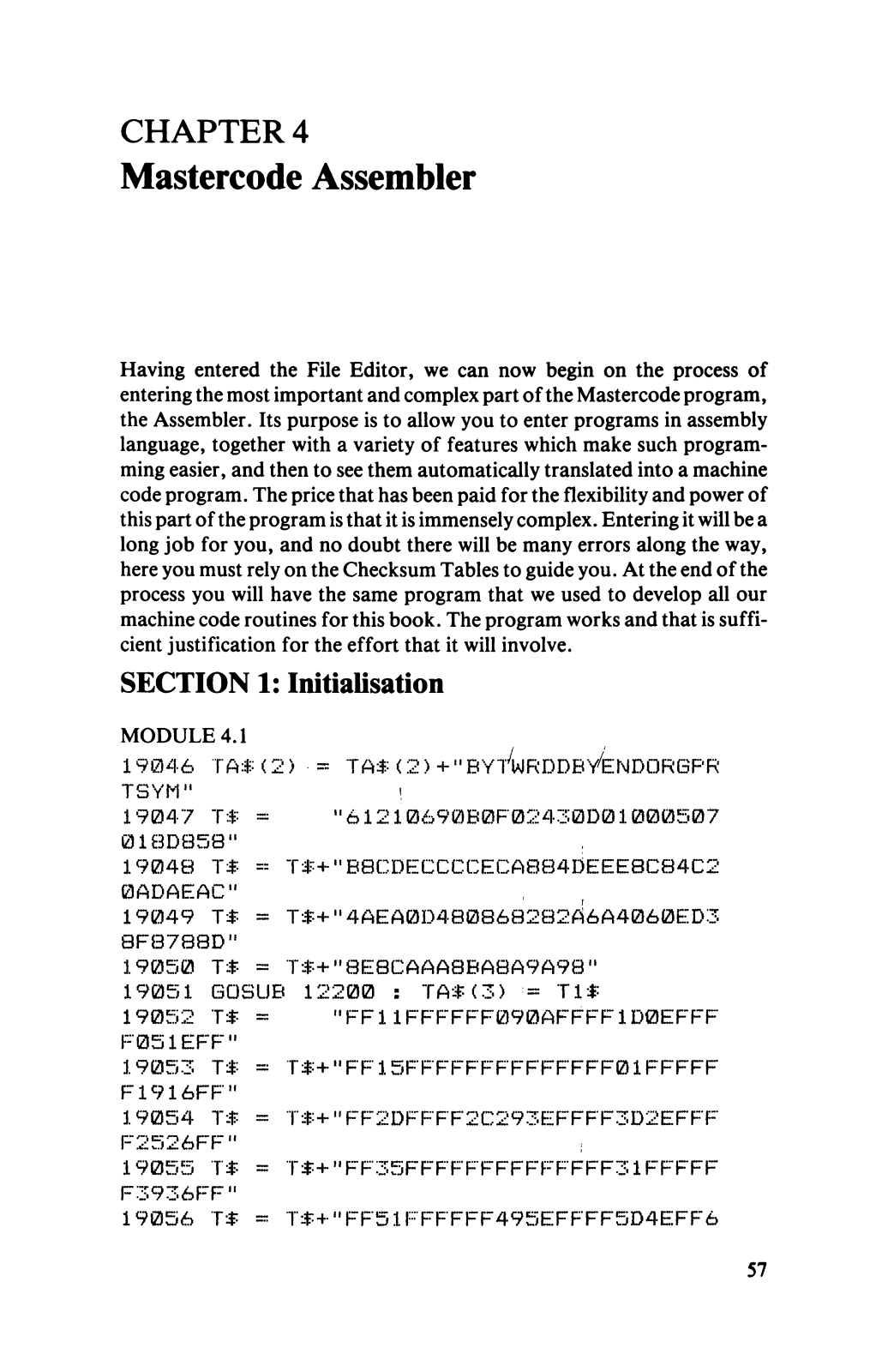

CHAPTER 4

Mastercode Assembler

Having entered the File Editor, we can now begin on the process of
entering the most important and complex part of the Mastercode program,
the Assembler. Its purpose is to allow you to enter programs in assembly
language, together with a variety of features which make such program
ming easier, and then to see them automatically translated into a machine
code program. The price that has been paid for the flexibility and power of
this part of the program is that it is immensely complex. Entering it will be a
long job for you, and no doubt there will be many errors along the way,
here you must rely on the Checksum Tables to guide you. At the end of the
process you will have the same program that we used to develop all our
machine code routines for this book. The program works and that is suffi
cient justification for the effort that it will involve.

SECTION 1: Initialisation

MODULE 4.1

19046 TA* (2) ■ = TA$ (2) + "B Y7/WRDDBY'END0R6PR

TSYM" !

19047 T* = 116121 0 690B0F 0 2 430D0 1000507

018D858"

19048 T$ = T*+"B8 CDE CCC CEC A88 4DE EE8 C84 C2

0ADAEAC"

19049 T* = T-$+"4A EA0D48 0868 282A6 A406 0ED3

8F8788D"

19050 T$ = T$ + "8E 8CAAA 6 B A8A9A 9 8"
19051 GOSLIB 12200 : TA$(3> = Tl*
19052 T* = "FF 11FFFFF F 0 90AFF F F 1D0EFFF

F051EFF"

19053 T $ = T$■+ " FF 15 F F FFFFF F F FFFFF 0 1FFFFF

F1916FF"

19054 T-t = I ■$: + " FF2D FFFF2C 293 EFFFF3D2 EFF F
F2526FF"

19055 T$■ = T* + ”FF35 FFFFFFFFFFFFFF31 FFFFF
F3936FF"

19056 T $ = "FF5 1F FFFF F495 EFFF F5D4 EFF6

57

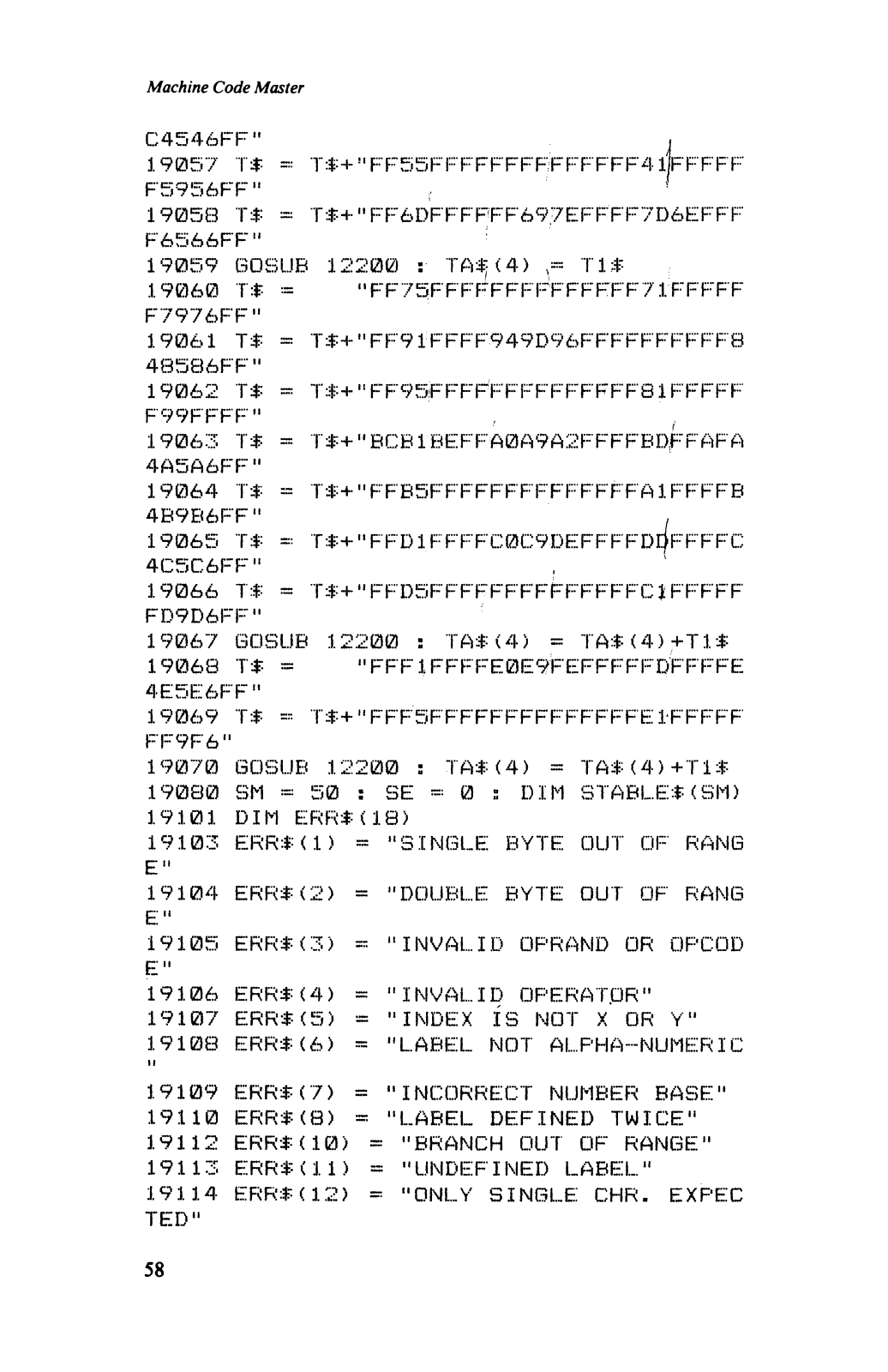

Machine Code Master

C4546FF"

19057 TT = TT + "FF55FFFFFFFRFFFFFF4-llFFFFF

F5956FF"

19058 TT = T7 + " FrF6DFFF FFF69,7EF F FF7D 6EFFF

F6566FF"

19059 BOSUB 12200 : TAT-(4) >= TIT

19060 TT = " FF75FFFF-FFFFFFFF'FF J TFFFFF

F7976FF"

19061 TT = T7+ " F F9 1FFFF9 49D 96FF FFF FFFF F8

48586FF"

19062 TT = T$■ + " FF9 5FFF FFFF F FFFF FF81FFFFF

F99FFFF"

19063 T* = Tt+"BCB1BEFFA0A9A2FFFFBD,FFAFA

4A5A6FF"

19064 T*

4B9B6FF"

19065 T$■

= T$+"FFB5FF F F FFFFF F F FFFA1FFFFB
= Tt+ " FFD l FF FFC 0C9-DEFFFFDe|f FFFC

4C5C6FF"

19066 T$

_ T$ + „f p d s f f F F FFFFFF F F F F C1FFFFF

FD9D6FF"

19067 BOSUB 12200 : TA * (4) = T A *(4)+T 1 $

19068 T# = ■'FFF1FFFFE0E9FEFFFFFDFFFFE

4E5E6FF"

19069 T:$ = 7'$+ " FFF 5 FFFFFF FFF FFFFFE 1FF FFF

FF9F6

19070

19080
19101
19103

II

BOSUB 12200 : T A T(4) = T A T (4)+717
SM - 50 : SE =: 0 s DIM ST ABLET (SM)
DIM ERRT(18)
ERRT(l) = “SINGLE BYTE OUT OF RANG

E"

19104

E R RT (2) = "DOUBLE BYTE OUT OF RANG

E"

19105

E"

19106

19107

19108

II

19109

19110

19112

19113

19 114

ERRT < 3) = "INVALID OPRAND OR OF:'COD

E R RT (4) = "INVALID OPERATOR"
E R RT (5) = "INDEX IS NOT X OR Y"
E R RT (6) = "LABEL NOT ALPH A-NUMERI C

E R RT (7) = "INCORRECT NUMBER BASE"
E R RT (8) = “LABEL DEFINED TWICE"
E R RT (10) = "BRANCH OUT OF RANGE"
E R RT (11) = "UNDEFINED LABEL"
E R RT (12) = "ONLY SINGL E CHR. EXPEC

TED"

58

Chapter 4 Mastercode Assembler

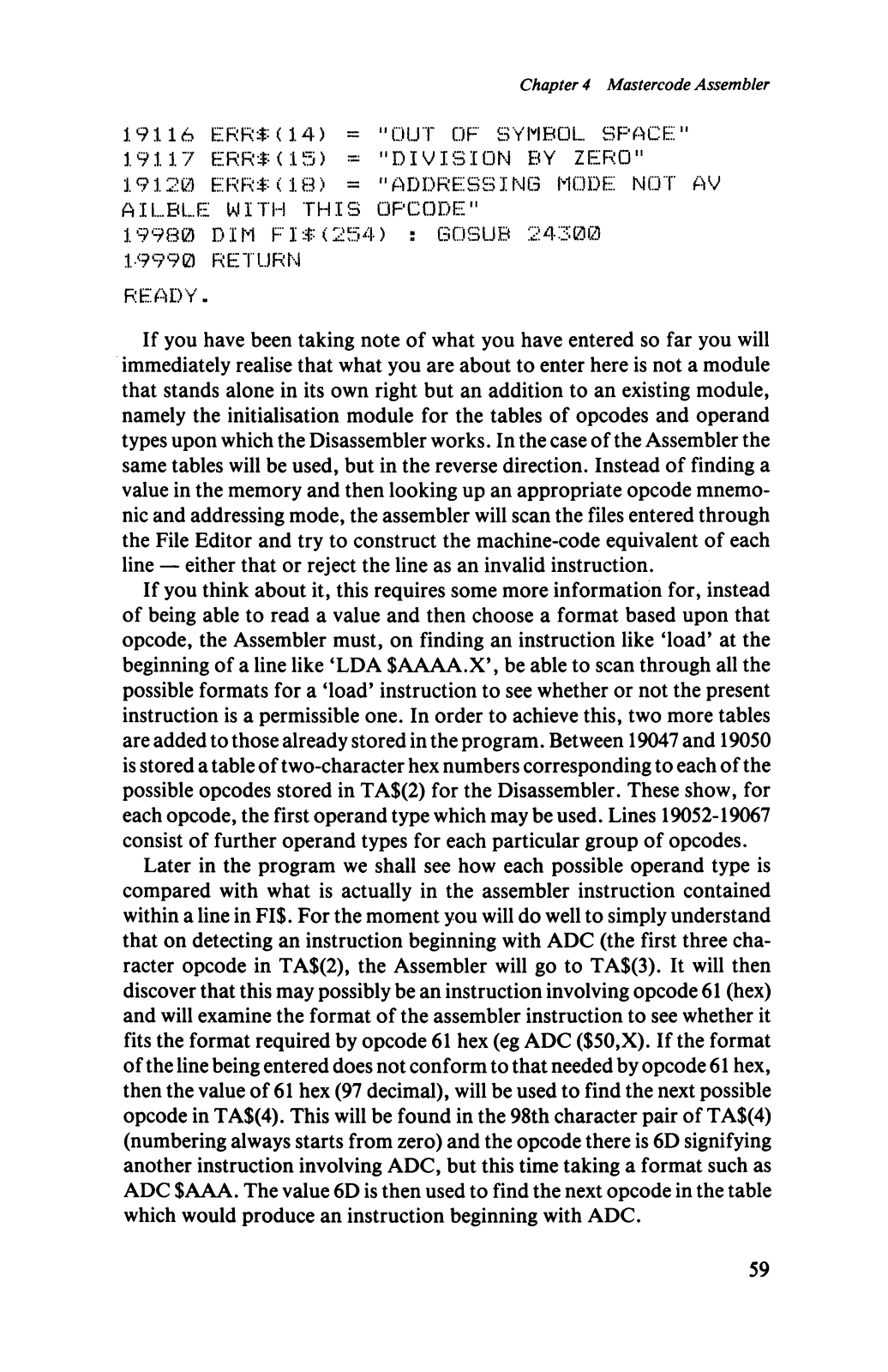

19116 E R R* (14) =

19.1.17 ERR* (15) =
19120 ERR* (1.8) =

AILBL.E WITH THIS

19980 DIM F I* (25

"OUT OF SYMBOL. SPACE
"DIVISION BY ZERO"
"ADDRESSING MODE NOT

OPCODE"

1) : GOSLJB 24300

AV

1,9990 RETU RN
REA D Y .

If you have been taking note of what you have entered so far you will
immediately realise that what you are about to enter here is not a module
that stands alone in its own right but an addition to an existing module,
namely the initialisation module for the tables of opcodes and operand
types upon which the Disassembler works. In the case of the Assembler the
same tables will be used, but in the reverse direction. Instead of finding a
value in the memory and then looking up an appropriate opcode mnemo
nic and addressing mode, the assembler will scan the files entered through
the File Editor and try to construct the machine-code equivalent of each
line — either that or reject the line as an invalid instruction.

If you think about it, this requires some more information for, instead
of being able to read a value and then choose a format based upon that
opcode, the Assembler must, on finding an instruction like ‘load’ at the
beginning of a line like ‘LDA SAAAA.X’, be able to scan through all the
possible formats for a ‘load’ instruction to see whether or not the present
instruction is a permissible one. In order to achieve this, two more tables
are added to those already stored in the program. Between 19047 and 19050
is stored a table of two-character hex numbers corresponding to each of the
possible opcodes stored in TA$(2) for the Disassembler. These show, for
each opcode, the first operand type which may be used. Lines 19052-19067
consist of further operand types for each particular group of opcodes.

Later in the program we shall see how each possible operand type is
compared with what is actually in the assembler instruction contained

within a line in FIS. For the moment you will do well to simply understand

that on detecting an instruction beginning with ADC (the first three cha

racter opcode in TA$(2), the Assembler will go to TA$(3). It will then
discover that this may possibly be an instruction involving opcode 61 (hex)
and will examine the format of the assembler instruction to see whether it
fits the format required by opcode 61 hex (eg ADC ($50,X). If the format
of the line being entered does not conform to that needed by opcode 61 hex,
then the value of 61 hex (97 decimal), will be used to find the next possible
opcode in TA$(4). This will be found in the 98th character pair of TA$(4)
(numbering always starts from zero) and the opcode there is 6D signifying
another instruction involving ADC, but this time taking a format such as
ADC $AAA. The value 6D is then used to find the next opcode in the table
which would produce an instruction beginning with ADC.

59

Machine Code Master

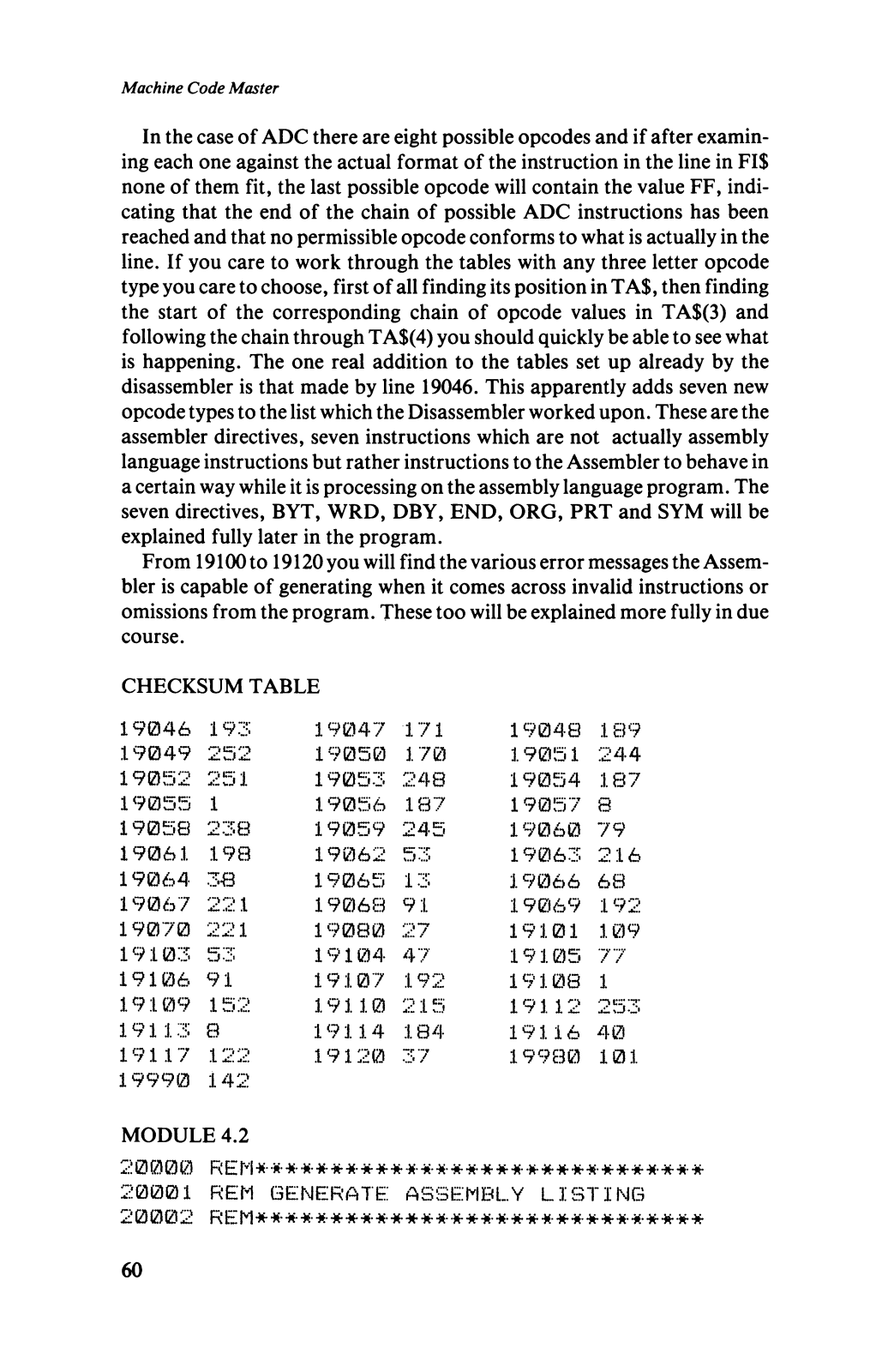

In the case of ADC there are eight possible opcodes and if after examin
ing each one against the actual format of the instruction in the line in FIS
none of them fit, the last possible opcode will contain the value FF, indi
cating that the end of the chain of possible ADC instructions has been
reached and that no permissible opcode conforms to what is actually in the
line. If you care to work through the tables with any three letter opcode

type you care to choose, first of all finding its position in TA$, then finding

the start of the corresponding chain of opcode values in TA$(3) and
following the chain through TA$(4) you should quickly be able to see what
is happening. The one real addition to the tables set up already by the
disassembler is that made by line 19046. This apparently adds seven new
opcode types to the list which the Disassembler worked upon. These are the
assembler directives, seven instructions which are not actually assembly
language instructions but rather instructions to the Assembler to behave in
a certain way while it is processing on the assembly language program. The
seven directives, BYT, WRD, DBY, END, ORG, PRT and SYM will be
explained fully later in the program.

From 19100 to 19120 you will find the various error messages the Assem
bler is capable of generating when it comes across invalid instructions or
omissions from the program. These too will be explained more fully in due
course.

CHECKSUM TABLE

19046 193
19049
19052

*-> c;

uL uJ

251 19053
19055 1
19058 238
19061 198
19064 38
19067 221
19070

221
19103 53
19106
19109
191 13

91

152

8
19117 122

19990

MODULE 4.2

142

19047
19050

171
170

248
19056
19059

187

245
19062 53
19065
19068

13

91
19080 27
19104 47
19107
19110
19114
19120

192
215
184

37

19048 189

19051 244

19054 187

19057 8

19060

19063

79

216
19066 68
19069
19101
19105

192
109

77
19108 1
191 12 253
19116 40
19980 101

20000 REM*** *** *** **** *** **** *** **** ***
20001 REM GENERATE ASSEMBLY LISTING
20002 REM*** *** **** *** *** **** *** **** ***

60

Chapter 4 Mastercode Assembler

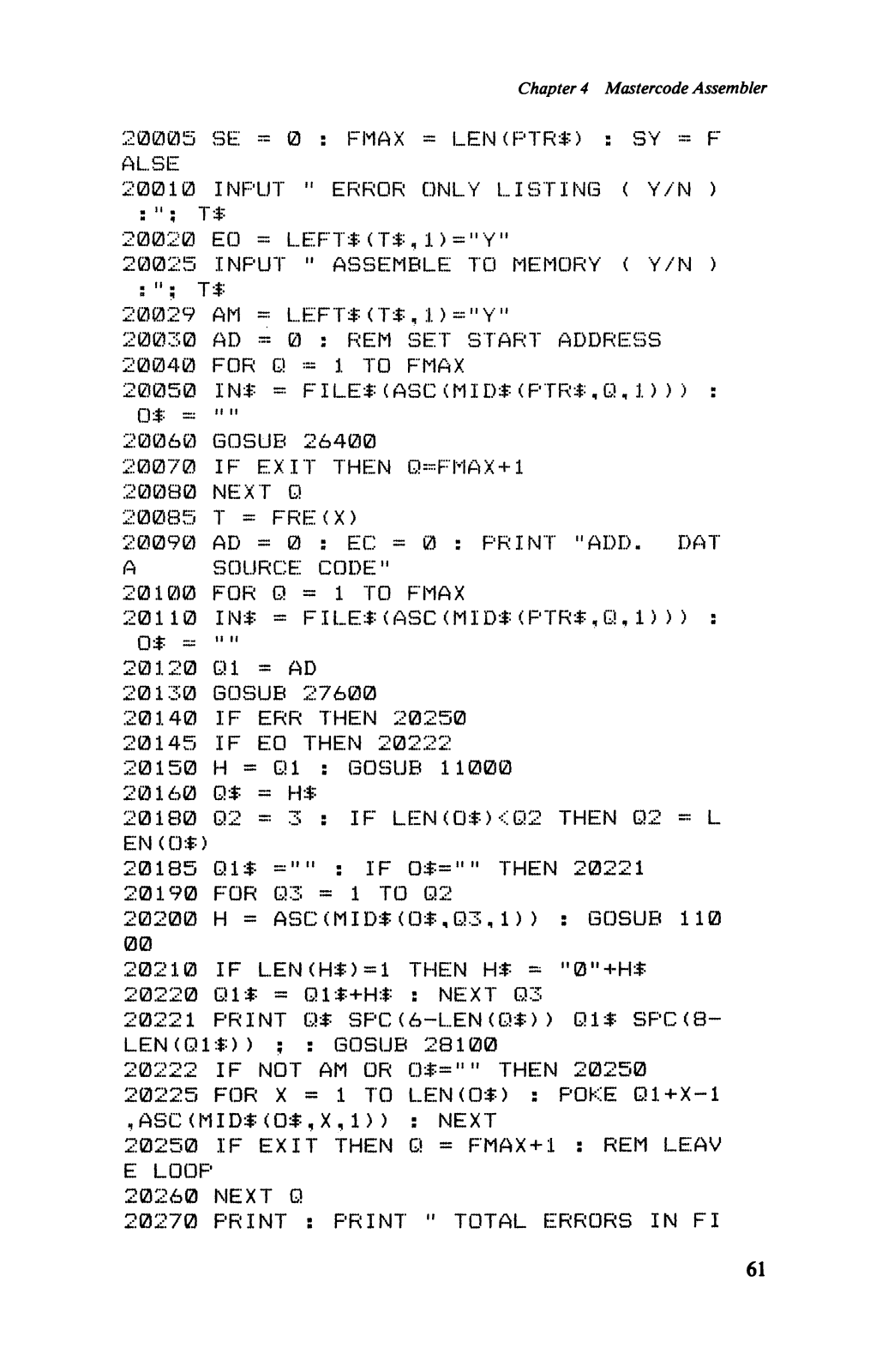

20005 SE = 0 : FMAX = LEN(PTRT) : SY = F
AL.SE
20010 INPUT " ERROR ONLY LISTING ( Y/N )

: “ ; TT
20020 EO = LEFTT(TT, 1 >="Y"
20025 INPUT " A SSEMB LE TO MEMORY ( Y/N )

: " ; TT
20029 AM = LE F TT (T T ,1)="Y "

20030 AD ■- 0 : REM SET START ADDRESS

20040 FOR Q = 1 TO FMAX

20050 I NT = FI LET (ASC (MIDT (F'TRT , Q , 1) ) ) :

OT = ""

20060 GOSUB 26400

20070 IF EXIT THEN GMFMAX+1

20080 NEXT Q
20085 T = FRE(X)
2009 0 AD = 0 : EC = 0 : PRINT "ADD. DAT

A SOURCE CODE"
20100 FOR Q = 1 TO FMAX

20110 INT = FILET (ASC (Ml'DT (F'TRT,Q, 1 >) ) :

OT = ""
20120 Q1 = AD
20130 GOSUB 27600
20140 IF ERR THEN 20250
20145 IF EO THEN 20222
20150 H = Q1 : GOSUB 11000
20160 QT = HT
20180 Q2 = 3 : IF L E N (O T )<Q2 THEN Q2 = L
EN(OT)
20185 Q1T ="" : IF OT="" THEN 20221
20190 FOR Q3 = 1 TO Q2
20200 H = AS C (M I D T (O T ,Q3 ,1)) : GOSUB 110
00
20210 IF LE N(HT )=1 THEN HT = "0"+HT
20220 Q1T = Q1T+HT : NEXT Q3
20221 PRINT QT SPC (6-L..EN (QT) > Q1T SPC(8-
LEN(QIT)) ; : GOSUB 28100
20222 IF NOT AM OR OT*"" THEN 20250
20225 FOR X = 1 TO LEN(OT) : POKE Ql+X-1

,AS C(M I DT (O T ,X ,1)) : NEXT
20250 IF EXIT THEN Q = FMAX+1 : REM LEAV
E LOOP

20260 NEXT Q

20270 PRINT : PRINT " TOTAL ERRORS IN FI

61

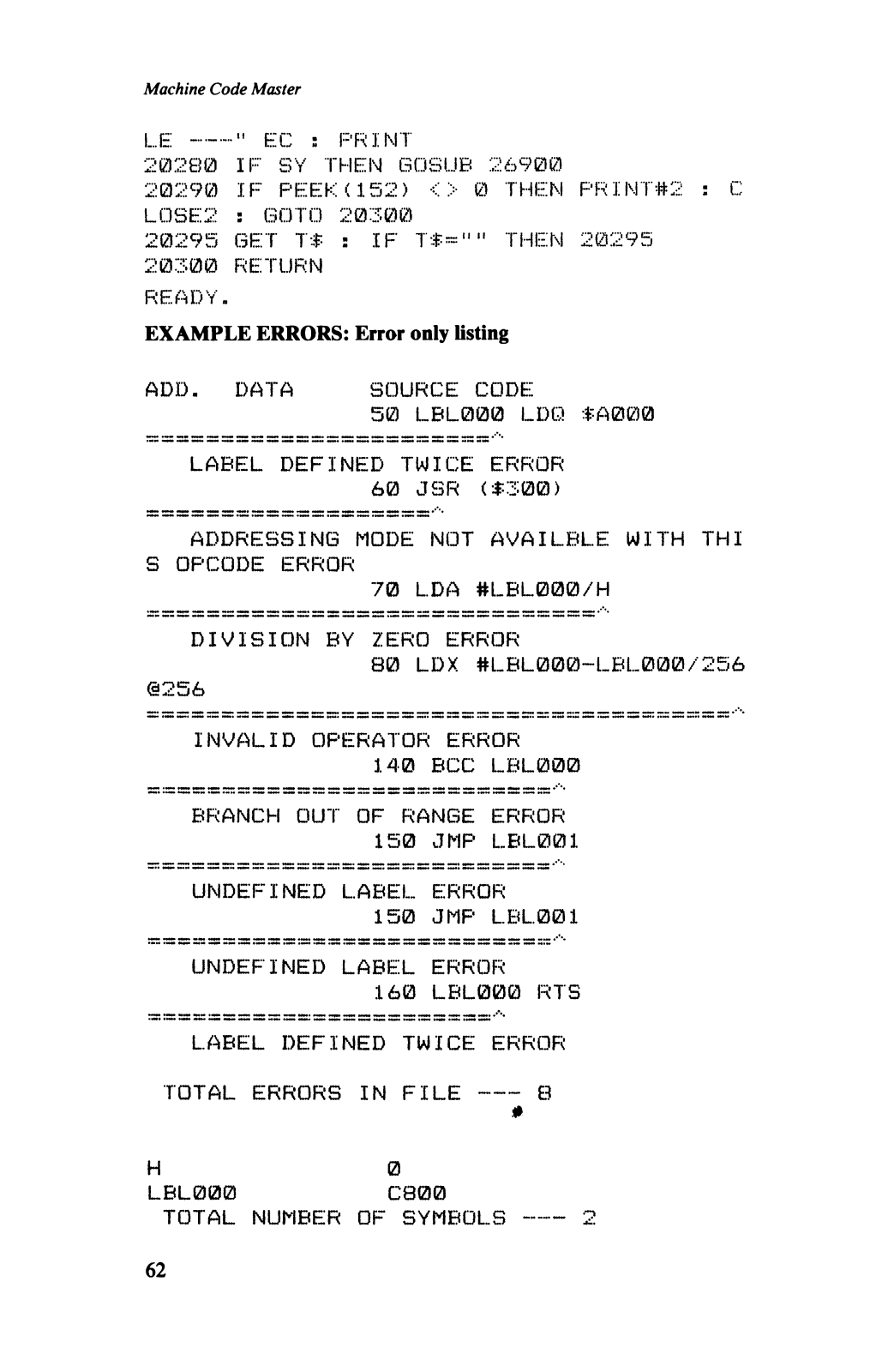

Machine Code Master

LE

---

" EC : PRINT

20280 IF SY THEN GGSU B 26900

20290 IF P E EK (152) <> 0 THEM PRINT#2 : C

L0SE2 : GOTO 20300

20295 GET TT : IF T$="" THEN 20295

20300 RETU RN

READ Y .

EXAMPLE ERRORS: Error only listing

ADD. DATA SOURCE CODE

50 LBL000 LDQ *A000

LABEL DEFINED TWICE ERROR

60 JSR ($=300)

ADDR ESSING MODE NOT AV AILBLE WITH THI

S OPCODE ERROR

70 L.DA #L BL000/H

DIVI SION BY ZERO ERROR

80 LDX #LBL000-LB L00 0/256

@256

INVALID OPERATOR ERROR

140

BCC LB L000

BRANCH OUT OF RANGE

150 JMP L.BL001

UNDEFI NED LABEL ERROR

150 JMP LBL.001

UNDEFI NED LABEL ERROR

160 LBL000 RTS

LABEL DEFINED TWICE ERROR

TOTAL ERRORS IN FILE

H 0

LBL000 C800

TOTAL NUMBER OF SY MB OLS

62

ERROR

---

0

8

---

2

Chapter 4 Mastercode Assembler

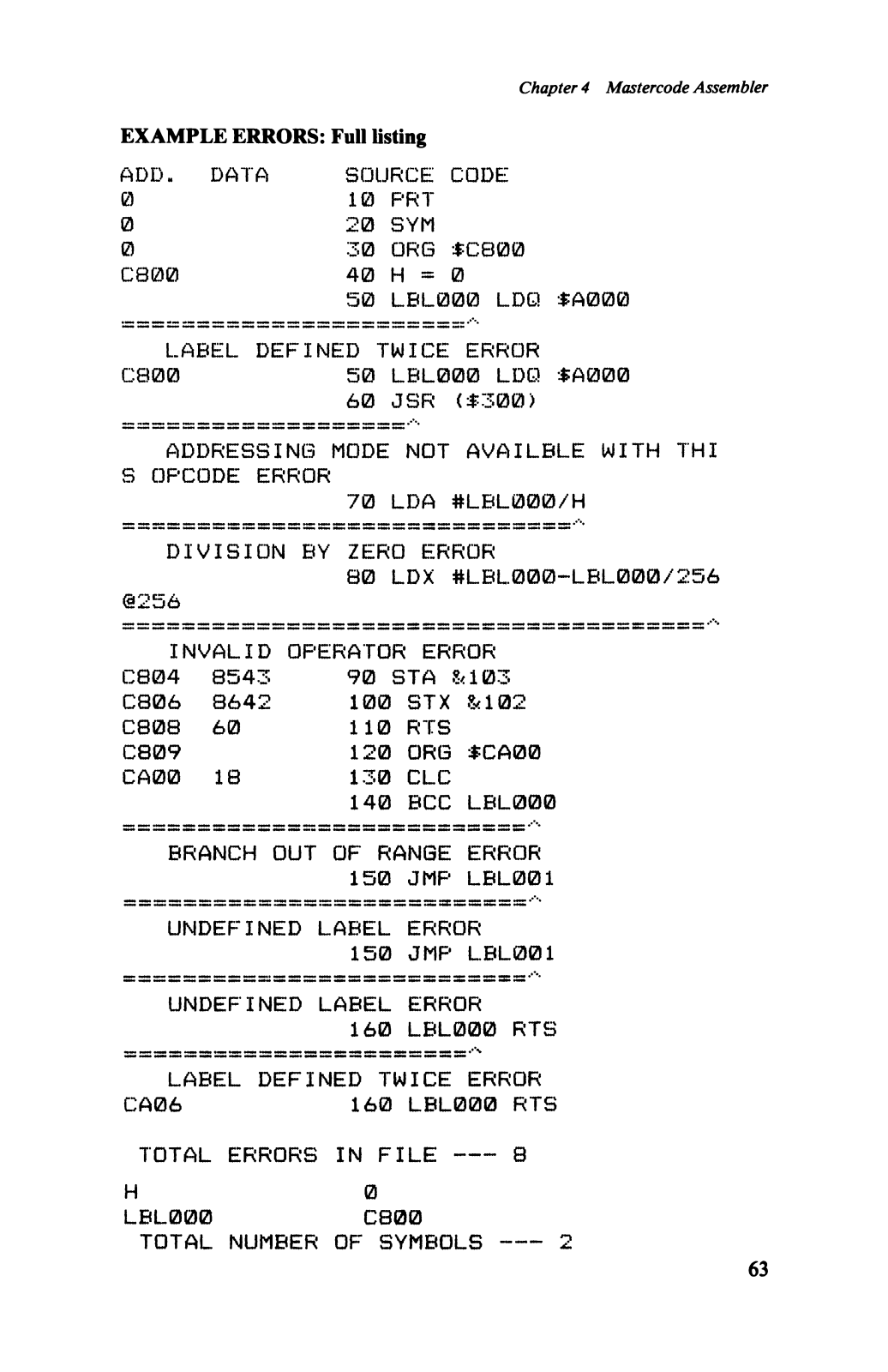

EXAMPLE ERRORS: FuU listing

ADD. DATA SOURCE CODE
0 10 PRT
0 20 SYM
0 30 ORG $C800
C800 40 H = 0

50 LBL000 LDQ $A000

LABEL DEFIN ED TWICE ERROR

C800 50 LBL000 LDQ $A000

60 JSR ($300)

ADDR ESSING MODE NOT AVAI LBLE WITH THI

S OPCODE ERROR

70 LDA #LBL000/H

DIVI SION BY ZERO ERROR

80 LDX #LBL 000-L BL0 00/25 6

@256

INVALID OPER ATOR ERROR

C804

C806 8642

C808 60

C809

CA00 18

8543 90 ST A S<103

1 0 0

STX Sc 102

1 1 0

RTS

1 2 0

ORG $CA00
130 CLC
140 BCC LBL000

BRANCH OUT OF RANGE ERROR

150 JMP LBL001

UNDEFI NED LABEL ERROR

150 JMP LBL001

UNDEFI NED LABEL ERRO R

160 LBL0 00 RTS

LABEL DEFIN ED TWICE ERROR

CA06 160 LBL000 RTS

TOTAL ERRORS IN FILE

---

8

H 0
LBL000 C800

TOTAL NUMB ER OF SYMBOLS

---

2

63

Machine Code Master

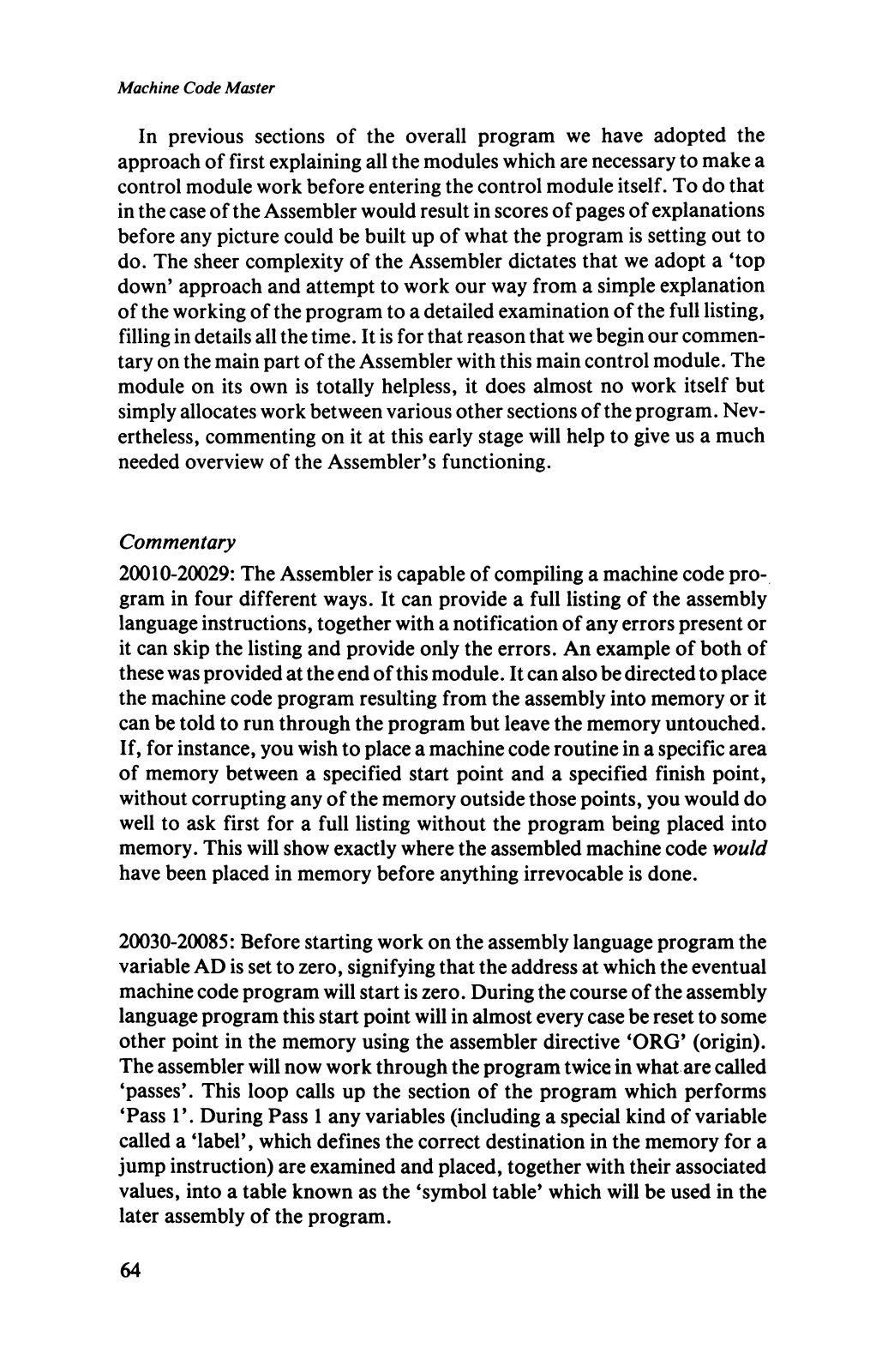

In previous sections of the overall program we have adopted the
approach of first explaining all the modules which are necessary to make a
control module work before entering the control module itself. To do that
in the case of the Assembler would result in scores of pages of explanations
before any picture could be built up of what the program is setting out to
do. The sheer complexity of the Assembler dictates that we adopt a ‘top
down’ approach and attempt to work our way from a simple explanation
of the working of the program to a detailed examination of the full listing,
filling in details all the time. It is for that reason that we begin our commen
tary on the main part of the Assembler with this main control module. The
module on its own is totally helpless, it does almost no work itself but
simply allocates work between various other sections of the program. Nev
ertheless, commenting on it at this early stage will help to give us a much
needed overview of the Assembler’s functioning.

Commentary

20010-20029: The Assembler is capable of compiling a machine code pro
gram in four different ways. It can provide a full listing of the assembly
language instructions, together with a notification of any errors present or
it can skip the listing and provide only the errors. An example of both of
these was provided at the end of this module. It can also be directed to place
the machine code program resulting from the assembly into memory or it
can be told to run through the program but leave the memory untouched.

If, for instance, you wish to place a machine code routine in a specific area
of memory between a specified start point and a specified finish point,
without corrupting any of the memory outside those points, you would do
well to ask first for a full listing without the program being placed into
memory. This will show exactly where the assembled machine code would
have been placed in memory before anything irrevocable is done.

20030-20085: Before starting work on the assembly language program the
variable AD is set to zero, signifying that the address at which the eventual
machine code program will start is zero. During the course of the assembly
language program this start point will in almost every case be reset to some
other point in the memory using the assembler directive ‘ORG’ (origin).
The assembler will now work through the program twice in what are called

‘passes’. This loop calls up the section of the program which performs

‘Pass 1’. During Pass 1 any variables (including a special kind of variable
called a ‘label’, which defines the correct destination in the memory for a
jump instruction) are examined and placed, together with their associated
values, into a table known as the ‘symbol table’ which will be used in the
later assembly of the program.

64

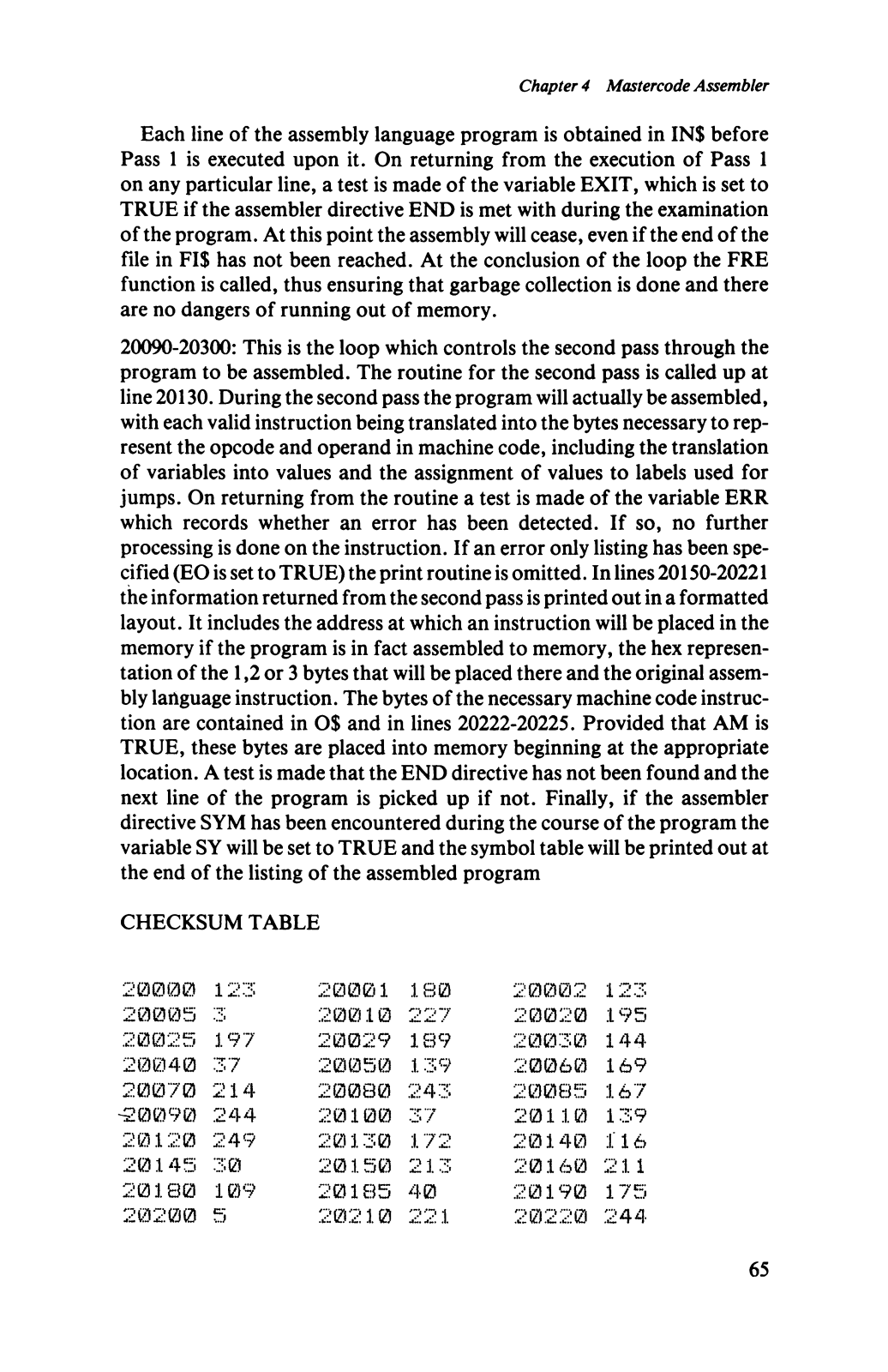

Chapter 4 Mastercode Assembler

Each line of the assembly language program is obtained in INS before
Pass 1 is executed upon it. On returning from the execution of Pass 1
on any particular line, a test is made of the variable EXIT, which is set to
TRUE if the assembler directive END is met with during the examination
of the program. At this point the assembly will cease, even if the end of the
file in FIS has not been reached. At the conclusion of the loop the FRE
function is called, thus ensuring that garbage collection is done and there
are no dangers of running out of memory.

20090-20300: This is the loop which controls the second pass through the
program to be assembled. The routine for the second pass is called up at
line 20130. During the second pass the program will actually be assembled,
with each valid instruction being translated into the bytes necessary to rep
resent the opcode and operand in machine code, including the translation
of variables into values and the assignment of values to labels used for
jumps. On returning from the routine a test is made of the variable ERR
which records whether an error has been detected. If so, no further
processing is done on the instruction. If an error only listing has been spe
cified (EO is set to TRUE) the print routine is omitted. In lines 20150-20221
the information returned from the second pass is printed out in a formatted
layout. It includes the address at which an instruction will be placed in the
memory if the program is in fact assembled to memory, the hex represen
tation of the 1,2 or 3 bytes that will be placed there and the original assem
bly language instruction. The bytes of the necessary machine code instruc
tion are contained in OS and in lines 20222-20225. Provided that AM is
TRUE, these bytes are placed into memory beginning at the appropriate
location. A test is made that the END directive has not been found and the
next line of the program is picked up if not. Finally, if the assembler
directive SYM has been encountered during the course of the program the
variable SY will be set to TRUE and the symbol table will be printed out at
the end of the listing of the assembled program

CHECKSUM TABLE

20000 123

20005

20025

3

197 20029 189 20030

20040 37

20070 214

-20090

244

20120 249

20.145 30

20180 109

20200

5

20001 .180

2000.2 123

20010 227 20020 195

144
20050 139 20060
20080 243 2008 5

169

167
20100 37 201.1.0 139
20130

20.1.50
20185 40 20190 175
20210

172
213 20160 21.1

'" t ’~i -j

20140 i 16

20220 .244

65

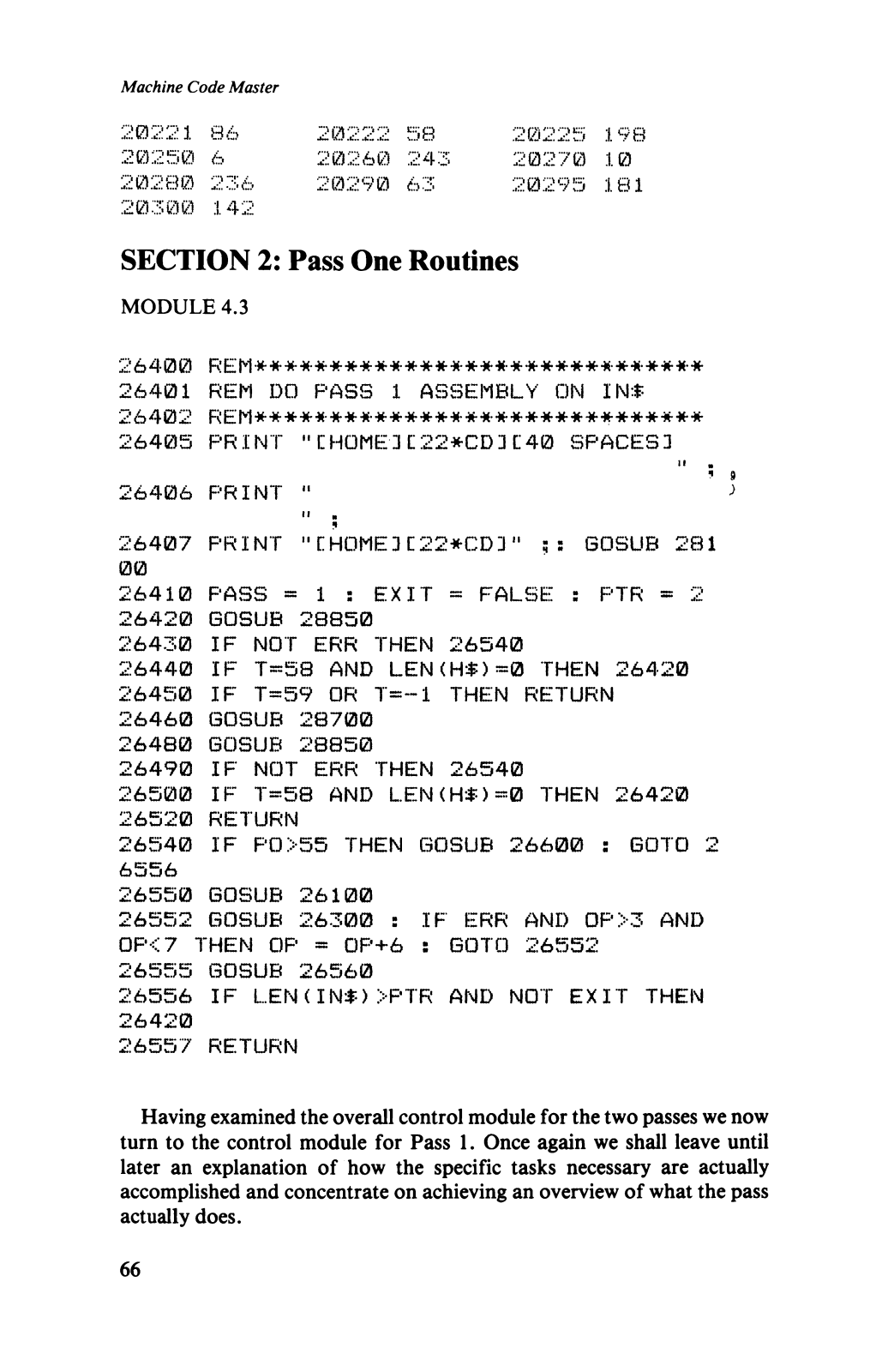

Machine Code Master

2 0 2 21 8 6

20250 6

20280 236

20222 58
20260 24
20290 63

20300 142

SECTION 2: Pass One Routines

MODULE 4.3

2:6400 RE M** **** *** **** *** **** *** **** ***
26401 REM DO PASS 1 ASSEMBLY ON IN*
26402 REM* **** **** *** *** **** *** **** *** *
26405 PRINT " C HOME 3 C22*CD 3 L'40 SPACES]

26406 PR IN T

26407 PRINT "CHOM E 3 C 2 2*CD 3" G OSUB 281
00
26410 PASS = 1 : EXIT = FALSE : PTR = 2
26420 GOSUB 28850
26430 IF NOT ERR THEN 26540
26440 IF T=58 AND LEN< H$>=0 THEN 26420
26450 IF T=59 OR T=--l THEN RE TU RN
26460 GOSUB 28700
26480 GOSUB 28850

26490 IF NOT ERR THEN 26540
26500 IF T=58 AND L.EN(Ht)=0 THEN 26420
26520 RETUR N
26540 IF P O>55 THEN GO SU B 26600 : GOTO 2

6556
26550 GOSUB 26100
26552 GOSUB 26 30 0 : IF ERR AND O P >3 AND
OP< 7 THEN OP = OP+ 6 : GOTO 26552
26555 GOSUB 26560
26556 IF L.EN (IN$> >PTR AND NOT EXIT THEN
26420
26557 RETURN

Having examined the overall control module for the two passes we now
turn to the control module for Pass 1. Once again we shall leave until
later an explanation of how the specific tasks necessary are actually
accomplished and concentrate on achieving an overview of what the pass
actually does.

66

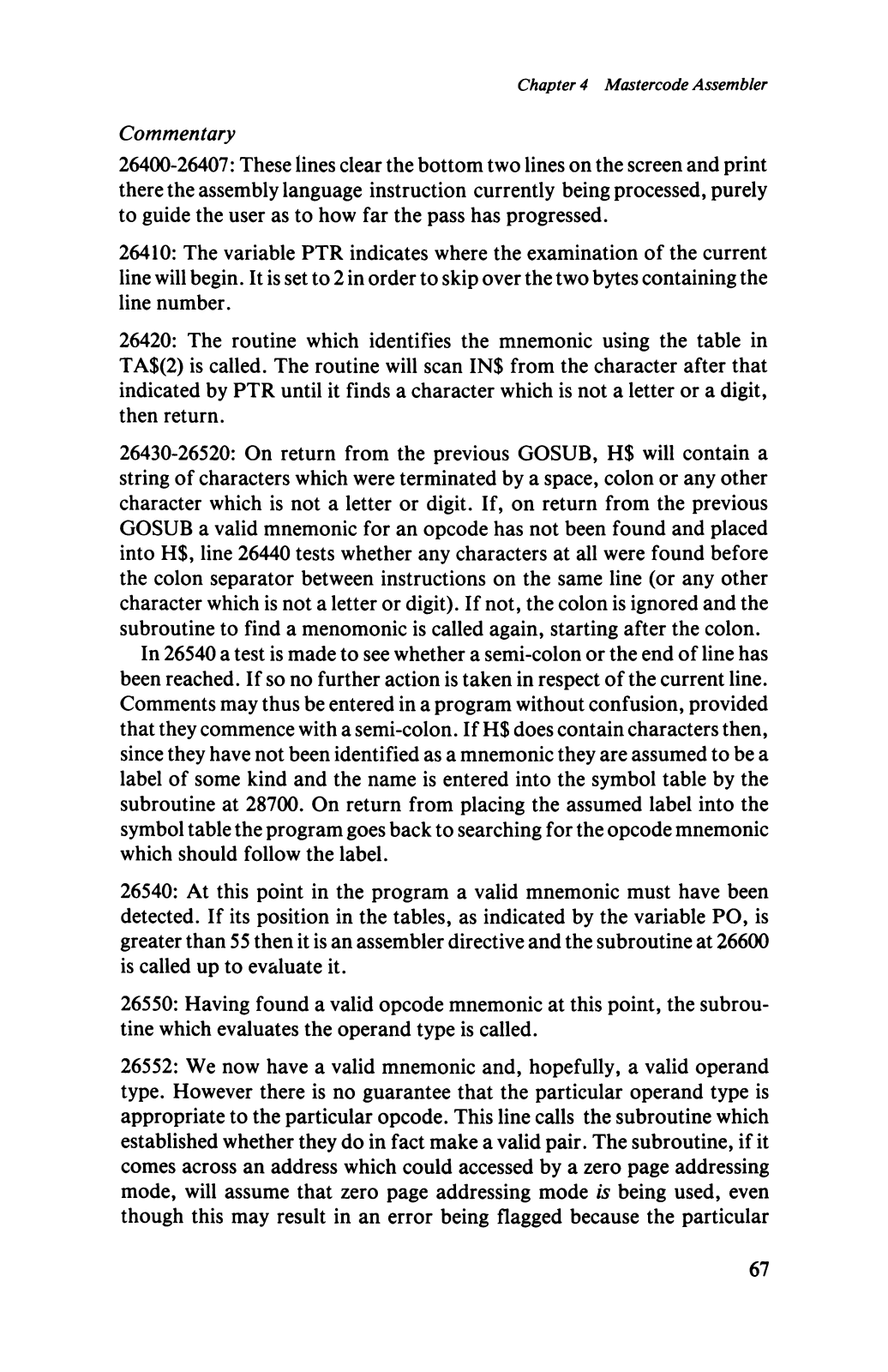

Chapter 4 Mastercode Assembler

Commentary

26400-26407: These lines clear the bottom two lines on the screen and print
there the assembly language instruction currently being processed, purely
to guide the user as to how far the pass has progressed.

26410: The variable PTR indicates where the examination of the current
line will begin. It is set to 2 in order to skip over the two bytes containing the
line number.

26420: The routine which identifies the mnemonic using the table in
TA$(2) is called. The routine will scan IN$ from the character after that
indicated by PTR until it finds a character which is not a letter or a digit,
then return.

26430-26520: On return from the previous GOSUB, H$ will contain a
string of characters which were terminated by a space, colon or any other
character which is not a letter or digit. If, on return from the previous
GOSUB a valid mnemonic for an opcode has not been found and placed
into H$, line 26440 tests whether any characters at all were found before
the colon separator between instructions on the same line (or any other
character which is not a letter or digit). If not, the colon is ignored and the
subroutine to find a menomonic is called again, starting after the colon.

In 26540 a test is made to see whether a semi-colon or the end of line has
been reached. If so no further action is taken in respect of the current line.
Comments may thus be entered in a program without confusion, provided
that they commence with a semi-colon. If H$ does contain characters then,
since they have not been identified as a mnemonic they are assumed to be a
label of some kind and the name is entered into the symbol table by the
subroutine at 28700. On return from placing the assumed label into the
symbol table the program goes back to searching for the opcode mnemonic
which should follow the label.

26540: At this point in the program a valid mnemonic must have been
detected. If its position in the tables, as indicated by the variable PO, is
greater than 55 then it is an assembler directive and the subroutine at 26600
is called up to evaluate it.

26550: Having found a valid opcode mnemonic at this point, the subrou
tine which evaluates the operand type is called.

26552: We now have a valid mnemonic and, hopefully, a valid operand
type. However there is no guarantee that the particular operand type is
appropriate to the particular opcode. This line calls the subroutine which
established whether they do in fact make a valid pair. The subroutine, if it
comes across an address which could accessed by a zero page addressing
mode, will assume that zero page addressing mode is being used, even
though this may result in an error being flagged because the particular

67

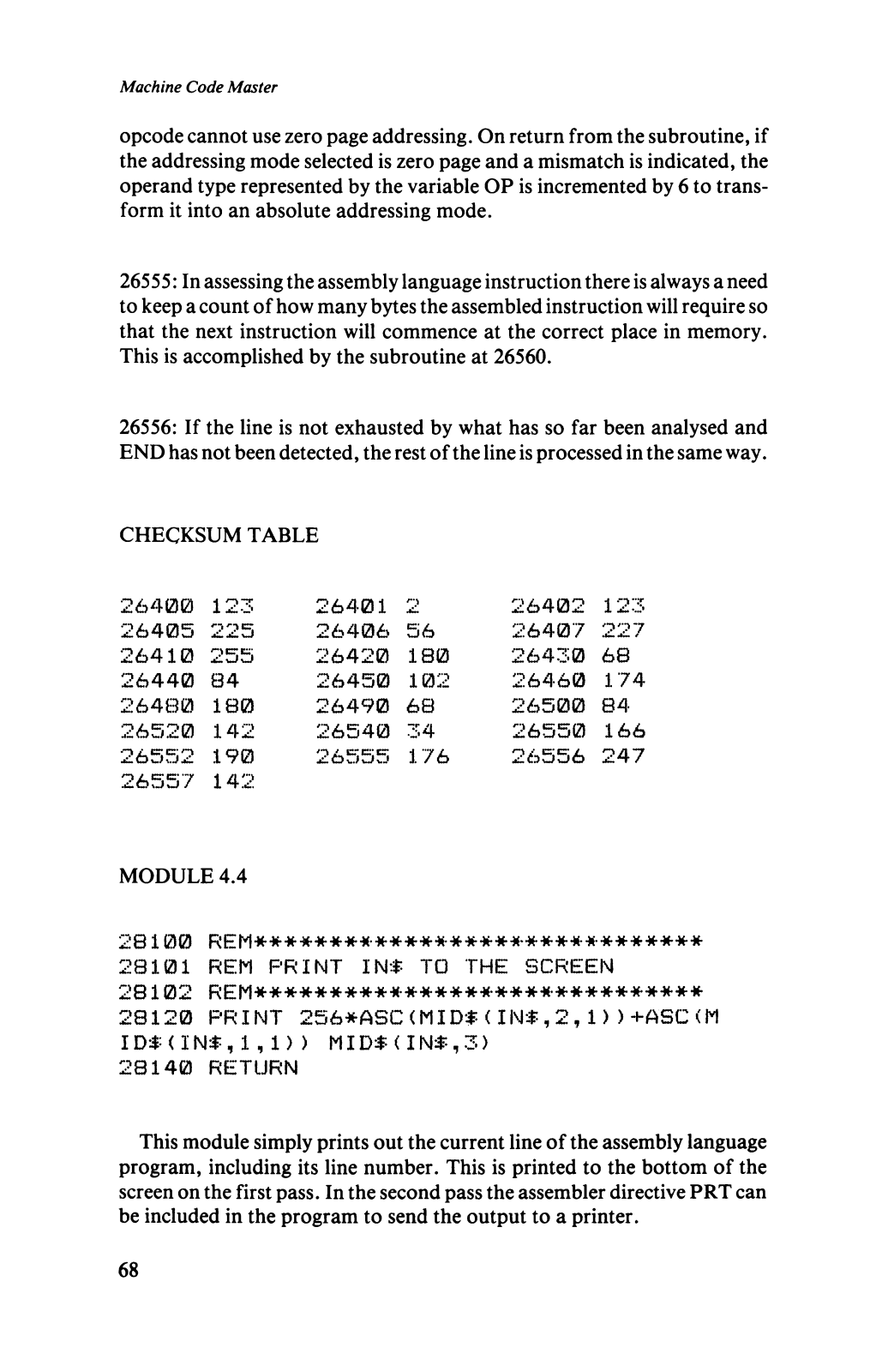

Machine Code Master

opcode cannot use zero page addressing. On return from the subroutine, if
the addressing mode selected is zero page and a mismatch is indicated, the
operand type represented by the variable OP is incremented by 6 to trans
form it into an absolute addressing mode.

26555: In assessing the assembly language instruction there is always a need
to keep a count of how many bytes the assembled instruction will require so
that the next instruction will commence at the correct place in memory.
This is accomplished by the subroutine at 26560.

26556: If the line is not exhausted by what has so far been analysed and
END has not been detected, the rest of the line is processed in the same way.

CHECKSUM TABLE

26400
26405

123 26401

'--i Cj

26406 56
26410 255 26420 180 26430
26440 84

26450

26480 180 26490

1 0 2

6 8

26520 142 26540 34 26550
26552 190 26555 176

26402 123
26407

26460
26500

'? ~7

6 8

174

84

166

26556 247

26557 142

MODULE 4.4

28100 REM**** *** **** *** **** *** **** *** **
28101 REM PRINT IN* TO THE SCREEN
28102 REM**** *** **** *** **** *** **** *** **
28120 PRIN T 2 5 6* A S C(M I (IN # ,2,1))+ AS C (M

ID*(I N *,1,1)) MID* (IN* ,3)

28140 RETURN

This module simply prints out the current line of the assembly language
program, including its line number. This is printed to the bottom of the
screen on the first pass. In the second pass the assembler directive PRT can
be included in the program to send the output to a printer.

68

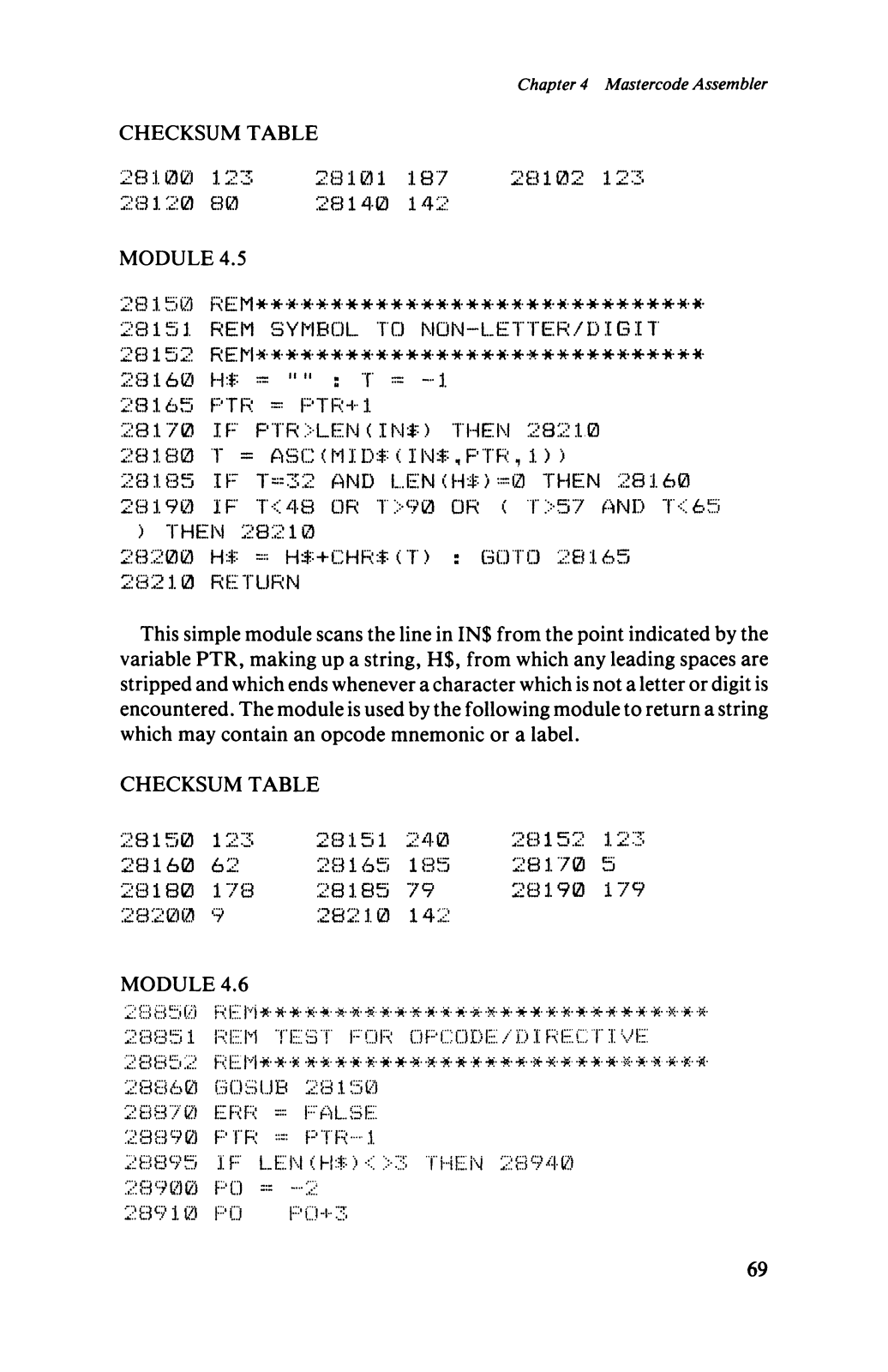

Chapter 4 Mastercode Assembler

CHECKSUM TABLE

28:1.00 123 28101 187 28102 123
28120 80 28140 142

MODULE 4.5

28150 REM********* *********************-
28151 REM SYMB OL TO MON -LE TTER/DIG IT
28152 REM** *** **** *** **** *** **** *** ****
28160 H* = "" : T = -1
28165 RTF: = PTR+1
28170 IF P T R> L E N<IN*) THEM 28210
28180 T = ASC (MID* (I N* , RTF:, 1) )
28185 IF T=32 AND LEN (H$ >=0 THEN 28160
28190 IF T <48 OR T >90 OR < I">57 AND T<65

) THEM 28210
28200 H* = H * +C H R* (T ) : G OTO 28165
28210 RETU RN

This simple module scans the line in INS from the point indicated by the
variable PTR, making up a string, H$, from which any leading spaces are
stripped and which ends whenever a character which is not a letter or digit is
encountered. The module is used by the following module to return a string
which may contain an opcode mnemonic or a label.

CHECKSUM TABLE

28150 123 28151

240
28160 62 28165 185
28180 178 28185

79 28190

28152
28170 5

123

179

28200 9 28210 142

MODULE 4.6

28850 REM*********** ************* ******

28851 REM TEST FOR ORCODE/D IRE CTIVE
2 81352 R E M * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
28860 (30SUB 28150
28870 ERR = FALSE
28890 FTR = RT R.1
28895 IF LEN <hi*) < >3 THEN 28940
28900 PO = --2
28910 PO F'0-1-3

69

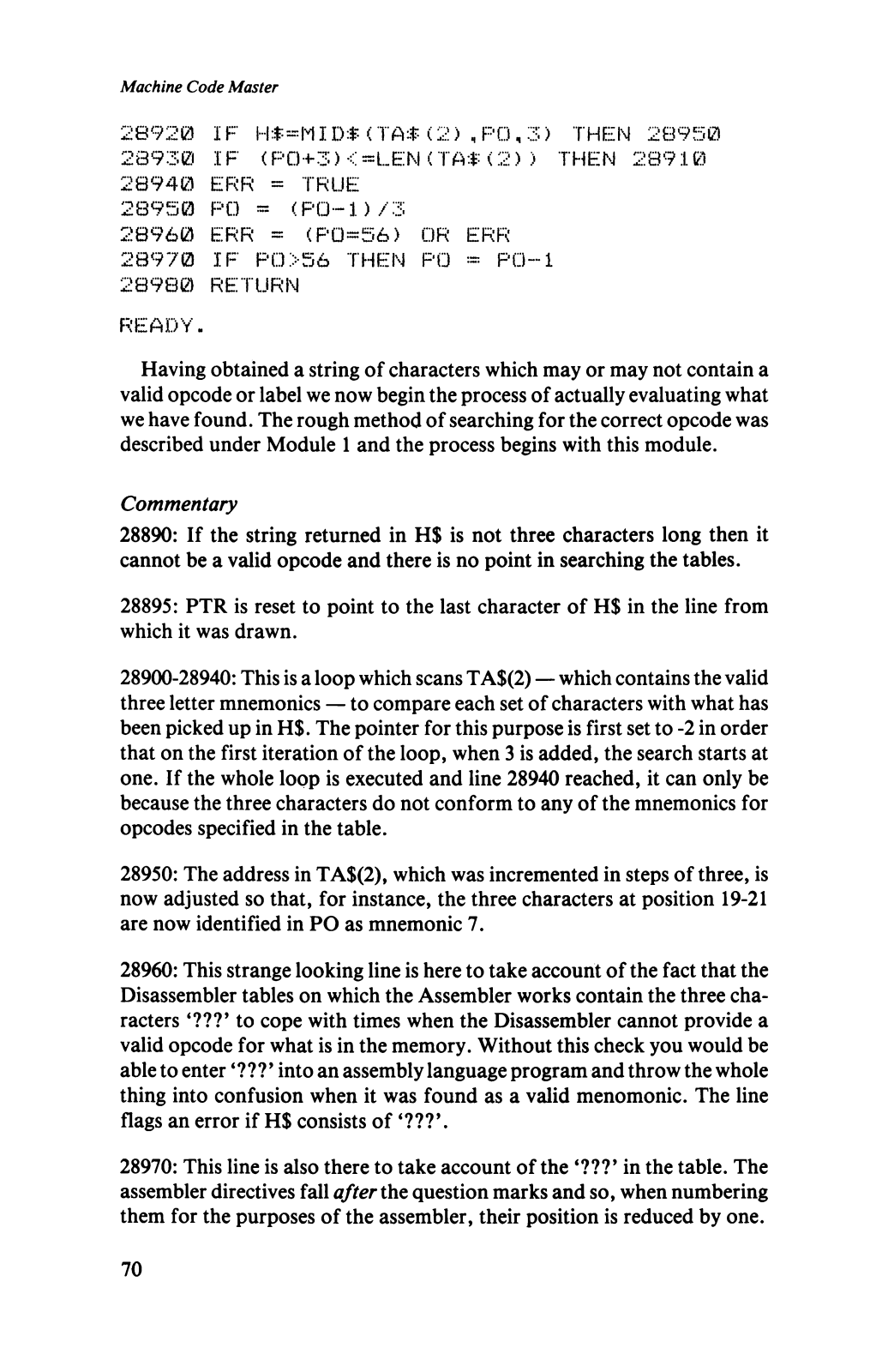

Machine Code Master

28920 IF H T = MI D T ( TA T (2 ),P0,3) THEN 28950
28930 IF (F'O+3) < =LEN (TAT (2) > THEN 28910
28940 ERR = TRUE
28950 PO = (P0-l)/3
28960 ERR = <P0=56> OR ERR
28970 IF P O>56 THEN PO = PO--1
28980 RETURN

RE A D Y.

Having obtained a string of characters which may or may not contain a
valid opcode or label we now begin the process of actually evaluating what
we have found. The rough method of searching for the correct opcode was
described under Module 1 and the process begins with this module.

Commentary

28890: If the string returned in H$ is not three characters long then it
cannot be a valid opcode and there is no point in searching the tables.

28895: PTR is reset to point to the last character of H$ in the line from
which it was drawn.

28900-28940: This is a loop which scans TA$(2) — which contains the valid
three letter mnemonics — to compare each set of characters with what has
been picked up in H$. The pointer for this purpose is first set to -2 in order
that on the first iteration of the loop, when 3 is added, the search starts at
one. If the whole loop is executed and line 28940 reached, it can only be
because the three characters do not conform to any of the mnemonics for
opcodes specified in the table.

28950: The address in TA$(2), which was incremented in steps of three, is
now adjusted so that, for instance, the three characters at position 19-21
are now identified in PO as mnemonic 7.

28960: This strange looking line is here to take account of the fact that the
Disassembler tables on which the Assembler works contain the three cha
racters ‘???’ to cope with times when the Disassembler cannot provide a
valid opcode for what is in the memory. Without this check you would be
able to enter ‘ ? ? ?1’ into an assembly language program and throw the whole
thing into confusion when it was found as a valid menomonic. The line
flags an error if H$ consists of ‘???\

28970: This line is also there to take account of the *???’ in the table. The
assembler directives fall after the question marks and so, when numbering
them for the purposes of the assembler, their position is reduced by one.

70

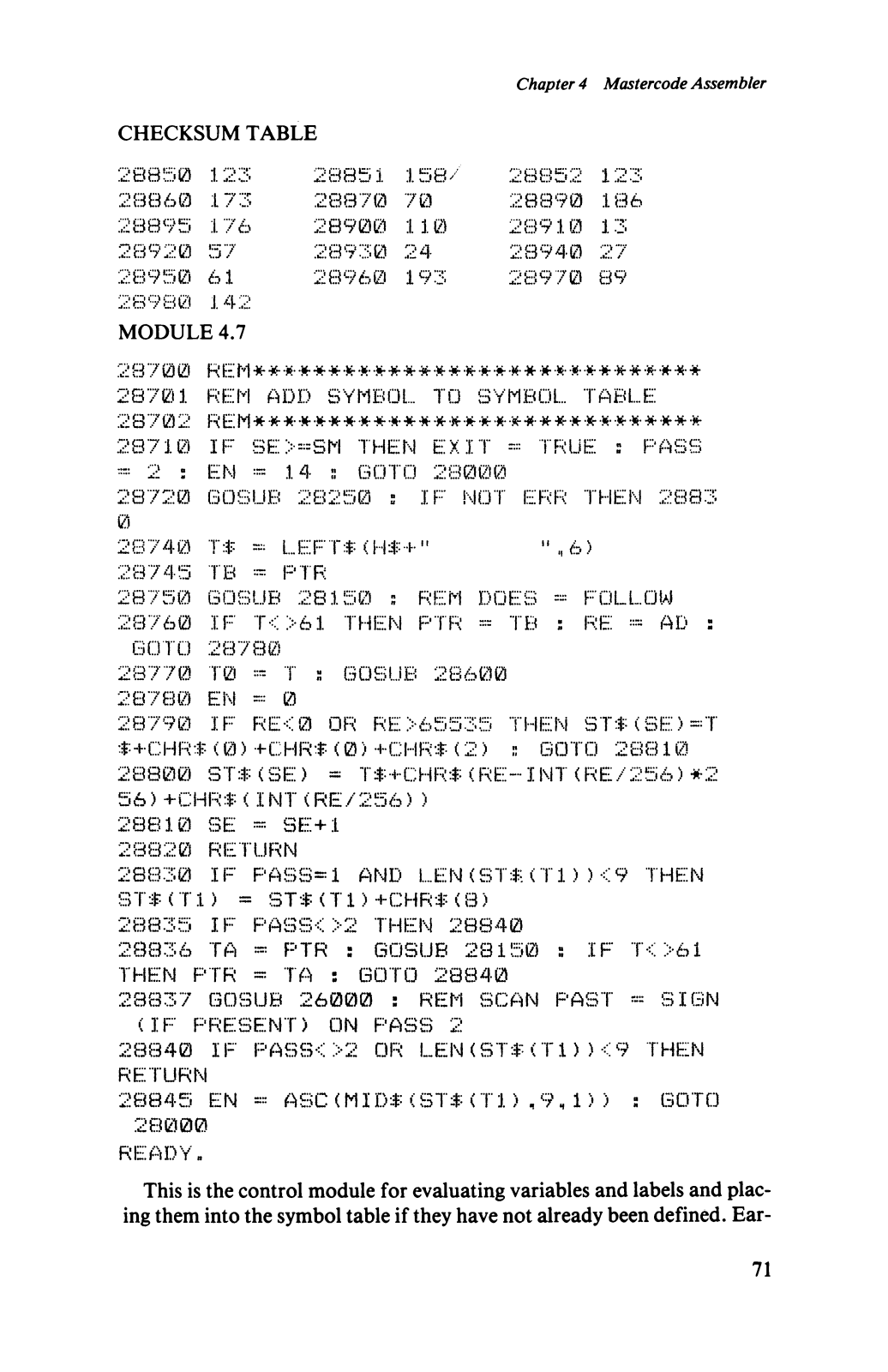

CHECKSUM TABLE

Chapter 4 Mastercode Assembler

28850
28860 173
28895 176 28900
28920 57
28950

123 28851 158/

28870 70

1 10
28930 24
28960

193

28852
28890
28910

123

186

13
28940 27
28970

89

2 o 9 8 061142

MODULE 4.7

28700 R E M * * * * * * * * ********* * * * * ***** * * * *

28701 REM ADD SYMBOL TO SYMBOL TABLE
28702 REM*******•**•*****■*•*•*•*••**#•#■*•***•****
28710 IF BE >~SM THEM EXIT « TRUE : PASS

■ 2 : EM « 14 s GOTO 28000
28720 GOSUB 28250 ; IF NOT ERR THEN 2883

0

28740 T* = LEFT*(H* +" ", 6)
28745 TB = PTR
28750 GOSUB 2815 0 : REM DOES « FOLLOW
28760 IF T<>61 THEN PTR - TB : RE = AD :

GOTO 28780
28770 70 - T ; GOSUB 28600
28780 EN ■ 0

28790 IF RE<0 OR RE >65535 'THEN ST*( SE>=T
*+CHR* (0) + CHR* (0) +C HR* (2) n GOTO 28810
28800 S T * (SE ) = T * + C HR * (RE-1 NT (RE/ 25 6)*2

56 ) + CH R *<I N T(RE/256))
28810 SE = SE+1
28820 RETURN
28830 IF P A S S 551 AND L E N( S T* (71))<9 THEN
S T * (T 1) = S T * (T 1)+ CH R* (8)
28835 IF P A S S 0 2 THEN 28840
28836 TA = PTR : GOSUB 28150 : IF 7 0 6 1
THEN PTR = TA : GOTO 2884 0
23837 GOSUB 26000 : REM SCAN PAST « SIGN

(IF PRESENT) ON PASS 2
28840 IF PA SS O-2 OR LEN (ST* (T 1) ) <9 THEN
RETURN
28845 EN = AS C (MI D* (ST *(T1),9,1)) : GOTO

28000

REA D Y .

This is the control module for evaluating variables and labels and plac

ing them into the symbol table if they have not already been defined. Ear-

71

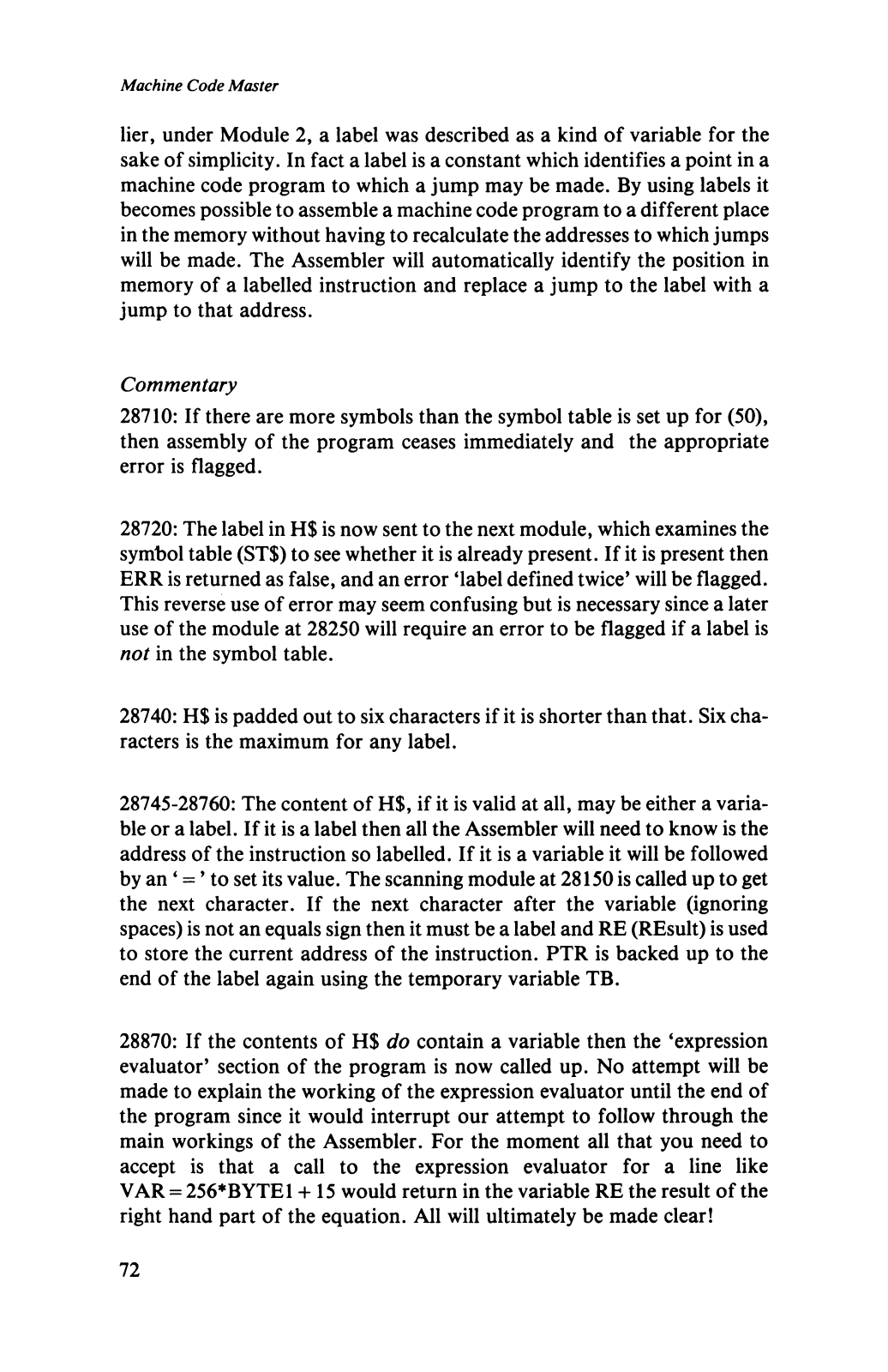

Machine Code Master

Her, under Module 2, a label was described as a kind of variable for the
sake of simplicity. In fact a label is a constant which identifies a point in a
machine code program to which a jump may be made. By using labels it
becomes possible to assemble a machine code program to a different place
in the memory without having to recalculate the addresses to which jumps
will be made. The Assembler will automatically identify the position in
memory of a labelled instruction and replace a jump to the label with a

jump to that address.

Commentary

28710: If there are more symbols than the symbol table is set up for (50),
then assembly of the program ceases immediately and the appropriate
error is flagged.

28720: The label in H$ is now sent to the next module, which examines the
symbol table (STS) to see whether it is already present. If it is present then
ERR is returned as false, and an error ‘label defined twice’ will be flagged.
This reverse use of error may seem confusing but is necessary since a later
use of the module at 28250 will require an error to be flagged if a label is

not in the symbol table.

28740: H$ is padded out to six characters if it is shorter than that. Six cha
racters is the maximum for any label.

28745-28760: The content of H$, if it is valid at all, may be either a varia
ble or a label. If it is a label then all the Assembler will need to know is the
address of the instruction so labelled. If it is a variable it will be followed
by an ‘ = ’ to set its value. The scanning module at 28150 is called up to get
the next character. If the next character after the variable (ignoring
spaces) is not an equals sign then it must be a label and RE (REsult) is used

to store the current address of the instruction. PTR is backed up to the

end of the label again using the temporary variable TB.

28870: If the contents of H$ do contain a variable then the ‘expression
evaluator’ section of the program is now called up. No attempt will be
made to explain the working of the expression evaluator until the end of

the program since it would interrupt our attempt to follow through the

main workings of the Assembler. For the moment all that you need to
accept is that a call to the expression evaluator for a line like
VAR = 256*BYTE1 -I-15 would return in the variable RE the result of the
right hand part of the equation. All will ultimately be made clear!

72

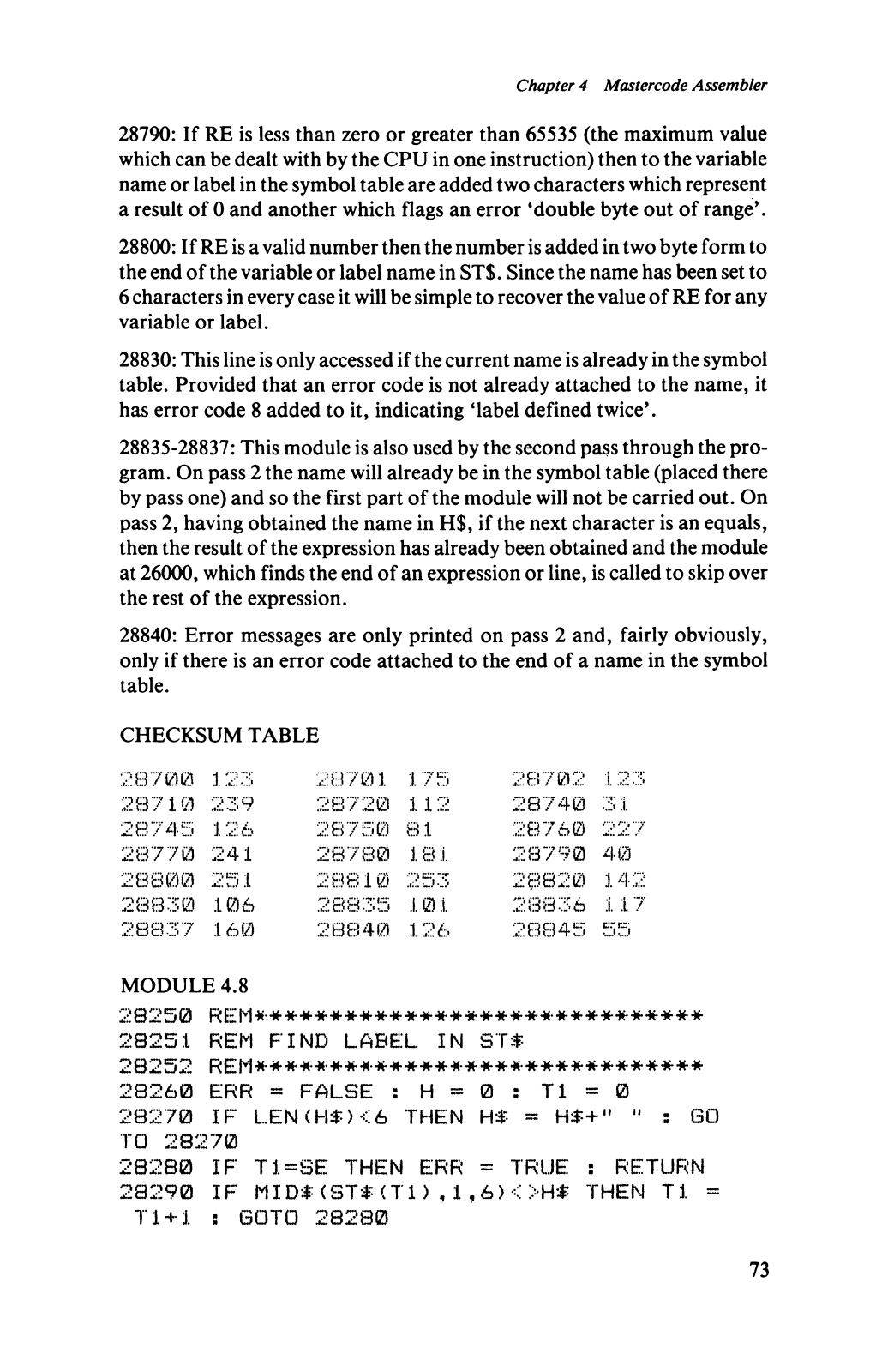

Chapter 4 Mastercode Assembler

28790: If RE is less than zero or greater than 65535 (the maximum value
which can be dealt with by the CPU in one instruction) then to the variable
name or label in the symbol table are added two characters which represent
a result of 0 and another which flags an error ‘double byte out of range’.

28800: If RE is a valid number then the number is added in two byte form to
the end of the variable or label name in ST$. Since the name has been set to
6 characters in every case it will be simple to recover the value of RE for any
variable or label.

28830: This line is only accessed if the current name is already in the symbol
table. Provided that an error code is not already attached to the name, it
has error code 8 added to it, indicating ‘label defined twice’.

28835-28837: This module is also used by the second pass through the pro

gram. On pass 2 the name will already be in the symbol table (placed there

by pass one) and so the first part of the module will not be carried out. On
pass 2, having obtained the name in H$, if the next character is an equals,
then the result of the expression has already been obtained and the module
at 26000, which finds the end of an expression or line, is called to skip over
the rest of the expression.

28840: Error messages are only printed on pass 2 and, fairly obviously,
only if there is an error code attached to the end of a name in the symbol
table.

CHECKSUM TABLE

28700 123
28710 239
28745

126

28770 241

28701

28720
28750
28780

175

112

81

18 i.
28800 251 28810 253 28820
28830
28837

MODULE 4.8

106
160

28835
28840

101

126

28702 1 23
28740 31
28760

227

28790 40

142
28836
28845

1 1 7

55

28250 RElM* **** *** **** *** *** **** *** **** *

28251 REM FIND LABEL IN ST*
28252 REM* *** *** **** *** **** *** **** *** **
28260 ERR = FALSE s H = 0 : T1 = 0
28270 IF LEN( H * > < 6 THEN H* = H*+" " : GO

TO 28270

28280 IF T1=SE THEN ERR = TRUE s RETURN

28290 IF MID* <ST* <T1> ,1,6) O H * THEN T1 =

T 1 +i s GOTO 28280

73

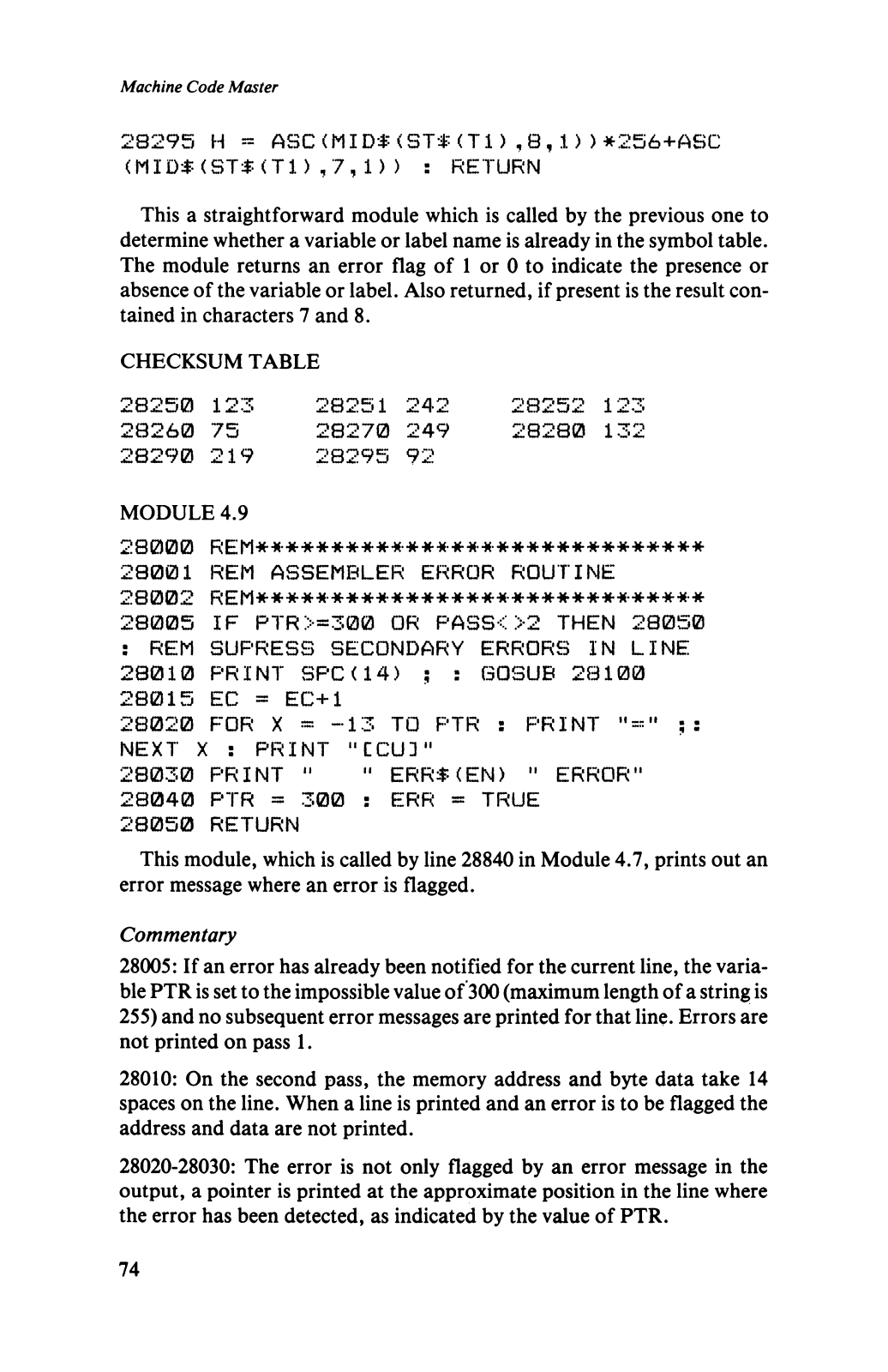

Machine Code Master

28295 H = ASC (MID4> <STT (T1) ,8,1) ) *256+ASC

(MID *(ST*(T1),7,1)) : RETURN

This a straightforward module which is called by the previous one to
determine whether a variable or label name is already in the symbol table.
The module returns an error flag of 1 or 0 to indicate the presence or
absence of the variable or label. Also returned, if present is the result con
tained in characters 7 and 8.

CHECKSUM TABLE

28250 123 28251 242 28252 123
28260 75 28270 249 28280 132
28290 219 28295 92

MODULE 4.9

28000 REM** *** **** *** **** *** **** *** ****
28001 REM ASSEMBLER ERROR ROUTINE
28002 REM** *** **** *** **** *** **** *** ****
28005 IF PT R>=300 OR PA S S < >2 THEN 28050

: REM SUPR ESS SECONDARY ERROR S IN LINE
28010 PRINT SF'C (14) ; : GOSUB 28100
28015 EC = EC+1
28020 FOR X = -13 TO PTR : PRINT " = "
NEXT X : P RINT "ECU 3"
28030 PRINT " " ERR*(EN> " ERROR"
28040 PTR = 300 : ERR * TRUE
28050 RETURN

This module, which is called by line 28840 in Module 4.7, prints out an

error message where an error is flagged.

Commentary

28005: If an error has already been notified for the current line, the varia
ble PTR is set to the impossible value of 300 (maximum length of a string is

255) and no subsequent error messages are printed for that line. Errors are
not printed on pass 1.

28010: On the second pass, the memory address and byte data take 14
spaces on the line. When a line is printed and an error is to be flagged the
address and data are not printed.

28020-28030: The error is not only flagged by an error message in the
output, a pointer is printed at the approximate position in the line where

the error has been detected, as indicated by the value of PTR.

74

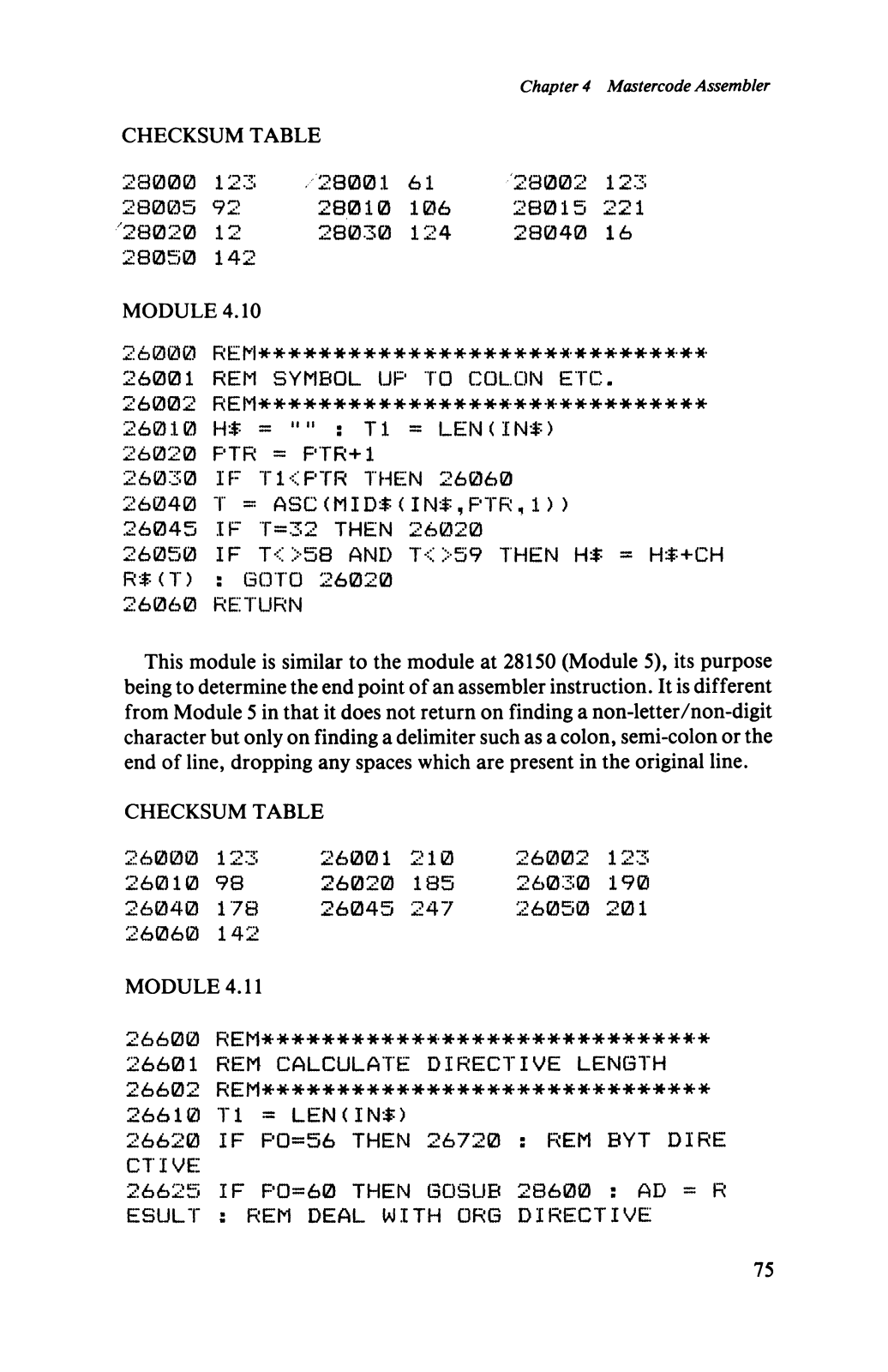

CHECKSUM TABLE

Chapter 4 Mastercode Assembler

28000

28005

28020

123 28001 61 28002

cpr?

1 2

28010 106 28015
28030 124 28040

28050 142

MODULE 4.10

26000 RE M*** **** *** ******* *** **** *** ***

26001 REM SYMB OL UP TO COLON ETC.

26002 RE M*** **** *** ******* *** **** *** ***

26010 H$ = "" : T 1 = L EN UN $ )
26020 PTR = PTR+1
26030 IF T 1<PTR THEN 26060

26040 T = ASC(MI D * (IN*,P T R,1)>

26045 IF T=32 THEN 26020
26050 IF T< >58 AND T< >59 THEN H* = H*+CH
R$<T) : GOTO 26020
26060 RETURN

This module is similar to the module at 28150 (Module 5), its purpose

being to determine the end point of an assembler instruction. It is different

from Module 5 in that it does not return on finding a non-letter/non-digit
character but only on finding a delimiter such as a colon, semi-colon or the
end of line, dropping any spaces which are present in the original line.

CHECKSUM TABLE

26000

1 ^ ~:'I

26001
26010 98 26 020 185
26040 178 26045 247 26050

2 1 0

26002

123

26030 190

2 0 1

26060 142

MO DU LE4.il

26600 REM **** *** **** *** **** *** **** *** **

26601 RE M CA LCULATE DIRE CTI VE LENGT H

26602 REM** *** **** *** **** *** **** *** *** *

26610 T 1 = L EN (IN$)
26620 IF P0 =5 6 THEN 26720 : REM BYT DIRE
CTIVE
26625 IF PO=60 THEN GOSUB 28600 : AD = R
ESULT : REM DEAL WITH ORG DIRECT IVE

75

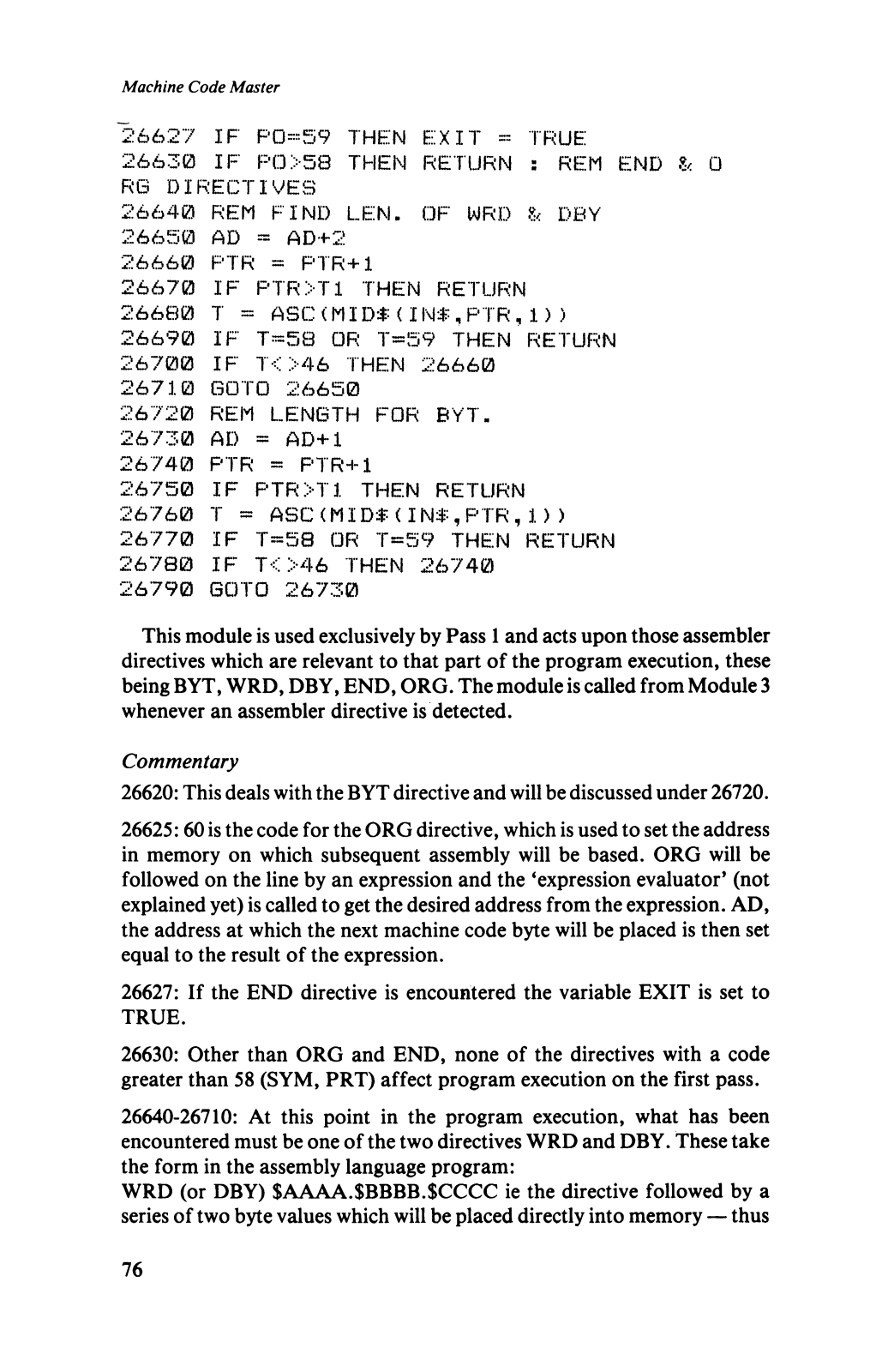

Machine Code Master

26627 IF P0 =5 9 THEN EXIT = TRUE
26630 IF PC)>58 THEN RE TURN : REM END & 0
RG DIREC TIV ES
26640 REM FIND LEN. OF WRD & DBY
26650 AD = AD+2

26660 PTR = PTR+1

26670 IF P T R > T1 THEN RETURN
26680 T = A S C (MI D T(IN T,P T R,1 ))
26690 IF T=58 OR T=59 THEN RETURN
26700 IF T< >46 THEN 26660
26710 GOTO 26650
26720 REM LE NGTH FOR BYT.
26730 AD = AD+1
26740 PTR = PTR+1
26750 IF P T R > T1 THEN RETURN
26760 T = AS C (M I D T(I N T,P T R,1))
26770 IF T=58 OR T=59 THEN RETURN
26780 IF T< >46 THEN 26740
26790 GOTO 26730

This module is used exclusively by Pass 1 and acts upon those assembler
directives which are relevant to that part of the program execution, these
being BYT, WRD, DBY, END, ORG. The module is called from Module 3
whenever an assembler directive is detected.

Commentary

26620: This deals with the BYT directive and will be discussed under 26720.
26625:60 is the code for the ORG directive, which is used to set the address

in memory on which subsequent assembly will be based. ORG will be
followed on the line by an expression and the ‘expression evaluator’ (not
explained yet) is called to get the desired address from the expression. AD,
the address at which the next machine code byte will be placed is then set
equal to the result of the expression.

26627: If the END directive is encountered the variable EXIT is set to
TRUE.

26630: Other than ORG and END, none of the directives with a code

greater than 58 (SYM, PRT) affect program execution on the first pass.

26640-26710: At this point in the program execution, what has been
encountered must be one of the two directives WRD and DBY. These take

the form in the assembly language program:

WRD (or DBY) $AAAA.$BBBB.$CCCC ie the directive followed by a
series of two byte values which will be placed directly into memory — thus

76

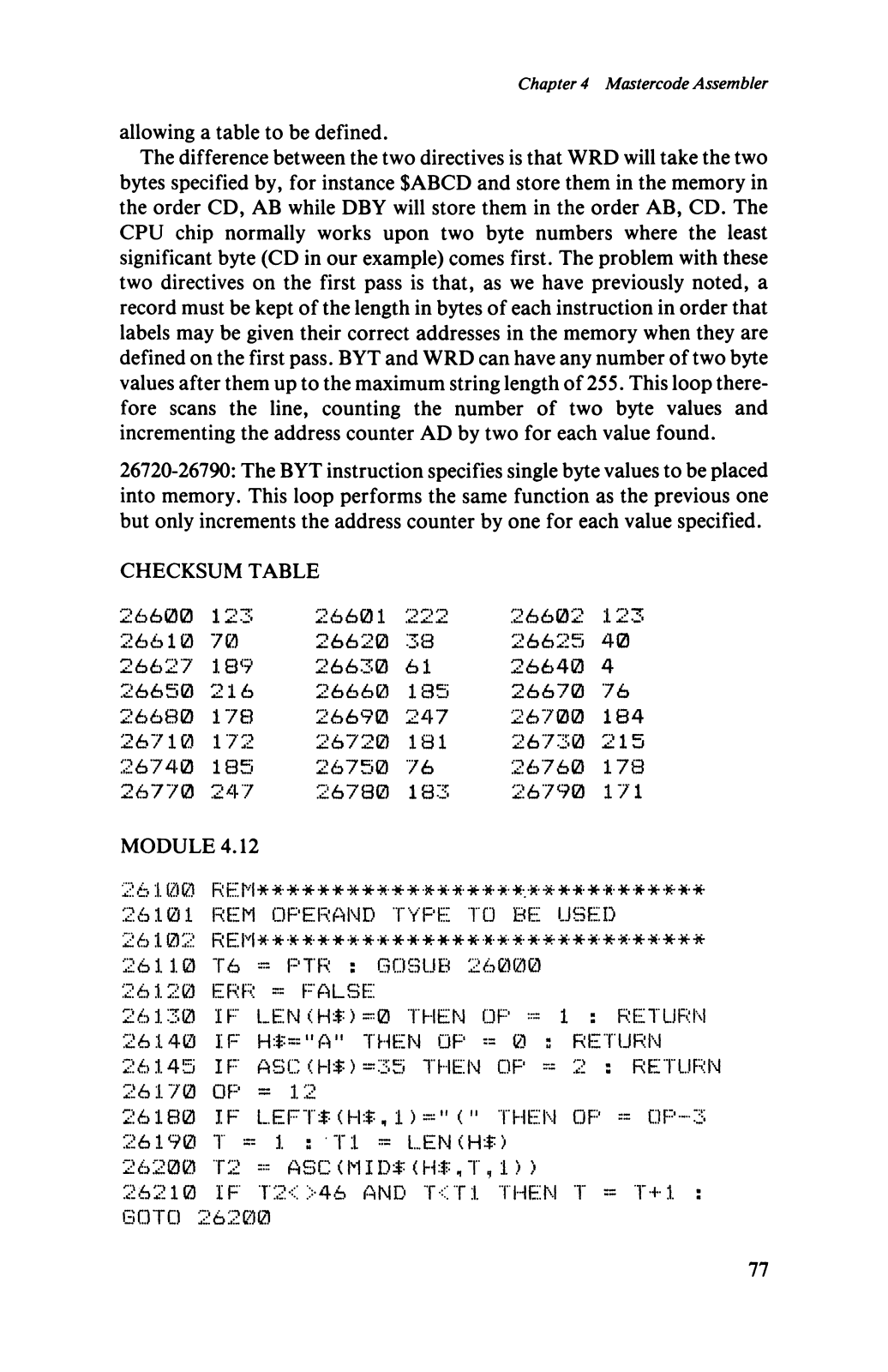

Chapter 4 Mastercode Assembler

allowing a table to be defined.

The difference between the two directives is that WRD will take the two
bytes specified by, for instance $ABCD and store them in the memory in
the order CD, AB while DBY will store them in the order AB, CD. The
CPU chip normally works upon two byte numbers where the least
significant byte (CD in our example) comes first. The problem with these
two directives on the first pass is that, as we have previously noted, a
record must be kept of the length in bytes of each instruction in order that
labels may be given their correct addresses in the memory when they are
defined on the first pass. BYT and WRD can have any number of two byte
values after them up to the maximum string length of 255. This loop there
fore scans the line, counting the number of two byte values and
incrementing the address counter AD by two for each value found.

26720-26790: The BYT instruction specifies single byte values to be placed
into memory. This loop performs the same function as the previous one
but only increments the address counter by one for each value specified.

CHECKSUM TABLE

26600

123 26601
26610 70
26627

189 26630 61 26640 4

26620 38

f’? '~?

26602 123

26625 40

26650 216 26660 185 26670 76
26680
26710
26740

178 26690 247

172

185 26750 76 26760 178
26770 247

MODULE 4.12

26720 181 26730

26780

183 26790

26700 184

215

171

26:1.00 REM******************.************
26101 REM OP ER AND TYPE TO BE USED
26102 REM* **** *** *** *** *** *** *** *** *** *
26110 T6 = PTR : GOSUB 26000
26120 ERR = FALSE
26130 IF LEN<H$>=0 THEN OP = 1 : RETURN
26140 IF H$="A" THEN OP = 0 : RETURN
26145 IF A SC(H $)=35 THEN OP = 2 : RETURN

26170 OP = 12

26180 IF LE FT * (HIT, !)="(" THEN OP = OP-3

26190 T = 1 : T 1 = LEN(HT)

26200 T2 = ASC(MID$(H:T,T, 1) >

26210 IF T 2< >46 AND TCTi THEN T = T+i :

GOTO 26200

77

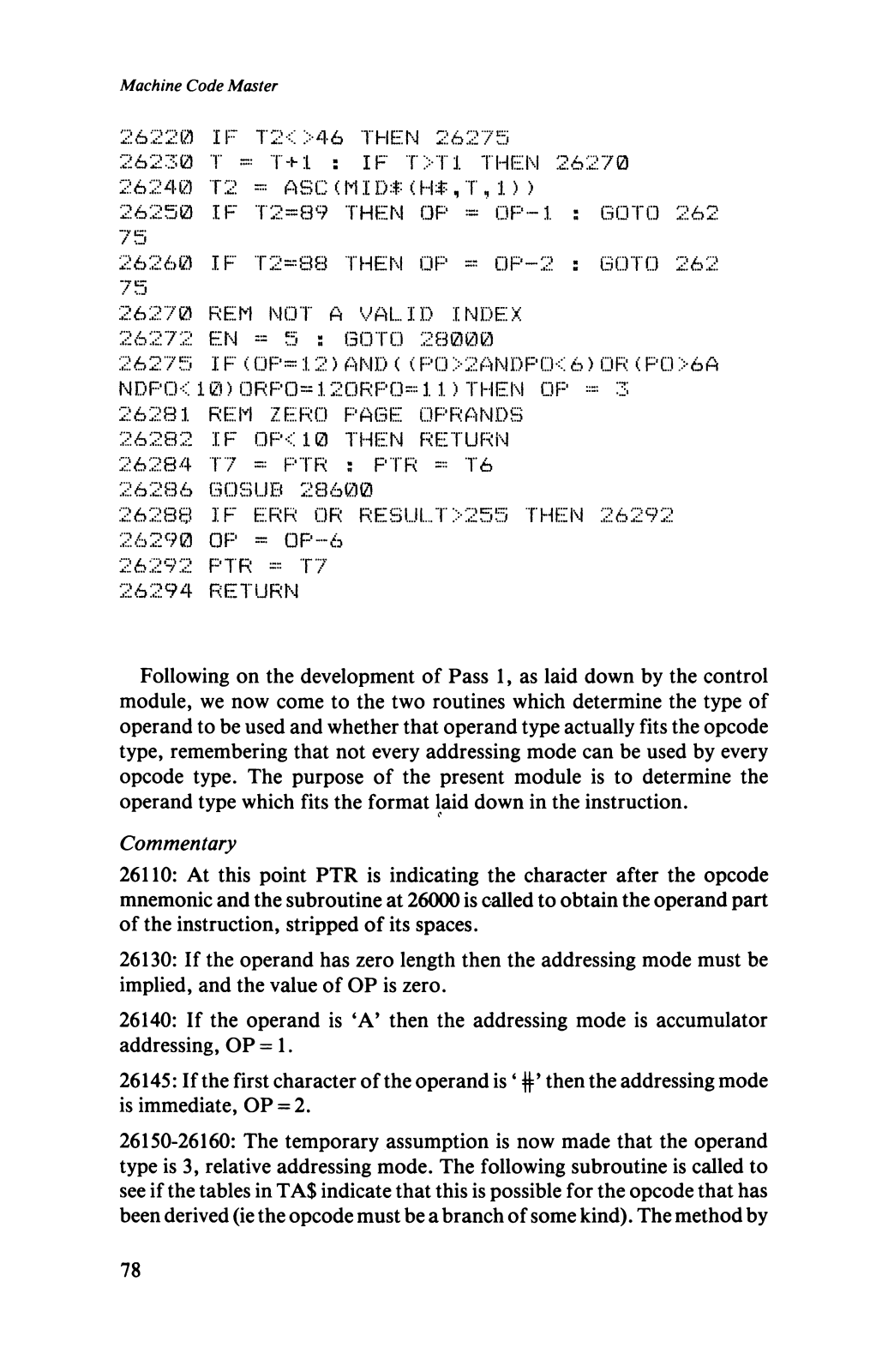

Machine Code Master

26220 IF T2<>46 THEN 26275
26230 T = T+l : IF T> T 3. THEN 26270
26240 T2 = ASC (MID* < FIT , T ,1) )
26250 IF" T2=89 THEN OP = O P - 1 : GOTO 262

75

26260 IF T2—8 8 THEN OP «* OP-2 : GOTO 262

75

26270 REM NOT A VALID INDEX

26272 EN « 5 s GOTO 28000

26275 IF (OP= :l. 2) AND ( (PO >2ANDP0< 6 ) OR (PO >6 A
NDF'OC 10) QRP0 = 1 2 0 R P 0=11) THEN OP = 3
26281 REM ZERO PAGE OPRANDS

26282 IF OP< 1 0 THEN RETURN

26284 T'7 = PTR : PTR = T 6

26286 GOSUB 28600

26288 IF ERR OR R E S U L T >255 THEN 26292

26290 OP = OP - 6
26292 PTR « T7
26294 RETURN

Following on the development of Pass 1, as laid down by the control
module, we now come to the two routines which determine the type of
operand to be used and whether that operand type actually fits the opcode
type, remembering that not every addressing mode can be used by every
opcode type. The purpose of the present module is to determine the
operand type which fits the format laid down in the instruction.

Commentary

26110: At this point PTR is indicating the character after the opcode
mnemonic and the subroutine at 26000 is called to obtain the operand part
of the instruction, stripped of its spaces.

26130: If the operand has zero length then the addressing mode must be
implied, and the value of OP is zero.

26140: If the operand is ‘A’ then the addressing mode is accumulator
addressing, OP = 1.

26145: If the first character of the operand is ‘ then the addressing mode
is immediate, OP = 2.

26150-26160: The temporary assumption is now made that the operand
type is 3, relative addressing mode. The following subroutine is called to
see if the tables in TA$ indicate that this is possible for the opcode that has
been derived (ie the opcode must be a branch of some kind). The method by

78

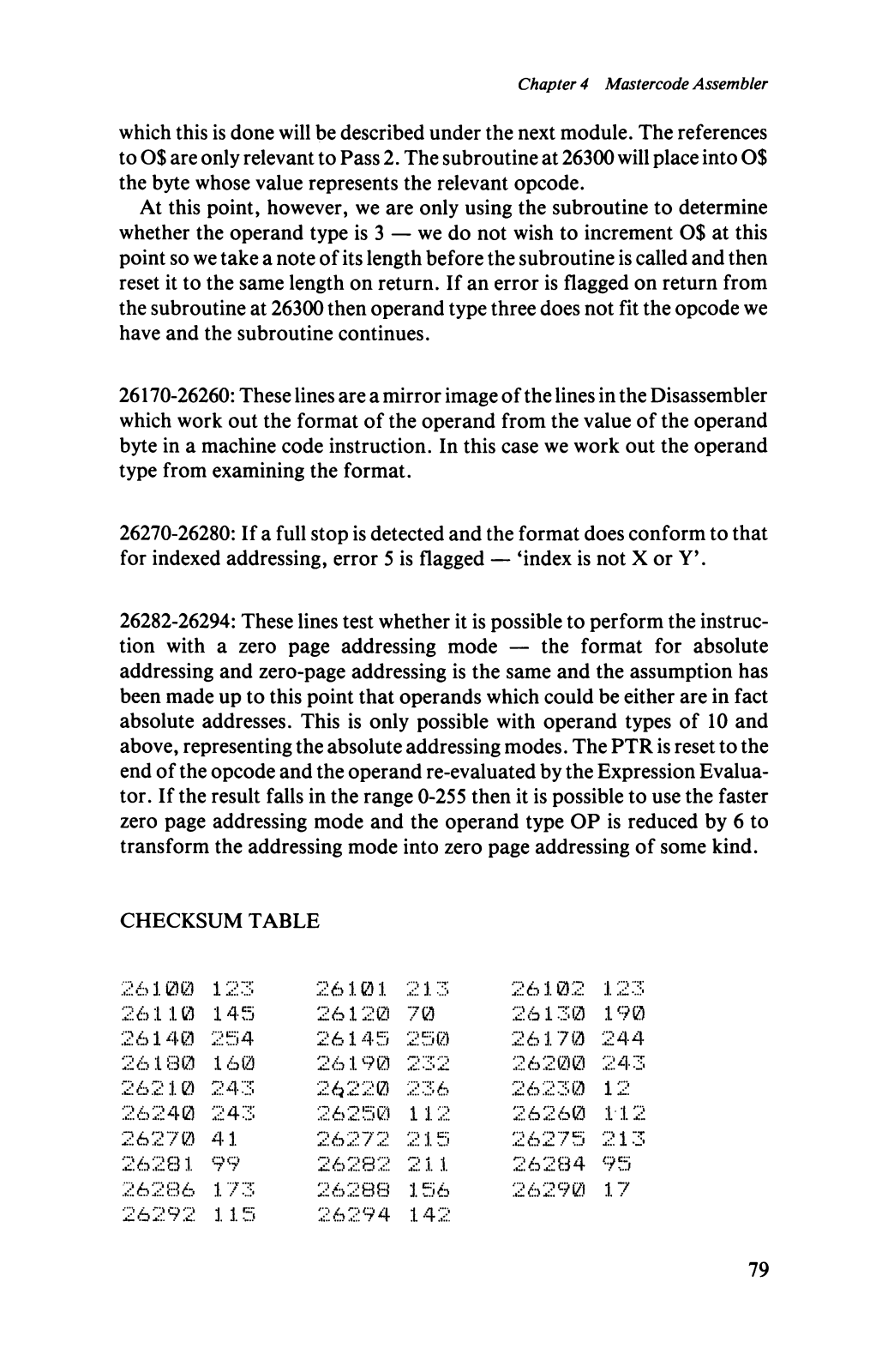

Chapter 4 Mastercode Assembler

which this is done will be described under the next module. The references
to 0$ are only relevant to Pass 2. The subroutine at 26300 will place into 0$
the byte whose value represents the relevant opcode.

At this point, however, we are only using the subroutine to determine

whether the operand type is 3 — we do not wish to increment 0$ at this
point so we take a note of its length before the subroutine is called and then
reset it to the same length on return. If an error is flagged on return from
the subroutine at 26300 then operand type three does not fit the opcode we
have and the subroutine continues.

26170-26260: These lines are a mirror image of the lines in the Disassembler

which work out the format of the operand from the value of the operand
byte in a machine code instruction. In this case we work out the operand

type from examining the format.

26270-26280: If a full stop is detected and the format does conform to that
for indexed addressing, error 5 is flagged — ‘index is not X or Y \

26282-26294: These lines test whether it is possible to perform the instruc

tion with a zero page addressing mode — the format for absolute

addressing and zero-page addressing is the same and the assumption has
been made up to this point that operands which could be either are in fact
absolute addresses. This is only possible with operand types of 10 and
above, representing the absolute addressing modes. The PTR is reset to the
end of the opcode and the operand re-evaluated by the Expression Evalua
tor. If the result falls in the range 0-255 then it is possible to use the faster
zero page addressing mode and the operand type OP is reduced by 6 to
transform the addressing mode into zero page addressing of some kind.

CHECKSUM TABLE

26100 123

26110 145

26140 254

26180 160
26210 243
26240 243
26270 41
26281 99
26286 173
26292 115

26101 213
26120 70
26145 250
26190 232
26220 236
26250 112
26272 215
26282 211
26288 156
26294 142

26102 123
26130 190
26170 244
26200 243
26230 12
26260 112
26275 213
26284 95
26290 17

79

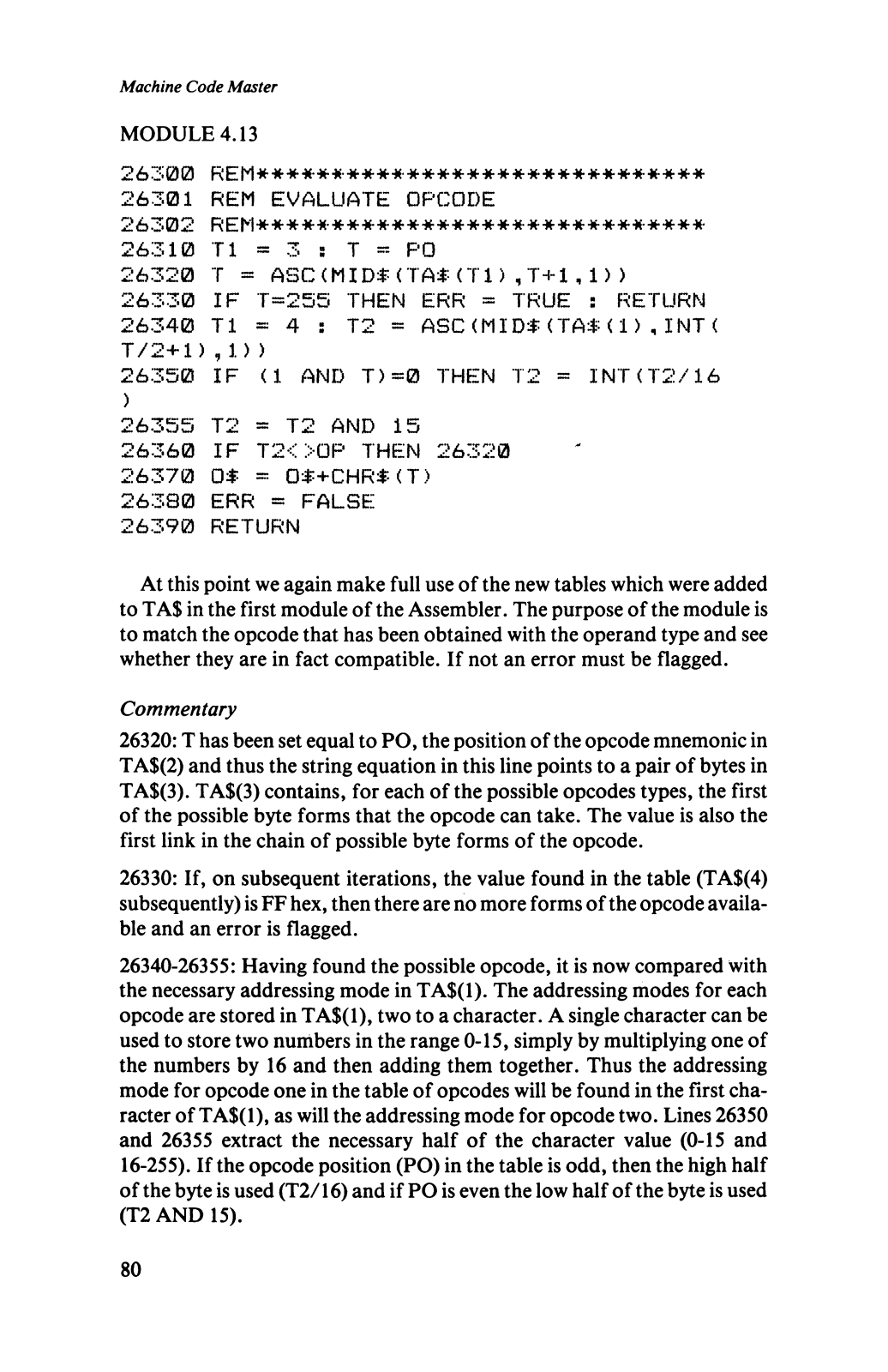

Machine Code Master

MODULE 4.13

26300 REM *** **** *** **** *** ******* *** ***
26301 REM EVALUAT E OPCODE
26302 REM *** **** *** **** *** ******* *** ***

26310 T 1 = 3 s T = PO

26320 T = ASC< M ID*<T A * <T1>, T + 1,1>>

26330 IF 1=255 THEN ERR = TRUE s RETURN

26340 T 1 = 4 s T2 = AS C (MI D * < T A $ <1>,IN T <

T/2 + 1 ) ,1))

26350 IF (1 AND T)=0 THEN 72 = INT(T2/16

)

26355 T2 = T2 AND 15

26360 IF T 2 O 0 P THEN 26320
26370 D* = 0*+CHR*<T>
26380 ERR = FALSE
26390 RETURN

At this point we again make full use of the new tables which were added
to TA$ in the first module of the Assembler. The purpose of the module is
to match the opcode that has been obtained with the operand type and see
whether they are in fact compatible. If not an error must be flagged.

Commentary

26320: T has been set equal to PO, the position of the opcode mnemonic in

TA$(2) and thus the string equation in this line points to a pair of bytes in
TA$(3). TA$(3) contains, for each of the possible opcodes types, the first

of the possible byte forms that the opcode can take. The value is also the
first link in the chain of possible byte forms of the opcode.

26330: If, on subsequent iterations, the value found in the table (TA$(4)
subsequently) is FF hex, then there are no more forms of the opcode availa
ble and an error is flagged.

26340-26355: Having found the possible opcode, it is now compared with

the necessary addressing mode in TA$(1). The addressing modes for each

opcode are stored in TA$(1), two to a character. A single character can be
used to store two numbers in the range 0-15, simply by multiplying one of

the numbers by 16 and then adding them together. Thus the addressing

mode for opcode one in the table of opcodes will be found in the first cha
racter of TA$(1), as will the addressing mode for opcode two. Lines 26350

and 26355 extract the necessary half of the character value (0-15 and

16-255). If the opcode position (PO) in the table is odd, then the high half
of the byte is used (T2/16) and if PO is even the low half of the byte is used
(T2 AND 15).

80

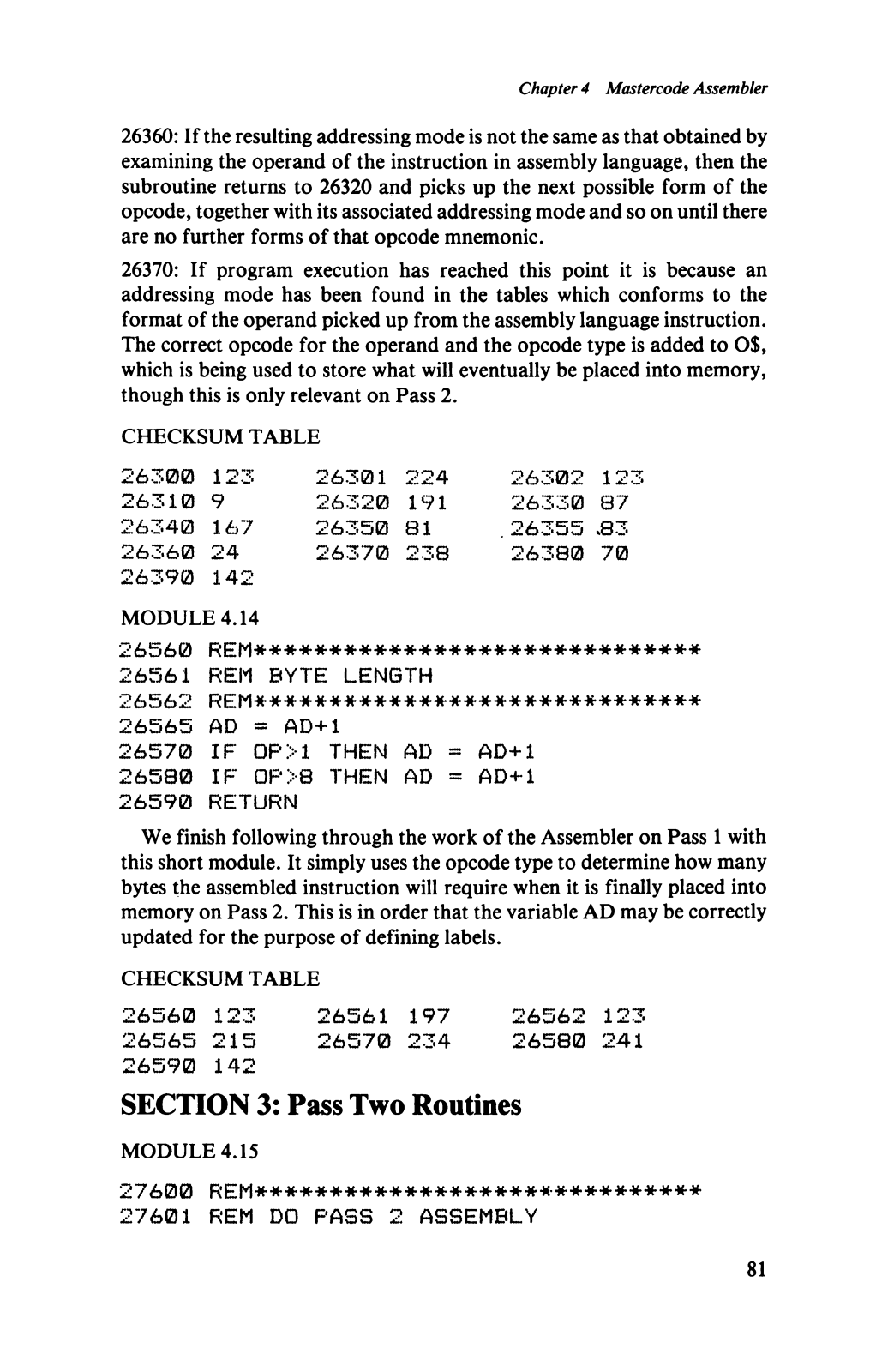

Chapter 4 Mastercode Assembler

26360: If the resulting addressing mode is not the same as that obtained by

examining the operand of the instruction in assembly language, then the

subroutine returns to 26320 and picks up the next possible form of the

opcode, together with its associated addressing mode and so on until there

are no further forms of that opcode mnemonic.

26370: If program execution has reached this point it is because an

addressing mode has been found in the tables which conforms to the

format of the operand picked up from the assembly language instruction.

The correct opcode for the operand and the opcode type is added to 0$,
which is being used to store what will eventually be placed into memory,
though this is only relevant on Pass 2.

CHECKSUM TABLE

26300 123

26310 9
26340 167
26360 24

26301 224
26320 191
26350 81
26370 238

26302 123

26330 87

.26355 .83

26380 70

26390 142

MODULE 4.14

26560 REM*** *** *** *** *** *** *** *** *** ***
26561 REM BYTE LE NG TH
26562 REM*** *** *** *** *** *** *** *** *** ***
26565 AD = AD+1
26570 IF 0P>1 THEN AD = AD+1
26580 IF O P> 8 THEN AD = AD+1
26590 RETU RN

We finish following through the work of the Assembler on Pass 1 with
this short module. It simply uses the opcode type to determine how many
bytes the assembled instruction will require when it is finally placed into
memory on Pass 2. This is in order that the variable AD may be correctly
updated for the purpose of defining labels.

CHECKSUM TABLE

26560 123 26561 197 2 6562 123
26565 215 26570 234 26580 241
26590 142

SECTION 3: Pass Two Routines

MODULE 4.15

27600 REM* *** **** ******** *** ******** ***
27601 REM DO PASS 2 ASSEMBLY

81

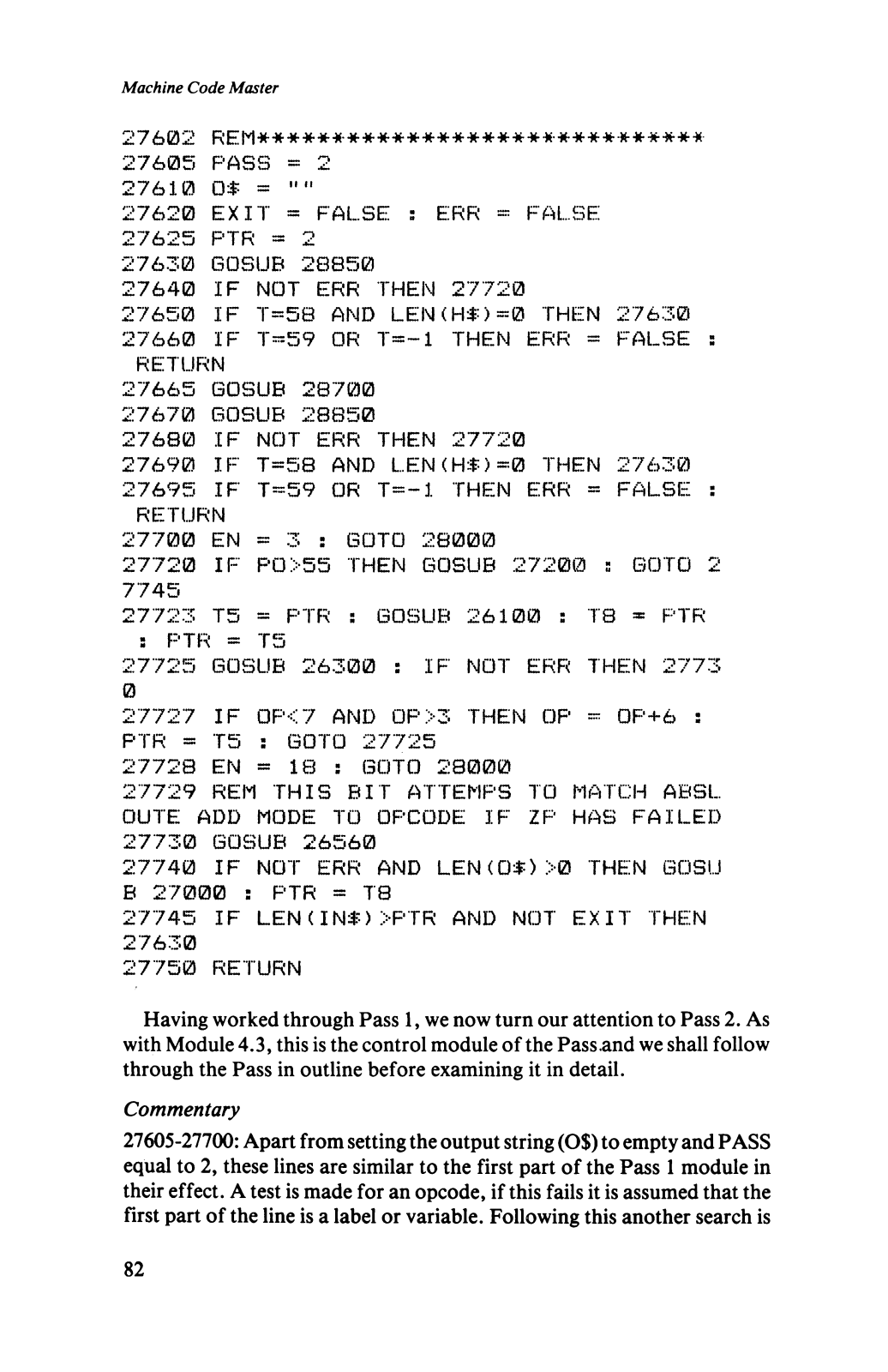

Machine Code Master

27602 RE M** *** *** *** *** *** *** *** *** *** *
27605 PASS = 2
27610 0$ = ""
27620 EXIT = FALSE : ERR = FALSE
27625 F'TR = 2
27630 GOSUB 28850
27640 IF NOT ERR THEN 27720
27650 IF T=58 AND L EN<H$)= 0 THEN 27630
27660 IF T~59 OR T=-l THEN ERR = FALSE :

RETURN
27665 GOSUB 28700
27670 GOSUB 28850
27680 IF NOT ERR THEN 27720
27690 IF T=58 AND LEN(H$ >*0 THEN 27630
27695 IF T=59 OR T=-l THEN ERR » FALSE :

RETURN
27700 EN = 3 : GOTO 28000
27720 IF P O >55 THEN GOSUB 27200 s GOTO 2
7745
27723 T5 = F'TR : GOSUB 26100 : 78 * F'TR

: F'TR = T5
27725 GOSUB 26300 : IF NOT ERR THEN 2773
0
27727 IF 0P<7 AND O P >3 THEN OF' = 0F'+6 :
PTR = T5 : GOTO 27725
27728 EN = 18 : GOTO 28000
27729 REM THIS BIT AT TEMPS TO MATCH ABSL
OUTE ADD MODE TO OPCODE IF ZP HAS FAILED

27730 GOSUB 26560
27740 IF NOT ERR AND LEN (O# )>0 THEN GOSU
B 27000 : PTR = 78
27745 IF LEN (IN$) >F'TR AND NOT EXIT THEN
27630
27750 RETURN

Having worked through Pass 1, we now turn our attention to Pass 2. As
with Module 4.3, this is the control module of the Pass.and we shall follow
through the Pass in outline before examining it in detail.

Commentary

27605-27700: Apart from setting the output string (OS) to empty and PASS
equal to 2, these lines are similar to the first part of the Pass 1 module in

their effect. A test is made for an opcode, if this fails it is assumed that the

first part of the line is a label or variable. Following this another search is

82

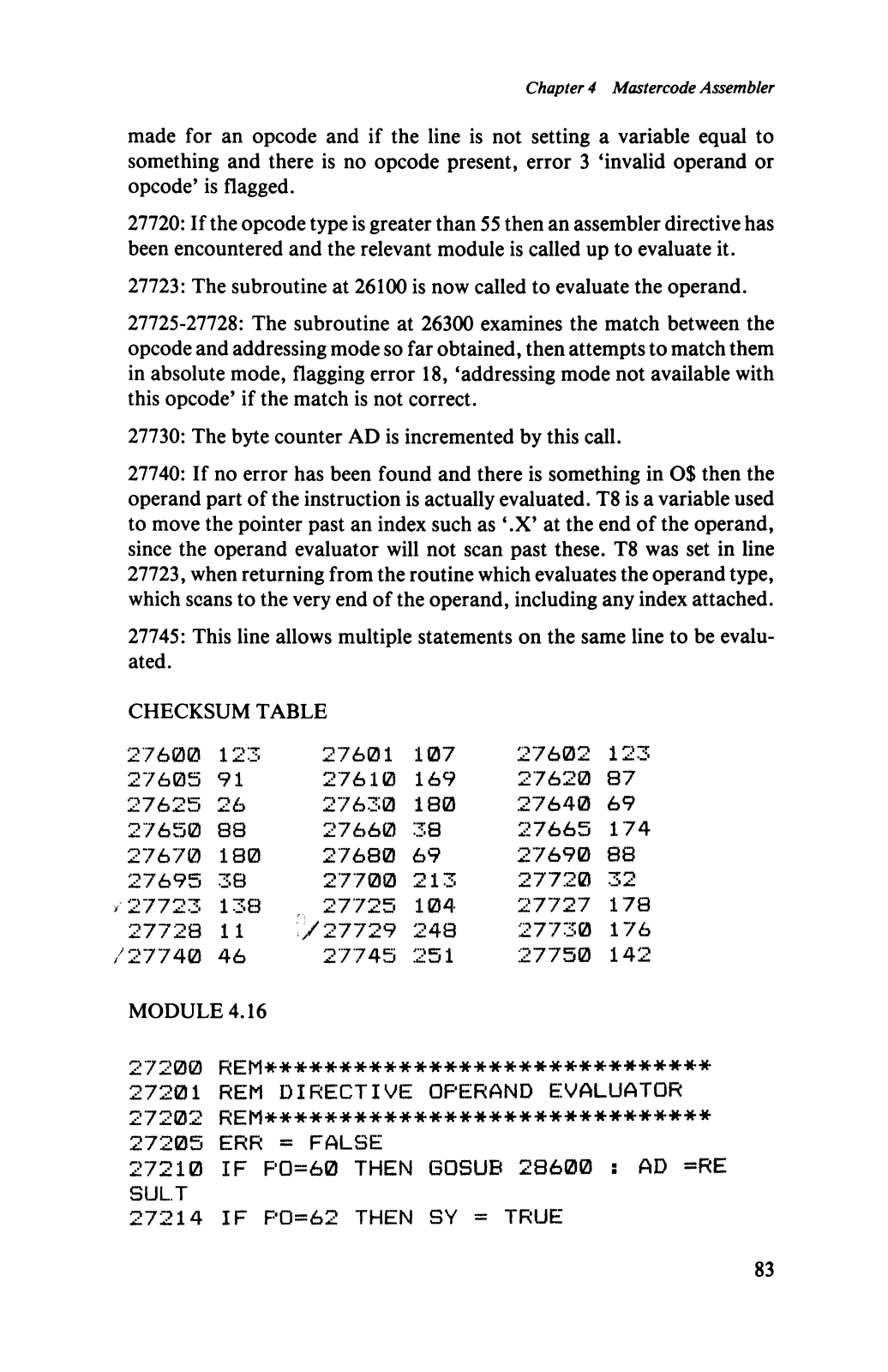

Chapter 4 Mastercode Assembler

made for an opcode and if the line is not setting a variable equal to
something and there is no opcode present, error 3 ‘invalid operand or

opcode’ is flagged.

27720: If the opcode type is greater than 55 then an assembler directive has
been encountered and the relevant module is called up to evaluate it.

27723: The subroutine at 26100 is now called to evaluate the operand.

27725-27728: The subroutine at 26300 examines the match between the
opcode and addressing mode so far obtained, then attempts to match them

in absolute mode, flagging error 18, ‘addressing mode not available with

this opcode’ if the match is not correct.
27730: The byte counter AD is incremented by this call.
27740: If no error has been found and there is something in OS then the

operand part of the instruction is actually evaluated. T8 is a variable used

to move the pointer past an index such as ‘.X’ at the end of the operand,

since the operand evaluator will not scan past these. T8 was set in line

27723, when returning from the routine which evaluates the operand type,

which scans to the very end of the operand, including any index attached.
27745: This line allows multiple statements on the same line to be evalu

ated.

CHECKSUM TABLE

27600

123 27601 107
27605 91
27625
27650
27670

27695

26

8 8

180 27680 69

38 2770 0

/27723 138

27728

1 1

/27740 46

MODULE 4.16

27610 169
27630 180
27660 38

27725 104

/27 7 2 9

27745 251

213

248

27602 123
27620

87
27640 69
27665
27690

27720

27727

27730

27750

174

8 8

~r

178
176
142

2720G) REM* *** *** ****** *** ****** *** *****
27201 REM DIRE CTIVE OPERAND EVALUATOR

27202 REM* *** **** ******** *** ******** ***
27205 ERR = FALSE
27210 IF PO=60 THEN GOSUB 28600 : AD =RE
SUL.T
27214 IF P0=62 THEN SY = TRUE

83

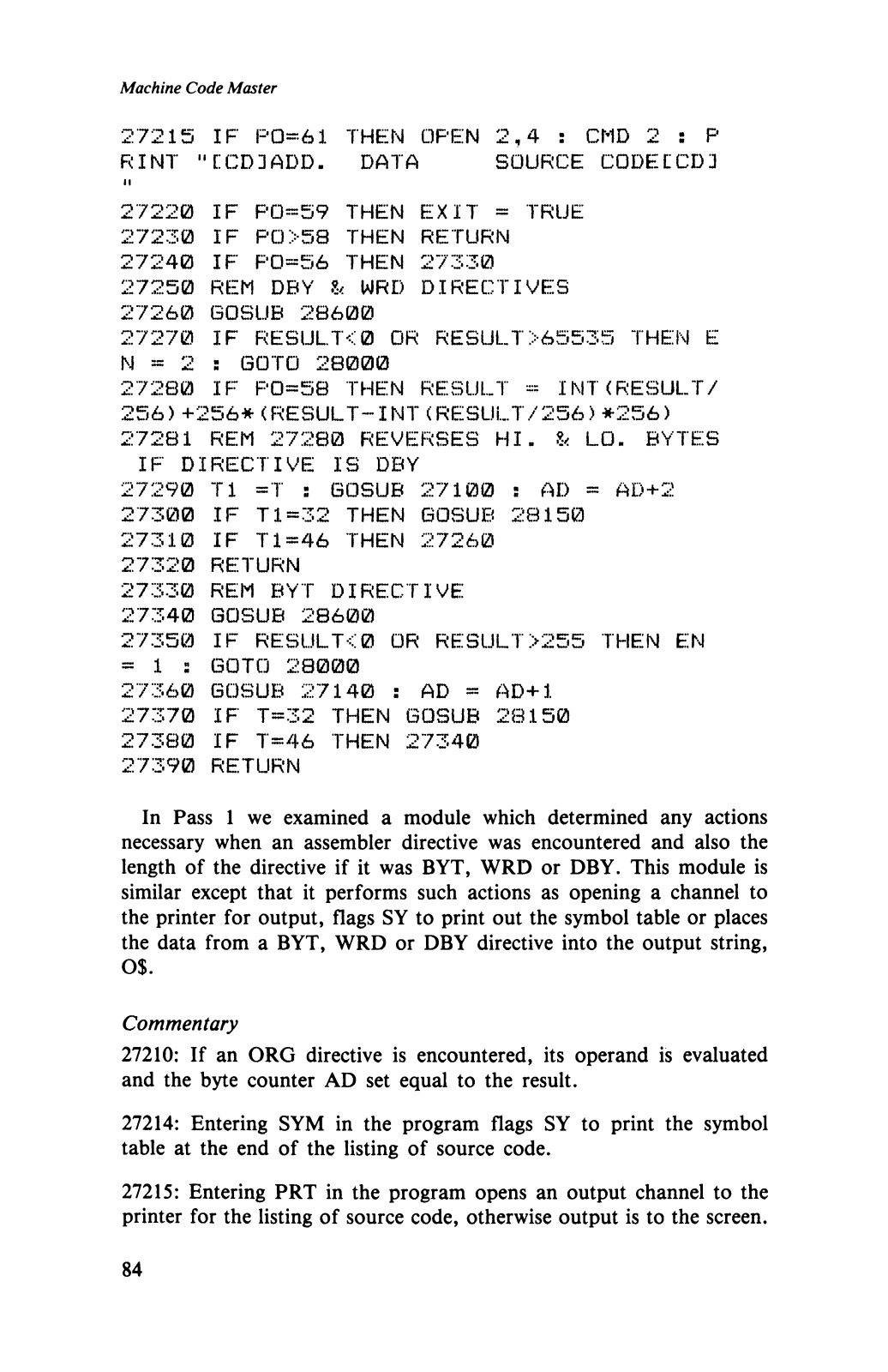

Machine Code Master

27215 IF P0--61 THEN OPEN 2,4 : CMD 2 : P
PINT " [.CD] ADD. DATA SOUR CE CODE LCD I

II

27220 IF P0=59 THEN EXIT = TRUE
27230 IF P0>58 THEN RETURN
27240 IF P0=5 6 THEN 27330
27250 REM DBY ?•< WRD DIRECTIVES
27260 GOSUB 28600
27270 IF RESUL.T<0 OR RESU L T >65535 THEN E
N = 2 t GOTO 28000
27280 IF P0=58 THEN RESULT = INT(RESULT/

256 ) + 2 5 6 * (RESULT -INT(RESU LT/256)*256)

27281 REM 2728 0 REVERS ES HI. 2< LO. BYTES

IF DI RE CT IVE IS DBY

27290 T 1 =T : GOSUB 27100 : AD = AD+2

27300 IF T 1=32 THEN GOSUB 28150

27310 IF T 1=46 THEN 27260

27320 RETU RN

27330 REM BYT DIRECTIVE

27340 GOSUB 28600

27350 IF RE SULT C0 OR RE S ULT >255 THEN EN

= 1 : GOTO 28000
27360 GOSUB 27140 : AD = AD+1
27370 IF T=32 THEN GOSUB 28150
27380 IF T=46 THEN 27340
27390 RETURN

In Pass 1 we examined a module which determined any actions
necessary when an assembler directive was encountered and also the
length of the directive if it was BYT, WRD or DBY. This module is
similar except that it performs such actions as opening a channel to
the printer for output, flags SY to print out the symbol table or places
the data from a BYT, WRD or DBY directive into the output string,

o$.

Commentary

27210: If an ORG directive is encountered, its operand is evaluated
and the byte counter AD set equal to the result.

27214: Entering SYM in the program flags SY to print the symbol
table at the end of the listing of source code.

27215: Entering PRT in the program opens an output channel to the
printer for the listing of source code, otherwise output is to the screen.

84

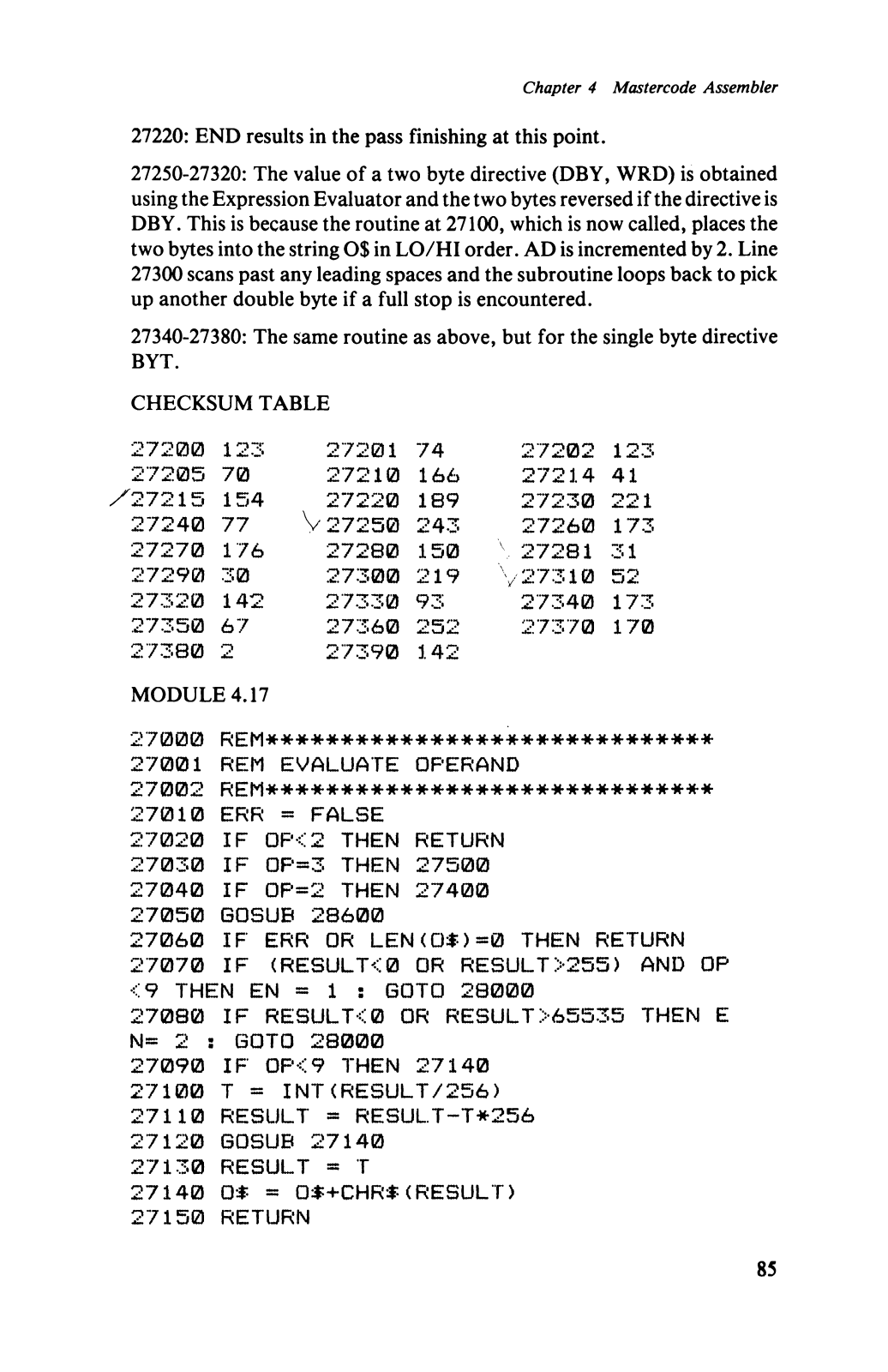

Chapter 4 Mastercode Assembler

27220: END results in the pass finishing at this point.
27250-27320: The value of a two byte directive (DBY, WRD) is obtained

using the Expression Evaluator and the two bytes reversed if the directive is
DBY. This is because the routine at 27100, which is now called, places the
two bytes into the string 0$ in LO/HI order. AD is incremented by 2. Line
27300 scans past any leading spaces and the subroutine loops back to pick
up another double byte if a full stop is encountered.

27340-27380: The same routine as above, but for the single byte directive
BYT.

CHECKSUM TABLE

~J f-y

0 0

‘7* "J 7

05

X2 7 2 15

272 40 77
272 70

7'77>

90 30

2 0

273

273 50 67
273 80

123 27201
70
154

27210
27220 189

V 27250

176

27280 150
27300

142

27330 93 27340 173
27360
27390

74

27202 123

166 27214 41

27230

9 9 J

243 27260

27281

219 V 27310
o «=* '*;>

27370 170

31
52

142

173

MODULE 4.17

27000 REM *** ********* *** **** *** *** **** *
27001 REM EVALUATE OPER AND
27002 REM *** ********* *** **** *** *** **** *
27010 ERR = FALSE
27020 IF O P<2 THEN RETUR N
27030 IF 0P=3 THEN 27500
27040 IF QP= 2 THEN 27400
27050 GOSUB 28600
27060 IF ERR OR LEN( Ot) =0 THEN RETURN
27070 IF (R E SULT C 0 OR RE S U L T >255) AND OP
<9 THEN EN = 1 : GOTO 28000
27080 IF R E SULT S0 OR RES U L T >65535 THEN E
N= 2 : GOTO 28000

27090 IF OF'<9 THEN 27140

27100 T = INT(RESULT/256)

27110 RESULT = RESUL.T-T*256

27120 GOSUB 27140

27130 RESULT ■ T

27140 0$ = O^ +CHRS (RESULT)

27150 RETURN

85

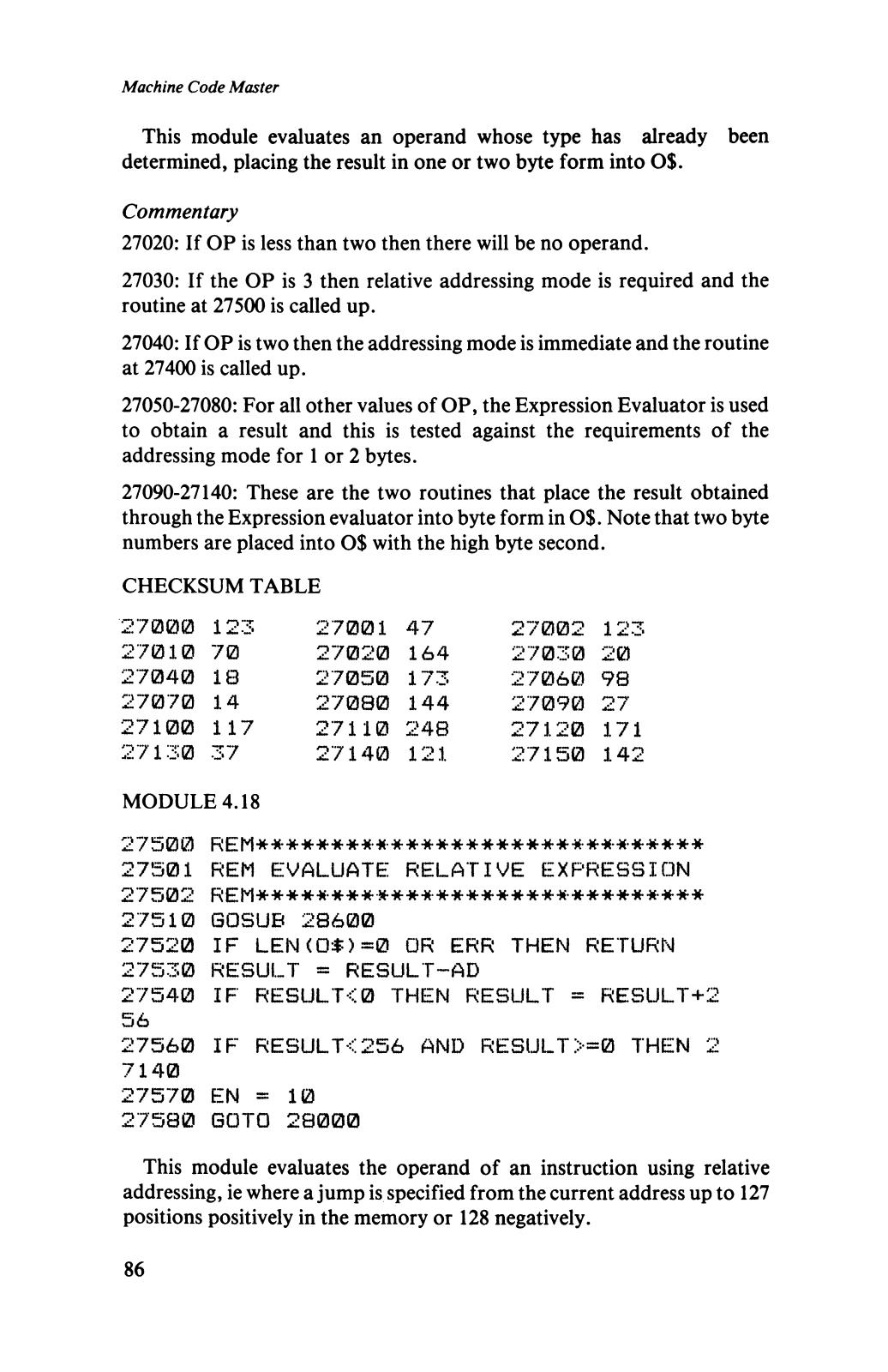

Machine Code Master

This module evaluates an operand whose type has already been
determined, placing the result in one or two byte form into 0$.

Commentary

27020: If OP is less than two then there will be no operand.
27030: If the OP is 3 then relative addressing mode is required and the

routine at 27500 is called up.
27040: If OP is two then the addressing mode is immediate and the routine

at 27400 is called up.
27050-27080: For all other values of OP, the Expression Evaluator is used

to obtain a result and this is tested against the requirements of the
addressing mode for 1 or 2 bytes.

27090-27140: These are the two routines that place the result obtained
through the Expression evaluator into byte form in 0$. Note that two byte
numbers are placed into 0$ with the high byte second.

CHECKSUM TABLE

27000

27010
27040
27070

27100

27130

MODULE 4.18

123
70
18
14
117

37

27001 47

27020 164 27030

27050 173

27002

123

2 0

27060 98
27080 144 27090 27
27110
27140

248

1 2 1

27120 171

27150 142

27500 REM *** ********* ******************

27501 REM EVALU ATE RELAT IVE EXPRESSION

27502 RE M******* ******* *** **** *** **** **

27510 GOSUB 28600

27520 IF L EN (0$)=0 OR ERR THEN RETURN

27530 RESULT = RESULT-AD

27540 IF R ESULT C0 THEN RESULT = RESULT+2

56
27560 IF RESUL TS256 AND RE SULT>=0 THEN 2
7140

27570 EN = 10

27580 GOTO 28000

This module evaluates the operand of an instruction using relative

addressing, ie where a jump is specified from the current address up to 127

positions positively in the memory or 128 negatively.

86

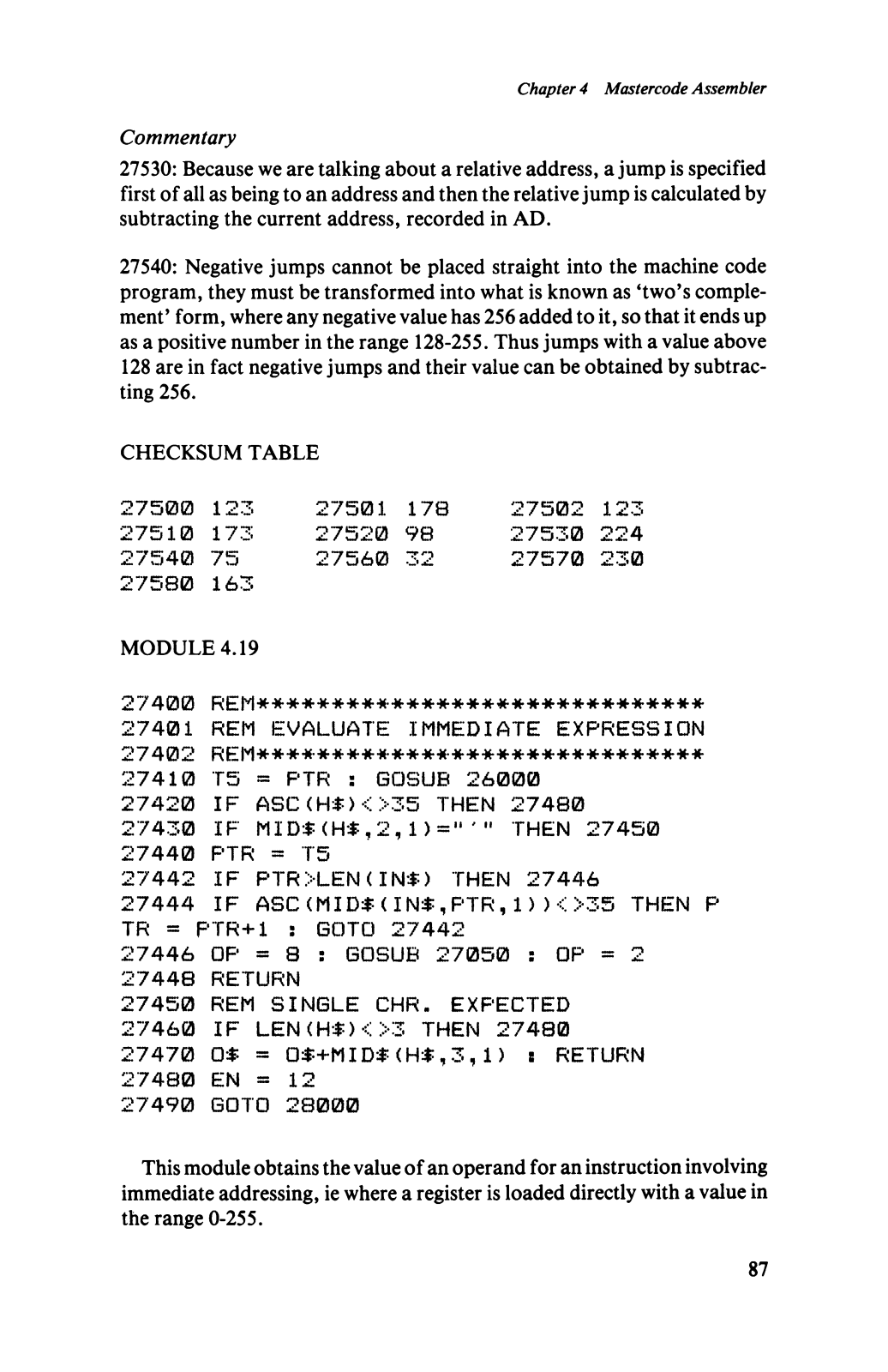

Chapter 4 Mastercode Assembler

Commentary

27530: Because we are talking about a relative address, a jump is specified
first of all as being to an address and then the relative jump is calculated by
subtracting the current address, recorded in AD.

27540: Negative jumps cannot be placed straight into the machine code
program, they must be transformed into what is known as ‘two’s comple
ment’ form, where any negative value has 256 added to it, so that it ends up
as a positive number in the range 128-255. Thus jumps with a value above

128 are in fact negative jumps and their value can be obtained by subtrac

ting 256.

CHECKSUM TABLE

27500 12
27510 17:
27540 75

27501 178

27520 98

27560 32

27502 123

27530 224

27570 230

27580 16:

MODULE 4.19

27400 REM* *** *** *** *** *** *** *** *** *** **
27401 REM EVALUATE IMMEDIATE EXPRESSION
27402 REM* *** *** *** *** *** *** *** *** *** **
27410 T5 = PTR : GOSUB 26000
27420 IF ASC( H*><> 35 THEN 27480
27430 IF MID$(H*,2,1)=“ THEN 27450
27440 PTR = T5
27442 IF P T R >L E N(I N$) THEN 27446
27444 IF ASC(MID$ <IN *,PT R,1 ))<>35 THEN P
TR = PTR+1 s GOTO 27442
27446 OP = 8 : GOSUB 27050 : OP = 2
27448 RETURN
27450 REM SINGLE CHR. EXPEC TED
27460 IF L EN (H $)< >3 THEN 27480
27470 0$ = 0:$+MID*<H:*,3,1 > i R ETURN
27480 EN = 12
27490 GOTO 28000

This module obtains the value of an operand for an instruction involving
immediate addressing, ie where a register is loaded directly with a value in
the range 0-255.

87

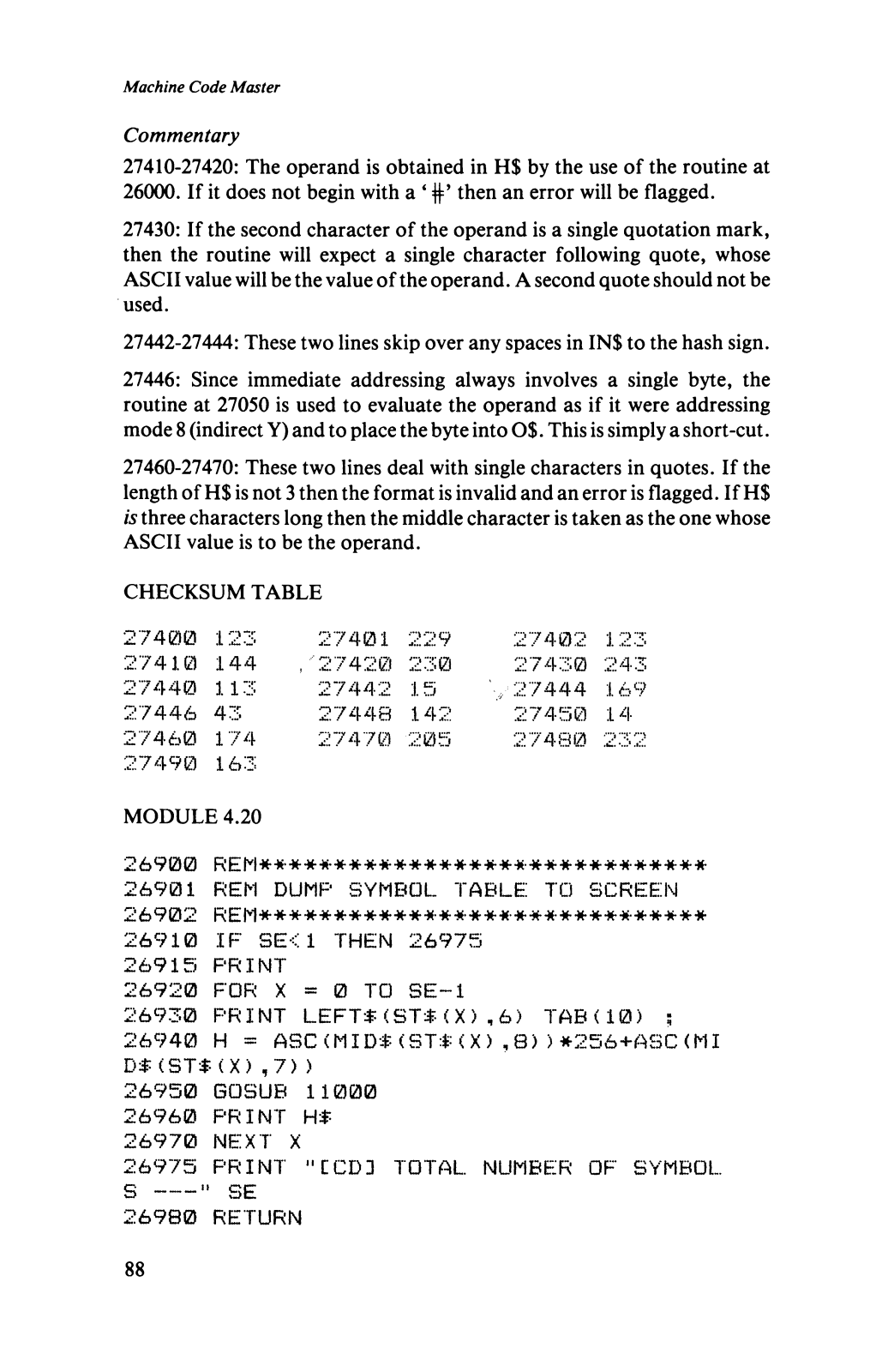

Machine Code Master

Commentary

27410-27420: The operand is obtained in H$ by the use of the routine at

26000. If it does not begin with a ‘ then an error will be flagged.
27430: If the second character of the operand is a single quotation mark,

then the routine will expect a single character following quote, whose
ASCII value will be the value of the operand. A second quote should not be
used.

27442-27444: These two lines skip over any spaces in INS to the hash sign.
27446: Since immediate addressing always involves a single byte, the

routine at 27050 is used to evaluate the operand as if it were addressing
mode 8 (indirect Y) and to place the byte into OS. This is simply a short-cut.

27460-27470: These two lines deal with single characters in quotes. If the
length of H$ is not 3 then the format is invalid and an error is flagged. If H$

is three characters long then the middle character is taken as the one whose

ASCII value is to be the operand.

CHECKSUM TABLE

27400

27410 144

27440 113 27442

27446

27460 174

123

43

27401 229 27402 123

, 27420 230 27430

15 V 27444
27448
27470

142 27450

205

27480

"? 4 3

169
14

232

27490 163

MODULE 4.20

26900 REM *** ********* *** **** *** *** **** *
26901 REM DUMP SYMBOL TABLE TO SCREEN
26902 REM *** ********* *** **** *** *** **** *
26910 IF SEC 1 THEN 26975
26915 PRINT
26920 FOR X = 0 TO SE-1
26930 PRINT LE F T *( S T * (X ),6 ) TAB (10) ;
26940 H = ASC(MID$(S T * < X >,8 ))*256+ASC(MI
DiMST'f-(X) ,7) )
26950 GOSUB

11000
26960 PRINT H*
26970 NEXT X
26975 PRINT "CCD3 TOTAL NUMBER OF SYMBOL
S

---

" SE

26980 RETURN

88

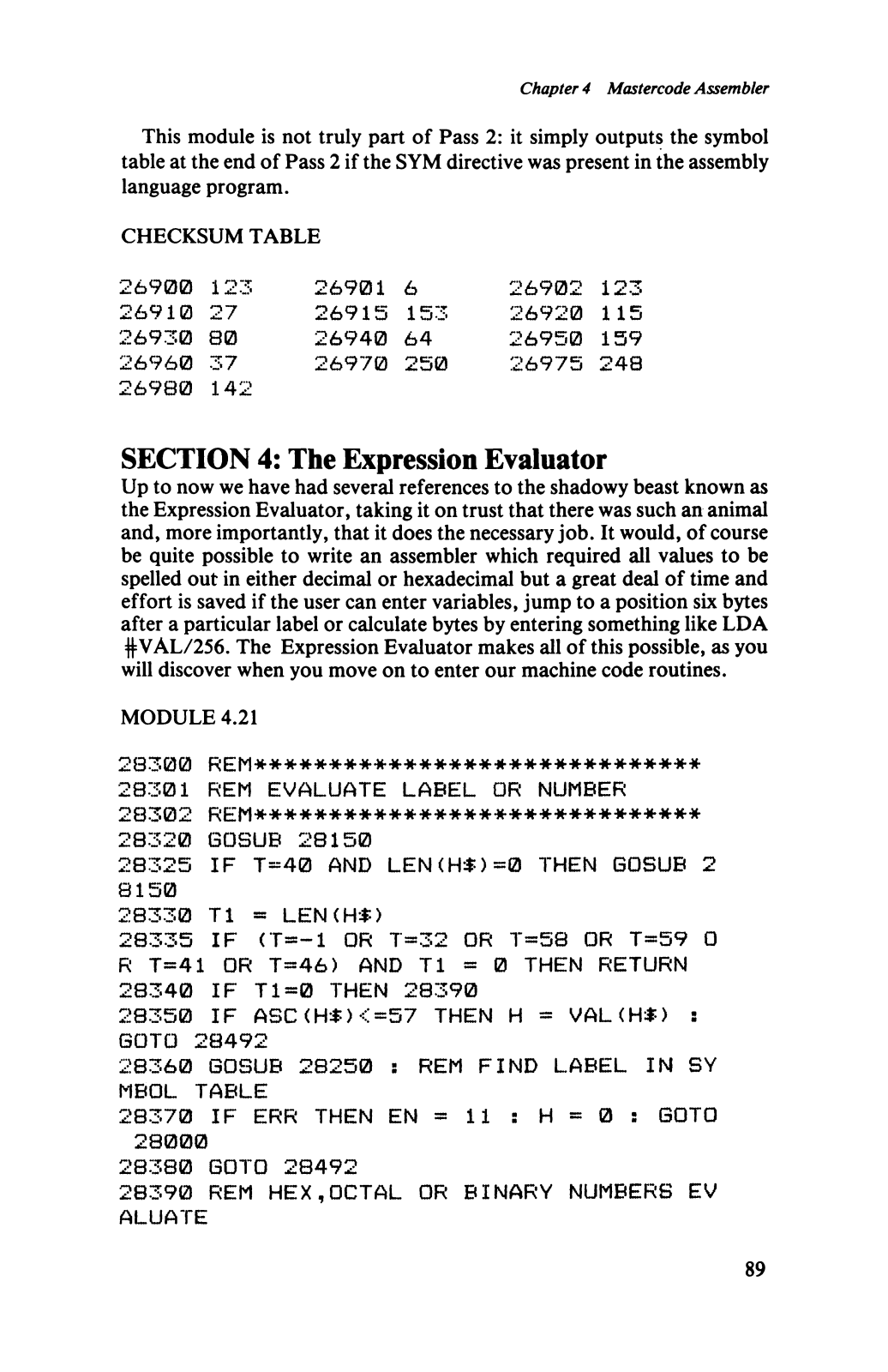

Chapter 4 Mastercode Assembler

This module is not truly part of Pass 2: it simply outputs the symbol
table at the end of Pass 2 if the SYM directive was present in the assembly
language program.

CHECKSUM TABLE

26900 123
26910 27
26930 80
26960 37

26901
26915 153 26920
26940
26970

6

26902 123

64 26950
250

26975 248

115
159

26980 142

SECTION 4: The Expression Evaluator

Up to now we have had several references to the shadowy beast known as
the Expression Evaluator, taking it on trust that there was such an animal
and, more importantly, that it does the necessary job. It would, of course
be quite possible to write an assembler which required all values to be

spelled out in either decimal or hexadecimal but a great deal of time and
effort is saved if the user can enter variables, jump to a position six bytes
after a particular label or calculate bytes by entering something like LDA

jfVAL/256. The Expression Evaluator makes all of this possible, as you

will discover when you move on to enter our machine code routines.

MODULE 4.21

28300 REM *** *** *** *** *** *** *** *** *** ***
28301 REM EVALUATE LABEL OR NUMBER
28302 REM* ****** *** *** *** *** *** *** *** **
28320 GOSUB 28150
28325 IF T=40 AND LEN( H$)=0 THEN GO SUB 2
8150
28330 T 1 - LEN(H$>
28335 IF (T=— l OR T=32 OR T=58 OR T=59 0
R T=41 OR T=46) AND T1 = 0 THEN RETURN

28340 IF T 1 =0 THEN 28390
28350 IF ASC<H*)<=57 THEN H = VAL(H$> :
GOTO 28492
28360 GOSUB 28250 : REM FIND LABEL IN SY
MBOL TABLE
28370 IF ERR THEN EN = 11 s H = 0 : GOTO

28000

28380 GOTO 28492

28390 REM HEX,OCTAL OR BINA RY NUM BERS EV
ALUATE

89

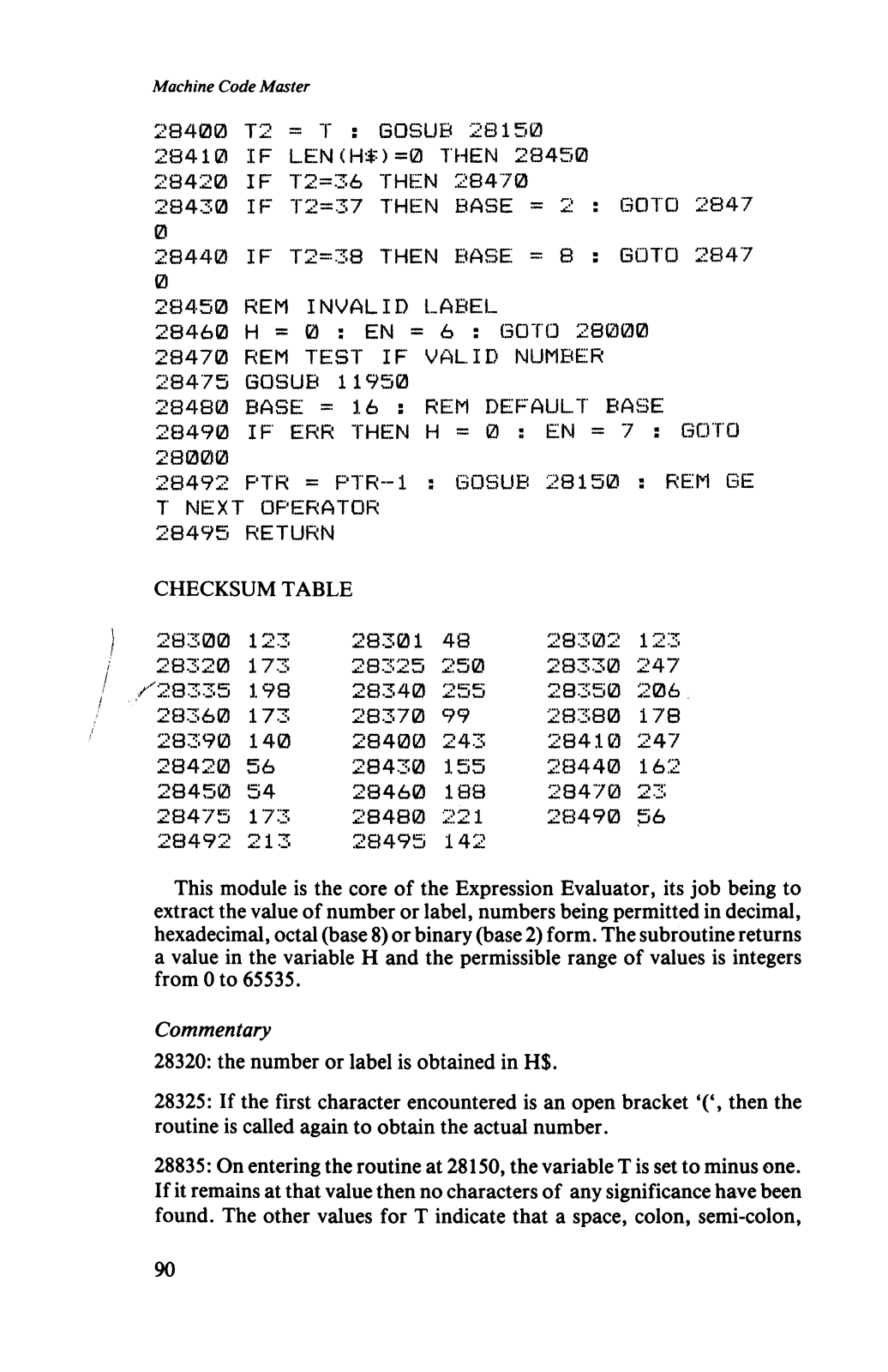

Machine Code Master

28400 T2 = T : GOSUB 28150
28410 IF L E N (H $)=0 THEN 28450
28420 IF T2=36 THEN 2847 0
28430 IF T2=37 THEN BASE = 2 : GOTO 2847
0
28440 IF T2=38 THEN BASE = 8 : GOTO 2847
0
28450 REM INVALID LABEL

28460 H = 0 : EN = 6 : GOTO 28000

28470 REM TEST IF VALID NUMBER

28475 GOSUB 11950
28480 BASE = 16 : REM DEFAULT BASE
28490

IF ERR THEN H = 0 :

EN = 7 : GOTO
28000
28492 PTR =

PTR - 1 :

GOSUB 28 15 0

: REM GE
T NEXT OPER ATOR
28495

CHECKSUM TABLE

RETURN

28300

123

28301

48

28302 123

28320 173 28325 250 28330 247

'28335 198 28340 255

28350 206
28360 173 28370 99 28380 178
28390
28420 56
28450 54
28475 173
28492 213

This module is the core of the Expression Evaluator, its job being to
extract the value of number or label, numbers being permitted in decimal,
hexadecimal, octal (base 8) or binary (base 2) form. The subroutine returns
a value in the variable H and the permissible range of values is integers
from 0 to 65535.

Commentary

28320: the number or label is obtained in H$.
28325: If the first character encountered is an open bracket ‘(‘, then the

routine is called again to obtain the actual number.
28835: On entering the routine at 28150, the variable T is set to minus one.

If it remains at that value then no characters of any significance have been
found. The other values for T indicate that a space, colon, semi-colon,

140 28400

28430
28460
28480
28495

243 28410

155 28440 162
188 28470

221 28490 56

142

247

90

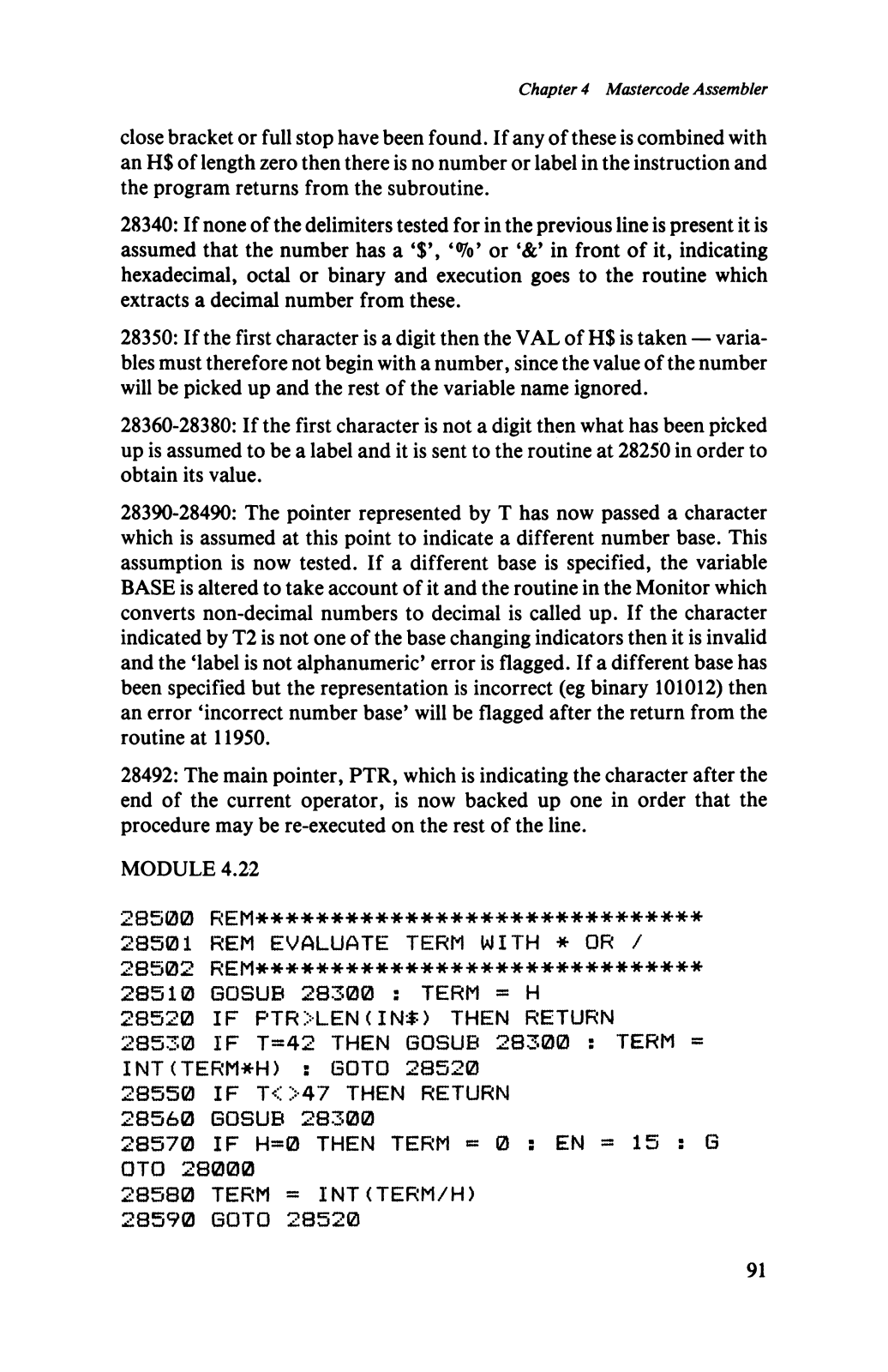

Chapter 4 Mastercode Assembler

close bracket or full stop have been found. If any of these is combined with
an H$ of length zero then there is no number or label in the instruction and
the program returns from the subroutine.

28340: If none of the delimiters tested for in the previous line is present it is
assumed that the number has a ‘$ \ ‘9o’ or in front of it, indicating
hexadecimal, octal or binary and execution goes to the routine which
extracts a decimal number from these.

28350: If the first character is a digit then the VAL of H$ is taken — varia
bles must therefore not begin with a number, since the value of the number
will be picked up and the rest of the variable name ignored.

28360-28380: If the first character is not a digit then what has been picked
up is assumed to be a label and it is sent to the routine at 28250 in order to
obtain its value.

28390-28490: The pointer represented by T has now passed a character
which is assumed at this point to indicate a different number base. This
assumption is now tested. If a different base is specified, the variable
BASE is altered to take account of it and the routine in the Monitor which
converts non-decimal numbers to decimal is called up. If the character
indicated by T2 is not one of the base changing indicators then it is invalid
and the ‘label is not alphanumeric’ error is flagged. If a different base has
been specified but the representation is incorrect (eg binary 101012) then
an error ‘incorrect number base’ will be flagged after the return from the
routine at 11950.

28492: The main pointer, PTR, which is indicating the character after the
end of the current operator, is now backed up one in order that the
procedure may be re-executed on the rest of the line.

MODULE 4.22

28500 REM******************************
28501 REM EVALUATE TERM WITH * OR /
28502 REM******************************
28510 BOSUB 28300 : TERM = H
28520 IF PTR>LEN(IN*> THEN RETURN
28530 IF T=42 THEN GOSUB 28300 s TERM =

INT <TERM*H> s GOTO 28520

28550 IF T< >47 THEN RETURN
28560 GOSUB 28300
28570 IF H=0 THEN TERM - 0 : EN = 15 : G
OTO 28000
28580 TERM = INT(TERM/H)

28590 GOTO 28520

91

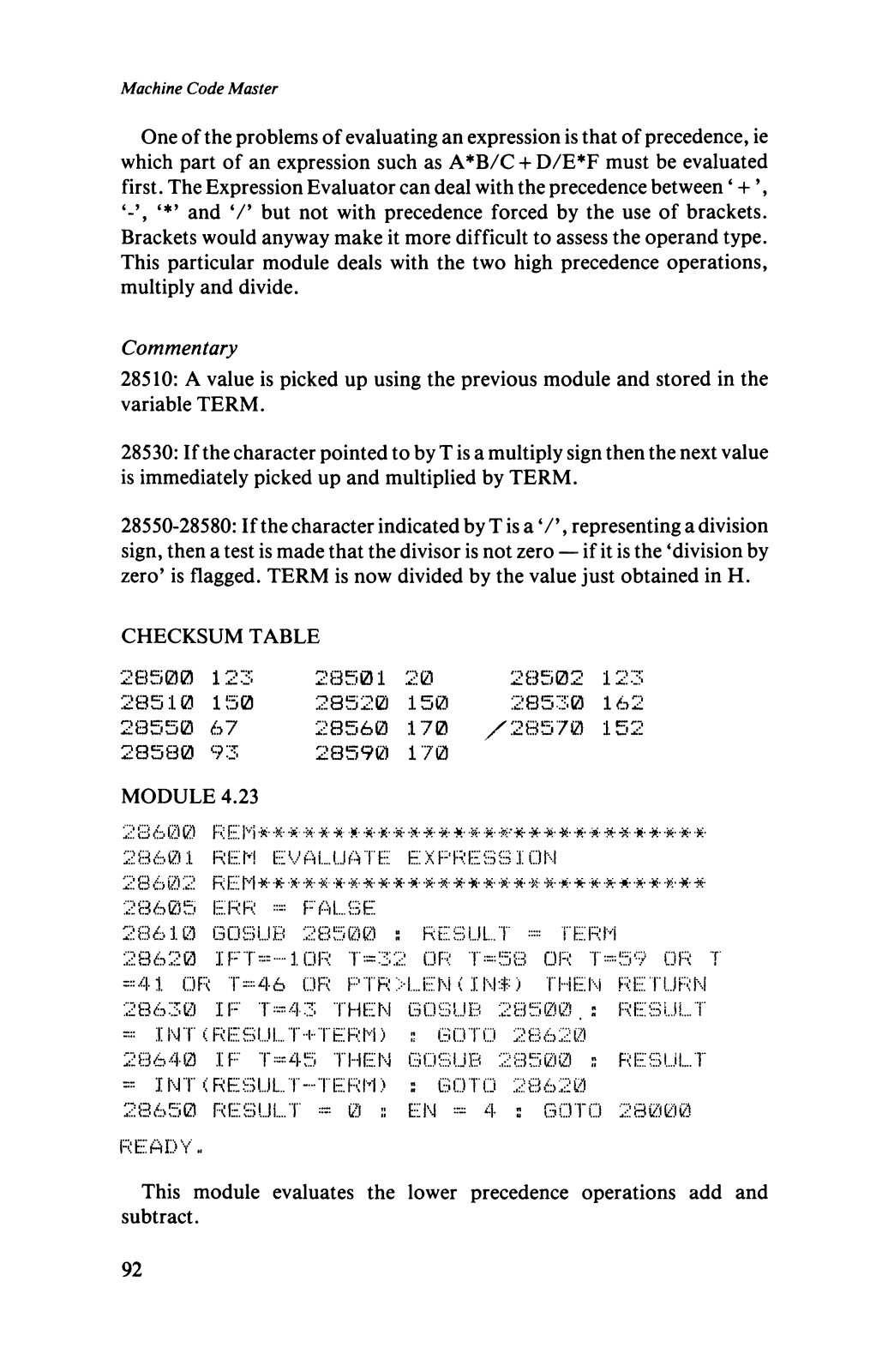

Machine Code Master

One of the problems of evaluating an expression is that of precedence, ie

which part of an expression such as A*B/C + D/E*F must be evaluated

first. The Expression Evaluator can deal with the precedence between ‘ + ’,

and 7* but not with precedence forced by the use of brackets.
Brackets would anyway make it more difficult to assess the operand type.
This particular module deals with the two high precedence operations,
multiply and divide.

Commentary

28510: A value is picked up using the previous module and stored in the
variable TERM.

28530: If the character pointed to by T is a multiply sign then the next value

is immediately picked up and multiplied by TERM.

28550-28580: If the character indicated by T is a V’, representing a division
sign, then a test is made that the divisor is not zero — if it is the ‘division by

zero’ is flagged. TERM is now divided by the value just obtained in H.

CHECKSUM TABLE

28500 123
28510 150
28550 67
28580 93

MODULE 4.23

28501 20
28520 150
28560 170
28590 170

28502 123

28530 162

28570 152

28600 R E lvi *• * •* ¥.■ * -»• # •* * * ■*

28601 R E M E V A L U A T E E X P R E 8 S I 0 N

28602 R EL' M * * * * * •*: * * * * * ¥.■ *:• * *

28605 ERR == FALSE

28610 GO SUE* 2B500 : RESULT ••= TERM

28620 I F T -

.

1 OR T=32 OR T=58 OR T=59 OR 7

=41 OR T=46 OR PTR>LEN<IN$) THEN RETURN

28630 IF T— 43 THEN GOSUB 28500.: RESULT
= I N T(EES U L T + T ERM) : GOTO 28620
28640 IF T=45 THEN GOSUB 28500 : RESULT
= INT(RESULT-TERM) : GOTO 28620

28650 RESULT = 0 :: EN = 4 : GOTO 28O00

READY

This module evaluates the lower precedence operations add and

subtract.

92

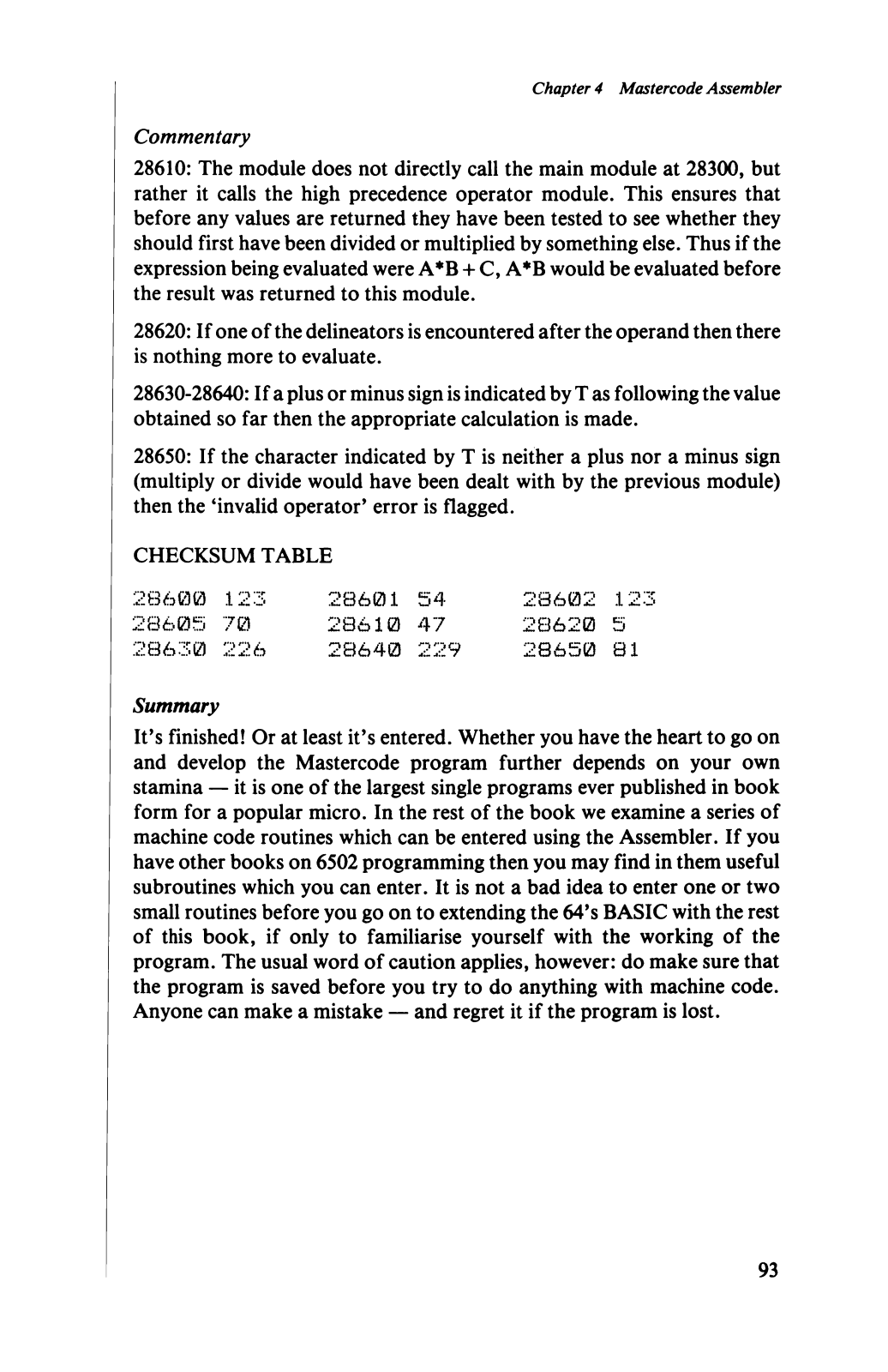

Chapter 4 Mastercode Assembler

Commentary

28610: The module does not directly call the main module at 28300, but
rather it calls the high precedence operator module. This ensures that
before any values are returned they have been tested to see whether they
should first have been divided or multiplied by something else. Thus if the
expression being evaluated were A*B + C, A*B would be evaluated before
the result was returned to this module.

28620: If one of the delineators is encountered after the operand then there
is nothing more to evaluate.

28630-28640: If a plus or minus sign is indicated by T as following the value
obtained so far then the appropriate calculation is made.

28650: If the character indicated by T is neither a plus nor a minus sign
(multiply or divide would have been dealt with by the previous module)
then the ‘invalid operator’ error is flagged.

CHECKSUM TABLE

28600 123 28601 54 28602 123
28605 70 28610 47 28620 5
28630 226 28640 229 28650 81

Summary

It’s finished! Or at least it’s entered. Whether you have the heart to go on

and develop the Mastercode program further depends on your own

stamina — it is one of the largest single programs ever published in book

form for a popular micro. In the rest of the book we examine a series of

machine code routines which can be entered using the Assembler. If you

have other books on 6502 programming then you may find in them useful

subroutines which you can enter. It is not a bad idea to enter one or two

small routines before you go on to extending the 64*s BASIC with the rest

of this book, if only to familiarise yourself with the working of the

program. The usual word of caution applies, however: do make sure that

the program is saved before you try to do anything with machine code.
Anyone can make a mistake — and regret it if the program is lost.

93

Part 2

95

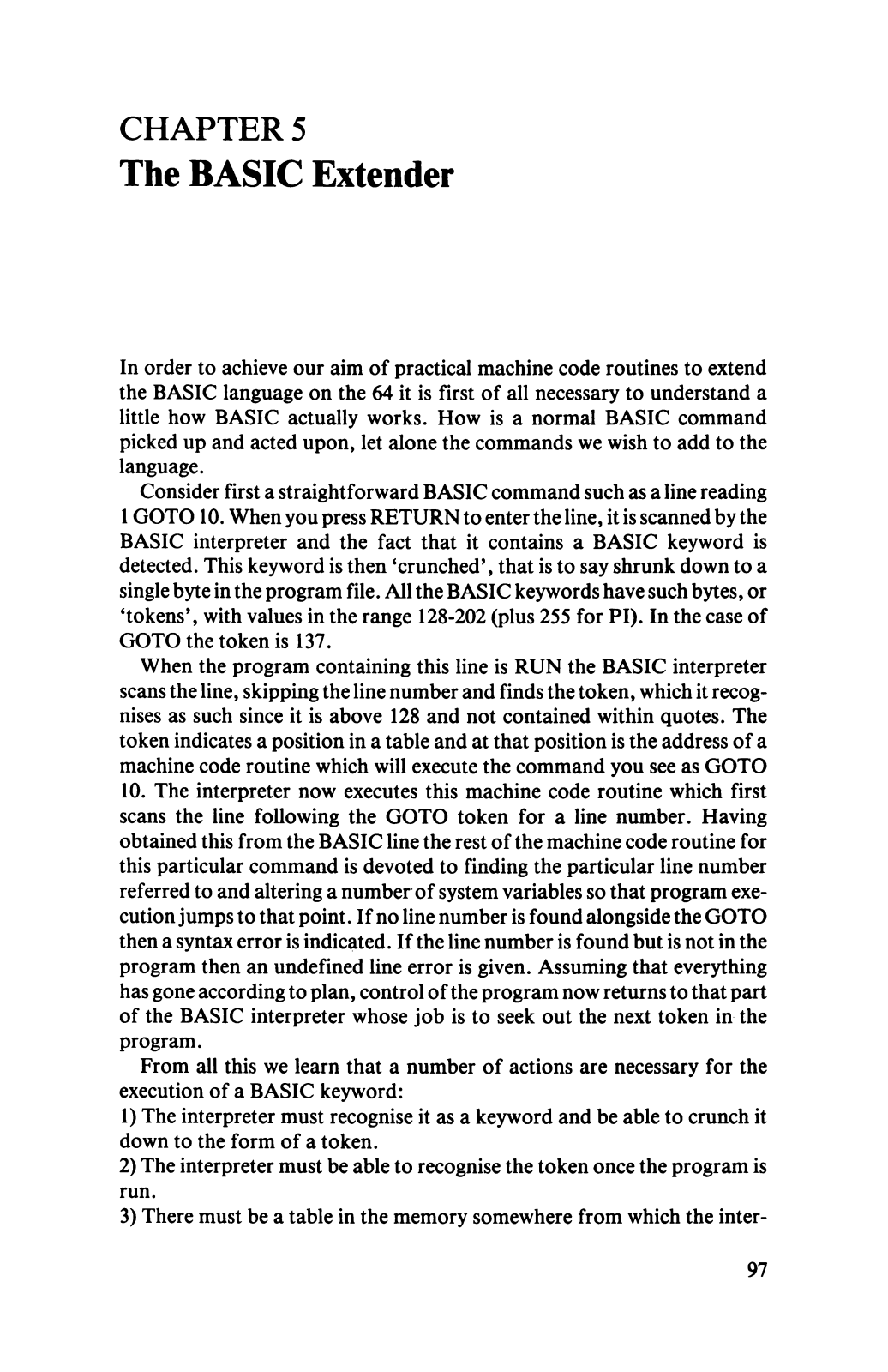

CHAPTER 5

The BASIC Extender

In order to achieve our aim of practical machine code routines to extend
the BASIC language on the 64 it is first of all necessary to understand a
little how BASIC actually works. How is a normal BASIC command

picked up and acted upon, let alone the commands we wish to add to the
language.

Consider first a straightforward BASIC command such as a line reading

1 GOTO 10. When you press RETURN to enter the line, it is scanned by the

BASIC interpreter and the fact that it contains a BASIC keyword is
detected. This keyword is then ‘crunched’, that is to say shrunk down to a

single byte in the program file. All the BASIC keywords have such bytes, or

‘tokens’, with values in the range 128-202 (plus 255 for PI). In the case of
GOTO the token is 137.

When the program containing this line is RUN the BASIC interpreter
scans the line, skipping the line number and finds the token, which it recog
nises as such since it is above 128 and not contained within quotes. The

token indicates a position in a table and at that position is the address of a

machine code routine which will execute the command you see as GOTO

10. The interpreter now executes this machine code routine which first
scans the line following the GOTO token for a line number. Having
obtained this from the BASIC line the rest of the machine code routine for

this particular command is devoted to finding the particular line number

referred to and altering a number of system variables so that program exe
cution jumps to that point. If no line number is found alongside the GOTO

then a syntax error is indicated. If the line number is found but is not in the

program then an undefined line error is given. Assuming that everything
has gone according to plan, control of the program now returns to that part
of the BASIC interpreter whose job is to seek out the next token in the
program.

From all this we learn that a number of actions are necessary for the

execution of a BASIC keyword:

1) The interpreter must recognise it as a keyword and be able to crunch it

down to the form of a token.

2) The interpreter must be able to recognise the token once the program is
run.

3) There must be a table in the memory somewhere from which the inter

97

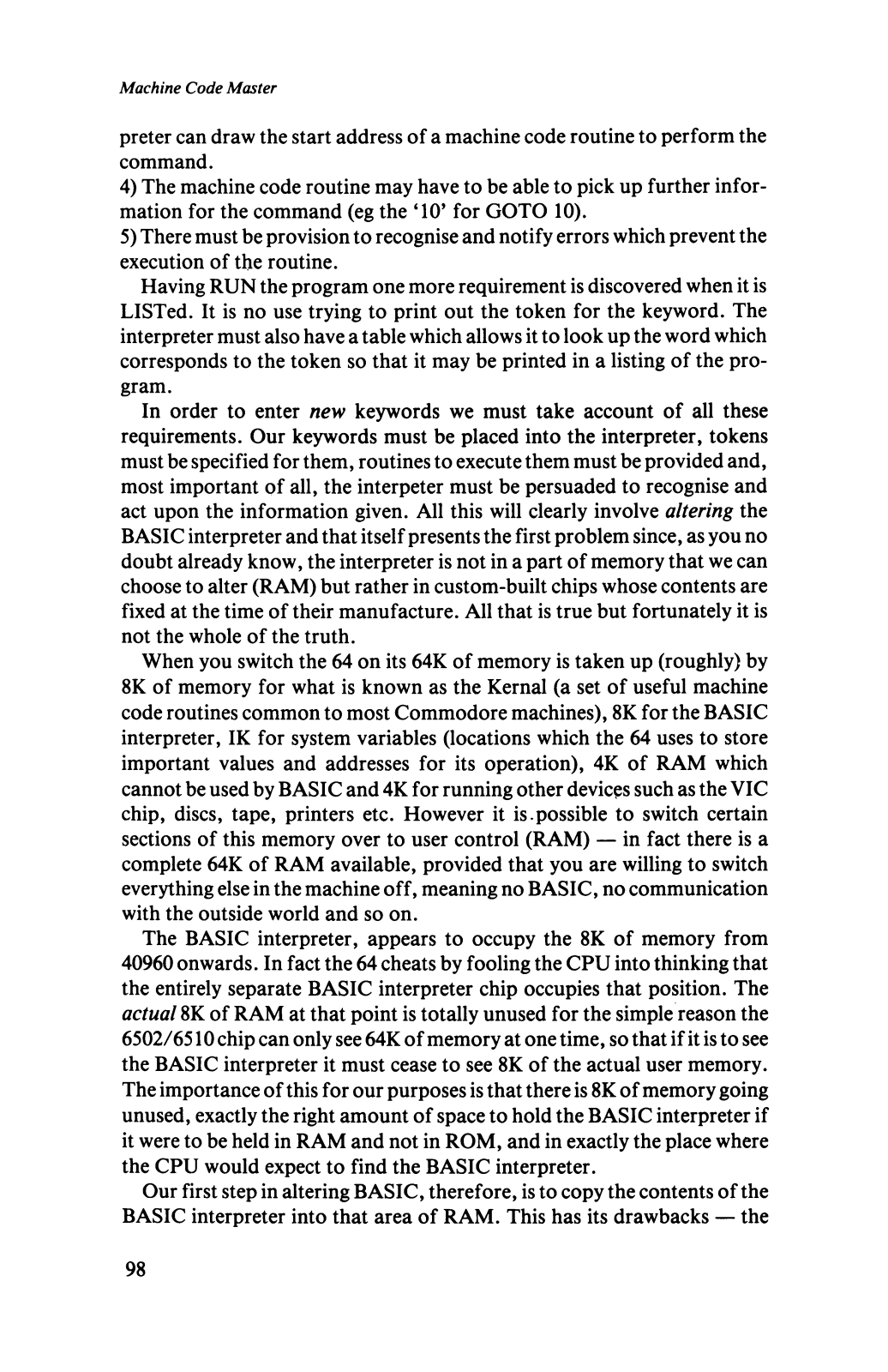

Machine Code Master

preter can draw the start address of a machine code routine to perform the
command.

4) The machine code routine may have to be able to pick up further infor
mation for the command (eg the ‘10’ for GOTO 10).

5) There must be provision to recognise and notify errors which prevent the
execution of the routine.

Having RUN the program one more requirement is discovered when it is
LISTed. It is no use trying to print out the token for the keyword. The
interpreter must also have a table which allows it to look up the word which
corresponds to the token so that it may be printed in a listing of the pro
gram.

In order to enter new keywords we must take account of all these
requirements. Our keywords must be placed into the interpreter, tokens
must be specified for them, routines to execute them must be provided and,
most important of all, the interpeter must be persuaded to recognise and
act upon the information given. All this will clearly involve altering the
BASIC interpreter and that itself presents the first problem since, as you no

doubt already know, the interpreter is not in a part of memory that we can

choose to alter (RAM) but rather in custom-built chips whose contents are

fixed at the time of their manufacture. All that is true but fortunately it is
not the whole of the truth.

When you switch the 64 on its 64K of memory is taken up (roughly) by

8K of memory for what is known as the Kernal (a set of useful machine
code routines common to most Commodore machines), 8K for the BASIC
interpreter, IK for system variables (locations which the 64 uses to store
important values and addresses for its operation), 4K of RAM which
cannot be used by BASIC and 4K for running other devices such as the VIC
chip, discs, tape, printers etc. However it is.possible to switch certain
sections of this memory over to user control (RAM) — in fact there is a
complete 64K of RAM available, provided that you are willing to switch
everything else in the machine off, meaning no BASIC, no communication
with the outside world and so on.

The BASIC interpreter, appears to occupy the 8K of memory from

40960 onwards. In fact the 64 cheats by fooling the CPU into thinking that
the entirely separate BASIC interpreter chip occupies that position. The

actual 8K of RAM at that point is totally unused for the simple reason the

6502/6510 chip can only see 64K of memory at one time, so that if it is to see
the BASIC interpreter it must cease to see 8K of the actual user memory.
The importance of this for our purposes is that there is 8K of memory going
unused, exactly the right amount of space to hold the BASIC interpreter if
it were to be held in RAM and not in ROM, and in exactly the place where
the CPU would expect to find the BASIC interpreter.

Our first step in altering BASIC, therefore, is to copy the contents of the

BASIC interpreter into that area of RAM. This has its drawbacks — the

98
