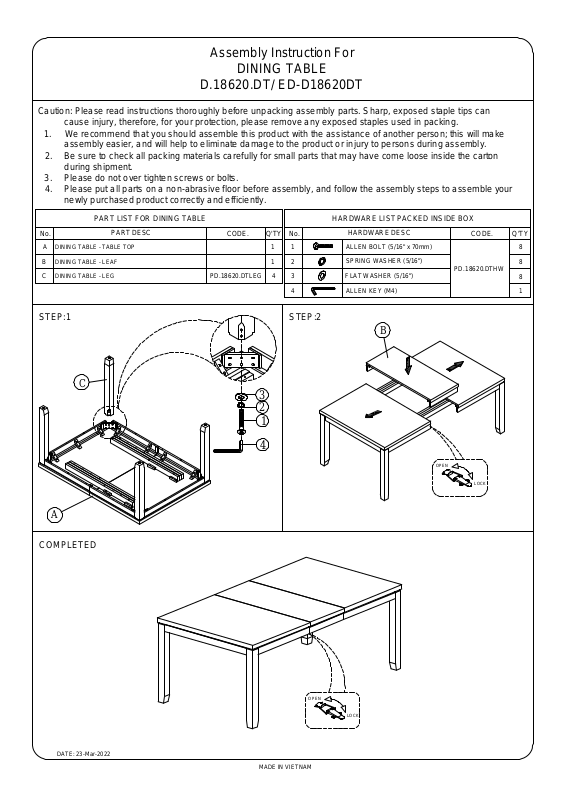

Assembly Instruction For
DINING TABLE
D.18620.DT/ ED-D18620DT
Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can
cause injury, therefore, for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton
during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently.
PART LIST FOR DINING TABLE
No.
A
DINING TABLE - TABLE TOP
B
DINING TABLE - LEAF
C
DINING TABLE - LEG
STEP:1
C
PART DESC
CODE.
PD.18620.DTLEG
3
2
4
1
Q'TY
1
1
4
No.
1
2
3
4
STEP:2
HARDWARE LIST PACKED INSIDE BOX
HARDWARE DESC
ALLEN BOLT (5/16" x 70mm)
SPRING WASHER (5/16")
FLAT WASHER (5/16")
ALLEN KEY (M4)
PD.18620.DTHW
B
OPEN
CODE.
LOCK
Q'TY
8
8
8
1
A
COMPLETED
DATE: 23-Mar-2022
OPEN
LOCK
MADE IN VIETNAM
Page 2
Assembly Instruction For
SLAT BACK SIDE CHAIR
D.18620.SSC/ ED-D18620SSC
Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can
cause injury, therefore, for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton
during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently.
PART LIST FOR CHAIR
No.
A
Side Chair - Back Frame
Side Chair - Seat Frame w/Cushion
B
Side Chair - Left & Right Front Legs
C
Side Chair - Left & Right Side Stretchers
D
PART DESC
CODE.
PD.18620.SSCBFR
PD.18620.SCSEA
PD.18620.SCLEG
PD.18620.SCSTR
Q'TY
1
1
2
2
No.
1
2
3
4
5
6
7
Step:1 Step:2
7
3
4
B
5
A
6
HARDWARE LIST PACKED INSIDE BOX
HARDWARE DESC
ALLEN BOLT (1/4" x 40mm)
ALLEN BOLT (1/4" x 60mm)
ALLEN BOLT (1/4" x 75mm)
SPRING WASHER (1/4")
FLAT WASHER (1/4")
SCREWS (M4 x 38mm)
ALLEN KEY M4
CODE.
PD.18620.SSCHW
D
Q'TY
2
4
4
10
10
4
1
5
4
2
7
7
1
4
5
DATE: 23-Mar-2022
Completed
MADE IN VIETNAM
Page 3
Assembly Instruction For
SERVER W/POWER PORT & USB
D.18620.SV/ ED-D18620SV
Caution: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can
cause injury, therefore, for your protection, please remove any exposed staples used in packing.
1. We recommend that you should assemble this product with the assistance of another person; this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton
during shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently.
No.
A
SERVER
STEP:1
PART LIST FOR SERVER
PART DESC
CODE.
Q'TY
1
No.
1
HARDWARE LIST
HARDWARE DESC
TIPPING RESTRAINT
1
A
CODE.
PD.18620.SVATK
Q'TY
1 set
DATE: 23-Mar-2022
POWER BOX
LEVELER
MADE IN VIETNAM
