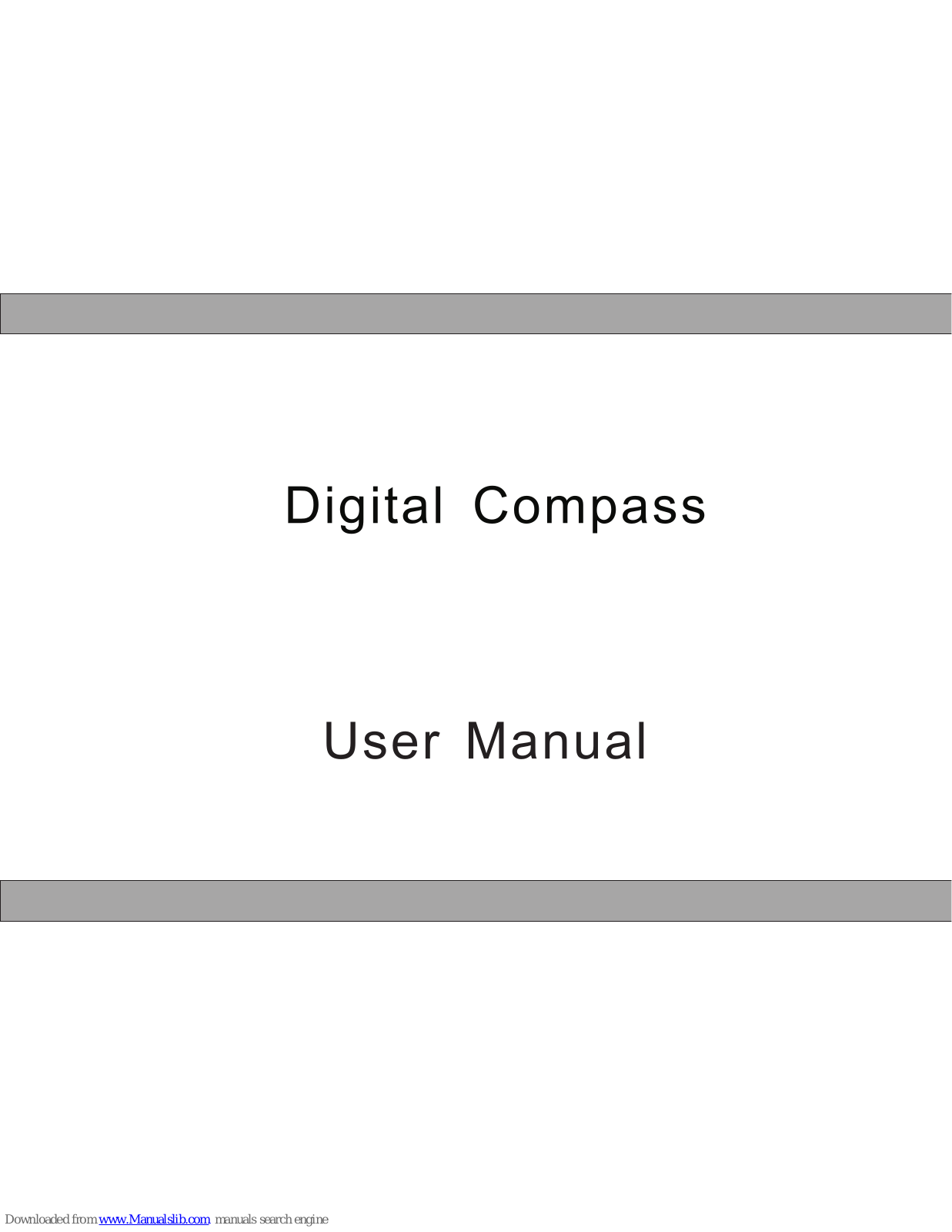

Sunroad SR104N User Manual

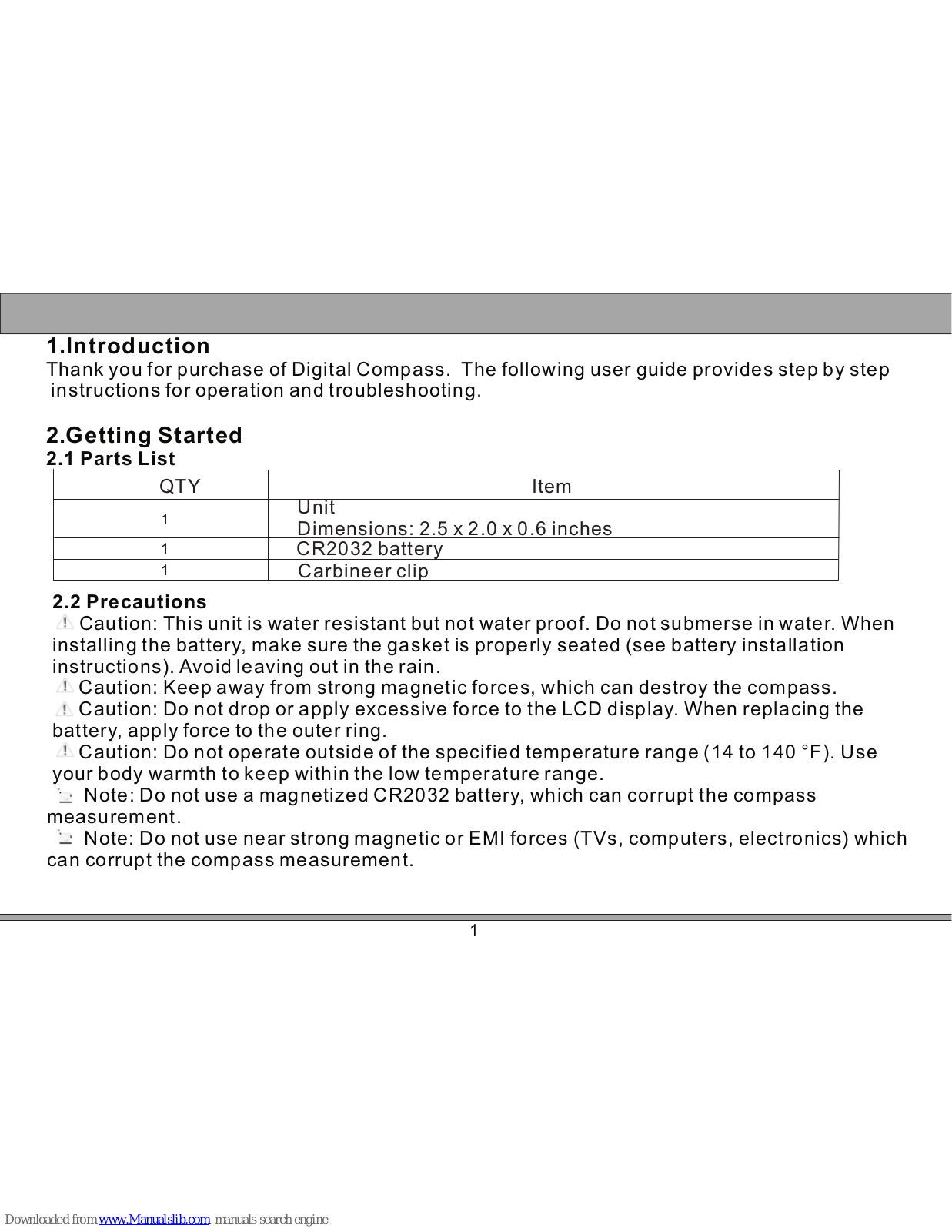

1.Introduction

Thank you for purchase of Digital Compass. The following user guide provides step by step
instructions for operation and troubleshooting.

2.Getting Started

2.1 Parts List

QTY Item

Unit
Dimensions: 2.5 x 2.0 x 0.6 inches

CR2032 battery
Carbineer clip

11

1

1

2.2 Precautions

Caution: This unit is water resistant but not water proof. Do not submerse in water. When
installing the battery, make sure the gasket is properly seated (see battery installation
instructions). Avoid leaving out in the rain.
Caution: Keep away from strong magnetic forces, which can destroy the compass.
Caution: Do not drop or apply excessive force to the LCD display. When replacing the
battery, apply force to the outer ring.
Caution: Do not operate outside of the specified temperature range (14 to 140 °F). Use
your body warmth to keep within the low temperature range.
Note: Do not use a magnetized CR2032 battery, which can corrupt the compass
measurement.
Note: Do not use near strong magnetic or EMI forces (TVs, computers, electronics) which
can corrupt the compass measurement.

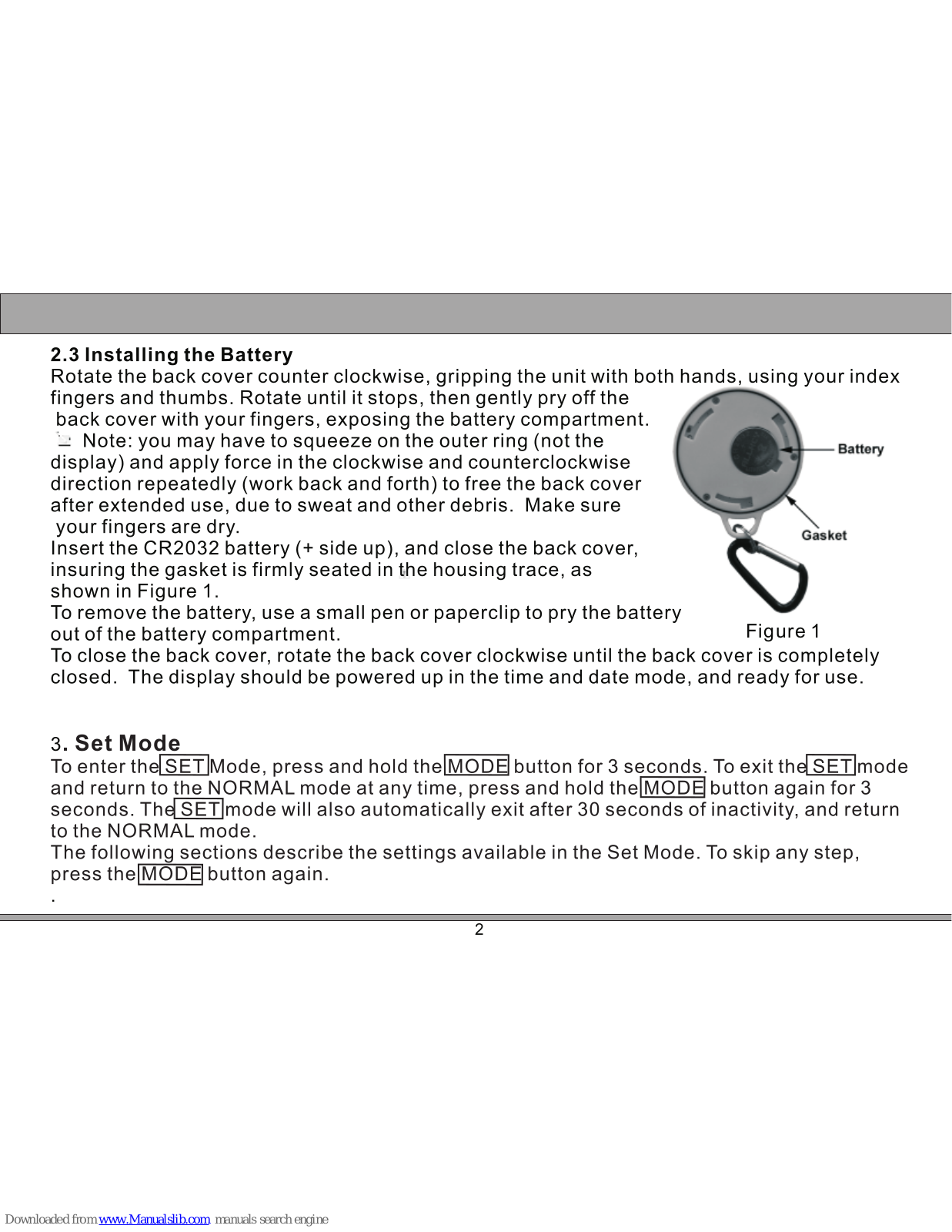

Figure 1
